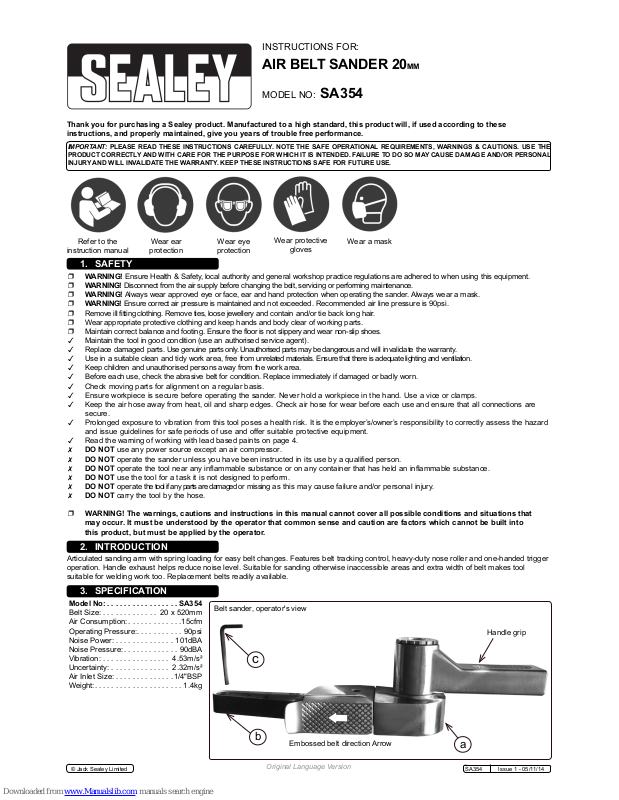

Sealey SA354 Instructions For
INSTRUCTIONS FOR:
AIR BELT SANDER 20MM
MODEL NO: SA354
1. SAFETY
3. SPECIFICATION
2. INTRODUCTION
SA354 Issue 1 - 05/11/14
Original Language Version
© Jack Sealey Limited
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL
INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this equipment.
WARNING! Disconnect from the air supply before changing the belt, servicing or performing maintenance.
WARNING! Always wear approved eye or face, ear and hand protection when operating the sander. Always wear a mask.
WARNING! Ensure correct air pressure is maintained and not exceeded. Recommended air line pressure is 90psi.
Remove ill fitting clothing. Remove ties, loose jewellery and contain and/or tie back long hair.
Wear appropriate protective clothing and keep hands and body clear of working parts.
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
Maintain the tool in good condition (use an authorised service agent).
Replace damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
Use in a suitable clean and tidy work area, free from unrelated materials. Ensure that there is adequate lighting and ventilation.
Keep children and unauthorised persons away from the work area.
Before each use, check the abrasive belt for condition. Replace immediately if damaged or badly worn.
Check moving parts for alignment on a regular basis.
Ensure workpiece is secure before operating the sander. Never hold a workpiece in the hand. Use a vice or clamps.
Keep the air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are
secure.
Prolonged exposure to vibration from this tool poses a health risk. It is the employer’s/owner’s responsibility to correctly assess the hazard
and issue guidelines for safe periods of use and offer suitable protective equipment.
Read the warning of working with lead based paints on page 4.
DO NOT use any power source except an air compressor.
DO NOT operate the sander unless you have been instructed in its use by a qualified person.
DO NOT operate the tool near any inflammable substance or on any container that has held an inflammable substance.
DO NOT use the tool for a task it is not designed to perform.
DO NOT operate the tool if any parts are damaged or missing as this may cause failure and/or personal injury.
DO NOT carry the tool by the hose.
WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that
may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into
this product, but must be applied by the operator.
Articulated sanding arm with spring loading for easy belt changes. Features belt tracking control, heavy-duty nose roller and one-handed trigger
operation. Handle exhaust helps reduce noise level. Suitable for sanding otherwise inaccessible areas and extra width of belt makes tool
suitable for welding work too. Replacement belts readily available.
Model No: .................SA354
Belt Size: . . . . . . . . . . . . . 20 x 520mm
Air Consumption: .............15cfm
Operating Pressure:...........90psi
Noise Power: ..............101dBA
Noise Pressure: ............. 90dBA
Vibration: ................ 4.53m/s²
Uncertainty: .............. 2.32m/s²
Air Inlet Size: ..............1/4"BSP
Weight:.....................1.4kg
c
a
Embossed belt direction Arrow
Refer to the
instruction manual
Wear ear
protection
Wear eye
protection
Wear protective
gloves
Wear a mask
b
Belt sander, operator's view
Handle grip
4. CONTENTS
5. OPERATION
fig.3
5.1. Air Supply
Recommended hook-up procedure is shown in fig.3.
5.1.1. Ensure Air sander trigger is in the "off" position (fig.1) before connecting to the air supply.
5.1.2. You will require an air pressure of 90psi, and an air flow according to specification.
WARNING! Ensure the air supply is clean and does not exceed 90psi while operating the tool. Too high an air pressure and unclean
air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
5.1.3. Drain the air tank daily. Water in the air line will damage the tool.
5.1.4. Clean the air inlet filter weekly.
5.1.5. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4” I.D. and fittings must have the same inside dimensions.
5.1.6. Keep the hose away from heat, oil and sharp edges. Check the hose for wear, and make certain that all connections are secure.
5.2. Couplings.
Vibration may cause failure if a quick change coupling is connected directly to the air sander. To overcome this, connect a leader hose `
to the sander (Sealey ref. AH2R or AH2R/38). A quick change coupling may then be used to connect the leader hose to the air line
recoil hose. See figs.3 & 4.
WARNING! Ensure that you read, understand and apply the safety instructions in Section 1.
WARNING! Disconnect from the air supply before changing the belt.
5.3. Setup
5.3.1. Unpack the product and check the contents, see fig.1. A set of 5 belts contains 1 of each of the following-: 40, 60, 80, 100 and 120 grit.
5.3.2. Once connected to the air supply the sander is started by squeezing the trigger (2).
5.3.3. To remove and replace the sanding belt push the nose roller (3) towards the drive pulley (4) against spring pressure. The nose roller
bracket (5) will retract and lock allowing removal/fitting of the belt. When the new belt is in position release the pulley bracket by pushing
in and holding the nose roller bracket (5), then press and hold the tension bar (6) whilst releasing the pressure on the nose roller
bracket.
5.3.4. The tracking of the belt can be altered by adjusting screw 'B', the recessed socket head c'sunk screw (see fig.2). DO NOT adjust screw
‘A’ unless loose; if loose tighten without clamping free running crowned pulley. The bracket is designed with an "angle set" in it, see
fig.5. Tightening screw 'B' will change this angle, hence affecting belt tracking.
fig.1
Bayonet
Bayonet
1
Item Part No Description Qty
a) SA345 Belt Sander 1
b) Sanding Belt 1 Set
c) 4mm Hex Key 1
B
A
5
3
6
4
b
7
Loosen to sweep
belt angle CW or ACW
fig.2
fig.4
2
SA354 Issue 1 - 05/11/14
Original Language Version
© Jack Sealey Limited
OIL DAILY
