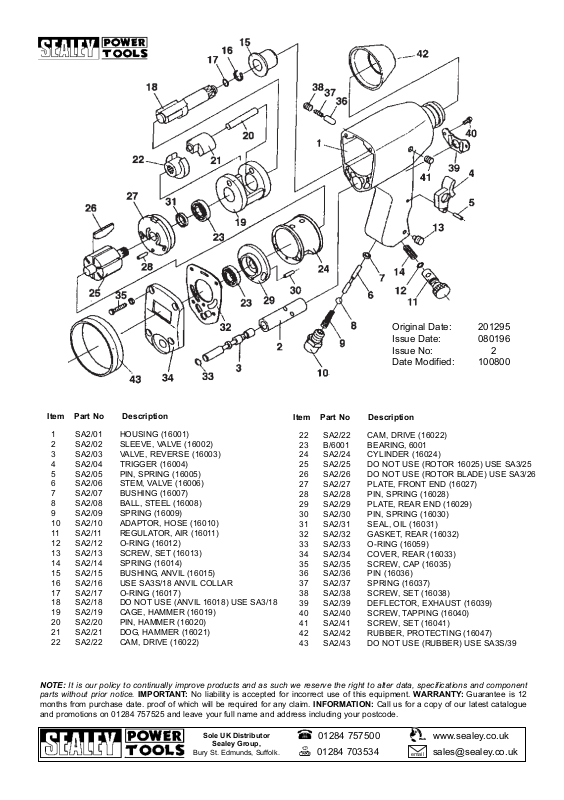

Page 1
Original Date: 201295
Issue Date: 080196
Issue No: 2
Date Modified: 100800
Item Part No Description
1 SA2/01 HOUSING (16001)
2 SA2/02 SLEEVE, VALVE (16002)
3 SA2/03 VALVE, REVERSE (16003)
4 SA2/04 TRIGGER (16004)
5 SA2/05 PIN, SPRING (16005)
6 SA2/06 STEM, VALVE (16006)
7 SA2/07 BUSHING (16007)
8 SA2/08 BALL, STEEL (16008)
9 SA2/09 SPRING (16009)
10 SA2/10 ADAPTOR, HOSE (16010)
11 SA2/11 REGULATOR, AIR (16011)
12 SA2/12 O-RING (16012)
13 SA2/13 SCREW, SET (16013)
14 SA2/14 SPRING (16014)
15 SA2/15 BUSHING, ANVIL (16015)
16 SA2/16 USE SA3S/18 ANVIL COLLAR
17 SA2/17 O-RING (16017)
18 SA2/18 DO NOT USE (ANVIL 16018) USE SA3/18
19 SA2/19 CAGE, HAMMER (16019)
20 SA2/20 PIN, HAMMER (16020)
21 SA2/21 DOG, HAMMER (16021)
22 SA2/22 CAM, DRIVE (16022)
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component
parts without prior notice. IMPORTANT: No liability is accepted for incorrect use of this equipment. WARRANTY: Guarantee is 12
months from purchase date. proof of which will be required for any claim. INFORMATION: Call us for a copy of our latest catalogue
and promotions on 01284 757525 and leave your full name and address including your postcode.
Sole UK Distributor
Sealey Group,
Bury St. Edmunds, Suffolk.
Item Part No Description
22 SA2/22 CAM, DRIVE (16022)
23 B/6001 BEARING, 6001
24 SA2/24 CYLINDER (16024)
25 SA2/25 DO NOT USE (ROTOR 16025) USE SA3/25
26 SA2/26 DO NOT USE (ROTOR BLADE) USE SA3/26
27 SA2/27 PLATE, FRONT END (16027)
28 SA2/28 PIN, SPRING (16028)
29 SA2/29 PLATE, REAR END (16029)
30 SA2/30 PIN, SPRING (16030)
31 SA2/31 SEAL, OIL (16031)
32 SA2/32 GASKET, REAR (16032)
33 SA2/33 O-RING (16059)
34 SA2/34 COVER, REAR (16033)
35 SA2/35 SCREW, CAP (16035)
36 SA2/36 PIN (16036)
37 SA2/37 SPRING (16037)
38 SA2/38 SCREW, SET (16038)
39 SA2/39 DEFLECTOR, EXHAUST (16039)
40 SA2/40 SCREW, TAPPING (16040)
41 SA2/41 SCREW, SET (16041)
42 SA2/42 RUBBER, PROTECTING (16047)
43 SA2/43 DO NOT USE (RUBBER) USE SA3S/39
