PC455, PC477, PC455AK1, PC477AK1 - 1 - 010606
Issue No: 1
Date: 010606

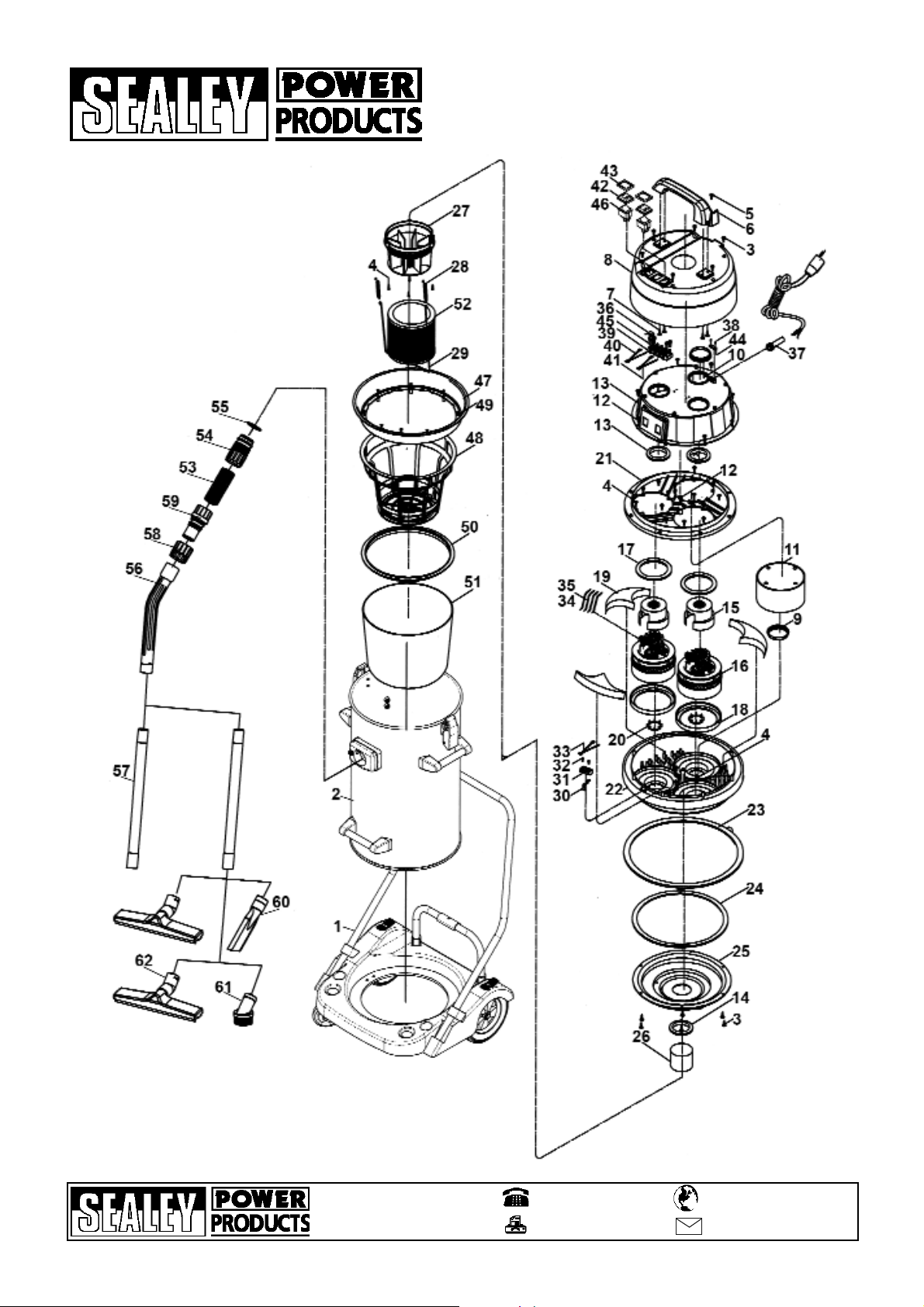

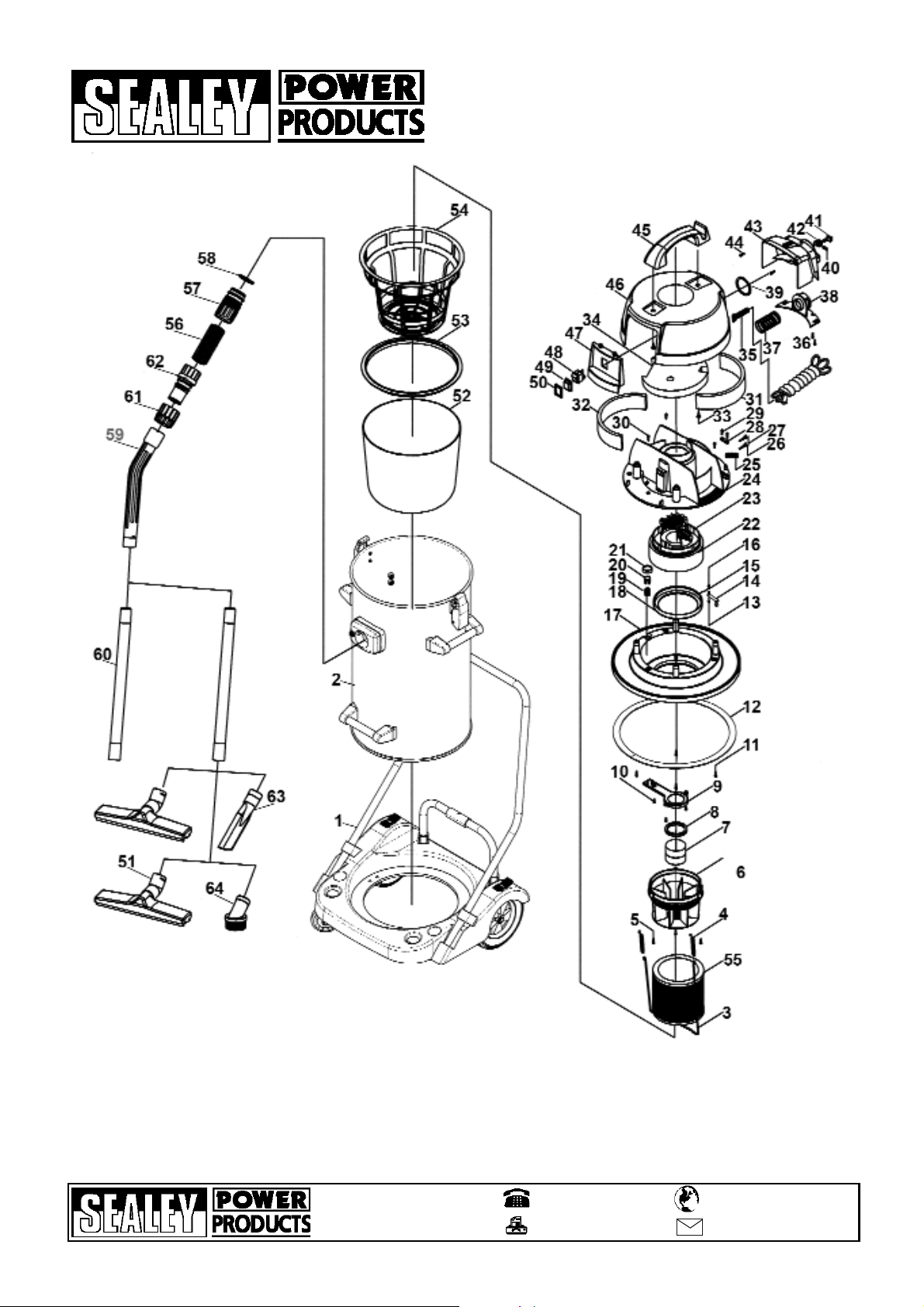

PARTS LIST FOR:
VACUUM CLEANER
Model:
PC455
01284 757500
01284 703534
Sole UK Distributor
Sealey Group,
Bury St. Edmunds, Suffolk.
www.sealey.co.uk
We
email
Page 2

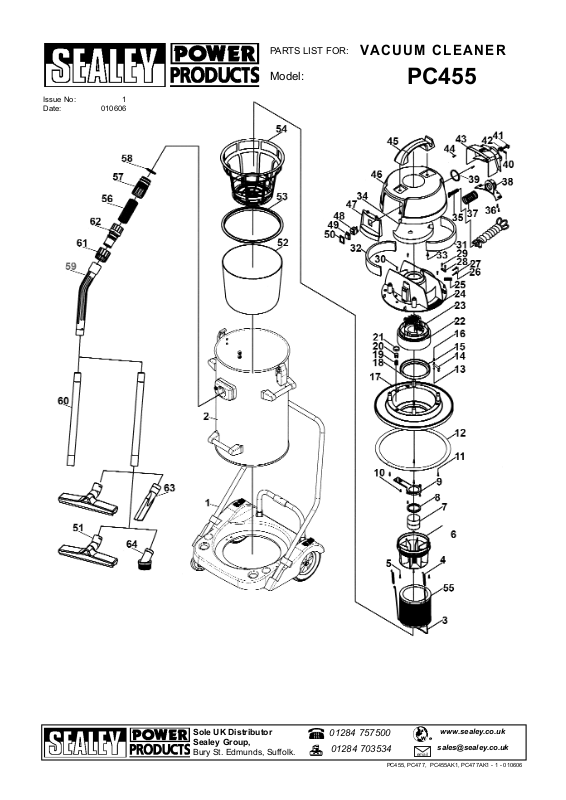

PARTS LIST FOR:
VACUUM CLEANER
Model:
PC455
Item Part No. Description
1 PC455.01 TROLLEY ASSEMBLY
2 PC455.02 TANK ASSEMBLY
3 PC455.03-1 HOOK
4 PC455.03-3 HOOK
5 PC455.03-4 SCREW
6 PC455.03-5 FRAME
7 PC455.03-6 FLOAT
8 PC455.03-7 GASKET
9 PC455.03-8 HOLDER
10 PC455.03-9 SCREW (M4x10)
11 PC455.03-10 SCREW (M4x18)
12 PC455.03-11 SEAL
13 PC455.03-12 SCREW
14 PC455.03-13 PLATE
15 PC455.03-14 WIRE
16 PC455.03-15 NUT
17 PC455.03-16 MOTOR BASE
18 PC455.03-17 GASKET
19 PC455.03-18 SPRING
20 PC455.03-19 CLIP
21 PC455.03-20 PLUG
22 PC455.03-21 SPONGE
23 PC455.03-22 MOTOR
24 PC455.03-23 MIDDLE MOTOR BASE
25 PC455.03-24 TERMINAL BLOCK
26 PC455.03-25 WIRE "A"
27 PC455.03-26 WIRE "B"
28 PC455.03-27 PLATE
29 PC455.03-28 SCREW (3.5x12)
30 PC455.03-29 SCREW (M5x20)
31 PC455.03-30 SPONGE "C"
32 PC455.03-31 SPONGE "B"
Item Part No. Description
33 PC455.03-32 SCREW (1/4" x 15)
34 PC455.03-33 SPONGE "A"
35 PC455.03-35 CORD HOLDER
36 PC455.03-36 SCREW (M4x16)
37 PC455.03-37 SPRING
38 PC455.03-38 HOLDER
39 PC455.03-39 GASKET
40 PC455.03-40 SPRING
41 PC455.03-41 BUTTON
42 PC455.03-42 HOLDER
43 PC455.03-43 HOLDER
44 PC455.03-44 SCREW (M4x16)
45 PC455.03-45 HANDLE
46 PC455.03-46 TOP COVER
47 PC455.03-47 FRONT COVER
48 PC455.03-48 SWITCH
49 PC455.03-49 TRANSPARENT COVER
50 PC455.03-50 TRANSPARENT COVER
51 PC455.06 BRUSH NOZZLE COMPLETE
52 PC455.04-1 CLOTH
53 PC455.04-2 GASKET
54 PC455.04-3 FRAME
55 PC455.PF PAPER FILTER FOR PC455
56 PC455.05-1 HOSE 3m
57 PC455.05-2 CONNECTOR
58 PC455.05-3 SEAL
59 PC455.05-4 ELBOW CONNECTOR
60 PC455.05-5 TUBE EXTENSION
61 PC455.05-6 CONNECTOR
62 PC455.05-7 CONNECTOR
63 PC455.05-8 CREVICE TOOL
64 PC455.05-9 ROUND BRUSH
PC455, PC477, PC455AK1, PC477AK1 - 1 - 010606
01284 757500
01284 703534
Sole UK Distributor
Sealey Group,
Bury St. Edmunds, Suffolk.
www.sealey.co.uk
We
email
Page 3
PARTS LIST FOR:
VACUUM CLEANER
Model:
PC477
PC455, PC477, PC455AK1, PC477AK1 - 1 - 010606
Issue No: 1
Date: 010606
01284 757500
01284 703534
Sole UK Distributor
Sealey Group,
Bury St. Edmunds, Suffolk.
www.sealey.co.uk
We
email
Page 4
Item Part No. Description
1 PC477.01 TROLLEY ASS'Y
2 PC477.02 TANK ASS'Y
3 PC477.04-1 SCREW (M5x16)
4 PC477.04-2 SCREW (M5x20)
5 PC477.04-3 SCREW (M5x63)
6 PC477.04-4 HANDLE
7 PC477.04-5 SCREW
8 PC477.04-6 TOP HOUSING
9 PC477.04-7 BLOCKER
10 PC477.04-8 UPPER BLOCKER
11 PC477.04-9 BLANKING CAP
12 PC477.04-10 SCREW
13 PC477.04-11 MIDDLE COVER
14 PC477.04-12 GASKET
15 PC477.04-13 FAN COVER
16 PC455.03-22 MOTOR
17 PC477.04-15 FOAM FILTER
18 PC477.04-16 GASKET
19 PC477.04-17 FOAM FILTER
20 PC477.04-18 BLANKING PLATE
21 PC477.04-19 BASE
22 PC477.04-20 MOTOR BASE
23 PC477.04-21 GASKET
24 PC477.04-22 GASKET
25 PC477.04-23 BOTTOM BASE
26 PC477.04-25 FLOAT
27 PC477.04-26 FLOAT FRAME
28 PC477.04-27 SPRING
29 PC477.04-29 HOOK
30 PC477.04-30 PLATE
31 PC477.04-31 PLATE
PARTS LIST FOR:
VACUUM CLEANER
Model:
PC477
PC455, PC477, PC455AK1, PC477AK1 - 1 - 010606
Item Part No. Description
32 PC477.04-32 SCREW (M3x8)
33 PC477.04-33 WIRE
34 PC477.05-11 WIRE
35 PC477.05-12 WIRE
36 PC477.05-13 CAPACITOR
37 PC477.05-2 CORD HOLDER
38 PC477.05-4 SCREW
39 PC477.05-5 TERMINAL BLOCK
40 PC477.05-6 WIRE
41 PC477.05-7 WIRE
42 PC477.05-8 TRANSPARENT COVER
43 PC477.05-9 TRANSPARENT COVER
44 PC455.03-27 PLATE
45 PC455.03-44 SCREW (M4x16)
46 PC455.03-48 SWITCH
47 PC477.03-1 FRAME HOLDER
48 PC477.03-2 FRAME
49 PC477.03-3 SCREW (M4x18)
50 PC477.03-4 FIXING RING
51 PC477.03-5 CLOTH FILTER
52 PC477.PF PAPER FILTER FOR PC477
53 PC455.05-1 HOSE 3m
54 PC455.05-2 CONNECTOR
55 PC455.05-3 SEAL
56 PC455.05-4 ELBOW CONNECTOR
57 PC455.05-5 TUBE EXTENSION
58 PC455.05-6 CONNECTOR
59 PC455.05-7 CONNECTOR
60 PC455.05-8 CREVICE TOOL
61 PC455.05-9 ROUND BRUSH
62 PC477.07 BRUSH NOZZLE COMPLETE
