INSTRUCTIONS
INDUSTRIAL VACUUM CLEANER 30LTR
FOR MODEL:
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS, AND
CAUTIONS. USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO
MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
PC300SD.V3
1. SAFETY INSTRUCTIONS
1.1 ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other
connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety devices. A
Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend that a Residual Current
Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a supply which is not protected
by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual Current Device by contacting your Sealey dealer.
You must also read and understand the following instructions concerning electrical safety.
1.1.1 The Electricity at Work Act 1989 requires that all portable electrical appliances, if used on business premises, are tested by a
qualified electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2 The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances
and the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3 Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. See 1.1.1. and 1.1.2.
and use a Portable Appliance Tester.
1.1.4 Ensure that cables are always protected against short circuit and overload.
1.1.5 Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that none is loose.
1.1.6 Important: Ensure that the voltage marked on the appliance matches the power supply
to be used and that the plug is fitted with the correct fuse - see fuse rating at right.
1.1.7 DO NOT pull or carry the appliance by the power cable.
1.1.8 DO NOT pull the plug from the socket by the cable.
1.1.9 DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty
item repaired or replaced by a qualified electrician. When a BS 1363/A UK 3 pin plug is
damaged, cut the cable just above the plug and dispose of the plug safely.

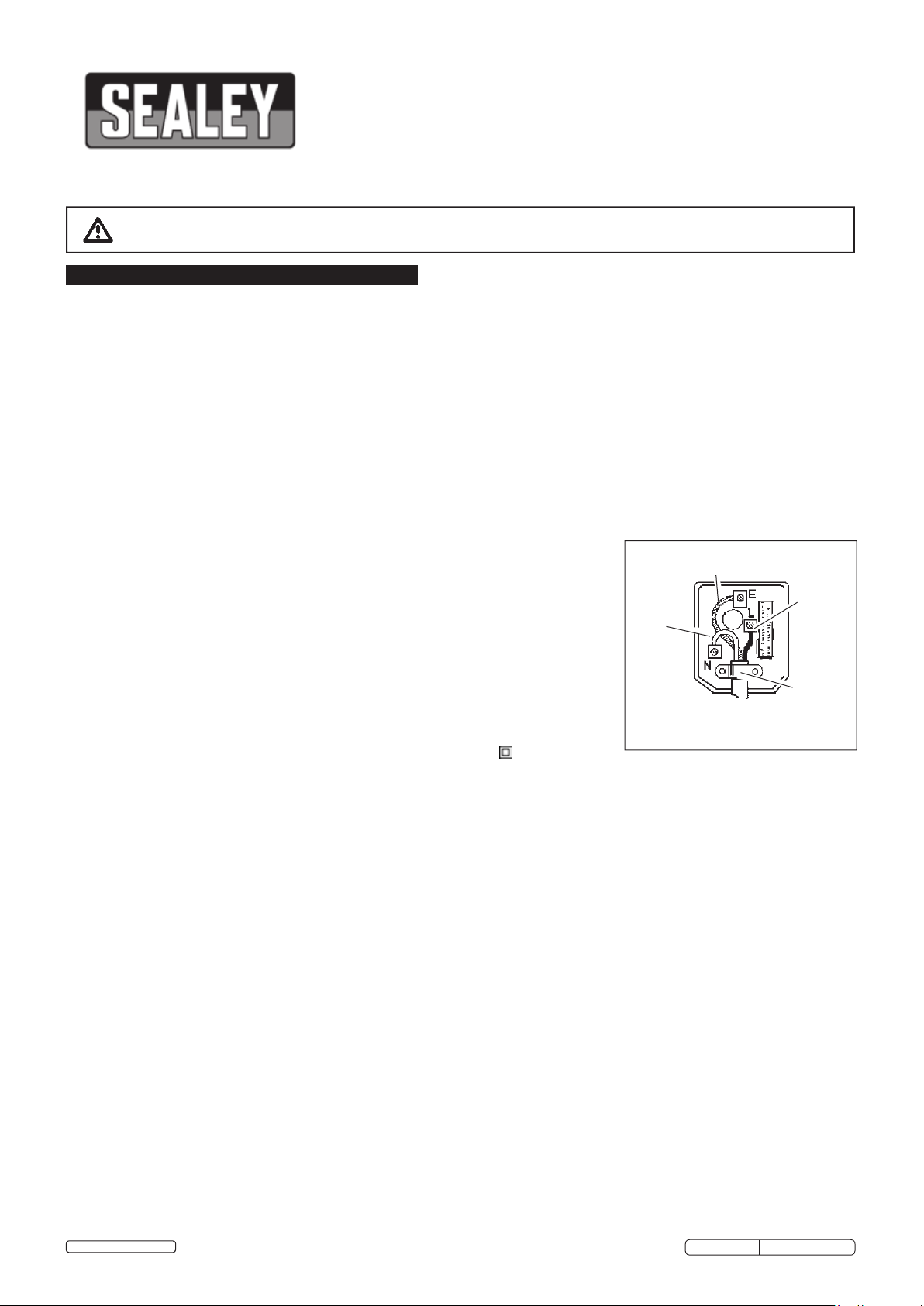

Fit a new plug according to the following instructions (UK only).
a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
d) After wiring, check that there are no bare wires, that all wires have been correctly
connected, that the cable outer insulation extends beyond the cable restraint and that
the restraint is tight.
Double insulated products, which are always marked with this symbol , are fitted with live
(brown) and neutral (blue) wires only. To rewire, connect the wires as indicated above - DO NOT connect either wire to the earth
terminal.
1.1.10 Products which require more than 13 amps are supplied without a plug. In this case you must contact a qualified electrician to ensure
that a suitably rated supply is available. We recommend that you discuss the installation of an industrial round pin plug and
socket with your electrician.
1.1.11 If an extension reel is used it should be fully unwound before connection. A reel with an RCD fitted is preferred since any appliance
plugged into it will be protected. The cable core section is important and should be at least 1.5mm² but to be absolutely sure that the
capacity of the reel is suitable for this product and for others which may be used in the other output sockets, we recommend the use
of 2.5mm² section cable.
Blue
Neutral
Wire
FUSE RATING
Yellow & Green
Earth Wire
Brown
Live
Wire
Cable
Restraint
13 AMP
1.2 GENERAL SAFETY
Disconnect the cleaner from the power supply before servicing, changing accessories, or performing any maintenance.
Use only genuine parts and accessories. Unauthorised parts and accessories may be dangerous and will invalidate your warranty.
Maintain the cleaner in good condition. Use an authorised agent for servicing. Keep machine clean, but DO NOT use solvents.
For dry vacuuming ensure the cartridge filter is firmly in place before operating the cleaner.
DO NOT operate the unit without the cartridge filter in place (except when wet vacuuming). Using the cleaner without a cartridge filter
will cause machine faults and will invalidate your warranty.
Wear protective clothing and gloves.
DO NOT allow children or untrained persons to operate the cleaner.
DO NOT place attachments close to your face (especially eyes, ears, etc). Do not point the hose end at other persons or animals.
DANGER! DO NOT vacuum hot or glowing ash, cigarette ends, inflammable, explosive, corrosive or other dangerous substances.
DO NOT operate the unit without the dust bag or optional cartridge filter (except when wet vacuuming).
DO NOT leave machine running unattended. Turn power supply OFF, and DO NOT leave the vicinity until motor has come to a complete
stop.
DO NOT operate the cleaner while under the influence of drugs, alcohol or impairing medication, or if you are tired.
DO NOT use the cleaner in the rain or in very damp conditions.
DO NOT use the cleaner for a task it is not designed to perform.
When not in use, store the cleaner in a safe, dry, childproof location.
© Jack Sealey Limited
Original Language Version
PC300SD.V3 Issue:3(L) - 07/06/16
2. CONTENTS AND SPECIFICATIONS
2.1 Carton content
2.1.1 Carefully unpack the carton.
2.1.2 Locate the two side clasps (fig.1.6) which hold the top section
(fig.1.3) in place.
2.1.3 Undo the clasps, remove the top section and take out the items
in the container.
2.1.4 Check and identify each component as listed below. If anything
is missing or damaged please contact your supplier immediately.
2.2 Specification
Motor: ......................................230V / 1400W
Max. Vacuum Pressure .............................160mbar
Air Flow ........................................... 120M³/h
Container ............................................ 30ltr
Weight .............................................7.4kg
Vac Accessories Ø: ...................................35mm
Filter (See Sect.9 ‘Consumables’) - Dry: ...........Cartridge Filter
Filter (See Sect.9 ‘Consumables’) - Wet: ...................Foam
Item Description Item Description
1 Handle 11 Telescopic suction tube
2 ON/OFF switch 12 Blow connection
3 Top section 13 Combination nozzle
4 Filter basket 14 air regulator handle
5 Safety float valve 15 Foam filter
6 Clasp 16 Crevice nozzle
7 Container, (Stainless Steel) 17 Cartridge filter (fitted as
8 Vacuum hose connection standard)
9 Drain Plug 18 Noise Diffuse muffler
10 Flexible vacuum hose
fig.1
3. ASSEMBLY
3.1 Ensure the mains plug is disconnected. (fig.2.1)
3.2 Undo clasps. (fig.2.2)
3.3 Lift off the top section assembly. (fig.2.3)
3.4 Remove contents from inside the container. (fig.2.4)
3.5a Turn the container upside down and insert the castors ensuring they
are pushed all the way in. (fig.2.5a)
3.5b Insert the rear wheel shaft (N) into the rear support block. Insert washer
(M) on the shaft, then insert rear wheel (K) on the shaft. Insert the
lock pin (R) into the hole on the end of the shaft to lock the wheel. Snap
the hub cap (O) on to the wheel. Repeat the same steps at the other
end of the shaft. (fig.2.5b)
3.6 For wet vacuum cleaning fit the supplied foam filter. (fig.2.7)
3.7 For dry vacuum cleaning use the cartridge filter supplied. (fig.2.6)
NOTE: Do not operate the cleaner without a cartridge filter fitted as
this will damage the machine and invalidate your warranty.
3.8 Replace the top section onto the container. (fig.2.8)
3.9 Align up the top section with the clasps and snap into place, by applying
pressure at the mid point of the clasps. (fig.2.9)
3.10 Insert the large end of the hose into the front inlet of the container and
lock in place by turning clockwise a quarter turn. (fig.2.10)
3.11 Choose the desired nozzle and push it onto the telescopic suction tube.
fig.2
4. DRY VACUUM CLEANING
WARNING! Ensure you read, understand and apply Section 1 ‘Safety Instructions’.
Reminder: DO NOT vacuum hazardous substances. Use of an incorrect cartridge filter will invalidate your warranty.
4.1 Ensure the machine is unplugged from the power supply. (fig.3.1)
4.2 Remove the top section and fit the cartridge filter down over the
filter basket and push fully home. (fig.3.2)
4.3 Reposition the head onto the drum body, and clip in place. (fig.3.3)
4.4 Insert the larger end of the flexible hose into the front inlet on the
container and lock in place. Push the required attachment onto
the free end of the hose. (fig.3.4)
4.5 Plug in the power supply.
4.6 Switch to the ‘On’ (position ‘I’).
4.7 When you have completed vacuuming, press the switch to ‘Off’
(fig.3.5)
(fig.3.6)
fig.3
5. WET VACUUM CLEANING
WARNING! Ensure you read, understand and apply Section 1 ‘Safety Instructions’. Reminder: Remove plug from power supply
before opening unit. DO NOT vacuum solvents, explosives, inflammable and/or hazardous liquids such as petrol, oil, spirits, paint,
thinners, acids etc.
