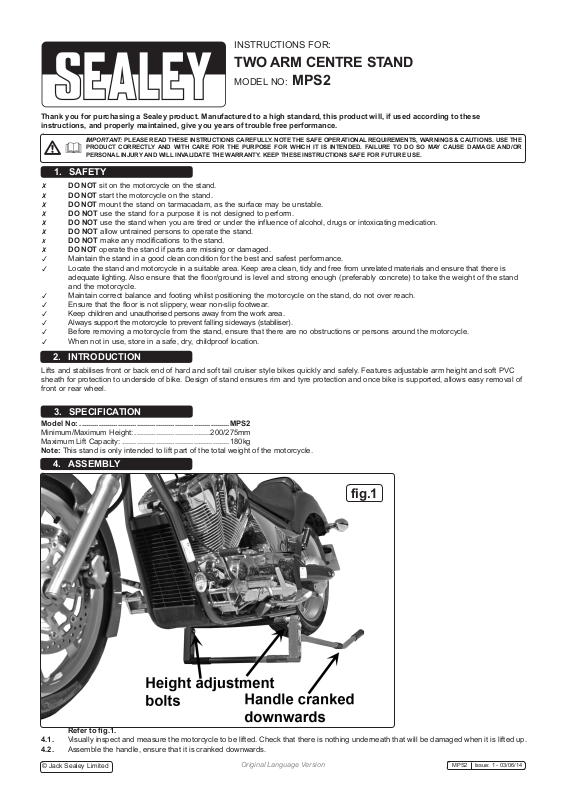

Page 1
INSTRUCTIONS FOR:
TWO ARM CENTRE STAND
MODEL NO: MPS2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
DO NOT sit on the motorcycle on the stand.
DO NOT start the motorcycle on the stand.
DO NOT mount the stand on tarmacadam, as the surface may be unstable.
DO NOT use the stand for a purpose it is not designed to perform.
DO NOT use the stand when you are tired or under the influence of alcohol, drugs or intoxicating medication.
DO NOT allow untrained persons to operate the stand.
DO NOT make any modifications to the stand.
DO NOT operate the stand if parts are missing or damaged.
Maintain the stand in a good clean condition for the best and safest performance.
Locate the stand and motorcycle in a suitable area. Keep area clean, tidy and free from unrelated materials and ensure that there is
adequate lighting. Also ensure that the floor/ground is level and strong enough (preferably concrete) to take the weight of the stand
and the motorcycle.
Maintain correct balance and footing whilst positioning the motorcycle on the stand, do not over reach.
Ensure that the floor is not slippery, wear non-slip footwear.
Keep children and unauthorised persons away from the work area.
Always support the motorcycle to prevent falling sideways (stabiliser).
Before removing a motorcycle from the stand, ensure that there are no obstructions or persons around the motorcycle.
When not in use, store in a safe, dry, childproof location.
2. INTRODUCTION
Lifts and stabilises front or back end of hard and soft tail cruiser style bikes quickly and safely. Features adjustable arm height and soft PVC
sheath for protection to underside of bike. Design of stand ensures rim and tyre protection and once bike is supported, allows easy removal of
front or rear wheel.
3. SPECIFICATION
Model No: .......................................................................MPS2
Minimum/Maximum Height: ....................................200/275mm
Maximum Lift Capacity: ...................................................180kg
Note: This stand is only intended to lift part of the total weight of the motorcycle.
4. ASSEMBLY
fig.1
Refertog.1.
4.1. Visually inspect and measure the motorcycle to be lifted. Check that there is nothing underneath that will be damaged when it is lifted up.
4.2. Assemble the handle, ensure that it is cranked downwards.
© Jack Sealey Limited
Original Language Version
MPS2 Issue: 1 - 03/06/14
Page 2
5. OPERATION
5.1. Position the motorcycle alongside the centre stand and slide it underneath.
5.2. Whilst holding the handlebars push down on the centre stand handle to bring the stand upright, see fig.2. Push the handle down to the
floor to bring the stand to its over centre position, see fig.3.
fig.2
fig.3
6. MAINTENANCE
6.1. Before each use, check all parts. If any part of the stand is damaged or defective, remove it from service and take the necessary action
to remedy the problem.
6.2. Keep the stand clean and wipe off any oil or grease.
6.3. When the stand is not in use, store it in a safe, dry, childproof location.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
© Jack Sealey Limited
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
When the product becomes completely unserviceable and requires disposal, drain off any fluids (if applicable)
into approved containers and dispose of the product and the fluids according to local regulations.
