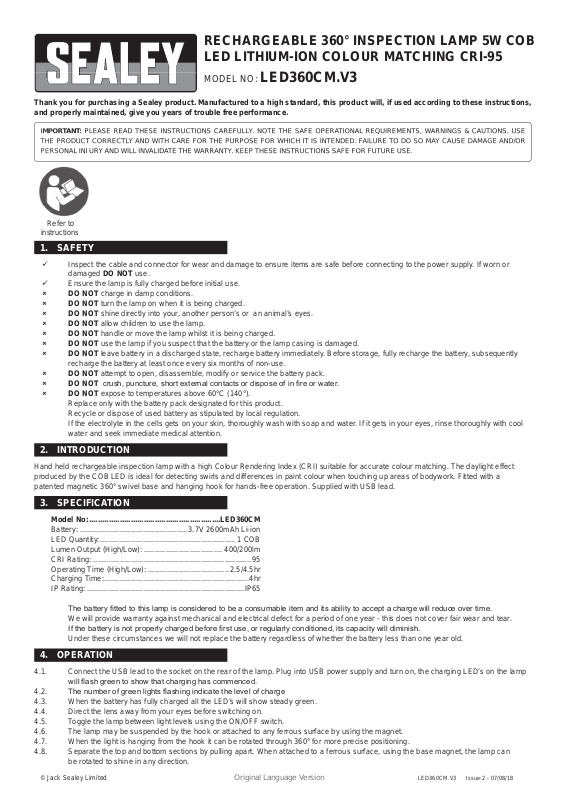

Sealey LED360CM.V3 Instruction Booklet

RECHARGEABLE 360° INSPECTION LAMP 5W COB

I

MPORTANT:

PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

LED LITHIUM-ION COLOUR MATCHING CRI-95

MODEL NO: LED360CM.V3

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.

Refer to
instructions

1. SAFETY

9 Inspect the cable and connector for wear and damage to ensure items are safe before connecting to the power supply. If worn or

damaged DO NOT use.

9 Ensure the lamp is fully charged before initial use.
8 DO NOT charge in damp conditions.
8 DO NOT turn the lamp on when it is being charged.
8 DO NOT shine directly into your, another person’s or an animal’s eyes.
8 DO NOT allow children to use the lamp.
8 DO NOT handle or move the lamp whilst it is being charged.
8 DO NOT use the lamp if you suspect that the battery or the lamp casing is damaged.
8 DO NOT leave battery in a discharged state, recharge battery immediately. Before storage, fully recharge the battery, subsequently

recharge the battery at least once every six months of non-use.
8 DO NOT attempt to open, disassemble, modify or service the battery pack.
8 DO NOT crush, puncture, short external contacts or dispose of in re or water.
8 DO NOT expose to temperatures above 60°C (140°).

Replace only with the battery pack designated for this product.
Recycle or dispose of used battery as stipulated by local regulation.
If the electrolyte in the cells gets on your skin, thoroughly wash with soap and water. If it gets in your eyes, rinse thoroughly with cool

water and seek immediate medical attention.

2. INTRODUCTION

Hand held rechargeable inspection lamp with a high Colour Rendering Index (CRI) suitable for accurate colour matching. The daylight effect
produced by the COB LED is ideal for detecting swirls and differences in paint colour when touching up areas of bodywork. Fitted with a
patented magnetic 360° swivel base and hanging hook for hands-free operation. Supplied with USB lead.

3. SPECIFICATION

Model No: ............................................................LED360CM

Battery: .................................................3.7V 2600mAh Li-ion

LED Quantity: .............................................................. 1 COB

Lumen Output (High/Low): .................................... 400/200lm

CRI Rating: ........................................................................95

Operating Time (High/Low): .....................................2.5/4.5hr

Charging Time: ..................................................................4hr

IP Rating: ........................................................................IP65

The battery tted to this lamp is considered to be a consumable item and its ability to accept a charge will reduce over time.

We will provide warranty against mechanical and electrical defect for a period of one year - this does not cover fair wear and tear.

If the battery is not properly charged before rst use, or regularly conditioned, its capacity will diminish.

Under these circumstances we will not replace the battery regardless of whether the battery less than one year old.

4. OPERATION

4.1. Connect the USB lead to the socket on the rear of the lamp. Plug into USB power supply and turn on, the charging LED’s on the lamp

will ash green to show that charging has commenced.

4.2. The number of green lights ashing indicate the level of charge

4.3. When the battery has fully charged all the LED’s will show steady green.

4.4. Direct the lens away from your eyes before switching on.

4.5. Toggle the lamp between light levels using the ON/OFF switch.

4.6. The lamp may be suspended by the hook or attached to any ferrous surface by using the magnet.

4.7. When the light is hanging from the hook it can be rotated through 360° for more precise positioning.

4.8. Separate the top and bottom sections by pulling apart. When attached to a ferrous surface, using the base magnet, the lamp can
be rotated to shine in any direction.

© Jack Sealey Limited

Original Language Version

LED360CM.V3 Issue:2 - 07/08/18

g.1

Parts support is available for this product. To obtain parts, please log on to www.sealey.co.uk, email [e-mail]

or telephone [phone]

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.

WEEE REGULATIONS

Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.

BATTERY REMOVAL
Remove the 6 screws on the back of the lamp. Remove the back casing and disconnect the wiring from the circuit board.
Remove the 2 battery mounting screws. Dispose of according to local government guidelines. Remove the 2 battery mounting

screws. Dispose of according to local government guidelines. Under the Waste Batteries and Accumulators Regulations 2009,

Jack Sealey Ltd are required to inform potential purchasers of products containing batteries (as defined within these regulations), that
they are registered with Valpak’s registered compliance scheme. Jack Sealey Ltd’s Batteries Producer Registration Number (BPRN) is
BPRN00705.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.

Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
