instructions for
MPORTANT:
PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
industrial high velocity fan
model no: hvf20s
thank you for purchasing a sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
refer to
instructions
indoor use
only
1. safety
1.1. electrical safety
Warning! it is the user’s responsibility to check the following:
check all electrical equipment and appliances to ensure that they are safe before using. inspect power supply leads, plugs and all
electrical connections for wear and damage. sealey recommend that an rcd (residual current device) is used with all electrical
products. You may obtain an rcd by contacting your local sealey dealer.
if the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAt (Portable
Appliance test) tested.
electrical safety information, it is important that the following information is read and understood.
1.1.1. ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the
correct fuse - see fuse rating in these instructions.
8 do not pull or carry the appliance by the power cable.
8 do not pull the plug from the socket by the cable.
8 do not use worn or damaged cables, plugs or connectors. ensure that any faulty item is repaired or
replaced immediately by a qualied electrician.
1.1.4. This product is tted with a BS1363/A 13 Amp 3 pin plug.
if the cable or plug is damaged during use, switch off the electricity supply and remove from use.
Ensure that repairs are carried out by a qualied electrician.
Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualied electrician.
A) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
B) Connect the BROWN live wire to the live terminal ‘L’.
C) Connect the BLUE neutral wire to the neutral terminal ‘N’.
ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
Sealey recommend that repairs are carried out by a qualied electrician.
if an extension reel is used it should be fully unwound before connection. A reel with an rcd fitted is
preferred since any appliance plugged into it will be protected. the cable core section is important
and should be at least 1.5mm², but to be absolutely sure that the capacity of the reel is suitable
for this product and for others which may be used in the other output sockets, we recommend the use of 2.5mm² section cable. if
extension reel is to be used outdoors, ensure it is marked for outdoor use.
1.2. general safety
9 disconnect the fan from the mains power when not in use and before servicing or performing any maintenance.
9 use the fan in dry areas only. do not use in wet or areas with high condensation such as showers, pools etc.
Warning! if a fan falls into water or other liquid, immediately switch off and disconnect from the mains power supply. do not touch
the fan until the mains power supply has been disconnected.
9 Always disconnect the fan from the power supply when moving it from one location to another and ensure fan is stood on a level
surface.
9 The fan air flow is powerful. Before use ensure that there is nothing nearby that will be damaged or displaced by the stream of air.
9 Keep the fan clean and maintained in good condition. for motor service contact an authorised service agent.
9 use recommended parts only. unapproved parts may be dangerous, and will invalidate your warranty.
8 do not operate the fan where there are explosive or flammable gases, fumes or other hazardous substances.
8 do not stand the fan on the power cable.
8 do not insert any objects through the fan guard.
8 do not cover the fan when in use.
8 do not immerse the fan in water or any other liquid.
8 do not allow children to operate the fan.
8 do not stand the fan where it may be knocked over or off a surface, or where the lead may cause a person to trip.
8 do not modify speed control or attempt to fit any additional external speed control device to the fan.
9 When not in use place the fan in its original box or cover to protect from dust and store in a safe, dry, childproof location.
recoMMended
fuse rating 3 aMP
© Jack sealey limited
Original Language Version
HVF20S | Issue 4(H, F, 4, 5 ) 16/11/17
note: this appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. children shall not play with the appliance. cleaning and user
maintenance shall not be made by children without supervision.
2. introduction
High velocity fan suitable for movement of huge volumes of air. robust unit with heavy duty gauge steel casing, guard and frame. featuring a
360° tilt function allowing for the direction of air flow to be positioned anywhere on a 360° axis. Carefully balanced and fully guarded blades
provide quiet and safe operation. Fitted with British Standard fully approved plug. Suitable for use in industrial, commercial, agricultural, automotive
workshop and showroom applications.
3. sPecification
Model no. .........................................hvf20s
fan diameter ..............................550mm (20”)
speeds .........................................................3
speed range ........................1,150-1,350rpm
maximum Airflow ........120mtr³/min (4300cfm)
motor Power ..........................................170W
supply.....................................................230V
current....................................................... 0.5

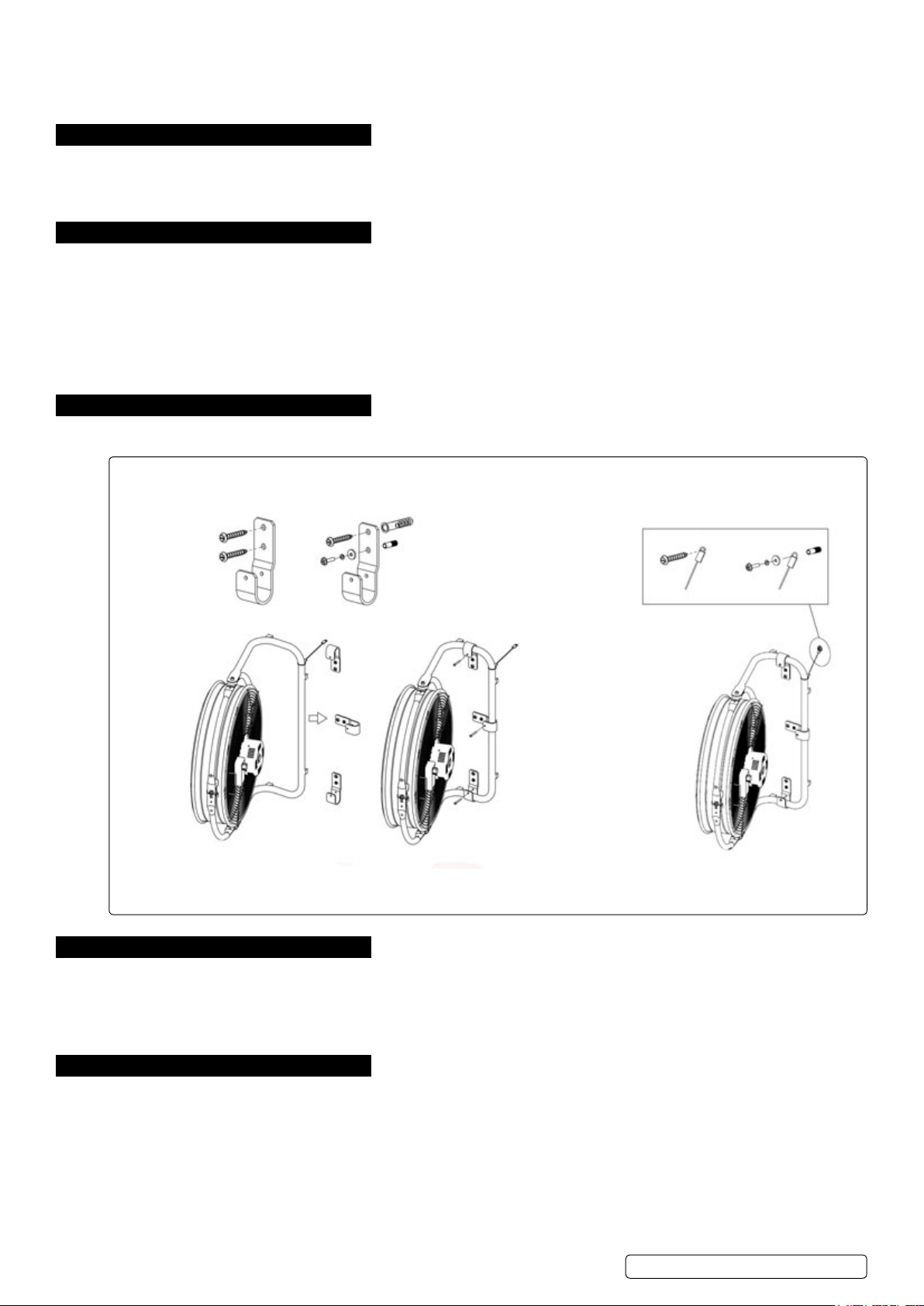

4. Wall Mounting
4.1. This item may be wall mounted using the supplied Wall Mounting Kit. See Steps 1 to 4 below
Wood
concrete
1 - fixing the hook to the wall
2 - Mount frame to hooks 3 - clamp frame to hooks
Wood
concrete
4 - fasten frame to wall
using wire rope
5. oPeration
Warning! ensure that you read, understand and apply safety instructions in section 1 before using fan.
5.1. check that the speed control is set to “0” (off) and then plug into the mains power supply and switch the power on.
5.2. the fan features 3 speeds which are selectable using the switch located on the back of the fan.
5.3. Adjust the direction of the air flow by rotating and tilting the fan up or down as required.
5.4. When you have finished using the fan ensure you turn the speed control switch to “0” (off) , disconnect the fan from the power supply.
6. Maintenance
Warning! ensure that the fan is disconnected from the mains power supply before attempting any of the following:
6.1. use a soft, damp cloth to clean the fan. do not immerse the fan in water and never allow water to drip onto the motor housing. do
not use solvents, petroleum, paint thinner or other chemicals to clean the fan.
6.2. to clean the fan blade, undo the cross headed screws around the circumference, remove the grille and clean the blade with a slightly
damp cloth. replace the grille as required and refit the cross headed screws.
6.3. should the motor, switch or the power lead require service or maintenance contact your local sealey service agent.
6.4. When not in use place the fan in its original box or otherwise cover to protect from dust, and store in a safe, dry, childproof location.
© Jack sealey limited
Original Language Version
HVF20S | Issue 4(H, F, 4, 5 ) 16/11/17
