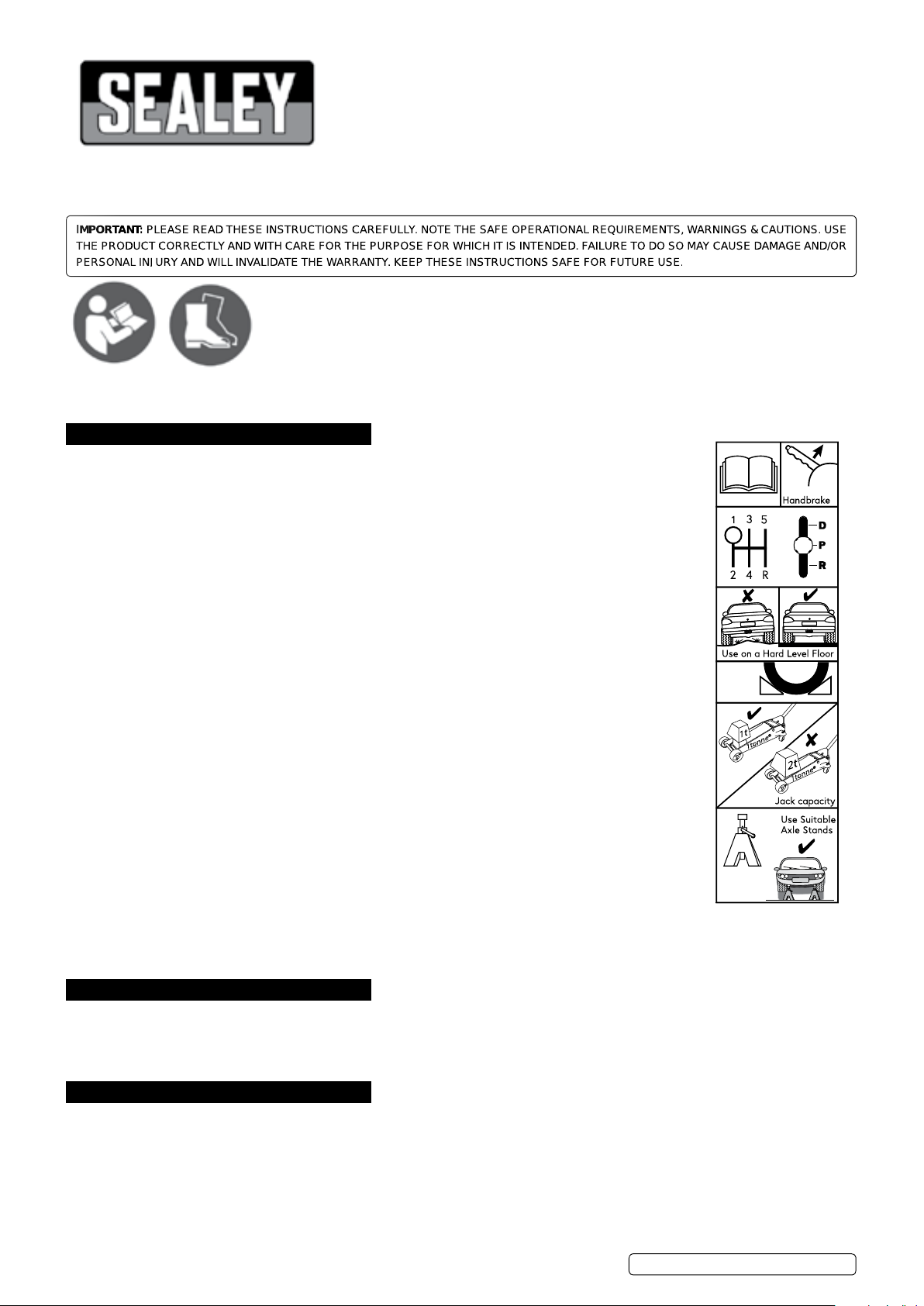

instructions for
MPORTANT:
PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
hydraulic scissor jack 700kg
model no: hsj07
Thank you for purchasing a sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
refer to
instructions
1. safeTy
9 ensure the jack is in sound condition and good working order. take action for immediate repair
or replacement of damaged parts.
9 use genuine parts only. the use of improper parts may be dangerous and will invalidate the warranty.
9 locate the jack in a suitable, well lit working area. Keep working area clean and tidy and free from
unrelated materials.
9 use jack on level/solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9 Place wedges under wheels of vehicle, but ensure the jack wheels are free to move and that there are
no obstructions.
9 ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear (or “PArK”
if automatic).
ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to allow
for vehicle tilting.
9 ensure there are no passengers in the vehicle and that all non-essential persons keep a safe distance
whilst the jack is in use. Place jack under lifting points recommended by vehicle manufacturer (see vehicle
hand book). ensure lifting point is stable and centred on saddle.
▲ daNger: use the jack for lifting only, not for supporting the lifted load.
9 use suitable capacity axle stands under the vehicle before proceeding with any task.
9 ensure there are no persons or obstructions beneath the vehicle before lowering.
8 do NoT operate the jack if damaged.
8 do NoT work under the vehicle until axle stands have been correctly positioned.
8 do NoT exceed the rated capacity of the jack. When lifting a load of maximum capacity or close to it, it
is recommended that the effort be reduced by the use of assistance during this operation.
8 do NoT adjust the safety overload valve.
8 do NoT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
8 do NoT allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
8 do NoT top up hydraulic system with brake fluid. use hydraulic jack oil only and use a qualified person
to maintain jack hydraulic system.
8 do NoT allow untrained persons to operate the jack.
8 do NoT use jack for purposes other than which it is designed.
8 do NoT allow persons to ride on the jack.
8 do NoT make any alterations to this product.
9 When not in use store jack, fully lowered, in a safe, dry, childproof area.
Wear safety
footwear
Chock
Wheels
Apply
X2
Never
exceed
2. iNTroducTioN
Scissorjackttedwithahydraulicunittoprovidethespacesavingpropertiesofaconventionalscissorjackwiththeconvenience
of a trolley jack. the hydraulic unit greatly reduces the time and effort taken to raise a vehicle compared to a standard scissor jack.
suitable for the hobby user or as an emergency mobile jack. includes one-piece pumping handle. supplied in tough carry/storage
case to keep dirty jack away from contents of car boot.
3. specificaTioN
model no .....................................................................HsJ07
capacity .......................................................................700kg
minimum Height ......................................................... 139mm
maximum Height ........................................................ 380mm
closed length ............................................................382mm
operaTioN
© Jack sealey limited
Original Language Version
HsJ07 | issue 2 (1,f) 06/06/18
3.1. Before use.
3.1.1. Before using jack for the first time, purge the
hydraulic unit in order to eliminate any air in
the system. Position handle extension over
release valve turn handle anti clockwise to
open release valve. Attach handle extension
to handle.
3.1.2. Pump for 30 to 40 seconds. When complete,
close the release valve by turning the
clockwise.
3.1.3. Place a few drops of hydraulic jack oil on
pump piston and pump handle several times
to distribute oil. thoroughly lubricate moving
parts.
3.2. general jacking.
WarNiNg! Before lifting ensure safety
instructions are read and understood.
3.2.1. Position the jack saddle under the vehicle
manufacturer’s recommended lifting point
along sill edge.
3.3. jacking the vehicle.
3.3.1. close the release valve. Attach handle
extension
3.3.2. commence pumping handle up and down using maximum strokes until the jack saddle reaches the vehicle manufactures jacking
point. check the jacking point is centrally located on the saddle and raise the vehicle.
3.3.3. should the jack become overloaded, a safety excess pressure valve will open, and stop the vehicle from lifting.
WarNiNg! the jack is a lifting device only and must not be used to support the load. use correctly rated axle stands to support
the load.
3.4. lowering the vehicle.
3.4.1. if using axle stands, raise the jack high enough for the stands to be easily removed. then attach handle extension to release valve
and turn handle anticlockwise very slowly to open the valve.
3.4.2. the lowering speed is controlled by the amount you turn the handle. lower carefully, avoid any sudden changes in descent rate which
would shock load the hydraulic system.
WarNiNg! ensure there are no persons or obstacles beneath the vehicle, or in the path of its descent.
4. MaiNTeNaNce
4.1. When not in use, the ram should be in its lowest position to minimise corrosion. remove handle extension and store in case.
4.2. Keep the jack clean and lubricate all moving parts with oil on a regular basis.
4.3. Before each use check for broken, cracked, bent, or loose parts, or any visible damage to ram, pump, saddle, frame and all parts
including nuts, bolts, pins and other fasteners. if any suspect item is found remove jack from service and take necessary action to
remedy the problem.
8 do NoT use the jack if believed to have been subjected to abnormal load or shock load.
4.4. Periodically check the pump piston and the ram for signs of corrosion. clean exposed areas with a clean oiled cloth.
4.5. After one year the oil should be replaced in order to extend the life of the jack. use hydraulic jack oil only.
WarNiNg! only competent personnel should attempt hydraulic maintenance or repair.
4.6. to check the oil level, fully lower the jack. remove filler plug fig.1. the correct level is the bottom of the hole. if oil level is low, fill as
required. Pump jack 5 or 6 times to expel air. Pump jack up to full height before refitting plug.
8 do NoT touch the safety overload valve fig.1.
NoTe: use a good quality jack oil, such as seAleY HYdrAulic JAcK oil.
WarNiNg: do NoT use brake fluid, or any fluid other than hydraulic jack oil as this may cause serious damage to the jack and will
invalidate the warranty.
9 iMporTaNT: no resPonsiBilitY is AccePted for incorrect use of Product.
Hydraulic products are only repaired by local service agents. We have service/repair agents in all parts of the uK.
8 do NoT reTurN jacks To us. Please telephone us on 01284 757500 to obtain the address and ‘phone number of your local
agent. if jack is under guarantee contact your local sealey dealer.
4.7. de-commissioning the jack
should the jack become completely unserviceable and require disposal, draw off the oil into an approved container and dispose of
the jack and the oil according to local regulations.
eNviroNMeNT proTecTioN
recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: it is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
important: no liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
sealey group, kempson Way, suffolk Business park, Bury st edmunds, suffolk. ip32 7ar
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
© Jack sealey limited
Original Language Version
HsJ07 | issue 2 (1, f) 06/06/18
