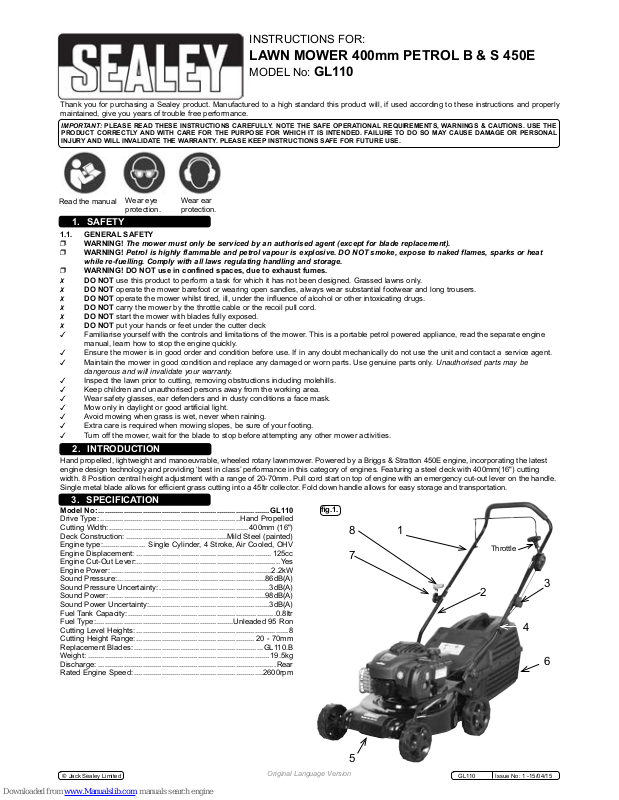

INSTRUCTIONS FOR:
LAWN MOWER 400mm PETROL B & S 450E
MODEL No: GL110
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE OR PERSONAL
INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
GL110 Issue No: 1 -15/04/15
Original Language Version
© Jack Sealey Limited
Hand propelled, lightweight and manoeuvrable, wheeled rotary lawnmower. Powered by a Briggs & Stratton 450E engine, incorporating the latest
engine design technology and providing ‘best in class’ performance in this category of engines. Featuring a steel deck with 400mm(16") cutting
width. 8 Position central height adjustment with a range of 20-70mm. Pull cord start on top of engine with an emergency cut-out lever on the handle.
Single metal blade allows for efcient grass cutting into a 45ltr collector. Fold down handle allows for easy storage and transportation.
Model No: ................................................................................. GL110
Drive Type: ..................................................................Hand Propelled
Cutting Width: .................................................................. 400mm (16")
Deck Construction: ................................................Mild Steel (painted)
Engine type:.................... Single Cylinder, 4 Stroke, Air Cooled, OHV
Engine Displacement: ................................................................ 125cc
Engine Cut-Out Lever:....................................................................Ye s
Engine Power: ............................................................................2.2kW
Sound Pressure: ......................................................................86dB(A)
Sound Pressure Uncertainty: ....................................................3dB(A)
Sound Power: ..........................................................................98dB(A)
Sound Power Uncertainty:.........................................................3dB(A)
Fuel Tank Capacity: ......................................................................0.8ltr
Fuel Type: .................................................................Unleaded 95 Ron
Cutting Level Heights: ........................................................................8
Cutting Height Range: ........................................................ 20 - 70mm
Replacement Blades: .............................................................GL110.B
Weight: ......................................................................................19.5kg
Discharge: ....................................................................................Rear
Rated Engine Speed: .............................................................2600rpm
1. SAFETY
2. INTRODUCTION
3. SPECIFICATION
2
7
6
8
4
5
1
3
Read the manual
Wear eye
protection.
Wear ear
protection.
Throttle
1.1. GENERAL SAFETY
WARNING! The mower must only be serviced by an authorised agent (except for blade replacement).
WARNING! Petrol is highly flammable and petrol vapour is explosive. DO NOT smoke, expose to naked flames, sparks or heat
while re-fuelling. Comply with all laws regulating handling and storage.
WARNING! DO NOT use in confined spaces, due to exhaust fumes.
7 DO NOT use this product to perform a task for which it has not been designed. Grassed lawns only.
7 DO NOT operate the mower barefoot or wearing open sandles, always wear substantial footwear and long trousers.
7 DO NOT operate the mower whilst tired, ill, under the influence of alcohol or other intoxicating drugs.
7 DO NOT carry the mower by the throttle cable or the recoil pull cord.
7 DO NOT start the mower with blades fully exposed.
7 DO NOT put your hands or feet under the cutter deck
3 Familiarise yourself with the controls and limitations of the mower. This is a portable petrol powered appliance, read the separate engine
manual, learn how to stop the engine quickly.
3 Ensure the mower is in good order and condition before use. If in any doubt mechanically do not use the unit and contact a service agent.
3 Maintain the mower in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts may be
dangerous and will invalidate your warranty.
3 Inspect the lawn prior to cutting, removing obstructions including molehills.
3 Keep children and unauthorised persons away from the working area.
3 Wear safety glasses, ear defenders and in dusty conditions a face mask.
3 Mow only in daylight or good artificial light.
3 Avoid mowing when grass is wet, never when raining.
3 Extra care is required when mowing slopes, be sure of your footing.
3 Turn off the mower, wait for the blade to stop before attempting any other mower activities.
g.1.
GL110 Issue No: 1 -15/04/15
Original Language Version
© Jack Sealey Limited
5.1. Check that you have all the above details in the packaging.
5.2. Assembly:-
5.2.1. Offer the lower handle frames (item 2) into the preformed "U" channels of the cutter rear deck wing brackets and over the the domed
head studs, see fig.2.
5.2.2. Clamp the assembly with the knob plain washer and "C" washer.
5.2.3. Fit the upper handle sub assembly (item 1) containing the safety throttle lever and cable to the lower handle (item 2) paying special
attention to the cable run. Clamp the frame with the details shown in fig.3.
5.2.4. Position the cable clip (item 4) just below the frame clamp, see fig.1.
5.2.5 Attach grass box if required (item 6) with the grass box slots. Lift the spring loaded hinged panel and locate slots with tabs, see fig.4.
NOTE: The blade must be fitted observing the stamped arrow, fig.6. The retaining bolt has a standard RH thread.
WARNING! Never use blades other than the spares supplied by your Sealey Dealer.
g.2.
g.3.
Cutter setting lever
Adjust cutter height
g.5.
Lift the stone guard hinged panel to t grass box.
g.4.
Hook grassbox
frame over tabs
5. ASSEMBLY

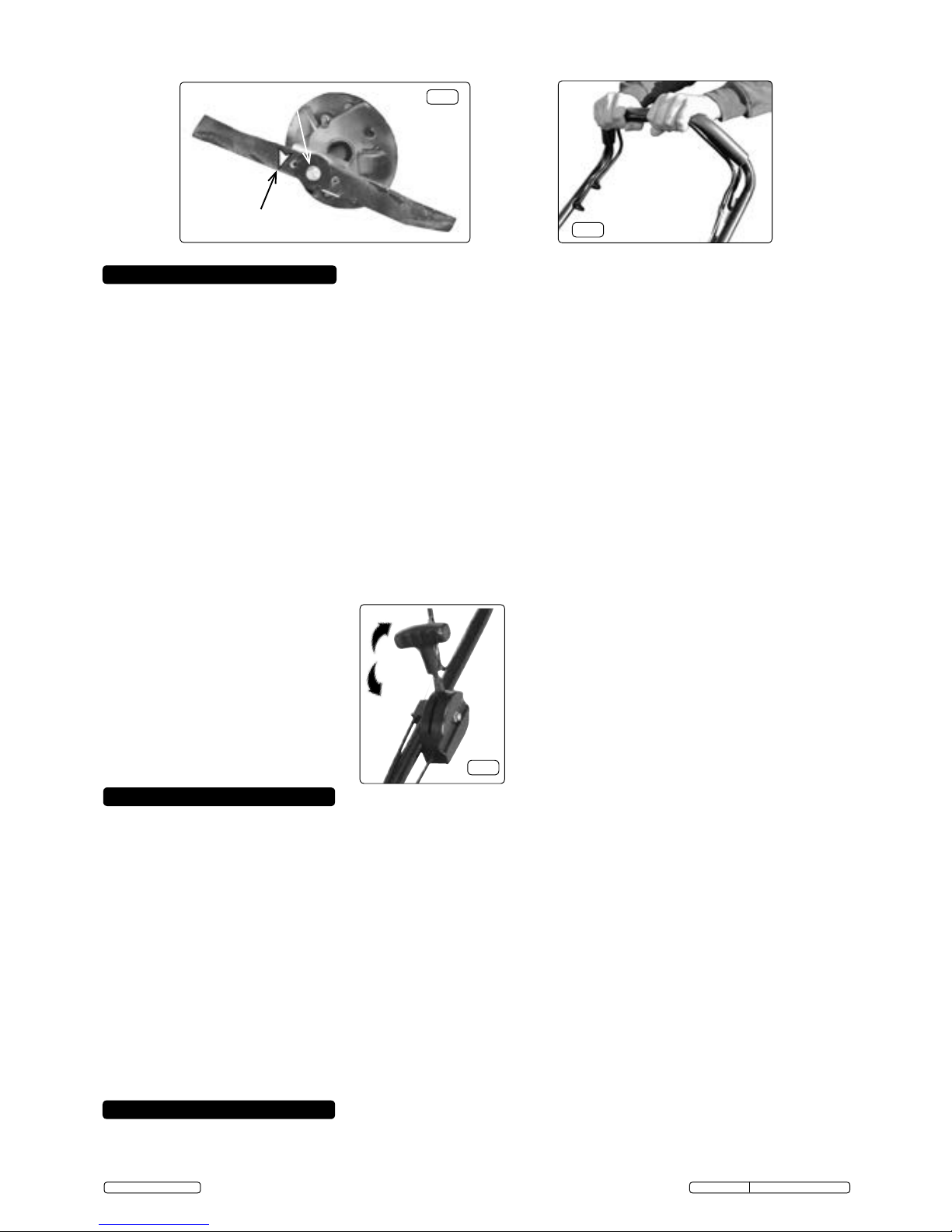

5.3. Blade fitting:-
5.3.1 Decide on the grass cutting length required, a choice of 8 are available, from 20mm to 70mm approximate grass length settings. In
fig.5 a lever adjusts mower cutting height. Pull the lever crank from the notch and sweep the lever to desired height notch.
5.3.2 To remove the blade, hold the blade with a gloved hand and undo the centre bolt with a 14mm spanner, see fig.6.
WARNING If fuel remains in the tank, tilting of the mower may cause fuel leaks.
5.3.3. To refit or change the blade, hold the blade in a gloved hand and tighten the centre bolt (30Nm).
NOTE: The blade must be fitted observing the stamped arrow, fig.6. The retaining screw has a standard RH thread.
WARNING! Never use blades other than the spares supplied by your Sealey Dealer.
BEWARE!
Blade
Item Description (quick reference) Qty
1 Upper handle sub assembly 1
2 Lower handle frame c/w hex nuts and screws 2
3 Handle clamp c/w carriage bolt 2
4 Cable clip 1
5 Cutter deck c/w motor, wheels and blade 1
6 Grass box 1
7 Recoil stop and cord guide 1
8 Recoil cord handle 1
9 Spark plug spanner (not shown) 1
4. CONTENTS
