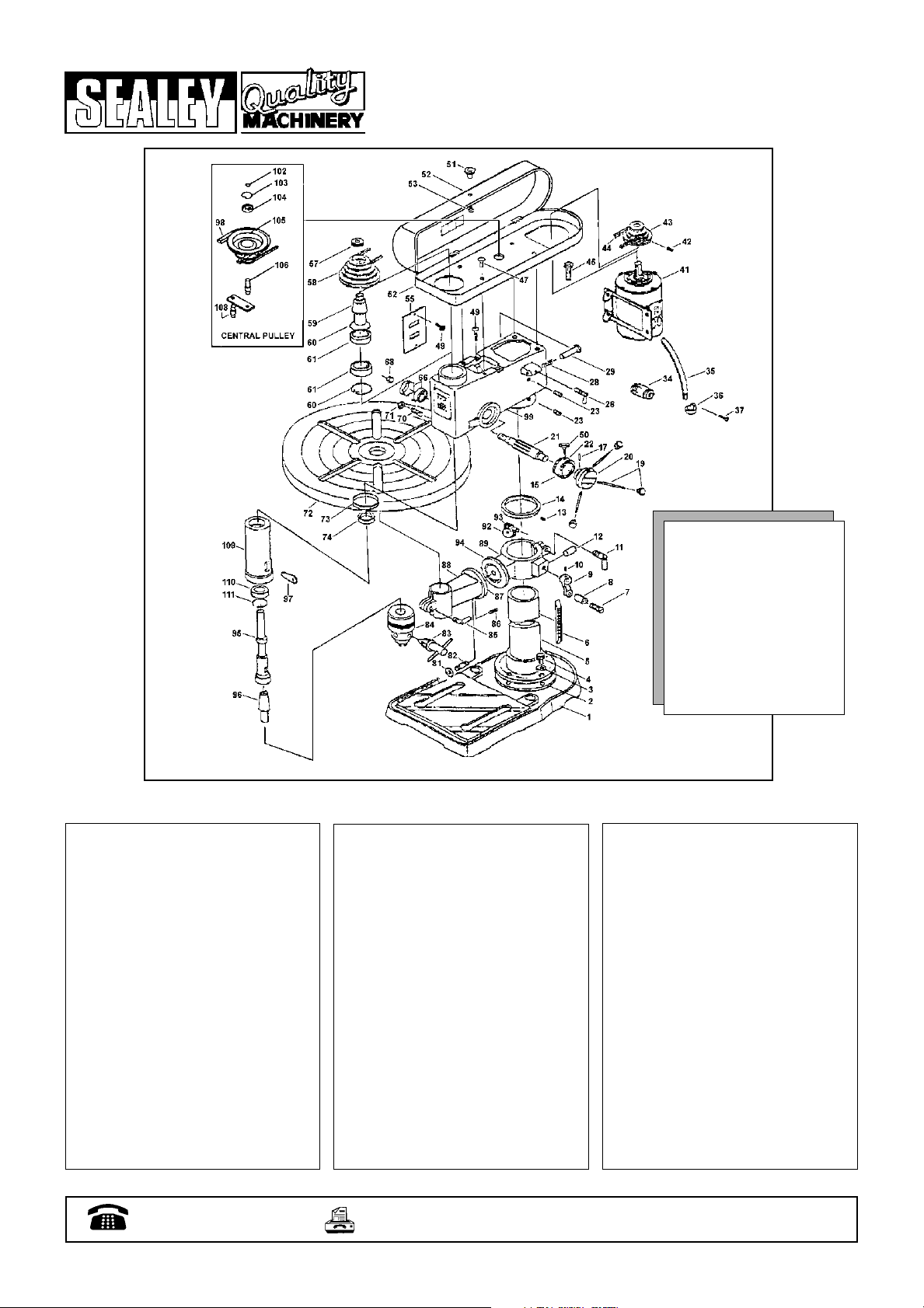

PILLAR DRILL PARTS LIST
Models: GDM120B & GDM160F
Note: Part numbers are common to both models except for those items where two numbers are shown.
Item Part No. Description
1 GDM120B/01 Base - GDM120B
1 GDM160F/01 Base - GDM160F
2 GDM120B/02 Col. Holder - GDM120B
2 GDM160F/02 Col. Holder - GDM160F
3 GDM120B/03 Washer
4 GDM120B/04 Screw - GDM120B
4 GDM160F/04 Screw - GDM160F
5 GDM120B/05 Col. + Holder - GDM120B
5 GDM160F/05 Col. + Holder - GDM160F
6 GDM120B/06 Rack - GDM120B
6 GDM160F/06 Rack - GDM160F
7-10 GDM120B/07-10 Handle Assembly
11 GDM120B/11 Clamp Bolt
12 GDM120B/12 Gear Shaft
13 GDM120B/13 Screw
14 GDM120B/14 Rack Collar
15 GDM120B/15 Scale Sleeve
17 GDM120B/17 Pin
18 GDM120B/18 Knob
19 GDM120B/19 Feed Handle & Knob
20 GDM120B/20 Handle Base
21 GDM120B/21 Feed Pinion
22 GDM120B/22 Scale
23 GDM120B/23 Set Screw
25 GDM120B/25 Set Screw
26 GDM120B/26 Screw Knob
28 GDM120B/28 Spring
29 GDM120B/29 Rod
34 GDM120B/34 Strip Relief
Item Part No. Description
35 GDM120B/35 Cord
36 GDM120B/36 Clamp Bolt
37 GDM120B/37 Screw
41 GDM120B/41 Motor
42 GDM120B/42 Set Screw
43 GDM120B/43 Motor Pulley
44 GDM120B/44 V-Belt
45 GDM120B/45 Screw
47 GDM120B/47 Screw
49 GDM120B/49 Screw
50 GDM120B/50 Screw
51 GDM120B/51 Knob
52 GDM120B/52 Pulley Guard, Upper
53 GDM120B/53 Screw
55 GDM120B/55 Switch
56 GDM120B/56 Pulley Guard, Lower
57 GDM120B/57 Nut
58 GDM120B/58 Spindle Pulley
59 GDM120B/59 Driving Taper Sleeve
60 GDM120B/60 C-Ring
61 GDM120B/61 Bearing
63 GDM120B/63 Screw
66 GDM120B/66 Spring & Cap
68 GDM120B/68 Nut
70 GDM120B/70 Screw
71 GDM120B/71 Nut
72 GDM120B/72 Table
73 GDM120B/73 Washer
74 GDM120B/74 Bearing
Item Part No. Description
81 GDM120B/81 Washer
82 GDM120B/82 Screw
83 GDM120B/83 Chuck Key
84 GDM120B/84 Chuck
85 GDM120B/85 Clamp Bolt
86 GDM120B/86 Screw
87 GDM120B/87 Zero Mark
88 GDM120B/88 Table Arm
89 GDM120B/89 Table Bracket
92 GDM120B/92 Gear
93 GDM120B/93 Worm
94 GDM120B/94 Angle Scale
95 GDM120B/95 Spindle
96 GDM120B/96 Arbor
97 GDM120B/97 Wedge
98 GDM120B/98 V-Belt
99 GDM120B/99 Head Frame
102 GDM120B/102 Lock Ring Shaft
103 GDM120B/103 Lock Ring Pulley
104 GDM120B/104 Bearing
105 GDM120B/105 Central Pulley
106 GDM120B/106 Shaft Assembly
109 GDM120B/109 Quill
110 GDM120B/110 Bearing
111 GDM120B/111 Ring
Note: Item 55 - Switch
Please note that the position
of the switch may vary.
If your drill is equipped with
a side mounted switch the
part number is as indicated
in the Parts List.
If, however, the switch is
front mounted, with a red
safety button, then the part
number is GDM120B/55CX.
