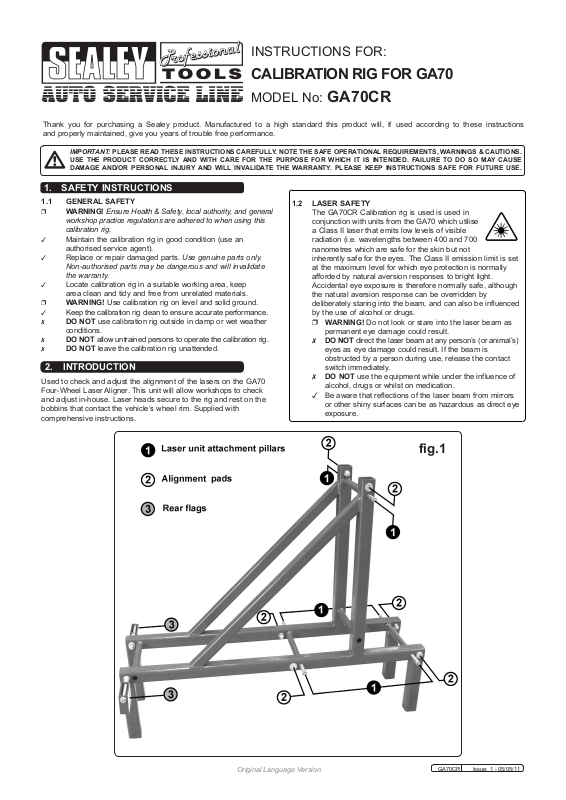

INSTRUCTIONS FOR:
CALIBRATION RIG FOR GA70
MODEL No: GA70CR
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
1.1 GENERAL SAFETY
WARNING! Ensure Health & Safety, local authority, and general
workshop practice regulations are adhered to when using this
calibration rig.
Maintain the calibration rig in good condition (use an
authorised service agent).
Replace or repair damaged parts. Use genuine parts only.
Non-authorised parts may be dangerous and will invalidate
the warranty.
Locate calibration rig in a suitable working area, keep
area clean and tidy and free from unrelated materials.
WARNING! Use calibration rig on level and solid ground.
Keep the calibration rig clean to ensure accurate performance.
DO NOT use calibration rig outside in damp or wet weather
conditions.
DO NOT allow untrained persons to operate the calibration rig.
DO NOT leave the calibration rig unattended.
2. INTRODUCTION
Used to check and adjust the alignment of the lasers on the GA70
Four-Wheel Laser Aligner. This unit will allow workshops to check
and adjust in-house. Laser heads secure to the rig and rest on the
bobbins that contact the vehicle’s wheel rim. Supplied with
comprehensive instructions.
1.2 LASER SAFETY
The GA70CR Calibration rig is used is used in
conjunction with units from the GA70 which utilise
a Class II laser that emits low levels of visible
radiation (i.e. wavelengths between 400 and 700
nanometres which are safe for the skin but not
inherently safe for the eyes. The Class II emission limit is set
at the maximum level for which eye protection is normally
afforded by natural aversion responses to bright light.
Accidental eye exposure is therefore normally safe, although
the natural aversion response can be overridden by
deliberately staring into the beam, and can also be influenced
by the use of alcohol or drugs.
WARNING! Do not look or stare into the laser beam as
permanent eye damage could result.
DO NOT direct the laser beam at any person’s (or animal’s)
eyes as eye damage could result. If the beam is
obstructed by a person during use, release the contact
switch immediately.
DO NOT use the equipment while under the influence of
alcohol, drugs or whilst on medication.
Be aware that reflections of the laser beam from mirrors
or other shiny surfaces can be as hazardous as direct eye
exposure.

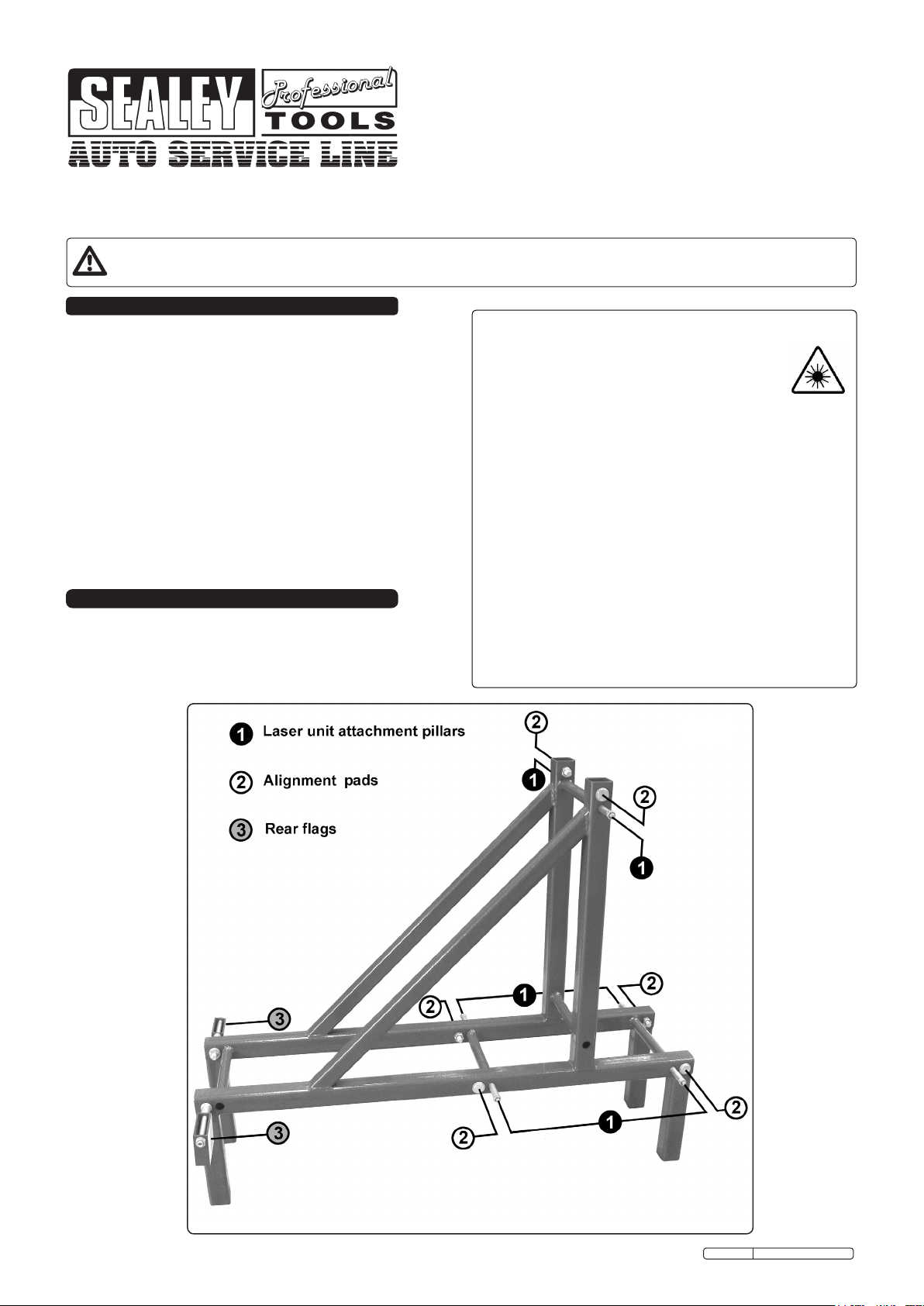

fig.1
Original Language Version
GA70CR Issue: 1 - 05/05/11
Page 2
3. RIG OPERATION
4.1 GA70 Calibration Check
4.1.1 Visually inspect the laser units to make sure they are not
damaged or bent. A damaged Laser Head may not calibrate
correctly.
4.1.2 Remove the 6 nuts from the threaded ends of the 6 mounting
pillars (1 at the top and two at the bottom on each side) See
fig.1-1.
4.1.3 Adjust the height of each laser unit to match the mounting
pillars using the black knob on each unit. See fig.2-B. Move
the three wheel rim locators to the outside end of their
respective slots.
4.1.4 Fit the two laser alignment units onto the pillars and secure
them hand tight using the nuts previously removed. See fig.2.
4.1.5 On each side of the rig adjust the position of the three wheel
rim locators onto the rig alignment pads (see fig.2 INSET 'A')
4.1.6 Make any necessary fine adjustments then turn on the Lasers.
Manoeuvre one of the laser Heads backwards/forwards so the
Lasers read as near to Zero as possible.
4.1.7 Tighten the 6 holding nuts.
4.1.8 Front Lasers should read Zero using the correct calculation.
Observe where the laser line falls on each toe scale. Either
both lasers will be pointing to Zero which is correct, or, one
laser will read in the RED and one laser will read in the
GREEN. In this case subtract one from the other and the
reading should be Zero. For example, 1 RED minus 1 Green
equals ZERO (calibration is correct). If the reading is not Zero,
calibration is required.
4.1.9 Rear lasers should align with the calibration line on the rear
flags.
4.1.10 If front or rear Lasers are not aligned the units need to be
recalibrated.
4.2 Calibration
4.2.1 Remove the protective laser calibration guard on the laser
that needs to be adjusted.
4.2.2 Slacken the two allen nuts on the laser that needs adjusting.
See figs. 3 & 4.
4.2.3 Turn on the laser.
4.2.4 Adjust laser to the correct position by moving the slotted fixing
up or down the slot as required. When the laser light strikes the
zero toe mark or the calibration line on the rear flags tighten
the two allen nuts and replace the protective covers
4.2.5 Check ALL lasers are aligned correctly.
4.3 GA70CR – Calibration Rig yearly/periodic inspection
4.3.1 Mearsure/check the distance between the two front and two
rear calibration contact points to make sure the measurement
are the same.
4.3.2 Rear Flags - Measure distance from the frame and the vertical
calibration lines. Both measurement must be the same.
4.4 GA70CAL
4.3.1 We also offer a calibration service at SEALEY where we will
check/calibrate the customers GA70 unit.

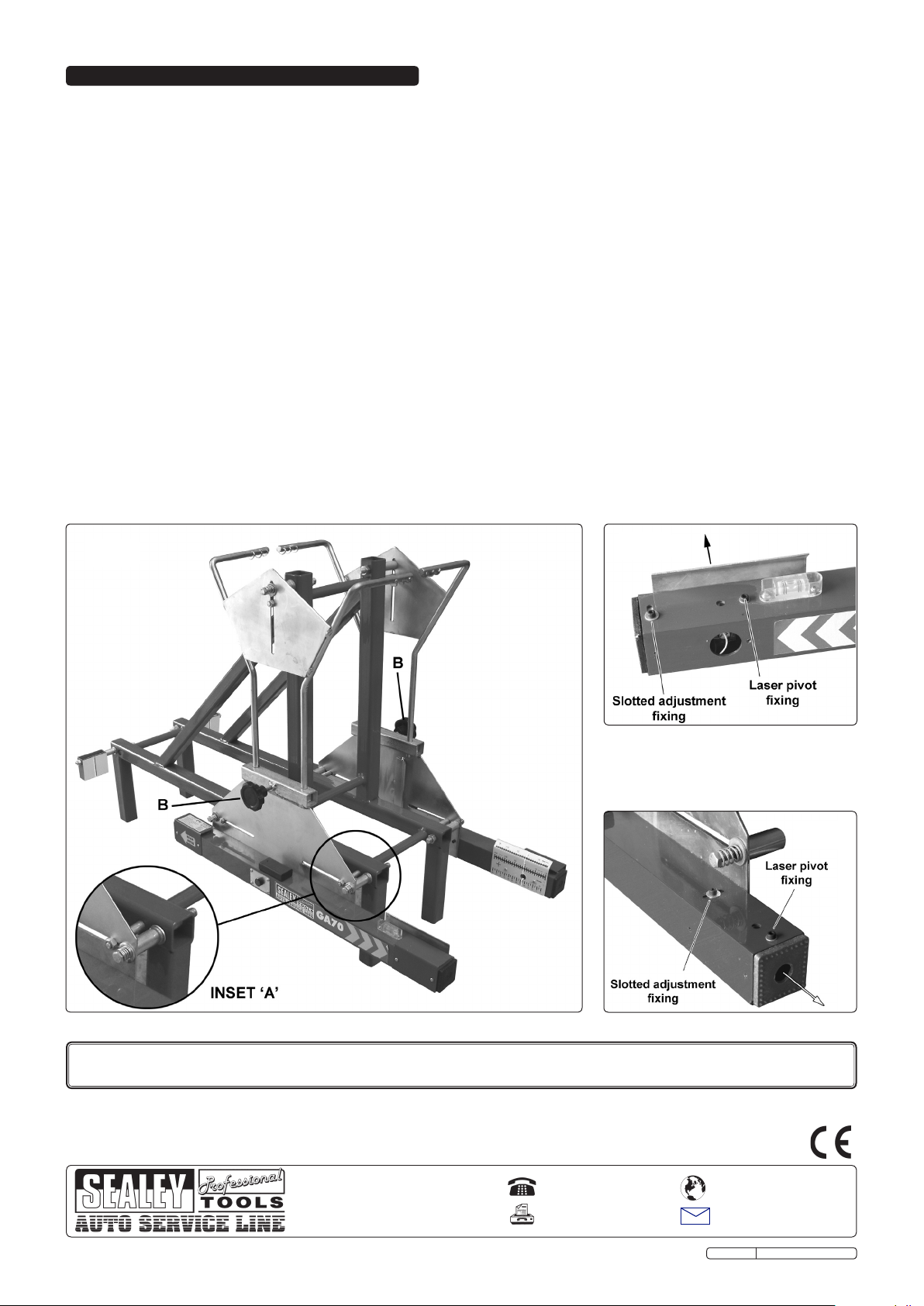

fig.2
fig.3
fig.4
Parts support is available for this product. To obtain a parts listing and/or diagram, please log on to www.sealey.co.uk, email
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
[email protected] or phone 01284 757500.
