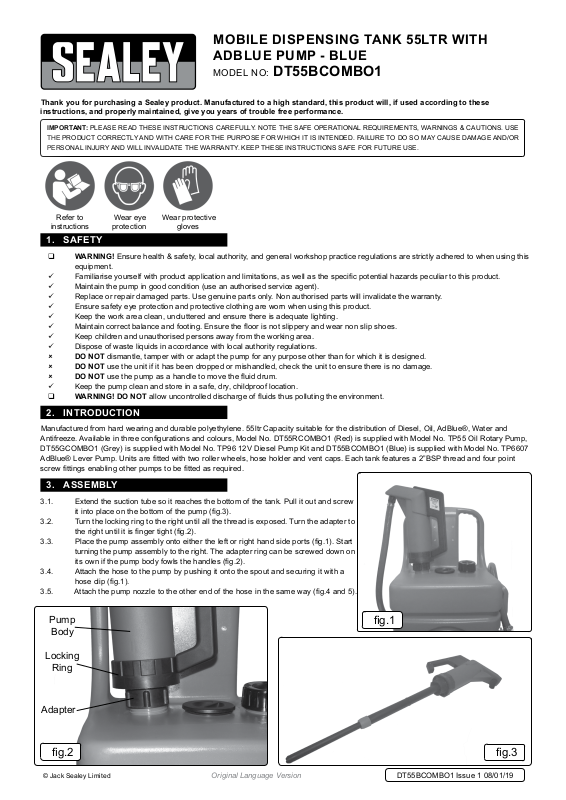

Sealey DT55BCOMBO1 User guide

MOBILE DISPENSING TANK 55LTR WITH

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

Pump

Body

Locking

Ring

Adapter

ADBLUE PUMP - BLUE

MODEL NO: DT55BCOMBO1

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.

Refer to

instructions

Wear eye
protection

Wear protective

gloves

1. SAFETY

 WARNING! Ensure health & safety, local authority, and general workshop practice regulations are strictly adhered to when using this

equipment.

9  Familiariseyourselfwithproductapplicationandlimitations,aswellasthespecicpotentialhazardspeculiartothisproduct.
9 Maintain the pump in good condition (use an authorised service agent).
9 Replace or repair damaged parts. Use genuine parts only. Non authorised parts will invalidate the warranty.
9 Ensure safety eye protection and protective clothing are worn when using this product.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9  Maintaincorrectbalanceandfooting.Ensuretheoorisnotslipperyandwearnonslipshoes.
9 Keep children and unauthorised persons away from the working area.

9 Dispose of waste liquids in accordance with local authority regulations.
8 DO NOT dismantle, tamper with or adapt the pump for any purpose other than for which it is designed.
8 DO NOT use the unit if it has been dropped or mishandled, check the unit to ensure there is no damage.
8 DO NOTusethepumpasahandletomovetheuiddrum.

9 Keep the pump clean and store in a safe, dry, childproof location.

 WARNING! DO NOTallowuncontrolleddischargeofuidsthuspollutingtheenvironment.

2. INTRODUCTION

Manufactured from hard wearing and durable polyethylene. 55ltr Capacity suitable for the distribution of Diesel, Oil, AdBlue®, Water and

Antifreeze.Availableinthreecongurationsandcolours,ModelNo.DT55RCOMBO1(Red)issuppliedwithModelNo.TP55OilRotaryPump,
DT55GCOMBO1(Grey)issuppliedwithModelNo.TP9612VDieselPumpKitandDT55BCOMBO1(Blue)issuppliedwithModelNo.TP6607
AdBlue®LeverPump.Unitsarettedwithtworollerwheels,hoseholderandventcaps.Eachtankfeaturesa2”BSPthreadandfourpoint
screwttingsenablingotherpumpstobettedasrequired.

3. ASSEMBLY

3.1.  Extendthesuctiontubesoitreachesthebottomofthetank.Pullitoutandscrew
 itintoplaceonthebottomofthepump(g.3).

3.2.  Turnthelockingringtotherightuntilallthethreadisexposed.Turntheadapterto
 therightuntilitisngertight(g.2).

3.3.  Placethepumpassemblyontoeithertheleftorrighthandsideports(g.1).Start
 turningthepumpassemblytotheright.Theadapterringcanbescreweddownon
 itsownifthepumpbodyfowlsthehandles(g.2).

3.4. Attach the hose to the pump by pushing it onto the spout and securing it with a

 hoseclip(g.1).

3.5. Attach the pump nozzletotheotherendofthehoseinthesameway(g.4and5).

g.1

g.2

©JackSealeyLimited

Original Language Version

DT55BCOMBO1Issue108/01/19

g.3

4. OPERATION

Latch

Button

4.1. Thenozzlecanbelatchedopenbypushingthebuttononthebottomofthehandle(g.5).

g.4

g.5

5. MAINTENANCE

6.2. Checkthetightnessofallttingsregularlyandtightenifnecessary.

6.3. Keepthepumpunitcleantohighlightanyleakswhichmaydevelopinservice.

6. TROUBLESHOOTING

PROBLEM PROBLEM POSSIBLE CAUSE SOLUTION

Lowornoowrate.

Leakage from the body pump. Seal damaged. ContactyourauthorisedSealeystockist.

Low level in source tank. Rellthetank.

Air entering the pump or suction tube. Check seals and connections.

Partssupportisavailableforthisproduct.Toobtainparts,pleaselogonto

www.sealey.co.uk,email[email protected]ortelephone01284757500

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.

Note:Itisourpolicytocontinuallyimproveproductsandassuchwereservetherighttoalterdata,specificationsandcomponentpartswithoutprior

notice.

Important: No Liability is accepted for incorrect use of this product.
Warranty:Guaranteeis12monthsfrompurchasedate,proofofwhichisrequiredforanyclaim.
