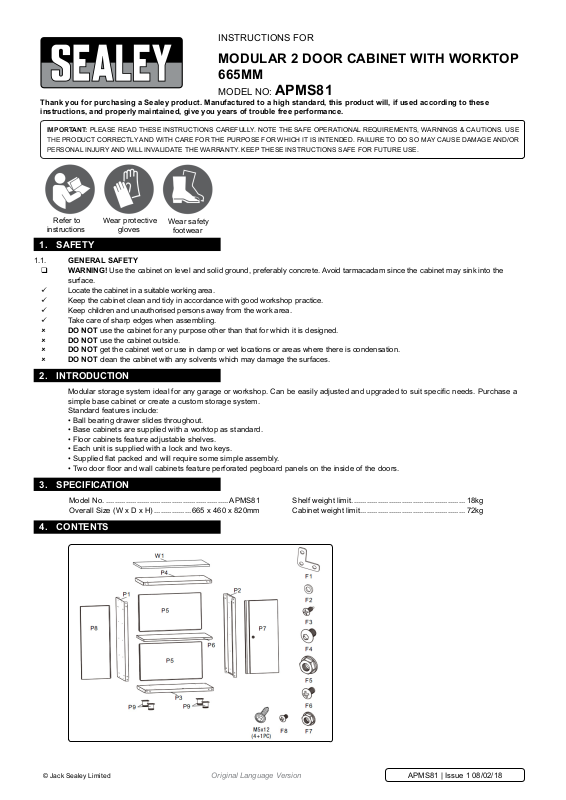

INSTRUCTIONS FOR

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

MODULAR 2 DOOR CABINET WITH WORKTOP 665MM

MODEL NO: APMS81

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble free performance.

Refer to instructions

Wear protective

gloves

Wear safety

footwear

1. SAFETY

1.1. GENERAL SAFETY

 WARNING! Use the cabinet on level and solid ground, preferably concrete. Avoid tarmacadam since the cabinet may sink into the

surface.

9 Locate the cabinet in a suitable working area. 9 Keep the cabinet clean and tidy in accordance with good workshop practice. 9 Keep children and unauthorised persons away from the work area.

9 Take care of sharp edges when assembling. 8 DO NOT use the cabinet for any purpose other than that for which it is designed. 8 DO NOT use the cabinet outside. 8 DO NOT get the cabinet wet or use in damp or wet locations or areas where there is condensation. 8 DO NOT clean the cabinet with any solvents which may damage the surfaces.

2. INTRODUCTION

 Modularstoragesystemidealforanygarageorworkshop.Canbeeasilyadjustedandupgradedtosuitspecicneeds.Purchasea

simple base cabinet or create a custom storage system. Standard features include:

 •Ballbearingdrawerslidesthroughout.  •Basecabinetsaresuppliedwithaworktopasstandard.  •Floorcabinetsfeatureadjustableshelves.  •Eachunitissuppliedwithalockandtwokeys.  •Suppliedatpackedandwillrequiresomesimpleassembly.  •Twodooroorandwallcabinetsfeatureperforatedpegboardpanelsontheinsideofthedoors.

3. SPECIFICATION

Model No. ........................................................ APMS81

Overall Size (W x D x H) ................. 665x460x820mm

Shelf weight limit .................................................... 18kg

Cabinet weight limit ................................................ 72kg

4. CONTENTS

Original Language Version

APMS81|Issue108/02/18

Page 2

5. ASSEMBLY

Step 1

Assemble cabinet frame

Step 2

Fit door pivots

Step 3

Fit side supports x 4

Step 4

Fit sides

Step 5

Fit internal supports.

Fit cabinet top.

Squarethecabinetframe.Makesurethemeasurementsfrom cornertocornerareequalbeforecompletelytighteningthebolts. L1=L2

Step 6

Original Language Version

APMS81|Issue108/02/18

Page 3

Step 7

Fit back panels

Step 8

Step 9

Fit worktop

Fit side wall to top, shelf and bottom bolts

Original Language Version

APMS81|Issue108/02/18

Page 4

Step 10

Fit doors

Finish

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely

unserviceableandrequiresdisposal,drainanyfluids(ifapplicable)intoapprovedcontainersanddisposeoftheproductandfluids

according to local regulations.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.

Important: No Liability is accepted for incorrect use of this product. Warranty:Guaranteeis12monthsfrompurchasedate,proofofwhichisrequiredforanyclaim.
