instructions for
I
MPORTANT:
PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
industrial cabinet 5 shelf 1800mm
model no: apiccombof4
thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
refer to
instruction
manual
1. safety
WarninG! ensure Health & safety, local authority, and general workshop practice regulations are adhered to when using this cabinet.
9 locate cabinet in a suitable work area.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
WarninG! use cabinet on level and solid ground, preferably concrete.
9 Keep the cabinet clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the work area.
8 do not use the cabinet for any purpose other than that for which it is designed.
8 do not use the cabinet outdoors.
8 do not place the cabinet in a damp or wet location or an area where there is condensation.
8 do not clean the cabinet with any solvents which may damage the surfaces or the protective coating.
8 do not move the cabinet when there are items placed inside.
8 do not overload the cabinet.
2. introduction
four variants of industrial quality, double door, freestanding cabinets with a range of internal shelving and drawer options. easily assembled
with minimal tool use. durable scuff resistant, adjustable shelving each with a weight limit of 150kg. drawers run on heavy-duty ball bearing
slides each with a weight limit of 75kg, tted with safety locking catches preventing inadvertant opening. Reinforced steel doors with zinc
plated locking bars, provide 3 point locking. Supplied with two coded keys. Ideal for home, ofce, garage or workshop use.
3. specification
model no: ...................................apiccombof4
Width x depth x Height
overall size: .........................900 x 450 x 1800mm
shelf size (x4): .........................840 x 380 x 30mm
internal cabinet overall size: .850 x 420 x 1710mm
4. cabinet contents
unpack the contents of the boxes and check against the parts
lists/diagrams. if there are any parts missing, contact your local
sealey dealer.
part no. part name no. of
A1 rear Panel 1
A2 rear Panel 1
B1 left side Panel 1
B2 right side Panel 1
c1 left door 1
c2 right door 1
d top 1
e Bottom 1
f inner face Plate 1
G outer face Plate 1
J Plastic stop 4
K locking Pin locator 2
l Hinge Pin locator 4
m screw 18
n
Hinge Pin 4
© Jack sealey limited
Original Language Version
APICCOMBOF4 Issue 2(SP) - 15/03/17
5. cabinet assembl y

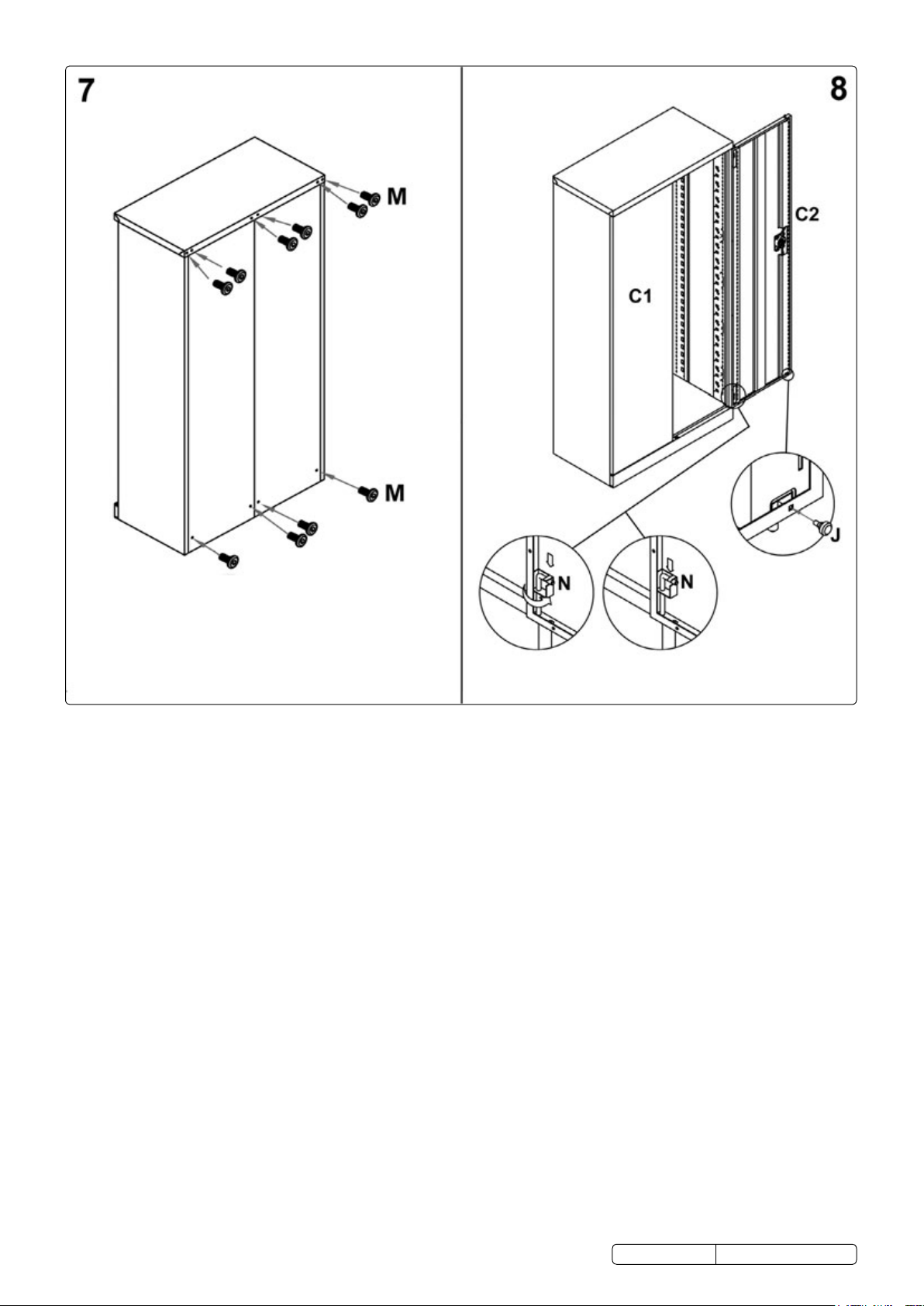

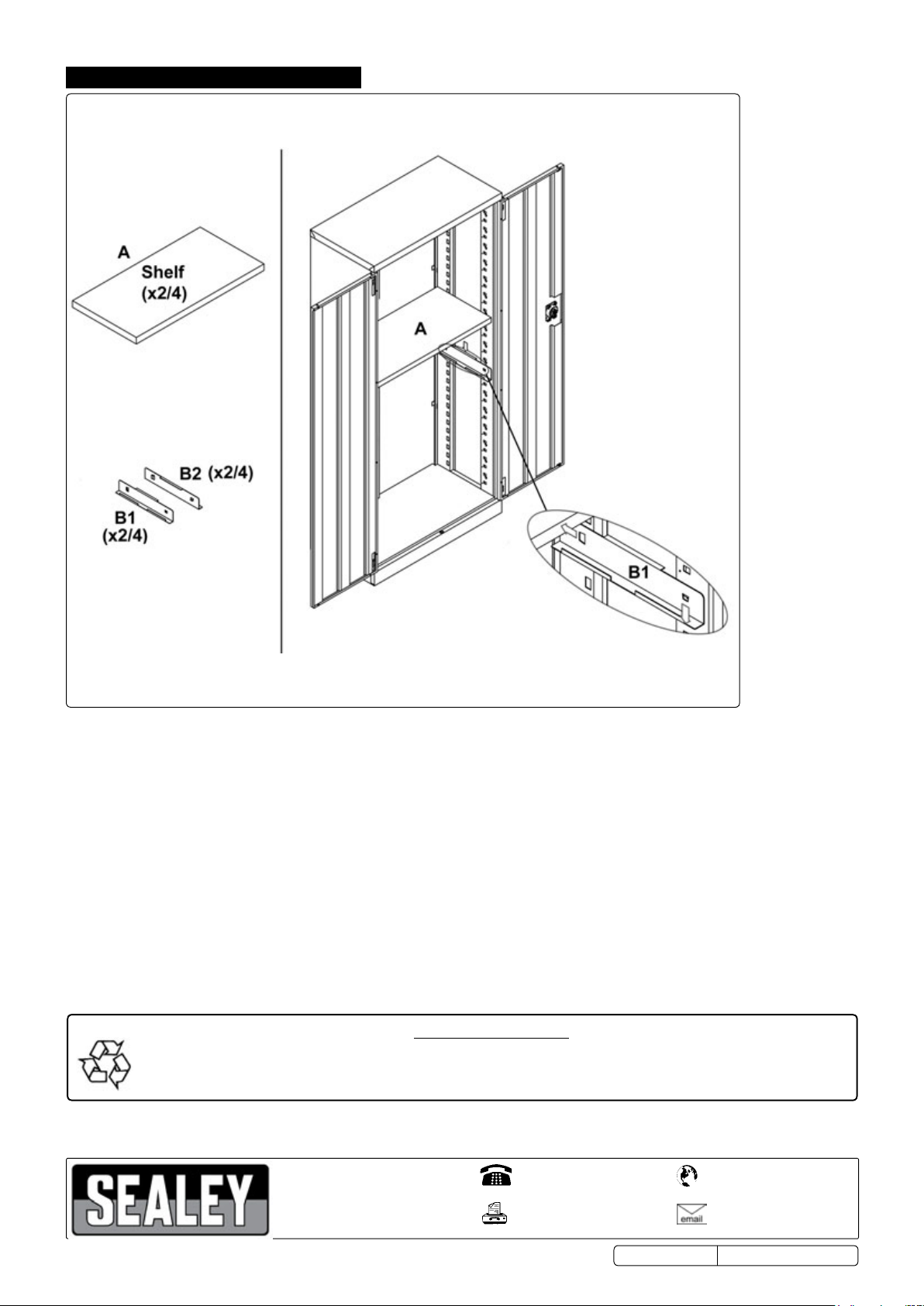

5.1. Assemble the cabinet following the numbered sequence below, referencing the parts list and diagram overleaf. use a tresle table or a
workbench if required.nch if required. ter
© Jack sealey limited
Original Language Version
APICCOMBOF4 Issue 2(SP) - 15/03/17
