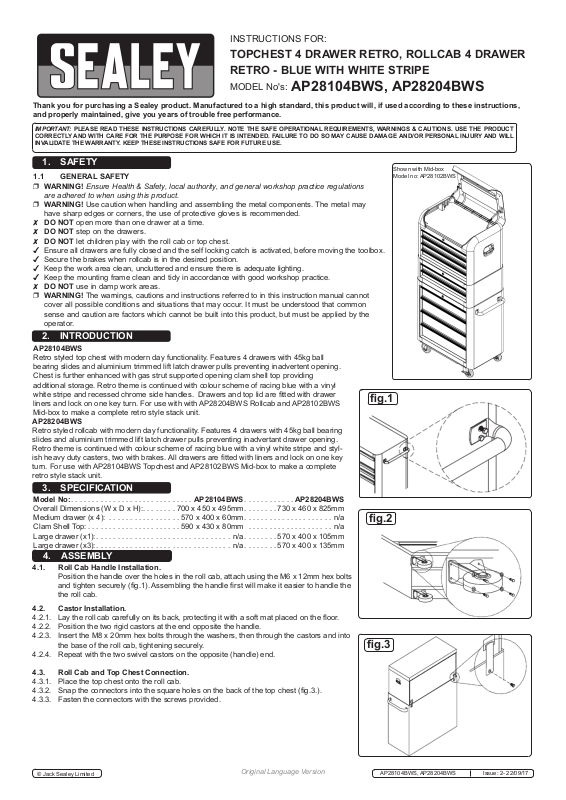

INSTRUCTIONS FOR:

TOPCHEST 4 DRAWER RETRO, ROLLCAB 4 DRAWER RETRO - BLUE WITH WHITE STRIPE

MODEL No's:

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

AP28104BWS, AP28204BWS

1. SAFETY

1.1 GENERAL SAFETY

 WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this product.

 WARNING! Use caution when handling and assembling the metal components. The metal may have sharp edges or corners, the use of protective gloves is recommended.

 DO NOT open more than one drawer at a time.  DO NOT step on the drawers.  DO NOT let children play with the roll cab or top chest.  Ensure all drawers are fully closed and the self locking catch is activated, before moving the toolbox.  Secure the brakes when rollcab is in the desired position.  Keep the work area clean, uncluttered and ensure there is adequate lighting.  Keep the mounting frame clean and tidy in accordance with good workshop practice.  DO NOT use in damp work areas.  WARNING! The warnings, cautions and instructions referred to in this instruction manual cannot

cover all possible conditions and situations that may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be applied by the operator.

2. INTRODUCTION

AP28104BWS

Retro styled top chest with modern day functionality. Features 4 drawers with 45kg ball bearing slides and aluminium trimmed lift latch drawer pulls preventing inadvertent opening. Chest is further enhanced with gas strut supported opening clam shell top providing additional storage. Retro theme is continued with colour scheme of racing blue with a vinyl

whitestripeandrecessedchromesidehandles.Drawersandtoplidarettedwithdrawer linersandlockononekeyturn.ForusewithwithAP28204BWSRollcabandAP28102BWS

Mid-box to make a complete retro style stack unit.

AP28204BWS

Retro styled rollcab with modern day functionality. Features 4 drawers with 45kg ball bearing slides and aluminium trimmed lift latch drawer pulls preventing inadvertant drawer opening. Retro theme is continued with colour scheme of racing blue with a vinyl white stripe and styl-

ishheavydutycasters,twowithbrakes.Alldrawersarettedwithlinersandlockononekey turn.ForusewithAP28104BWSTopchestandAP28102BWSMid-boxtomakeacomplete

retro style stack unit.

3. SPECIFICATION

Model No: .............................AP28104BWS ............AP28204BWS

OverallDimensions(WxDxH):........700 x 450 x 495mm ........730 x 460 x 825mm

 Mediumdrawer(x4): .................570 x 400 x 60mm .....................n/a

Clam Shell Top: ......................590 x 430 x 80mm ....................n/a

 Largedrawer(x1): ................................ n/a ........570 x 400 x 105mm

 Largedrawer(x3): ................................ n/a ........570 x 400 x 135mm

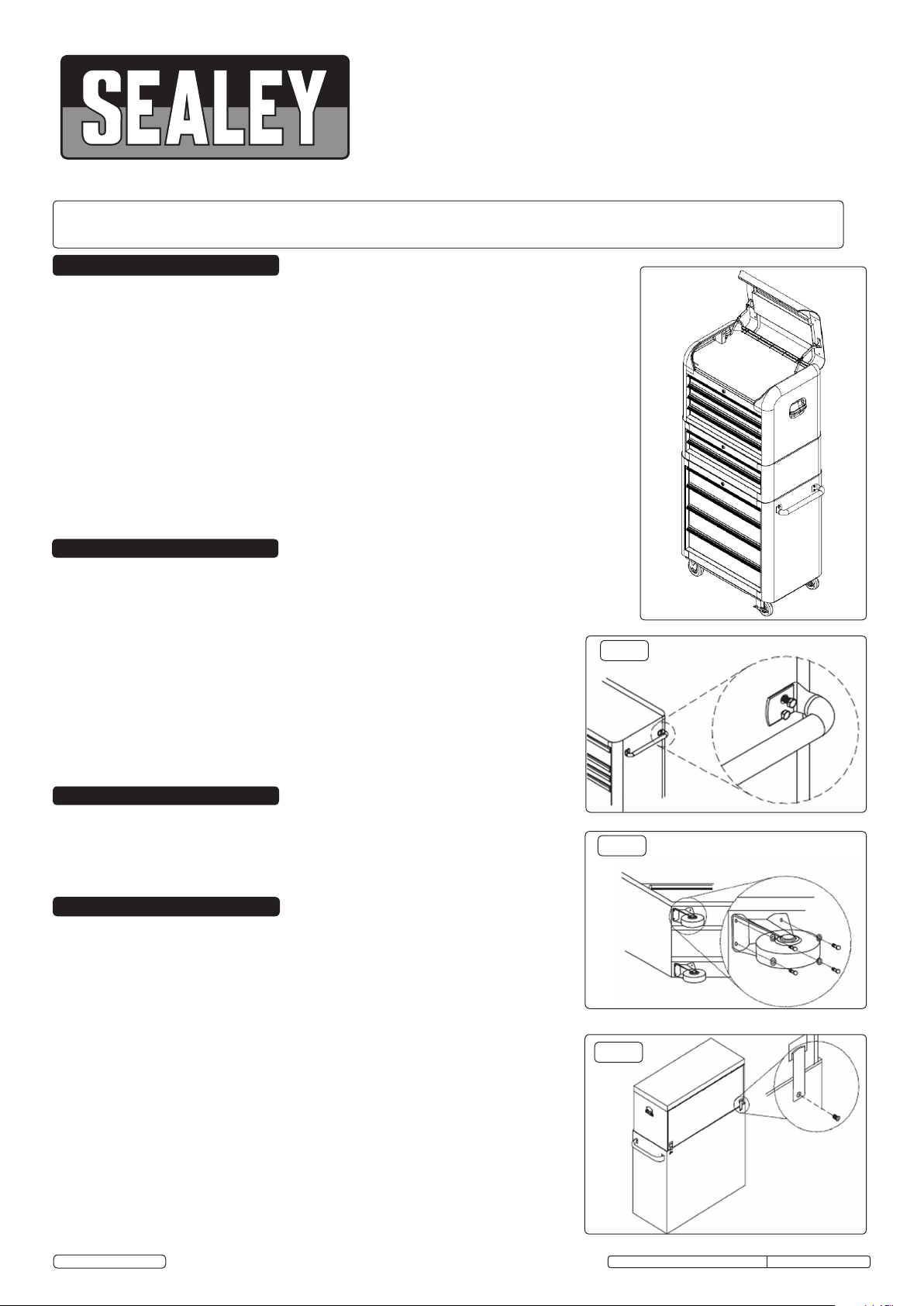

4. ASSEMBLY

4.1. Roll Cab Handle Installation. Position the handle over the holes in the roll cab, attach using the M6 x 12mm hex bolts

 andtightensecurely(g.1).Assemblingthehandlerstwillmakeiteasiertohandlethe

the roll cab.

4.2. Castor Installation.

4.2.1. Laytherollcabcarefullyonitsback,protectingitwithasoftmatplacedontheoor.

4.2.2. Position the two rigid castors at the end opposite the handle.

4.2.3. Insert the M8 x 20mm hex bolts through the washers, then through the castors and into the base of the roll cab, tightening securely.

4.2.4. Repeatwiththetwoswivelcastorsontheopposite(handle)end.

Shown with Mid-box

Modelno:AP28102BWS

g.1

g.2

g.3

4.3. Roll Cab and Top Chest Connection.

4.3.1. Place the top chest onto the roll cab.

4.3.2. Snaptheconnectorsintothesquareholesonthebackofthetopchest(g.3.).

4.3.3. Fasten the connectors with the screws provided.

Original Language Version

AP28104BWS,AP28204BWSIssue:2-22/09/17

Page 2

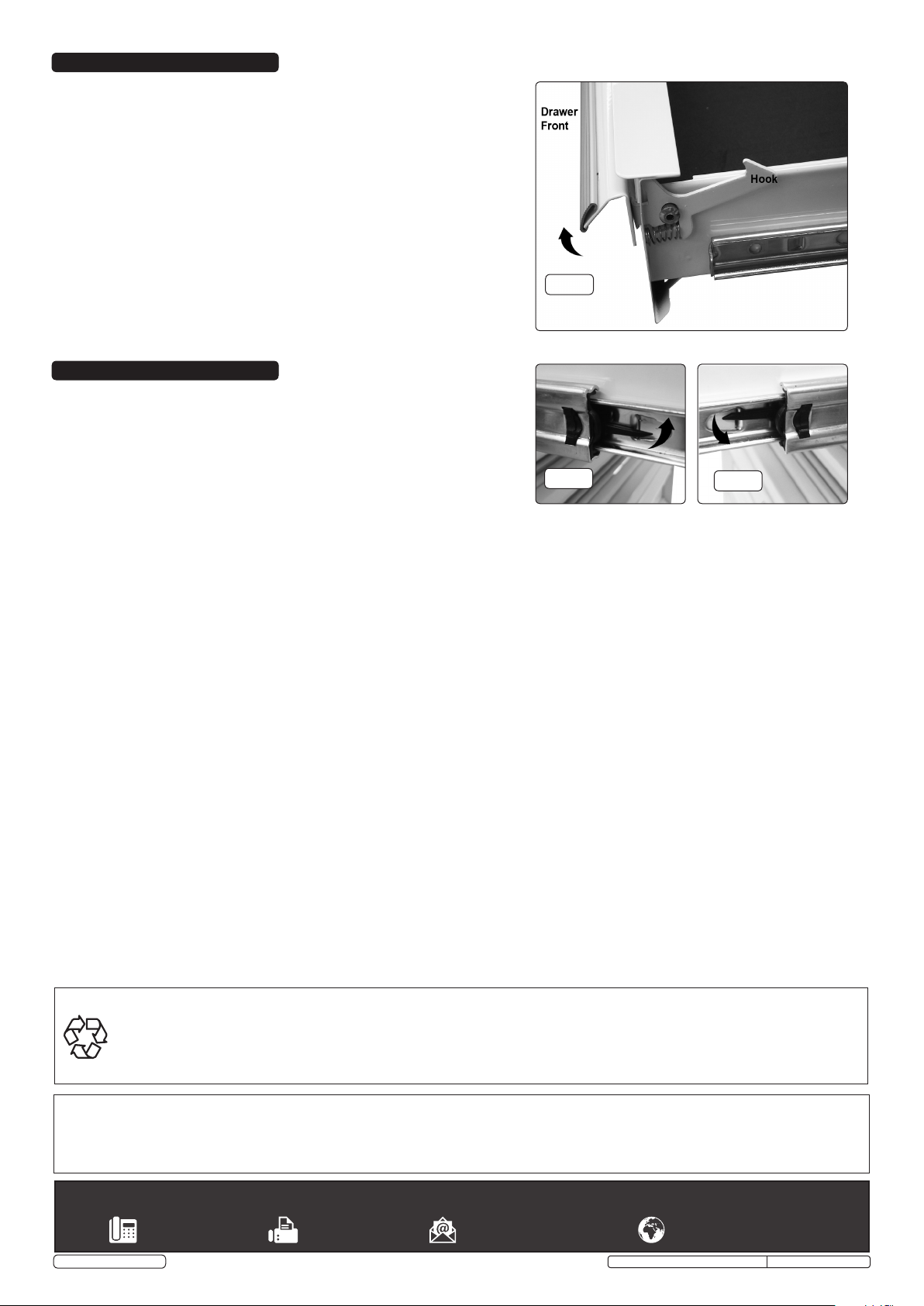

5. OPERATION

5.1. Raise and Release Drawers.

5.1.1. Toopen:liftthedrawerfrontwhilstpullingitout(g.4).

5.1.2. Toclose:shutthedrawerrmlyuntilthelatchengages.

5.1.3. Ifthedrawerdoesnotlatch,thehook(g.4)maybemisalignedorbinding.  Bendthehookgentlyuntilitisparalleltothedraweredgeandengageswhen

closed.

5.2. To Remove Drawers

5.2.1. Pull drawer out almost fully.

5.2.2. Locatetheblacklockinglevers(gs.5&6).

5.2.3. Facingthedrawer;liftoneleverup(g.5),andpushtheotherleverdown  (g.6).

5.2.4. Withbothleversdeployed,thedrawercanbepulledoutfromtheslides.

5.3. To Replace Drawers

5.3.1. Extend the drawer runners from the cabinet.

5.3.2. Engage the slides on either side of the drawer carefully into the runners.

5.3.3. Push the drawer closed squarely until the drawer is closed fully, engaging the locking levers as it goes.

6. MAINTENANCE

6.1. Lubricate the drawer slides sparingly every six months.

6.2. Clean the metalwork periodically with warm water and a mild detergent.

6.3. Stubborn grease and oil marks can be removed by using a non-abrasive

cleaner.

g.4

g.5

g.6

ENVIRONMENT PROTECTION

Recycleunwantedmaterialsinsteadofdisposingofthemaswaste.Alltools,accessoriesandpackagingshouldbesorted,takento arecyclingcentre anddisposedof inamanner whichiscompatible withtheenvironment.Whentheproductbecomescompletely unserviceableandrequiresdisposal,drainanyfluids(ifapplicable)intoapprovedcontainersanddisposeoftheproductandfluids

according to local regulations.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.

Important: No Liability is accepted for incorrect use of this product. Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
