InstructIons for:
WORKBENCH 1.2 METRE WITH DRAWER
MoDEL no: AP12160
thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULL Y. NOTE THE SAFE OPERA TIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS1. SAFETY INSTRUCTIONS
1.0 GENERAL SAFETY
WARNING! Ensure Health & safety, local authority, and
general workshop practice regulations are adhered to when
using this bench.
Locate bench in a suitable work area.
Keep the work area clean, uncluttered and ensure there is
adequate lighting.
WARNING! use bench on level and solid ground, preferably
concrete.
Keep the bench clean and tidy in accordance with good
workshop practice.
Keep children and unauthorised persons away from the work area.
DO NOT use the bench for any purpose other than that for
which it is designed.
DO NOT undertake work on the bench without the workpiece
being adequately secured. use clamps or a vice (not included)
to secure the workpiece - available from your sealey dealer.
DO NOT use the bench outdoors .
DO NOT get the bench wet or use in damp or wet locations or
areas where there is condensation.
DO NOT exceed the maximum load for the work surfaces,
worktop and bottom shelf - 100kg each, drawer - 20kg. Avoid
heavy impacts when placing objects onto the surfaces.
DO NOT clean the bench with any solvents which may damage
the surface or the protective coating on the worktop.
2. INTRODUCTION
2.1 Introduction:
Boltless design makes the unit easy to assemble, with minimal
tools being required. one large drawer with ball bearing slides,
fitted with two handles. MDf Worktop measures 1210 x 605mm
(W x D), which has a comfortable work height of 900mm. fitted
with anti-slip foot protectors.
2.2 Dimensions:
size (W x D x H ):1210 x 605 x 900mm
Worktop: 1210 x 605mm.
Max capacity (per level): 100kg evenly distributed.
Max capacity of drawer: 20kg evenly distributed.
3. CONTENTS

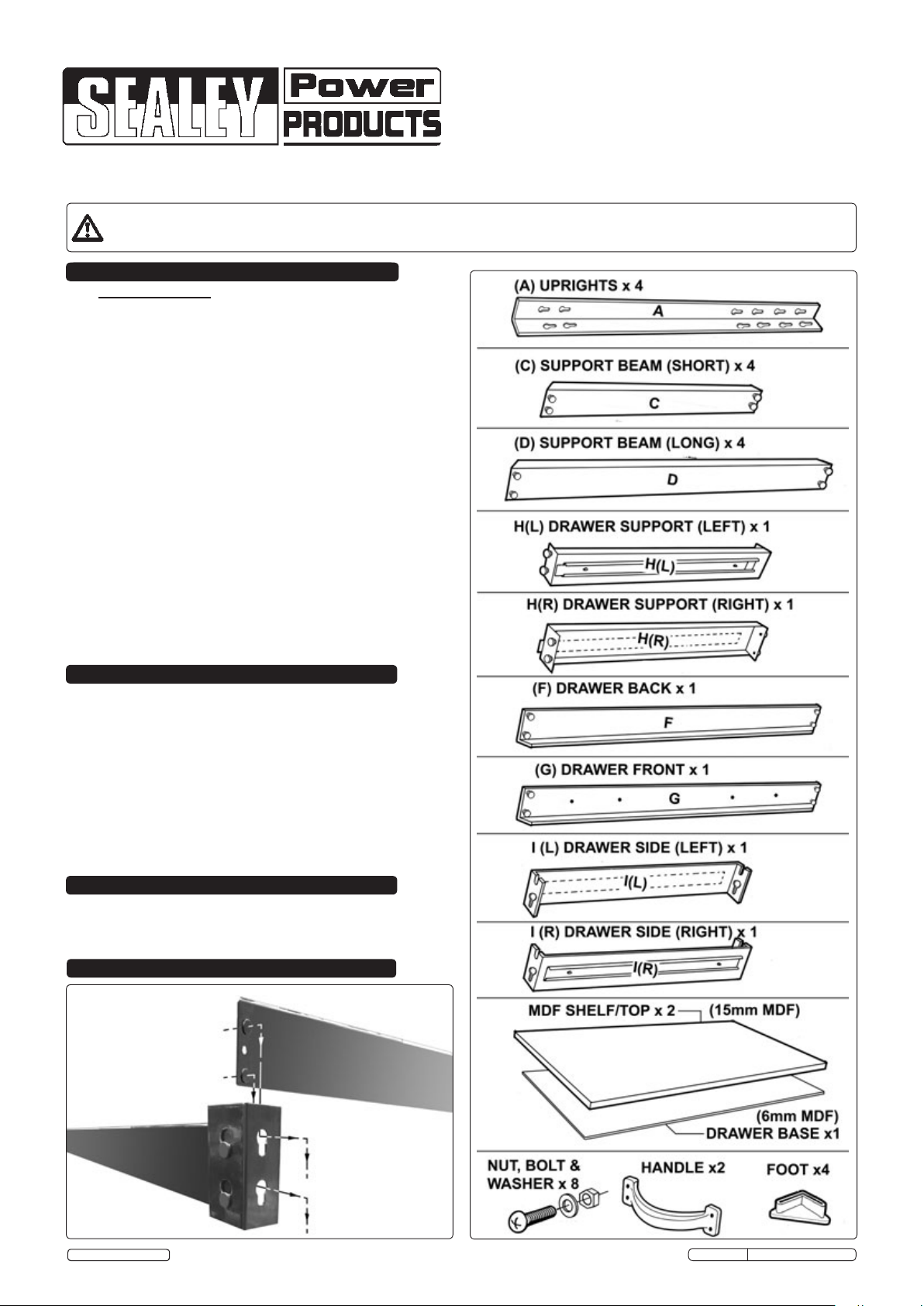

unpack the product and check the contents against the list/
drawing on the right. should any items be missing or damaged
contact your sealey dealer.
4. METHOD OF CONSTRUCTION
structural members have
flat headed, waisted
rivets attached which
pass through keyholes in
the uprights and are
pushed down to secure
them.
© Jack sealey Limited
Original Language Version
Ap12160 Issue no.1 21/06/12
Page 2
5. ASSEMBLY
1
3
2
4
5
© Jack sealey Limited
6
Original Language Version
Ap12160 Issue no.1 21/06/12
Page 3

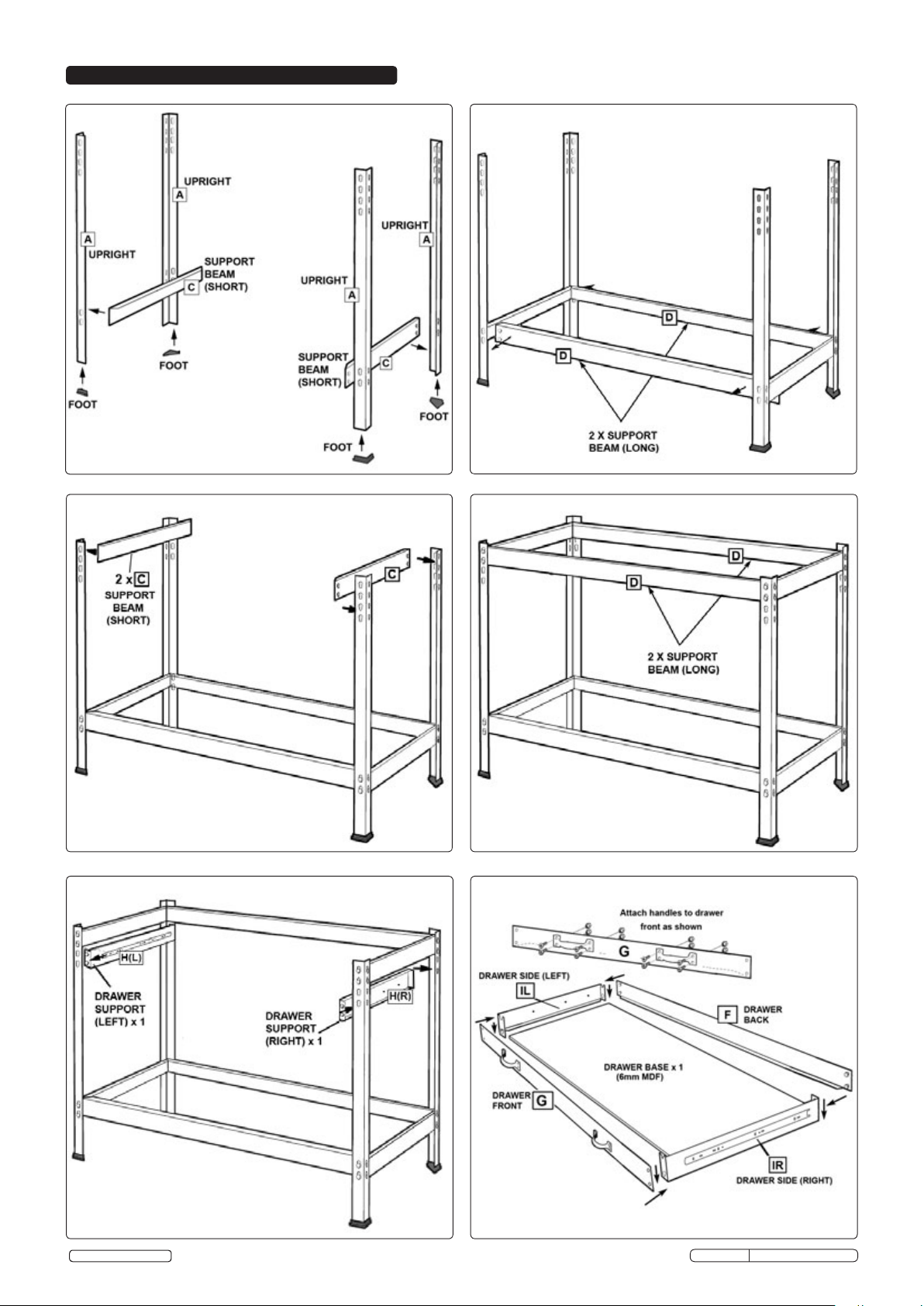

5.1 study each diagram and identify the components required with
reference to the parts list/drawing on page 1.
5.2 Build up the basic frame as shown in diagrams 1,2,3 & 4.
5.3 Attach the drawer supports to the basic frame as shown in
diagram 5.
5.4 Assemble the drawer with reference to diagram 6. place the
6mm MDf drawer base into the bottom of the draw frame.
Insert the drawer into the drawer runners as shown in diagrams
7 and 8.
5.5 place one 15mm MDf board onto the top of the frame as
shown in diagram 9 to form the worktop. Insert the other 15mm
MDf board into the lower part of the frame and move it into
position on the lower support beams to form the lower shelf.
see diagrams 9 & 10.
7
9
8
10
Parts support is available for this product. To obtain a parts listing and/or diagram, please log on to
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: no liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: for a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
© Jack sealey Limited
www.sealey.co.uk, email sales@sealey.co.uk or phone 01284 757500.
Sole UK Distributor, Sealey Group,
Kempson Way, suffolk Business park,
Bury st. Edmunds, suffolk,
Ip32 7Ar
