Sealey AK4403 Instruction Booklet

INSTRUCTIONS FOR:

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

DOUBLE LEVER GREASE GUN

MODEL NO: AK4403

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.

Refer to

Instruction

Manual

Wear eye

Protection

1. SAFETY

 WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this equipment.
9 Familiarise yourself with the application and the limitations of the grease gun, as well as the potential hazards.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep the grease gun clean for best and safest performance.
9 Check moving parts alignment on a regular basis.

8 DO NOT use the grease gun for any purpose other than that it was designed for.
8 DO NOT operate the grease gun if any parts are damaged or missing, as this may cause failure and/or personal injury.

9 When not in use store in a safe, dry, childproof location.

 WARNING! Always wear approved eye protection when operating this gun.

2. INTRODUCTION

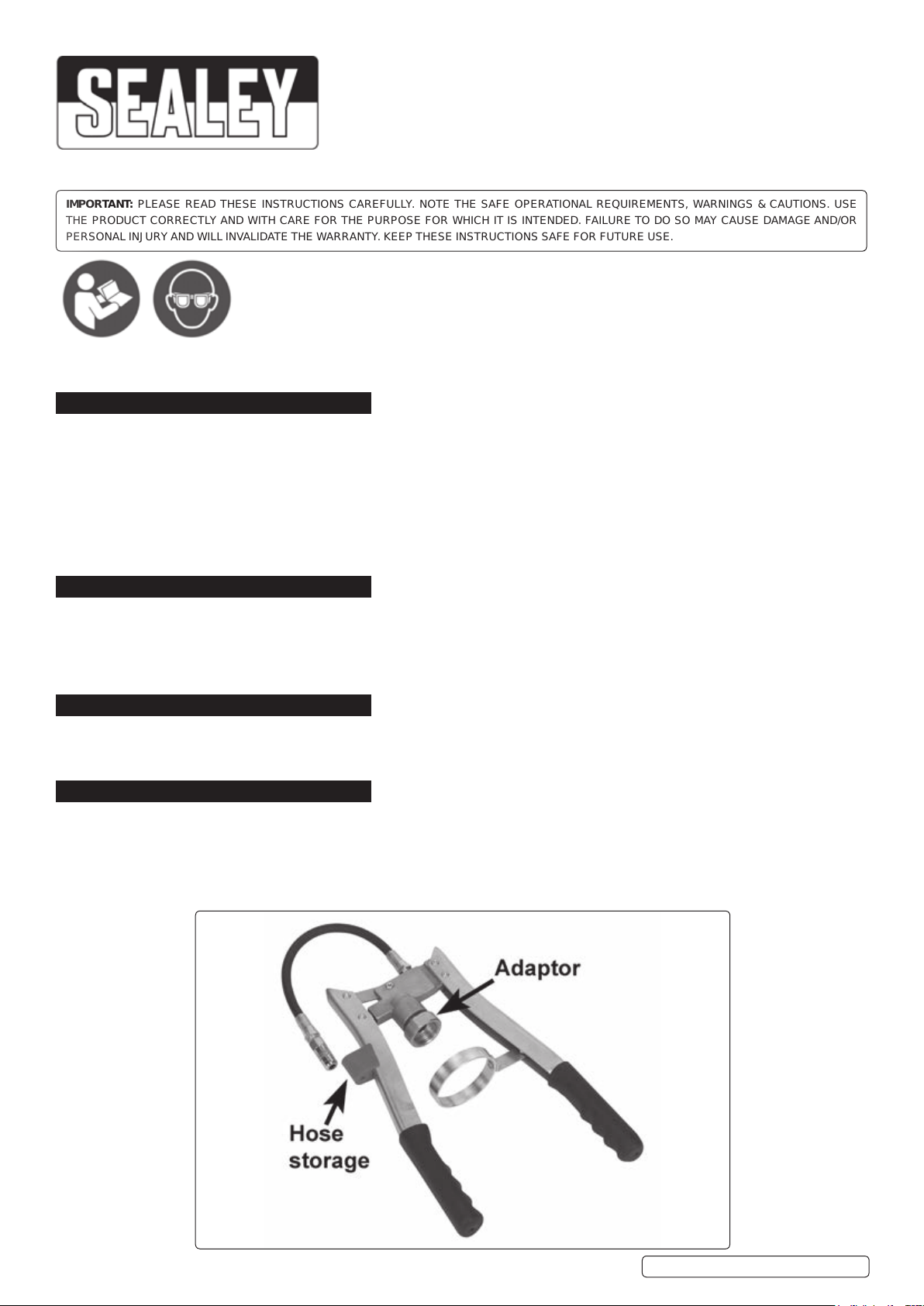

Robust, double arm grease gun with aluminium die-cast head. Uses screw type grease cartridges using vacuum suction to ensure full utilization
of grease cartridge as well as eliminating priming issues associated with conventional grease guns. Features a protective cap for hose storage

preventing contamination. 1/8” BSPT thread and supplied with adaptor to t most screw type cartridges on the market, including model numbers:

SCS107 & SCS108. Zinc plated lever handles with rubber ergonomic grips. Fitted with minimal wearing parts to ensure prolonged life and
supplied with 300mm (12”) delivery hose and 4-jaw coupler.

3. SPECIFICATION

Model no: .................................................................AK4403

Delivery pressure:
Delivery per stroke:

......................................................7500psi

.....................................................0.8cm²

4. OPERATION

4.1. Unscrew the cap of the grease cartridge and push grease out of the top, then screw into the gun. (This enables the grease to be
initially pushed into the system).

4.2. Ensure that the arm of the grease gun is open when screwing in the cartridge so that the grease can be pushed past the piston inside
the head.

4.3. Once screwed in push the grease cartridge again to ensure that the grease is packed inside the head of the grease gun.

4.4. Pump slowly air should be heard rushing through the system until the grease comes out of the end.

© Jack Sealey Limited

Original Language Version

AK4403 | Issue 2(I) 25/05/16
