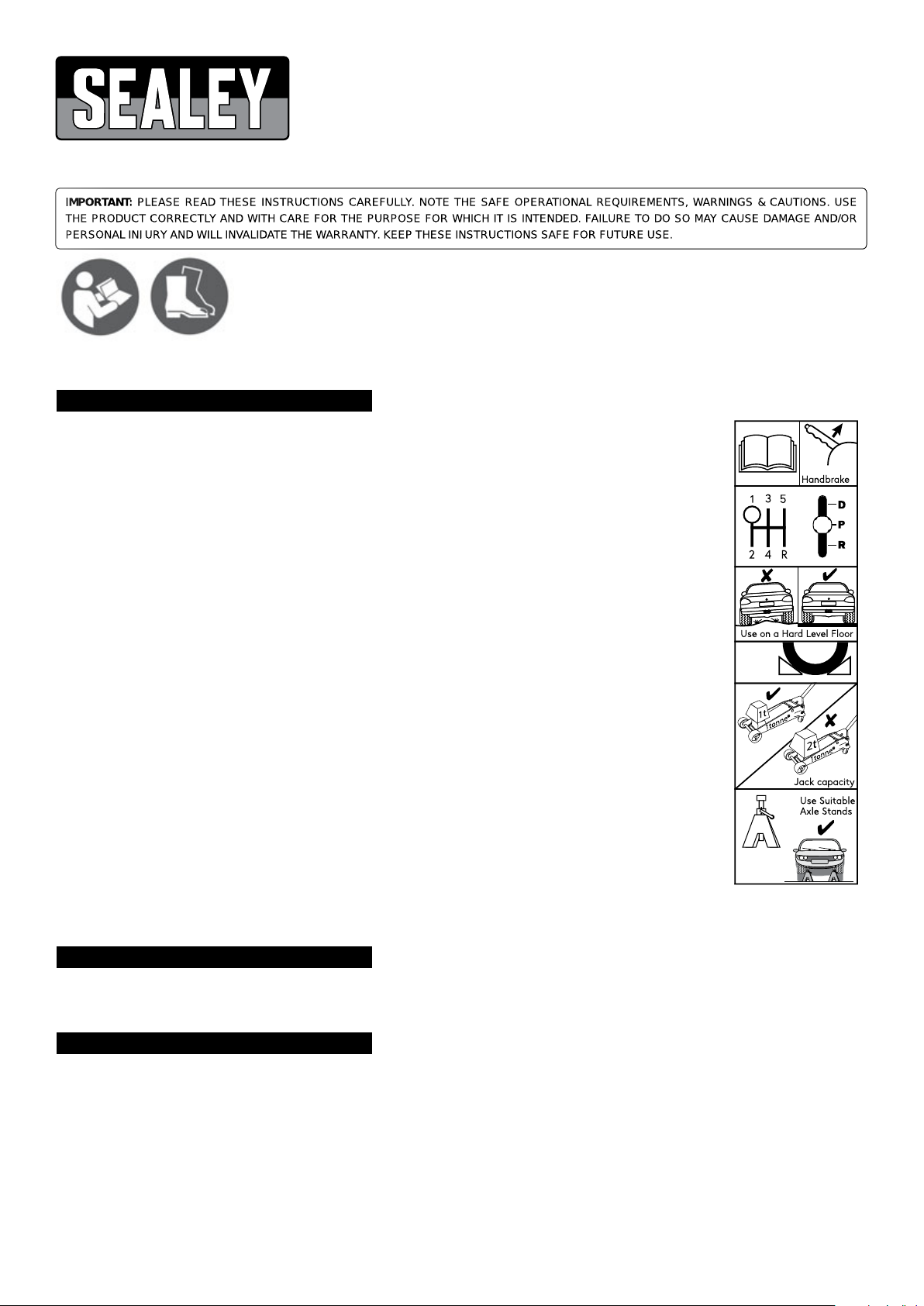

MPORTANT:
PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
TROLLEY JACK 2 TONNE LOW ENTRY
SHORT CHASSIS
MODEL NO: 1050CXLE.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
Refer to
instruction
manual
Wear
safety
footwear
1. SAFETY
9 Ensure the jack is in sound condition and good working order. Take action for immediate repair or replacement
of damaged parts.
Use genuine parts only. The use of improper parts may be dangerous and will invalidate the warranty.
9 Locate the jack in a suitable, well lit working area. Keep working area clean and tidy and free from unrelated
materials.
9 Use jack on level/solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9 Place wedges under wheels of vehicle, but ensure the jack wheels are free to move and that there are no
obstructions.
9 Ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear (or “PARK”
automatic).
9 Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to allow for
vehicle tilting.
9 Ensure there are no passengers in the vehicle and that all non-essential persons keep a safe distance whilst
the jack is in use.
9 Place jack under lifting points recommended by vehicle manufacturer (see vehicle hand book). Ensure lifting
point is stable and centred on saddle.
▲ DANGER: Use the jack for lifting only, NOT for supporting the lifted load.
9 Use suitable capacity axle stands under the vehicle before proceeding with any task.
9 Ensure there are no persons or obstructions beneath the vehicle before lowering.
8 DO NOT operate the jack if damaged.
8 DO NOT work under the vehicle until axle stands have been correctly positioned.
8 DO NOT exceed the rated capacity of the jack (2tonne/20000kg). When lifting a load of maximum capacity or
close to it, it is recommended that the effort be reduced by the use of assistance during this operation.
8 DO NOT adjust the safety overload valve.
8 DO NOT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
8 DO NOT allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
8 DO NOT top up hydraulic system with brake fluid. Use hydraulic jack oil only and use a qualified person to
maintain jack hydraulic system.
8 DO NOT allow untrained persons to operate the jack.
8 DO NOT use jack for purposes other than which it is designed.
8 DO NOT allow persons to ride on the jack.
9 When not in use store jack, fully lowered, in a safe, dry, childproof area.
if
Chock
Wheels
X2
Apply
Never
exceed
2. INTRODUCTION
Steel chassis with welded castor supports and one-piece hydraulic unit. Fitted with overload valve, carry handle and nger cover for extra safety.
Proled lifting arm allows low clearance height of just 78mm making this unit suitable for sports and custom cars. Suitable for the hobby user or
as an emergency mobile jack. Includes one-piece pumping handle.
3. SPECIFICATION
Model no:.............................................................1050CXLE
Capacity:.....................................................2tonne (2,000kg)
Minimum saddle height: ...............................................85mm
Maximum saddle height: ............................................ 330mm
Maximum chassis height:...........................................130mm
Length:.......................................................................530mm
Weight:........................................................................... 10kg
© Jack Sealey Limited
Original Language Version
1050CXLE.V2 Issue: 3 (3) - 25/01/19
4. ASSEMBLY

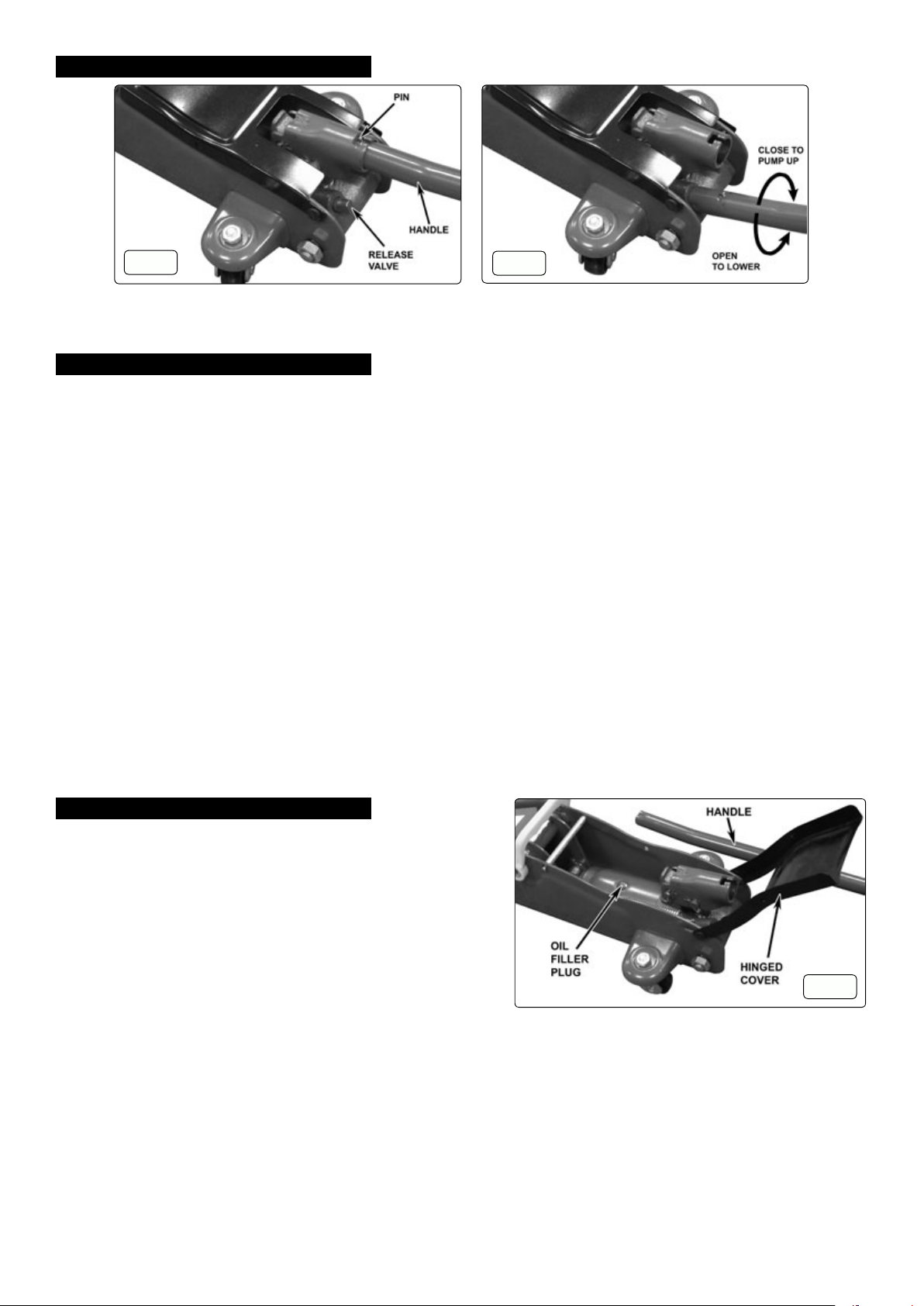

g.1
4.1. To pump, place the handle into the jacking socket and turn it to engage the external pin as shown in fig.1.
4.2. To operate the release valve engage the cross pin in the open end of the handle with the slot in the end of the release valve
as shown in g.2.
g.2
5. OPERATION
5.1. BEFORE FIRST USE.
5.1.1. Before using jack, purge hydraulic unit in order to eliminate any air in the system. Place handle onto the release valve nut as shown in
fig.2 and open the valve by turning the handle anti-clockwise, place the handle back into the jacking socket and pump for 30 to 40
seconds. When complete, close the release valve by turning the valve nut clockwise.
5.1.2. Place a few drops of hydraulic jack oil onto the pump piston and pump the handle several times to distribute the oil. Thoroughly lubricate
all moving parts.
5.2. GENERAL JACKING.
WARNING! Before lifting ensure Section 1 safety instructions are read and understood. When lifting a load of maximum capacity or
close to it, it is recommended that the effort be reduced by the use of assistance during this operation.
5.2.1. Prepare the vehicle as mentioned in the safety instructions ensuring the ground on which the jack is to stand is level and solid (not
tarmacadam).
5.2.2. Position the jack saddle under the vehicle manufacturer’s recommended lifting point.
5.3. RAISING THE VEHICLE.
5.3.1. Close the release valve using the handle as shown in fig.2. Place the handle into the handle socket and commence pumping handle up
and down using maximum strokes until the jack saddle reaches the vehicle jacking point. Check the jacking point is centrally located on
the saddle and raise the vehicle.
5.3.2. Should the jack become overloaded, a safety excess pressure valve will open and stop the vehicle from lifting.
WARNING! The jack is a lifting device only and must not be used to support the load. Use correctly rated axle stands to support the
load.
5.4. LOWERING THE VEHICLE.
WARNING! Ensure there are no persons or obstacles beneath the vehicle, or in the path of its descent.
5.4.1. If using axle stands, raise the jack high enough for the stands to be easily removed. Then place the handle onto the release valve nut and
turn anti-clockwise, very slowly, to open the valve.
5.4.2. The lowering speed is controlled by the amount you turn the handle. Lower carefully, avoid any sudden changes in descent rate which
would shock load the hydraulic system.
6. MAINTENANCEi
6.1. When the jack is not in use, the ram should be in its lowest position to
minimise corrosion. Remove the handle to inactivate jack.
6.2. Keep the jack clean and lubricate all moving parts on a regular basis.
6.3. Before each use check for broken, cracked, bent, or loose parts, or
any visible damage to ram, pump, saddle, lifting arm, frame and all
parts including nuts, bolts, pins and other fasteners. If any suspect item
is found remove jack from service and take necessary action to
remedy the problem.
8 DO NOT use the jack if believed to have been subjected to abnormal
load or shock load.
6.4. Periodically check the pump piston and the ram for signs of corrosion.
Clean exposed areas with a clean oiled cloth.
6.5. After one year the oil should be replaced in order to extend the life of the jack. Use hydraulic jack oil only.
IMPORTANT: Only fully qualified personnel should attempt hydraulic maintenance or repair.
6.6. To check the oil level, fully lower the jack. Open the hinged cover and remove oil filler plug (fig.3). The correct level is just below the
bottom of the plug. If oil level is low, fill as required.
NOTE: Use a good quality jack oil, such as SEALEY HYDRAULIC JACK OIL.
WARNING: DO NOT use brake fluid, or any fluid other than hydraulic jack oil as this may cause serious damage to the jack and will
invalidate the warranty.
6.7. When draining the oil make sure that no dirt is allowed to enter the hydraulic system.
IMPORTANT: NO RESPONSIBILITY IS ACCEPTED FOR INCORRECT USE OF THIS PRODUCT.
Owing to their size and weight, hydraulic products should ideally be repaired by local service agents. We have service / repair agents in
most parts of the UK. Before returning your product please call our technical helpline on 01284 757505 for advice and troubleshooting
guidance.
If the jack is under guarantee please contact your stockist.
g.3
