Page 1
Hand-made Almost Ready to Fly R/C Model Aircraft
ASSEMBLY MANUAL
Made in Vietnam
Specifications
Wingspan ----------------------- .148 cm--------------- 58.3 in.
Wing area ----------------------- 3474sq. cm ---- 538.4sq in.
Approximate flying weight ----- 2.8 - 3.0kg ----6.2 - 6.6 lb.
Recommended engine size ---------- 0.40 - .48 2 stroke.
0.50 - .72 4 stroke.
Recommended R/C ------------- 4 channel with 5 servos.
Flying skill level ------------------- Advanced / Intermediate.
Kit features
• Ready-made—minimal assembly & finishing required
• Ready-covered covering
• Factory-installed pushrods
• Factory-installed engine mount
• Factory-pinned & glued control surface hinges for ultimate safety
• Comprehensive hardware pack including wheels, tank, spats,undercarriage& spinner
• Photo-illustrated step-by-step Assembly Manual
Additional items required
Engine
4 Channel or greater Radio Control system
Glues
Tools
Starting Equipment
Page 2
ZERO FIGHTER. Instruction Manual
2
INTRODUCTION
Thank you for choosing the Zero fighter ARTF by SEAGULL MODELS. The Zero fighter was
designed with the intermediate/advanced sport flyer in mind. It is a semi scale airplane which is
easy to fly and quick to assemble. The airframe is conventionally built using balsa, plywood and
veneer to make it stronger than the average ARTF , yet the design allows the aeroplane to be kept
light. You will find that most of the work has been done for you already. The pushrods are pre-made
to the correct lengths, the motor mount has been fitted and the hinges are pre-installed and pinned
for security. Flying the Zero fighter is simply a joy.
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manual thoroughly before starting assembly of your Zero fighter . Use the parts listing below to
identify all parts.
WARNING
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
If you are inexperienced with basic R/C flight we strongly recommend you contact your R/C supplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
procedures designed to help the new pilot on his way to successful R/C flight. They will also be able
to advise on any insurance and safety regulations that may apply.
ADDITIONAL ITEMS REQUIRED
! .40-.48 2-stroke engine.
.50-.72 4-stroke engine.
! 4-channel radio with five servos.
! Glow plug to suit engine.
! Propeller to suit engine.
! Protective foam rubber for radio
system.
! Silicone fuel line.
! Stick-on weights for balance
(If necessary).
TOOLS & SUPPLIES NEEDED
! Thick cyanoacrylate glue.
! 30 minute epoxy.
! 5 minute epoxy.
! Hand or electric drill.
! Assorted drill bits.
! Modelling knife.
! Straight edge ruler.
! 2mm ball driver.
! Phillips head screwdriver.
! 220 grit sandpaper.
! 90° square or builder’s triangle.
! Wire cutters.
! Masking tape & T-pins.
! Thread-lock.
! Paper towels.
PARTS LISTING
FUSELAGE ASSEMBLY
! (1) Fuselage
WING ASSEMBLY
! (1) Right wing half with pre-installed
aileron.
! (1) Left wing half with pre-installed
aileron.
! (1) Plywood wing dihedral brace.
! (1) Covering strip for centre section
joint.
Tail section assembly
! (1) Vertical stabilizer with pre-
installed rudder
! (1) Horizontal stabilizer with pre-
installed elevator halves.
Some more parts.
HARDWARE PACK
COWLING
Page 3
ZERO FIGHTER. INSTRUCTION MANUAL
3

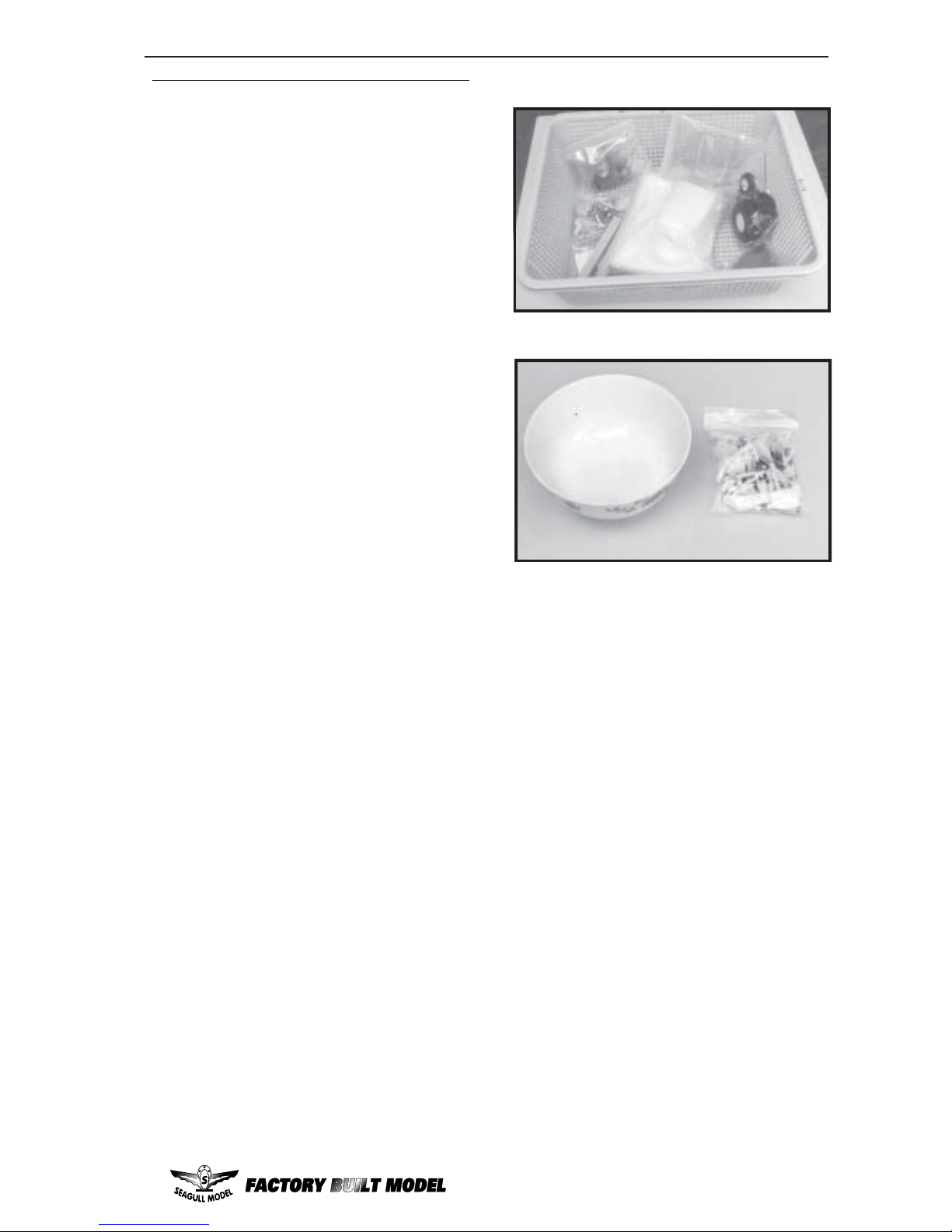

NOTE:To avoid scratching your new aero-
plane we suggest that you cover your
workbench with an old towel. Keep a
couple of jars or bowls handy to hold
the small parts after you open the
bags.
Please trial fit all parts. Make sure you
have the correct parts and that they fit
and are aligned properly before gluing!
This will ensure proper assembly as
the Zero fighter is made from natu-
ral materials and minor adjustments
may have to be made.
The paint and plastic parts used in
this kit are fuel proof. However, they
are not tolerant of many harsh chemicals including the following: paint
thinner, cyano-acrylate glue accelerator, cyanoacrylate glue de-bonder
and acetone. Do not let these chemicals come in contact with the colours
on the covering and the plastic parts.
Page 4
ZERO FIGHTER. Instruction Manual
4
! 6) Reinstall the gear wire and install the
straps using the four 3mm x 12mm wood
screws. Tighten the screws completely to
secure the gear wire in place.
PARTS REQUIRED
LANDING GEAR INSTALLATION
! {2} Prebent Main Gear Wires
! {2} 60mm Diameter Wheels
! {4} Nylon Landing Gear Straps
! {8} 3mm x 12mm Wood Screws
! {4} Wheel Collars w/3mm x 6mm Set
Screws

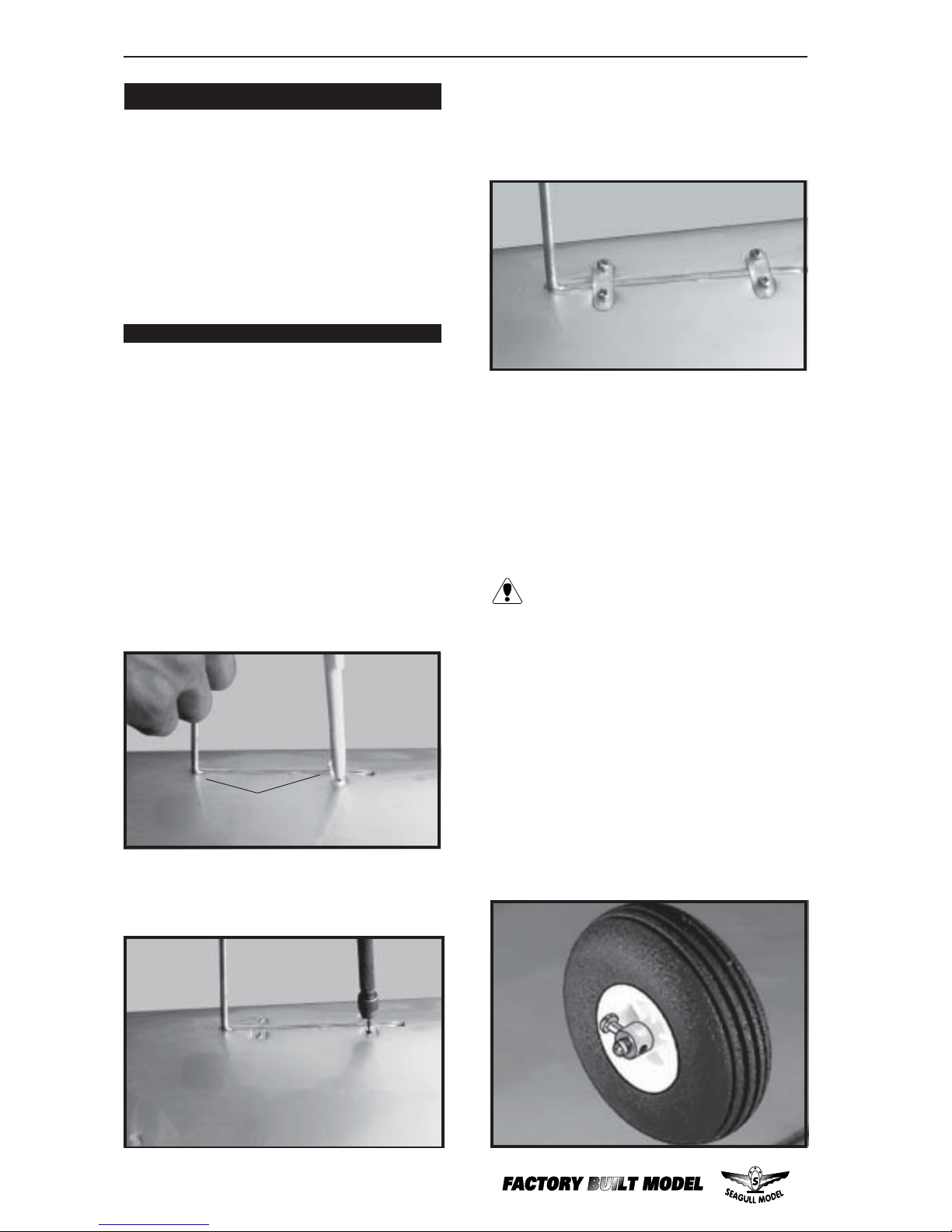

INSTALLING THE MAIN GREAR WIRES
! 1) Using a modeling knife, remove the
covering from over the two main gear mounting slots located in the bottom of the wing.
! 2) Insert the 90º bend of one main gear
wire into the predrilled hole in one mounting
slot.
! 3) The landing gear wire is held in place
using two nylon landing gear straps and four
3mm x 12mm wood screws.
The straps should be located equal distance
from the inside and outside ends of the wire.
! 4) Using the two landing gear straps as
a guide, mark the locations of the four 3mm x
12mm mounting screws onto the wing surface.
! 5) Remove the two straps and the gear
wire. Drill four 1.5mm pilot holes into the wing
for the wood screws. Be careful not to drill
through the top of the wing!
! 7) Slide one wheel collar with 3mm x
6mm set screw onto each axle. Push the
wheel collars on as far as they will go and
tighten the set screws.
Be careful not to overtighten the set
screws. Overtightening may cause the
threads to strip.
! 8) Slide one 60mm diameter wheel onto
each axle and push them up against the wheel
collars. Slide the remaining wheel collars with
3mm x 6mm set screws onto the axles. Push
them up against the wheels and tighten the
set screws. The wheels should spin free and
not bind in any way. If they do bind, loosen
the set screws in the outer wheel collars and
move the collars out a small amount. Retighten the set screws.
Nylon landing gear strap
Page 5
ZERO FIGHTER. INSTRUCTION MANUAL
5

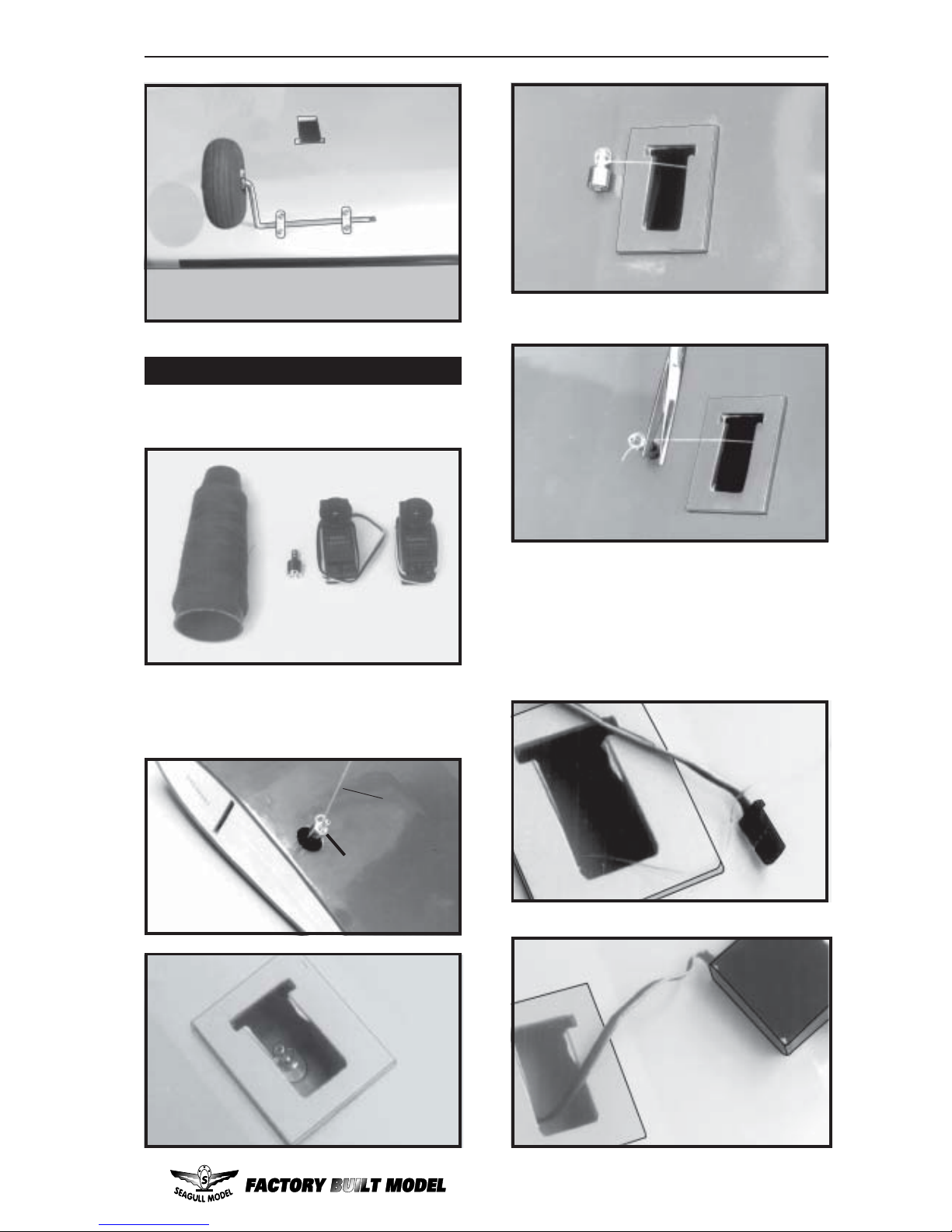

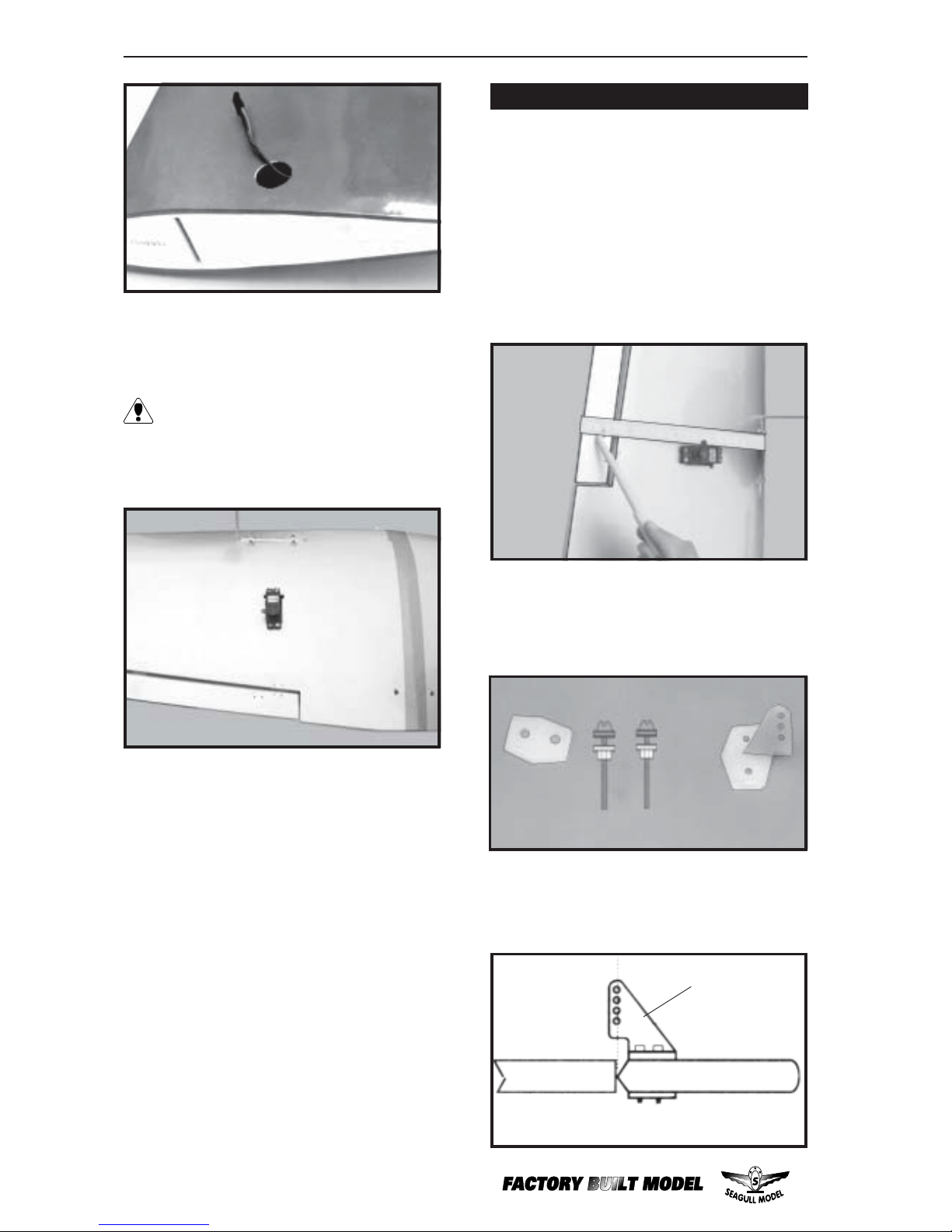

! 1) Use a small weight(Weighted fuel pick-
up )+thread to feed the servo connector
through the wing as indicated
INSTALLING THE AILERON SERVOS.
string
small weight
! 2) Attach the string to one end of servo
lead and carefully thread it though the wing.
Once you have thread the lead throught the
wing, remove the string so it can use for the
other servo lead.
Page 6
ZERO FIGHTER. Instruction Manual
6
Because the size of servos differ, you
may need to adjust the size of the
precut opening in the mount. The notch
in the sides of the mount allow the servo
lead to pass through.
! 4) Install the aileron servo into the servo
mount, with the output shaft towards the trailing edge of the wing, using the wood screws
provided with your radio system. Drill 1mm
pilot holes through the mount
Repeat the procedure for the other wing
half.
PARTS REQUIRED
! {2} 2mm x 180mm Threaded Wires
! {2} Nylon Adjustable Control Horns
! {2} Nylon Clevises
! {4} Machine screws 2MM x 20MM
! {2} Set control horns.
! 3) Install the rubber grommets and brass
collets onto the aileron servo. Test fit the servo
into the aileron servo mount.
INSTALLING THE AILERON LINKAGE
! 1) Using a ruler & pen to draw a straight
line as below picture.
2) Locate the two nylon control horns, two
nylon control horn backplates and four
machine screws.
!!
!!
!3) Position the aileron horn on the bottom
side of aileron. The clevis attachment holes
should be positioned over the hinge line.
Control Horn
Mounting Screws
Mounting Plate
Page 7
ZERO FIGHTER. INSTRUCTION MANUAL
7
!!
!!

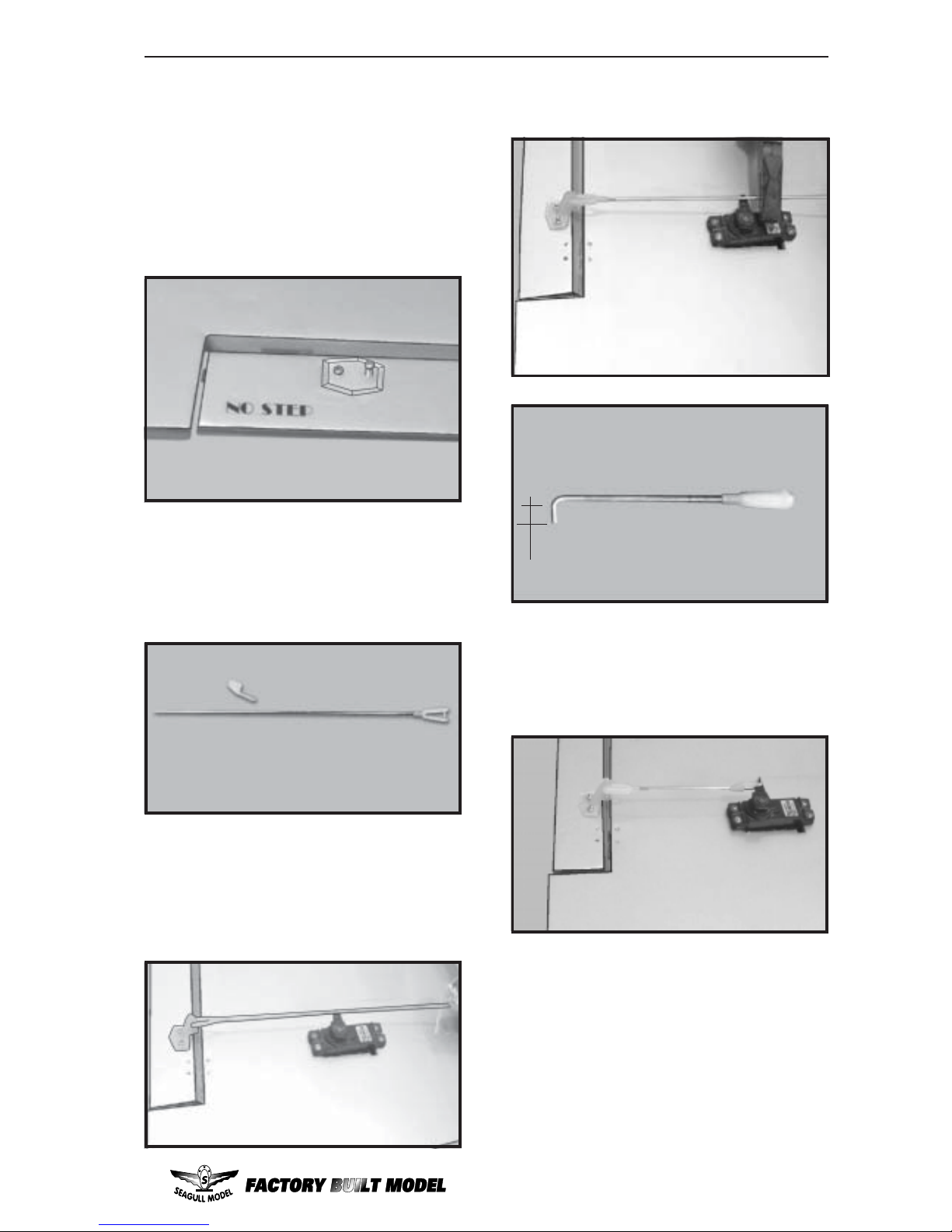

!4) Using a 1mm drill bit and the control horns
as a guide, drill the mounting holes through
the aileron halves.
6) Thread one nylon adjustable control
horn onto each aileron torque rod. Thread
the horns on until they are flush with the ends
of the torque rods.
!!
!!
!5) Mount the control horns by inserting the
screws through the control horn bases and
aileron halves, then into the mounting
backplates. Do Not overtighten the screws or
the backplates may crush the wood.
7) Connect the clevis to the control horn
and lay the wire across the servo arm. Mark
the wire where it crosses over the arm holes.
8) Cut the wire 1/2” past the mark and
make an “ L ” bend .
9) Connect the control wire to the servo
and aileron horn as shown. Use the “ L” bend
keeper to secure the control wire to the servo
arm.
10mm
Page 8
ZERO FIGHTER. Instruction Manual
8

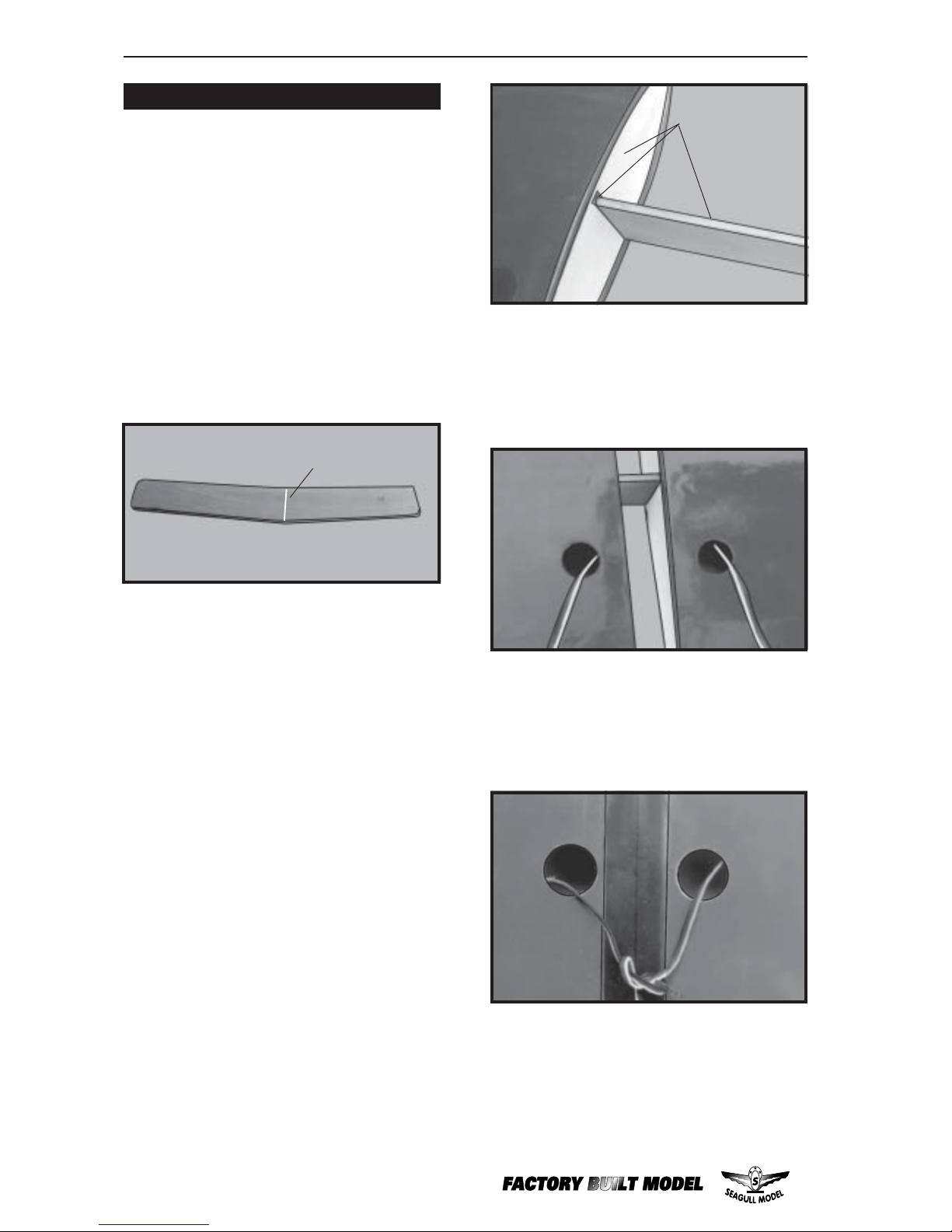

! 2. Test fit the dihedral brace into each
wing half. The brace should slide in
easily up to the centreline that you
drew. If not, use 220 grit sandpaper
with a sanding block and sand down
the edges and ends of the brace until
it fits properly.
! 3. Remove the brace when satisfied
with its fit in each wing half. Coat both
sides of one half of the dihedral brace
with 30 minute epoxy. Next, pour
some epoxy into the dihedral box in
one wing panel. Make sure you cover
the top and bottom as well as the
sides of the dihedral brace. Use
enough epoxy to fill any gaps.
! 4. Insert the dihedral brace into the di-
hedral box up to the centreline. With
paper towels wipe off any excess
epoxy that may have squeezed out of
the joint .
Carefully slide the two wing halves together
and firmly press them together, allowing the
excess epoxy to run out. there should should
not be any gap in the wing halves. Use rubbing
alcohol and a paper tower to clean up any
excess epoxy.
Apply masking tape at the wing join to hold the
wing halves together securely .
WING ASSEMBLY
NOTE:We highly recommend using 30
minute epoxy as it is stronger and
provides more working time, allowing
the builder to properly align the parts.
Using fast cure epoxy when joining
the wing halves could result in the
glue drying before the wing halves
are aligned properly which may result
in failure of the wing centre section
during flight.
! 1. Locate the plywood wing dihedral
brace. Using a ruler, locate its central
and draw a vertical line .
Epoxy
central line
Page 9
ZERO FIGHTER. INSTRUCTION MANUAL
9

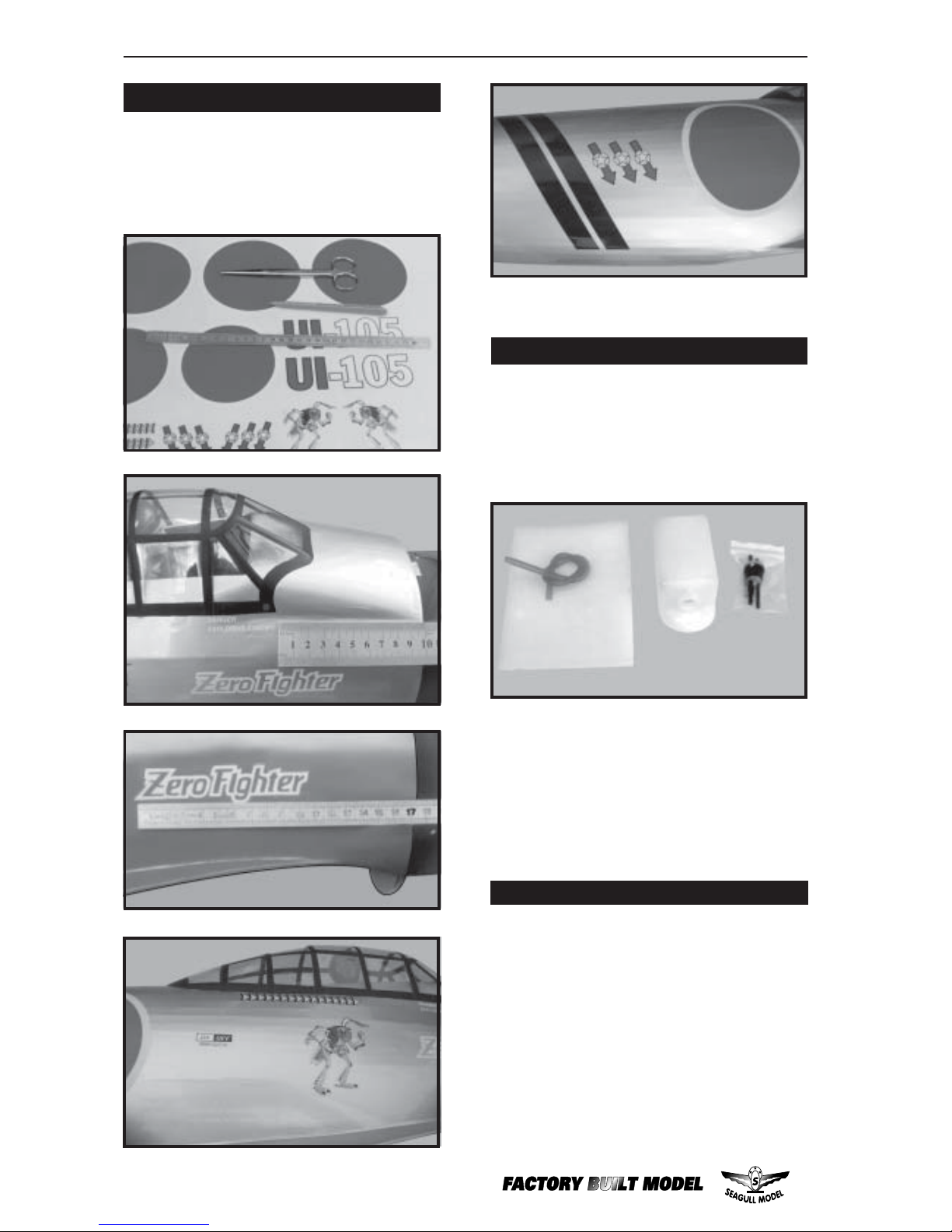

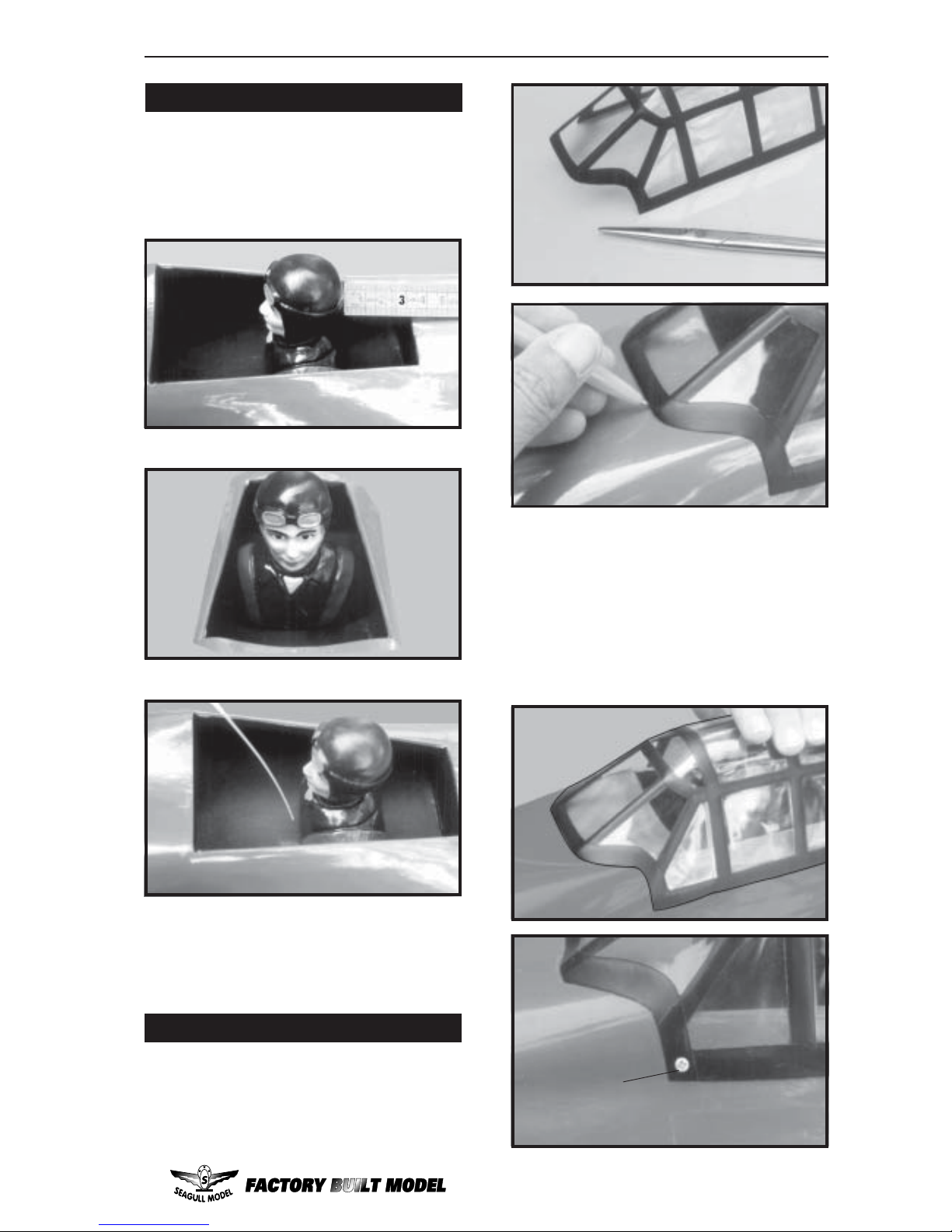

INST ALLING THE PILOT .
! 1.If you plan on using a pilot in your Zero
fighter .46, now is the time to mount it to the
cockpit floor area of the hatch.
INST ALLING THE CANOPY .
! 1.Locate the canopy and note the trim
lines. Carefully trim out the canopy using regular scissors. Use care in cutting out the canopy.
Glue attached.
Securing by 4 machine
screws ( 1mmx 5mm)
for each corner
! 2. After cutting out the canopy, trial fit it to
fuselage. Trim as necessary to make a proper
fit.
! 3.After confirming the fit of the canopy to
the fuselage, attach it to the fuselage using
canopy glue. Masking tape can be used to
hold the canopy in place while the glue dries.
Allow the canopy glue to dry.
Glue attachment
Page 10
ZERO FIGHTER. Instruction Manual
10

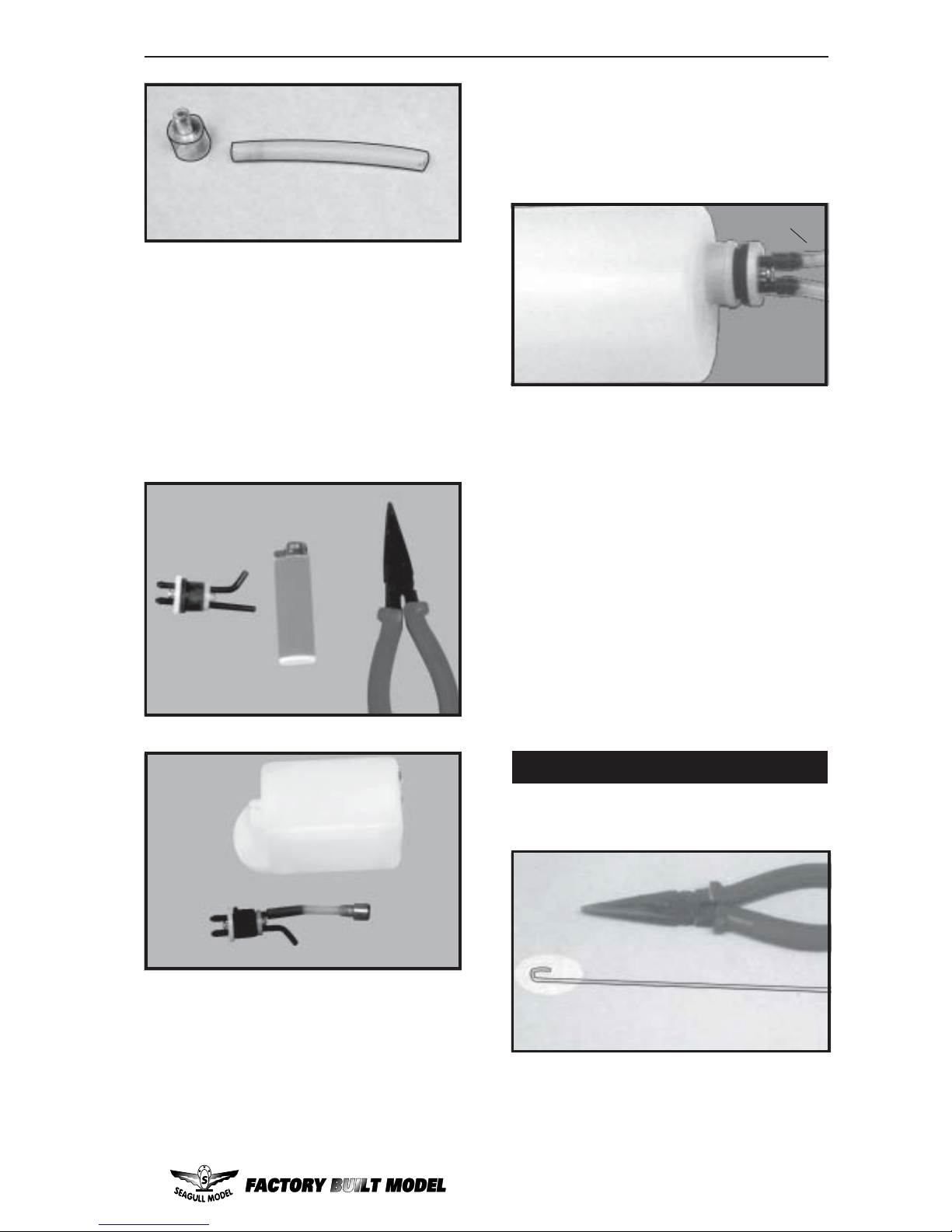

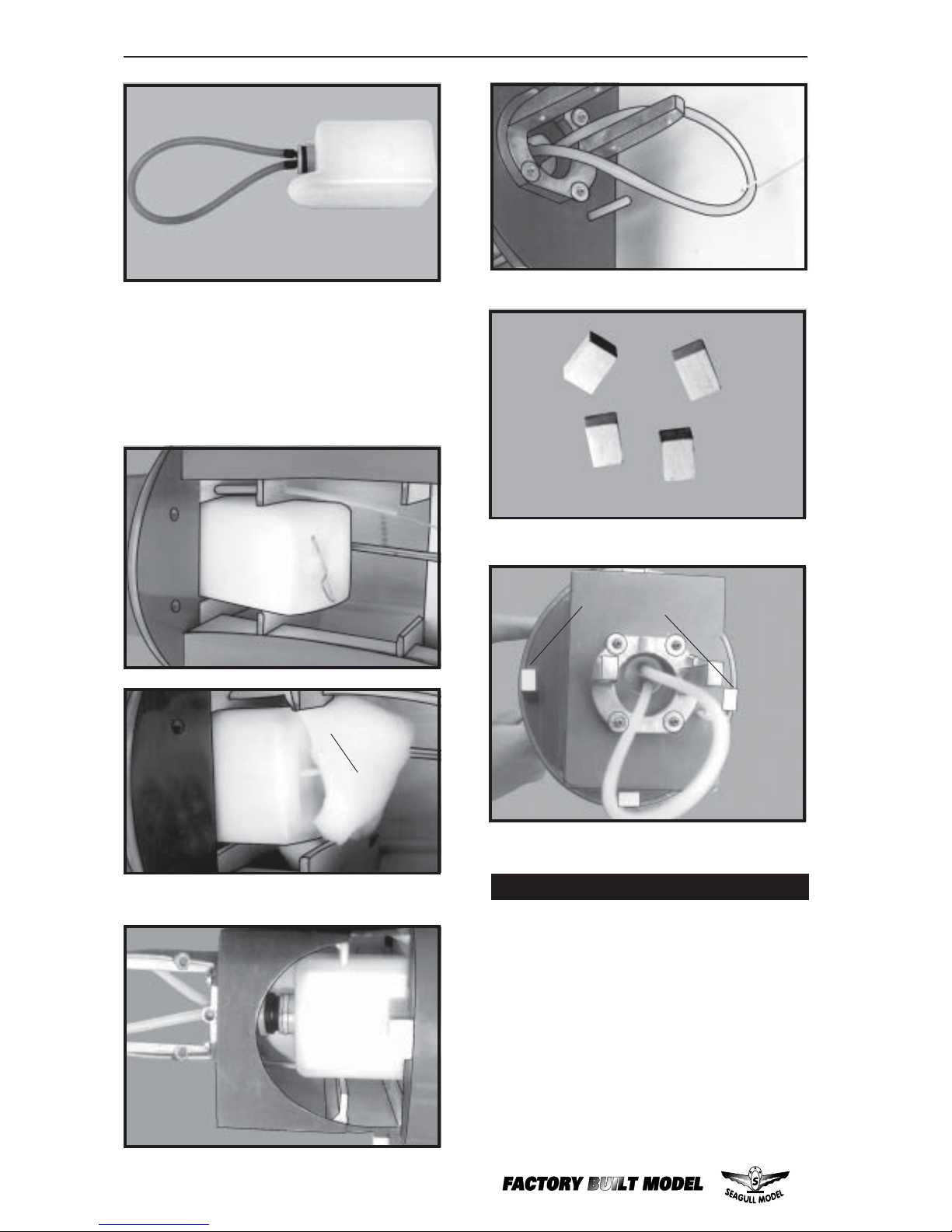

INST ALLING THE STOPPER ASSEMBL Y
! 1) Using a modeling knife, carefully cut
off the rear portion of one of the two nylon
tubes leaving 1/2” protruding from the rear of
the stopper. This will be the fuel pick up tube.
! 2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of the
line to the weighted fuel pickup and the other
end to the nylon pickup tube.
PARTS REQUIRED
FUEL TANK
! {1 } Molded Nylon Fuel Tank
! {1} Preassembled Stopper Assembly
! {1} Metal Weighted Pick-Up
! {1} Molded Foam Fuel Tank Support
ADDING DECALS.
! 1.Locate the decal sheet include in the kit.
Use the box art photos and some pictures
below as an approximate position reference
for the application of the inclued decals.
Page 11
ZERO FIGHTER. INSTRUCTION MANUAL
11
! 3) Carefully bend the second nylon tube
up at a 45º angle. This tube is the vent tube.
Use a lighter or heat gun to heat the vent tube.
The vent tube must be heated so it will be man
at a 45o angle.
When the stopper assembly is installed in the
tank, the top of the vent tube should rest just
below the top surface of the tank. It should
not touch the top of the tank.
! 4) Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none falls into the tank.
! 6) When satisfied with the alignment of
the stopper assembly tighten the 3mm x
20mm machine screw until the rubber stopper expands and seals the tank opening. Do
not overtighten the assembly as this could
cause the tank to split.
Vent tube
Top of Tank
Fuel Pickup Tube
! 5) With the stopper assembly in place,
the weighted pickup should rest about 3/8”
away from the rear of the tank and move freely
inside the tank. The top of the vent tube should
rest just below the top of the tank. It should
not touch the top of the tank.
INST ALLING THE FUEL T ANK
TOOLS REQUIRED
! 1) Using a modeling knife, cut one lengths
of fuel line . Connect one line to the vent tube
and one line to the fuel pick up tube on the
stopper. See picture bellow.
Pushrod Wire
Page 12
ZERO FIGHTER. Instruction Manual
12
MOUNTING THE ENGINE
! !
! !
! 1) Locate the wire pushrod and the nylon
pushrod housing. Install the pushrod housing
through the predrilled hole in the firewall and
into the servo compartment. Make a Z-Bend
1/4" from one end of the plain wire pushrod.
! !
! !
! 2) Temporarily bolt the plates to the motor
mount, but do not completely tighten them
down at this time. Leave them slightly loose
so they can be moved if needed.
! 2) Feed both lines through the fuel tank
compartment and through the predrilled hole
in the firewall. Pull the lines out from behind
the engine, while guiding the fuel tank into
place. Push the fuel tank .
Molded Foam Fuel T ank Support
Wood block 4pcs
Pushrod Wire
Glue attached
Page 13
ZERO FIGHTER. INSTRUCTION MANUAL
13
! !
! !

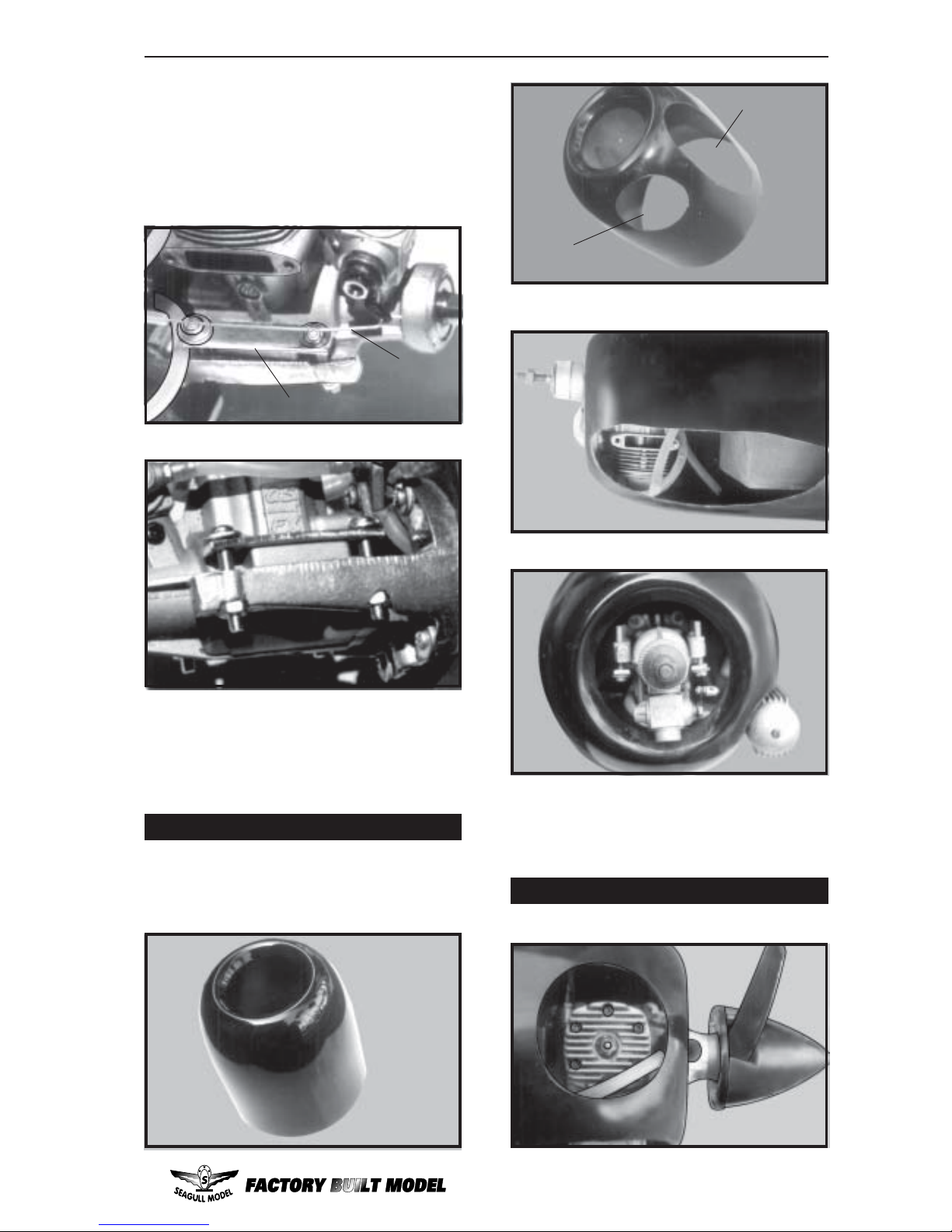

! 3) Attach the Z-Bend in the pushrod wire
to the throttle arm on the carburetor. You will
need to remove the throttle arm from the carburetor to be able to attach the Z-bend. When
complete, reattach the throttle arm to the carburetor.
PARTS REQUIRED
COWLING
! {1} Molded Fiberglass Cowling
! {4} 3mm x 12mm Wood Screws
Completely tighten the plates metal
Muffler exhaust
Cylinder head
Align the cowling on the fuselage and secure
it with 4 buttom head screws. Do not
overtighten the screw, as this will take away
the vibration.
PROPELLER & SPINNER
Plate metal
Pushrod wire
Page 14
ZERO FIGHTER. Instruction Manual
14

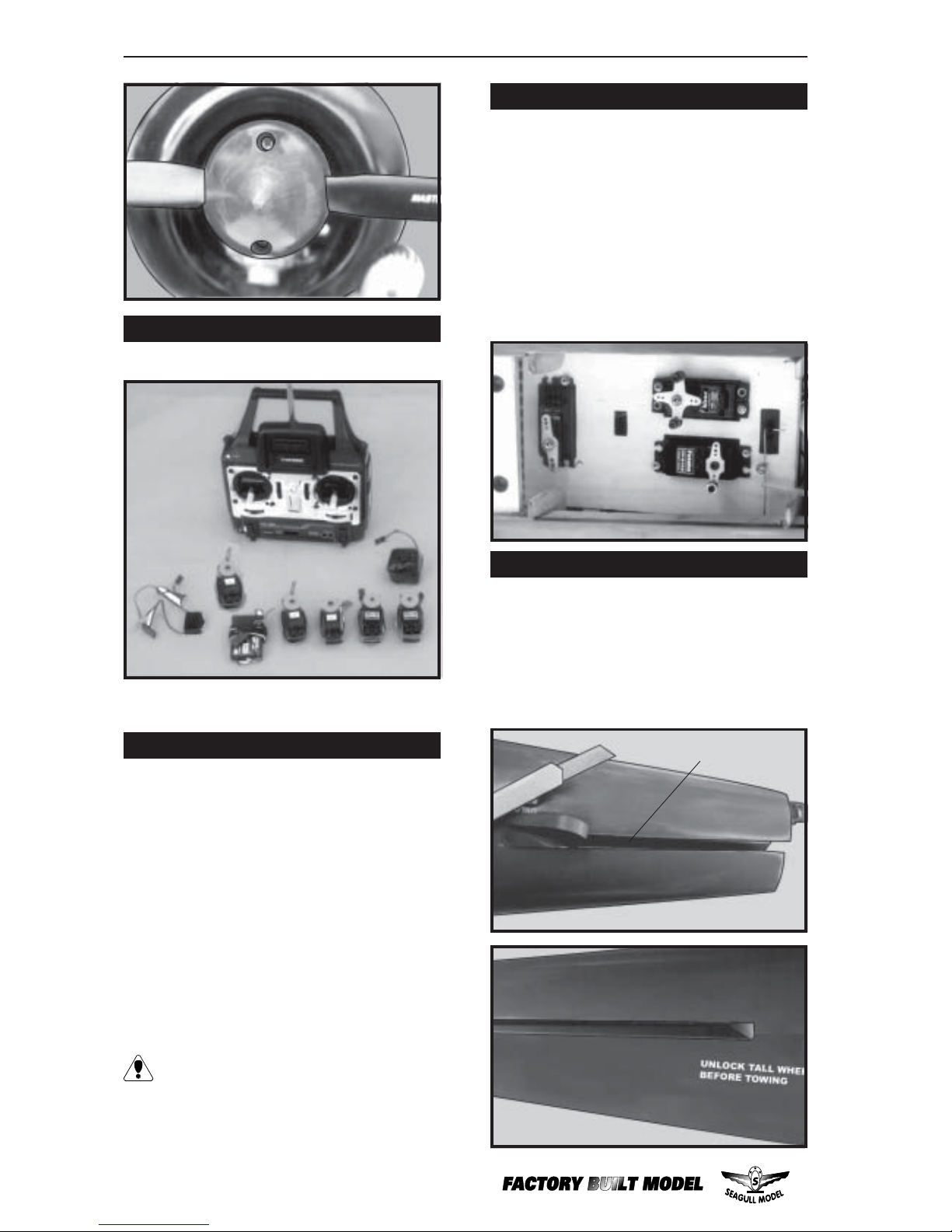

! 2. Position the servos into the servo tray
with the output shafts orientated as shown
below. Drill 1mm pilot holes through the tray
for each of the mounting screws.
PUSHROD SLOT SYSTEM.
PARTS REQUIRED
! {1}Horizontal Stabilizer with Elevator
Halves
Remove covering at vetical stabilizer mounting
slot and horizontal stabilizer mounting slot on
fuselage.
INSTALLING THE FUSELAGE SERVOS
PARTS REQUIRED
! 1 Install the switch into the precut hole
in the servo tray. Use the two screws provided with the switch to secure it in place. Drill
two 3mm holes through the tray for the screws
to pass through.
! 2 Using a 2mm drill bit, drill a hole
through the side of the fuselage, opposite the
muffler, even with the switch.
INSTALLING THE SWITCH
! 3 Make a push-pull lever out of scrap
wire. Attach the wire to the switch lever and
route the wire out the side of the fuselage,
through the hole you drilled.
Some switches come with a hole drilled
through the switch tab for this very pur-
pose. If your switch does not, remove the
switch and drill a 2mm hole through the middle
of the switch tab.
INSTALLING THE SERVOS
! 1. Install the rubber grommets and brass
collets onto the elevator, rudder and throttle
servos. Test fit the servos into the preinstalled
servo tray.Because the size of servos differ,
you may need to adjust the size of the precut
openings in the tray.
servos
switch
battery
receiver
Rudder+tail wheel
Elevator
Throttle
horizontal stabilizer mounting slot
Page 15
ZERO FIGHTER. INSTRUCTION MANUAL
15

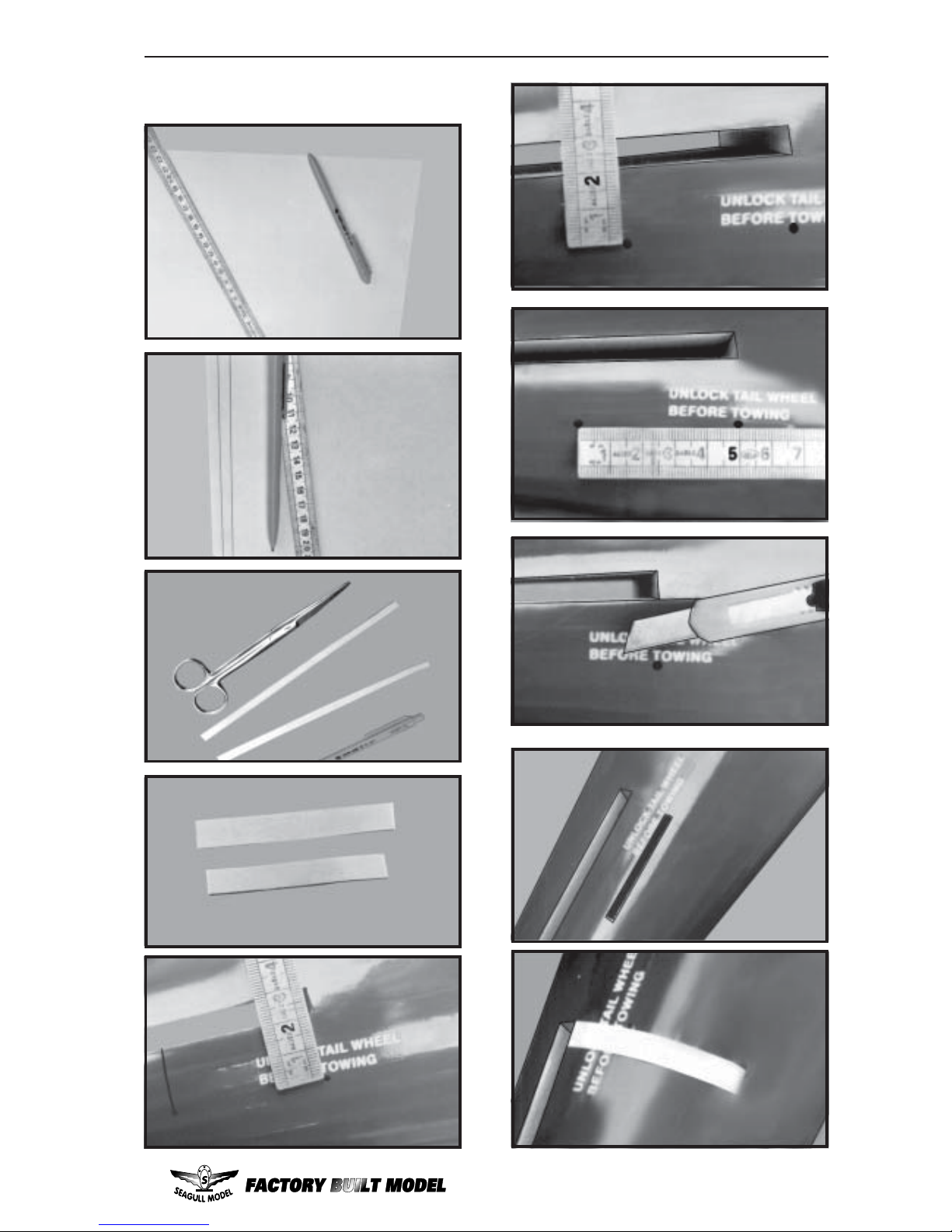

Make mark and cut 3 slots for pushrod exit
follow picture below.
Ruller
pen
paper A4 size
Draw 2columns
with 2mm width
5.5 cm
5 cm
Elevator pushrod slot exit
5.5 cm
Page 16
ZERO FIGHTER. Instruction Manual
16

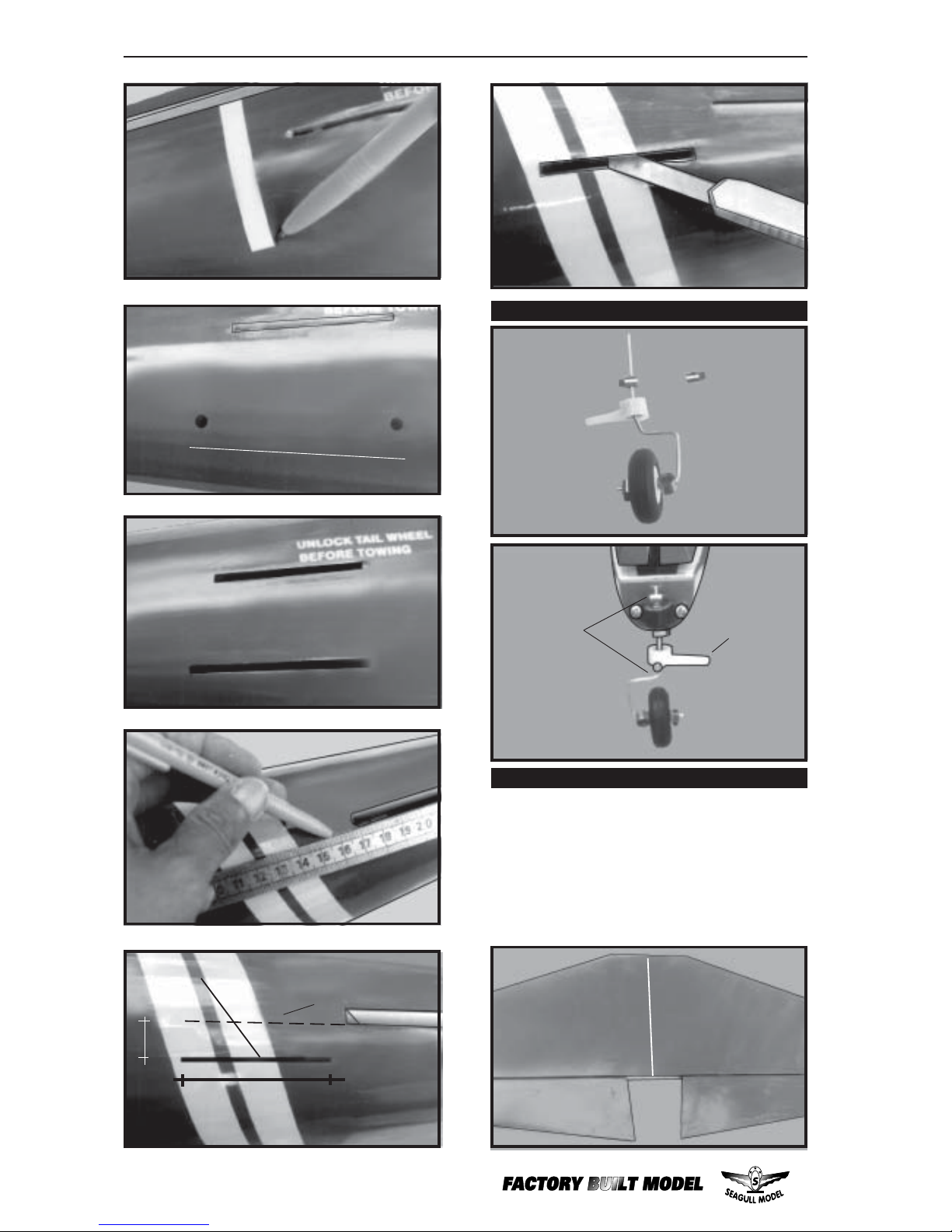

Fuselage
Connector
T AIL WHEEL INST ALLA TION.
INST ALLATION THE HORIZONT AL ST ABILIZER
! 1) Using a ruler and a pen, locate the
centerline of the horizontal stabilizer, at the
trailing edge, and place a mark. Use a triangle and extend this mark, from back to front,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge
of the stabilizer.
Central line
Stearing arm
5 cm
Draw a straight line continue with rudder slot
Connector (3 pcs)Connector (3 pcs)Connector (3 pcs)
Connector
Draw pen line
1.2cm
5.5cm
Rudder pushrod slot exit
6cm
Tail wheel pushrod exit slot
Elevator pushrod slot exit
Page 17
ZERO FIGHTER. INSTRUCTION MANUAL
17
The top of the stabilizer does not have
the hinge pins exposed.
! 2) Using a modeling knife, carefully remove the covering from over the vertical stabilizer mounting slot in the top of the fuselage.
! 3) Slide the stabilizer into place in the precut slot in the rear of the fuselage. The stabilizer should be pushed firmly against the front
of the slot.
! 4) With the stabilizer held firmly in place,
use a pen and draw lines onto the stabilizer
where it and the fuselage sides meet. Do this
on both the right and left sides and top and
bottom of the stabilizer.
! 5) Remove the stabilizer. Using the lines
you just drew as a guide, carefully remove the
covering from between them using a modeling knife.
! 7) When you are sure that everything is
aligned correctly, mix up a generous amount
of Flash 30 Minute Epoxy. Apply a thin layer
to the top and bottom of the stabilizer mounting area and to the stabilizer mounting platform sides in the fuselage. Slide the stabilizer in place and realign. Double check all of
your measurements once more before the epoxy cures. Hold the stabilizer in place with Tpins or masking tape and remove any excess
epoxy using a paper towel and rubbing alcohol.
When cutting through the covering to
remove it, cut with only enough pressure to only cut through the covering itself. Cutting into the balsa structure may
weaken it.
! 6) Using a modeling knife, carefully remove the covering that overlaps the stabilizer
mounting platform sides in the fuselage. Remove the covering from both the top and the
bottom of the platform sides.
! 8) After the epoxy has fully cured, re-
move the masking tape or T-pins used to hold
the stabilizer in place. Carefully inspect the
glue joints. Use more epoxy to fill in any gaps
that may exist that were not filled previously
and clean up the excess using a paper towel
and rubbing alcohol.
Remove covering
VERTICAL STABILIZER
INSTALLATION
PARTS REQUIRED
! {1} Vertical Stabilizer with Rudder
pen

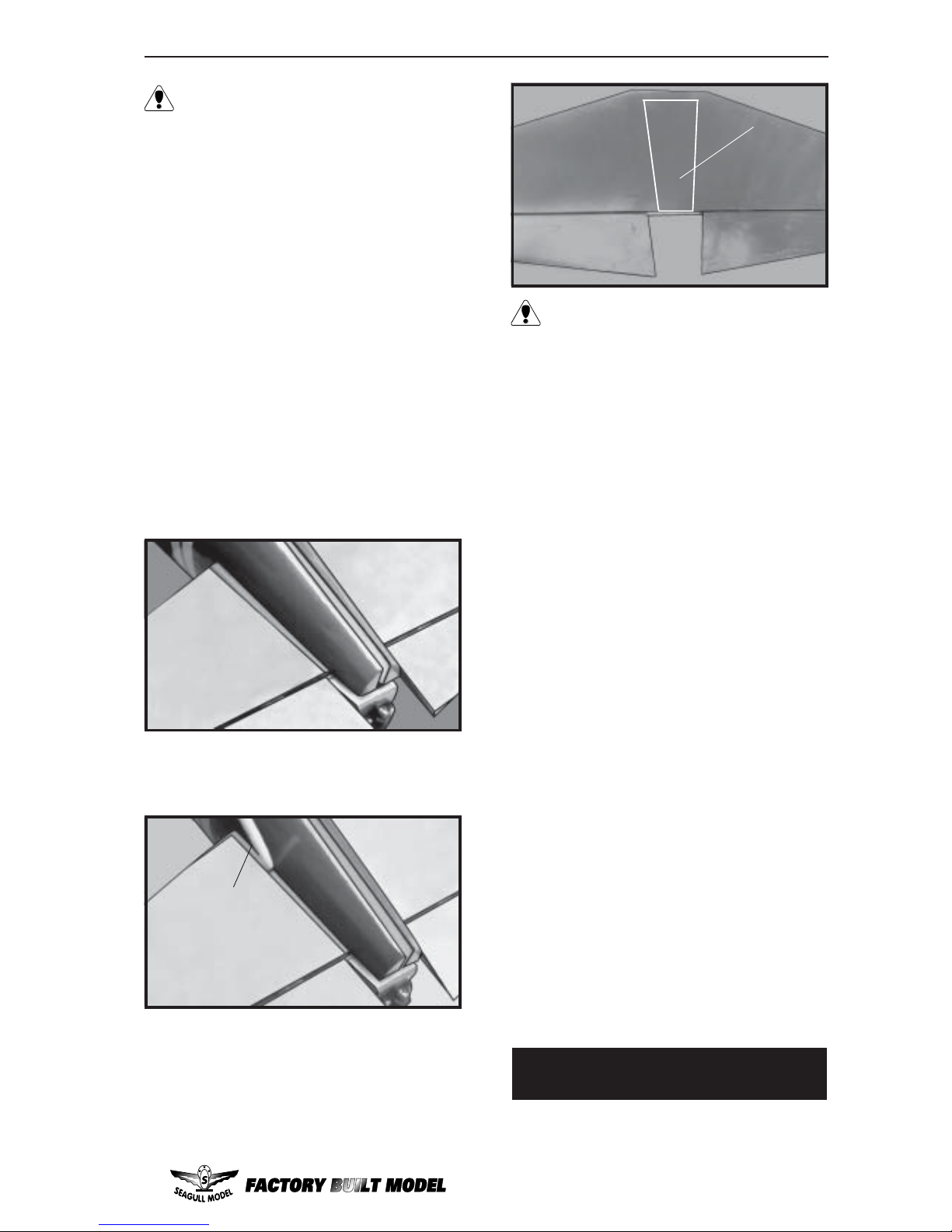

Page 18
ZERO FIGHTER. Instruction Manual
18

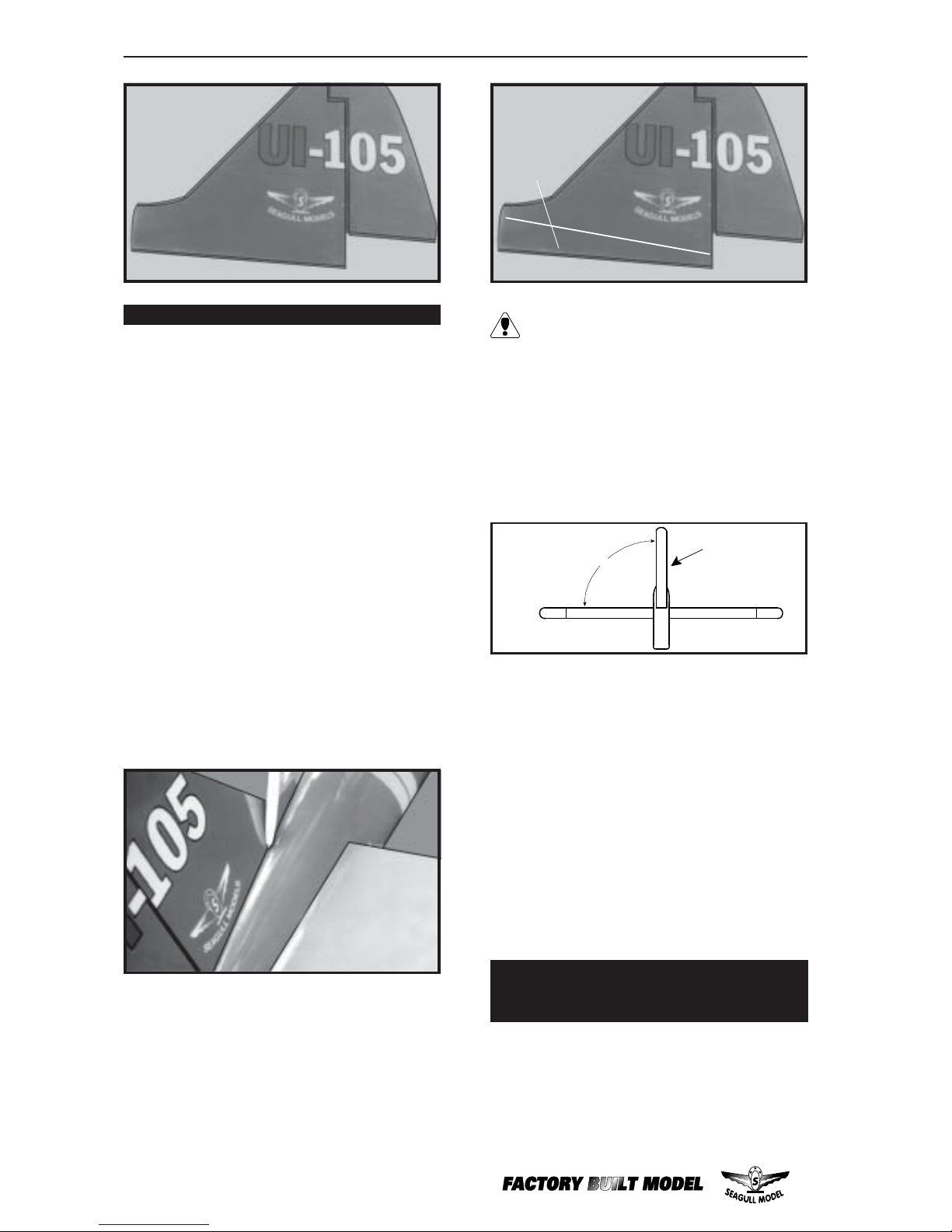

! 4) Remove the stabilizer. Using a modeling knife, remove the covering from below
the lines you drew. Also remove the covering
from the bottom edge of the stabilizer and the
bottom and top edges of the filler block. Leave
the covering in place on the sides of the filler
block.
When cutting through the covering to
remove it, cut with only enough pressure to only cut through the covering itself. Cutting into the balsa structure may
weaken it.
! 5) Slide the vertical stabilizer back in
place. Using a triangle, check to ensure that
the vertical stabilizer is aligned 90º to the horizontal stabilizer.
! 6) When you are sure that everything is
aligned correctly, mix up a generous amount
of Flash 30 Minute Epoxy. Apply a thin layer
to the mounting slot in the top of the fuselage
and to the sides and bottom of the vertical stabilizer mounting area. Apply epoxy to the bottom and top edges of the filler block and to
the lower hinge also. Set the stabilizer in place
and realign. Double check all of your measurements once more before the epoxy cures.
Hold the stabilizer in place with T-pins or masking tape and remove any excess epoxy using
a paper towel and rubbing alcohol. Allow the
epoxy to fully cure before proceeding.
90º
Vertical
Stabilizer
Horizontal
Stabilizer
TAIL F AIRING FRB &
RUDDER CONTROL HORN INST ALLATION
! !
! !
! 1) Locate the one nylon control horn.
! !
! !
! 2) Position the rudder control horn on the
left side of rudder. The clevis attach- ment
holes should be positioned over the hinge line.
ALIGNING THE VERTICAL ST ABILIZER
! 1) Using a modeling knife, remove the
covering from over the precut hinge slot cut
into the lower rear portion of the fuselage. This
slot accepts the lower rudder hinge.
! 2) Slide the vertical stabilizer into the slot
in the top of the fuselage. The rear edge of
the stabilizer should be flush with the rear
edge of the fuselage. The bottom edge of the
stabilizer should also be firmly pushed against
the top of the horizontal stabilizer.
! 3) While holding the vertical stabilizer
firmly in place, use a pen and draw a line on
each side of the vertical stabilizer where it
meets the top of the fuselage.
Remove covering
Pen

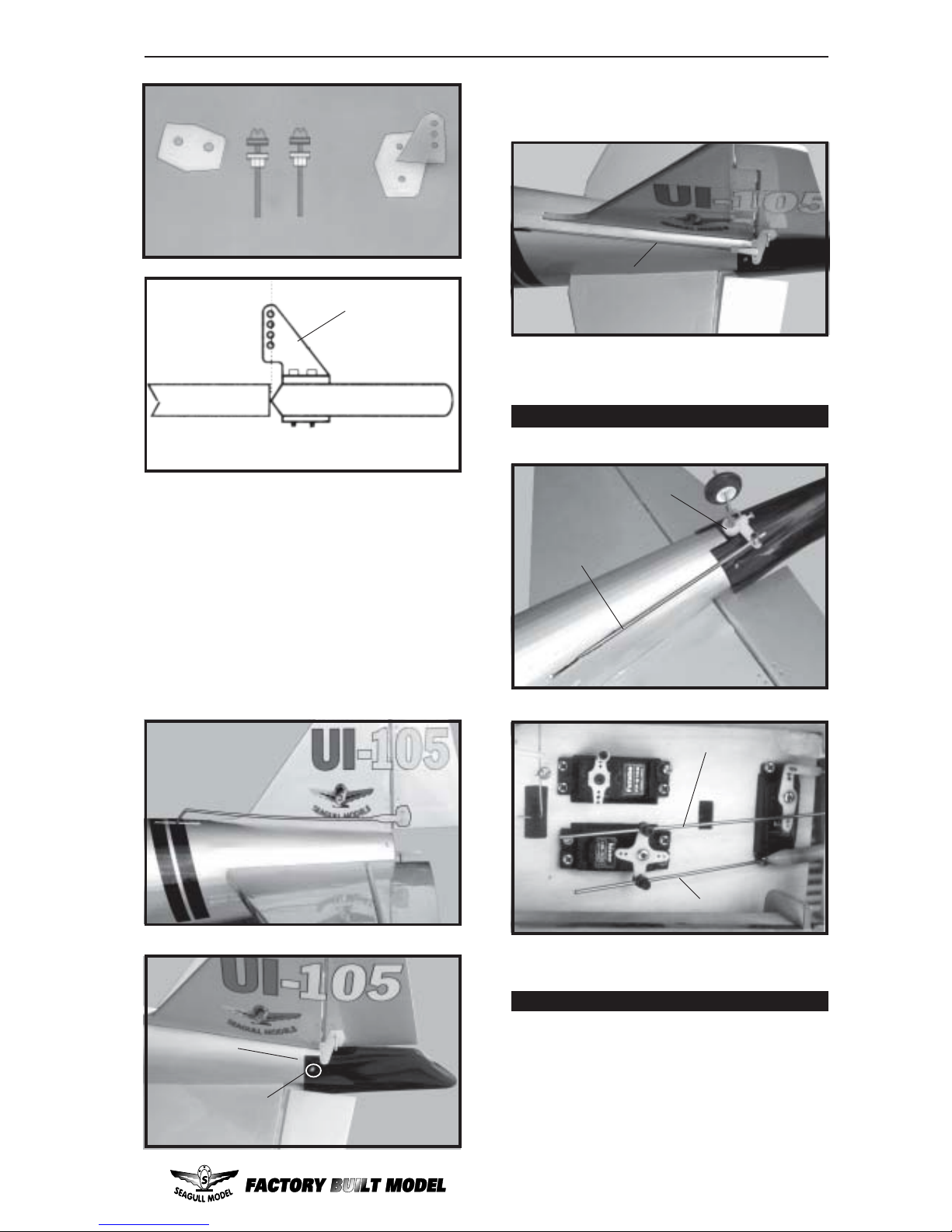

Page 19
ZERO FIGHTER. INSTRUCTION MANUAL
19
! !
! !

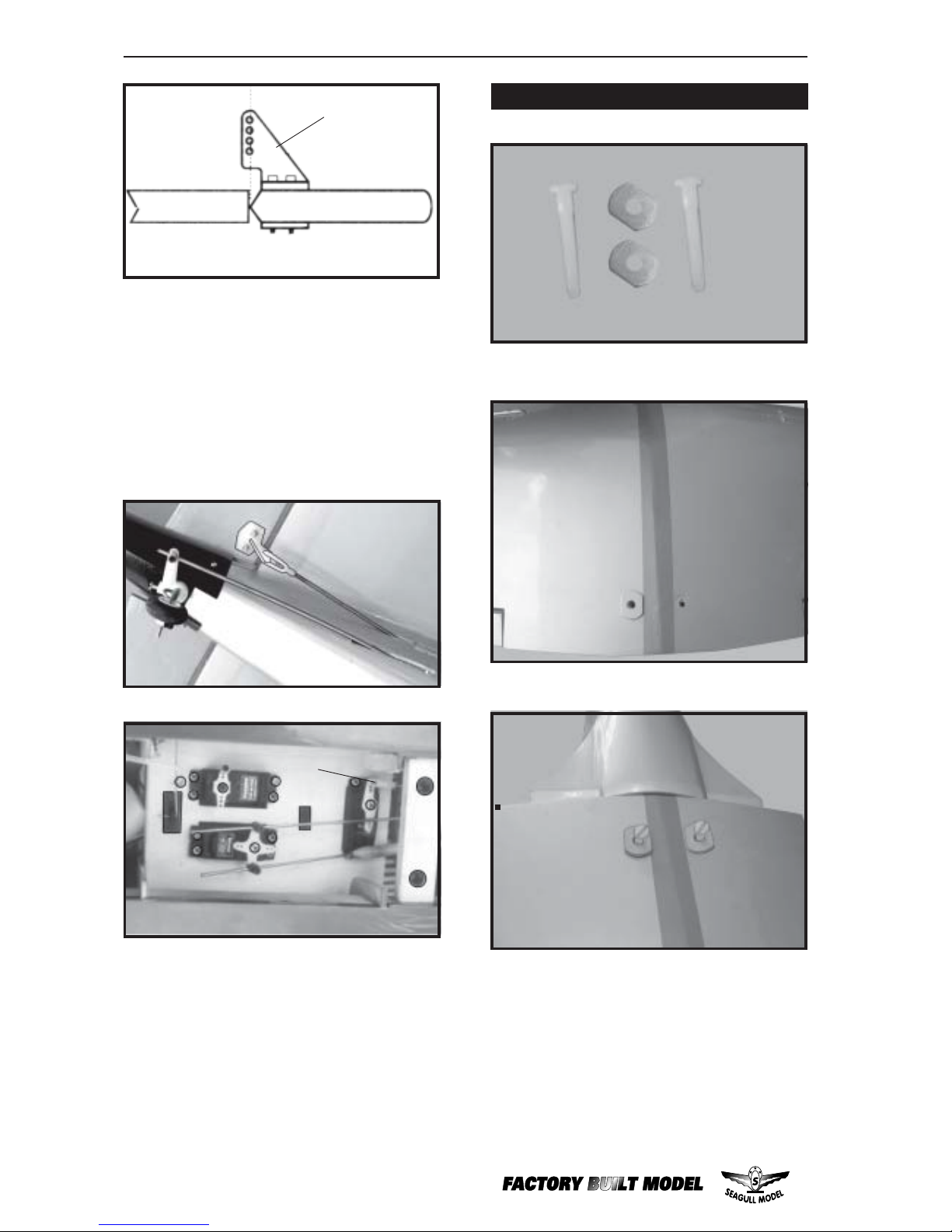

! 3) Using a 1mm drill bit and the control
horn as a guide, drill the mounting holes
through the rudder .
! !
! !
! 4) Mount the control horns by inserting the
screws through the control horn bases and rudder
then into the mounting backplates. Do Not
overtighten the screws or the backplates may crush
the wood.
Control Horn
Mounting Screws
Mounting Plate
T AIL WHEEL PUSHROD INST ALLA TION
ELEVA T OR VONTROL HORN INST ALLA TION
! !
! !
! 1) Locate the one nylon control horn.
! !
! !
! 2) Position the elevator control horn on
the bottom side of elevator. The clevis
attachment holes should be positioned over
the hinge line.
! !
! !
! 5) Installing the tail fairing as same as
picture bellow.
! !
! !
! 5) Rudder pushrod installation as same
as picture below
Pushrod wire
4 pcs machine screws
(2pcs for each side)
Epoxy secure
tail fairing
T ail wheel
pushrod wire
Stearing arm
T ail wheel pushrod
Rudder pushrod.
Page 20
ZERO FIGHTER. Instruction Manual
20
Control Horn
Mounting Screws
Mounting Plate
! !
! !
! 3) Using a 1mm drill bit and the control
horn as a guide, drill the mounting holes
through the elevator .
q 4) Mount the control horns by inserting the
screws through the control horn bases and
elevator , then into the mounting backplates.
Do Not overtighten the screws or the
backplates may crush the wood.
Elevator
Rudder
Throttle
WING ATTACHMENT TO FUSELAGE
Page 21
ZERO FIGHTER. INSTRUCTION MANUAL
21
FLIGHT PREPARATION
! 1) Check the operation and direction of
the elevator, rudder, ailerons and throttle.
! A) Plug in your radio system per the
manufacturer's instructions and turn everything on.
! B) Check the elevator first. Pull back
on the elevator stick. The elevator halves
should move up. If it they do not, flip the servo
reversing switch on your transmitter to change
the direction.
! C) Check the rudder. Looking from
behind the airplane, move the rudder stick to
the right. The rudder should move to the right.
If it does not, flip the servo reversing switch
on your transmitter to change the direction.
! D) Check the throttle. Moving the
throttle stick forward should open the carburetor barrel. If it does not, flip the servo reversing switch on your transmitter to change
the direction.
! 2) Check Control Surface Throw.
! A) The Rudder should move 3/4” left
and 3/4” right from center. If it moves too far,
turn the adjustable control horn out away from
the rudder. Do the opposite if there is not
enough throw.
! B) Both elevator halves should move
5/16” up and 5/16” down from center. If they
move too far, turn the adjustable control horns
out away from the elevator halves. Do the
opposite if there is not enough throw. Both
elevator halves should also travel the same
amount throughout their total movement.
! C) The ailerons should move 3/16” up
and 3/16” down from center. If the ailerons
move too much, turn the adjustable control
horns out away from the wing. Do the opposite if there is not enough throw. It is important that both ailerons move the same amount,
both up and down.
To correct this, move the battery and receiver
forward orif this is not possible, stick weight
onto the firewall or use a brass heavy hub spinner hub, similar to those offered by Harry
Higley. When balanced correctly, the airplane
should sit level or slightly nose down when
you lift it up with your fingers.
BALANCING
! 1) It is critical that your airplane be balanced correctly. Improper balance will cause
your plane to lose control and crash. The center of gravity is located 6-8cm back from the
leading edge of the wing, measured at the
wing tip.
! 2) If the nose of the plane falls, the plane
is nose heavy. To correct this first move the
battery pack further back in the fuselage. If
this is not possible or does not correct it, stick
small amounts of lead weight on the fuselage
sides under the horizontal stabilizer. If the
tail of the plane falls, the plane is tail heavy.
! E)From behind the airplane, look at the
aileron on the right wing half. Move the aileron
stick to the right. The right aileron should move
up and the other aileron should move down. If
it does not, flip the servo reversing switch on
your transmitter to change the direction.
! D) Once the control throws and movements are set, tubing must be added to the
clevises to ensure they do not release in the
air. Cut a piece of fuel line into five 1/4” long
pieces. Unsnap the clevises and slip one
piece over each clevis. Snap the clevises back
in place and slide the tubing up over them.
Page 22
ZERO FIGHTER. Instruction Manual
22
CONTROL THROWS
! 1) We highly recommend setting up the
Zero using the control throws listed at right.
We have listed control throws for both Low
Rate (initial test flying/sport flying) and High
Rate (aerobatic flying).
! 2) Turn on the radio system, and with the
trim tabs on the transmitter in neutral, center
the control surfaces by making adjustments
to the clevises or adjustable servo connectors. The servo arms should be centered also.
! 3) When the elevator, rudder and aileron
control surfaces are centered, use a ruler and
check the amount of the control throw in each
surface. The control throws should be mea-
sured at the widest point of each surface!
Low Rate
Caution: Do not use the High Rate (aerobatic settings) for initial test flying or sport
flying.
Ailerons: 1/4” up 1/4” down
Elevator: 1/2” up 1/2” down
Rudder: 3/4” right and left
High Rate
Ailerons: 3/8” up 3/8” down
Elevator: 1” up 1”down
Rudder: 1” right and left
PREFLIGHT CHECK
! 1) Completely charge your transmitter
and receiver batteries before your first day of
flying.
! 2) Check every bolt and every glue joint
in the ZERO FIGHTER to ensure that everything is tight and well bonded.
! 3) Double check the balance of the airplane. Do this with the fuel tank empty.
! 4) Check the control surfaces. All should
move in the correct direction and not bind in
any way.
! 8) Properly balance the propeller. An out
of balance propeller will cause excessive vibration which could lead to engine and/or airframe failure.
! 5) If your radio transmitter is equipped
with dual rate switches double check that they
are on the low rate setting for your first few
flights.
! 6) Check to ensure the control surfaces
are moving the proper amount for both low
and high rate settings.
! 7) Check the receiver antenna. It should
be fully extended and not coiled up inside the
fuselage.
We wish you many safe and enjoyable
flights with your ZERO FIGHTER .
Loading...
