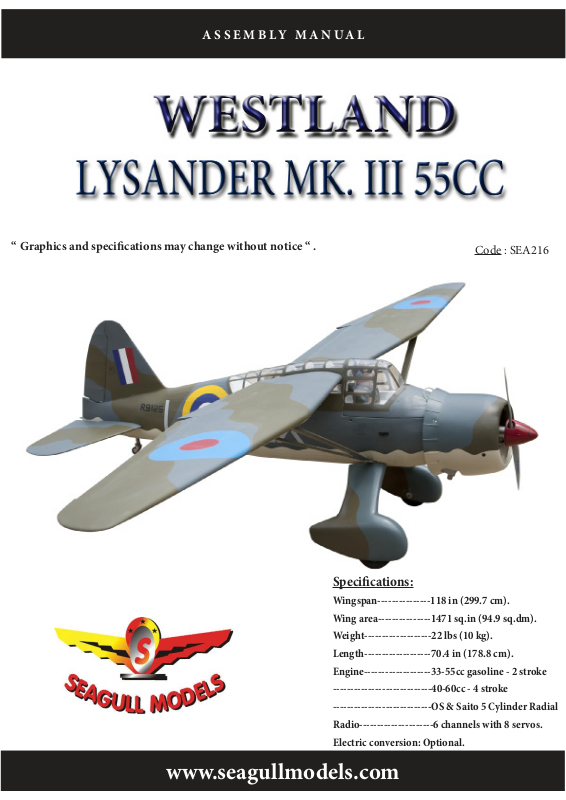

Page 1
WWW.SEAGULLMODELS.COM
ASSEMBLY MANUAL
“ Graphics and specications may change without notice “ .
Code : SEA216
Specications:
Wingspan---------------118 in (299.7 cm).
Wing area---------------1471 sq.in (94.9 sq.dm).
Weight-------------------22 lbs (10 kg).
Length-------------------70.4 in (178.8 cm).
Engine-------------------33-55cc gasoline - 2 stroke
----------------------------40-60cc - 4 stroke
----------------------------OS & Saito 5 Cylinder Radial
Radio---------------------6 channels with 8 servos.
Electric conversion: Optional.
www.seagullmodels.com
1
Page 2
Westland Lysander
INTRODUCTION.
Instruction Manual.
ank you for choosing the Westland Lysander ARTF by SEAGULL MODELS COMPANY
LTD,. e Westland Lysander was designed with the intermediate/advanced sport yer in
mind. It is a semi scale airplane which is easy to y and quick to assemble. e airframe is
conventionally built using balsa, plywood to make it stronger than the average ARTF, yet the
design allows the aeroplane to be kept light. You will nd that most of the work has been done
for you already. e motor mount has been tted and the hinges are pre-installed. Flying the
Westland Lysander is simply a joy.
is instruction manual is designed to help you build a great ying aeroplane. Please read this
manual throughly before starting assembly of your Westland Lysander . Use the parts listing
below to indentify all parts.
WARNING.
Please be awere that this aeroplane is not a toy and if assembley or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & REPONSIBILITY.
If you are inexperienced with basic R/C ight we strongly recommend you contact your R/C
supplier and join your local R/C model Flying Club. R/C Model Flying Clubs oer a variety
of training procedures designed to help the new pilot on his way to successful R/C ight.
ey will also be able to advise on any insurance and safety regulations that may apply.
KIT CONTENTS
33
2
1
2
6
8
4
7
2
5
Page 3
WWW.SEAGULLMODELS.COM
KIT CONTENTS.
SEA216 Westland Lysander MK III 55cc
SEA21601 Fuselage
SEA21602 Wing set
SEA21603 Tail set
SEA21604 Canopy
SEA21605 Pilot
SEA21606 Cowling
SEA21607 Wing strut
SEA21608 Wheel pants
ADDITIONAL ITEMS REQUIRED.
� 33cc-55cc 2 stroke.
� 40cc-60cc 4 stroke
� OS & Saito 5 Cylinder Radial.
� Computer radio with 8 servos.
� Glow plug to suit engine.
� Propeller to suit engine.
� Protective foam rubber for radio
system.
INSTALL THE AILERONS
CONTROL HORN.
Fiberglass control horn
Ep ox y.
Ep ox y.
TOOLS & SUPPLIES NEEDED.
ick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
read-lock.
Paper towels.
Aileron control horn.
INSTALL FLAP CONTROL HORN.
Ep ox y.
Flap control horn.
3
Page 4
Westland Lysander
INSTALL ELEVATOR CONTROL HORN.
Fiberglass control horn
Instruction Manual.
Ep ox y.
Rudder berglass control horn.
INSTALLING THE FUSELAGE SERVOS.
Ep ox y.
Ep ox y.
Elevator berglass control horn.
INSTALL RUDDER CONTROL HORN.
Because the size of servos dier, you
may need to adjust the size of the precut
opening in the mount. e notch in the
sides of the mount allow the servo lead to
pass through.
1) Install the rubber grommets and brass
collets onto the throttle servo. Test t the
servo into the aileron servo mount.
2) Secure the servos with the screws provided with your radio system.
.
rottle servo.
Repeat steps to install the rudder control
horn as same as steps done for ailerons.
Fiberglass control horn
4
Page 5
WWW.SEAGULLMODELS.COM
THROTTLE SERVO ARM
INSTALLATION.
Install adjustable servo connector in the
servo arm as same as picture below:
.
Loctite secure.
rottle servo arm.
Adjustable servo
connector.
Servo arm.
Switch.
INSTALLING THE ENGINE SWITCH.
Trim and cut.
INSTALLING THE RECEIVER SWITCH.
Install the switch into the precut hole in
the side, in the fuselage.
3/32” Hole.
Trim and cut.
Switch.
INSTALLING THE STOPPER
ASSEMBLY.
1) Using a modeling knife, carefully cut
o the rear portion of one of the 3 nylon
tubes leaving 1/2” protruding from the
rear of the stopper. is will be the fuel
pick up tube.
2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of
the line to the weighted fuel pick up and
the other end to the nylon pick up tube.
5
Page 6
Westland Lysander
Instruction Manual.
5) With the stopper assembly in place, the
weighted pick-up should rest away from the
rear of the tank and move freely inside the
tank. e top of the vent tube should rest just
below the top of the tank. It should not touch
the top of the tank.
6) When satised with the alignment of the
stopper assembly tighten the 3 x 20mm machine screw until the rubber stopper expands
and seals the tank opening. Do not overtighten the assembly as this could cause the
tank to split.
FUEL TANK INSTALLATION.
A
Vent tube.
Fuel fill tube.
3) Carefully bend the second nylon tube up
at a 45º angle. is tube is the vent tube.
Fuel pick up
You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once
the tank is installed inside the fuselage, it may
be dicult to determine which is which.
7) Slide the fuel tank into the fuselage. Guide
the lines from the tank through the hole in
the rewall.
8) Use plywood template to hold in place the
fuel tank with C/A glue to secure the fuel
tank inside the fuselage.
Tie-wrap.
4) Test t the stopper assembly into the tank.
It may be necessary to remove some of the
ashing around the tank opening using a
modeling knife. If ashing is present, make
sure none falls into the tank.
6
Page 7
C/A glue.
WWW.SEAGULLMODELS.COM
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should ow
through easily.
A
MOUNTING THE ENGINE .
Balsa wood.
Vent tube.
Please see below pictures.
Fuel pick up tube.
Fuel ll tube.
9) Connect the lines from the tank to the engine and muer. e vent line will connect
to the muer and the line from the clunk to
the carburetor.
7
Page 8
Westland Lysander
Instruction Manual.
COWLING.
Please see these below pictures.
Reinstall the servo horn by sliding the
connector over the pushrod wire. Center
the throttle stick and trim and install the
servo horn perpendicular to the servo
center line.
Move the throttle stick to the closed position and move the carburetor to closed.
Use a 2.5mm hex wrench to tighten the
screw that secures the throttle pushrod
wire. Make sure to use threadlock on the
screw so it does not vibrate loose.
8
Page 9
WWW.SEAGULLMODELS.COM
3x10mm
1) Slide the berglass cowl over the engine and line up the back edge of the cowl
with the marks you made on the fuselage
then trim and cut as shown.
Because of the size of the cowl, it may be necessary to use a needle valve extension for the
high speed needle valve. Make this out of sufcient length 1.5mm wire and install it into
the end of the needle valve. Secure the wire in
place by tightening the set screw in the side of
the needle valve.
3) Install the muer and muer extension
onto the engine and make the cutout in the
cowl for muer clearance. Connect the fuel
and pressure lines to the carburetor, muer
and fuel ller valve. Secure the cowl to fuselage using the M3x10mm screws.
2) While keeping the back edge of the cowl
ush with the marks, align the front of the
cowl with the cranksha of the engine. e
front of the cowl should be positioned so the
cranksha is in nearly the middle of the cowl
opening. Hold the cowl rmly in place using
pieces of masking tape.
9
Page 10
Westland Lysander
ELECTRIC POWER CONVERSION.
1) Locate the items necessary to installl
the electric power conversion included
with your model.
2) Recommend the items necessary to install the electric power conversion parts
included with your model.
Instruction Manual.
M5x35mm
- Motor: 50cc
- Propeller: 22x10 ~ 26x12
- ESC: 120A
- Lipo: 9S -15S
3) Attach the electric motor box to the
rewall suitable with the cross lines
drawn on the electric motor box and rewall. Using M5x35mm to secure the motor box to the rewall. Please see pictures
below.
5.2mm
10
5mm
Page 11
WWW.SEAGULLMODELS.COM
Blind nut.
4) Attach the motor to the front of the
electric motor box using four 4mm blind
nut, four M4x20mm hex head bolts to secure the motor. Please see picture shown.
M4x20mm
5) Attach the speed control to the side
of the motor box using two-sided tape
and tie wraps. Connect the appropriate
leads from the speed control to the motor. Make sure the leads will not interfere
with the operation of the motor.
INSTALLING THE SPINNER.
e propeller should not touch any
part of the spinner cone. If it does, use a
sharp modeling knife and carefully trim
away the spinner cone where the propeller comes in contact with it.
11
Page 12
Westland Lysander
INSTALLING THE AILERON SERVOS.
Instruction Manual.
2) Place the servo between the mounting
blocks and space it from the hatch. Use a
pencil to mark the mounting hole locations on the blocks.
3) Use drill bit in a pin vise to drill the
mouting holes in the blocks.
Servos
.
Small
weight
.
Thread
Because the size of servos dier, you
may need to adjust the size of the precut
opening in the mount. e notch in the
sides of the mount allow the servo lead to
pass through.
1) Using a small weight (Weighted fuel
pick-up works well) and string, feed the
string through the wing as indicated.
4) Apply 2-3 drops of thin C/A to each
of the mounting holes. Allow the C/A to
cure without using accelerator.
C/A glue
5) Use dental oss to secure the connection so they cannot become unplugged.
12
12
Page 13
WWW.SEAGULLMODELS.COM
6) Secure the servo to the aileron hatch
using Phillips screwdriver and the screws
provided with the servo.
7) Apply 1-2 drops of thin C/A to each of
the mounting tabs. Allow the C/A to cure
without using accelerator.
C/A glue
8) A string has been provided in the wing
to pull the aileron lead through to the
wing root. Remove the string from the
wing at the servo location and use the
tape to attach it to the servo extension
lead. Pull the lead through the wing and
remove the string.
.
9) Set the aileron hatch in place and use a
Phillips screw driver to install it with four
wood screws.
2x10mm
13
Page 14
Westland Lysander
INSTALLING THE FLAP SERVOS.
Instruction Manual.
FLAP PUSHROD HORN
INSTALLATION.
50mm
AILERON PUSHROD HORN
INSTALLATION.
60mm
M3 clevis.
M3 lock nut.
INSTALLING THE RUDDER SERVO.
e process as aileron servo to install servos for rudder.
14
2x10mm
Metal clevis.
Hex nut.
Fuel tubing.
Page 15
WWW.SEAGULLMODELS.COM
INSTALLING THE ELEVATOR SERVO.
Please see below pictures.
Col lar.
WHEELS AND WHEEL PANTS.
Col lar.
Please see these below pictures.
15
Page 16
Westland Lysander
Instruction Manual.
Ep ox y.
4x10mm
INSTALLING THE MAIN LANDING
GEAR.
4x25mm
16
Page 17
WWW.SEAGULLMODELS.COM
INSTALLING HORIZONTAL
STABILIZER.
INSTALLING RUDDER HINGE.
e rudder hinge assembly as below pictures.
17
Page 18
Westland Lysander
3x12mm
Horizontal
Stabilizer.
90º
Vertical
Stabilizer.
Instruction Manual.
Elevator control horn.
3) read one clevis and M3 lock nut on
to each elevator control rod. read the
horns on until they are ush with the
ends of the control rods.
4) Elevator and rudder pushrods assembly as pictures below.
ELEVATOR PUSHROD HORN
INSTALLATION.
1) Locate items necessary to install rudder pushrod.
M3 clevis.
150mm
M3 lock nut.
18
2) Install the elevator control horn using
the same method as with the aileron control horns.
3) Position the elevator control horn on
the both side of elevator.
18
Page 19
WWW.SEAGULLMODELS.COM
RUDDER PUSHROD HORN
INSTALLATION.
Locate items necessaryto install rudder
pushrod.
115mm
M3 clevis.
Rudder pushrod.
M3 lock nut.
MOUNTING THE TAIL WHEEL.
Cable end.
Crimp.
1
Metal connector.
M3 clevis.
Tail gear.
Col lar.
2
2
19
Page 20
Westland Lysander
Instruction Manual.
C/A glue.
INSTALLATION PILOT AND CANOPY.
.
1) Locate items necessary to install pilot,
seats.
2) A scale pilot is included with this ARF.
e Seagull Pilot included tting well to
the cockpit. (or you can order others scale
pilot gures made by Seagull factory.
ey are available at Seagull distributors.)
20
If you are going to install a pilot gure,
please use a sanding bar to sand the base
of the gure so that it is at.
Page 21
WWW.SEAGULLMODELS.COM
3) Position the pilot gure on the canopy
oor as show. Locate the oval shaped on
the canopy oor and remove the covering. Use epoxy to glue this into the base
of the pilot gure and glue the cockpit
panel in place with C/A glue, please see
pictures as shown.
Ep ox y.
15mm
4) Position the canopy onto the fuselage.
Trace around the canopy and onto the fuselage using a felt-tipped pen.
Cut.
C/A glue.
C/A glue.
2x6mm
APPLY THE DECALS.
1) If all the decals are precut and ready to
stick. Please be certain the model is clean
and free from oily ngerprints and dust.
Position decal on the model where desired, using the photos on the box and
aid in their location.
2) If all the decals are not precut, please
use scissors or a sharp hobby knife to cut
the decals from the sheet. Please be certain the model is clean and free from oily
ngerprints and dust. Position decal on
the model where desired, using the photos on the box and aid in their location.
21
Page 22
Westland Lysander
INSTALLING BATTERY - RECEIVER.
1) Plug the ve servo leads and the switch
lead into the receiver. Plug the battery
pack lead into the switch also.
2) Wrap the receiver and battery pack in
the protective foam rubber to protect
them from vibration.
Instruction Manual.
Batt er y.
ATTACHMENT WING- FUSELAGE.
Receiver.
Batt er y.
Attach the aluminum tube into fuselage.
Wing tube.
4x15mm
22
Insert two wing panels as pictures below.
Wing bolt.
Page 23
WWW.SEAGULLMODELS.COM
INSTALLING STRUT
WING-FUSELAGE.
4x15mm
4x25mm
4x25mm
23
Page 24
Westland Lysander
BALANCING.
1) It is critical that your airplane be
balanced correctly. Improper balance will
cause your plane to lose control and
crash. THE CENTER OF GRAVITY IS LOCATED 27MM FORWARD OF THE LEADING EDGE.
Instruction Manual.
2) If the nose of the plane falls, the plane is
nose heavy. To correct this rst move the
battery pack further back in the fuselage.
If this is not possible or does not correct
it, stick small amounts of lead weight on
the fuselage sides under the horizontal
stabilizer. If the tail of the plane falls, the
plane is tail heavy. To correct this, move
the battery and receiver forward or if this
is not possible, stick weight onto the rewall or use a brass heavy hub spinner hub,
similar to those oered by Harry Higley.
When balanced correctly, the airplane
should sit level or slightly nose down
when you li it up with your ngers.
“ Lysander CG ”

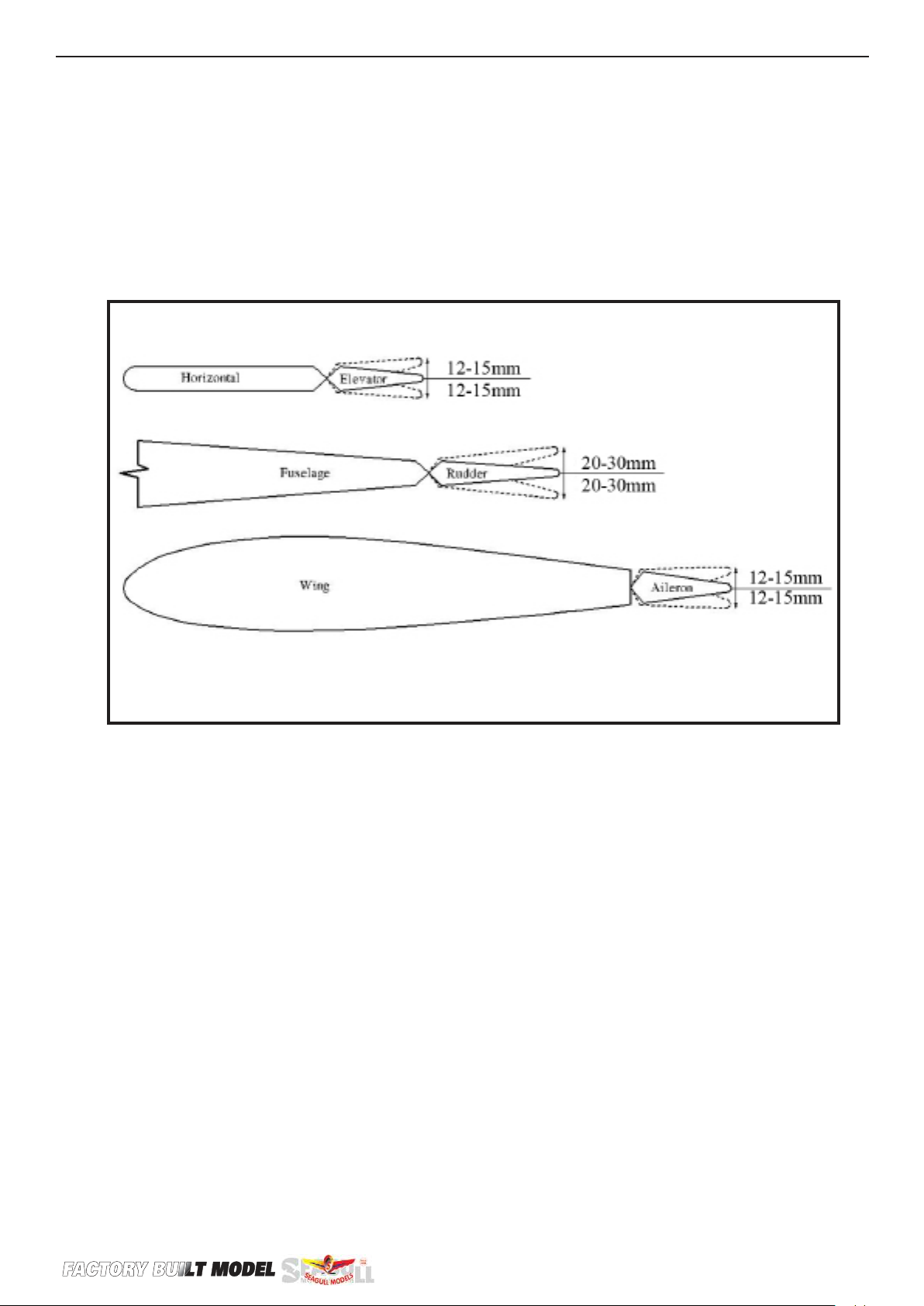

CONTROL THROWS.
Ailerons:
12mm - 15mm up.
12mm - 15mm down.
Elevator:
12mm - 15mm up.
12mm - 15mm down.
Rudder:
20mm - 30mm le.
20mm - 30mm right.
24
Page 25
WWW.SEAGULLMODELS.COM
25
Page 26
Westland Lysander
FLIGHT PREPARATION. PREFLIGHT CHECK.
Instruction Manual.
Check the operation and direction
of the elevator, rudder, ailerons and
throttle.
A) Plug in your radio system per the
manufacturer’s instructions and turn
everything on.
B) Check the elevator rst. Pull
back on the elevator stick. e elevator halves should move up. If it they do
not, ip the servo reversing switch on
your transmitter to change the direction.
C) Check the rudder. Looking from
behind the airplane, move the rudder
stick to the right. e rudder should
move to the right. If it does not, ip
the servo reversing switch on your
transmitter to change the direction.
1) Completely charge your transmitter and receiver batteries before
your rst day of ying.
2) Check every bolt and every glue
joint in the Westland Lysander to en-
sure that everything is tight and well
bonded.
3) Double check the balance of the
airplane. Do this with the fuel tank
empty.
4) Check the control surfaces. All
should move in the correct direction
and not bind in any way.
5) If your radio transmitter is
equipped with dual rate switches
double check that they are on the low
rate setting for your rst few ights.
D) Check the throttle. Moving the
throttle stick forward should open the
carburetor barrel. If it does not, ip the
servo reversing switch on your transmitter to change the direction.
E) From behind the airplane, look
at the aileron on the right wing half.
Move the aileron stick to the right.
e right aileron should move up and
the other aileron should move down.
If it does not, ip the servo reversing
switch on your transmitter to change
the direction.
We wish you many safe and enjoyable ights
6) Check to ensure the control surfaces are moving the proper amount
for both low and high rate settings.
7) Check the receiver antenna.
It should be fully extended and not
coiled up inside the fuselage.
8) Properly balance the propeller.
An out of balance propeller will cause
excessive vibration which could lead
to engine and/or airframe failure.
26
with your Westland Lysander MK III 55cc.
Loading...
