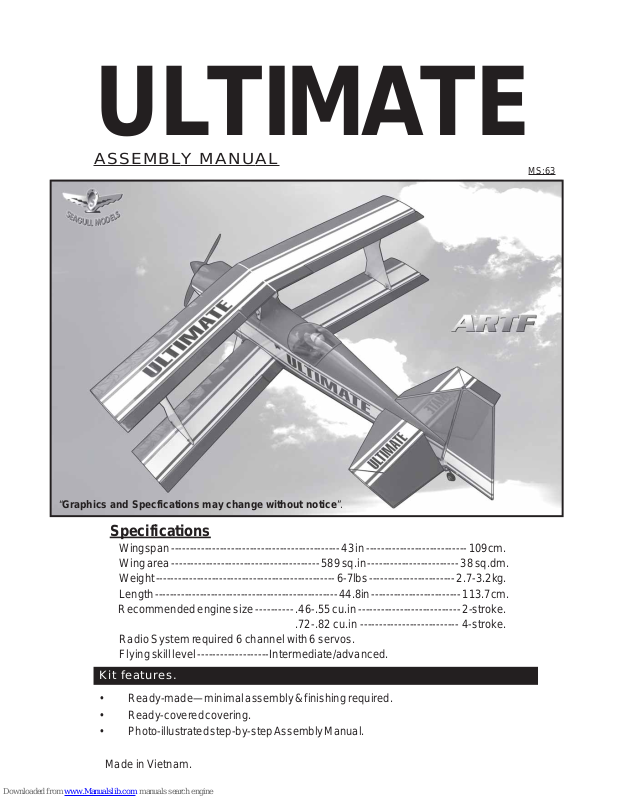

Page 1
Kit features.
• Ready-made—minimal assembly & finishing required.
• Ready-covered covering.
• Photo-illustrated step-by-step Assembly Manual.
Made in Vietnam.
Specifications
Wingspan --------------------------------------------- 43 in --------------------------- 109cm.
Wing area --------------------------------------- 589 sq.in ------------------------ 38 sq.dm.
Weight ------------------------------------------------ 6-7lbs ----------------------- 2.7-3.2kg.
Length ------------------------------------------------- 44.8in ------------------------ 113.7cm.
Recommended engine size ---------- .46-.55 cu.in --------------------------- 2-stroke.
.72-.82 cu.in -------------------------- 4-stroke.
Radio System required 6 channel with 6 servos.
Flying skill level -------------------Intermediate/advanced.
ASSEMBLY MANUAL
ULTIMATE
MS:63
“Graphics and Specfications may change without notice”.
Page 2
ULTIMATE. Instruction Manual.
2
INTRODUCTION.
Thank you for choosing the ULTIMATE ARTF by SEAGULL MODELS. The ULTIMATE was
designed with the intermediate/advanced sport flyer in mind. It is a semi scale airplane which is
easy to fly and quick to assemble. The airframe is conventionally built using balsa, plywood to make
it stronger than the average ARTF , yet the design allows the aeroplane to be kept light. You will find
that most of the work has been done for you already.Flying the ULTIMATE is simply a joy.
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manual thoroughly before starting assembly of your ULTIMATE. Use the parts listing below to
identify all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
If you are inexperienced with basic R/C flight we strongly recommend you contact your R/C
supplier and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
procedures designed to help the new pilot on his way to successful R/C flight. They will also be able
to advise on any insurance and safety regulations that may apply.
ADDITIONAL ITEMS REQUIRED.
.46-.55 2-stroke engine.
.72-.82 4-stroke engine.
Computer radio with six servos.
Glow plug to suit engine.
Propeller to suit engine.
Protective foam rubber for radio
system.
Silicone fuel line.
TOOLS & SUPPLIES NEEDED.
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
PARTS LISTING.
FUSELAGE ASSEMBLY
(1) Fuselage.
(1) Canopy hatch.
WING ASSEMBLY
(2) Right wing half/ aileron.
(2) Left wing half/ aileron.
(2) Aluminium dihedral brace.
Tail section assembly
(1) Horizontal stabilizer/ elevator
halves.
(1) Rudder halves.
Some more parts.
HARDWARE PACK
COWLING
Landing gear.....
Page 3
www.seagullmodels.com
3
NOTE: To avoid scratching your new aero-
plane we suggest that you cover your
workbench with an old towel. Keep a
couple of jars or bowls handy to hold
the small parts after you open the
bags.
Please trial fit all parts. Make sure you
have the correct parts and that they
fit and are aligned properly before
gluing! This will ensure proper assembly as the ULTIMATE is made
from natural materials and minor adjustments may have to be made.
The paint and plastic parts used in
this kit are fuel proof. However, they
are not tolerant of many harsh chemicals including the following: paint
thinner, cyano-acrylate glue accelerator, cyanoacrylate glue de-bonder
and acetone. Do not let these chemicals come in contact with the colours
on the covering and the plastic parts.
The control surfaces, including the
ailerons, elevators, and rudder, are
prehinged with hinges installed, but the
hinges are not glued in place. It is
imperative that you properly adhere the
hinges in place per the steps that follow
using a high-quality thin C/A glue.

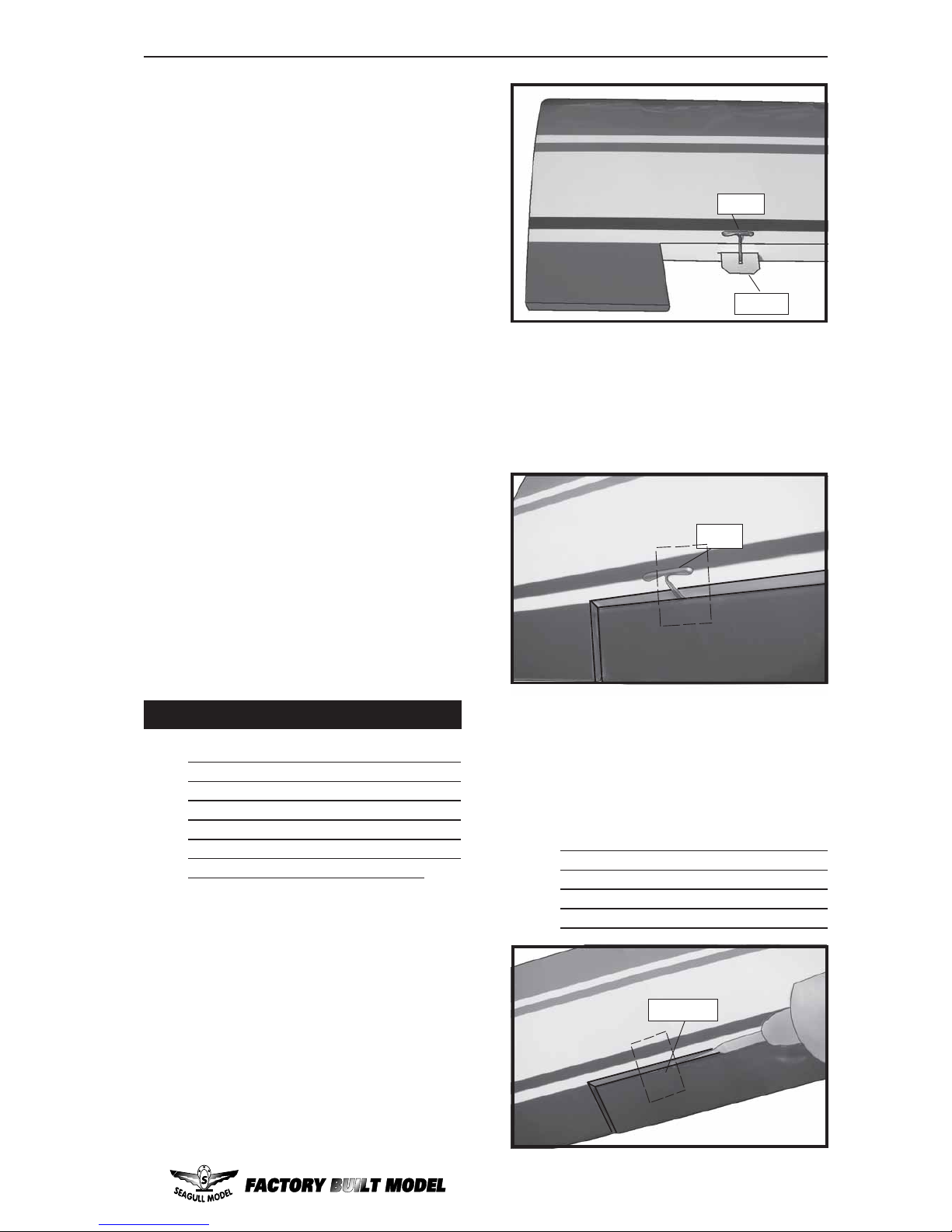

1) Carefully remove the aileron from one
of the wing panels. Note the position of the
hinges.
2) Remove each hinge from the wing panel
and aileron and place a T-pin in the center of
each hinge. Slide each hinge into the wing
panel until the T-pin is snug against the wing
panel. This will help ensure an equal amount
of hinge is on either side of the hinge line when
the aileron is mounted to the aileron.
HINGING THE AILERONS.
Note:
3) Slide the aileron on the wing panel until
there is only a slight gap. The hinge is now
centered on the wing panel and aileron.
Remove the T-pins and snug the aileron
against the wing panel. A gap of 1/64” or less
should be maintained between the wing panel
and aileron.
Hinge.
T-pin.
4)Deflect the aileron and completely
saturate each hinge with thin C/A glue. The
ailerons front surface should lightly contact the
wing during this procedure. Ideally , when the
The hinge is constructed of a special
material that allows the C/A to wick or
penetrate and distribute throughout the
hinge, securely bonding it to the wood
structure of the wing panel and aileron.
hinges are glued in place, a 1/64” gap or less
will be maintained throughout the lengh of the
aileron to the wing panel hinge line.
Note:
T-pin.
C/A glue.
Page 4
ULTIMATE. Instruction Manual.
4

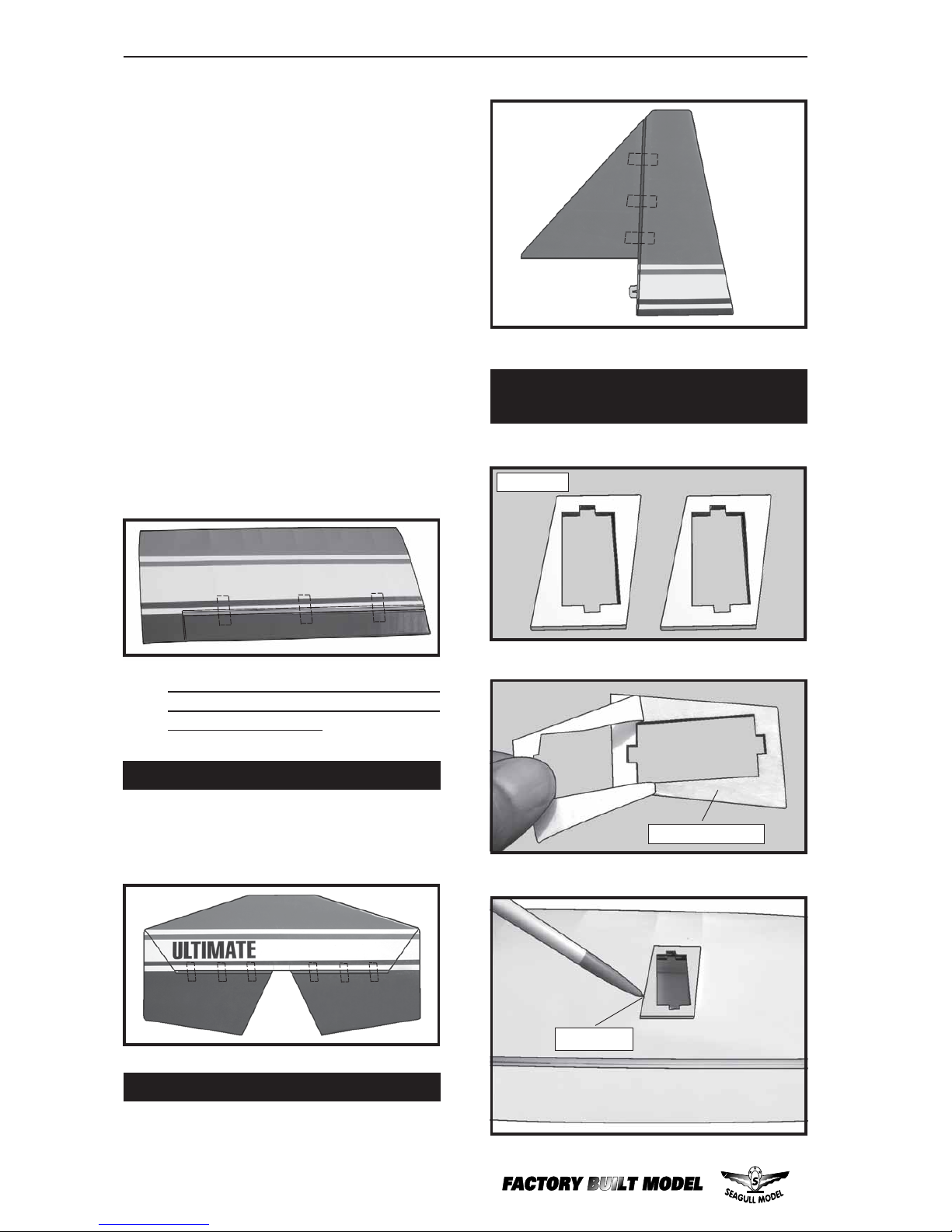

Work the aileron up and down several
times to “work in” the hinges and check
for proper movement.
Glue the elevator hinges in place using the
same tectniques used to hinge the ailerons.
HINGING THE ELEVATOR.
Note:
8) After both ailerons are securely hinged,
firmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully
applying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
7) Repeat this process with the other wing
panel, securely hinging the aileron in place.
6) Using C/A remover/debonder and a
paper towel, remove any excess C/A glue that
may have accumulated on the wing or in the
aileron hinge area.
HINGING THE RUDDER.
INSTALLING THE AILERON SERVOS
(LOWER WING).
Glue the rudder hinges in place using the
same tectniques used to hinge the ailerons.
Servo tray .
Remove covering.
Mark point.
5) Turn the wing panel over and deflect the
aileron in the opposite direction from the
opposite side. Apply thin C/A glue to each
hinge, making sure that the C/A penetrates into
both the aileron and wing panel.
Page 5
www.seagullmodels.com
5
String.
Small weight.

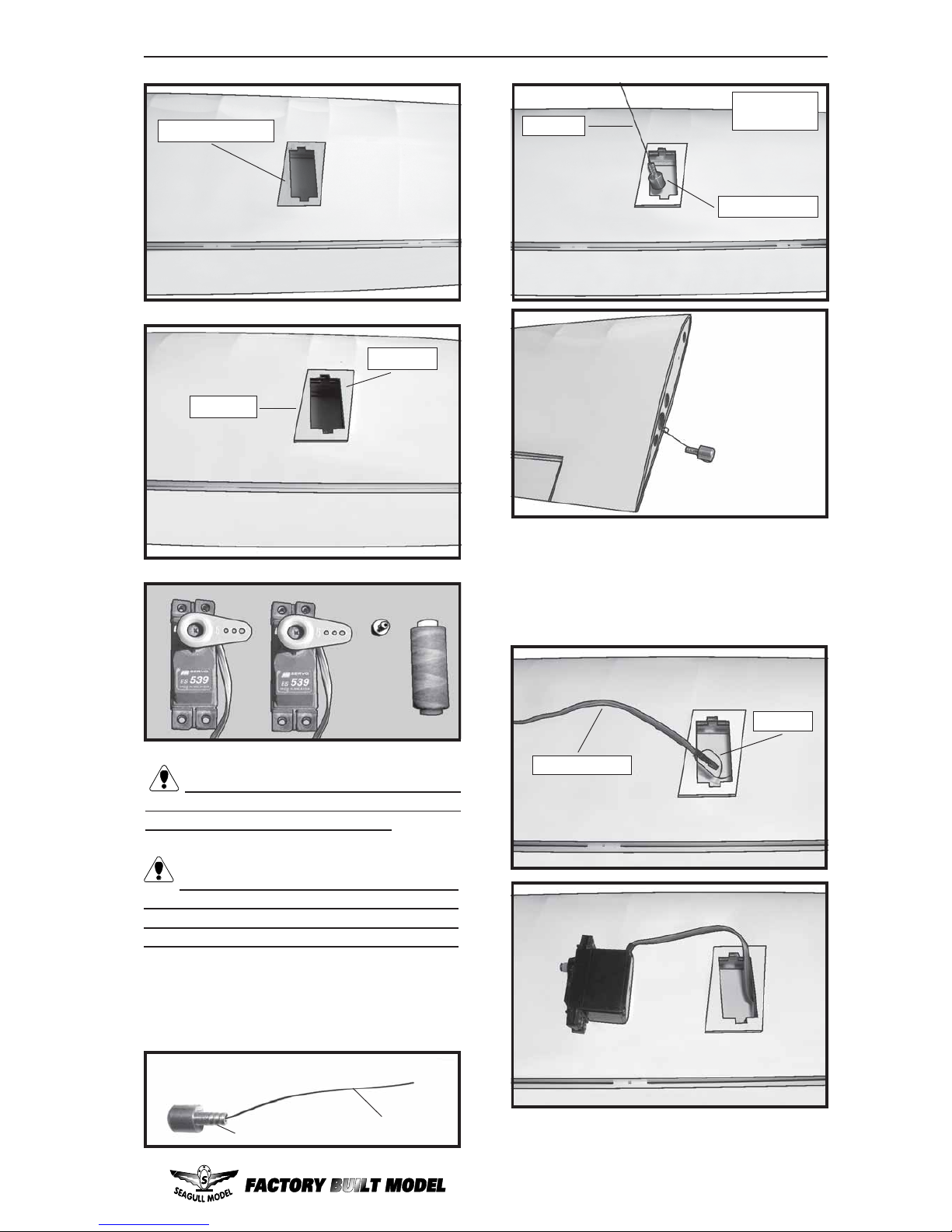

Because the size of servos differ, you
may need to adjust the size of the precut opening in the mount. The notch in the sides of
the mount allow the servo lead to pass through.
Install the rubber grommets and brass
collets onto the aileron servo. Test fit the
servo into the aileron servo mount.
Using a small weight (Weighted fuel pick-up
works well) and thread, feed the string through
the wing as indicated.
Remove covering.
Servos.
Small weight.
Thread.
C/A glue.
Servo tray .
Attach the string to the servo lead and
carefully thread it though the wing. Once you
have thread the lead throught the wing, remove
the string so it can use for the other servo
lead. T ape the servo lead to the wing to prevent
it from falling back into the wing.
Lower wing
bottom.
Thread.
Small weight.
Electric wire.
String.
Secure the servos with the screws provided with your radio system.
Page 6
ULTIMATE. Instruction Manual.
6

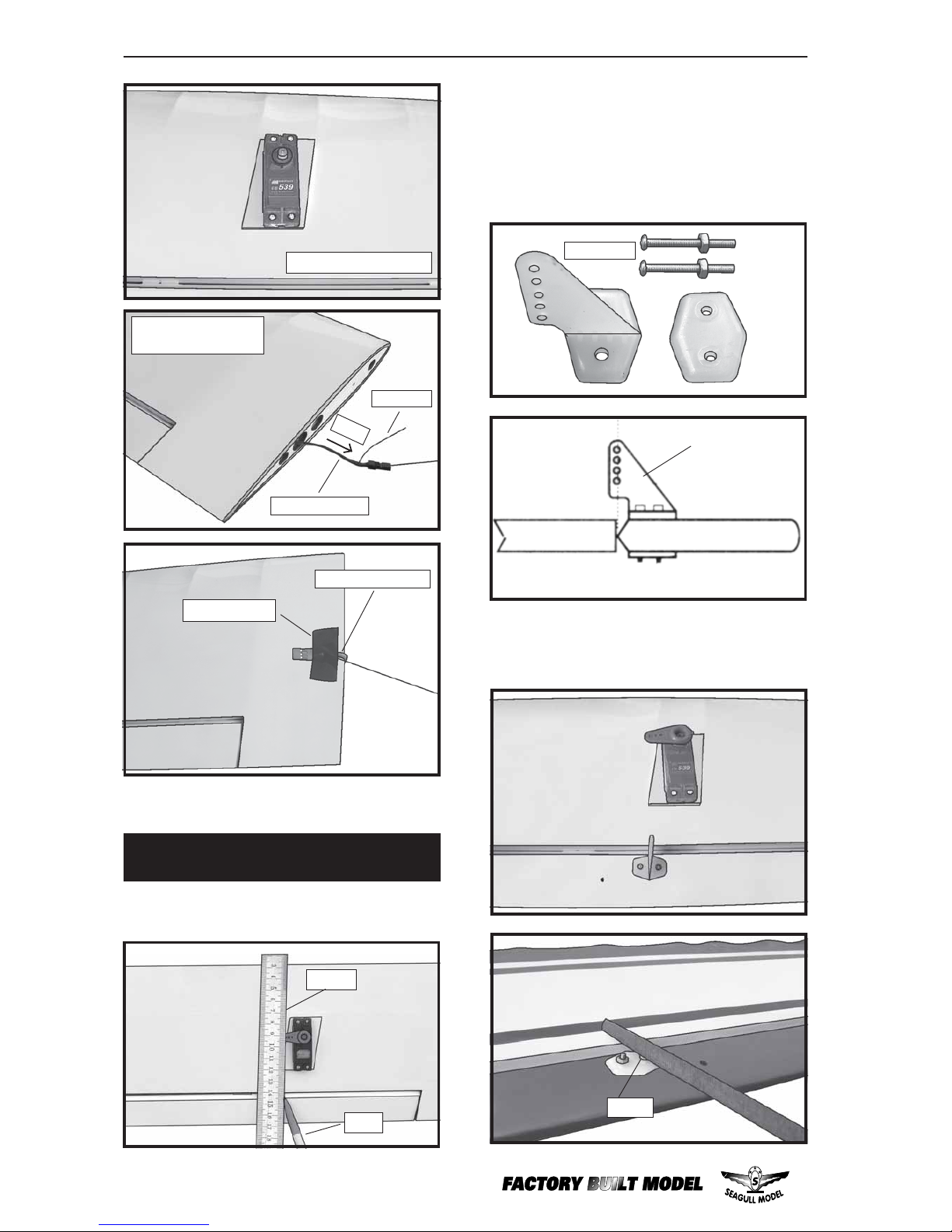

1) Using a ruler & pen to draw a straight
line as below picture.
Repeat the procedure for orther wing
haft.
INSTALLING THE AILERON LINKAGE
(LOWER WING).
Lower wing panel
bottom.
Thread.
Electric wire.
Pull.
Plastic tape.
Aileron electric.

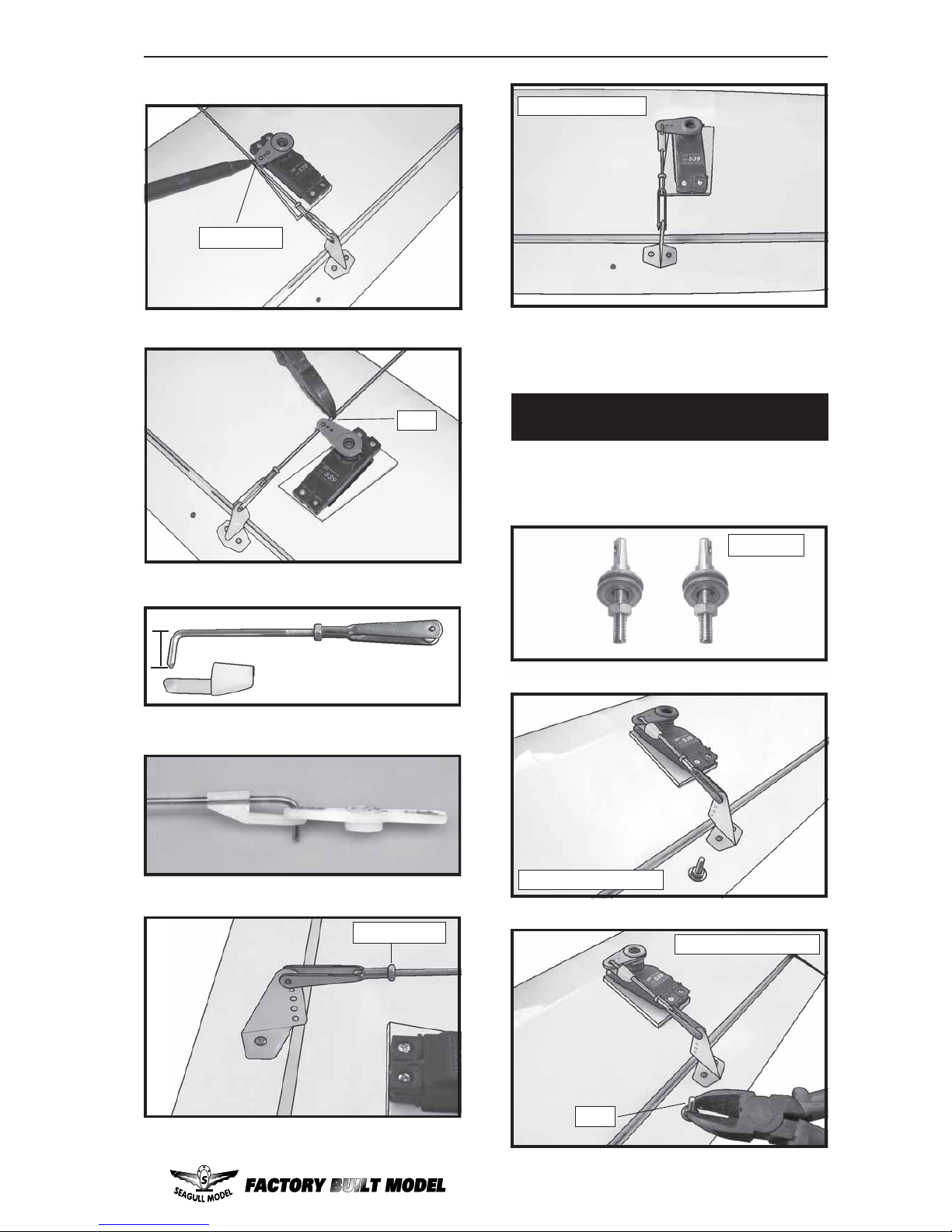

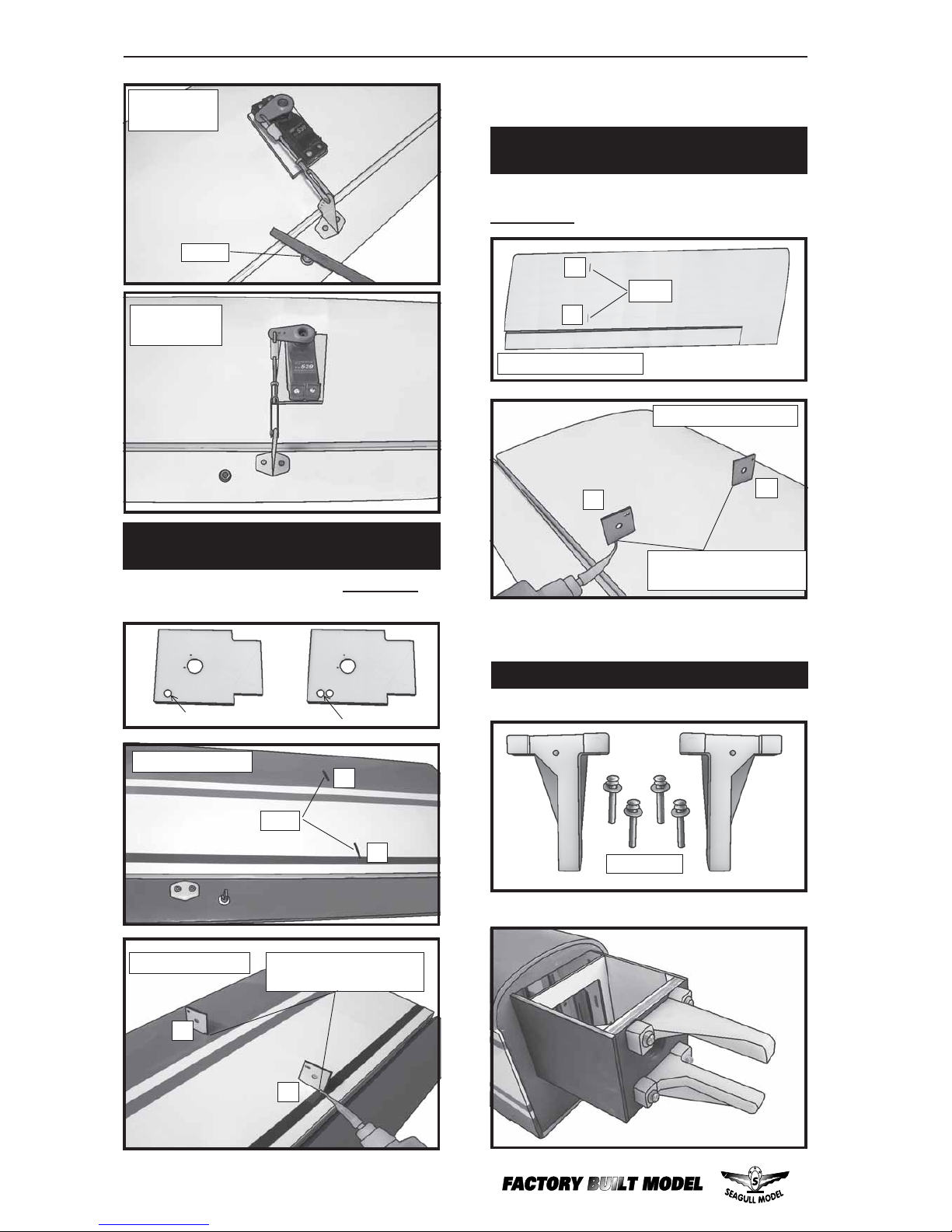

2) Locate the nylon control horns,nylon
control horn backplates and two machine
screws.
3) Position the aileron horn on the bottom
side of aileron.
4) Using a 1.5mm drill bit and the control
horns as a guide, drill the mounting holes
through the aileron halves.
Pen.
Control Horn.
Mounting Screws.
Mounting Plate.
Grind.
2x20mm.
Lower wing bottom.
Ruler.
Wing. Aileron.
Page 7
www.seagullmodels.com
7
M2 lock nut.
Mark point.
Cut.
3x30mm.
Repeat the procedure for the other
aileron servo.
Installing the turnbuckle for aileron linkage
of lower wing as same as pictures below.
Lower wing bottom.
INSTALLING THE TURNBUCKLE
(LOWER WING).
Lower wing bottom.
7 mm
Cut.
Lower wing bottom.
Page 8
ULTIMATE. Instruction Manual.
8
PLASTIC STRAP INSTALLATION
LOWER WING.
Installing the plastic strap of lower wing for
wing strut as same as pictures below.
Slot.
Lower wing top.
B
A
Repeat the procedure for the other
wing haft.
Repeat the procedure as same as
lower wing. See pictures below.
PLASTIC STRAP INSTALLATION
UPPER WING.
Lower wing
bottom.
Repeat the procedure for the other
wing half.

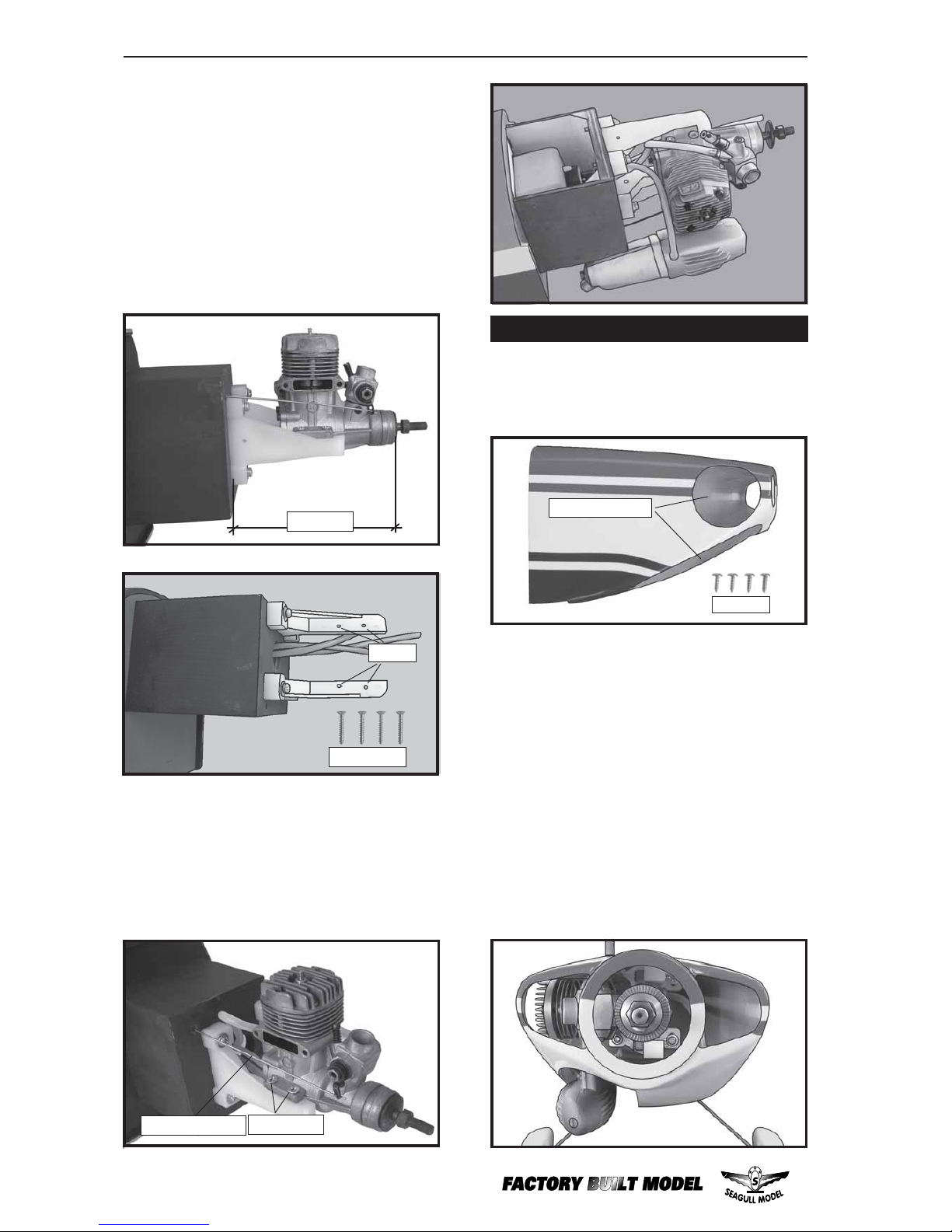

ENGINE MOUNT.
See pictures below:
Mark and drill 4 holes for engine mount.
4x25mm.
Upper wing bottom.
Slot.
B
A
Grind.
Lower wing
bottom.
Upper wing bottom.
B
A
Epoxy glue
(do not use C/A glue).
A
B
B
A
Lower wing top.
Epoxy glue
(do not use C/A glue).
Page 9
www.seagullmodels.com
9

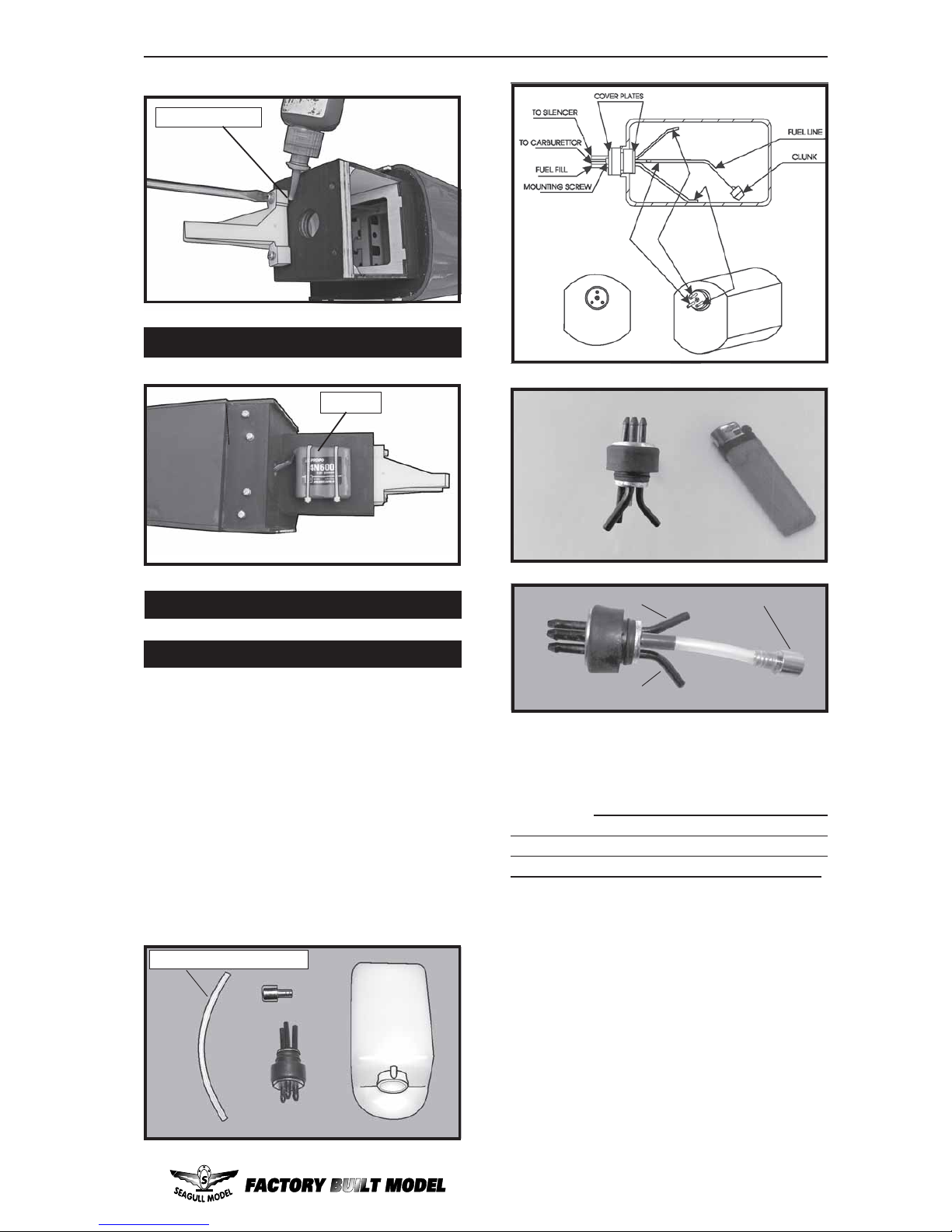

INSTALLING THE BATTERY
1) Using a modeling knife, carefully cut
off the rear portion of one of the 3 nylon tubes
leaving 1/2” protruding from the rear of the
stopper. This will be the fuel pick up tube.
INST ALLING THE STOPPER ASSEMBL Y.
FUEL TANK.
2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of the line
to the weighted fuel pick up and the other end
to the nylon pick up tube.
3) Carefully bend the second nylon tube
up at a 45º angle. This tube is the vent tube.
Silicon tubing not inclued.
Battery.
Thread locker.
4) Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none falls into the tank.
5) With the stopper assembly in place,
the weighted pick-up should rest away from
the rear of the tank and move freely inside the
tank. The top of the vent tube should rest just
below the top of the tank. It should not touch
the top of the tank.
Important:
When the stopper assembly is installed in the tank, the top of the vent tube
should rest just below the top surface of the
tank. It should not touch the top of the tank.
Carefully use a lighter or heat gun to
permenently set the angle of the vent tube.
Vent tube.
Fuel pick up tube.
Fuel fill tube.
Page 10
ULTIMATE. Instruction Manual.
10

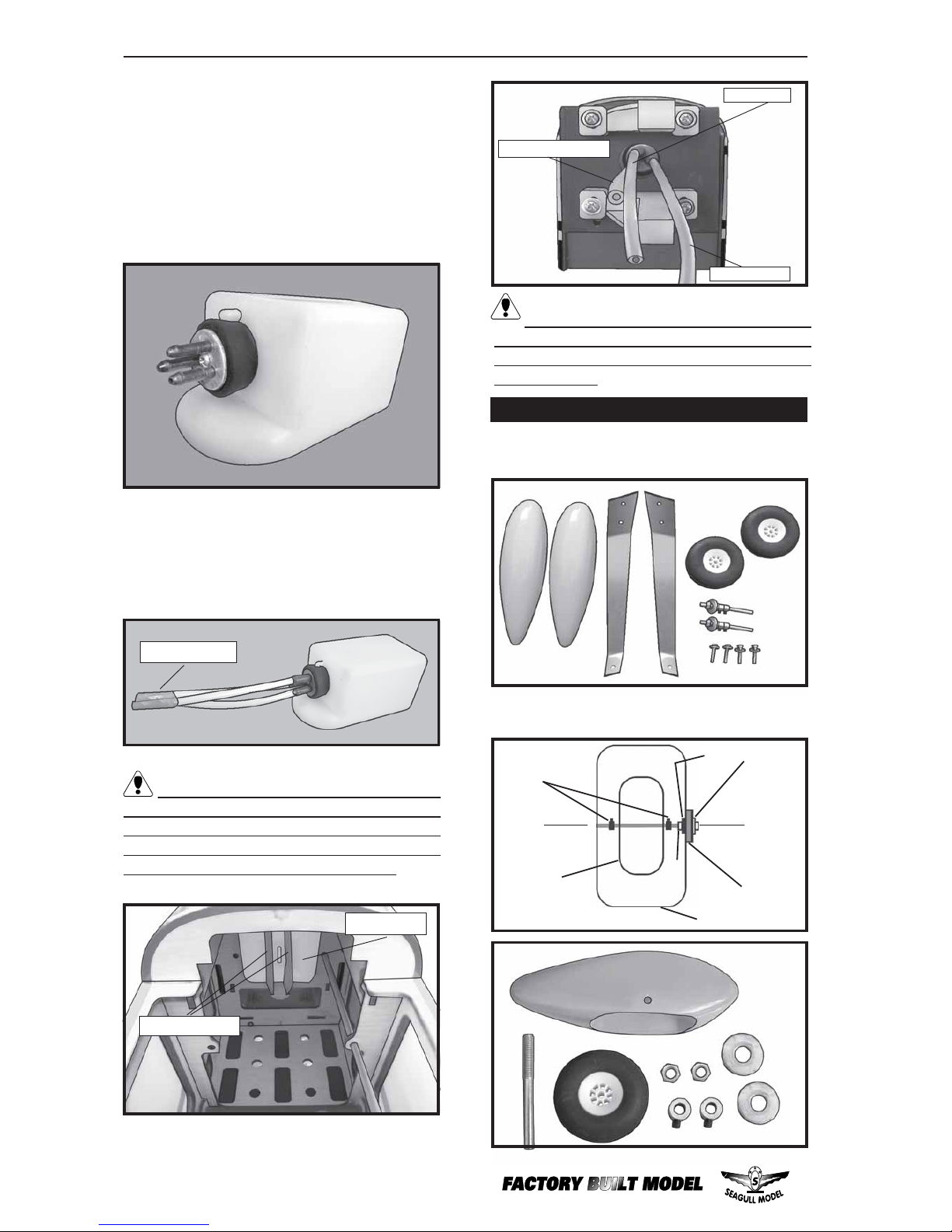

Attach the silicone fuel and pressure pipes
to the tank. The lower pipe is the ‘feed’ and the
upper two the ‘pressure and fill’. The fill pipe is
the next pipe.
Plastic tape.
Rubber band.
Fuel tank.

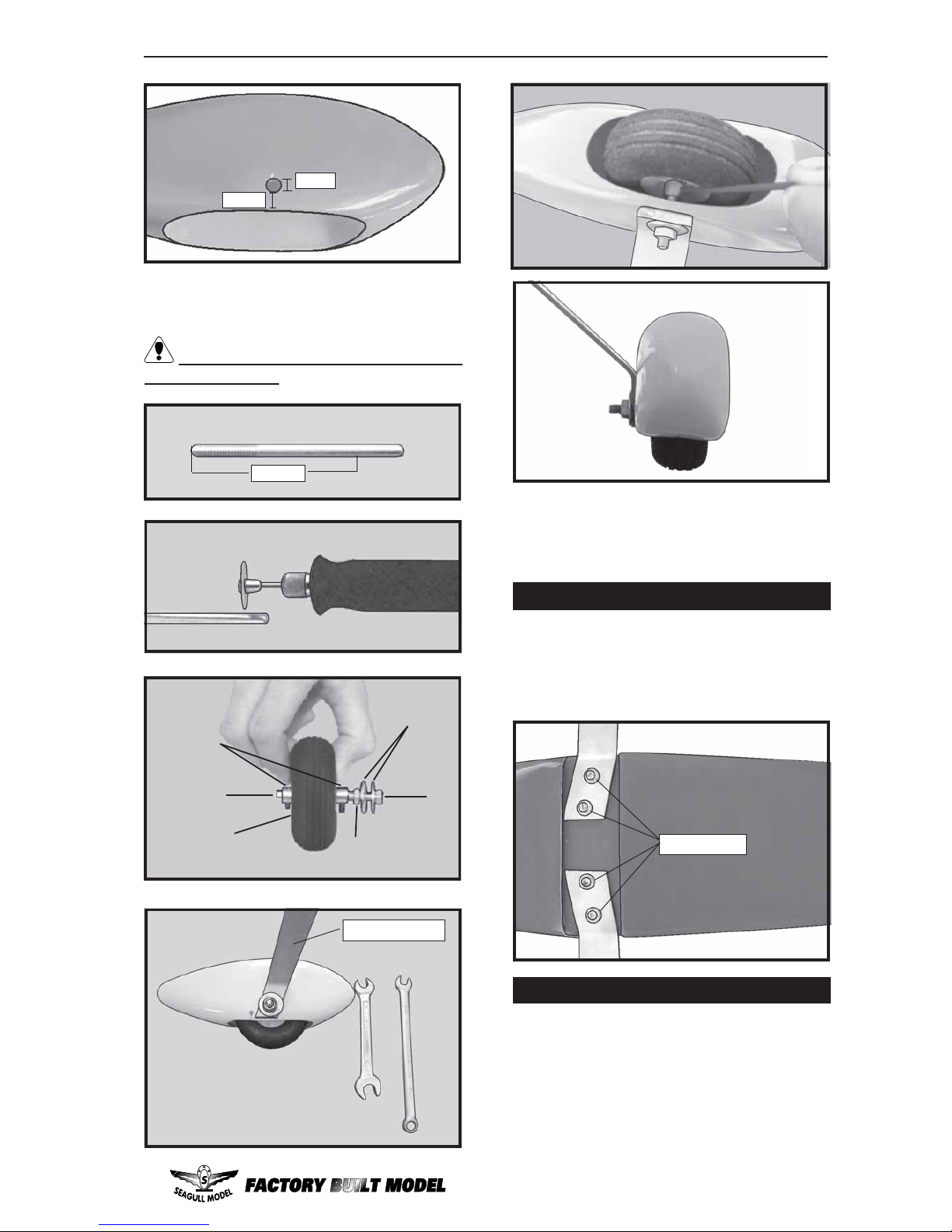

2) Follow diagram below for wheel pant
installation:
Wheel Collar.
Axle.
Wheel.
Nut.
Wheel Pant.
Landing Gear.
Nut.
(2) Washer .
Fuel pick-up tube.
Fuel fill tube.
Vent tube.
6) When satisfied with the alignment of
the stopper assembly tighten the 3 x 20mm
machine screw until the rubber stopper expands and seals the tank opening. Do not
overtighten the assembly as this could cause
the tank to split.
You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once
the tank is installed inside the fuselage, it may
be difficult to determine which is which.
1) Assemble and mounting the wheel pants
as shown in the following pictures.
WHEEL AND WHEEL PANTS.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should flow
through easily.
Page 11
www.seagullmodels.com
11
(2) Wheel Collar.
Axle.
Wheel.
Nut.
Nut.
(2) Washer .
Landing gear.
3) You have to trim each axle using a tool
cutting and cut-off wheel.
Caution when cutting the axles and wear
protective goggles.
46mm.
MOUNTING THE ENGINE.
1) Install the pushrod housing through the
predrilled hole in the firewall and into the servo
compartment. The pushrod housing should
protrude 1/4" out past the front of the firewall.
Make a Z-Bend 1/4" from one end of the plain
wire pushrod.
1) The blind nuts for securing the landing
gear are already mounted inside the fuselage.
2) Using the hardware provided, mount the
main landing gear to the fuselage.
INST ALLING THE MAIN LANDING GEAR.
4 X 20mm.
4) A drop of C/A glue on the wheel collar
screws will help keep them from coming lose
during operation.
Repeat the process for the other wheel.
5mm.
10mm.
Page 12
ULTIMATE. Instruction Manual.
12
Pushrod wire.
4x30mm.
4) Remove the engine. Using an drill bit,
drill the mounting holes through the engine
mount at the four locations marked.
3) When you are satisfied with the alignment, mark the locations of the engine
mounting.
6) Attach the Z-Bend in the pushrod wire to
the throttle arm on the carburetor .
5) Bolt the engine to the engine mount using
the four machine screws. Double check that
all the screws are tight before proceeding.
2mm.
3x25mm.
Because of the size of the cowl, it may be
necessary to use a needle valve extension for
the high speed needle valve. Make this out of
sufficient length 1.5mm wire and install it into
the end of the needle valve. Secure the wire
in place by tightening the set screw in the side
of the needle valve.
3x10mm.
Trim and cut.
2) While keeping the back edge of the
cowl flush with the marks, align the front of
the cowl with the crankshaft of the engine. The
front of the cowl should be positioned so the
crankshaft is in nearly the middle of the cowl
opening. Use the spinner backplate as a guide.
Hold the cowl firmly in place using pieces of
masking tape.
115mm.

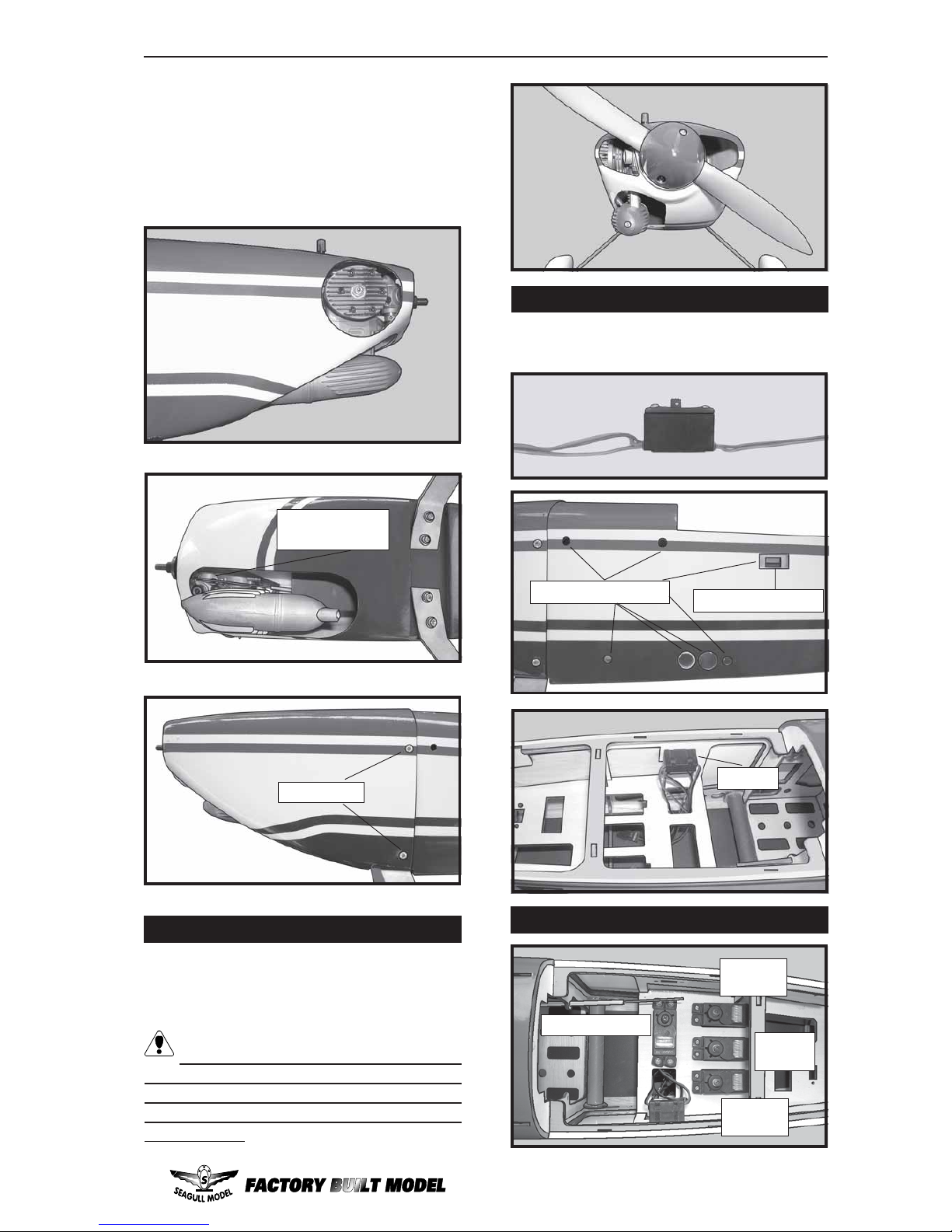

COWLING.
1) Slide the fiberglass cowl over the engine and line up the back edge of the cowl with
the marks you made on the fuselage then trim
and cut.
2) Place your engine onto the engine
mount. Adjust the engine is centered of the
edges of the engine case.
Page 13
www.seagullmodels.com
13
3) Install the muffler and muffler extension
onto the engine and make the cutout in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
and fuel filler valve. Secure the cowl to fuselage using the 3x10mm screws (4).
The propeller should not touch any part
of the spinner cone. If it does, use a sharp
modeling knife and carefully trim away the
spinner cone where the propeller comes in
contact with it.
Install the spinner backplate, propeller and
spinner cone.
INSTALLING THE SPINNER.
3 x 10mm.
1.5mm wire
(needle valve).

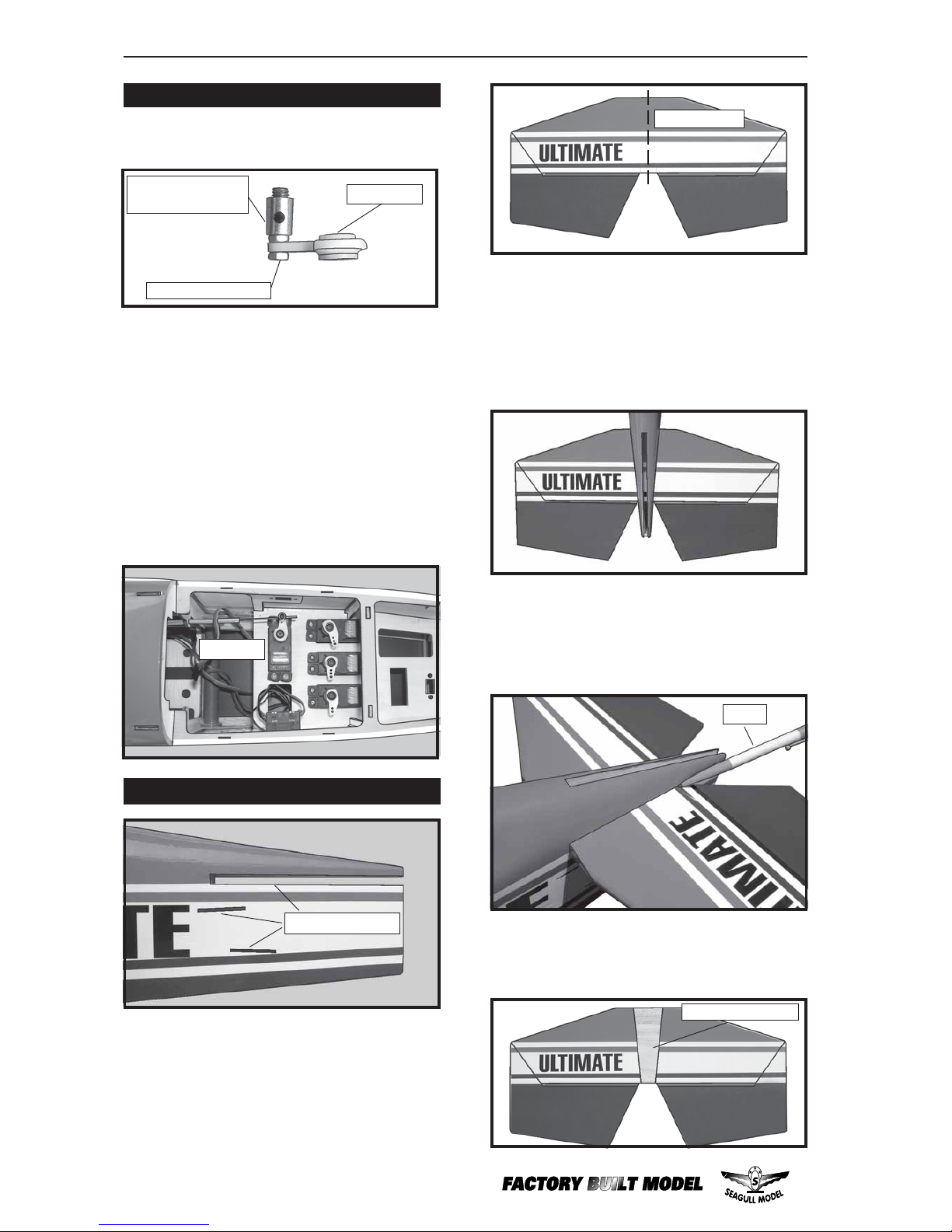

INSTALLING THE FUSELAGE SERVO.
Throttle servo.
Rudder
servo.
Elevator
servo.
Elevator
servo.
INSTALLING THE SWITCH.
Install the switch into the precut hole in the
side in the fuselage.
Switch.
Remove covering.
Switch Possition.
Page 14
ULTIMATE. Instruction Manual.
14
Remove covering.
3) Secure the servos with the screws provided with your radio system.
4) Install the pushrod throttle.
Throttle.
2) Using a modeling knife, carefully remove
the covering at mounting slot of horizontal stabilizer ( both side of fuselage).
Center line.
HORIZONTAL STABILIZER.
1) Using a ruler and a pen, locate the
centerline of the horizontal stabilizer , at the trailing edge, and place a mark. Use a triangle
and extend this mark, from back to front,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge of
the stabilizer.
3) Slide the stabilizer into place in the precut slot in the rear of the fuselage. The stabilizer should be pushed firmly against the front
of the slot.
4) With the stabilizer held firmly in place,
use a pen and draw lines onto the stabilizer
where it and the fuselage sides meet. Do this
on both the right and left sides and top and
bottom of the stabilizer.
5) Remove the stabilizer . Using the lines
you just drew as a guide, carefully remove the
covering from between them using a modeling knife.
Pen.
2) Install the rubber grommets and brass
collets onto the throttle servo. T est fit the servo
into the throttle servo mount.
Because the size of servos differ, you may
need to adjust the size of the precut opening
in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
1) Install adjustable servo connector in
the servo arm.
THROTTLE SERVO ARM INST ALLA TION.
Remove covering.
Servo arm.
Adjustable servo
connector.
Thread locker glue.
Page 15
www.seagullmodels.com
15

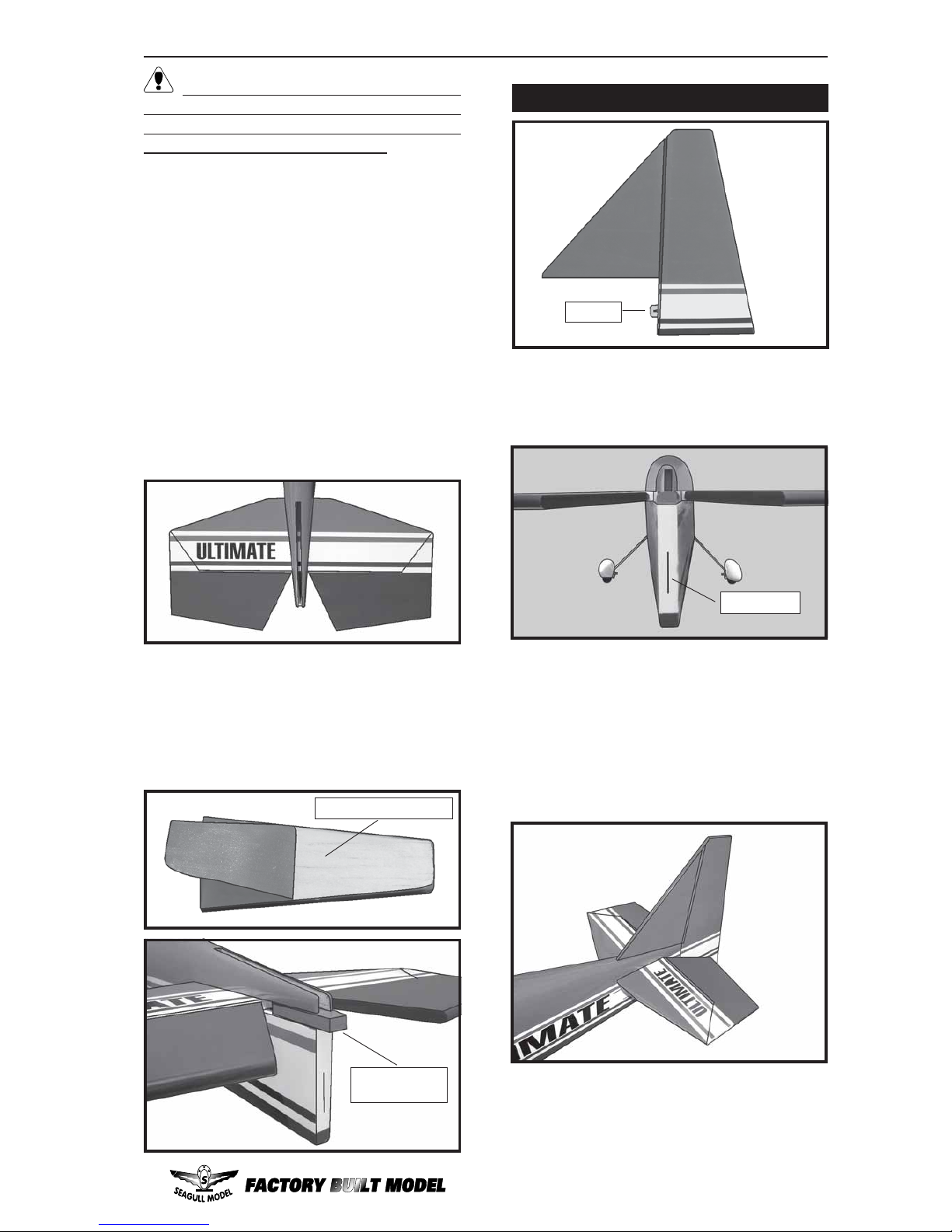

7) When you are sure that everything is
aligned correctly, mix up a generous amount
of 30 Minute Epoxy. Apply a thin layer to the
top and bottom of the stabilizer mounting area
and to the stabilizer mounting platform sides
in the fuselage. Slide the stabilizer in place
and realign. Double check all of your measurements once more before the epoxy cures.
Hold the stabilizer in place with T -pins or masking tape and remove any excess epoxy using
a paper towel and rubbing alcohol.
6) Using a modeling knife, carefully remove the covering that overlaps the stabilizer
mounting platform sides in the fuselage. Remove the covering from both the top and the
bottom of the platform sides.
When cutting through the covering to remove it, cut with only enough pressure to only
cut through the covering itself. Cutting into
the balsa structure may weaken it.
VERTICAL STABILIZER INSTALLATION.
8) After the epoxy has fully cured, re-
move the masking tape or T -pins used to hold
the stabilizer in place. Carefully inspect the
glue joints. Use more epoxy to fill in any gaps
that may exist that were not filled previously
and clean up the excess using a paper towel
and rubbing alcohol.
Remove covering.
Covered wood
filler piece.
3) While holding the vertical stabilizer firmly
in place, use a pen and draw a line on each
side of the vertical stabilizer where it meets
the top of the fuselage.
2) Slide the vertical stabilizer into the slot
in the top of the fuselage. The rear edge of
the stabilizer should be flush with the rear edge
of the fuselage and the lower rudder hinge
should engage the precut hinge slot in the
lower fuselage. The bottom edge of the stabilizer should also be firmly pushed against the
top of the horizontal stabilizer .
Hinge slot.
1) Using a modeling knife, remove the
covering from over the precut hinge slot cut
into the lower rear portion of the fuselage. This
slot accepts the lower rudder hinge.
Hinge.
Page 16
ULTIMATE. Instruction Manual.
16

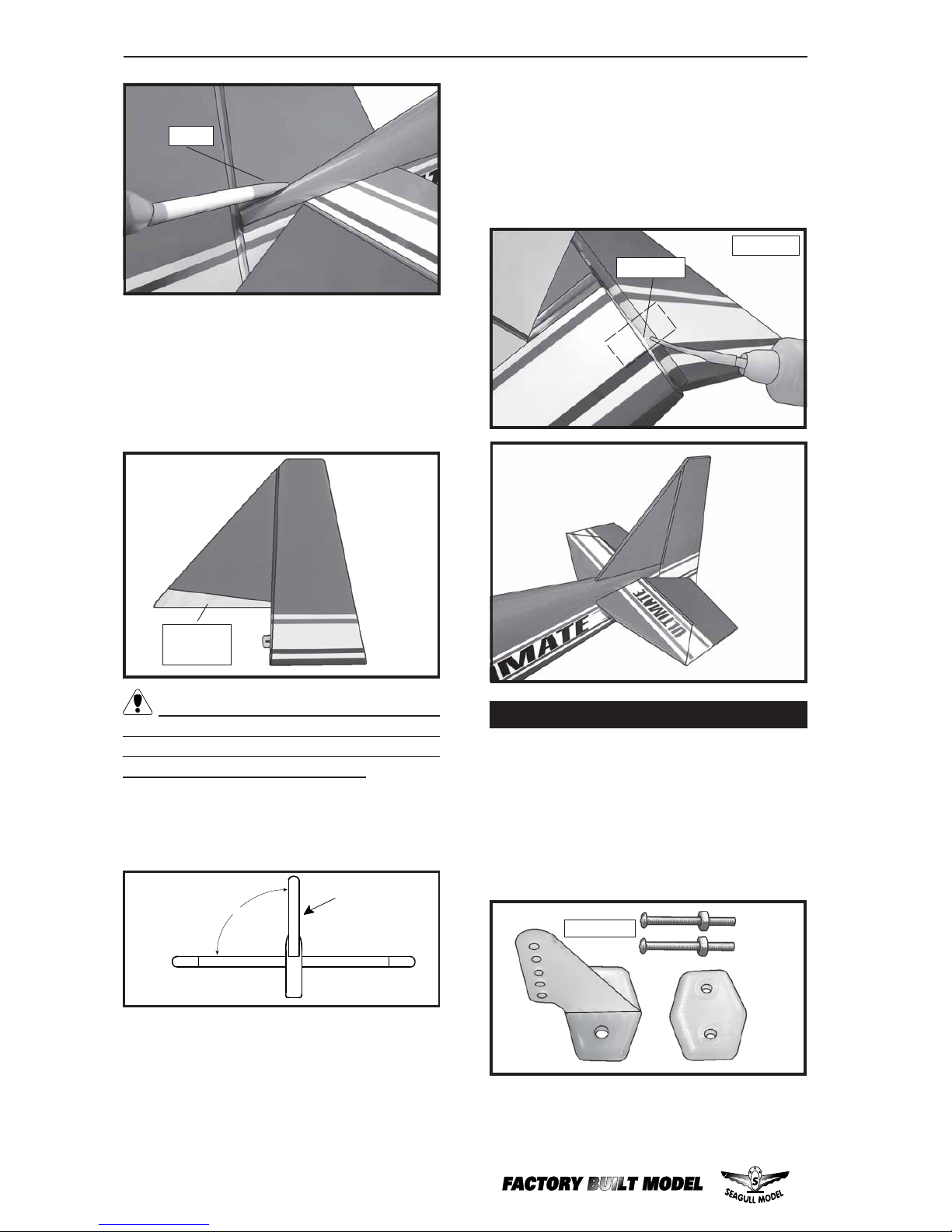

5) Slide the vertical stabilizer back in
place. Using a triangle, check to ensure that
the vertical stabilizer is aligned 90º to the horizontal stabilizer.
90º
Vertical
Stabilizer.
Horizontal
Stabilizer.
6) When you are sure that everything is
aligned correctly , mix up a generous amount of
30 Minute Epoxy . Apply a thin layer to the mounting slot in the top of the fuselage and to the sides
and bottom of the vertical stabilizer mounting
area. Apply epoxy to the bottom and top edges
of the filler block and to the lower hinge also.
When cutting through the covering to remove it, cut with only enough pressure to only
cut through the covering itself. Cutting into
the balsa structure may weaken it.
4) Remove the stabilizer. Using a mod-
eling knife, remove the covering from below
the lines you drew . Also remove the covering
from the bottom edge of the stabilizer and the
bottom and top edges of the filler block. Leave
the covering in place on the sides of the filler
block.
Remove
covering.
Set the stabilizer in place and realign. Double
check all of your measurements once more before the epoxy cures. Hold the stabilizer in place
with T-pins or masking tape and remove any
excess epoxy using a paper towel and rubbing
alcohol. Allow the epoxy to fully cure before
proceeding.

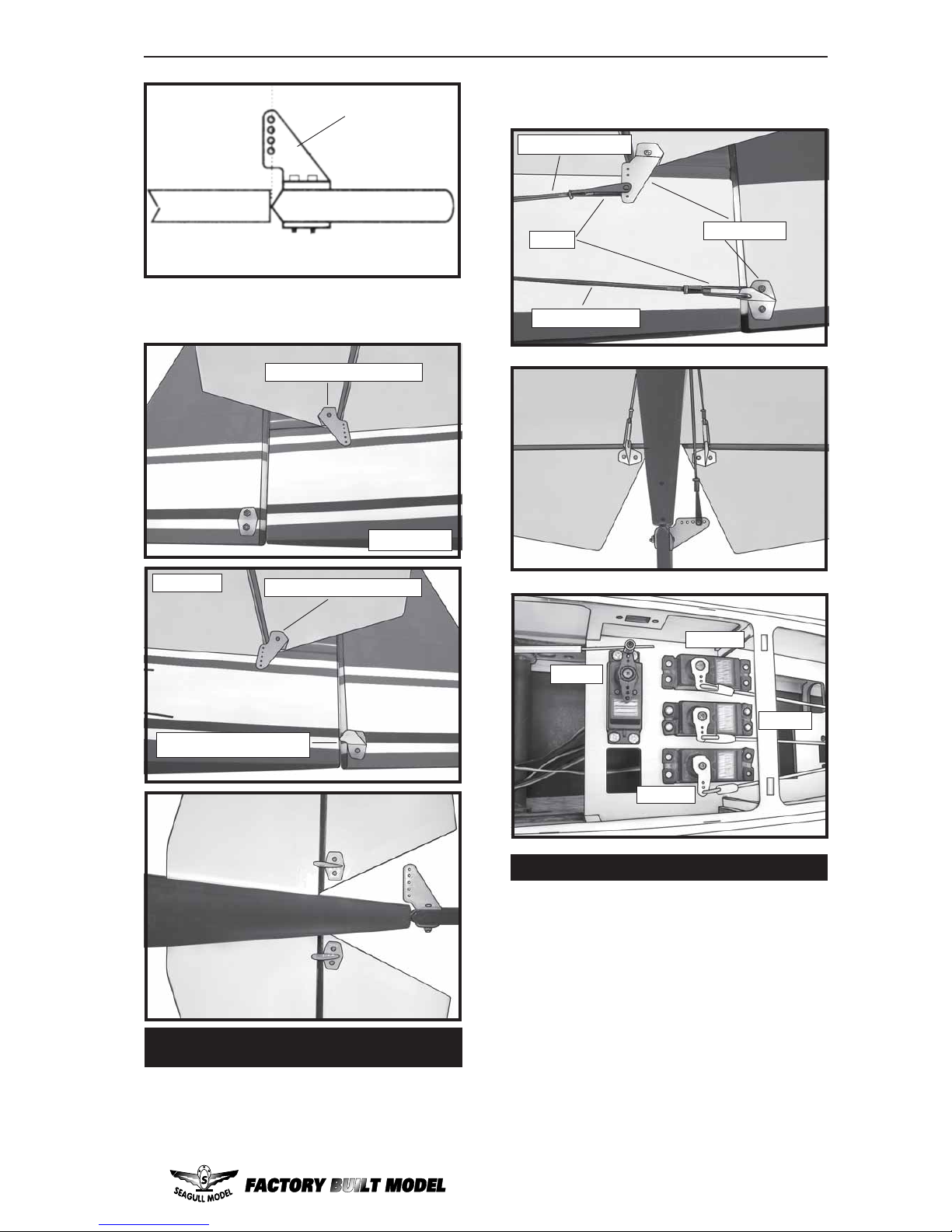

CONTROL HORN INSTALLATION.
1) Locate the two nylon control horns,
two nylon control horn backplates and four
machine screws.
2) Position the elevator horn on the both
side of elevator. The clevis attach- ment holes
should be positioned over the hinge line.
3) Install the elevator control horn using
the same method as with the aileron control
horns.
Pen.
C/A glue.
Rudder.
2x20mm.
Page 17
www.seagullmodels.com
17
Control Horn.
Mounting Screws.
Mounting Plate.
4) Install the rudder control horn using the
same method as with the elevator control
horns.
1) Thread one clevis and M2 lock nut on
to each elevator control rod. Thread the horns
on until they are flush with the ends of the control rods.
ELEV ATOR - RUDDER PUSHROD
INST ALLATION.
Right side.
Elevator control horn.
Left side.
Rudder control horn.
Elevator control horn.
Elevator pushrod.
Control horn.
Clevis.
Rudder pushrod.
Throttle.
Rudder.
Elevator.
Elevator.
2) Elevator pushrods assembly follow
pictures below.
3) Secure the tail wheel bracket in place
using two 2x20mm wood screws. Be careful
not to overtighten the screws.
2) Using a pen, mark the locations of the
two mounting screws. Remove the tail wheel
bracket and drill 1mm pilot holes at the locations marked.

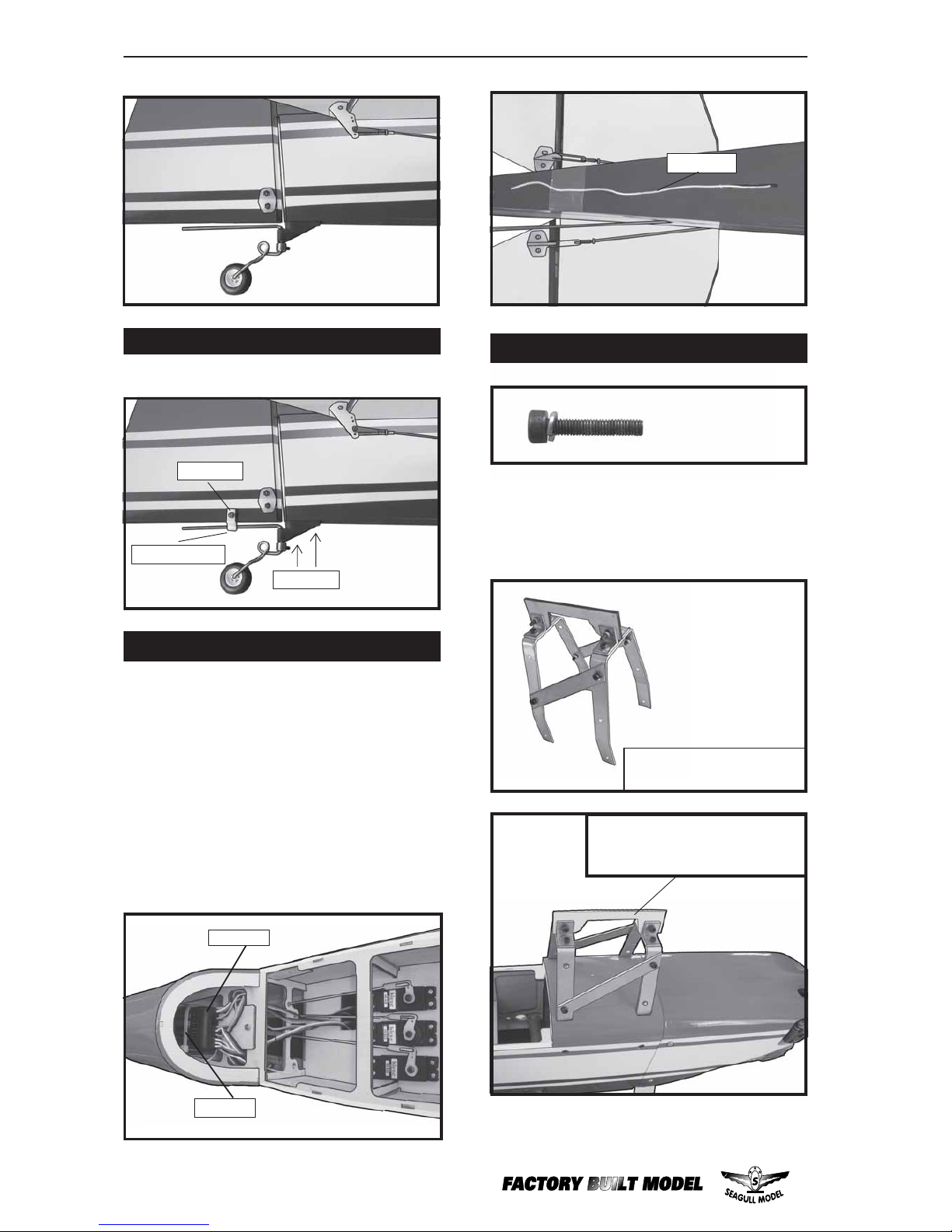

MOUNTING THE TAIL WHEEL BRACKET.
1) Set the tail wheel assembly in place on
the plywood plate. The pivot point of the tail
wheel wire should be even with the rudder
hinge line and the tail wheel bracket should be
centered on the plywood plate.
Fin.
Elevator.
Page 18
ULTIMATE. Instruction Manual.
18
MOUNTING THE CONTROL CLASP.
See pictures below:
2x20mm.
2 screws.
Control clasp.
1) Plug the six servo leads and the switch
lead into the receiver.Plug the battery pack lead
into the switch also.
2) Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration.
3) Route the antenna in the antenna tube
inside the fuselage and secure it to the bottom of fuselage using a plastic tape.
INSTALLING RECEIVER.

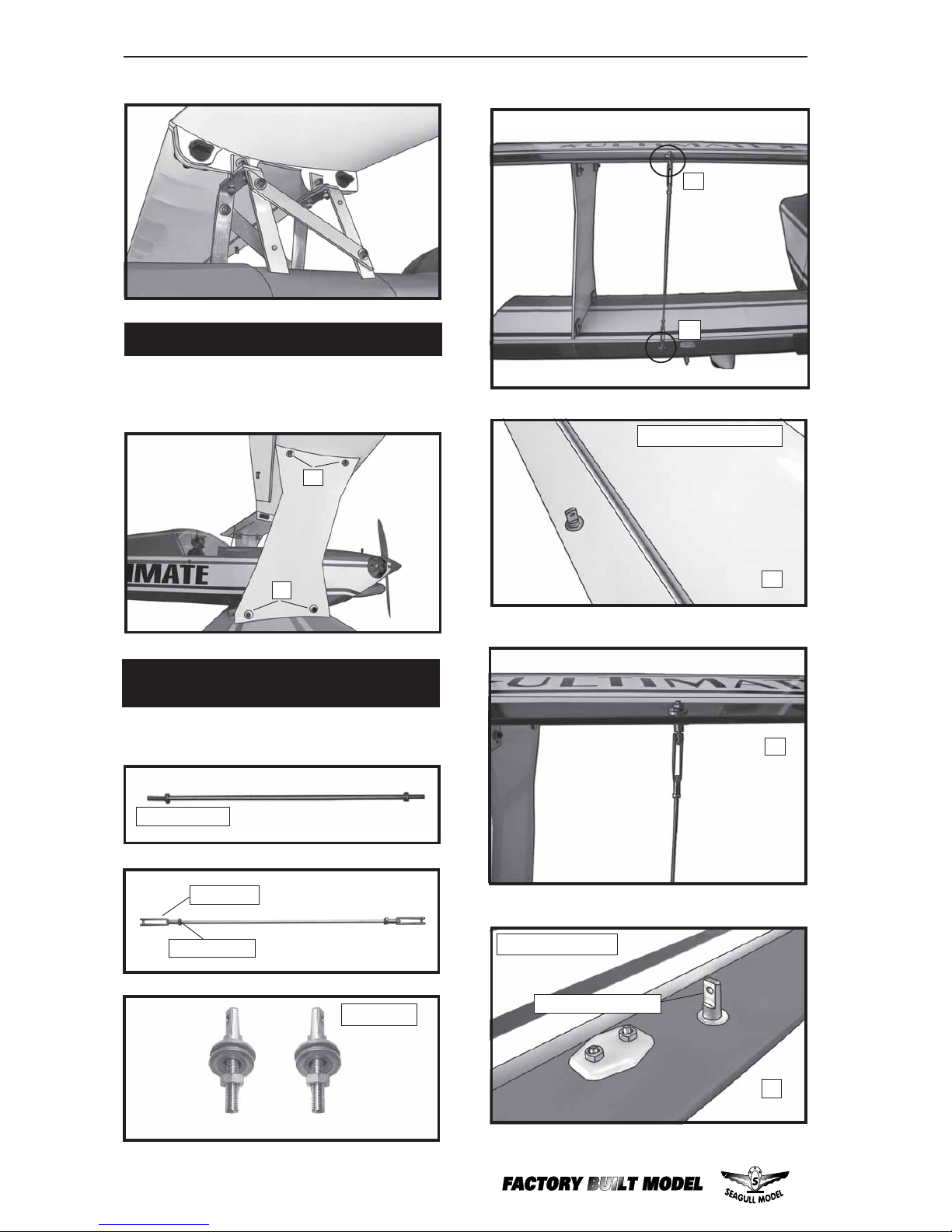

1) Remove the covering in the top of the
fuselage for the cabane struts.
2) Slide the cabane into position.
CABANE STRUT INSTALLATION.
3) Secure the cabane into position using 4
socket head bolts ( Type B).
(B) 3x10mm(4pcs).
Tie wrap.
Receiver.
Antenna.
This part will remove
away when the cabane locate
in correct the possition.
Factory Pre-Assembled
The cabane.
Page 19
www.seagullmodels.com
19
THE CENTER RIB INSTALLATION.
B
(2) 3x10cm.
Rib center
C
B
See pictures below:
ATTACHMENT WING.
(D) Lower wing tube:36.3cm.
(E) Upper wing tube: 24.5cm.
(D)
2 sets.
E
Lower wing.
Upper wing.
Wing bolts.
Page 20
ULTIMATE. Instruction Manual.
20
Place on strut into position. Make sure the
curves on the strut follow the airfoil of the wings.
2
1
Parts requirement. See pictures below:

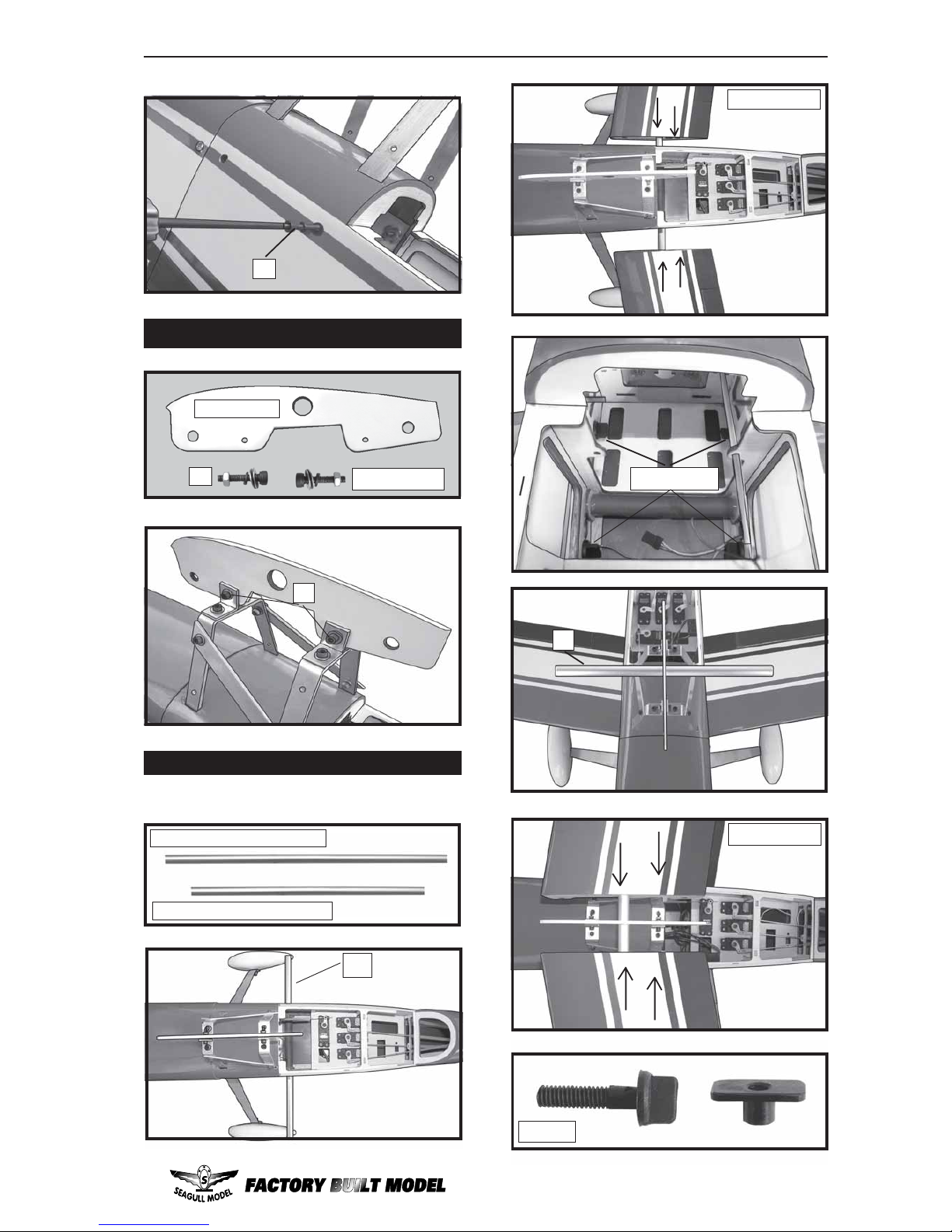

INSTALLING THE AILERON LINKAGE
(UPPER-LOWER MAIN WING).
3
4
AIRFOIL STRUT INSTALLATION.
3
2x20mm.
1.8x180mm.
M2 lock nut.
M2 clevis.
Lower wing top.
Drill hole1.5mm.
4
Upper wing bottom.
3
Page 21
www.seagullmodels.com
21

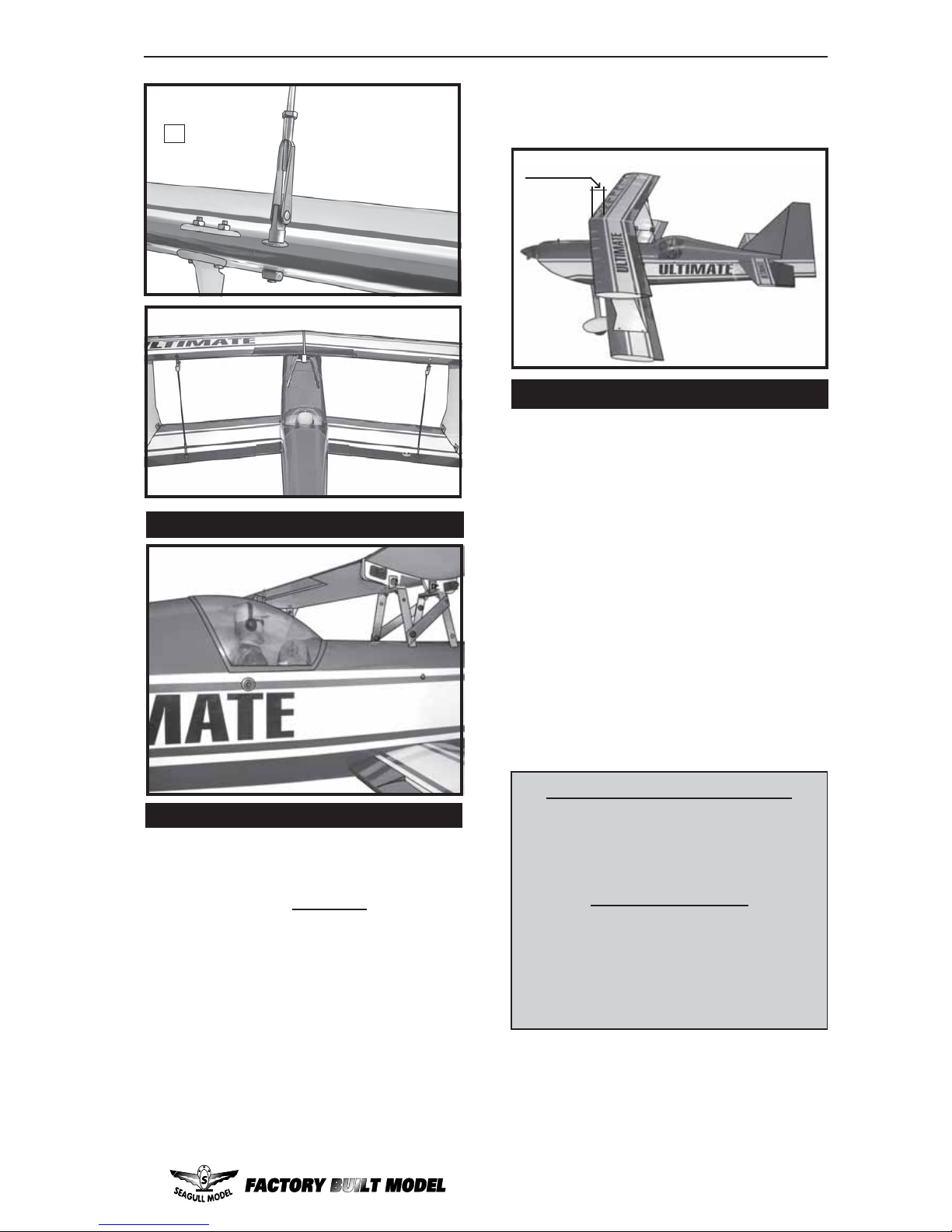

INSTALLING THE CANOPY HATCH.
4
1) It is critical that your airplane be balanced correctly . Improper balance will cause
your plane to lose control and crash. The cen-
ter of gravity is locate
10-13cm back from the
leading edge of the wing, measured at center
rib of upper wing (see picture below).
BALANCING.
When balanced correctly , the airplane should
sit level or slightly nose down when you lift it
up with your fingers.
CG=10-13cm.
2) Turn on the radio system, and with the
trim tabs on the transmitter in neutral, center
the control surfaces by making adjustments
to the clevises or adjustable servo connectors.
The servo arms should be centered also.
1) We highly recommend setting up the
ULTIMATE using the control throws listed at
right. We have listed control throws for both
Low Rate (initial test flying/sport flying) and
High Rate (aerobatic flying).
CONTROL THROWS.
2) If the nose of the plane falls, the plane
is nose heavy. To correct this first move the
battery pack further back in the fuselage. If
this is not possible or does not correct it, stick
small amounts of lead weight on the fuselage
sides under the horizontal stabilizer. If the t ail
of the plane falls, the plane is tail heavy. To
correct this, move the battery and receiver forward orif this is not possible, stick weight onto
the firewall.
3) When the elevator, rudder and aileron
control surfaces are centered, use a ruler and
check the amount of the control throw in each
surface. The control throws should be
measured at the widest point of each surface!
4) By moving the position of the adjustable control horn out from the control surface,
you will decrease the amount of throw of that
control surface. Moving the adjustable control horn toward the control surface will increase the amount of throw.
INITIAL FLYING/SPORT FLYING
Do not use the aerobatic settings for
initial test flying or sport flying.
Ailerons: 3/16” up 3/16” down
Elevator: 3/8” up 3/8” down
Rudder: 3/4” right and left
AEROBA TIC FLYING
Ailerons: 3/8” up 3/8” down
Elevator: 7/8” up 7/8” down
Rudder: 1 1/4” right and left
Page 22
ULTIMATE. Instruction Manual.
22
FLIGHT PREPARATION.
A) Check the operation and direction of
the elevator, rudder, ailerons and throttle.
B) Plug in your radio system per the
manufacturer's instructions and turn everything on.
E)Check the throttle. Moving the throttle
stick forward should open the carburetor barrel. If it does not, flip the servo reversing switch
on your transmitter to change the direction.
F)From behind the airplane, look at the
aileron on the right wing half. Move the aileron
stick to the right. The right aileron should move
up and the other aileron should move down. If
it does not, flip the servo reversing switch on
your transmitter to change the direction.
D) Check the rudder. Looking from behind the airplane, move the rudder stick to the
right. The rudder should move to the right. If it
does not, flip the servo reversing switch on
your transmitter to change the direction.
C) Check the elevator first. Pull back on
the elevator stick. The elevator halves should
move up. If it they do not, flip the servo reversing switch on your transmitter to change
the direction.
PREFLIGHT CHECK.
1) Completely charge your transmitter
and receiver batteries before your first day of
flying.
2) Check every bolt and every glue joint
in the ULTIMATE to ensure that everything is
tight and well bonded.
3) Double check the balance of the airplane. Do this with the fuel tank empty.
4) Check the control surfaces. All should
move in the correct direction and not bind in
any way .
5) If your radio transmitter is equipped
with dual rate switches double check that they
are on the low rate setting for your first few
flights.
6) Check to ensure the control surfaces
are moving the proper amount for both low
and high rate settings.
8) Properly balance the propeller. An out
of balance propeller will cause excessive vibration which could lead to engine and/or airframe failure.
We wish you many safe and
enjoyable flights with your
ULTIMATE.
7) Check the receiver antenna. It should
be fully extended and not coiled up inside the
fuselage.
Page 23
www.seagullmodels.com
23
If you as the Purchaser or user are not prepared to accept the liability associated with the use of this Product, you are
advised to return this Product immediately in new and unused condition to the place of purchase.
Law: These Terms are governed by Illinois law (without regard to conflict of law principals).
Safety Precautions:
This is a sophisticated hobby Product and not a toy. It must be operated with caution and common sense and
requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could
result in injury or damage to the Product or other property. This Product is not intended for use by children without
direct adult supervision. The Product manual contains instructions for safety, operation and maintenance. It is
essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in
order to operate correctly and avoid damage or injury.
Questions, Assistance, and Repairs:
Your local hobby store and/or place of purchase cannot provide warranty support or repair. Once assembly, setup or
use of the Product has been started, you must contact Horizon directly. This will enable Horizon to better answer
your questions and service you in the event that you may need any assistance. For questions or assistance, please
direct your email to productsupport@horizonhobby .com, or call 877.504.0233 toll free to speak to a service technician.
Inspection or Repairs
If this Product needs to be inspected or repaired, please call for a Return Merchandise Authorization (RMA). Pack the
Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to
withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance
for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our
facility. A Service Repair Request is available at www.horizonhobby.com on the “Support” tab. If you do not have
internet access, please include a letter with your complete name, street address, email address and phone
number where you can be reached during business days, your RMA number, a list of the included items, method of
payment for any non-warranty expenses and a brief summary of the problem. Your original sales receipt must also
be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the
outside of the shipping carton.
FOR USA MARKET ONLYLY.
Warranty Period:
Exclusive Warranty- Horizon Hobby , Inc., (Horizon) warranties that the Products purchased (the “Product”)
will be free from defects in materials and workmanship at the date of purchase by the Purchaser.
Limited Warranty
(a) This warranty is limited to the original Purchaser (“Purchaser”) and is not transferable. REP AIR OR REPLACEMENT
AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. This warranty
covers only those Products purchased from an authorized Horizon dealer. Third party transactions are not covered
by this warranty. Proof of purchase is required for warranty claims. Further, Horizon reserves the right to change or
modify this warranty without notice and disclaims all other warranties, express or implied.
(b) Limitations- HORIZON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCT. THE
PURCHASER ACKNOWLEDGES THA T THEY ALONE HA VE DETERMINED THA T THE PRODUCT WILL SUIT ABLY
MEET THE
REQUIREMENTS OF THE PURCHASER’S INTENDED USE.
(c) Purchaser Remedy- Horizon’s sole obligation hereunder shall be that Horizon will, at its option, (i) repair or (ii)
replace, any Product determined by Horizon to be defective. In the event of a defect, these are the Purchaser’s
exclusive remedies. Horizon reserves the right to inspect any and all equipment involved in a warranty claim. Repair
or replacement decisions are at the sole discretion of Horizon. This warranty does not cover cosmetic damage or
damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of or to any part
of the Product. This warranty does not cover damage due to improper installation, operation, maintenance, or
attempted repair by anyone other than Horizon. Return of any goods by Purchaser must be approved in writing by
Horizon before shipment.
Damage Limits:
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS
OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCT, WHETHER SUCH
CLAIM IS BASED IN CONTRACT , W ARRANTY, NEGLIGENCE, OR STRICT LIABILITY. Further , in no event shall the
liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control
over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting
damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability.
Page 24
ULTIMATE. Instruction Manual.
24
Warranty Inspection and Repairs
To receive warranty service, you must include your original sales receipt verifying the proof-of-purchase date.
Provided warranty conditions have been met, your Product will be repaired or replaced free of charge. Repair or
replacement decisions are at the sole discretion of Horizon Hobby.
Non-Warranty Repairs
Should your repair not be covered by warranty the repair will be completed and payment will be required
without notification or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By
submitting the item for repair you are agreeing to payment of the repair without notification. Repair estimates are
available upon request. You must include this request with your repair. Non-warranty repair estimates will be billed
a minimum of ½ hour of labor. In addition you will be billed for return freight. Please advise us of your preferred
method of payment. Horizon accepts money orders and cashiers checks, as well as Visa, MasterCard, American
Express, and Discover cards. If you choose to pay by credit card, please include your credit card number and
expiration date. Any repair left unpaid or unclaimed after 90 days will be considered abandoned and will be disposed
of accordingly. Please note: non-warranty repair is only available on electronics and model engines.
Electronics and engines requiring inspection or repair should be shipped to the following address:
Horizon Service Center
4105 Fieldstone Road
Champaign, Illinois 61822
All other Products requiring warranty inspection or repair should be shipped to the following address:
Horizon Product Support
4105 Fieldstone Road
Champaign, Illinois 61822
Please call 877-504-0233 with any questions or concerns regarding this product or warranty.
Loading...
