Specifications:
Wing span -------------------------------63in (160cm).
Wing area ------------------643.3sq.in (41.5sq dm).
Weight -------------------------5.5-6.2lbs (2.5-2.8kg).
Length --------------------------------45.8in (116.4cm).
Engine ------------------ 0.40-0.55cu.in ----2 stroke.
0.72-0.82cu.in--- 4 stroke.
Radio------------------------4 channels with 4 servos.
Eletric conversion: optional
ASSEMBLY MANUAL
MS:138
“Graphics and specifications may change without notice”.
2
SWIFT40. Instruction Manual.
INTRODUCTION.
Thank you for choosing the SWIFT40 ARTF by SEAGULL MODELS. The SWIFT 40 was designed
with the sports trainer flyer in mind. It is a High-wing aeroplane which is easy to fly and quick to
assemble. The airframe is conventionally built using balsa, plywood and veneer to make it stronger
than the average ARTF , yet the design allows the aeroplane to be kept light. You will find that most
of the work has been done for you already. The pushrods are pre-made to the correct lengths, the
motor mount has been fitted and the hinges are pre-installed and pinned for security. Flying the
SWIFT40 is simply a joy.
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manual throughly before starting assembly of your SWIFT40 . Use the parts listing below to identify
all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable
of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU ASSUME ALL
RISK & RESPONSIBILITY.
If you are inexperienced with basic R/C flight we strongly recommend you contact your R/C supplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
procedures designed to help the new pilot on his way to successful R/C flight. They will also be able
to advise on any insurance and safety regulations that may apply.
ADDITIONAL ITEMS REQUIRED.
- 0.40-0.55 2 stroke .
- 0.72-0.82 4 stroke.
- 4 channel radio with four servos.
- Glow plug to suit engine.
- Propeller to suit engine.
- Protective foam rubber for radio
system.
- Silicone fuel line.
- Stick-on weights for balance
(If necessary).
TOOLS & SUPPLIES NEEDED.
- Thick cyanoacrylate glue.
- 30 minute epoxy.
- 5 minute epoxy.
- Hand or electric drill.
- Assorted drill bits.
- Modelling knife.
- Straight edge ruler.
- 2mm ball driver.
- Phillips head screwdriver.
- 220 grit sandpaper.
- 90° square or builder’s triangle.
- Wire cutters.
- Masking tape & T-pins.
- Thread-lock.
- Paper towels.
PARTS LISTING.
FUSELAGE ASSEMBLY
- (1) Fuselage.
- (1) Pre-installed throttle pushrod &
tube.
- (1) Pre-installed servo tray.
- (1) Pre-installed motor mount.
- (1) Pre-installed rudder pushrod.
- (1) Pre-installed elevator pushrod.
WING ASSEMBLY
- (1) Right wing half with preinstalled aileron.
- (1) Left wing half with pre-installed
aileron.
- (1) Plywood wing dihedral brace.
- (1) Covering strip for centre
section joint.
TAIL SECTION ASSEMBLY
- (1) Vertical stabilizer with preinstalled rudder.
- (1) Horizontal stabilizer with preinstalled elevator halves.
3
Instruction Manual.

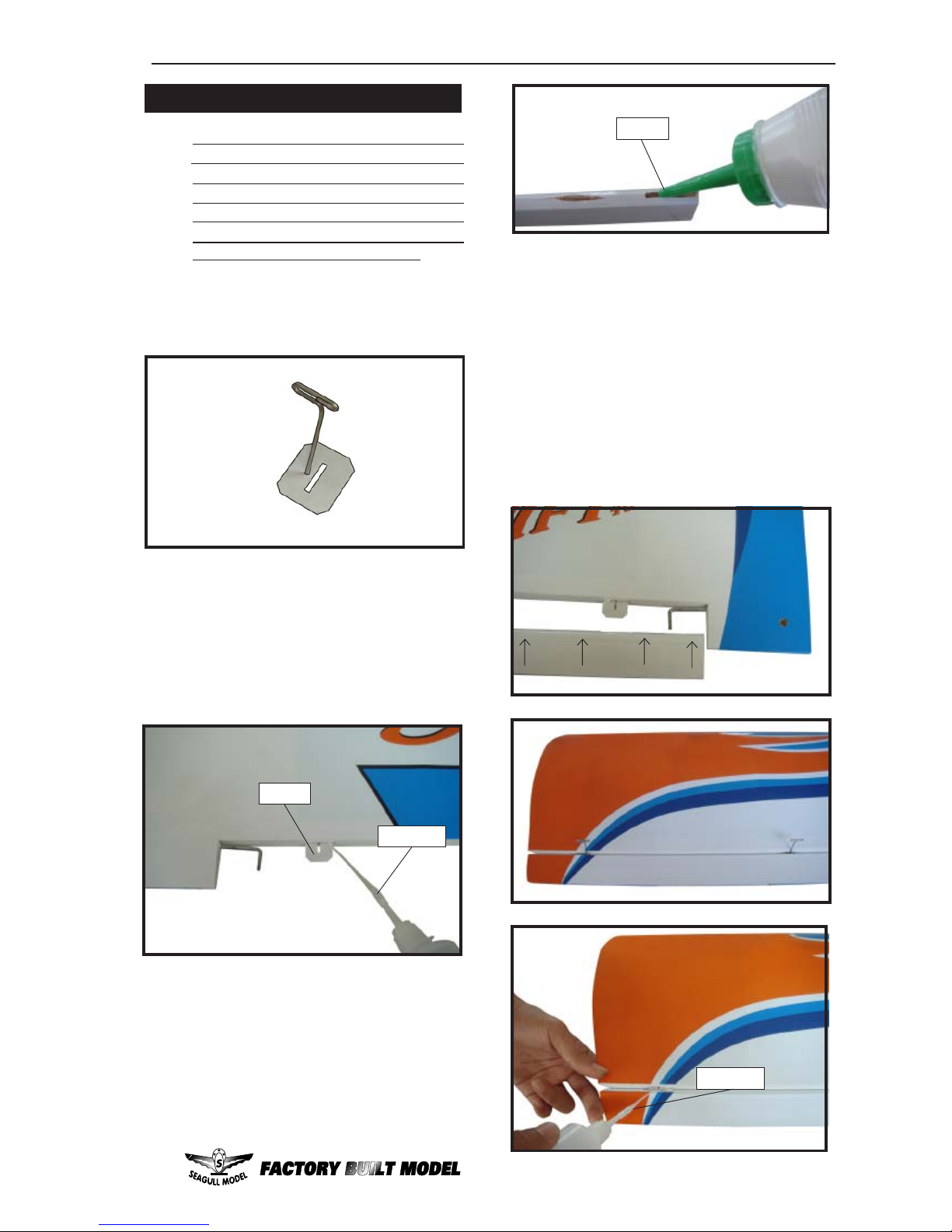

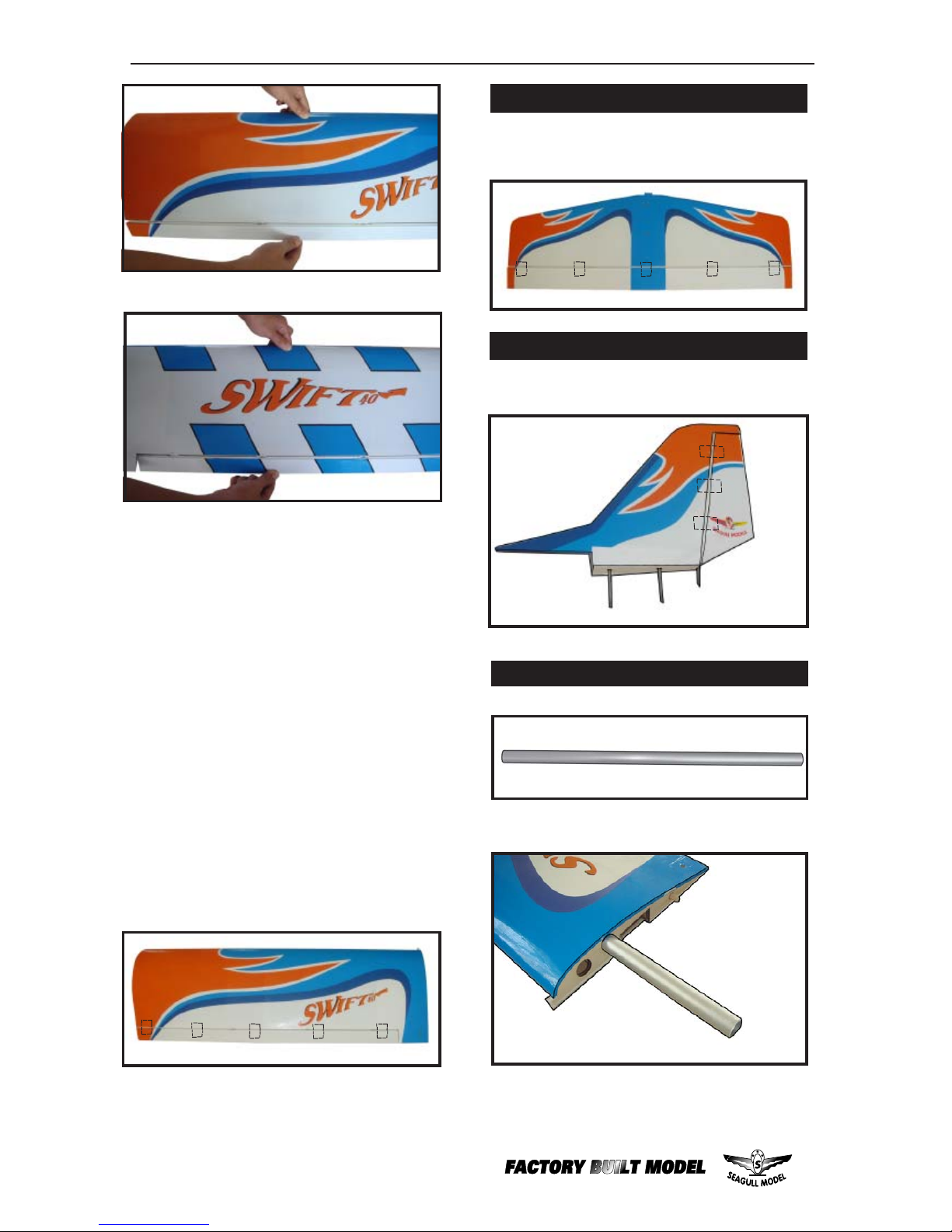

2) Remove each hinge from the wing panel
and aileron and place a T-pin in the center of
each hinge. Slide each hinge into the wing
panel until the T-pin is snug against the wing
panel. This will help ensure an equal amount
of hinge is on either side of the hinge line when
the aileron is mounted to the aileron.
The control surfaces, including the
ailerons, elevators, and rudder, are
prehinged with hinges installed, but the
hinges are not glued in place. It is
imperative that you properly adhere the
hinges in place per the steps that follow
using a high-quality thin C/A glue.
Note:
HINGING THE AILERONS.
Hinge.
3) Slide the wing panel on the aileron until
there is only a slight gap. The hinge is now
centered on the wing panel and aileron.
Remove the T-pins and snug the aileron
against the wing panel. A gap of 1/64” or less
should be maintained between the wing panel
and aileron.
1) Carefully remove the aileron from one
of the wing panels. Note the position of the
hinges.
C/A glue.
4) Deflect the aileron and completely
saturate each hinge with thin C/A glue. The
ailerons front surface should lightly contact the
wing during this procedure. Ideally, when the
hinges are glued in place, a 1/64” gap or less
will be maintained throughout the lengh of the
aileron to the wing panel hinge line.
The hinge is constructed of a special
material that allows the C/A to wick
or penetrate and distribute
throughout the hinge, securely
bonding it to the wood structure of
the wing panel and aileron.
Note:
Epoxy.
C/A glue.
4
SWIFT40. Instruction Manual.
Aluminum wing tube.
WING ASSEMBLY.
8) After both ailerons are securely hinged,
firmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully
applying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
7) Repeat this process with the other wing
panel, securely hinging the aileron in place.
6) Using C/A remover/debonder and a
paper towel, remove any excess C/A glue that
may have accumulated on the wing or in the
aileron hinge area.
5) Turn the wing panel over and deflect the
aileron in the opposite direction from the
opposite side. Apply thin C/A glue to each
hinge, making sure that the C/A penetrates into
both the aileron and wing panel.
Work the aileron up and down several
times to “work in” the hinges and
check for proper movement.
Note:
HINGING THE ELEVATOR.
Glue the elevator hinges in place using the
same techniques used to hinge the ailerons.
HINGING THE RUDDER.
Glue the rudder hinges in place using the
same techniques used to hinge the ailerons.
5
Instruction Manual.
M2x12mm.

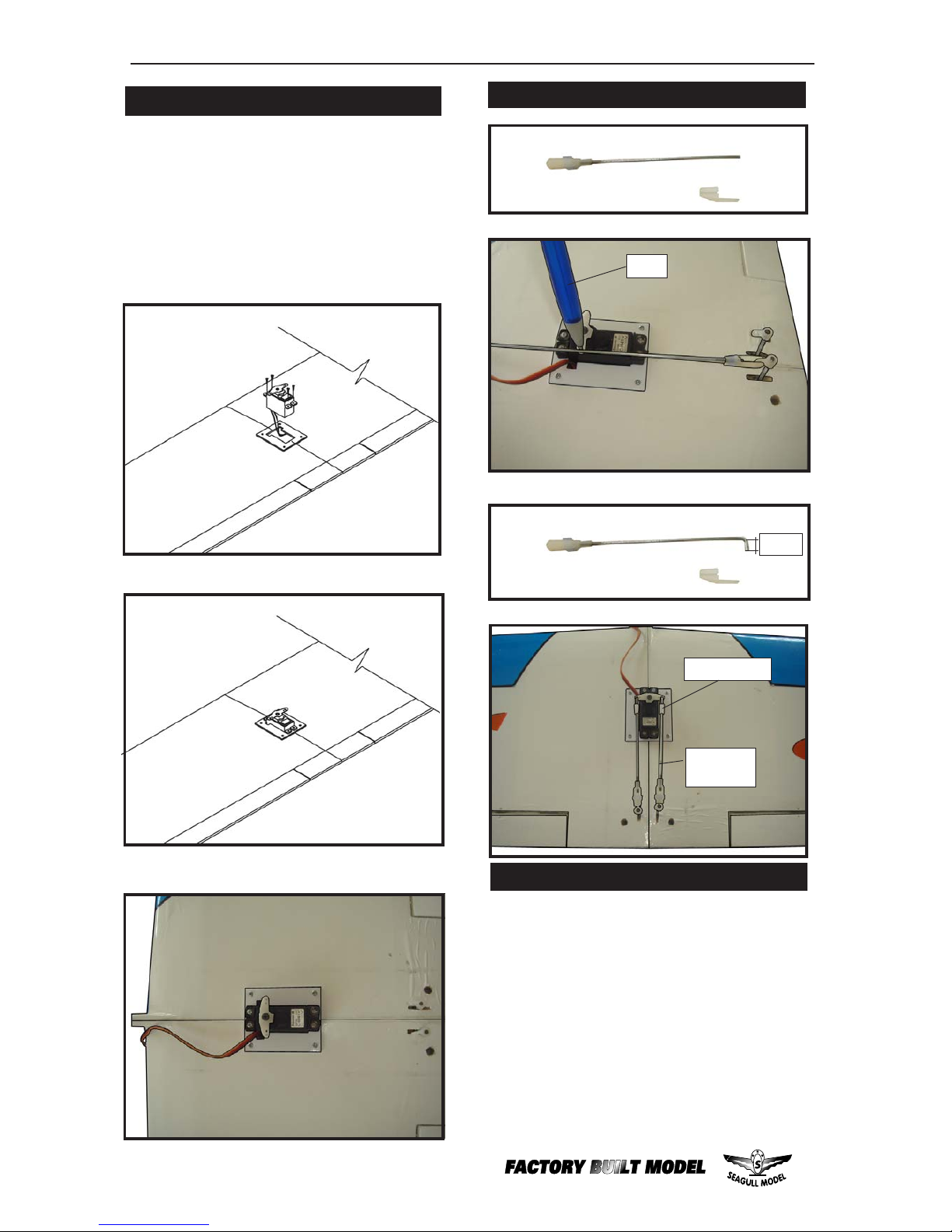

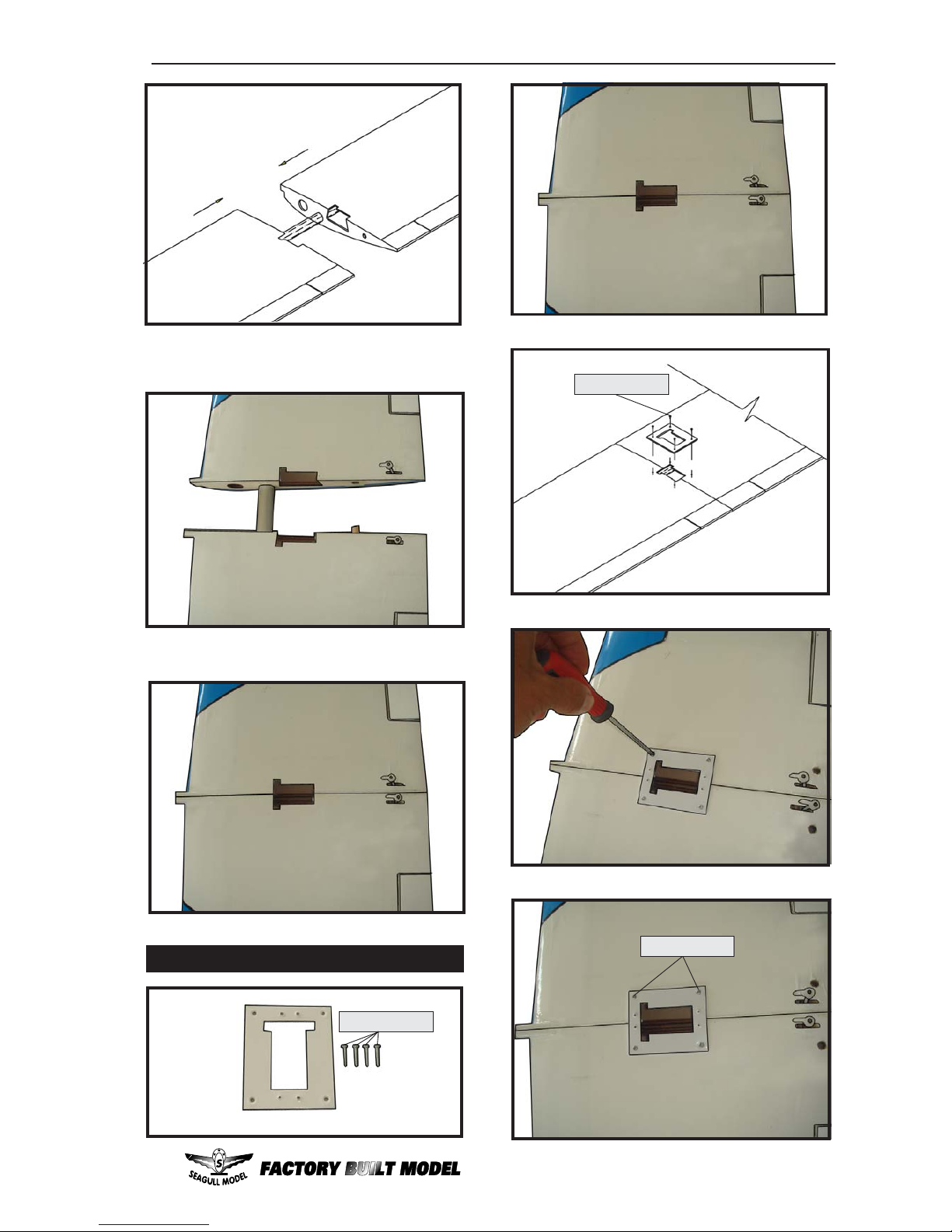

INSTALLING THE AILERON SERVO MOUNT.
M2x12mm.
M2x12mm.
6
SWIFT40. Instruction Manual.

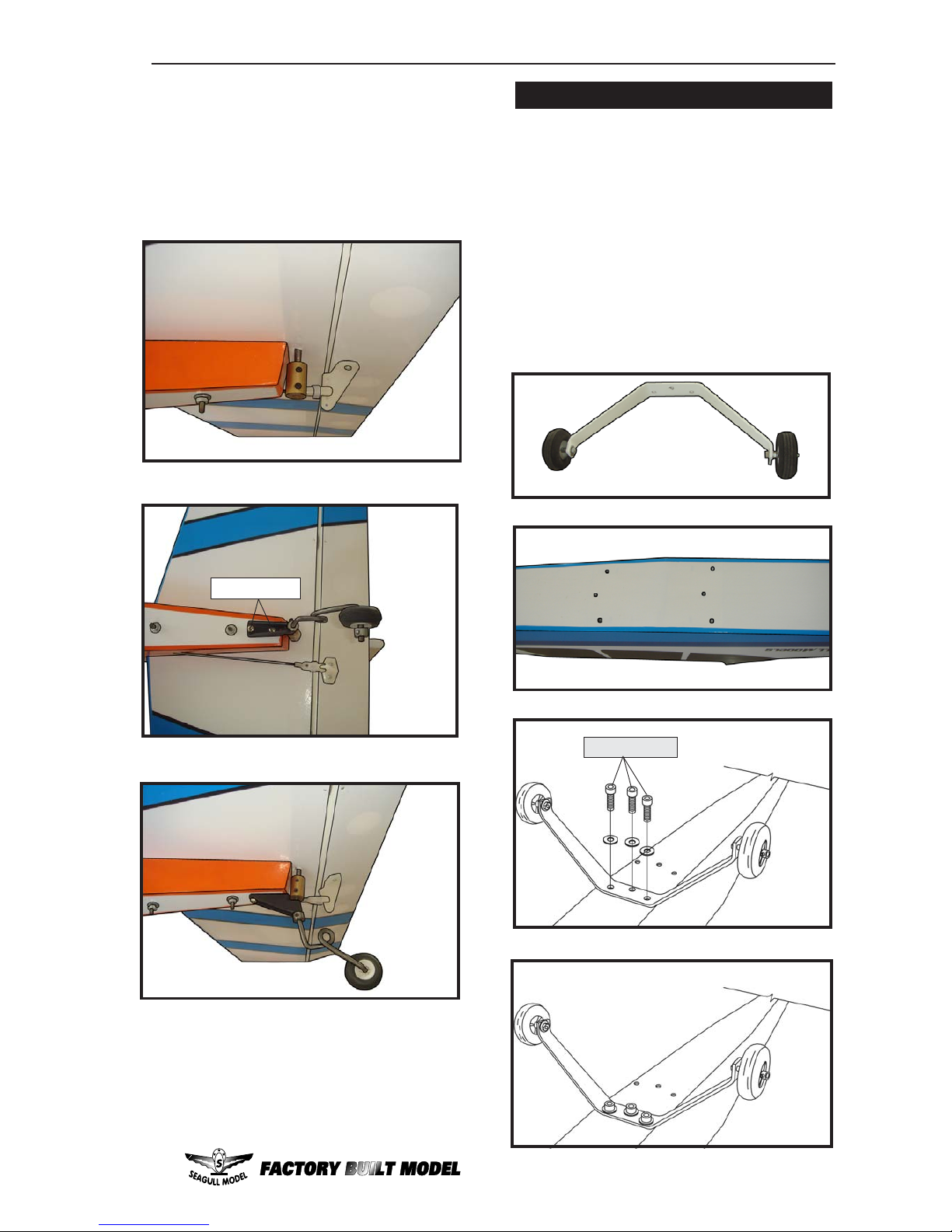

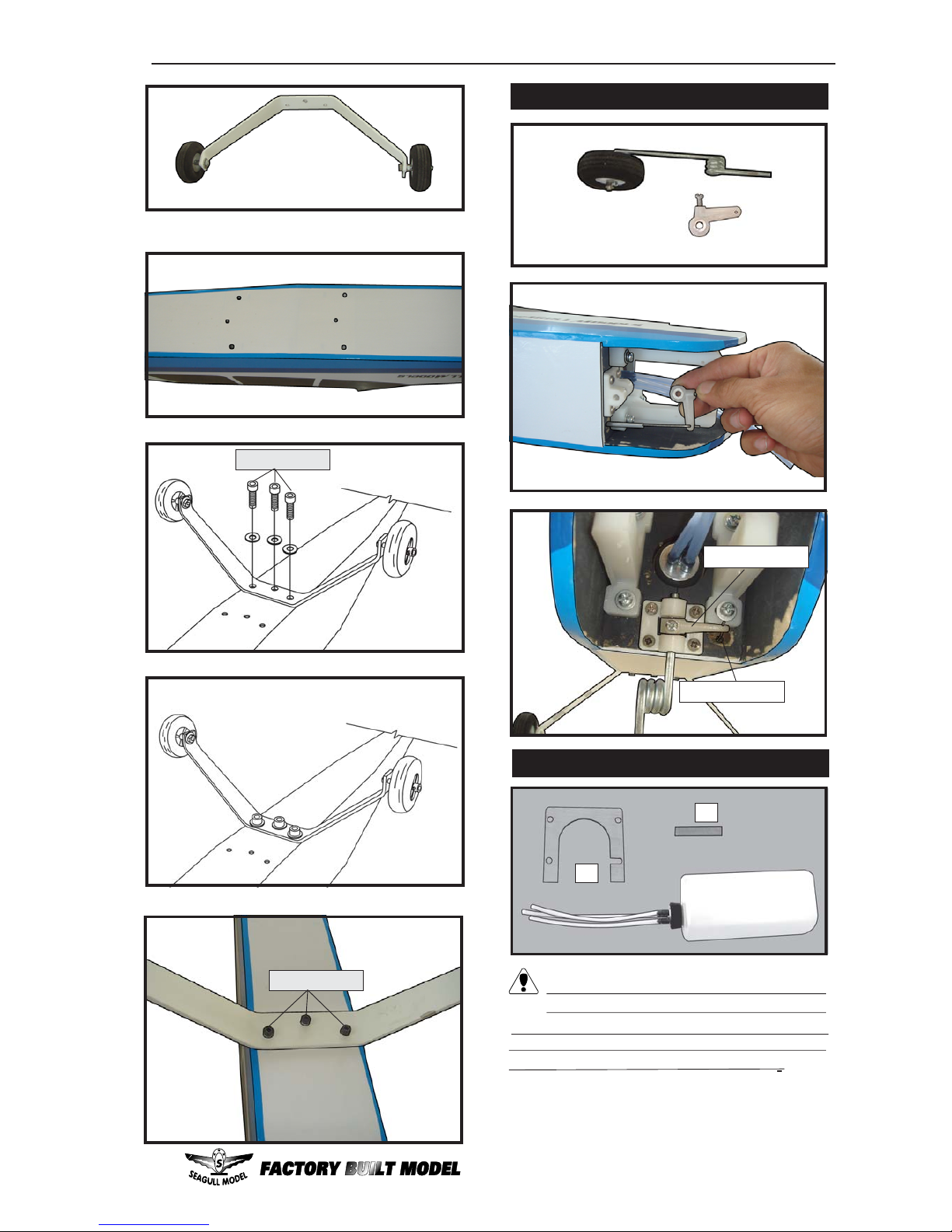

INSTALLING THE MAIN GEAR WIRES.
Pushrod
wire.
1) The blind nuts for securing the landing
gear are already mounted inside the fuselage.
2) Using the hardware provided, mount
the main landing gear to the fuselage.
3) Place the fuselage inverted on the workbench in a suitable stand. Set the landing gear
in place and use a screwdrive to secure the
landing gear to the fuselage using bolts
M4x20mm and washers. Make sure to use the
threadlock on the bolts so they don’t vibrate
loose.
8mm
Wire keeper.
INSTALLING THE AILERON LINKAGE.
INSTALLING THE AILERON SERVO.
Install the aileron servo into the servo
mount, with the output shaft towards the leading edge of the wing, using the wood screws
provided with your radio system. Drill 1/16”
pilot holes through the mount before installing
the screws. This will prevent the wood from
splitting.
Pen.
Wire keeper.
7
Instruction Manual.
M4x20mm.
M4x20mm.
NOSE GEAR INST ALLATION.
1) Slide the fuel tank into the fuselage. Guide
the lines from the tank through the hole in the
firewall.
Steering arm.
Pushrod wire.
You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once
the tank is installed inside the fuselage, it may
be difficult to determine which is which.

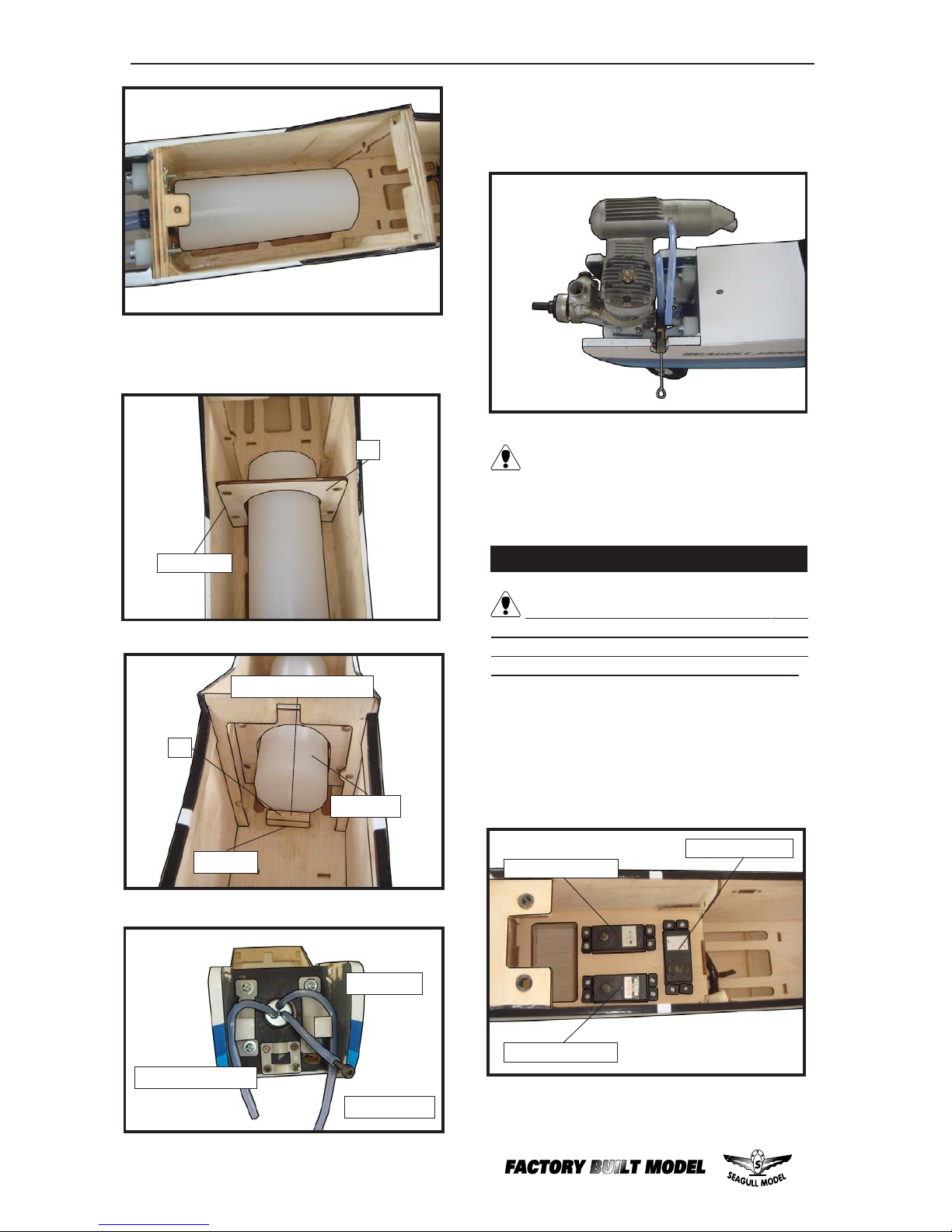

FUEL TANK INSTALLATION.
A
B
8
SWIFT40. Instruction Manual.
3) Connect the lines from the tank to the engine
and muffler. The vent line will connect to the
muffler and the line from the clunk to the
carburetor.
INSTALLING THE FUSELAGE SERVOS.
1) Install the rubber grommets and brass
collets onto the throttle servo. Test fit the
servo into the aileron servo mount.
2) Secure the servos with the screws
provided with your radio system.
Because the size of servos differ, you
may need to adjust the size of the precut opening in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
Rudder servo.
Elevator servo.
Throttle servo.
Blow through one of the lines to ensure the fuel lines have not become kinked
inside the fuel tank compartment. Air
should flow through easily.
2) Use balsa plywood to help prevent
moveable from transferring to the fuel tank as
shown.
C/A glue.
A
Vent tube.
Fuel pick up tube.
Fuel fill tube.
Balsa wood included.
C/A glue.
Fuel tank.
B
9
Instruction Manual.

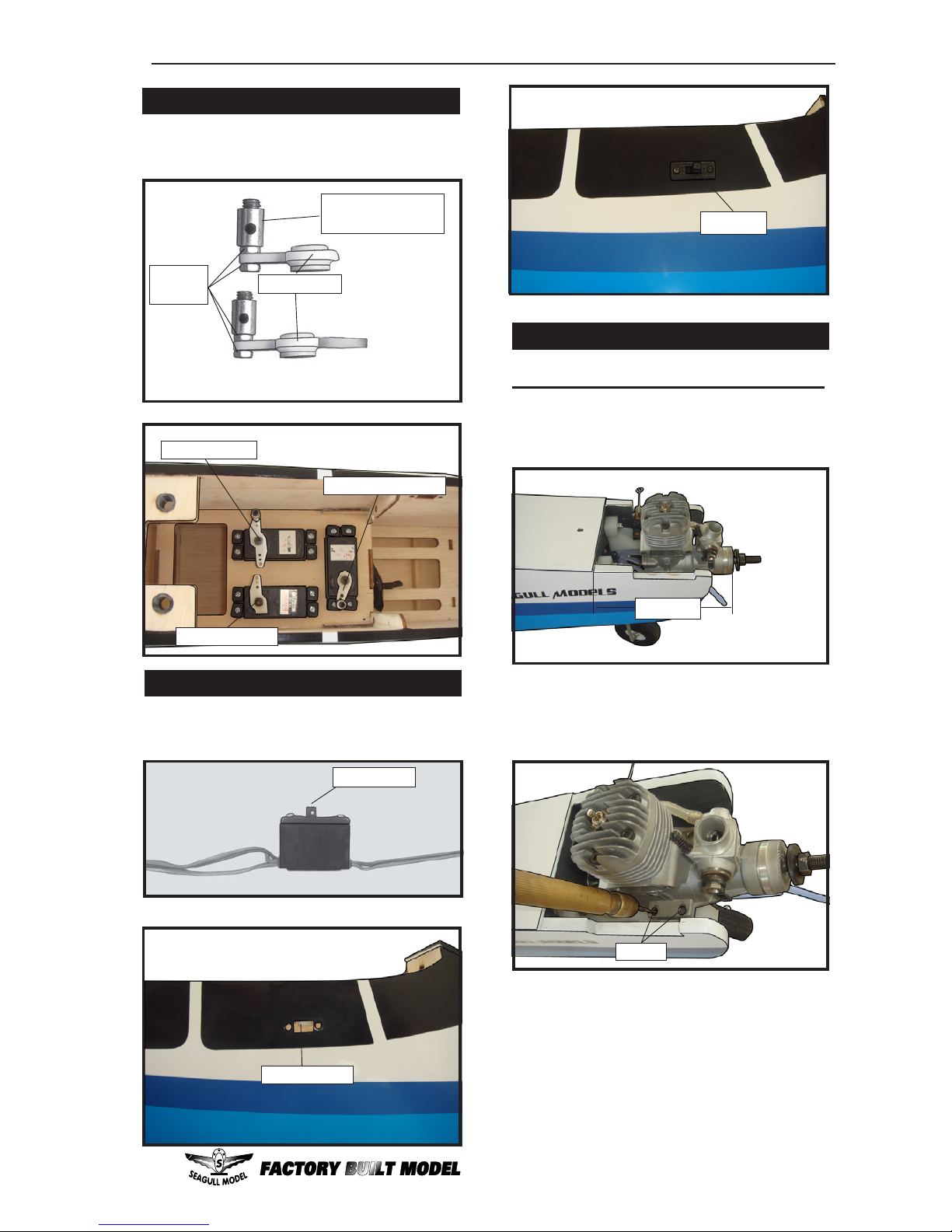

THROTTLE SERVO ARM INSTALLATION.
Install adjustable servo connector in the
servo arm as same as picture below:
Servo arm.
Loctile
secure.
Adjustable servo
connector.
Trim and cut.
Throttle servo arm.
Elevator servo .
Rudder servo .
3/ 32” Hole.
INSTALLING THE SWITCH.
Install the switch into the precut hole in the
side, in the fuselage.
3) Use a drill to drill the four holes in the engine
mount rails.
Switch.

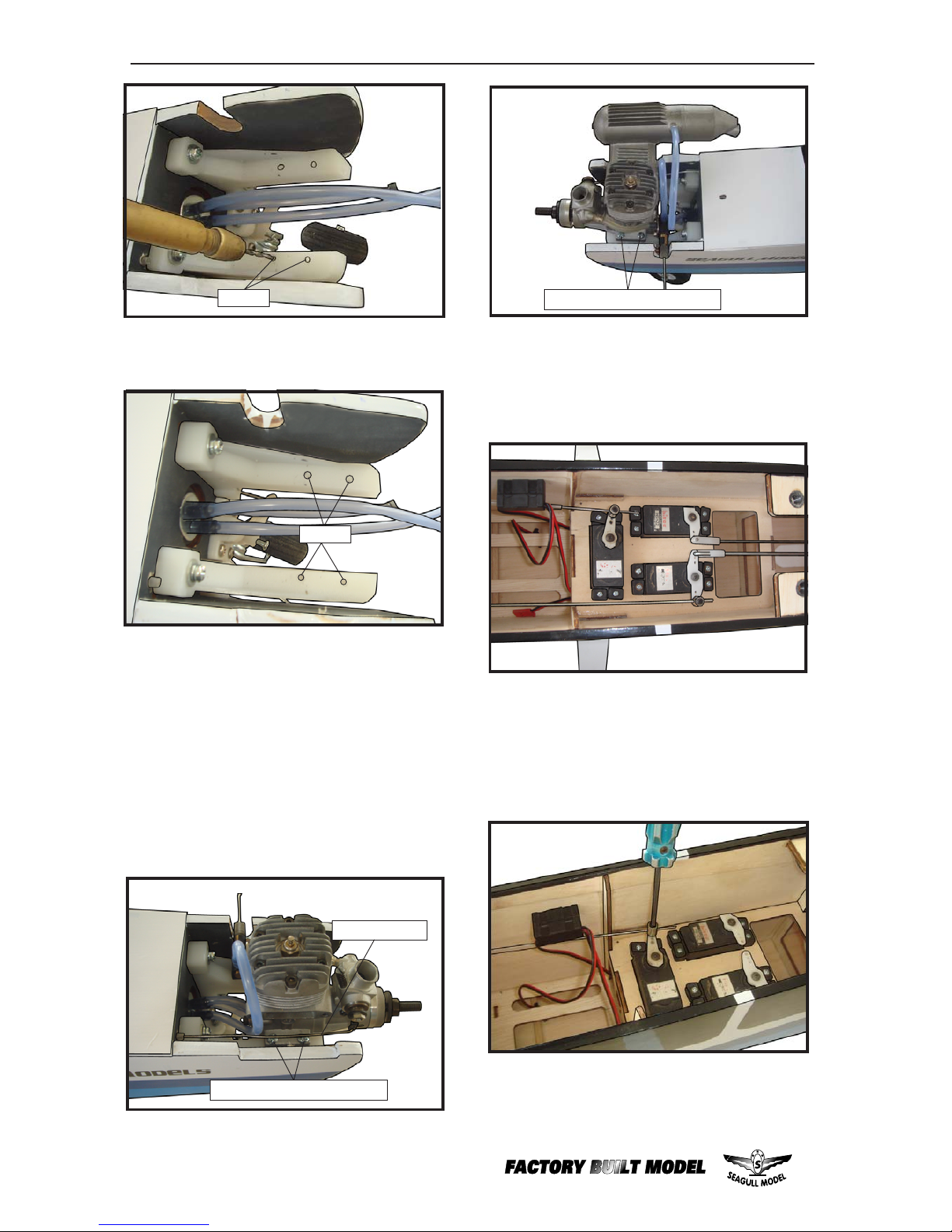

MOUNTING THE ENGINE.
110mm.
+ ENGENE .46- .55 : 2 STROKE.
1) Position the engine with the drive washer
(110mm) forward of the firewall as shown.
2) Use a pin drill and 2mm drill bit to drill a
small indentation in the mount for the engine
mounting screw.
2mm.
10
SWIFT40. Instruction Manual.
Machine screw M4x30mm.
8) Reinstall the servo horn by sliding the
connector over the pushrod wire. Center the
throttle stick and trim and install the servo horn
perpendicular to the servo center line.
9) Move the throttle stick to the closed position
and move the carburetor to closed. Use a 2.5mm
hex wrench to tighten the screw that secures
the throttle pushrod wire. Make sure to use
threadlock on the screw so it does not vibrate
loose.
4) On the fire wall has the location for the
throttle pusshrod tube (pre-drill).
7) Slide the throttle pushrod wire into the tube.
Position the engine between the mounts. Use
four M4x30mm machine screws to secure the
engine to the mount as shown.
5) Slide the pushrod tube in the firewall and
guide it through the fuel tank mount. Use
medium C/A to glue the tube to the firewall and
the fuel tank mount.
6) Connect the Z-bend in the 450mm throttle
pushrod to the outer hole of the carburetor arm.
Machine screw M4x30mm.
2mm.
Pushrod wire.
2mm.
11
Instruction Manual.

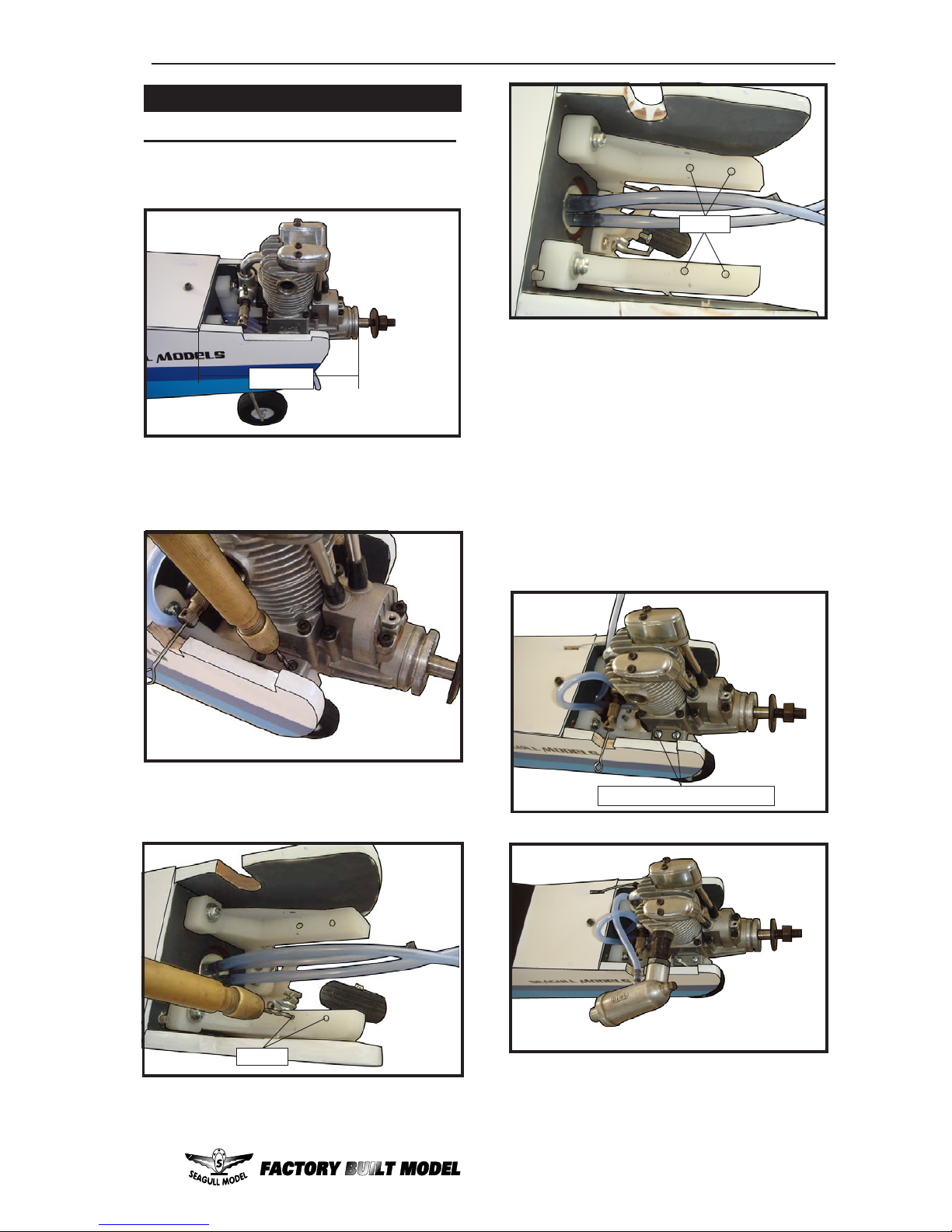

MOUNTING THE ENGINE.
120mm.
+ ENGENE .72- .82 : 4 STROKE.
1) Position the engine with the drive washer
(120mm) forward of the firewall as shown.
2) Use a pin drill and 2mm drill bit to drill a
small indentation in the mount for the engine
mounting screw.
4) On the fire wall has the location for the
throttle pusshrod tube (pre-drill).
3) Use a drill to drill the four holes in the engine
mount rails.
2mm.
7) Slide the throttle pushrod wire into the tube.
Position the engine between the mounts. Use
four M4x30mm machine screws to secure the
engine to the mount as shown.
5) Slide the pushrod tube in the firewall and
guide it through the fuel tank mount. Use
medium C/A to glue the tube to the firewall and
the fuel tank mount.
6) Connect the Z-bend in the 450mm throttle
pushrod to the outer hole of the carburetor arm.
Machine screw M4x30mm.
2mm.
8) Reinstall the servo horn by sliding the
connector over the pushrod wire. Center the
throttle stick and trim and install the servo horn
perpendicular to the servo center line.
12
SWIFT40. Instruction Manual.

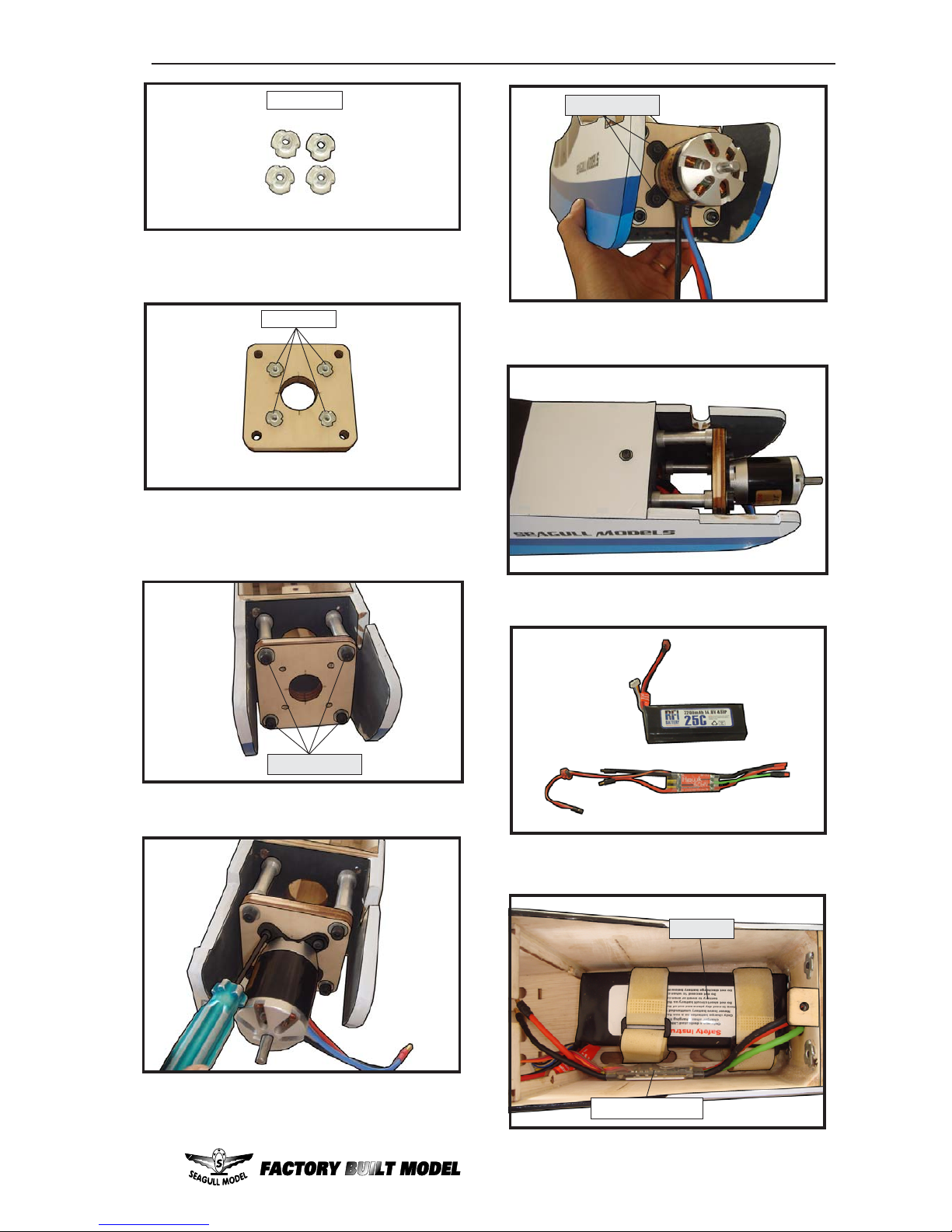

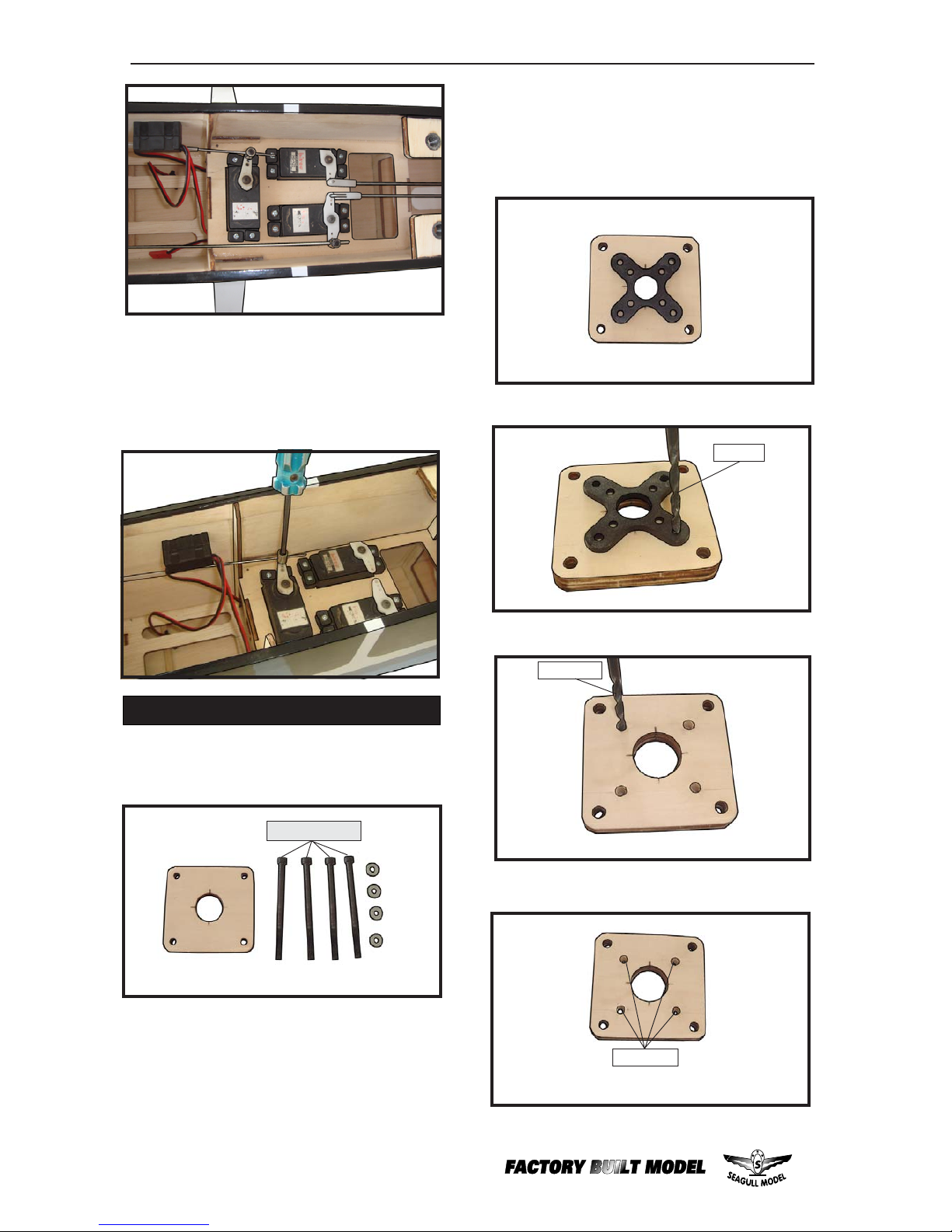

2) Attach the electric motor box to the firewall
suitable with the cross lines drawn on the electric
motor box and firewall. Using epoxy and balsa
stick to secure the motor box to the firewall.
Please see pictures below.
3mm.
5.2mm.
5.2mm.
ELECTRIC POWER CONVERSION.
1) Locate the items neccessary to install the
electric power conversion included with your
model.
9) Move the throttle stick to the closed position
and move the carburetor to closed. Use a 2.5mm
hex wrench to tighten the screw that secures
the throttle pushrod wire. Make sure to use
threadlock on the screw so it does not vibrate
loose.
- Model size: .35-.45 size models
- Motor: 35mm 830 rev per volt
- Propeller: 10x7
- ESC: 50A
- Lipo Batteries: 4cell 3200mA
M4x70mm.
13
Instruction Manual.
M4x70mm.
Blind nut.
Blind nut.
M4x15mm.
Battery.
Speed control.
14
SWIFT40. Instruction Manual.

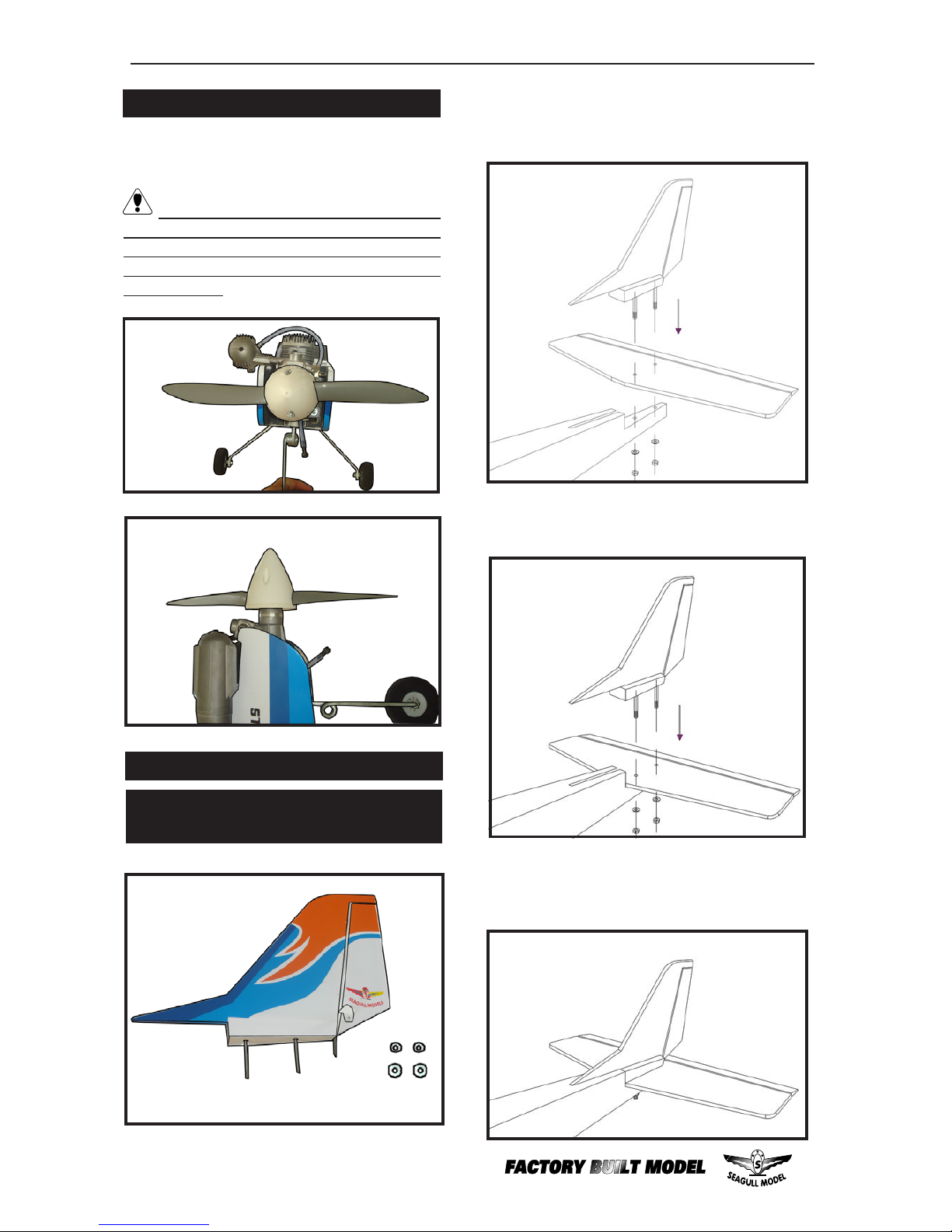

1) Slide the threaded rods from the rudder
assembly into the holes in the stabilizer. The
two forward rods go through the stabilizer as
shown.
2) Guide the threaded rods through the
stabilizer saddle then through the holes in the
bottom of the fuselage.
3) Secure the tail assembly to the fuselage using three 3mm washers and three 3mm
locknuts. Do not overtighten the nuts and
crush the fuselage.
Install the spinner backplate, propeller and
spinner cone.
The propeller should not touch any part
of the spinner cone. If it does, use a sharp
modeling knife and carefully trim away the
spinner cone where the propeller comes in
contact with it.
INSTALLING THE SPINNER.
VERTICAL ST ABILIZER
INSTALLATION.
HORIZONT AL ST ABILIZER.
15
Instruction Manual.
ELEVATOR PUSHROD HORN
INSTALLATION.
Pen.
Elevator control horn.
Elevator pushrod.
Control horn.
M3 lock nut.
Control horn.
Rudder pushrod.
RUDDER PUSHROD HORN
INSTALLATION.
8mm.
Pen.
16
SWIFT40. Instruction Manual.

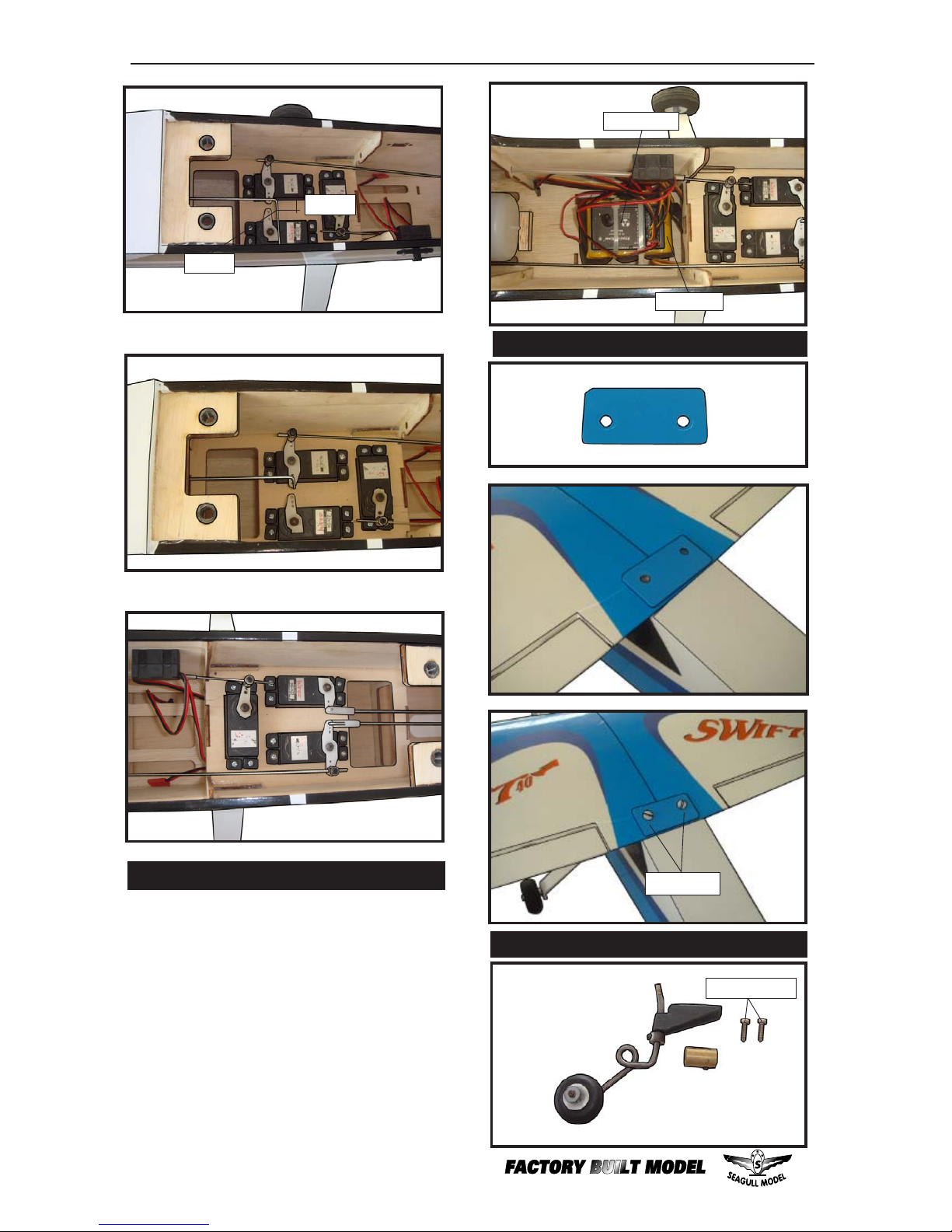

ATTACHMENT WING-FUSELAGE.
Receiver.
Battery.
Wing bolt.
TAIL - DRAGGER CONVERSION.
M3x12mm.
8mm.
Cut.
INST ALLING THE RECEIVER AND BA TTERY.
1) Plug the five servo leads and the switch
lead into the receiver. Plug the battery pack
lead into the switch also.
3) Route the antenna in the antenna tube
inside the fuselage and secure it to the bottom
of fuselage using a plastic tape.
2) Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration.
17
Instruction Manual.
1) T est fit the fin and the tail gear , to make
sure that everything fits properly. When you
are happy with the fit, glue the fin permanently
in place.
2) See below picture how to assembly the
tail-Dragger Conversion.
M3x12mm.
3) Install the control horn on the rudder,
then hold the rudder in place and mark it where
the music wire will enter. When you are happy
with the fit, fill the hole with epoxy and use CA
to glue in the rudder hinges.
INSTALLING THE MAIN GEAR WIRES.
1) The blind nuts for securing the landing
gear are already mounted inside the fuselage.
2) Using the hardware provided, mount
the main landing gear to the fuselage.
3) Place the fuselage inverted on the workbench in a suitable stand. Set the landing gear
in place and use a screwdrive to secure the
landing gear to the fuselage using bolts
M4x20mm and washers. Make sure to use the
threadlock on the bolts so they don’t vibrate
loose.
M4x20mm.
18
SWIFT40. Instruction Manual.
*If possible, first attempt to balance the model
by changing the position of the receiver battery
and receiver. If you are unable to obt ain good
balance by doing so, then it will be necessary
to add weight to the nose or tail to achieve the
proper balance point.
CONTROL THROWS.
65mm.
FLIGHT PREPARATION.
C) Check the elevator first. Pull back
on the elevator stick. The elevator halves
should move up. If it they do not, flip the servo
reversing switch on your transmitter to change
the direction.
A) Check the operation and direction
of the elevator, rudder , ailerons and throttle.
B) Plug in your radio system per the
manufacture’s instructions and turn every thing
on.
INITIAL FL YING/SPORT FL YING
Ailerons: 3/8” up 3/8” down
Elevator: 3/8” up 3/8” down
Rudder: 1/2” right 1/2” left
AEROBATIC FL YING
Ailerons: 1/2” up 1/2” down
Elevator: 5/8” up 5/8” down
Rudder: 1” right 1” left
Do not use the aerobatic settings for initial test flying or sport flying.
BALANCING.
1) It is critical that your airplane be
balanced correctly. Improper balance will
cause your plane to lose control and crash.
THE CENTER OF GRA VITY IS LOCATED
65 MM BACK FROM THE LEADING EDGE
OF THE WING AT THE WING ROOT .
3) Turn the airplane upside down. Place
your fingers on the masking tape and carefully
lift the plane .
2) Mount the wing to the fuselage. Using a
couple of pieces of masking tape, place them
on the top side of the wing
65 mm back from
the leading edge of the wing at the wing root.
Accurately mark the balance point on the top
of the wing on both sides of the fuselage. The
balance point is located 65 mm back from the
leading edge of the wing at the wing root. This
is the balance point at which your model
should balance for your first flights. Later , you
may wish to experiment by shifting the balance
up to 10mm forward or back to change the
flying characteristics. Moving the balance
forward may improve the smoothness and
arrow- like tracking, but it may then require
more speed for take off and make it more
difficult to slow down for landing. Moving the
balance aft makes the model more agile with
a lighter and snappier ”feel”. In any case,please
start at the location we recommend .
With the wing attached to the fuselage, all parts
of the model installed ( ready to fly), and empty
fuel tanks, hold the model at the
marked balance point with the stabilizer level.
Lift the model. If the tail drops when you lift,
the model is “tail heavy” and you must add
weight* to the nose. If the nose drops, it is
“nose heavy” and you must add weight* to the
tail to balance.
M4x20mm.
19
Instruction Manual.
E) Check the throttle. Moving the
throttle stick forward should open the carburetor barrel. If it does not, flip the servo reversing switch on your transmitter to change
the direction.
D) Check the rudder. Looking from
behind the airplane, move the rudder stick to
the right. The rudder should move to the right.
If it does not, flip the servo reversing switch on
your transmitter to change the direction.
F) From behind the airplane, look at
the aileron on the right wing half. Move the
aileron stick to the right. The right aileron
should move up and the other aileron should
move down. If it does not, flip the servo reversing switch on your transmitter to change
the direction.
PREFLIGHT CHECK.
1) Completely charge your transmitter
and receiver batteries before your first day of
flying.
2) Check every bolt and every glue joint
in the SWIFT40 to ensure that everything is
tight and well bonded.
3) Double check the balance of the airplane. Do this with the fuel tank empty.
4) Check the control surfaces. All should
move in the correct direction and not bind in
any way .
5) If your radio transmitter is equipped
with dual rate switches double check that they
are on the low rate setting for your first few
flights.
6) Check to ensure the control surfaces
are moving the proper amount for both low
and high rate settings.
7) Check the receiver antenna. It should
be fully extended and not coiled up inside the
fuselage.
8) Properly balance the propeller. An out
of balance propeller will cause excessive vibration which could lead to engine and/or airframe failure.
We wish you many safe and enjoyable
flights with your SWIFT40.
Loading...
