ASSEMBLY MANUAL
www.seagullmodels.com
Code: SEA238
Specications:
Wingspan---------------68.9 in (175 cm).
Wing area---------------776.6 sq.in ( 50.1 sq.dm).
Weight-------------------7.7 lbs (3.5 kg).
Length-------------------48.2 in (122.5 cm).
Engine-------------------10cc - 15cc.
Glow engine------------.61 - 2 stroke
Motor size---------------Power 60 ( Electric power)
Radio--------------------4 channels with 5 servos.
Electric conversion: Optional.
“ Graphics and specications may change without notice ” .
Page 2
Bowers Flybaby
Instruction Manual.
2
ank you for choosing the BOWERS FLYBABY ARF by SEAGULL MODELS
COMPANY LTD,. e BOWERS FLYBABY was designed with the intermediate/advanced sport yer in mind. It is a semi scale airplane which is easy to y and quick to assemble. e airframe is conventionally built using balsa, plywood to make it stronger
than the average ARTF, yet the design allows the aeroplane to be kept light. You will nd
that most of the work has been done for you already. e motor mount has been tted and the hinges are pre-installed. Flying the BOWERS FLYBABY is simply a joy.
is instruction manual is designed to help you build a great ying aeroplane. Please read this
manual throughly before starting assembly of your BOWERS FLYBABY. Use the parts listing
below to indentify all parts.
INTRODUCTION.
WARNING.
KIT CONTENTS
1
2
3
3
2
4
5
6
7
Please be awere that this aeroplane is not a toy and if assembley or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & REPONSIBILITY.
If you are inexperienced with basic R/C ight we strongly recommend you contact your R/C
supplier and join your local R/C model Flying Club. R/C Model Flying Clubs oer a variety
of training procedures designed to help the new pilot on his way to successful R/C ight.
ey will also be able to advise on any insurance and safety regulations that may apply.
Page 3
WWW.SEAGULLMODELS.COM
3
KIT CONTENTS.
SEA238 BOWERS FLYBABY
SEA23801 Fuselage
SEA23802 Wing set
SEA23803 Tail set
SEA23804 Canopy
SEA23805 Pilot
SEA23806 Cowling
SEA23807 Aluminum wing tube
ADDITIONAL ITEMS REQUIRED.
TOOLS & SUPPLIES NEEDED.
in cyanoacrylate glue.
Medium cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
read-lock.
Paper towels.
� 10-15cc gasoline engine.
� .61 glow engine.
� Power 60 size motor.
� Computer radio with 5 servos.
� Glow plug to suit engine.
� Propeller to suit engine.
� Protective foam rubber for radio
system.
HINGING THE AILERON.
Note : e control surfaces, including the ai-
lerons, elevators, and rudder, are prehinged
with hinges installed, but the hinges are not
glued in place. It is imperative that you properly adhere the hinges in place per the steps
that follow using a high-quality thin C/A glue.
1) Carefully remove the aileron from one
of the wing panels. Note the position of the
hinges.
2) Remove each hinge from the wing panel
and aileron and place a T-pin in the center of
each hinge. Slide each hinge into the wing
panel until the T-pin is snug against the wing
panel. is will help ensure an equal amount
of hinge is on either side of the hinge line
when the aileron is mounted to the aileron.
3) Slide the wing panel on the aileron until
there is only a slight gap. e hinge is now
centered on the wing panel and aileron. Remove the T-pins and snug the aileron against
the wing panel. A gap of 1/64” or less should
be maintained between the wing panel and
aileron.
Hinge.
Page 4
Bowers Flybaby
Instruction Manual.
4
NOTE : e hinge is constructed of a special material that allows the C/A to wick
or penetrate and distribute throughout
the hinge, securely bonding it to the wood
structure of the wing panel and aileron.
in CA.
5) Turn the wing panel over and deect the
aileron in the opposite direction from the
opposite side. Apply thin C/A glue to each
hinge, making sure that the C/A penetrates
into both the aileron and wing panel.
6) Using C/A remover/debonder and a paper towel, remove any excess C/A glue that
may have accumulated on the wing or in the
aileron hinge area.
7) Repeat this process with the other wing
panel, securely hinging the aileron in place.
8) Aer both ailerons are securely hinged,
rmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully applying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
Work the aileron up and down several times to “work in” the hinges
and check for proper movement.
Note :
4) Deect the aileron and completely saturate each hinge with thin C/A glue. e ailerons front surface should lightly contact the
wing during this procedure. Ideally, when
the hinges are glued in place, a 1/64” gap or
less will be maintained throughout the lengh
of the aileron to the wing panel hinge line.
HINGING THE ELEVATORS.
1) Locate the item for this sectiom of the
manual.
2) Carefully remove the elevator from
one of the horizontal stabilizer panels.
Note the position of the hinges.
3) Remove each hinge from the horizontal stabilizer panel and elevator
and place a T-pin in the center of each
hinge. Slide each hinge into the elevator until the T-pin is snug against the
elevator. is will help ensure an equal
amount of hinge is on either side of the
hinge line when the elevator is mounted to the horizontal stabilizer panel.
Page 5
WWW.SEAGULLMODELS.COM
5
HINGING THE RUDDER.
Glue the top two rudder hinges in place
using the same techniques used to hinge
the ailerons.
e lower hinge will be glued when the
n/rudder assembly is attached to the fuselage.
INSTALL THE AILERONS
CONTROL HORN.
Ep oxy.
Glue the elevator hinges in place using the
same techniques used to hing the ailerons.
Ep oxy.
Ep oxy.
Aileron control horn.
INSTALL ELEVATOR CONTROL HORN.
Fiberglass control horn
Fiberglass control horn
Page 6
Bowers Flybaby
Instruction Manual.
6
Elevator berglass control horn.
Ep oxy.
INSTALL RUDDER CONTROL HORN.
Repeat steps to install the rudder control
horn as same as steps done for ailerons.
Ep oxy.
Rudder berglass control horn.
INSTALLING THE FUSELAGE SERVOS.
.
Because the size of servos dier, you
may need to adjust the size of the precut
opening in the mount. e notch in the
sides of the mount allow the servo lead to
pass through.
1) Install the rubber grommets and brass
collets into all servos. Test t the servos
into the fuselage servo mounts.
2) Secure the servos with the screws provided with your radio system.
Rudder servo.
rottle servo.
Elevator servo.
THROTTLE SERVO ARM
INSTALLATION.
Install adjustable servo connector in the
servo arm as same as picture below:
Ep oxy.
Fiberglass control horn
Page 7
WWW.SEAGULLMODELS.COM
7
Servo arm.
Adjustable servo
connector.
Loctite secure.
rottle servo arm.
Elevator servo arm.
Rudder servo arm.
Trim and cut.
.
Switch.
INSTALLING THE ENGINE SWITCH.
Trim and cut.
INSTALLING THE RECEIVER SWITCH.
Install the switch into the precut hole in
the side, in the fuselage.
3/32” Hole.
Switch.
INSTALLING THE STOPPER
ASSEMBLY.
1) Using a modeling knife, carefully cut
o the rear portion of one of the 3 nylon
tubes leaving 1/2” protruding from the
rear of the stopper. is will be the fuel
pick up tube.
2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of
the line to the weighted fuel pick up and
the other end to the nylon pick up tube.
Page 8
Bowers Flybaby
Instruction Manual.
8
A
B
3) Carefully bend the second nylon tube up
at a 45º angle. is tube is the vent tube.
4) Test t the stopper assembly into the tank.
It may be necessary to remove some of the
ashing around the tank opening using a
modeling knife. If ashing is present, make
sure none falls into the tank.
5) With the stopper assembly in place, the
weighted pick-up should rest away from the
rear of the tank and move freely inside the
tank. e top of the vent tube should rest just
below the top of the tank. It should not touch
the top of the tank.
6) When satised with the alignment of the
stopper assembly tighten the 3 x 20mm machine screw until the rubber stopper expands
and seals the tank opening. Do not overtighten the assembly as this could cause the
tank to split.
FUEL TANK INSTALLATION.
You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once the
tank is installed inside the fuselage, it may be
dicult to determine which is which.
7) Slide the fuel tank into the fuselage. Guide
the lines from the tank through the hole in
the rewall.
8) Use plywood template to hold in place the
fuel tank with C/A glue to secure the fuel
tank inside the fuselage.
Vent tube.
Fuel pick up tube.
Fuel fill tube.
A
Page 9
WWW.SEAGULLMODELS.COM
9
B
Ignition Module.
9) Connect the lines from the tank to the engine and muer. e vent line will connect
to the muer and the line from the clunk to
the carburetor.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should ow
through easily.
Vent tube.
Fuel pick up tube.
Fuel ll tube.
.
ENGINE MOUNT INSTALLATION.
1) Locate the items necessary to install
the engine mount included with your
model.
4x30mm
2) Use four 4x30mm head bolts and four
4mm washers to attach the engine mount
rails to the rewall. Tighten the screws .
Make sure to use threadlock on the screws
to help prevent them from vibrating loose.
MOUNTING THE ENGINE.
1) Position the engine with the drive
washer (145mm) forward of the rewall
as shown.
read locker glue.
Page 10
Bowers Flybaby
Instruction Manual.
10
2) Use a pin drill and 4mm drill bit to
drill a small indentation in the mount for
the engine mounting screw.
3) Use a drill to drill the four holes in the
engine mount rails.
4mm
Machine screw M4x30mm
4) On the re wall has the location for the
throttle pushrod tube (pre-drill).
5) Slide the pushrod tube in the rewall
and guide it through the fuel tank mount.
Use medium C/A to glue the tube to the
rewall and the fuel tank mount.
6) Connect the Z-bend in the 450mm
throttle pushrod to the outer hole of the
carburetor arm.
7) Slide the throttle pushrod wire into
the tube. Position the engine between the
mounts. Use four M4x30mm machine
screws to secure the engine to the mount
as shown.
Pushrod wire.
4mm
145mm
Page 11
WWW.SEAGULLMODELS.COM
11
8) Reinstall the servo horn by sliding the
connector over the pushrod wire. Center the throttle stick and trim and install
the servo horn perpendiular to the servo
center line.
9) Move the throttle stick to the closed position and move the carburetor to closed.
Use a 2.5mm hex wrench to tighten the
screw that secures the throttle pushrod
wire. Make sure to use threadlock on the
screw so it does not vibrate loose.
COWLING.
Please see below pictures.
Cut.
Page 12
Bowers Flybaby
Instruction Manual.
12
Because of the size of the cowl, it may be necessary to use a needle valve extension for the
high speed needle valve. Make this out of sufcient length 1.5mm wire and install it into
the end of the needle valve. Secure the wire in
place by tightening the set screw in the side of
the needle valve.
1) With the muer, needle valve, and spark/
glow plug removed from the engine, slide
the cowl in place over the engine. Temporarily install the propeller and spinner in order
to nd the exact location of the cowl. When
satised with the cowl placement, secure the
cowl to the fuselage using masking tape.
Needle valve.
3x10mm
2) Install the muer and muer extension
onto the engine and make the cutout in the
cowl for muer clearance. Connect the fuel
and pressure lines to the carburetor, muer
and fuel ller valve. Secure the cowl to fuselage using the M3x10mm screws.
ELECTRIC POWER CONVERSION.
1) Locate the items neccessary to install
the electric power conversion included
with your model.
2) Recommend the items necessary to install the electric power conversion parts
included with your model.
- Motor: 60
- Propeller: 14x8 ~ 16x10
- ESC: 60A
- 5S- 7S Lipo
3) Attach the electric motor box to the
rewall suitable with the cross lines
drawn on the electric motor box and
rewall. Using epoxy and balsa stick
to secure the motor box to the rewall.
Please see pictures below.
Page 13
WWW.SEAGULLMODELS.COM
13
4) Attach the motor to the front of the
electric motor box using four 4mm blind
nut, four M3x12mm hex head bolts to secure the motor. Please see picture shown.
M4x20mm
4 mm
.
Blind nut.
M3x15mm
145 mm
Epoxy
Balsa stick.
Epoxy
Page 14
Bowers Flybaby
Instruction Manual.
14
5) Attach the speed control to the side
of the motor box using two-sided tape
and tie wraps. Connect the appropriate
leads from the speed control to the motor. Make sure the leads will not interfere
with the operation of the motor.
Tie wraps.
INSTALLING THE SPINNER.
e propeller should not touch any
part of the spinner cone. If it does, use a
sharp modeling knife and carefully trim
away the spinner cone where the propeller comes in contact with it.
Install the spinner backplate, propeller
and spinner cone.
INSTALLING THE AILERON SERVOS.
Bat ter y.
Speed control.
Page 15
WWW.SEAGULLMODELS.COM
15
Servos
.
Small
weight
.
Thread
Because the size of servos dier, you
may need to adjust the size of the precut
opening in the mount. e notch in the
sides of the mount allow the servo lead to
pass through.

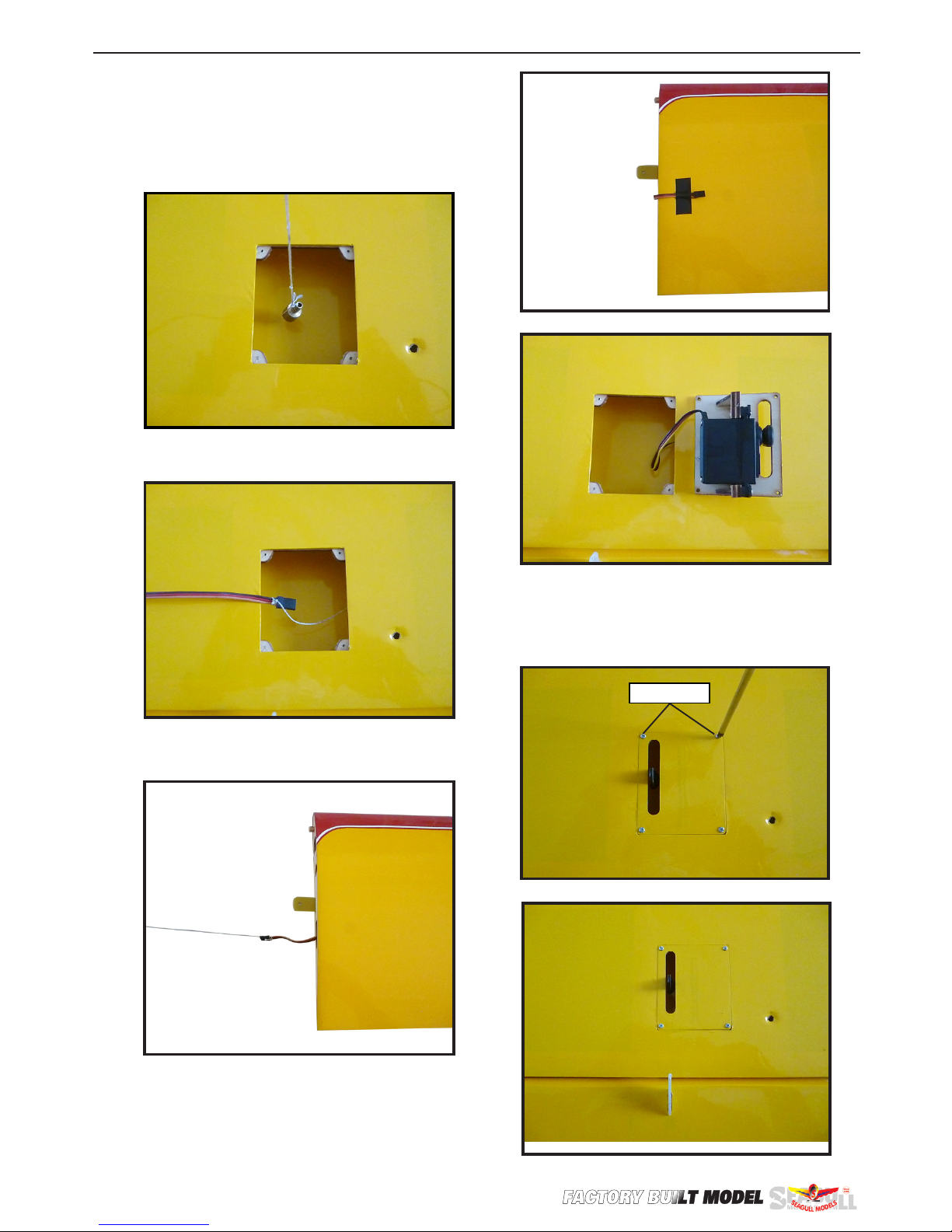

1) Using a small weight (Weighted fuel
pick-up works well) and string, feed the
string through the wing as indicated.
2) Place the servo between the mounting
blocks and space it from the hatch. Use a
pencil to mark the mounting hole locations on the blocks.
Small weight. String.
4) Apply 2-3 drops of thin C/A to each
of the mounting holes. Allow the C/A to
cure without using accelerator.
C/A glue
5) Use dental oss to secure the connection so they cannot become unplugged.
6) Secure the servo to the aileron hatch
using Phillips screwdriver and the screws
provided with the servo.
7) Apply 1-2 drops of thin C/A to each of
the mounting tabs. Allow the C/A to cure
without using accelerator.
3) Use drill bit in a pin vise to drill the
mouting holes in the blocks.
C/A glue
Page 16
Bowers Flybaby
Instruction Manual.
16
8) Remove the string from the wing at the
servo location and use the tape to attach it
to the servo extension lead. Pull the lead
through the wing and remove the string.
9) Set the aileron hatch in place and use a
Phillips screw driver to install it with four
wood screws.
M2x10mm
Page 17
WWW.SEAGULLMODELS.COM
17
.
.
AILERON PUSHROD HORN
INSTALLATION.
Please see below pictures.
Use a felt tip pen to mark the wire where
it crosses the hole. Use a pair of pliers to
put a shrp 90-degree bend in the wire at
the mark.
Mark.
8mm
M2 lock nut.
Metal clevis.
Snap keeper.
Snap keeper.
Servo arm.
Fuel tubing.
Hex Nut.
Nylon Snap keeper.
Bend at the mark
1) e blind nuts for securing the landing gear are already mounted inside the
fuselage.
2) Using the hardware provided, mount
the main landing gear to the fuselage.
3) Place the fuselage inverted on the
workbench in a suitable stand. Set the
landing gear in place and use a screwdrive to secure the landing gear to the fuselage using bolts M4x20mm and washers. Make sure to use the threadlock on
the bolts so they don’t vibrate loose.
INSTALLING THE MAIN LANDING
GEAR TO FUSELAGE.
M4x20mm
read locker glue.
Page 18
Bowers Flybaby
Instruction Manual.
18
M4x20mm
Col lar.
Page 19
WWW.SEAGULLMODELS.COM
19
INSTALLING WHEELS.
Col lar.
Col lar.
INSTALLING THE HORIZONTAL
STABILIZER.
1) Using a ruler and a pen, locate the centerline of the horizontal stabilizer, at the
trailing edge, and place a mark. Use a triangle and extend this mark, from back to
front, across the top of the stabilizer. Also
extend this mark down the back of the
trailing edge of the stabilizer.
2) Using a modeling knife, carefully remove the covering at mounting slot of
horizontal stabilizer ( both side of fuselage).
Draw center line
Cut.
Page 20
Bowers Flybaby
Instruction Manual.
20
5) Remove the stabilizer. Using the lines
you just drew as a guide, carefully remove
the covering from between them using a
modeling knife.
When cutting through the covering
to remove it, cut with only enough pressure
to only cut through the covering itself. Cutting into the balsa structure may weaken
it.
Trim and cut.
6) Using a modeling knife, carefully remove the covering that overlaps the stabilizer mounting platform sides in the
fuselage. Remove the covering from both
the top and the bottom of the platform
sides.
Epoxy
7) When you are sure that everything is
aligned correctly, mix up a generous
amount of 30 Minute Epoxy. Apply a thin
layer to the top and bottom of the stabilizer mounting area and to the stabilizer
mounting platform sides in the fuselage.
Slide the stabilizer in place and realign.
Double check all of your measurements
once more before the epoxy cures. Hold
the stabilizer in place with T-pins or masking tape and remove any excess epoxy using a paper towel and rubbing alcohol.
INSTALLING VERTICAL STABILIZER
3) Slide the stabilizer into place in the
precut slot in the rear of the fuselage. e
stabilizer should be pushed rmly against
the front of the slot.
4) With the stabilizer held rmly in place,
use a pen and draw lines onto the stabilizer where it and the fuselage sides meet.
Do this on both the right and le sides
and top and bottom of the stabilizer.
Pen
.
Page 21
WWW.SEAGULLMODELS.COM
21
1) While holding the vertical stabilizer
rmly in place, use a pen and draw a
line on each side of the vertical stabilizer
where it meets the top of the fuselage.
2) Using a modeling knife, remove the
covering from over the precut hinge slot
cut into the lower rear portion of the fuselage.
Pen
3) Slide the vertical stabilizer into the slot in
the top of the fuselage. e rear edge of the
stabilizer should be ush with the rear edge
of the fuselage and the lower rudder hinge
should engage the precut hinge slot in the
lower fuselage. e bottom edge of the stabilizer should also be rmly pushed against the
top of the horizontal stabilizer.
Fill Epoxy
Remove covering.
Hinge slot.
4) Slide the vertical stabilizer back inplace. Using a triangle, check to ensure
that the vertical stabilizer is aligned 90º to
the horizontal stabilizer.
Ep oxy.
90º
Vertical
Stabilizer.
Horizontal
Stabilizer.
Page 22
Bowers Flybaby
Instruction Manual.
22
.
5) When you are sure that everything is
aligned correctly, mix up a generous
amount of Flash 30 Minute Epoxy. Apply a thin layer to the mounting slot
and to bottom of the vertical stabilizer
mounting area. Apply epoxy to the bottom and top edges of the ller block and
to the lower hinge also. Set the stabilizer
in place and realign. Double check all of
your measurements once more before
the epoxy cures. Hold the stabilizer in
place with T-pins or masking tape and
remove any excess epoxy using a paper
towel and rubbing alcohol. Allow the
epoxy to fully cure before proceeding.
C/A glue.
Hinge.

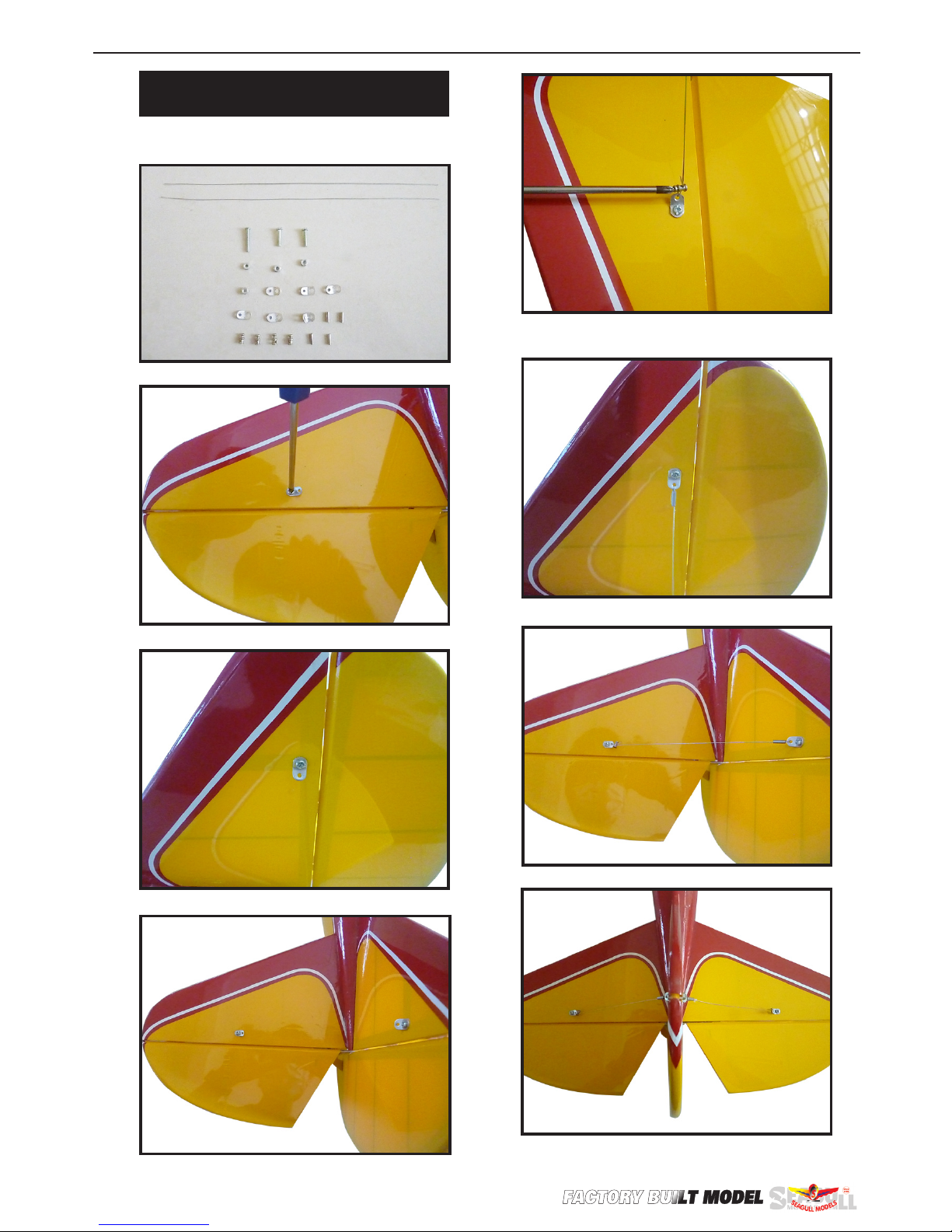

ELEVATOR PUSHROD
INSTALLATION.
Elevator control horn.
1) Install the elevator control horn using
the same method as with the aileron control horns.
2) Position the elevator control horn on
the both side of elevator.
3) read one clevis and M2 lock nut on
to each elevator control rod. read the
horns on until they are ush with the
ends of the control rods.
4) Elevator and rudder pushrods assembly as pictures below.
M2 clevis.M2 lock nut.
8mm
Pen.
Hex nut.
Fuel tubing.
M2 clevis.
Elevator pushrod.
Page 23
WWW.SEAGULLMODELS.COM
23
.
8mm
Nylon Snap Keeper.
M2 clevis.M2 lock nut.
8mm
RUDDER PUSHROD INSTALLATION.
Repeat steps as same as steps done for
elevator.
Pen.
8mm
Page 24
Bowers Flybaby
Instruction Manual.
24
INSTALL BRACING WIRE AND METAL
BRACKET AT THE TAIL.
TOP VIEW.
Page 25
WWW.SEAGULLMODELS.COM
25
BOTTOM VIEW
MOUNTING THE TAIL WHEEL.
Locate items necessary to install tail wheel.
3x25 mm.
Aluminum tail
landing gear.
Page 26
Bowers Flybaby
Instruction Manual.
26
INSTALL FIBERGLASS HORN.
Ep oxy.
Springs
.
M3x10mm
Page 27
WWW.SEAGULLMODELS.COM
27
.
INSTALLATION PILOT AND CANOPY.
1) Locate items necessary to install pilot,
seats.
2) A scale pilot is included with this ARF.
e Seagull Pilot included tting well to
the cockpit. (or you can order others scale
pilot gures made by Seagull factory.
ey are available at Seagull distributors.)
If you are going to install a pilot gure,
please use a sanding bar to sand the base
of the gure so that it is at.
Ep oxy.
10mm
4) Position the canopy onto the fuselage.
Trace around the canopy and onto the fuselage using a felt-tipped pen.
Ep oxy.
3) Position the pilot gure on the canopy oor as shown. Use epoxy to glue the
base of the pilot gure, please see pictures as shown.
2) If all the decals are not precut, please
use scissors or a sharp hobby knife to cut
the decals from the sheet. Please be certain the model is clean and free from oily
ngerprints and dust. Position decal on
the model where desired, using the photos on the box and aid in their location.
INSTALLING BATTERY - RECEIVER.
1) Plug the ve servo leads and the switch
lead into the receiver. Plug the battery
pack lead into the switch also.
2) Wrap the receiver and battery pack in
the protective foam rubber to protect
them from vibration.
1) If all the decals are precut and ready to
stick. Please be certain the model is clean
and free from oily ngerprints and dust.
Position decal on the model where desired, using the photos on the box and
aid in their location.
APPLY THE DECALS.
Page 28
Bowers Flybaby
Instruction Manual.
28
Receiver.
Bat ter y.
Bat ter y.
Insert two wing panels as pictures below.
Wing tube.
Wing bolt.
TOP VIEW.
INSTALL BRACING WIRE AND METAL
BRACKET AT THE WINGS.
ATTACHMENT WING- FUSELAGE.
Attach the aluminum tube into fuselage.
Page 29
WWW.SEAGULLMODELS.COM
2929
BOTTOM VIEW.
Do the same way with another half wing.
Page 30
Bowers Flybaby
Instruction Manual.
30
Insert canopy hatch on fuselage as pictures below.
Do the same way with another half wing.
Page 31
WWW.SEAGULLMODELS.COM
31
BALANCING.
1) It is critical that your airplane be
balanced correctly. Improper balance will
cause your plane to lose control and
crash. THE CENTER OF GRAVITY IS LOCATED 75MM BACK
FROM THE LEADING EDGE OF
THE WING AT THE WING ROOT.
2) Mount the wing to the fuselage. Place
a piece of masking tape on the bottom of
each wing 75mm back from the leading
edge at the wing root.
3) With the model upright, place your
ngers on the masking tape and carefully
li the plane. is is the point at which
your model should balance for your rst
ights. Later, you may wish to experiment by shiing the balance up to 75mm
forward or back to change the ying
characteristics. Moving the balance forward may improve the smoothness and
arrow- like tracking, but it may then require more speed for take o and make it
more dicult to slow down for landing.
Moving the balance a makes the model
more agile with a lighter and snappier
”feel”. In any case, please start at the location we recommend.
With the wing attached to the fuselage,
all parts of the model installed ( ready to
y), and empty fuel tanks, hold the model at the marked balance point with the
stabilizer level.
Li the model. If the tail drops when
you li, the model is “tail heavy” and you
must add weight* to the nose. If the nose
drops, it is “nose heavy” and you must
add weight* to the tail to balance.
75mm
CONTROL THROWS.
Ailerons:
High Rate :
Up : 25 mm
Down : 25 mm
Low Rate :
Up : 15 mm
Down : 15 mm
Elevator:
High Rate :
Up : 25 mm
Down : 25 mm
Low Rate :
Up : 15 mm
Down : 15 mm
Rudder:
High Rate :
Right : 30 mm
Le : 30 mm
Low Rate :
Right : 20 mm
Le : 20 mm
*If possible, rst attempt to balance the
model by changing the position of the receiver battery and receiver. If you are unable to obtain good balance by doing so,
then it will be necessary to add weight to
the nose or tail to achieve the
proper balance point.
Page 32
Bowers Flybaby
Instruction Manual.
3232
Page 33
WWW.SEAGULLMODELS.COM
33
FLIGHT PREPARATION. PREFLIGHT CHECK.
Check the operation and direction
of the elevator, rudder, ailerons and
throttle.
A) Plug in your radio system per the
manufacturer’s instructions and turn
everything on.
B) Check the elevator rst. Pull
back on the elevator stick. e elevator halves should move up. If it they do
not, ip the servo reversing switch on
your transmitter to change the direction.
C) Check the rudder. Looking from
behind the airplane, move the rudder
stick to the right. e rudder should
move to the right. If it does not, ip
the servo reversing switch on your
transmitter to change the direction.
D) Check the throttle. Moving the
throttle stick forward should open the
carburetor barrel. If it does not, ip the
servo reversing switch on your transmitter to change the direction.
E) From behind the airplane, look
at the aileron on the right wing half.
Move the aileron stick to the right.
e right aileron should move up and
the other aileron should move down.
If it does not, ip the servo reversing
switch on your transmitter to change
the direction.
1) Completely charge your transmitter and receiver batteries before
your rst day of ying.
2) Check every bolt and every glue
joint in the BOWERS FLYBABY to en-
sure that everything is tight and well
bonded.
3) Double check the balance of the
airplane. Do this with the fuel tank
empty.
4) Check the control surfaces. All
should move in the correct direction
and not bind in any way.
5) If your radio transmitter is
equipped with dual rate switches
double check that they are on the low
rate setting for your rst few ights.
6) Check to ensure the control surfaces are moving the proper amount
for both low and high rate settings.
7) Check the receiver antenna.
It should be fully extended and not
coiled up inside the fuselage.
We wish you many safe and enjoyable ights
with your BOWERS FLYBABY.
8) Properly balance the propeller.
An out of balance propeller will cause
excessive vibration which could lead
to engine and/or airframe failure.
Loading...
