“Graphics and specifications may change without notice”.
MS:195
ASSEMBLY MANUAL
Specifications:
Wing span ------------------------------70.9in (180cm).
Wing area -----------------613.8sq.in (39.6sq dm).
Weight ------------------------9.7-10.6lbs (4.4-4.8kg).
Length ------------------------------58.8in (149.3cm).
Engine ------------------ 0.75-0.91cu.in -----2-stroke.
1.00-1.25cu.in -----4-stroke.
Radio ------------------- 6 channels with 11 servos.
Electric conversion: optional
SAVAGE CRUISER Instruction Manual.
2
INTRODUCTION.
Thank you for choosing the SAVAGE CRUISER ARTF by SEAGULL MODELS COMPANY LTD.
The SAVAGE CRUISER was designed with the intermediate/advanced sport flyer in mind. It is a
semi scale airplane which is easy to fly and quick to assemble. The airframe is conventionally built
using balsa, plywood to make it stronger than the average ARTF , yet the design allows the aeroplane
to be kept light. You will find that most of the work has been done for you already.The motor mount
has been fitted and the hinges are pre-installed . Flying the SAVAGE CRUISER is simply a joy.
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manual thoroughly before starting assembly of your SAVAGE CRUISER . Use the parts listing
below to identify all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
If you are inexperienced with basic R/C flight we strongly recommend you contact your R/C supplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
procedures designed to help the new pilot on his way to successful R/C flight. They will also be able
to advise on any insurance and safety regulations that may apply.
KIT CONTENTS
1
2
2
3
3
4
5
10
5
6
3
www.seagullmodels.com
ADDITIONAL ITEMS REQUIRED.
0.75- 0.91 2-stroke.
1.00 - 1.25 4-stroke.
Computer radio with 8 servos.
Glow plug to suit engine.
Propeller to suit engine.
Protective foam rubber for radio
system.
TOOLS & SUPPLIES NEEDED.
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
KIT CONTENTSTS
HINGING THE FLAP .
C/A Hinge.
T-pin.
The control surfaces, including the
ailerons, elevators, and rudder, are
prehinged with hinges installed, but
the hinges are not glued in place. It
is imperative that you properly
adhere the hinges in place per the
steps that follow using a high-quality
thin C/A glue.
Note:
1) Carefully remove the flap from one of
the wing panels. Note the position of the hinges.
2) Remove each hinge from the wing panel
and flap and place a T -pin in the center of each
hinge. Slide each hinge into the aileron until
the T -pin is snug against the aileron. This will
help ensure an equal amount of hinge is on
either side of the hinge line when the flap is
mounted to the wing panel.
3) Slide the flap on the wing panel until
there is only a slight gap. The hinge is now
centered on the wing panel and flap. Remove
the T -pins and snug the flap against the wing
panel. A gap of 1/64” or less should be
maintained between the wing panel and flap.
SEA19501 Fuselage
SEA19502 Wing Set
SEA19503 Tail Set
SEA19504 Fiberglass Cowling
SEA19505 Main Landing Gear
SEA19506 Windshield and Window Set
SEA19507 Hardware Pack
SEA19508 Decal Set
SEA19509 Pushrod Set
SEA19510 Fiberglass Wheel Pant
SEA195B Replacement Box
C/A Hinge.
SAVAGE CRUISER Instruction Manual.
4
The control surfaces, including the
ailerons, elevators, and rudder, are
prehinged with hinges installed, but
the hinges are not glued in place. It
is imperative that you properly
adhere the hinges in place per the
steps that follow using a high-quality
thin C/A glue.
2) Remove each hinge from the wing panel
and aileron and place a T-pin in the center of
each hinge. Slide each hinge into the aileron
until the T -pin is snug against the aileron. This
will help ensure an equal amount of hinge is
on either side of the hinge line when the aileron
is mounted to the wing panel.
Note:
1) Carefully remove the aileron from one
of the wing panels. Note the position of the
hinges.
HINGING THE AILERON .
C/A glue.
4)Deflect the flap and completely saturate
each hinge with thin C/A glue. The ailerons front
surface should lightly contact the wing during
this procedure. Ideally , when the
The hinge is constructed of a special
material that allows the C/A to wick
or penetrate and distribute
throughout the hinge, securely
bonding it to the wood structure of
the wing panel and flap.
hinges are glued in place, a 1/64” gap or less
will be maintained throughout the lengh of the
flap to the wing panel hinge line.
Note:
7) Repeat this process with the other wing
panel, securely hinging the flap in place.
6) Using C/A remover/debonder and a
paper towel, remove any excess C/A glue that
may have accumulated on the wing or in the
flap hinge area.
5) Turn the wing panel over and deflect the
flap in the opposite direction from the opposite
side. Apply thin C/A glue to each hinge, making
sure that the C/A penetrates into both the flap
and wing panel.
8) After both flap are securely hinged, firmly
grasp the wing panel and flap to make sure
the hinges are securely glued and cannot be
pulled out. Do this by carefully applying
medium pressure, trying to separate the flap
from the wing panel. Use caution not to crush
the wing structure.
Work the flap down several times to
“work in” the hinges and check for
proper movement.
Note:
C/A Hinge.
C/A Hinge.
5
www.seagullmodels.com
4) Deflect the aileron and completely
saturate each hinge with thin C/A glue. The
ailerons front surface should lightly contact the
wing during this procedure. Ideally, when the
hinges are glued in place, a 1/64” gap or less
will be maintained throughout the lengh of the
aileron to the wing panel hinge line.
The hinge is constructed of a special
material that allows the C/A to wick
or penetrate and distribute
throughout the hinge, securely
bonding it to the wood structure of
the wing panel and aileron.
Note:
3) Slide the aileron on the wing panel until
there is only a slight gap. The hinge is now
centered on the wing panel and aileron.
Remove the T-pins and snug the aileron
against the wing panel. A gap of 1/64” or less
should be maintained between the wing panel
and aileron.
T-pin.
C/A glue.
7) Repeat this process with the other wing
panel, securely hinging the aileron in place.
6) Using C/A remover/debonder and a
paper towel, remove any excess C/A glue that
may have accumulated on the wing or in the
aileron hinge area.
5) Turn the wing panel over and deflect the
aileron in the opposite direction from the
opposite side. Apply thin C/A glue to each
hinge, making sure that the C/A penetrates into
both the aileron and wing panel.
C/A Hinge.
SAVAGE CRUISER Instruction Manual.
6
HINGING THE ELEVATOR.
Glue the rudder hinges in place using the
same techniques used to hinge the ailerons.
HINGING THE RUDDER.
Glue the rudder hinges in place using the
same techniques used to hinge the ailerons.
C/A Hinge.
8) After both ailerons are securely hinged,
firmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully
applying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
Work the aileron up and down several
times to “work in” the hinges and
check for proper movement.
Note:
INSTALL THE.
Epoxy
Fiberglass

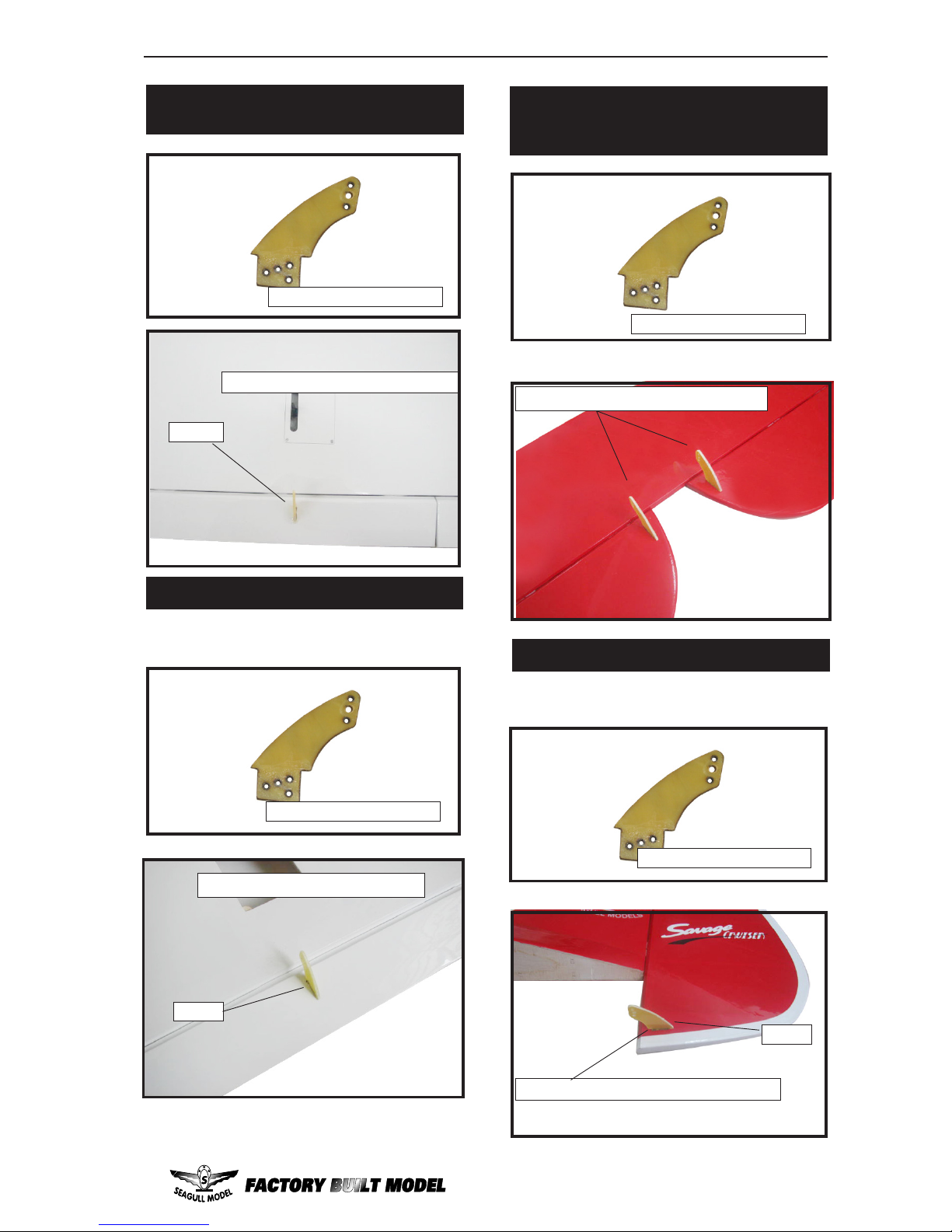

7
www.seagullmodels.com
Epoxy
Flap Fiberglass control horn.
Aileron Fiberglass control horn.
INSTALL THE AILERONS CONTROL
HORN.
Epoxy
Install the flap control horn using the same
method as same as the aileron control horns.
INSTALL FLAP CONTROL HORN.
Fiberglass control horn.
Fiberglass control horn.
INSTALL ELEVATOR CONTROL
HORN.
Fiberglass control horn.
Elevator Fiberglass control horn.
INSTALL RUDDER CONTROL HORN.
Repeat steps to install the rudder control horn
as same as steps done for ailerons.
Fiberglass control horn.
Epoxy.
Rudder Fiberglass control horn.
SAVAGE CRUISER Instruction Manual.
8
INST ALLING THE STOPPER ASSEMBL Y .
2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of the line
to the weighted fuel pick up and the other end
to the nylon pick up tube.
1) Using a modeling knife, carefully cut
off the rear portion of one of the 3 nylon tubes
leaving 1/2” protruding from the rear of the
stopper. This will be the fuel pick up tube.
Vent tube.
Fuel pick up tube.
Fuel fill tube.
Thread locker glue.
ENGINE MOUNT INST ALLATION.
1) Locate the items necessary to install the
engine mount included with your model. .
2) Use four 4x30mm head bolts and four 4mm
washers to attach the engine mount rails to
the firewall. Tighten the screws . Make sure to
use threadlock on the screws to help prevent
them from vibrating loose.
4x30mm.
3x15mm
9
www.seagullmodels.com
3) Carefully bend the second nylon tube
up at a 45º angle. This tube is the vent tube.
4) Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none falls into the tank.
5) With the stopper assembly in place,
the weighted pick-up should rest away from
the rear of the tank and move freely inside the
tank. The top of the vent tube should rest just
below the top of the tank. It should not touch
the top of the tank.
6) When satisfied with the alignment of
the stopper assembly tighten the 3 x 20mm
machine screw until the rubber stopper expands and seals the tank opening. Do not
overtighten the assembly as this could cause
the tank to split.
You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once
the tank is installed inside the fuselage, it may
be difficult to determine which is which.
FUEL TANK INSTALLATION.
7) Slide the fuel tank into the fuselage. Guide
the lines from the tank through the hole in the
firewall.
Fuel tank.
Blow through one of the lines to ensure the fuel lines have not become kinked
inside the fuel tank compartment. Air
should flow through easily.
9) Connect the lines from the tank to the engine
and muffler. The vent line will connect to the
muffler and the line from the clunk to the
carburetor.
Vent tube.
Fuel pick up tube.
Fuel fill tube.
8) Use plywood template to hold in place
the fuel tank with C/A glue to secure the fuel
tank inside the fuselage.
3x15mm
Epoxy
SAVAGE CRUISER Instruction Manual.
10
INSTALLING THE FUSELAGE SERVOS.
Elevator servo.
THROTTLE SERVO ARM INSTALLATION.
Install adjustable servo connector in the servo
arm as same as picture below:
Adjustable Servo
connector.
Servo arm.
Loctite secure.
1 PCS.
1) Install the rubber grommets and brass
collets onto the throttle servo. T est fit the servo
into the aileron servo mount.
2) Secure the servos with the screws provided with your radio system.
Because the size of servos differ, you
may need to adjust the size of the precut opening in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
C/A glue
Rudder Servo
Thottle servo
Thottle servo
11
www.seagullmodels.com
INSTALLING THE MAIN LANDING
GEAR TO FUSELAGE.
INSTALLING THE MAIN LANDING
GEAR TO FUSELAGE.
M4x20mm
Thread locker glue
4 x 20mm
4 x 20mm
1
2
3
4x20 mm
INSTALLING THE SWITCH
3/ 32” Hole.
Install the switch into the precut hole in the
side, in the fuselage.
Switch
Cut
1
1
3
SAVAGE CRUISER Instruction Manual.
12
Locker glue.
INSTALLING WHEEL PANTS TO
MAIN LANDING GEAR.
C/A glue.
Landing Gear.
wheel Pant.
4 x 10mm
4 x 10mm
3
2
2
M3.
wheel collar.
wheel.
Axle.
Washer.
M3.
wheel Pant.
wheel.
M3.
M3.
wheel collar.
nut.
Washer.
C/A glue.
13
www.seagullmodels.com
MOUNTING THE ENGINE
1) Position the engine with the drive washer
(145mm) forward of the firewall as shown.
3) Use a drill to drill the four holes in the engine
mount rails.
2) Use a pin drill and 4mm drill bit to drill a
small indentation in the mount for the engine
mounting screw.
150mm
4mm
4.5mm
4 x 30mm
5) Slide the pushrod tube in the firewall and
guide it through the fuel tank mount. Use
medium C/A to glue the tube to the firewall and
the fuel tank mount.
6) Connect the Z-bend in the 450mm throttle
pushrod to the outer hole of the carburetor arm.
7) Slide the throttle pushrod wire into the tube.
Position the engine between the mounts. Use
four M4x30mm machine screws to secure the
engine to the mount as shown.
Pushrod
4) On the fire wall has the location for the
throttle pusshrod tube (pre-drill).
SAVAGE CRUISER Instruction Manual.
14
Because of the size of the cowl, it may be necessary to use a needle valve extension for the
high speed needle valve. Make this out of sufficient length 1.5mm wire and install it into the
end of the needle valve. Secure the wire in
place by tightening the set screw in the side of
the needle valve.
2) While keeping the back edge of the
cowl flush with the marks, align the front of
the cowl with the crankshaft of the engine. The
front of the cowl should be positioned so the
crankshaft is in nearly the middle of the cowl
opening. Use the spinner backplate as a guide.
Hold the cowl firmly in place using pieces of
masking tape.
Cut
Cut
9) Move the throttle stick to the closed position
and move the carburetor to closed. Use a 2.5mm
hex wrench to tighten the screw that secures
the throttle pushrod wire. Make sure to use
threadlock on the screw so it does not vibrate
loose.
COWLING.
1)Slide the fiberglass cowl over the engine
and line up the back edge of the cowl with the
marks you made on the fuselage then trim and
cut as shown.
Cut
3x10mm
15
www.seagullmodels.com
3) Install the muffler and muffler extension
onto the engine and make the cutout in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
and fuel filler valve. Secure the cowl to fuselage using the M3x10mm screws.
ELECTRIC POWER CONVERSION.
1) Locate the items neccessary to install the
electric power conversion included with your
model.
1) Recommendation EP parts as shown (not
included with your model).
- Model size: .90 size models
- Motor: 50mm 310 rev per volt
- Propeller: 15x10 ~ 16x10
- ESC: 80A
- Lipo Batteries: 8 cell 5200mA
2) Attach the electric motor box to the firewall
suitable with the cross lines drawn on the electric
motor box and firewall. Using epoxy and balsa
stick to secure the motor box to the firewall.
Please see pictures below.
Needle valve
4x20mm
3) Attach the motor to the front of the electric
motor box using four 4mm blind nut, four
M3x15mm hex head bolts to secure the motor.
Please see picture shown.
SAVAGE CRUISER Instruction Manual.
16
Blind nut M3
4 mm
Balsa stick.
Electric motor.
4) Locate the plywood battery tray to the
fuselage. Tighten the screws using machine
screws M3x15mm to secure the tray in position.
Epoxy.
Epoxy.
3x15mm
150mm
3x15mm
17
www.seagullmodels.com
INSTALLING THE SPINNER.
Install the spinner backplate, propeller and
spinner cone.
5) Attach the speed control to the side of the
motor box using two-sided tape and tie wraps.
Connect the appropriate leads from the speed
control to the motor. Make sure the leads will
not interfere with the operation of the motor.
Recomend Mounting Speed Control inside
Fuselage If Flying off Water.
Speed Control
Battery
2) Place the servo between the mounting
blocks and space it from the hatch. Use a pencil
to mark the mounting hole locations on the
blocks.
1) Using a small weight (
Weighted fuel pick-up
works well) and string, feed the string through
the wing as indicated.
The propeller should not touch any part
of the spinner cone. If it does, use a
sharp modeling knife and carefully trim away
the spinner cone where the propeller comes
in contact with it.
Servos.
Small weight.
Thread.
Because the size of servos differ, you may
need to adjust the size of the precut opening
in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
INSTALLING THE AILERON SERVOS.
SAVAGE CRUISER Instruction Manual.
18
3) Use drill bit in a pin vise to drill the mouting
holes in the blocks.
6) Secure the servo to the aileron hatch using
Phillips screwdriver and the screws provided
with the servo.
4) Apply 2-3 drops of thin C/A to each of the
mounting holes. Allow the C/A to cure without
using accelerator.
5) Use dental floss to secure the connection
so they cannot become unplugged.
C/A glue.
7) Apply 1-2 drops of thin C/A to each of the
mounting tabs. Allow the C/A to cure without
using accelerator.
8) A string has been provided in the wing to
pull the aileron lead through to the wing root.
Remove the string from the wing at the servo
location and use the tape to attach it to the
servo extension lead. Pull the lead through the
wing and remove the string.
C/A glue.
19
www.seagullmodels.com
9) Set the aileron hatch in place and use a
Phillips screw driver to install it with four wood
screws.
AILERON PUSHROD HORN INSTALLATION
AILERON PUSHROD HORN INSTALLATION
2x10mm
M3 lock nut.
M3 clevis.
90mm.
AILERON PUSHROD HORN INSTALLATION
INSTALLING THE FLAP SERVO
Repeat the procedure for the aileron servo.
Fuel Tubing
Hex Nut
M3 Clevis
SAVAGE CRUISER Instruction Manual.
20
INST ALLING THE HORIZONTAL ST ABILIZER.
1) Using a ruler and a pen, locate the
centerline of the horizontal stabilizer , at the trailing edge, and place a mark. Use a triangle
and extend this mark, from back to front,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge of
the stabilizer.
2) Using a modeling knife, carefully remove
the covering at mounting slot of horizontal stabilizer ( both side of fuselage).
Cut.
3) Slide the stabilizer into place in the precut slot in the rear of the fuselage. The stabilizer should be pushed firmly against the front
of the slot.
Pen.
Trim and cut.
5) Remove the stabilizer . Using the lines
you just drew as a guide, carefully remove the
covering from between them using a modeling knife.
4) With the stabilizer held firmly in place,
use a pen and draw lines onto the stabilizer
where it and the fuselage sides meet. Do this
on both the right and left sides and top and
bottom of the stabilizer.
INST ALLING THE FLAP PUSHROD
Repeat the procedure for the aileron servo.
M3 lock nut.
M3 clevis.
80mm.
Hex Nut
Fuel Tubing
M3 Clevis
21
www.seagullmodels.com
When cutting through the covering to remove it, cut with only enough pressure
to only cut through the covering itself.
Cutting into the balsa structure may weaken
it.
Epoxy.
6) Using a modeling knife, carefully remove the covering that overlaps the stabilizer
mounting platform sides in the fuselage. Remove the covering from both the top and the
bottom of the platform sides.
7) When you are sure that everything is
aligned correctly, mix up a generous amount
of 30 Minute Epoxy. Apply a thin layer to the
top and bottom of the stabilizer mounting area
and to the stabilizer mounting platform sides
in the fuselage. Slide the stabilizer in place
and realign. Double check all of your measurements once more before the epoxy cures.
Hold the stabilizer in place with T -pins or masking tape and remove any excess epoxy using
a paper towel and rubbing alcohol.
Epoxy.
INSTALLING VERITICAL STABILIZER.
Fill epoxy.
90º
Vertical
Stabilizer.
Horizontal
Stabilizer.
3) Slide the vertical stabilizer back in
place. Using a triangle, check to ensure that
the vertical stabilizer is aligned 90º to the horizontal stabilizer.
1) Using a modeling knife, remove the
covering from over the precut hinge slot cut
into the lower rear portion of the fuselage.
Remove covering.
Fill epoxy.
2) While holding the vertical stabilizer
firmly in place, use a pen and draw a line on
each side of the vertical stabilizer where it
meets the top of the fuselage.
SAVAGE CRUISER Instruction Manual.
22
4) When you are sure that everything is
aligned correctly, mix up a generous amount of
Flash 30 Minute Epoxy. Apply a thin layer to the
mounting slot and to bottom of the vertical stabilizer mounting area. Apply epoxy to the bottom and top edges of the filler block and to the
lower hinge also. Set the stabilizer in place
and realign. Double check all of your measurements once more before the epoxy cures. Hold
the stabilizer in place with T-pins or masking
tape and remove any excess epoxy using a
paper towel and rubbing alcohol. Allow the epoxy to fully cure before proceeding.
ELEVATOR AND RUDDER PUSHROD
HORN
INSTALLATION.
Epoxy
Elevator control horn.
M2 lock nut.
M2 clevis.
600mm.
M3 Clevis.
Crimp.
Metal connector.
Cable end.
Fuel Tubing
Hex Nut
Fuel Tubing
Hex Nut
Elevator control horn.
Rudder control horn.
Rudder control horn.
M2 Clevis
M2 Clevis
M3 Clevis
M3 Clevis
23
www.seagullmodels.com
3 x 20mm.
INSTALLATION TAILWHEEL.
1) Locate the items for this section of the
manual.
INSTALLING TAIL STRUTS SUPPORT.
The tail struct system assembly follow picture
below
115mm
3x15
M2 Clevis
M3 Clevis
Pushrod
Hex Nut
Fuel Tubing
SAVAGE CRUISER Instruction Manual.
24
INSTALLING BATTERY-RECEIVER.
1) Plug the five servo leads and the switch
lead into the receiver. Plug the battery pack
lead into the switch also.
3) Route the antenna in the antenna tube
inside the fuselage and secure it to the bottom of fuselage using a plastic tape.
2) Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration.
Recomend Wrapping Receiver in Plastic Bag
or Baloon if flying off water.
1
2
1
1
2
2
2
2
1
1
Crimp
Cable end
Metal connector
M3 Clevis
Hex Nut
1
25
www.seagullmodels.com
INSTALLATION PILOT AND CANOPY.
1) Locate items necessary to install pilot, seats
.
2) A scale pilot is included with this ARF. The
Seagull Pilot included fitting well to the cockpit.
(or you can order others scale pilot figures
made by Seagull factory. They are available at
Seagull distributors.)
If you are going to install a pilot figure, please
use a sanding bar to sand the base of the figure
so that it is flat.
APPLY THE DECALS.
1) If all the decals are precut and ready to
stick. Please be certain the model is clean and
free from oily fingerprints and dust. Position
decal on the model where desired, using the
photos on the box and aid in their location.
3x15mm
Epoxy
Receiver
Battery
Wing tube.
Attach the aluminium tube into fuselage.
ATTACHMENT WING- FUSELAGE.
2) If all the decals are not precut, please use
scissors or a sharp hobby knife to cut the
decals from the sheet. Please be certain the
model is clean and free from oily fingerprints
and dust. Position decal on the model where
desired, using the photos on the box and aid
in their location.
C/A glue
SAVAGE CRUISER Instruction Manual.
26
INSTALLATION STRUT
WING-FUSELAGE.
Epoxy
Epoxy
Epoxy
Epoxy
4x20mm
Wing Bolt
27
www.seagullmodels.com
Epoxy.
Epoxy
M3x15mm.
Screw.
1
3x15mm
SAVAGE CRUISER Instruction Manual.
28
*If possible, first attempt to balance the model
by changing the position of the receiver battery
and receiver. If you are unable to obtain good
balance by doing so, then it will be necessary
to add weight to the nose or tail to achieve the
proper balance point.
With the wing attached to the fuselage, all
parts of the model installed ( ready to fly), and
empty fuel tanks, hold the model at the marked
balance point with the stabilizer level.
Lift the model. If the tail drops when you lift,
the model is “tail heavy” and you must add
weight* to the nose. If the nose drops, it is
“nose heavy” and you must add weight* to the
tail to balance.
Accurately mark the balance point on the
botttom of the wing on both sides of the
fuselage. The balance point is located
90 mm
back from the leading edge of the wing at the
wing root. This is the balance point at which
your model should balance for your first flights.
Later, you may wish to experiment by shifting
the balance up to 10mm forward or back to
change the flying characteristics. Moving the
balance forward may improve the
smoothness and arrow- like tracking, but it
may then require more speed for take off and
make it more difficult to slow down for landing.
Moving the balance aft makes the model more
agile with a lighter and snappier ”feel”. In any
case,please start at the location we
recommend .
3) With the model upright, place your
fingers on the masking tape and carefully lift
the plane.
BALANCING.
1) It is critical that your airplane be
balanced correctly. Improper balance will
cause your plane to lose control and crash.
THE CENTER OF GRAVITY IS LOCATED
90 MM BACK FROM THE LEADING EDGE
OF THE WING AT THE WING ROOT.
2) Mount the wing to the fuselage. Using a
couple of pieces of masking tape, place them
on the bottom side of the wing
90mm back
from the leading edge of the wing at the wing
root.
1 4) Do not turn plane upside down. Only low
wing models should be turned upsidedown for
balancing. Remove this paragraph, it is not
intended for use in the instructions. it is a note
for you.High Wing models must be balanced
upright.
1
2
3x15mm
29
www.seagullmodels.com
CONTROL THROWS.
90 mm
Ailerons:
High Rate :
Up : 25 mm
Down : 25 mm
Low Rate :
Up : 15 mm
Down : 15 mm
Elevator:
High Rate :
Up : 25 mm
Down : 25 mm
Low Rate :
Up : 15 mm
Down : 15 mm
Rudder:
High Rate :
Right : 30 mm
Left : 30 mm
Low Rate :
Right : 20 mm
Left : 20 mm
SAVAGE CRUISER Instruction Manual.
30
7) Check the receiver antenna. It should
be fully extended and not coiled up inside the
fuselage.
3) Double check the balance of the airplane. Do this with the fuel tank empty .
4) Check the control surfaces. All should
move in the correct direction and not bind in
any way.
5) If your radio transmitter is equipped
with dual rate switches double check that they
are on the low rate setting for your first few
flights.
2) Check every bolt and every glue joint
in the SAVAGE CRUISER to ensure that ev-
erything is tight and well bonded.
6) Check to ensure the control surfaces
are moving the proper amount for both low
and high rate settings.
1) Completely charge your transmitter
and receiver batteries before your first day of
flying.
8) Properly balance the propeller. An out
of balance propeller will cause excessive vibration which could lead to engine and/or airframe failure.
PREFLIGHT CHECK.
E) From behind the airplane, look at
the aileron on the right wing half. Move the
aileron stick to the right. The right aileron
should move up and the other aileron should
move down. If it does not, flip the servo reversing switch on your transmitter to change
the direction.
D) Check the throttle. Moving the
throttle stick forward should open the carburetor barrel. If it does not, flip the servo reversing switch on your transmitter to change
the direction.
C) Check the rudder. Looking from
behind the airplane, move the rudder stick to
the right. The rudder should move to the right.
If it does not, flip the servo reversing switch on
your transmitter to change the direction.
Check the operation and direction of the
elevator, rudder, ailerons and throttle.
FLIGHT PREPARATION.
A) Plug in your radio system per the
manufacturer's instructions and turn everything on.
B) Check the elevator first. Pull back
on the elevator stick. The elevator halves
should move up. If it they do not, flip the servo
reversing switch on your transmitter to change
the direction.
We wish you many safe and enjoyable flights
with your SA VAGE CRUISER.
Loading...
