ASSEMBLY MANUAL
(Optional Float)
Specications:
Wingspan---------------63.0 in (160 cm).
Wing area---------------723.9 sq.in ( 46.7sq.dm).
Weight-------------------11.5 lbs ( 5.2 kg).
Length-------------------55.4 in (140.6 cm).
Engine-------------------20cc - 30cc
Radio--------------------7 channels with 9 servos.
“ Graphics and specications may change without notice ”.
BEAVER TURBIN
Code: SEA268
Page 2
Beaver Turbin
Instruction Manual.
2
ank you for choosing the BEAVER TURBIN ARF by SG MODELS. e BEAVER TURBIN-
was designed with the intermediate/advanced sport yer in mind. It is a semi scale airplane
which is easy to y and quick to assemble. e airframe is conventionally built using balsa,
plywood to make it stronger than the average ARF, yet the design allows the aeroplane to be
kept light. You will nd that most of the work has been done for you already. e motor mount
has been tted and the hinges are pre-installed. Flying the BEAVER TURBIN is simply a joy.
is instruction manual is designed to help you build a great ying aeroplane. Please read this
manual throughly before starting assembly of your BEAVER TURBIN. Use the parts listing
below to indentify all parts.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & REPONSIBILITY.
If you are inexperienced with basic R/C ight we strongly recommend you contact your R/C
supplier and join your local R/C model Flying Club. R/C Model Flying Clubs oer a variety of
training procedures designed to help the new pilot on his way to successful R/C ight. ey
will also be able to advise on any insurance and safety regulations that may apply.
INTRODUCTION.
WARNING.
KIT CONTENTS
1
5
2
3
3
2
4
6
7
Page 3

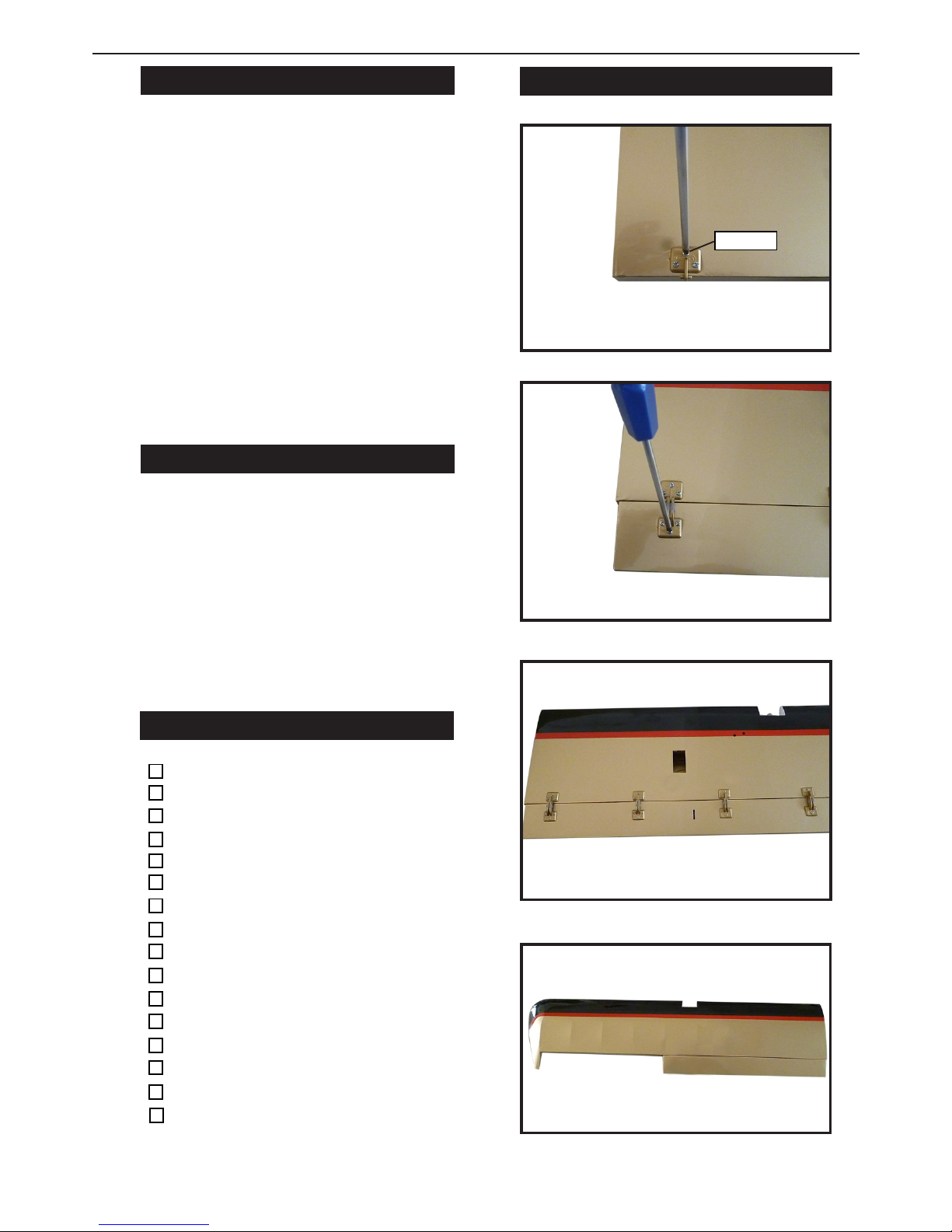

3

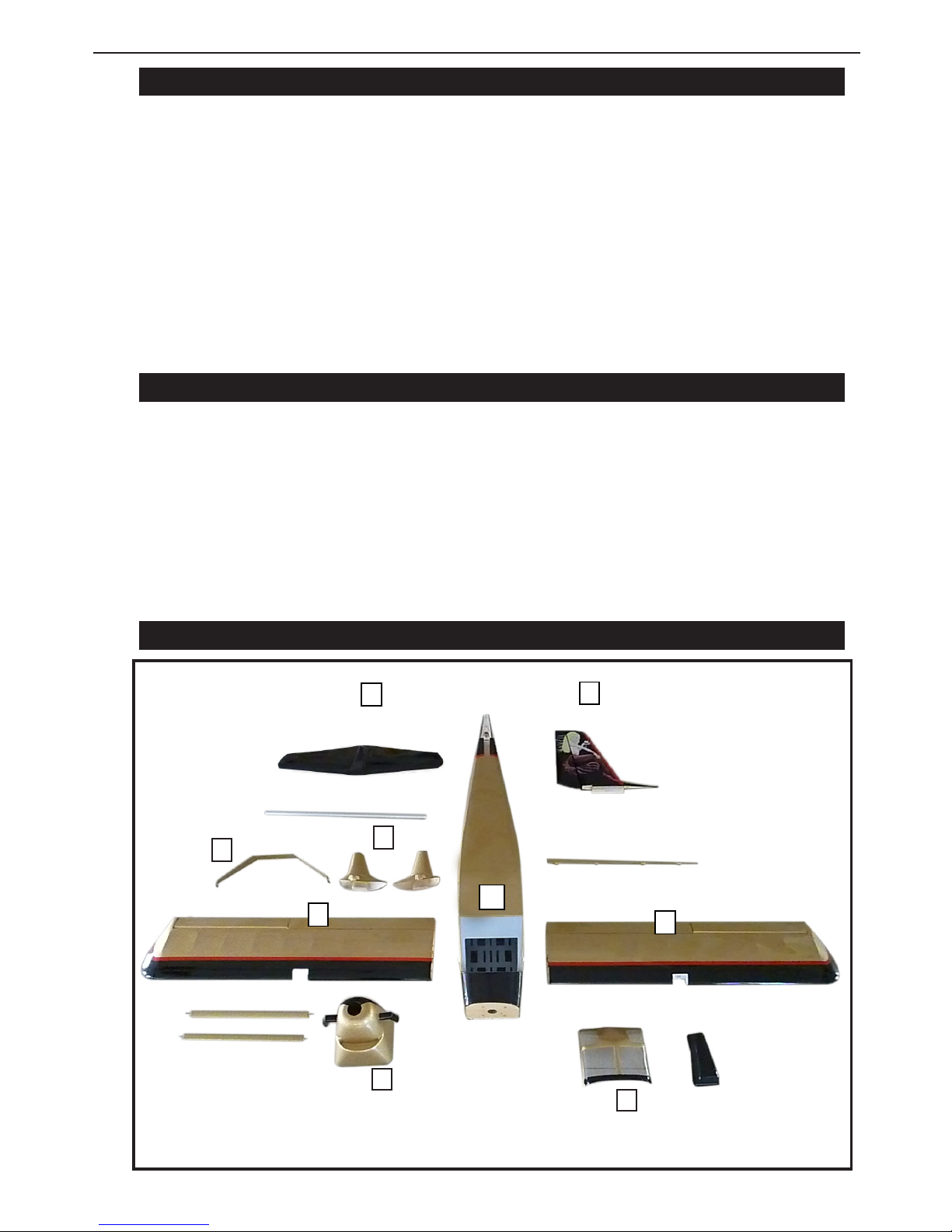

KIT CONTENTS.
SEA268 BEAVER TURBIN
1. Fuselage
2. Wing set
3. Tail set
4. Canopy
5. Cowling
6. Gear cover
7. Landing gear
ADDITIONAL ITEMS REQUIRED.
TOOLS & SUPPLIES NEEDED.
HINGING THE FLAP.
.
� 20cc - 30cc gasoline engine.
� Computer radio with 9 servos.
� Glow plug to suit engine.
� Propeller to suit engine.
� Protective foam rubber for radio
system.
in cyanoacrylate glue.
Medium cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
read-lock.
Paper towels.
2x10mm
Page 4
Beaver Turbin
Instruction Manual.
4

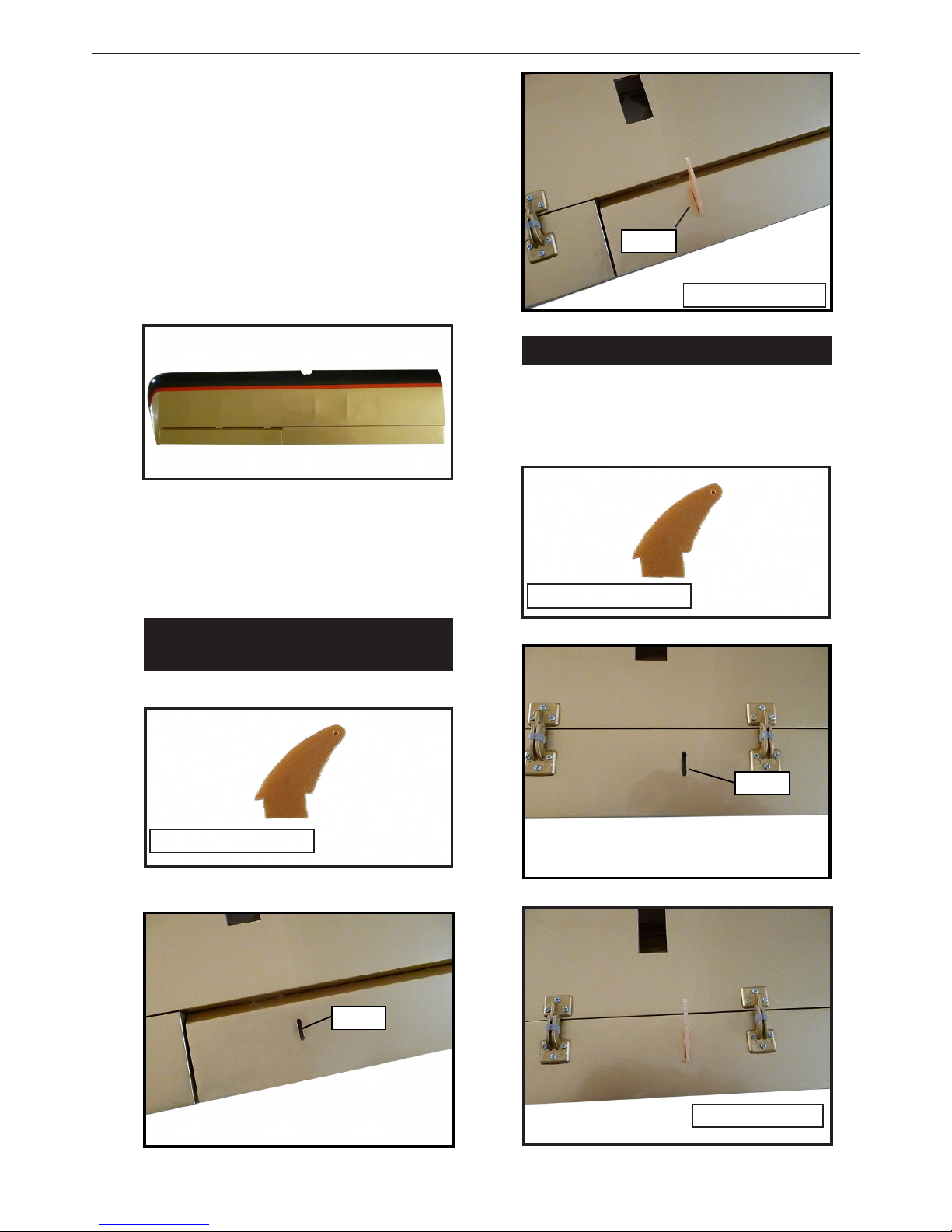

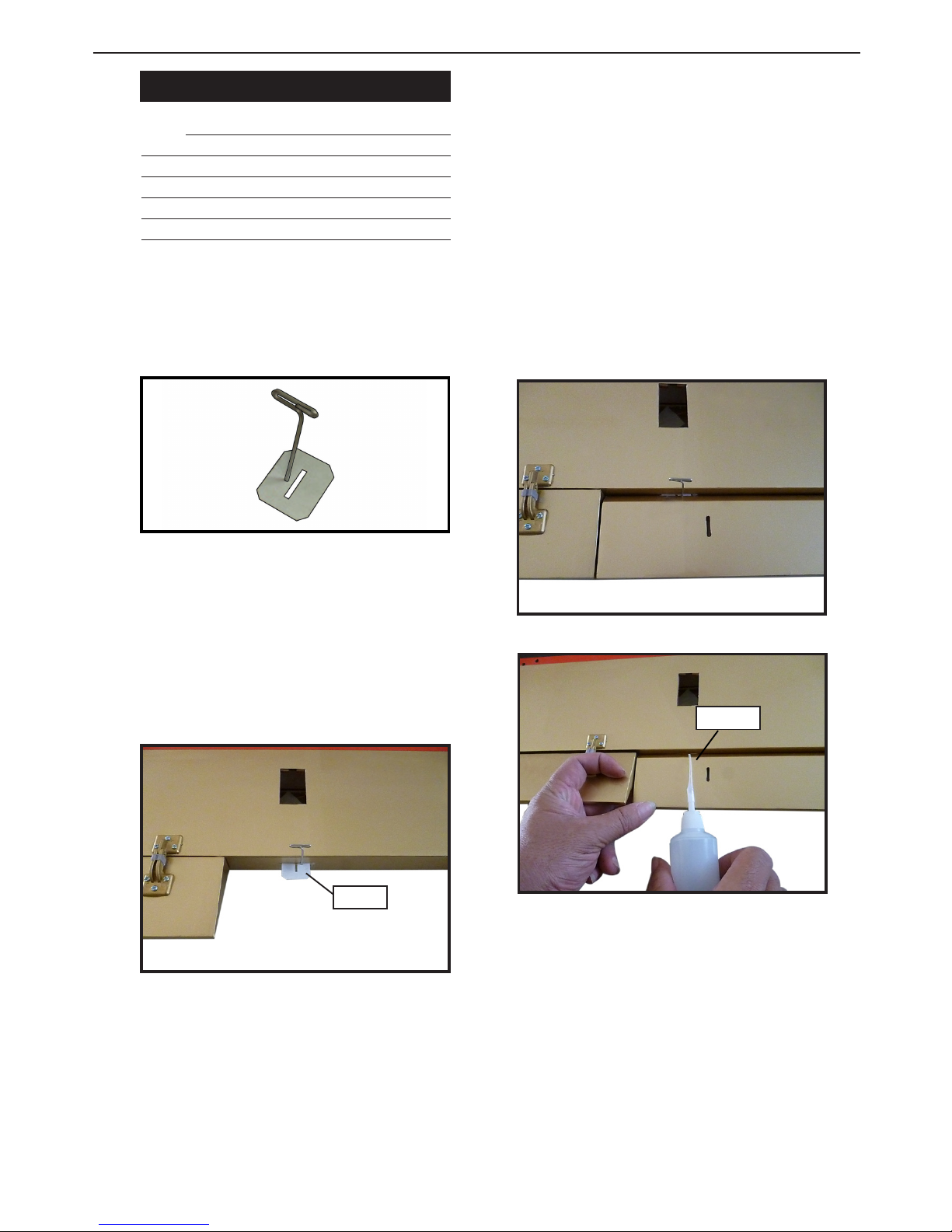

HINGING THE AILERON.
Note : e control surfaces, including the ai-
lerons, elevators, and rudder, are prehinged
with hinges installed, but the hinges are not
glued in place. It is imperative that you properly adhere the hinges in place per the steps
that follow using a high-quality thin C/A glue.

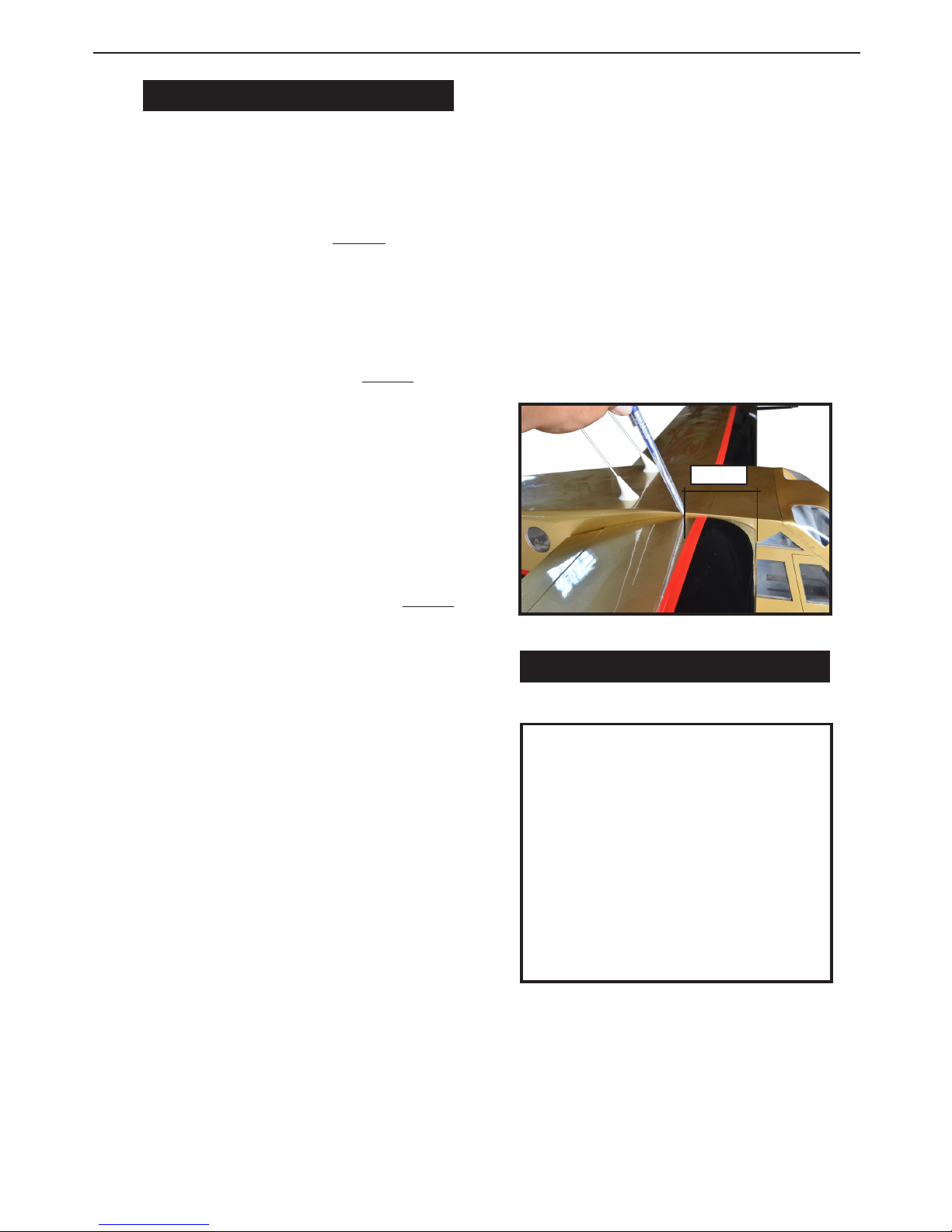

1) Carefully remove the aileron from one
of the wing panels. Note the position of the
hinges.
2) Remove each hinge from the wing panel
and aileron and place a T-pin in the center of
each hinge. Slide each hinge into the wing
panel until the T-pin is snug against the wing
panel. is will help ensure an equal amount
of hinge is on either side of the hinge line
when the aileron is mounted to the aileron.
3) Slide the wing panel on the aileron until
there is only a slight gap. e hinge is now
centered on the wing panel and aileron. Remove the T-pins and snug the aileron against
the wing panel. A gap of 1/64” or less should
be maintained between the wing panel and
aileron.
Hinge.
4) Deect the aileron and completely saturate each hinge with thin C/A glue. e ailerons front surface should lightly contact the
wing during this procedure. Ideally, when
the hinges are glued in place, a 1/64” gap or
less will be maintained throughout the lengh
of the aileron to the wing panel hinge line.
NOTE : e hinge is constructed of a special material that allows the C/A to wick
or penetrate and distribute throughout
the hinge, securely bonding it to the wood
structure of the wing panel and aileron.
in CA.
5) Turn the wing panel over and deect the
aileron in the opposite direction from the
opposite side. Apply thin C/A glue to each
hinge, making sure that the C/A penetrates
into both the aileron and wing panel.
6) Using C/A remover/debonder and a paper towel, remove any excess C/A glue that
may have accumulated on the wing or in the
aileron hinge area.
Page 5
5
7) Repeat this process with the other wing
panel, securely hinging the aileron in place.
8) Aer both ailerons are securely hinged,
rmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully applying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
Work the aileron up and down several times to “work in” the hinges
and check for proper movement.
Note :
INSTALL THE AILERONS
CONTROL HORN.
Fiberglass control horn
Fiberglass control horn
Ep ox y.
Ep ox y.
Aileron control horn.
INSTALL FLAP CONTROL HORN.
Install the ap control horn using the
same method as same as the aileron control horns.
Ep ox y.
Flap control horn.
Page 6
Beaver Turbin
Instruction Manual.
6

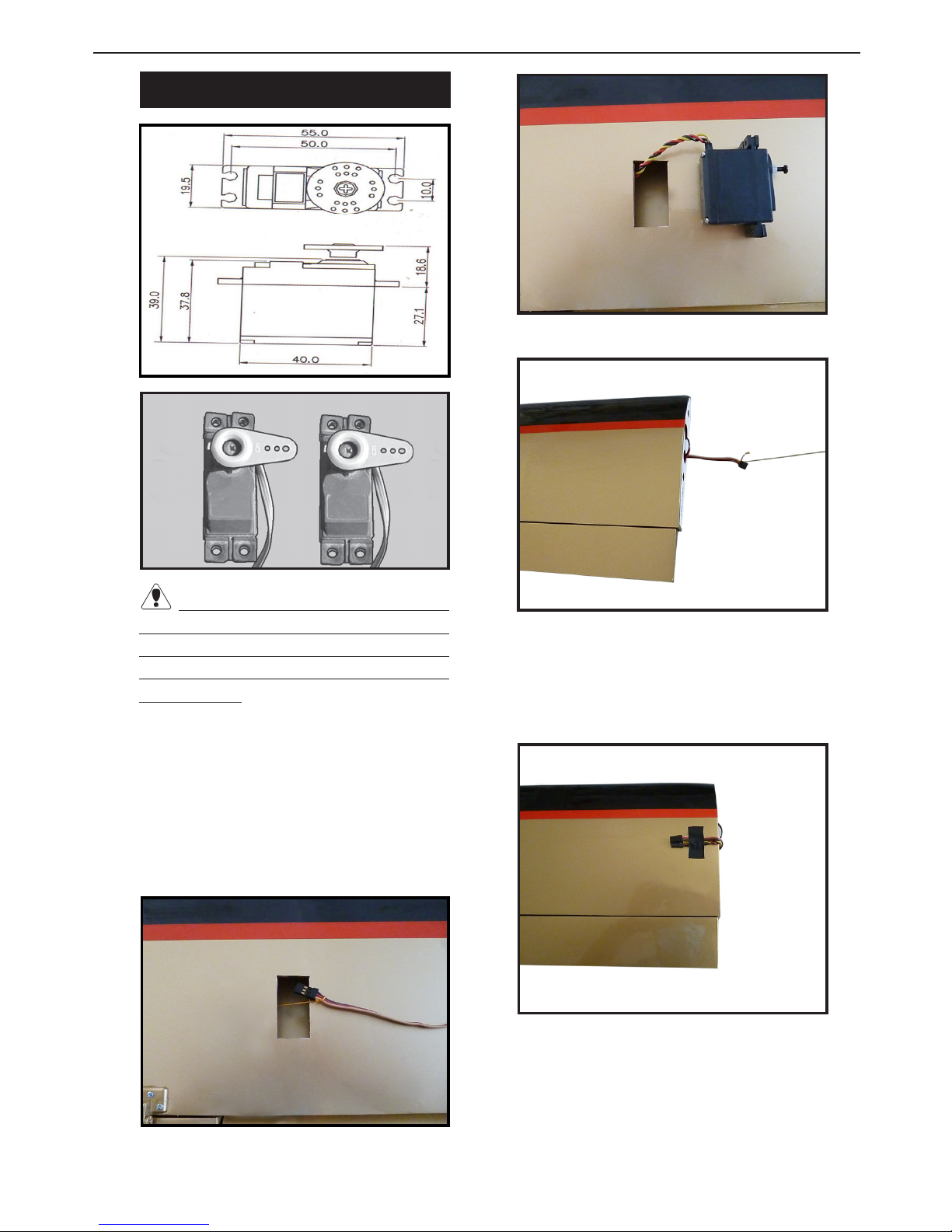

INSTALLING THE AILERON SERVOS.
Because the size of servos dier, you
may need to adjust the size of the precut
opening in the mount. e notch in the
sides of the mount allow the servo lead to
pass through.
2) Tape the servo lead to the wing to prevent it from falling back into the wing
1) Attach servo lead to the aileron servo.
Attach the string to the servo lead and
carefully thread it though the wing. Once
you have thread the lead throught the
wing, remove the string so it can use for
the other servo lead.
3) Set the aileron servo in place and use a
Phillips screw driver to install it with four
wood screws.
Page 7
7
2x10mm

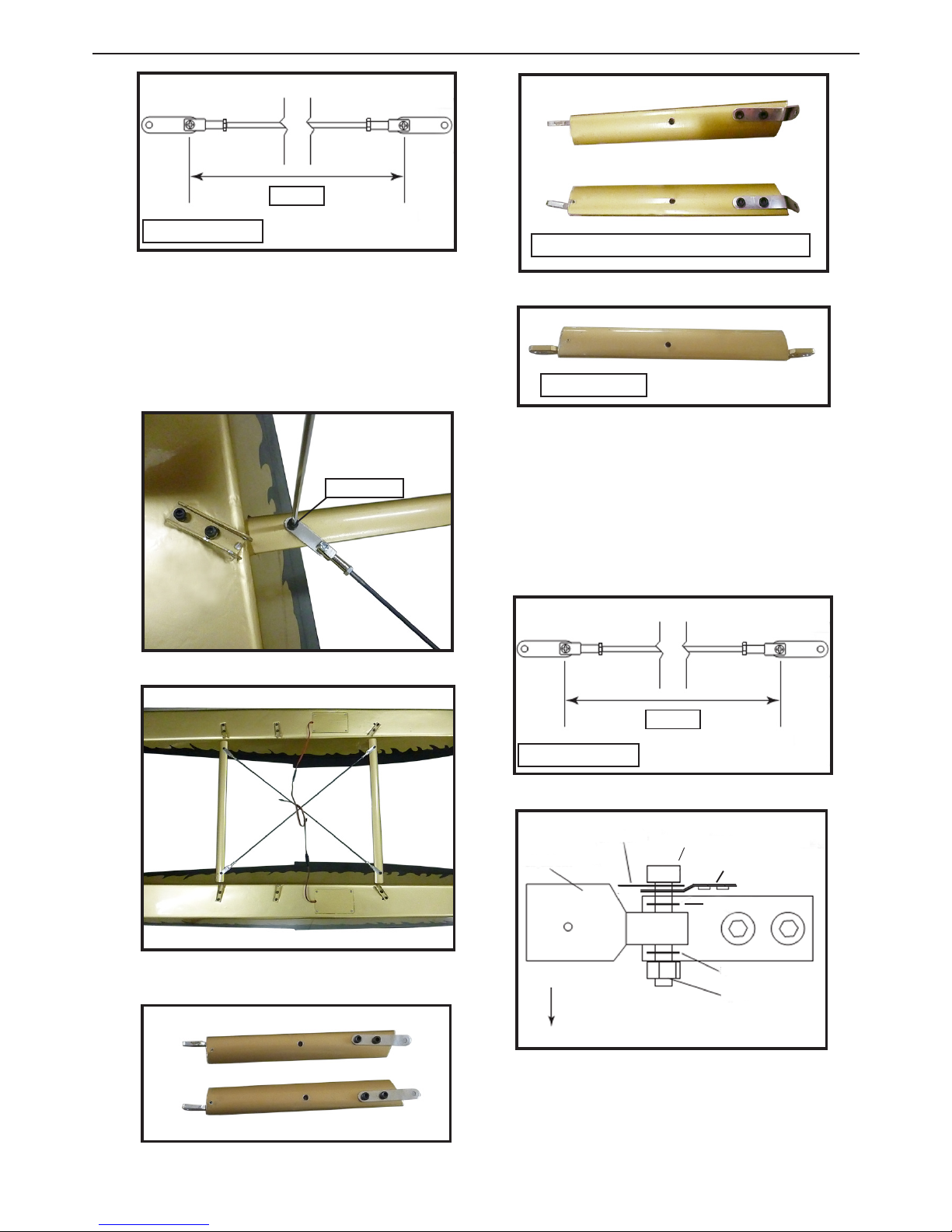

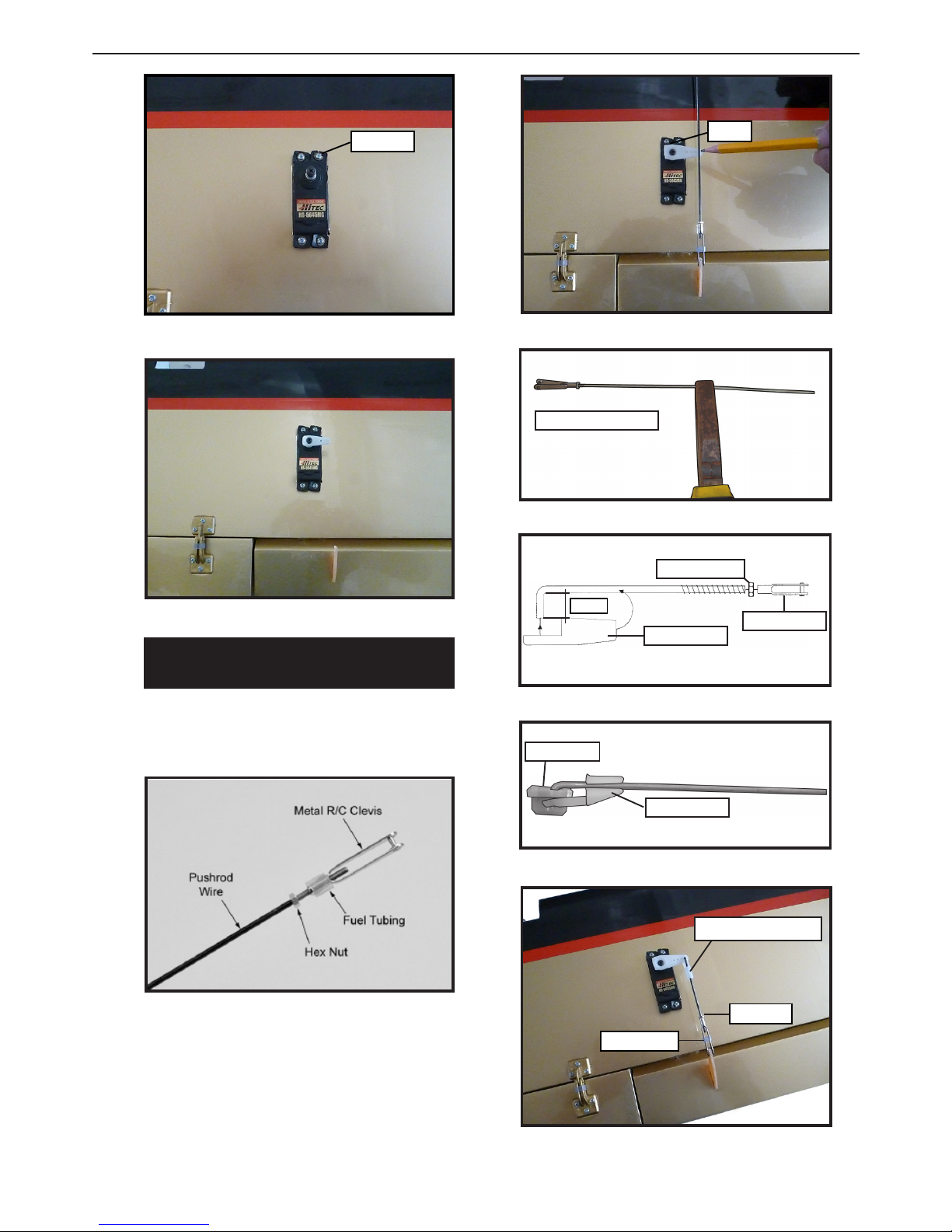

AILERON PUSHROD
INSTALLATION.
Please see below pictures.
Use a felt tip pen to mark the wire where
it crosses the hole. Use a pair of pliers to
put a shrp 90-degree bend in the wire at
the mark.
Mark.
.
Bend at the mark
8mm
M2 lock nut.
Metal clevis.
Snap keeper.
Snap keeper.
Servo arm.
Fuel tubing.
Hex Nut.
Nylon Snap keeper.
Page 8
Beaver Turbin
Instruction Manual.
8
.

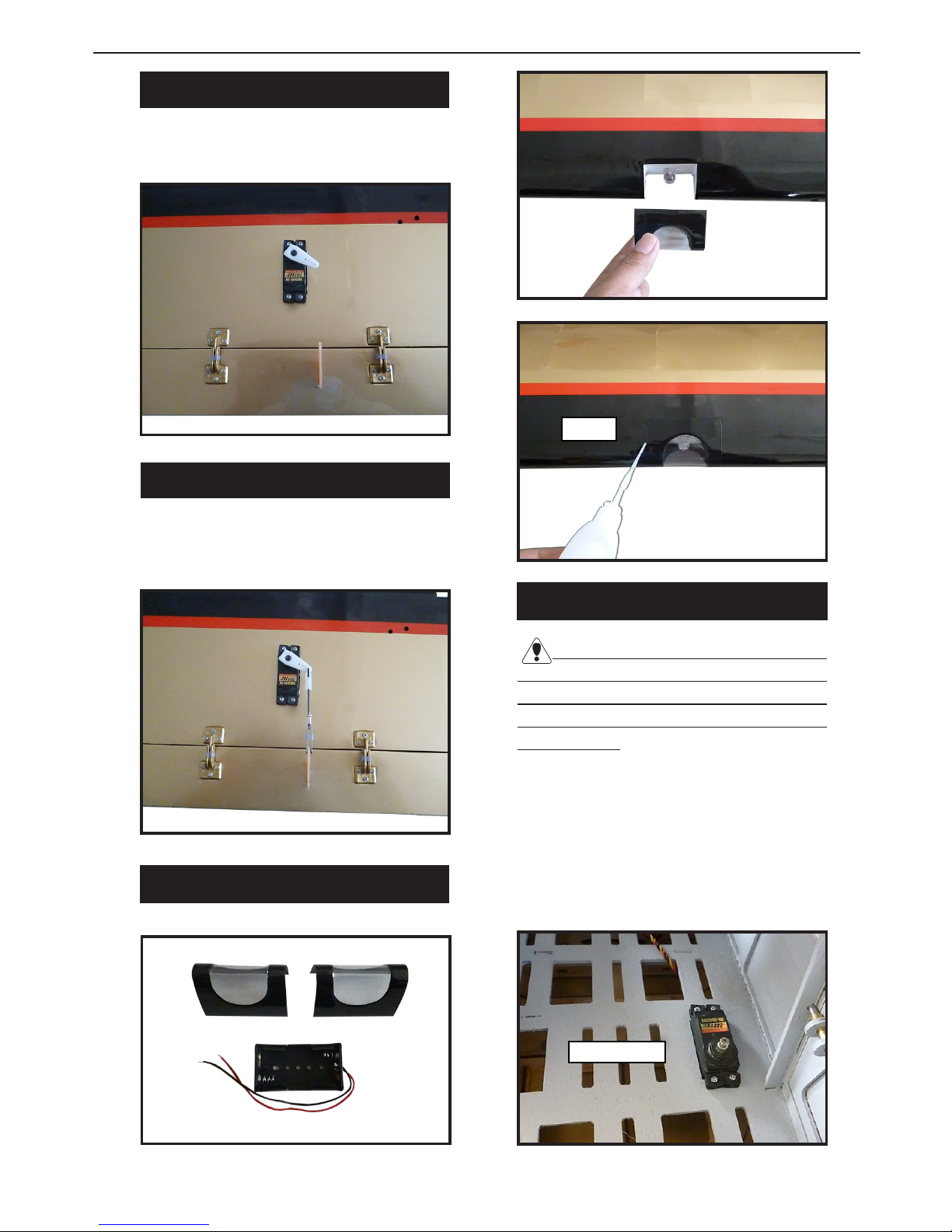

INSTALLING THE FLAP SERVO.
Repeat the procedure for the ap servo.
INSTALLING THE FLAP PUSHROD.
LIGHT COVER.
Repeat the procedure for the aileron
pushrod.

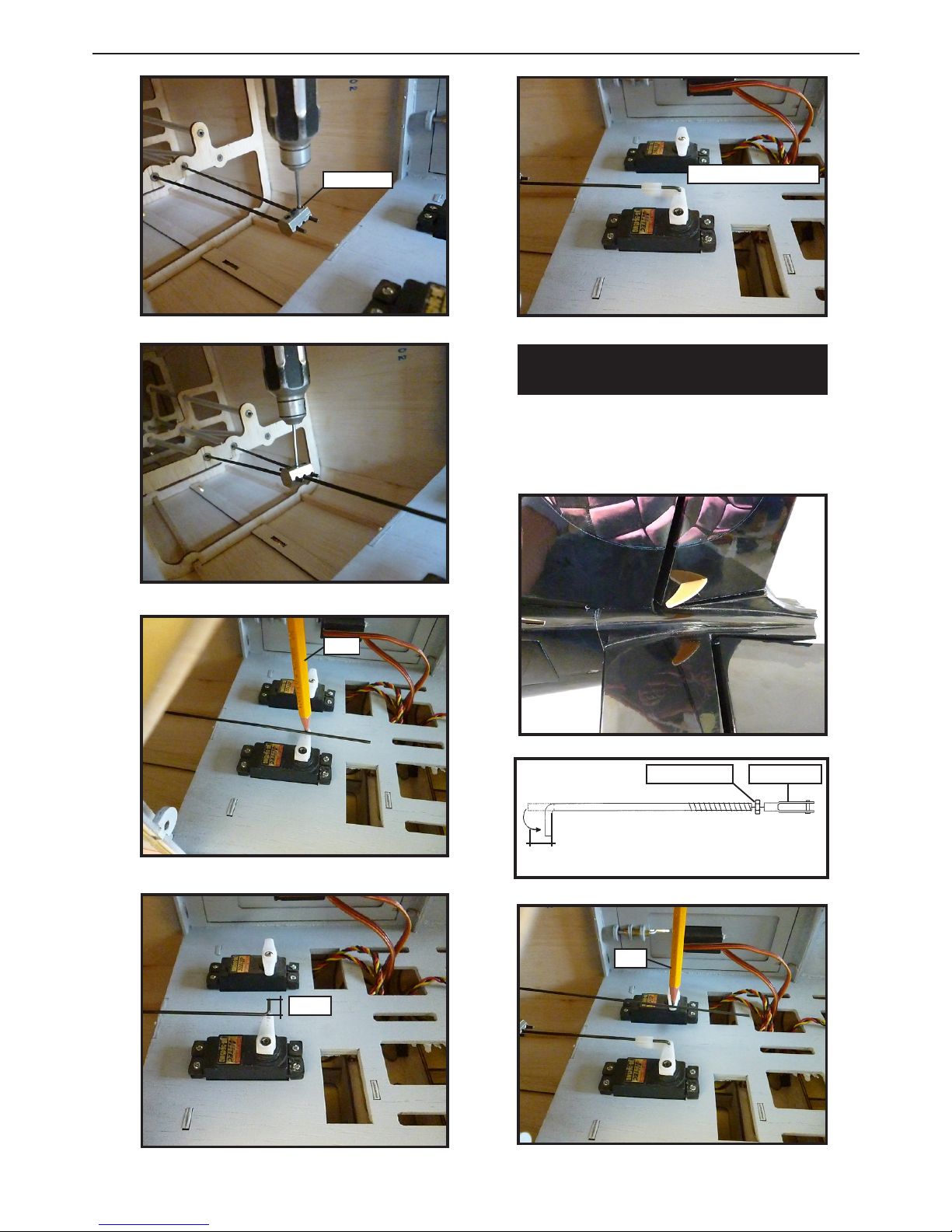

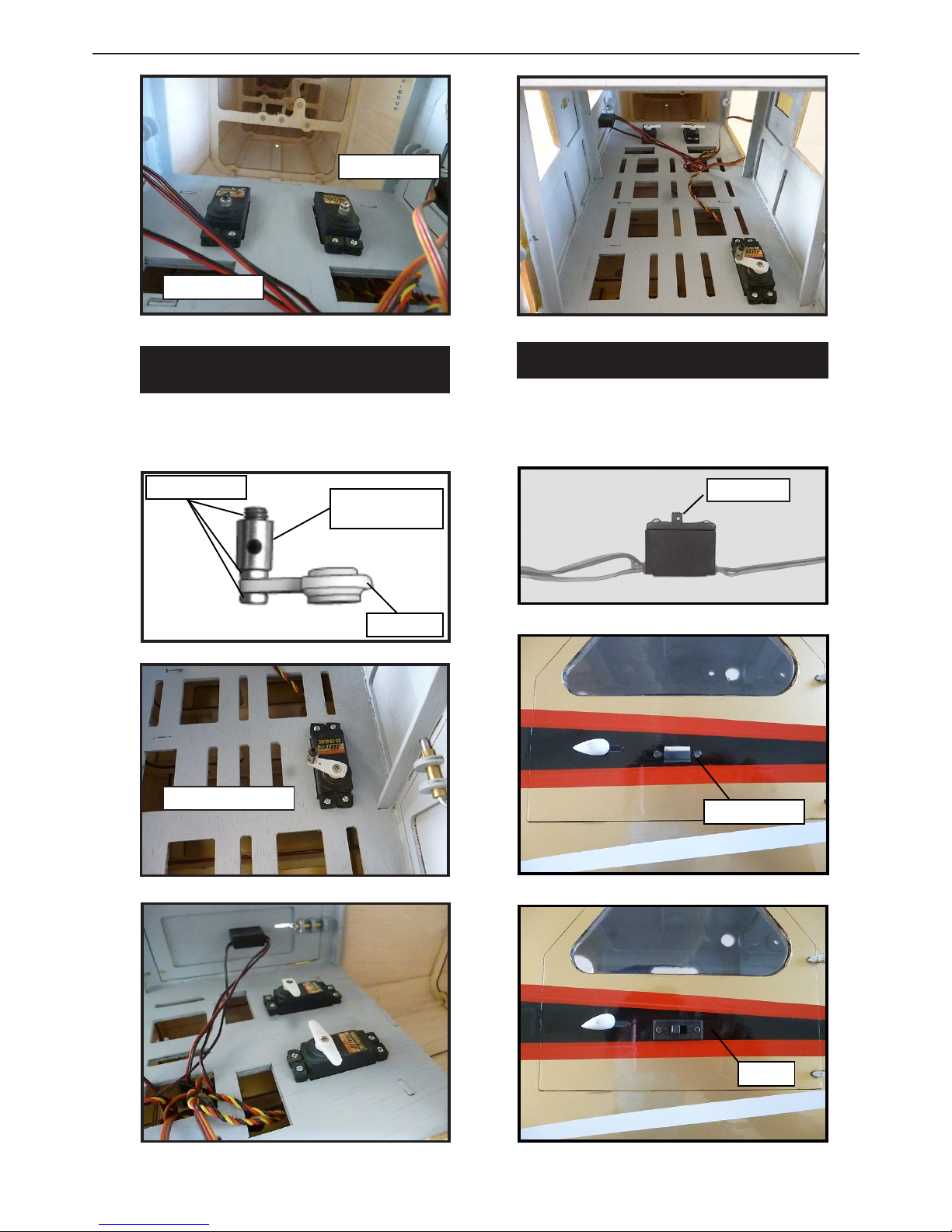

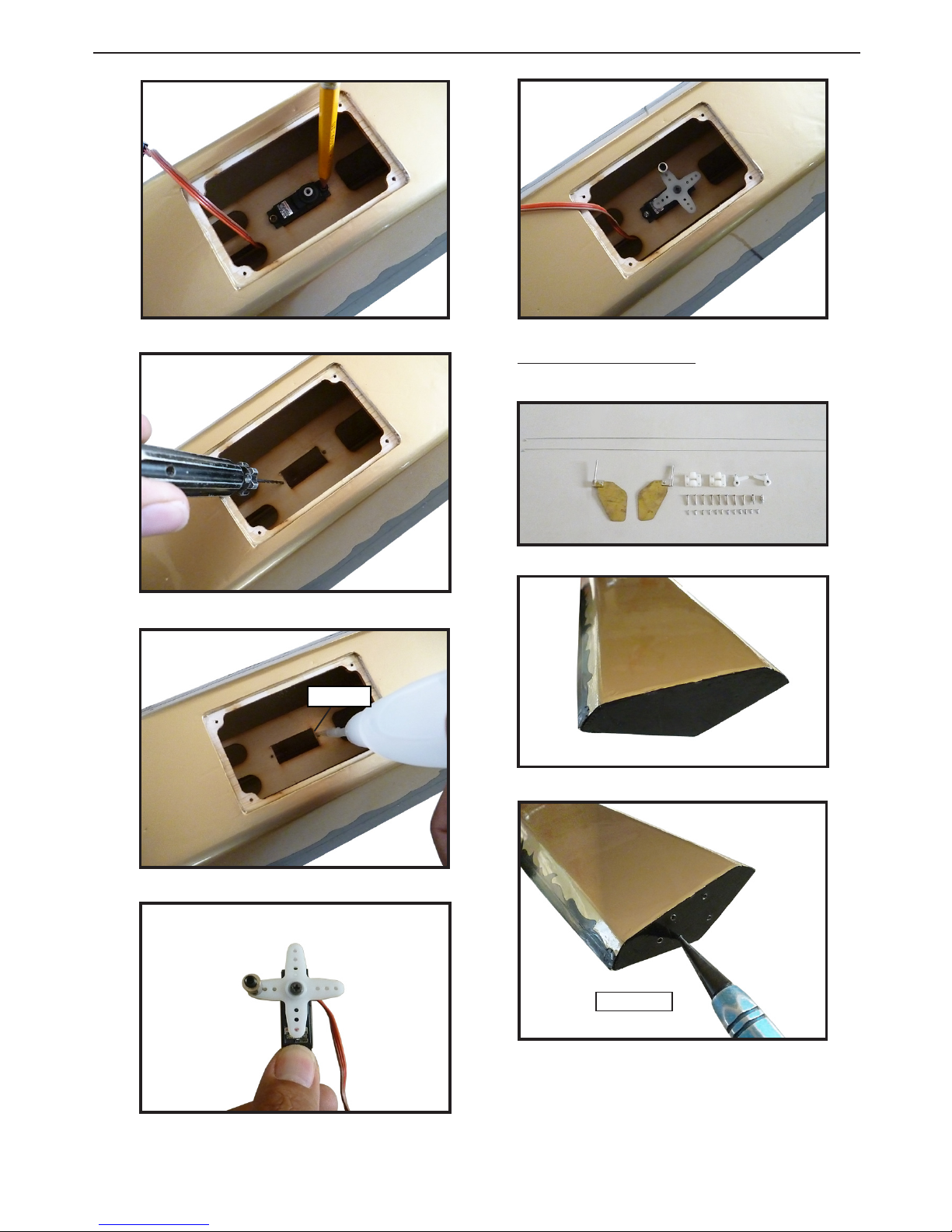

INSTALLING THE FUSELAGE SERVOS.
.
Because the size of servos dier, you
may need to adjust the size of the precut
opening in the mount. e notch in the
sides of the mount allow the servo lead to
pass through.
1) Install the rubber grommets and brass
collets onto all servos. Test t the servos
into the servo mounts.
2) Secure the servos with the screws provided with your radio system.
rottle servo.
Ep ox y.
Page 9
9
Elevator servo.
Rudder servo.
THROTTLE SERVO ARM
INSTALLATION.
Install adjustable servo connector in the
servo arm as same as picture below:
Servo arm.
Adjustable servo
connector.
Loctite secure.
rottle servo arm.

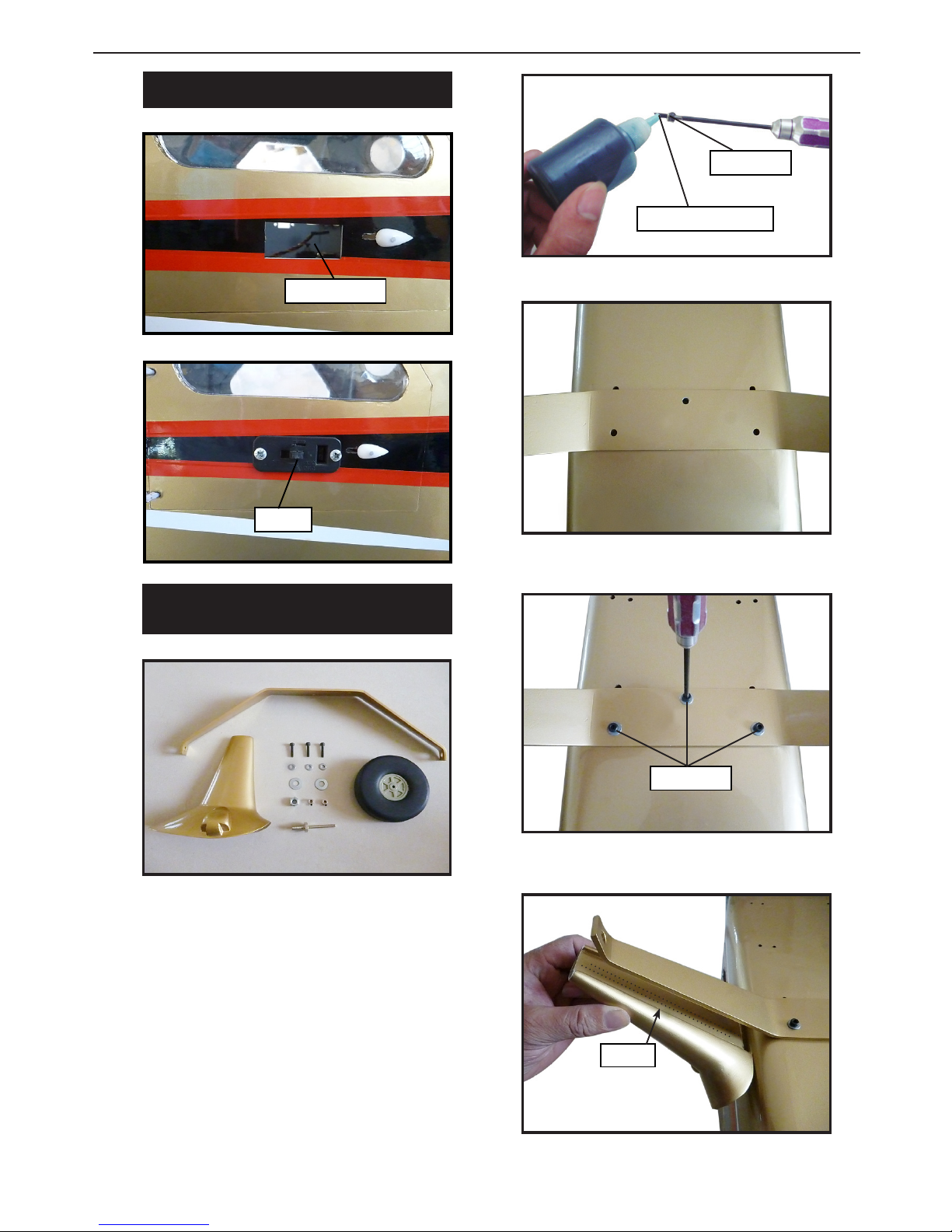

Install the switch into the precut hole in
the side, in the fuselage.
3/32” Hole.
Trim and cut.
INSTALLING THE RECEIVER SWITCH.
.
Switch.
Page 10
Beaver Turbin
Instruction Manual.
10
INSTALLING THE ENGINE SWITCH.
Trim and cut.
Switch.
1) Using the hardware provided, mount
the main landing gear to the fuselage.
2) Place the fuselage inverted on the
workbench in a suitable stand. Set the
landing gear in place and use a screwdrive to secure the landing gear to the fuselage using bolts M4x20mm and washers. Make sure to use the threadlock on
the bolts so they don’t vibrate loose.
INSTALLING THE MAIN LANDING
GEAR TO FUSELAGE.
M4x20mm
read locker glue.
M4x20mm
Ep ox y.

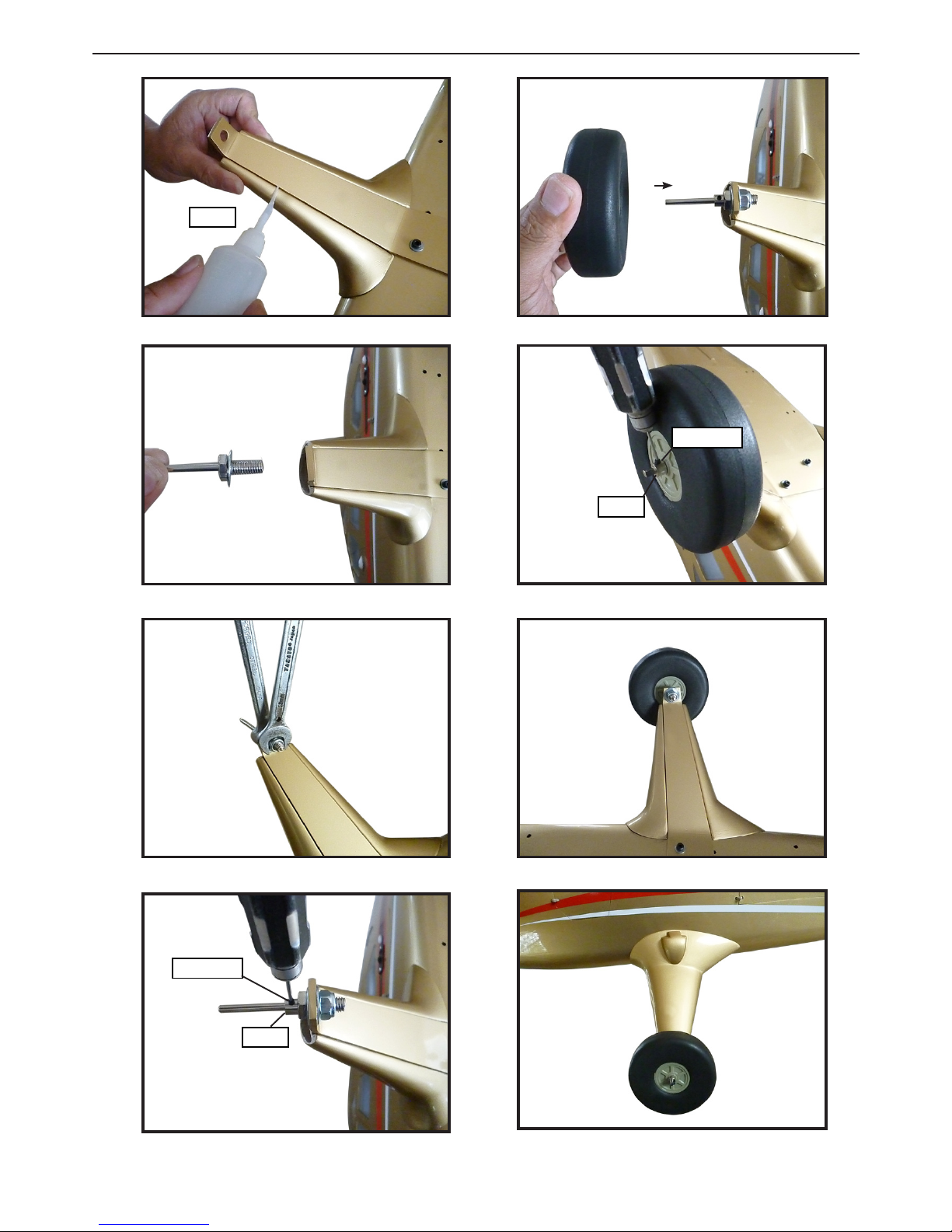

Page 11
11
Col l ar.
Col l ar.
M3x4mm
Ep ox y.
M3x4mm
Page 12
Beaver Turbin
Instruction Manual.
12
INSTALLING THE STOPPER
ASSEMBLY.
1) Using a modeling knife, carefully cut
o the rear portion of one of the 3 nylon
tubes leaving 1/2” protruding from the
rear of the stopper. is will be the fuel
pick up tube.
2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of
the line to the weighted fuel pick up and
the other end to the nylon pick up tube.
A
B
3) Carefully bend the second tube up at a 45º
angle. is tube is the vent tube.
4) Test t the stopper assembly into the tank.
It may be necessary to remove some of the
ashing around the tank opening using a
modeling knife. If ashing is present, make
sure none falls into the tank.
5) With the stopper assembly in place, the
weighted pick-up should rest away from the
rear of the tank and move freely inside the
tank. e top of the vent tube should rest just
below the top of the tank. It should not touch
the top of the tank.
6) When satised with the alignment of the
stopper assembly tighten the 3 x 20mm machine screw until the rubber stopper expands
and seals the tank opening. Do not overtighten the assembly as this could cause the
tank to split.

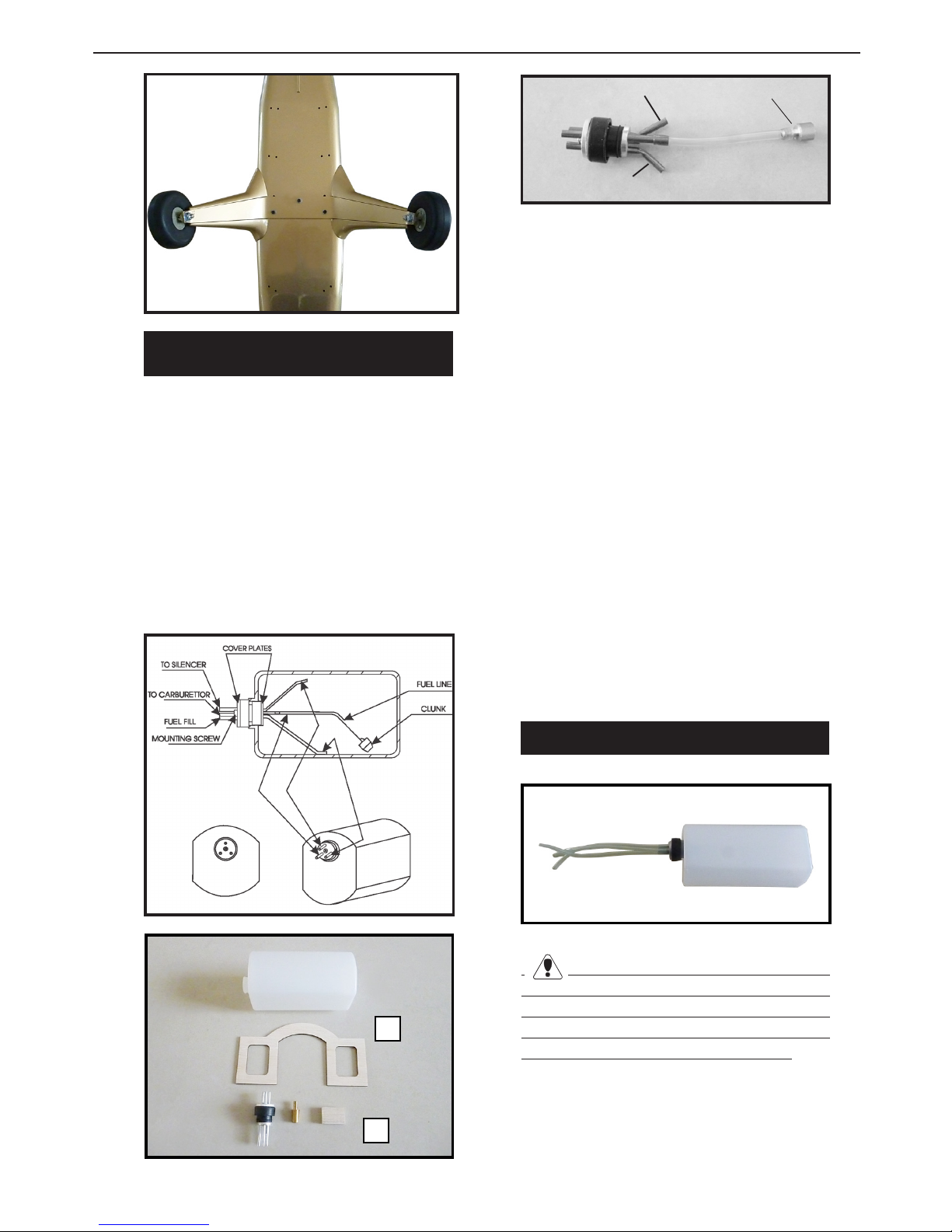

FUEL TANK INSTALLATION.
Vent tube.
Fuel pick up tube.
Fuel fill tube.
You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once
the tank is installed inside the fuselage, it may
be dicult to determine which is which.
7) Slide the fuel tank into the fuselage. Guide
the lines from the tank through the hole in
the rewall.
Page 13
13
C/A glue.
A
8) Connect the lines from the tank to the engine and muer. e vent line will connect
to the muer and the line from the clunk to
the carburetor.
Vent tube.
Fuel pick up tube.
Fuel ll tube.
Balsa wood.
C/A glue.
B
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should ow
through easily.
.

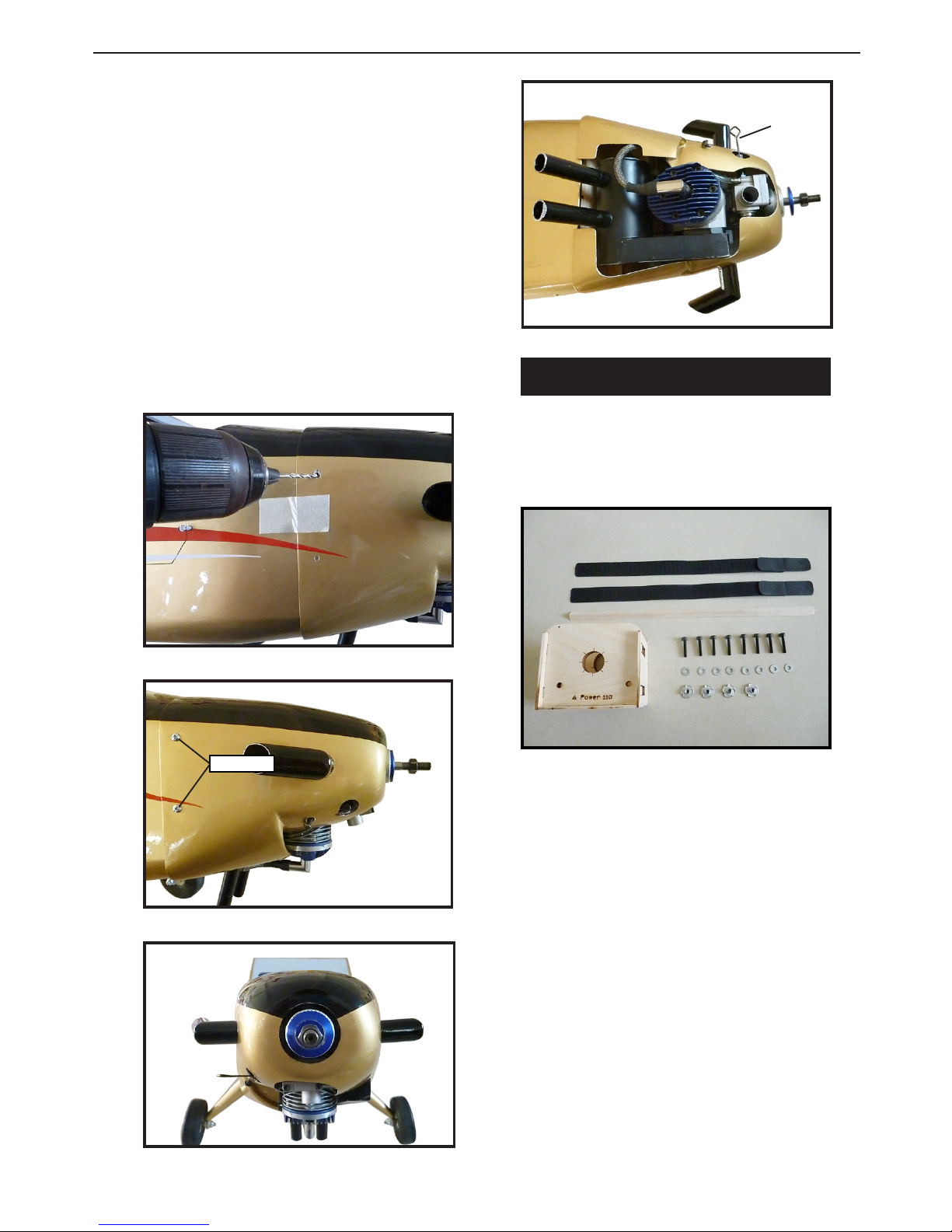

ENGINE MOUNT INSTALLATION.
1) Locate the items necessary to install
the engine mount included with your
model.
4x30mm
2) Use four 4x30mm head bolts and four
4mm washers to attach the engine mount
rails to the rewall. Tighten the screws .
Make sure to use threadlock on the screws to
help prevent them from vibrating loose.
read locker glue.
MOUNTING THE ENGINE.

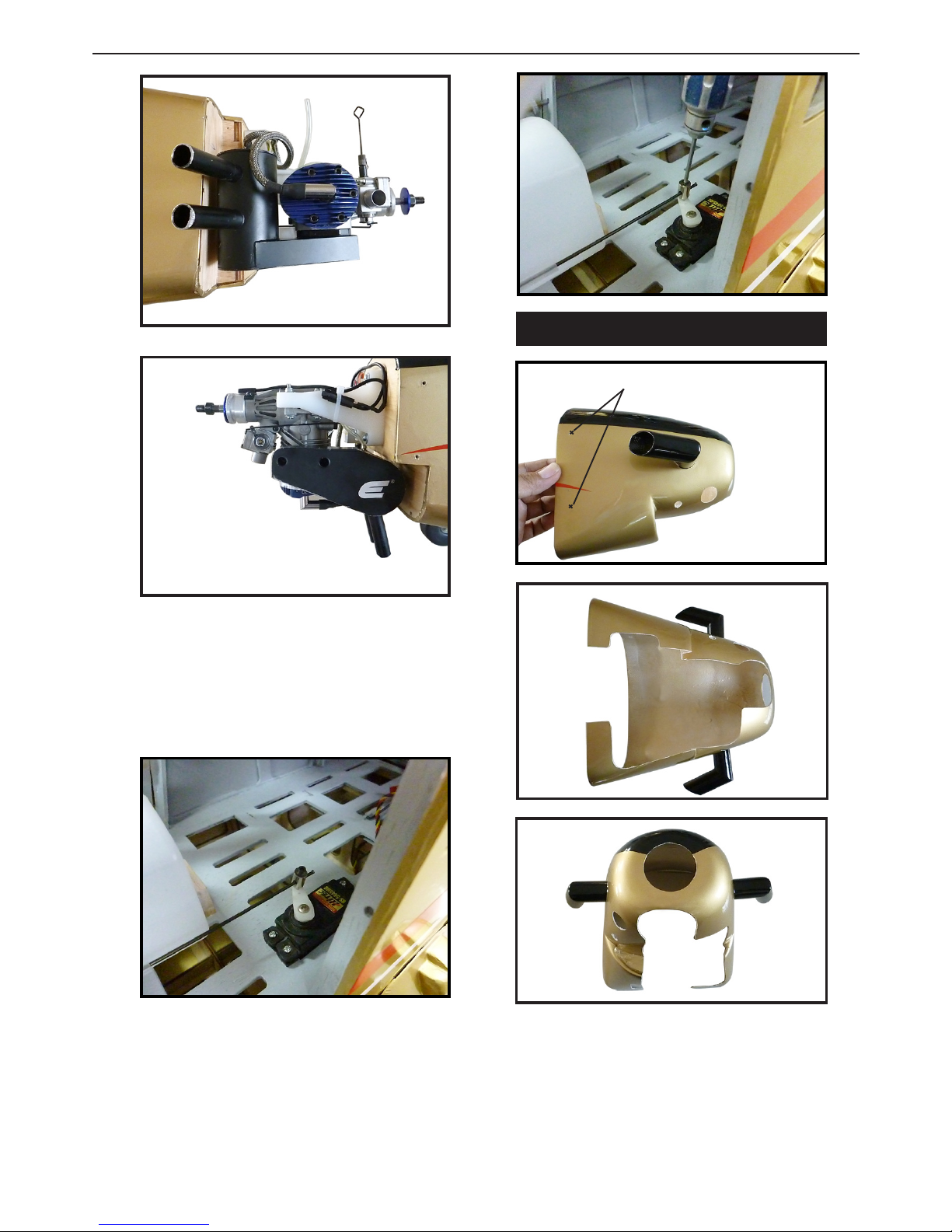

1) Position the engine with the drive
washer (145mm) forward of the rewall
as shown.
Page 14
Beaver Turbin
Instruction Manual.
14
145mm

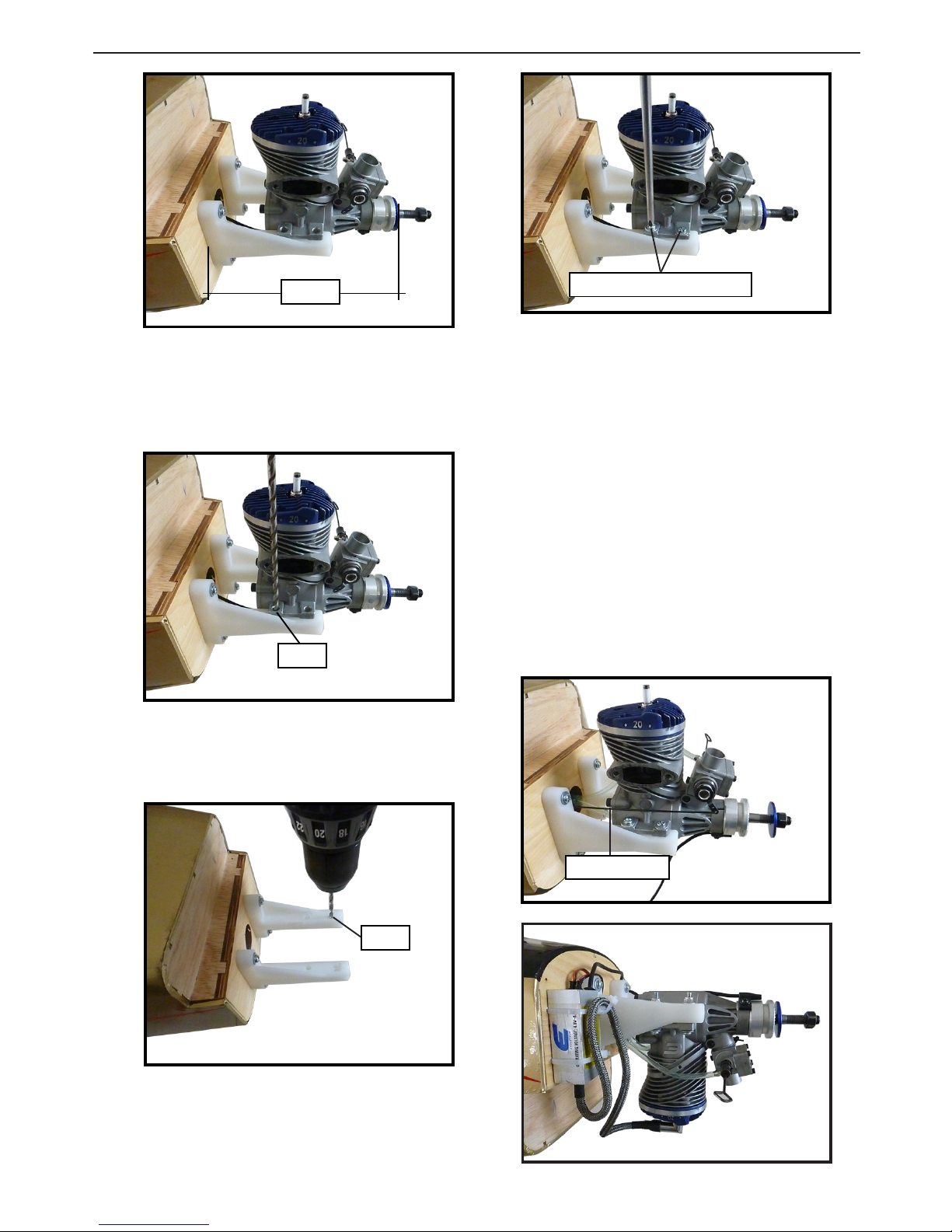

2) Use a pin drill and 4mm drill bit to
drill a small indentation in the mount for
the engine mounting screw.
3) Use a drill to drill the four holes in the
engine mount rails.
4mm
4mm
4) On the re wall has the location for the
throttle pusshrod tube (pre-drill).
5) Slide the pushrod tube in the rewall
and guide it through the fuel tank mount.
Use medium C/A to glue the tube to the
rewall and the fuel tank mount.
Machine screw M4x30mm
Pushrod wire.
6) Connect the Z-bend in the 450mm
throttle pushrod to the outer hole of the
carburetor arm.
7) Slide the throttle pushrod wire into
the tube. Position the engine between the
mounts. Use four M4x30mm machine
screws to secure the engine to the mount
as shown.
Page 15
15
8) Reinstall the servo horn by sliding the
connector over the pushrod wire. Center the throttle stick and trim and install
the servo horn perpendiular to the servo
center line.
9) Move the throttle stick to the closed position and move the carburetor to closed.
Use a 2.5mm hex wrench to tighten the
screw that secures the throttle pushrod
wire. Make sure to use threadlock on the
screw so it does not vibrate loose.
COWLING.
e mark of holes is made before.
Because of the size of the cowl, it may be necessary to use a needle valve extension for the
high speed needle valve. Make this out of sufcient length 1.5mm wire and install it into
the end of the needle valve. Secure the wire in
place by tightening the set screw in the side of
the needle valve.
Page 16
Beaver Turbin
Instruction Manual.
16

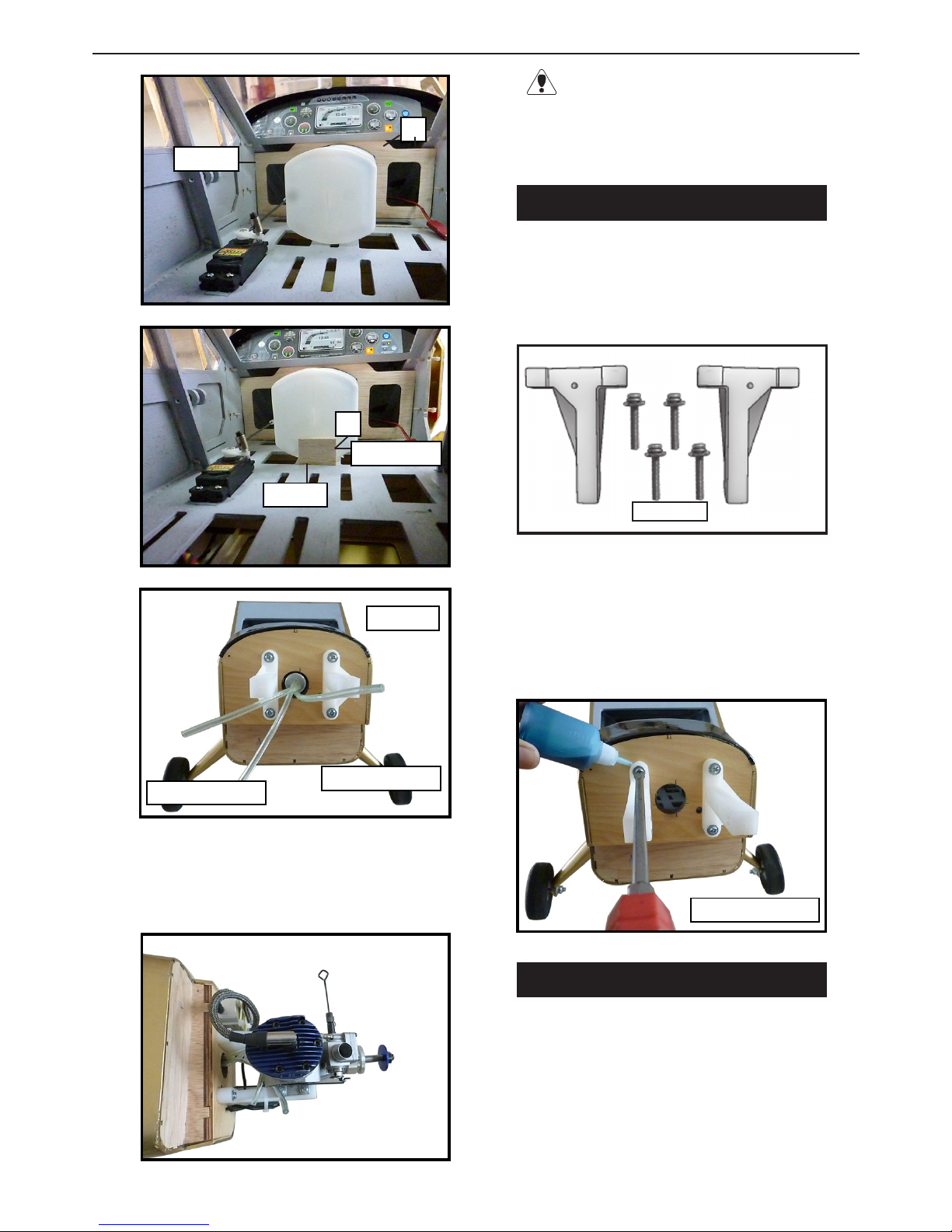

1) With the muer, needle valve, and spark/
glow plug removed from the engine, slide
the cowl in place over the engine. Temporarily install the propeller and spinner in order
to nd the exact location of the cowl. When
satised with the cowl placement, secure the
cowl to the fuselage using masking tape.
Needle valve.
3x10mm
2) Install the muer and muer extension
onto the engine and make the cutout in the
cowl for muer clearance. Connect the fuel
and pressure lines to the carburetor, muer
and fuel ller valve. Secure the cowl to fuselage using the M3x10mm screws.
ELECTRIC POWER CONVERSION.
1) Locate the items necessary to install
the electric power conversion included
with your model.
2) Recommend the items necessary to install the electric power conversion parts
included with your model.

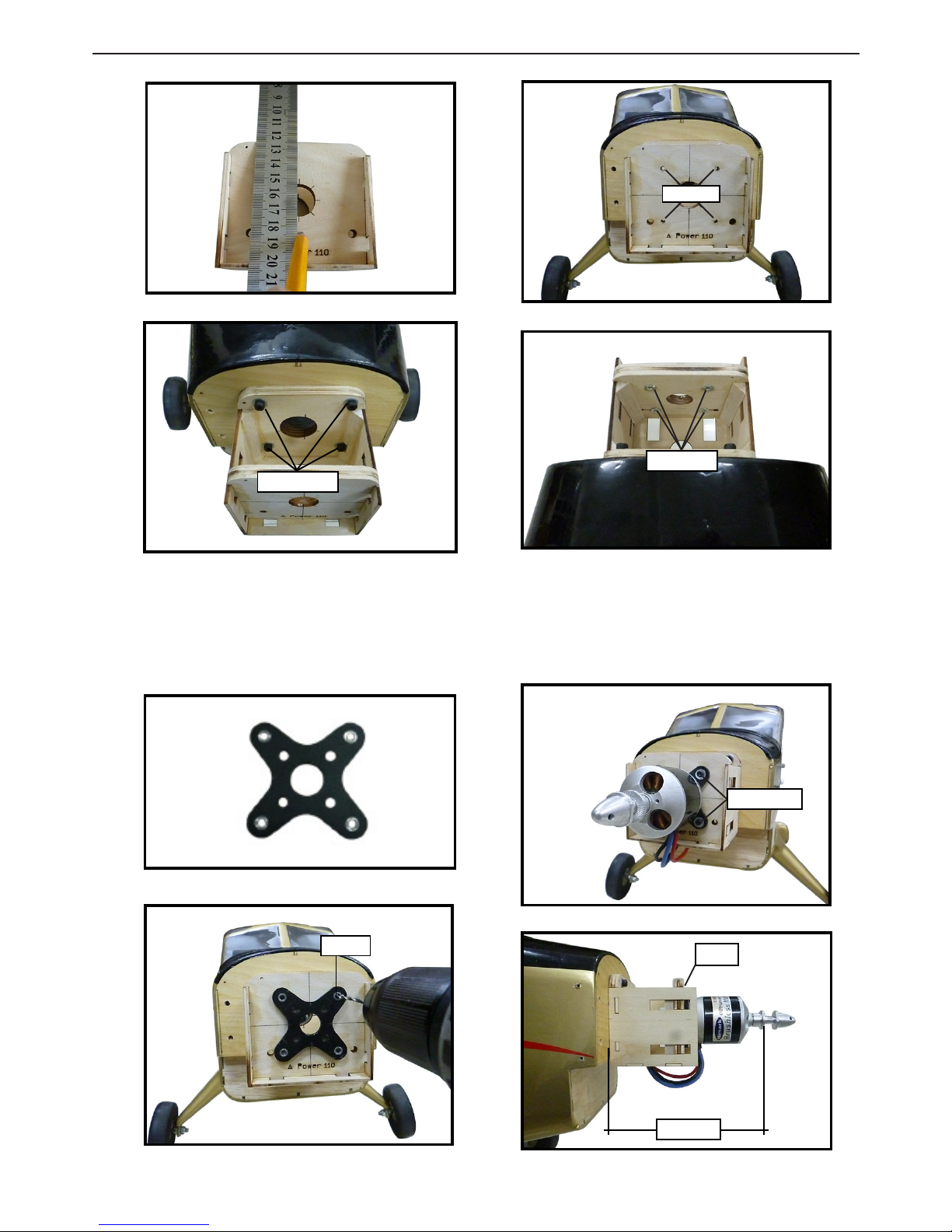

3) Attach the electric motor box to the
rewall suitable with the cross lines
drawn on the electric motor box and rewall. Using M4x20mm to secure the motor box to the rewall. Please see pictures
below.
- Motor: 2000 - 2700 Watt
- Propeller: 17x 8 ~ 19x10
- ESC: 85A-110A
- Lipo Batteries: 8S - 10S
Page 17
17
4) Attach the motor to the front of the
electric motor box using four 4mm blind
nut, four M4x20mm hex head bolts to secure the motor. Please see picture shown.
M4x20mm
4 mm
.
Blind nut.
5) Attach the motor to the front of the
electric motor box using four 4mm blind
nut, four M4x20mm hex head bolts to secure the motor. Please see picture shown.
M4x20mm
5.5 mm
145mm
Epoxy
Page 18
Beaver Turbin
Instruction Manual.
18

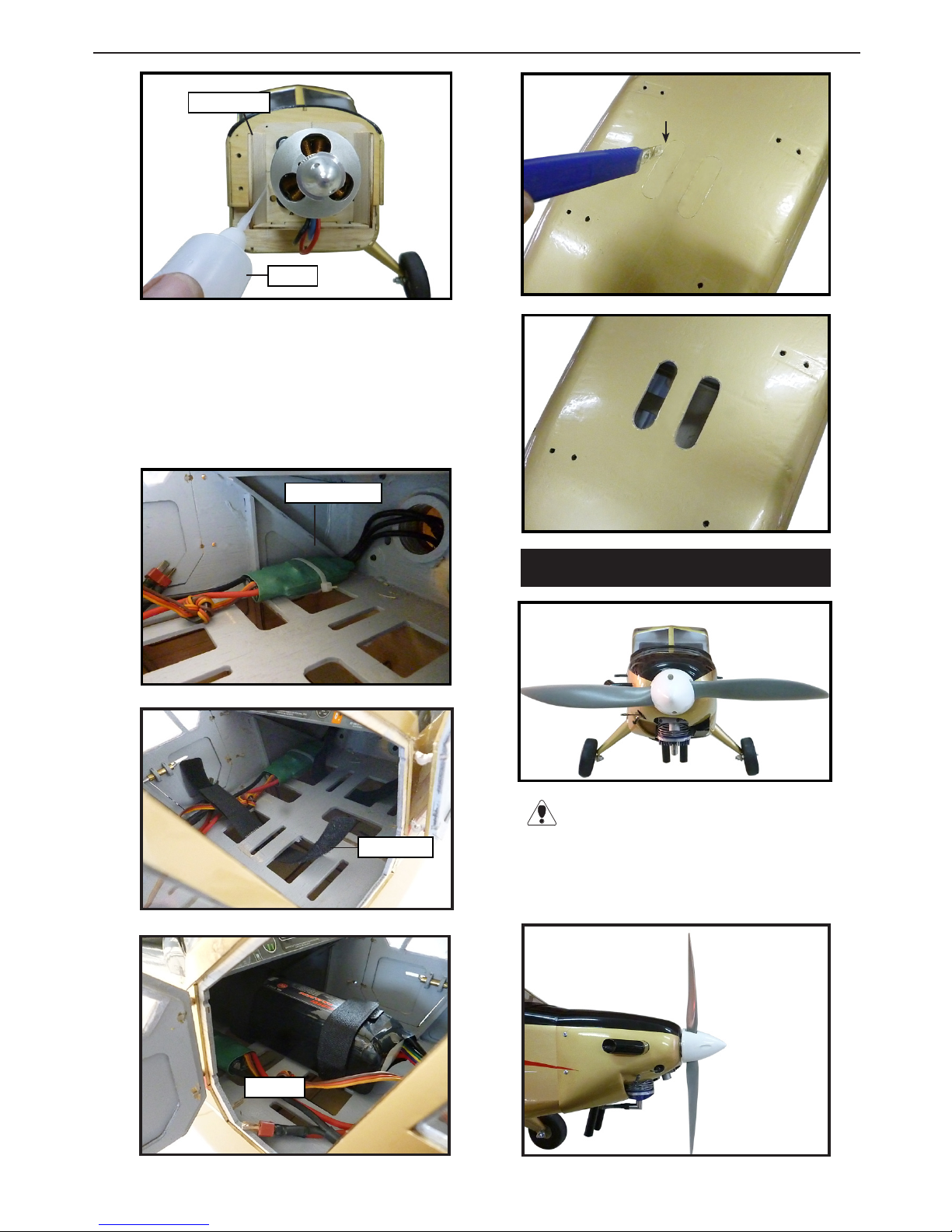

Balsa stick.
Epoxy
6) Attach the speed control to the side
of the motor box using two-sided tape
and tie wraps. Connect the appropriate
leads from the speed control to the motor. Make sure the leads will not interfere
with the operation of the motor.
Speed control.
INSTALLING THE SPINNER.
e propeller should not touch any
part of the spinner cone. If it does, use a
sharp modeling knife and carefully trim
away the spinner cone where the propeller comes in contact with it.
Batt e r y.
Tie-wraps.
Open the air exit hole.
Page 19
19

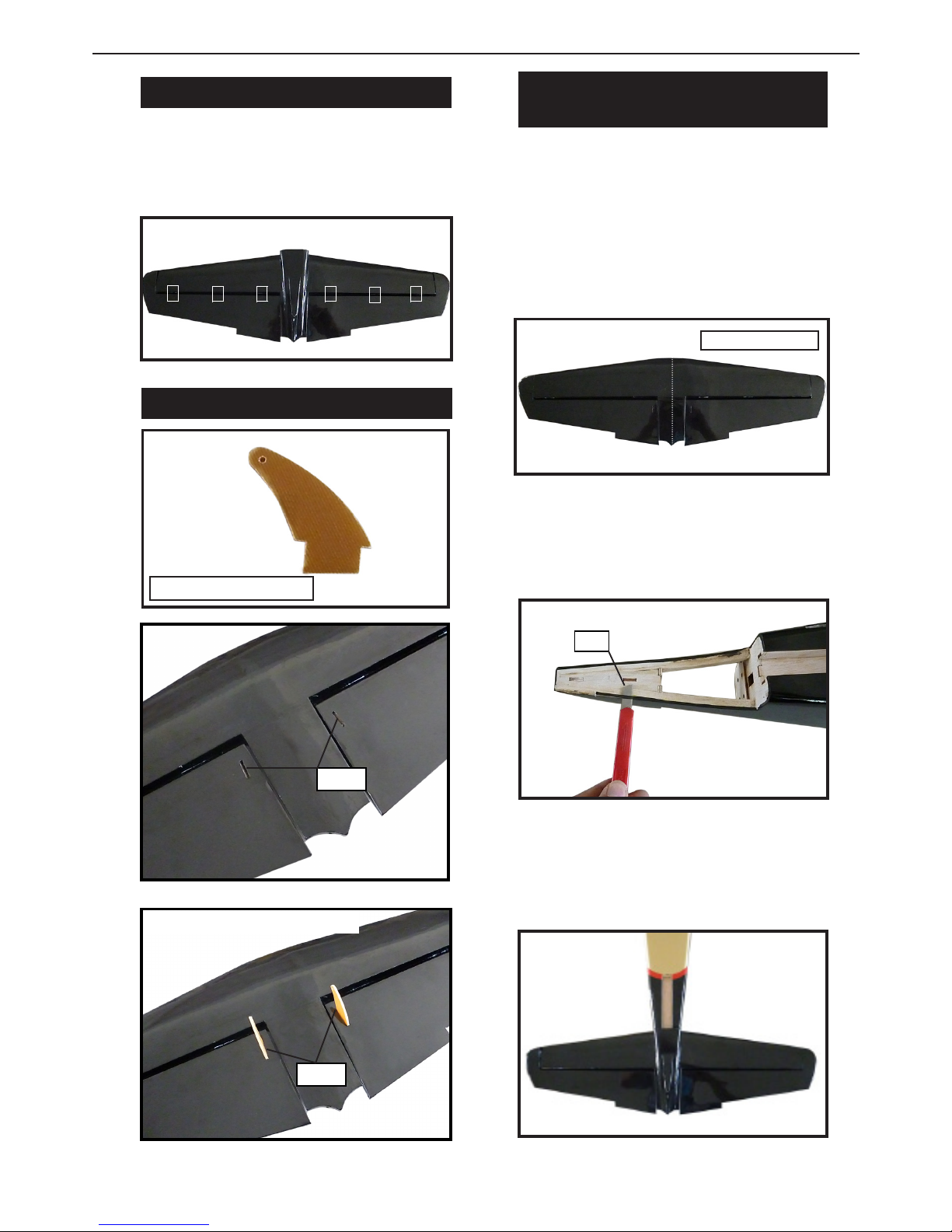

HINGING THE ELEVATOR.
Glue the elevator hinges in place using
the same techniques used to hinge the ailerons.
INSTALL ELEVATOR CONTROL HORN.
Ep ox y.
Elevator berglass control horn.
Ep ox y.
INSTALLING THE HORIZONTAL
STABILIZER.

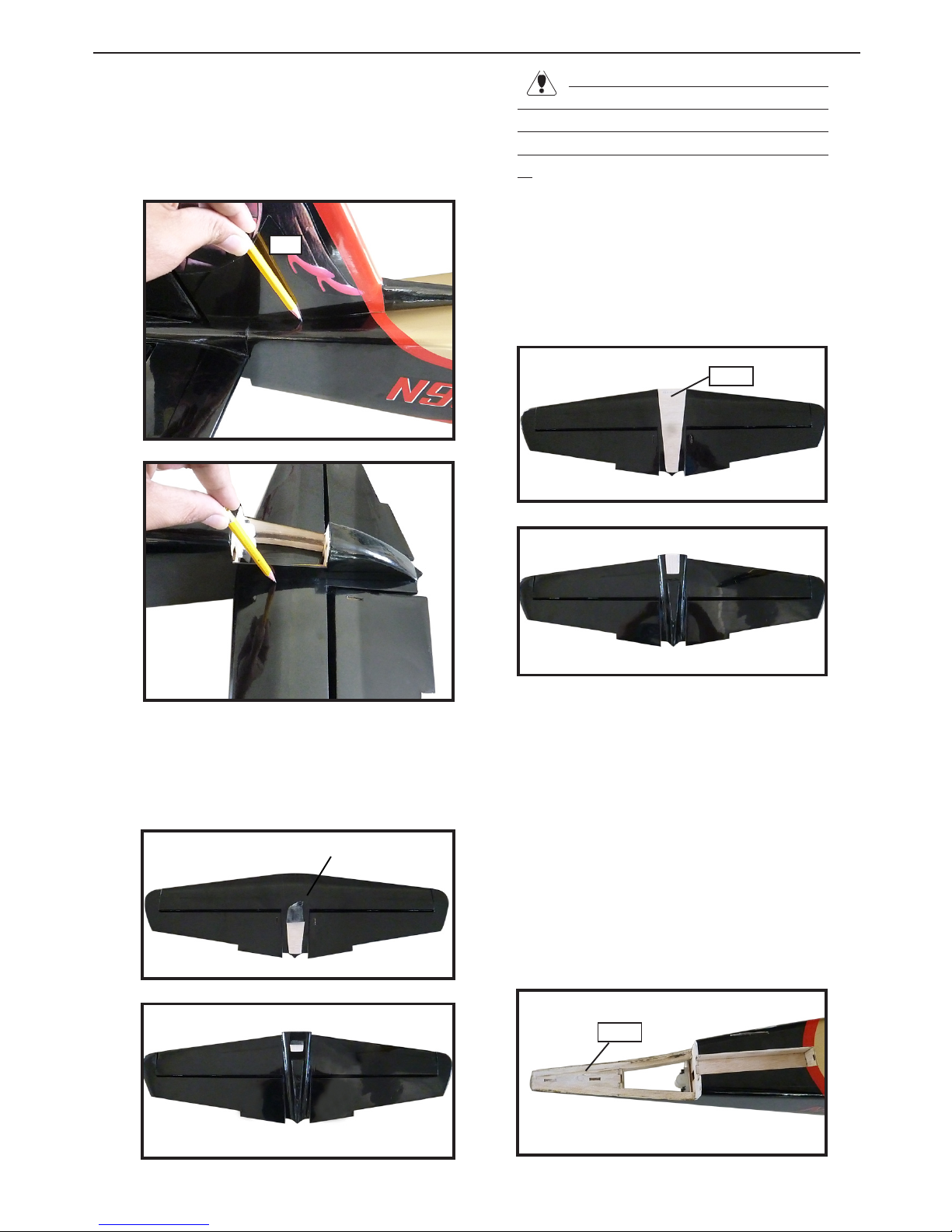

1) Using a ruler and a pen, locate the centerline of the horizontal stabilizer, at the
trailing edge, and place a mark. Use a triangle and extend this mark, from back to
front, across the top of the stabilizer. Also
extend this mark down the back of the
trailing edge of the stabilizer.
2) Using a modeling knife, carefully remove the covering at mounting slot of
horizontal stabilizer ( both side of fuselage).
Draw center line
Cut.
3) Slide the stabilizer into place in the
precut slot in the rear of the fuselage. e
stabilizer should be pushed rmly against
the front of the slot.
Fiberglass control horn
Page 20
Beaver Turbin
Instruction Manual.
20
4) With the stabilizer held rmly in place,
use a pen and draw lines onto the stabilizer where it and the fuselage sides meet.
Do this on both the right and le sides
and top and bottom of the stabilizer.
5) Remove the stabilizer. Using the lines
you just drew as a guide, carefully remove
the covering from between them using a
modeling knife.
When cutting through the covering
to remove it, cut with only enough pressure
to only cut through the covering itself. Cutting into the balsa structure may weaken
it.
Pen
Trim and cut
.
6) Using a modeling knife, carefully remove the covering that overlaps the stabilizer mounting platform sides in the
fuselage. Remove the covering from both
the top and the bottom of the platform
sides.
Epoxy
7) When you are sure that everything is
aligned correctly, mix up a generous
amount of 30 Minute Epoxy. Apply a thin
layer to the top and bottom of the stabilizer mounting area and to the stabilizer
mounting platform sides in the fuselage.
Slide the stabilizer in place and realign.
Double check all of your measurements
once more before the epoxy cures. Hold
the stabilizer in place with T-pins or masking tape and remove any excess epoxy using a paper towel and rubbing alcohol.
Epoxy
Trim and cut
Page 21
21
.
HINGING THE RUDDER.
Glue the rudder hinges in place using
the same techniques used to hinge the ailerons.
INSTALL RUDDER CONTROL HORN.
Repeat steps to install the rudder control
horn as same as steps done for ailerons.
Rudder berglass control horn.
Ep ox y.
Fiberglass control horn

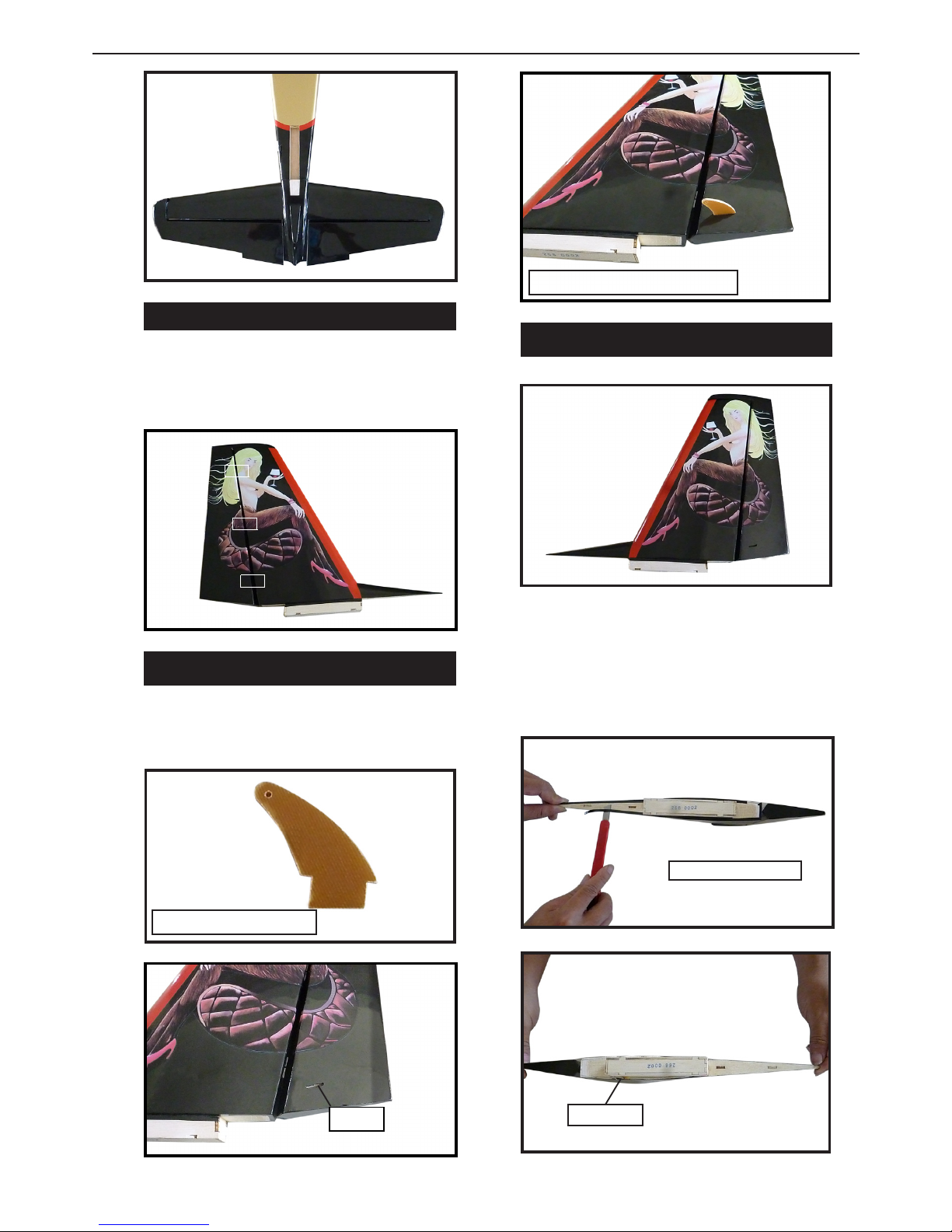

INSTALLING VERTICAL STABILIZER
1) Using a modeling knife, remove the
covering from over the precut hinge slot
cut into the lower rear portion of the fuselage.
Fill Epoxy
Remove covering.
Page 22
Beaver Turbin
Instruction Manual.
22

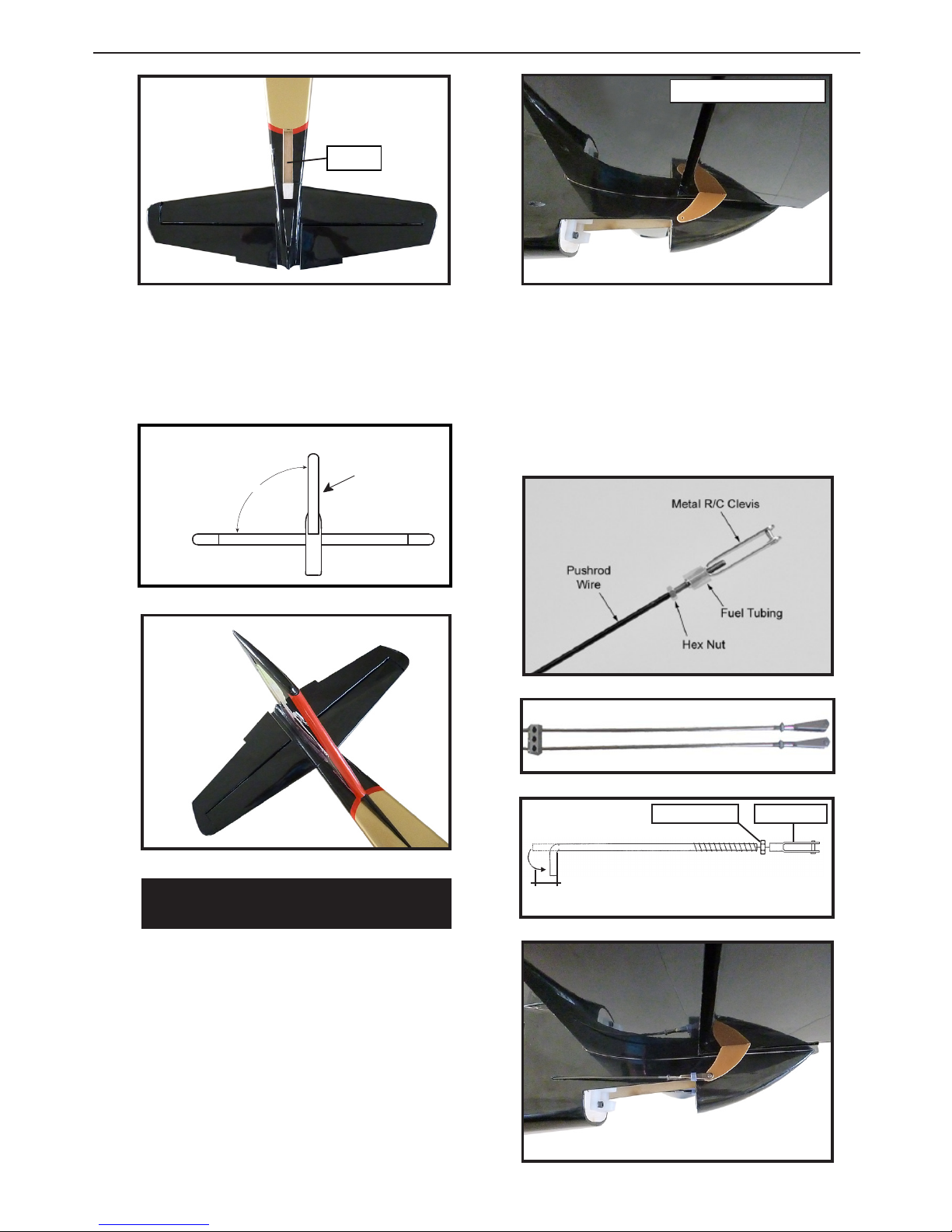

2) Slide the vertical stabilizer back inplace. Using a triangle, check to ensure
that the vertical stabilizer is aligned 90º
to the horizontal stabilizer.
90º
Vertical
Stabilizer.
Horizontal
Stabilizer.
ELEVATOR PUSHROD
INSTALLATION.
Elevator control horn.
1) Install the elevator control horn using
the same method as with the aileron control horns.
2) Position the elevator control horn on
the both side of elevator.
3) read one clevis and M2 lock nut on
to each elevator control rod. read the
horns on until they are ush with the
ends of the control rods.
4) Elevator pushrods assembly as pictures
below.
M2 clevis.M2 lock nut.
8mm
Ep ox y.
Page 23
23
Pen.
8mm
Nylon Snap Keeper.
RUDDER PUSHROD
INSTALLATION.
Repeat steps as same as steps done for
elevator.
M2 clevis.M2 lock nut.
8mm
Pen.
M3x4mm

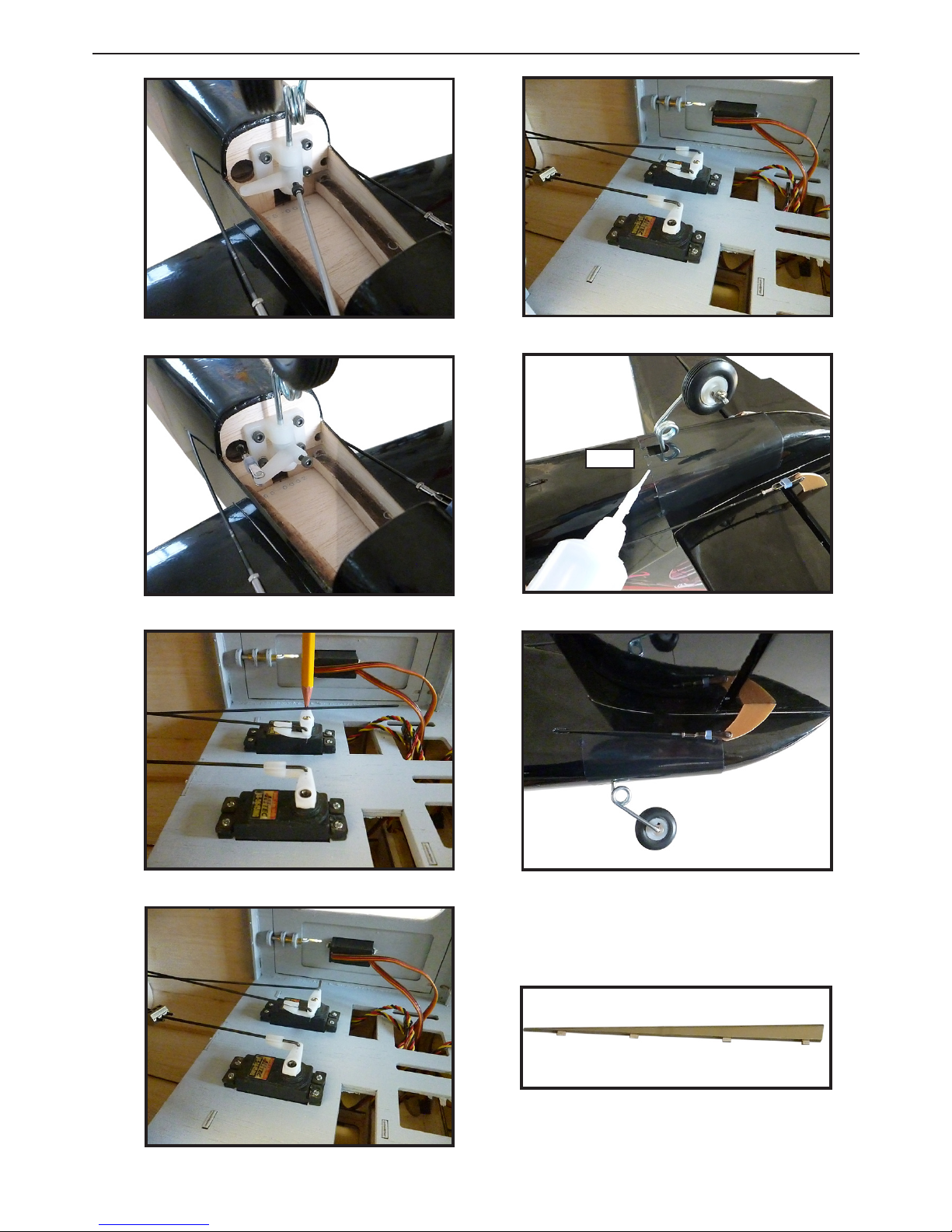

Page 24
Beaver Turbin
Instruction Manual.
24
8mm

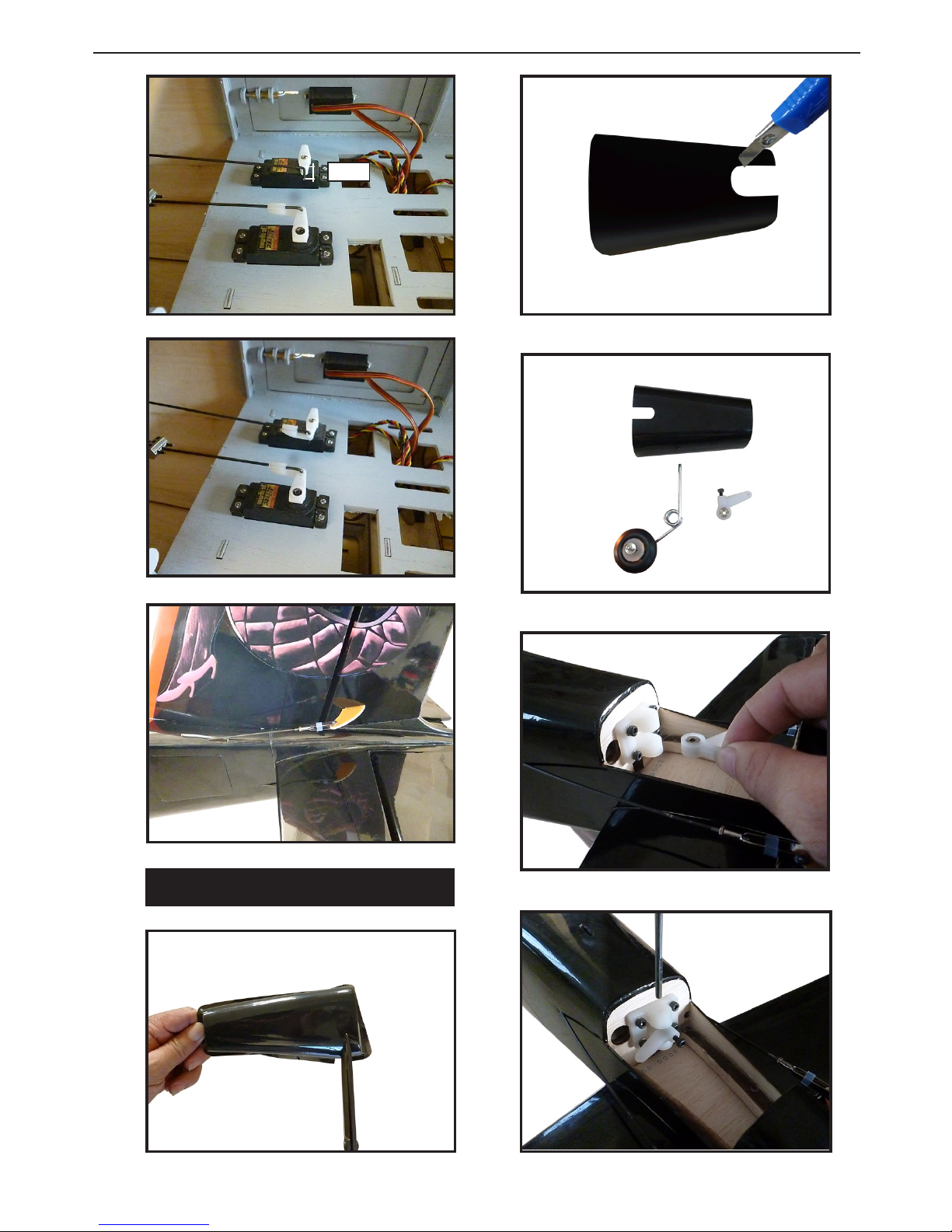

MOUNTING THE TAIL WHEEL.
Page 25
25
.
Epoxy
Insert wood piece to the back fuselage
as shown.
Page 26
Beaver Turbin
Instruction Manual.
26

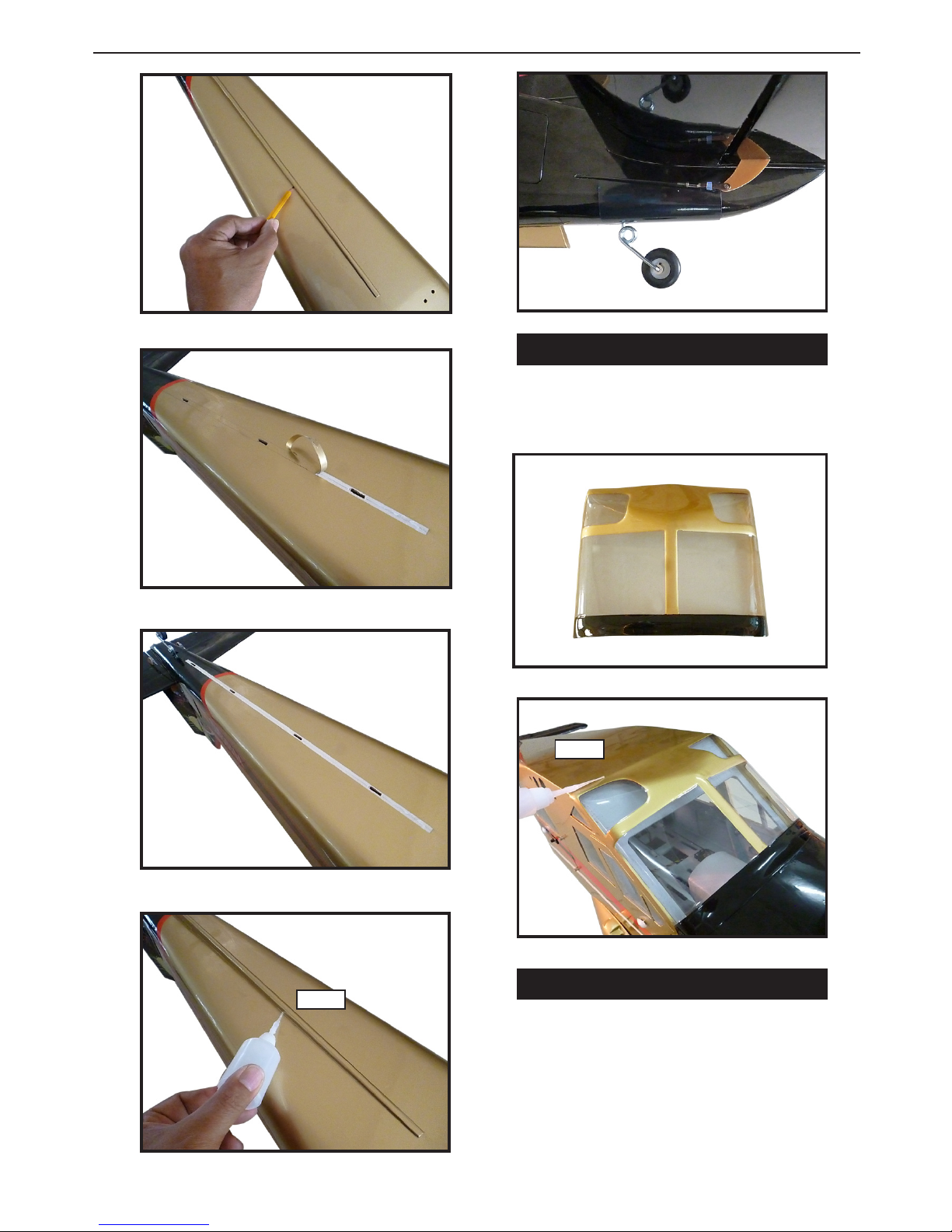

INSTALLATION PILOT AND CANOPY.
1) Locate items necessary to install pilot,
seats.
1) If all the decals are precut and ready to
stick. Please be certain the model is clean
and free from oily ngerprints and dust.
Position decal on the model where desired, using the photos on the box and
aid in their location.
APPLY THE DECALS.
Epoxy
Epoxy
Page 27
27
2) If all the decals are not precut, please
use scissors or a sharp hobby knife to cut
the decals from the sheet. Please be certain the model is clean and free from oily
ngerprints and dust. Position decal on
the model where desired, using the photos on the box and aid in their location.

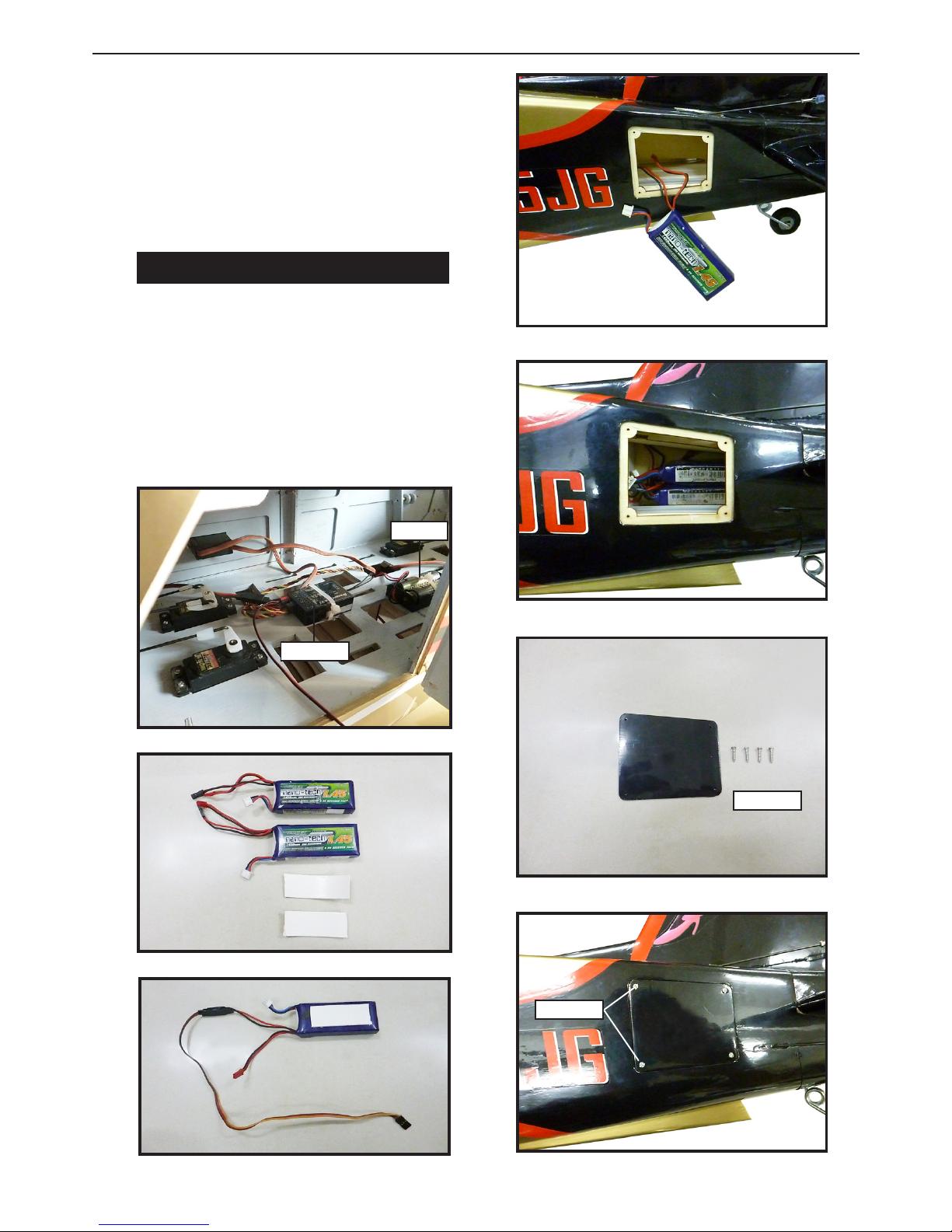

INSTALLING BATTERY - RECEIVER.
1) Plug the servo leads and the switch
lead into the receiver. Plug the battery
pack lead into the switch also.
2) Wrap the receiver and battery pack in
the protective foam rubber to protect
them from vibration.
Receiver.
Batt e r y.
2x10mm
2x10mm
Page 28
Beaver Turbin
Instruction Manual.
28

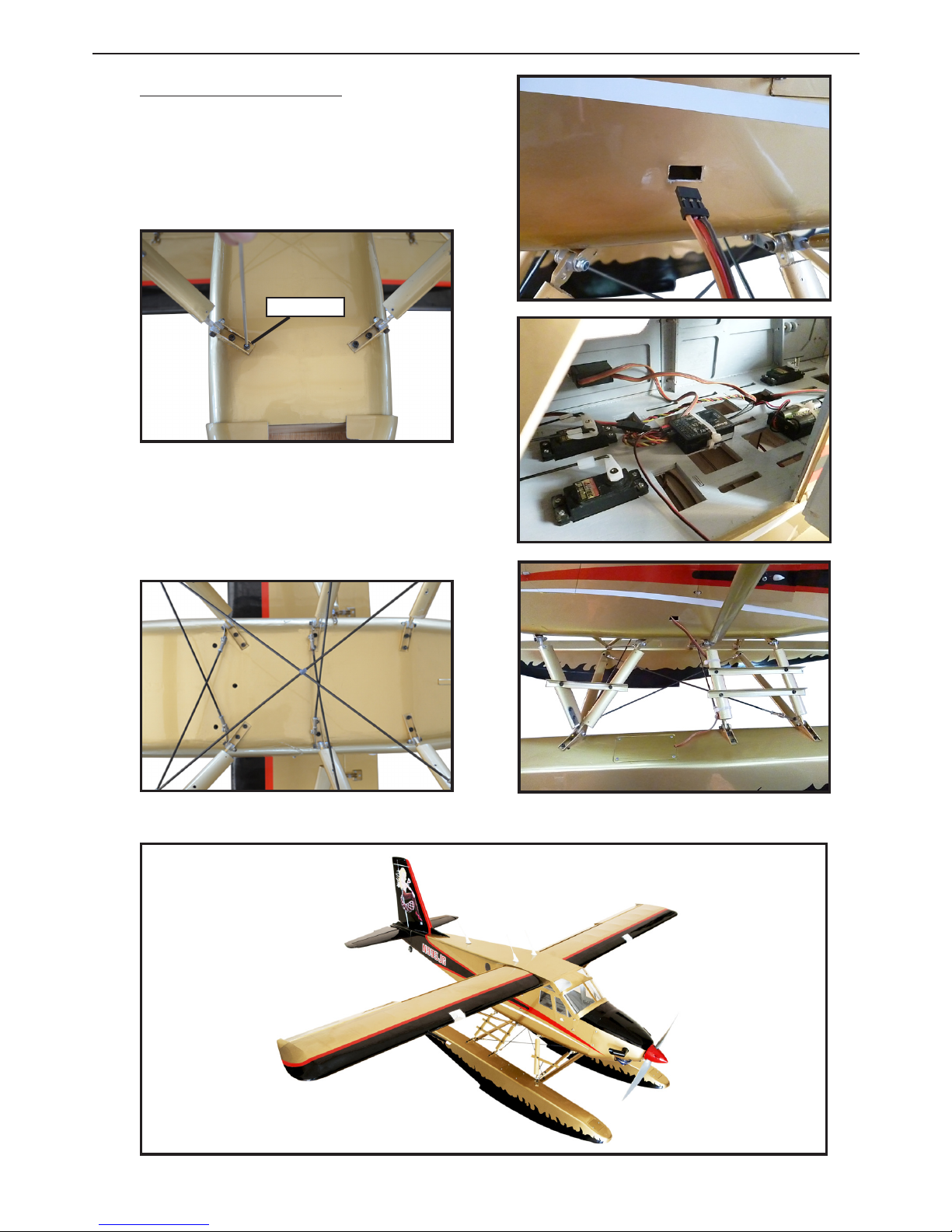

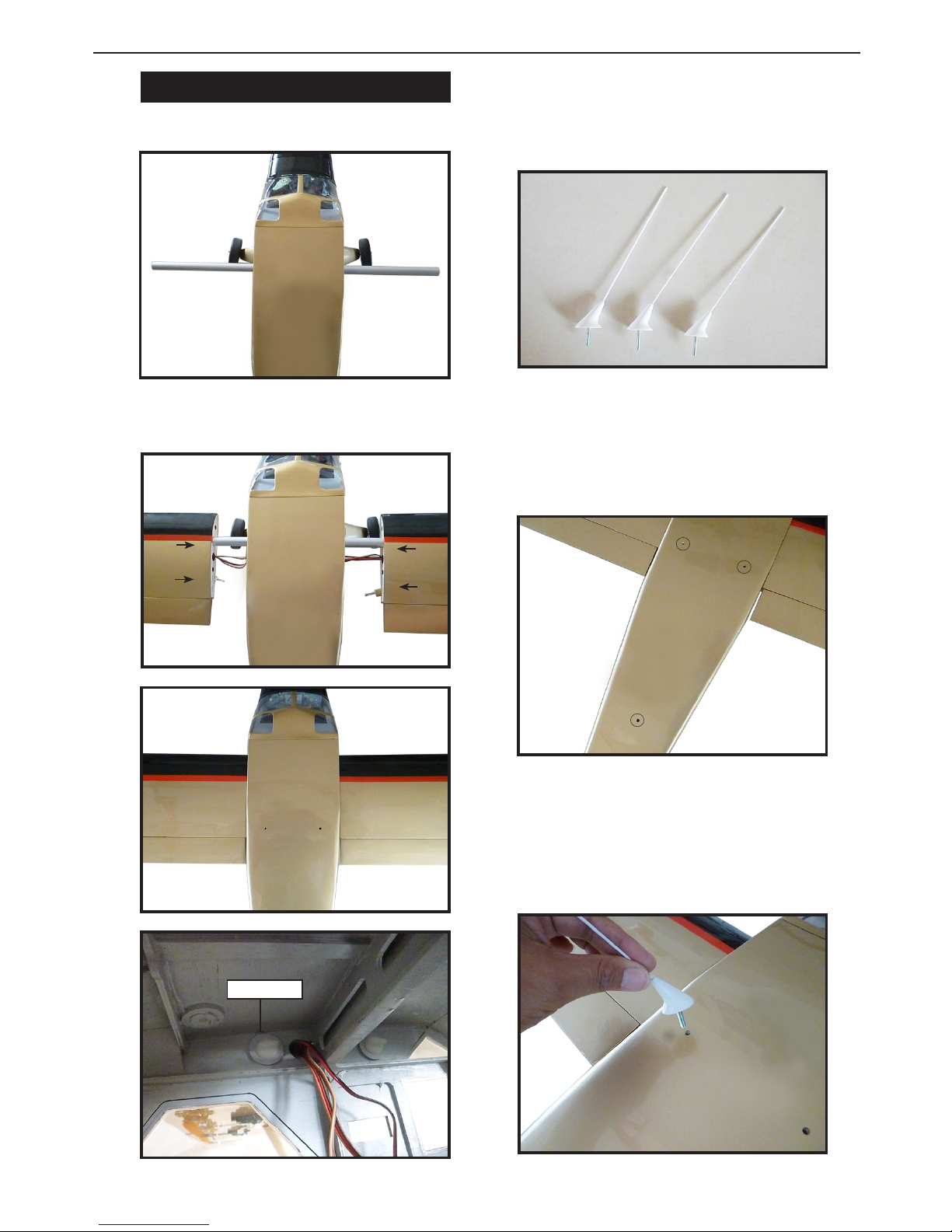

ATTACHMENT WING- FUSELAGE.
1) Attach the aluminum tube into wing.
3) Route the antenna in the antenna tube
inside the fuselage and secure it to the
bottom of fuselage using a plastic tape.
4) e last detail is to install the antenna
onto the fuselage. Use a hobby knife to
cut a slot in the top of the fuselage for the
antenna.
5) Tighten the antenna to the fuselage.
e antenna is removeable so you can in
stall it at the ying eld to prevent damage in transporting.
2) Insert two wing panels as pictures
below.
Wing bolt.
Page 29
29

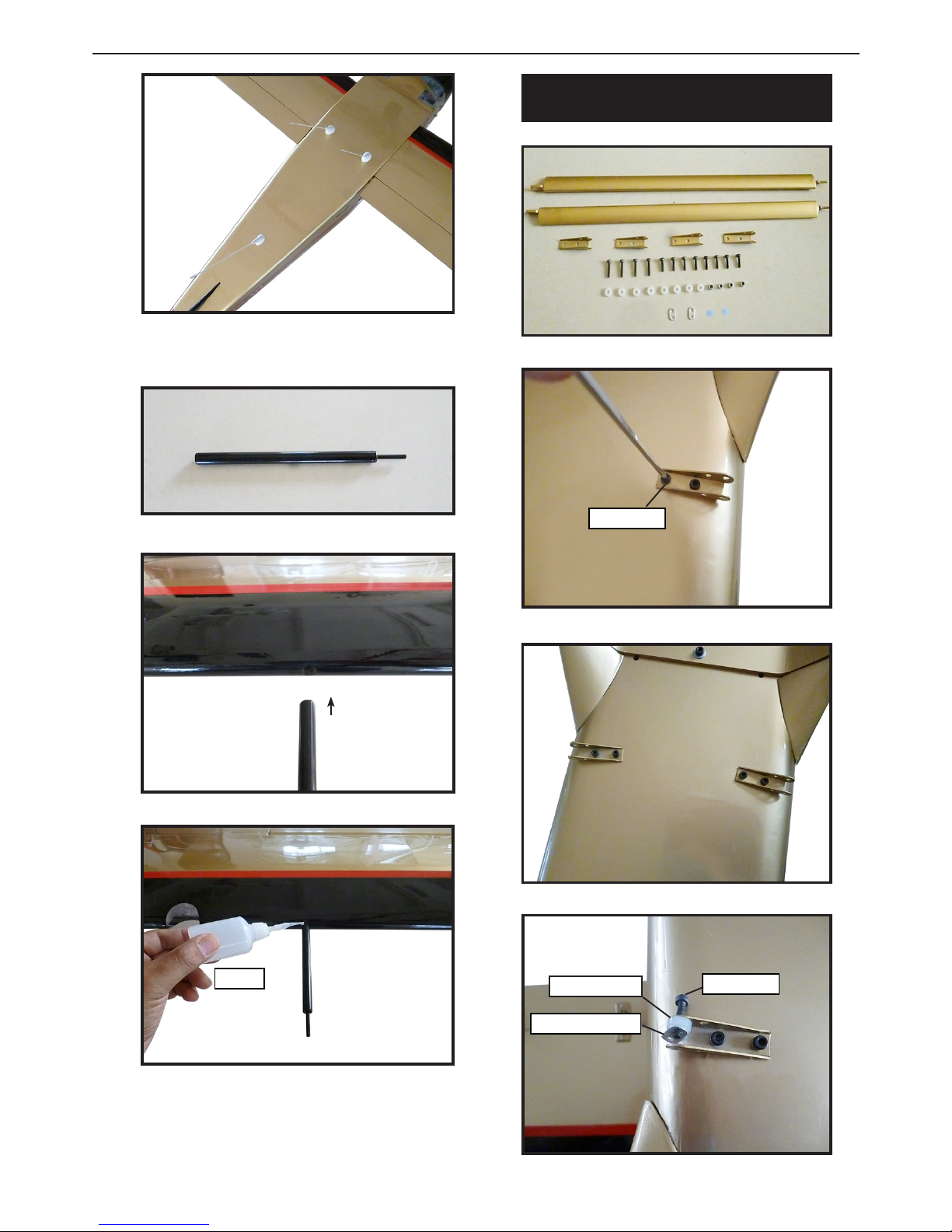

en, install wing guns on the wings.
Epoxy

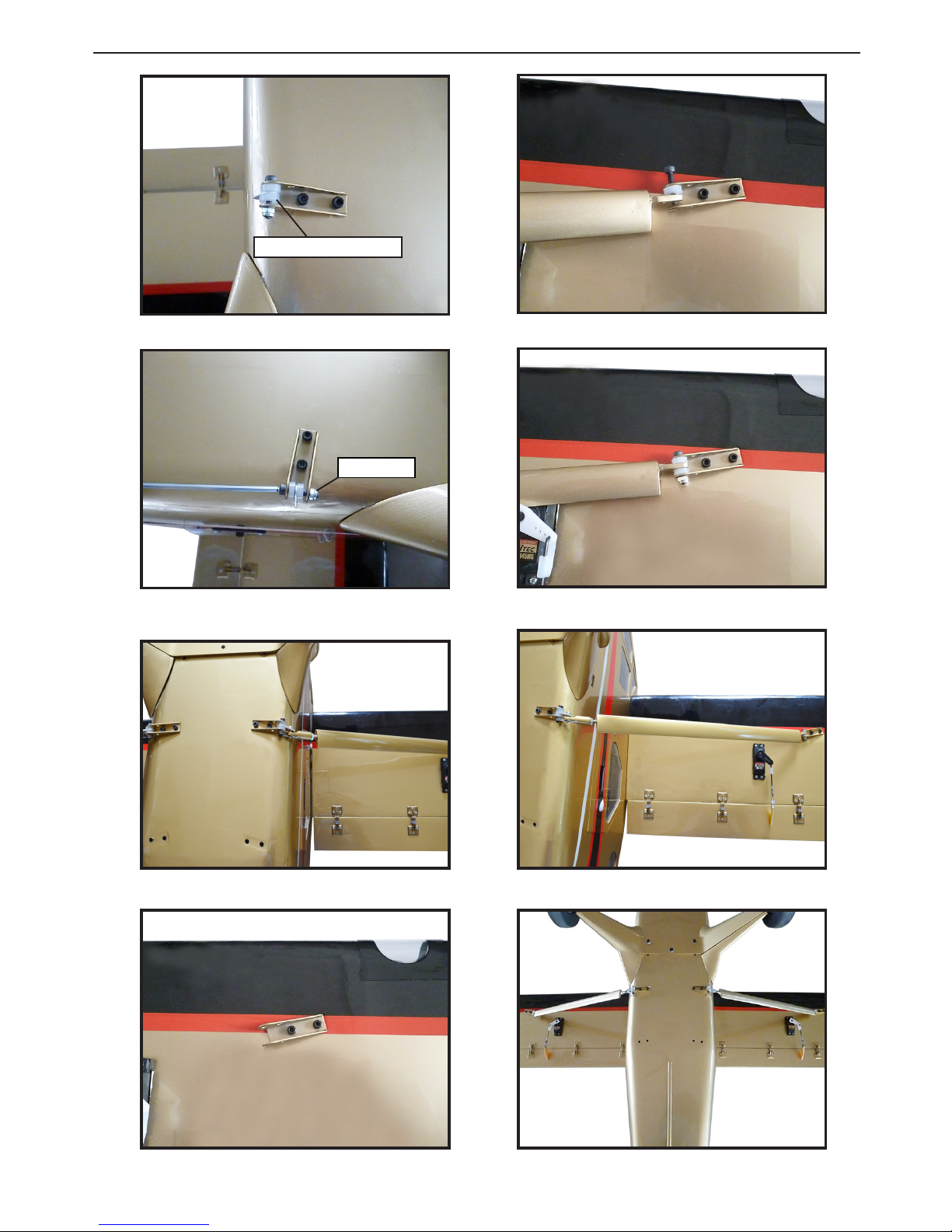

INSTALLATION WING- FUSELAGE
STRUTS.
M3x12mm
M3x15mm
Nylon washer
Aluminum piece
Page 30
Beaver Turbin
Instruction Manual.
30
.
M3lock nut
Second Nylon washer
Page 31
31

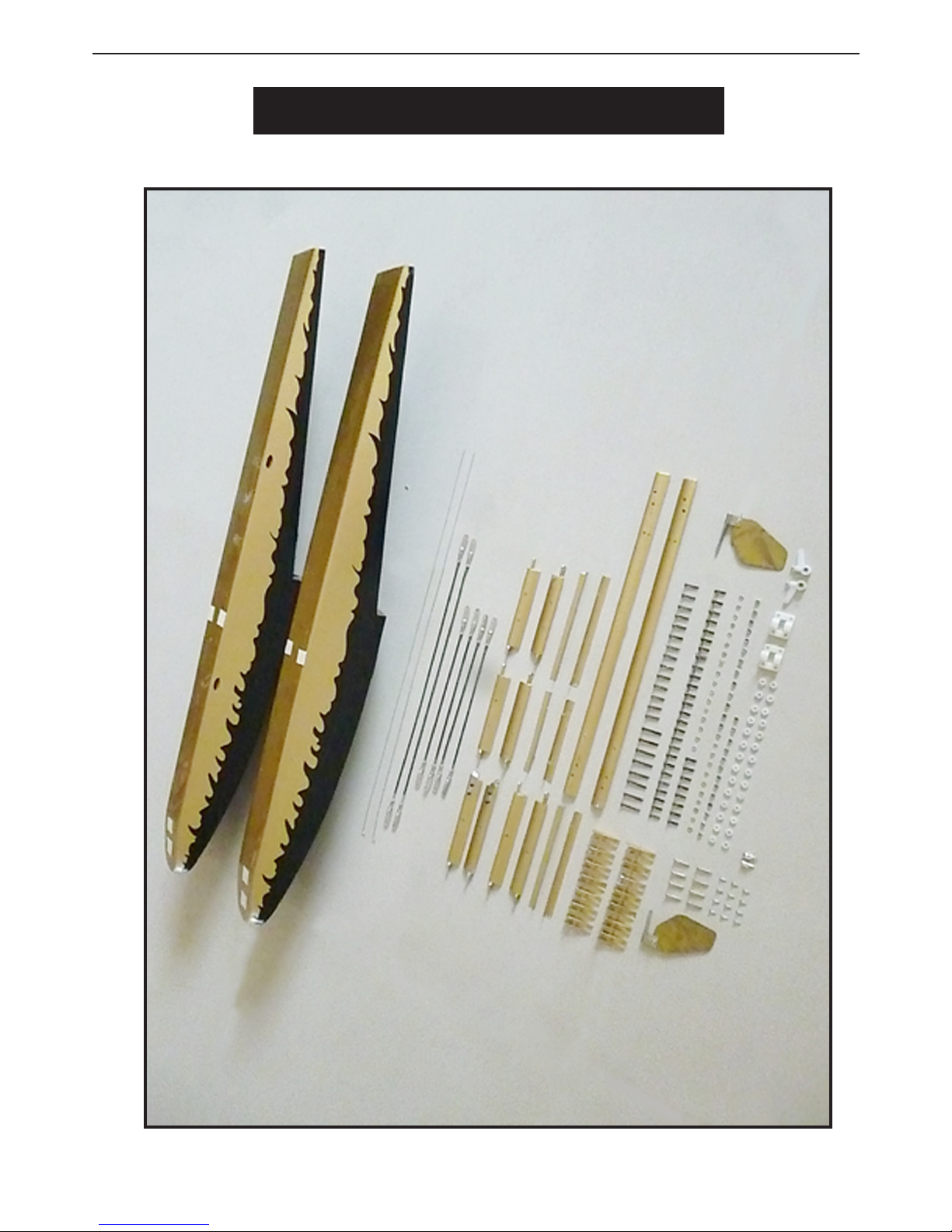

OPTIONAL FLOAT FOR BEAVER TURBIN (SEA268F ).
Page 32
Beaver Turbin
Instruction Manual.
32
Place 2 to 3 drops of thin CA in each hole
to harden the surrounding wood. Allow
the CA to fully cure before proceeding.
Install Water Rudder.
Drill hole.
in CA.
Page 33

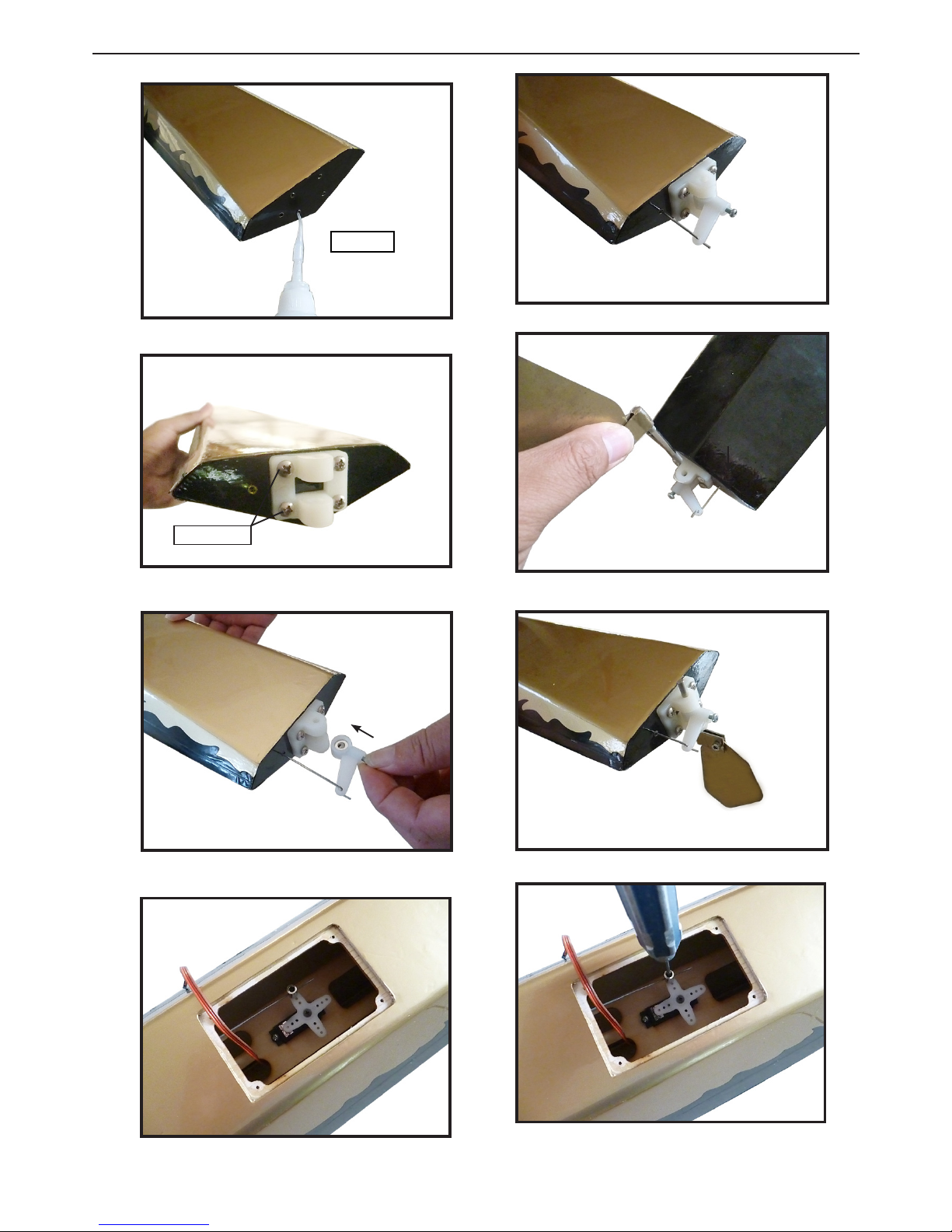

33
3.5x20mm
in CA.
Page 34
Beaver Turbin
Instruction Manual.
34
2x8mm
M3x25mm
M3x15mm
1
Slide the brace into position. Use two
M3 x 25 socket head screws and a 2.5mm
hex wrench to attach the mounting bracket and brace in the at in both position 1
&3. And use M3x15 for position 2.
Remove the end of one of the longer
support braces. Slide the tubing onto the
brace, then place the end back on the
brace.
in CA.
2
2
3
3
1
1
Page 35
35
425mm
Attach the longer support braces in the
holes in the cross braces using four M3 x
12 socket head cap screws, and four M3
lock nuts. Use a 2.5mm hex wrench to
tighten the hardware.
M3x12mm
123
Use the diagram to position the nylon
washers and the front diagonal brace
when installing the support braces to the
mounting brackets.
AT POSITION 1.
Diagonal brace with aluminum bend piece.
Diagonal brace
Cross brace wire.
Le
Right
244mm
Cross brace wire.
M3x15mm Socket Head Cap Screw
Cross brace wire
Diagonal brace
Nylon washer
Nylon washer
M3 locknut
Front
Diagonal brace with aluminum
bend piece
Page 36
Beaver Turbin
Instruction Manual.
36

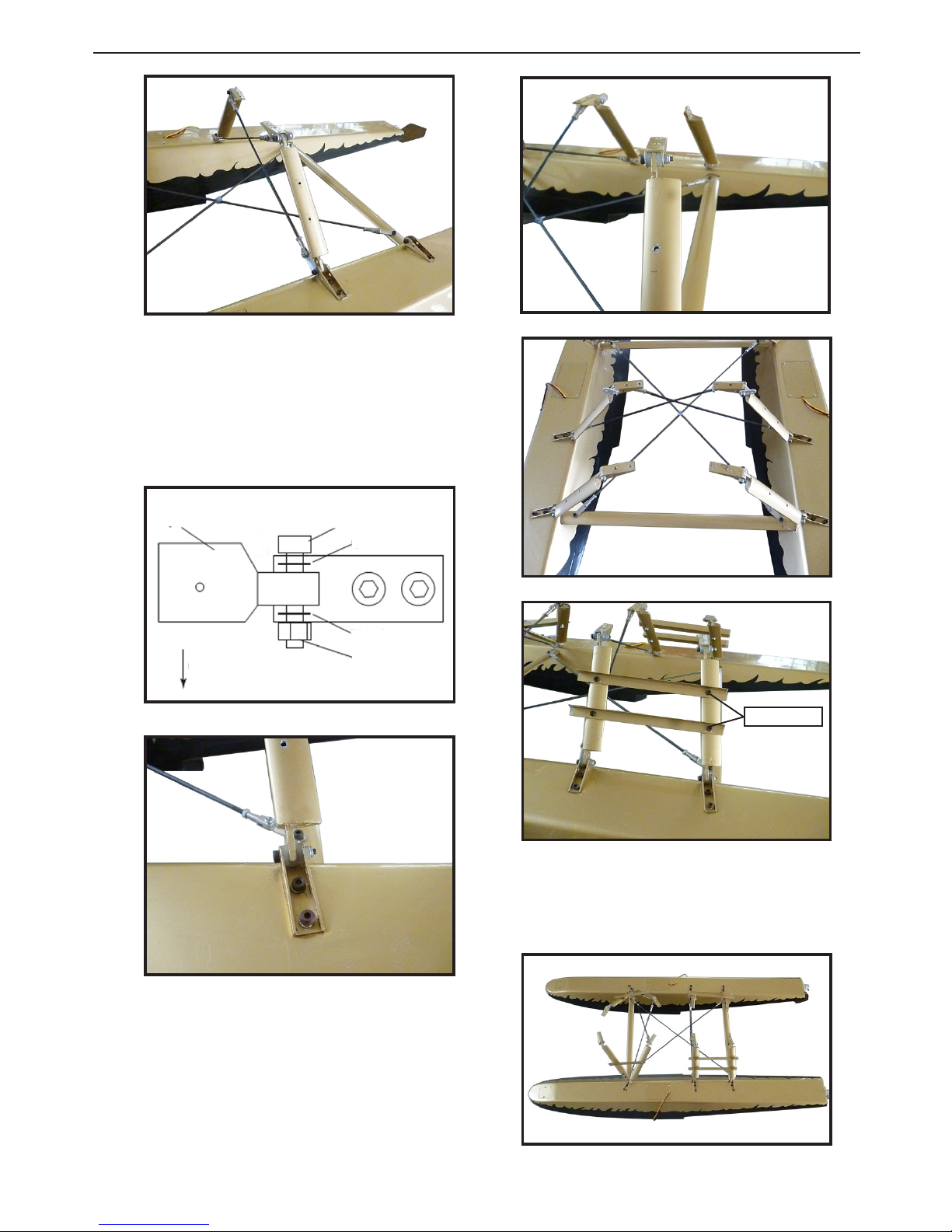

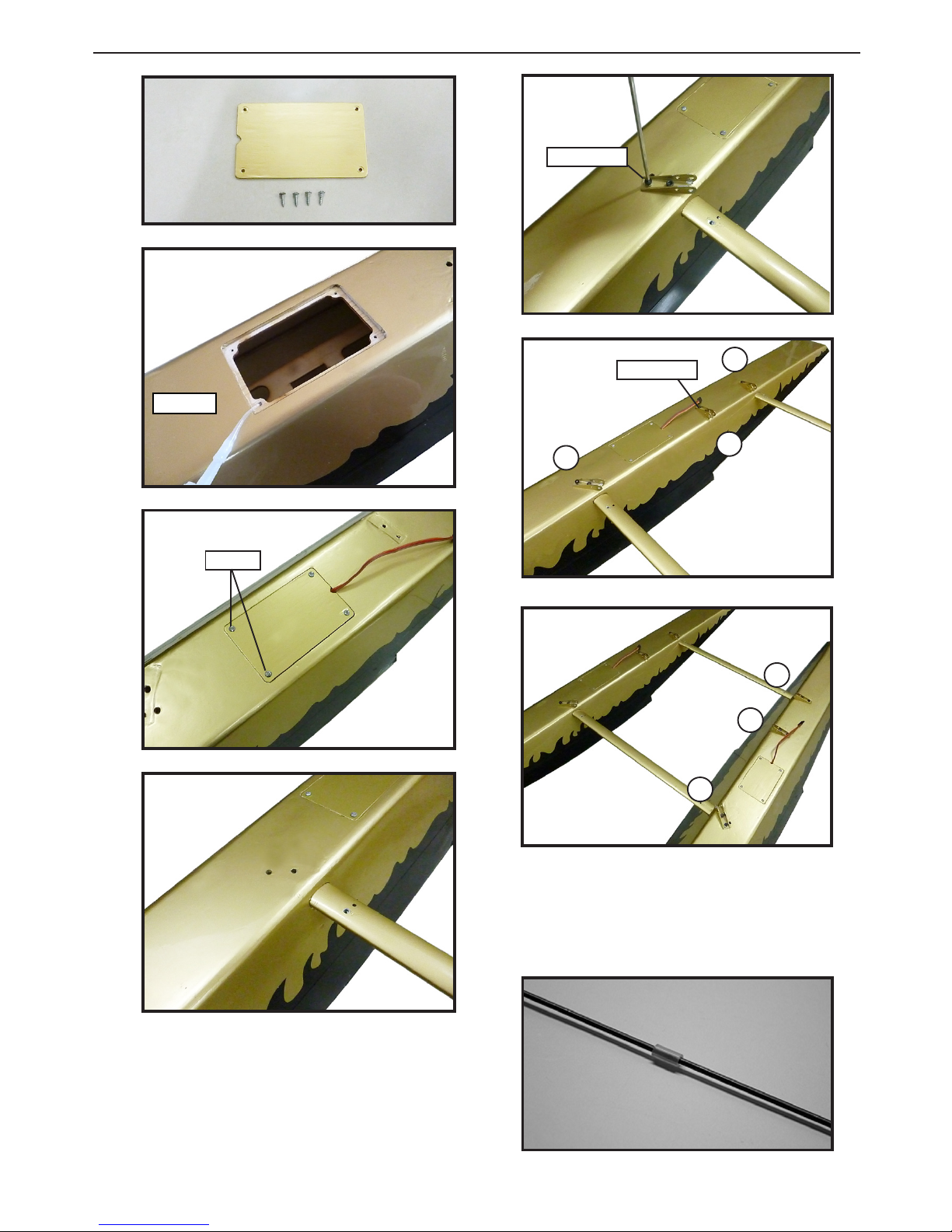

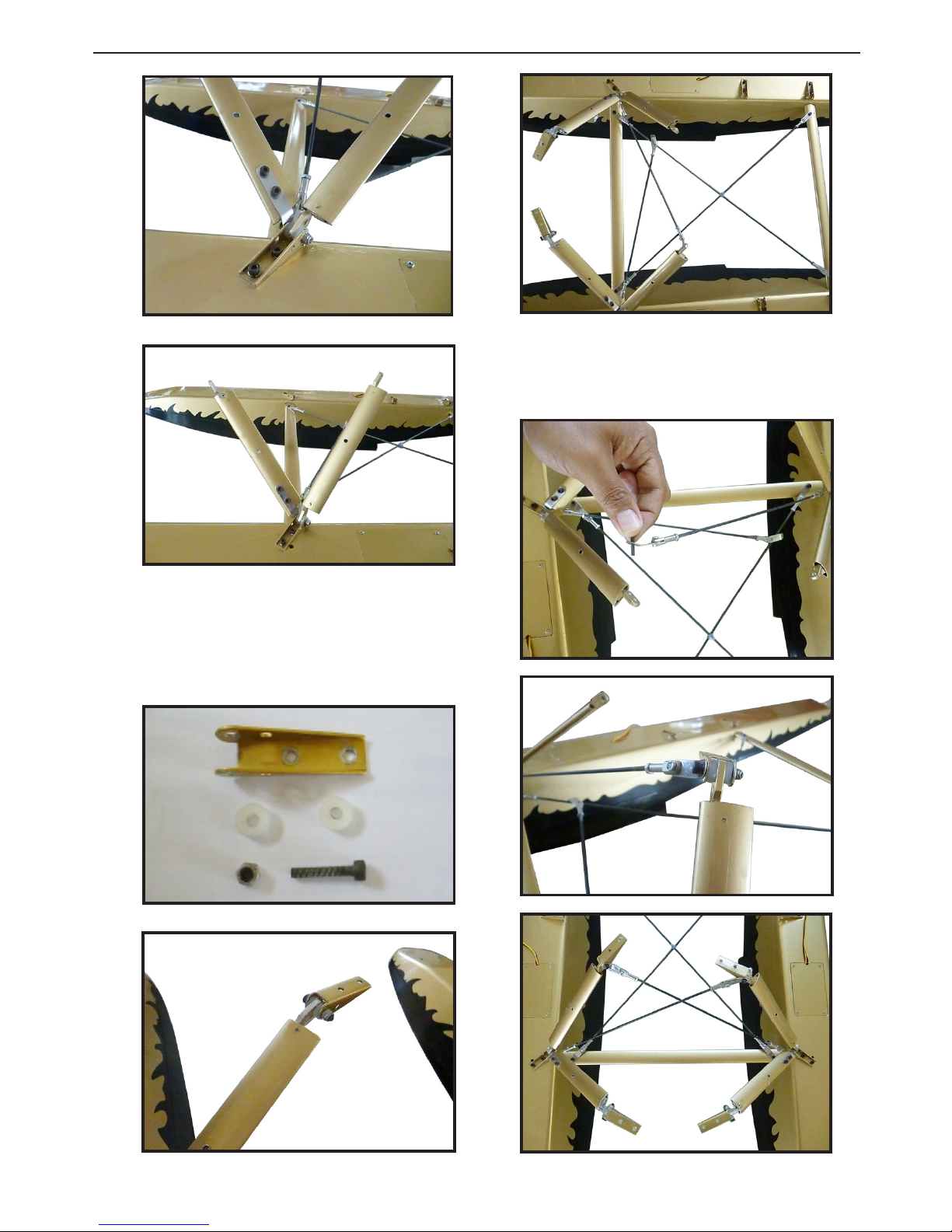

Attach the mounting bracket to the front
diagonal brace using an M3 x 15 socket
head cap screw, two nylon washers and an
M3 lock nut.
Attach the front cross brace wire to the
front diagonal brace using an M3 x 15
socket head cap screw, two nylon washers
and an M3 lock nut.
Page 37

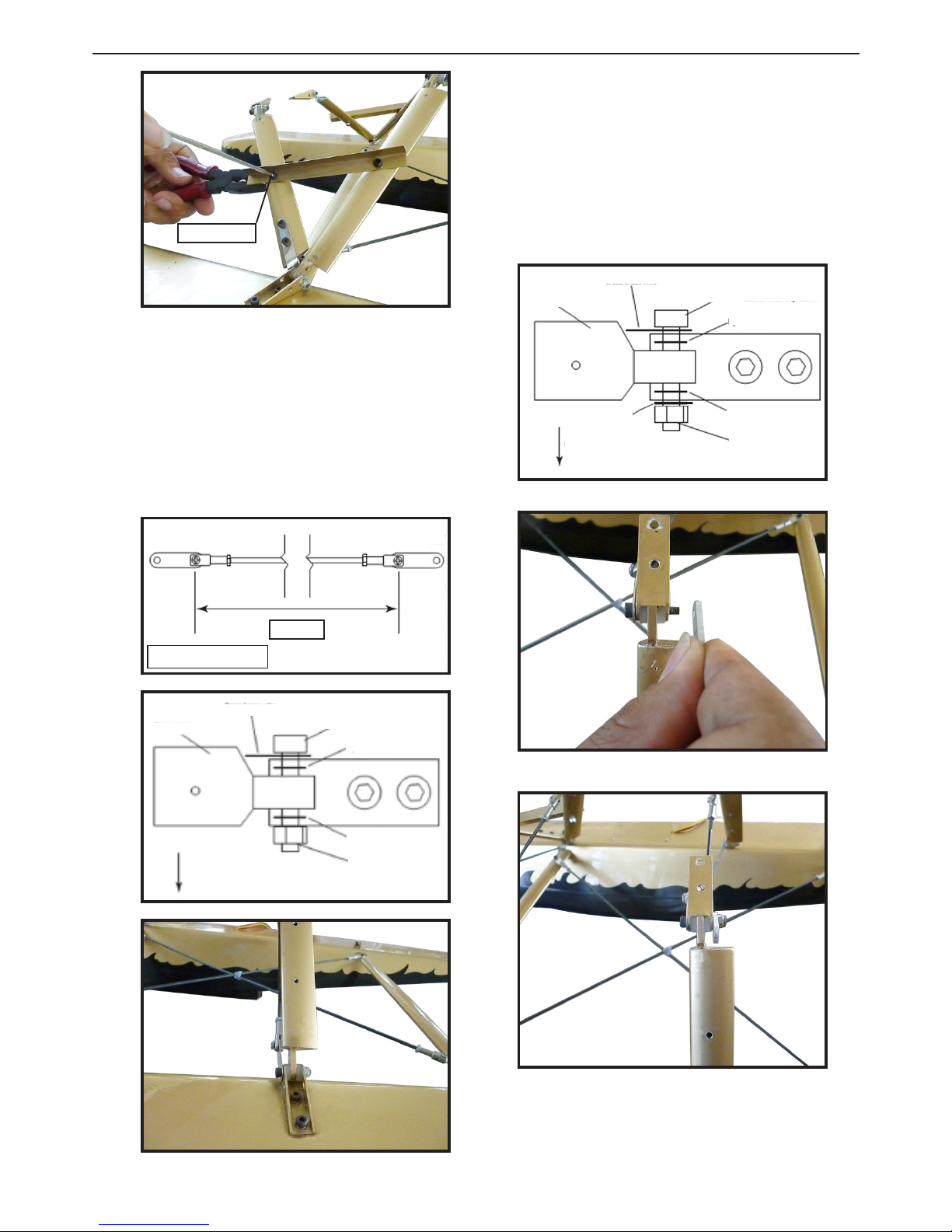

37
M3x15mm
Use the diagram to position the nylon
washers and the center diagonal brace
when installing the support braces to the
mounting brackets.
NOTE : Leave the screw slightly loose until
the oats are attached to the fuselage.
AT POSITION 2.
240mm
Cross brace wire.
Attach the cross brace wire and mounting bracket to the diagonal brace using an
M3 x 15 socket head cap screw, two nylon
washers, aluminum piece and an M3 lock
nut.
Repeat these steps for opposite position.
M3x15mm Socket Head Cap Screw
Cross brace wire
Diagonal brace
Nylon washer
Nylon washer
M3 locknut
Front
Cross brace wire
Diagonal brace
M3x15mm Socket Head Cap Screw
Nylon washer
Nylon washer
Aluminum piece
M3 locknut
Front
Page 38
Beaver Turbin
Instruction Manual.
38
Use the diagram to position the nylon
washers and the center diagonal brace
when installing the support braces to the
mounting brackets.
AT POSITION 3.
And nal result for oating as shown.
Attach the mounting bracket to the rear
diagonal brace using an M3 x 15 socket
head cap screw, two nylon washers and an
M3 lock nut.
M3x12mm
M3x15mm Socket Head Cap ScrewDiagonal brace
Nylon washer
Nylon washer
M3 locknut
Front
NOTE : Leave the screw slightly loose until
the oats are attached to the fuselage.
Page 39
39
M3x15mm
Attach the front brackets to the fuselage using four M3 x 15 socket head cap
screws and a 2.5mm hex wrench.
Attach the rear brackets to the fuselage
using four M3 x 15 socket head cap screws
and a 2.5mm hex wrench.
FLOAT INSTALLATION
Page 40
Beaver Turbin
Instruction Manual.
40
BALANCING.
1) It is critical that your airplane be
balanced correctly. Improper balance will
cause your plane to lose control and
crash. THE CENTER OF GRAVITY IS LOCATED 65MM BACK
FROM THE LEADING EDGE OF
THE WING AT THE WING ROOT.
3) With the model inverted, place your
ngers on the masking tape and carefully
li the plane.
2) Mount the wing to the fuselage. Using
a couple of pieces of masking tape, place
them on the top of the wing 65mm back
from the leading edge of the wing at the
wing root.
Accurately mark the balance point on the
top of the wing on both sides of the fuselage. e balance point is located 65mm
back from the leading edge of the wing at
the wing root. is is the balance point
at which your model should balance for
your rst ights. Later, you may wish to
experiment by shiing the balance up to
10mm forward or back to change the ying characteristics. Moving the balance
forward may improve the smoothness
and arrow- like tracking, but it may then
require more speed for take o and make
it more dicult to slow down for landing.
Moving the balance a makes the model
more agile with a lighter and snappier
”feel”. In any case,please start at the location we recommend .
With the wing attached to the fuselage,
all parts of the model installed ( ready to
y), and empty fuel tanks, hold the model
at the marked balance point with the stabilizer level.
Li the model. If the tail drops when
you li, the model is “tail heavy” and you
must add weight* to the nose. If the nose
drops, it is “nose heavy” and you must
add weight* to the tail to balance.
*If possible, rst attempt to balance the
model by changing the position of the receiver battery and receiver. If you are unable to obtain good balance by doing so,
then it will be necessary to add weight to
the nose or tail to achieve the
proper balance point.
65mm

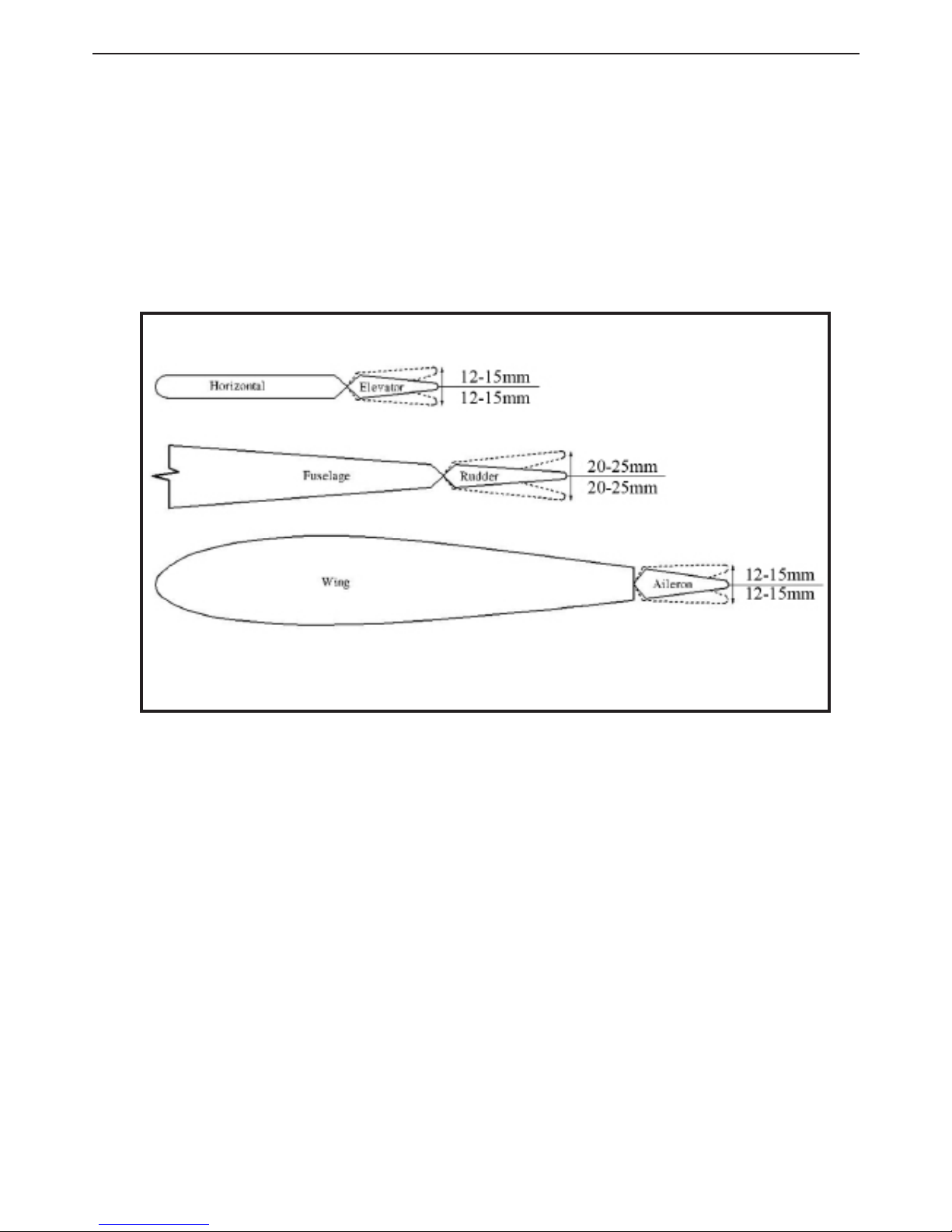

CONTROL THROWS.
Ailerons:
High Rate : 12-15mm
Low Rate : 12-15mm
Elevator:
High Rate : 12-15mm
Low Rate : 12-15mm
Rudder:
High Rate : 20-25mm
Low Rate : 20-25mm
Page 41
41
Page 42
Beaver Turbin
Instruction Manual.
42
FLIGHT PREPARATION. PREFLIGHT CHECK.
Check the operation and direction
of the elevator, rudder, ailerons and
throttle.
A) Plug in your radio system per the
manufacturer’s instructions and turn
everything on.
B) Check the elevator rst. Pull
back on the elevator stick. e elevator halves should move up. If it they do
not, ip the servo reversing switch on
your transmitter to change the direction.
C) Check the rudder. Looking from
behind the airplane, move the rudder
stick to the right. e rudder should
move to the right. If it does not, ip
the servo reversing switch on your
transmitter to change the direction.
D) Check the throttle. Moving the
throttle stick forward should open the
carburetor barrel. If it does not, ip the
servo reversing switch on your transmitter to change the direction.
E) From behind the airplane, look
at the aileron on the right wing half.
Move the aileron stick to the right.
e right aileron should move up and
the other aileron should move down.
If it does not, ip the servo reversing
switch on your transmitter to change
the direction.
1) Completely charge your transmitter and receiver batteries before
your rst day of ying.
2) Check every bolt and every glue
joint in the BEAVER TURBIN to
ensure that everything is tight and
well bonded.
3) Double check the balance of the
airplane. Do this with the fuel tank
empty.
4) Check the control surfaces. All
should move in the correct direction
and not bind in any way.
5) If your radio transmitter is
equipped with dual rate switches
double check that they are on the low
rate setting for your rst few ights.
6) Check to ensure the control surfaces are moving the proper amount
for both low and high rate settings.
7) Check the receiver antenna.
It should be fully extended and not
coiled up inside the fuselage.
We wish you many safe and enjoyable ights
with your BEAVER TURBIN.
8) Properly balance the propeller.
An out of balance propeller will cause
excessive vibration which could lead
to engine and/or airframe failure.
Page 43
43
If you have any queries, or are interested in our products,
please feel free to contact us
Factory : 12/101A - Hamlet 4 - Le Van Khuong Street - Dong anh Ward -
Hoc Mon District - Ho Chi Minh City - Viet Nam.
Oce : 62/8 Ngo Tat To Street - Ward 19 - Binh anh District - Ho Chi Minh
City - Viet Nam
Phone : 848 - 37114542 or 848- 36018777
Website : www.SeagullModels.com
Email : [email protected]
Facebook : www.facebook.com/SeaGullModels.
Loading...
