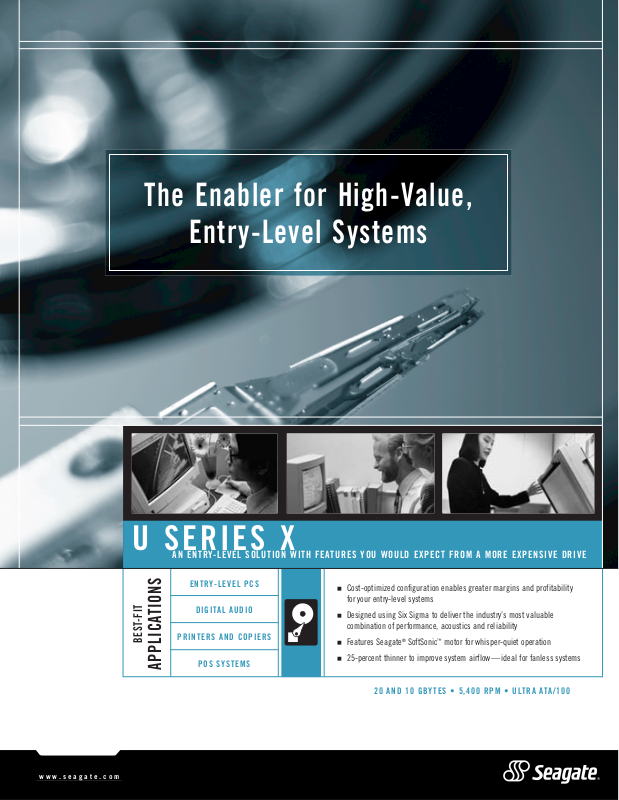

seagate U SERIES product Manual

20 AND 10 GBYTES • 5,400 RPM • ULTRA ATA/100

www.seagate.com

■

Cost-optimized configuration enables greater margins and profitability for your entry-level systems

■

Designed using Six Sigma to deliver the industry’s most valuable combination of performance, acoustics and reliability

■

Features Seagate®SoftSonic™motor for whisper-quiet operation

■

25-percent thinner to improve system airflow—ideal for fanless systems

BEST-FIT

APPLICATIONS

U SERIES X

AN ENTRY-LEVEL SOLUTION WITH FEATURES YOU WOULD EXPECT FROM A MORE EXPENSIVE DRIVE

The Enabler for High-Value,

Entry-Level Systems

ENTRY-LEVEL PCS

DIGITAL AUDIO

PRINTERS AND COPIERS

POS SYSTEMS

www.seagate.com

© 2002 Seagate Technology LLC. All rights reserved. Printed in USA. Seagate, Seagate Technology and the Seagate logo are registered trademarks of Seagate Technology LLC. SoftSonic, 3D Defense System and SeaShell are trademarks of Seagate Technology LLC. Other product names are registered trademarks or trademarks of their owners. Seagate reserves the right to change, without notice, product offerings or specifications. (DS-177) Publication Number: 1533-001, August 2002

CORPORATE HEADQUARTERS Seagate Technology LLC 920 Disc Drive, Scotts Valley, California 95066, United States, 831-438-6550

ASIA/PACIFIC Seagate Technology International Ltd. 151 Lorong Chuan, New Tech Park #06-01, Singapore 556741, 65-6488-7200

EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SA 62 bis, avenue André Morizet, 92643 Boulogne-Billancourt Cedex, France, 33 1-41 86 10 00

AN ENTRY-LEVEL SOLUTION WITH FEATURES YOU WOULD EXPECT FROM A MORE EXPENSIVE DRIVE

The Seagate 3D Defense System™—No One Does More to Protect Your Drives

Drive Defense

■

SeaShell™packaging protects drive against 1,000 Gs of nonoperating shock.

■

Enhanced G-Force Protection provides new mechanical features that further protect the drive from nonoperating shock.

Data Defense

■

ECC (error-correction code) performs on-the-fly hardware correction for excellent performance.

■

Safe Sparing ensures the drive will return to the same sector after a power outage.

■

CBDS (continuous background defect scanning) proactively identifies and eliminates defects.

Diagnostic Defense

■

SeaTools Suite diagnostic software is designed to reduce drive returns, decrease drive repair costs and protect data.

■

Web-based tools enable users to identify and solve common system-related issues.

■

Enhanced S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) predicts and prevents problems transparently before they affect the end user.

■

Enhanced Drive Self-Test (NDST) reduces diagnostic time.

World-Class Technical Support

■

Certified, experienced support staff

■

Rated “Above Average to Excellent” by 95 percent of our customers

■

Toll-free support with the industry’s shortest queues

■

Individually archived case histories for quick reference

■

Web-based Q&A forum and autoreply e-mail

■

Seagate Design Service Centers (DSC) help companies transform innovative ideas into viable products.

www.seagate.com ■1-800-732-4283 (1-800-SEAGATE)

Model Number Interface

PERFORMANCE

Transfer Rate

Maximum Internal (Mbits/sec)

Maximum External (Mbytes/sec) Cache, Multisegmented (Mbytes) Average Seek (msec) Average Latency (msec) Spindle Speed (RPM)

CONFIGURATION/ORGANIZATION

Discs/Heads Bytes per Sector Logical CHS Recording Method

RELIABILITY/DATA INTEGRITY

Contact Start-Stops 3D Defense System Nonrecoverable Read Errors per Bits Read

POWER REQUIREMENTS

+12 VDC ±10% (amps max) +5 VDC ±5% (amps max) Power Management (watts) Seek

Read/Write Idle Standby Sleep

ENVIRONMENTAL

Operating/Nonoperating Temperature (°C) Operating Shock @ 2 msec (Gs) Nonoperating Shock @ 1 and 2 msec (Gs) Acoustics, Idle (bels—sound power)

Seek

PHYSICAL

Height (in/mm) Width (in/mm) Depth (in/mm) Weight (lb/g)

1. Capacity calculated as 1 Gbyte = 109bytes

U SERIES X

Industry standard interface is backward-compatible with ATA/66.

Fast internal transfer rate and 2-Mbyte cache enable high productivity for common office applications.

Single head configuration is ideal for entry-level PC and peripheral applications.

Designed using Six Sigma to deliver maximum reliability and quality.

Low power requirements are ideal for entry-level PCs and fanless systems.

Robust design enables operation under extreme ambient conditions.

Features Seagate SoftSonic Motor for whisper-quiet operation.

25-percent thinner form-factor to improve system airflow.

KEY ADVANTAGES

20 GB

ST320014A Ultra ATA/100

445 100 2

12.7

5.55 5,400

1/1 512 16,383/ 16/63 GPRML (96/102)

50,000 Yes 1 per 10

1.9

0.9

6.0

5.5

4.5

1.2

1.0

0 to 60/ –40 to 70 63 350

2.6

2.7

.79/19.99 4/101.9

5.75/ 147.0

1.0/ 455

10 GB

ST310014ACE Ultra ATA/100

366 100 2
