HIGHLIGHTS

– Choice of parallel or serial

interface

– Capacities up to 500GB

FEATURES

– 7200 RPM

– Ultimate performance

with SATA interface, up to

3.0 Gb/sec. interface speed

– Ultra ATA data transfer speeds

up to 133MB/sec.

– The largest available cache

today—ultra fast 16MB cache

TM

– MHX

+ NCQ technology

(SATA versions)

– RAID ready

COMPLETE UPGRADE KIT

– SATA Ultra16 hard drive

or PATA Ultra16 hard drive

– SATA cable in SATA Ultra Kits

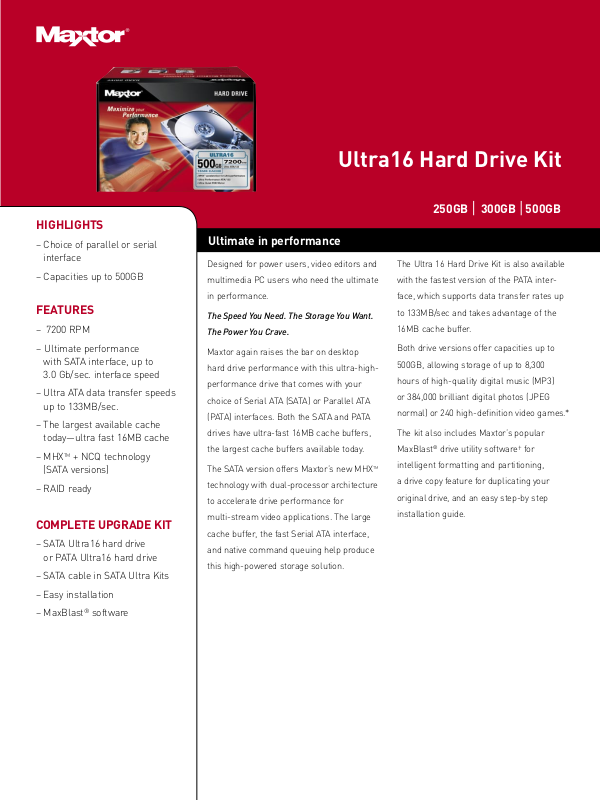

Ultra16 Hard Drive Kit

Ultimate in performance

Designed for power users, video editors and

multimedia PC users who need the ultimate

in performance.

The Speed You Need. The Storage You Want.

The Power You Crave.

Maxtor again raises the bar on desktop

hard drive performance with this ultra-high-

performance drive that comes with your

choice of Serial ATA (SATA) or Parallel ATA

(PATA) interfaces. Both the SATA and PATA

drives have ultra-fast 16MB cache buffers,

the largest cache buffers available today.

The SATA version offers Maxtor’s new MHX

technology with dual-processor architecture

to accelerate drive performance for

multi-stream video applications. The large

cache buffer, the fast Serial ATA interface,

and native command queuing help produce

this high-powered storage solution.

250GB 300GB 500GB

The Ultra 16 Hard Drive Kit is also available

with the fastest version of the PATA inter

face, which supports data transfer rates up

to 133MB/sec and takes advantage of the

16MB cache buffer.

Both drive versions offer capacities up to

500GB, allowing storage of up to 8,300

hours of high-quality digital music (MP3)

or 384,000 brilliant digital photos (JPEG

normal) or 240 high-definition video games.*

The kit also includes Maxtor’s popular

®

MaxBlast

intelligent formatting and partitioning,

TM

a drive copy feature for duplicating your

original drive, and an easy step-by step

installation guide.

drive utility software† for

-

– Easy installation

– MaxBlast

®

software

Easy Installation

– Step-by-step illustrated guide
– Automatic setup with MaxBlast
– Easy-to-use diagnostic tools
– Options for first-timers and pros

Included in This Kit

– 3.5-inch Serial ATA hard drive
– Serial ATA interface cable
– Mounting screws
– MaxBlast installation software
– Installation guide

Also Available

®

software

Specifications

Capacity 250GB, 300GB, 500GB

Average Seek Time

Rotational Speed 7200 RPM

Data Transfer Rate
250GB, 300GB 500GB
Serial ATA 150MB/sec 300Mb/sec
Parallel ATA 133MB/sec 133MB/sec

Cache Buffer 16 MB

Compatibility Mac & PC

Standard Warranty 1 year

Windows System Requirements

– Available 3.5-inch drive bay
– Serial ATA-enabled motherboard or adapter card
– Windows 98SE, Me, 2000 or XP
– CD-ROM drive

– Windows 2000, SP3 or higher; XP, SP1 or higher

≤9.0ms

SATA/150 PCI Card

Upgrade to Serial ATA performance

– Ultimate SATA speed—up to 1.5Gb/sec data transfer rate
– Two SATA/150 ports and one Ultra ATA/133 port
– Supports up to four hard drives

Macintosh System Requirements

– Available 3.5-inch drive bay
– Power Mac G5 or

Power Mac with Mac-compatible Serial ATA adapter card

– Mac OS 8.6 or higher, OSX 10.1 or higher

– Supports drives larger than 137GB

For support or information, call us at 1-800-2Maxtor or visit us at www.maxtor.com

All Maxtor products are backed by our leading service and support staff.
Service includes:

• 24-hour on-line troubleshooting tools and email

• Maxtor’s commitment to total customer satisfaction

• Product support representatives available Monday-Friday

*File capacity figures are provided by Jon Peddie Research. For details see www.jonpeddie.com

For measuring storage capacity, a gigabyte (GB) means 1,000,000,000 bytes. Total accessible capacity varies depending on operating environment.
