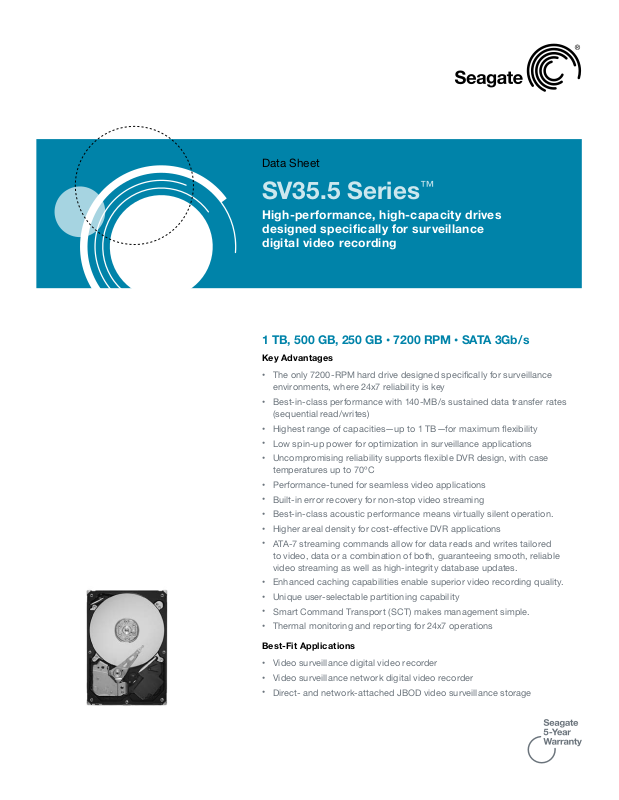

seagate SV35.5 DATASHEET
Data Sheet
SV35.5 Series
™
High-performance, high-capacity drives
designed specifically for surveillance
digital video recording
1 TB, 500 GB, 250 GB • 7200 RPM • SATA 3Gb/s
Key Advantages
•
The only 7200-RPM hard drive designed specifically for surveillance
environments, where 24x7 reliability is key
•
Best-in-class performance with 140-MB/s sustained data transfer rates
(sequential read /writes)
•
Highest range of capacities—up to 1 TB—for maximum flexibility
•
Low spin-up power for optimization in surveillance applications
•
Uncompromising reliability supports flexible DVR design, with case
temperatures up to 70ºC
•
Performance-tuned for seamless video applications
•
Built-in error recovery for non-stop video streaming
•
Best-in-class acoustic performance means virtually silent operation.
•
Higher areal density for cost-effective DVR applications
•
ATA-7 streaming commands allow for data reads and writes tailored
to video, data or a combination of both, guaranteeing smooth, reliable
video streaming as well as high-integrity database updates.
•
Enhanced caching capabilities enable superior video recording quality.
•
Unique user-selectable partitioning capability
•
Smart Command Transport (SCT) makes management simple.
•
Thermal monitoring and reporting for 24x7 operations
Best-Fit Applications
•
Video surveillance digital video recorder
•
Video surveillance network digital video recorder
•
Direct- and network-attached JBOD video surveillance storage
SV35.5 Series
™
High-performance, high-capacity drives designed
specifically for surveillance digital video recording
The Seagate® SV35.5 Series™ drives enable securit y industry
manufacturer s, integrators and installers to accomplish more with
less, greatly improving their surveillance solution offerings in reliability,
performance, capacity, power and acoustics.
Reliability
•
Designed specifically for 24x7 surveillance environments
•
Enterprise-class reliability with MTBF of >1 million hours and Annualized
Failure Rate (AFR ) of <1%
•
Industry-leading 5-year limited warranty
Performance
•
Best-in-class per formance at 7200-RPM and up to 140-MB/s sustained
data rate
•
Enables high-resolution video streams
•
Enhanced caching capabilities
•
SATA 3Gb/s interface
Capacity
•
Full range of capacities for greatest flexibilit y
Surveillance-Optimized
•
Flexible DVR design with case temperatures up to 70ºC
•
ATA-7 streaming commands support reads and writes tailored to both
video and audio data.
Eco-Friendly
•
Reduced power consumption and heat generation enable systems to
run cooler and la st longer
Dedication
•
Unparalleled Seagate technical and marketing support infrastructure
dedicated to video surveillance customers
•
Field engineering and business support teams available in person,
worldwide
www.seagate.com
1-800-SEAGATE (1-800-732-4283)
1
Specifications
Model Number
Interface Options
Performance
Spin Spe ed (R PM)
Cache, M ultisegment ed (MB)
SATA Data Tra nsfer Modes Su ppor ted (G b/s)
Power-O n to Ready ( seconds)
Susta ined Data Rate , Sequen tial Write (MB/s)
Read See k Time (ms)
Write S eek Time ( ms)
Simult aneous HD Streams Sup port ed
Volta ge
Voltag e Tolera nce (in cluding noise ) 5V
Voltag e Tolera nce (in cluding noise ) 12V
Configuration/Or ganization
Byte s per Sec tor
Reliability/ Data Integrity
MTBF ( hours )/A nnualized Failure Rate ( AFR)
Nonrecovera ble Read E rrors p er Bits Read
Power-O n Hours
Contact Star t-Stop Cycles
Limite d Warranty ( years )
Power Management
Maxim um Startup C urrent (12 V typi cal, amp s)
Opera ting Mod e (typical, W )
Seek Aver age (W)
Standby (W )
Environmental
Temperature
Opera ting (a mbient min °C)
Opera ting (d rive case max °C )
Nonoperatin g (ambi ent min °C)
Nonoperatin g (ambi ent max °C)
Shock , Opera ting : 2 ms (Gs)
Shock , Nonop eratin g: 2 ms (Gs)
Acous tic, Idle (bels)
Physical
Height ( mm/in)
Width ( mm/in, ± 0.010 in)
Depth ( mm/in)
Weight ( g/lb)
1
One gigab yte, or GB, equ als one billion by tes and one tera byte, or TB, equ als one trillion b ytes when ref erring to hard dr ive capacity.
1 TB
ST31000525SV ST3500410SV ST3250311SV
SATA 3Gb /s SATA 3Gb /s SATA 3Gb /s
7200 7200 7200
32 16 8
3.0/1.5 3.0/1.5 3.0/1.5
17 13 11
140 140 140
8.5 8.5 8.5
9.5 9.5 9.5
12 12 12
±5% ±5% ±5%
±10% ±10% ±10%
512 512 512
>1 million/<1% >1 million/<1% >1 million/<1%
1 sector p er 10E14 1 sector p er 10E14 1 sector p er 10E14
8760 8760 8760
50,000 50,000 50,000
5 5 5
2 2 2
7.0 7.0 5.0
10.4 10.4 8.0
1.0 1.0 1. 0
0
70
–40
70
70 70 70
300 300 350
2.5 2.5 2.3
26 .11/1 .02 8 26.11 /1. 028 2 0.2/ 0.794
101.6/4.000 101.6/4.000 101.6/4.000
146.99/5.787 146.99/5.787 146.99/5.787
67 7/1.49 3 544/1.199 380/0.838
500 GB1250 GB
0
70
–40
70
0
70
–40
70
1
AMERI CAS Seaga te Technolo gy LLC 920 D isc Dri ve, Scot ts Valle y, Califor nia 950 66, Un ited St ates, 83 1-438 -655 0
ASIA /PACIFI C Seagate Tech nolog y Intern ation al Ltd. 700 0 Ang Mo K io Avenue 5 , Singa pore 56 9877, 65- 6485 -38 88
EUROPE, MIDD LE EAST A ND AFRI CA Seaga te Technolo gy SAS 130 –136, rue de S illy, 9277 3, Boul ogne- Billa ncour t Cedex , France 3 3 1-4186 10 00
Copyri ght © 2009 S eagate Tech nology L LC. All rig hts rese rved. Pr inted in U SA. Sea gate, Se agate Techno logy and t he Wave logo a re regis tered tr ademar ks of Seag ate Technolo gy LLC in the U nited St ates and /or
other co untrie s. SV35.5 S eries is e ither a tr adema rk or reg istere d tradem ark of Sea gate Technol ogy LLC or o ne of its af filiate d compan ies in the U nited St ates and /or other count ries. A ll other tr adema rks or reg istere d
tradem arks are t he prope rty of their res pecti ve owners . When ref errin g to hard dri ve capac ity, one gig abyte, or G B, equa ls one bill ion byte s and one te rabyte , or TB, equ als one tr illion by tes. Your computer’s op eratin g
system ma y use a dif ferent s tandar d of measu remen t and repo rt a lowe r capaci ty. In addit ion, some o f the liste d capaci ty is us ed for for mattin g and othe r functi ons, an d thus will n ot be availa ble for da ta stora ge.
Seagat e reser ves the ri ght to chan ge, with out notic e, produ ct offe rings or s pecifi cation s. DS1679.3-0 904US, April 20 09
