Seagate ST9120315AS, ST9120315ASG, ST9160314AS, ST9160314ASG, ST9320325AS User Manual

Product Manual

Momentus 5400.6 SATA

ST9500325AS
ST9400326AS
ST9320325AS
ST9250315AS
ST9160314AS
ST9160301AS
ST9120315AS
ST980313AS

ST9500325ASG
ST9320325ASG
ST9250315ASG
ST9160314ASG
ST9120315ASG
ST980313ASG

100528359
Rev. E
September 2009

Copyright © 2009 Seagate Technology LLC. All rights reserved. Printed in U.S.A.
Publication number: 100528359, Rev. E, September 2009
Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC

in the United States and/or other countries. Momentus, SeaTools and SeaTDD are either trademarks or
registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States
and/or other countries. All othe r trademarks or register ed trademarks are the p roperty of their respectiv e
owners.

One gigabyte, or GB, equals one billion bytes when referring to hard drive capacity. Accessible capacity
may vary depending on operating environment and formatting. Quantitative usage examples for various
applications are for illustrative purposes. Actual quantities will vary based on various factors, including file
size, file format, features and application software. Seagate reserves the right to change, without notice,
product offerings or specifications.

Contents

1.0 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.1 About the Serial ATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2.0 Drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1 Specification summary table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.2 Formatted capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2.1 LBA mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3 Default logical geometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4 Physical organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5 Recording and interface technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.6 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.7 Seek time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.8 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.9 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.9.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.9.2 Deferred spinup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.9.3 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.9.4 Voltage tolerance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.9.5 Power-management modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.10 Environmental specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.10.1 Ambient temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.10.2 Temperature gradient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.10.3 Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.10.4 Altitude. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.10.5 Shock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.10.6 Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.11 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.12 Electromagnetic immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.13 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.13.1 Free Fall Protection feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.14 Agency certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.14.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.14.2 Electromagnetic compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.14.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.15 Environmental protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.15.1 European Union Restriction of Hazardous Substances (RoHS) . . . . . . . . . . . . 20

2.15.2 China Restriction of Hazardous Substances (RoHS) Directive . . . . . . . . . . . . . 20

2.16 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.0 Configuring and mounting the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.1 Handling and static-discharge precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.2 Configuring the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.3 Serial ATA cables and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.4 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.0 Serial ATA (SATA) interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.1 Hot-Plug compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.2 Serial ATA device plug connector pin definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.3 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4.3.1 Identify Device command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.3.2 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

4.3.3 S.M.A.R.T. commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5.0 Seagate Technology support services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Momentus 5400.6 SATA Product Manual, Rev. E i

ii Momentus 5400.6 SATA Product Manual, Rev. E

List of Figures

Figure 1. Typical +5V only startup and operation current profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

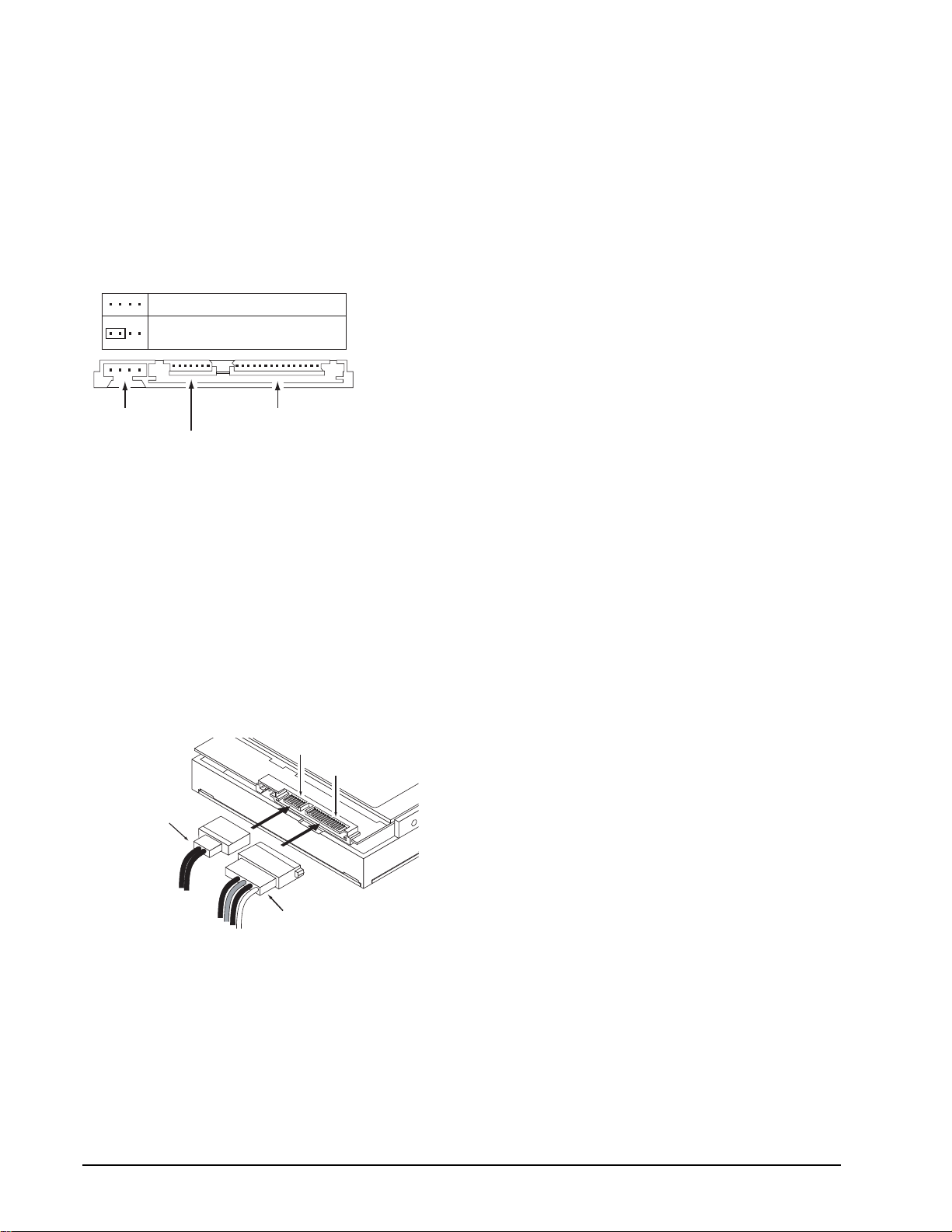

Figure 2. Serial ATA connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Figure 3. Attaching SATA cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Figure 4. Mounting dimensions—top, side and end view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Momentus 5400.6 SATA Product Manual, Rev. E iii

1.0 Introduction

This manual describes the functional, mechanical and interface specifications for the following Seagate
Momentus

• ST9500325AS • ST9500325ASG

• ST9400326AS •

• ST9320325AS • ST9320325ASG

• ST9250315AS • ST9250315ASG

• ST9160314AS • ST9160314ASG

• ST9160301AS

• ST9120315AS • ST9120315ASG

• ST980313AS • ST980313ASG
These drives provide the following key features:

• 5,400-RPM spindle speed.

• 8-Mbyte buffer.

• Free Fall Protection (on ST9500325ASG, ST9320325ASG, ST9250315ASG, ST9160314ASG,
ST9120315ASG, and ST980313ASG models only)

• Quiet operation. Fluid Dynamic Bearing (FDB) motor.

• High instantaneous (burst) data-transfer rates (up to 3.0 Gbits/sec).

• Perpendicular recording technology.

• State-of-the-art cache and on-the-fly error-correction algorithms.

• Native Command Queuing (NCQ) with command ordering.

• Full-track multiple-sector transfer capability without local processor intervention.

• 1,000 Gs nonoperating shock and 350 Gs of operating shock.

• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.

• The 3D Defense System™, which includes Drive Defense, Data Defense and Diagnostic Defense, of fers the
industry’s most comprehensive protection for disc drives.

• Support for S.M.A.R.T. drive monitoring and reporting.

• Support for Read Multiple and Write Multiple commands.

®

5400.6 SATA model drives:

Momentus 5400.6 SATA Product Manual, Rev. E 1

1.1 About the Serial ATA interface

The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. The primary
advantages include:

• Easy installation and configuration with true plug-and-play connectivity. It is not normally necessary to set
any jumpers or other configuration options .

• Thinner and more flexible cabling for improved enclosure airflow and ease of installatio n.

• Scalability to higher performance levels.

In addition, Serial ATA makes the transition from parallel ATA easy by providing legacy software support. Serial
ATA was designed to allow you to install a Serial ATA host adapter and Serial ATA disc drive in your current
system and expect all of your existing applications to work as normal.

The Serial ATA interface connects each disc drive in a point-to-point configuration with the Serial ATA host
adapter. There is no master/slave relationship with Serial ATA devices like there is with parallel ATA. If two
drives are attached on one Serial ATA host adapter, the host operating system views the two devices as if they
were both “masters” on two separate ports. This essentially means both drives behave as if they are Device 0
(master) devices.

Note. The host adapter may, optionally, emulate a master/slave environment to host software where two

devices on separate Serial ATA ports are represented to host software as a Device 0 (master) and
Device 1 (slave) accessed at the same set of host bus addresses. A host adapter that emulates a
master/slave environment manages two sets of shadow registers. This is not a typical Serial ATA
environment.

The Serial ATA host adapter and drive share the function of emulating parallel ATA device behavior to provide
backward compatibility with existing host systems and software. The Command and Control Block registers,
PIO and DMA data transfers, resets, and interrupts are all emulated.

The Serial ATA host adapter contains a set of registers that shadow the content s of the traditio nal device regi s­ters, referred to as the Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For addi­tional information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA: High Speed Serialized
AT Attachment” specification. The specification can be downloaded from http://www.serialata.org.

2 Momentus 5400.6 SATA Product Manual, Rev. E

2.0 Drive specifications

Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal
power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate the
Momentus 5400.6 SATA models.

2.1 Specification summary table

The specifications listed in this table are for quick reference. For details on specification measurement or defi­nition, see the appropriate section of this manual. .

Table 1: Drive specifications for 500, 400 and 320 GB models

Drive specification

Formatted Gbytes (512 bytes/sector)* 500 400 320
Guaranteed sectors 976,773,168 781,422,768 625,142,448
Bytes per sector 512
Physical read/write heads 4 3
Discs 2 2
Cache (Mbytes) 8
Recording density in BPI (bits/inch avg) 1,490k
Track density TPI (tracks/inch avg) 265k

2

Areal density (Gbits/inch
Spindle speed (RPM) 5,400
Average latency (msec) 5.6
Internal transfer rate (Mbits/sec max) 1,175
I/O data transfer rate

(Mbytes/sec max)
ATA data-transfer modes supported SATA 1.0, Serial ATA Revision 2.6

Height (max) 9.5 +/- 0.2 mm (0.374 +/- .0079 inches)
Width (max) 69.85 mm +/- 0.25 mm (2.75 +/- 0.0098 inches)
Length (max) 100.35 + 0.20 / - 0.25 mm (3.957 + 0.0079 / - 0.0098 inches)
Weight (max) 98.8 grams (0.218 lb)
Power-on to ready (sec typical) 3.6
Power-on to ready (sec max) 3.8
Standby to ready (sec typical) 1.8
Standby to ready (sec max) 2
Track-to-track seek time, read (msec typical) 1

avg) 394

ST9500325AS
ST9500325ASG ST9400326AS

300

PIO modes 0–4
Multiword DMA modes 0–2
Ultra DMA modes 0–6

ST9320325AS
ST9320325ASG

Momentus 5400.6 SATA Product Manual, Rev. E 3

Table 1: Drive specifications for 500, 400 and 320 GB models

Drive specification

Average seek, read (msec typical) 14
Full-stroke seek, read (msec max) 30
Startup current, +5V (max) 1 amp
Seek power (typical) 1.54 watts
Read/write power (typical) Read: 1.40 watts; Write: 1.78 watts
Idle mode, low power (typical) 0.67 watts
Standby mode 0.20 watts (typical)***
Sleep mode 0.20 watts (typical)***
Voltage tolerance (including noise) +5V ± 5%
Ambient temperature 0° to 60°C (operating), –40° to 70°C (nonoperating)
Temperature gradient

(°C per hour max)
Relative humidity 5% to 95% (operating)

Relative humidity gradient 30% per hour max
Wet bulb temperature

(°C max)
Altitude, operating –304.8 m to 3,048 m (–1,000 ft to 10,000
Altitude, nonoperating

(meters below mean sea level, max)
Shock, operating (Gs max at 2 msec) 350
Shock, nonoperating (Gs max at 2 msec) 800
Shock, nonoperating (Gs max at 1 msec) 1,000
Shock, nonoperating (Gs max at 0.5 msec) 600
Vibration, operating 1.0 G (0 to peak, 5–500 Hz)
Vibration, nonoperating 5.0 Gs (0 to peak, 5–500 Hz)
Drive acoustics, sound power (bels)
Idle** 2.4 (typical)

Performance seek 2.6 (typical)

Nonrecoverable read errors 1 per 10
Annualized Failure Rate (AFR) 0.48%
Load/Unload (U/UL) cycles

25°C, 50% relative humidity

32°C, 80% relative humidity
5°C, 80% relative humidity
5°C, 10% relative humidity
55°C, 16% relative humidity

Warranty To determine the warranty for a specific drive, use a web browser to access the following

Supports Hotplug operation per Serial ATA
Revision 2.6 specification

ST9500325AS
ST9500325ASG ST9400326AS

20°C (operating)
35°C (nonoperating)

5% to 95% (nonoperating)

37.7 (operating)
40 (nonoperating)

+ ft)

–304.8 m to 12,192 m (–1000 ft to 40,000

2.6 (max)

2.7 (max)

14

bits read

600,000 software-controlled power on/off cycles
20,000 hard power on/off cycles

600,000 software-controlled power on/off cycles
20,000 hard power on/off cycles

web page: support.seagate.com/customer/warranty_validation.jsp
Y ou will be asked to provide the drive serial number, model number (or part number) and

country of purchase. After submitting this information, the system will display the war­ranty information for your drive.

Yes (requires COMRESET from host after a hotplug event)

+ ft)

ST9320325AS
ST9320325ASG

see notes after Table 3.

4 Momentus 5400.6 SATA Product Manual, Rev. E

Table 2: Drive specifications for 250 and 160 GB models

Drive specification

Formatted Gbytes (512 bytes/sector)* 250 160
Guaranteed sectors 488,397,168 312,581,808
Bytes per sector 512
Physical read/write heads 2
Discs 1
Cache (Mbytes) 8
Recording density in BPI (bits/inch avg) 1,490k 1,238k
Track density TPI (tracks/inch avg) 265k 210k

2

Areal density (Gbits/inch
Spindle speed (RPM) 5,400
Average latency (msec) 5.6
Internal transfer rate (Mbits/sec max) 1,175
I/O data transfer rate

(Mbytes/sec max)
ATA data-transfer modes supported SATA 1.0, Serial ATA Revision 2.6

Height (max) 9.5 +/- 0.2 mm (0.374 +/- .0079 inches)
Width (max) 69.85 mm +/- 0.25 mm (2.75 +/- 0.0098 inches)
Length (max) 100.35 + 0.20 / - 0.25 mm (3.957 + 0.0079 / - 0.0098 inches)
Weight (max) 93.5 grams (0.206 lb) 105 grams (0.23 lb)
Power-on to ready (sec typical) 3.6
Power-on to ready (sec max) 3.8
Standby to ready (sec typical) 1.8
Standby to ready (sec max) 2
Track-to-track seek time, read (msec typical) 1
Average seek, read (msec typical) 14
Full-stroke seek, read (msec max) 30
Startup current, +5V (max) 1 amp
Seek power (typical) 1.54 watts
Read/write power (typical) Read: 1.40 watts; Write: 1.78 watts
Idle mode, low power (typical) 0.67 watts
Standby mode 0.20 watts (typical)*** 0.22 watts (typical)***
Sleep mode 0.20 watts (typical)*** 0.22 watts (typical)***
Voltage tolerance (including noise) +5V ± 5%
Ambient temperature 0° to 60°C (operating), –40° to 70°C (nonoperating)
Temperature gradient

(°C per hour max)
Relative humidity 5% to 95% (operating)

Relative humidity gradient 30% per hour max
Wet bulb temperature

(°C max)
Altitude, operating –304.8 m to 3,048 m (–1,000 ft to 10,000

avg) 394 269

ST9250315AS
ST9250315ASG

300

PIO modes 0–4
Multiword DMA modes 0–2
Ultra DMA modes 0–6

20°C (operating)
35°C (nonoperating)

5% to 95% (nonoperating)

37.7 (operating)
40 (nonoperating)

ST9160314AS
ST9160314ASG ST9160301AS

+ ft)

Momentus 5400.6 SATA Product Manual, Rev. E 5

Table 2: Drive specifications for 250 and 160 GB models

Drive specification

Altitude, nonoperating

ST9250315AS
ST9250315ASG

–304.8 m to 12,192 m (–1000 ft to 40,000+ ft)

ST9160314AS
ST9160314ASG ST9160301AS

(meters below mean sea level, max)
Shock, operating (Gs max at 2 msec) 350
Shock, nonoperating (Gs max at 2 msec) 800
Shock, nonoperating (Gs max at 1 msec) 1,000
Shock, nonoperating (Gs max at 0.5 msec) 600
Vibration, operating 1.0 G (0 to peak, 5–500 Hz)
Vibration, nonoperating 5.0 Gs (0 to peak, 5–500 Hz)
Drive acoustics, sound power (bels)
Idle** 2.4 (typical)

2.6 (max)

Performance seek 2.6 (typical)

2.7 (max)

Nonrecoverable read errors 1 per 10

14

bits read

2.0 (typical)

2.2 (max)

2.5 (typical)

2.6 (max)

Annualized Failure Rate (AFR) 0.48%
Load/Unload (U/UL) cycles

25°C, 50% relative humidity

32°C, 80% relative humidity
5°C, 80% relative humidity

600,000 software-controlled power on/off cycles
20,000 hard power on/off cycles

600,000 software-controlled power on/off cycles

20,000 hard power on/off cycles
5°C, 10% relative humidity
55°C, 16% relative humidity

Warranty To determine the warranty for a specific drive, use a web browser to access the following

web page: support.seagate.com/customer/warranty_validation.jsp

Y ou will be asked to provide the drive serial number, model number (or part number) and

country of purchase. After submitting this information, the system will display the war-

ranty information for your drive.
Supports Hotplug operation per Serial ATA

Yes (requires COMRESET from host after a hotplug event)
Revision 2.6 specification

see notes after Table 3..

6 Momentus 5400.6 SATA Product Manual, Rev. E

Table 3: Drive specifications for 120 and 80 GB models

Drive specification

ST9120315AS
ST9120315ASG

ST980313AS
ST980313ASG

Formatted Gbytes (512 bytes/sector)* 120 80
Guaranteed sectors 234,441,648 156,301,488
Bytes per sector 512
Physical read/write heads 1
Discs 1
Cache (Mbytes) 8
Recording density in BPI (bits/inch avg) 1,490k
Track density TPI (tracks/inch avg) 265k
Areal density (Gbits/inch2 avg) 394
Spindle speed (RPM) 5,400
Average latency (msec) 5.6
Internal transfer rate (Mbits/sec max) 1,175
I/O data transfer rate

300

(Mbytes/sec max)
ATA data-transfer modes supported SATA 1.0, Serial ATA Revision 2.6

PIO modes 0–4
Multiword DMA modes 0–2

Ultra DMA modes 0–6
Height (max) 9.5 +/- 0.2 mm (0.374 +/- .0079 inches)
Width (max) 69.85 mm +/- 0.25 mm (2.75 +/- 0.0098 inches)
Length (max) 100.35 + 0.20 / - 0.25 mm (3.957 + 0.0079 / - 0.0098 inches)
Weight (max) 93.5 grams (0.206 lb)
Power-on to ready (sec typical) 3.6
Power-on to ready (sec max) 3.8
Standby to ready (sec typical) 1.8
Standby to ready (sec max) 2
Track-to-track seek time, read (msec typical) 1
Average seek, read (msec typical) 14
Full-stroke seek, read (msec max) 30
Startup current, +5V (max) 1 amp
Seek power (typical) 1.54 watts
Read/write power (typical) Read: 1.40 watts; Write: 1.78 watts
Idle mode, low power (typical) 0.67 watts
Standby mode 0.20 watts (typical)***
Sleep mode 0.20 watts (typical)***
Voltage tolerance (including noise) +5V ± 5%
Ambient temperature 0° to 60°C (operating), –40° to 70°C (nonoperating)
Temperature gradient

(°C per hour max)

20°C (operating)

35°C (nonoperating)
Relative humidity 5% to 95% (operating)

5% to 95% (nonoperating)
Relative humidity gradient 30% per hour max
Wet bulb temperature

(°C max)

37.7 (operating)

40 (nonoperating)
Altitude, operating –304.8 m to 3,048 m (–1,000 ft to 10,000+ ft)
Altitude, nonoperating

–304.8 m to 12,192 m (–1000 ft to 40,000+ ft)
(meters below mean sea level, max)

Momentus 5400.6 SATA Product Manual, Rev. E 7

Table 3: Drive specifications for 120 and 80 GB models

Drive specification

Shock, operating (Gs max at 2 msec) 350
Shock, nonoperating (Gs max at 2 msec) 800
Shock, nonoperating (Gs max at 1 msec) 1,000
Shock, nonoperating (Gs max at 0.5 msec) 600
Vibration, operating 1.0 G (0 to peak, 5–500 Hz)
Vibration, nonoperating 5.0 Gs (0 to peak, 5–500 Hz)
Drive acoustics, sound power (bels)
Idle** 2.4 (typical)

Performance seek 2.5 (typical)

Nonrecoverable read errors 1 per 10
Annualized Failure Rate (AFR) 0.48%
Load/Unload (U/UL) cycles

25°C, 50% relative humidity

32°C, 80% relative humidity
5°C, 80% relative humidity
5°C, 10% relative humidity
55°C, 16% relative humidity

Warranty To determine the warranty for a specific drive, use a

Supports Hotplug operation per Serial ATA
Revision 2.6 specificatio

n

ST9120315AS
ST9120315ASG

2.6 (max)

2.6 (max)

14

bits read

600,000 software-controlled power on/off cycles
20,000 hard power on/off cycles

600,000 software-controlled power on/off cycles
20,000 hard power on/off cycles

web page: support.seagate.com/customer/warranty_validation.jsp
Y ou will be asked to provide the drive serial

country of purchase. After submitting this information, the system will display the war­ranty information for your drive.

Yes (requires COMRESET from host after a hotplug event)

ST980313AS
ST980313ASG

number, model number (or part number) and

web browser to access the following

*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment

and formatting.

**During periods of drive idle, some offline

power to operational levels.

***Typical notebooks will pull power to the drive when entering S3 and S4; while in the S3 and S4 states, drive sleep and drive standby

modes will not contribute to b

attery power consumption.

2.2 Formatted capacity

Model

activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and

Formatted
ca

pacity*

Guaranteed
sectors

Bytes per
sector

ST9500325AS and ST9500325ASG 500 Gbytes 976,773,168
ST9400326AS 400 Gbytes 781,422,768
ST9320325AS and ST9320325ASG 320 Gbytes 625,142,448
ST9250315AS and ST9250315ASG 250 Gbytes 488,397,168

512
ST9160314AS, ST9160301AS and ST9160314ASG 160 Gbytes 312,581,808
ST9120315AS and ST9120315ASG 120 Gbytes 234,441,648
ST980313AS and ST980313ASG 80 Gbytes 156,301,488

*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment

and formatting.

8 Momentus 5400.6 SATA Product Manual, Rev. E

2.2.1 LBA mode

When addressing these drives in LBA mode, all blocks (

sectors) are consecutively numbered from 0 to n–1,

where n is the number of guaranteed sectors as defined above.
See Section 4.3.1, "Identify Device command" (words 60-61 and 100-103) for additional information about 48-

bit addressing support of drives with capacities over 137 Gbytes.

2.3 Default logical geometry

Cylinders Read/write heads Sectors per track

16,383 16 63

LBA mode

When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1,
where n is the number of guaranteed sectors as defined above.

2.4 Physical organization

Drive model Read/write heads Number of discs

ST9500325AS, ST9500325ASG and ST9400326AS 4 2
ST9320325AS and ST9320325ASG 3 2
ST9250315AS, ST9250315ASG, ST9160314AS,

ST

9160301AS and ST9160314ASG

ST9120315AS, ST9120315ASG, ST980313AS and
ST

980313ASG

2 1

1 1

2.5 Recording and interface technology

ST9500325AS, ST9500325ASG, ST9400326AS,
ST9320325AS, ST9320325ASG, ST9250315AS,
ST9250315ASG ST9160314AS, ST9160314ASG,
ST9120315AS, ST9120315ASG, ST980313AS,
ST980313ASG

Interface Serial ATA (SATA)
Recording method Perpendicular
Recording density BPI (bits/inch avg) 1,490k 1,238k
Track density TPI (tracks/inch avg) 265k 210k
Areal density (Gbits/inch
Spindle speed (RPM) (± 0.2%) 5,400
Maximum Internal transfer rate (Mbits/sec) 1,175
I/O data-transfer rate (Mbytes/sec max) 300
Interleave 1:1
Cache buffer 8 Mbytes (8,192 kbytes)

2

avg) 394 269

ST9160301AS

Momentus 5400.6 SATA Product Manual, Rev. E 9

2.6 Physical characteristics

Drive specification

Height (mm)

(inches)

Width (mm)

(inches)

Length (mm)

(inches)

Weight (max)

ST9500325AS
ST9500325ASG
ST9400326AS
ST9320325AS
ST9320325ASG

ST9250315AS
ST9250315ASG
ST9160314AS
ST9160314ASG
ST9120315AS
ST9120315ASG
ST980313AS
ST980313ASG

ST9160301AS

9.5 +/-0.2

0.374 +/-0.0079

69.85 +/-0.25

2.75 +/-0.0098

100.35 +0.20 / -0.25

3.957 +0.0079 / -0.0098

98.8 grams

0.218 pounds

93.5 grams

0.206 pounds

105 grams

0.23 pounds

2.7 Seek time

Seek measurements are taken with nominal power at 25°C ambient temperature. All times are measured using
drive diagnostics. The specifications in the table below are defined as follows:

• Track-to-track seek time is an aver age of all

• Average seek time is a true statistical random aver a

possible single-track seeks in both directions.

ge of at least 5,000 measurements of seeks between

random tracks, less overhead.

Table 4: Typical seek times

Seek times (msec) Read

Track-to-track (typical) 1
Average (typical) 14
Full-stroke (max) 30
Average latency 5.56

Note. These drives are designed to consistently meet the seek times represented in this manual. Physical

seeks, regardless of mode (such as track-to-track and average), are expected to meet the noted
values. However, due to the manner in which these drives are formatted, benchmark tests that
include command overhead or measure logical seeks may produce results that vary from these
specifications.

2.8 Start/stop times

Time to ready T ypical

Power-on to Ready (sec) 3.6 3.8
Standby to Ready (sec) 1.8 2

Max @ 25

°C

10 Momentus 5400.6 SATA Product Manual, Rev. E

2.9 Power specifications

The drive receives DC power (+5V) through a native SATA power connector.

2.9.1 Power consumption

Power requirements for the drives are

listed in the table on page 11. Typical power measurements are based

on an average of drives tested, under nominal conditions, at 25°C ambient temperature.

• Spinup power

Spinup power is measured from the time of power-on to the

time that the drive spindle reaches operating speed.

• Seek mode

During seek mode, the read/write actuator arm moves towar

d a specific position on the disc surface and does
not execute a read or write operation. Servo electr on ics a re active . Seek m ode p ower is measur ed based on
three random seek operations every 100 msecs. This mode is not typical.

• Read/write
Read/write power is measured with the heads on track, base

power and current

d on three 63 sector read or write operations

every 100 msecs.

• Idle mode power

Idle mode power is measured with the drive up to spee

d, with servo electronics active and with the heads in

a random track location.

• Standby mode

During Standby mode, the drive accepts commands, but the drive is not spinning, and the servo and read/
write

electronics are in power-down model

Table 5: DC power

Power dissipation +5V input average (25° C)

Spinup (max) 1 amp
Seek 1.54 watts
Read 1.40 watts
Write 1.78 watts
Idle, performance* 1.40 watts
Idle, active* 0.78 watts
Idle, low power mode* 0.67 watts
Standby** 0.20 watts (0.22 watts for ST9160301AS model)
Sleep 0.20 watts (0.22 watts for ST9160301AS model)

*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increa se acoustic and

power to operational levels.

**Standby power is measured at steady state (after 200ms from transition)

Momentus 5400.6 SATA Product Manual, Rev. E 11

2.9.1.1 Typical current profile

Figure 1. Typical +5V only startup and operation current profile

2.9.2 Deferred spinup

Momentus 5400.6 SATA drives do not support the defe rred spin

up option. If you require this option, refer to the

Momentus 5400.3 SATA Blade Server family of drives.

2.9.3 Conducted noise

Input noise ripple is measured at the host system powe r

supply across an equivalent 15-ohm resistive load on

the +5 volt line.
Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave

injected noise at up to 10 MHz.
Note. Equ

ivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write

current.

2.9.4 Voltage tolerance

Voltage tolerance (including noise):
5V

± 5%

12 Momentus 5400.6 SATA Product Manual, Rev. E

2.9.5 Power-management modes

The drive provides programmable power management to provide greater energy efficiency. In most systems,
you can control power management through the system setup program. The drive features the following
power-management modes:

Table 6: Power management modes

Power modes Heads Spindle Buffer

Active (operating) Tracking Rotating Full power
Idle, performance Tracking Rotating Self refresh—low power
Idle, active Floating Rotating Self refresh—low power
Idle, low power Parked Rotating Self refresh—low power
Standby Parked Stopped Self refresh—low power
Sleep Parked Stopped Self refresh—low power

• Active mode

The drive is in Active mode during the read/write and seek operations.

• Idle mode

The buffer remains enabled, and the drive accepts all commands and returns to Active mode any time disc
access is necessary.

• Standby mode

The drive enters Standby mode when the host sends a Standby Immediate command. If the host has set the
standby timer, the drive can also enter Standby mode automatically after the drive has been inactive for a
specifiable length of time. The standby timer delay is established using a Standby or Idle command. In Standby
mode, the drive buffer is in Self Refresh Low Power mode, the heads are parked and the spindle is at rest.
The drive accepts all commands and returns to Active mode any time disc access is necessary.

•Sleep mode

The drive enters Sleep mode after receiving a Sleep comma nd from the host. In Sleep mode, the drive buffer
is in Self Refresh Low Power mode, the heads are parked and the spindle is at rest. The drive leaves Sleep
mode after it receives a Hard Reset or Soft Reset from the host. After receiving a reset, the drive exits Sleep
mode and enters Standby mode with all current translation parameters intact.

• Idle and Standby timers

Each time the drive performs an Active function (read, write or seek), the standby timer is reinitialized and
begins counting down from its specified delay times to zero. If the standby timer reaches zero before any
drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the
drive accepts all commands and returns to Active mode when disc access is necessary.

Momentus 5400.6 SATA Product Manual, Rev. E 13

2.10 Environmental specifications

2.10.1 Ambient temperature

Ambient temperature is defined as the temperature of th
Actual drive case temperature should not exceed

70°C (158°F) within the operating ambient conditions.

e environment immediately surrounding the drive.

Above 1,000 feet (305 meters), the maximum temperature is derated linea rly by 1°C every 1000 feet.

Operating: 0° to 60°C (32° to 140°F)
Nonoperating: –40° to 70°C (–40° to 158°F)

2.10.2 Temperature gradient

Operating 20°C per hour (68°F per hour max), without condensation
Nonoperating 35°C per hour (95°F per hour max), without condensation

2.10.3 Humidity

2.10.3.1 Relative humidity

Operating 5% to 95% noncondensing (30% per hour max)
Nonoperating 5% to 95% noncondensing (30% per hour max)

2.10.3.2 Wet bulb temperature

Operating 37.7°C (99.86°F max)
Nonoperating 40°C (104°F max)

2.10.4 Altitude

Operating –304.8 m to 3,048 m (–1,000 ft to 10,000+ ft)
Nonoperating –304.8 m to 12,192 m (–1,000 ft to 40,000+ ft)

14 Momentus 5400.6 SATA Product Manual, Rev. E

2.10.5 Shock

All shock specifications assume that the drive is mounted securely with the input shock applied at the drive
mounting screws. Shock may be applied in the X, Y or Z axis.

Note. Additional shock protection is provided by the Free Fall Protection feature on ST9500325ASG,

ST9320325ASG, ST9250315ASG, ST9160314ASG, ST9120315ASG and ST980313ASG models.
See

Section 2.13.1 for additional information about this feature.

2.10.5.1 Operating shock

These drives comply with the performance levels specified in this document when subjected to a maximum
operating shock of 350 Gs based on half-sine shock pulses of 2 msec. Shocks should not be repeated more
than two times per second.

2.10.5.2 Nonoperating shock

The nonoperating shock level that the drive can experience without incurring physical damage or degradation
in performance when subsequently put into operation is 80 0 Gs based on a nonrepe titive half-sine shock pu lse
of 2 msec duration.

The nonoperating shock level that the drive can experience without incurring physical damage or degradation
in performance when subsequ ently put into operation is 1,000 Gs based on a no nrepetitive half-sine shock
pulse of 1 msec duration.

The nonoperating shock level that the drive can experience without incurring physical damage or degradation
in performance when subsequently put into operation is 60 0 Gs based on a nonrepe titive half-sine shock pu lse
of 0.5 msec duration.

2.10.6 Vibration

All vibration specifications assume that the drive is mounted securely with the input vibration applied at the
drive mounting screws. Vibration may be applied in the X, Y or Z axis.

2.10.6.1 Operating vibration

The maximum vibration levels that the drive may experience while meeting the performance standards speci­fied in this document are specified below.

5–500 Hz 1.0 Gs (0 to peak). Max displacement may apply below 10 Hz.

2.10.6.2 Nonoperating vibration

The maximum nonoperating vibration levels that the drive may experience with out incurring physical damage or degra da­tion in performance when subsequently put into operation are specified below

5–500 Hz: 5.0 Gs (0 to peak). Max displacement may apply below 22 Hz.

.

Momentus 5400.6 SATA Product Manual, Rev. E 15

2.11 Acoustics

Drive emission of sound is measur ed consistent with the ECMA-74 and its’ referenced standards. Testing is
conducted at room temperature (approximately 25
sound power levels for steady state, idle, and active seek modes of operation.

Table 7: Drive A-weighted Sound Power Levels (SWL, BA)

Idle* Performance seek
ST9500325AS, ST9500325ASG,

ST9400326AS, ST9320325AS,
ST9320325ASG, ST9250315AS,
ST9250315ASG, ST9160314AS,
ST9160314ASG, ST9120315AS,
ST9120315ASG, ST980313AS,
ST980313ASG ST9160301AS

2.4 bels (typ)

2.6 bels (max)

*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and

power to operational levels.

2.0 bels (typ)

2.2 bels (max)

Test for Prominent Discrete Tones (PDTs)

Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this pro­cess is the use of the absolute threshold of hearing. Seagate uses the lower limit for the threshold curve* to
discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone
ratios according to Annex D of the ECMA-74 standards.

*Defined as the median curve given by ISO 389-7 (Tf curve) minus 10dB at all frequencies.

°C). Emission levels are reported as the total A-weighted

ST9500325AS, ST9500325ASG,
ST9400326AS, ST9320325AS,
ST9320325ASG, ST9250315AS,
ST9250315ASG, ST9160314AS,
ST9160314ASG

2.6 bels (typ)

2.7 bels (max)

ST9160301AS, ST9120315AS,
ST9120315ASG, ST980313AS,
ST980313ASG

2.5 bels (typ)

2.6 bels (max)

2.12 Electromagnetic immunity

When properly installed in a representative host syst em, the drive operates without errors or degradation in
performance when subjected to the radio frequency (RF) environments defined in the follo wing table:

Table 8: Radio frequency environments

Performance

Test Description

Electrostatic discharge Contact, HCP, VCP: ± 4
Radiated RF immunity 80 to 2,000 MHz, 10 V/m,

Electrical fast transient ± 1 kV on AC mains, ± 0.5 kV on external I/O B EN 61000-4-4: 95
Surge immunity ± 1 kV differential, ± 2 kV common, AC mains B EN 61000-4-5: 95
Conducted RF immunity 150 kHz to 80 MHz, 3 Vrms, 80% AM with 1 kHz

Power Frequency H-field
immunity

Voltage dips, interrupts 30% Reduction for 25 cycles

80% AM with 1 kHz sine
900 MHz, 3 V/m, 50% pulse modulation @ 200 Hz

sine
1 A/m, 50Hz/60Hz, 3 axes A EN 61000-4-8: 97

>95% Reduction for 250 cycles
>95%, 0.5 cycles

kV; Air: ± 8 kV B EN 61000-4-2: 95

level

A EN 61000-4-3: 96

A EN 61000-4-6: 97

C
C
B

Reference
standard

ENV 50204: 95

EN 61000-4-11: 94

16 Momentus 5400.6 SATA Product Manual, Rev. E

2.13 Reliability

Measurement type Specification

Nonrecoverable read errors 1 per 10
Annualized Failure Rate (AFR) <0.48%
Load/Unload (U/UL)

25°C, 50% relative humidity

32°C, 80% relative humidity
5°C, 80% relative humidity
5°C, 10% relative humidity
55°C, 16% relative humidity

Warranty To determine the warranty for a specific drive, use a web bro

14

bits read, max.

600,000 software-controlled power on/off cycles
20,000 hard power on/off cycles

600,000 software-controlled power on/off cycles
20,000 hard power on/off cycles

following web page:
support.seagate.com/custome
You will be asked to provide the drive serial number, model number (or part num-

ber) and country of purchase. After submitti
play the warranty information for your drive.

r/warranty_validation.jsp

ng this information, the system will dis-

wser to access the

2.13.1 Free Fall Protection feature

The Free Fall Protection feature provides enhanced data protection against shock events that may occur while
the

drive is operating. This feature is designed to decrease the likelihood of data loss by detecting a free fall
event and unloading the actuator before a shock takes place in falls of >8 inches (nominal). The drive uses a 0
G sensor mounted on the printed circuit board assembly (PCBA) to sense this event.

To enable the Free Fall Protection feature on ST9500325ASG, ST9320325ASG, ST9250315ASG,
ST9160314ASG, ST9120315ASG and ST980313ASG models, use Set Features command 41h. To disable
this feature, use Set Features command C1h.

Information about Free Fall Events that have occurred is available through SMART attribute FEh.
Note. Of th

e models documented in this product manual, the Free Fall Protection fe ature is provided only
on ST9500325ASG, ST9320325ASG, ST9250315ASG, ST9160314ASG, ST9120315ASG, and
ST980313ASG models.

Momentus 5400.6 SATA Product Manual, Rev. E 17

2.14 Agency certification

2.14.1 Safety certification

The drives are recognized in accordance with UL 1950 and CSA C22.2 (950) and meet all applicable sections
of IEC950 and EN 60950 as tested by TUV North America.

2.14.2 Electromagnetic compatibility

Hard drives that display the CE mark comply with the European Union (EU) requirements specified in the Elec­tromagnetic Compatibility Directive (89/336/EEC). Testing is performed to the levels specified by the product
standards for Information Technology Equipment (ITE). Emission levels are defined by EN 55022, Class B and
the immunity levels are defined by EN 55024.

Seagate uses an independent laboratory to confirm compliance with the EC directives specified in the previous
paragraph. Drives are tested in representative end-user systems. Although CE-marked Seagate drives comply
with the directives when used in the test systems, we cannot guarantee that all systems will comply with the
directives. The drive is designed for operation inside a properly designed enclosure, with properly shielded I/O
cable (if necessary) and terminators on all unused I/O ports. Computer manufacturers and system integrators
should confirm EMC compliance and provide CE marking for their products.

Korean RRL

If these drives have the Korea Ministry of Information and Communication (MIC) logo, they comply with para­graph 1 of Article 11 of the Electromagnetic Compatibility control Regulation and meet the Electromagnetic
Compatibility (EMC) Framework requirements of the Radio Research Laboratory (RRL) Ministry of Information
and Communication Republic of Korea.

These drives have been tested and comply with the Electromagnetic Interferen ce/Ele ctromagn etic Susceptibil­ity (EMI/EMS) for Class B products. Drives are tested in a representative, end-user system by a Korean-recog­nized lab.

• Certificate number: STX-54006 (B)

• Trade name or applicant: Seagate Technology LLC

• Manufacturing date: October 01, 2008 (Date of Certification)

• Manufacturer/nationality: USA, Singapore and China

Australian C-Tick (N176)

If these models have the C-Tick marking, they comply with the Australia/New Zealand Standard AS/NZS3548
1995 and meet the Electromagnetic Compatibility (EMC) Framework req uireme nts of the Australian Communi­cation Authority (ACA).

18 Momentus 5400.6 SATA Product Manual, Rev. E

2.14.3 FCC verification

These drives are intended to be contained solely within a pe rson al computer or simila r enclosur e (no t attached
as an external device). As such, each drive is considered to be a subassembly even when it is individually mar­keted to the customer. As a subassembly, no Federal Communications Commission verification or certification
of the device is required.

Seagate Technology LLC has tested this device in enclosures as described above to ensure that the total
assembly (enclosure, disc drive, m otherboard, power supply, etc.) does comply with the limits for a Class B
computing device, pursuant to Subpart J, Part 15 of the FCC rules. Operation with noncertified assemblies is
likely to result in interference to radio and television reception.

Radio and television interference. This equipment generates and uses radio frequency energy and if not
installed and used in strict accordance w ith the manufacturer ’s instructions, may cause interference to radio
and television reception.

This equipment is designed to provide reasonable protection against such interference in a residential installa­tion. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause interference to radio or television, which can be determined by turning the equipment on and off,
you are encouraged to try one or more of the following corrective measures:

• Reorient the receiving antenna.

• Move the device to one side or the other of the radio or TV.

• Move the device farther away from the radio or TV.

• Plug the computer into a different outlet so that the receiver and computer are on different branch outlets.
If necessary, you should consult your dealer or an experienced radio/television technician for additional sug-

gestions. You may find helpful the following booklet prepared by the Federal Communications Commission:
How to Identify and Resolve Radio-Television Interference Problems. This booklet is available from the Super­intendent of Documents, U.S. Government Printing Office, Washington, DC 20402. Refer to publication num­ber 004-000-00345-4.

Momentus 5400.6 SATA Product Manual, Rev. E 19

2.15 Environmental protection

Seagate designs its products to meet environmental protection requirements worldwide, including regulations
restricting certain chemical substances.

2.15.1 European Union Restriction of Hazardous Substances (RoHS)

Seagate designs its products to meet environmental protection
restricting certain chemical substances. A new law, the European Union Restriction of Hazardous Substances
(RoHS) Directive, restricts the presence of chemical substances, including Lead, Cadmium, Mercury,
Hexavalent Chromium, PBB and PBDE, in electronic products, effective July 2006. This drive is manufactured
with components and materials that comply with the RoHS Directive..

2.15.2 China Restriction of Hazardous Substances (RoHS) Directive

This product has an Environmental Protection Use Period (EPUP) of 20 years. The following
table contains information mandated by China's "Marking Requirements for Control of Pollution
Caused by Electronic Information Products" Standard.

requirements worldwide, including regulations

"O" indicates the hazardous and toxic substa nce content of the p art (at the homogenou s material level) is lower
than the threshold defined by the China RoHS MCV Standard.

“O”

表示该部件（于同类物品程度上）所含的危险和有毒物质低于中国

"X" indicates the hazardous and toxic substance content of the part (at the homogenous material level) is over
the threshold defined by the China RoHS MCV Standard.

“X”

表示该部件（于同类物品程度上）所含的危险和有毒物质超出中国

RoHS MCV

RoHS MCV

标准所定义的门槛值。

标准所定义的门槛值。

2.16 Corrosive environment

Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to
light industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM
B845. However, this accelerated testing cannot duplicate every potential application environment.

Users should use caution exposin g any electronic c omponents to uncontrolled chemical pollutants and corro­sive chemicals as electronic drive component reliability can be affected by the installation environment. The sil­ver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide,
chloride, and nitrate contaminants. Sulfur is found to be th e most damaging . In additio n, electronic component s
should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or
exposed to an ambient relative humidity greater than 95%. Materials used in cabinet fabrication , such as vulca­nized rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any
electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.

20 Momentus 5400.6 SATA Product Manual, Rev. E

3.0 Configuring and mounting the drive

This section contains the specifications and instructions for configuring and mounting the drive.

3.1 Handling and static-discharge precautions

After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic dis­charge (ESD) hazards. Observe the following standard handling and static-discharge precautions:

Caution:

• Keep the drive in the electrostatic discharge (ESD) bag until you are ready for installation to limit the drive’s
exposure to ESD.

• Before handling the drive, put on a gr ou nd e d wrist strap, or ground yourself frequently by touching the metal
chassis of a computer that is plugged into a grounded outlet. Wea r a grounded wrist strap throughout the entire
installation procedure.

• Handle the drive only by its edges or frame.

• The drive is fragile—handle it with care. Do not press down on the drive top cover.

• Always rest the drive on a padded, antistatic surface until you mount it in the computer.

• Do not touch the connector pins or the printed circuit board.

• Do not remove the factory-installed labels from the drive or cover them with additional labels. Removal voids
the warranty. Some factory-installed labels contain information needed to service the drive. Other labels are
used to seal out dirt and contamination.

Momentus 5400.6 SATA Product Manual, Rev. E 21

3.2 Configuring the drive

Each drive on the Serial ATA interface connects in a point-to-point configuration with the Serial ATA host
adapter. There is no master/slave relationship because each drive is considered a master in a point-to-point
relationships. If two drives are attached on one Serial ATA host adapter, the host operating system views the
two devices as if they were both “masters” on two separate ports . This means bo th drive s behave as if they are
Device 0 (master) devices.

Serial ATA drives are designed for easy installation. It is normally not necessary to set any jumpers on this
drive for proper operation. If the host system does not support SATA 3Gb/s operation, place a jumper on pins 1
and 2 to limit the drive to 1.5Gb/s operation.

3.0 Gbits per second operation

Limit data transfer rate to

1.5 Gbits per second

Jumper block

SATA interface connector

Figure 2. Serial ATA connectors

SATA power connector

3.3 Serial ATA cables and connectors

The Serial ATA interface cable consists of four conductors in two differential pairs, plus three ground connec­tions. The cable size may be 30 to 26 AWG with a maximum length of one meter (39.37 inches). See Table 9
for connector pin definitions. Either end of the SATA signal cable can be attached to the drive or host.

For direct backplane connection, the drive connectors are inserted directly into the host receptacle. The drive
and the host receptacle incorporate features that enable the direct connection to be hot pluggable and blind
mateable.

For installations which require cables, you can connect the drive as illustrated in Figure 3.

SATA interface connector

Power connector

SATA interface cable

Power cable

Figure 3. Attaching SATA cabling

Each cable is keyed to ensure correct orientation.

22 Momentus 5400.6 SATA Product Manual, Rev. E

3.4 Drive mounting

You can mount the drive using four screws in the side-mounting holes or four screws in the bottom-mounting
holes. See Figure 4 for drive mounting dimensions. Follow these important mounting precautions when mount­ing the drive:

• Allow a minimum clearance of 0.030 in

• Use only M3 UNC mounting screws.

• Do not overtighten the mounting screws. Maximum torque: 4.0 inch-lb (0.4519 N-m).

• Four (4) threads (0.080 inches, 2.032 mm) minimum screw engagement recommended.

• Avoid excessive drive distortion when moun tin g. Refer to the

information:

Top cover stiffness/deflection

Operating with no performance degrad
mechanical damage, or hard errors

Non-operating with no hard errors 20 mm probe: 2kgf at any point of top cover

ches (0.76 mm) around the entire perimeter of the drive for coolin g.

following specifications for stiffness/deflection

ation, emitted noise,

10 mm probe: 2.0kgf OR
5 mm probe: 0.92kgf

20 mm probe: 15kgf at top cover edges only

Momentus 5400.6 SATA Product Manual, Rev. E 23

Measurements shown in Figure 4 are in inches .

Figure 4. Mounting dimensions—top, side and end view

24 Momentus 5400.6 SATA Product Manual, Rev. E

4.0 Serial ATA (SATA) interface

These drives use the industry-standard Serial ATA interface that supports FIS data transfers. It supports ATA
programmed input/output (PIO) modes 0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–6. The drive
also supports the use of the IORDY signal to provide reliable high-speed data transfers.

For detailed information about the Serial ATA interface, refer to the “Serial ATA: High Speed Serialized AT
Attachment” specification.

4.1 Hot-Plug compatibility

Momentus 5400.6 SATA drives incorporate connectors which enable you to hot plug these drives in accor­dance with the Serial ATA: High Speed Serialized AT Attachment specification revision 2.0. This specification
can be downloaded from http://www.serialata.org. This device requires a COMRESET from the host after a
hotplug event.

4.2 Serial ATA device plug connector pin definitions

Table 9 summarizes the signals on the Serial ATA interface and power connectors..

Table 9: Serial ATA connector pin definitions

Segment Pin Function Definition

S1 Ground 2nd mate
S2 A+ Differential signal pair A from Phy
S3 A­S4 Ground 2nd mate
S5 B- Differential signal pair B from Phy
S6 B+

Signal

S7 Ground 2nd mate

Key and spacing separate signal and power segments

Momentus 5400.6 SATA Product Manual, Rev. E 25

Table 9: Serial ATA connector pin definitions

Segment Pin Function Definition

P1 V
P2 V
P3 V

33

33

33

3.3V power

3.3V power

3.3V power, pre-charge, 2nd mate
P4 Ground 1st mate
P5 Ground 2nd mate
P6 Ground 2nd mate

Power

P7 V
P8 V
P9 V

5

5

5

5V power, pre-charge, 2nd mate
5V power

5V power
P10 Ground 2nd mate
P11 Reserved The pin corresp onding to P11 in the backplane receptacle connector is also reserved

The corresponding pin to be mated with P11 in the power cable receptacle connector

shall always be grounded
P12 Ground 1st mate.
P13 V
P14 V
P15 V

12

12

12

12V power, pre-charge, 2nd mate

12V power

12V power

Notes:

1. All pins are in a single row, with a 1.27 mm (0.050”) pitch.

2. The comments on the mating sequence apply to the case of backplane blindmate connector only. In this
case, the mating sequences are:

• the ground pins P4 and P12.

• the pre-charge power pins and the other ground pins.

• the signal pins and the rest of the power pins.

3. There are three power pins for each voltage. One pin from each voltage is used for pre-charge when
installed in a blind-mate backplane configuration.

4. All used voltage pins (Vx) must be terminated.

26 Momentus 5400.6 SATA Product Manual, Rev. E

4.3 Supported ATA commands

The following table lists Serial ATA standard commands that the drive supports. For a detailed description of
the ATA commands, refer to the Serial ATA: High Speed Serialized AT Attachment specification. See
“S.M.A.R.T. commands” on page 34.for details and subcommands used in the S.M.A.R.T. implemen tation.

Command name Command code (in hex)
ATA-standard commands

Device Configuration Restore B1h/C0h
Device Configuration Freeze Lock B1h/C1h
Device Configuration Identify B1h/C2h
Device Configuration Set B1h/C3h
Download Microcode 92h
Execute Device Diagnostics 90h
Flush Cache E7h
Flush Cache Extended EAh
Identify Device ECh
Initialize Device Parameters 91h
Read Buffer E4h
Read DMA C8h
Read DMA Extended 25h
Read DMA without Retries C9h
Read Long with Retries 22h
Read Long without Retries 23h
Read Multiple C4h
Read Multiple Extended 29h
Read Native Max Address F8h
Read Native Max Address Extended 27h
Read Sectors 20h
Read Sectors Extended 24h
Read Sectors without Retries 21h
Read Verify Sectors 40h
Read Verify Sectors Extended 42h
Read Verify Sectors without Retries 41h
Seek 70h
Set Features EFh
Set Max Address F9h
Note: Individual Set Max commands are identi-

fied by the value placed in the Set Max Fea­tures register as defined to the right.

Set Multiple Mode C6h
S.M.A.R.T. Disable Operations B0h/D9h

Address:
Password:
Lock:
Unlock:
Freeze Lock:

00
01
02
03
04

H
H
H
H
H

Momentus 5400.6 SATA Product Manual, Rev. E 27

Command name Command code (in hex)

S.M.A.R.T. Enable/Disable Autosave B0h/D2h
S.M.A.R.T. Enable Operations B0h/D8h
S.M.A.R.T. Enable/Disable Auto Offline B0h/DBh
S.M.A.R.T. Enable One Attribute Modification B0h/E0h
S.M.A.R.T. Execute Offline B0h/D4h
S.M.A.R.T. Read Attribute Thre sholds B0h/D1h
S.M.A.R.T. Read Data B0h/D0h
S.M.A.R.T. Read Log Sector B0h/D5h
S.M.A.R.T. Return Status B0h/DAh
S.M.A.R.T. Save Attribute Values B0h/D3h
S.M.A.R.T. Write Attribute Thresholds B0h/D7h
S.M.A.R.T. Write Attribute Values B0h/E1h
S.M.A.R.T. Write Log Sector B0h/D6h
Write Buffer E8h
Write DMA CAh
Write DMA Extended 35h
Write DMA without Retries CBh
Write Long with Retries 32h
Write Long without Retries 33h
Write Multiple C5h
Write Multiple Extended 39h
Write Sectors 30h

,

31h
Write Sectors Extended 34h
Write Uncorrectable 45h

ATA-standard power-management commands

Check Power Mode E5h
Idle E3h
Idle Immediate E1h
Sleep E6h
Standby E2h
Standby Immediate E0h

ATA-standard security commands

Security Set Password F1h
Security Unlock F2h
Security Erase Prepare F3h
Security Erase Unit F4h
Security Freeze Lock F5h
Security Disable Password F6h

28 Momentus 5400.6 SATA Product Manual, Rev. E

4.3.1 Identify Device command

The Identify Device command (command code ECH) transfers information about the drive to the host following
power up. The data is organized as a single 512-byte block of data, whose contents are shown in the table on
page 27. All reserved bits or words should be set to zero. Parameters listed with an “x” are drive-specific or
vary with the state of the drive.

The following commands contain drive-specific features that may not be included in the Serial ATA specifica­tion.

Word Description Value

0

Configuration information:

• Bit 15: 0 = ATA; 1 = ATAPI

• Bit 7: removable media

0C5A

• Bit 6: removable controller

• Bit 0: reserved
1 Number of logical cylinders 16,383
2 ATA-reserved 0000
3 Number of logical heads 16
4 Retired 0000
5 Retired 0000
6 Number of logical sectors per logical tra ck: 63 003F
7–9 Retired 0000
10–19 Serial number: (20 ASCII characters, 0000H = none) ASCII
20 Retired 0000
21 Retired 0400
22 Obsolete 0000
23–26 Firmware revision (8 ASCII character string, padded with

x.xx

blanks to end of string)

27–46 Drive model number: (40 ASCII characters, padded with

blanks to end of string)

ST9500325AS
ST9500325ASG
ST9400326AS
ST9320325AS
ST9320325ASG
ST9250315AS
ST9250315ASG
ST9160301AS
ST9160314AS
ST9160314ASG
ST9120315AS
ST9120315ASG
ST980313AS
ST980313ASG

47 (Bits 7–0) Maximum sectors per interrupt on Read multiple

8010

and Write multiple (16)
48 Reserved 0000
49 Standard Standby timer, IORDY supported and may be dis-

2F00

abled
50 ATA-reserved 0000
51 PIO data-transfer cycle timing mode 0200
52 Retired 0200
53 Words 54–58, 64–70 and 88 are valid 0007

H

H

H
H
H
H

H
H
H

H

H
H

H
H
H
H

Momentus 5400.6 SATA Product Manual, Rev. E 29

Word Description Value

54 Number of current logical cylinders xxxx
55 Number of current logical heads xxxx
56 Number of current logical sectors per logical track xxxx
57–58 Current capacity in sectors xxxx
59 Number of sectors transferred during a Read Multiple or

xxxx

Write Multiple command

60–61 Total number of user-addressable sectors

This field contains a value that is one greater than the total
number of user-addressable sectors. The maximum value
that shall be placed in this field is 0FFFFFFFh. The
0FFFFFFFh value applies to all capacities over 137Gbytes
(see Section 2.2 and 2.3 for related information).

ST9500325AS = 0FFFFFFFh
ST9500325ASG = 0FFFFFFFh
ST9400326AS = 0FFFFFFFh
ST9320325AS = 0FFFFFFFh
ST9320325ASG = 0FFFFFFFh
ST9250315AS = 0FFFFFFFh
ST9250315ASG = 0FFFFFFFh
ST9160301AS = 0FFFFFFFh
ST9160314AS = 0FFFFFFFh
ST9160314ASG = 0FFFFFFFh
ST9120315AS = 234,441,648
ST9120315ASG = 234,441,648
ST980313AS = 156,301,488

ST980313ASG = 156,301,488
62 Retired 0000
63 Multiword DMA active and modes supported

xx07

(see note following this table)
64 Advanced PIO modes supported (modes 3 and 4 supported) 0003
65 Minimum multiword DMA transfer cycle time per word

0078

(120 nsec)
66 Recommended multiword DMA transfer cycle time per word

0078

(120 nsec)
67 Minimum PIO cycle time without IORDY flow control

00F0

(240 nsec)
68 Minimum PIO cycle time with IORDY flow control (120 nsec) 0078
69–74 ATA-reserved 0000
75 Queue depth 001F
76 Serial ATA capabilities 0508
77 ATA-reserved 0000
78 Serial ATA features supported 0048
79 Serial ATA features enabled 0040
80 Major version number 003E
81 Minor version number 0028
82 Command sets supported 306B
83 Command sets supported 4001
84 Command sets support extension 4000
85 Command sets enabled 30xx
86 Command sets enabled 0001
87 Command sets enable extension 4000
88 Ultra DMA support and current mode

xx7F

(see note following this table)

H
H
H
H
H

H

H

H
H

H

H

H
H
H
H
H
H
H
H
H
H
H
H

H

H
H

H

30 Momentus 5400.6 SATA Product Manual, Rev. E

Word Description Value

89 Security erase time 0000
90 Enhanced security erase time 0000
92 Master password revision code FFFE
93 Hardware reset value

(see description following this table)
94 Auto acoustic management setting xxxx
95–99 ATA-reserved 0000
100–

103

Total number of user-addressable LBA sectors available

(see Section 2.2 for related information)

These words are required for drives that support the 48-bit

addressing feature. Maximum value: 0000FFFFFFFFFFFFh.

H
H

H

xxxx

H

H

H

ST9500325AS = 0FFFFFFFh
ST9500325ASG = 0FFFFFFFh
ST9400326AS = 0FFFFFFFh
ST9320325AS = 0FFFFFFFh
ST9320325ASG = 0FFFFFFFh
ST9250315AS = 0FFFFFFFh
ST9250315ASG = 0FFFFFFFh
ST9160301AS = 0FFFFFFFh
ST9160314AS = 0FFFFFFFh
ST9160314ASG = 0FFFFFFFh
ST9120315AS = 234,441,648
ST9120315ASG = 234,441,648
ST980313AS = 156,301,488
ST980313ASG = 156,301,488

104–
118

ATA-reserved 0000

H

119 Free Fall Protection support (bit 5) 1 = Free Fall Protection supported

0 = Free Fall Protection not supported

120 Free Fall Protection enab le/disable (bit 5) 1 = Free Fall Protection feature is enabled

0 = Free Fall Protection feature is disabled

121–
127

128 Security status 0001
129–

159
160–

254
255 Integrity word xxA5

ATA reserved 0000

Seagate-reserved xxxx

ATA-reserved 0000

H

H

H

H

H

Note. See the bit descriptions below for words 63, 88, and 93 of the Identify Drive data:

Description (if bit is set to 1)

Bit Word 63

0 Multiword DMA mode 0 is supported.

1 Multiword DMA mode 1 is supported.

2 Multiword DMA mode 2 is supported.

8 Multiword DMA mode 0 is currently active.

9 Multiword DMA mode 1 is currently active.

10 Multiword DMA mode 2 is currently active.

Momentus 5400.6 SATA Product Manual, Rev. E 31

Bit Word 88

0 Ultra DMA mode 0 is supported.
1 Ultra DMA mode 1 is supported.
2 Ultra DMA mode 2 is supported.
3 Ultra DMA mode 3 is supported.
4 Ultra DMA mode 4 is supported.
5 Ultra DMA mode 5 is supported
6 Ultra DMA mode 6 is supported
8 Ultra DMA mode 0 is currently active.
9 Ultra DMA mode 1 is currently active.
10 Ultra DMA mode 2 is currently active.
11 Ultra DMA mode 3 is currently active.
12 Ultra DMA mode 4 is currently active.
13 Ultra DMA mode 5 is currently active.
14 Ultra DMA mode 6 is currently active.

Bit Word 93

13 1 = 80-conductor cable detecte d, CBLID above VIH

0 = 40-conductor cable detected, CBLID below VIL

32 Momentus 5400.6 SATA Product Manual, Rev. E

4.3.2 Set Features command

This command controls the implementation of various featur es that the drive su pports. When the drive receives
this command, it sets BSY, checks the contents of the Features register, clears BSY and generates an inter­rupt. If the value in the register does not represent a feature that the drive supports, the command is aborted.
Power-on default has the read look-ahead and write caching features enabled. The acceptable values for the
Features register are defined as follows:

Table 10: Set Features command values

02
03

55
82
AA
C1
F1

Enable write cache (default).

H

Set transfer mode (based on value in Sector Count register).

H

Sector Count register values:
00

Set PIO mode to default (PIO mode 2).

H

Set PIO mode to default and disable IORDY (PIO mode 2).

01

H

08HPIO mode 0
09HPIO mode 1

PIO mode 2

0A

H

0BHPIO mode 3
0CHPIO mode 4 (default)

Multiword DMA mode 0

20

H

21HMultiword DMA mode 1
22HMultiword DMA mode 2

Ultra DMA mode 0

40

H

41HUltra DMA mode 1
42HUltra DMA mode 2

Ultra DMA mode 3

43

H

44HUltra DMA mode 4
45HUltra DMA mode 5

Ultra DMA mode 6

46

H

Disable read look-ahead (read cache) feature.

H

Disable write cache

H

Enable read look-ahead (read cache) feature (default).

H

Disable the Free Fall Protection feature (41H above enables the Free Fall Protection feature)

H

Report full capacity available

H

Note. At power-on, or after a hardware or software reset, the default values of the features are as indi-

cated above.

Momentus 5400.6 SATA Product Manual, Rev. E 33

4.3.3 S.M.A.R.T. commands

S.M.A.R.T. provides near-term failure prediction for disc drives. When S.M.A.R.T. is enabled, the drive moni­tors predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines
that a failure is likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable.
S.M.A.R.T. predictability is limited to the attributes the drive can monitor. For more information on S.M.A.R.T.
commands and implementation, see the Draft ATA-8 Standard.

SeaTools diagnostic software activates a built-in drive self-test (DST S.M.A.R.T. command for D4

) that elimi-

H

nates unnecessary drive returns. The diagnostic software ships with all new drives and is also available at:
http://seatools.sea

gate.com.

This drive is shipped with S.M.A.R.T . featur es disabled . You must have a recent BIOS or software p ackage that
supports S.M.A.R.T. to enable this feature. The table below shows the S.M.A.R.T. command codes that the
drive uses.

Table 11: S.M.A.R.T. commands

Code in features register S.M.A.R.T. command

D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
DA

H
H
H
H
H
H
H
H
H
H

H

S.M.A.R.T. Read Data
Vendor-specific
S.M.A.R.T. Enable/Disable Attribute Autosave
S.M.A.R.T. Save Attribute Values
S.M.A.R.T. Execute Off-line Immediate (runs DST)
S.M.A.R.T. Read Log Sector
S.M.A.R.T. Write Log Sector
Vendor-specific
S.M.A.R.T. Enable Operations
S.M.A.R.T. Disable Operations
S.M.A.R.T. Return Status

Note. If an appropriate code is not written to the Features Register, the command is aborted and 0x 04

(abort) is written to the Error register.

34 Momentus 5400.6 SATA Product Manual, Rev. E

5.0 Seagate Technology support services

Internet

For information regarding Seagate products and services, visit www.sea
Worldwide support is available 24 hours daily by email for your questions.

Presales Support:

[e-mail]

Technical Support:

[e-mail]

Warranty Support:

http://www.sea

mySeagate

my.sea

self-service access to critical applicat ions, personalized conten t and the tools that allow our partners to man­age their Seagate account functions. Submit pricing requests, orders and returns through a single, password­protected Web interface-anytime, anywhere in the world.

spp.seagate.com

spp.sea

may register for customized communications that are not availab le on the web. These commu nications cont ain
product launch, EOL, pricing, promotions and other channel-related information. To learn more about the ben­efits or to register, go to spp.sea

gate.com is the industry's first Web portal designed specifically for OEMs and distributors. It provides

gate.com/www/en-us/support/warranty_&_returns_assistance

gate.com supports Seagate resellers with product information, program benefits and sales tools. You

gate.com, any time, from anywhere in the world.

gate.com.

Global Customer Support

Presales Support

Our Presales Support staff can help you determine which Seagate products are best suited for your specific
application or computer system, as well as product availability and compatibility.

Technical Support

Seagate technical support is availa ble to assist you online at suppo rt.seagate.com or through one of our call
centers. Have your system configuration information and your "ST" model/product number available.

Momentus 5400.6 SATA Product Manual, Rev. E 35

Customer Service Operations

Warranty Service

Seagate offers worldwide customer su pport fo r Seag ate products. Seagate distributor s, OEMs and other direct
customers should contact their Seagate Customer Service Operations (CSO) representative for warranty­related issues. Resellers or end users of drive product s sh ould cont a ct their place of purcha se or Seagate war­ranty service for assistance. Have your serial number and model or part number available.

Data Recovery Services

Seagate offers data recovery services for all formats and all brands of storage media. Our data recovery ser­vices labs are currently located throug ho u t th e wo rl d. . Additional information, including an online request form
and data loss prevention resources, is available at http://services.sea

gate.com/index.aspx.

Authorized Service Centers

Seagate Service Centers are available on a global basis for the return of defective products. See www.sea-

gate.com for the service center near you.

USA/Canada/Latin America support services

For an extensive list of telephone numbers to technical support, presales and warranty service in USA/
Canada/Latin America, including business hours, go to the "Contact Us" page on www.sea

gate.com.

Global Customer Support

Presales, Technical, and Warranty Support
Call Center Toll-free Direct dial

USA, Canada,
and Mexico 1-800-SEAGATE [phone]

Data Recovery Services
Call Center Toll-free Direct dial FAX

USA, Canada, 1-800-475-0143 [phone]-475-0158
and Mexico [phone]

Europe, the Middle East and Africa Support Services

For an extensive list of telephone numbers to technical support, presales and warranty service in Europe, the
Middle East and Africa, go to the "Contact Us" page on www.sea

gate.com.

Asia/Pacific Support Services

For an extensive list of telephone numbers to technical support, presales and warranty service in Asia/Pacific,
go to the "Contact Us" page on www.sea

gate.com.

36 Momentus 5400.6 SATA Product Manual, Rev. E

Index

A

ACA 18
acoustics 4, 6, 8, 16
Active mode 13
Address 27
AFR 17
Agency certification 18
Altitude 14
Altitude, nonoperating 4, 6, 7
Altitude, operating 4, 5, 7
Ambient temperature 4, 5, 7, 14
ambient temperature 10
Annualized Failure Rate 17
Annualized Failure Rate (AFR) 4, 6, 8
Areal density 3, 5, 7, 9
ATA commands 27
ATA data-transfer modes supported 3, 5, 7
Australia/New Zealand Standard AS/NZS3548 1995

18

Australian Communication Authority (ACA) 18
Australian C-Tick 18
Average seek time 10
Average seek, read 4, 5, 7

B

bels 4, 6, 8
BPI 3, 5, 7
buffer 3, 5, 7, 9
Bytes per sector 3, 5, 7, 8

C

cables and connectors 22
Cache 3, 5, 7
cache 9
capacity 8
case temperature 14
CE mark 18
certification 18
Check Power Mode 28
chemical substances 20
China RoHS directive 20
Class B computing device 19
compatibility 18
Conducted noise 12
Conducted RF immunity 16
Configuring the drive 21
connectors 22
CSA C22.2 (950) 18
current 4, 5, 7
cycles 17
Cylinders 9

D

data-transfer rates 1
DC power 11
Default logical geometry 9
density 3, 5, 7
Device Configuration Freeze Lock 27
Device Configuration Restore 27
Device Configuration Set 27
Diagnostics 27
dimensions 24
Discs 3, 5, 7
dissipation 11
Download Microcode 27

E

Electrical fast transient 16
Electromagnetic compatibility 18
Electromagnetic Compatibility Directive (89/336/EEC)

18

Electromagnetic immunity 16
Electrostatic discharge 16
electrostatic discharge (ESD) 21
EN 55022, Class B 18
EN 55024 18
EN 60950 18
Environmental protection 20
Environmental specifications 14
error-correction algorithms 1
errors 4, 6, 8, 17
ESD 21
EU 18
European Union (EU) requirements 18
European Union Restriction of Hazardous Substanc-

es 20
evice Configuration Identify 27
Execute Device Diagnostics 27

F

FCC verification 19
features 1
Federal Communications Commission 19
Flush Cache 27
Flush Cache Extended 27
Formatted capacity 8
Formatted Gbytes 3, 5, 7
Freeze Lock 27

G

Gbytes 8
geometry 9
gradient 4, 5, 7
Guaranteed sectors 3, 5, 7, 8
guaranteed sectors 9

Momentus 5400.6 SATA Product Manual, Rev. E 37

H

handling 21
Handling precautions 21
heads 9
Height 3, 5, 7
height 10
Humidity 14
humidity 4, 5, 7

I

I/O data-transfer rate 3, 5, 7, 9
Identify 27
Identify Device 27
Identify Device command 29
Idle 11, 28
Idle and Standby timers 13
Idle Immediate 28
Idle mode 4, 5, 7, 13
Idle mode power 11
IEC950 18
Information Technology Equipment (ITE) 18
Initialize Device Parameters 27
Input noise ripple 12
Interface 9
interface 25
Interleave 9
Internal data transfer rate 3, 5, 7
Internal data-transfer rate 9
ITE 18

nominal power 10
Nonoperating shock 15
Nonoperating vibration 15
Nonrecoverable read errors 4, 6, 8
nonrecoverable read errors 17

O

Operating shock 15
Operating vibration 15

P

Physical characteristics 10
Physical organization 9
Physical read/write heads 3, 5, 7
point-to-point 2, 22
Power consumption 11
power dissipation 11
power management 13
power on/off cycles 17
Power specifications 11
Power-management modes 13
Power-on to Ready 10
Power-on to ready 3, 5, 7
precautions 21, 23
programmable power management 13

Q

quick reference 3

K

Korean RRL 18

L

latency 3, 5, 7
LBA mode 9
Length 3, 5, 7
length 10
Load/Unload 17
logical geometry 9

M

master/slave 2
Max Address 27
maximum temperature 14
Microcode 27
mounting 23
mounting screws 15
mounting the drive 21

N

noise 12

R

Radiated RF immunity 16
Radio and television interference 19
radio frequency (RF) 16
random track location 11
Read Buffer 27
Read DMA 27
Read DMA Extended 27
Read DMA without Retries 27
read errors 4, 6, 8, 17
Read Long with Retries 27
Read Long without Retries 27
Read Multiple 27
Read Multiple Extended 27
Read Native Max Address 27
Read Native Max Address Extended 27
Read Sectors 27
Read Sectors Extended 27
Read Sectors without Retries 27
Read Verify Sectors 27
Read Verify Sectors Extended 27
Read Verify Sectors without Retries 27
Read/write heads 9
Read/write power 4, 5, 7

38 Momentus 5400.6 SATA Product Manual, Rev. E

read/write power and current 11
Recording density 3, 5, 7, 9
Recording method 9
Recording technology 9
Relative humidity 4, 5, 7, 14
Reliability 17
resistance 12
Retries 27
RF 16
RoHS 20
RPM 3, 5, 7
RRL 18

S

S.M.A.R.T. 28
S.M.A.R.T. implementation 27
Safety certification 18
SATA 9, 25
screws 15, 23
sector 8
sectors 9
Sectors per track 9
Security Disable Password 28
Security Erase Prepare 28
Security Erase Unit 28
Security Freeze Lock 28
Security Set Password 28
Security Unlock 28
Seek 27
seek mode 11
Seek power 4, 5, 7
Seek time 10
seek time 3, 5, 7
Seeking 11
Self refresh, low power 13
Serial ATA 9
Serial ATA (SATA) interface 25
serial ATA ports 2
servo electronics 11
Set Features 27
Set Max Address 27
Set Multiple Mode 27
Shock 15
Shock, nonoperating 4, 6, 8
Shock, operating 4, 6, 8
single-track seeks 10
Sleep 11, 28
Sleep mode 4, 5, 7, 13
sound power 4, 6, 8
Specification summary table 3
Spindle speed 3, 5, 7, 9
Spinup 11
spinup power 11
Standby 11, 28
Standby Immediate 28

Standby mode 4, 5, 7, 11, 13
Standby to Ready 10
Standby to ready 3, 5, 7
Start/stop times 10
Startup current 4, 5, 7
static-discharge 21
support services 35
Surge immunity 16

T

technical support services 35
temperature 4, 5, 7, 10, 14
Temperature gradient 4, 5, 7, 14
timers 13
TPI 3, 5, 7
Track density 3, 5, 7, 9
Track-to-track seek time 3, 5, 7, 10
TUV North America 18

U

UL 1950 18

V

Vibration 15
Vibration, nonoperating 4, 6, 8
Vibration, operating 4, 6, 8
Voltage dips, interrupts 16
Voltage tolerance 4, 5, 7, 12

W

Warranty 17
Weight 3, 5, 7
weight 10
Wet bulb temperature 4, 5, 7, 14
Width 3, 5, 7
width 10
Write Buffer 28
Write DMA 28
Write DMA Extended 28
Write Long with Retries 28
Write Long without Retries 28
Write Multiple 28
Write Sectors 28
Write Sectors Extended 28
Write uncorrectable 28

Momentus 5400.6 SATA Product Manual, Rev. E 39

40 Momentus 5400.6 SATA Product Manual, Rev. E

Seagate Technology LLC

920 Disc Drive, Scotts Valley, California 95066-4544, USA

Publication Number: 100528359, Rev. E, Printed in USA
