PRODUCT MANUAL
Momentus® 5400.3 PSD SATA
ST91608220AS
ST91208220AS
ST91008220AS
ST9808212AS
ST9608210AS
100454328
Rev. A
April 2007
©2007, Seagate Technology LLC All rights reserved.
Publication number: 100454328, Rev. A
April 2007
Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC
in the United States and/or other countries. Momentus, SeaTools and SeaTDD are either trademarks or
registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States
and/or other countries. All other trademarks or registered trademarks are the property of their respective
owners.
One gigabyte, or GB, equals one billion bytes when referring to hard drive capacity. Accessible capacity
may vary depending on operating environment and formatting. Quantitative usage examples for various
applications are for illustrative purposes. Actual quantities will vary based on various factors, including file
size, file format, features and application software. Seagate reserves the right to change, without notice,
product offerings or specifications.
Momentus 5400.3 PSD SATA Product Manual, Rev. A
i
Revision status summary sheet
Revision Date Notes
Rev. A 04/13/07 Initial release.
ii
Momentus 5400.3 PSD SATA Product Manual, Rev. A
Momentus 5400.3 PSD SATA Product Manual, Rev. A
iii
Contents
1.0 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 About the Serial ATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Non-volatile cache (NVC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.0 Drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Specification summary table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Formatted capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.1 LBA mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Default logical geometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.4 Physical organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.5 Recording and interface technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.6 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.7 Seek time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.8 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.9 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.9.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.9.2 Deferred spinup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.9.3 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.9.4 Voltage tolerance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.9.5 Power-management modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.10 Environmental specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.10.1 Ambient temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.10.2 Temperature gradient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.10.3 Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.10.4 Altitude. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.10.5 Shock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.10.6 Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.11 Acoustics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.12 Electromagnetic immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.13 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.14 Agency certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.14.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.14.2 Electromagnetic compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.14.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.15 Environmental protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.15.1 European Union Restriction of Hazardous Substances (RoHS) . . . . . . . . . . . . 18
2.16 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.0 Configuring and mounting the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.1 Handling and static-discharge precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.2 Configuring the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.3 Serial ATA cables and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.4 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.0 Serial ATA (SATA) interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.1 Hot-Plug compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.2 Serial ATA device plug connector pin definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.3 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.3.1 Identify Device command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.3.2 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.3.3 S.M.A.R.T. commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.0 Seagate Technology support services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
iv
Momentus 5400.3 PSD SATA Product Manual, Rev. A
Momentus 5400.3 PSD SATA Product Manual, Rev. A
v
List of Figures
Figure 1. Typical +5V only startup and operation current profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 2. Serial ATA connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 3. Attaching SATA cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

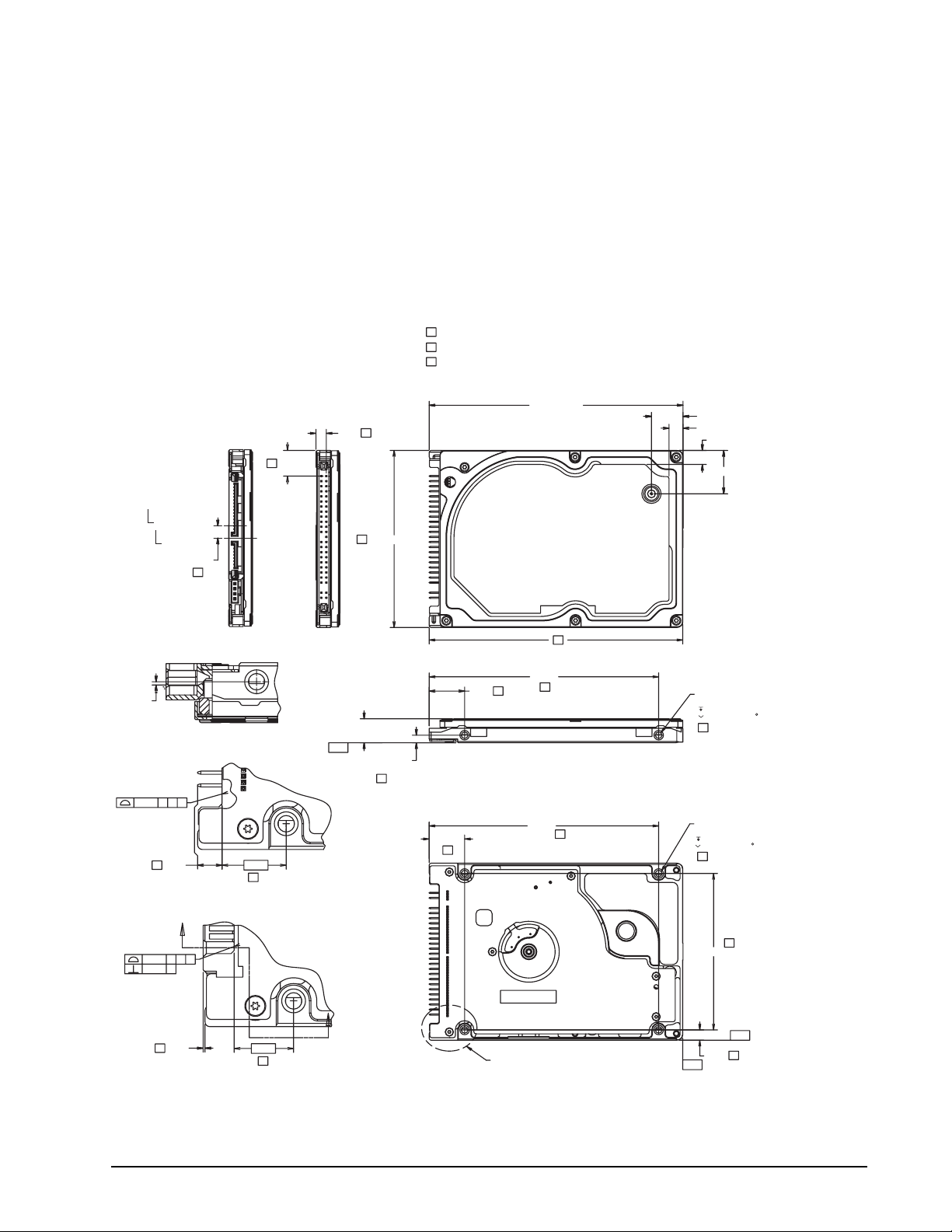

Figure 4. Mounting dimensions—top, side and end view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Momentus 5400.3 PSD SATA Product Manual, Rev. A
1
1.0 Introduction
This manual describes the functional, mechanical and interface specifications for the following Seagate
Momentus® 5400.3 PSD SATA model drives:
• ST91608220AS
• ST91208220AS
• ST91008220AS
• ST9808212AS
• ST9608210AS
These drives provide the following key features:
• 5,400-RPM spindle speed.
• 8-Mbyte buffer (SDRAM).
• 256-Mbyte Non-volatile cache.
• Quiet operation. Fluid Dynamic Bearing (FDB) motor.
• High instantaneous (burst) data-transfer rates (up to 150 Mbytes per second).
• Perpendicular recording technology provides the drives with increased areal density.
• State-of-the-art SDRAM buffer and on-the-fly error-correction algorithms.
• Full-track multiple-sector transfer capability without local processor intervention.
• 900 Gs nonoperating shock and 350 Gs of operating shock.
• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• The 3D Defense System ™, which includes Drive Defense, Data Defen se and Diagnostic Defense, offers the
industry’s most comprehensive protection for disc drives.
• Support for S.M.A.R.T. drive monitoring and reporting.
• Support for Read Multiple and Write Multiple commands.
2
Momentus 5400.3 PSD SATA Product Manual, Rev. A
1.1 About the Serial ATA interface
The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. The primary
advantages include:
• Easy installation and configuration with true plug-and-play connectivity. It is not normally necessary to set
any jumpers or other configuration options.
• Thinner and more flexible cabling for improved enclosure airflow and ease of installation.
• Scalability to higher performance levels.
In addition, Serial ATA makes the transition from pa rallel ATA easy by providing legacy softwar e suppo rt. Seri al
ATA was designed to allow you to install a Serial ATA host adapter and Serial ATA disc drive in your current
system and expect all of your existing applications to work as normal.
The Serial ATA interface connects each disc drive in a point-to-point configuration with the Serial ATA host
adapter. There is no master/slave relationship with Serial ATA devices like there is with parallel ATA. If two
drives are attached on one Serial ATA host adapter, the host operating system views the two devices as if they
were both “masters” on two separate ports. This essentially means both drives behave as if they are Device 0
(master) devices.
Note. The host adapter may, optionally, emulate a master/slave environment to host software where two
devices on separate Serial ATA ports are represented to host software as a Device 0 (master) and
Device 1 (slave) accessed at the same set of host bus addresses. A host adapter that emulates a
master/slave environment manages two sets of shadow registers. This is not a typical Serial ATA
environment.
The Serial ATA host adapter and drive share the function of emulating parallel ATA device behavior to provide
backward compatibility with existing host systems and software. The Command and Control Block registers,
PIO and DMA data transfers, resets, and interrupts are all emulated.
The Serial ATA host ada pter cont ains a set of registe rs that sha dow the conte nt s of the trad i tional devi ce r egisters, referred to as the Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA: High Speed Serialized
AT Attachment” specification. The specification can be downloaded from http://www.serialata.org.
1.2 Non-volatile cache (NVC)
Momentus 5400.3 PSD SATA include a non-volatile cache feature. For a user to see the benefits of NVC, the
host operating system must support the “Non-volatile cache” commands (B6h) and associated subcommands
as specified in the ATA-8 specification. See Section 4.3 for the list of commands supported by Momentus
5400.3 PSD SATA drives (including the Non-volatile cache commands).
Non-volatile cache is designed to:
• Improve performance
• Provide power savings and battery life (in notebook systems)
• Improve reliability
• Reduce acoustic noise in some read/write operations
Improve performance
The non-volatile cache (NVC) improves performance by writing and reading to the non-volatile cache rather
than waiting for the rotating media to complete spinning-up from sleep, standby, and hibernate modes. Performance improvements may also be seen from minimizing disc seeks and enabling more I/Os per second. The
non-volatile cache also improves cold boot performance when used with operating systems designed to take
advantage of this cache.
Momentus 5400.3 PSD SATA Product Manual, Rev. A
3
Provide power savings and battery life
NVC decreases power consumption by reducing the amount of time the discs are spinning in the HDA.
Improve reliability
Shock and vibration impacts during writes is negligible when writing to NVC memory. This results in an overall
Annualized Failure Rate (AFR) of less than 0.50%.
Reduced acoustics
Reads and writes from NVC memory may occur without the acoustic impact of spinning media and actuator
movement.
4
Momentus 5400.3 PSD SATA Product Manual, Rev. A
Momentus 5400.3 PSD SATA Product Manual, Rev. A
5
2.0 Drive specifications
Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal
power. For convenience, the phrases the drive and this drive are used throughout this manual to refer to the
various models.
2.1 Specification summary table
The specifications listed in this table are for quick reference. For details on specification measurement or definition, see the appropriate section of this manual.
Table 1: Drive specifications summary
Drive specification ST91608220AS ST91208220AS ST91008220AS ST9808212AS ST9608210AS
Formatted capacity*
(Gbytes@512 bytes/sector)
Guaranteed sectors (user accessible) 312,581,808 234,441,648 195,371,568 156,301,488 117,210,240
Bytes per sector 512
Physical read/write heads 4 3 3 2 2
Discs 22211
Non-volitile cache (Mbytes ) 256
SDRAM buffer (Mbytes) 8
Recording density (bits/inch max) 870k
Track density TPI (tracks/inch max) 150k
Areal density (Gbits/inch2 max) 132
Spindle speed (RPM) 5,400
Internal transfer rate (Mbits/sec max) 352
I/O data transfer rate (Mbytes/sec max) 150
ATA data-transfer modes supported SATA 1.0, Serial ATA Revision 2.5
Height (max) 9.5 +/- 0.2 mm (0.374 +/- .0078 inches)
Width (max) 69.85 mm (2.75 +/- 0.0098 inches)
Length (max) 100.50 +/- 0.25 mm (3.957 +/- 0.010 inches)
Weight (typical) 102 grams (0.22 lb) 98 grams (0.216 lb)
Average latency (msec) 5.6
Power-on to ready (sec typical) 3.0
Standby to ready (sec typical) 3.0
Track-to-track seek time (msec typical) 1.0 (read), 1.5 (write)
Average seek, read (msec typical) 12.5
Average seek, write (msec typical) 14.0
160 120 100 80 60
PIO modes 0–4
Multiword DMA modes 0–2
Ultra DMA modes 0–6
6
Momentus 5400.3 PSD SATA Product Manual, Rev. A
Table 1: Drive specifications summary
Drive specification ST91608220AS ST91208220AS ST91008220AS ST9808212AS ST9608210AS
Full-stroke seek (msec) 22 (typical); 24 (max)
Startup current, +5V (typical) 1.0 amps
Seek power (typical) 2.0 watts
Read/write power (typical) Read: 1.9 watts; Write: 1.8 watts
Idle mode, low power (typical) 0.6 watts
Standby mode 0.2 watts (typical)***
Sleep mode 0.2 watts (typical)***
Voltage tolerance (including noise) +5V ± 5%
Ambient temperature 0° to 60°C (operating), –40° to 70°C (nonoperating)
Temperature gradient (°C per hour max) 20°C (operating)
Relative humidity 5% to 90% (operating)
Relative humidity gradient 30% per hour max
Wet bulb temperature (°C max) 30 (operating)
Altitude, operating –304.8 m to 3,048 m (–1000 ft to 10,000+ ft)
Altitude, nonoperating
(meters below mean sea level, max)
Shock, operating (Gs max at 2 msec) 350
Shock, nonoperating (Gs max at 2 msec) 800
Shock, nonoperating (Gs max at 1 msec) 900
Shock, nonoperating (Gs max at 0.5 msec) 400
Vibration, operating 1.0 G (0 to peak, 5–500 Hz)
Vibration, nonoperating 5 Gs (0 to peak, 5–500 Hz)
Drive acoustics, sound power (bels)
Idle** 2.4 (typical)
Performance seek 3.0 (typical)
Nonrecoverable read errors 1 per 10
Annualized Failure Rate (AFR) <0.50%
Load/Unload (U/UL) cycles
25°C, 50% relative humidity
32°C, 80% relative humidity
5°C, 80% relative humidity
5°C, 10% relative humidity
55°C, 16% relative humidity
Warranty 5 years on distribution units.
Supports Hotplug operation per Serial ATA
Revision 2.5 specification
30°C (nonoperating)
5% to 95% (nonoperating)
40 (nonoperating)
–304.8 m to 12,192 m (–1000 ft to 40,000+ ft)
2.6 (max)
3.2 (max)
14
bits read
600,000 software-controlled power on/off cycles
20,000 hard power on/off cycles
600,000 software-controlled power on/off cycles
20,000 hard power on/off cycles
To determine the warranty for a specific drive, use a web browser to access the following web page:
www.seagate.com/support/service/
From this page, click on the “Verify Your Warranty” link. You will be a sked to provide the
drive serial number, model number (or part number) and country of purchase. The system will display the warranty information for your drive.
Yes (requires COMPRESET from host after a hotplug event)
2.2 (typical)
2.4 (max)
2.9 (typical)
3.1 (max)
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment
and formatting.
Momentus 5400.3 PSD SATA Product Manual, Rev. A
7
**During period s of driv e idle, some offline activi ty may oc cu r according to the S.M.A.R.T. s pe cif icati on, whi ch ma y in crease acoustic and
power to operational levels.
***Typical notebooks will pull power to th e drive when ente ring S3 and S4; while in the S3 and S4 states, dr ive sleep and drive standby
modes will not contribute to battery power consumption.
2.2 Formatted ca pacity
Model Formatted capacity* Guaranteed sectors Bytes per sector
ST91608220AS 160 Gbytes 312,581,808 512
ST91208220AS 120 Gbytes 234,441,648 512
ST91008220AS 100 Gbytes 195,371,568 512
ST9808212AS 80 Gbytes 156,301,488 512
ST9608210AS 60 Gbytes 117,210,240 512
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environm ent
and formatting.
2.2.1 LBA mode
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1,
where n is the number of guaranteed sectors as defined above.
See Section 4.3.1, "Identify Device command" (words 60-61 and 100-103) for additional information about 48bit addressing support of drives with capacities over 137 Gbytes.
2.3 Default logical geometry
Cylinders Read/write heads Sectors per track
16,383 16 63
8
Momentus 5400.3 PSD SATA Product Manual, Rev. A
2.4 Physical organiz ation
Read/write
Drive model
ST91608220AS 4 2 8 MB 256 MB
ST91208220AS 3 2 8 MB 256 MB
ST91008220AS 3 2 8 MB 256 MB
ST9808212AS 2 1 8 MB 256 MB
ST9608210AS 2 1 8 MB 256 MB
heads
Number
of discs
SDRAM
buffer size
Non-volatile
cache size
2.5 Recording and inter f ac e te ch no l o gy
Interface Serial ATA (SA TA)
Recording method Perpendicular
Recording density BPI (bits/inch max) 870k
Track density TPI (tracks/inch max) 150k
Areal density (Gbits/inch2 max) 132
Spindle speed (RPM) (± 0.2%) 5,400
Maximum Internal transfer rate (Mbits/sec) 352
I/O data-transfer rate (Mbytes/sec max) 150
Interleave 1:1
2.6 Physical characteristics
Drive specification
Height (mm)
(inches)
Width (mm)
(inches)
Length (mm)
(inches)
Typical weight
ST91608220AS
ST91208220AS
ST91008220AS
ST9808212AS
ST9608210AS
9.5 +/-0.2
0.374 +/-0.0078
69.85 +/-0.25
2.75 +/-0.0098
100.50 +/-0.25
3.957 +/-0.010
100 grams
0.22 pounds
96 grams
0.21 pounds
Momentus 5400.3 PSD SATA Product Manual, Rev. A
9
2.7 Seek time
Seek measurem ent s a re t ake n wi th nom inal po w er a t 25 °C amb ient temperature. All times are m easu red using
drive diagnostics. The specifications in the table below are defined as follows:
• Track-to-track seek time is an average of all possible single-track seeks in both directions.
• Average seek time is a true statistical random average of at least 5,000 measurements of seeks between
random tracks, less overhead.
Table 2: Typical seek times
T yp ical seek times (msec) Read Write
Track-to-track 1.0 1.5
Average 12.5 14.0
Full-stroke 22.0 24.0
Average latency 5.6 5.6
Note. These drives ar e de si gned to consisten tl y me et t he se ek t imes r epr esente d in thi s manu al. P hysical
seeks, regardless of mode (such as track-to-track and average), are expected to meet the noted
values. However, due to the manner in which these drives are formatted, benchmark tests that
include command overhead or measure logical seeks may produce results that vary from these
specifications.
2.8 Start/stop times
Time to ready Typical
Power-on to Ready (sec) 3.0 8.0
St andby to Ready (sec) 3.0 8.0
Max @ 25°C
10
Momentus 5400.3 PSD SATA Product Manual, Rev. A
2.9 Power specifications
The drive receives DC power (+5V) through a native SATA power connector.
2.9.1 Power consumption
Power requirements for the drives are listed in the table on page 10. Typical power measurements are based
on an average of drives tested, under nominal conditions, at 25°C ambient temperature.
• Spinup power
Spinup power is measured from the time of power-on to the time that the drive spindle re aches operating speed.
• Seek mode
During seek mod e, the read /write actuator arm move s toward a spe cific positi on on the d isc surface and does
not execute a read or write operati on. Servo ele ctronics ar e acti ve. Seek mode power is mea sure d based on
three random seek operations every 100 msecs. This mode is not typical.
• Read/write power and current
Read/write power is measured with the heads on track, based on three 63 sector read or write operations
every 100 msecs.
• Idle mode power
Idle mode power is measured with the drive up to speed, with servo electronics active and with the heads in
a random track location.
• Standby mode
During Standby mode, the drive accepts commands, but the drive is not spinning, and the servo and read/
write electronics are in power-down model
T a ble 3: DC power
Power di s s ipation +5V input average (25°C)
Spinup (typical) 1.0 amps
Seek 2.0 watts
Read 1.9 watts
Write 1.8 watts
Idle, performance* 1.4 watts
Idle, active* 0.75 watts
Idle, low power mode* 0.6 watts
Standby 0.2 watts
Sleep 0.2 watts
*During periods of drive i dle, some offl ine activity may occur acc ording to the S. M.A.R.T. speci fica tion, which may i ncrease acoust ic and
power to operational levels.
Momentus 5400.3 PSD SATA Product Manual, Rev. A
11
2.9.1.1 Typical current profile
Figure 1. Typical +5V only startup and operation current profile
2.9.2 Deferred spinup
Momentus 5400.3 PSD SATA drives do not support the deferred spinup option. If you require this option, refer
to the Momentus 5400.3 SATA Blade Server family of drives.
2.9.3 Conducted noise
Input noise ripple is measured at the host system power supply across an equivalent 15-ohm resistive load on
the +5 volt line.
Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave
injected noise at up to 10 MHz.
Note. Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write
current.
2.9.4 Voltage tolerance
Voltage tolerance (including noise):
5V ± 5%
12
Momentus 5400.3 PSD SATA Product Manual, Rev. A
2.9.5 Power-management modes
The drive provides programmable power management to provide greater energy efficiency. In most systems,
you can control power management through the system setup program. The drive features the following
power-management modes:
Tab le 4: Power management modes
Power modes Heads Spindle Buffer
Active (operating) Tracking Rotating Full power
Idle, performance Tracking Rotating Self refresh—low power
Idle, active Floating Rotating Self refresh—low power
Idle, low power Parked Rotating Self refresh—low power
Standby Parked Stopped Self refresh—low power
Sleep Parked Stopped Self refresh—low power
• Active mode
The drive is in Active mode during the read/write and seek operations.
• Idle mode
The buffer remains enabled, and the drive accepts all commands and returns to Active mode any time disc
access is necessary.
• Standby mode
The drive enters Standby mode when the host sends a Standby Immediate comma nd. If the ho st has set the
standby timer, the drive can also enter Standby mode automatically after the drive has been inactive for a
specifiable length of time. The standby tim er delay is established using a Standby or Idle command. In Sta ndby
mode, the drive buffer is in Self Refresh Low Power mode, the heads are parked and the spindle is at rest.
The drive accepts all commands and returns to Active mode any time disc access is necessary.
• Sleep mode
The drive enter s S leep m ode after rece iv ing a Slee p com man d fro m th e ho st. In Sl eep mod e, th e dr ive buffer
is in Self Refresh Low Power mode, the heads are parked and the spindle is at rest. The drive leaves Sleep
mode after it receives a Hard Reset or Soft Reset from the host. After receiving a reset, the drive exits Sleep
mode and enters Standby mode with all current translation parameters intact.
• Idle and Standby timers
Each time the drive performs an Active function (read, write or seek), the standby timer is reinitialized and
begins counting down from its specified delay times to zero. If the standby timer reaches zero before any
drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the
drive accepts all commands and returns to Active mode when disc access is necessary.
Momentus 5400.3 PSD SATA Product Manual, Rev. A
13
2.10 Environmental spec ifications
2.10.1 Ambient temperature
Ambient temperature is defined as the temperature of the environment immediately surrounding the drive.
Actual drive case temperature should not exceed 65°C (149°F) within the operating ambient conditions.
Above 1,000 feet (305 meters), the maximum temperature is derated linearly by 1°C every 1000 feet.
Operating: 0° to 60°C (32° to 140°F)
Nonoperating: –40° to 70°C (–40° to 158°F)
2.10.2 Temperature gradient
Operating 20°C per hour (68°F per hour max), without condensation
Nonoperating 30°C per hour (86°F per hour max), without condensation
2.10.3 Humidity
2.10.3.1 Relative humidity
Operating 5% to 90% noncondensing (30% per hour max)
Nonoperating 5% to 95% noncondensing (30% per hour max)
2.10.3.2 Wet bulb temperature
Operating 30°C (86°F max)
Nonoperating 40°C (104°F max)
2.10.4 Altitude
Operating –304.8 m to 3,048 m (–1,000 ft to 10,000+ ft)
Nonoperating –304.8 m to 12,192 m (–1,000 ft to 40,000+ ft)
14
Momentus 5400.3 PSD SATA Product Manual, Rev. A
2.10.5 Shock
All shock specifications assume that the drive is mounted securely with the input shock applied at the drive
mounting screws. Shock may be applied in the X, Y or Z axis.
2.10.5.1 Operating shock
These drives comply with the performance levels specified in this document when subjected to a maximum
operating shock of 350 Gs based on half-sine shock pulses of 2 msec. Shocks should not be repeated more
than two times per second.
2.10.5.2 Nonoperatin g sho ck
The nonoperating shock level that the drive can experience without incurring physical damage or degradation
in performance when subsequently put into operation is 800 Gs based o n a nonr epetitive hal f-sine shock pulse
of 2 msec duration.
The nonoperating shock level that the drive can experience without incurring physical damage or degradation
in performance when subsequently put into operation is 900 Gs based on a nonrepeti tive half-si ne shock pulse
of 1 msec duration.
The nonoperating shock level that the drive can experience without incurring physical damage or degradation
in performance when subsequently put into operation is 400 Gs based o n a nonr epetitive hal f-sine shock pulse
of 0.5 msec duration.
2.10.6 Vibration
All vibration specifications assume that the drive is mounted securely with the input vibration applied at the
drive mounting screws. Vibration may be applied in the X, Y or Z axis.
2.10.6.1 Operating vibration
The maximum vibration levels that the drive may experience while meeting the performance standards specified in this document are specified below.
5–500 Hz 1.0 G (0 to peak). Max displacement may apply below 10 Hz.
2.10.6.2 Nonoperatin g vibr ati on
The maximum nonoperating vibration levels that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operation are specified below
5–500 Hz: 5.0 G (0 to peak). Max displacement may apply below 22 Hz.
.
Momentus 5400.3 PSD SATA Product Manual, Rev. A
15
2.11 Acoustics
Drive acoustics are measured as overall A-weighted acoustic sound power levels (no pure tones). All measurements are consistent with ISO document 7779. Sound power measurements are taken under essentially
free-field conditions over a reflecting plane. For all tests, the drive is oriented with the cover facing upward.
Note. For seek mode tests, the drive is placed in seek mode only. The number of seeks per second is
defined by the following equation:
(Number of seeks per second = 0.4 / (average latency + average access time))
Table 5: Drive level acoustics
Models Idle* Performance seek
2 discs ST91608220AS
ST91208220AS
ST91008220AS
1 disc ST9808212AS
ST9608210AS
*During periods of drive i dle, some offl ine activity may occur acc ording to the S. M.A.R.T. speci fica tion, which may i ncrease acoust ic and
power to operational levels.
2.4 bels (typ)
2.6 bels (max)
2.2 bels (typ)
2.4 bels (max)
3.0 bels (typ)
3.2 bels (max)
2.9 bels (typ)
3.1 bels (max)
2.12 Electromagnetic immunity
When properly installed in a representative host system, the drive operates without errors or degradation in
performance when subjected to the radio frequency (RF) environments defined in the following table:
T a bl e 6: Radio frequency environmen t s
Performance
Test Description
Electrostatic discharge Contact, HCP, VCP: ± 4 kV; Air: ± 8 kV B EN 61000-4-2: 95
Radiated RF immunity 80 to 2,000 MHz, 10 V/m,
80% AM with 1 kHz sine
900 MHz, 3 V/m, 50% pulse modulation @ 200 Hz
Electrical fast transient ± 1 kV on AC mains, ± 0.5 kV on external I/O B EN 61000-4-4: 95
Surge immunity ± 1 kV differential, ± 2 kV common, AC mains B EN 61000-4-5: 95
level
A EN 61000-4-3: 96
Reference
standard
ENV 50204: 95
Conducted RF immunity 150 kHz to 80 MHz, 3 Vrms, 80% AM with 1 kHz
Power Frequency H-field
immunity
Volt age dips , interrupts 30% Reduction for 25 cycles
sine
1 A/m, 50Hz/60Hz, 3 axes A EN 61000-4-8: 97
>95% Reduction for 250 cycles
>95%, 0.5 cycles
A EN 61000-4-6: 97
C
C
B
EN 61000-4-11: 94
16
Momentus 5400.3 PSD SATA Product Manual, Rev. A
2.13 Reliability
Measurement type Specification
Nonrecoverable read errors 1 per 1014 bits read, max.
Annualized Failure Rate (AFR) <0.50%
Load/Unload (U/UL)
25°C, 50% relative humidity
32°C, 80% relative humidity
5°C, 80% relative humidity
5°C, 10% relative humidity
55°C, 16% relative humidity
Warranty 5 years on distribution units.
600,000 software-controlled power on/off cycles
20,000 hard power on/off cycles
600,000 software-controlled power on/off cycles
20,000 hard power on/off cycles
To determine the warranty for a specific drive, use a web browser to access the
following web page:
www.seagate.com/support/ service/
From this page, click on the “Verify Your Warranty” link. You will be asked to pro-
vide the drive serial number, model number (or part number) and country of purchase. The system will display the warranty information for your drive.
2.14 Agency certification
2.14.1 Safety certification
The drives are recognized in accordance with UL 1950 and CSA C22.2 (950) and meet all applicable sections
of IEC950 and EN 60950 as tested by TUV North America.
2.14.2 Electromagnetic compatibility
Hard drives that display the CE mark comply with the European Un ion (E U) re quirem ent s speci fie d i n the Electromagnetic Compatibility Directive (89/336/EEC). Testing is performed to the levels specified by the product
standards for Information Technology Equipment (ITE). Emission levels are defined by EN 55022, Class B and
the immunity levels are defined by EN 55024.
Seagate uses an inde pend ent laboratory to confirm compliance with the EC directives specified in the pr evious
paragraph. Drives are teste d in representa tive end-user systems. Although CE-marked Seagate drives comply
with the directives when used in the test systems, we cannot guarantee that all systems will comply with the
directives. The drive is designed for operation inside a properly designed enclosure, with properly shielded I/O
cable (if necessary) and terminators on all unused I/O ports. Computer manufacturers and system integrators
should confirm EMC compliance and provide CE marking for their products.
Momentus 5400.3 PSD SATA Product Manual, Rev. A
17
Korean RRL
If these drives have the Korea Ministry of Information and Communication (MIC) logo, they comply with paragraph 1 of Article 11 of the Electromagnetic Compatibility control Regulation and meet the Electromagnetic
Compatibility (EMC) Framework requirements of the Radio Research Laboratory (RRL) Ministry of Information
and Communication Republic of Korea.
These drives have been tested and com ply with the Electr omag netic Inter fere nce/E lectro magn etic Susce ptibil ity (EMI/EMS) for Class B products. Drives ar e tested in a representative, end-user system by a Korean-reco gnized lab.
• Model name: Momentus 5400.3
• Certificate number: STX-L253 (B)
• Trade name or applicant: Seagate Technology
Australian C-Tick (N176)
If these models have the C-Tick marking, they comply with the Australia/New Zealand Standard AS/NZS3548
1995 and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Australian Communication Authority (ACA).
2.14.3 FCC verification
These drives are intended to be cont ai ned solely w ithin a person al compute r or similar enclosu re (no t attached
as an external device ). As su ch, ea ch dr ive is co nsidere d to be a suba ssembly even when it is individually marketed to the customer. As a subassembly, no Federal Communications Commission verification or certification
of the device is required.
Seagate Technology LLC has tested this device in enclosures as described above to ensure that the total
assembly (enclosure, disc drive, motherboard, power supply, etc.) does comply with the limits for a Class B
computing device, pursuant to Subpart J, Part 15 of the FCC rules. Operation with noncertified assemblies is
likely to result in interference to radio and television reception.
Radio and television interference. This equipment generates and uses radio frequency energy and if not
installed and used in strict accordance with the manufacturer’s instructions, may cause interference to radio
and television reception.
This equipment is designed to provide reasonable protection against such interference in a residential installation. However , there is no guarantee that interfer ence will not occur in a particular inst allation. If this equipm ent
does cause interference to radio or television, which can be determined by turning the equipment on and off,
you are encouraged to try one or more of the following corrective measures:
• Reorient the receiving antenna.
• Move the device to one side or the other of the radio or TV.
• Move the device farther away from the radio or TV.
• Plug the computer into a different outlet so that the receiver and computer are on different branch outlets.
If necessary, you should consult your dealer or an experienced radio/television technician for additional sug-
gestions. You may find helpful the following booklet prepared by the Federal Communications Commission:
How to Identify and Resolve Radio-Television Interference Problems. This booklet is available from the Superintendent of Documents, U.S. Government Printing Office, Washington, DC 20402. Refer to publication number 004-000-00345-4.
18
Momentus 5400.3 PSD SATA Product Manual, Rev. A
2.15 Environmental protection
Seagate designs its products to meet environmental protection requirements worldwide, including regulations
restricting certain chemica l subst ances .
2.15.1 European Union Restriction of Hazardous Substances (RoHS)
The European U nion Restr icti on of Hazard ous S ubst ance s (RoHS ) Dire cti ve re strict s the p resen ce of ch emic al
substances, including Lead (Pb), in electronic products effective July 2006.
A number of parts and materials in Seagate products are procured from external suppliers. We rely on the
rep-resentat ions o f our sup pl iers reg ardi ng the pr esence of RoHS subst ances in these p arts and mate rials. Our
supplier contracts require compliance with our chemical substance restrictions, and our suppliers document
their compliance wi th our re quire ment s by providing material content declarations for al l par ts an d mater ial s for
the disc drives documented in this publication. Current supplier declarations include disclosure of the inclusion
of any RoHS-regulated substance in such parts or materials.
Seagate also has internal system s in place to en sure ongoing complian ce with the RoHS Directive and all laws
and regulations which restrict chemical conte nt in electron ic produ cts. T hese system s include sta ndar d operating procedures that ensure that restricted substances are not utilized in our manufacturing operations, laboratory analytical validation testing, and an internal auditing process to ensure that all standard operating
procedures are complied with.
2.16 Corrosive environment
Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to
light industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM
B845. However, this accelerated testing cannot duplicate every potential application environment.
Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electr onic dr i ve com ponen t reliab ilit y can be af fecte d by th e i nst allation environment. The sil-
ver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide,
chloride, and nitr ate c ont ami na nt s. S ulfur is found to be the m ost dam aging . In ad di tion, e lectron i c comp onent s
should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or
exposed to an am bient rel at ive hum idity gr eate r th an 9 5%. Mat erial s used in cabin et fa bri cation , such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any
electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.
Momentus 5400.3 PSD SATA Product Manual, Rev. A
19
3.0 Configuring and mounting the drive
This section contains the specifications and instructions for configuring and mounting the drive.
3.1 Handling and static-discharge precautions
After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD) hazards. Observe the following standard handling and static-discharge precautions:
Caution:
• Keep the drive in the electrostatic discharge (ESD) bag until you are ready for installation to limit the drive’s
exposure to ESD.
• Before handling the drive, put on a grounded wrist strap, or ground yourself frequently by touching the metal
chassis of a computer that is plugg ed into a grounded outlet. Wear a grounded wrist strap through out the entire
installation procedure.
• Handle the drive only by its edges or frame.
• The drive is fragile—handle it with care. Do not press down on the drive top cover.
• Always rest the drive on a padded, antistatic surface until you mount it in the computer.
• Do not touch the connector pins or the printed circuit board.
• Do not remove the factory-installed labels from the drive or cover them with additional labels. Removal voids
the warranty. Some factory-installed labels contain information needed to service the drive. Other labels are
used to seal out dirt and contamination.
20
Momentus 5400.3 PSD SATA Product Manual, Rev. A
3.2 Configuring the dr ive
(
SATA interface connector
S
r
r
Each drive on the Serial ATA interface connects in a point-to-point configuration with the Serial ATA host
adapter. There is no master/slave relationship because each drive is considered a master in a point-to-point
relationships. If two drives are attached on one Serial ATA host adapter, the host operating system views the
two devices as if they were both “masters” on two separate ports. This means both drives behave as if they are
Device 0 (master) devices.
Serial AT A dr iv es are designed for easy installation wi th no jump ers, t erm inator s, or other setti n gs. It is not n ecessary to set any jumpers on this drive for proper operation. The jumper block adjacent to the signal connector
is for factory use only.
Jumper block
SATA power connector
factory use only)
Figure 2. Serial ATA connectors
3.3 Serial ATA cabl es and connectors
The Serial ATA interface cable consists of four conductors in two differential pairs, plus three ground connections. The cable size may be 30 to 26 AWG with a maximum length of one meter (39.37 inches). See Table 7
for connector pin definitions. Either end of the SATA signal cable can be attached to the drive or host.
For direct backplane connection, the drive connectors are inserted directly into the host receptacle. The drive
and the host receptacle incorporate features that enable the direct connection to be hot pluggable and blind
mateable.
For installations which require cables, you can connect the drive as illustrated in Figure 3.
SATA interface connecto
Power connecto
ATA interface cable
Power cable
Figure 3. At tac hing SATA cabling
Each cable is keyed to ensure correct orientation.
Momentus 5400.3 PSD SATA Product Manual, Rev. A
21
3.4 Drive mounting
You can mount the drive using four screws in the side-mounting holes or four screws in the bottom-mounting
holes. See Figure 4 for drive mo unti ng dim ensions. Fol low these i mpo rt ant mo unting pr ecauti o ns when mou nting the drive:
• Allow a minimum clearance of 0.030 inches (0.76 mm) around the entire perimeter of the drive for cooling.
• Use only M3 UNC mounting screws.
• Do not overtighten the mounting screws (maximum torque: 4.0 inch-lb).
• Four (4) threads (0.080 inches) minimum screw engagement recommended.
Measurements shown in Figure 4 are in inches.
1 DIMENSIONS PER EIA-720 OR SFF 8201 SPECIFICATION.
2 DIMENSIONS PER SFF 8212 OR SFF 8223.
3 DRIVE LENGTH W/ PATA IS 3.945±.057 (WORST CASE).
DRIVE LENGTH W/ SATA IS 3.957±.062 (WORST CASE).
3.945 ± .010
C
OF CONN.
OF DRIVE
C
DATUM B
(.189 )
2
(BASE)
2
.157
2
.399
1
2.750 ±.010
(BASE)
(.490 )
.217 ±.050
.217 ±.050
(.673 )
.020
)
(
SECTION B-B (SATA)
.039 B C D
2 .152
DETAIL A (PATA)
B
.039 B C D
.016 C
2 .012
DETAIL A (SATA)
SATA
.399
PATA
BASE
.551 1
.374 ±.008
-D-
2X .118
BOTH SIDES
1
BASE
.551
1
2
3.567
1
3.567
(BASE) 1
3
2X M3 X 0.5-6H
MOUNTING HOLES; BOTH SIDES
.12 MIN FULL THREAD
0.148 ±.010 X 90
1
4X M3 X 0.5-6H
MOUNTING HOLES; BOTH SIDES
.10 MIN FULL THREAD
0.148 ±.010 X 90
1
1
2.430
B
.370
2
DETAIL A
-C-
.160
-B-
1
Figure 4. Mounting dime nsions—top , s ide and end view
22
Momentus 5400.3 PSD SATA Product Manual, Rev. A
Momentus 5400.3 PSD SATA Product Manual, Rev. A
23
4.0 Seria l ATA (SATA) interface
These drives use the industry-standard Serial ATA interface that supports FIS data transfers. It supports ATA
programmed input/output (PIO) modes 0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–6. The drive
also supports the use of the IORDY signal to provide reliable high-speed data transfers.
For detailed information about the Serial ATA interface, refer to the “Serial ATA: High Speed Serialized AT
Attachment” specification.
4.1 Hot-Plug compatibility
Momentus 5400.3 PSD SATA drives incorporate connectors which enable you to hot plug these drives in
accordance with the Serial ATA: High Speed Serialized AT Attachment specification revision 2.0. This specification can be downloaded from http://www.serialata.org. This device requires a COMRESET from the host
after a hotplug event.
4.2 Serial ATA device plug connector pin definitions
Table 7 summarizes the signals on the Serial ATA interface and power connectors..
Table 7: Serial ATA connector pin definitions
Segment Pin Function Definition
S1 Ground 2nd mate
Signal
S2 A+ Differential signal pair A from Phy
S3 AS4 Ground 2nd mate
S5 B- Differential signal pair B from Phy
S6 B+
S7 Ground 2nd mate
Key and spacing separate signal and power segments
24
Momentus 5400.3 PSD SATA Product Manual, Rev. A
Table 7: Serial ATA connector pin definitions
Segment Pin Function Definition
Power
P1 V
P2 V
P3 V
33
33
33
3.3V power
3.3V power
3.3V power, pre-charge, 2nd mate
P4 Ground 1st mate
P5 Ground 2nd mate
P6 Ground 2nd mate
P7 V
P8 V
P9 V
5
5
5
5V power, pre-charge, 2nd mate
5V power
5V power
P10 Ground 2nd mate
P11 Reserved The pin corresponding to P11 in the backplane receptacle connector is also reserved
The corresponding pin to be mated with P11 in the power cable receptacle connector
shall always be grounded
P12 Ground 1st mate.
P13 V
P14 V
P15 V
12
12
12
12V power, pre-charge, 2nd mate
12V power
12V power
Notes:
1. All pins are in a single row, with a 1.27 mm (0.050”) pitch.
2. The comments on the mating sequence apply to the case of backplane blindmate connector only. In this
case, the mating sequences are:
• the ground pins P4 and P12.
• the pre-charge power pins and the other ground pins.
• the signal pins and the rest of the power pins.
3. There are three power pins for each voltage. One pin from each voltage is used for pre-charge when
installed in a blind-mate backplane configuration.
4. All used voltage pins (Vx) must be terminated.
Momentus 5400.3 PSD SATA Product Manual, Rev. A
25
4.3 Supported ATA commands
The following table lists Serial ATA standard commands that the drive supports. For a detailed description of
the ATA commands, refer to the Serial ATA: High Speed Serialized AT Attachment specification. See
“S.M.A.R.T. commands” on page 32.for details and subcommands used in the S.M.A.R.T. implementation.
Command nam e Command co de ( in hex)
A TA-standard commands
ATA Service A2h
Device Configuration Restore B1h/C0h
Device Configuration Freeze Lock B1h/C1h
Device Configuration Identify B1h/C2h
Device Configuration Set B1h/C3h
Download Microcode 92h
Execute Device Diagnostics 90h
Flush Cache E7h
Flush Cache Extended EAh
Identify Device ECh
Initialize Device Parameters 91h
Read Buffer E4h
Read DMA C8h
Read DMA Extended 25h
Read DMA without Retries C9h
Read Long with Retries 22h
Read Long without Retries 23h
Read Multiple C4h
Read Multiple Extended 29h
Read Native Max Address F8h
Read Native Max Address Extended 27h
Read Sectors 20h
Read Sectors Extended 24h
Read Sectors without Retries 21h
Read Verify Sectors 40h
Read Verify Sectors Extended 42h
Read Verify Sectors without Retries 41h
Recalibrate 10h
Seek 70h
Set Drive Parameters 91h
Set Features EFh
26
Momentus 5400.3 PSD SATA Product Manual, Rev. A
Command nam e Command co de ( in hex)
Set Max Address F9h
Note: Individual Set Max commands are identified
by the value placed in the Set Max Features register as defined to the right.
Address:
Password:
Lock:
Unlock:
Freeze Lock:
Set Multiple Mode C6h
S.M.A.R.T. Disable Operations B0h/D9h
S.M.A.R.T. Enable/Disable Autosave B0h/D2h
S.M.A.R.T. Enable Operations B0h/D8h
S.M.A.R.T. Enable/Disable Auto Offline B0h/DBh
S.M.A.R.T. Enable One Attribute Modification B0h/E0h
S.M.A.R.T. Execute Offline B0h/D4h
S.M.A.R.T. Read Attribute Thresholds B0h/D1h
S.M.A.R.T. Read Data B0h/D0h
S.M.A.R.T. Read Log Sector B0h/D5h
S.M.A.R.T. Return Status B0h/DAh
S.M.A.R.T. Save Attribute Values B0h/D3h
S.M.A.R.T. Write Attribute Thresholds B0h/D7h
00
01
02
03
04
H
H
H
H
H
S.M.A.R.T. Write Attribute Values B0h/E1h
S.M.A.R.T. Write Log Sector B0h/D6h
Write Buffer E8h
Write DMA CAh
Write DMA Extended 35h
Write DMA without Retries CBh
Write Long with Retries 32h
Write Long without Retries 33h
Write Multiple C5h
Write Sectors 30h, 31h
Write Sectors Extended 34h
ATA- s tandard pow e r- m a nagement comma nds
Check Power Mode 98h or E5h
Idle 97h or E3h
Idle Immediate 95h or E1h
Sleep 99h or E6h
Standby 96h or E2h
St andby Immediate 94h or E0h
Momentus 5400.3 PSD SATA Product Manual, Rev. A
27
Command nam e Command co de ( in hex)
A TA-standard security commands
Read Native MAX Address F8
Security Set Password F1h
Securit y Un l o ck F2h
Security Erase Prepare F3h
Security Erase Unit F4h
Security Freeze Lock F5h
Security Disable Password F6h
Non-volitile cache commands
Set NV Cache Power Mode, Non-data B6h, 00h
Return from NV Cache Power Mode, Non-data B6h, 01h
Add LBAs to NV Cache Pinned Set, DMA B6h, 10h
Remove LBAs from NV Cache Pinned Set, DMA B6h, 11h
Query NV Cache Pinned Set, DMA B6h, 12h
Query NV Cache Misses, DMA B6h, 13h
Flush NV Cache, Non-data B6h, 14h
28
Momentus 5400.3 PSD SATA Product Manual, Rev. A
4.3.1 Identify Device command
The Identify Device command (command code ECH) transfers information about the drive to the host following
power up. The data is organized as a single 512-byte block of data, whose contents are shown in the table on
page 27. All reserved bits or words should be set to zero. Parameters listed with an “x” are drive-specific or
vary with the state of the drive. See Section 2.0 on page 5 for default parameter settings.
The following commands contain drive-specific features that may not be included in the Serial ATA specification.
Word Description Value
0
Configuration information:
• Bit 15: 0 = ATA; 1 = ATAPI
• Bit 7: removable media
0C5A
• Bit 6: removable controller
• Bit 0: reserved
1 Number of logical cylinders 16,383
2 ATA-reserved 0000
3 Number of logical heads 16
4 Retired 0000
5 Retired 0000
6 Number of logical sectors per logical track: 63 003F
7–9 Retired 0000
10–19 Serial number: (20 ASCII characters, 0000H = none) ASCII
20 Retired 0000
21 Retired 0400
22 Obsolete 0000
23–26 Firmware revision (8 ASCII character string, padded with
x.xx
blanks to end of string)
27–46 Drive model number: (40 ASCII characters, padded with
blanks to end of string)
ST91608220AS
ST91208220AS
ST91008220AS
ST9808212AS
ST9608210AS
H
H
H
H
H
H
H
H
H
47 (Bits 7–0) Maximum sectors per interrupt on Read multiple
and Write multiple (16)
48 Reserved 0000
49 Standard Standby timer, IORDY supported and may be dis-
abled
50 ATA-reserved 0000
51 PIO data-transfer cycle timing mode 0200
52 Retired 0200
53 Words 54–58, 64–70 and 88 are valid 0007
54 Number of current logical cylinders xxxx
55 Number of current logical heads xxxx
8010
2F00
H
H
H
H
H
H
H
H
H
Momentus 5400.3 PSD SATA Product Manual, Rev. A
29
Word Description Value
56 Number of current logical sectors per logical track xxxx
57–58 Current capacity in sectors xxxx
59 Number of sectors transferred during a Read Multiple or
xxxx
Write Multiple command
60–61 Total number of user-addressable LBA sectors available
(see Section 2.2 for related information)
ST91608220AS = 312,581,808
ST91208220AS = 234,441,648
ST91008220AS = 195,371,568
ST9808212AS = 156,301,488
ST9608210AS = 117,210,240
62 Retired 0000
63 Multiword DMA active and modes supported
xx07
(see note following this table)
64 Advanced PIO modes supported (modes 3 and 4 supported) 0003
65 Minimum multiword DMA transfer cycle time per word
0078
(120 nsec)
66 Recommended multiword DMA transfer cycle time per word
0078
(120 nsec)
67 Minimum PIO cycle time without IORDY flow control
00F0
(240 nsec)
68 Minimum PIO cycle time with IORDY flow control (120 nsec) 0078
69–74 ATA-reserved 0000
75 Queue depth 0000
76 Serial ATA capabilities 0508
77 ATA-reserved 0000
78 Serial ATA features supported 0048
79 Serial ATA features enabled 0040
80 Major version number 003E
81 Minor version number 0000
82 Command sets supported 306B
83 Command sets supported 4001
84 Command sets support extension 4000
85 Command sets enabled 30xx
86 Command sets enabled 0001
87 Command sets enable extension 4000
88 Ultra DMA support and current mode
xx7F
(see note following this table)
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
89 Security erase time 0000
90 Enhanced security erase time 0000
92 Master password revision code FFFE
H
H
H
30
Momentus 5400.3 PSD SATA Product Manual, Rev. A
Word Description Value
93 Hardware reset value
(see description following this table)
94 Auto acoustic management setting xxxx
95–99 ATA-reserved 0000
100–
103
Total number of user-addressable LBA sectors available
(see Section 2.2 for related information)
These words are required for drives that support the 48-bit
addressing feature. Maximum value: 0000FFFFFFFFFFFFh.
104–
ATA-reserved 0000
127
128 Security status 0001
129–
Seagate-reserved xxxx
159
160–
ATA-reserved 0000
254
255 Integrity word xxA5
xxxx
H
H
H
ST91608220AS = 312,581,808
ST91208220AS = 234,441,648
ST91008220AS = 195,371,568
ST9808212AS = 156,301,488
ST9608210AS = 117,210,240
H
H
H
H
H
Note. See the bit descriptions below for words 63, 88, 93 and 94 of the Identify Drive data:
Description (if bit is set to 1)
Bit Word 63
0 M ultiword DMA mode 0 is supported.
1 M ultiword DMA mode 1 is supported.
2 M ultiword DMA mode 2 is supported.
8 M ultiword DMA mode 0 is currently active.
9 M ultiword DMA mode 1 is currently active.
10 M ultiword DMA mode 2 is currently active.
Bit Word 88
0 U ltra DMA mode 0 is supported.
1 U ltra DMA mode 1 is supported.
2 U ltra DMA mode 2 is supported.
3 U ltra DMA mode 3 is supported.
4 U ltra DMA mode 4 is supported.
8 U ltra DMA mode 0 is currently active.
9 U ltra DMA mode 1 is currently active.
10 U ltra DMA mode 2 is currently active.
11 Ultra DMA mode 3 is currently active.
12 U ltra DMA mode 4 is currently active.
13 U ltra DMA mode 5 is currently active.
Momentus 5400.3 PSD SATA Product Manual, Rev. A
31
Bit Word 93
13 1 = 80-conductor cable detected, CBLID above VIH
0 = 40-conductor cable detected, CBLID below VIL
4.3.2 Set Features command
This command con trols the implementation of var ious features that the drive sup port s. When the drive receives
this command, it sets BSY, checks the contents of the Features register, clears BSY and generates an interrupt. If the value in the register does not represent a feature that the drive supports, the command is aborted.
Power-on default has the read look-ahead and write caching features enabled. The acceptable values for the
Features register are defined as follows:
T a ble 8: Set Feat ur es comman d value s
02
03
55
82
AA
F1
Enable write cache (default).
H
Set transfer mode (based on value in Sector Count register).
H
Sector Count register values:
00
Set PIO mode to default (PIO mode 2).
H
Set PIO mode to default and disable IORDY (PIO mode 2).
01
H
PIO mode 0
08
H
PIO mode 1
09
H
PIO mode 2
0A
H
PIO mode 3
0B
H
PIO mode 4 (default)
0C
H
Multiword DMA mode 0
20
H
Multiword DMA mode 1
21
H
Multiword DMA mode 2
22
H
Ultra DMA mode 0
40
H
Ultra DMA mode 1
41
H
Ultra DMA mode 2
42
H
Ultra DMA mode 3
43
H
Ultra DMA mode 4
44
H
Ultra DMA mode 5
45
H
Disable read look-ahead (read cache) feature.
H
Disable write cache
H
Enable read look-ahead (read cache) feature (default).
H
Report full capacity available
H
Note. At power-on, or after a hardware or software reset, the default values of the features are as indi-
cated above.
32
Momentus 5400.3 PSD SATA Product Manual, Rev. A
4.3.3 S.M.A.R.T. commands
S.M.A.R.T. provides near-term failure prediction for disc drives. When S.M.A.R.T. is enabled, the drive monitors predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines
that a failure is likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable.
S.M.A.R.T. predictability is limited to the attributes the drive can monitor. For more information on S.M.A.R.T.
commands and implementation, see the Draft ATA-5 Standard.
SeaTools diagnostic software activates a built-in drive self-test (DST S.M.A.R.T. command for D4H) that eliminates unnecessary drive returns. The diagnostic software ships with all new drives and is also available at:
http://seatools.seagate.com.
This drive is ship ped wi th S. M.A.R. T. fe ature s disab led. You m ust ha ve a r ecent BI OS or so ft wa re pa ckage that
supports S.M.A.R.T. to enable this feature. The table below shows the S.M.A.R.T. command codes that the
drive uses.
T a ble 9: S.M.A. R. T. commands
Code in features register S.M.A.R.T. command
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
DA
H
H
H
H
H
H
H
H
H
H
H
S.M.A.R.T. Read Data
Vendor-specific
S.M.A.R.T. Enable/Disable Attribute Autosave
S.M.A.R.T. Save Attribute Values
S.M.A.R.T. Execute Off-line Immediate (runs DST)
S.M.A.R.T. Read Log Sector
S.M.A.R.T. Write Log Sector
Vendor-specific
S.M.A.R.T. Enable Operations
S.M.A.R.T. Disable Operations
S.M.A.R.T. Return Status
Note. If an appropriate code is not written to the Features Register, the command is aborted and 0x 04
(abort) is written to the Error register.
Momentus 5400.3 PSD SATA Product Manual, Rev. A
33
5.0 Seagate Technology support ser vices
Internet
For information regarding Seagate products and services, visit www.seagate.com. Worldwide support is
available 24 hours daily by email for your questions.
Presales Support:
Presales@Seagate.com
T e chn i cal Supp or t:
DiscSupport@Seagate.com
Warranty Support:
http://www.seagate.com/support/service/index.html
mySeagate
my.seagate.com is the industry's first Web portal designed specifically for OEMs and distributors. It provides
self-service access to critical applications, personalized content and the tools that allow our partners to
manage their Seagate account functions. Submit pricing requests, orders and returns through a single,
password-protected Web interface-anytime, anywhere in the world.
spp.seagate.com
spp.seagate.com supports Seagate resellers with product information, program benefits and sales tools. You
may register for customiz e d communi cation s that ar e not ava ila ble on the web. The s e communi catio ns cont ai n
product launch, EOL, pricing, promotions and other channel-related information. To learn more about the
benefits or to register, go to spp.seagate.com, any time, from anywhere in the world.
Seagate Service Centers
Presales Support
Our Presales Support staff can help you determine which Seagate products are best suited for your specific
application or computer system, as well as product availability and compatibility.
Technical Support
Seagate technical support is available to assist you online at support.seagate.com or through one of our call
centers. Have your system configuration information and your “ST” model number available.
SeaTDD™ (+1-405-324-3655) is a telecommunications device for the deaf (TDD). You can send questions or
comments 24 hours daily and exchange messages with a technical support specialist during normal business
hours for the call center in your region.
34
Momentus 5400.3 PSD SATA Product Manual, Rev. A
Customer Service Operations
Warranty Service
Seagate offer s worldwi de custom er supp ort for Seagate pro duct s . Seagate distr i butors, OEM s and other direct
customers should contact their Seagate Customer Service Operations (CSO) representative for warrantyrelated issues. Resellers or end users of drive products should contact their place of purchase or Seagate
warranty service for assistance. Have your serial number and model or part number available.
Data Recove ry Service s
Seagate offers data recovery services for all formats and all brands of storage media. Our data recovery
services labs are currently located throughout the world. . Additional information, including an online request
form and data loss prevention resources, is available at http://services.seagate.com/index.aspx
Authorized Service Centers
Seagate Service Centers are available on a global basis for the return of defective products. Contact your
customer support representative for the location nearest you.
USA/Canada/Latin America support services
For an extensive list of telephone numbers to technical support, presales and warranty service in USA/
Canada/Latin America, including business hours, go to the "Contact Us" page on www.seagate.com.
Global Customer Support
Presales, Technical, and Warranty Support
Call Center Toll-free Direct dial
USA, Canada,
and Mexico 1-800-SEAGATE +1-405-324-4700
Data Recovery Services
Call Center Toll-free Direct dial FAX
USA, Canada, 1-800-475-01435 +1-905-474-2162 1-800-475-0158
and Mexico +1-905-474-2459
Europe, the Middle East and Africa Support Services
For an extensive list of telephone numbers to technical support, presales and warranty service in Europe, the
Middle East and Africa, go to the "Contact Us" page on www.seagate.com.
Asia/Pacific Support Services
For an extensive list of telephone numbers to technical support, presales and warranty service in Asia/Pacific,
go to the "Contact Us" page on www.seagate.com.
Momentus 5400.3 PSD SATA Product Manual, Rev. A
35
Index
A
ACA 17
acoustics 6, 15
Active mode 12
Address 26
AFR 16
Agency certification 16
Altitude 13
Altitude, nonoperating 6
Altitude, operating 6
Ambient temperature 6, 13
ambient temperature 9
Annualized Failure Rate 16
Annualized Failure Rate (AFR) 6
Areal density 5, 8
areal density 1
ATA commands 25
ATA data-transfer modes supported 5
ATA Service 25
Australia/New Zealand Standard AS/NZS3548 1995
17
Australian Communication Authority (ACA) 17
Australian C-Tick 17
Average seek time 9
Average seek, read 5
Average seek, write 5
B
bels 6
BPI 5
buffer 5
Bytes per sector 5, 7
C
cables and connectors 20
Cache 5, 8
capacity 7
case temperature 13
CE mark 16
certification 16
Check Power Mode 26
chemical substances 18
Class B computing device 17
compatibility 16
Conducted noise 11
Conducted RF immunity 15
Configuring the drive 19
connectors 20
CSA C22.2 (950) 16
current 6
cycles 16
Cylinders 7
D
data-transfer rates 1
DC power 10
Default logical geometry 7
density 5
Device Configuration Freeze Lock 25
Device Configuration Restore 25
Device Configuration Set 25
Diagnostics 25
dimensions 21
Discs 5
dissipation 10
Download Microcode 25
E
Electrical fast transient 15
Electromagnetic compatibility 16
Electromagnetic Co mpati b ility Directive (8 9/336/EEC)
16
Electromagnetic immunity 15
Electrostatic discharge 15
electrostatic discharge (ESD) 19
EN 55022, Class B 16
EN 55024 16
EN 60950 16
Environmental protection 18
Environmental specifications 13
error-correction algorithms 1
errors 6, 16
ESD 19
EU 16
European Union (EU) requirements 16
European Union Restriction of Hazardous Substanc-
es 18
evice Configuration Identify 25
Execute Device Diagnostics 25
F
FCC verification 17
features 1
Federal Communications Commission 17
Flush Cache 25
Flush Cache Extended 25
Formatted capacity 7
Formatted Gbytes 5
Freeze Lock 25
G
Gbytes 7
geometry 7
gradient 6
36
Momentus 5400.3 PSD SATA Product Manual, Rev. A
Guaranteed sectors 5, 7
guaranteed sectors 7
H
handling 19
Handling precautions 19
heads 7
Height 5
height 8
Humidity 13
humidity 6
I
I/O data-transfer rate 5, 8
Identify 25
Identify Device 25
Identify Device command 28
Idle 10, 26
Idle and Standby timers 12
Idle Immediate 26
Idle mode 6, 12
Idle mode power 10
IEC950 16
Information Technology Equipment (ITE) 16
Initialize Device Parameters 25
Input noise ripple 11
Interface 8
interface 23
Interleave 8
Internal data transfer rate 5
Internal data-transfer rate 8
ISO document 7779 15
ITE 16
K
Korean RRL 17
L
latency 5
LBA mode 7
Length 5
length 8
Load/Unload 16
logical geometry 7
M
master/slave 2
Max Address 26
maximum temperature 13
Microcode 25
mounting 21
mounting screws 14
mounting the drive 19
N
noise 11
nominal power 9
Nonoperating shock 14
Nonoperating vibration 14
Nonrecoverable read errors 6
nonrecoverable read errors 16
Non-volatile cache 2
Non-volitile cache sizes 8
NVC 2
O
Operating shock 14
Operating vibration 14
P
Physical characteristics 8
Physical organization 8
Physical read/write heads 5
point-to-point 2, 20
Power consumption 10
power dissipation 10
power management 12
power on/off cycles 16
Power specifications 10
Power-management modes 12
Power-on to Ready 9
Power-on to ready 5
precautions 19, 21
programmable power management 12
Q
quick reference 5
R
Radiated RF immunity 15
Radio and television interference 17
radio frequency (RF) 15
random track location 10
Read Buffer 25
Read DMA 25
Read DMA Extended 25
Read DMA without Retries 25
read errors 6, 16
Read Long with Retries 25
Read Long without Retries 25
Read Multiple 25
Read Multiple Extended 25
Read Native MAX Address 27
Read Native Max Address 25
Read Native Max Address Extended 25
Read Sectors 25
Read Sectors Extended 25
Momentus 5400.3 PSD SATA Product Manual, Rev. A
37
Read Sectors without Retries 25
Read Verify Sectors 25
Read Verify Sectors Extended 25
Read Verify Sectors without Retries 25
Read/write heads 7
Read/write power 6
read/write power and current 10
Recalibrate 25
Recording density 5, 8
Recording method 8
Recording technology 8
Relative humidity 6, 13
Reliability 16
resistance 11
Retries 25
RF 15
RoHS 18
RPM 5
RRL 17
S
S.M.A.R.T. 26
S.M.A.R.T. implementation 25
Safety certification 16
SATA 8, 23
screws 14, 21
sector 7
sectors 7
Sectors per track 7
Security Disable Password 27
Security Erase Prepare 27
Security Erase Unit 27
Security Freeze Lock 27
Security Set Password 27
Security Unlock 27
Seek 25
seek mode 10
Seek power 6
Seek time 9
seek time 5
Seeking 10
Self refresh, low power 12
Serial ATA 8
Serial ATA (SATA) interface 23
serial ATA ports 2
servo electronics 10
Set Drive Parameters 25
Set Features 25
Set Max Address 26
Set Multiple Mode 26
Shock 14
Shock, nonoperating 6
Shock, operating 6
single-track seeks 9
Sleep 10, 26
Sleep mode 6, 12
sound power 6
Specification summary table 5
Spindle speed 5, 8
Spinup 10
spinup power 10
Standby 10, 26
Standby Immediate 26
Standby mode 6, 10, 12
Standby to Ready 9
Standby to ready 5
Start/stop times 9
Startup current 6
static-discharge 19
support services 33
Surge immunity 15
T
technical support services 33
temperature 6, 9, 13
Temperature gradient 6, 13
timers 12
TPI 5
Track density 5, 8
Track-to-track seek time 5, 9
TUV North America 16
U
UL 1950 16
V
Vibration 14
Vibration, nonoperating 6
Vibration, operating 6
Voltage dips, interrupts 15
Voltage tolerance 6, 11
W
Warranty 16
Weight 5
weight 8
Wet bulb temperature 6, 13
Width 5
width 8
Write Buffer 26
Write DMA 26
Write DMA Extended 26
Write Long with Retries 26
Write Long without Retries 26
Write Multiple 26
Write Sectors 26
38
Momentus 5400.3 PSD SATA Product Manual, Rev. A
Seagate Technology LLC
920 Disc Drive, Scotts Valley, California 95066-4544, USA
Publication Number: 100454328, Rev. A, Printed in USA
Loading...
