Seagate ST100FM0103, ST100FM0093, ST100FM0113, ST100FM0123, ST200FM0013 User Manual

...

Download

Product Manual

Seagate® 1200 SSD

High Endurance Limited Warranty with Media Usage

2.5” models

Standard drives

ST400FM0093 ST200FM0093 ST100FM0093

Self-Encrypting drives

ST400FM0103 ST200FM0103 ST100FM0103

High Endurance Managed Life 2.5” models

Standard drives

ST400FM0113 ST200FM0113 ST100FM0113

High Endurance SED drives

ST400FM0123 ST200FM0123 ST100FM0123

Limited Warranty with Media Usage

2.5” models

Standard drives

ST800FM0043 ST400FM0053 ST200FM0053

Self-Encrypting drives

ST800FM0053 ST400FM0073 ST200FM0073

SED FIPS 140-2 Models (Review Pending)

ST800FM0063

Managed Life

2.5” models

Standard drives

ST800FM0013 ST400FM0013 ST200FM0013

Self-Encrypting drives

ST800FM0023 ST400FM0033 ST200FM0033

SED FIPS 140-2 Models (Review Pending)

ST800FM0033

Limited Warranty with Media Usage

1.8” models

Standard drives

ST400FM0063 ST200FM0063

Self-Encrypting drives

ST400FM0083 ST200FM0083

Managed Life

1.8” models

Standard drives

ST400FM0023 ST200FM0023

Self-Encrypting drives

ST400FM0043 ST200FM0043

100708406 Rev. C October 2014

Document Revision History

Revision Date Description of Change

Rev. A 07/09/2013 Initial release.

Rev. B 04/02/2014 12, 15-16, 20, 26, 28-42, 46, 52, 59-62 & 74.

Rev. C 10/27/2014 Pages 28-35, 39-40, 42 & 61.

Publication number: 100708406, Rev. C October 2014

Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. Seagate 1200 SSD and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments. All other trademarks or registered trademarks are the property of their respective owners.

No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC. Call 877-PUB-TEK1 (877-782-8351) to request permission.

When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Actual quantities will vary based on various factors, including file size, file format, features and application software. Actual data rates may vary depending on operating environment and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more information, visit import and use outside of the U.S. Seagate reserves the right to change, without notice, product offerings or specifications.

www.bis.doc.gov), and controlled for

CONTENTS

Seagate® Technology Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.0 Scope. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.0 Applicable standards and reference documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1 Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1.1 Electromagnetic compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1.2 Electromagnetic compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1.3 European Union Restriction of Hazardous Substances (RoHS) . . . . . . . . . . . . . 9

2.1.4 China Restriction of Hazardous Substances (RoHS) Directive . . . . . . . . . . . . . . 9

2.2 Reference documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.0 General description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.1 Standard features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.2 Media description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.3 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.4 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.5 Formatted capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.6 Programmable drive capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.7 Factory-installed options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.8 Thin Provisioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.8.1 Logical Block Provisioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.8.2 Thin Provisioning capabilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.8.3 UNMAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.8.4 FORMAT UNIT command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.8.5 Protection Information (PI) and Security (SED) . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.0 Performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.1 Internal drive characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.2 Performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.2.1 Response time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.2.2 FORMAT UNIT command execution time for 512-byte LBA’s (minutes) . . . . . . 16

4.2.3 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.3 Start/stop time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.4 Cache control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.4.1 Caching write data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.4.2 Prefetch operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.0 Reliability specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.1 Error rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.1.1 Unrecoverable Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.1.2 Interface errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.2 Endurance Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.2.1 Wear Leveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.2.2 Garbage Collection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.2.3 Write Amplification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.2.4 UNMAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.2.5 Data Retention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.2.6 Lifetime Endurance Management (Available on select models) . . . . . . . . . . . . 22

5.2.7 SSD Percentage Used Endurance Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.3 Reliability and service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.3.1 Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF) . . . . 22

5.3.2 Preventive maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Seagate 1200 SSD Product Manual, Rev. C 2

CONTENTS

5.3.3 Hot plugging the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.3.4 S.M.A.R.T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.3.5 Thermal monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.3.6 Drive Self Test (DST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.3.7 Product warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

6.0 Physical/electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.1 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.1.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.2 AC power requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.3 DC power requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

6.3.1 Conducted noise immunity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6.3.2 Power sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6.3.3 Current profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6.4 Power dissipation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

6.5 Environmental limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

6.5.1 Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

6.5.2 Relative humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

6.5.3 Effective altitude (sea level) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

6.5.4 Shock and vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

6.5.5 Air cleanliness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

6.5.6 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

6.5.7 Electromagnetic susceptibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

6.6 Mechanical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

7.0 About FIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

8.0 About self-encrypting drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8.1 Data encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8.2 Controlled access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8.2.1 Admin SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8.2.2 Locking SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8.2.3 Default password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8.3 Random number generator (RNG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8.4 Drive locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

8.5 Data bands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

8.6 Cryptographic erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

8.7 Authenticated firmware download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

8.8 Power requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

8.9 Supported commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

8.10 Sanitize - Cryptographic Erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

8.11 RevertSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

9.0 Defect and error management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.1 Drive internal defects/errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.2 Drive error recovery procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.3 SAS system errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.4 Auto-Reallocation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

9.5 Protection Information (PI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

9.5.1 Levels of PI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

9.5.2 Setting and determining the current Type Level. . . . . . . . . . . . . . . . . . . . . . . . . 54

9.5.3 Identifying a Protection Information drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

10.0 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Seagate 1200 SSD Product Manual, Rev. C 3

CONTENTS

10.1 Drive orientation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

10.2 Cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

10.3 Drive mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

10.4 Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

11.0 Interface requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

11.1 SAS features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

11.1.1 Task management functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

11.1.2 Task management responses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

11.2 Dual port support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

11.3 SCSI commands supported. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

11.3.1 INQUIRY data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

11.3.2 MODE SENSE data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

11.4 Miscellaneous operating features and conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

11.4.1 SAS physical interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

11.4.2 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

11.4.3 Connector requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

11.4.4 Electrical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

11.4.5 Pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

11.4.6 SAS transmitters and receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

11.4.7 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

11.5 Signal characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

11.5.1 Ready LED Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

11.5.2 Differential signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

11.6 SAS-3 Specification compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

11.7 Additional information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Seagate 1200 SSD Product Manual, Rev. C 4

FIGURES

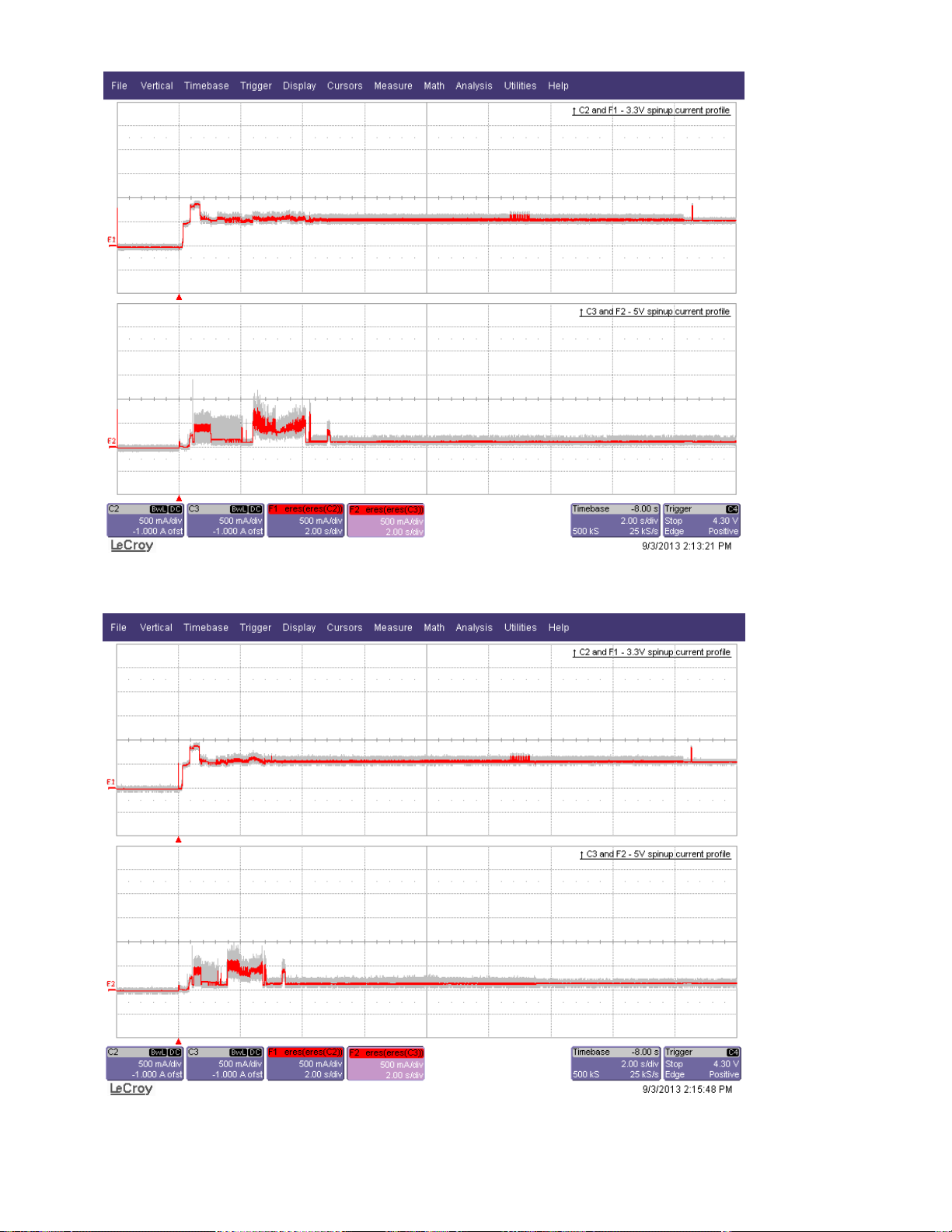

Figure 1. Current profiles for 800GB standard and 400GB High Endurance models . . . . . . . . . . . . . . . 36

Figure 2. Current profiles for 400GB standard and 200GB high endurance models . . . . . . . . . . . . . . . 37

Figure 3. Current profiles for 200GB standard and 100GB high endurance models . . . . . . . . . . . . . . . 37

Figure 4. Current profiles for 400GB 1.8” models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Figure 5. Current profiles for 200GB 1.8” models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Figure 6. 800GB (at 6Gb) DC current and power vs. input/output operations per second . . . . . . . . . . . 39

Figure 7. 400GB (at 6Gb) DC current and power vs. input/output operations per second . . . . . . . . . . . 39

Figure 8. 200GB (at 6Gb) DC current and power vs. input/output operations per second . . . . . . . . . . . 40

Figure 9. 400GB (at 6Gb) DC current and power vs. input/output operations per second . . . . . . . . . . . 40

Figure 10. 200GB (at 6Gb) DC current and power vs. input/output operations per second . . . . . . . . . . . 41

Figure 11. 100GB (at 6Gb) DC current and power vs. input/output operations per second . . . . . . . . . . . 41

Figure 12. 400GB (at 6Gb) DC current and power vs. input/output operations per second . . . . . . . . . . . 42

Figure 13. 200GB (at 6Gb) DC current and power vs. input/output operations per second . . . . . . . . . . . 42

Figure 14. Temperature check point location - 1.8-inch drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Figure 15. Temperature check point location - 2.5-inch drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Figure 16. Recommended mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Figure 17. Mounting configuration dimensions (2.5” models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

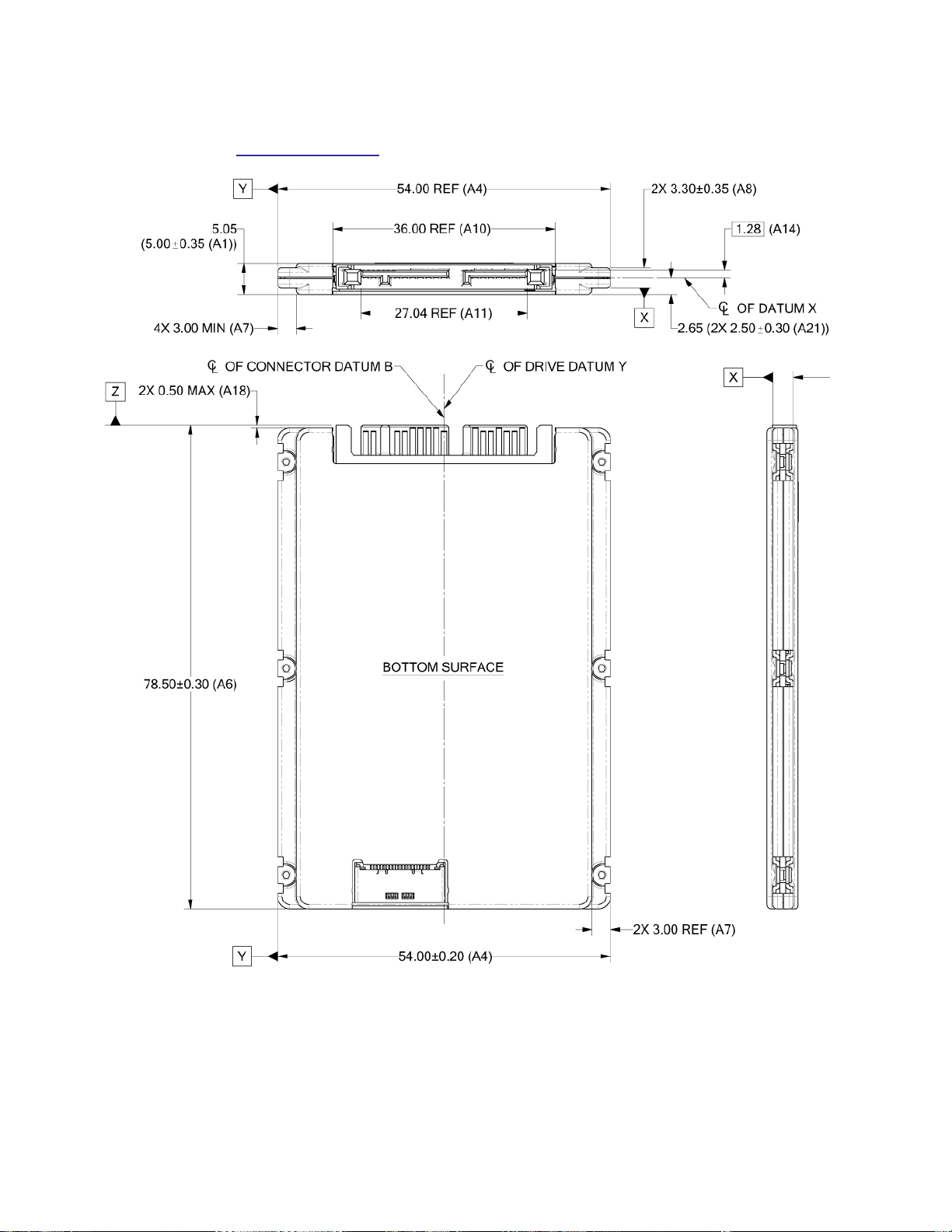

Figure 18. Mounting configuration dimensions (1.8” models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Figure 19. Example of FIPS tamper evidence labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Figure 20. Physical interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Figure 21. Air flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Figure 22. Physical interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Figure 23. SAS device plug dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

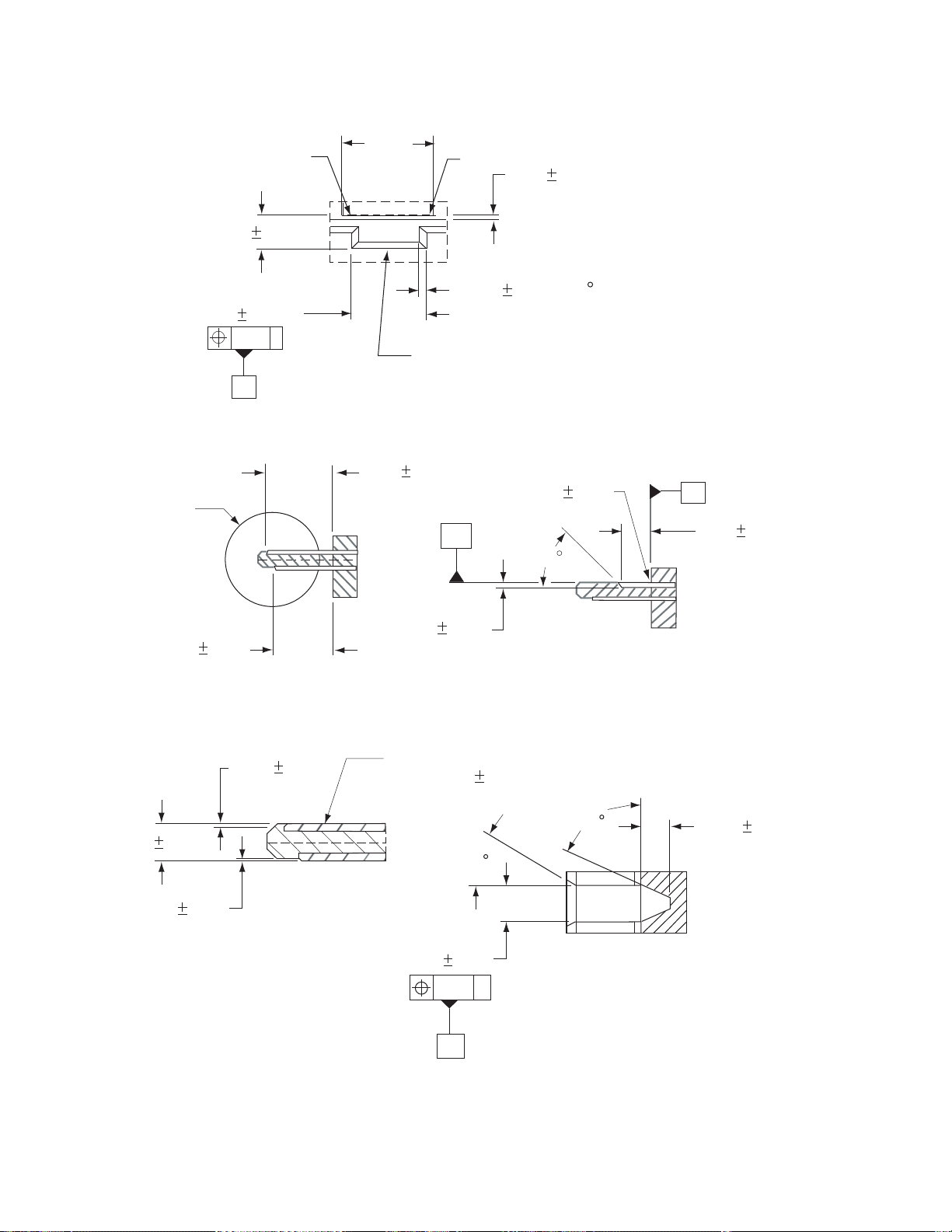

Figure 24. SAS device plug dimensions (detail) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Figure 25. Micro SAS device plug dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Figure 26. Micro SAS device plug dimensions (detail) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Figure 27. SAS transmitters and receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Seagate 1200 SSD Product Manual, Rev. C 5

Seagate® Technology Support Services

For information regarding online support and services, visit

Available services include:

http://www.seagate.com/about/contact-us/technical-support/

• Presales & Technical support

• Global Support Services telephone numbers & business hours

• Authorized Service Centers

Warranty terms will vary based on type of warranty chosen: “Managed Life” or “Limited Warranty with Media Usage”.

Consult the Seagate sales representative for warranty terms and conditions.

For information regarding data recovery services, visit

For Seagate OEM and Distribution partner portal, visit:

For Seagate reseller portal, visit:

http://www.seagate.com/partners/my-spp-dashboard/

http://www.seagate.com/services-software/data-recovery-services/

http://www.seagate.com/partners/

Seagate 1200 SSD Product Manual, Rev. C 6

1.0 Scope

This manual describes Seagate® 1200 SSD (Serial Attached SCSI) drives.

Seagate 1200 SSD drives support the SAS Protocol specifications to the extent described in this manual. The SAS Interface Manual (part number 100293071) describes the general SAS characteristics of this and other Seagate SAS drives. The Self-

Encrypting Drive Reference Manual, part number 100515636, describes the interface, general operation, and security features available on Self-Encrypting Drive models.

Product data communicated in this manual is specific only to the model numbers listed in this manual. The data listed in this manual may not be predictive of future generation specifications or requirements. If designing a system which will use one of the models listed or future generation products and need further assistance, please contact the Field Applications Engineer (FAE) or our global support services group as shown in See “Seagate® Technology Support Services” on page 6

Unless otherwise stated, the information in this manual applies to standard and Self-Encrypting Drive models.

2.5” Models - Limited Warranty with Media Usage 2.5” Models - Managed Life Standard Self-Encrypting SED FIPS 140-2 Standard Self-Encrypting SED FIPS 140-2

ST800FM0043 ST800FM0053 ST800FM0063 ST800FM0013 ST800FM0023 ST800FM0033

ST400FM0053 ST400FM0073 ST400FM0013 ST400FM0033

ST200FM0053 ST200FM0073 ST200FM0013 ST200FM0033

1.8” Models -

Limited Warranty with Media Usage

Standard Self-Encrypting Standard Self-Encrypting

ST400FM0063 ST400FM0083 ST400FM0023 ST400FM0043

ST200FM0063 ST200FM0083 ST200FM0023 ST200FM0043

High Endurance 2.5” Models -

Limited Warranty with Media Usage

Standard Self-Encrypting Standard Self-Encrypting

ST400FM0093 ST400FM0103 ST400FM0113 ST400FM0123

ST200FM0093 ST200FM0103 ST200FM0113 ST200FM0123

ST100FM0093 ST100FM0103 ST100FM0113 ST100FM0123

Note. Previous generations of Seagate Self-Encrypting Drive models were called Full Disk Encryption (FDE) models

before a differentiation between drive-based encryption and other forms of encryption was necessary.

Note. The Self-Encrypting Drive models indicated on the cover of this product manual have provisions for “Security

of Data at Rest” based on the standards defined by the Trusted Computing Group (see www.trustedcomputinggroup.org).

For more information on FIPS 140-2 Level 2 certification see Section 7.0 on page 49.

For product certification status visit - http://csrc.nist.gov/groups/STM/cmvp/documents/140-1/1401vend.htm.

High Endurance 2.5” Models -

1.8” Models -

Managed Life

Seagate 1200 SSD Product Manual, Rev. C 7

2.0 Applicable standards and reference documentation

The drives documented in this manual have been developed as system peripherals to the highest standards of design and

construction. The drives depend on host equipment to provide adequate power and environment for optimum performance and compliance with applicable industry and governmental regulations. Special attention must be given in the areas of safety, power distribution, shielding, audible noise control, and temperature regulation. In particular, the drives must be securely mounted to guarantee the specified performance characteristics. Mounting by bottom holes must meet the requirements of Section 10.3.

2.1 Standards

The Seagate 1200 SSD family complies with Seagate standards as noted in the appropriate sections of this manual and the

Seagate SAS Interface Manual, part number 100293071.

The drives are recognized in accordance with UL 60950-1 as tested by UL, CSA 60950-1 as tested by CSA, and EN60950-1

as tested by TUV.

The security features of Self-Encrypting Drive models are based on the “TCG Storage Architecture Core Specification” and

the “TCG Storage Workgroup Security Subsystem Class: Enterprise_A” specification with additional vendor-unique features as noted in this product manual.

2.1.1 Electromagnetic compatibility

The drive, as delivered, is designed for system integration and installation into a suitable enclosure prior to use. The drive is

supplied as a subassembly and is not subject to Subpart B of Part 15 of the FCC Rules and Regulations nor the Radio Interference Regulations of the Canadian Department of Communications.

The design characteristics of the drive serve to minimize radiation when installed in an enclosure that provides reasonable

shielding. The drive is capable of meeting the Class B limits of the FCC Rules and Regulations of the Canadian Department of Communications when properly packaged; however, it is the user’s responsibility to assure that the drive meets the appropriate EMI requirements in their system. Shielded I/O cables may be required if the enclosure does not provide adequate shielding. If the I/O cables are external to the enclosure, shielded cables should be used, with the shields grounded to the enclosure and to the host controller.

2.1.1.1 Electromagnetic susceptibility

As a component assembly, the drive is not required to meet any susceptibility performance requirements. It is the

responsibility of those integrating the drive within their systems to perform those tests required and design their system to ensure that equipment operating in the same system as the drive or external to the system does not adversely affect the performance of the drive. See Section 6.3, DC power requirements.

2.1.2 Electromagnetic compliance

Seagate uses an independent laboratory to confirm compliance with the directives/standards for CE Marking and C-Tick Marking. The drive was tested in a representative system for typical applications and comply with the Electromagnetic Interference/Electromagnetic Susceptibility (EMI/EMS) for Class B products. The selected system represents the most popular characteristics for test platforms. The system configurations include:

• Typical current use microprocessor

• Keyboard

• Monitor/display

• Printer

• Mouse

Although the test system with this Seagate model complies with the directives/standards, we cannot guarantee that all

systems will comply. The computer manufacturer or system integrator shall confirm EMC compliance and provide the appropriate marking for their product.

Electromagnetic compliance for the European Union

If this model has the CE Marking it complies with the European Union requirements of the Electromagnetic Compatibility Directive 2004/108/EC as put into place on 20 July 2007.

Seagate 1200 SSD Product Manual, Rev. C 8

Australian C-Tick

If this model has the C-Tick Marking it complies with the Australia/New Zealand Standard AS/NZ CISPR22 and meets the Electromagnetic Compatibility (EMC) Framework requirements of

Korean KCC

If these drives have the Korean Communications Commission (KCC) logo, they comply with KN22, KN 24, and KN61000.

Taiwanese BSMI

If this model has the Taiwanese certification mark then it complies with Chinese National Standard, CNS13438.

2.1.3 European Union Restriction of Hazardous Substances (RoHS)

The European Union Restriction of Hazardous Substances (RoHS) Directive restricts the presence of chemical substances,

including Lead (Pb), in electronic products ef

A number of parts and materials in Seagate products are procured from external suppliers. We rely on the representations of

our suppliers regarding the presence of RoHS substances in these parts and materials. Our supplier contracts require compliance with our chemical substance restrictions, and our suppliers document their compliance with our requirements by providing material content declarations for all parts and materials for the disk drives documented in this publication. Current supplier declarations include disclosure of the inclusion of any RoHS-regulated substance in such parts or materials.

fective July 2006.

Australia’s Spectrum Management Agency (SMA).

Seagate also has internal systems in place to ensure ongoing compliance with the RoHS Directive and all laws and regulations which restrict chemical content in electronic products. These systems include standard operating procedures that ensure that restricted substances are not utilized in our manufacturing operations, laboratory analytical validation testing, and an internal auditing process to ensure that all standard operating procedures are complied with.

2.1.4 China Restriction of Hazardous Substances (RoHS) Directive

This product has an Environmental Protection Use Period (EPUP) of 20 years. The following table contains

information mandated by China's "Marking Requirements for Control of Pollution Caused by Electronic Information Products" Standard.

"O" indicates the hazardous and toxic substance content of the part (at the homogenous material level) is lower than the threshold defined by the China RoHS MCV Standard.

"X" indicates the hazardous and toxic substance content of the part (at the homogenous material level) is over the threshold defined by the China RoHS MCV Standard.

Seagate 1200 SSD Product Manual, Rev. C 9

2.2 Reference documents

SCSI Commands Reference Manual Seagate part number: 100293068

SAS Interface Manual Seagate part number: 100293071

ANSI SAS Documents

SFF-8144 54mm x 78.5mm Form Factor with micro serial connector SFF-8223 2.5” Drive Form Factor with Serial Connector SFF-8460 HSS Backplane Design Guidelines SFF-8470 Multi Lane Copper Connector SFF-8482 SAS Plug Connector ANSI INCITS.xxx Serial Attached SCSI (SAS-3) Standard (T10/2212-D) ISO/IEC 14776-xxx SCSI Architecture Model-5 (SAM-5) Standard (T10/2104-D) ISO/IEC 14776-xxx SCSI Primary Commands-4 (SPC-4) Standard (T10/1731-D) ISO/IEC 14776-xxx SCSI Block Commands-3 (SBC-3) Standard (T10/1799-D)

ANSI Small Computer System Interface (SCSI) Documents

X3.270-1996 (SCSI-3) Architecture Model

Trusted Computing Group (TCG) Documents (apply to Self-Encrypting Drive models only)

TCG Storage Architecture Core Specification, Rev. 1.0 TCG Storage Security Subsystem Class Enterprise Specification, Rev. 1.0

Self-Encrypting Drives Reference Manual Seagate part number: 100515636

In case of conflict between this document and any referenced document, this document takes precedence.

Seagate 1200 SSD Product Manual, Rev. C 10

3.0 General description

Seagate 1200 SSD drives provide high performance, high capacity data storage for a variety of systems with a Serial

Attached SCSI (SAS) interface. The Serial Attached SCSI interface is designed to meet next-generation computing demands

for performance, scalability, flexibility and high-density storage requirements.

Seagate 1200 SSD drives are random access storage devices designed to support the Serial Attached SCSI Protocol as

described in the ANSI specifications, this document, and the SAS Interface Manual (part number 100293071) which

describes the general interface characteristics of this drive. Seagate 1200 SSD drives are classified as intelligent peripherals and provide level 2 conformance (highest level) with the ANSI SCSI-1 standard. The SAS connectors, cables and electrical interface are compatible with Serial ATA (SATA), giving future users the choice of populating their systems with either SAS or SATA drives. This allows users to continue to leverage existing investment in SCSI while gaining a 12Gb/s serial data transfer rate.

The Self-Encrypting Drive models indicated on the cover of this product manual have provisions for “Security of Data at Rest”

based on the standards defined by the Trusted Computing Group (see www.trustedcomputinggroup.org).

Note. Never disassemble and do not attempt to service items in the enclosure. The drive does not contain user-

replaceable parts. Opening for any reason voids the drive warranty..

3.1 Standard features

Seagate 1200 SSD drives have the following standard features:

• 1.5 / 3.0 / 6.0 / 12.0* Gb Serial Attached SCSI (SAS) interface (* 12.0 Gb only available on 2.5” models)

• Integrated dual port SAS controller supporting the SCSI protocol

• Support for SAS expanders and fanout adapters

• Firmware downloadable using the SAS interface

• 128 - deep task set (queue)

• Supports up to 32 initiators

• Jumperless configuration

• User-selectable logical block size (512, 520, 524, 528, 4096, 4160, 4192, or 4224 bytes per logical block)

• Industry standard SFF 1.8 and 2.5-inch dimensions

• ECC, LDPC, and Micro-RAID Error Recovery

• No preventive maintenance or adjustments required

• Self diagnostics performed when power is applied to the drive

• Vertical, horizontal, or top down mounting

• Drive Self Test (DST)

• Parallel flash access channels

• Power loss data protection

• Thin Provisioning with Block Unmap Support

• Silent operation

• Lifetime Endurance Management (available by default on Managed Life models)

Seagate 1200 SSD Self-Encrypting Drive models have the following additional features:

• Automatic data encryption/decryption

• Controlled access

• Random number generator

• Drive locking

• Up to 16 independent data bands

• Cryptographic erase of user data for a drive that will be repurposed or scrapped

• Authenticated firmware download

• SANITIZE command support

Seagate 1200 SSD Product Manual, Rev. C 11

3.2 Media description

The media used on the drive consists of Multi Layer Cell (MLC) NAND Flash for improved reliability and performance.

3.3 Performance

• Firmware controlled multi-segmentable cache buffer

• Up to 1200MB/s maximum instantaneous data transfers on 12Gb capable configurations.

• Background processing of queue

• Non-Volatile Write Cache

Note. There is no significant performance difference between Self-Encrypting Drive and standard (non-Self-Encrypting

Drive) models.

3.4 Warranty

• "Managed Life" or "Limited Warranty with Media Usage" warranty options

[1]

[1] Warranty terms will vary based on type of warranty chosen: “Managed Life” or “Limited Warranty with Media Usage”.

Consult the Seagate sales representative for warranty terms and conditions.

3.5 Formatted capacities

Standard OEM models are formatted to 512 bytes per block. The block size is selectable at format time. Supported block sizes are 512, 520, 524, 528, 4096, 4160, 4192, and 4224. Users having the necessary equipment may modify the data block size before issuing a format command and obtain different formatted capacities than those listed.

To provide a stable target capacity environment and at the same time provide users with flexibility if they choose, Seagate

recommends product planning in one of two modes:

Seagate designs specify capacity points at certain block sizes that Seagate guarantees current and future products will meet. We recommend customers use this capacity in their project planning, as it ensures a stable operating point with backward and forward compatibility from generation to generation. The current guaranteed operating points for this product are shown below. The Capacity stated is identical when the drive is formatted with or without PI enabled.

Table 1 Formatted Capacity Block Count

Capacity (Blocks)

Block Size

512 520 524 528 4096 4160 4192 4224

Decimal Hex Decimal Hex Decimal Hex Decimal Hex

1,562,824,368 5D26CEB0h 781,422,768 2E9390B0h 390,721,968 1749F1B0h 195,371,568 BA52230h

1,529,743,600 5B2E08F0h 764,871,800 2D970478h 382,435,904 16CB8240h 191,217,952 B65C120h

1,509,354,136 59F6EA98h 754,677,072 2CFB7550h 377,338,536 167DBAA8h 188,669,272 B3EDD58h

1,487,666,080 58ABFBA0h 743,833,040 2C55FDD0h 371,916,520 162AFEE8h 185,958,264 B157F78h

195,353,046 BA4D9D6h 97,677,846 5D27216h 48,840,246 2E93E36h 24,421,446 174A446h

191,538,464 B6AA520h 95,769,232 5B55290h 47,884,616 2DAA948h 23,942,312 16D54A8h

189,122,144 B45C660h 94,561,072 5A2E330h 47,280,536 2D17198h 23,640,272 168B8D0h

187,689,400 B2FE9B8h 93,844,704 597F4E0h 46,922,352 2CBFA70h 23,461,176 165FD38h

800GB 400GB 200GB 100GB

3.6 Programmable drive capacity

Using the MODE SELECT command, the drive can change its capacity to something less than maximum. See the MODE

SELECT (6) parameter list table in the SAS Interface Manual, part number 100293071. A value of zero in the Number of

Blocks field indicates that the drive will not change the capacity it is currently formatted to have. A number other than zero and less than the maximum number of LBAs in the Number of Blocks field changes the total drive capacity to the value in the Number of Blocks field. A value greater than the maximum number of LBAs is rounded down to the maximum capacity.

Seagate 1200 SSD Product Manual, Rev. C 12

3.7 Factory-installed options

OEMs may order the following items which are incorporated at the manufacturing facility during production or packaged before shipping. Some of the options available are (not an exhaustive list of possible options):

• Other capacities can be ordered depending on LBA size requested and other factors.

• Single-unit shipping pack. The drive is normally shipped in bulk packaging to provide maximum protection against transit damage. Units shipped individually require additional protection as provided by the single unit shipping pack. Users planning single unit distribution should specify this option.

• The Safety and Regulatory Agency Specifications, part number 75789512, is usually included with each standard OEM

drive shipped, but extra copies may be ordered.

3.8 Thin Provisioning

3.8.1 Logical Block Provisioning

The drive is designed with a feature called Thin Provisioning. Thin Provisioning is a technique which does not require

Logical Blocks to be associated to Physical Blocks on the storage medium until such a time as needed. The use of Thin Provisioning is a major factor in SSD products because it reduces the amount of wear leveling and garbage collection that must be performed. The result is an increase in the products endurance. For more details on Logical Block Provisioning and

Thin Provisioning, Reference the SBC-3 document provided by the T-10 committee.

3.8.2 Thin Provisioning capabilities

The level of Thin Provisioning support may vary by product model. Devices that support Thin Provisioning are allowed to

return a default data pattern for read requests made to Logical Blocks that have not been mapped to Physical Blocks by a previous WRITE command.

In order to determine if Thin Provisioning is supported and what features of it are implemented requires the system to send a READ CAPACITY 16 (9Eh) command to the drive. Thin Provisioning and the READ CAPACITY 16 (9Eh) command is defined in the Seagate SCSI Command Reference 100293068.

Product Configuration LBPME LBPRZ Non-SED Supported Supported SED Supported Not Supported

A logical block provisioning management enabled (LBPME) bit set to one indicates that the logical unit implements logical

block provisioning management. An LBPME bit set to zero indicates that the logical unit is fully provisioned and does not implement logical block provisioning management.

A logical block provisioning read zeros (LBPRZ) bit set to one indicates that, for an unmapped LBA specified by a read

operation, the device server sends user data with all bits set to zero to the data-in buffer. An LBPRZ bit set to zero indicates that, for an unmapped LBA specified by a read operation, the device server may send user data with all bits set to any value to the data-in buffer.

3.8.3 UNMAP

The UNMAP command requests that the device server break the association of a specific Logical Block address from a

Physical Block, thereby freeing up the Physical Block from use and no longer requiring it to contain user data. An unmapped block will respond to a READ command with data that is determined by the setting of the LBPRZ bit in the READ CAPACITY parameter data.

3.8.4 FORMAT UNIT command

A device which supports Thin Provisioning will be capable of performing a SCSI FORMAT UNIT command which allocates

Logical Blocks Addresses that are not linked to Physical Block Locations. A FORMAT command will cause all LBAs to become unmapped.

3.8.5 Protection Information (PI) and Security (SED)

The requirements in this section apply to any device which supports LBA unmapping.

Seagate 1200 SSD Product Manual, Rev. C 13

In SCSI devices, umapped LBAs are defined as part of the Thin Provisioning model. Support of the Thin Provisioning model is indicated by the LBPME bit having a value of '1' in the READ CAPACITY (16) parameter data.

When a region of LBA's are erased via cryptographic erase, as part of the erase, the drive shall unmap those LBAs.

If the host attempts to access an unmapped or trimmed LBA, the drive shall return scrambled data. For a given LBA, the data shall be identical from access to access, until that LBA is either updated with actual data from the host or that LBA is cryptographically erased. The drive shall report a value of '0' in the LBPRZ field returned in the READ CAPACITY (16) parameter data.

If the host attempts to access an unmapped LBA on a drive that has been formatted with Protection Information (PI), the drive shall return scrambled PI data for that LBA. Depending on the value of the RDPROTECT field in the data-access command CDB, this may result in the drive returning a standard PI error to the host.

If the host reduces the addressable capacity of the drive via a MODE SELECT command, the drive shall unmap or trim any LBA within the inaccessible region of the device.

Additionally, an UNMAP command is not permitted on a locked band.

Drive Configuration

Standard SED

PI Setting Disabled Enabled Disabled Enabled

PROT_EN bit 0 1 0 1

LBPME bit 1 1 1 1

LBPRZ bit 1 1 0 0

PI Check Requested N/A Yes No N/A Yes No

DATA Returned for Thin Provisioned LBA

PI Returned for Thin Provisioned LBA

PI Check Performed N/A No No N/A Yes No

Error reported to Host No No No No Yes No

0x00 0x00 0x00 Random None Random

None 0xFF 0xFF None None

Scrambled PI data

Seagate 1200 SSD Product Manual, Rev. C 14

4.0 Performance characteristics

This section provides detailed information concerning performance-related characteristics and features of Seagate 1200

SSD drives.

4.1 Internal drive characteristics

Flash Memory Type NAND MLC Emulated LBA Size 512, 520, 524, 528, 4096, 4160, 4192 or 4224 Native Programmable Page Size 8192 User Bytes Map Unit Size 4096 Default Transfer

Alignment Offset 0

4.2 Performance characteristics

4.2.1 Response time

Response time measurements are taken with nominal power at 25°C ambient temperature. The typical values in the table below are defined as follows:

• Page-to-page response time is an average of all possible page-to-page accesses for a sequentially preconditioned drive.

• Average response time is a true statistical random average of at least 5000 measurements of accesses between programmable pages on a randomly preconditioned drive.

Table 2 Typical Response Time (μsec)

All capacities

1,2

Read Write

Average

Page to Page 39 44

Average Latency 183 13

1. Execution time measured from receipt of the Command to the Response.

2. Assumes no errors.

3. Typical response times are measured under nominal conditions of temperature and voltage as measured on a representative sample of drives.

Typical

192 45

These drives are designed to provide the highest possible performance under typical conditions. How-

ever, due to the nature of Flash memory technologies there are many factors that can result in values different than those stated in this specification.

Seagate 1200 SSD Product Manual, Rev. C 15

4.2.2 FORMAT UNIT command execution time for 512-byte LBA’s (minutes)

The device may be formatted as either a Thin Provisioned device or a Fully Provisioned device.

The default format is Thin Provisioned and is recommended for most applications. Thin Provisioning provides the most flexibility for the device to manage the flash medium to maximize endurance.

Table 3 Maximum FORMAT UNIT Times (minutes)

Configuration

Non-SED

SED

4.2.3 Performance

Standard 2.5” Models - Managed Life

Maximum Burst Transfer Rate 1200MB/s Peak sequential 128KB read/write

data transfer rate (MB/s max) Sustained sequential 128KB read/

write data transfer rate (MB/s) Peak 4KB random read/write

command rate (IOPs) Sustained 4KB random read/write

command rate (IOPs) Sustainable 4KB Random combined

IOPS for 5 year Endurance (65%/35% R/W, 70% Duty Cycle)

Format Mode DCRT Bit IP Bit 800GB 400GB 200GB 100GB

(Default) Thin Provisioned DCRT = 0 IP = 0 5 5 5 5

(Default) Thin Provisioned DCRT = 1 IP = 0 5 5 5 5

Fully Provisioned DCRT = 0 IP = 1 10 10 10 10

Fully Provisioned DCRT = 1 IP = 1 10 10 10 10

(Default) Thin Provisioned DCRT = 0 IP = 0 5 5 5 5

(Default) Thin Provisioned DCRT = 1 IP = 0 5 5 5 5

Fully Provisioned DCRT = 0 IP = 1 430 430 430 430

Fully Provisioned DCRT = 1 IP = 1 280 280 280 280

Notes

[1] 750/500 750/400

[1] 750/195 750/95 750/45

[2] 110,000/40,000 110,000/25,000

[2] 110,000/15,000 110,000/7500 110,000/3700

[3] 60,000 50,000

ST800FM0013 ST800FM0023 ST800FM0033

ST400FM0013 ST400FM0033

ST200FM0013 ST200FM0033

Standard 2.5” Models - Limited Warranty with Media Usage

Maximum Burst Transfer Rate 1200MB/s Peak sequential 128KB read/write

data transfer rate (MB/s max) Sustained sequential 128KB read/

write data transfer rate (MB/s) Peak 4KB random read/write

command rate (IOPs) Sustained 4KB random read/write

command rate (IOPs) Sustainable 4KB Random combined

IOPS for 5 year Endurance (65%/35% R/W, 70% Duty Cycle)

Notes

[1]

[2]

[3] 60,000 50,000

ST800FM0043 ST800FM0053 ST800FM0063

110,000/40,000 110,000/25,000

ST400FM0053 ST400FM0073

750/500 750/400

ST200FM0053 ST200FM0073

Seagate 1200 SSD Product Manual, Rev. C 16

Standard 1.8” Models - Managed Life

Maximum Burst Transfer Rate 600MB/s Peak sequential 128KB read/write

data transfer rate (MB/s max) Sustained sequential 128KB read/

write data transfer rate (MB/s) Peak 4KB random read/write

command rate (IOPs) Sustained 4KB random read/write

command rate (IOPs) Sustainable 4KB Random combined

IOPS for 5 year Endurance (65%/35% R/W, 70% Duty Cycle)

Standard 1.8” Models - Limited Warranty with Media Usage

Maximum Burst Transfer Rate 600MB/s Peak sequential 128KB read/write

data transfer rate (MB/s max) Sustained sequential 128KB read/

write data transfer rate (MB/s) Peak 4KB random read/write

command rate (IOPs) Sustained 4KB random read/write

command rate (IOPs) Sustainable 4KB Random combined

IOPS for 5 year Endurance (65%/35% R/W, 70% Duty Cycle)

Notes

[1] 550/500

[1] 550/195 550/95

[2] 110,000/30,000

[2] 110,000/15,000 110,000/7500

[3] 60,000

Notes

[1]

[2]

[3] 60,000

ST400FM0023 ST400FM0043

ST400FM0063 ST400FM0083

550/500

110,000/30,000

ST200FM0023 ST200FM0043

ST200FM0063 ST200FM0083

High Endurance 2.5” Models - Managed Life

Maximum Burst Transfer Rate 1200MB/s Peak sequential 128KB read/write

data transfer rate (MB/s max) Sustained sequential 128KB read/

write data transfer rate (MB/s) Peak 4KB random read/write

command rate (IOPs) Sustained 4KB random read/write

command rate (IOPs) Sustainable 4KB Random combined

IOPS for 5 year Endurance (65%/35% R/W, 70% Duty Cycle)

Notes

[1] 750/500 750/400

[1] 750/195 750/95 750/45

[2] 110,000/50,000 110,000/50,000

[2] 110,000/15,000 110,000/7500 110,000/3700

[3] 70,000 60,000

ST400FM0113 ST400FM0123

ST200FM0113 ST200FM0123

ST100FM0113 ST100FM0123

Seagate 1200 SSD Product Manual, Rev. C 17

High Endurance 2.5” Models - Limited Warranty with Media Usage

Maximum Burst Transfer Rate 1200MB/s Peak sequential 128KB read/write

data transfer rate (MB/s max) Sustained sequential 128KB read/

write data transfer rate (MB/s) Peak 4KB random read/write

command rate (IOPs) Sustained 4KB random read/write

command rate (IOPs) Sustainable 4KB Random combined

IOPS for 5 year Endurance (65%/35% R/W, 70% Duty Cycle)

Notes

[1]

[2]

[3] 70,000 60,000

ST400FM0093 ST400FM0103

750/500 750/400

110,000/50,000 110,000/50,000

ST200FM0093 ST200FM0103

ST100FM0093 ST100FM0103

[1] Testing performed at Queue Depth = 128, Sequentially Preconditioned drive, using IOMeter 2006.7.27. [2] Testing performed at Queue Depth = 128, Randomly Preconditioned drive, using IOMeter 2006.7.27. [3] Testing performed at Queue Depth = 128, Non-Preconditioned drive, using IOMeter 2006.7.27.

Note. IOMeter is available at h

ttp://www.iometer.org/ or http://sourceforge.net/projects/iometer/.

IOMeter is licensed under the Intel Open Source License and the GNU General Public License. Intel does not endorse any IOMeter results.

Peak performance is defined as the typical best case performance that the product will be able to achieve when the product is preconditioned as mentioned and host commands are aligned on 4KB boundaries.

Sustained performance is defined as the worst case performance that the product will be able to achieve when the product is preconditioned

as mentioned and host commands are aligned on 4KB boundaries. For models that support Lifetime Endurance Management, write values also take into account the worst case performance throttling that may occur to ensure the product meets specified reliability specifications.

Due to the nature of Flash memory technologies there are many factors that can result in values different than those stated in this specification. Some discrepancies can be caused by bandwidth limitations in the host adapter, operating system, or driver limitations. It is not the intent of this manual to cover all possible causes of performance discrepancies.

When evaluating performance of SSD devices, it is recommended to measure performance of the device in a method that resembles the targeted application using real world data and workloads. Test time should also be adequately large to ensure that sustainable metrics and measures are obtained.

4.3 Start/stop time

The drive accepts the commands listed in the SAS Interface Manual less than 3 seconds after DC power has been applied.

If the drive receives a NOTIFY (ENABLE SPINUP) primitive through either port and has not received a START STOP UNIT command with the START bit equal to 0, the drive becomes ready for normal operations within 10 seconds (excluding the error recovery procedure).

If the drive receives a START STOP UNIT command with the START bit equal to 0 before receiving a NOTIFY (ENABLE SPINUP) primitive, the drive waits for a START STOP UNIT command with the START bit equal to 1. After receiving a START STOP UNIT command with the START bit equal to 1, the drive waits for a NOTIFY (ENABLE SPINUP) primitive.

After receiving a NOTIFY (ENABLE SPINUP) primitive through either port, the drive becomes ready for normal operations

within 10 seconds (excluding the error recovery procedure).

If the drive receives a START STOP UNIT command with the START bit and IMMED bit equal to 1 and does not receive a NOTIFY (ENABLE SPINUP) primitive within 5 seconds, the drive fails the START STOP UNIT command.

The START STOP UNIT command may be used to command the drive to stop. Stop time is 3 seconds (maximum) from

removal of DC power. SCSI stop time is 3 seconds. There is no power control switch on the drive.

Seagate 1200 SSD Product Manual, Rev. C 18

4.4 Cache control

All default cache mode parameter values (Mode Page 08h) for standard OEM versions of this drive family are given in

Section 11.3.2.

4.4.1 Caching write data

Write caching is a write operation by the drive that makes use of a drive buffer storage area where the data to be written to the medium is stored while the drive performs the WRITE command.

If the number of write data logical blocks exceed the size of the segment being written into, when the end of the segment is reached, the data is written into the beginning of the same cache segment, overwriting the data that was written there at the beginning of the operation; however, the drive does not overwrite data that has not yet been written to the medium.

If write caching is enabled (WCE=1), then the drive may return Good status on a WRITE command after the data has been transferred into the cache, but before the data has been written to the medium. If an error occurs while writing the data to the medium, and Good status has already been returned, a deferred error will be generated.

Data that has not been written to the medium is protected by a back up power source which provides the ability of the data to be written to non-volatile medium in the event of an unexpected power loss.

The SYNCHRONIZE CACHE command may be used to force the drive to write all cached write data to the medium. Upon

completion of a SYNCHRONIZE CACHE command, all data received from previous WRITE commands will have been written to the medium. Section 11.3.2 shows the mode default settings for the drive.

4.4.2 Prefetch operation

If the Prefetch feature is enabled, data in contiguous logical blocks on the medium immediately beyond that which was requested by a Read command are retrieved and stored in the buffer for immediate transfer from the buffer to the host on subsequent Read commands that request those logical blocks (this is true even if cache operation is disabled). Though the prefetch operation uses the buffer as a cache, finding the requested data in the buffer is a prefetch hit, not a cache operation hit.

To enable Prefetch, use Mode Select page 08h, byte 12, bit 5 (Disable Read Ahead - DRA bit). DRA bit = 0 enables prefetch.

The drive does not use the Max Prefetch field (bytes 8 and 9) or the Prefetch Ceiling field (bytes 10 and 11).

When prefetch (read look-ahead) is enabled (enabled by DRA = 0), the drive enables prefetch of contiguous blocks from the medium when it senses that a prefetch hit will likely occur. The drive disables prefetch when it decides that a prefetch hit is not likely to occur.

Seagate 1200 SSD Product Manual, Rev. C 19

5.0 Reliability specifications

The following reliability specifications assume correct host and drive operational interface, including all interface timings,

power supply voltages, environmental requirements and drive mounting constraints.

Read Error Rates

Interface error rate: Less than 1 error in 1012 bits transferred Mean Time Between Failure (MTBF): 2,000,000 hours Annualized Failure Rate (AFR): 0.44% Preventive maintenance: None required Typical Data Retention with

Power removed (at 40C) Endurance Rating:

Unrecovered Data Less than 1 LBA in 1016 bits transferred Miscorrected Data Less than 1 LBA in 10

bits transferred

3 months

Method 1: Full drive writes per day 10 (all standard models) 25 (only High Endurance models)

Method 2: TBW (per JEDEC JESD218)

ST400FM0093, ST400FM0103 = 18,250 TB

ST400FM0113, ST400FM0123 = 18,250 TB

ST800FM0013, ST800FM0023, ST800FM0033 = 14,600 TB ST800FM0043, ST800FM0053, ST800FM0063 = 14,600 TB

ST200FM0093, ST200FM0103 = 9125 TB

ST200FM0113, ST200FM0123 = 9125 TB

ST400FM0013, ST400FM0023, ST400FM0033 = 7300 TB ST400FM0043, ST400FM0053, ST400FM0063 = 7300 TB

ST400FM0073, ST400FM0083 = 7300 TB

ST100FM0093, ST100FM0103 = 4562.5 TB

ST100FM0113, ST100FM0123 = 4562.5 TB

ST200FM0013, ST200FM0023, ST200FM0033 = 3650 TB ST200FM0043, ST200FM0053, ST200FM0063 = 3650 TB

ST200FM0073, ST200FM0083 = 3650 TB

1. Error rate specified with automatic retries and data correction with ECC enabled and all flaws reallocated.

2. As NAND Flash devices age with use, the capability of the media to retain a programmed value begins to deteriorate.

This deterioration is affected by the number of times a particular memory cell is programmed and subsequently erased. When a device is new, it has a powered off data retention capability of up to several years. With use the retention capability of the device is reduced. Temperature also has an effect on how long a Flash component can retain its programmed value with power removed. At high temperature the retention capabilities of the device are reduced. Data retention is not an issue with power applied to the SSD. The SSD drive contains firmware and hardware features that can monitor and refresh memory cells when power is applied.

3. Endurance rating is the expected amount of host data that can be written by product when subjected to a specified work-

load at a specified operating and storage temperature over the specified product life. For the specific workload to achieve this level of endurance, please reference JEDEC Specification JESD218. TBW is defined as 1x10

4. Limited Warranty with Media Usage provides coverage for the warranty period or until the SSD Percentage Used

Endurance Indicator, as defined in Section 5.2.7, reaches 100 whichever comes first.

Bytes.

Seagate 1200 SSD Product Manual, Rev. C 20

5.1 Error rates

The error rates stated in this manual assume the following:

• The drive is operated in accordance with this manual using DC power as defined in paragraph 6.3, "DC power require-

ments."

• Errors caused by host system failures are excluded from error rate computations.

• Assume random data.

• Default OEM error recovery settings are applied. This includes AWRE, ARRE, full read retries, full write retries and full retry

time.

5.1.1 Unrecoverable Errors

An unrecoverable data error is defined as a failure of the drive to recover data from the media. These errors occur due to

read or write problems. Unrecoverable data errors are only detected during read operations, but not caused by the read. If an unrecoverable data error is detected, a MEDIUM ERROR (03h) in the Sense Key will be reported. Multiple unrecoverable data errors resulting from the same cause are treated as 1 error.

5.1.2 Interface errors

An interface error is defined as a failure of the receiver on a port to recover the data as transmitted by the device port

connected to the receiver. The error may be detected as a running disparity error, illegal code, loss of word sync, or CRC error.

5.2 Endurance Management

Customer satisfaction with Solid State Drives can be directly related to the internal algorithms which an SSD uses to manage the limited number of Program-Erase (PE) cycles that NAND Flash can withstand. These algorithms consist of Wearleveling, Garbage Collection, Write Amplification, Unmap, Data Retention, Lifetime Endurance Management.

5.2.1 Wear Leveling

Wear Leveling is a technique used by the drive to ensure that all Flash cells are written to or exercised as evenly as possible to avoid any hot spots where some cells are used up faster than other locations. Wear Leveling is automatically managed by the drive and requires no user interaction. The Seagate algorithm is tuned to operate only when needed to ensure reliable product operation.

5.2.2 Garbage Collection

Garbage Collection is a technique used by the drive to consolidate valid user data into a common cell range freeing up unused or obsolete locations to be erased and used for future storage needs. Garbage Collection is automatically managed by the drive and requires no user interaction. The Seagate algorithm is tuned to operate only when needed to ensure reliable product operation.

5.2.3 Write Amplification

While Write Amplification is not an algorithm, it is a major characteristic of SSD's that must be accounted for by all the algorithms that the SSD implements. The Write Amplification Factor of an SSD is defined as the ratio of Host/User data requested to be written to the actual amount of data written by the SSD internal to account for the user data and the housekeeping activities such as Wear Leveling and Garbage Collection. The Write Amplification Factor of an SSD can also be directly affected by the characteristics of the host data being sent to the SSD to write. The best Write Amplification Factor is achieved for data that is written in sequential LBA's that are aligned on 4KB boundaries. The worst case Write

Amplification Factor typically occurs for randomly written LBA's of transfer sizes that are less than 4KB and that originate on

LBA's that are not on 4KB boundaries.

5.2.4 UNMAP

A new SCSI command has been added to the SSD as part of the Thin Provisioning feature set. Use of the UNMAP

command reduces the Write Amplification Factor of the drive during housekeeping tasks such as Wear Leveling and Garbage Collection. This is accomplished because the drive does not need to retain data which has been classified by the host as obsolete.

Seagate 1200 SSD Product Manual, Rev. C 21

5.2.5 Data Retention

Data Retention is another major characteristic of SSD's that must be accounted for by all the algorithms that the SSD implements. While powered up, the Data Retention of SSD cells are monitored and rewritten if the cell levels decay to an unexpected level. Data Retention when the drive is powered off is affected by Program and Erase (PE) cycles and the temperature of the drive when stored.

5.2.6 Lifetime Endurance Management (Available on select models)

As stated in Section 5.2, an SSD has a limited number of Program and Erase (PE) cycles that are capable. In worse case

applications, the write workload could be such that the drive experiences a high Write Amplification Factor that could lead to potential wear out prior to the drive achieving it's expected field life. Additionally, the Data Retention spec of the SSD needs to be considered to ensure the spec is met once the drive is worn out. Seagate has implemented a Lifetime Endurance Management technique which helps OEMS and user to avoid early wear out. By monitoring the write workload being sent to the drive, the drive can add additional response time to WRITE commands to provide a sustainable level of performance that is capable of being sustained for the life of the drive. Most users may never see this added response time in their applications.

5.2.7 SSD Percentage Used Endurance Indicator

An application can interrogate the drive through the host to determine an estimate of the percentage of device life that has

been used. To accomplish this, issue a LOG SENSE command to log page 0x11. This allows applications to read the contents of the Percentage Used Endurance Indicator parameter code. The Percentage Used Endurance Indicator is defined in the T10 document SBC-3 available from the T10 committee.

5.3 Reliability and service

Integrators can enhance the reliability of Seagate 1200 SSD drives by ensuring that the drive receives adequate cooling. Section 6.0 provides temperature measurements and other information that may be used to enhance the service life of the drive. Section 10.2 provides recommended air-flow information.

5.3.1 Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF)

The production drive shall achieve an AFR of 0.44% (MTBF of 2,000,000 hours) when operated in an environment that

ensures the case temperatures do not exceed the values specified in Section 6.5. Operation at case temperatures outside the specifications in Section 6.5 may increase the product AFR (decrease the MTBF). The AFR (MTBF) is a population statistic not relevant to individual units.

The AFR (MTBF) specification is based on the following assumptions for Enterprise Storage System environments:

• 8760 power-on hours per year.

• 250 average on/off cycles per year.

• Operations at nominal voltages.

• Systems will provide adequate cooling to ensure the case temperatures specified in Section 6.5 are not exceeded. Tem-

peratures outside the specifications in Section 6.5 will increase the product AFR and decrease the MTBF.

5.3.2 Preventive maintenance

No routine scheduled preventive maintenance is required.

5.3.3 Hot plugging the drive

When a drive is powered on by switching the power or hot plugged, the drive runs a self test before attempting to communicate on its’ interfaces. When the self test completes successfully, the drive initiates a Link Reset starting with OOB.

An attached device should respond to the link reset. If the link reset attempt fails, or any time the drive looses sync, the drive

initiated link reset. The drive will initiate link reset once per second but alternates between port A and B. Therefore each port will attempt a link reset once per 2 seconds assuming both ports are out of sync.

If the self-test fails, the drive does not respond to link reset on the failing port.

Note. It is the responsibility of the systems integrator to assure that no temperature, energy, voltage hazard, or ESD

potential hazard is presented during the hot connect/disconnect operation. Discharge the static electricity from the drive carrier prior to inserting it into the system.

Seagate 1200 SSD Product Manual, Rev. C 22

5.3.4 S.M.A.R.T.

S.M.A.R.T. is an acronym for Self-Monitoring Analysis and Reporting Technology. This technology is intended to recognize conditions that indicate imminent drive failure and is designed to provide sufficient warning of a failure to allow administrators to back up the data before an actual failure occurs.

Note. The drive’s firmware monitors specific attributes for degradation over time but can’t predict instantaneous drive

failures.

Each monitored attribute has been selected to monitor a specific set of failure conditions in the operating performance of the drive and the thresholds are optimized to minimize “false” and “failed” predictions.

Controlling S.M.A.R.T.

The operating mode of S.M.A.R.T. is controlled by the DEXCPT and PERF bits on the Informational Exceptions Control

mode page (1Ch). Use the DEXCPT bit to enable or disable the S.M.A.R.T. feature. Setting the DEXCPT bit disables all S.M.A.R.T. functions. When enabled, S.M.A.R.T. collects on-line data as the drive performs normal read and write operations. When the PERF bit is set, the drive is considered to be in “On-line Mode Only” and will not perform off-line functions.

An application can measure off-line attributes and force the drive to save the data by using the REZERO UNIT command.

Forcing S.M.A.R.T. resets the timer so that the next scheduled interrupt is in one hour.

An application can interrogate the drive through the host to determine the time remaining before the next scheduled

measurement and data logging process occurs. To accomplish this, issue a LOG SENSE command to log page 0x3E. This allows applications to control when S.M.A.R.T. interruptions occur. Forcing S.M.A.R.T. with the REZERO UNIT command resets the timer.

Performance impact

S.M.A.R.T. attribute data is saved to the media so that the events that caused a predictive failure can be recreated. The drive measures and saves parameters once every hour subject to an idle period on the drive interfaces. The process of measuring off-line attribute data and saving data to the media is interruptible. The maximum on-line only processing delay is summarized below

Table 1:

Maximum processing delay

Fully-enabled delay DEXCPT = 0

S.M.A.R.T. delay times 75 ms

Reporting control

Reporting is controlled by the MRIE bits in the Informational Exceptions Control mode page (1Ch). Subject to the reporting method. For example, if the MRIE is set to one, the firmware will issue to the host an 01-5D00 sense code. The FRU field contains the type of predictive failure that occurred. The error code is preserved through bus resets and power cycles.

Determining rate

S.M.A.R.T. monitors the rate at which errors occur and signals a predictive failure if the rate of degraded errors increases to an unacceptable level. To determine rate, error events are logged and compared to the number of total operations for a given attribute. The interval defines the number of operations over which to measure the rate. The counter that keeps track of the current number of operations is referred to as the Interval Counter.

S.M.A.R.T. measures error rates. All errors for each monitored attribute are recorded. A counter keeps track of the number of errors for the current interval. This counter is referred to as the Failure Counter.

Error rate is the number of errors per operation. The algorithm that S.M.A.R.T. uses to record rates of error is to set thresholds for the number of errors and appropriate interval. If the number of errors exceeds the threshold before the interval expires, the error rate is considered to be unacceptable. If the number of errors does not exceed the threshold before the interval expires, the error rate is considered to be acceptable. In either case, the interval and failure counters are reset and the process starts over.

Seagate 1200 SSD Product Manual, Rev. C 23

Predictive failures

S.M.A.R.T. signals predictive failures when the drive is performing unacceptably for a period of time. The firmware keeps a running count of the number of times the error rate for each attribute is unacceptable. To accomplish this, a counter is incremented each time the error rate is unacceptable and decremented (not to exceed zero) whenever the error rate is acceptable. If the counter continually increments such that it reaches the predictive threshold, a predictive failure is signaled.

This counter is referred to as the Failure History Counter. There is a separate Failure History Counter for each attribute.

5.3.5 Thermal monitor

Seagate 1200 SSD drives implement a temperature warning system which:

1. Signals the host if the temperature exceeds a value which would threaten the drive.

2. Signals the host if the temperature exceeds a user-specified value. (i.e., the reference temperature value)

3. Saves a S.M.A.R.T. data frame on the drive which exceeds the threatening temperature value.

A temperature sensor monitors the drive temperature and issues a warning over the interface when the temperature

exceeds a set threshold. The temperature is measured at power-up and then at ten-minute intervals after power-up.

The thermal monitor system generates a warning code of 01-0B01 when the temperature exceeds the specified limit in

compliance with the SCSI standard.

This feature is controlled by the Enable Warning (EWasc) bit, and the reporting mechanism is controlled by the Method of

Reporting Informational Exceptions field (MRIE) on the Informational Exceptions Control (IEC) mode page (1Ch).

5.3.6 Drive Self Test (DST)

Drive Self Test (DST) is a technology designed to recognize drive fault conditions that qualify the drive as a failed unit. DST validates the functionality of the drive at a system level.

There are two test coverage options implemented in DST:

1. Extended test

2. Short test

The most thorough option is the extended test that performs various tests on the drive and scans every logical block address

(LBA) of the drive. The short test is time-restricted and limited in length—it does not scan the entire media contents, but does some fundamental tests and scans portions of the media.

If DST encounters an error during either of these tests, it reports a "diagnostic failed" condition. If the drive fails the test, remove it from service and return it to Seagate for service.

5.3.6.1 DST failure definition

The drive will present a “diagnostic failed” condition through the self-tests results value of the diagnostic log page if a

functional failure is encountered during DST. The drive parameters are not modified to test the drive more stringently, and the recovery capabilities are not reduced. All retries and recovery processes are enabled during the test. If data is recoverable, no failure condition will be reported regardless of the recovery processes required to recover the data.

The following conditions are considered DST failure conditions:

• Read error after recovery attempts are exhausted

• Write error after recovery attempts are exhausted

Recovered errors will not be reported as diagnostic failures.

Seagate 1200 SSD Product Manual, Rev. C 24

5.3.6.2 Implementation

This section provides all of the information necessary to implement the DST function on this drive.

5.3.6.2.1 State of the drive prior to testing

The drive must be in a ready state before issuing the SEND DIAGNOSTIC command. There are multiple reasons why a

drive may not be ready, some of which are valid conditions, and not errors. For example, a drive may be in process of doing a FORMAT UNIT, or another DST. It is the responsibility of the host application to determine the “not ready” cause.

5.3.6.2.2 Invoking DST

To invoke DST, submit the SEND DIAGNOSTIC command with the appropriate Function Code (001b for the short test or

010b for the extended test) in bytes 1, bits 5, 6, and 7.

5.3.6.2.3 Short and extended tests

DST has two testing options:

1. short

2. extended

These testing options are described in the following two subsections.

Each test consists of two segments: an electrical test segment and a read/verify scan segment.

Short test (Function Code: 001b)

The purpose of the short test is to provide a time-limited test that tests as much of the drive as possible within 120 seconds. The short test does not scan the entire media contents, but does some fundamental tests and scans portions of the media. A

complete read/verify scan is not performed and only factual failures will report a "diagnostic failed" condition. This option provides a quick confidence test of the drive.

Extended test (Function Code: 010b)

The objective of the extended test option is to empirically test critical drive components. The read operation tests the media

contents. The integrity of the media is checked through a read/verify scan of the media.

The anticipated length of the Extended test is reported through the Control Mode page.

5.3.6.2.4 Log page entries

When the drive begins DST, it creates a new entry in the Self-test Results Log page. The new entry is created by inserting a new self-test parameter block at the beginning of the self-test results log parameter section of the log page. Existing data will be moved to make room for the new parameter block. The drive reports 20 parameter blocks in the log page. If there are more than 20 parameter blocks, the least recent parameter block will be deleted. The new parameter block will be initialized as follows:

1. The Function Code field is set to the same value as sent in the DST command

2. The Self-Test Results Value field is set to Fh

3. The drive will store the log page to non-volatile memory

After a self-test is complete or has been aborted, the drive updates the Self-Test Results Value field in its Self-Test Results

Log page in non-volatile memory. The host may use LOG SENSE to read the results from up to the last 20 self-tests performed by the drive. The self-test results value is a 4-bit field that reports the results of the test. If the field is set to zero, the drive passed with no errors detected by the DST. If the field is not set to zero, the test failed for the reason reported in the field.

The drive will report the failure condition and LBA (if applicable) in the Self-test Results Log parameter. The Sense key, ASC, ASCQ, and FRU are used to report the failure condition.

Seagate 1200 SSD Product Manual, Rev. C 25

5.3.6.2.5 Abort

There are several ways to abort a diagnostic. Applications can use a SCSI Bus Reset or a Bus Device Reset message to

abort the diagnostic.

Applications can abort a DST executing in background mode by using the abort code in the DST Function Code field. This

will cause a 01 (self-test aborted by the application client) code to appear in the self-test results values log. All other abort mechanisms will be reported as a 02 (self-test routine was interrupted by a reset condition).

5.3.7 Product warranty

See “Seagate® Technology Support Services” on page 6 for warranty information.

Warranty terms will vary based on type of warranty chosen: “Managed Life Warranty” or “Limited Warranty with Media Usage”. Consult the Seagate sales representative for warranty terms and conditions.

Managed Life

This warranty is term based and includes the Lifetime Endurance Management feature stated in Section 5.2.6.

Limited Warranty with Media Usage

This warranty is based on the shorter of term and endurance usage of the drive.

Shipping

When transporting or shipping a drive, use only a Seagate-approved container. Keep the original box. Seagate approved containers are easily identified by the Seagate Approved Package label. Shipping a drive in a non-approved container voids the drive warranty.

Seagate repair centers may refuse receipt of components improperly packaged or obviously damaged in transit. Contact the authorized Seagate distributor to purchase additional boxes. Seagate recommends shipping by an air-ride carrier experienced in handling computer equipment.

Product repair and return information

Seagate customer service centers are the only facilities authorized to service Seagate drives. Seagate does not sanction any third-party repair facilities. Any unauthorized repair or tampering with the factory seal voids the warranty.

Storage

The maximum recommended storage period for the drive in a non-operational environment is 90 days. Drives should be

stored in the original unopened Seagate shipping packaging when ever possible. Once the drive is removed from the Seagate original packaging the recommended maximum period between drive operation cycles is 30 days. During any storage period the drive non-operational temperature, humidity, wet bulb, atmospheric conditions, shock, vibration, magnetic and electrical field specifications should be followed.

Seagate 1200 SSD Product Manual, Rev. C 26

6.0 Physical/electrical specifications

This section provides information relating to the physical and electrical characteristics of the drive.

6.1 Power specifications

The 2.5” drive receives DC power (+5V and +12V) through the standard SAS interface.

The 1.8" drive receives DC power (+3.3V and +5V) through the standard micro-SAS interface.

6.1.1 Power consumption

Power requirements for the drives are listed in the tables in Section 6.3. Typical power measurements are based on an average of drives tested, under nominal conditions, using the listed input voltage at 60°C ambient temperature. Measurements are made at 6Gb interface speeds. For 12Gb interface speed add 1W of total power to the values shown.

• Startup power

Startup power is measured from the time of power-on to the time that the drive reaches operating condition and can process media access commands.

• Peak operating mode

During peak operating mode, the drive is tested in various read and write access patterns to simulate the worst-case power consumption.

• Idle mode power

Idle mode power is measured with the drive powered up and ready for media access commands, with no media access commands having been received from the host.

6.2 AC power requirements

None.

Seagate 1200 SSD Product Manual, Rev. C 27

6.3 DC power requirements

Table 4 800GB standard 2.5” model DC power requirements

(Models ST800FM0013, ST800FM0023, ST800FM0033, ST800FM0043, ST800FM0053, ST800FM0063)

Parameter 800GB (6.0Gb)

Regulation

[4]

±5% ±5%

Voltage +5V +12V

[2]

Current (A) Current (A) Power (W)

Average idle current

[1]

Maximum starting current

(peak DC) DC 3 0.75 0.53

(peak AC) AC 3 0.86 1.05

Delayed start (max) DC

[1] [3]

Operating current (random read):

Typical DC

Maximum DC

[1]

DC

0.46 0.12 3.74

3 0.59 0.12 4.39

DC 0.52 0.19 4.88

3 0.69 0.21 5.97

Maximum (peak) DC 3 0.96

Operating current (random write)

Typical DC DC 0.56 0.34 6.88

Maximum DC 3 0.74 0.54 10.18

Maximum (peak) DC 3 1.00 0.97

Operating current (sequential read)

Typical DC DC 0.56 0.23 5.56

Maximum DC 3 0.75 0.24 6.63

Maximum (peak) DC 3 0.98

Operating current (sequential write)

Typical DC DC 0.56 0.38 7.36

Maximum DC 3 0.75 0.40 8.55

Maximum (peak) DC 3 0.96

0.43

0.50

0.86

Seagate 1200 SSD Product Manual, Rev. C 28

Table 5 400GB standard 2.5” model DC power requirements

(Models ST400FM0013, ST400FM0033, ST400FM0053, ST400FM0073)

Parameter 400GB (6.0Gb)

Regulation

Voltage +5V +12V

[4]

±5% ±5%

Current (A) Current (A) Power (W)

Average idle current

[1]

Maximum starting current

(peak DC) DC 3 0.67 0.49

(peak AC) AC 3 0.78 0.97

Delayed start (max) DC

[1] [3]

Operating current (random read):

Typical DC

Maximum DC

[1]

Maximum (peak) DC 3 0.99 0.32

DC

0.44 0.08 3.16

3 0.45 0.07 3.09

DC 0.50 0.15 4.30

3 0.53 0.17 4.69

[2]

Operating current (random write)

Typical DC DC 0.52 0.29 6.08

Maximum DC 3 0.56 0.30 6.40

Maximum (peak) DC 3 1.09 0.74

Operating current (sequential read)

Typical DC DC 0.52 0.17 4.64

Maximum DC 3 0.55 0.18 4.91

Maximum (peak) DC 3 1.03 0.36

Operating current (sequential write)

Typical DC DC 0.52 0.30 6.20

Maximum DC 3 0.55 0.31 6.47

Maximum (peak) DC 3 1.03 0.71

Seagate 1200 SSD Product Manual, Rev. C 29

Table 6 200GB standard 2.5” model DC power requirements

(Models ST200FM0013, ST200FM0033, ST200FM0053, ST200FM0073)

Parameter 200GB (6.0Gb)

Regulation

Voltage +5V +12V

[4]

±5% ±5%

Current (A) Current (A) Power (W)

Average idle current

[1]

Maximum starting current

(peak DC) DC 3 0.65 0.32

(peak AC) AC 3 0.76 0.81

Delayed start (max) DC

[1] [3]

Operating current (random read):

Typical DC

Maximum DC

[1]

Maximum (peak) DC 3 0.97 0.34

DC

0.42 0.08 3.06

3 0.50 0.07 3.34

DC 0.48 0.15 4.20

3 0.56 0.16 4.72

[2]

Operating current (random write)

Typical DC DC 0.48 0.24 5.28

Maximum DC 3 0.58 0.26 6.02

Maximum (peak) DC 3 0.81 0.54

Operating current (sequential read)

Typical DC DC 0.50 0.17 4.454

Maximum DC 3 0.60 0.18 5.16

Maximum (peak) DC 3 0.82 0.34

Operating current (sequential write)

Typical DC DC 0.48 0.24 5.28

Maximum DC 3 0.58 0.25 5.90

Maximum (peak) DC 3 1.04 0.56

Seagate 1200 SSD Product Manual, Rev. C 30

Table 7 400GB high endurance 2.5” model DC power requirements

(Models ST400FM0093, ST400FM0103, ST400FM0113, ST400FM0123)

Parameter 400GB High Endurance (6.0Gb)

Regulation

[4]

±5% ±5%

Voltage +5V +12V

[2]

Current (A) Current (A) Power (W)

Average idle current

[1]

Maximum starting current

(peak DC) DC 3 0.64 0.53

(peak AC) AC 3 0.83 1.05

Delayed start (max) DC

[1] [3]

Operating current (random read):

Typical DC

Maximum DC

[1]

Maximum (peak) DC 3 0.96 0.43

DC

0.42 0.12 3.54

3 0.47 0.12 3.79

DC 0.47 0.19 4.63

3 0.52 0.21 5.12

Operating current (random write)

Typical DC DC 0.50 0.33 6.46

Maximum DC 3 0.58 0.54 9.38

Maximum (peak) DC 3 0.78 0.97

Operating current (sequential read)

Typical DC DC 0.53 0.23 5.41

Maximum DC 3 0.58 0.24 5.78

Maximum (peak) DC 3 0.95 0.44

Operating current (sequential write)

Typical DC DC 0.52 0.38 7.16

Maximum DC 3 0.57 0.40 7.65

Maximum (peak) DC 3 0.82 0.86

Seagate 1200 SSD Product Manual, Rev. C 31

Table 8 200GB high endurance 2.5” model DC power requirements

(Models ST200FM0093, ST200FM0103, ST200FM0113, ST200FM0123)

Parameter 200GB High Endurance (6.0Gb)

Regulation

[4]

±5% ±5%

Voltage +5V +12V

[2]

Current (A) Current (A) Power (W)

Average idle current

[1]

Maximum starting current

(peak DC) DC 3 0.65 0.46

(peak AC) AC 3 0.75 0.58

Delayed start (max) DC

[1] [3]

Operating current (random read):

Typical DC

Maximum DC

[1]

Maximum (peak) DC 3 0.99 0.32

DC

0.41 0.07 2.89

3 0.45 0.07 3.09

DC 0.44 0.14 3.88

3 0.49 0.16 4.37

Operating current (random write)

Typical DC DC 0.46 0.26 5.42

Maximum DC 3 0.51 0.40 7.35

Maximum (peak) DC 3 1.05 0.66

Operating current (sequential read)

Typical DC DC 0.48 0.17 4.44

Maximum DC 3 0.53 0.18 4.81

Maximum (peak) DC 3 0.73 0.36

Operating current (sequential write)

Typical DC DC 0.47 0.30 5.95

Maximum DC 3 0.52 0.31 6.32

Maximum (peak) DC 3 0.74 0.68

Seagate 1200 SSD Product Manual, Rev. C 32

Table 9 100GB high endurance 2.5” model DC power requirements

(Models ST100FM0093, ST100FM0103, ST100FM0113, ST100FM0123)

Parameter 100GB High Endurance (6.0Gb)

Regulation

[4]

±5% ±5%

Voltage +5V +12V

[2]

Current (A) Current (A) Power (W)

Average idle current

[1]

Maximum starting current

(peak DC) DC 3 0.65 0.31

(peak AC) AC 3 0.76 0.69

Delayed start (max) DC

[1] [3]

Operating current (random read):

Typical DC

Maximum DC

[1]

Maximum (peak) DC 3 0.97 0.32

DC

0.40 0.08 2.96

3 0.50 0.07 3.34

DC 0.46 0.13 3.86

3 0.56 0.16 4.72

Operating current (random write)

Typical DC DC 0.47 0.23 5.11

Maximum DC 3 0.58 0.26 6.02

Maximum (peak) DC 3 0.81 0.50

Operating current (sequential read)

Typical DC DC 0.49 0.17 4.49

Maximum DC 3 0.60 0.18 5.16

Maximum (peak) DC 3 0.82 0.34

Operating current (sequential write)

Typical DC DC 0.47 0.24 5.23

Maximum DC 3 0.58 0.25 5.90

Maximum (peak) DC 3 1.04 0.51

Seagate 1200 SSD Product Manual, Rev. C 33

Table 10 400GB standard 1.8” model DC power requirements

(Models ST400FM0023, ST400FM0043, ST400FM0063, ST400FM0083)

Parameter 400GB (6.0Gb)

Regulation

Voltage +3.3V +5V

[4]

±5% ±5%

Current (A) Current (A) Power (W)

Average idle current

Maximum starting current

(peak DC) DC 3 0.86 0.59

(peak AC) AC 3 1.22 1.39

Delayed start (max) DC

[3]

Operating current (random read):

Typical DC DC 0.74 0.30 3.94

Maximum DC 3 0.84 0.35 4.52

Maximum (peak) DC 3 1.10 0.66

DC

0.69 0.16 3.08

3 0.74 0.15 3.19

Operating current (random write)

Typical DC DC 0.79 0.62 5.71

Maximum DC 3 0.92 1.05 8.29

Maximum (peak) DC 3 1.42 1.62

Operating current (sequential read)

Typical DC DC 0.82 0.36 4.97

Maximum DC 3 0.96 0.38 5.07

Maximum (peak) DC 3 1.14 0.85

Operating current (sequential write)

Typical DC DC 0.79 0.75 6.36

Maximum DC 3 0.92 0.77 6.89

Maximum (peak) DC 3 1.50 1.82

Seagate 1200 SSD Product Manual, Rev. C 34

Table 11 200GB standard 1.8” model DC power requirements

(Models ST200FM0023, ST200FM0043, ST200FM0063, ST200FM0083)

Parameter 200GB (6.0Gb)

Regulation

Voltage +3.3V +5V

[4]

±5% ±5%

Current (A) Current (A) Power (W)

Average idle current

Maximum starting current

(peak DC) DC 3 0.69 0.62

(peak AC) AC 3 1.09 1.12

Delayed start (max) DC

Operating current (random read):

Typical DC DC 0.68 0.29 3.69

Maximum DC 3 0.69 0.31 3.83

Maximum (peak) DC 3 1.14 0.63

[3]

DC

3 0.62 0.17 2.90

0.60 0.16 2.78

Operating current (random write)

Typical DC DC 0.69 0.56 5.08

Maximum DC 3 0.77 0.59 5.49

Maximum (peak) DC 3 1.21 1.21

Operating current (sequential read)

Typical DC DC 0.73 0.36 4.21

Maximum DC 3 0.80 0.38 4.54

Maximum (peak) DC 3 0.97 0.71

Operating current (sequential write)

Typical DC DC 0.70 0.58 5.21

Maximum DC 3 0.76 0.61 5.56

Maximum (peak) DC 3 1.22 1.23

[1] Measured with average reading DC ammeter. Instantaneous +12V current peaks will exceed these values. Power sup-

ply at nominal voltage. N (number of drives tested) = 6, 60 Degrees C ambient.

[2] For +12 V, a –10% tolerance is allowed during initial start but must return to ±5% before reaching ready state. The ±5%

must be maintained after the drive signifies that its power-up sequence has been completed and that the drive is able to accept selection by the host initiator.

[3] This condition occurs after OOB and Speed Negotiation completes but before the drive has received the Notify Spinup

primitive.

[4] See paragraph 6.3.1, "Conducted noise immunity." Specified voltage tolerance includes ripple, noise, and transient

response.

General DC power requirement notes.

1. Minimum current loading for each supply voltage is not less than 1.7% of the maximum operating current shown.

2. The +3.3V, +5V and +12V supplies should employ separate ground returns.

3. Where power is provided to multiple drives from a common supply, careful consideration for individual drive power

requirements should be noted. Where multiple units are powered on simultaneously, the peak starting current must be available to each device.

4. Parameters, other than start, are measured after a 10-minute warm up.

Seagate 1200 SSD Product Manual, Rev. C 35

6.3.1 Conducted noise immunity

Noise is specified as a periodic and random distribution of frequencies covering a defined frequency. Maximum allowed noise values given below are peak-to-peak measurements and apply at the drive power connector.

+3.3v = 150 mv pp from 100 Hz to 20 Mhz

+5v = 250 mV pp from 100 Hz to 20 MHz.

+12v = 450 mV pp from 100 Hz to 100 KHz.

250 mV pp from 100 KHz to 20 MHz. 150 mV pp from 20 MHz to 80 MHz.

6.3.2 Power sequencing

The drive does not require power sequencing. The drive protects against inadvertent writing during power-up and down.

6.3.3 Current profiles

The +12V and +5V current profiles for the Seagate 1200 SSD 2.5” drives are shown below.

Figure 1. Current profiles for 800GB standard and 400GB High Endurance models

Seagate 1200 SSD Product Manual, Rev. C 36

Figure 2. Current profiles for 400GB standard and 200GB high endurance models

Figure 3. Current profiles for 200GB standard and 100GB high endurance models

Seagate 1200 SSD Product Manual, Rev. C 37

Figure 4. Current profiles for 400GB 1.8” models

Figure 5. Current profiles for 200GB 1.8” models

Seagate 1200 SSD Product Manual, Rev. C 38

6.4 Power dissipation

800GB standard 2.5” models in 6Gb operation (Models ST800FM0013, ST800FM0023, ST800FM0033, ST800FM0043, ST800FM0053, ST800FM0063)

Typical power dissipation under idle conditions in 6Gb operation is 3.74 watts (12.76 BTUs per hour).

To obtain operating power for typical random write operations, refer to the following I/O rate curve (see Figure 6). Locate the

typical I/O rate for a drive in the system on the horizontal axis and read the corresponding +5 volt current, +12 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by 3.4123.

Figure 6. 800GB (at 6Gb) DC current and power vs. input/output operations per second

400GB standard 2.5” models in 6Gb operation (Models ST400FM0013, ST400FM0033, ST400FM0053, ST400FM0073)

Typical power dissipation under idle conditions in 6Gb operation is 3.16 watts (10.78 BTUs per hour).

To obtain operating power for typical random write operations, refer to the following I/O rate curve (see Figure 7). Locate the

Figure 7. 400GB (at 6Gb) DC current and power vs. input/output operations per second

Seagate 1200 SSD Product Manual, Rev. C 39

200GB standard 2.5” models in 6Gb operation (Models ST200FM0013, ST200FM0033, ST200FM0053, ST200FM0073)

Typical power dissipation under idle conditions in 6Gb operation is 3.06 watts (10.44 BTUs per hour).

To obtain operating power for typical random write operations, refer to the following I/O rate curve (see Figure 8). Locate the

Figure 8. 200GB (at 6Gb) DC current and power vs. input/output operations per second

400GB high endurance 2.5” models in 6Gb operation (Models ST400FM0093, ST400FM0103, ST400FM0113, ST400FM0123)

Typical power dissipation under idle conditions in 6Gb operation is 3.54 watts (12.08 BTUs per hour).

To obtain operating power for typical random write operations, refer to the following I/O rate curve (see Figure 9). Locate the

Figure 9. 400GB (at 6Gb) DC current and power vs. input/output operations per second

Seagate 1200 SSD Product Manual, Rev. C 40

200GB high endurance 2.5” models in 6Gb operation (Models ST200FM0093, ST200FM0103, ST200FM0113, ST200FM0123)

Typical power dissipation under idle conditions in 6Gb operation is 2.89 watts (9.86 BTUs per hour).

To obtain operating power for typical random write operations, refer to the following I/O rate curve (see Figure 10). Locate the

Figure 10. 200GB (at 6Gb) DC current and power vs. input/output operations per second

100GB high endurance 2.5” models in 6Gb operation (Models ST100FM0093, ST100FM0103, ST100FM0113, ST100FM0123)

Typical power dissipation under idle conditions in 6Gb operation is 2.96 watts (10.10 BTUs per hour).

To obtain operating power for typical random write operations, refer to the following I/O rate curve (see Figure 11). Locate the

Figure 11. 100GB (at 6Gb) DC current and power vs. input/output operations per second

Seagate 1200 SSD Product Manual, Rev. C 41

400GB standard 1.8” models in 6Gb operation (Models ST400FM0023, ST400FM0043, ST400FM0063, ST400FM0083)

Typical power dissipation under idle conditions in 6Gb operation is 3.08 watts (10.51 BTUs per hour).

To obtain operating power for typical random write operations, refer to the following I/O rate curve (see Figure 12). Locate the

typical I/O rate for a drive in the system on the horizontal axis and read the corresponding +3.3 volt current, +5 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by 3.4123.

Figure 12. 400GB (at 6Gb) DC current and power vs. input/output operations per second

200GB standard 1.8” models in 6Gb operation (Models ST200FM0023, ST200FM0043, ST200FM0063, ST200FM0083)

Typical power dissipation under idle conditions in 6Gb operation is 2.78 watts (9.49 BTUs per hour).

To obtain operating power for typical random write operations, refer to the following I/O rate curve (see Figure 7). Locate the

Figure 13. 200GB (at 6Gb) DC current and power vs. input/output operations per second

Seagate 1200 SSD Product Manual, Rev. C 42

6.5 Environmental limits

Temperature and humidity values experienced by the drive must be such that condensation does not occur on any drive part.

Altitude

temperature is 84.2°F (29°C).

and atmospheric pressure specifications are referenced to a standard day at 58.7°F (14.8°C). Maximum wet bulb

Note. T

6.5.1 Temperature

a. Operating

b. Non-operating

o maintain optimal performance drives should be run at nominal case temperatures.

The drive meets the operating specifications over a 41°F to 140°F (5°C to 60°C) drive case temperature range with a maximum temperature gradient of 36°F (20°C) per hour.

The maximum allowable drive case temperature is 60°C.

The MTBF specification for the drive assumes the operating environment is designed to maintain nominal case temperature. The rated MTBF is based upon a sustained case temperature of 122°F (50°C). Occasional excursions in operating temperature between the rated MTBF temperature and the maximum drive operating case temperature may occur without impact to the rated MTBF temperature. However continual or sustained operation at case temperatures beyond the rated MTBF temperature will degrade the drive MTBF and reduce product reliability

Air flow may be required to achieve consistent nominal case temperature values (see Section 6.5). To confirm that the required cooling is provided, place the drive in its final mechanical configuration, and perform random write/read operations. After the temperatures stabilize, measure the case temperature of the drive. See Figure 14 and 15 for temperature checkpoint.

–40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assumes that the drive is packaged in the shipping container designed by Seagate for use with drive.

Figure 14. Temperature check point location - 1.8-inch drives

Figure 15. Temperature check point location - 2.5-inch drives

Note. Images may not represent actual product, for reference only.

Seagate 1200 SSD Product Manual, Rev. C 43

6.5.2 Relative humidity

The values below assume that no condensation on the drive occurs.

a. Operating

5% to 95% non-condensing relative humidity with a maximum gradient of 20% per hour.

b. Non-operating

5% to 95% non-condensing relative humidity.

6.5.3 Effective altitude (sea level)

a. Operating

–1000 to +10,000 feet (–304.8 to +3048 meters)

b. Non-operating

–1000 to +40,000 feet (–304.8 to +12,192 meters)

6.5.4 Shock and vibration

Shock and vibration limits specified in this document are measured directly on the drive chassis. If the drive is installed in an enclosure to which the stated shock and/or vibration criteria is applied, resonances may occur internally to the enclosure resulting in drive movement in excess of the stated limits. If this situation is apparent, it may be necessary to modify the enclosure to minimize drive movement.

The limits of shock and vibration defined within this document are specified with the drive mounted by any of the four

methods shown in Figure 16, and in accordance with the restrictions of Section 10.3.

6.5.4.1 Shock

a. Operating—normal

The drive, as installed for normal operation, shall operate error free while subjected to intermittent shock not exceeding:

• 1000 Gs at a maximum duration of 0.5ms (half sinewave)

Shock may be applied in the X, Y, or Z axis. Shock is not to be repeated more than once every 2 seconds.

Note. This specification does not cover connection issues that may result from testing at this level.

b. Non-operating

The limits of non-operating shock shall apply to all conditions of handling and transportation. This includes both isolated drives and integrated drives.

The drive subjected to nonrepetitive shock not exceeding the three values below, shall not exhibit device damage or performance degradation.

• 1000 Gs at a maximum duration of 0.5ms (half sinewave)

Shock may be applied in the X, Y, or Z axis.

c. Packaged

Seagate finished drive bulk packs are designed and tested to meet or exceed applicable ISTA and ASTM standards. Volume finished drives will be shipped from Seagate factories on pallets to minimize freight costs and ease material handling. Seagate finished drive bulk packs may be shipped individually. For less than full shipments, instructions are printed on the bulk pack carton for minimum drive quantities and proper drive placement.

Seagate 1200 SSD Product Manual, Rev. C 44

Figure 16. Recommended mounting

Note. Image may not represent actual product, for reference only.

6.5.4.2 Vibration

a. Operating—normal

The drive as installed for normal operation, shall comply with the complete specified performance while subjected to vibration:

Vibration may be applied in the X, Y, or Z axis.

Operating normal translational random shaped profile

20 - 2000 Hz 11.08 GRMS

Note. This specification does not cover connection issues that may result from testing at this level.

b. Operating—abnormal

Equipment as installed for normal operation shall not incur physical damage while subjected to periodic vibration:

Vibration occurring at these levels may degrade operational performance during the abnormal vibration period. Specified operational performance will continue when normal operating vibration levels are resumed. This assumes system recovery routines are available.

Operating abnormal translational random shaped profile

20 - 2000 Hz 11.08 GRMS

Note. This specification does not cover connection issues that may result from testing at this level.

Seagate 1200 SSD Product Manual, Rev. C 45

c. Non-operating

The limits of non-operating vibration shall apply to all conditions of handling and transportation. This includes both isolated drives and integrated drives.

The drive shall not incur physical damage or degraded performance as a result of vibration.

Vibration may be applied in the X, Y, or Z axis.

Non-operating translational random shaped profile

20 - 2000 Hz 11.08 GRMS

6.5.5 Air cleanliness

The drive is designed to operate in a typical office environment with minimal environmental control.

6.5.6 Corrosive environment

Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845. However, this accelerated testing cannot duplicate every potential application environment.

Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electronic drive component reliability can be affected by the installation environment. The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. Materials used in cabinet fabrication, such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.

Seagate recommends that data centers be kept clean by monitoring and controlling the dust and gaseous contamination. Gaseous contamination should be within ANSI/ISA S71.04-2013 G2 classification levels (as measured on copper and silver coupons ), and dust contamination to ISO 14644-1 Class 8 standards, and MTBF rated conditions as defined in the

Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF) section.

6.5.7 Electromagnetic susceptibility

See Section 2.1.1.1.

Seagate 1200 SSD Product Manual, Rev. C 46

6.6 Mechanical specifications

Refer to Figure 17 or 18 for detailed mounting configuration dimensions. See Section 10.3, “Drive mounting.”

eight: 0.353 pounds 160 grams

Note. These dimensions conform to the Small Form Factor Standard documented in SFF-8201 and

SFF-8223 found at

www.sffcommittee.org.

Figure 17. Mounting configuration dimensions (2.5” models)

Seagate 1200 SSD Product Manual, Rev. C 47

Weight: 0.220 pounds 100 grams

Note. These dimensions conform to the Small Form Factor Standard documented in SFF-8120 and

SFF-8144 found at www.sffcommittee.org

Figure 18. Mounting configuration dimensions (1.8” models)

Seagate 1200 SSD Product Manual, Rev. C 48

7.0 About FIPS

The Federal Information Processing Standard (FIPS) Publication 140-2 is a U.S. Government Computer Security Standard

used to accredit cryptographic modules. It is titled 'Security Requirements for Cryptographic Modules (FIPS PUB 140-2)' and is issued by the National Institute of Standards and Technology (NIST).

Purpose

This standard specifies the security requirements that will be satisfied by a cryptographic module utilized within a security

system protecting sensitive but unclassified information. The standard provides four increasing, qualitative levels of security: Level 1, Level 2, Level 3 and Level 4. These levels are intended to cover the wide range of potential applications and environments in which cryptographic modules may be employed.

Validation Program

Products that claim conformance to this standard are validated by the Cryptographic Module Validation Program (CMVP) which is a joint effort between National Institute of Standards and Technology (NIST) and the Communications Security Establishment (CSE) of the Government of Canada. Products validated as conforming to FIPS 140-2 are accepted by the Federal agencies of both countries for the protection of sensitive information (United States) or Designated Information (Canada).

In the CMVP, vendors of cryptographic modules use independent, accredited testing laboratories to have their modules tested. National Voluntary Laboratory Accreditation Program (NVLAP) accredited laboratories perform cryptographic module compliance/conformance testing.

Seagate Enterprise SED

The SEDs referenced in this Product Manual have been validated by CMVP and have been thoroughly tested by a NVLAP

accredited lab to satisfy FIPS 140-2 Level 2 requirements. In order to operate in FIPS Approved Mode of Operation, these SEDs require security initialization. For more information, refer to 'Security Rules' section in the 'Security Policy' document uploaded on the NIST website. To reference the product certification visit: http://csrc.nist.gov/groups/STM/cmvp/documents/

140-1/1401vend.htm, and search for "Seagate".

Security Level 2

Security Level 2 enhances the physical security mechanisms of a Security Level 1 cryptographic module by adding the requirement for tamper-evidence, which includes the use of tamper-evident coatings or seals on removable covers of the module. Tamper-evident coatings or seals are placed on a cryptographic module so that the coating or seal must be broken to attain physical access to the critical security parameters (CSP) within the module. Tamper-evident seals (example shown in Figure 19, page 49) are placed on covers to protect against unauthorized physical access. In addition Security Level 2 requires, at a minimum, role-based authentication in which a cryptographic module authenticates the authorization of an operator to assume a specific role and perform a corresponding set of services.

Figure 19. Example of FIPS tamper evidence labels.

Note. Image is for reference only, does not represent actual drive.

Seagate 1200 SSD Product Manual, Rev. C 49

8.0 About self-encrypting drives

Self-encrypting drives (SEDs) offer encryption and security services for the protection of stored data, commonly known as “protection of data at rest.” These drives are compliant with the Trusted Computing Group (TCG) Enterprise Storage Specifications as detailed in Section 2.2.

The Trusted Computing Group (TCG) is an organization sponsored and operated by companies in the computer, storage

and digital communications industry. The Seagate SED models comply with the standards published by the TCG.

To use the security features in the drive, the host must be capable of constructing and issuing the following two SCSI

commands:

• SECURITY PROTOCOL OUT

• SECURITY PROTOCOL IN

These commands are used to convey the TCG protocol to and from the drive in the appropriate command payloads.

8.1 Data encryption

Encrypting drives use one in-line encryption engine for each port, employing AES-256 data encryption in Cipher Block Chaining (CBC) mode to encrypt all data prior to being written on the media and to decrypt all data as it is read from the media. The encryption engines are always in operation and cannot be disabled.

The 32-byte Data Encryption Key (DEK) is a random number which is generated by the drive, never leaves the drive, and is

inaccessible to the host system. The DEK is itself encrypted when it is stored on the media and when it is in volatile temporary storage (DRAM) external to the encryption engine. A unique data encryption key is used for each of the drive's possible16 data bands (see Section 8.5).

8.2 Controlled access

The drive has two security providers (SPs) called the "Admin SP" and the "Locking SP." These act as gatekeepers to the

drive security services. Security-related commands will not be accepted unless they also supply the correct credentials to prove the requester is authorized to perform the command.

8.2.1 Admin SP

The Admin SP allows the drive's owner to enable or disable firmware download operations (see Section 8.4). Access to the Admin SP is available using the SID (Secure ID) password or the MSID (Manufacturers Secure ID) password.

8.2.2 Locking SP

The Locking SP controls read/write access to the media and the cryptographic erase feature. Access to the Locking SP is

available using the BandMasterX or EraseMaster passwords. Since the drive owner can define up to 16 data bands on the drive, each data band has its own password called BandMasterX where X is the number of the data band (0 through 15).

8.2.3 Default password

When the drive is shipped from the factory, all passwords are set to the value of MSID. This 32-byte random value can only be read by the host electronically over the interface. After receipt of the drive, it is the responsibility of the owner to use the default MSID password as the authority to change all other passwords to unique owner-specified values.

8.3 Random number generator (RNG)

The drive has a 32-byte hardware RNG that it is uses to derive encryption keys or, if requested to do so, to provide random

numbers to the host for system use, including using these numbers as Authentication Keys (passwords) for the drive’s

Admin and Locking SPs.

Seagate 1200 SSD Product Manual, Rev. C 50

8.4 Drive locking

In addition to changing the passwords, as described in Section 8.2.3, the owner should also set the data access controls for the individual bands.

The variable "LockOnReset" should be set to "PowerCycle" to ensure that the data bands will be locked if power is lost. In

addition "ReadLockEnabled" and "WriteLockEnabled" must be set to true in the locking table in order for the bands "LockOnReset" setting of "PowerCycle" to actually lock access to the band when a "PowerCycle" event occurs. This scenario occurs if the drive is removed from its cabinet. The drive will not honor any data READ or WRITE requests until the bands have been unlocked. This prevents the user data from being accessed without the appropriate credentials when the drive has been removed from its cabinet and installed in another system.

When the drive is shipped from the factory, the firmware download port is unlocked allowing the drive to accept any attempt to download new firmware. The drive owner must use the SID credential to lock the firmware download port before firmware updates will be rejected.

8.5 Data bands

When shipped from the factory, the drive is configured with a single data band called Band 0 (also known as the Global Data Band) which comprises LBA 0 through LBA max. The host may allocate Band1 by specifying a start LBA and an LBA range.

The real estate for this band is taken from the Global Band. An additional 14 Data Bands may be defined in a similar way

(Band2 through Band15) but before these bands can be allocated LBA space, they must first be individually enabled using the EraseMaster password.

Data bands cannot overlap but they can be sequential with one band ending at LBA (x) and the next beginning at LBA (x+1).

Each data band has its own drive-generated encryption key and its own user-supplied password. The host may change the Encryption Key (see Section 8.6) or the password when required. The bands shall be aligned to 4KB LBA boundaries.

8.6 Cryptographic erase

A significant feature of SEDs is the ability to perform a cryptographic erase. This involves the host telling the drive to change

the data encryption key for a particular band. Once changed, the data is no longer recoverable since it was written with one key and will be read using a different key. Since the drive overwrites the old key with the new one, and keeps no history of key changes, the user data can never be recovered. This is tantamount to an instantaneous data erase and is very useful if the drive is to be scrapped or redispositioned.

8.7 Authenticated firmware download

In addition to providing a locking mechanism to prevent unwanted firmware download attempts, the drive also only accepts download files which have been cryptographically signed by the appropriate Seagate Design Center.

Three conditions must be met before the drive will allow the download operation:

1. The download must be an SED file. A standard (base) drive (non-SED) file will be rejected.

2. The download file must be signed and authenticated.

3. As with a non-SED drive, the download file must pass the acceptance criteria for the drive. For example it must be appli-

cable to the correct drive model, and have compatible revision and customer status.

Seagate 1200 SSD Product Manual, Rev. C 51

8.8 Power requirements

The standard drive models and the SED drive models have identical hardware, however the security and encryption portion

of the drive controller ASIC is enabled and functional in the SED models. This represents a small additional drain on the 5V supply of about 30mA and a commensurate increase of about 150mW in power consumption. There is no additional drain on the 12V supply. See the tables in Section 6.3 for power requirements on the standard (non-SED) drive models.

8.9 Supported commands

The SED models support the following two commands in addition to the commands supported by the standard (non-SED)

models as listed in Table 15:

• SECURITY PROTOCOL OUT (B5h)

• SECURITY PROTOCOL IN (A2h)

8.10 Sanitize - Cryptographic Erase

This command cryptographically erases all user data on the drive by destroying the current data encryption key and

replacing it with a new data encryption key randomly generated by the drive. Sanitize CRYPTOGRAPHIC ERASE is a SCSI CDB Op code 48h and selecting the service action code 3 (CRYPTOGRAPHIC ERASE).

8.11 RevertSP

SED models will support the RevertSP feature which erases all data in all bands on the device and returns the contents of all SPs (Security Providers) on the device to their original factory state. In order to execute the RevertSP method the unique PSID (Physical Secure ID) printed on the drive label must be provided. PSID is not electronically accessible and can only be manually read from the drive label or scanned in via the 2D barcode.

Seagate 1200 SSD Product Manual, Rev. C 52

9.0 Defect and error management

Seagate continues to use innovative technologies to manage defects and errors. These technologies are designed to increase data integrity, perform drive self-maintenance, and validate proper drive operation.

SCSI defect and error management involves drive internal defect/error management and SAS system error considerations (errors in communications between the initiator and the drive). In addition, Seagate provides the following technologies used to increase data integrity and drive reliability:

• Auto-Reallocation (see Section 9.4)

The read error rates and specified storage capacities are not dependent on host (initiator) defect management routines.

9.1 Drive internal defects/errors

During the initial drive manufacturing test operation at the factory, media defects are identified, tagged as being unusable, and their locations recorded on the drive primary defects list (referred to as the “P’ list). At factory format time, these known defects are also deallocated, that is, marked as retired and the location listed in the defects reallocation table. The “P” list is not altered after factory formatting. Locations of defects found and reallocated during error recovery procedures after drive shipment are listed in the “G” list (defects growth list). The “P” and “G” lists may be referenced by the initiator using the READ DEFECT DATA command.

Details of the SCSI commands supported by the drive are described in the SAS Interface Manual. Also, more information on the drive Error Recovery philosophy is presented in the SAS Interface Manual.

The drive uses a vendor unique format to report defects via the READ DEFECT DATA command pending T10

standardization of a format for Solid State Devices. This format defect type is defined as 110b in the SCSI FORMAT UNIT command. The definition of the 110b format is defined in the following table.

Table 12SSD Physical format address descriptor

Bit

Byte

0 (MSB) 1 (LSB) 2 CHANNEL 3 DIE 4 (MSB) 5 (LSB) 6 RESERVED 7 VENDOR UNIQUE

The MEDIA ID field contains an identifier for the flash controller for devices that utilize more than one flash controller.

The CHANNEL field contains the channel number within the corresponding Flash Controller.

The DIE field contains the die number within channel.

The BLOCK field contains the block number within the die.

The VENDOR UNIQUE field may contain vendor unique information.

7 6 5 4 3 2 1 0

MEDIA ID

BLOCK

9.2 Drive error recovery procedures

When an error occurs during drive operation, the drive performs error recovery procedures to attempt to recover the data.

The error recovery procedures used are not user changeable.

9.3 SAS system errors

Information on the reporting of operational errors across the interface is given in the SAS Interface Manual. The SSP

Response returns information to the host about numerous kinds of errors. The Receive Diagnostic Results reports the results of diagnostic operations performed by the drive.

Status returned by the drive to the initiator is described in the SAS Interface Manual. Status reporting plays a role in systems

error management and its use in that respect is described in sections where the various commands are discussed.

Seagate 1200 SSD Product Manual, Rev. C 53

9.4 Auto-Reallocation

Auto-Reallocation allows the drive to reallocate unreadable locations on a subsequent write command if the recovery process deems the location to be defective. The drive performs auto-reallocation on every WRITE command. With each write to a Logical LBA, the drive writes the data to a different physical media location. Physical locations that return unrecoverable errors are retired during future WRITE attempts and associated recovery process.

This is in contrast to the system having to use the REASSIGN BLOCKS command to reassign a location that was

unreadable and then generate a WRITE command to rewrite the data. This operation requires that AWRE and ARRE are enabled—this is the default setting from the Seagate factory.

9.5 Protection Information (PI)

Protection Information is intended as a standardized approach to system level LRC traditionally provided by systems using 520 byte formatted LBAs. Drives formatted with PI information provide the same, common LBA count (i.e. same capacity point) as non-PI formatted drives. Sequential performance of a PI drive will be reduced by approximately 1.56% due to the extra overhead of PI being transferred from the media that is not calculated as part of the data transferred to the host. To determine the full transfer rate of a PI drive, transfers should be calculated by adding the 8 extra bytes of PI to the transferred LBA length, i.e. 512 + 8 = 520. PI formatted drives are physically formatted to 520 byte LBA’s that store 512 bytes of customer data with 8 bytes of Protection Information appended to it. The advantage of PI is that the Protection Information bits can be managed at the HBA and HBA driver level. Allowing a system that typically does not support 520 LBA formats to integrate this level of protection.

Protection Information is valid with any supported LBA size. 512 LBA size is used here as common example.

9.5.1 Levels of PI

There are 4 types of Protection Information.

Type 0 - Describes a drive that is not formatted with PI information bytes. This allows for legacy support in non-PI systems. Ty p e 1 - Provides support of PI protection using 10 and 16 byte commands. The RDPROTECT and WRTPROTECT bits

allow for checking control through the CDB. Eight bytes of Protection Information are transmitted at LBA boundaries across the interface if RDPROTECT and WRTPROTECT bits are nonzero values. Type 1 does not allow the use of 32 byte commands.

Ty p e 2 - Provides checking control and additional expected fields within the 32 byte CDBs. Eight bytes of Protection

Information are transmitted at LBA boundaries across the interface if RDPROTECT and WRTPROTECT bits are nonzero values. Type 2 does allow the use of 10 and 16 byte commands with zero values in the RDPROTECT and WRTPROTECT fields. The drive will generate 8 bytes of Protection Information (e.g. 0xFFFFFFFF) to be stored on the media, but the 8 bytes will not be transferred to the host during a READ command.

Type 3 - Seagate products do not support Type 3.

9.5.2 Setting and determining the current Type Level

A drive is initialized to a type of PI by using the FORMAT UNIT command on a PI capable drive. Once a drive is formatted to

a PI Type, it may be queried by a READ CAPACITY (16) command to report the PI type which it is currently formatted to. A drive can only be formatted to a single PI Type. It can be changed at anytime to a new Type but requires a FORMAT UNIT command which destroys all existing data on the drive. No other vehicle for changing the PI type is provided by the T10 SBC3 specification.

Type 1 PI FORMAT UNIT CDB command: 04 90 00 00 00 00, parameter data: 00 A0 00 00

Type 2 PI FORMAT UNIT CDB command: 04 D0 00 00 00 00, parameter data: 00 A0 00 00

9.5.3 Identifying a Protection Information drive

The Standard INQUIRY data provides a bit to indicate if PI is support by the drive. Vital Product Descriptor (VPD) page 0x86

provides bits to indicate the PI Types supported and which PI fields the drive supports checking.

Note. For further details with respect to PI, please refer to SCSI Block Commands - 3 (SBC-3) Draft Standard docu-

mentation.

Seagate 1200 SSD Product Manual, Rev. C 54

10.0 Installation

Seagate 1200 SSD drive installation is a plug-and-play process. There are no jumpers on the drive.

SAS drives are designed to be used in a host system that provides a SAS-compatible backplane with bays designed to accommodate the drive. In such systems, the host system typically provides a carrier or tray into which the drive must be mounted. Mount the drive to the carrier or tray provided by the host system using four M3 x 0.5 metric screws. When tightening the screws, use a maximum torque of 4.5 in-lb +/- 0.45 in-lb. Do not over-tighten or force the screws. The drive can be mounted in any orientation.

Note. SAS drives are designed to be attached to the host system without I/O or power cables. If the intent is to use the

drive in a non-backplane host system, connecting the drive using high-quality cables is acceptable as long as the I/O cable length does not exceed 10 meters (32.8 feet).

Slide the carrier or tray into the appropriate bay in the host system using the instructions provided by the host system. This connects the drive directly to the system’s SAS connector. The SAS connector is normally located on a SAS backpanel. See Section 11.4.1 for additional information about these connectors.

Power is supplied through the SAS connector.

The drive is shipped from the factory low-level formatted in 512-byte logical blocks. Reformatting the drive is only required if

the application requires a different logical block size.

Figure 20. Physical interface

10.1 Drive orientation

The drive may be mounted in any orientation. All drive performance characterizations, however, have been done with the

drive in horizontal (level) and vertical (drive on its side) orientations, which are the two preferred mounting orientations.

10.2 Cooling

Cabinet cooling must be designed by the customer so that the temperature of the drive will not exceed temperature conditions specified in Section 6.5.1, "Temperature."

The rack, cabinet, or drawer environment for the drive must provide heat removal from the assembly. The system designer

should confirm that adequate heat removal is provided using the temperature measurement guidelines described in Section

6.5.1.

Forced air flow may be required to keep temperatures at or below the temperatures specified in Section 6.5.1 in which case the drive should be oriented, or air flow directed, so that the least amount of air flow resistance is created while providing air flow. Also, the shortest possible path between the air inlet and exit should be chosen to minimize the travel length of air heated by the drive and other heat sources within the rack, cabinet, or drawer environment.

If forced air is determined to be necessary, possible air-flow patterns are shown in Figure 21. The air-flow patterns are created by one or more fans, either forcing or drawing air as shown in the illustrations. Conduction, convection, or other forced air-flow patterns are acceptable as long as the temperature measurement guidelines of Section 6.5.1 are met.

Seagate 1200 SSD Product Manual, Rev. C 55

Note.

Figure 21. Air flow

Note. Image may not represent actual product, for reference only.

10.3 Drive mounting

Mount the drive using the bottom or side mounting holes. If mounting the drive using the bottom holes, ensure not to physically distort the drive by attempting to mount it on a stiff, non-flat surface.

The allowable mounting surface stiffness is 80 lb/in (14.0 N/mm). The following equation and paragraph define the allowable

mounting surface stiffness:

K x X = F < 15lb = 67N

where K is the mounting surface stiffness (units in lb/in or N/mm) and X is the out-of-plane surface distortion (units in inches or millimeters). The out-of-plane distortion (X) is determined by defining a plane with three of the four mounting points fixed and evaluating the out-of-plane deflection of the fourth mounting point when a known force (F) is applied to the fourth point.

10.4 Grounding

Signal ground (PCBA) and case ground are connected together in the drive and cannot be separated by the user. The equipment in which the drive is mounted is connected directly to the drive with no electrically isolating shock mounts. If it is desired for the system chassis to not be connected to the drive ground, the systems integrator or user must provide a nonconductive (electrically isolating) method of mounting the drive in the host equipment.

Increased radiated emissions may result if designers do not provide the maximum surface area ground connection between system ground and drive ground. This is the system designer’s and integrator’s responsibility.

Seagate 1200 SSD Product Manual, Rev. C 56

11.0 Interface requirements

This section partially describes the interface requirements as implemented on Seagate 1200 SSD drives. Additional

information is provided in the SAS Interface Manual (part number 100293071).

11.1 SAS features

This section lists the SAS-specific features supported by Seagate 1200 SSD drives.

11.1.1 Task management functions

Table 13 lists the SAS task management functions supported.

Table 13 SAS task management functions supported

Task name Supported

Abort Task Yes

Abort task set Yes

Clear ACA Yes

Clear task set Yes

I_T Nexus Reset Yes

Logical Unit Reset Yes

Query Task Yes

Query Task Set Yes

Query Asynchronous Event Yes

11.1.2 Task management responses

Table 14 lists the SAS response codes returned for task management functions supported.

Table 14 Task management response codes

Function name Response code

Function complete 00

Invalid frame 02

Function not supported 04

Function failed 05

Function succeeded 08

Invalid logical unit 09

11.2 Dual port support

Seagate 1200 SSD SAS drives have two independent ports. These ports may be connected in the same or different SCSI domains. Each drive port has a unique SAS address.

The two ports have the capability of independent port clocking (e.g. both ports can run at 12Gb/s or the first port can run at

12Gb/s while the second port runs at 6Gb/s.) The supported link rates are 1.5, 3.0, 6.0 or 12.0 Gb/s.

Subject to buffer availability, the Seagate 1200 SSD drives support:

• Concurrent port transfers—The drive supports receiving COMMAND, TASK management transfers on both ports at the

same time.

• Full duplex—The drive supports sending XFER_RDY, DATA and RESPONSE transfers while receiving frames on both

ports.

Seagate 1200 SSD Product Manual, Rev. C 57

11.3 SCSI commands supported

Table 15 lists the SCSI commands supported by Seagate 1200 SSD drives.

Table 15 Supported commands

Command name Command code Supported

CHANGE DEFINITION 40h N

FORMAT UNIT [1] 04h Y

DPRY bit supported N

DCRT bit supported Y

STPF bit supported Y

IP bit supported Y

DSP bit supported Y

IMMED bit supported Y

VS (vendor specific) N

INQUIRY 12h Y

Block Limits page (B0h) Y

Block Device Characteristics page (B1h) Y

Date Code page (C1h) Y

Device Behavior page (C3h) Y

Device Identification page (83h) Y

Extended Inquiry Data page (86h) Y

Firmware Numbers page (C0h) Y

Jumper Settings page (C2h) N

Power Conditions page (8Ah) Y

Power Consumption page (8Dh) Y

Supported Vital Product Data page (00h) Y

Thin Provisioning page (B2h) Y

Unit Serial Number page (80h) Y

Vendor Unique page (D1h) Y

Vendor Unique page (D2h) Y

LOG SELECT 4Ch Y

PCR bit Y

DU bit N

DS bit Y

TSD bit Y

ETC bit N

TMC bit N

LP bit N

LOG SENSE 4Dh Y

Application Client Log page (0Fh) Y

Background Scan Results log page (15h) Y

Buffer Over-run/Under-run page (01h) N

Cache Statistics page (37h) Y

Factory Log page (3Eh) Y

Seagate 1200 SSD Product Manual, Rev. C 58

Table 15 Supported commands

Command name Command code Supported

Information Exceptions Log page (2Fh) Y

Last n Deferred Errors or Asynchronous Events page (0Bh) N

Last n Error Events page (07h) N

Non-medium Error page (06h) Y

Pages Supported list (00h) Y

Power Conditions Transitions page (1Ah) Y

Protocol-Specific Port log pages (18h) Y

Read Error Counter page (03h) Y

Read Reverse Error Counter page (04h) N

Self-test Results page (10h) Y

Solid State Media log page (11h) Y

Start-stop Cycle Counter page (0Eh) Y

Temperature page (0Dh) Y

Vendor Unique page (38h) Y

Vendor Unique page (3Ch) Y

Verify Error Counter page (05h) Y

Write error counter page (02h) Y

Mode Select (6) (Same Pages As Mode Sense (6)) 15h Y [3]

Mode Select (10) (Same Pages As Mode Sense (6)) 55h Y

Mode Sense (6) 1Ah Y [3]

Caching Parameters page (08h) Y

Control Mode page (0Ah) Y

Disconnect/Reconnect (02h) Y

Error Recovery page (01h) Y

Format page (03h) N

Information Exceptions Control page (1Ch) Y

Background Scan mode subpage (1Ch/01h) Y

Notch and Partition Page (0Ch) N

Protocol-Specific LUN mode page (18h) Y

Protocol-Specific Port page (19h) Y

Phy Control and Discover subpage (19h/01h) Y

Enhanced Phy Control subpage (19h/03h) Y

Power Condition page (1Ah) Y

Rigid Disc Drive Geometry page (04h) N

Unit Attention page (00h) Y

Verify Error Recovery page (07h) Y

Xor Control page (10h) N

Mode Sense (10) (Same Pages As Mode Sense (6)) 5Ah Y

Persistent Reserve In 5Eh Y

Read Full Status 5Eh/03h Y

Read Keys 5Eh/00h Y

Read Reservations 5Eh/001 Y

Seagate 1200 SSD Product Manual, Rev. C 59

Table 15 Supported commands

Command name Command code Supported

Read Capabilities 5Eh/02h Y

Persistent Reserve Out 5Fh Y

Clear 5Fh/03h Y

Preempt 5Fh/04h Y

Preempt And About 5Fh/05h Y

Release 5Fh/02h Y

Replace Lost Reservation 5Fh/08h Y

Reserve 5Fh/01h Y

Pre-fetch (10) 34h N

Read (6) 08h Y

Read (10) 28h Y

DPO bit supported Y

FUA bit supported Y

Read (12) A8h N

Read (16) 88h Y

Read (32) 7Fh/0009h Y

Read Buffer (Modes 0, 2, 3, Ah And Bh Supported) 3Ch Y (non-SED drives only)

Error history 3Ch/1Ch Y

Read Capacity (10) 25h Y

Read Capacity (16) 9Eh/10h Y

Read Defect Data (10) 37h Y

Read Defect Data (12) B7h Y

Read Long (10) 3Eh Y (non-SED drives only)

Read Long (16) 9Eh/11h Y (non-SED drives only)

Reassign Blocks 07h Y

Receive Diagnostic Results 1Ch Y

Supported Diagnostics pages (00h) Y

Translate page (40h) N

Release (6) 17h Y

Release (10) 57h Y

Report Identifying Information A3h/05h Y

Report LUNs A0h Y

Report Supported Operation Codes A3h/0Ch Y

Report Supported Task Management Functions A3h/0Dh Y

Request Sense 03h Y

Actual Retry Count bytes Y

Extended Sense Y

Field Pointer bytes Y

Reserve (6) 16h Y

Seagate 1200 SSD Product Manual, Rev. C 60

Table 15 Supported commands

Command name Command code Supported

3rd Party Reserve Y

Extent Reservation N

Reserve (10) 56h Y

3rd Party Reserve Y

Extent Reservation N

Rezero Unit 01h Y

Sanitize 48h Y

Overwrite 48h/01h N

Block Erase 48h/02h Y

Cryptographic Erase 48h/03h Y (SED models only)

Exit Failure Mode 48h/1Fh Y

Security Protocol In A2h Y (SED models only)

Security Protocol Out B5h Y (SED models only)

Seek (6) 0Bh Y

Seek (10) 2Bh Y

Send Diagnostics 1Dh Y

Supported Diagnostics pages (00h) Y

Translate page (40h) N

Set Identifying Information A4h/06h Y

Set Timestamp A4h/0Fh Y

Start Unit/stop Unit 1Bh Y

Synchronize Cache 35h Y

Synchronize Cache (16) 91h Y

Test Unit Ready 00h Y

Unmap 42H Y

Verify (10) 2Fh Y

BYTCHK bit Y

Verify (12) AFh N

Verify (16) 8Fh Y

Verify (32) 7Fh/000Ah Y

Write (6) 0Ah Y

Write (10) 2Ah Y

DPO bit Y

FUA bit Y

Write (12) AAh N

Write (16) 8Ah Y

Write (32) 7Fh/000Bh Y

Write And Verify (10) 2Eh Y

DPO bit Y

Write And Verify (12) AEh N

Write And Verify (16) 8Eh Y

Write And Verify (32) 7Fh/000Ch Y

Seagate 1200 SSD Product Manual, Rev. C 61

Table 15 Supported commands

Command name Command code Supported

Write Buffer (Modes 0, 2, Supported) 3Bh Y (non-SED drives only)

Write Buffer 3Bh

Download Application Log 3Bh/1Ch Y

Firmware Download option (modes 5, 7, Ah and Bh) [2] Y (non-SED drives only)

Firmware Download option (modes 4, 5, 7) Y (SED drives only)

Write Long (10) 3Fh Y

Write Long (16) 9Fh/11h Y

Write Same (10) 41h Y

PBdata N

LBdata N

Write Same (16) 93h Y

Write Same (32) 7Fh/000Dh Y

Xdread 52h N

Xdwrite 50h N

Xpwrite 51h N

[1] Seagate 1200 SSD drives can format to 512, 520, 524, 528, 4096, 4160, 4192 and 4224 bytes per logical block.

[2] Warning. Power loss during a firmware upgrade can result in firmware corruption. This usually makes the drive inoper-

able. [3] Reference MODE SENSE command 1Ah for mode pages supported. [4] Y = Yes. Command is supported.

N = No. Command is not supported.

A = Support is available on special request.

Seagate 1200 SSD Product Manual, Rev. C 62

11.3.1 INQUIRY data

Table 16 lists the INQUIRY command data that the drive should return to the initiator per the format given in the SAS

Interface Manual.

Table 16Seagate 1200 SSD INQUIRY data

Bytes Data (hex)

0-15 00 00 xx** 12 8B 01 PP 02 53 45 41 47 41 54 45 20 Vendor ID

16-31 [53 54 38 30 30 46 4D 30 30 31 33] 20 20 20 20 20 Product ID

32-47 R# R# R# R# S# S# S# S# S# S# S# S# 00 00 00 00

48-63 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

64-79 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

80-95 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

96-111 00 43 6F 70 79 72 69 67 68 74 20 28 63 29 20 32* *Copyright

112-127 30* 31* 33* 20 53 65 61 67 61 74 65 20 41 6C 6C 20

128-143 72 69 67 68 74 73 20 72 65 73 65 72 76 65 64 20

* Copyright year (changes with actual year). ** SCSI Revision support. See the appropriate SPC release documentation for definitions. PP 10 = INQUIRY data for an INQUIRY command received on Port A.

30 = INQUIRY data for an INQUIRY command received on Port B. R# Four ASCII digits representing the last four digits of the product firmware release number. S# Eight ASCII digits representing the eight digits of the product serial number. [ ] Bytes 16 through 26 reflect model of drive. The table above shows the hex values for Model ST800FM0013.

Refer to the values below for the values of bytes 16 through 26 for a particular model:

ST800FM0023 53 54 38 30 30 46 4D 30 30 32 33

ST800FM0033 53 54 38 30 30 46 4D 30 30 33 33

ST800FM0043 53 54 38 30 30 46 4D 30 30 34 33

ST800FM0053 53 54 38 30 30 46 4D 30 30 35 33

ST800FM0063 53 54 38 30 30 46 4D 30 30 36 33

ST400FM0013 53 54 34 30 30 46 4D 30 30 31 33

ST400FM0023 53 54 34 30 30 46 4D 30 30 32 33

ST400FM0033 53 54 34 30 30 46 4D 30 30 33 33

ST400FM0043 53 54 34 30 30 46 4D 30 30 34 33

ST400FM0053 53 54 34 30 30 46 4D 30 30 35 33

ST400FM0063 53 54 34 30 30 46 4D 30 30 36 33

ST400FM0073 53 54 34 30 30 46 4D 30 30 37 33

ST400FM0083 53 54 34 30 30 46 4D 30 30 38 33

ST400FM0093 53 54 34 30 30 46 4D 30 30 39 33

ST400FM0103 53 54 34 30 30 46 4D 30 31 30 33

ST400FM0113 53 54 34 30 30 46 4D 30 31 31 33

ST400FM0123 53 54 34 30 30 46 4D 30 31 32 33

ST200FM0013 53 54 32 30 30 46 4D 30 30 31 33

ST200FM0023 53 54 32 30 30 46 4D 30 30 32 33

ST200FM0033 53 54 32 30 30 46 4D 30 30 33 33

ST200FM0043 53 54 32 30 30 46 4D 30 30 34 33

ST200FM0053 53 54 32 30 30 46 4D 30 30 35 33

ST200FM0063 53 54 32 30 30 46 4D 30 30 36 33

ST200FM0073 53 54 32 30 30 46 4D 30 30 37 33

ST200FM0083 53 54 32 30 30 46 4D 30 30 38 33

ST200FM0093 53 54 32 30 30 46 4D 30 30 39 33

ST200FM0103 53 54 32 30 30 46 4D 30 31 30 33

ST200FM0113 53 54 32 30 30 46 4D 30 31 31 33

ST200FM0123 53 54 32 30 30 46 4D 30 31 32 33

ST100FM0013 53 54 31 30 30 46 4D 30 30 31 33

notice

Seagate 1200 SSD Product Manual, Rev. C 63

ST100FM0023 53 54 31 30 30 46 4D 30 30 32 33

ST100FM0033 53 54 31 30 30 46 4D 30 30 33 33

ST100FM0043 53 54 31 30 30 46 4D 30 30 34 33

ST100FM0053 53 54 31 30 30 46 4D 30 30 35 33

ST100FM0063 53 54 31 30 30 46 4D 30 30 36 33

ST100FM0073 53 54 31 30 30 46 4D 30 30 37 33

ST100FM0083 53 54 31 30 30 46 4D 30 30 38 33

ST100FM0093 53 54 31 30 30 46 4D 30 30 39 33

ST100FM0103 53 54 31 30 30 46 4D 30 31 30 33

ST100FM0113 53 54 31 30 30 46 4D 30 31 31 33

ST100FM0123 53 54 31 30 30 46 4D 30 31 32 33

11.3.2 MODE SENSE data

The MODE SENSE command provides a way for the drive to report its operating parameters to the initiator. The drive

maintains four sets of mode parameters:

1. Default values

Default values are hard-coded in the drive firmware stored in flash E-PROM (nonvolatile memory) on the drive’s PCB.

These default values can be changed only by downloading a complete set of new firmware into the flash E-PROM. An

initiator can request and receive from the drive a list of default values and use those in a MODE SELECT command to set up new current and saved values, where the values are changeable.

2. Saved values

Saved values are stored on the drive’s media using a MODE SELECT command. Only parameter values that are allowed to be changed can be changed by this method. Parameters in the saved values list that are not changeable by the MODE SELECT command get their values from default values storage.

When power is applied to the drive, it takes saved values from the media and stores them as current values in volatile memory. It is not possible to change the current values (or the saved values) with a MODE SELECT command before the drive is “ready.” An attempt to do so results in a “Check Condition” status.

On drives requiring unique saved values, the required unique saved values are stored into the saved values storage location on the media prior to shipping the drive. Some drives may have unique firmware with unique default values also.

On standard OEM drives, the saved values are taken from the default values list and stored into the saved values storage location on the media prior to shipping.

3. Current values

Current values are volatile values being used by the drive to control its operation. A MODE SELECT command can be used to change the values identified as changeable values. Originally, current values are installed from saved or default values after a power on reset, hard reset, or Bus Device Reset message.

4. Changeable values

Changeable values form a bit mask, stored in nonvolatile memory, that dictates which of the current values and saved values can be changed by a MODE SELECT command. A one (1) indicates the value can be changed. A zero (0) indicates the value is not changeable. For example, in Table 18, refer to Mode page 81, in the row entitled “CHG.” These are hex numbers representing the changeable values for Mode page 81. Note in columns 5 and 6 (bytes 04 and 05), there is 00h which indicates that in bytes 04 and 05 none of the bits are changeable. Note also that bytes 06, 07, 09, 10, and 11 are not changeable, because those fields are all zeros. In byte 02, hex value FF equates to the binary pattern 11111111. If there is a zero in any bit position in the field, it means that bit is not changeable. Since all of the bits in byte 02 are ones, all of these bits are changeable.

The changeable values list can only be changed by downloading new firmware.

Note. Because there are often several different versions of drive control firmware in the total population of drives in the

field, the MODE SENSE values given in the following tables may not exactly match those of some drives.

The following tables list the values of the data bytes returned by the drive in response to the MODE SENSE command pages

for SCSI implementation (see the SAS Interface Manual ).

DEF = Default value. Standard OEM drives are shipped configured this way.

CHG = Changeable bits; indicates if default value is changeable.

Seagate 1200 SSD Product Manual, Rev. C 64

Table 17 MODE SENSE data for 800GB drives

MODE DATA HEADER: 01 5a 00 10 01 00 00 10

BLOCK DESCRIPTOR: 00 00 00 00 5d 26 ce b0 00 00 00 00 00 00 02 00

MODE PAGES:

DEF 81 0a c0 01 5a 00 00 00 0b 00 ff ff CHG 81 0a 38 00 00 00 00 00 ff 00 00 00

DEF 82 0e 00 00 00 00 00 00 00 00 00 a0 00 00 00 00 CHG 82 0e 00 00 ff ff 00 00 ff ff ff ff 00 00 00 00

DEF 87 0a 00 01 5a 00 00 00 00 00 ff ff CHG 87 0a 08 00 00 00 00 00 00 00 ff ff

DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00 CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 21 00 00 00 00 00 00 00

DEF 8a 0a 00 00 00 80 00 00 00 00 7f ff CHG 8a 0a 0f f0 00 00 00 00 00 00 00 00

DEF 18 06 06 00 00 00 00 00 CHG 18 06 00 00 00 00 00 00

DEF 99 0e 06 00 07 d0 07 d0 00 00 00 00 00 00 00 00 CHG 99 0e 10 00 ff ff ff ff ff ff 00 00 00 00 00 00

DEF 59 01 00 64 00 06 00 02 00 00 00 00 xx xx 0e 00 xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx 00 00 00 00 00 00 88 xx 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 00 00 xx xx 0e 00 xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx xx 00 00 00 00 00 00 88 xx 00 00 00 00 00 00 00 00 00 00 00 00 00 00 CHG 59 01 00 64 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 f0 f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 f0 f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DEF 59 03 00 2c 00 06 00 02 00 00 00 10 80 ac 00 00 80 ac 00 00 80 bc 00 00 00 00 1a 00 00 01 00 10 80 ac 00 00 80 ac 00 00 00 00 00 00 00 00 00 00 CHG 59 03 00 2c 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 06 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 06

DEF 9a 26 00 06 00 00 00 0a 00 00 8c a0 00 00 17 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 58 CHG 9a 26 00 07 ff ff ff ff ff ff ff ff ff ff ff ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 fc

DEF 9c 0a 10 00 00 00 00 00 00 00 00 01 CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff

DEF dc 01 00 0c 01 00 00 00 00 00 00 00 00 00 00 00 CHG dc 01 00 0c 00 00 00 00 00 00 00 00 00 00 00 00

DEF 80 06 00 80 00 00 00 00 CHG 80 06 b7 80 00 00 00 00

Seagate 1200 SSD Product Manual, Rev. C 65

Table 18 MODE SENSE data for 400GB drives

MODE DATA HEADER: 01 5a 00 10 01 00 00 10

BLOCK DESCRIPTOR: 00 00 00 00 2e 93 90 b0 00 00 00 00 00 00 02 00

MODE PAGES:

DEF 81 0a c0 01 5a 00 00 00 0b 00 ff ff CHG 81 0a 38 00 00 00 00 00 ff 00 00 00

DEF 82 0e 00 00 00 00 00 00 00 00 00 a0 00 00 00 00 CHG 82 0e 00 00 ff ff 00 00 ff ff ff ff 00 00 00 00

DEF 87 0a 00 01 5a 00 00 00 00 00 ff ff CHG 87 0a 08 00 00 00 00 00 00 00 ff ff

DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00 CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 21 00 00 00 00 00 00 00

DEF 8a 0a 00 00 00 80 00 00 00 00 7f ff CHG 8a 0a 0f f0 00 00 00 00 00 00 00 00

DEF 18 06 06 00 00 00 00 00 CHG 18 06 00 00 00 00 00 00

DEF 99 0e 06 00 07 d0 07 d0 00 00 00 00 00 00 00 00 CHG 99 0e 10 00 ff ff ff ff ff ff 00 00 00 00 00 00

DEF 9c 0a 10 00 00 00 00 00 00 00 00 01 CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff

DEF dc 01 00 0c 01 00 00 00 00 00 00 00 00 00 00 00 CHG dc 01 00 0c 00 00 00 00 00 00 00 00 00 00 00 00

DEF 80 06 00 80 00 00 00 00 CHG 80 06 b7 80 00 00 00 00

Seagate 1200 SSD Product Manual, Rev. C 66

Table 19 MODE SENSE data for 200GB drives

MODE DATA HEADER: 01 5a 00 10 01 00 00 10

BLOCK DESCRIPTOR: 00 00 00 00 17 49 f1 b0 00 00 00 00 00 00 02 00

MODE PAGES:

DEF 81 0a c0 01 5a 00 00 00 0b 00 ff ff CHG 81 0a 38 00 00 00 00 00 ff 00 00 00

DEF 82 0e 00 00 00 00 00 00 00 00 00 a0 00 00 00 00 CHG 82 0e 00 00 ff ff 00 00 ff ff ff ff 00 00 00 00

DEF 87 0a 00 01 5a 00 00 00 00 00 ff ff CHG 87 0a 08 00 00 00 00 00 00 00 ff ff

DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00 CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 21 00 00 00 00 00 00 00

DEF 8a 0a 00 00 00 80 00 00 00 00 7f ff CHG 8a 0a 0f f0 00 00 00 00 00 00 00 00

DEF 18 06 06 00 00 00 00 00 CHG 18 06 00 00 00 00 00 00

DEF 99 0e 06 00 07 d0 07 d0 00 00 00 00 00 00 00 00 CHG 99 0e 10 00 ff ff ff ff ff ff 00 00 00 00 00 00

DEF 9c 0a 10 00 00 00 00 00 00 00 00 01 CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff

DEF dc 01 00 0c 01 00 00 00 00 00 00 00 00 00 00 00 CHG dc 01 00 0c 00 00 00 00 00 00 00 00 00 00 00 00

DEF 80 06 00 80 00 00 00 00 CHG 80 06 b7 80 00 00 00 00

Seagate 1200 SSD Product Manual, Rev. C 67

Table 20 MODE SENSE values for 100GB drives

MODE DATA HEADER: 01 5a 00 10 01 00 00 10

BLOCK DESCRIPTOR: 00 00 00 00 0b a5 22 30 00 00 00 00 00 00 02 00

MODE PAGES:

DEF 81 0a 00 01 5a 00 00 00 0b 00 ff ff CHG 81 0a 08 00 00 00 00 00 ff 00 00 00

DEF 82 0e 00 00 00 00 00 00 00 00 00 a0 00 00 00 00 CHG 82 0e 00 00 ff ff 00 00 ff ff ff ff 00 00 00 00

DEF 87 0a c0 01 5a 00 00 00 00 00 ff ff CHG 87 0a 38 00 00 00 00 00 00 00 ff ff

DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00 CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 21 00 00 00 00 00 00 00

DEF 8a 0a 00 00 00 80 00 00 00 00 7f ff CHG 8a 0a 0f f0 00 00 00 00 00 00 00 00

DEF 18 06 06 00 00 00 00 00 CHG 18 06 00 00 00 00 00 00

DEF 99 0e 06 00 07 d0 d0 d0 00 00 00 00 00 00 00 00 CHG 99 0e 10 00 ff ff ff ff ff ff 00 00 00 00 00 00

DEF 9c 0a 10 00 00 00 00 00 00 00 00 01 CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff

DEF dc 01 00 0c 01 00 00 00 00 00 00 00 00 00 00 00 CHG dc 01 00 0c 00 00 00 00 00 00 00 00 00 00 00 00

DEF 80 06 00 80 00 00 00 00 CHG 80 06 b7 80 00 00 00 00

Seagate 1200 SSD Product Manual, Rev. C 68

11.4 Miscellaneous operating features and conditions

Table 21 lists various features and conditions. A “Y” in the support column indicates the feature or condition is supported. An

“N” in the support column indicates the feature or condition is not supported.

Table 21 Miscellaneous features

Supported Feature or condition

Table 22 Miscellaneous status

Automatic contingent allegiance

Asynchronous event notification

Segmented caching

Zero latency read

Queue tagging (up to 128 queue tags supported)

Deferred error handling

Parameter rounding (controlled by Round bit in MODE SELECT page 0)

Reporting actual retry count in Extended Sense bytes 15, 16, and 17

Supported Status

Good

Check condition

Condition met/good

Busy

Reservation conflict

Task set full

ACA active

ACA active, faulted initiator

Task Aborted

11.4.1 SAS physical interface

Figure 22 shows the location of the SAS device connector J1. Figures 23 and 24 provide the dimensions of the SAS connector.

Details of the physical, electrical, and logical characteristics are provided within this section. The operational aspects of the

Seagate SAS drives are provided in the SAS Interface Manual.

Figure 22. Physical interface

Seagate 1200 SSD Product Manual, Rev. C 69

0.80 (6X)

0.30 0.05 (2X)

2.00 (3X)

7.625.92

5.08

42.73 REF.

41.13 0.15

0.20 B

4.65

0.52 0.08 x 45

0.45 0.03 (7X)

0.10 M E

1.10

4.00 0.08

0.15 D

0.30 0.05 (4X)

0.35MIN

C OF DATUM D

15.875

1.27 (14X)

P15

33.43 0.05

5.08

C OF DATUM B

15.875

1.27 (6X)

SEE Detail1

0.84 0.05 (22X)

R0.30 0.08 (4X)

0.15 B

4.90 0.08

Figure 23. SAS device plug dimensions

Seagate 1200 SSD Product Manual, Rev. C 70

Detail A

SEE Detail 2

2.25 0.05

4.85 0.05

0.10

S14

6.10

CORING ALLOWED IN THIS AREA.

4.40 0.15

0.30 0.05 x 45 (5X)

0.40 0.05 X 45 (3X)

R0.30 0.08

1.95 0.08

3.90 0.15

1.23 0.05

0.08 0.05

SECTION A - A

0.08 0.05

Detail 2

0.35 0.05

CONTACT SURFACE FLUSH TO DATUM A 0.03

2.40 0.08

0.10 A

SECTION C - C

SECTION B - B

1.90 0.08

Figure 24. SAS device plug dimensions (detail)

Seagate 1200 SSD Product Manual, Rev. C 71

Figure 25. Micro SAS device plug dimensions

Seagate 1200 SSD Product Manual, Rev. C 72

Figure 26. Micro SAS device plug dimensions (detail)

Seagate 1200 SSD Product Manual, Rev. C 73

11.4.2 Physical characteristics

This section defines physical interface connector.

11.4.3 Connector requirements

Contact a preferred connector manufacturer for mating part information. Part numbers for SAS connectors will be provided in a future revision of this publication when production parts are available from major connector manufacturers.

The SAS device connector is illustrated in Figures 23 and 24.

11.4.4 Electrical description

SAS drives use the device connector for:

• DC power

• SAS interface

• Activity LED

This connector is designed to either plug directly into a backpanel or accept cables.

11.4.5 Pin descriptions

This section provides a pin-out of the SAS device and a description of the functions provided by the pins.

Table 23 SAS pin descriptions

Pin Signal name Signal type Pin Signal name Signal type

S1 Port A Ground P1* Reserved

S2* +Port A_in Diff. input pair P2* Reserved

S3* -Port A_in P3 NC (Vendor specific)

S4 Port A Ground P4 Ground

S5* -Port A_out Diff output pair P5 Ground

S6* +Port A_out P6 Ground

S7 Port A Ground P7 5 Volts charge

S8 Port B Ground P8* 5 Volts

S9* +Port B_in Diff. input pair P9* 5 Volts

S10* -Port B_in P10 Ground

S11 Port B Ground P11* Ready LED Open collector out

S12* -Port B_out Diff output pair P12 Ground

S13* +Port B_out P13 12 Volts charge

S14 Port B Ground P14* 12 Volts

P15* 12 Volts

[1]

* - Short pin to support hot plugging

[1] Behind a SAS Drive plug connector, P1 and P2 are only connected to each other.

NC - No connection in the drive.

Seagate 1200 SSD Product Manual, Rev. C 74

Table 24 Micro SAS pin descriptions

Pin Signal name Signal type Pin Signal name

S1 Port A Ground P1* 3.3 Volts

S2* +Port A_in Diff. input pair P2 3.3 Volts charge

S3* -Port A_in P3 Ground

S4 Port A Ground P4 Ground

S5* -Port A_out Diff output pair P5 5 Volts charge

S6* +Port A_out P6* 5 Volts

S7 Port A Ground P7* Reserved

S8 Port B Ground P8* NC (reserved for Manufacturing diagnostic)

S9* +Port B_in Diff. input pair P9* NC (reserved for Manufacturing diagnostic)

S10* -Port B_in

S11 Port B Ground A1* Vendor specific

S12* -Port B_out Diff output pair A2* Vendor specific

S13* +Port B_out

S14 Port B Ground

* - Short pin to support hot plugging

NC - No connection in the drive.

Signal type

11.4.6 SAS transmitters and receivers

A typical SAS differential copper transmitter and receiver pair is shown in Figure 27. The receiver is AC coupling to eliminate

ground shift noise.

Figure 27. SAS transmitters and receivers

Seagate 1200 SSD Product Manual, Rev. C 75

11.4.7 Power

The drive receives power (+3.3 volts, +5 volts and +12 volts) through the SAS device connector.

Three +12 volt pins provide power to the drive, 2 short and 1 long. The current return for the +12 volt power supply is through

the common ground pins. The supply current and return current must be distributed as evenly as possible among the pins.

Three +5 volt pins provide power to the drive, 2 short and 1 long. The current return for the +5 volt power supply is through

the common ground pins. The supply current and return current must be distributed as evenly as possible among the pins.

Two +3.3 volt pins provide power to the drive, 1 short and 1 long. The current return for the +3.3 volt power supply is through

the common ground pins. The supply current and return current must be distributed as evenly as possible among the pins.

Current to the drive through the long power pins may be limited by the system to reduce inrush current to the drive during hot plugging.

11.5 Signal characteristics

This section describes the electrical signal characteristics of the drive’s input and output signals. See Table 23 for signal type

and signal name information.

11.5.1 Ready LED Out

The Ready LED Out signal is driven by the drive as indicated in Table 25.

Table 25 Ready LED Out conditions

Normal command activity LED status

Ready LED Meaning bit mode page 19h

Drive stopped, not ready, and no activity

Drive stopped, not ready, and activity (command executing)

Drive started, ready, and no activity

Drive started, ready, and activity (command executing)

Drive transitioning from not-ready state to ready state or the reverse.

FORMAT UNIT in progress,

(50% on and 50% off, 0.5 seconds on and off for 0.5 seconds)

Off Off

On On

On Off

Off On

Blinks steadily

Toggles on/off

The Ready LED Out signal is designed to pull down the cathode of an LED. The anode is attached to the proper +3.3 volt

supply through an appropriate current limiting resistor. The LED and the current limiting resistor are external to the drive. See Table 26 for the output characteristics of the LED drive signals.

Table 26 LED drive signal

State Test condition Output voltage

LED off, high 0 V  VOH  3.6 V -100 μA < IOH < 100 μA LED on, low I

= 15 mA 0  VOL  0.225 V

Seagate 1200 SSD Product Manual, Rev. C 76

11.5.2 Differential signals

The drive SAS differential signals comply with the intra-enclosure (internal connector) requirements of the SAS standard.

Table 27 defines the general interface characteristics

Table 27 General interface characteristics

Characteristic Units 1.5Gb/s 3.0Gb/s 6.0Gb/s 12.0Gb/s

Bit rate (nominal) Mbaud 1,500 3,000 6,000 12,000

Unit interval (UI)(nominal) ps 666.6 333.3 166.6 83.3

Impedance (nominal, differential ) ohm 100 100 100 100

Transmitter transients, maximum V  1.2  1.2  1.2  1.2

Receiver transients, maximum V  1.2  1.2  1.2  1.2

11.6 SAS-3 Specification compliance

Seagate SAS-3 drives are entirely compatible with the SAS-3 Specification (T10/2212-D).

The most important characteristic of the SAS-3 drive at 6Gb/s is that the receiver is capable of adapting the equalizer to

optimize the receive margins. The SAS-3 drive has two types of equalizers:

1. A Decision Feedback Equalizer (DFE) which utilizes the standard SAS-3 training pattern transmitted during the SNW-3

training gap. The DFE circuit can derive an optimal equalization characteristic to compensate for many of the receive losses in the system.

2. A Feed Forward Equalizer (FFE) optimized to provide balanced receive margins over a range of channels bounded by

the best and worst case channels as defined by the relevant ANSI standard.

11.7 Additional information

Please contact the Seagate representative for SAS electrical details, if required.

For more information about the Phy, Link, Transport, and Applications layers of the SAS interface, refer to the Seagate SAS Interface Manual, part number 100293071.

For more information about the SCSI commands used by Seagate SAS drives, refer to the Seagate SCSI Commands Reference Manual, part number 100293068.

Seagate 1200 SSD Product Manual, Rev. C 77

Seagate Technology LLC

AMERICAS Seagate Technology LLC 10200 South De Anza Boulevard, Cupertino, California 95014, United States, 408-658-1000 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00

Publication Number: 100708406, Rev. C October 2014

Seagate ST100FM0103, ST100FM0093, ST100FM0113, ST100FM0123, ST200FM0013 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Seagate® 1200 SSD

Seagate® Technology Support Services

1.0 Scope

2.0 Applicable standards and reference documentation

2.1 Standards

2.1.1 Electromagnetic compatibility

2.1.2 Electromagnetic compliance

2.1.3 European Union Restriction of Hazardous Substances (RoHS)

2.1.4 China Restriction of Hazardous Substances (RoHS) Directive

2.2 Reference documents

3.0 General description

3.1 Standard features

3.2 Media description

3.3 Performance

3.4 Warranty

3.5 Formatted capacities

3.6 Programmable drive capacity

3.7 Factory-installed options

3.8 Thin Provisioning

3.8.1 Logical Block Provisioning

3.8.2 Thin Provisioning capabilities

3.8.3 UNMAP

3.8.4 FORMAT UNIT command

3.8.5 Protection Information (PI) and Security (SED)

4.0 Performance characteristics

4.1 Internal drive characteristics

4.2 Performance characteristics

4.2.1 Response time

4.2.2 FORMAT UNIT command execution time for 512-byte LBA’s (minutes)

4.2.3 Performance

4.3 Start/stop time

4.4 Cache control

4.4.1 Caching write data

4.4.2 Prefetch operation

5.0 Reliability specifications

5.1 Error rates

5.1.1 Unrecoverable Errors

5.1.2 Interface errors

5.2 Endurance Management

5.2.1 Wear Leveling

5.2.2 Garbage Collection

5.2.3 Write Amplification

5.2.4 UNMAP

5.2.5 Data Retention

5.2.6 Lifetime Endurance Management (Available on select models)

5.2.7 SSD Percentage Used Endurance Indicator

5.3 Reliability and service

5.3.1 Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF)

5.3.2 Preventive maintenance

5.3.3 Hot plugging the drive

5.3.4 S.M.A.R.T.

5.3.5 Thermal monitor

5.3.6 Drive Self Test (DST)

5.3.7 Product warranty

6.0 Physical/electrical specifications

6.1 Power specifications

6.1.1 Power consumption

6.2 AC power requirements

6.3 DC power requirements

6.3.1 Conducted noise immunity

6.3.2 Power sequencing

6.3.3 Current profiles

6.4 Power dissipation

6.5 Environmental limits

6.5.1 Temperature

6.5.2 Relative humidity

6.5.3 Effective altitude (sea level)

6.5.4 Shock and vibration

6.5.5 Air cleanliness

6.5.6 Corrosive environment

6.5.7 Electromagnetic susceptibility

6.6 Mechanical specifications

7.0 About FIPS

8.0 About self-encrypting drives

8.1 Data encryption

8.2 Controlled access
