Seagate ST10000NE0004, ST8000NE0021, ST6000NE0021, ST4000NE0025, ST2000NE0025 Specifications

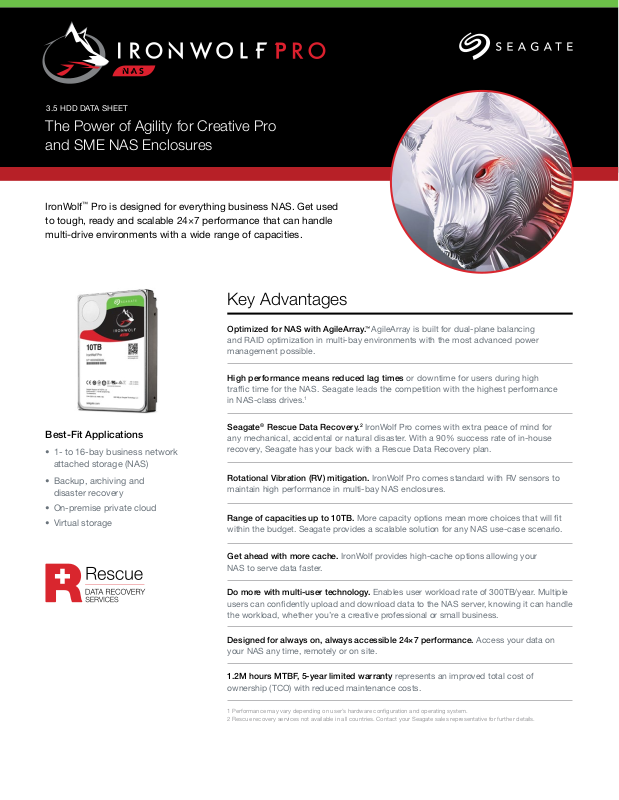

3.5 HDD DATA SHEET
The Power of Agility for Creative Pro
and SME NAS Enclosures
IronWolf™ Pro is designed for everything business NAS. Get used
to tough, ready and scalable 24×7 performance that can handle
multi-drive environments with a wide range of capacities.
Key Advantages
Optimized for NAS with AgileArray.™ AgileArray is built for dual-plane balancing
and RAID optimization in multi-bay environments with the most advanced power
management possible.
High performance means reduced lag times or downtime for users during high
trafc time for the NAS. Seagate leads the competition with the highest performance
in NAS-class drives.
1
Best-Fit Applications
• 1- to 16-bay business network
attached storage (NAS)
• Backup, archiving and
disaster recovery
• On-premise private cloud
• Virtual storage
Seagate® Rescue Data Recovery.2 IronWolf Pro comes with extra peace of mind for
any mechanical, accidental or natural disaster. With a 90% success rate of in-house
recovery, Seagate has your back with a Rescue Data Recovery plan.
Rotational Vibration (RV) mitigation. IronWolf Pro comes standard with RV sensors to
maintain high performance in multi-bay NAS enclosures.
Range of capacities up to 10TB. More capacity options mean more choices that will t
within the budget. Seagate provides a scalable solution for any NAS use-case scenario.
Get ahead with more cache. IronWolf provides high-cache options allowing your
NAS to serve data faster.
Do more with multi-user technology. Enables user workload rate of 300TB/year. Multiple
users can condently upload and download data to the NAS server, knowing it can handle
the workload, whether you’re a creative professional or small business.
Designed for always on, always accessible 24×7 performance. Access your data on
your NAS any time, remotely or on site.
1.2M hours MTBF, 5-year limited warranty represents an improved total cost of
ownership (TCO) with reduced maintenance costs.
1 Performance may vary depending on user’s hardware conguration and operating system.
2 Rescue recovery services not available in all countries. Contact your Seagate sales representative for further details.
Specications 10TB
1,2
8TB
1,2
6TB
1,2
4TB
1,2
Standard Model Number ST10000NE0004 ST8000NE0021 ST6000NE0021 ST4000NE0025
3
2
1
2TB
ST2000NE0025
3
Interface SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s
Features
Drive Bays Supported Up to 16 Bays Up to 16 Bays Up to 16 Bays Up to 16 Bays Up to 16 Bays
Multi-User Technology (TB/yr) 300 300 300 300 300
Rotational Vibration (RV ) Sensors Yes Yes Yes Yes Yes
Hot-Plug Support
4
Yes Yes Yes Yes Yes
Cache (MB) 256MB 256MB 256MB 128 MB 12 8MB
Reliability/Data Integrity
Mean Time Between Failures (MTBF) (hours) 1.2M 1.2M 1.2M 1.2 M 1.2M
Reliabilit y Rating @ Full 24×7 Oper ation (A FR) 0.73% 0.73% 0.73% 0.73% 0.73%
Nonrecoverable Read Errors per Bits Read, Max 1 per 10E15 1 per 10E15 1 per 10E15 1 per 10E15 1 per 10E15
Power-On Hours (per year) 8760 8760 8760 8760 8760
Sector Size (Bytes per Logical S ector) 512E 512E 512E 512E 512
Rescue Services
5
Yes Yes Yes Yes Yes
Limited Warranty (years) 5 5 5 5 5
Performance
Spindle Speed (RPM ) 7200 7200 7200 7200 7200
Interface Access Speed (Gb/s) 6.0, 3.0, 1.5 6.0, 3.0, 1.5 6.0, 3.0, 1.5 6.0, 3.0, 1.5 6.0, 3.0, 1.5
Max Sus tained Transfer Rate OD (MB/s) 214 214 214 214 195
Average Latency (ms) 4 .16 4.16 4 .16 4.16 4.1 6
Interface Ports Single Single Single Single Single
2
Rotational Vibration @ 10-1500 Hz (rad/s
) 12.5 12.5 12 .5 12. 5 12.5
Power Consumption
Star tup Current, Typical (12V, A) 2.0 2.0 2.0 2.0 2.0
Idle Power, Average (W) 4.4 7. 6 7.6 6.0 4.5
Average Operating Power (W) 6.8 9.0 9.0 6.7 7.5
Standby Mode, Typical (W) 0.8 0.6 0.6 0.6 0.8
Sleep Mode, Typical (W ) 0.8 0.6 0.6 0.6 0.8
Power Supply Requirements +12V and +5V +12V and +5V +12V and +5V +12V and +5V +12V and +5V
Environmental
Temperature (°C)
Operating (ambient, min) 5 5 5 5 5
Operating (drive case, ma x) 60 60 60 60 60
Nonoperating (ambient, min) –40 –40 –40 –40 –40
Nonoperating (ambient, max) 70 70 70 70 70
Vibration, Nonoper ating: 10Hz to 500Hz (Grms) 2.27 5 5 5 5
Shock, Operating, 2ms ( Read/ Write) (Gs) 70/4 0 70/40 70/40 70/40 70/4 0
Shock, N onoperating, 1ms and 2ms (Gs) 250 250 250 300 300
Physical
Height (mm/in) 26 .11/1.02 8 26 .11/ 1.0 28 26 .11/ 1.0 28 2 6.11/ 1.0 28 2 6.11/ 1.0 28
Width (mm/in, max) 101.85/4.01 101.85/4.01 101.85/4.01 101.85/4.01 101.85/4.01
Depth (mm/ in, max) 146.99/5.787 146.99/5.787 146.99/5.787 146.99/5.787 146.99/5.787
Weight (g/lb, typical) 65 0/1.43 3 780/1. 72 780/1. 72 680/1. 50 550/1.21
1 One gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes when referring to drive capacity.
2 Seagate recommends validating your conguration with your HBA/RAID controller manufacturer to ensure full capacity capabilities.
3 Coming soon. For immediate needs, please see Enterprise NAS HDD.
4 Supports Hot-Plug operation per Serial ATA Revision 2.6 specication.
5 Rescue recovery services not available in all countries. Contact your Seagate sales representative for further details. Register an IronWolf Pro drive to activate your 2-year Rescue plan at seagate.com/register.
