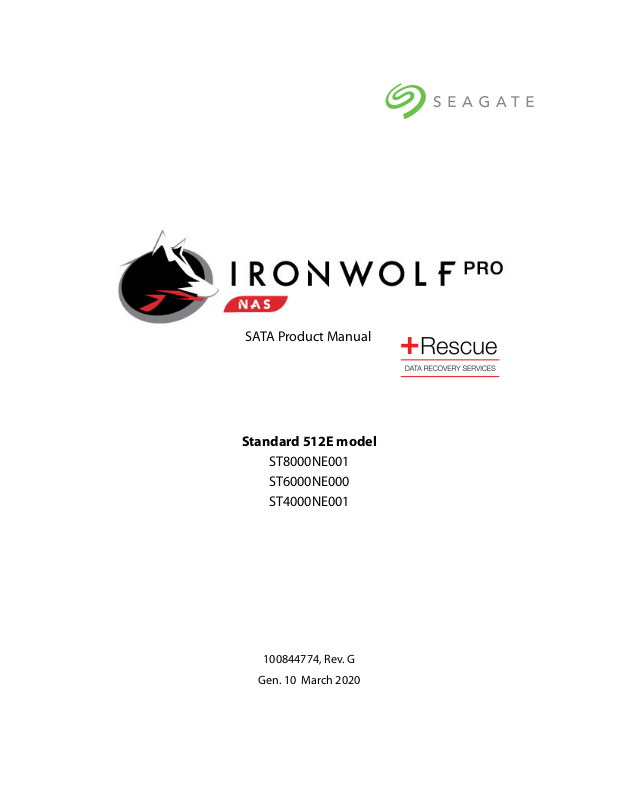

Seagate ST8000NE001 User Manual

SATA Product Manual

Standard 512E model

ST8000NE001
ST6000NE000
ST4000NE001

100844774, Rev. G

Gen. 10 March 2020

Document Revision History

Revision Date Pages affected and Description of changes

Rev. A 11/29/2018 Initial release.

fc, 5, 7 & 9: Removed 4TB model - ST4000NE000
7: Update 6TB heads & disks

Rev. B 04/22/2019

7 & 27: Updated weights
8 & 18: Updated Non-op shock to 300 Gs for all capacities
8 & 20: Added (command controlled) to L/UL
bc: Removed APAC & EMEA addresses

Rev. C 05/09/2019

fc, 5, 7, 9, 11, 13, 25-26 & 31: Removed 2TB model
16: Updated Shock & Vibration section

Rev. D 08/21/2019 7, 15 & 18: Updated or verified text reflects: drive reported temperatures

Rev. E 09/10/2019 fc & 24-25: Added SRS content

7: Updated temperature & humidity gradients

Rev. F 01/07/2020

7 & 13: Updated 5V tolerance to

±5%

27-28: Updated Figure 4 title & added Figure 5.

Rev. G 03/04/2020

19: Section 2.12 - Removed HDD and SSD Regulatory Compliance and Safety reference
24: Updated Figure 4 Mounting configuration dimensions 8TB models (Option 1)

© 2020 Seagate Technology LLC. All rights reserved.

Publication number: 100844774, Rev. G March 2020
Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. PowerChoice and SeaTools are either

trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST,
which does not imply product endorsement by NIST, the U.S., or Canadian governments. All other trademarks or registered trademarks are the property of their respective owners.

No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC.
Call 877-PUB-TEK1 (877-782-8351) to request permission.
When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different

standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage.
Actual quantities will vary based on various factors, including file size, file format, features and application software. Actual data rates may vary depending on operating environment
and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for
more information, visit www.bis.doc.gov), and controlled for import and use outside of the U.S. Seagate reserves the right to change, without notice, product offerings or specifications.

Contents

Seagate® Technology Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 About the Serial ATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.0 Drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 Specification summary tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2 Formatted capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.2.1 LBA mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3 Recording and interface technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.5.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.5.2 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.5.3 Voltage tolerance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.5.4 Extended Power Conditions - PowerChoice™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.6 Environmental limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.6.1 Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.6.2 Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.6.3 Effective Altitude (sea level) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.7 Shock and Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.7.1 Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.7.2 Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.8 Acoustics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.9 Test for Prominent Discrete Tones (PDTs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.10 Electromagnetic immunity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.11 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.11.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF) . . . . . . . . . . . . . 18

2.12 HDD and SSD Regulatory Compliance and Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.12.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.12.2 Regulatory Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.13 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.14 Reference documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.15 Product warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.16 Seagate® Rescue™ Data Recovery Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Seagate IronWolf Pro SATA Product Manual, Rev. G 2

Contents

3.0 Configuring and mounting the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.1 Handling and static-discharge precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.2 Configuring the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.3 Serial ATA cables and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.4 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.4.1 Mechanical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.0 Serial ATA (SATA) interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.1 Hot-Plug compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.2 Serial ATA device plug connector pin definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.3 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4.3.1 Identify Device command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.3.2 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.3.3 S.M.A.R.T. commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Seagate IronWolf Pro SATA Product Manual, Rev. G 3

Seagate® Technology Support Services

For Seagate Product Support, visit: https://www.seagate.com/support

For Seagate Compliance, Safety, and Disposal, visit: https://www.seagate.com/support

For Firmware Download and Tools Download for Secure Erase, visit: https://www.seagate.com/support/downloads/

For information regarding online support and services, visit: http://www.seagate.com/contacts/

For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/

For information regarding data recovery services, visit: http://www.seagate.com/services-software/recover/

For Seagate OEM and Distribution partner and Seagate reseller portal, visit: http://www.seagate.com/partners

Seagate IronWolf Pro SATA Product Manual, Rev. G 4

1.0 Introduction

This manual describes the functional, mechanical and interface specifications for the following:
Seagate® IronWolf® Pro Serial ATA model drives:

5xxE Standard models

ST8000NE001 ST4000NE001

ST6000NE000

These drives provide the following key features:

• 7200 RPM spindle speed.

• Full-track multiple-sector transfer capability without local processor intervention.

• High instantaneous (burst) data-transfer rates (up to 600MB per second).

• Native Command Queuing with command ordering to increase performance in demanding applications.

• Perpendicular recording technology provides the drives with increased areal density.

• PowerChoice™ for selectable power savings

• SeaTools™ diagnostic software performs a drive self-test that eliminates unnecessary drive returns.

• State-of-the-art cache and on-the-fly error-correction algorithms.

• Support for S.M.A.R.T. drive monitoring and reporting.

• Supports latching SATA cables and connectors.

• Tarnish-resistant components to help protect drive from environmental elements, increasing field reliability.

• Worldwide Name (WWN) capability uniquely identifies the drive.

Note

Seagate recommends validating the configuration with the selected HBA/
RAID controller manufacturer to ensure use of full capacity is supported.

Seagate IronWolf Pro SATA Product Manual, Rev. G 5

1.1 About the Serial ATA interface

The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. The primary advantages include:

• Easy installation and configuration with true plug-and-play connectivity.
It is not necessary to set any jumpers or other configuration options.

• Thinner and more flexible cabling for improved enclosure airflow and ease of installation.

• Scalability to higher performance levels.

In addition, Serial ATA makes the transition from parallel ATA easy by providing legacy software support. Serial ATA was designed to
allow users to install a Serial ATA host adapter and Serial ATA disk drive in the current system and expect all of the existing
applications to work as normal.

The Serial ATA interface connects each disk drive in a point-to-point configuration with the Serial ATA host adapter. There is no
master/slave relationship with Serial ATA devices like there is with parallel ATA. If two drives are attached on one Serial ATA host
adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. This essentially
means both drives behave as if they are Device 0 (master) devices.

The host adapter may, optionally, emulate a master/slave environment to host software where two

Note

The Serial ATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward
compatibility with existing host systems and software. The Command and Control Block registers, PIO and DMA data transfers, resets,
and interrupts are all emulated.

devices on separate Serial ATA ports are represented to host software as a Device 0 (master) and
Device 1 (slave) accessed at the same set of host bus addresses. A host adapter that emulates a master/
slave environment manages two sets of shadow registers. This is not a typical Serial ATA environment.

The Serial ATA host adapter contains a set of registers that shadow the contents of the traditional device registers, referred to as the
Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates
parallel ATA, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. The specification can be downloaded from

www.serialata.or

g.

Seagate IronWolf Pro SATA Product Manual, Rev. G 6

2.0 Drive specifications

Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For convenience, the
phrases the drive and this drive are used throughout this manual to indicate the following drive models:

5xxE Standard models

ST8000NE001 ST4000NE001

ST6000NE000

2.1 Specification summary tables

The specifications listed in the following tables are for quick reference. For details on specification measurement or definition, see the
appropriate section of this manual.

Table 1 Drive specifications summary

Drive specification

Formatted (512 bytes/sector)

Guaranteed sectors

Heads

Discs

Bytes per logical sector

Bytes per physical sector

Recording density, KBPI (Kb/in max)

Track density, KTPI (ktracks/in, 0 skew)

Areal density, (Gb/in2, @ 0 skew mid-disk)

Spindle speed (RPM)

Internal data transfer rate (Mb/s max)

Sustained data transfer rate OD (MiB/s max)

I/O data-transfer rate (MB/s max)

ATA data-transfer modes supported

Cache buffer

Weight: (maximum)

Average latency

Power-on to ready (sec) (typ/max)

Standby to ready (sec) (typ/max)

Startup current (typical) 12V (peak)

Voltage tolerance (including noise)

Non-Operating temperature –40° to 70°C (Ambient Temperature, see sections 2.6.1 and 2.11)

Operating temperature

Temperature gradient (°C per hour max)

Relative humidity

Relative humidity gradient 20% per hour max

Altitude, operating

*

#

*

ST8000NE001 ST6000NE000 ST4000NE001

8TB 6TB 4TB

(see Section 2.2)

10 10 8 6

5 5 4 3

512

4096

2509

371

930

7200

2850

200

(214 MB/s max)

600

PIO modes 0–4

Multiword DMA modes 0–2

Ultra DMA modes 0–6

256MB (262,144KB)

716g (1.557 lb) 649g (1.431 lb)

4.16ms

23/30

23/30

2.0A

5V ±5%

12V ±10%

5° to 60°C (Drive Reported Temperature)

20°C (operating)

20°C (nonoperating)

5% to 95% (operating)

5% to 95% (nonoperating)

–304.8 m to 3,048 m

(–1000 ft to 10,000+ ft)

Seagate IronWolf Pro SATA Product Manual, Rev. G 7

Drive specification

Altitude, nonoperating
(below mean sea level, max)

ST8000NE001 ST6000NE000 ST4000NE001

–304.8 m to 12,192 m

(–1000 ft to 40,000+ ft)

Operational Shock (max at 2 ms - typical) Read 70 Gs / Write 40 Gs

Non-Operational Shock (max at 2 ms - typical) 300 Gs

5–22 Hz: 0.25 Gs, Limited displacement

Vibration, operating

22–350 Hz: 0.50 Gs
350–500 Hz: 0.25 Gs

Operation Rotational vibration 20–1500Hz: 12.5 rads/s²

Vibration, nonoperating 10–500 Hz: 5.0 Grms ref

Drive acoustics, sound power (bels)

2.8 (typical)

Idle

During periods of drive idle, some offline activity may occur according to the

3.0 (max)

SMART specification, which may increase acoustic and power to operational levels.

Performance seek

Nonrecoverable read errors 1 sector per 10

Annualized Failure Rate (AFR)

*

3.2 (typical)

3.4 (max)

15

bits read

0.73% based on 8760 POH

Maximum rate of <300TB/year

Maximum Rated Workload

*

Workloads exceeding the annualized rate may degrade the drive MTBF and impact product
reliability. The Annualized Workload Rate is in units of TB per year, or TB per 8760 power on
hours. Workload Rate = TB transferred * (8760 / recorded power on hours).

To determine the warranty for a specific drive, use a web browser to access the following web
page: http://www.seagate.com/support/warranty-and-replacements/.

Warranty

From this page, click on the “Is my Drive under Warranty” link. The following are required to
be provided: the drive serial number, model number (or part number) and country of
purchase.The system will display the warranty information for the drive.

Load-unload cycles (command controlled) 600,000

Supports Hotplug operation per
Serial ATA Revision 3.3 specification

#

One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.

* See Section 2.11, "Reliability" for rated MTBF device operating condition requirements.

Yes

Seagate IronWolf Pro SATA Product Manual, Rev. G 8

2.2 Formatted capacity

ST models Formatted capacity* Guaranteed sectors Bytes per logical sector

ST8000NE001 8TB 15,628,053,168

512ST6000NE000 6TB 11,721,045,168

ST4000NE001 4TB 7,814,037,168

* One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.

2.2.1 LBA mode

When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the number of
guaranteed sectors as defined above.

See Section 4.3.1, "Identify Device command" (words 60-61 and 100-103) for additional information about 48-bit addressing
support of drives with capacities over 137GB.

2.3 Recording and interface technology

8TB, 6TB & 4TB

Interface Serial ATA (SATA)

Recording method Pe rpendicular

Recording density, KBPI (Kb/in max) 2509

Track density, KTPI (ktracks/in, 0 Skew) 371

Areal density (Gb/in2, @ 0 skew mid-disk) 930

Spindle speed (RPM) (± 0.2%) 7200

Internal data transfer rate (Mb/s max) 2850

Sustained data transfer rate (MiB/s max) 200 (214 MB/s max)

I/O data-transfer rate (MB/s max) 600 (Ultra DMA mode 5)

2.4 Start/stop times

Power-on to Ready (sec) (typ/max) 23/30

Standby to Ready (sec) (typ/max) 23/30

Ready to spindle stop (sec) (max) 23

Seagate IronWolf Pro SATA Product Manual, Rev. G 9

2.5 Power specifications

The drive receives DC power (+5V or +12V) through a native SATA power connector. See Figure 3 on page 23.

2.5.1 Power consumption

Power requirements for the drives are listed in Table 2 through Table 3. Typical power measurements are based on an average of
drives tested, under nominal conditions, using 5.0V and 12.0V input voltage at 25°C ambient temperature.

Table 2 DC power requirements (8TB & 6TB)

6.0Gb mode

Voltage +5V +12V Watts

Regulation ± 5% Total
Avg Idle Current * 0.227 0.497 7.06

Advanced Idle Current *

Idle_A 0.226 0.497 7.06
Idle_B 0.173 0.426 5.90
Idle_C 0.166 0.226 3.53
Standby 0.158 0.01 0.86

Maximum Start Current

DC (peak DC) 0.702 1.65 23.34
AC (Peak DC) 0.968 1.96

Operating current (random read 4K16Q)

Typical DC 0.393 0.705 10.36

Maximum DC 0.396 0.717
Maximum DC (peak) 0.11 2.25

Operating current (random write 4K16Q)

Typical DC 0.27 0.798 10.86
Maximum DC 0.27 0.805
Maximum DC (peak) 0.636 2.24

Operating current (sequential read 64K16Q)

Typical DC 0.696 0.544 9.94
Maximum DC 0.701 0.546
Maximum DC (peak) 1.23 1.82

Operating current (sequential write 64K16Q)

Typical DC 0.593 0.539 9.37
Maximum DC 0.593 0.539
Maximum DC (peak) 0.704 0.853

Seagate IronWolf Pro SATA Product Manual, Rev. G 10

Table 3 DC power requirements (4TB)

6.0Gb mode

Voltage +5V +12V Watts

Regulation ± 5% Total
Avg Idle Current * 0.237 0.356 5.43

Advanced Idle Current *

Idle_A 0.238 0.36 5.48
Idle_B 0.185 0.304 4.56
Idle_C 0.179 0.083 1.89
Standby 0.17 0.01 0.98

Maximum Start Current

DC (peak DC) 0.702 1.65 23.34
AC (Peak DC) 0.968 1.96

Operating current (random read 4K16Q)

Typical DC 0.393 0.705 10.36

Maximum DC 0.396 0.717
Maximum DC (peak) 0.11 2.25

Operating current (random write 4K16Q)

Typical DC 0.27 0.798 10.86
Maximum DC 0.27 0.805
Maximum DC (peak) 0.636 2.24

Operating current (sequential read 64K16Q)

Typical DC 0.696 0.544 9.94
Maximum DC 0.701 0.546
Maximum DC (peak) 1.23 1.82

Operating current (sequential write 64K16Q)

Typical DC 0.593 0.539 9.37
Maximum DC 0.593 0.539
Maximum DC (peak) 0.704 0.853

*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels.

Seagate IronWolf Pro SATA Product Manual, Rev. G 11

2.5.1.1 Typical current profiles

Figure 1. 8TB & 6TB Typical 12V startup and operation current profile

Figure 2. 4TB Typical 12V startup and operation current profile

Seagate IronWolf Pro SATA Product Manual, Rev. G 12

2.5.2 Conducted noise

Input noise ripple is measured at the host system power supply across an equivalent 80-ohm resistive load on the +12 V line or an
equivalent 15-ohm resistive load on the +5V line.

• Using 12V power, the drive is expected to operate with a maximum of 120mV peak-to-peak square-wave injected noise at up to
10MHz.

• Using 5V power, the drive is expected to operate with a maximum of 100mV peak-to-peak square-wave injected noise at up to
10MHz.

Note

Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current.

2.5.3 Voltage tolerance

Voltage tolerance (including noise):

5V ± 5% 12V ± 10%

2.5.4 Extended Power Conditions - PowerChoice™

Utilizing the load/unload architecture a programmable power management interface is provided to tailor systems for reduced
power consumption and performance requirements.

The table below lists the supported power conditions available in PowerChoice. Power conditions are ordered from highest power
consumption (and shortest recovery time) to lowest power consumption (and longest recovery time) as follows: Idle_a power >=
Idle_b power >= Idle_c power >= Standby_z power. The further users go down in the table, the more power savings is actualized. For
example, Idle_b results in greater power savings than the Idle_a power condition. Standby results in the greatest power savings.

Power Condition Name Power Condition ID Description

Idle_a 81

Idle_b 82

Idle_c 83

Standby_z 00

H

H

H

H

Reduced electronics

Heads unloaded. Disks spinning at full RPM

Heads unloaded. Disks spinning at reduced RPM

Heads unloaded. Motor stopped (disks not spinning)

Each power condition has a set of current, saved and default settings. Default settings are not modifiable. Default and saved settings
persist across power-on resets. The current settings do not persist across power-on resets. At the time of manufacture, the default,
saved and current settings are in the Power Conditions log match.

PowerChoice is invoked using one of two methods

• Automatic power transitions which are triggered by expiration of individual power condition timers. These timer values may be
customized and enabled using the Extended Power Conditions (EPC) feature set using the standardized Set Features command
interface.

• Immediate host commanded power transitions may be initiated using an EPC Set Features "Go to Power Condition" subcommand
to enter any supported power condition. Legacy power commands Standby Immediate and Idle Immediate also provide a
method to directly transition the drive into supported power conditions.

PowerChoice exits power saving states under the following conditions

• Any command which requires the drive to enter the PM0: Active state (media access)

•Power on reset

Seagate IronWolf Pro SATA Product Manual, Rev. G 13

PowerChoice provides the following reporting methods for tracking purposes

Check Power Mode Command

• Reports the current power state of the drive

Identify Device Command

• EPC Feature set supported flag

• EPC Feature enabled flag is set if at least one Idle power condition timer is enabled

Power Condition Log reports the following for each power condition

• Nominal recovery time from the power condition to active

• If the power condition is Supported, Changeable, and Savable

• Default enabled state, and timer value

• Saved enabled state, and timer value

• Current enabled state, and timer value

S.M.A.R.T. Read Data Reports

• Attribute 192 - Emergency Retract Count

• Attribute 193 - Load/Unload Cycle Count

PowerChoice Manufacture Default Power Condition Timer Values

Default power condition timer values have been established to assure product reliability and data integrity. A minimum timer value
threshold of two minutes ensures the appropriate amount of background drive maintenance activities occur. Attempting to set a
timer values less than the specified minimum timer value threshold will result in an aborted EPC "Set Power Condition Timer"
subcommand.

Power Condition Name Manufacturer Default Timer Values

Idle_a 100 msec

Idle_b 2 min

Idle_c 4 min

Standby_z 15 min

Setting power condition timer values less than the manufacturer specified defaults or issuing the EPC "Go to Power Condition"
subcommand at a rate exceeding the default timers may limit this products reliability and data integrity.

PowerChoice Supported Extended Power Condition Feature Subcommands

EPC Subcommand Description

00

01

02

03

04

05

H

H

H

H

H

H

Restore Power Condition Settings

Go to Power Condition

Set Power Condition Timer

Set Power Condition State

Enable EPC Feature Set

Disable EPC Feature Set

Seagate IronWolf Pro SATA Product Manual, Rev. G 14

PowerChoice Supported Extended Power Condition Identifiers

Power Condition Identifiers Power Condition Name

00

H

01 - 80

81

H

82

H

83

H

84 - FE

FF

H

H

H

Standby_z

Reserved

Idle_a

Idle_b

Idle_c

Reserved

All EPC Power Conditions

2.6 Environmental limits

Temperature and humidity values experienced by the drive must be such that condensation does not occur on any drive part.
Altitude and atmospheric pressure specifications are referenced to a standard day at 58.7°F (14.8°C).

To maintain optimal performance drives should be run at nominal drive temperatures and humidity.

Note

2.6.1 Temperature

a. Operating

41°F to 140°F (5°C to 60°C) d temperature range with a maximum temperature gradient of 36°F (20°C) per hour as reported by the
drive.

The maximum allowable drive reported temperature is 140°F (60°C).
Air flow may be required to achieve consistent nominal drive temperature values (see Section 3.4). To confirm that the

required cooling is provided for the electronics and HDA, place the drive in its final mechanical configuration, and perform
random write/read operations. After the temperatures stabilize, monitor the current drive temperature using the SMART
temperature attribute 194 or Device Statistics log 04h page 5.

b. Non-operating

–40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assumes that
the drive is packaged in the shipping container designed by Seagate for use with drive.

See Section 2.11, "Reliability" for rated MTBF device operating condition requirements.

2.6.2 Humidity

The values below assume that no condensation on the drive occurs. Maximum wet bulb temperature is 84.2°F (29°C).

2.6.2.1 Relative humidity

Operating: 5% to 95% non-condensing relative humidity with a maximum gradient of 20% per hour.

Non-operating: 5% to 95% non-condensing relative humidity with a maximum gradient of 20% per hour.

2.6.3 Effective Altitude (sea level)

Operating: –304.8 m to 3048 m (–1000 ft. to 10,000+ ft.)

Non-operating: –304.8 m to 12,192 m (–1000 ft. to 40,000+ ft.)

Seagate IronWolf Pro SATA Product Manual, Rev. G 15

2.7 Shock and Vibration

Shock and vibration measurements specified in this document are made directly on the drive itself and applied in the X, Y, and Z axis at the drive
mounting point locations.

2.7.1 Shock

a. Operating

The drive will operate without error while subjected to intermittent shock pulses not exceeding 70 Gs (read) and 40 Gs (write) at a
maximum duration of 2ms.

b. Non-operating

The drive will operate without non-recoverable errors after being subjected to shock pulses not exceeding 300g at a maximum
duration of 2ms.

2.7.2 Vibration

a. Linear Random Operating Vibration

The drive will operate without non-recoverable errors while being subjected to the random power spectral density noise
specified below.

b. Random Rotary Operating Vibration

The drive will exhibit greater than 90% throughput for sequential and random write operations while subjected to the shaped
random power spectral density noise specified below.

c. Linear Random Non-Operating Vibration

The drive will not incur physical damage or have non-recoverable errors after being subjected to the power spectral density noise
specified below.

Seagate IronWolf Pro SATA Product Manual, Rev. G 16

2.8 Acoustics

Drive acoustics are measured as overall A-weighted acoustic sound power levels (no pure tones). All measurements are consistent
with ISO document 7779. Sound power measurements are taken under essentially free-field conditions over a reflecting plane. For all
tests, the drive is oriented with the cover facing upward.

For seek mode tests, the drive is placed in seek mode only.

Note

)

Table 4 Fluid Dynamic Bearing (FDB) motor acoustics

The number of seeks per second is defined by the following equation:

(Number of seeks per second = 0.4 / (average latency + average access time

Idle* Performance seek

All models 2.8 bels (typ)

3.0 bels (max)

*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels.

3.2 bels (typ)

3.4 bels (max)

2.9 Test for Prominent Discrete Tones (PDTs)

Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the
absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate
for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards.

2.10 Electromagnetic immunity

When properly installed in a representative host system, the drive operates without errors or degradation in performance when
subjected to the radio frequency (RF) environments defined in the following table:

Table 5 Radio frequency environments

Test Description Performance level Reference standard

Electrostatic discharge Contact, HCP, VCP: ± 4 kV; Air: ± 8 kV B EN 61000-4-2: 95

80 to 1000 MHz, 3 V/m,

Radiated RF immunity

Electrical fast transient ± 1 kV on AC mains, ± 0.5 kV on external I/O B EN 61000-4-4: 95

Surge immunity ± 1 kV differential, ± 2 kV common, AC mains B EN 61000-4-5: 95

80% AM with 1 kHz sine
900 MHz, 3 V/m, 50% pulse modulation @ 200 Hz

A

EN 61000-4-3: 96
ENV 50204: 95

Conducted RF immunity 150 kHz to 80 MHz, 3 Vrms, 80% AM with 1 kHz sine A EN 61000-4-6: 97

Voltage dips, interrupts

0% open, 5 seconds
0% short, 5 seconds
40%, 0.10 seconds
70%, 0.01 seconds

C
C
C
B

EN 61000-4-11: 94

Seagate IronWolf Pro SATA Product Manual, Rev. G 17

2.11 Reliability

2.11.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF)

The production disk drive shall achieve an annualized failure-rate of 0.73% (MTBF of 1,200,000 hours) over a 5 year service life when
used in Enterprise Storage field conditions as limited by the following:

• 8760 power-on hours per year.

• HDA temperature as reported by the drive <= 40°C

• Ambient wet bulb temp <= 26°C

• Typical workload

• The AFR (MTBF) is a population statistic not relevant to individual units

• ANSI/ISA S71.04-2013 G2 classification levels and dust contamination to ISO 14644-1 Class 8 standards (as measured at the device)

The MTBF specification for the drive assumes the operating environment is designed to maintain nominal drive temperature and
humidity. Occasional excursions in operating conditions between the rated MTBF conditions and the maximum drive operating
conditions may occur without significant impact to the rated MTBF. However continual or sustained operation beyond the rated
MTBF conditions will degrade the drive MTBF and reduce product reliability.

Nonrecoverable read errors 1 per 1015 bits read, max
Load unload cycles

(command controlled)

Maximum Rated Workload

Warranty

Preventive maintenance None required.

600,000 cycles

Maximum rate of <300TB/year
Workloads exceeding the annualized rate may degrade the drive MTBF and impact product
reliability. The Annualized Workload Rate is in units of TB per year, or TB per 8760 power on
hours. Workload Rate = TB transferred * (8760 / recorded power on hours).

To determine the warranty for a specific drive, use a web browser to access the following web
page: http://www.sea
From this page, click on the “Is my Drive under Warranty” link. The following are required to be
provided: the drive serial number, model number (or part number) and country of purchase.
The system will display the warranty information for the drive.

gate.com/support/warranty-and-replacements/.

Seagate IronWolf Pro SATA Product Manual, Rev. G 18

2.12 HDD and SSD Regulatory Compliance and Safety

For the latest regulatory and compliance information see: https://www.seagate.com/support/ scroll to bottom of page and click
the Seagate HDD and SSD Regulatory Compliance and Safety link.

2.12.1 Safety certification

The drives are recognized in accordance with UL/cUL 60950-1 and EN 60950-1.

2.12.2 Regulatory Models

The following regulatory model number represent all features and configurations within the series:

Regulatory Model Numbers: STL010

2.13 Corrosive environment

Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light industrial
environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845. However, this accelerated testing
cannot duplicate every potential application environment.

Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as
electronic drive component reliability can be affected by the installation environment. The silver, copper, nickel and gold films used
in hard disk drives are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the
most damaging. Materials used in cabinet fabrication, such as vulcanized rubber, that can outgas corrosive compounds should be
minimized or eliminated. The useful life of any electronic equipment may be extended by replacing materials near circuitry with
sulfide-free alternatives.

Seagate recommends that data centers be kept clean by monitoring and controlling the dust and gaseous contamination. Gaseous
contamination should be within ANSI/ISA S71.04-2013 G2 classification levels (as measured on copper and silver coupons), and dust
contamination to ISO 14644-1 Class 8 standards, and MTBF rated conditions as defined in the Annualized Failure Rate (AFR) and
Mean Time Between Failure (MTBF) section.

Seagate IronWolf Pro SATA Product Manual, Rev. G 19

2.14 Reference documents

Supported standards

Serial ATA Revision 3.3 specification

ANSI Documents

SFF-8301 3.5” Drive Form Factor with Serial Connector
INCITS 522-2014 SCSI Protocol Layer-4 (SPL-4) Rev. 08

Specification for Acoustic Test Requirement and Procedures

Seagate part number: 30553-001

In case of conflict between this document and any referenced document, this document takes precedence.

2.15 Product warranty

Beginning on the date of shipment to the customer and continuing for the period specified in the purchase contract, Seagate
warrants that each product (including components and subassemblies) that fails to function properly under normal use due to
defect in materials or workmanship or due to nonconformance to the applicable specifications will be repaired or replaced, at
Seagate’s option and at no charge to the customer, if returned by customer at customer’s expense to Seagate’s designated facility in
accordance with Seagate’s warranty procedure. Seagate will pay for transporting the repair or replacement item to the customer. For
more detailed warranty information, refer to the standard terms and conditions of purchase for Seagate products on the purchase
documentation.

The remaining warranty for a particular drive can be determined by calling Seagate Customer Service at 1-800-468-3472. Users can
also determine remaining warranty using the Seagate web site (www.sea
remaining warranty information.

Shipping

When transporting or shipping a drive, use only a Seagate-approved container. Keep the original box. Seagate approved containers
are easily identified by the Seagate Approved Package label. Shipping a drive in a non-approved container voids the drive warranty.

Seagate repair centers may refuse receipt of components improperly packaged or obviously damaged in transit. Contact the
authorized Seagate distributor to purchase additional boxes. Seagate recommends shipping by an air-ride carrier experienced in
handling computer equipment.

gate.com). The drive serial number is required to determine

Storage

Maximum storage periods are 180 days within original unopened Seagate shipping package or 60 days unpackaged within the
defined non-operating limits (refer to environmental section in this manual). Storage can be extended to 1 year packaged or
unpackaged under optimal environmental conditions (25°C, <40% relative humidity non-condensing, and non-corrosive
environment). During any storage period the drive non-operational temperature, humidity, wet bulb, atmospheric conditions, shock,
vibration, magnetic and electrical field specifications should be followed.

Product repair and return information

Seagate customer service centers are the only facilities authorized to service Seagate drives. Seagate does not sanction any third­party repair facilities. Any unauthorized repair or tampering with the factory seal voids the warranty.

Seagate IronWolf Pro SATA Product Manual, Rev. G 20

2.16 Seagate® Rescue™ Data Recovery Service

3-year coverage (concurrent with bare drive warranty)

If you suffer a data loss event within the three year Seagate Rescue Data Recovery warranty period, and you are eligible to participate in
and submit a case under the Rescue program, contact SRS at (1-800-723-1183) in the US, or if you are calling from outside the US please
visit our website for numbers in your local and language:

http://www.seagate.com/contacts/contact-numbers/.

In addition, you may visit http://rescueandreplace.seagate.com/contact.jsp to obtain information regarding how to contact a recovery
expert online or by telephone from your location. An SRS representative will review your case to confirm your eligibility, and to assess
whether your data may be recoverable by remote recovery services or whether you will need to send your device to SRS for in-lab
servicing.

These Rescue™ General Terms together with the Rescue™ FAQ’s make up the Rescue™ Program Terms. By submitting a case under the

™ program (“Program”) you agree to be bound by the Program Terms, including these General Terms and the FAQ. You must be a

Rescue
legal resident of the US to participate in the Program.

Communications. All communications relating to your request will be available on our web site in your account and sent via e-mail to
the address you provide to us unless you request, in writing, to receive such communications via regular mail.

Personal Data. You must provide true, accurate and complete information about yourself as prompted by the request form, including,
without limitation, your name, address, e-mail address, and telephone number, as applicable (collectively, “Personal Data”). You must
maintain and promptly update your Personal Data. You acknowledge that we may send you important information and notices
regarding your requests by e-mail and that we shall have no liability associated with or arising from your failure to maintain accurate
Personal Data.

Capacity; Legal Rights; Indemnity. You represent to SRS that you are of the legal age of majority in your state or country of residence,
with the full capacity to agree to these Program Terms. You warrant that you are the legal owner or the authorized representative of the
legal owner of the device you submit to SRS (the “Device”) and data. You warrant that the data on the Device is legal and that you have
the unrestricted legal right to (a) give us remote access to the data, (b) have the data recovered and reproduced on a backup medium, (c)
receive the recovered data, and (d) agree to these Program Terms. You will defend and indemnify us (including our directors, officers,
employees, agents, delegates, and contractors) from any claims or actions relating to the Device or data, or your rights or lack of rights
thereto.

Confidentiality. We will protect the confidentiality of your data against unauthorized disclosure using the same degree of care as we
use to protect our own confidential information.

Disclaimer of Warranties, Representations and Guarantees. WE PROVIDE THE PROGRAM AND ANY SERVICES PROVIDED OR
ATTEMPTED HEREUNDER “AS IS,” WITH ALL FAULTS, AT YOUR SOLE RISK. WE DO NOT EXTEND ANY EXPRESS WARRANTIES,
REPRESENTATIONS, CONDITIONS OR GUARANTEES REGARDING OUR RESCUE SERVICES OR ANY RESULTS THEREOF. TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW AND SUBJECT TO ANY STATUTORY WARRANTIES THAT CANNOT BE
EXCLUDED, WE EXPRESSLY DISCLAIM ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OR CONDITION OF
MERCHANTABILITY, WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, OR WARRANTY OF ACCURACY OR COMPLETENESS
WITH RESPECT TO THIS PROGRAM AND SERVICES. This Program and Disclaimer is unrelated to, and does not affect any warranties

relating to your Device that we or the seller may have extended to you.

Limitation of Liability. WE WILL NOT BE LIABLE FOR ANY HARM CAUSED, UNLESS YOU PROVE THAT WE CAUSED SUCH HARM
INTENTIONALLY. WITHOUT LIMITING THE GENERALITY OF THE FOREGOING, WE WILL NOT BE LIABLE FOR THE CONDITION,
EXISTENCE, OR LOSS OF THE DATA YOU SEND US OR THE DATA WE RECOVER (IF ANY), ANY LOSS OF REVENUE OR LOSS OF
PROFITS, OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES HOWEVER CAUSED. TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW, THIS LIMITATION SHALL APPLY TO ANY AND ALL DAMAGES, REGARDLESS OF THE
LEGAL THEORY ON WHICH THEY ARE ASSERTED (INCLUDING, WITHOUT LIMITATION, CONTRACT, BREACH OF CONTRACT, AND
TORT), AND REGARDLESS OF WHETHER WE HAVE BEEN ADVISED OF THE POSSIBILITY OF LOSS OR DAMAGES - UNLESS YOU
PROVE THAT SRS CAUSED DAMAGES TO YOU INTENTIONALLY. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE
AMOUNT OF OUR LIABILITY WILL NOT EXCEED THE TOTAL PRICE YOU ACTUALLY PAY FOR THE DEVICE, THE ESSENTIAL PURPOSE
OF WHICH IS TO LIMIT OUR LIABILITY ARISING FROM OR RELATED TO THE PROGRAM AND ANY DATA RECOVERY SERVICES. THIS
ALLOCATION OF RISK IS REFLECTED IN THE PRICE CHARGED FOR THIS PROGRAM OR SERVICES, IF ANY. YOU ACKNOWLEDGE
THAT THE PRICE OF THIS PROGRAM WOULD BE MUCH GREATER IF WE UNDERTOOK MORE EXTENSIVE LIABILITY. THIS
PARAGRAPH WILL APPLY NOTWITHSTANDING ANY OTHER PROVISIONS IN THESE TERMS, OR THE FAILURE OF ANY REMEDY.

Rescue™ General Terms

Seagate IronWolf Pro SATA Product Manual, Rev. G 21

Compliance with Laws. You agree to comply with all such laws and regulations and all other applicable laws, statutes, ordinances and
regulations relating to the Program. You acknowledge that violations of these Program Terms could subject you to criminal or civil
penalties. The goods licensed or provided, or services provided, through the Program, which may include technology and software, are
subject to the customs and export control laws and regulations of the U.S. and may also be subject to the customs and export laws and
regulations of the country in which the products are manufactured or received. Further, under U.S. law, such goods may not be sold,
leased or otherwise transferred to restricted countries, or used by a restricted end-user or an end-user engaged in activities related to
weapons of mass destruction including, without limitation, activities related to designing, developing, producing or using nuclear
weapons, materials, or facilities, missiles or supporting missile projects, or chemical or biological weapons. You acknowledge you are not
a restricted end-user or involved in any of the restricted activities above, and that you will comply with and abide by these laws and
regulations. Seagate reserves the right to refuse service to or the return of any storage devices that have been determined to violate
these regulations.

Cancellation. You may cancel the Program at any time by contacting SRS at 1-800-SEAGATE (1-800-475-0143) in the US, or at such other
number available at http://services.seagate.com/contact.aspx, or you simply may refrain from submitting a request for Rescue services.
These Program Terms remain applicable to your and SRS’s rights and obligations with respect to any services requested by you under
this Program.

Assignment. You may not assign your rights or obligations under these Program Terms without SRS’ express written consent.
Dispute Resolution. The parties will attempt to resolve any dispute arising out of or related to these Program Terms or any data

recovery services requested or attempted hereunder through good faith negotiation. To the extent permitted by applicable law, if the
parties are unable to resolve the dispute through good faith negotiation, then the dispute will be submitted to final and binding
arbitration with the Judicial Arbitration and Mediation Services. Each party will bear its own costs in arbitration, provided that Seagate
reserves the right, in its discretion, to pre-pay certain fees you may incur in connection with the arbitration subject to refund if you do
not prevail. Both parties waive their rights to a jury trial. All proceedings will take place in Santa Clara County, California, USA. The
laws of the State of California will exclusively govern these Program Terms and our provision of any data recovery services, without
regard to California's conflicts of laws rules. You consent to the exclusive jurisdiction of the courts located in Santa Clara County,
California, USA.

Severability. If any provision of these Program Terms is held invalid, illegal or unenforceable, such provision shall be enforced to the
fullest extent permitted by applicable law and the validity, legality and enforceability of the remaining provisions shall not be affected
thereby.

Legal Effect. These Program Terms describe certain legal rights. You may have other rights under applicable law. These Program Terms
do not change your rights under applicable law if such laws do not permit these Program Terms to do so. Also, the Program and these
Program Terms are in addition and unrelated to any rights you may have under a Seagate warranty statement.

SRS Companies. The following SRS companies may provide the services described in these Program Terms: (a) Seagate Technology LLC,
with offices at 3101 Jay Street, Suite 110, Santa Clara, California 95054; (b) Seagate Technology Canada Inc., with offices at 2421 Bristol
Circle, Suite A100, Oakville, Ontario, Canada L6H 5S9; and/or (c) Seagate Technology (Netherlands) B.V., with offices at Koolhovenlaan 1,
1119 PA, Schiphol-Rijk, The Netherlands.

Seagate IronWolf Pro SATA Product Manual, Rev. G 22

3.0 Configuring and mounting the drive

This section contains the specifications and instructions for configuring and mounting the drive.

3.1 Handling and static-discharge precautions

After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD) hazards.
Observe the following standard handling and static-discharge precautions:

• Before handling th e drive, put on a grounded wrist strap, or ground oneself frequently by touching the metal chassis of a computer
that is plugged into a grounded outlet. Wear a grounded wrist strap throughout the entire installation procedure.

• Handle the drive by its edges or frame only.

Caution

3.2 Configuring the drive

Each drive on the Serial ATA interface connects point-to-point with the Serial ATA host adapter. There is no master/slave relationship
because each drive is considered a master in a point-to-point relationship. If two drives are attached on one Serial ATA host adapter,
the host operating system views the two devices as if they were both “masters” on two separate ports. Both drives behave as if they
are Device 0 (master) devices.

• The drive is extremely fragile—handle it with care. Do not press down on the drive top cover.

• Always rest the drive on a padded, antistatic surface until mounting it in the computer.

• Do not touch the connector pins or the printed circuit board.

• Do not remove the factory-installed labels from the drive or cover them with additional labels. Removal voids the warranty. Some
factory-installed labels contain information needed to service the drive. Other labels are used to seal out dirt and contamination.

3.3 Serial ATA cables and connectors

The Serial ATA interface cable consists of four conductors in two differential pairs, plus three ground
connections. The cable size may be 30 to 26 AWG with a maximum length of one meter (39.37 in).
See Table 6 for connector pin definitions. Either end of the SATA signal cable can be attached to the
drive or host.

For direct backplane connection, the drive connectors are inserted directly into the host receptacle.
The drive and the host receptacle incorporate features that enable the direct connection to be hot
pluggable and blind mateable.

For installations which require cables, users can connect the drive as illustrated in Figure 3.

Figure 3. Attaching SATA cabling

Each cable is keyed to ensure correct orientation. IronWolf Pro SATA drives support latching SATA connectors.

3.4 Drive mounting

Users can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottom-mounting holes.
See Figure 4 for drive mounting dimensions. Follow these important mounting precautions when mounting the drive:

• Allow a minimum clearance of 0.030 in (0.76mm) around the entire perimeter of the drive for cooling.

• Use only 6-32 UNC mounting screws.

• The screws should be inserted no more than 0.140 in (3.56mm) into the bottom or side mounting holes.

• Do not overtighten the mounting screws (maximum torque: 6 in-lb).

Seagate IronWolf Pro SATA Product Manual, Rev. G 23

3.4.1 Mechanical specifications

2X 1.750±.010

2X 3.000±.010

3X 3.750±.010

3X.125±.010

2X 1.432±.020

2X 1.625±.020

.814±.020

C

L

OF DRIVE

C

L

OF CONN

3X .250±.010

BOTH SIDES

1.122±.020

1.638±.010

4.000±.010

1.028 MAX

[26.10MM]

.138±.015

2.000

C

L

OF DRIVE

5.787 MAX

[147.00 MM]

4.000±.010

6X 6-32 UNC-2B
.14 THREAD DEPTH

0.160 ± 0.10 x 90

MAX TORQUE: 6 IN-LBS

6X 6-32 UNC-2B

.14 THREAD DEPTH

0.169 ± 0.16 x 90

MAX TORQUE: 6 IN-LBS

BREATHER HOLE
DO NOT COVER

Refer to Figure 4 for detailed mounting configuration dimensions. See “Drive mounting” on page 23.

Weight: 8TB & 6TB models 1.579 lb 716g

4TB models 1.431 lb 649g

Note

These dimensions conform to the Small Form Factor Standard documented in
SFF-8301 and SFF-8323, found at www.sffcommittee.org

Figure 4. Mounting configuration dimensions 8TB & 6TB models (Option 1)

Note The image is for mechanical dimension reference only and may not represent the actual drive.

Seagate IronWolf Pro SATA Product Manual, Rev. G 24

2X 3.750±.010

2X .125±.010

2X 1.625±.020

2X 1.750±.010

.814±.020

2X 1.432±.020

C

L

OF DRIVE

C

L

OF CONN

3X .250±.010

BOTH SIDES

1.122±.020

1.638±.010

4.000±.010

1.028 MAX

26.10 MM

2.000

.138±.015

C

L

OF DRIVE

5.787 MAX

[147.00 MM]

4.000±.010

6X 6-32 UNC-2B
.14 THREAD DEPTH

0.160 ± 0.10 x 90
MAX TORQUE: 6 IN-LBS

6X 6-32 UNC-2B
.14 THREAD DEPTH

0.169 ± 0.16 x 90

MAX TORQUE: 6 IN-LBS

BREATHER HOLE
DO NOT COVER

Figure 5. Mounting configuration dimensions 8TB & 6TB models (Option 2)

Figure 6. Mounting configuration dimensions 4TB models

Note The image is for mechanical dimension reference only and may not represent the actual drive.

Seagate IronWolf Pro SATA Product Manual, Rev. G 25

4.0 Serial ATA (SATA) interface

These drives use the industry-standard Serial ATA interface that supports FIS data transfers. It supports ATA programmed input/
output (PIO) modes 0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–6.

For detailed information about the Serial ATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification.

4.1 Hot-Plug compatibility

IronWolf Pro SATA drives incorporate connectors which enable users to hot plug these drives in accordance with the Serial ATA
Revision 3.2 specification. This specification can be downloaded from www.serialata.or

g.

Caution

The drive motor must come to a complete stop (Ready to spindle stop time indicated in Section 2.4)
prior to changing the plane of operation. This time is required to insure data integrity.

4.2 Serial ATA device plug connector pin definitions

Table 6 summarizes the signals on the Serial ATA interface and power connectors.

Table 6 Serial ATA connector pin definitions

Segment Pin Function Definition

S1 Ground 2nd mate

Signal

Power

S2 A+
S3 A­S4 Ground 2nd mate
S5 B­S6 B+
S7 Ground 2nd mate

Key and spacing separate signal and power segments

P1 V
P2 V
P3 V
P4 Ground 1st mate
P5 Ground 2nd mate
P6 Ground 2nd mate
P7 V
P8 V
P9 V
P10 Ground 2nd mate
P11 Ground or LED signal If grounded, drive does not use deferred spin
P12 Ground 1st mate.
P13 V
P14 V
P15 V

33

33

33

5

5

5

12

12

12

Differential signal pair A from Phy

Differential signal pair B from Phy

3.3V power

3.3V power

3.3V power, pre-charge, 2nd mate

5V power, pre-charge, 2nd mate
5V power
5V power

12V power, pre-charge, 2nd mate
12V power
12V power

Notes:

1. All pins are in a single row, with a 1.27mm (0.050”) pitch.

2. The comments on the mating sequence apply to the case of backplane blindmate connector only. In this case, the mating sequences are:

• the ground pins P4 and P12.

• the pre-charge power pins and the other ground pins.

• the signal pins and the rest of the power pins.

3. There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a blind-mate backplane config­uration.

4. All used voltage pins (V

) must be terminated.

x

Seagate IronWolf Pro SATA Product Manual, Rev. G 26

4.3 Supported ATA commands

The following table lists Serial ATA standard commands that the drive supports. For a detailed description of the ATA commands,
refer to the Serial ATA: High Speed Serialized AT Attachment specification. See “S.M.A.R.T. commands” on page 33.for details and
subcommands used in the S.M.A.R.T. implementation.

Table 7 Supported ATA commands

Command name Command code (in hex)

Accessible Max Address Configuration

Get Native Max Address Ext 78H / 0000

Set Accessible Max Address Ext 78H / 0001

Freeze Accessible Max Address Ext 78H / 0002

Check Power Mode E5

Download Microcode 92

Execute Device Diagnostics 90

Flush Cache E7

H

H

H

H

Flush Cache Extended EA

Identify Device EC

Idle E3

Idle Immediate E1

NoP 00

Read Buffer E4

Read Buffer DMA E9

H

H

H

H

H

H

Read DMA C8

Read DMA Extended 25

Read FPDMA Queued 60

Read Log DMA Ext 47

Read Log Ext 2F

H

H

H

H

Read Multiple C4

Read Multiple Extended 29

Read Sectors 20

Read Sectors Extended 24

Read Sectors Without Retries 21

Read Verify Sectors 40

Read Verify Sectors Extended 42

Read Verify Sectors Without Retries 41

Request Sense Data Ext 0B

H

H

H

H

H

H

H

H

Sanitize Device - Overwrite Ext B4H / 0014

Sanitize Device - Freeze Lock Ext B4H / 0020

Sanitize Device - Status Ext B4H / 0000

Security Disable Password F6

Security Erase Prepare F3

Security Erase Unit F4

Security Freeze F5

Security Set Password F1

Security Unlock F2

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

Seagate IronWolf Pro SATA Product Manual, Rev. G 27

Command name Command code (in hex)

Seek 70

Set Date & Time Ext 77

Set Features EF

Set Multiple Mode C6

Sleep E6

S.M.A.R.T. Disable Operations B0H / D9

S.M.A.R.T. Enable/Disable Autosave B0H / D2

S.M.A.R.T. Enable Operations B0H / D8

S.M.A.R.T. Execute Offline B0H / D4

S.M.A.R.T. Read Attribute Thresholds B0H / D1

S.M.A.R.T. Read Data B0H / D0

S.M.A.R.T. Read Log Sector B0H / D5

S.M.A.R.T. Return Status B0H / DA

S.M.A.R.T. Save Attribute Values B0H / D3

S.M.A.R.T. Write Log Sector B0H / D6

Standby E2

Standby Immediate E0

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

Trusted Send 5EH (SED drives only)

Trusted Send DMA 5FH (SED drives only)

Trusted Receive 5CH (SED drives only)

Trusted Receive DMA 5DH (SED drives only)

Write Buffer E8

Write Buffer DMA EB

Write DMA CA

Write DMA Extended 35

Write DMA FUA Extended 3D

Write FPDMA Queued 61

Write Log DMA Ext 57

Write Log Extended 3F

Write Multiple C5

Write Multiple Extended 39

Write Multiple FUA Extended CE

Write Sectors 30

Write Sectors Without Retries 31

Write Sectors Extended 34

Write Uncorrectable 45

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

Seagate IronWolf Pro SATA Product Manual, Rev. G 28

4.3.1 Identify Device command

The Identify Device command (command code ECH) transfers information about the drive to the host following power up. The data is
organized as a single 512-byte block of data, whose contents are shown in Table 7 on page 27. All reserved bits or words should be
set to zero. Parameters listed with an “x” are drive-specific or vary with the state of the drive. See Section 2.0 on page 7 for default
parameter settings.

The following commands contain drive-specific features that may not be included in the Serial ATA specification.

Word Description Value

Configuration information:

• Bit 15: 0 = ATA; 1 = ATAPI

0

1 Number of logical cylinders 16,383

• Bit 7: removable media

• Bit 6: removable controller

• Bit 0: reserved

0C5A

H

2 ATA-reserved 0000

3 Number of logical heads 16

4 Retired 0000

5 Retired 0000

6 Number of logical sectors per logical track: 63 003F

7–9 Retired 0000

10–19 Serial number: (20 ASCII characters, 0000H = none) ASCII

20-21 Retired 0000

22 Obsolete 0000

23–26 Firmware revision (8 ASCII character string, padded with blanks to end of string) x.xx

27–46 Drive model number: (40 ASCII characters, padded with blanks to end of string)

47 (Bits 7–0) Maximum sectors per interrupt on Read multiple and Write multiple (16) 8010

48 Trusted computing feature set options 4000

49 Standard Standby timer, IORDY supported and may be disabled 2F00

50 ATA-reserved 0000

51 PIO data-transfer cycle timing mode 0200

52 Retired 0200

53 Words 54–58, 64–70 and 88 are valid 0007

54-58 Obsolete xxxx

59 Number of sectors transferred during a Read Multiple or Write Multiple command xxxx

Total number of user-addressable LBA sectors available
(see Section 2.2 for related information)

60–61

*Note: The maximum value allowed in this field is: 0FFFFFFFh (268,435,455 sectors,

0FFFFFFFh*

137GB). Drives with capacities over 137GB will have 0FFFFFFFh in this field and the actual
number of user-addressable LBAs specified in words 100-103. This is required for drives
that support the 48-bit addressing feature.

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

62 Retired 0000

63 Multiword DMA active and modes supported (see note following this table) x407

64 Advanced PIO modes supported (modes 3 and 4 supported) 0003

65 Minimum multiword DMA transfer cycle time per word (120 ns) 0078

66 Recommended multiword DMA transfer cycle time per word (120 ns) 0078

67 Minimum PIO cycle time without IORDY flow control (120 ns) 0078

H

H

H

H

H

H

Seagate IronWolf Pro SATA Product Manual, Rev. G 29

Word Description Value

68 Minimum PIO cycle time with IORDY flow control (120 ns) 0078

69 Additional supported 00008

70–74 ATA-reserved 0000

75 Queue depth 001F

76 Serial ATA capabilities 8D0E

77 Reserved for future Serial ATA definition xxxx

78 Serial ATA features supported xxxx

79 Serial ATA features enabled xxxx

80 Major version number 0FE0

81 Minor version number FFFF

82 Command sets supported 306B

83 Command sets supported 7561

84 Command sets support extension (see note following this table)

85 Command sets enabled 3069

86 Command sets enabled B441

87 Command sets enable extension 6173

88 Ultra DMA support and current mode (see note following this table) 007F

89 Security erase time xxxx

90 Enhanced security erase time xxxx

92 Master password revision code FFFE

93 Hardware reset value xxxx

94 Obsolete 0000

95 Stream Minimum Request Size 0x1000

96 Streaming Transfer Time 0x0000

97 Streaming Access Latency 0x0000

6173

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

98-99 Streaming Performance Granularity 0x0000 2710

100–103

Total number of user-addressable LBA sectors available (see Section 2.2 for related infor­mation). These words are required for drives that support the 48-bit addressing feature.
Maximum value: 0000FFFFFFFFFFFFh.

8TB 5xx models = 15,628,053,168
6TB 5xx models = 11,721,045,168
4TB 5xx models = 3,907,029,168

H

104–105 ATA-reserved 0000

106 Physical/Logical sector size 6003

107 ATA-reserved 0000

108–111 The mandatory value of the world wide name (WWN) for the drive.

H

H

H

Each drive will have a unique value.

NOTE: This field is valid if word 84, bit 8 is set to 1 indicating 64-bit WWN support.

112–118 ATA-reserved 0000

119 Commands and feature sets supported 43DE

120 Commands and feature sets supported or enabled 409C

121-127 ATA-reserved 0000

128 Security status 0021

129–159 Seagate-reserved xxxx

160–205 ATA-reserved 0000

H

H

H

H

H

H

H

Seagate IronWolf Pro SATA Product Manual, Rev. G 30

Word Description Value

SCT Command Transport command set.

206

If bit 0 is set to one, then the device supports SCT Command Transport.
Bits 7:2 indicate individual SCT feature support.

xxBD

H

207-254 ATA-reserved 0000

255 Integrity word xxA5

Note

See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data.

Description (if bit is set to 1)

Bit Word 63

0 Multiword DMA mode 0 is supported.
1 Multiword DMA mode 1 is supported.
2 Multiword DMA mode 2 is supported.
8 Multiword DMA mode 0 is currently active.
9 Multiword DMA mode 1 is currently active.
10 Multiword DMA mode 2 is currently active.

Bit Word 84

0 SMART error logging is supported.
1 SMART self-test is supported.
2 Media serial number is supported.
3 Media Card Pass Through Command feature set is supported.
4 Streaming feature set is supported.
5 GPL feature set is supported.
6 WRITE DMA FUA EXT and WRITE MULTIPLE FUA EXT commands are supported.
7 WRITE DMA QUEUED FUA EXT command is supported.
8 64-bit World Wide Name is supported.
9-10 Obsolete.
11-12 Reserved for TLC.
13 IDLE IMMEDIATE command with IUNLOAD feature is supported.
14 Shall be set to 1.
15 Shall be cleared to 0.

Bit Word 88

0 Ultra DMA mode 0 is supported.
1 Ultra DMA mode 1 is supported.
2 Ultra DMA mode 2 is supported.
3 Ultra DMA mode 3 is supported.
4 Ultra DMA mode 4 is supported.
5 Ultra DMA mode 5 is supported.
6 Ultra DMA mode 6 is supported.
8 Ultra DMA mode 0 is currently active.
9 Ultra DMA mode 1 is currently active.
10 Ultra DMA mode 2 is currently active.
11 Ultra DMA mode 3 is currently active.
12 Ultra DMA mode 4 is currently active.
13 Ultra DMA mode 5 is currently active.
14 Ultra DMA mode 6 is currently active.

H

H

Seagate IronWolf Pro SATA Product Manual, Rev. G 31

4.3.2 Set Features command

This command controls the implementation of various features that the drive supports. When the drive receives this command, it
sets BSY, checks the contents of the Features register, clears BSY and generates an interrupt. If the value in the register does not
represent a feature that the drive supports, the command is aborted. Power-on default has the read look-ahead and write caching
features enabled. The acceptable values for the Features register are defined as follows

Table 8 Set Features command values

02

03

10

55

82

90

AA

F1

Enable write cache (default).

H

Set transfer mode (based on value in Sector Count register).

H

Sector Count register values:

Set PIO mode to default (PIO mode 2).

00

H

01

Set PIO mode to default and disable IORDY (PIO mode 2).

H

PIO mode 0

08

H

PIO mode 1

09

H

0A

PIO mode 2

H

PIO mode 3

0B

H

0C

PIO mode 4 (default)

H

Multiword DMA mode 0

20

H

Multiword DMA mode 1

21

H

22

Multiword DMA mode 2

H

Ultra DMA mode 0

40

H

Ultra DMA mode 1

41

H

42

Ultra DMA mode 2

H

Ultra DMA mode 3

43

H

Ultra DMA mode 4

44

H

45

Ultra DMA mode 5

H

Ultra DMA mode 6

46

H

Enable use of SATA features

H

Disable read look-ahead (read cache) feature.

H

Disable write cache

H

Disable use of SATA features

H

Enable read look-ahead (read cache) feature (default).

H

Report full capacity available

H

Note

At power-on, or after a hardware or software reset, the default values of the features are as indicated above.

Seagate IronWolf Pro SATA Product Manual, Rev. G 32

4.3.3 S.M.A.R.T. commands

S.M.A.R.T. provides near-term failure prediction for disk drives. When S.M.A.R.T. is enabled, the drive monitors predetermined drive
attributes that are susceptible to degradation over time. If self-monitoring determines that a failure is likely, S.M.A.R.T. makes a status
report available to the host. Not all failures are predictable. S.M.A.R.T. predictability is limited to the attributes the drive can monitor.
For more information on S.M.A.R.T. commands and implementation, see the Draft ATA-5 Standard.

SeaTools diagnostic software activates a built-in drive self-test (DST S.M.A.R.T. command for D4

) that eliminates unnecessary drive

H

returns. The diagnostic software ships with all new drives and is also available at:

http://www.seagate.com/support/downloads/seatools/

.

This drive is shipped with S.M.A.R.T. features disabled. Users must have a recent BIOS or software package that supports S.M.A.R.T. to
enable this feature. The table below shows the S.M.A.R.T. command codes that the drive uses.

Table 9 S.M.A.R.T. commands

Code in features register S.M.A.R.T. command

D0

D2

D3

D4

D5

D6

D8

D9

DA

H

H

H

H

H

H

H

H

H

S.M.A.R.T. Read Data

S.M.A.R.T. Enable/Disable Attribute Autosave

S.M.A.R.T. Save Attribute Values

S.M.A.R.T. Execute Off-line Immediate (runs DST)

S.M.A.R.T. Read Log Sector

S.M.A.R.T. Write Log Sector

S.M.A.R.T. Enable Operations

S.M.A.R.T. Disable Operations

S.M.A.R.T. Return Status

Note

If an appropriate code is not written to the Features Register, the
command is aborted and 0x 04 (abort) is written to the Error register.

Seagate IronWolf Pro SATA Product Manual, Rev. G 33

Seagate Technology LLC

AMERICAS Seagate Technology LLC 10200 South De Anza Boulevard, Cupertino, California 95014, United States, 408-658-1000

Publication Number: 100844774, Rev. G
March 2020
