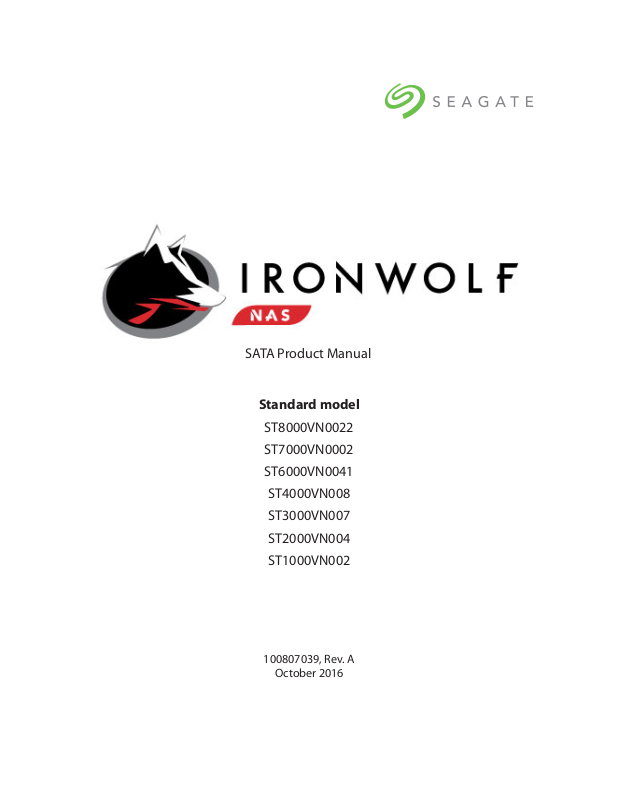

SATA Product Manual
Standard model
ST8000VN0022
ST7000VN0002
ST6000VN0041
ST4000VN008
ST3000VN007
ST2000VN004
ST1000VN002
100807039, Rev. A
October 2016
Document Revision History
Revision Date Pages affected and Description of Change
Rev. A 10/12/2016 Initial release.
© 2016, Seagate Technology LLC All rights reserved.
Publication number: 100807039, Rev. A October 2016
Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SeaTools is either trademarks or regis-
tered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property
of their respective owners.
No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC.
Call 877-PUB-TEK1 (877-782-8351) to request permission.
When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different
standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage.
Actual quantities will vary based on various factors, including file size, file format, features and application software. Actual data rates may vary depending on operating environment and
other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more
information, visit
www.bis.doc.gov), and controlled for import and use outside of the U.S. Seagate reserves the right to change, without notice, product offerings or specifications.
Contents
Seagate® Technology Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1 About the SATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.0 Drive Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1 Specification summary tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Formatted capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.2.1 LBA mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.3 Default logical geometry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.4 Seek time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.5 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.6 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.6.1 Power consumption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.6.2 Typical current profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.6.3 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.6.4 Voltage tolerance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.6.5 Power-management modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.7 Environmental specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.7.1 Drive case temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.7.2 Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.7.3 Temperature gradient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.7.4 Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.7.5 Altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.7.6 Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.7.7 Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.8 Acoustics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.8.1 Test for Prominent Discrete Tones (PDTs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.9 Electromagnetic immunity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.10 Reliability - Mean Time Between Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.10.1 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.12 Agency certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.12.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.12.2 Electromagnetic compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.12.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.13 Environmental protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.13.1 European Union Restriction of Hazardous Substances (RoHS) Directive. . . . . . . . . . . . . . 20
2.13.2 China Requirements — China RoHS 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.14 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Seagate IronWolf Product Manual, Rev. A 2
Contents
3.0 Configuring and Mounting the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.1 Handling and static-discharge precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.2 Configuring the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.3 SATA cables and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.4 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.0 SATA Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.1 Hot-Plug compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.2 SATA device plug connector pin definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.3 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.3.1 Identify Device command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.3.2 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4.3.3 S.M.A.R.T. commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Seagate IronWolf Product Manual, Rev. A 3
Figures
Figure 1 Typical Current Profile (5V & 12V). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 2 Attaching SATA cabling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

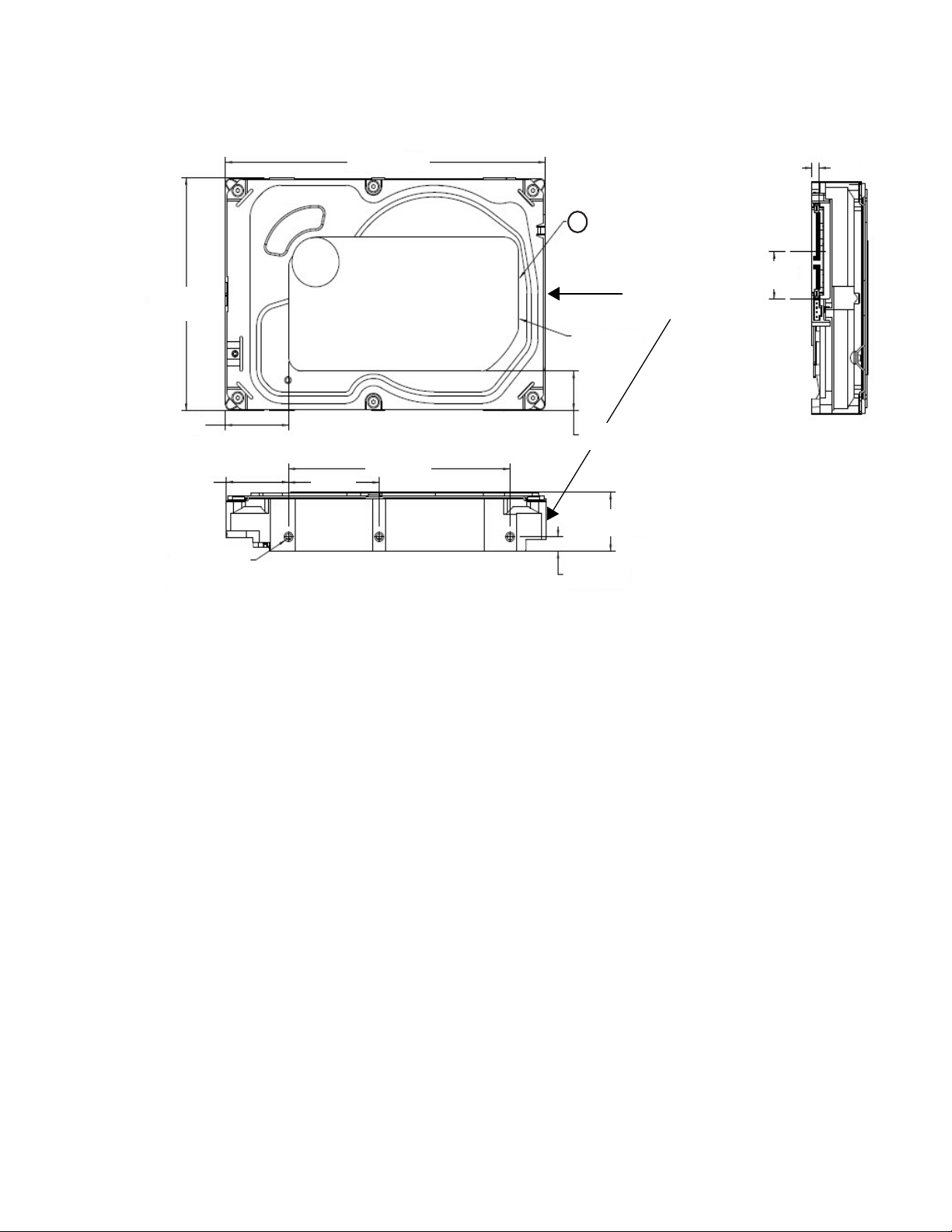

Figure 3 Mounting dimensions (6TB - 8TB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Figure 4 Mounting dimensions (2TB - 4TB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 5 Mounting dimensions (1TB). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Seagate IronWolf Product Manual, Rev. A 4
Seagate® Technology Support Services
For information regarding online support and services, visit: http://www.seagate.com/contacts/
For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/
For information regarding data recovery services, visit: http://www.seagate.com/services-software/data-recovery-services/
For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/
Seagate IronWolf Product Manual, Rev. A 5
1.0 Introduction
This manual describes the functional, mechanical and interface specifications for the following: Seagate® IronWolf
model drives:
ST8000VN0022 ST7000VN0002 ST6000VN0041
ST4000VN008 ST3000VN007 ST2000VN004 ST1000VN002
These drives provide the following key features:
• 24x7 capability
• Balance technology to support multiple drives in a system
• Compliant with RoHS requirements in China and Europe
• Full-track multiple-sector transfer capability without local processor intervention
• Low activity and idle power
• Low-RPM spindle speed
• Native Command Queuing with command ordering to increase performance in demanding applications
• Off-the-shelf compatibility
• Performance-tuned for RAID applications
• Rated for 1M hours MTBF
• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• State-of-the-art cache and on-the-fly error-correction algorithms
• Streaming video optimization - consistent command completion times & ERC support
• Support for S.M.A.R.T. drive monitoring and reporting
• Supports ATA8 streaming commands
• Supports latching SATA cables and connectors
• TGMR recording technology provides the drives with increased areal density.
• Worldwide Name (WWN) capability uniquely identifies the drive
TM
Seagate IronWolf Product Manual, Rev. A 6
www.seagate.com Introduction
1.1 About the SATA interface
The Serial ATA (SATA) interface provides several advantages over the traditional (parallel) ATA interface. The primary
advantages include:
• Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other
configuration options.
• Thinner and more flexible cabling for improved enclosure airflow and ease of installation.
• Scalability to higher performance levels.
In addition, SATA makes the transition from parallel ATA easy by providing legacy software support. SATA was designed to
allow users to install a SATA host adapter and SATA disk drive in the current system and expect all of the existing
applications to work as normal.
The SATA interface connects each disk drive in a point-to-point configuration with the SATA host adapter. There is no
master/slave relationship with SATA devices like there is with parallel ATA. If two drives are attached on one SATA host
adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. This
essentially means both drives behave as if they are Device 0 (master) devices.
The SATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward
compatibility with existing host systems and software. The Command and Control Block registers, PIO and DMA data
transfers, resets, and interrupts are all emulated.
The SATA host adapter contains a set of registers that shadow the contents of the traditional device registers, referred to as
the Shadow Register Block. All SATA devices behave like Device 0 devices. For additional information about how SATA
emulates parallel ATA, refer to the “Serial ATA International Organization: Serial ATA Revision 3.2”. The specification can be
downloaded from www.sata-io.org.
Note
The host adapter may, optionally, emulate a master/slave environment to host software where two
devices on separate SATA ports are represented to host software as a Device 0 (master) and Device 1
(slave) accessed at the same set of host bus addresses. A host adapter that emulates a master/slave
environment manages two sets of shadow registers. This is not a typical SATA environment.
Seagate IronWolf Product Manual, Rev. A 7
2.0 Drive Specifications
Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For
convenience, the phrases the drive and this drive are used throughout this manual to indicate the following drive models:
ST8000VN0022 ST7000VN0002 ST6000VN0041
ST4000VN008 ST3000VN007 ST2000VN004 ST1000VN002
2.1 Specification summary tables
The specifications listed in Table 1 are for quick reference. For details on specification measurement or definition, refer to
the appropriate section of this manual.
Table 1 Drive specifications summary for 8TB and 6TB models
Drive Specification* ST8000VN0022 ST7000VN0002 ST6000VN0041
Formatted capacity (512 bytes/sector)** 8000GB (8TB) 7000GB (7TB) 6000GB (6TB)
Guaranteed sectors 15,628,053,168 13,674,549,168 11,721,045,168
Heads 12
Disks 6
Bytes per sector
(4K physical emulated at 512-byte sectors)
Default sectors per track 63
Default read/write heads 16
Default cylinders 16,383
Recording density (max) 2177KBPI
Track density (avg) 370KTPI
Areal density (avg) 802Gb/in
Internal data transfer rate (max) 1981Mb/s
Maximum sustained data rate, OD read (MB/s) 210MB/s
ATA data-transfer modes supported
I/O data-transfer rate (max) 600MB/s
Cache buffer 256MB 128MB
Height (max) 26.11mm / 1.028 in
Width (max) 101.6mm / 4.010 in
Length (max) 146.99mm / 5.787 in
Weight (max) 780g / 1.72 lb
Average latency 4.0ms
Average seek, read (typical)
Average seek, write (typical)
Startup current (typical) 12V 1.8A
Voltage tolerance (including noise)
Non-Operating (Ambient °C) -40 to 70
Operating ambient temperature (min °C) 5
Operating temperature (drive case max °C) 70
Temperature gradient
Relative humidity
Multiword DMA modes: 0 to 2
Ultra DMA modes 0 to 6
20°C per hour max (operating)
30°C per hour max (nonoperating)
5% to 90% (operating)
5% to 95% (nonoperating)
4096
2
PIO modes: 0 to 4
<8.5ms
<9.5ms
5V: ±5%
12V: ±10%
†
Seagate IronWolf Product Manual, Rev. A 8
www.seagate.com Drive Specifications
Table 1 Drive specifications summary for 8TB and 6TB models (continued)
Drive Specification* ST8000VN0022 ST7000VN0002 ST6000VN0041
Relative humidity gradient (max) 30% per hour
Wet bulb temperature (max)
Altitude, operating
Altitude, non-operating
(below mean sea level, max)
Operational Shock (max)
Non-Operational Shock (max) 250 Gs at 2ms
2Hz to 22Hz: 0.25 Gs, Limited displacement
Vibration, operating
Vibration, non-operating
Drive acoustics, sound power
Idle***
Seek
Non-recoverable read errors 1 per 10
Mean time between failures (MTBF), hours 1M
Average annualized workload rating: <180 TB/year.
The AFR specification for the product assumes the I/O workload does not exceed
Rated Workload
the average annualized workload rate limit of 180 TB/year. Workloads exceeding
the annualized rate may degrade the product AFR and impact reliability as
experienced by the particular application. The average annualized workload rate
limit is in units of TB per calendar year.
To determine the warranty for a specific drive, use a web browser to access the
following web page:
Warranty
http://www.seagate.com/support/warranty-and-replacements/
From this page, click on “Is my Drive under Warranty”. Users will be asked to
provide the drive serial number, model number (or part number) and country of
purchase. The system will display the warranty information for the drive.
Load/Unload cycles (25°C, 50% rel. humidity) 600,000
Supports Hotplug operation per the
Serial ATA Revision 3.2 specification
26°C max (operating)
29°C max (nonoperating)
–304m to 3048m
(–1000 ft to 10,000 ft)
–304m to12,192m
(–1000ft to 40,000+ ft)
70 Gs at 2ms (read)
40 Gs at 2ms (write)
22Hz to 350Hz: 0.50 Gs
350Hz to 500Hz: 0.25 Gs
5Hz to 22Hz: 3.0 Gs
22Hz to 350Hz: 3.0 Gs
350Hz to 500Hz: 3.0 Gs
2.7 bels (typical)
2.8 bels (max)
2.8 bels (typical)
2.9 bels (max)
15
bits read
Ye s
The following table footnotes apply to Table 1 and Table 2:
* All specifications above are based on native configurations.
** One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity.
Accessible capacity may vary depending on operating environment and formatting.
*** During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification,
which may increase acoustic and power to operational levels.
†
Seagate does not recommend operating at sustained case temperatures above 60°C.
Operating at higher temperatures will reduce useful life of the product.
Seagate IronWolf Product Manual, Rev. A 9
www.seagate.com Drive Specifications
Table 2 Drive specifications summary for 4TB, 3TB and 2TB models
Drive Specification* ST4000VN008 ST3000VN007 ST2000VN004 ST1000VN002
Formatted capacity (512 bytes/sector)** 4000GB (4TB) 3000GB (3TB) 2000GB (2TB) 1000GB (1TB)
Guaranteed sectors 7,814,037,168 5,860,533,168 3,907,029,168 1,953,525,168
Heads 6 6/5 4 2
Disks 3 3 2 1
Bytes per sector
(4K physical emulated at 512-byte sectors)
Default sectors per track 63
Default read/write heads 16
Default cylinders 16,383
Recording density (max) 2089kBPI 1740kBPI 1807kFCI
Track density (avg) 388ktracks/in 346ktracks/in 352ktracks/in
Areal density (avg) 810Gb/in
2
Internal data transfer rate (max) 2107Mb/s 1813Mb/s 2147Mb/s
Maximum sustained data rate, OD read (MB/s) 180MB/s
ATA data-transfer modes supported
Multiword DMA modes: 0 to 2
Ultra DMA modes 0 to 6
I/O data-transfer rate (max) 600MB/s
Cache buffer 64MB
Height (max) 26.11mm / 1.028 in
Width (max) 101.6mm /4.010 in
Length (max) 146.99mm / 5.787 in
Weight (max) 635g / 1.345 lb 655g / 1.444 lb 580g / 1.279 lb 450g / 0.992 lb
Average latency 5.1ms
Power-on to ready (max) <17.0s <6.0s
Standby to ready (max) <17.0s <6.0s
Average seek, read (typical)
Average seek, write (typical)
<12.0ms
<12.0ms
Startup current (typical) 12V 1.8A 1.2A
Voltage tolerance (including noise)
Non-Operating (Ambient °C) -40 to 70
Operating ambient temperature (min °C) 5
Operating temperature (drive case max °C) 70
Temperature gradient
Relative humidity
20°C per hour max (operating)
30°C per hour max (nonoperating)
5% to 90% (operating)
5% to 95% (nonoperating)
Relative humidity gradient (max) 30% per hour
Wet bulb temperature (max)
Altitude, operating
26°C max (operating)
29°C max (nonoperating)
(–1000 ft to 10,000 ft)
Altitude, non-operating
(below mean sea level, max)
(–1000ft to 40,000+ ft)
Operational Shock (max) 80 Gs at 2ms
4096
613Gb/in
2
PIO modes: 0 to 4
5V: ±5%
12V: ±10%
†
–304m to 3048m
–304m to12,192m
625Gfc/in2
20.17mm
/ 0.794 in
<8.5ms
<19.5ms
Seagate IronWolf Product Manual, Rev. A 10
www.seagate.com Drive Specifications
Table 2 Drive specifications summary for 4TB, 3TB and 2TB models (continued)
Drive Specification* ST4000VN008 ST3000VN007 ST2000VN004 ST1000VN002
Non-Operational Shock (max) 300 Gs at 2ms
Vibration, operating
Vibration, non-operating
Drive acoustics, sound power
Idle***
Seek
Non-recoverable read errors 1 per 10
Mean time between failures (MTBF), hours 1M
Average annualized workload rating: <180 TB/year.
The AFR specification for the product assumes the I/O workload does not
Rated Workload
Warranty
Load/Unload cycles (25°C, 50% rel. humidity) 600,000
Contact start-stop cycles (25°C, 50% rel. humidity)
Supports Hotplug operation per the
Serial ATA Revision 3.2 specification
exceed the average annualized workload rate limit of 180 TB/year. Workloads
exceeding the annualized rate may degrade the product AFR and impact
reliability as experienced by the particular application. The average annualized
workload rate limit is in units of TB per calendar year.
To determine the warranty for a specific drive, use a web browser to access the
following web page:
http://www.seagate.com/support/warranty-and-replacements/
From this page, click on “Is my Drive under Warranty”. Users will be asked to
provide the drive serial number, model number (or part number) and country
of purchase. The system will display the warranty information for the drive.
2Hz to 22Hz: 0.25 Gs, Limited displacement
2.3 bels (typical)
2.4 bels (max)
2.5 bels (typical)
2.6 bels (max)
22Hz to 350Hz: 0.50 Gs
350Hz to 500Hz: 0.25 Gs
5Hz to 22Hz: 3.0 Gs
22Hz to 350Hz: 3.0 Gs
350Hz to 500Hz: 3.0 Gs
14
bits read
—
Ye s
1.9 bels (typical)
2.0 bels (max)
2.1 bels (typical)
2.2 bels (max)
—
50,000
2.2 Formatted capacity
Model
ST8000VN0022 8000GB 15,628,053,168
ST7000VN0002 7000GB 13,674,549,168
ST6000VN0041 6000GB 11,721,045,168
ST4000VN008 4000GB 7,814,037,168
ST3000VN007 3000GB 5,860,533,168
ST2000VN004 2000GB 3,907,029, 168
ST1000VN002 1000GB 1,953,525,168
*One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity. Accessible capacity may vary depending on
operating environment and formatting.
Formatted
capacity*
Guaranteed
sectors
Bytes per sector
4096
Seagate IronWolf Product Manual, Rev. A 11
www.seagate.com Drive Specifications
2.2.1 LBA mode
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the
number of guaranteed sectors as defined above.
See Section 4.3.1, "Identify Device command" (words 60-61 and 100-103) for additional information about 48-bit
addressing support of drives with capacities over 137GB.
2.3 Default logical geometry
• Cylinders: 16,383
• Read/write heads: 16
• Sectors per track: 63
LBA mode
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the
number of guaranteed sectors as defined above.
2.4 Seek time
Seek measurements are taken with nominal power at 25°C ambient temperature. All times are measured using drive
diagnostics. The specifications in the table below are defined as follows:
• Track-to-track seek time is an average of all possible single-track seeks in both directions.
• Average seek time is a true statistical random average of at least 5000 measurements of seeks between random tracks,
less overhead.
Typical seek times (ms) Read Write
Track-to-track 1.0 1.2
Average (1TB - 4TB models) <12.0 <12.0
Average (6TB - 8TB models) 8.5 9.5
Average latency (1TB - 4TB models) 5.1
Average latency (6TB and 8TB models) 4.0
These drives are designed to consistently meet the seek times represented in this manual. Physical
Note
seeks, regardless of mode (such as track-to-track and average), are expected to meet the noted values.
However, due to the manner in which these drives are formatted, benchmark tests that include
command overhead or measure logical seeks may produce results that vary from these specifications.
2.5 Start/stop times
The start/stop times listed below are for all models.
8TB and 7TB
models
Power-on to ready (in seconds) 30 (max)
Standby to ready (in seconds) 30 (max) 15 (typical) / 17 (max) <6 (max)
Ready to spindle stop (in seconds) 12 (max) 23 (max) 10 (typical) / 11 (max)
6TB models
23 (typical)
/ 30 (max)
2TB, 3TB and
4TB models
15 (typical) / 17 (max) <6 (max)
1TB models
Time-to-ready may be longer than normal if the drive power is removed without going through normal OS powerdown
procedures.
Seagate IronWolf Product Manual, Rev. A 12
www.seagate.com Drive Specifications
2.6 Power specifications
The drive receives DC power (+5V or +12V) through a native SATA power connector. Refer to Figure 2 on page 22.
2.6.1 Power consumption
Power requirements for the drives are listed in Table 6. Typical power measurements are based on an average of drives
tested, under nominal conditions, using 5.0V and 12.0V input voltage at 25°C ambient temperature.
• Spinup power
Spinup power is measured from the time of power-on to the time that the drive spindle reaches operating speed.
• Read/write power and current
Read/write power is measured with the heads on track, based on a 16-sector write followed by a 32-ms delay, then a
16-sector read followed by a 32-ms delay.
• Operating power and current
Operating power is measured using 40 percent random seeks, 40 percent read/write mode (1 write for each 10 reads)
and 20 percent drive idle mode.
• Idle mode power
Idle mode power is measured with the drive up to speed, with servo electronics active and with the heads in a random
track location.
• Standby mode
During Standby mode, the drive accepts commands, but the drive is not spinning, and the servo and read/write electronics are in power-down mode.
Table 3 DC power requirements for 1TB models
Power dissipation (1-disk values shown) Avg (watts 25°C) Avg 5V typ amps Avg 12V typ amps
Spinup — — 1.2
Idle* † 2.502 0.152 0.145
Operating 3.676 0.385 0.145
Standby 0.58 0.096 0.0084
Sleep 0.58 0.096 0.0084
Table 4 DC power requirements for 2TB models
Power dissipation (2-disk values shown)
Spinup
Idle* †
Operating
Standby
Sleep
Avg (watts 25°C) Avg 5V typ amps Avg 12V typ amps
— — 1.8
3.56 0.171 0.225
4.30 0.308 0.233
0.50 0.09 0.005
0.50 0.09 0.005
Seagate IronWolf Product Manual, Rev. A 13
www.seagate.com Drive Specifications
Table 5 DC power requirements for 3TB and 4TB models
Power dissipation (4-disk values shown)
Avg (watts 25°C) Avg 5V typ amps Avg 12V typ amps
Spinup — — 1.8
Idle* † 3.95 0.116 0.28
Operating 4.80 0.288 0.283
Standby 0.50 0.09 0.005
Sleep 0.50 0.09 0.005
Table 6 DC power requirements for 6TB - 8TB models
Power dissipation (6-disk values shown) Avg (watts 25° C) Avg 5V typ amps Avg 12V typ amps
Spinup — — 1.8
Idle* † 7.60 0.191 0.553
Operating 8.80 0.23 0.54
Standby 0.60 0.09 0.01
Sleep 0.60 0.09 0.01
* Idle1. During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification,
which may increase acoustic and power to operational levels.
† 5W IDLE with DIPLM Enabled
2.6.2 Typical current profile
Figure 1 Typical Current Profile (5V & 12V)
Seagate IronWolf Product Manual, Rev. A 14
www.seagate.com Drive Specifications
2.6.3 Conducted noise
Input noise ripple is measured at the host system power supply across an equivalent 80-ohm resistive load on the +12 volt
line or an equivalent 15-ohm resistive load on the +5 volt line.
• Using 12-volt power, the drive is expected to operate with a maximum of 120 mV peak-to-peak square-wave injected
noise at up to 10MHz.
• Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave injected
noise at up to 10MHz.
Note
Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current.
2.6.4 Voltage tolerance
Voltage tolerance (including noise):
• 5V ±5%
• 12V ±10%
2.6.5 Power-management modes
The drive provides programmable power management to provide greater energy efficiency. In most systems, users can
control power management through the system setup program. The drive features the following power-management
modes:
Power modes Heads Spindle Buffer
Active Tracking Rotating Enabled
Idle Tracking Rotating Enabled
Standby Parked Stopped Enabled
Sleep Parked Stopped Disabled
• Active mode
The drive is in Active mode during the read/write and seek operations.
• Idle mode
The buffer remains enabled, and the drive accepts all commands and returns to Active mode any time disk access is
necessary.
• Standby mode
The drive enters Standby mode when the host sends a Standby Immediate command. If the host has set the standby
timer, the drive can also enter Standby mode automatically after the drive has been inactive for a specifiable length of
time. The standby timer delay is established using a Standby or Idle command. In Standby mode, the drive buffer is
enabled, the heads are parked and the spindle is at rest. The drive accepts all commands and returns to Active mode
any time disk access is necessary.
• Sleep mode
The drive enters Sleep mode after receiving a Sleep command from the host. In Sleep mode, the drive buffer is disabled, the heads are parked and the spindle is at rest. The drive leaves Sleep mode after it receives a Hard Reset or Soft
Reset from the host. After receiving a reset, the drive exits Sleep mode and enters Standby mode with all current translation parameters intact.
• Idle and Standby timers
Each time the drive performs an Active function (read, write or seek), the standby timer is reinitialized and begins
counting down from its specified delay times to zero. If the standby timer reaches zero before any drive activity is
required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive accepts all commands and returns to Active mode when disk access is necessary.
Seagate IronWolf Product Manual, Rev. A 15
www.seagate.com Drive Specifications
2.7 Environmental specifications
This section provides the temperature, humidity, shock, and vibration specifications for NAS HDDs. This section provides
the temperature, humidity, shock, and vibration specifications.
2.7.1 Drive case temperature
Ambient temperature is defined as the temperature of the environment immediately surrounding the drive. Above 1000ft.
(305 meters), the maximum temperature is derated linearly by 1°C every 1000 ft. Drive case temperature should be
measured at the location indicated in Figure 4.
2.7.2 Temperature
Non-operating (Ambient) –40° to 70°C (–40° to 158°F)
Operating ambient (min °C) 5° (41°F)
Operating (Drive case max °C) 70 † (158°F)
†
Seagate does not recommend operating at sustained case temperatures above 60°C.
Operating at higher temperatures will reduce useful life of the product.
2.7.3 Temperature gradient
Operating 20°C per hour (36°F per hour max), without condensation
Non-operating 30°C per hour (54°F per hour max)
2.7.4 Humidity
2.7.4.1 Relative humidity
Operating 5% to 90% non-condensing (30% per hour max)
Nonoperating 5% to 95% non-condensing (30% per hour max)
2.7.4.2 Wet bulb temperature
Operating 26°C / 78.8°F (rated)
Non-operating 29°C / 84.2°F (rated)
2.7.5 Altitude
Operating –304m to 3048m (–1000 ft. to 10,000 ft.)
Non-operating –304m to 12,192m (–1000 ft. to 40,000+ ft.)
Seagate IronWolf Product Manual, Rev. A 16
www.seagate.com Drive Specifications
2.7.6 Shock
All shock specifications assume that the drive is mounted securely with the input shock applied at the drive mounting
screws. Shock may be applied in the X, Y or Z axis.
2.7.6.1 Operating shock
1TB - 4TB
These drives comply with the performance levels specified in this document when subjected to a maximum operating
shock of 80 Gs based on half-sine shock pulses of 2ms during read operations. Shocks should not be repeated more than 2
times per second.
6TB - 8TB
These drives comply with the performance levels specified in this document when subjected to a maximum operating
shock of 70 Gs based on half-sine shock pulses of 2ms during read operations. Shocks should not be repeated more than 2
times per second.
2.7.6.2 Non-operating shock
1TB - 4TB
The non-operating shock level that the drive can experience without incurring physical damage or degradation in
performance when subsequently put into operation is 300 Gs based on a non-repetitive half-sine shock pulse of 2ms
duration.
6TB - 8TB
The non-operating shock level that the drive can experience without incurring physical damage or degradation in
performance when subsequently put into operation is 250 Gs based on a non-repetitive half-sine shock pulse of 2ms
duration.
2.7.7 Vibration
All vibration specifications assume that the drive is mounted securely with the input vibration applied at the drive
mounting screws. Vibration may be applied in the X, Y or Z axis. Throughput may vary if improperly mounted.
2.7.7.1 Operating vibration
The maximum vibration levels that the drive may experience while meeting the performance standards specified in this
document are specified below.
2Hz to 22Hz 0.25 Gs (Limited displacement)
22Hz to 350Hz 0.50 Gs
350Hz to 500Hz 0.25 Gs
2.7.7.2 Non-operating vibration
The maximum non-operating vibration levels that the drive may experience without incurring physical damage or
degradation in performance when subsequently put into operation are specified below.
5Hz to 22Hz 3.0 Gs (Limited displacement)
22Hz to 350Hz 3.0 Gs
350Hz to 500Hz 3.0 Gs
Seagate IronWolf Product Manual, Rev. A 17
www.seagate.com Drive Specifications
2.8 Acoustics
Drive acoustics are measured as overall A-weighted acoustic sound power levels (no pure tones). All measurements are
consistent with ISO document 7779. Sound power measurements are taken under essentially free-field conditions over a
reflecting plane. For all tests, the drive is oriented with the cover facing upward.
For seek mode tests, the drive is placed in seek mode only.
Note
Table 7 Fluid Dynamic Bearing (FDB) motor acoustics
The number of seeks per second is defined by the following equation:
(Number of seeks per second = 0.4 / (average latency + average access time
Idle* Seek
1TB & 2TB models
3TB & 4TB models
6TB - 8TB models
*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to
operational levels.
1.9 bels (typ)
2.0 bels (max)
2.3 bels (typical)
2.4 bels (max)
2.7 bels (typical)
2.8 bels (max)
2.1 bels (typ)
2.2 bels (max)
2.5 bels (typical)
2.6 bels (max)
2.8 bels (typical)
2.9 bels (max)
2.8.1 Test for Prominent Discrete Tones (PDTs)
Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the
use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone
audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to
Annex D of the ECMA-74 standards.
2.9 Electromagnetic immunity
When properly installed in a representative host system, the drive operates without errors or degradation in performance
when subjected to the radio frequency (RF) environments defined in Table 8.
Table 8 Radio frequency environments
Test Description
Performance
level
Reference
standard
Electrostatic discharge Contact, HCP, VCP: ± 4 kV; Air: ± 8 kV B EN61000-4-2: 95
Radiated RF immunity 80MHz to 1,000MHz, 3 V/m,
80% AM with 1kHz sine
900MHz, 3 V/m, 50% pulse modulation @ 200Hz
Electrical fast transient ± 1 kV on AC mains, ± 0.5 kV on external I/O B EN61000-4-4: 95
Surge immunity ± 1 kV differential, ± 2 kV common,
AC mains
Conducted RF immunity 150kHz to 80MHz, 3 Vrms, 80% AM with 1kHz sine A EN61000-4-6: 97
Voltage dips, interrupts 0% open, 5 seconds
0% short, 5 seconds
40%, 0.10 seconds
70%, 0.01 seconds
Seagate IronWolf Product Manual, Rev. A 18
A EN61000-4-3: 96
B EN61000-4-5: 95
C
C
C
B
ENV50204: 95
EN61000-4-11: 94
www.seagate.com Drive Specifications
2.10 Reliability - Mean Time Between Failure
The product will achieve a Mean Time Between Failure Rate (MTBF) of 1,000,000 hours when operated in an environment
of ambient air temperatures of 25°C. Operation at temperatures outside the specifications shown in
decrease the product MTBF. MTBF is a population statistic that is not relevant to individual units.
• MTBF specifications are based on the following assumptions for NAS environments:
• 8760 power-on hours per year
• 10,000 average motor start/stop cycles per year
• Operations at nominal voltages
• Temperatures outside the specifications in
Operation at excessive I/O duty cycle may degrade product reliability. The NAS environment of power-on hours,
temperature, and I/O duty cycle affect the product MTBF. The MTBF will be degraded if used in an enterprise application.
Section 2.7 may reduce the product reliability.
Section 2.7 may
2.10.1 Storage
Maximum storage periods are 180 days within original unopened Seagate shipping package or 60 days unpackaged
within the defined non-operating limits (refer to environmental section in this manual). Storage can be extended to 1 year
packaged or unpackaged under optimal environmental conditions (25°C, <40% relative humidity non-condensing, and
non-corrosive environment). During any storage period the drive non-operational temperature, humidity, wet bulb,
atmospheric conditions, shock, vibration, magnetic and electrical field specifications should be followed.
2.11 Warranty
To determine the warranty for a specific drive, use a web browser to access the following web page:
http://www.seagate.com/support/warranty-and-replacements/
From this page, click on “Is my Drive under Warranty”. Users will be asked to provide the drive serial number, model
number (or part number) and country of purchase. The system will display the warranty information for the drive.
2.12 Agency certification
2.12.1 Safety certification
These products are certified to meet the requirements of UL60950-1, CSA60950-1 and EN60950 and so marked as to the
certify agency.
2.12.2 Electromagnetic compatibility
Hard drives that display the CE mark comply with the European Union (EU) requirements specified in the Electromagnetic
Compatibility Directive 2004/108/EC (Until 19th April, 2016) and 2014/30/EU (From 20th April, 2016). Testing is performed
to the levels specified by the product standards for Information Technology Equipment (ITE). Emission levels are defined
by EN 55022, Class B and the immunity levels are defined by EN 55024.
Drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with the directives when
used in the test systems, we cannot guarantee that all systems will comply with the directives. The drive is designed for
operation inside a properly designed enclosure, with properly shielded I/O cable (if necessary) and terminators on all
unused I/O ports. Computer manufacturers and system integrators should confirm EMC compliance and provide CE
marking for their products.
Seagate IronWolf Product Manual, Rev. A 19
Korean RRA
If these drives have the Korean Communications Commission (KCC) logo, they comply with paragraph 1 of Article 11 of the
Electromagnetic Compatibility control Regulation and meet the Electromagnetic Compatibility (EMC) Framework
requirements of the Radio Research Agency (RRA) Communications Commission, Republic of Korea.
These drives have been tested and comply with the Electromagnetic Interference/Electromagnetic Susceptibility (EMI/
EMS) for Class B products. Drives are tested in a representative, end-user system by a Korean-recognized lab..
ࣗط یࡈ߇ΰח
%
ɼࢽࡈ؏ܞݦࢢ
ࢇ Е ɼࢽࡈ% ࢷળࢶଢԻ۰ ࣯Ի
ɼࢽ߾۰ یࡈଜЕ ʨࡶ ּࢶࡳԻ ଜֲ ֻҘ
ࠇ߾۰یࡈଟܹݡТЬ
Australian RCM Compliance Mark
If these models have the RCM marking, they comply with the Australia/New Zealand Standard AS/NZS CISPR22: 2009 and
meet the Electromagnetic Compatibility (EMC) Framework requirements of the Australian Communication and Media
Authority (ACMA).
2.12.3 FCC verification
These drives are intended to be contained solely within a personal computer or similar enclosure (not attached as an
external device). As such, each drive is considered to be a subassembly even when it is individually marketed to the
customer. As a subassembly, no Federal Communications Commission verification or certification of the device is required.
Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disk drive,
motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part
15 of the FCC rules. Operation with non-certified assemblies is likely to result in interference to radio and television
reception.
Radio and television interference. This equipment generates and uses radio frequency energy and if not installed and
used in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception.
This equipment is designed to provide reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
interference to radio or television, which can be determined by turning the equipment on and off, users are encouraged to
try one or more of the following corrective measures:
• Reorient the receiving antenna.
• Move the device to one side or the other of the radio or TV.
• Move the device farther away from the radio or TV.
• Plug the computer into a different outlet so that the receiver and computer are on different branch outlets.
If necessary, users should consult the dealer or an experienced radio/television technician for additional suggestions.
Users may find helpful the following booklet prepared by the Federal Communications Commission: How to Identify and
Resolve Radio-Television Interference Problems. This booklet is available from the Superintendent of Documents,
U.S. Government Printing Office, Washington, DC 20402. Refer to publication number 004-000-00345-4.
2.13 Environmental protection
Seagate designs its products to meet environmental protection requirements worldwide, including regulations restricting
certain chemical substances.
2.13.1 European Union Restriction of Hazardous Substances (RoHS) Directive
The European Union Restriction of Hazardous Substances (RoHS) Directive, restricts the presence of chemical substances,
including Lead, Cadmium, Mercury, Hexavalent Chromium, PBB and PBDE, in electronic products, effective July 2006. This
drive is manufactured with components and materials that comply with the RoHS Directive.
Seagate IronWolf Product Manual, Rev. A 20
www.seagate.com Drive Specifications
2.13.2 China Requirements — China RoHS 2
China RoHS 2 refers to the Ministry of Industry and Information Technology Order No. 32, effective July 1, 2016, titled
Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products. To
comply with China RoHS 2, we determined this product's Environmental Protection Use Period (EPUP) to be 20 years in
accordance with the Marking for the Restricted Use of Hazardous Substances in Electronic and Electrical Products, SJT 11364-
2014.
ѝഭ⭥ಘ⭥ᆀӗ૱ᴹᇣ⢙䍘䲀ࡦ֯⭘㇑⨶࣎⌅
(Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and
Electronic Products _ China RoHS)
ӗ૱ѝᴹᇣ⢙䍘Ⲵ〠৺䟿
(Name and Content of the Hazardous Substances in Product)
Table 9 Hazardous Substances
᭷ᐖ≀䍘
Hazardous Substances
㒊௳ྡ⛠
Part Name
༳ๅ䓝嶗㜧乬
PCBA
ᮘ
Chassis
ᵜ㺘Ṭᦞ SJ/T 11364 Ⲵ㿴ᇊ㕆ࡦDŽ
This table is prepared in accordance with the provisions of SJ/T 11364-2014
O˖㺘⽪䈕ᴹᇣ⢙䍘൘䈕䜘Ԧᡰᴹ൷䍘ᶀᯉѝⲴ䟿൷൘ GB/T 26572 㿴ᇊⲴ䲀䟿㾱≲ԕлDŽ
O: Indicates that the hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement of GB/T26572.
X˖㺘⽪䈕ᴹᇣ⢙䍘㠣ቁ൘䈕䜘ԦⲴḀа൷䍘ᶀᯉѝⲴ䟿䎵ࠪ GB/T 26572 㿴ᇊⲴ䲀䟿㾱≲DŽ
X: Indicates that the hazardous substance contained in at least one of the homogeneous materials used for this part is above the
limit requirement of GB/T26572.
䫵
Lead
(Pb)
XO O O O O
XO O O O O
ợ
Mercury
(Hg)
䭹
Cadmium
(Cd)
භ௴䬜
Hexavalent Chromium
(CF (VI))
ከ⁏㚄Ɽ
Polybrominated
biphenyls (PBB)
diphenyl ethers (PBDE)
20
ከ⁏Ɽ慂
Polybrominated
2.16 Corrosive environment
Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light industrial
environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845. However, this
accelerated testing cannot duplicate every potential application environment. Users should use caution exposing any
electronic components to uncontrolled chemical pollutants and corrosive chemicals as electronic drive component
reliability can be affected by the installation environment. The silver, copper, nickel and gold films used in Seagate
products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the
most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the
printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%. Materials used in
cabinet fabrication, such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated.
The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free
alternatives.
Seagate IronWolf Product Manual, Rev. A 21
3.0 Configuring and Mounting the Drive
This section contains the specifications and instructions for configuring and mounting the drive.
3.1 Handling and static-discharge precautions
After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD)
hazards. Observe the following standard handling and static-discharge precautions:
Caution
• Before handling the drive, put on a grounded wrist strap, or ground oneself frequently by touching the metal chassis of
a computer that is plugged into a grounded outlet. Wear a grounded wrist strap throughout the entire installation
procedure.
• Handle the drive by its edges or frame only.
• The drive is extremely fragile—handle it with care. Do not press down on the drive top cover.
• Always rest the drive on a padded, antistatic surface until mounting it in the computer.
• Do not touch the connector pins or the printed circuit board.
• Do not remove the factory-installed labels from the drive or cover them with additional labels. Removal voids the warranty.
Some factory-installed labels contain information needed to service the drive. Other labels are used to seal out dirt and
contamination.
3.2 Configuring the drive
Each drive on the SATA interface connects point-to-point with the SATA host adapter. There is no master/slave relationship
because each drive is considered a master in a point-to-point relationship. If two drives are attached on one SATA host
adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. Both drives
behave as if they are Device 0 (master) devices.
SATA drives are designed for easy installation. It is usually not necessary to set any jumpers on the drive for proper
operation; however, if users connect the drive and receive a “drive not detected” error, the SATA-equipped motherboard or
host adapter may use a chipset that does not support SATA speed autonegotiation.
3.3 SATA cables and connectors
The SATA interface cable consists of four conductors in two differential pairs, plus three ground connections. The cable size
may be 30 to 26 AWG with a maximum length of one meter (39.37 inches). See Table 10 for connector pin definitions.
Either end of the SATA signal cable can be attached to the drive or host.
For direct backplane connection, the drive connectors are inserted directly into the host receptacle. The drive and the host
receptacle incorporate features that enable the direct connection to be hot pluggable and blind mateable.
For installations which require cables, users can connect the drive as illustrated in Figure 2.
Figure 2 Attaching SATA cabling
Signal connector
Power connector
Signal cable
Power cable
Each cable is keyed to ensure correct orientation. IronWolf drives support latching SATA connectors.
Seagate IronWolf Product Manual, Rev. A 22
3.4 Drive mounting
Users can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottommounting holes. Refer to Figure 4 for drive mounting dimensions. Follow these important mounting precautions when
mounting the drive:
• Allow a minimum clearance of 0.030 inches (0.76mm) around the entire perimeter of the drive for cooling.
• Use only 6-32 UNC mounting screws.
• The screws should be inserted no more than 0.120 inch (3.05mm) into the bottom or side mounting holes.
• Do not overtighten the mounting screws (maximum torque: 6 inch-lb).
Figure 3 Mounting dimensions (6TB - 8TB)
4X 6-32 UNC 2B
3 MIN THREAD DEPTH
.12 MAX FASTENER PENETRATION
MOUNTING HOLE.
MAX TORQUE 6 IN/LBS
2X 3.000±.010
2X 1.625±.020
1.432±.019
Temperature
Check Point
1.028 MAX
26.11 MM
.142±.015
2
.127±.010
2
2X 4.000±.010
C
OF DRIVE
L
.814±.020 2
3.750±.010
4.000±.010
2.000
C
OF DRIVE
L
B
C
OF CONN
L
Y
Z
2X 1.122±.020
.250±.010
Z
5.787 MAX
146.99 MM
Y
2X 6-32 UNC 2B
3 MIN THREAD DEPTH
.12 MAX FASTENER PENETRATION
MOUNTING HOLES BOTH SIDES.
MAX TORQUE 6 IN/LBS
Seagate IronWolf Product Manual, Rev. A 23
www.seagate.com Configuring and Mounting the Drive
Figure 4 Mounting dimensions (2TB - 4TB)
4.010 in max
101.85 mm
1.140 ± .050 in
28.96 ± 1.27 mm
1.122
1.22 ± .020 in
30.99 ± .51 mm
28.50
3X 6-32 UNC-2B
3 MIN THREAD DEPTH
.120
0.15 MAX FASTENER
MOUNTING HOLES
BOTH SIDES
1.638 in
41.61 mm
PENETRATION
5.787 in max
146.99 mm
4.00 in
101.60 mm
5 TYP
Temperature
Check Point
TOP OF LABEL
0.680 ± .050 in
17.27 ± 1.27 mm
1.028 in max
26.11 mm
3x 0.250 ± .010 in
6.35 ± .25 mm
BOTH SIDES
C
OF CONNECTOR
L
DATUM B
0.814 in
20.68 mm
C
OF DRIVE
L
0.138 in
3.51 mm
Seagate IronWolf Product Manual, Rev. A 24
www.seagate.com Configuring and Mounting the Drive
Figure 5 Mounting dimensions (1TB)
5.787 in. max
146.99 mm
1.106 ± .050 in
28.09 ± 1.27 mm
TOP OF LABEL
0.626 ± .050 in
15.90 ± 1.27 mm
4.010 in. max
101.85 mm
0.787 in. max
19.99 mm
3x .250 ± .010in
6.35 ± .25mm
BOTH SIDES
5 TYP
TEMPERATURE
CHECKPOINT
1.22 ± .020 in
30.99 ± .51 mm
3X 6-32 UNC-2B
3 MINIMUM THREAD DEPTH
0.12 MAXIMUM FASTENER
PENETRATION BOTH SIDES
2x 1.625 ± .020 in
41.28 ± .51 mm
4X 6-32 UNC-2B
3 MINIMUM THREAD DEPTH
0.12 MAXIMUM FASTENER
PENETRATION
2x 3.750 in
95.25 mm
2x 0.125 in
3.18 mm
2x 1.750 in
44.45 mm
4.00 in
101.60 mm
1.638 in
41.61 mm
0.814 in
20.68 mm
0.138 in
3.51 mm
C
OF DRIVE
L
C
OF CONNECTOR
L
DATUM B
Seagate IronWolf Product Manual, Rev. A 25
www.seagate.com SATA Interface
4.0 SATA Interface
These drives use the industry-standard Serial ATA (SATA) interface that supports FIS data transfers. It supports ATA
programmed input/output (PIO) modes 0 to 4; multiword DMA modes 0 to 2, and Ultra DMA modes 0 to 6.
For detailed information about the SATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment”
specification.
4.1 Hot-Plug compatibility
IronWolf drives incorporate connectors which enable users to hot plug these drives in accordance with the SATA Revision
3.2 specification. This specification can be downloaded from www.serialata.org.
4.2 SATA device plug connector pin definitions
Table 10 summarizes the signals on the SATA interface and power connectors.
Table 10 SATA connector pin definitions
Segment Pin Function Definition
Signal S1 Ground 2nd mate
S2 A+
S3 A-
S4 Ground 2nd mate
S5 B-
S6 B+
S7 Ground 2nd mate
Key and spacing separate signal and power segments
Power P1 V
P2 V
P3 V
P4 Ground 1st mate
P5 Ground 2nd mate
P6 Ground 2nd mate
P7 V
P8 V
P9 V
P10 Ground 2nd mate
P11 Ground or LED signal If grounded, drive does not use deferred spin
P12 Ground 1st mate.
P13 V
P14 V
P15 V
33
33
33
5
5
5
12
12
12
Notes
1. All pins are in a single row, with a 1.27 mm (0.050 in) pitch.
Differential signal pair A from Phy
Differential signal pair B from Phy
3.3V power
3.3V power
3.3V power, pre-charge, 2nd mate
5V power, pre-charge, 2nd mate
5V power
5V power
12V power, pre-charge, 2nd mate
12V power
12V power
2. The comments on the mating sequence apply to the case of backplane blindmate connector only. In this case, the
mating sequences are:
• the ground pins P4 and P12.
• the pre-charge power pins and the other ground pins.
• the signal pins and the rest of the power pins.
3. There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a
blind-mate backplane configuration.
• All used voltage pins (Vx) must be terminated.
Seagate IronWolf Product Manual, Rev. A 26
www.seagate.com SATA Interface
4.3 Supported ATA commands
The following table lists SATA standard commands that the drive supports.
For a detailed description of the ATA commands, refer to the Serial ATA International Organization:
Serial ATA Revision 3.2 (http://www.sata-io.org).
See “S.M.A.R.T. commands” on page 34 for details and subcommands used in the S.M.A.R.T. implementation.
Table 11 SATA standard commands
Command name Command code (in hex)
Check Power Mode E5
Device Configuration Freeze Lock B1H / C1
Device Configuration Identify B1H / C2
Device Configuration Restore B1H / C0
Device Configuration Set B1H / C3
Device Reset 08
Download Microcode 92
Execute Device Diagnostics 90
Flush Cache E7
Flush Cache Extended EA
Format Track 50
Identify Device EC
Idle E3
Idle Immediate E1
Initialize Device Parameters 91
Read Buffer E4
Read DMA C8
Read DMA Extended 25
Read DMA Without Retries C9
Read Log Ext 2F
Read Multiple C4
Read Multiple Extended 29
Read Native Max Address F8
Read Native Max Address Extended 27
Read Sectors 20
Read Sectors Extended 24
Read Sectors Without Retries 21
Read Verify Sectors 40
Read Verify Sectors Extended 42
Read Verify Sectors Without Retries 41
Recalibrate 10
Security Disable Password F6
Security Erase Prepare F3
Security Erase Unit F4
Security Freeze F5
Security Set Password F1
Security Unlock F2
Seek 70
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
Seagate IronWolf Product Manual, Rev. A 27
www.seagate.com SATA Interface
Table 11 SATA standard commands (continued)
Command name Command code (in hex)
Set Features EF
Set Max Address F9
Note: Individual Set Max Address
commands are identified by the value
placed in the Set Max Features register
as defined to the right.
Set Max Address Extended 37
Set Multiple Mode C6
Sleep E6
S.M.A.R.T. Disable Operations B0H / D9
S.M.A.R.T. Enable/Disable Autosave B0H / D2
S.M.A.R.T. Enable Operations B0H / D8
S.M.A.R.T. Execute Offline B0H / D4
S.M.A.R.T. Read Attribute Thresholds B0H / D1
S.M.A.R.T. Read Data B0H / D0
S.M.A.R.T. Read Log Sector B0H / D5
S.M.A.R.T. Return Status B0H / DA
S.M.A.R.T. Save Attribute Values B0H / D3
S.M.A.R.T. Write Log Sector B0H / D6
Standby E2
Standby Immediate E0
Write Buffer E8
Write DMA CA
Write DMA Extended 35
Write DMA FUA Extended 3D
Write DMA Without Retries CB
Write Log Extended 3F
Write Multiple C5
Write Multiple Extended 39
Write Multiple FUA Extended CE
Write Sectors 30
Write Sectors Without Retries 31
Write Sectors Extended 34
Write Uncorrectable 45
H
H
Address:
Password:
Lock:
Unlock:
Freeze Lock:
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
00
01
02
03
04
H
H
H
H
H
Seagate IronWolf Product Manual, Rev. A 28
www.seagate.com SATA Interface
4.3.1 Identify Device command
The Identify Device command (command code ECH) transfers information about the drive to the host following power up.
The data is organized as a single 512-byte block of data, whose contents are shown in on page 27. All reserved bits or
words should be set to zero. Parameters listed with an “x” are drive-specific or vary with the state of the drive.
The following commands contain drive-specific features that may not be included in the SATA specification.
Table 12 Identify Device commands
Word Description Value
Configuration information:
0
• Bit 7: removable media
• Bit 6: removable controller
• Bit 0: reserved
1 Number of logical cylinders 16,383
• Bit 15: 0 = ATA; 1 = ATAPI
0C5A
H
2 ATA-reserved 0000
3 Number of logical heads 16
4 Retired 0000
5 Retired 0000
6 Number of logical sectors per logical track: 63 003F
7–9 Retired 0000
10–19 Serial number: (20 ASCII characters, 0000H = none) ASCII
20 Retired 0000
21 Retired 0400
22 Obsolete 0000
23–26 Firmware revision (8 ASCII character string, padded with blanks to end of string) x.xx
27–46 Drive model number: (40 ASCII characters, padded with blanks to end of string)
47 (Bits 7–0) Maximum sectors per interrupt on Read multiple and Write multiple (16) 8010
48 Reserved 0000
49 Standard Standby timer, IORDY supported and may be disabled 2F00
50 ATA-reserved 0000
51 PIO data-transfer cycle timing mode 0200
52 Retired 0200
53 Words 54–58, 64–70 and 88 are valid 0007
54 Number of current logical cylinders xxxx
55 Number of current logical heads xxxx
56 Number of current logical sectors per logical track xxxx
57–58 Current capacity in sectors xxxx
59 Number of sectors transferred during a Read Multiple or Write Multiple command xxxx
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
Seagate IronWolf Product Manual, Rev. A 29
www.seagate.com SATA Interface
Table 12 Identify Device commands (continued)
Word Description Value
Total number of user-addressable LBA sectors available
(see Section 2.2 for related information)
60–61
*Note: The maximum value allowed in this field is: 0FFFFFFFh (268,435,455 sectors,
137GB). Drives with capacities over 137GB will have 0FFFFFFFh in this field and the
actual number of user-addressable LBAs specified in words 100-103. This is required
for drives that support the 48-bit addressing feature.
0FFFFFFFh*
62 Retired 0000
63 Multiword DMA active and modes supported (see note following this table) xx07
64 Advanced PIO modes supported (modes 3 and 4 supported) 0003
65 Minimum multiword DMA transfer cycle time per word (120 nsec) 0078
66 Recommended multiword DMA transfer cycle time per word (120 nsec) 0078
67 Minimum PIO cycle time without IORDY flow control (240 nsec) 0078
68 Minimum PIO cycle time with IORDY flow control (120 nsec) 0078
69–74 ATA-reserved 0000
75 Queue depth 001F
76 SATA capabilities xxxx
77 Reserved for future SATA definition xxxx
78 SATA features supported xxxx
79 SATA features enabled xxxx
80 Major version number 01F0
81 Minor version number 0028
82 Command sets supported 364B
83 Command sets supported 7F09
84 Command sets support extension (see note following this table) 4163
85 Command sets enabled 30xx
86 Command sets enabled BE09
87 Command sets enable extension 4163
88 Ultra DMA support and current mode (see note following this table) xx7F
89 Security erase time 0039
90 Enhanced security erase time 0039
92 Master password revision code FFFE
93 Hardware reset value xxxx
94 Automatic acoustic management 8080
95 Stream Min. Request Size 0000
96 Streaming Transfer Time - DMA 0000
97 Streaming Access Latency - DMA and PIO 0000
98–99 Streaming Performance Granularity 0000
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
Seagate IronWolf Product Manual, Rev. A 30
www.seagate.com SATA Interface
Table 12 Identify Device commands (continued)
Word Description Value
ST1000VN002 = 1,953,525,168
ST2000VN004 = 3,907,029,168
ST3000VN007 = 5,860,533,168
ST4000VN008 = 7,814,037,168
ST6000VN0041 = 11,721,045,168
ST7000VN0002 = 13,674,549,168
ST8000VN0022 = 15,628,053,168
100–103
Total number of user-addressable LBA sectors available
(see Section 2.2 for related information).
These words are required for drives that support the 48-bit addressing feature.
Maximum value: 0000FFFFFFFFFFFFh.
104 Streaming Transfer Time - PIO 0000
105–107 ATA-reserved 0000
108–111
The mandatory value of the world wide name (WWN) for the drive.
NOTE: This field is valid if word 84, bit 8 is set to 1 indicating 64-bit WWN support.
Each drive will have
a unique value.
112–127 ATA-reserved 0000
128 Security status 0001
129–159 Seagate-reserved xxxx
160–254 ATA-reserved 0000
255 Integrity word xxA5
Note
Note
Advanced Power Management (APM) and Automatic Acoustic Management (AAM) features are not supported.
See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data.
H
H
H
H
H
H
H
Seagate IronWolf Product Manual, Rev. A 31
www.seagate.com SATA Interface
Description (if bit is set to 1)
Bit Word 63
0 Multiword DMA mode 0 is supported.
1 Multiword DMA mode 1 is supported.
2 Multiword DMA mode 2 is supported.
8 Multiword DMA mode 0 is currently active.
9 Multiword DMA mode 1 is currently active.
10 Multiword DMA mode 2 is currently active.
Bit Word 84
0 SMART error login is supported.
1 SMART self-test is supported.
2 Media serial number is supported.
3 Media Card Pass Through Command feature set is supported.
4 Streaming feature set is supported.
5 GPL feature set is supported.
6 WRITE DMA FUA EXT and WRITE MULTIPLE FUA EXT commands are supported.
7 WRITE DMA QUEUED FUA EXT command is supported.
8 64-bit World Wide Name is supported.
9-10 Obsolete.
11-12 Reserved for TLC.
13 IDLE IMMEDIATE command with IUNLOAD feature is supported.
14 Shall be set to 1.
15 Shall be cleared to 0.
Bit Word 88
0 Ultra DMA mode 0 is supported.
1 Ultra DMA mode 1 is supported.
2 Ultra DMA mode 2 is supported.
3 Ultra DMA mode 3 is supported.
4 Ultra DMA mode 4 is supported.
5 Ultra DMA mode 5 is supported.
6 Ultra DMA mode 6 is supported.
8 Ultra DMA mode 0 is currently active.
9 Ultra DMA mode 1 is currently active.
10 Ultra DMA mode 2 is currently active.
11 Ultra DMA mode 3 is currently active.
12 Ultra DMA mode 4 is currently active.
13 Ultra DMA mode 5 is currently active.
14 Ultra DMA mode 6 is currently active.
Seagate IronWolf Product Manual, Rev. A 32
www.seagate.com SATA Interface
4.3.2 Set Features command
This command controls the implementation of various features that the drive supports. When the drive receives this
command, it sets BSY, checks the contents of the Features register, clears BSY and generates an interrupt. If the value in the
register does not represent a feature that the drive supports, the command is aborted. Power-on default has the read lookahead and write caching features enabled. The acceptable values for the Features register are defined as follows:
Table 13 Set Features commands
02
03
06
07
10
55
82
86
90
AA
F1
H
H
H
H
H
H
H
H
H
H
Enable write cache (default).
Set transfer mode (based on value in Sector Count register).
Sector Count register values:
00
Set PIO mode to default (PIO mode 2).
H
01
Set PIO mode to default and disable IORDY (PIO mode 2).
H
08
PIO mode 0
H
09
PIO mode 1
H
0A
PIO mode 2
H
0B
PIO mode 3
H
0C
PIO mode 4 (default)
H
20
Multiword DMA mode 0
H
21
Multiword DMA mode 1
H
22
Multiword DMA mode 2
H
40
Ultra DMA mode 0
H
41
Ultra DMA mode 1
H
42
Ultra DMA mode 2
H
43
Ultra DMA mode 3
H
44
Ultra DMA mode 4
H
45
Ultra DMA mode 5
H
46
Ultra DMA mode 6
H
Enable the PUIS feature set
PUIS feature set device spin-up
Enable use of SATA features
Disable read look-ahead (read cache) feature
Disable write cache
Disable the PUIS feature set
Disable use of SATA features
Enable read look-ahead (read cache) feature (default).
H
Report full capacity available
Note
At power-on, or after a hardware or software reset, the default values of the features are as indicated above.
Seagate IronWolf Product Manual, Rev. A 33
www.seagate.com SATA Interface
4.3.3 S.M.A.R.T. commands
S.M.A.R.T. provides near-term failure prediction for disk drives. When S.M.A.R.T. is enabled, the drive monitors
predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines that a failure is
likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable. S.M.A.R.T. predictability is
limited to the attributes the drive can monitor. For more information on S.M.A.R.T. commands and implementation, see the
Draft ATA-5 Standard.
SeaTools diagnostic software activates a built-in drive self-test (DST S.M.A.R.T. command for D4
unnecessary drive returns. The diagnostic software ships with all new drives and is also available at:
http://seatools.seagate.com.
This drive is shipped with S.M.A.R.T. features enabled. Table 14 below shows the S.M.A.R.T. command codes that the drive
uses.
Table 14 S.M.A.R.T. commands
Code in features register S.M.A.R.T. command
) that eliminates
H
D0
D2
D3
D4
D5
D6
D8
D9
DA
H
H
H
H
H
H
H
H
H
Note
S.M.A.R.T. Read Data
S.M.A.R.T. Enable/Disable Attribute Autosave
S.M.A.R.T. Save Attribute Values
S.M.A.R.T. Execute Off-line Immediate (runs DST )
S.M.A.R.T. Read Log Sector
S.M.A.R.T. Write Log Sector
S.M.A.R.T. Enable Operations
S.M.A.R.T. Disable Operations
S.M.A.R.T. Return Status
If an appropriate code is not written to the Features Register, the
command is aborted and 0x 04 (abort) is written to the Error register.
Seagate IronWolf Product Manual, Rev. A 34
Seagate Technology LLC
AMERICAS Seagate Technology LLC 10200 South De Anza Boulevard, Cupertino, California 95014, United States, 408-658-1000
ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888
EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00
Publication Number: 100807039, Rev. A
October 2016
Loading...
