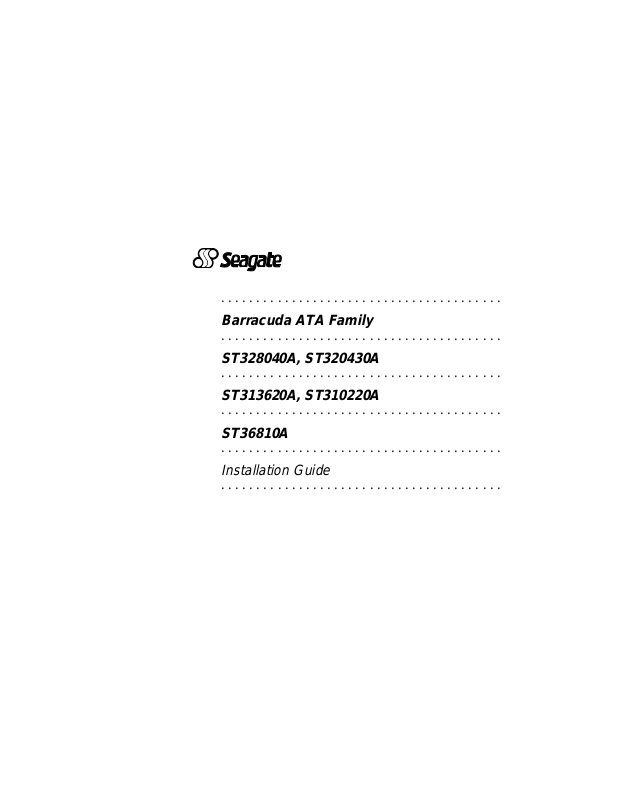

Seagate ST36810A, ST328040A, ST313620A, ST320430A, ST310220A User Manual

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Barracuda ATA Family

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ST328040A, ST320430A

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ST313620A, ST310220A

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ST36810A

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation Guide

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Seagate, Seagate Technology, the Seagate logo and Barracuda are registered trademarks of Seagate Technology, Inc. DiscWizard, SeaFAX, SeaFONE, SeaTDD and SeaBOARD are either trademarks or registered trademarks of Seagate Technology, Inc. or one of its subsidiaries. All other trademarks or registered trademarks are the property of their respective owners.

Barracuda ATA Family Installation Guide, Rev. A -1

Contents

The easiest way to install your drive .................................... 1

What you need........................................................................ 2

Ultra ATA/66 requirements..................................................... 2

Before you begin.................................................................... 2

Handling precautions.............................................................3

Master/slave jumpers............................................................. 4

Attaching cables and mounting the drive............................ 6

Configuring your computer................................................... 8

BIOS settings......................................................................9

Addressing drive-capacity limitations ...............................10

Preparing your drive for use ............................................... 12

Installation using Disk Manager........................................ 12

Standard DOS installation................................................ 14

Loading the Operating System.........................................15

Additional installation options............................................ 16

Non-ATA compatible slave jumper.................................... 16

Cable-select jumper.......................................................... 16

Advanced Disk Manager options........................................17

Troubleshooting................................................................... 20

Alternate capacity jumper.................................................22

Seagate Technology support services............................... 28

Storing and shipping your drive......................................... 35

iii

0 Barracuda ATA Family Installation Guide, Rev. A

Barracuda ATA Family Installation Guide, Rev. A 1

The easiest way to install your drive

DiscWizard is Seagate’s exclusive Windows program that is included with your drive for easy drive installation.

DiscWizard helps you configure your new drive and your computer. It analyzes your system, lets you select various installation options and creates customized step-by-step instructions. It also allows older computers to access the full capacity of large hard

before

drives. Run this software You can run DiscWizard to install your new hard drive if:

•

You already have an existing, bootable hard drive in your computer with at least 3 Mbytes of available disc space,

•

You are running Windows 95 or Windows 98.

To run DiscWizard:

•

Select Run from the Windows Start menu and type

where

If you cannot run DiscWizard, follow the instructions in this installation guide to install and configure your new drive.

is the drive letter of your diskette or CD-ROM.

installing your drive.

and

:\setup,

2 Barracuda ATA Family Installation Guide, Rev. A

What you need

•

Straight-edge and Phillips screwdrivers

•

Four 6-32 UNC drive mounting screws

•

A standard 40-pin ATA interface cable, cable to run Ultra ATA 66 (max length: 18 inches)

•

An unused drive power cable for your new drive

an 80-conductor

Ultra ATA/66 Requirements

The drive can support transfer rates up to 66 Mbytes per second in Ultra ATA/66 mode. For your dr ive to run in this mode you need the following:

•

A computer that supports UDMA modes 3 and 4

•

A 40-pin 80-conductor cable (maximum length 18 inches)

•

A software utility to activate Ultra ATA/66. Seagate provides a utility called UTA66.exe that is incl uded on y ou r CD, or you can download it from our Web site at www.Seagate.com.

•

The Windows 98 operating system

Before you begin

•

Make sure your computer is turned off before you open the case.

•

Read the handling precautions at the right and inspect the drive to make sure that it is not damaged.

•

Save your foam-lined Seagate disc drive box. This box has been approved by Seagate for shipping a Seagate disc drive. Using any other container or packing material voids your drive warranty.

Barracuda ATA Family Installation Guide, Rev. A 3

Handling precautions

Disc drives are extremely fragile. Do not drop or jar your drive.

Keep the drive in its antistatic bag until you are ready to install it.

Protect your dr ive from static dischar ge by making sure you are well grounded before touching the drive. We recommend wearing a grounded wrist strap throughout the installation process. Do not touch the connectors or any part of the printed circuit board.

Always handle the drive by its edges or frame.

Do not apply pressure or attach labels to the circuit board or the top of the drive.

4 Barracuda ATA Family Installation Guide, Rev. A

Master/slave jumpers

If you already have one hard drive in your computer and you are installing a seco nd driv e , y ou m ust c onf igure on e driv e as a ma ster and the other as a slave.

Note. If you need to change the jumpers on your existing hard

drive, see the Disk Manager online manual, look on the drive label, or contact the drive manufacturer.

Installing a master or one drive only:

•

The drive is shipped configured for a master or single-drive installation with a jumper set on pins 7 and 8.

Note. The master drive us ually de f au lts to bei ng the “b oot” driv e

(drive C), from which the computer loads system software when it first starts up.

Installing a slave drive:

•

If you are installing your drive as the second drive on the cable, remove all the jumpers.

Barracuda ATA Family Installation Guide, Rev. A 5

ATA interface

connector

pin 1

135

4-pin power

connector

Slave Master or single drive

Figure 1. Master and slave jumper settings

6 Barracuda ATA Family Installation Guide, Rev. A

Attaching cables and mounting the drive

1. Attach one end of the drive interface cable to the interface

connector on your motherboard (See your computer manual for connector locations).

Caution. Align pin 1 on the motherboard connector with

pin 1 on your drive connector. Pin 1 on is marked by a stripe on one side of the cable.

Pin 1

Figure 2. Attaching the cables Note. A 40-pin 80-conductor cable is required to r un in Ultra

blue

ATA/66 mode. Attach the

black

board, the and the

2. Attach the interface cable and the power connector to the new drive.

grey

connector to the master or single drive,

connector to the slave.

connector to the mother-

Computer

Motherboard

Barracuda ATA Family Installation Guide, Rev. A 7 Note. You can mount the drive in any orientation. Usually it is

mounted with the circuit board down.

Caution. Do not overtighten the screws or use metric

screws. This may damage the drive.

Figure 3. Mounting the drive

3. Secure the drive in the computer using four 6-32 UNC

mounting screws in either the side-mounting or bottommounting holes. Insert the screws no more than 0.22 inch (5.58 mm) into the bottom-mounting holes and no more than

0.20 inch (5.0 mm) into the side-mounting holes.

8 Barracuda ATA Family Installation Guide, Rev. A

Configuring your computer

Before yo u f ormat or partition y our ne w driv e , y ou m ust conf igure your computer’s BIOS.

To configure your computer’s BIOS:

1. Turn your computer on. As your computer starts up , w atch for

a message t hat descr ibes how to ru n the sy stem setu p program (also c alled BIOS or CM OS se tup). Th is is usual ly don e by pressing a special key, such as

DELETE, ESC OR F

startup. See your computer manual for details. Press the appropriate key to run the system setup program.

2. Select the BIOS hard drive settings menu. To set the drive parameters, ch oose Pr imar y Master o r Slave, Master or Slave.

3. Select automatic drive detection if available. Choosing this option automatically configures the computer for your new drive. If your BIOS doe s not provide automat ic drive detection, select “user-defined” drive settings and enter the CHS values from the table on page 9. These CHS values support drive capacities up to 8.4 Gbytes.

4. Verify that LBA mode is enabled. Many BIOS use the logical block addressing (LBA) mode to access drives with capacities greater than 528 Mbytes. Most BIOS automatically set this mode during the auto-detection process.

5. Enable UDMA mode if it is available.

Save th e se tti ngs an d exit the System Setup program. Your computer will automatically reboot.

, during

Secondary

Barracuda ATA Family Installation Guide, Rev. A 9

BIOS Settings

Drive Model Cylinders Heads Sectors

ST328040A
