Seagate ST3600957FC, ST3300457FC, ST3300557FC, ST3600857FC, ST3450757FC User Manual

...

Download

Product Manual

Cheetah 15K.7 FC

Standard models

ST3600057FC ST3450857FC ST3300657FC

Self-Encrypting Drive models

ST3600957FC ST3450757FC ST3300557FC

SED FIPS 140-2 models

ST3600857FC ST3450657FC ST3300457FC

100516225 Rev. C September 2010

Publication number: 100516225, Rev. C September 2010 Seagate, Seagate Technolo gy and the Wave logo are registered tradem arks of Se agate Technology

LLC in the United States and/or other countries. Cheetah and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.

No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC. Call 877-PUB-TEK1(877-782-8651) to request permission.

One gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer's operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Seagate reserves the right to change, without notice, product offerings or specifications

Contents

1.0 Seagate Technology support services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2.0 Scope. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

3.0 Applicable standards and reference documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3.1 Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3.1.1 Electromagnetic compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3.1.2 Electromagnetic compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3.2 European Union Restriction of Hazardous Substances (RoHS) . . . . . . . . . . . . . . . . . . . . . 4

3.3 Reference documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4.0 General description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4.1 Standard features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4.2 Media description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.3 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.4 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.5 Formatted capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.5.1 Programmable drive capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4.6 Factory-installed options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4.7 User-installed accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5.0 Performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5.1 Internal drive characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5.2 Seek performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5.2.1 Access time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5.2.2 Format command execution time (minutes). . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

5.2.3 General performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

5.3 Start/stop time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

5.4 Prefetch/multi-segmented cache control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5.5 Cache operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5.5.1 Caching write data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5.5.2 Prefetch operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6.0 Reliability specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

6.1 Error rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

6.1.1 Recoverable Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

6.1.2 Unrecoverable Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

6.1.3 Seek errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

6.1.4 Interface errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

6.2 Reliability and service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

6.2.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF) . . . 15

6.2.2 Preventive maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

6.2.3 Hot plugging the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

6.2.4 S.M.A.R.T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

6.2.5 Thermal monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6.2.6 Drive Self Test (DST). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

6.2.7 Product warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

7.0 Physical/electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

7.1 AC power requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

7.2 DC power requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

7.2.1 Conducted noise immunity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7.2.2 Power sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7.2.3 Current profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7.3 Power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

7.4 Environmental limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Cheetah 15K.7 FC Product Manual, Rev. C i

7.4.1 Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7.4.2 Relative humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7.4.3 Effective altitude (sea level) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7.4.4 Shock and vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.4.5 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

7.4.6 Air cleanliness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

7.4.7 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

7.4.8 RoHS compliance statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

7.4.9 Electromagnetic susceptibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

7.5 Mechanical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

8.0 About FIPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

9.0 About self-encrypting drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

9.1 Data encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

9.2 Controlled access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

9.2.1 Admin SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

9.2.2 Locking SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

9.2.3 Default password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

9.3 Random number generator (RNG). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

9.4 Drive locking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

9.5 Data bands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

9.6 Cryptographic erase. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

9.7 Authenticated firmware download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

9.8 Power requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

9.9 Supported commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

10.0 Defect and error management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

10.1 Drive internal defects/errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

10.2 Drive error recovery procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

10.3 FC-AL system errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

10.4 Background Media Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

10.5 Media Pre-Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

10.6 Deferred Auto-Reallocation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

10.7 Idle Read After Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

11.0 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

11.1 Drive ID/option selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

11.2 Drive orientation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

11.3 Cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

11.4 Drive mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

11.5 Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

12.0 Interface requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

12.1 FC-AL features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

12.1.1 Fibre Channel link service frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

12.1.2 Fibre Channel task management functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

12.1.3 Fibre Channel task management responses . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

12.1.4 Fibre Channel port login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

12.1.5 Fibre Channel port login accept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

12.1.6 Fibre Channel Process Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

12.1.7 Fibre Channel Process Login Accept. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

12.1.8 Fibre Channel fabric login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

12.1.9 Fibre Channel fabric accept login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

12.1.10 Fibre Channel Arbitrated Loop options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

12.2 Dual port support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

12.3 SCSI commands supported. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

ii Cheetah 15K.7 FC Product Manual, Rev. C

12.3.1 Inquiry data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

12.3.2 Mode Sense data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

12.4 Miscellaneous operating features and conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

12.5 FC-AL physical interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

12.5.1 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

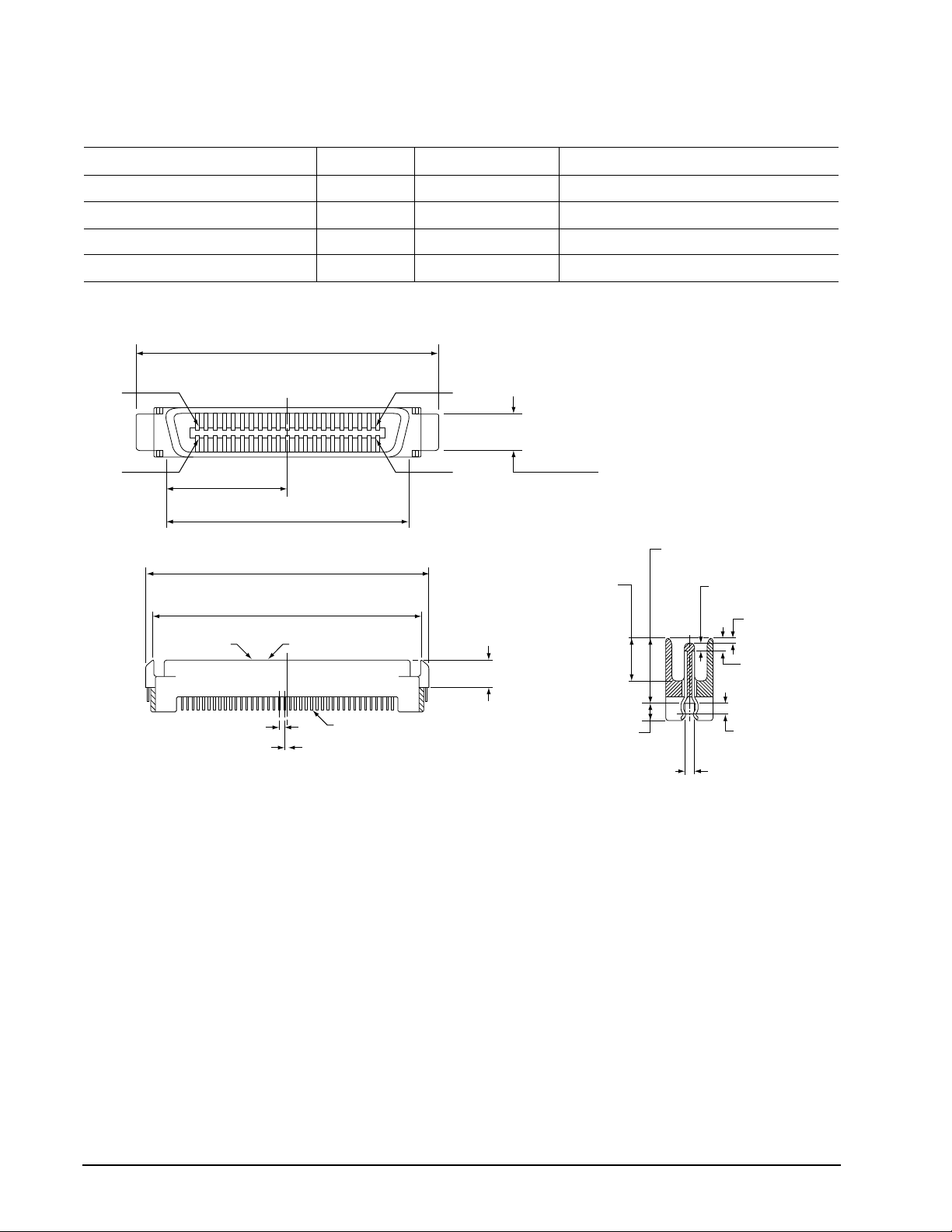

12.5.2 Connector requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

12.5.3 Electrical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

12.5.4 Pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

12.5.5 FC-AL transmitters and receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

12.5.6 Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

12.5.7 Fault LED Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

12.5.8 Active LED Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

12.5.9 Enable port bypass signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

12.5.10 Motor start controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

12.5.11 SEL_6 through SEL_0 ID lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

12.5.12 Device control codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

12.6 Signal characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

12.6.1 TTL input characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

12.6.2 LED driver signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

12.6.3 FC Differential output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

12.6.4 FC Differential input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Cheetah 15K.7 FC Product Manual, Rev. C iii

iv Cheetah 15K.7 FC Product Manual, Rev. C

1.0 Seagate Technology support services

SEAGATE ONLINE SUPPORT and SERVICES

For information regarding products and services, visit http://www.seagate.com/www/en-us/about/contact_us/

Available services include:

Presales & Technical support Global Support Services telephone numbers & business hours Authorized Service Centers

For information regarding Warranty Support, visit

http://www.sea

For information regarding Data Recovery Services, visit http://www.i365.com For Seagate OEM & Distribution partner portal, visit https://direct.seagate.com/portal/system

For Seagate reseller portal, visit http://spp.seagate.com

gate.com/www/en-us/support/warranty_&_returns_assistance

Cheetah 15K.7 FC Product Manual, Rev. C 1

2.0 Scope

This manual describes Seagate Technology® LLC, Cheetah® 15K.7 FC (Fibre Channel) disc drives. Cheetah 15K.7 FC drives support the Fibre Channel Arbitrated Loop and SCSI Fibre Channel Protocol specifi-

cations to the extent described in this manual. The Fibre Channel Interface Manual (part number 100293070) describes the general Fibre Channel Arbitrated Loop characteristics of this and other Seagate Fibre Channel drives. The Self-Encrypting Drive (SED) Users Guide, part number 1005 15636 describes the in terface, general operation and security features available on SED drives.

From this point on in this product manual, the reference to Cheetah 15K.7 FC models is referred to as “the drive” unless references to individuals models are necessary.

Note. Previous generations of Seagate Self-Encrypting Drive models were called Full Disk Encryption

(FDE) models before a differentiation between drive-based encryption and other forms of encryp tion was necessary.

Unless otherwise stated, the information in this manual applies to standard and Self-Encrypting Drive models.

Model Number Capacity Self-Encrypting Drive (SED) FIPS 140-2 Level 2 certified

ST3600057FC 600 GB No No ST3450857FC 450 GB No No ST3300657FC 300 GB No No ST3600957FC 600 GB Yes No

ST3600857FC 600 GB Yes Yes ST3450757FC 450 GB Yes No ST3450657FC 450 GB Yes Yes ST3300557FC 300 GB Yes No ST3300457FC 300 GB Yes Yes

For more information on FIPS 140-2 Level 2 certification see Section 8.0 on page 36.

2 Cheetah 15K.7 FC Product Manual, Rev. C

3.0 Applicable standards and reference documentation

The drive has been developed as a system peripheral to the highest standards of design and construction. The drive depends upon its host equipment to provide adequate power and environment in order to achieve optimum performance and compliance with applicable industry and governmental regulations. Special attention must be given in the areas of safety, power distribution, shielding, aud ible noise control, an d tempera ture re gulation. In particular, the drive must be securely mounted in order to guarantee the specified performance characteristics. Mounting by bottom holes must meet the requirements of Section 11.4.

3.1 Standards

The Cheetah 15K.7 FC family complies with Seagate standards as noted in the appropriate sections of this manual and the Seagate Fibre Channel Interface Manual, part number 100293070.

The drives are recognized in accordance with UL 60950-1 and CSA 60950-1 as tested by UL and EN60950-1 as tested by TUV.

The security features of Cheetah 15K.7 FC SED models are based on the “TCG Storage Architecture Core Specification” and the “TCG Storage Workgroup Security Subsystem Classs: Enterprise_A” specification with additional vendor-unique features as noted in this product manual.

3.1.1 Electromagnetic compatibility

The drive, as delivered, is designed for system integration and installation into a suitable enclosure prior to use. As such the drive is supplied as a subassembly and is not subject to Subpart B of Part 15 of the FCC Rules and Regulations nor the Radio Interference Regulations of the Canadian Department of Communications.

The design characteristics of the drive serve to minimize radiation when installed in an enclosure that provides reasonable shielding. As such, the drive is capable of meeting the Class B limits of the FCC Rules and Regulations of the Canadian Department of Communications when properly packaged. However, it is the user’s responsibility to assure that the drive meets the appropriate EMI requirements in their system. Shielded I/O cables may be required if the enclos ure does not prov ide adequate shielding. If the I/O cables are external to the enclosure, shielded cables should be used, with the shields gro unded to the enclosure and to the host controller.

3.1.1.1 Electromagnetic susceptibility

As a component assembly, the drive is not required to meet any susceptibility performance requirements. It is the responsibility of those integrating the drive within their systems to perform those tests required and design their system to ensure that equipment operating in the same system as the drive or external to the system does not adversely affect the performance of the drive. See Table 2, DC power requirements.

Cheetah 15K.7 FC Product Manual, Rev. C 3

3.1.2 Electromagnetic compliance

Seagate uses an independent laboratory to confirm compliance with the directives/standards for CE Marking and C-Tick Marking. The drive was teste d in a repr esent ative system for typical applications. The selected system represents the most popular characteristics for test platforms. The system configurations include:

• Typical current use microprocessor

• Keyboard

• Monitor/display

• Printer

•Mouse Although the test system with this Seagate model complies with the directives/standards, we cannot guarantee

that all systems will comply. The computer manufacturer or system integrator shall confirm EMC compliance and provide the appropriate marking for their product.

Electromagnetic compliance for the European Union

If this model has the CE Marking it complies with the European Union requirements of the Electromagnetic Compatibility Directive 89/336/EEC of 03 May 1989 as amended by Directive 92/31/EEC of 28 April 1992 and Directive 93/68/EEC of 22 July 1993.

Australian C-Tick

If this model has the C-Tick Marking it complies with the Australia/New Zealand Standard AS/NZS3548 1995 and meets the Electromagnetic Compatibility (EMC) Framework requirements of Australia’s Spectrum Management Agency (SMA).

Korean KCC

If this model has the Korean Communications Commission (KCC) logo, it complies with paragraph 1 of Article 11 of the Electromagnetic Compatibility (EMC) Control Regulation and meets the Electromagnetic Compatibility Framework requirements of the Radio Research Laboratory (RRL) Ministry of Information and Communication Republic of Korea.

Taiwanese BSMI

If this model has two Chinese words meaning “EMC certification” followed by an eight digit identification number, as a Marking, it complies with Chinese National Standard (CNS) 13438 and meets the Electromagnetic Compatibility (EMC) Framework requirements of the Taiwanese Bureau of Standards, Metrology, and Inspection (BSMI).

3.2 European Union Restriction of Hazardous Substances (RoHS)

The European Union Restriction of Hazardous Substances (RoHS) Directive restricts the presence of chemical substances, including Lead (Pb), in electronic products effective July 2006.

A number of parts and materials in Seagate products are procured from external suppliers. We rely on the representations of our suppliers regarding the presence of RoHS substances in these parts and materials. Our supplier contracts require compliance with our ch emical substance restrictions, and our suppliers document their compliance with our requirements by providing material conten t declarations for all p arts and materials for the disc drives documented in this publication. Current supplier declarations include disclosure of the inclusion of any RoHS-regulated substance in such parts or materials.

Seagate also has internal systems in place to ensure on going compliance with the RoHS Directive and all laws and regulations which restrict chemical content in electronic products. These systems include st andard ope rating procedures that ensure that restricted substances are not utilized in our manufacturing operations, laboratory analytical validation testing, and an internal auditing process to ensure that all standard operating procedures are complied with.

4 Cheetah 15K.7 FC Product Manual, Rev. C

3.3 Reference documents

ANSI Fibre Channel Documents X3.230-1994 FC Physical and Signaling Interface (FC-PH) X3.297.1997 FC-PH-2 Fibre Channel Physical and Signaling Interface-2 X3.303.1998 FC-PH-3 Fibre Channel Physical and Signaling Interface-3 X3.272-1996 FC Arbitrated Loop (FC-AL) X3.269-1996 Fibre Channel Protocol for SCSI (FCP) NCITS TR-19 Private Loop SCSI Direct Attach (PLDA) NCITS TR-20 Fabric Loop Attachment (FC-FLA) SFF-8045 Specification for 40-pin SCA-2 Connector with Parallel Selection SFF-8067 Specification for 40-pin SCA-2 Connector with Bidirectional

Enclosure Services Interface

ANSI Small Computer System Interface (SCSI) Documents X3.131-1994 (SCSI-2) X3.270-1996 (SCSI-3) Architecture Model NCITS 305-199X (SCSI-3) Enclosure Services

Trusted Computing Group (TCG) Documents (apply to SED models only) TCG Storage Architechture Core Specification, Rev. 1.0 TCG Storage Security Class Enterpri se Specification, Rev. 1.0

Self-Encrypting Drives Users Guide

Seagate part number: 100515636

Specification for Acoustic Test Requirement and Procedures

Seagate part number: 30553-001

Package Test Specification Seagate P/N 30190-001 (under 100 lb.) Package Test Specification Seagate P/N 30191-001 (over 100 lb.)

In case of conflict between this document and any referenced document, this document takes precedence.

Cheetah 15K.7 FC Product Manual, Rev. C 5

4.0 General description

Cheetah 15K.7 FC drives provide high performance, high capacity data storage for a variety of systems including engineering workstations, network servers, mainframes, and supercomputers. Cheetah 15K.7 FC drives support 4-Gbit Fibre Channel.

Cheetah 15K.7 FC drives support the Fibr e Channel Arbitrated Loop (FC-AL) and SCSI Fibre Channel Protocol as described in the ANSI specifications, this document, and the Fibre Channel Interface Manual which describes the general interface characteristics of this drive. Cheetah 15K.7 FC drives are classified as intelligent peripherals and provide level 2 conformance (highest level) with the ANSI SCSI-1 standard.

Cheetah 15K.7 FC SED models have provisions for “Security of Data at Rest” based on the standards defined by the Trusted Computing Group (see www.trustedcomputinggroup.org).

Note. Never disassemble the HDA and do not attempt to service items in the sealed enclosure (heads,

media, actuator, etc.) as this requires special facilities. The drive does not contain user-replaceable parts. Opening the HDA for any reason voids your warranty.

Cheetah 15K.7 FC drives use a dedicated landing zone at the innermost radius of the media to eliminate the possibility of destroying or degrading data by landing in the data zone. The heads automatically go to the landing zone when power is removed from the drive.

An automatic shipping lock prevents potential damage to the heads and discs that results from movement during shipping and handling. The shipping lock disengages and the head load process begins when power is applied to the drive.

The drives also use a high-performance actuator assembly with a low-inertia, balanced, patented, straight arm design that provides excellent performance with minimal power dissipation.

6 Cheetah 15K.7 FC Product Manual, Rev. C

4.1 Standard features

Cheetah 15K.7 FC drives have the following standard features:

• 4-Gbit Fibre Channel interface

• Integrated dual port FC-AL controller

• Concurrent dual port transfers

• Support for FC arbitrated loop, private and pub lic attachment

• Differential copper FC drivers and receivers

• Downloadable firmware using the FC-AL interface

• Supports SCSI enclosure services via interface connector

• 128-deep task set (queue)

• Supports up to 32 initiators

• Drive selection ID and configuration options are set on the FC-AL backpanel or through interface com-

mands. Jumpers are not used on the drive.

• Supports SCSI Enclosure Services through the inter fac e co nn ector

• Fibre Channel worldwide name uniquely identifies the drive and each port

• User-selectable logical block size (512, 520, 524, or 528 bytes per logical block)

• Selectable frame sizes from 256 to 2,112 bytes

• Industry standard 3.5-inch low profile form factor dimensions

• Programmable logical block reallocation scheme

• Flawed logical block reallocation at format time

• Programmable auto write and read reallocation

• Reed-Solomon error correction code

• Sealed head and disc assembly (HDA)

• No preventive maintenance or adjustments required

• Dedicated head landing zone

• Automatic shipping lock

• Embedded Grey Code track address to eliminate seek errors

• Self-diagnostics performed at power on

• Zone bit recording (ZBR)

• Vertical, horizontal, or top down mounting

• Dynamic spindle brake

• 16,384 Kbyte data buffer (see Section 5.5)

• Embedded servo design

• Reallocation of defects on command (Post Format)

• Fibre Channel interface transports SCSI protocol

Cheetah 15K.7 FC SED models have the following additional features :

• Automatic data encryption/decryption

• Controlled access

• Random number generator

• Drive locking

• 16 independent data bands

• Cryptographic erase of user data for a drive that will be repurposed or scrapped

• Authenticated firmware download

Cheetah 15K.7 FC Product Manual, Rev. C 7

4.2 Media description

The media used on the drive has an aluminum substrate coated with a thin film magnetic material, ov e rcoa t ed with a proprietary protective layer for improved durability and environmental protection.

4.3 Performance

• Programmable multi-segmentable cache buffer

• 400 Mbytes/sec maximum instantaneous data transfers per port

• 15k RPM spindle; average latency = 2.0 msec

• Command queuing of up to 128 commands

• Background processing of queue

• Supports start and stop commands (spindle stops spinning)

• Adaptive seek velocity; improved seek performance Note. There is no significant performance difference between Self-Encrypting Drive and standard (non-

Self-Encrypting Drive) models

4.4 Reliability

• Annualized Failure Rate (AFR) of 0.55%

• Increased LSI circuitry integration

• Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.)

• Dithering

• 5-year warranty

4.5 Formatted capacities

Standard OEM models are formatted to 512 bytes per block. The block size is selectable at format time and must be one of the supported sizes listed in the table below.

Seagate designs specify capacity points at certain block sizes that Seagate guarantees current and future products will meet. We recommend customers use this capacity in their project planning, as it ensures a stable operating point with backward and forward compatibility from generation to generation. The current guaranteed operating points for this product are:

ST3600057FC ST3600957FC ST3600857FC

Sector Size

512 1,172,123,568 45DD2FB0 879,097,968 3465F870 585,937,500 22ECB25C 520 1,147,307,694 446286AE 860,480,771 3349E503 573,653,848 22314358 524 1,132,015,600 43792FF0 849,011,700 329AE3F4 566,007,800 21BC97F8 528 1,115,749,560 4280FCB8 836,812,167 31E0BD87 557,874,778 21407E5A

Decimal Hex Decimal Hex Decimal Hex

Seagate drives also may be used at the maximum available capacity at a given block size, but the excess capacity above the guaranteed level will vary between other drive families and from generation to generation, depending on how each block size actually formats out for zone frequencies and splits over servo bursts. This added capacity potential may range from 0.1 to 1.3 percent above the guaranteed capacities listed above. Using the drives in this manner gives the absolute maximum capacity potential, but the user must determine if the extra capacity potential is useful, or whether their assurance of backward and forward compatibility takes precedence.

ST3450857FC ST3450757FC ST3450657FC

ST3300657FC ST3300557FC ST3300457FC

8 Cheetah 15K.7 FC Product Manual, Rev. C

4.5.1 Programmable drive capacity

Using the Mode Select command, the drive can change its capacity to something less than maximum. See the Mode Select Parameter List table in the SCSI Co mmands Refe ren c e Manu al . Refer to the Parameter list block descriptor number of blocks field. A value of zero in the number of blocks field indicates that the drive shall not change the capacity it is currently formatted to have. A number in the number of blocks field that is less than the maximum number of LBAs changes the total drive capacity to the value in the block descriptor number of blocks field. A value greater than the maximum number of LBAs is rounded down to the maximum capacity.

4.6 Factory-installed options

You may order the following items which are incorporated at the manufacturing facility during production or packaged before shipping. Some of the options available are (not an exhaustive list of possible options):

• Other capacities can be ordered depending on sparing scheme and sector size requested.

• Single-unit shipping pack. The drive is normally shipped in bulk packaging to provide maximum protection

against transit damage. Units shipped individually require additional protection as p rovided by the sin gle unit shipping pack. Users planning single unit distribution should specify this option.

•The Safety and Regulatory Agency Specifications, part number 75789512, is usually included with each

standard OEM drive shipped, but extra copies may be ordered.

4.7 User-installed accessories

The following accessories are available. All kits may be installed in the field.

• Evaluation kit, part number 73473641.

This kit provides an adapter card (“T-card”) to allow cable connections for two FC ports and DC power.

• Single-unit shipping pack.

Cheetah 15K.7 FC Product Manual, Rev. C 9

5.0 Performance characteristics

This section provides detailed information concerning performance-related characteristics and features of Cheetah 15K.7 FC drives.

5.1 Internal drive characteristics

ST3600057FC ST3450857FC ST3300657FC ST3600957FC ST3450757FC ST3300557FC

ST3600857FC ST3450657FC ST3300457FC Drive capacity 600 450 300 Gbytes (formatted, rounded off value) Read/write data heads 8 6 4 Tracks per inch 165,000 Peak bits per inch 1,361 1,361 1,361 KBPI Areal Density 225 225 225 Gbits/inch Internal data rate 1.49 - 2.37 1.49 - 2.37 1.49 - 2.37 Gbits/sec (max) disk rotation speed 15k 15k 15k RPM Avg rotational latency 2.0 2.0 2.0 msec

*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment

and formatting.

5.2 Seek performance characteristics

See Section 12.5, "FC-AL physical interface" on page 65 and the Fibre Channel Interface Manual (part number

77767496) for additional timing details.

165,000 165,000 TPI

5.2.1 Access time

Not including controller overhead2(msec) Read Write

Average Typical 3.4 3.9 Single track Typical 0.2 0.44 Full stroke Typical 6.6 7.4

1. Typical access times are measured under nominal conditions of temperatu re, voltage,

and horizontal orientation as measured on a repre sentative sample of drives.

2. Access to data = access time + latency time.

10 Cheetah 15K.7 FC Product Manual, Rev. C

5.2.2 Format command execution tim e (m inu te s )

When changing sector sizes, the format times shown

ST3600057FC ST3450857FC ST3300657FC

Maximum (with verify) Maximum (without verify)

Note.

There is approximately a 1.5 increase in time to format a SED drive versus a non-SED drive of the same capacity.

119 88 58

60 44 29

5.2.3 General performance characteristics

Sustainable disc transfer rate*:

Minimum 122 Mbytes/sec (typical) Maximum 204 Mbytes/sec (typical)

Fibre Channel Interface maximum instantaneous transfer rate 400 Mbytes/sec* per port

Logical block sizes

Default is 512-byte data blocks Sector sizes variable to 512, 520, 524 and 528 bytes.

Read/write consecutive sectors on a track Yes

below may need to be increased by 30 minutes.

Flaw reallocation performance impact (for fla using the spare sectors per sparing zone reallocation scheme.)

Average rotational latency 2.0 msec

*Assumes no errors and no relocated logical blocks. Rate measured from the start of the first logical block transfer to or from the host. 1MB/sec = 1,000,000 bytes/sec

ws reallocated at format time

Negligible

5.3 Start/stop time

If the Motor Start option is disabled, the drive becomes ready within 20 seconds after DC power is applied. If a recoverable error condition is detected during the st art sequence, the drive executes a recovery proced ure and the time to become ready may exceed 20 seconds. During spin up to ready time, the drive responds to some commands over the FC interface in less than 3 seconds after application of power. Stop time is 30 seconds (maximum) from removal of DC power.

If the Motor Start option is enabled, the internal controller accepts the commands listed in the Fibre Channel Interface Manual less than 3 seconds after DC power has been applied. After the Motor Start command has been received, the drive becomes ready for normal operations within 20 seconds (excluding the error recovery procedure). The Motor Start command can also be used to command the drive to stop the spindle.

There is no power control switch on the drive.

Cheetah 15K.7 FC Product Manual, Rev. C 11

5.4 Prefetch/multi-segmented cache control

The drive provides a prefetch (read look-ahead) and multi-segmented cache control algorithms that in many cases can enhance system performance. Cache refers to the drive buffer storage space when it is used in cache operations. To select this feature, the host sends the Mode Select command with the proper values in the applicable bytes in page 08h. Prefetch and cache operations are independent features from the standpoint that each is enabled and disabled independently using the Mode Select command; however, in actual operation, the prefetch feature overlaps cache operation somewhat as described in sections 5.5.1 and 5.5.2.

All default cache and prefetch mode parameter values (Mode Page 08h) for standard OEM versions of this drive family are given in Table 18.

5.5 Cache operation

Note. Refer to the Fibre Channel Interface Manual for more detail concerning the cach e bits. Of the 16 Mbytes physical buffer space in the drive, approximately 13,000 kbytes can be used as a cache. The

buffer is divided into logical segments from which data is read and to which data is written. The drive keeps track of the logical block addresses of the data stored in each segment of the buffer. If the

cache is enabled (see RCD bit in the FC Interface Manual ), data requested by the host with a read command is retrieved from the buffer , if po ssible, before any disc acce ss is initiated. If cache operation is not enabled, the buffer is still used, but only as circular buffer segments during disc medium read operations (disregarding Prefetch operation for the moment). That is, the drive does not check in the buffer segments for the requested read data, but goes directly to the medium to retrieve it. The retrieved data merely passes through some buffer segment on the way to the host. All data transfers to the host are in accordance with buffer-full ratio rules. See the explanation provided with the information about Mode Page 02h ( disconnect/reconn ect control) in the Fibre Channel Interface Manual.

The following is a simplified description of the prefetch/cache operation: Case A—read command is received and all of the requested logical blocks are already in the cache:

1. Drive transfers the requested logical blocks to the initiator. Case B—A Read command requests data, and at least one requested logical block is not in any segment of

the cache:

1. The drive fetches the requested logical blocks fro m the disc and transfers them into a segment, and then

from there to the host in accordance with the Mode Select Disconnect/Reconnect parameters, page 02h.

2. If the prefetch feature is enabled, refer to section 5.5.2 for operation from this point. Each cache segment is actually a self-contained circular buffer whose length is an integer number of logical

blocks. The drive dynamically creates and removes segments based on the workload. The wrap-around capability of the individual segments greatly enhances the cache’s overall performance.

Note. The size of each segment is not repo rted by Mode Sense command page 08h, byt es 14 and 15.

The value 0XFFFF is always reported regardless of the actual size of the segment. Sending a size specification using the Mode Select command (bytes 14 and 15) does not set up a new segment size. If the STRICT bit in Mode page 00h (byte 2, bit 1) is set to one, the drive responds as it does for any attempt to change an unchangeable parameter.

12 Cheetah 15K.7 FC Product Manual, Rev. C

5.5.1 Caching write data

Write caching is a write operation by the drive that make s use of a drive b uffer storage area wher e the da ta to be written to the medium is stored while the drive performs the Write command.

If read caching is enabled (RCD=0), then data written to the medium is retained in the cache to be made available for future read cache hits. The same buffer space and segmentation is used as set up for read functions. The buffer segmentation scheme is set up or changed independently, having nothing to do with the state of RCD. When a write command is issued, if RCD=0, the cache is first checked to see if any logical blocks that are to be written are already stored in th e cache from a previous read or write command. If there are, the respective cache segments are cleared. The new data is cached for subsequent Read commands.

If the number of write data logical blocks exceed the size of the segme nt being written into, when the end of the segment is reached, the data is written into the beginning of the same cache segment, overwriting the da ta that was written there at the beginning of the operation; however, the drive does not overwrite data that has not yet been written to the medium.

If write caching is enabled (WCE=1), then the drive may return Good status on a write command after the data has been transferred into the cache, but before the data has been written to the medium. If an error occurs while writing the data to the medium, and Good status has already been returned, a deferred error will be generated.

The Synchronize Cache command may be used to force the drive to write all cached write dat a to the med ium. Upon completion of a Synchronize Cache command, all data received from previous write commands will have been written to the medium.

Table 18 shows the mode default settings for the drive.

5.5.2 Prefetch operatio n

If the Prefetch feature is enabled, data in contiguous logical blocks on the disc immediately beyond that which was requested by a Read command are retrieved and stored in the buffer for immediate transfer from the buffer to the host on subsequent Read commands that request those logical blocks (this is true even if cache operation is disabled). Though the pr ef etch operation uses the buffer as a cache, finding the requested data in the buffer is a prefetch hit, not a cache operation hit.

To enable Prefetch, use Mode Select page 08h, byte 12, bit 5 (Disable Read Ahead - DRA bit). DRA bit = 0 enables prefetch.

The drive does not use the Max Prefetch field (bytes 8 and 9) or the Prefetch Ceiling field (bytes 10 and 11). When prefetch (read look-ahead) is enabled (enabled by DRA = 0), the drive enables prefetch of contiguous

blocks from the disc when it senses that a prefetch hit will likely occur. The drive disables prefetch when it decides that a prefetch hit is not likely to occur.

Cheetah 15K.7 FC Product Manual, Rev. C 13

6.0 Reliability specifications

The following reliability specifications assume correct host and drive operational interface, including all interface timings, power supply voltages, environmental requirements and drive mounting constraints.

Seek error rate:

Less than 10 errors in 10

Read Error Rates

Recovered Data Unrecovered Data Miscorrected Data

Interface error rate:

Less than 10 errors in 10 Less than 1 sector in 10 Less than 1 sector in 10 Less than 1 error in 10

Less than 1 error in 10 See Section 12.6.4, "FC Differential input." on page 73

Annualized Failure Rate (AFR):

0.55%

Preventive maintenance: None required

6.1 Error rates

The error rates stated in this manual assume the following:

• The drive is operated in accordance with this manual using DC power as defined in paragraph 7.2, "DC

power requirements."

• Errors caused by host system failures are excluded from error rate computations.

• Assume random data.

• Default OEM error recovery settings are applied. This includes AWRE, ARRE, full read retries, full write

retries and full retry time.

• Error rate specified with automatic retries and data correct ion with ECC en ab led an d all fla ws re allo ca te d.

seeks

bits transferred (OEM default settings)

bits transferred

bits transferred with minimum receive eye.

bits transferred with typical receive eye.

6.1.1 Recoverable Errors

Recovereable errors are those detected and corrected by the drive, and do not require user intervention. Recoverable Data errors use retries and correction. Application of ECC on-the-fly correction alone is not con-

sidered a Recovered Data error. Recovered Data error rate is determined using read bits transferred for recoverab le errors occurring during a

read, and using write bits transferred for recoverable err ors occurring during a write.

6.1.2 Unrecoverable Errors

Unrecoverable Data Errors (Sense Key = 03h) are specified at less than 1 sector in error per 1016 bits transferred. Unrecoverable Data Errors resulting from the same cause are treated as 1 error for that block.

14 Cheetah 15K.7 FC Product Manual, Rev. C

6.1.3 Seek errors

A seek error is defined as a failure of the drive to position the heads to the addressed track. After detecting an initial seek error, the drive automatically performs an error recovery process. If the error recovery process fails, a seek positioning error (Error code = 15h or 02h) will be reported with a Hardware error (04h) in the Sense Key. Recoverable seek errors are specified at Less than 10 errors in 10

seeks. Unrecoverable seek errors

(Sense Key = 04h) are classified as drive failures.

6.1.4 Interface errors

An interface error is defined as a failure of the receiver on a port to recover the data as transmitted by the device port connected to the receiver. The error may be detected as a running disparity error, illegal code, loss of word sync, or CRC error. The total error rate for a loop of devices is the sum of the individual device error rates.

6.2 Reliability and service

You can enhance the reliability of Cheetah 15K.6 disc drives by ensuring that the drive receives adequate cooling. Section 7.0 provides temperature measurements and other information that may be used to enha nce the service life of the drive. Section 11.2 provides recommended air-flow information.

6.2.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF)

These drives shall achieve an AFR of 0. 55% (MTBF of 1,600,000 hours) when operated in an environment that ensures the HDA case temperatures do not exceed the values specified in Section 7.4.1.

Operation at case temperatures outside the specifications in Section 7.4.1 may increase the AFR (dec rease the MTBF). AFR and MTBF statistics are poplulation statistics that are not relevant to individual units.

AFR and MTBF specifications are based on the following assumptions for Enterprise Storage System environments:

• 8,760 power-on hours per year

• 250 average on/off cycles per year

• Operating at nominal voltages

• System provides adequate cooling to ensure the case temperatures specified in Section 7.4.1 are not exceeded.

6.2.2 Preventive maintenance

No routine scheduled preventive maintenance is required.

6.2.3 Hot plugging the drive

Inserting and removing the drive on the FC-AL will interrupt loop operation. The interruption occurs when the receiver of the next device in the loop must synchronize to a different input signal. FC error detection mechanisms, character sync, running disparity, word sync, and CRC are able to detect any error. Recovery is initiated based on the type of error.

The disc drive defaults to the FC-AL Monitoring state, Pass-through state, when it is powered-on by switching the power or hot plugged. T he control line to an option al port bypass circuit (external to the drive), defaults to the Enable Bypass state. If the bypass circuit is present, the next device in the loop will continue to receive the output of the previous device to the newly inserted device. If the bypass circuit is not present, loop operation is temporarily disrupted until the next device starts receiving the output from the newly inserted device and regains synchronization to the new input.

The Pass-through state is disabled while the drive performs self test of the FC interface. The control line for an external port bypass circuit remains in the Enable Bypass state while self test is running. If the bypass circuit is

Cheetah 15K.7 FC Product Manual, Rev. C 15

present, loop operation may continue. If the bypass circuit is not present, loop operation will be halted while the self test of the FC interface runs.

When the self test completes successfully, the control line to the bypass circuit is disabled and the drive enters the FC-AL Initializing state. The receiver on the next dev ice in the lo op must synchr onize to output of the newly inserted drive.

If the self-test fails, the control line to the bypass circuit remains in the Enable Bypass state. Note. It is the responsibility of the systems integrator to assure that no temperature, energy, voltage haz-

ard, or ESD potential hazard is presented during the hot connect/disconnect operation. Discharge the static electricity from the drive carrier prior to inserting it into the system.

Caution. The drive motor must come to a complete stop prior to changing the plane of operation. This time is

required to insure data integrity.

6.2.4 S.M.A.R.T.

S.M.A.R.T. is an acronym for Self-Monitoring Analysis and Reporting Technology. This technology is intended to recognize conditions that indicate imminent drive failure and is designed to provide sufficient warning of a failure to allow you to back up the data before an actual failure occurs.

Note. The drive’s firmware monitors specific attributes for degrad ation over time but can’t predict inst ant a-

neous drive failures.

Each monitored attribute has been selected to monitor a specific set of failure conditions in the operating performance of the drive and the thresholds are op tim ized to minimize “false” and “failed” predictions.

Controlling S.M.A.R.T.

The operating mode of S.M.A.R.T. is controlled by the DEXCPT and PERF bits on the Informational Exceptions Control mode page (1Ch). Use the DEXCPT bit to enable or disable the S.M.A.R.T. featur e. Setting the DEXCPT bit disables all S.M.A.R.T. functions. When enabled, S.M.A.R.T. collects on-line data as the drive performs normal read and write operations. When the PERF bit is set, the drive is considered to be in “On-line Mode Only” and will not perform off-line functions.

You can measure off-line attributes and force the drive to save the data by using the Rezero Unit command. Forcing S.M.A.R.T. resets the timer so that the next scheduled interrupt is in two hours.

You can interrogate the drive through the host to dete rmine the time rema ining before the next sch eduled measurement and data logging process occurs. To accomplish this, issue a Log Sense command to log page 0x3E. This allows you to control when S.M.A.R.T. interruptions occur. Forcing S.M.A.R.T. with th e RTZ command resets the timer.

Performance impact

S.M.A.R.T. attribute data is saved to the disc so th at the events that c aused a predicti ve failure can be r ecreated. The drive measures and saves parameters once every two hours subject to an idle period on the FC-AL bus. The process of measuring off-line attribu te data and saving data to the disc is un interruptable. The m aximum on-line only processing delay is summarized below:

Maximum processing delay

On-line only delay DEXCPT = 0, PERF = 1

Fully-enabled delay DEXCPT = 0, PERF = 0

S.M.A.R.T. delay times

42 milliseconds

163 milliseconds

Reporting control

Reporting is controlled by the MRIE bits in the Informational Exceptions Control mode page (1Ch). Subject to the reporting method, the firmware will issue to the host an 01-5Dxx sense code. The error code is preserved through bus resets and power cycles.

16 Cheetah 15K.7 FC Product Manual, Rev. C

Determining rate

S.M.A.R.T. monitors the rate at which errors occur and signals a predictive failure if the rate of degraded erro rs increases to an unacceptable level. To determine rate, error events are logged a nd com p a re d to the num ber of total operations for a given attribute. The interval defines the number of operations o ver whic h to m easur e the rate. The counter that keeps track of the current numbe r of operations is referred to as the Interval Counter.

S.M.A.R.T. measures error rates. All errors for each monitored attribute are recorded. A counter keeps track of the number of errors for the current interval. This counter is referred to as the Failure Counter.

Error rate is the number of errors per operation. The algor ithm that S.M .A.R.T. uses to record rates of error is to set thresholds for the number of errors and their interval. If the number of errors exceeds the threshold before the interval expires, the error rate is considered to be unacceptable. If the number of errors does not exceed the threshold before the interval expires, the error rate is considered to be acceptable. In either case, the interval and failure counters are reset and the process starts over .

Predictive failures

S.M.A.R.T. signals predictive failures when the drive is performing unacceptably for a period of time. The firmware keeps a running count of the number of times the error rate for each attribute is unacceptable. To accomplish this, a counter is incremented e ach time the erro r rate is unacceptable and decremented (not to exceed zero) whenever the error rate is acceptable. If the counter continually increments such that it reaches the predictive threshold, a predictive failure is signaled. This counter is referred to as the Failure History Counter. There is a separate Failure History Counter for each attribute.

6.2.5 Thermal monitor

Cheetah 15K.7 FC drives implement a temperature warning system which:

1. Signals the host if the temperature exceeds a value which would threaten the drive.

2. Signals the host if the temperature exceeds a user-specified value.

3. Saves a S.M.A.R.T. data frame on the drive which exceeds the threatening temperature value.

A temperature sensor monitors the drive temperature and issues a warning over the interface when the temperature exceeds a set th reshold. The t emperature is measured a t power-up an d then at te n-minute inter vals after power-up.

The thermal monitor system generates a warning code of 01-0B01 when the temperature exceeds the specified limit in compliance with the SCSI standard. The drive temperature is reported in the FRU code field of mode sense data. You can use this information to determine if the warning is due to the temperature exceeding the drive threatening temperature or the user-specified temperature.

This feature is controlled by the Enable Warning (EWasc) bit, and the re porting mecha nism is controlle d by the Method of Reporting Informational Exceptions field (MRIE) on the Informational Exceptions Control (IEC) mode page (1Ch).

The current algorithm implements two temperature trip points. The first trip point is set at 68°C which is the maximum temperature limit according to the drive specification. The second trip point is user-selectable using the Log Select command. The reference temperature parameter in the temperature log page (see Table 1) can be used to set this trip point. The default value for this drive is 68°C, however, you can set it to any value in the range of 0 to 68°C. If you specify a temperature greater than 68°C in this field, the temperature is rounded down to 68°C. A sense code is sent to the host to indicate the rounding of the parameter field.

Table 1: Temperature Log Page (0Dh)

Parameter Code Description

0000h 0001h

Primary Temperature Reference Temperature

Cheetah 15K.7 FC Product Manual, Rev. C 17

6.2.6 Drive Self Test (DST)

Drive Self Test (DST) is a technology designed to recognize drive fault conditions that qualify the drive as a failed unit. DST validates the functionality of the drive at a system level.

There are two test coverage options implemented in DST:

1. Extended test

2. Short test The most thorough option is the extended test that performs various tests on the drive and scans ev er y lo gic al

block address (LBA) of the drive. The short test is time-restricted and limited in length—it does not scan the entire media surface, but does some fundamental tests and scans portions of the media.

If DST encounters an error during either of these tests, it reports a fault condition. If the drive fails the test, remove it from service and return it to Seagate for service.

6.2.6.1 DST failure definition

The drive will present a “diagnostic failed” condition through the self-tests results value of the diagnostic log page if a functional failure is encountered during DST. The channel and servo parameters are not modified to test the drive more stringently, and the number of retries are not reduced. All retries and recovery processes are enabled during the test. If data is recoverable, no failure condition will be reported regardless of the number of retries required to recover the data.

The following conditions are considered DST failure conditions:

• Seek error after retries are exhausted

• Track-follow error after retries are exhausted

• Read error after retries are exhausted

• Write error after retries are exhausted Recovered errors will not be reported as diagnostic failures.

6.2.6.2 Implementation

This section provides all of the information necessary to implement the DST function on this drive.

6.2.6.2.1 State of the drive prior to testing

The drive must be in a ready state before issuing the Send Diagnostic command. There are multiple reasons why a drive may not be ready, some of which are valid conditions, and not errors. For example, a drive may be in process of doing a format, or another DST. It is the responsibility of the host application to determine the “not ready” cause.

While not technically part of DST, a Not Ready condition also qualifies the drive to be returned to Seagate as a failed drive.

A Drive Not Ready condition is reported by the drive under the following conditions:

• Motor will not spin

• Motor will not lock to speed

• Servo will not lock on track

• Drive cannot read configuration tables from the disc In these conditions, the drive responds to a Test Unit Ready command with an 02/04/00 or 02/04/03 code.

6.2.6.2.2 Invoking DST

To invoke DST, submit the Send Diagnostic command with the appropriate Function Code (001b for the short test or 010b for the extended test) in bytes 1, bits 5, 6, and 7.

18 Cheetah 15K.7 FC Product Manual, Rev. C

6.2.6.2.3 Short and extended tests

DST has two testing options:

1. short

2. extended

These testing options are described in the following two subsections. Each test consists of three segments: an electrical test segment, a servo test segment, and a read/verify scan

segment.

Short test (Function Code: 001b)

The purpose of the short test is to provide a time-limited test that tests as much of the drive as possible within 120 seconds. The short test does not scan the entire media surface, but does some fundamental tests and scans portions of the media. A complete read/verify scan is not performed and only factual failures will report a fault condition. This option provides a quick confidence test of the drive.

Extended test (Function Code: 010b)

The objective of the extended test option is to empirically test critical drive componen ts. For example, the seek tests and on-track operations test the positioning mechanism. The read operation tests the read head element and the media surface. The write element is tested through read/write/read operations. The integrity of the media is checked through a read/verify scan of the media. Motor functionality is tested by default as a part of these tests.

The anticipated length of the Extended test is reported through the Control Mode page.

6.2.6.2.4 Log page entries

When the drive begins DST, it creates a new entry in the Self-test Results Log page. The new entry is created by inserting a new self-test parameter block at the b eginning of the se lf-test result s log par ameter section of the log page. Existing data will be moved to make room for the new parameter block. The drive reports 20 parameter blocks in the log page. If there are more than 20 parameter blocks, the least recent parameter block will be deleted. The new parameter block will be initialized as follows:

1. The Function Code field is set to the same value as sent in the DST command

2. The Self-Test Results Value field is set to Fh

3. The drive will store the log page to non-volatile memory

After a self-test is complete or has been aborted, the drive updates the Self-Test Results Value field in its SelfTest Results Log page in non-volatile memory. The host may use Log Sense to read the results from up to the last 20 self-tests performed by the drive. Th e se lf- te st r esults value is a 4-bit field that reports the results of the test. If the field is set to zero, the drive passed with no errors detected by the DST. If the field is not set to zero, the test failed for the reason reported in the field.

The drive will report the failure condition and LBA (if applicable) in the Self-test Results Log parameter. The Sense key, ASC, ASCQ, and FRU are used to report the failure condition.

6.2.6.2.5 Abort

There are several ways to abort a diagnostic. You can use a SCSI Bus Reset or a Bus Device Reset message to abort the diagnostic.

You can abort a DST executing in background mode by using the abort code in the DST Function Code field. This will cause a 01 (self-test aborted by the application client) code to appear in the self-test results values log. All other abort mechanisms will be reported as a 02 (self-test routine was interrupted by a reset condition).

Cheetah 15K.7 FC Product Manual, Rev. C 19

6.2.7 Product warranty

Beginning on the date of shipment to the customer and continuing for the period specified in your purchase contract, Seagate warrants that each product (including components and subassemblies) that fails to function properly under normal use due to defect in materia ls or workman ship or due to n onconformance to the applicable specifications will be repaired or replaced, at Seagate’s option and at no charge to the customer , if returned by customer at customer’s expense to Seagate’s designated facility in accordance with Seagate’s warranty procedure. Seagate will pay for transporting the repair or replacement item to the customer. For more detailed warranty information, refer to the standard terms and conditions of purchase for Seagate products on your purchase documentation.

The remaining warranty for a particular drive can be determined by calling Seagate Customer Service at 1-800-468-3472. You can also determine remaining warranty using the Seagate web site (www.seagate.com). The drive serial number is required to determine remaining warranty information.

Shipping

When transporting or shipping a drive, use only a Seagate-approved container. Keep your original box. Seagate approved containers are easily identified by the Seagate Approved Package label. Shipping a drive in a non-approved container voids the drive warranty.

Seagate repair centers may refuse receipt of components improperly packaged or obviously damaged in transit. Contact your authorized Seagate distributor to purchase additional boxes. Seagate recommends shipping by an air-ride carrier experienced in handling computer equipment.

Product repair and return information

Seagate customer service centers are the only facilities authorized to service Seagate drives. Seagate does not sanction any third-party repair facilities. Any unauthorized repair or tampering with the factory seal voids the warranty.

20 Cheetah 15K.7 FC Product Manual, Rev. C

7.0 Physical/electrical specifications

This section provides information relating to the physical and electrical characteristics of the drive.

7.1 AC power requirements

None.

7.2 DC power requirements

The voltage and current requirements for a single drive are shown below. Values indicated apply at the drive connector. Notes are shown following the last power requirements table.

The standard drive models and the SED drive models have identical hardware, however the security and encryption portion of the drive controller ASIC is enabled and functional in the SED models. This represents a small additional drain on the 5V supply of about 30mA and a commensurate increase of about 150mW in power consumption. There is no additional drain on the 12V supply.

Cheetah 15K.7 FC Product Manual, Rev. C 21

Table 2: ST3600057FC DC power requirements

2 Gbit 4 Gbit

Notes (Amps) (Amps) (Amps) (Amps)

Voltage +5V +12V [2] +5V +12V [2] Regulation [5] ±5% ±5% [2] ±5% ±5% [2] Avg idle current DCX [1] [7] 0.39 0.81 0.42 0.81 Maximum starting current

(peak DC) DC 3σ [3] 0.67 1.93 0.70 1.92

(peak AC) AC 3σ [3] 1.02 3.73 1.00 3.61 Delayed motor start (max) DC 3σ [1] [4] 0.55 0.04 0.58 0.04 Peak operating current: Typical DCX [1] [6] 0.48 1.18 0.51 1.17 Maximum DC 3σ [1] 0.50 1.19 0.53 1.19 Maximum (peak) DC 3σ 1.30 3.00 1.32 2.98

Table 3: ST3450857FC DC power requirements

2 Gbit 4 Gbit

Notes (Amps) (Amps) (Amps) (Amps)

Voltage +5V +12V [2] +5V +12V [2] Regulation [5] ±5% ±5% [2] ±5% ±5% [2] Avg idle current DCX Maximum starting current

(peak DC) DC 3σ [3] 0.69 1.85 0.72 1.85

(peak AC) AC 3σ [3] 1.08 3.77 1.08 3.49 Delayed motor start (max) DC 3σ [1] [4] 0.58 0.04 0.61 0.04 Peak operating current: Typical DCX Maximum DC 3σ [1] 0.53 1.07 0.57 1.07 Maximum (peak) DC 3σ 1.36 2.80 1.40 2.84

[1] [7] 0.40 0.69 0.42 0.69

[1] [6] 0.49 1.04 0.53 1.03

22 Cheetah 15K.7 FC Product Manual, Rev. C

Table 4: ST3300657FC DC power requirements

2 Gbit 4 Gbit

Notes (Amps) (Amps) (Amps) (Amps)

Voltage +5V +12V [2] +5V +12V [2] Regulation [5] ±5% ±5% [2] ±5% ±5% [2] Avg idle current DCX Maximum starting current

(peak DC) DC 3σ [3] 0.62 1.91 0.62 1.91

(peak AC) AC 3σ [3] 0.96 3.75 0.98 3.57 Delayed motor start (max) DC 3σ [1] [4] 0.56 0.04 0.56 0.04 Peak operating current: Typical DCX [1] [6] 0.48 0.92 0.48 0.91 Maximum DC 3 σ [1] 0.53 1.00 0.53 0.95 Maximum (peak) DC 3σ 1.32 2.80 1.32 2.72

[1] [7] 0.39 0.59 0.39 0.59

[1] Measured with average reading DC ammeter. Instantaneous +12V current peaks will exceed these val-

ues. Power supply at nominal voltage. N (number of drives tested) = 6, 35 Degrees C ambient.

[2] For +12 V, a –10% tolerance is allowed during initial spindle start but must return to ±5% before reaching

15000 RPM. The ±5% must be maintained after the drive signifies that its power-up sequence has been

completed and that the drive is able to accept selection by the host initiator.

[3] See +12V current profile in Figure 1. [4] This condition occurs when the Motor Start option is enabled and the drive has not yet received a Start

Motor command.

[5] See paragraph 7.2.1, "Conducted noise immunity." Specified voltage tolerance includes ripple, noise, and

transient response.

[6] Operating condition is defined as random 8 block reads at 375 I/Os per second for 600GB models and

380 I/Os per second for 450GB and 300GB models. Current and power specified at nominal voltages.

[7] During idle, the drive heads are relocated every 60 seconds to a random location within the band from

three-quarters to maximum track.

General DC power requirement notes.

1. Minimum current loading for each supply voltage is not less than 1. 2% of the maximum opera ting current shown.

2. The +5V and +12V supplies should employ separate ground returns.

3. Where power is provided to multiple drives from a common supply, careful consideration for individual drive power requirements should be noted. Where multiple units are powered on simultaneously, the peak starting current must be available to each device.

4. Parameters, other than spindle start, are measured after a 10-minute warm up.

5. No terminator power.

Cheetah 15K.7 FC Product Manual, Rev. C 23

7.2.1 Conducted noise immunity

Noise is specified as a periodic and random distribution of frequencies covering a band from DC to 10 MHz. Maximum allowed noise values given below are peak-to-peak measurements and apply at the drive power connector.

+5 V = 250 mV pp from 0 to 20 MHz. +12 V = 800 mV pp from 100 Hz to 8 KHz.

450 mV pp from 8 KHz to 20 KHz. 250 mV pp from 20 KHz to 5 MHz.

7.2.2 Power sequencing

The drive does not require power sequencing. The drive protects against inadvertent writing during power-up and down.

7.2.3 Current profiles

The +12V and +5V current profiles are shown in the following figures.

Note: All times and currents are typical. See Section 7.2 for maximum current requirements.

Figure 1. Typical ST3600057FC current profiles

24 Cheetah 15K.7 FC Product Manual, Rev. C

Figure 2. Typical ST3450857FC current profiles

Cheetah 15K.7 FC Product Manual, Rev. C 25

Figure 3. Typical ST3300657FC current profiles

26 Cheetah 15K.7 FC Product Manual, Rev. C

7.3 Power dissipation

600GB model

Typical power dissipation under idle conditions in 4 Gbit operation is 11.58 watts (39.52 BTUs per hour). To obtain operating power for typical random read operations, refer to the following I/O rate curve (see Figure

4). Locate the typical I/O rate for a drive in y our system on the horizontal axis and read the corresponding +5

volt current, +12 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by

3.4123.

Figure 4. ST3600057FC DC current and power vs. input/output operations per second

Cheetah 15K.7 FC Product Manual, Rev. C 27

450GB models

Typical power dissipation under idle conditions in 4 Gbit operation is 10.24 watts (34.94 BTUs per hour). To obtain operating power for typical random read operations, refer to the following I/O rate curve (see Figure

4). Locate the typical I/O rate for a drive in y our system on the horizontal axis and read the corresponding +5 volt current, +12 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by

3.4123.

Figure 5. ST3450857FC DC current and power vs. input/output operations per second

28 Cheetah 15K.7 FC Product Manual, Rev. C

300GB models

Typical power dissipation under idle conditions in 4 Gbit operation is 9.06 watts (30.92 BTUs per hour). To obtain operating power for typical random read operations, refer to the following I/O rate curve (see Figure

4). Locate the typical I/O rate for a drive in y our system on the horizontal axis and read the corresponding +5

volt current, +12 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by

3.4123.

Figure 6. ST3300657FC DC current and power vs. input/output operations per second

7.4 Environmental limits

Temperature and humidity values experienced by the drive must be such that condensation does not occur on any drive part. Altitude and atmospheric pressure specifications are referenced to a standard day at 58.7°F (14.8°C). Maximum wet bulb temperature is 82°F (28°C).

7.4.1 Temperature

a. Operating

The maximum allowable continuous or sustained HDA case temperature for the rated Annualized Failure Rate (AFR) is 122°F (50°C) The maximum allowable HDA case temperature is 60°C. Occasional excur sions of HDA case temperatures above 122°F (50°C) or below 41°F (5°C) may occur without impact to the specified AFR. Continual or sustained operation at HDA case temperatures outside these limits may degrade AFR.

Provided the HDA case temperatures limits are met, the drive meets all specifications over a 41°F to 131°F (5°C to 55°C) drive ambient temperature range with a maximum temperature gradient of 86°F (30°C) per hour. Air flow m ay be needed in th e drive enclosure to keep within this range (see Section 8.3). Operation at HDA case temperatures outside this range may adversely affect the drives ability to meet specifications. To confirm that the required cooling for the electronics and HDA case is provided, place the drive in its final mechanical configuration, perform random write/read operations and measure the HDA case temperature after it has stabilized.

Cheetah 15K.7 FC Product Manual, Rev. C 29

b. Non-operating

HDA Temp.

Check Point

.5"

1.0"

–40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 86°F (30°C) per hour. This spe

cification assumes that the drive is packaged in th e shipping cont ainer designed b y Seagate for use with

drive.

Figure 7. Locations of the HDA temperature check point

7.4.2 Relative humidity

The values below assume that no condensation on the drive occurs. a. Operating

5% to 95% non-condensing relative humidity with a maximum gradient of 20% per hour.

b. Non-operating

5% to 95% non-condensing relative humidity.

7.4.3 Effective altitude (sea level)

a. Operating

–1,000 to +10,000 feet (–305 to +3,048 meters)

b. Non-operating

–1,000 to +40,000 feet (–305 to +12,210 meters)

30 Cheetah 15K.7 FC Product Manual, Rev. C

7.4.4 Shock and vibration

Shock and vibration limits specified in this do

cument are measured directly on the drive chassis. If the drive is installed in an enclosure to which the stated shock and/or vibration criteria is applied, resona nces may occur internally to the enclosure resulting in drive movement in excess of the stated limits. If this situation is apparent, it may be necessary to modify the enclosure to minimize drive movement.

The limits of shock and vibration defined within this document are specified with the drive mounted by any of the four methods shown in Figure 8, and in accordance with the restrictions of Section 11.4. Orientation of the side nearest the I/O connector may be up or down.

7.4.4.1 Shock

a. Operating—normal

The drive, as installed for normal operation, shall oper ate e

rror free while subjected to intermittent shock not

exceeding:

• 15 Gs at a duration of 11 msec (half sinewave) 20 Gs at a duration of 2 msec (half sinewave)

•

• 60 Gs at a duration of 2 msec (half sinewave) when performing reads only

Shock may be applied in the X, Y, or Z axis. Shock is not to be repeated more than once every 2 seconds.

b. Operating—abnormal

Equipment, as installed for normal operation, does not incur physical damage while su

bjected to intermittent shock not exceeding 40 Gs at a duration of 11 msec (half sinewave). Shock occurring at abnormal levels may promote degraded operational performance during the abnormal shock period. Specified operational performance will continue when normal operating shock

levels resume. Shock may be applied

in the X, Y, or Z axis. Shock is not to be repeated more than once every 2 seconds.

c. Non-operating

The limits of non-operating shock shall apply to all conditions of h

andling and transportation. This includes

both isolated drives and integrated drives. The drive subjected to nonrepetitive shock not exceeding the three values below, sh

all not exhibit device

damage or performance degradation.

• 80 Gs at a duration of 11 msec (half sinewave) 300 Gs at a duration of 2 msec (half sinewave)

•

• 150 Gs at a duration of 0.5 msec (half sinewave)

Shock may be applied in the X, Y, or Z axis.

d. Packaged

Disc drives shipped as loose load (not p

alletized) general freight will be packaged to withstand drops from heights as defined in the table below. For additional details refer to Seagate specifications 30190-001 (under 100 lbs/45 kg) or 30191-001 (over 100 lbs/45 Kg).

Package size Packaged/product weight Drop height

<600 cu in (<9,800 cu cm) Any 60 in (1524 mm) 600-1800 cu in (9,800-19,700 cu cm) 0-20 lb (0 to 9.1 kg) 48 in (1219 mm) >1800 cu in (>19,700 cu cm) 0-20 lb (0 to 9.1 kg) 42 in (1067 mm) >600 cu in (>9,800 cu cm) 20-40 lb (9.1 to 18.1 kg) 36 in (914 mm)

Drives packaged in single or multipacks with a gross weig

ht of 20 pounds (8.95 kg) or less by Seagate for general freight shipment shall withstand a drop test from 48 inches (1,070 mm) against a concrete floor or equivalent.

Cheetah 15K.7 FC Product Manual, Rev. C 31

Figure 8. Recommended mounting

32 Cheetah 15K.7 FC Product Manual, Rev. C

7.4.4.2 Vibration

a. Operating—normal

The drive as installed for normal operation, shall comply with the complete specified performance while subjected to continuous vibration not exceeding

10 – 300 Hz 1.0 G RMS (0 to peak) 301– 500 Hz 0.5 G RMS (0 to peak)

Vibration may be applied in the X, Y, or Z axis.

b. Operating—abnormal

Equipment as installed for normal operation shall not incur physical damage while subjected to periodic vibration not exceeding:

15 minutes of duration at major resonant frequency

Vibration occurring at these levels may degrade operational performance during the abnormal vibration period. Specified operational performance will continue when normal operating vibration levels are resumed. This assumes system recovery routines are available.

Operating abnormal translational random flat profile

5 – 500 Hz 0.75 G (0 to peak) 10 - 300 Hz 0.0029 G2/Hz

c. Non-operating

The limits of non-operating vibration shall apply to all conditions of handling and transportation. This includes both isolated drives and integrated drives.

The drive shall not incur physical damage or degraded performance as a result of continuous vibration not exceeding

5 – 22 Hz 0.25 G (0 to peak, linear, swept sine, 0.5 octive/min) 22 - 350 Hz 3 G (0 to peak, linear, swept sine, 0.5 octive/min) 350 - 500 Hz 1 G (0 to peak, linear, swept sine, 0.5 octive/min)

Vibration may be applied in the X, Y, or Z axis.

7.4.5 Acoustics

Sound power during idle mode shall be 3.4 bels typical when measured to ISO 7779 specification. Sound power while operating shall be 3.8 bels typical when measured to ISO 7779 specification.

There will not be any discrete tones more than 10 dB above the masking noise on typical drives when measured according to Seagate specification 30553-001. There will not be any tones more than 24 dB above the masking noise on any drive.

7.4.6 Air cleanliness

The drive is designed to operate in a typical office environment with minimal environmental control.

Cheetah 15K.7 FC Product Manual, Rev. C 33

7.4.7 Corrosive enviro nment

Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845. However, this accelerated testing cannot duplicate every potential application environment.

Users should use caution exposin g any electronic c omponents to uncontrolled chemical pollutants and corrosive chemicals as electronic drive component reliability can be affected by the installation environment. The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be th e most damaging . In addition, electro nic component s should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%. Materials used in cabinet fabrication , such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.

7.4.8 RoHS compliance statement

The European Union Restriction of Hazardous Substances (RoHS) Directive restricts the presence of chemical substances, including Lead (Pb), in electronic products effective July 2006.

A number of parts and materials in Seag ate products are procured from external suppliers. We rely on the representations of our suppliers regarding the presence of RoHS substances in these parts and mate rials. Our supplier contracts require compliance with our ch emical substance restrictions, and our suppliers document their compliance with our requirements by providing material conten t declarations for all p arts and materials for the disc drives documented in this publication. Current supplier declarations include disclosure of the inclusion of any RoHS-regulated substance in such parts or materials.

7.4.9 Electromagnetic susceptibility

See Section 3.1.1.1.

34 Cheetah 15K.7 FC Product Manual, Rev. C

7.5 Mechanical specifications

Refer to Figure 9 for detailed physical dimensions. See Section 11.4, “Drive mounting.””

Height: 1.03 in 26.10 mm

Width: 4.00 in 101.60 mm

Depth: 5.79 in 147 mm

Weight (max): 1.76 pounds 0.80 kilograms

-Z-

Notes:

[1]

Mounting holes are 6-32 UNC 2B, three on each side and four on the bottom. Max screw penetration into side of drive is 0.15 in. (3.81 mm). Max screw tightening torque is 6.0 in-lb (0.6779 nm) with minimum full thread engagement of 0.12 in. (3.05 mm).

-Z- T //

-Z-

REF

[1]

R REF

-X- N

-X-

-X- U

[1]

Figure 9. Mounting configuration dimensions

A B C D E F H

J K L

M N

S T

Dimension Table

Inches

1.028

max

5.787

max

4.000

± .010

3.750

± .010

0.125

± .010

1.750

± .010

1.122

± .020

4.000

± .010

0.250

± .010

1.638

± .010

0.181 .040

1.625

1.618

0.276 .015 .015

± .020

± .040

max max

Millimeters

26.10

147.00

101.60

95.25

3.18

44.45

28.50

101.60

6.35

41.60

4.60

1.02

41.28

41.10

7.00

0.38

max max ± .25 ± .25 ± .25 ± .25 ± .50 ± .25 ± .25 ± .25

± .50

± 1.02 max max

Cheetah 15K.7 FC Product Manual, Rev. C 35

8.0 About FIPS

The Federal Information Processing Standard (FIPS) Publication 140-2, FIPS PUB 140-2, is a U.S. government computer security standard used to accredit cryptogr aphic modules. It is titled “Security Require ment s for Cryptographic Modules”. The initial publicat ion was o n M ay 25, 2 001 a nd was la st upd ated Decemb er 3, 2002.

Purpose

The National Institute of Standards and Technology (NIST) issued the FIPS 140 P ublication Series to coordinate the requirements and standards for cryptography modules that include both hardware and software components.

Federal Information Processing Standard (FIPS) 140-2 Level 2 Certification requires drives to go through government agencies certifications to add requirements for physical tamper-evidence and role-based authentication.

Level 2 security

Level 2 improves upon the physical security mechanisms of a Level 1 (lowest level of security) cryptographic module by requiring features that show evidence of tampering, including tamper-evident coatings or seals that must be broken to attain physical access to th e plaintext cryptographic keys and critic al security parameters (CSPs) within the module, or pick-resistant locks on covers or doors to protect against unauthorized physical access.

Figure 10. Example of FIPS tamper evidence labels. Does not represent actual drive.

36 Cheetah 15K.7 FC Product Manual, Rev. C

9.0 About self-encrypting drives

Self-encrypting drives (SEDs) offer encryption and security services for the protection of stored data, commonly known as “protection of data at rest.” These drives are compliant with the Trusted Computing Group (TCG) Enterprise Storage Specifications as detailed in Section 3.3.

The Trusted Computing Group (TCG) is an organization sponsored and operated by companies in the computer, storage and digital communications industry. Seagate’s SED models comply with the standards published by the TCG.

To use the security features in the drive, the host must be capable of constructing and issuing the followin g two SCSI commands:

• Security Protocol Out

• Security Protocol In These commands are used to convey the TCG protocol to and from the drive in their command payloads.

9.1 Data encryption

Encrypting drives use one inline encryption engine fo r each port, employing AES- 128 dat a encr yption in Cipher Block Chaining (CBC) mode to encrypt all data prior to being written on the media and to decrypt all data as it is read from the media. The encryption engines are always in operation, ca nnot be disab led, and do not detract in any way from the performance of the drive.

The 32-byte Data Encryption Key (DEK) is a random number which is genera ted by th e drive, n ever leaves the drive, and is inaccessible to the host system. The DEK is itself encrypted when it is stored on the media and when it is in volatile temporary storage (DRAM) external to the encryption engine. A unique data encryption key is used for each of the drive's possible16 data bands (see Section 9.5).

9.2 Controlled access

The drive has two security partitions (SPs) called the "Admin SP" and the "Locking SP." These act as gatekeepers to the drive security services. Security-related commands will not be accepted unless they also supply the correct credentials to prove the requester is authorized to perform the command.

9.2.1 Admin SP

The Admin SP allows the drive's owner to enable or disable firmware download operations (see Section 9.4). Access to the Admin SP is available using the SID (Secure ID) password or the MSID (Makers Secure ID) password.

Cheetah 15K.7 FC Product Manual, Rev. C 37

9.2.2 Locking SP

The Locking SP controls read/write access to the media and the cryptographic erase feature. Access to the Locking SP is available using the BandMasterX or EraseMaster passwords. Since the drive owner can define up to 16 data bands on the drive, each data band has its own password called BandMasterX where X is the number of the data band (0 through 15).

9.2.3 Default password

When the drive is shipped from the factory, all passwords are set to the value of MSID. This 32-byte random value is printed on the drive label and it can be read by the host electronically over the I/O. After receipt of the drive, it is the responsibility of the owner to use the default MSID password as the authority to change all other passwords to unique owner-specified values.

9.3 Random number generator (RNG)

The drive has a 32-byte hardware RNG that it is uses to derive encryption keys or, if requested to do so, to provide random numbers to the host for system use, including using these nu mbers as Authentication Keys ( p asswords) for the drive’s Admin and Locking SPs.

9.4 Drive locking

In addition to changing the passwords, as described in Section 9.2.3, the owner should also set the data access controls for the individual bands.

The variable "LockOnReset" should be set to "PowerCycle" to ensure that the data bands will be locked if power is lost. This scenario occurs if the drive is removed from its cabinet. The drive will not honor any data read or write requests until the bands have been unlocked. This prevents the user data from being accessed without the appropriate credentials when the drive has been removed from its cabinet and installed in another system.

When the drive is shipped from the factory, the firmware download port is locked and the drive will reject any attempt to download new firmware. Th e dr ive own er m ust use th e SI D cr ed en tia l to un loc k th e fir m wa re do wn load port before firmware updates will be accepted.

9.5 Data bands

When shipped from the factory, the drive is configured with a single data band called Band 0 ( also known as the Global Data Band) which comprises LBA 0 through LBA max. The host may alloca te Band1 by specifying a start LBA and an LBA range. The r eal est a te for this band is t aken from the Global Band. An ad ditional 14 Data Bands may be defined in a similar way (Band2 through Band15) but before these bands can be allocated LBA space, they must first be individually enabled using the EraseMaster password.

Data bands cannot overlap but they can be sequential with one ba nd e ndi ng at LBA (x) and the ne xt b eginnin g at LBA (x+1).

Each data band has its own drive-generated en cryption key and its own user -supplied p assword. The host may change the Encryption Key (see Section 9.6) or the password when required. The bands should be aligned to 4K LBA boundaries.

38 Cheetah 15K.7 FC Product Manual, Rev. C

9.6 Cryptographic erase

A significant feature of SEDs is the ability to perform a cryptographic erase. This involves the host telling the drive to change the data encryption key for a p ar ticu lar ban d. On ce chang ed , the data is no longer recoverable since it was written with one key and will be read using a different key. Since the drive overwrites the old key with the new one, and keeps no history of key changes, the user data can never be recovered. This is tantamount to an instantaneous data erase and is very useful if the drive is to be scrapped or redispositioned.

9.7 Authenticated firmware download

In addition to providing a locking mechanism to prevent unwanted firmware download attempts, the drive also only accepts download files which have been cryptographically signed by the appropriate Seagate Design Center.

Three conditions must be met before the drive will allow the download operation:

1. The download must be an SED file. A standard (base) drive (non-SED) file will be rejected.

2. The download file must be signed and authenticated.

3. As with a non-SED drive, the download file must pass the acceptance criteria for the drive. For example it must be applicable to the correct drive model, and have compatible revision and customer status.

9.8 Power requirements

9.9 Supported commands

The SED models support the following two commands in addition to the commands supported by the standard (non-SED) models as listed in Table 16:

• Security Protocol Out (B5h)

• Security Protocol In (A2h)

Cheetah 15K.7 FC Product Manual, Rev. C 39

10.0 Defect and error management

Seagate continues to use innovative technologies to manage defects and errors. These technologies are designed to increase data integrity, perform drive self-maintenance, and validate proper drive operation.

SCSI defect and error management involves drive internal defect/error manage ment and FC system er ror considerations (errors in communications between the initiator and the drive). In addition, Seagate provides the following technologies used to increase data integrity and drive reliability:

• Background Media Scan (see Section 10.4)

• Media Pre-Scan (see Section 10.5)

• Deferred Auto-Reallocation (see Section 10.6)

• Idle Read After Write (see Section 10.7) The read error rates and specified storage capacities are not dependent on host (initiator) defect management

routines.

10.1 Drive internal defects/errors

During the initial drive format operation at the factory, media defects are identified, tagged as being unusable, and their locations recorded on the drive primary defects list (referred to as the “P’ list and also as the ETF defect list). At factory format time, these known defects are also reallocated, that is, reassigned to a new place on the medium and the location liste d in the defects reallocation table. The “P” list is no t altered after factory formatting. Locations of defects found and reallocated during error recovery procedures after drive shipment are listed in the “G” list (defects growth list). The “P” and “G” lists may be referenced by the initiator using the Read Defect Data command.

Details of the SCSI commands supported by the drive are described in the Fibre Channel Interface Manual. Also, more information on the drive Error Recovery philosophy is presented in the Fibre Channel Interface Manual.

10.2 Drive error recovery procedures

When an error occurs during drive operation, the drive, if pr ogrammed to do so, performs e rror recover y procedures to attempt to recover the dat a . The error reco very procedur es used depend o n the options previously set in the Error Recovery Parameters mode page. Error recovery and defect management may involve using several SCSI commands described in the Fibre Channel Interface Manual. The drive implements selectable error recovery time limits required in video applications.

The error recovery scheme supported by the drive provides a way to control the to tal error r ecovery time for the entire command in addition to controlling the recovery level for a single LBA. The total amount of time spent in error recovery for a command can be limited using the Recovery Time Limit bytes in the Error Recovery mode page. The total amount of time spent in error recovery for a single LBA can be limited using the Read Retry Count or Write Retry Count bytes in the Error Recovery mode page.

The drive firmware error recovery algorithms consists of 13 levels for read recoveries and five levels for write. Each level may consist of multiple steps, where a step is defined as a recovery function involving a single re-

40 Cheetah 15K.7 FC Product Manual, Rev. C

read or re-write attempt. The maximum level used by the drive in LBA recovery is determined by the read and write retry counts.

Table 5 equates the read and write retry count with the maximum possible recovery time for read and write recovery of individual LBAs. The times given do not include time taken to perform reallocations. Reallocations are performed when the ARRE bit (for reads) or AWRE bit (for writes) is one, the RC bit is zero, and the recovery time limit for the command has not yet been met. Time needed to perform reallocation is not counted against the recovery time limit.

When the RC bit is one, reallocations are disabled even if the ARRE or AWRE bits are one. The drive will still perform data recovery actions within the limits defined by the Read Retry Count, Write Retry Count, and Recovery Time Limit parameters. However, the drive does not report any unrecovered errors.

Cheetah 15K.7 FC Product Manual, Rev. C 41

Table 5: Read and write retry count maximum recovery times [1]

Read retry count

0 51.87 0 23.94 1 59.85 1 35.91 2 203.49 2 39.9 3 231.42 3 51.87 4 295.26 4 79.8 5 327.18 5 (default) 107.73

6359.10

7446.88

8538.65

9570.57 10 598.50 11 (default) 1,534.97

Maximum recovery time per LBA (cumulative, msec)

Write retry count

Maximum recovery time per LBA (cumulative, msec)

[1] These values are subject to change.

Setting these retry counts to a value below the default setting could result in an increased unrecovered error rate which may exceed the value given in this product manual. A setting of zero (0) will result in the drive not performing error recovery.

For example, suppose the Read/Write Recovery page has the RC bit set to 0, read retry count set to 4, and the recovery time limit field (Mode Sense page 01, bytes 10 and 11) set to FF FF hex (maximum). A four LBA Read command is allowed to take up to 253.11 msec recovery time for each of the four LBAs in the command. If the recovery time limit is set to 00 C8 he x (200 mse c de cimal) a four LBA r ead comman d is allowed to take up to 200 msec for all error recovery within that command. The use of the Recovery Time Limit field allows finer granularity on control of the time spent in error recovery. The re covery time limit only starts counting when the drive is exec uting error recovery and it restarts on each command. Therefore, each command’s tot a l re co very time is sub j ect to the recovery time limit. Note: A recover y time limit of 0 will use the drive’s default value of FF FF. Minimum recovery time limit is achieved by setting the Recovery Time Limit field to 00 01.

10.3 FC-AL system errors

Information on the reporting of operational errors or faults across the interface is given in the Fibre Channel Interface Manual. The FCP Response returns information to the host about numerous kinds of errors or faults.

The Receive Diagnostic Results reports the results of diagnostic operations performed by the drive. Status returned by the drive to the initiator is described in the Fibre Channel Interface Manual. Status reporting

plays a role in systems error management and its use in that respect is described in sections where the various commands are discussed.

42 Cheetah 15K.7 FC Product Manual, Rev. C

10.4 Background Media Scan

Background Media Scan (BMS) is a self-initiated media scan. BMS is defined in the T10 document SPC-4 available from the T10 committee. BMS performs sequential reads across the entire pack of the media while the drive is idle. In RAID arrays, BMS allows hot spare drives to be scann ed for defects prior to being pu t into service by the host system. On regular duty drives, if the host system makes use of the BMS Log Page, it can avoid placing data in suspect locations on the media. Unreadable and recovered error sites will be logged or reallocated per ARRE/AWRE settings.

With BMS, the host system can consume less power and system overhead by only checking BMS status and results rather than tying up the bus and consuming power in the process of host-i nitiated media scan ning activity.

Since the background scan functions are only done dur ing idle periods, BMS ca uses a negligible imp act to system performance. The first BMS scan for a newly manufactured drive is performed as quickly as possible to verify the media and protect data by setting the “Start time after idle” to 5ms, all subsequent scans begin after 500ms of idle time. Other features that normally use idle time to function will function normally because BMS functions for bursts of 800ms and then suspends activity for 100ms to allow other background functions to operate.

BMS interrupts immediately to service host commands from the interface bus while performing reads. BMS will complete any BMS-initiated error recovery prior to returning to service host-initiated commands. Overhead associated with a return to host-servicing activity from BMS only impacts the first command that interrupted BMS, this results in a typical delay of about 1 ms.

10.5 Media Pre-Scan

Media Pre-Scan is a feature that allows the drive to repair media errors that would otherwise have been found by the host system during critical data accesses early in the drive’s life. The default setting for Media Pre-Scan is enabled on standard products. Media Pre-Scan checks each write command to determine if the destination LBAs have been scanned by BMS. If the LBAs have been verified, the drive proceeds with the normal write command. If the LBAs have not been verified by BMS, Pre-Scan will convert the write to a write verify to certify that the data was properly written to the disc.

Note. During Pre-Scan write verify commands, write performance may decrease by 50% until Pre-Scan

completes. Write performance testing shou ld be performed after Pre-Scan is complete. Th is may be checked by reading the BMS status.

To expedite the scan of the full pack and subsequently exit from the Pre-Scan period, BMS will begin scanning immediately when the drive goes to idle during the Pre-Scan period. In the event that the drive is in a high transaction traffic environment and is unable to complete a BMS scan within 24 power on hours BMS will disable Pre-Scan to restore full performance to the system.

10.6 Deferred Auto-Reallocation

Deferred Auto-Reallocation (DAR) simplifies reallocation algorithms at the system level by allowing the drive to reallocate unreadable locations on a subsequent write command. Sites are marked for DAR during read operations performed by the drive. When a write command is received for an LBA marked for DAR, the auto-reallocation process is invoked and attempts to rewrite the data to the original location. If a verification of this rewrite fails, the sector is re-mapped to a spare location.

This is in contrast to the system having to use the Reassign Command to reassign a location that was unreadable and then generate a write command to rewrite the data. DAR is most effective when AWRE and ARRE are enabled—this is the default setting from the Seagate factory. With AWRE and ARRE disabled DAR is unable to reallocate the failing location and will report an error sense code indicating that a write command is being attempted to a previously failing location.

Cheetah 15K.7 FC Product Manual, Rev. C 43

10.7 Idle Read After Write

Idle Read After Write (IRAW) utilizes idle time to verify the integrity of recently written data. During idle periods, no active system requests, the drive reads recently written data from the media and compares it to valid write command data resident in the drives data buffer. Any sectors that fail the comp ariso n result in the invocation of a rewrite and auto-reallocation process. The process attempts to rewrite the data to the original location. If a verification of this rewrite fails, the sector is re-mapped to a spare location.

44 Cheetah 15K.7 FC Product Manual, Rev. C

11.0 Installation

Cheetah 15K.7 FC disc drive installation is a plug-and- play pro cess. T her e are no jump ers, sw itch es, or term inators on the drive. Simply plug the drive into the host’s 40-pin Fibre Channel backpanel connector (FCSCA)

—no cables are required. See Section 12.5 for additional information about this connector.

Use the FC-AL interface to select drive ID and all option configurations for devices on the loop. If multiple devices are on the same FC-AL and physical addresses are used, set the device selection IDs (SEL

IDs) on the backpanel so that no two devices have the same selection ID. This is called the har d assigned arbitrated loop physical address (AL_PA). There are 125 AL_PAs available (see Table 27). If you set the AL_PA on the backpanel to any value other than 0, the device plugged into the backpanel’s SCA connector inherits this AL_PA. In the event you don’t successfully assign unique hard addresses (and therefore have duplicate selection IDs assigned to two or more devices), the FC-AL generates a message indicating this condition. If you set the AL_PA on the backpanel to a value of 0, the system issues a unique soft-assigned physical address automatically.

Loop initialization is the process used to verify or obtain an address. The loop initialization process is performed when power is applied to the drive, when a device is added or removed from the Fibre Ch annel loop , or when a device times out attempting to win arbitration.

• Set all option selections in the connector prior to applying power to the drive. If you change options after

applying power to the drive, recycle the drive power to activate the new settings.

• It is not necessary to low-level format this drive. The drive is shipped from the factory low-level formatted in

512-byte logical blocks. Y ou need to reformat the drive only if you want to select a different logical block size.

11.1 Drive ID/option selection

All drive options are made through the interface connector (J1). Table 24 provides the pin descriptions for the 40-pin Fibre Channel single connector (J1).

11.2 Drive orientation

The drive may be mounted in any orientation. All drive performance characterizations, however, have been done with the drive in horizontal (discs level) and vertical (drive on its side) orientations, which are the two preferred mounting orientations.

Cheetah 15K.7 FC Product Manual, Rev. C 45

11.3 Cooling

Above unit

Under unit

Note. Air flows in the direction shown (back to front) or in reverse direction (front to back)

Above unit

Under unit

Note. Air flows in the direction shown or in reverse direction (side to side)

The host enclosure must dissipate heat from the drive. You sh ou ld co nf irm that the host enclosure is designed to ensure that the drive operates within the temperatur e measurement guidelines described in Section 7.4.1. In some cases, forced airflow may be required to keep temperatures at or below the temperatures specified in Section 7.4.1.

If forced air is necessary , possib le air-flow patterns ar e shown in Figure 11. The air-flow patterns are created by fans either forcing or drawing air as shown in the illustrations. Conduction, convection, or other forced air-flow patterns are acceptable as long as the temperature measurement guidelines of Section 7.4.1 are met.

Figure 11. Air flow

46 Cheetah 15K.7 FC Product Manual, Rev. C

11.4 Drive mounting

K x X = F < 15lb = 67N

Mount the drive using the bottom or side mounting holes . If you mount the drive using the b ottom holes, ensure that you do not physically distort the drive by attempting to mount it on a stiff, non-flat surface.

The allowable mounting surface stiffness is 80 lb/in (14.0 N/mm) . The followin g equation and paragraph define the allowable mounting surface stiffness:

where K is the mounting surface stiffness (units in lb/in or N/mm) and X is the out-of-plane surface distortion (units in inches or millimeters). The out-of-plane distortion (X) is determined by defining a plane with three of the four mounting points fixed and evaluating the out-of-plane deflection of the fourth mounting point when a known force (F) is applied to the fourth point.

Note. Before mounting the drive in any kind of 3.5-inch to 5.25-inch adapter frame, verify with Seagate

Technology that the drive can meet the shock and vibration specifications given herein while mounted in such an adapter frame. Adapter frames that are available may not have a mechanical structure capable of mounting the drive so that it can meet the shock and vibration specifications listed in this manual.

11.5 Grounding

Signal ground (PCBA) and HDA ground are connected together in the drive and cannot be separated by the user. The equipment in which the drive is mounted is connected directly to the HDA and PCBA with no electrically isolating shock mounts. If it is desired for the system chassis to not be connected to the HDA/PCBA ground, the systems integrator or user must provide a nonconductive (electrically isolating) method of mounting the drive in the host equipment.

Increased radiated emissions may result if you do not provide the maximum surface area ground connection between system ground and drive ground. This is the system designer’s and integrator’s responsibility.

Cheetah 15K.7 FC Product Manual, Rev. C 47

12.0 Interface requirements

This section partially describes the interface requirements as implemented on Cheetah 15K.7 FC drives. Additional information is provided in the Fibre Channel Interface Manual (part number 100293070).

12.1 FC-AL features

This section lists the Fibre Channel-specific features supported by Cheetah 15K.7 FC dr ives.

12.1.1 Fibre Channel link service frames

Table 6 lists the link services supported by Cheetah 15K.7 FC drives.

Table 6: Link services supported

Type of frame Link service

Basic link service frames Abort Sequence (ABTS) Basic link service reply frames Basic_Accept (BA_ACC)

Basic_Reject (BA_RJT)

Extended link service frames N_Port Login (PLOGI)

Fabric Login (FLOGI) Logout (LOGO) Process Login (PRLI) Process Logout (PRLO) Read Link Status (RLS)

Fabric Address Notification (FAN) Port Discovery (PDISC) Address Discovery (ADISC)

Third-party Process Logout (TRPLO)

Extended link service reply frames Accept (ACC)

Link Service Reject (LS_RJT)

Fibre Channel Services Register FC-4 Types (RFT_ID)

48 Cheetah 15K.7 FC Product Manual, Rev. C

12.1.2 Fibre Channel task management functions

Table 7 lists the Fibre Channel SCSI Fibre Channel Protocol (FC SCSI FCP) task management functions supported.

Table 7: Fibre Channel SCSI FCP task management functions

Task name Supported

Terminate task No Clear ACA Yes Target reset Yes Clear task set Yes Abort task set Yes

12.1.3 Fibre Channel task management responses

Table 8 lists the FC SCSI FCP response codes returned for task management functions supported.

T able 8: FC SCSI FCP response codes

Function name Response code

Function complete 00 Function not supported 04 Function reject 05

Cheetah 15K.7 FC Product Manual, Rev. C 49

12.1.4 Fibre Channel port login

Table 9 identifies the required content of the N_Port Login (PLOGI) payload from an initiator.

Table 9: N_Port login (PLOGI) payload

Bytes

0-15 03 00 00 00 09 09 BB BB CF XX FS FS XX XX XX XX Common 16-31 XX XX XX XX PN PN PN PN PN PN PN PN NN NN NN NN 32-35 NN NN NN NN 36-47 XX XX XX XX XX XX XX XX XX XX XX XX Class 1 48-51 XX XX XX XX 52-63 XX XX XX XX XX XX XX XX XX XX XX XX Class 2 64-67 XX XX XX XX 68-79 SO SO IC IC XX XX FS FS XX CS XX XX Class 3 80-83 OS OS XX XX 84-95 XX XX XX XX XX XX XX XX XX XX XX XX Reserved 96-99 XX XX XX XX 100-111 XX XX XX XX XX XX XX XX XX XX XX XX Vendor 112-115 XX XX XX XX Version

X Indicates a four-bit (hex) field is not checked. x Indicates a single bit is not checked. BB BB-Credit. This field is not checked. The FC CF Common features. This binary field selects the common features requested by the initiator login.

MSB Continuously increasing offset Must = 1

Random relative offset Not checked. Port Login Accept will return a 0—not supported. Valid version level x N_Port/F_Port Must = 0, N_Port Alternate credit model Must = 1 Other bits reserved xxx XX

FS Receive buffer field size. The FS field in the common and Class 3 p

multiple of four bytes. For multiple frame sequences, all frames but the last frame of the sequence must be this size. Only the receive buffer field size in the Class 3 parameters is used.

PN Port name (initiator ’s)—saved with the login parameters. If a change o

during a Port DISCovery, and implicit logout occurs and the initiator returns a LS_RJT. NN Node name. The node name is not checked or saved by the drive. SO Service options Class 3 only.

MSB Class valid Must = 1

Intermix x Stacked connection req. xx Sequential delivery x Other bits reserved xxx XX

IC Initiator control

MSB XID reassign xx

Proc Assc 10 or 11 causes the login to be rejected. Other values are accepted.

Other bits XXX CS Concurrent sequences Must be a value greater than 0. OS Open sequences per exchange Must be a value greater than 0.

-AL drive uses BB-Credit of zero (0).

arameters is checked for the range 128 < FS < 2,112 and a

f the port name/AL_PA address association is detected

50 Cheetah 15K.7 FC Product Manual, Rev. C

12.1.5 Fibre Channel port login accept

Table 10 identifies the N_Port Login access payload values.

Table 10: N_Port Login Accept (ACC) payload

Bytes

0-15 02 00 00 00 09 09 00 00 88 00 FS FS 00 FF 00 01 Common 16-31 00 00 01 F4 2P 00 CC CC CC UI UI UI 20 00 CC CC 32-35 CC UI UI UI 36-47 00 00 00 00 00 00 00 00 00 00 00 00 Class 1 48-51 00 00 00 00 52-63 00 00 00 00 00 00 00 00 00 00 00 00 Class 2 64-67 00 00 00 00 68-79 80 00 00 00 00 00 FS FS 00 FF 00 00 Class 3 80-83 00 01 00 00 84-95 00 00 00 00 00 00 00 00 00 00 00 00 Reserved 96-99 00 00 00 00 100-111 00 00 00 00 00 00 00 00 00 00 00 00 Vendor 112-11500000000 Version

CC Bytes (22, 23 and 24) and (30, 31 and 32) are currently factory set to 00 04 CF respectively (subject to change). FS Receive buffer field size. The drive returns and uses the receive buffer size from the N_Port Login Class 3 receive buffer. UI Unique identifier. This 24-bit field is uniquely assigned to the drive. This same UI appears in the Port Name and Node Name

fields.

P Byte port identifier field.

0 P_LOGI received on Node. 1 P_LOGI received on Port A. 2 P_LOGI received on Port B.

12.1.6 Fibre Channel Process Login

Table 11 lists the process login payload data.

Table 11: Process Login (PLRI) payload

Bytes

0-15 20 10 00 14 08 00 20 00 XX XX XX XX XX XX XX XX 16-19 00000022

XX Indicates fields that are not used.

Cheetah 15K.7 FC Product Manual, Rev. C 51

12.1.7 Fibre Channel Process Login Accept

Table 12 lists Cheetah 15K.7 FC process login accept payload data.

Table 12: Process Login Accept (ACC) payload

Bytes

0-15 02 10 00 14 08 00 21 00 00 00 00 00 00 00 00 00 16-31 00000012

12.1.8 Fibre Channel fabric login

Table 13 lists the fabric login payload from the drive.

Table 13: Fabric Login (FLOGI) payload

Bytes

0-15 04 00 00 00 09 09 00 00 08 00 08 40 00 00 00 00 Common 16-31 000002F42P00CCCCCCUIUIUI0200CCCC 32-35 CC UI UI UI 36-47 000000000000000000000000Class 1 48-51 00000000 52-63 000000000000000000000000Class 2 64-67 00000000 68-79 800000000000084000000000Class 3 80-83 00000000 84-95 000000000000000000000000Reserved 96-99 00000000 100-111 00 00 00 00 00 00 00 00 00 00 00 00 Vendor 112-115 00 00 00 00 Version

CC Bytes (22, 23 and 24) and (30, 31 and 32) are currently factory set to 00 04 CF respectively (subject to change). UI Unique identifier. This 24-bit field is uniquely assigned to the drive. This same UI appears in the Port Name and Node Name

fields.

P Port identifier field.

1 FLOGI originated on Port A. 2 FLOGI originated on Port B.

52 Cheetah 15K.7 FC Product Manual, Rev. C

12.1.9 Fibre Channel fabric accept login

Ta ble 14 lists the require d cont en t of th e Fa b ric Log i n Acce pt (A CC) payload from the fa br ic.

Table 14: Fabric Login Accept (ACC) payload

Bytes

0-15 02 00 00 00 09 09 BB BB CF XX FS FS R_ A_ T0 V_ Common 16-31 E_D_T0 V_PNPNPNPNPNPNPNPNNNNNNNNN 32-35 NNNNNNNN 36-47 XXXXXXXXXXXXXXXXXXXXXXXXClass 1 48-51 XXXXXXXX 52-63 XXXXXXXXXXXXXXXXXXXXXXXXClass 2 64-67 XXXXXXXX 68-79 SOSOxxxxXXXXFSFSXXxxXXXXClass 3 80-83 OSOSXXXX 84-95 XXXXXXXXXXXXXXXXXXXXXXXXReserved 96-99 XXXXXXXX 100-111 XX XX XX XX XX XX XX XX XX XX XX XX Vendor 112-115 XX XX XX XX Version

X Indicates a four-bit (hex) field is not checked. x Indicates a single bit is not checked. BB BB-Credit. This field is not checked. The FC-AL drive uses BB-Credit of zero (0). CF Common features. This binary field selects the common features requested by the fabric login.

MSB Continuously increasing offset x

Random relative offset x Valid version level x N_Port/F_Port Must = 1, F_Port Alternate credit model Must = 1 Other bits reserved xxx XX

FS Receive buffer field size. The FS field in the common and Class 3 parameters is checked for the range 128 < FS < 2,112 and a

multiple of four bytes. The receive buffer field size in the Class 3 parameters is used. The drive uses the lower FS of Fabric Login Accept or N_Port Login when sending frames to an initiator.

PN Port Name. The fabric port name is saved with the login parameters. If a change of the port name is detected during a FAN, an

implicit logout occurs and a LS_RJT is returned to the fabric. NN Node Name. The drive does not check or save the node name. SO Service Options—Class 3 only.

MSB Class valid Must = 1

Intermix x Stacked connection req. xx Sequential delivery Must = 1 Other bits reserved xxx XX

Cheetah 15K.7 FC Product Manual, Rev. C 53

12.1.10 Fibre Channel Arbitrated Loop options

Table 15 lists the FC-AL options supported by Cheetah 15K.7 FC drives.

Table 15: FC-AL options supported

Option Supported

OPEN Half Duplex Accepted from another device. OPEN Full Duplex Sent to open another device. Accepted from another device. Private Loop Yes Public Loop Yes Old Port State No Loop Position Yes Loop Position Report Yes

12.2 Dual port support

Cheetah 15K.7 FC drives have two independent FC-AL ports. These ports may be connected on independent loops or on the same loop. Port A and Port B may be connected in any order or combination.

• If both ports are connected on independent lo op s and har d addressing is used, the d rive interface addre ss is selected through the interface connector, both ports will seek the same loop address. If no conflict, both ports will have the same loop address.

• If both ports are connected in the same loop and hard addressing is used, at least one port will attempt taking a soft address to prevent an address conflict.

Note. When a Cheetah 15K.7 FC drive is connected in loops with previous Seagate FC drive products:

Barracuda 4LP FC (ST32171FC, ST34371FC, and ST34571FC) Barracuda 9FC (ST19171FC) Cheetah 4LP FC (ST34501FC) Cheetah 9FC (ST19101FC)

the connection of Port A and B for these products must follow the requirements in their product manuals.

Subject to buffer availability, the Cheetah 15K.7 FC drives support:

• Concurrent port transfers—The drive supports receiving transfers on both ports at the same time when the ports are on independent loops.

• Full duplex—The drive supports sending FCP_Data, FCP_RSP, FCP_XFR_RDY and ELS transfers while receiving frames on both ports.

12.3 SCSI commands supported

Table 16 lists the SCSI commands supported by Cheetah 15K.7 FC drives.

54 Cheetah 15K.7 FC Product Manual, Rev. C

Table 16: Supported commands

Executable state of standard SCSI commands in the presence of LBA banding (applies to SED models only)

Affected LBA

User Data Command code

00h Y Test unit ready Y N Executable Executable 01h Y Rezero unit Y N Executable Executable 03h Y Request sense Y N Executable Executable

04h Y Format unit [1] Y Y Executable Check Condition 07h Y Reassign blocks N Y Executable Check Condition 08h Y Read N Y Executable Check Condition 0Ah Y Write N Y Executable Check Condition 0Bh Y Seek N N Executable Executable 12h Y Inquiry Y N Executable Executable

15h Y Mode select (same pages as Mode

16h Y Reserve Y N Executable Executable

17h Y Release Y N Executable Executable 18h N Copy 1Ah Y Mode sense Y N Executable Executable

Supported (Y/N) [4] Command name

Y Extended sense Y Field pointer bytes Y Actual retry count bytes

Y Vital product data page (00h) Y Unit serial number page (80h) Y Implemented operating def. page

(81h) Y Device Identification page (83h) Y Firmware numbers page (C0h) Y Date code page (C1h) Y Jumper settings page (C2h) Y Device Behavior page (C3h)

Sense command shown below) [3]

N 3rd party reserved N Extent reservation

Y Unit attention page (00h) Y Error recovery page (01h) Y Disconnect/reconnect control (page

02h) Y Format page (03h) Y Rigid disc drive geometry page

(04h) Y Verify error recovery page (07h) Y Caching parameters page (08h) Y Control mode page (0Ah) Y Fibre Channel Interface Control

page (19h)

Affects entire Drive (Y/N)

Y N Executable Executable

Accessed (Y/N)

Unlocked ReadLock=Write Lock=False

Affected LBA Locked ReadLock=Write Lock=True

Cheetah 15K.7 FC Product Manual, Rev. C 55

Table 16: Supported commands (continued)

Executable state of standard SCSI commands in the presence of LBA banding (applies to SED models only)

Affected LBA

User Data Command code

1Bh Y Start unit/stop unit Y Y Executable Executable 1Ch Y Receive diagnostic results Y N Executable Executable

1Dh Y Send diagnostics page Y N Executable Executable

25h Y Read capacity Y N Executable Executable 28h Y Read extended

2Ah Y Write extended

2Bh Y Seek extended 2Eh Y Write and verify N Y Executable Check Condition

2Fh Y Verify (10) (BYTCHK = 0) N Y Executable Executable

30h N Search data high 31h N Search data equal 32h N Search data low 33h N Set limits 34h N Prefetch N Y Executable Check Condition 35h Y Synchronize cache N Y Executable Executable 36h N Lock-unlock-cache 37h Y Read defect data Y N Executable Executable 39h N Compare

Supported (Y/N) [4] Command name

Y Power control page (1Ah) Y Information exceptions control page

(1Ch)

Y Background Scan mode subpage

(01h)

Y Supported diagnostics pages Y Translate page Y Enclosure services page

Y Supported diagnostics pages Y Translate page

Y Disable page out Y Force unit access N Relative address

Y Disable page out Y Byte check N Relative address

Y Verify (10) (BYTCHK = 1) N Y Executable Check Condition Y Disable page out Y Byte check N Relative address

Affects entire Drive (Y/N)

Accessed

(Y/N)

Unlocked ReadLock=Write Lock=False

Affected LBA Locked ReadLock=Write Lock=True

56 Cheetah 15K.7 FC Product Manual, Rev. C

Table 16: Supported commands (continued)

Executable state of standard SCSI commands in the presence of LBA banding (applies to SED models only)

Affected LBA

User Data Command code

3Ah N Copy and verify 3Bh Y Write buffer N Y Check Condition Check Condition

3Ch Y Read buffer (Mode 1Ch -- Error

3Ch Y Read buffer Y N Check Condition Check Condition

3Eh Y Read long N Y Check Condition Check Condition 3Fh Y Write long (10) (WR_UNCOR = 0) N Y Check Condition Check Condition

40h N Change definition Y N Executable Check Condtion 41h Y Write same (10) N Y Executable Check Condition

42-4Bh N Not used 4Ch Y Log Select Y N Executable Executable 4Dh Y Log Sense Y N Executable Executable

Supported (Y/N) [4] Command name

Y Write combined header and data

mode (0) Y Write data mode (2) N Download microcode mode (4) Y Download microcode and save

modes (5) N Download microcode with offsets

mode (6) Y Download microcode with offsets

and save mode (7) Y Firmware download option [2]

Retrieval Mode)

Y Read combined header and data

mode (0) Y Read data mode (2) Y Read descriptor mode (3)

Write long (10) (WR_UNCOR = 1) N Y Executable Check Condition

NPBdata N LBdata

Y Support Log page (00h) Y Write Error Counter page (02h) Y Read Error Counter page (03h) N Read Reverse Error Counter page

(04h) Y Verify Error Counter page (05h) Y Non-medium Error Counter page

(06h) Y Temperature page (0Dh) N Application Client page (0Fh) Y Self Test Results page (10h)

Affects entire Drive (Y/N)

Y N Executable Executable

Accessed (Y/N)

(all modes except modes 4h - 7h, 0Eh, and 0Fh)

(modes 4h - 7h, 0Eh, and 0Fh)

Unlocked ReadLock=Write Lock=False

Affected LBA Locked ReadLock=Write Lock=True

Cheetah 15K.7 FC Product Manual, Rev. C 57

Table 16: Supported commands (continued)

Executable state of standard SCSI commands in the presence of LBA banding (applies to SED models only)

Affected LBA

User Data Command code

4E-4Fh N Not used 50h N XD write 51h N XP write 52h N XD read 53-54h N Not used 55h Y Mode Select (10) [3] 56h Y Reserved (10)

57h Y Released (10) 58-59h N Not used 5Ah Y Mode Sense (10) [3] 5B-5Dh N Not used 5E A Persistent reserve in Y N Executable Executable 5F A Persistent reserve out Y N Executable Executable 60-7Eh N Not used 7Fh Y (PI only) Write Same (32) N Y Executable Check Condition 7Fh Y (PI only) Verify (32) (BYTCHK = 0) N Y Executable Executable 7Fh Y (PI only) Verify (32) (BYTCHK = 1) N Y Executable Check Condition 80h N XD write extended 81h N Rebuild 82h N Regenerate 83-8Eh N Not used 8Fh Y (PI only) Verify (16) (BYTCHK = 0) N Y Executable Executable 8Fh Y (PI only) Verify (16) (BYTCHK = 1) N Y Executable Check Condition 93h Y (PI only) Write same (16) N Y Executable Check Condition A0h Y Report LUNS Y N Executable Executable A2h Y

A3h Y

B5h Y

C0-DFh N Not used EO-FFh N Not used

Supported (Y/N) [4] Command name

Y Background Medium Scan page

(15h) Y Cache Statistics Counter page (37h) Y Factory Log page (3Eh)

Y 3rd party reserve N Extent reservation

Security Protocol In Y N Executable Executable (SED only)

Report Device Identifier Y N Executable Executable (SED only)

Security Protocol Out Y N Executable Executable (SED only)

Affects entire Drive (Y/N)

Accessed (Y/N)

Unlocked ReadLock=Write Lock=False

Affected LBA Locked ReadLock=Write Lock=True

[1] Cheetah 15K.7 FC drives can format to 512, 520, 524 or 528 bytes per logical block. [2] Warning. Power loss during flash programming can result in firmware corruption. This usually makes the

drive inoperable.

58 Cheetah 15K.7 FC Product Manual, Rev. C

[3] Reference Mode Sense command 1Ah for mode pages supported. [4] Y = Yes. Command is supported.

N = No. Command is not supported. A = Support is available on special request.

12.3.1 Inquiry data

Table 17 lists the Inquiry command data that the drive should return to the initiator per the format given in the Fibre Channel Interface Manual.

Table 17: Cheetah 15K.7 FC inquiry data

Bytes Data (hex)

0-15 00 00 xx** 12 8B 00 PP 02 53 45 41 47 41 54 45 20 Vendor ID

16-31 [535433 3630303035374643] 32-47 R# R# R# R# S# S# S# S# S# S# S# S# 00 00 00 00 48-63 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 64-79 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80-95 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 96-111 00 43 6F 70 79 72 69 67 68 74 20 28 63 29 20 32* *Copyright 112-127 30* 30* 39* 20 53 65 61 67 61 74 65 20 41 6C 6C 20 notice 128-143 72 69 67 68 74 73 20 72 65 73 65 72 76 65 64 20

20 20 20 20 20 Product ID

* Copyright year (changes with actual year). ** SCSI Revision support. Refer to the SPC release documentation for definitions.

PP 50 = Inquiry data for an Inquiry command received on Port A.

70 = Inquiry data for an Inquiry command received on Port B. R# Four ASCII digits representing the last four digits of the product firmware release number. S# Eight ASCII digits representing the eight digits of the product serial number. [ ] Bytes 18 through 26 reflect model of drive in hex format.

12.3.2 Mode Sense data

The Mode Sense command provides a way for the drive to report its operating parameters to the initiator. The drive maintains four sets of mode parameters:

1. Default values

Default values are hard-coded in the drive firmware stored in flash E-PROM (nonvolatile memory) on the drive’s PCB. These default values can be changed only by downloading a complete set of new firmware into the flash E-PROM. An initiator can request and receive from the drive a list of default values and use those in a Mode Select command to set up new current and saved values, where the values are change able.

2. Saved values

Saved values are stored on the drive’s media using a Mode Select command. Only parameter values that are allowed to be changed can be changed by this method. Parameters in the saved values list that are not changeable by the Mode Select command get their values from default values storage.

When power is applied to the drive, it takes saved values from the media and stores them as current values in volatile memory. It is not possible to change the current values (or the saved values) with a Mode Select command before the drive achieves operating speed and is “r ead y.” An attempt to do so results in a “Check Condition” status.

Cheetah 15K.7 FC Product Manual, Rev. C 59

On drives requiring unique saved values, the required unique saved values are stored into the saved values storage location on the media prior to shipping the drive. Some drives may have unique firmware with unique default values also.

On standard OEM drives, the saved values are taken from the default values list and stored into the saved values storage location on the media prior to shipping.

3. Current values Current values are volatile values being used by the drive to control its operation. A Mode Select command

can be used to change the values identified as changeable values. Originally, current values are installed from saved or default values after a power on reset, hard reset, or Bus Device Reset message.

4. Changeable values Changeable values form a bit mask, stored in nonvolatile memory, that dictates which of the current values

and saved values can be changed by a Mode Select command. A one (1) indicates the value can be changed. A zero (0) indicates the value is not changeable. For example, in Table 81, in the row entitled “CHG.” These are hex numbers representing the changeable values for Mode page

81. Note in columns 5 and 6 (bytes 04 and 05), there is 00h which indicates that in bytes 04 and 05 none of the bits are changeable. Note also that bytes 06, 07, 09, 10, and 11 are not changeable, because those fields are all zeros. In byte 02, hex value FF equates to the binary pattern 11111111. If there is a zero in any bit position in the field, it means t hat bit is not changeable. Since all of the bits in byte 02 are ones, all of these bits are changeable.

The changeable values list can only be changed by downloading new firmware into the flash E-PROM.

Note. Because there are often several dif fere nt versions of dr ive control firmware in the total pop ulation of

drives in the field, the Mode Sense values given in the following tables may not exactly match those of some drives.

18, refer to Mode page

The following tables list the values of the data bytes returned by the d rive in response to the Mode Sense command pages for SCSI implementation (see the Fibre Channel Interface Manual ).

Definitions: SAV = Current saved value.

DEF = Default value. Standard OEM drives are shipped configured this way. CHG = Changeable bits; indicates if default value is changeable.

60 Cheetah 15K.7 FC Product Manual, Rev. C

Table 18: Mode Sense data saved, default and changeable values for ST3600057FC drives

MODE DATA HEADER: 00 be 00 10 00 00 00 08

MODE PAGES:

DEF 81 0a c0 0b ff 00 00 00 05 00 ff ff CHG 81 0a ff ff 00 00 00 00 ff 00 ff ff

DEF 82 0e 80 80 00 00 00 00 00 00 01 3a 00 00 00 00 CHG 82 0e ff ff 00 00 00 00 00 00 ff ff 00 00 00 00

DEF 83 16 bb d0 00 00 00 00 03 80 04 c4 02 00 00 01 00 c0 00 4c 40 00 00 00 CHG 83 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DEF 84 16 01 8a 9a 08 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3a a7 00 00 CHG 84 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DEF 87 0a 00 0b ff 00 00 00 00 00 ff ff CHG 87 0a 0f ff 00 00 00 00 00 00 ff ff

DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00 CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 20 00 00 00 00 00 00 00

DEF 8a 0a 02 00 00 00 00 00 00 00 19 00 CHG 8a 0a 03 f0 00 00 00 00 00 00 00 00

DEF 99 06 00 00 00 00 00 00 CHG 99 06 00 ff 00 00 00 00

DEF 9a 0a 00 02 00 00 00 05 00 00 8c a0 CHG 9a 0a 00 03 ff ff ff ff 00 00 00 00

DEF 9c 0a 10 00 00 00 00 00 00 00 00 01 CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff

DEF dc 01 00 0c 01 01 00 18 00 18 00 00 00 00 00 00 CHG dc 01 00 0c 00 01 ff ff ff ff 00 00 00 00 00 00

DEF 80 06 00 80 0f 00 00 00 CHG 80 06 b7 c0 8f 00 00 00

READ CAPACITY DATA: READ BUFFER 0 1 2 3 4 5 6 7 8 9 A B C D E F ASCII

000000: 45 DD 2F AF 00 00 02 00 __ __ __ __ __ __ __ __ E./....

Cheetah 15K.7 FC Product Manual, Rev. C 61

Table 19: Mode Sense data default and changeable values for ST34508 57FC drives

MODE DATA HEADER: 00 be 00 10 00 00 00 08

BLOCK DESCRIPTOR: 34 65 f8 70 00 00 02 00

MODE PAGES:

DEF 81 0a c0 0b ff 00 00 00 05 00 ff ff CHG 81 0a ff ff 00 00 00 00 ff 00 ff ff

DEF 82 0e 80 80 00 00 00 00 00 00 01 3a 00 00 00 00 CHG 82 0e ff ff 00 00 00 00 00 00 ff ff 00 00 00 00

DEF 83 16 bb d0 00 00 00 00 03 80 04 c4 02 00 00 01 00 c0 00 4c 40 00 00 00 CHG 83 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DEF 84 16 01 8a 9a 06 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3a a7 00 00 CHG 84 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DEF 87 0a 00 0b ff 00 00 00 00 00 ff ff CHG 87 0a 0f ff 00 00 00 00 00 00 ff ff

DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00 CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 20 00 00 00 00 00 00 00

DEF 8a 0a 02 00 00 00 00 00 00 00 12 c0 CHG 8a 0a 03 f0 00 00 00 00 00 00 00 00

DEF 99 06 00 00 00 00 00 00 CHG 99 06 00 ff 00 00 00 00

DEF 9a 0a 00 02 00 00 00 05 00 00 8c a0 CHG 9a 0a 00 03 ff ff ff ff 00 00 00 00

DEF 9c 0a 10 00 00 00 00 00 00 00 00 01 CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff

DEF dc 01 00 0c 01 01 00 18 00 18 00 00 00 00 00 00 CHG dc 01 00 0c 00 01 ff ff ff ff 00 00 00 00 00 00

DEF 80 06 00 80 0f 00 00 00 CHG 80 06 b7 c0 8f 00 00 00

READ CAPACITY DATA: READ BUFFER 0 1 2 3 4 5 6 7 8 9 A B C D E F ASCII

000000: 34 65 F8 6F 00 00 02 00 __ __ __ __ __ __ __ __

62 Cheetah 15K.7 FC Product Manual, Rev. C

Table 20: Mode Sense data default and changeable values for ST3300657FC drives

MODE DATA HEADER: 00 be 00 10 00 00 00 08

BLOCK DESCRIPTOR: 22 ec b2 5c 00 00 02 00

MODE PAGES:

DEF 81 0a c0 0b ff 00 00 00 05 00 ff ff CHG 81 0a ff ff 00 00 00 00 ff 00 ff ff

DEF 82 0e 80 80 00 00 00 00 00 00 01 3a 00 00 00 00 CHG 82 0e ff ff 00 00 00 00 00 00 ff ff 00 00 00 00

DEF 83 16 bb d0 00 00 00 00 03 80 04 c4 02 00 00 01 00 c0 00 4c 40 00 00 00 CHG 83 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DEF 84 16 01 8a 9a 04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3a a7 00 00 CHG 84 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DEF 87 0a 00 0b ff 00 00 00 00 00 ff ff CHG 87 0a 0f ff 00 00 00 00 00 00 ff ff

DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00 CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 20 00 00 00 00 00 00 00

DEF 8a 0a 02 00 00 00 00 00 00 00 0c 80 CHG 8a 0a 03 f0 00 00 00 00 00 00 00 00

DEF 99 06 00 00 00 00 00 00 CHG 99 06 00 ff 00 00 00 00

DEF 9a 0a 00 02 00 00 00 05 00 00 8c a0 CHG 9a 0a 00 03 ff ff ff ff 00 00 00 00

DEF 9c 0a 10 00 00 00 00 00 00 00 00 01 CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff

DEF dc 01 00 0c 01 01 00 18 00 18 00 00 00 00 00 00 CHG dc 01 00 0c 00 01 ff ff ff ff 00 00 00 00 00 00

DEF 80 06 00 80 0f 00 00 00 CHG 80 06 b7 c0 8f 00 00 00

READ CAPACITY DATA: READ BUFFER 0 1 2 3 4 5 6 7 8 9 A B C D E F ASCII

000000: 22 EC B2 5B 00 00 02 00 __ __ __ __ __ __ __ __

Cheetah 15K.7 FC Product Manual, Rev. C 63

12.4 Miscellaneous operating features and conditions

Table 21 lists various features and conditions. A “Y” in the support column indicates the feature or condition is supported. An “N” in the support column indicates the feature or condition is not supported.

Table 21: Miscellaneous features

Supported Feature or condition

Y FC-AL selective reset (LIP Reset) N Automatic contingent allegiance N Asynchronous event notification N Synchronized (locked) spindle operation Y Segmented caching N Zero latency read Y Queue tagging (up to 128 queue tags supported) Y Deferred error handling Y Parameter rounding (controlled by Round bit in Mode Select page 0) Y Reporting actual retry count in Extended Sense bytes 15, 16, and 17 N Adaptive caching Y SMP = 1 in Mode Select command needed to save RPL and rotational offset bytes

Table 22: Miscellaneous status

Supported Status

YGood Y Check condition Y Condition met/good YBusy Y Intermediate/good Y Intermediate/condition met/good Y Reservation conflict YTask set full N ACA active N ACA active, faulted initiator

64 Cheetah 15K.7 FC Product Manual, Rev. C

12.5 FC-AL physical interface

J1 interface connector

Port Bypass

Circuit N–1

Select

Drive N–1

Port Bypass

Circuit N+1

Drive N+1

Drive N

SerialInSerial

Out

From Previous

Drive

Port Bypass

Circuit

To Next

Drive

MUX

Figure 12 shows the location of the J1 Fibre Channel single connection attachment (FC-SCA). Figure 14 provides the dimensions of the FC-SCA connector.

Details of the physical, electrical, and logical characteristics are provided within this section. The operational aspects of Seagate’s Fibre Channel drives are provided in the Fibre Channel Interface Manual..

Figure 12. Physical interface

12.5.1 Physical characteristics

This section defines physical interface connector.

12.5.1.1 Physical description

FIbre Channel drives may be connected in a loop together or with other compatible FC-AL devices. A maximum of 127 devices may have addresses; however, one of the addresses is reserved for a fabric port switch device. This means 126 addresses are available for FC-AL devices. More FC-AL compatible devices may physically reside on the loop, but they will not be functional because they would not be able to obtain valid addresses.

Port bypass circuits (PBCs) allow devices to be inserted into unpopulated locations or removed from the loop with loop operation recovery after a brief interruption. These PBCs are located external to the FC-AL device. Figure 13 shows the relationship between the PBC and FC-AL device.

Figure 13. Port bypass circuit physical interconnect

Cheetah 15K.7 FC Product Manual, Rev. C 65

12.5.2 Connector requirements

1.618 ± .003 in

(41.1 ± 0.08 mm)

0.197 ± .003 in

(5.00 ± .08 mm)

2 places

1.28 in

(32.47 mm)

.64 in

(16.24 mm)

Pin 40

Pin 20

Pin 21

Pin 1

1.618 ± .003 in

(41.10 ± 0.08 mm)

1.492 ± .009 in

(37.90 ± 0.24 mm)

(6.71+0.18 mm)

(–0.25 mm)

0.264+.007 in –.010 in

typ.

.05 in

(1.27 mm)

min.

0.226 in

(6.50 mm)

min.

0.024 in

(0.60 mm)

min.

0.039 in

(0.75 mm)

2 places

0.051 ± .006 in

(1.30 ± 0.16 mm)

0.079 ± .010 in (2.00 ± .25 mm)

Mating end Housing

Contact (typ.)

.025 in (0.635 mm)

0.106 ± .010 in

(2.70 ± 0.25 mm)

0.060 ± .010 in

(1.52 ± 0.25 mm)

(initial point

of contact)

0.394 ± .004 in

(10.0 ± 0.10 mm)

Table 23: Recommended mating SCA part numbers

Part description Positions Part number Features

AMP Vertical (SCA sequence) 40 787317-1 Berg 40 71781 Methode 40 512-220-91-101N Molex 40 717431040

With polarization With polarization With polarization With polarization

The FC-AL SCA device c

onnector is illustrated in Figure 14.

Figure 14. FC-AL SCA device connector dimensions

12.5.3 Electrical description

Fibre Channel drives use the FC-SCA conn ec to r fo r:

• DC power

• FC-AL interface

• Drive select (device identification)

• Option selection

• Enclosure Services interface This 40-pin connector is designed to plug directly into

12.5.4 Pin descriptions

This section provides a pin-out of the FC-SCA and a descr iption of th e fun ct ion s pr ovid e d by th e pin s.

66 Cheetah 15K.7 FC Product Manual, Rev. C

a backpanel. External cables are not required.

Table 24: FC-SCA pin descriptions

Pin Signal name Signal type Pin Signal name

1* -EN bypass port A Low Voltage TTL output 21 12 Volts charge 2* 12 Volts 22 Ground 3* 12 Volts 23 Ground 4* 12 Volts 24* +Port A_in FC Diff. input pair 5* -Parallel ESI 25* -Port A_in

[2]

[1]

TTL input 29 Ground TTL input 30* +Port A_out FC Diff. output pair

[2]

TTL input 37 SEL_1 TTL input/output

[2]

TTL input 38 SEL_0 TTL input/output

26 Ground

6* Ground 7* Active LED out Open collector out 27* +Port B_in FC Diff. input pair 8* Reserved 28* -Port B_in 9* Start_1 10* Start_2 11* -EN bypass port B Low Voltage TTL output 31* -Po r t A_out 12* SEL_6 TTL input/output 32 Ground 13* SEL_5 TTL input/output 33* +Port B_out FC Diff. output pair 14* SEL_4 TTL input 34* -Port B_out 15* SEL_3 TTL input/output 35 Ground 16* Fault LED out Open collector out 36 SEL_2 TTL input/output 17* DEV_CTRL_CODE_2 18* DEV_CTRL_CODE_1 19* 5 Volts 39 DEV_CTRL_CODE_0[2TTL input 20* 5 Volts 40 5 Volts charge

Signal type

*Short pins in mating backpanel connector. [1] This pin may be connected to external logic to detect the

presence of the drive. The drive connects this

pin to the common ground.

[2] Pins 9, 10, 17, 18, and 39 are option select pins and are tie

d high by the drive circuitry . The preferred electrical connection at the backplane is either open or grounded (open for the ‘1’ setting, grounded for the ‘0’ setting)

. Alternatively, these pins may be driven by a 3. 3V logic device, pulled up to 3.3V throug h a pu ll-up

resistor (recommended size of 10k ohm), or grounded through some other means.

12.5.5 FC-AL transmitte

A typical FC-AL differential copper transmitter and receiver

rs and receivers

pair is shown in Figure 15. The receiver is required

to provide the AC coupling to eliminate ground shift noise.

Transmitter

100

Figure 15. FC-AL transmitter s and receivers

Differential

Transfer Medium

.01

Receiver

100

Cheetah 15K.7 FC Product Manual, Rev. C 67

12.5.6 Power

Power is supplied through the FC-SCA with support for +5 volts and +12 volts. All of the voltage pins in the drive connector are the same length.

Four 12 volt pins provide +12 volt power to the drive. The current return for the +12 volt power supply is through the common ground pins. The supply current and return current must be distributed as evenly as possible among the pins. The maximum current typically occurs while the drive motor is starting.

Three 5 volt pins provide logic power to the drive. The cu rr ent return for the +5 volt po wer su pply is through th e common ground pins. Distribute supply and return current as evenly as possible among the voltage and ground pins.

The mating connector pins use shorter contacts to achieve power surge reductions and to aid in “hot plugging” the drives. There are longer voltage contacts in the connector to enable the drive filter capacitors to charge. Current to the drive through the long charge pins is limited by the system in which the drive operates. Three of the +12 volt pins are shorter to allow capacitive p re-char ging through the longer +12 vo lt charge pin. Two of the +5 volt pins are shorter to allow capacitive precharging through the longer +5 volt charge pin.

12.5.7 Fault LED Out

The Fault LED Out signal is driven by the drive when:

• the drive detects failure of both ports

• the drive detects an internal failure

• the drive receives the appropriate fault LED command from the host The Fault LED Out signal is designed to pull down the cathode of a n LED. The an ode is a ttached to the proper

+5 volt supply through an appropriate current-limiting resistor. The LED and the current-limiting resistor are external to the drive.

68 Cheetah 15K.7 FC Product Manual, Rev. C

12.5.8 Active LED Out

The Active LED Out signal is driven by the drive as indicated in Table 25.

Table 25: Active LED Out conditions

Normal command activity LED status

Spun down and no activity Slow blink (20% on and 80% off a 2 sec cycle) Spun down and activity (command executing) On Spun up and no activity On Spun up and activity (command executing) Off Spinning up or down Blinks steadily (50% on and 50% off) Format in progress, each cylinder change Toggles on/off

The Active LED Out signal is designed to pull down the cathode of an LED. The anode is attached to the proper +5 volt supply through an appropriate current limiting resistor. The LED and the current limit ing r esisto r are external to the drive.

12.5.9 Enable port bypass signals

The – Enable Bypass Port A (– EN BYP Port A) and – Enable Bypass Port B (– EN BYP Port B) signals control the port bypass circuits (PBC) located external to the disc drive. The PBC allows a loop to remain functional in the event of a drive failure or removal. When these signals are active, low, the PBC bypasses the drive on the associated port. When an Enable Bypass signal is active, the corresponding Port Bypass LED signal in connector J1 is driven low by the disc drive. A pull down resistor, 1K, located with the PBC should be used to insure the bypass is enabled if the disc drive is not installed.

The Enable Bypass signal is active under failing conditions within the drive, on detection of the Loop Port Bypass primitive sequence, or on removal of the drive. In the bypass st ate the drive continue s to receive o n the inbound fibre. Enable Bypass may be deactivated by detection of a Loop Port Enable primitive sequence if the drive has completed self-test and a hardware failure is not present.

Failure modes detected by the disc drive that will enable bypass include:

• Transmitter/receiver wrap test failure

• Loss of receive clock

• Loss of transmission clock

• Drive interface hardware error

12.5.10 Motor start controls

The drive’s motor is started according to the Start_1 and Start_2 signals described in Table 26. The state of these signals can be wired into the backplane socket or driven by logic on the backplane.

Table 26: Motor start control signals

Case Start_2 Start_1 Motor spin function

1 Low Low Motor spins up at DC pow er on. 2 High Low Motor spins up only when SCSI Start command is received. 3 Low High Motor spins up after a delay of 12 seconds times the modulo 8 value

of the numeric SEL ID of the drive from DC power on.

4 High High The drive will not spin up.

Cheetah 15K.7 FC Product Manual, Rev. C 69

12.5.11 SEL_6 through SEL_0 ID lines

The SEL_6 through SEL_0 ID lines determine drive address, and, optionally, for an Enclosure Services Interface. When the Parallel ESI line is high, the enclosure backp anel mu st pro vide add ress info rmation on the SEL line. Refer to table 27 for a mapping of SEL to FC-AL physical addresses (AL_PA). You can think of the SEL lines as the equivalent of a backpanel logic plug. The drives does not provide pull up resistors on these lines. The backpanel is required to provide high and low inputs to the SEL_ID lines per the specifications in table 29 on page 72.

Note. Table 27 gives AL_PA values for each SEL value. The first entry in the table is SEL_ID 00. The last

entry is SEL_ID 7D. SEL_ID 7E is AL_PA 00 which is not valid for an NL_Port, so is not included in the table. Also, SEL_ID 7Fh does map to a valid AL_PA; however, this value signals the drive that physical addresses are not being assigned using the SEL lines and that a “soft” address will be determined by FC-AL loop initialization.

When the Parallel ESI line is low, the enclosure backpanel logic switches to ESI mode if supported. There are two modes of ESI, seven bits of enclosure status and a bidirectional mode. ESI support and the mode are determined by the drive using a discovery pr ocess. Re fer to the Fibre Ch annel Inter face Ma nual for a de scription of ESI operation.

12.5.11.1 Parallel Enclosure Services Interface (ESI)

The parallel ESI line is an output from the drive. This line provides the enclosure with an indication of the present function of the SEL lines. A high level, the default state, indicates the d rive requir es addr ess infor mation on the SEL lines. A low level indicates the drive is attempting an ESI transfer. The enclosure may not support ESI on any or all drive locations. It may only support the address function. Support of ESI is discovered by the drive. Refer to the Fibre Channel Interface Manual for a description of ESI operations.

70 Cheetah 15K.7 FC Product Manual, Rev. C

T able 27: Arbitrated loop physical address (AL_PA) values

AL_PA (hex)

EF 00 00 A3 2B 43 4D 56 86 E8 01 01 9F 2C 44 4C 57 87 E4 02 02 9E 2D 45 4B 58 88 E2 03 03 9D 2E 46 4A 59 89 E1 04 04 9B 2F 47 49 5A 90 E0 05 05 98 30 48 47 5B 91 DC 06 06 97 31 49 46 5C 92 DA 07 07 90 32 50 45 5D 93 D9 08 08 8F 33 51 43 5E 94 D6 09 09 88 34 52 3c 5F 95 D5 0A 10 84 35 53 3A 60 96 D4 0B 11 82 36 54 39 61 97 D3 0C 12 81 37 55 36 62 98 D2 0D 13 80 38 56 35 63 99 D1 0E 14 7C 39 57 34 64 100 CE 0F 15 7A 3A 58 33 65 101 CD 10 16 79 3B 59 32 66 102 CC 11 17 76 3C 60 31 67 103 CB 12 18 75 3D 61 2E 68 104 CA 13 19 74 3E 62 2D 69 105 C9 14 20 73 3F 63 2C 6A 106 C7 15 21 72 40 64 2B 6B 107 C6 16 22 71 41 65 2A 6C 108 C5 17 23 6E 42 66 29 6D 109 C3 18 24 6D 43 67 27 6E 110 BC 19 25 6C 44 68 26 6F 111 BA 1A 26 6B 45 69 25 70 112 B9 1B 27 6A 46 70 23 71 113 B6 1C 28 69 47 71 1F 72 114 B5 1D 29 67 48 72 1E 73 115 B4 1E 30 66 49 73 1D 74 116 B3 1F 31 65 4A 74 1B 75 117 B2 20 32 63 4B 75 18 76 118 B1 21 33 5C 4C 76 17 77 119 AE 22 34 5A 4D 77 10 78 120 AD 23 35 59 4E 78 0F 79 121 AC 24 36 56 4F 79 08 7A 122 AB 25 37 55 50 80 04 7B 123 AA 26 38 54 51 81 02 7C 124 A9 27 39 53 52 82 01 7D 125 A7 28 40 52 53 83 A6 29 41 51 54 84 A5 2A 42 4E 55 85

SEL ID (hex)

Setting (dec)

AL_PA (hex)

SEL ID (hex)

Setting (dec)

AL_PA (hex)

SEL ID (hex)

Setting (dec)

Cheetah 15K.7 FC Product Manual, Rev. C 71

12.5.12 Device control codes

The drive inputs a Device Control Code on the DEV_CTRL_CODE lines at power up to determine the link rate on the Fibre Channel ports. Both ports run at the same rate. If the backpanel does not connect to these lines, the drive has 10K ohm pull up resistors that default the device control code to 7 (1.0625 GHz). Table lists the supported codes.

Table 28: Device control code valu es

2 (pin 17) 1 (pin 18) 0 (pin 39) Definition

0 0 0 0 1 1 1 1

0 0 1 1 0 0 1 1

0 Reserved for power failure warning. 1 Reserved for auto negotiation of link rate. 0 Reserved. 1 Reserved. 0 Reserved. 1 4.250 GHz operation on both ports. 0 2.125 GHz operation on both ports. 1 1.0625 GHz operation on both ports.

12.6 Signal characteristics

This section describes the electrical signal characteristics of the drive’s input and output signals. See Table 24 on page 67 for signal type and signal name information.

12.6.1 TTL input characteristics

Table 29 provides the TTL characteristics.

Table 29: TTL characteristics

State Voltage Current

Input high 1.9 < VIH < 5.5V IIH = ±500nA max. Input low -0.5V < V Output high (-EN Bypass A, B) 2.4 < V Output low (-EN Bypass A, B) V

Output high (-Parallel ESI) 2.4 < V

VOH > 0.9V Output low (-Parallel ESI) 0 < V Output high (all other outputs) 2.4 < V

VOH > 0.9V Output low (all other outputs) 0 < V

< 0.9V IOL = ±500nA max.

< 5.25V IOH < -3mA

< 0.5V IOL < 3mA

< 0.9 V

< .45V IOL < 2.4mA

< 0.9 V

< .45V IOL < 1.6mA

IOH < -2.4mA I

< -500µA

IOH < -1.6mA

< -500µA

72 Cheetah 15K.7 FC Product Manual, Rev. C

12.6.2 LED driver signals

Bit Time

Vout (mv)

XMIT Eye

Fault and Active LED signals are located in the FC-SCA connector (J1). See Table 30 for the output characteristics of the LED drive signals.

Table 30: LED drive signal

State Current drive available Output voltage

LED off, high 0 < I LED on, low I

< 100µA

< -30 mA 0 < VOL < 0.8V

12.6.3 FC Differential output

The serial output signal voltage characteristics are provided in Table 31. The outputs are not AC coupled in order to deliver maximum signal without rise and fall time degradation. You must AC couple the receiver to isolate potentially different DC characteristics of the outputs and the receiver.

T able 31: FC Differential output characteristics

Description Parameter Notes

Serial output voltage swing 600 < V

< 1300 mV Centered at 1.32V

out

Figure 16 provides the data output valid eye diagram relative to the bit cell time.

Figure 16. Transmit eye diagram

12.6.4 FC Differential input

The serial input signal voltage characteristics are provided in Table 32.

T able 32: FC Differential input characteristics

Description Parameter Notes

Serial input voltage swing 200 < V

< 1.300 mV AC coupled

Cheetah 15K.7 FC Product Manual, Rev. C 73

Figure 17 provides the data valid eye d iagram for typical and minimum requirements to recov er data at the

941 ps

659 ps

Vin (mv)

Typical

Minimum

376 ps

specified interface error rate. The inputs are AC coupled on the drive.

Figure 17. Receive eye diagram

Table 33: Eye diagram data values

Link rate 1 GHz 2 GHz 4 GHz

Bit time 941 ps 470 ps 235 ps XMIT eye 725 ps min. 315 ps min. 158

Typical 659 ps 305 ps 145 ps

RCV eye

Minimum 395 ps 226 ps 113 ps

/113

1. Short Ideal load.

2. End of compliance channel.

74 Cheetah 15K.7 FC Product Manual, Rev. C

Index

Numerics

12 volt

pins 68 3rd party reserve command 58 5 volt pins 68

Abort Sequence (ABTS) 48 abort task set function 49 AC coupling 67 AC power requirements 21 ACA active status 64 ACA active, faulted initiator status 64 Accept (ACC) 48 acoustics 33 active LED Out signal 69 Actual retry count bytes command 55 actuator

assembly design 6 adaptive caching 64 Address Discovery (ADISC) 48 addresses 65 Admin SP 37 AES-128 data encryption 37 AFR 14 air cleanliness 33 air flow 46

illustrated 46 Alternate credit model 50, 53 altitude 30 ambient 30 Annualized Failure Rates (AFR) 15 ANSI documents

fibre channel 5

SCSI 5 arbitrated loop physical address (AL_PA) 45 arbitration 45 asynchronous event notification 64 audible noise 3 auto negotiation of link rate 72 auto write and read reallocation

programmable 7 automatic contingent allegiance 64 average idle current 22, 23 average rotational latency 10

Background Media Scan 43 backpanel 66 backplane 69 Band 0 38

BandMasterX 38 basic link service frames 48 Basic_Accept (BA_ACC) 48 Basic_Reject (BA_RJT) 48 BB 50, 53 BB-Credit 50, 53 BMS 43 buffer

data 7

space 12 busy status 64 bypass circuit 15 Byte check command 56

cache operation 12 cache segments 12 Caching parameters page (08h) command 55 caching write data 13 Canadian Department of Communications 3 capacity

unformatted 10 capacity, drive, programmable 9 CBC 37 CC 51, 52 CF 50, 53 Change definition command 57 character sync 15 charge pins 68 check condition status 64 Cipher Block Chaining 37 Class 3 parameters 50, 53 class B limit 3 Class valid 50, 53 clear ACA function 49 clear task set function 49 commands supported 54 Common features 50, 53 Company ID 51, 52 Compare command 56 Concurrent sequences 50 condensation 30 condition met/good status 64 connector

illustrated 66

requirements 66 continuous vibration 33 Continuously increasing offset 50, 53 control code values 72 Control mode page (0Ah) command 55 cooling 46 Copy and verify command 57 Copy command 55 CRC 15

error 15

Cheetah 15K.7 FC Product Manual, Rev. C 75

Cryptographic erase 39 CS 50 Current profiles 24 customer service 20

DAR 43 Data Bands 38 data bands 37 Data encryption 37 Data Encryption Key 37 data heads

read/write 10

data rate

internal 10 data transfer rate 11 data valid eye 74 Date code page command 55 DC power 66

requirements 21 decrypt 37 default MSID password 38 defect and error management 40 defects 40 Deferred Auto-Reallocation 43 deferred error handling 64 DEK 37 description 6 DEV_CTRL_CODE 72 Device Behavior page command 55 device control code values 72 Device Identification page command 55 device selection IDs 45 devices 45 dimensions 35 Disable page out command 56 disc rotation speed 10 Disconnect/reconnect control (page 02h) command

Download microcode and save modes (5) 57 Download microcode mode (4) 57 Download microcode with offsets and save mode (7)

Download microcode with offsets mode (6) 57 drive 33 drive capacity

programmable 9 drive characteristics 10 drive ID 45 drive ID/option select headers 45 Drive Locking 38 drive mounting 35, 47 drive orientation 45 drive select 66 driver signals 73

drivers and receivers 7 dual port support 54

electrical

description of connector 66 signal characteristics 72

specifications 21 electromagnetic compatibility 3 electromagnetic susceptibility 34 EMI requirements 3 enable bypass

port A 69

port B 69

signal 69

state 15 Enclosure Services interface 66 Enclosure services page command 56 encryption engine 37 encryption key 38 environmental

limits 29

requirements 14 environmental control 33 EraseMaster 38 error

detection mechanisms, FC 15

management 40

rates 14 error correction code

96-bit Reed-Solomon 7 Error recovery page (01h) command 55 errors 40 extended link service

frames 48

reply frames 48 Extended sense command 55 Extent reservation command 58

fabric 53 Fabric Address Notification (FAN) 48 Fabric Login (FLOGI) 48 FAN 53 fault LED out signal 68 FC differential input 73 FC-AL

document 5

interface 45, 66

options supported 54

physical interface 65

SCA device connector, illustrated 66

selective reset 64 FCC rules and regulations 3

76 Cheetah 15K.7 FC Product Manual, Rev. C

FCP

for SCSI, document 5 response codes 49

task management functions 49 FC-PH document 5 FDE features 7 features 7

interface 48 Fibre Channel documents 5 Fibre Channel Interface Control page (19h) 55 Fibre Channel Interface Manual 2, 3 Fibre Channel Services 48 Field pointer bytes command 55 FIPS 36 firmware 7

corruption 58 Firmware download option command 57 firmware download port 38 Firmware numbers page command 55 flawed sector reallocation 7 FLOGI

received on Port A 52

received on Port B 52 Force unit access command 56 form factor 7 format 45 Format command execution time 11 Format page (03h) command 55 Format unit command 55 FS 50, 51, 53 function

complete, code 00 49

not supported, code 05 49

reject, code 04 49

Global Data Band 38 Good status 64 gradient 30 ground shift noise 67 grounding 47

hard assigned arbitrated loop physical address

(AL_PA) HDA 47 heads

read/write data 10 heat removal 46 host equipment 47 hot plugging the drive 15 humidity 30 humidity limits 29

IC 50 ID and configuration options 7 Idle Read After Write 44 Implemented operating def. page command 55 Information exceptions control page (1Ch) command

Initiator control 50 Inquiry command 55 inquiry data 59 installation 45 interface 45

commands supported 54 description 65 error rate 14 errors 15 illustrated 65 physical 65

requirements 48 intermediate/condition met/good status 64 intermediate/good status 64 Intermix 50, 53 internal data rate 10 internal defects/errors 40 internal drive characteristics 10 IRAW 44

J1 connector 45 Jumper settings page command 55 jumpers 45

latency

average rotational 10, 11 LBdata 57 LED driver signals 73 Link Service Reject (LS_RJT) 48 link services supported 48 Locking SP 37, 38 LockOnReset 38 Lock-unlock-cache command 56 Log select command 57 Log sense command 57 logic power 68 logical block address 12 logical block reallocation scheme 7 logical block size 7, 11 logical segments 12 Logout (LOGO) 48 loop 65, 69

disruption 15

initialization 45 loop position

Cheetah 15K.7 FC Product Manual, Rev. C 77

FC-AL options 54

loop position report

FC-AL options 54 LS_RJT 50, 53 LSI circuitry 8

maintenance 14 Makers Secure ID 37 maximum delayed motor start 22, 23 maximum start current 22, 23 mean time between failure (MTBF) 15 media description 8 Media Pre-Scan 43 miscellaneous feature support

Adaptive caching 64

Asynchronous event notification 64

Automatic contingent allegiance 64

Deferred error handling 64

FC-AL selective reset 64

Parameter rounding 64

Queue tagging 64

Reporting actual retry count 64

Segmented caching 64

SMP = 1 in Mode Select command 64

Synchronized (locked) spindle operation 64

Zero latency read 64 miscellaneous status support

ACA active 64

ACA active, faulted initiator 64

Busy 64

Check condition 64

Condition met/good 64

Good 64

Intermediate/condition met/good 64

Intermediate/good 64

Reservation conflict 64

Task set full 64 miscorrected media data 14 Mode select

(10) command 58

command 55 Mode sense

(10) command 58

command 55

data, table 59, 61 monitoring state 15 motor start

controls 69

option 11 mounting 47

holes 47

orientations 45 mounting configuration 35 mounting configuration dimensions 35

MSID 37, 38 MTBF 15

N_Port Login (PLOGI) 48

payload 50

payload values 51 NN 50, 53 Node Name 53 Node name 50 noise

audible 3 noise immunity 24 non-operating 30, 31, 33

temperature 30 non-operating vibration 33

office environment 33 old port state

FC-AL options 54 OPEN Full Duplex

FC-AL options 54 OPEN half duplex

FC-AL options 54 Open sequences per exchange 50 operating 30, 31, 33 option configurations 45 option selection 66 options 9, 54 orientation 31 OS 50 out-of-plane distortion 47

P_LOGI

received on Port A 51

received on Port B 51 package size 31 package test specification 5 packaged 31 parameter rounding 64 pass-through state 15 password 37, 38 passwords 38 PBC 65, 69 PBdata 57 PCBA 47 peak bits per inch 10 peak operating current 22, 23 peak-to-peak measurements 24 performance characteristics

detailed 10

general 11

78 Cheetah 15K.7 FC Product Manual, Rev. C

performance degradation 31 performance highlights 8 physical damage 33 physical interface 65

description 65 physical specifications 21 PI 51, 52 pin descriptions 66 PN 50, 53 port bypass circuit 15, 65, 69 Port DISCovery 50 Port Discovery (PDISC) 48 port identifier field 51, 52 port login 50

accept 51 Port Name 53 Port name (initiator’s) 50 power 68

dissipation 27

requirements, AC 21

requirements, DC 21

sequencing 24 Power control page (1Ah) command 56 power distribution 3 power failure warning 72 PowerCycle 38 Prefetch command 56 prefetch/multi-segmented cache control 12 preventive maintenance 14 private loop

FC-AL options 54 Proc Assc 50 Process Accept (ACC) 52 Process Login (PRLI) 48, 51 Process Login Accept (ACC) payload 52 process login payload data 51 Process Logout (PRLO) 48 programmable drive capacity 9 protection of data at rest 37 public loop

FC-AL options 54 pull down resistor 69

queue tagging 64

radio interference regulations 3 Random number generator 38 Random relative offset 50, 53 RCD bit 12 Read buffer command 57 Read capacity command 56 Read combined header and data mode (0) 57

Read command 55 Read data mode (2) 57 Read defect data command 56 Read descriptor mode (3) 57 read error rates 14, 40 Read extended command 56 Read Link Status (RLS) 48 Read long command 57 read/write data heads 10 Reassign blocks command 55 Receive buffer field size 50, 53 receive buffer field size 51 Receive diagnostic results command 56 receive eye

diagram 74 receivers 67 recommended mounting 32 Recoverable Errors 14 recovered media data 14 reference

documents 5 Regenerate command 58 Register FC-4 Types (RFT_ID) 48 Relative address command 56 relative humidity 30 Release command 55 Released (10) command 58 reliability 8

specifications 14 reliability and service 15 repair and return information 20 reporting actual retry count 64 Request sense command 55 reservation conflict status 64 Reserve command 55 Reserved (10) command 58 resonance 31 return information 20 Rezero unit command 55 Rigid disc drive geometry page

command 55 RNG 38 rotation speed 10 running disparity 15

safety 3 SCA part numbers 66 SCSI interface

commands supported 54 Search data

equal command 56

high command 56

low command 56 Secure ID 37

Cheetah 15K.7 FC Product Manual, Rev. C 79

security partitions 37 Security Protocol In 37 Security Protocol Out 37 Seek command 55 seek error

defined 15

rate 14 Seek extended command 56 seek performance characteristics 10 seek time

average typical 10

full stroke typical 10

single track typical 10 segmented caching 64 SEL ID 45

lines 70

standard feature 7 Self-Encrypting Drive (SED) Users Guide 2 self-encrypting drives 37 Self-Monitoring Analysis and Reporting Technology

8, 16

Send diagnostics page command 56 Sequential delivery 50, 53 Service Options 53 Service options 50 Set limits command 56 shielding 3 shipping 20 shipping container 30 shock 31

and vibration 31 shock mount 47 SID 37 signal

characteristics 72

LED driver 73 single-unit shipping pack kit 9 SMART 8, 16 SMP = 1 in Mode Select command 64 SO 50, 53 spindle brake 7 Stacked connection req. 50, 53 standards 3 Start unit/stop unit command 56 start/stop time 11 support services 1 Supported diagnostics pages command 56 surface stiffness

allowable for non-flat surface 47 switches 45 Synchronize cache command 56 synchronized spindle

operation 64 system chassis 47

target reset function 49 task management functions 49

Abort task set 49 Clear ACA 49 Clear task set 49 Target reset 49 terminate task 49

task management response codes 49

Function complete 00 49 Function not supported 05 49

Function reject 04 49 task set full status 64 TCG 37 TCG Storage Architecture Core Specification 3 technical support services 1 temperature 29, 46

limits 29

non-operating 30

regulation 3

See also cooling terminate task function 49 terminators 45 Test unit ready command 55 Third-party Process Logout (TRPLO) 48 tracks per inch 10 Translate page command 56 transmit eye diagram 73 transmitters 67 transporting the drive 20 Trusted Computing Group 5, 6, 37 TTL input characteristics 72

UI 51, 52 unformatted 8 unique identifier 51, 52 Unit attention page (00h) command 55 Unit serial number page command 55 Unrecoverable Errors 14 unrecovered media data 14

Valid version level 50, 53 Verify command 56, 58 Verify error recovery page (07h) command 55 vibration 31, 33 Vital product data page command 55

warranty 20 word sync 15 Write and verify command 56

80 Cheetah 15K.7 FC Product Manual, Rev. C

Write buffer command 57 Write combined header and data mode (0) 57 Write command 55 Write data mode (2) 57 Write extended command 56 Write long command 57 Write same command 57, 58

XD read 58 XD write 58 XD write extended command 58 XID reassign 50 XP write 58

zero latency read 64 zone bit recording (ZBR) 7

Cheetah 15K.7 FC Product Manual, Rev. C 81

82 Cheetah 15K.7 FC Product Manual, Rev. C

Seagate Technology LLC 920 Disc Drive, Scotts Valley, California 95066-4544, USA

Publication Number: 100516225, Rev. C

Seagate ST3600957FC, ST3300457FC, ST3300557FC, ST3600857FC, ST3450757FC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1.0 Seagate Technology support services

2.0 Scope

3.0 Applicable standards and reference documentation

3.1 Standards

3.1.1 Electromagnetic compatibility

3.1.1.1 Electromagnetic susceptibility

3.1.2 Electromagnetic compliance

3.2 European Union Restriction of Hazardous Substances (RoHS)

3.3 Reference documents

4.0 General description

4.1 Standard features

4.2 Media description

4.3 Performance

4.4 Reliability

4.5 Formatted capacities

4.5.1 Programmable drive capacity

4.6 Factory-installed options

4.7 User-installed accessories

5.0 Performance characteristics

5.1 Internal drive characteristics

5.2 Seek performance characteristics

5.2.1 Access time

5.2.2 Format command execution tim e (m inu te s )

5.2.3 General performance characteristics

5.3 Start/stop time

5.4 Prefetch/multi-segmented cache control

5.5 Cache operation

5.5.1 Caching write data

5.5.2 Prefetch operatio n

6.0 Reliability specifications

6.1 Error rates

6.1.1 Recoverable Errors

6.1.2 Unrecoverable Errors

6.1.3 Seek errors

6.1.4 Interface errors

6.2 Reliability and service

6.2.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF)

6.2.2 Preventive maintenance

6.2.3 Hot plugging the drive

6.2.4 S.M.A.R.T.

6.2.5 Thermal monitor

6.2.6 Drive Self Test (DST)

6.2.6.1 DST failure definition

6.2.6.2 Implementation

6.2.7 Product warranty

7.0 Physical/electrical specifications

7.1 AC power requirements

7.2 DC power requirements

7.2.1 Conducted noise immunity

7.2.2 Power sequencing

7.2.3 Current profiles

7.3 Power dissipation

7.4 Environmental limits

7.4.1 Temperature

7.4.2 Relative humidity

7.4.3 Effective altitude (sea level)

7.4.4 Shock and vibration

7.4.4.1 Shock

7.4.4.2 Vibration

7.4.5 Acoustics

7.4.6 Air cleanliness

7.4.7 Corrosive enviro nment

7.4.8 RoHS compliance statement

7.4.9 Electromagnetic susceptibility

7.5 Mechanical specifications

8.0 About FIPS

9.0 About self-encrypting drives

9.1 Data encryption

9.2 Controlled access

9.2.1 Admin SP

9.2.2 Locking SP

9.2.3 Default password

9.3 Random number generator (RNG)

9.4 Drive locking

9.5 Data bands

9.6 Cryptographic erase
