Seagate ST3146855FC, ST373455FC, ST3300655FC User Manual

Cheetah 15K.5 FC

ST3300655FC ST3146855FC ST373455FC

Publication number: 100384772, Rev. D

May 2007

Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. Cheetah is either a trademark or registered trademark of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.

One gigabyte, or GB, equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting. Quantitative usage examples for various applicati ons are for illustrative purposes. Actual quantities will vary based on various factors, including file size, file format, features and appli cation software. Seagate reserves the right to change, without notice, product offerings or specifications.

Cheetah 15K.5 FC Product Manual, Rev. D

iiiCheetah 15K.5 FC Product Manual, Rev. D

Cheetah 15K.5 FC Product Manual, Rev. D

Contents

1.0 Scope. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2.0 Applicable standards and reference documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1 Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1.1 Electromagnetic compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1.2 Electromagnetic compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.2 European Union Restriction of Hazardous Substances (RoHS) . . . . . . . . . . . . . . . . . . . . . 4

2.3 Reference documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3.0 General description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.1 Standard features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.2 Media description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.3 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.4 Reliability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.5 Formatted capacities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.5.1 Programmable drive capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.6 Factory-installed accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.7 Factory-installed options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.8 User-installed accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4.0 Performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.1 Internal drive characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.2 Seek performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.2.1 Access time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.2.2 Format command execution time (minutes) . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.2.3 General performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.3 Start/stop time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.4 Prefetch/multi-segmented cache control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.5 Cache operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.5.1 Caching write data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.5.2 Prefetch operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.0 Reliability specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.1 Error rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.1.1 Recoverable Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.1.2 Unrecoverable Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.1.3 Seek errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.1.4 Interface errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.2 Reliability and service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.2.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF) . . . 16

5.2.2 Preventive maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.2.3 Hot plugging the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.2.4 S.M.A.R.T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.2.5 Thermal monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.2.6 Drive Self Test (DST). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.2.7 Product warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

6.0 Physical/electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6.1 AC power requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6.2 DC power requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6.2.1 Conducted noise immunity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6.2.2 Power sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6.2.3 Current profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6.3 Power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

6.4 Environmental limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Cheetah 15K.5 FC Product Manual, Rev. D

6.4.1 Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

6.4.2 Relative humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6.4.3 Effective altitude (sea level) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6.4.4 Shock and vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6.4.5 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.4.6 Air cleanliness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.4.7 Corrosive environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.4.8 RoHS compliance statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6.4.9 Electromagnetic susceptibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6.5 Mechanical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

7.0 Defect and error management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

7.1 Drive internal defects/errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

7.2 Drive error recovery procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

7.3 FC-AL system errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

7.4 Background Media Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

7.5 Media Pre-Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.6 Deferred Auto-Reallocation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.7 Idle Read After Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

8.0 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

8.1 Drive ID/option selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

8.2 Drive orientation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

8.3 Cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

8.4 Drive mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

8.5 Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

9.0 Interface requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

9.1 FC-AL features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

9.1.1 Fibre Channel link service frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

9.1.2 Fibre Channel task management functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

9.1.3 Fibre Channel task management responses . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

9.1.4 Fibre Channel port login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

9.1.5 Fibre Channel port login accept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

9.1.6 Fibre Channel Process Login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

9.1.7 Fibre Channel Process Login Accept. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

9.1.8 Fibre Channel fabric login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

9.1.9 Fibre Channel fabric accept login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

9.1.10 Fibre Channel Arbitrated Loop options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.2 Dual port support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.3 SCSI commands supported. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

9.3.1 Inquiry data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

9.3.2 Mode Sense data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

9.4 Miscellaneous operating features and conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

9.5 FC-AL physical interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

9.5.1 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

9.5.2 Connector requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

9.5.3 Electrical description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

9.5.4 Pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

9.5.5 FC-AL transmitters and receivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

9.5.6 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

9.5.7 Fault LED Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

9.5.8 Active LED Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

9.5.9 Enable port bypass signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

9.5.10 Motor start controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

9.5.11 SEL_6 through SEL_0 ID lines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Cheetah 15K.5 FC Product Manual, Rev. D

iii

9.5.12 Device control codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

9.6 Signal characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

9.6.1 TTL input characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

9.6.2 LED driver signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

9.6.3 FC Differential output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

9.6.4 FC Differential input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

10.0 Seagate Technology support services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Cheetah 15K.5 FC Product Manual, Rev. D

List of Figures

Figure 1. Typical ST3300655FC drive, 4 Gbit, +12V current profile . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 2. Typical ST3300655FC drive, 4 Gbit, +5V current profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 3. Typical ST3146855FC drive, 4 Gbit, +12V current profile . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 4. Typical ST3146855FC drive, 4 Gbit, +5V current profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 5. Typical ST373455FC drive, 4 Gbit, +12V current profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 6. Typical ST373455FC drive. 4 Gbit, +5V current profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 7. ST3300655FC DC current and power vs. input/output operations per second at 4 Gbit . . . . 29

Figure 8. ST3146855FC DC current and power vs. input/output operations per second at 4 Gbit . . . . 30

Figure 9. ST373455FC DC current and power vs. input/output operations per second at 4 Gbit . . . . . 31

Figure 10. Locations of the HDA temperature check point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Figure 11. Recommended mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Figure 12. Mounting configuration dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Figure 13. Air flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Figure 14. Physical interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Figure 15. Port bypass circuit physical interconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Figure 16. FC-AL SCA device connector dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

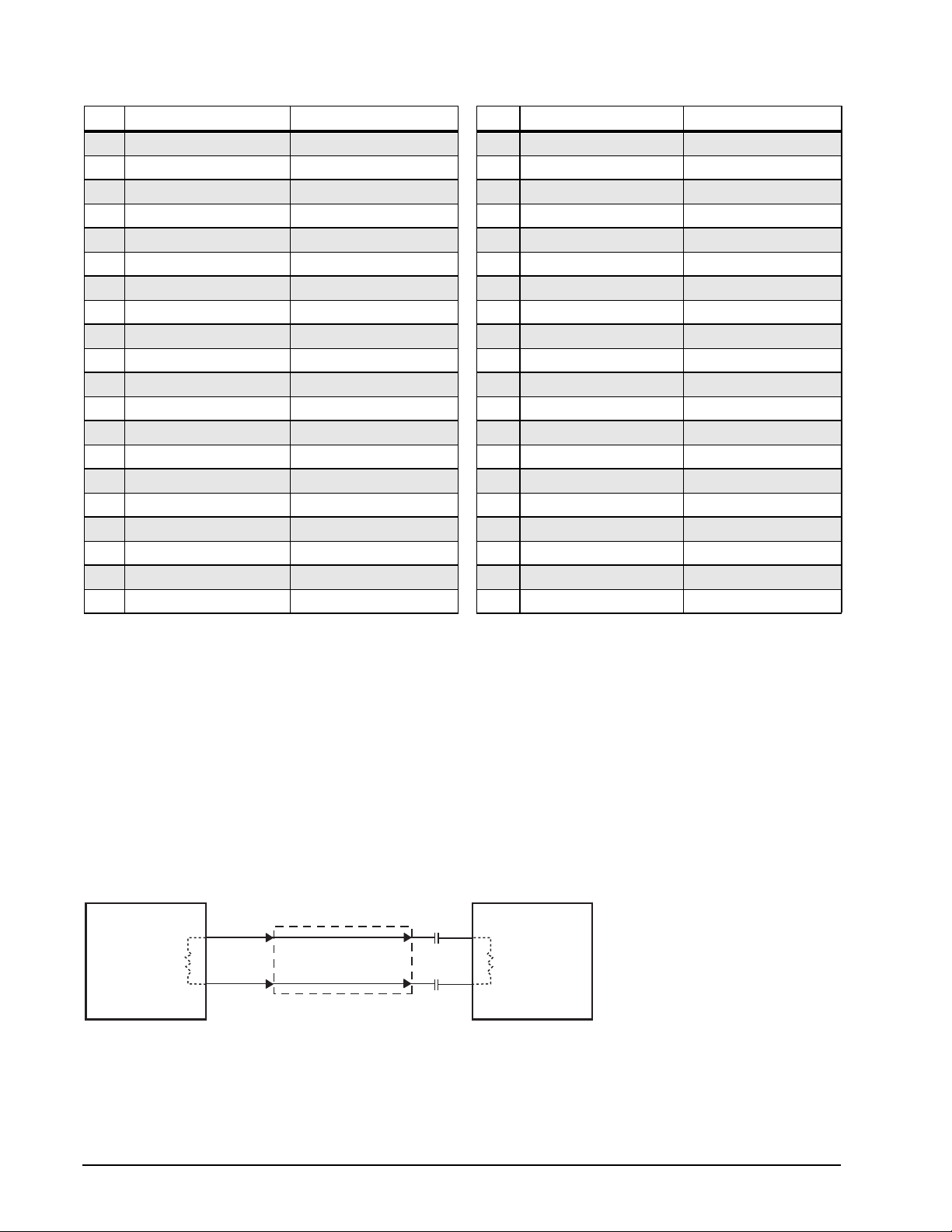

Figure 17. FC-AL transmitters and receivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Figure 18. Transmit eye diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Figure 19. Receive eye diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Cheetah 15K.5 FC Product Manual, Rev. D

1.0 Scope

This manual describes Seagate Technology® LLC, Cheetah® 15K.5 FC (Fibre Channel) disc drives. Cheetah 15K.5 FC drives support the Fibre Channel Arbitrated Loop and SCSI Fibre Channel Protocol specifi-

cations to the extent described in this manual. The Fibre Channel Interface Manual (part number 100293070) describes the general Fibre Channel Arbitrated Loop characteristics of this and other Seagate Fibre Channel drives.

From this point on in this product manual, the reference to Cheetah 15K.5 FC models is referred to as “the drive” unless references to individuals models are necessary.

Cheetah 15K.5 FC Product Manual, Rev. D

2.0 Applicable standards and reference documentat ion

The drive has been d evelope d as a system p eriphe ral to the hig hest st and ards of desig n and constru c tion. The drive depends upon its host equipment to provide adequate power and environment in order to achieve optimum performance and compliance with applicable industry and governmental regulations. Special attention must be given in the areas of safety, power distribution, shieldi ng, au dible noi se con trol, an d tempe ratu re reg ulation. In particular, the drive must be securely mounted in order to guarantee the specified performance characteristics. Mounting by bottom holes must meet the requirements of Section 8.4.

2.1 Standards

The Cheetah 15K.5 FC family complies with Seagate standards as noted in the appropriate sections of this manual and the Seagate Fibre Channel Interface Manual, part number 100293070.

The Cheetah 15K.5 FC disc drive is a UL recognized component per UL1950, CSA certified to CAN/CSA C22.2 No. 950-95, and VDE certified to VDE 0805 and EN60950.

2.1.1 Electromagnetic compatibility

The drive, as delivered, is designed for system integration and installation into a suitable enclosure prior to use. As such the drive is supplied as a subassembly and is not subject to Subpart B of Part 15 of the FCC Rules and Regulations nor the Radio Interference Regulations of the Canadian Department of Communications.

The design characteristics of the drive serve to minimize radiation when installed in an enclosure that provides reasonable shield ing. As such, t he dr ive is cap able of me eting th e C lass B l imit s of the FC C Rules a nd R eg ulations of the Canadian Department of Communications when properly packaged. However, it is the user’s responsibility to assure that the drive meets the appropriate EMI requirements in their system. Shielded I/O cables may be required if the enclosure does not provide adequate shielding. If the I/O cables are external to the enclosure, shielded cabl es sh ould be u sed, wi th the shields gr ounde d to the enclosur e and to the host co ntroller.

2.1.1.1 Electromagn etic susc ept ibili ty

As a component assembly, the drive is not required to meet any susceptibility performance requirements. It is the responsibility of those integrating the drive within their systems to perform those tests required and design their system to ensure that equipment operating in the same system as the drive or external to the system does not adversely affect the performance of the drive. See Table 2, DC power requirements.

Cheetah 15K.5 FC Product Manual, Rev. D

2.1.2 Electromagn etic complia nce

Seagate uses an independent laboratory to confirm compliance with the directives/standards for CE Marking and C-Tick Marking. T he dr ive was tested in a r epres ent ative system for typical applications. The select ed sys tem represents the most popular characteristics for test platforms. The system configurations include:

• Typical current use microprocessor

• 3.5-inch floppy disc drive

• Keyboard

• Monitor/display

• Printer

• External modem

• Mouse Although the test system with th is Seag ate mo del comp lies with the dir ectives/st and ards, we cannot gu aran tee

that all systems will comply. The computer manufacturer or system integrator shall confirm EMC compliance and provide the appropriate marking for their product.

Electromagnetic compliance for the European Union

If this model has the CE Marking it complies with the European Union requirements of the Electromagnetic Compatibility Directive 89/336/EEC of 03 May 1989 as am ended by Directive 92/31/EEC of 28 April 1992 and Directive 93/68/EEC of 22 July 1993.

Australian C-Tick

If this model has the C-Tick Marking it complies with the Australia/New Zealand Standard AS/NZS3548 1995 and meets the Electromagnetic Compatibility (EMC) Framework requirements of Australia’s Spectrum Management Agency (SMA).

Korean MIC

If this model has the Korean Min ist ry of Infor mat ion and Com munication (MIC) logo, it comp lie s with par agr aph 1 of Article 11 of the Electromagnetic Compatibility (EMC) Control Regulation and meets the Electromagnetic Compatibility Framework requirements of the Radio Research Laboratory (RRL) Ministry of Information and Communication Republic of Korea.

This drive has been tested and complies with the Electromagnetic Interference/Electromagnetic Susceptibiliity (EMI/EMS) for Class B products.

Taiwanese BSMI

If this model has the Chin ese N ation al Standard (CNS) 13438 ma rking, it co mpl ies wi th Chin ese N ationa l Standard (CNS) 13438 and meets the E lectromagnetic Compati bility (EMC) Framework requirements of the Taiwanese Bureau of Standards, Metrology, and Inspection (BSMI).

2.2 European Union Restri ction of Hazardous Substances (RoHS)

The European U nion Restr icti on of Hazard ous S ubst ance s (RoHS ) Dire cti ve re strict s the p resen ce of ch emic al substances, including Lead (Pb), in electronic products effective July 2006.

A number of parts and materials in Seagate products are procured from external suppliers. We rely on the representations of our suppliers regarding the pr esence of RoHS substances in these parts and materials. Our supplier contracts require compliance with our chemical substance restrictions, and our suppliers document their compliance wi th our re quire ment s by providing material content declarations for all par ts an d mater i als for the disc drives documented in this publication. Current supplier declarations include disclosure of the inclusion of any RoHS-regulated substance in such parts or materials.

Cheetah 15K.5 FC Product Manual, Rev. D

Seagate also has internal system s in place to en sure ongoing complian ce with the RoHS Directive and all laws and regulations which restrict chemical conte nt in electron ic produ cts. T hese system s include sta ndar d oper ating procedures that ensure that restricted substances are not utilized in our manufacturing operations, laboratory analytical validation testing, and an internal auditing process to ensure that all standard operating procedures are complied with.

2.3 Reference documents

Cheetah 15K.5 FC Installation Guide Seagate part number: 100384774 ANSI Fibre Channel Documents

X3.230-1994 FC Physical and Signaling Interface (FC-PH) X3.297.1997 FC-PH-2 Fibre Channel Physical and Signaling Interface-2 X3.303.1998 FC-PH-3 Fibre Channel Physical and Signaling Interface-3 X3.272-1996 FC Arbitrated Loop (FC-AL) X3.269-1996 Fibre Channel Protocol for SCSI (FCP) NCITS TR-19 Private Loop SCSI Direct Attach (PLDA) NCITS TR-20 Fabric Loop Attachment (FC-FLA) SFF-8045 Specification for 40-pin SCA-2 Connector with Parallel Selection SFF-8067 Specification for 40-pin SCA-2 Connector with Bidirectional

Enclosure Services Interface

ANSI Small Computer System Interface (SCSI) Documents X3.131-1994 (SCSI-2) X3.270-1996 (SCSI-3) Architecture Model NCITS 305-199X (SCSI-3) Enclosure Services

Specification for Acoustic Test Requirement and Procedures

Seagate part number: 30553-001

Package Test Specification Seagate P/N 30190-001 (under 100 lb.) Package Test Specification Seagate P/N 30191-001 (over 100 lb.)

In case of conflict between this document and any referenced document, this document takes precedence.

Cheetah 15K.5 FC Product Manual, Rev. D

3.0 General description

Cheetah 15K.5 FC drive s provide high perfor man ce, high cap acity dat a storage for a variety of system s including engineering workstations, network servers, mainframes, and supercomputers. Cheetah 15K.5 FC drives support 4-Gbit Fibre Channel which can transfer data at up to 800 Mbytes per second and 1600 Mbytes per second in dual-loop configurations.

Cheetah 15K.5 FC drives support the Fibre Channel Arbitrated Loop (FC-AL) and SCSI Fibre Channel Protocol as described in the ANSI specifications, this document, and the Fibre Channel Interface Manual which describes the general interface characteristics of this drive. Cheetah 15K.5 FC drives are classified as intelligent peripherals and provide level 2 conformance (highest level) with the ANSI SCSI-1 standard.

Never disassemble the HDA and do not attempt to service items in the sealed enclosure (heads, media, actuator, etc.) as this requires special facilities. The drive does not contain user-replaceable parts. Opening the HDA for any reason voids your warranty.

Cheetah 15K.5 FC drives use a dedicated landing zone at the innermost radius of the media to eliminate the possibility of destroying or degrading data by landing in the data zone. The heads automatically go to the landing zone when power is removed from the drive.

An automatic shipping lock prevents potential damage to the heads and discs that results from movement during shipping and handling. The shipping lock disengages and the head load process begins when power is applied to the drive.

The drives also use a high-performance actuator assembly with a low-inertia, balanced, patented, straight arm design that provides excellent performance with minimal power dissipation.

Cheetah 15K.5 FC Product Manual, Rev. D

3.1 Standard featu re s

Cheetah 15K.5 FC drives have the following standard features:

• Perpendicular recording technology

• 4-Gbit Fibre Channel interfac e

• Integrated dual port FC-AL controller

• Concurrent dual port transfers

• Support for FC arbitrated loop, private and public attachment

• Differential copper FC drivers and receivers

• Downloadable firmware using the FC-AL interface

• Supports SCSI enclosure services via interface connector

• 128-deep task set (queue)

• Supports up to 32 initiators

• Drive selection ID and configuration options are set on the FC-AL backpanel or through interface commands. Jumpers are not used on the drive.

• Supports SCSI Enclosure Services through the interface connector

• Fibre Channel worldwide name uniquely identifies the drive and each port

• User-selectable logical block size (512, 520, 524, or 528 bytes per logical block)

• Selectable frame sizes from 256 to 2,112 bytes

• Industry standard 3.5-inch low profile form factor dimensions

• Programmable logical block reallocation scheme

• Flawed logical block reallocation at format time

• Programmable auto write and read reallocation

• Reed-Solomon error correction code

• Sealed head and disc assembly (HDA)

• No preventive maintenance or adjustments required

• Dedicated head landing zone

• Automatic shipping lock

• Embedded Grey Code track address to eliminate seek errors

• Self-diagnostics performed at power on

• 1:1 interleave

• Zone bit recording (ZBR)

• Vertical, horizontal, or top down mounting

• Dynamic spindle brake

• 16,384 Kbyte data buffer (see Section 4.5).

• Embedded servo design

• Reallocation of defects on command (Post Format)

• Fibre Channel interface transpor ts SCSI protocol

3.2 Media desc ription

The media used on the drive has an aluminum substrate coated with a thin film magnetic material, overcoated with a proprietary protective layer for improved durability and environmental protection.

Cheetah 15K.5 FC Product Manual, Rev. D

3.3 Performance

• Programmable multi-segmentable cache buffer

• 800 Mbytes/sec maximum instantaneous data transfers per port

• 15k RPM spindle; average latency = 2.0 msec

• Command queuing of up to 128 commands

• Background processing of queue

• Supports start and stop commands (spindle stops spinning)

• Adaptive seek velocity; improved seek performance

3.4 Reliability

• Annualized Failure Rate (AFR) of 0.62%

• Increased LSI circuitry integration

• Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.)

• Dithering

• 5-year warranty

3.5 Formatted ca pacities

St an dard OEM mo del s ar e formatte d to 512 bytes per block. The sector size is selectab le at fo rma t ti me. Users having the necessary equipment may modify the data block size before issuing a format command and obtain different formatted capacities than those listed.

To provide a stable target capacity environment and at the same time provide users with flexibility if they choose, Seagate recommends product planning in one of two modes:

1. Seagate designs specify cap acity po i nt s at cert ain sect or si zes tha t Seagate gu ara ntees cur ren t and futu re products will meet. We recommend customers use this capacity in their project planning, as it ensures a stable operating point with backward and forward compatibility from generation to generation. The current guaranteed operating points for this product are:

ST3300655FC ST3146855FC ST373455FC

Sector Size

Decimal Hex Decimal Hex Decimal Hex

512 585,937,500 22ECB25C 286,749,488 11177330 143,374,744 88BB998 520 573,653,847 22314357 280,790,184 10BC84A8 140,395,092 85E4254 524 566,007,800 21BC97F8 275,154,368 106685C0 137,577,184 83342E0 528 557,874,778 21407E5A 272,662,935 10408197 136,331,467 82040CB

2. Seagate drives also may be used at the maxi mu m available cap acity at a given secto r size, but the excess capacity above the gu aran teed leve l w ill va ry betwe en 10K an d 15K fam ilie s and fr om g ener ation to gener ation, depending on how each sector size actually formats out for zone frequencies and splits over servo bursts. This added capacity potential may range from 0.1 to 1.3 percent above the guaranteed capacities listed above. Using the drives in this manner gives the absolute maximum capacity potential, but the user must determine if the extra capacity potential is useful, or whether their assurance of backward and forward compatibility takes precedence.

3.5.1 Programmable drive capacity

Using the Mode Select command, the drive can change its capacity to something less than maximum. See the Mode Select Parameter List table in the SCSI Comma nds Refere nce Manu al . Refer to the P aram eter list block descriptor number of blocks field. A value of zero in the number of blocks field indicates that the drive shall not

Cheetah 15K.5 FC Product Manual, Rev. D

change the capacity it is currently formatted to have. A number in the number of blocks field that is less than the maximum number of LBAs changes the total drive capacity to the value in the block descriptor number of blocks field. A value greater than the maximum number of LBAs is rounded down to the maximum capacity.

3.6 Factory-installed accessor ies

OEM standard drives are shipped with the Cheetah 15K.5 FC Installation Guide (part number 100384774) and the Safety and Regulatory Agency Specifications, part number 75789512 (unless otherwise specified).

3.7 Factory-installed options

You may or der the following items which are incorporated at the manufacturing facility during production or packaged before shipping. Some of the options available are (not an exhaustive list of possible options):

• Other capacities can be ordered depending on sparing scheme and sector size requested.

• Single-unit shipping pack. The drive is normally shipped in bulk packaging to provide maximum protection against transit damage. U nit s shipped individually require add it ional pro tection as pr ovi ded by th e single unit shipping pack. Users planning single unit distribution should specify this option.

• The Cheetah 15K.5 FC Installation Guide, part number 100384774, is usuall y included with each standard OEM drive shipped, but extra copies may be ordered.

• The Safety and Regulatory Agency Specifications, part number 75789512, is usually included with each standard OEM drive shipped, but extra copies may be ordered.

3.8 User-ins talle d accessori e s

The following accessories are available. All kits may be installed in the field.

• Evaluation kit, part number 73473641. This kit provides an adapter card (“T-card”) to allow cable connections for two FC ports and DC power.

• Single-unit shipping pack.

Cheetah 15K.5 FC Product Manual, Rev. D

4.0 Performance characteristics

This section provides detailed information concerning performance-related characteristics and features of Cheetah 15K.5 FC drives.

4.1 Internal drive characterist ics

ST3300655FC ST3146855FC ST373455FC Drive capacity* 300.0 146.8 73.4 Gbytes (formatted, rounded off value) Read/write data heads 8 4 2 Bytes per track 74,340 74,340 74,340 Bytes (average, rounded off values) Tracks per inch 125,000 125,000 125,000 TPI Peak bits per inch 890k 890k 890k BPI Areal density 110 110 110 Gbits/inch Internal data rate 960 to 1607 960 to 1607 960 to 1607 Mbit s/s ec (variable with zone) Disc rotation speed 15k 15k 15k rpm Avg rotational latency 2.0 2.0 2.0 msec

*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment

and formatting.

4.2 Seek performance characteristics

See Section 9.5, "FC-AL physical interface" on page 64 and the Fibre Channel Interface Manual (part number

77767496) for additional timing details.

4.2.1 Access time

Not including controller overhead Read Write

Average Typical 3.5 4.0 Single track Typical 0.2 0.4 Full stro ke Typical 6.8 7.5

1. Typical access times are measured under nominal conditions of temperature, voltage,

and horizontal orientation as measured on a representative sample of drives.

2. Access to data = access time + late n cy time.

1,2

(msec)

Cheetah 15K.5 FC Product Manual, Rev. D

4.2.2 Format command execution time (minutes)

ST3300655FC ST3146855FC ST373455FC

Maximum (wi th verify) Maximum (without verify)

120 90 60

60 45 30

4.2.3 General performance characteristics

Sustainable disc transfer rate*:

Minimum 73 Mbytes/sec Maximum 125 Mbytes/sec

Fibre Channel Interface maximum instantaneous transfer rate 800 Mbytes/sec* per port

(dual port = 1600 Mbytes/sec*)

Logical block sizes

Default is 512-byte data blocks Sector sizes variable to 512, 520, 524 and 528 bytes.

Read/write consecutive sectors on a track Yes

Flaw reallocation performance impact (for flaws reallocated at f ormat time using the spare sectors per sparing zone reallocation scheme.)

Average rotational latency 2.0 msec

*Assumes no errors and no relocated logical blocks. Rate measured from the start of the first logical block transfer to or from the host.

Negligible

4.3 Start/stop time

If the Motor Start option is disabled, the drive becomes ready within 20 seconds after DC power is applied. If a recoverable error conditio n i s detect ed dur ing the sta rt seq uence, the dr i ve execu tes a re cover y proce dure and the time to become ready may exceed 20 seconds. During spin up to ready time, the drive responds to some commands over the FC interface in less than 3 seconds after application of power. Stop time is 30 seconds (maximum) from removal of DC power.

If the Motor Start option is enabled, the internal controller accepts the commands listed in the Fibre Channel Interface Manual less than 3 seconds after DC power has been applied. After the Motor Start command has been received, the drive becomes ready for normal operations w ithin 20 second s (excl uding the err or reco very procedure). The Motor Start command can also be used to command the drive to stop the spindle.

There is no power control switch on the drive.

4.4 Prefetch /m ulti-segm en te d cache cont ro l

The drive provides a prefetch (read look-ahead) and multi-segmented cache control algorithms that in many cases can enhance system performance. Cache refers to the drive buffer storage space when it is used in cache operations. To select this feature, the host sends the Mode Select command with the proper values in

Cheetah 15K.5 FC Product Manual, Rev. D

the applicable bytes in page 08h. Prefetch and cache operations are independent features from the standpoint that each is enabled and disabled independently using the Mode Select command; however, in actual operation, the prefetch feature overlaps cache operation somewhat as described in sections 4.5.1 and 4.5.2.

All default cache and prefetch mode parameter values (Mode Page 08h) for standard OEM versions of this drive family are given in Table 18.

4.5 Cache operation

Note. Refer to the Fibre Ch anne l Interface Manual for more detail concerning the cache bits.

Of the 16 Mbytes physical buffer sp ace in the drive, approximately 13,0 00 kbytes can be used as a cache. The buffer is divided into logical segments from which data is read and to which data is written.

The drive keeps track of the logical block addresses of the data stored in each segment of the buffer. If the cache is enabled (see RCD bit in the FC Interface Manual ), data requested by the host with a read command is retrieved from the buf fe r, if possible, before any disc access is initiated . If cach e oper ation is not enabled, the buffer is still used, but only as circular buffer segments during disc medium read operations (disregarding Prefetch operation for the moment). That is, the drive does not check in the buffer segments for the requested read data, but goes directly to the medium to retrieve i t. The retrieved data merely passes through some buffer segment on the way to the host. All data transfers to the host are in accordance with buffer-full ratio rules. See the explanation p rovide d with th e i nfor matio n abo ut Mo de P age 02h ( disconne ct/reconnect control) in the Fibre Channel Interface Manual.

The following is a simplified description of the prefetch/cache operation: Case A—read command is received and all of the requested logical blocks are already in the cache:

1. Drive transfers the requested logical blocks to the initiator. Case B—A Read command requests data, and at least one requested logical block is not in any segment of

the cache:

1. The drive fetches the requested logical blocks from the disc and transfers them into a segment, and then

from there to the host in accordance with the Mode Select Disconnect/Reconnect parameters, page 02h.

2. If the prefetch feature is enabled, refer to section 4.5.2 for operation from this point. Each cache segment is actually a self-contained circular buffer whose length is an integer number of logical

blocks. The drive dynamically creates and removes segments based on the workload. The wrap-around capability of the individual segments greatly enhances the cache’s overall performance.

Note. The size of each segment is not reported by Mode Sense command page 08h, bytes 14 and 15.

The value 0XFFFF is always reported regardless of the actual size of the segment. Sending a size specification using the Mode Select command (bytes 14 and 15) does not set up a new segment size. If the STRICT bit in Mode page 00h (byte 2, bit 1) is set to one, the drive responds as it does for any attempt to change an unchangeable parameter.

4.5.1 Caching write data

Write caching is a write operation by the drive that makes use of a drive buffer storage area where the data to be written to the medium is stored while the drive performs the Write command.

If read caching is enabled ( RCD=0), then data written to the medium is retained in the cache to be made available for future read cache hits. The same buffer space and segmentation is used as set up for read functions. The buffer segmentation scheme is set up or changed independently, having nothing to do with the state of RCD. When a write command is issued, if RCD=0, the cache is first checked to see if any logical blocks that are to be written are already stored in the cache from a previous read or write command. If there are, the respective cache segments are cleared. The new data is cached for subsequent Read commands.

Cheetah 15K.5 FC Product Manual, Rev. D

If the number of write dat a logical blo cks excee d the size o f the segm ent b eing wr itten into, wh en th e en d of the segment is reached, the data is written into the b eginni n g of the sa me cache segme nt, overwriting the data that was written there at the beginning of the operation; however, the drive does not overwrite data that has not yet been written to the medium.

If write caching is enabled (WCE=1), then the drive may return Good status on a write command after the data has been transferred into the cache, but before the data has been written to the medium. If an error occurs while writing the data to the medium, and Good status has already been returned, a deferred error will be generated.

The Synchronize Ca che command may be used to force the drive to write all cached write data to the medi um. Upon completion of a Synchronize Cache command, all data received from previous write commands will have been written to the medium.

Table 18 shows the mode default settings for the drive.

4.5.2 Prefetch oper ation

If the Prefetch feature is enabled, data in contiguous logical blocks on the disc immediately beyond that which was requested by a Read command are retrieved and stored in the buffer for immediate transfer from the buffer to the host on subsequent Read commands that request those logical blocks (this is true even if cache operation is disabled). Though the prefetch operation uses the buffer as a cache, finding the requested data in the buffer is a prefetch hit, not a cache operation hit.

To enable Prefetch, use Mode Select page 08h, byte 12, bit 5 (Disable Read Ahead - DRA bit). DRA bit = 0 enables prefetch.

The drive does not use the Max Prefetch field (bytes 8 and 9) or the Prefetch Ceiling field (bytes 10 and 11). When prefetch (read look-ahead) is enabled (enabled by DRA = 0), the drive enables prefetch of contiguous

blocks from the disc when it senses that a prefetch hit will likely occur. The drive disables prefetch when it decides that a prefetch hit is not likely to occur.

Cheetah 15K.5 FC Product Manual, Rev. D

5.0 Reliability specifications

The following reliability specifications assume correct host and drive operational interface, including all interface timings, power supply voltages, environmental requirements and drive mounting constraints.

Seek error rate: Read Error Rates

Recovered Data Unrecovered Data Miscorrected Data

Interface error rate:

Annualized Failure Rate (AFR): 0.62% Preventive maintenance: None required

1. Error rate specified with automatic retries and data correction with ECC enabled and all flaws reallocated.

5.1 Error rates

The error rates stated in this manual assume the following:

• The drive is operated in accordance with this manual using DC power as defined in paragraph 6.2, "DC

power requirements."

• Errors caused by host system failures are excluded from error rate computations.

• Assume random data.

• Default OEM error recovery settings are applied. This includes AWRE, ARRE, full read retries, full write

retries and full retry time.

Less than 10 errors in 108 seeks

Less than 10 errors in 1012 bits transferred (OEM default settings) Less than 1 sector in 1016 bits transferred Less than 1 sector in 1021 bits transferred Less than 1 error in 1012 bits transferred with minimum receive eye.

Less than 1 error in 1014 bits transferred with typical receive eye. See Section 9.6.4, "FC Differential input." on page 72

5.1.1 Recoverable Errors

Recovereable errors are those detected and corrected by the drive, and do not require user intervention. Recoverable Data errors will use correction, although ECC o n-the-fly is not considered fo r purposes o f recov-

ered error specifications. Recovered Data error rate is determined using read bits transferred for recoverable errors occurring during a

read, and using write bits transferred for recoverable errors occurring during a write.

5.1.2 Unrecoverable Errors

Unrecoverable Data Errors (Sense Key = 03h) are specified at less than 1 sector in error per 1016 bits transferred. Unrecoverable Data Errors resulting from the same cause are treated as 1 error for that block.

Cheetah 15K.5 FC Product Manual, Rev. D

5.1.3 Seek errors

A seek error is defined as a failure of the drive to position the heads to the addressed track. After detecting an initial seek error, the drive automatically performs an error recover y process. If the error recover y process fail s, a seek positioning error (Error code = 15h or 02h) will be reported with a Hardware error (04h) in the Sense Key. Recoverable seek errors are specified at Less than 10 errors in 108 seeks. Unrecoverable seek errors (Sense Key = 04h) are classified as drive failures.

5.1.4 Interface errors

An interface error is defined as a failure of the receiver on a port to recover the data as transmitted by the device port connected to the receiver. The error may be detected as a running disparity error, illegal code, loss of word sync, or CRC error. The total error rate for a loop of devices is the sum of the individual device error rates.

5.2 Reliability and service

You can enhance the reliability of Chee ta h K15.4 disc drives by ensuring that the drive recei ve s adeq uate cool ing. Section 6.0 provides temperature measurements and other information that may be used to enhance the service life of the drive. Section 8.2 provides recommended air-flow information.

5.2.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF)

These drives shal l ach ieve an A FR of 0.62 % ( MTBF of 1,400,000 hours) when operated i n an en vironm ent that ensures the HDA case temperatures do not exceed the values specified in Section 6.4.1.

Operation at case temperatures outside the specifications in Section 6.4.1 may increase the AFR (decrease the MTBF). AFR and MTBF statistics are poplulation statistics that are not relevant to individual units.

AFR and MTBF specifications are based on the following assumptions for Enterprise Storage System environments:

• 8,760 power-on hours per year

• 250 average on/off cycles per year

• Operating at nominal voltages

• System provides adequate cooling to ensure the case temperatures specified in Section 6.4.1 are not exceeded.

5.2.2 Preventive mainte nan ce

No routine scheduled preventive maintenance is required.

5.2.3 Hot plugging the drive

Inserting and removing the drive on the FC-AL will interrupt loop operation. The interruption occurs when the receiver of the next device in the loop must synchronize to a different input signal. FC error detection mechanisms, character sync, running disp a rity, word sync, and CRC are able to detect any er ror. Recovery is initiated based on the type of error.

The disc drive defaults to the FC-AL Monitoring state, Pass-through state, when it i s powered-on by switching the power or hot plugged. The control line to an optional port bypass circuit (external to the drive), defaults to the Enable Bypass state. If the bypass circuit is present, the next device in the loop will continue to receive the output of the previous device to the newly inserted device. If the bypass circuit is not present, loop operation is temporarily disrupted until the next device starts receiving the output from the newly inserted device and regains synchronization to the new input.

Cheetah 15K.5 FC Product Manual, Rev. D

The Pass-through state is disabled while the drive perfo rms self test of the FC interface. The control line for an external port bypass circuit remains in the Enable Bypass state while self test is running. If the bypass circuit is present, loop oper ation m ay con tinue. If the byp ass circ uit is not pres ent, loo p ope ration will be h alted while the self test of the FC interface runs.

When the self test completes successfully, the control line to the bypass circuit is disabled and the drive enters the FC-AL Initializing st a te. The receiver on the ne xt device i n the loo p must synch ronize t o outpu t of the newly inserted drive.

If the self-test fails, the control line to the bypass circuit remains in the Enable Bypass state. Note. It is the responsibility of the systems integrator to assure that no temperature, energy, voltage haz-

ard, or ESD potential hazard is presented during the hot connect/disconnect operation. Discharge the static electricity from the drive carrier prior to inserting it into the system.

Caution. The drive motor m ust come to a com pl ete s top pr ior to ch angi ng the pla ne of o pera ti on. T his time i s

required to insure data integrity.

5.2.4 S.M.A.R.T.

S.M.A.R.T. is an acronym for Self-Monitoring Analysis and Reporting Technology. This technology is intended to recognize conditions that indicate imminent drive failure and is designed to provide sufficient warning of a failure to allow you to back up the data before an actual failure occurs.

Note. The drive’ s f irmwar e moni tor s specific attr ibutes for degr adatio n ove r tim e b ut can ’ t predi ct in sta nt a-

neous drive failures.

Each monitored attribute has been selected to monitor a specific set of failure conditions in the operating performance of the drive and the thresholds are optimized to minimize “false” and “failed” predi ctions.

Controlling S.M.A.R.T.

The operating mode of S.M.A.R. T. is controlled by the DEXCPT and PERF bits on the Informa tional Excepti ons Control mode page (1Ch). Use the DEXCPT bit to enable or disable the S.M.A.R.T. feature. Setting the DEXCPT bit disables all S.M.A.R.T. functions. When enabled, S.M. A.R.T. collect s on -li ne d at a as the d rive p erfor ms normal read and write operations. When the PERF bit is set, the drive is considered to be in “On-line Mode Only” and will not perform off-line functions.

You can measure off-line attributes and force the drive to save the data by using the Rezero Unit command. Forcing S.M.A.R.T. resets the timer so that the next scheduled interrupt is in two hours.

You can interrogate the drive thro ugh th e host t o dete rmi ne the tim e rem ai ning b efore the ne xt schedu l ed me asurement and d at a logg i ng p rocess occur s . To accomplish thi s, issue a Log S ense comm and to lo g p age 0x3E . This allows you to control when S.M.A.R.T. interruptions occur. Forcing S.M.A.R.T. with the RTZ command resets the timer.

Performance impact

S.M.A.R.T. attribute data is saved to the disc so that the events that caused a predictive failure can be recreated. The drive measures and saves parameters once every two hours subject to an idle period on the FC-AL bus. The process of measuring off-line attribute data and saving data to the disc is uninterruptable. The maximum on-line only processing delay is summarized below:

Maximum processing delay

S.M.A.R.T. delay times

On-line only delay DEXCPT = 0, PERF = 1

42 milliseconds

Fully-enabled delay DEXCP T = 0, PE R F = 0

163 milliseconds

Cheetah 15K.5 FC Product Manual, Rev. D

Reporting control

Reporting is controlled by the MRIE bits in the Informational Exceptions Control mode page (1Ch). Subject to the reporting method, the firmware will issue to the host an 01-5Dxx sense code. The error code is preserved through bus resets and power cycles.

Determining rate

S.M.A.R.T. monitors the rate at whic h error s occur and signa l s a predicti ve failure if the rat e of degrad ed err ors increases to an unacceptabl e level. To determine rate, error events are logged and compared to the number of total operations for a given attribute. The interval defines the number of operations over which to measure the rate. The counter that keeps track of the current number of operations is referred to as the Interval Counter.

S.M.A.R.T. measures error rates. All errors for each monitored attribute are recorded. A counter keeps track of the number of errors for the current interval. This counter is referred to as the Failure Counter.

Error rate is the number of errors per oper ation. The algori thm tha t S .M.A.R .T. uses to re cord rates of error is to set thresholds for the number of errors and their interval. If the number of errors exceeds the threshold before the interval expires, the error rate is considered to be unacceptable. If the number of errors does not exceed the threshold before the interval expires, the error rate is considered to be acceptable. In either case, the interval and failure counters are reset and the process starts over.

Predictive failures

S.M.A.R.T. signals predictive failures when the drive is performing unacceptably for a period of time. The firmware keeps a running count of the number of times the error rate for each attribute is unacceptable. To accomplish this, a counter is incremented each time the error rate is unacceptable and decremented (not to exceed zero) whenever the error rate is acceptable. If the counter continually increments such that it reaches the predictive threshold, a predictive failure is signaled. This counter is referred to as the Failure History Counter. There is a separate Failure History Counter for each attribute.

5.2.5 Thermal monitor

Cheetah 15K.5 FC drives implement a temperature warning system which:

1. Signals the host if the temperature exceeds a value which would threaten the drive.

2. Signals the host if the temperature exceeds a user-specified value.

3. Saves a S.M.A.R.T. data frame on the drive which exceeds the threatening temperature value.

A temperature sensor monitors the drive temperature and issues a warning over the interface when the temperature exceeds a set threshold. The temperature is measured at power-up and then at ten-minute intervals after power-up.

The thermal monitor system generates a warning code of 01-0B01 when the temperature exceeds the specified limit in compliance with the SCSI standard. The drive temperature is reported i n the FRU code field of mode sense dat a. You can use thi s infor matio n to deter mi ne if the wa rning is due to the temperature exceeding the drive threatening temperature or the user-specified temperature.

This feature is controlled by the En able W a rni ng (EWasc) bit, and the reporting mechanism is controlled by the Method of Reporting Informational Exceptions field (MRIE) on the Informational Exceptions Control (IEC) mode page (1Ch).

The current algorithm implements two temperature trip points. The first trip point is set at 68°C which is the maximum temperature limit according to the drive specification. The second trip point is user-selectable using the Log Select command. The re feren ce tempe ratur e p aram eter in the tempera ture log page (see Table 1) can

Cheetah 15K.5 FC Product Manual, Rev. D

be used to set this trip point. The default value for this drive is 68°C, however, you can set it to any value in the range of 0 to 68°C. If you specify a temperature greater than 68°C in this field, the temperature is rounded down to 68°C. A sense code is sent to the host to indicate the rounding of the parameter field.

T ab le 1: Temperature Log Page (0Dh)

Parameter Code Description

0000h 0001h

Primary Temperature Reference Temperature

5.2.6 Drive Self Test (DST)

Drive Self Test (DST) is a technology designed to recognize drive fault conditions that qualify the drive as a failed unit. DST validates the functionality of the drive at a system level.

There are two test coverage options implemented in DST:

1. Extended test

2. Short text The most thorough option is the extended test that performs various tests on the drive and scans every logical

block address (LBA) of the drive. The short test is time-restricted and limited in length—it does not scan the entire media surface, but does some fundamental tests and scans portions of the media.

If DST encounters an error during either of these tests, it reports a fault condition. If the drive fails the test, remove it from service and return it to Seagate for service.

5.2.6.1 DST failure definition

The drive will present a “diagnostic failed” condition through the self-tests results value of the diagnostic log page if a functional failure is encountered during DST. The channel and servo parameters are not modified to test the drive more stringently, and the number of retries are not reduced. All retries and recovery processes are enabled during the test. If data is recoverable, no fa ilure condition will be reported regardless of the number of retries required to recover the data.

The following conditions are considered DST failure conditions:

• Seek error after retries are exhausted

• Track-follow error after retries are exhausted

• Read error after retries are exhausted

• Write error after retries are exhausted Recovered errors will not be reported as diagnostic failures.

5.2.6.2 Implementation

This section provides all of the information necessary to implement the DST function on this drive.

5.2.6.2.1 State of the drive prior to testing

The drive must be in a ready state before issuing the Send Diagnostic command. There are multiple reasons why a drive may not be ready, some of which are valid conditions, and not errors. For example, a drive may be in process of doing a form at, or anothe r D ST. It is the responsibility of the host application to det erm in e the “not ready” cause.

While not technically part of DST, a Not Ready condition also qualifies the drive to be returned to Seaga te as a failed dri ve.

A Drive Not Ready condition is reported by the drive under the following conditions:

Cheetah 15K.5 FC Product Manual, Rev. D

• Motor will not spin

• Motor will not lock to speed

• Servo will not lock on track

• Drive cannot read configuration tables from the disc

In these conditions, the drive responds to a Test Unit Ready command with an 02/04/00 or 02/04/03 code.

5.2.6.2.2 Invoking DST

To invoke DST, submit the Send Diagnostic command with the appropriate Function Code (001b for the short test or 010b for the extended test) in bytes 1, bits 5, 6, and 7.

5.2.6.2.3 Short and extended tests

DST has two testing options:

1. short

2. extended

These testing options are described in the following two subsections. Each test consists of three segments: an electrical test segment, a servo test segment, and a read/verify scan

segment.

Short test (Function Code: 001b)

The purpose of the short test is to provide a time-limited test that tests as much of the drive as possible within 120 seconds. The short test does not scan the entire media surface, but does some fundamental tests and scans portions of the media. A complete rea d/ver ify scan is not per formed and onl y factu al failu res will report a fault condition. This option provides a quick confidence test of the drive.

Extended test (Function Code: 010b)

The objective of the extended test option is to empirically test critical drive component s. For example, the seek tests and on-track operations test the positioning mechanism. The read operation tests the read head element and the media surface. The write element is tested through read/write/read operations. The integrity of the media is checked through a read/verify scan of the media. Motor functionality i s tested by default as a part of these tests.

The anticipated length of the Extended test is reported through the Control Mode page.

5.2.6.2.4 Log page entries

When the drive begins DST, it creates a new entry in the Self-test Results Log page. The new entry is created by inserting a new self-te st parameter block at the beginni ng of t he se lf-test resu l ts log p a ram eter section of the log page. Existing data will be moved to make room for the new parameter block. The drive reports 20 parameter blocks in the log p ag e. If th ere are more than 20 p ar amet er blocks, the least r ecent p a rame ter block will be deleted. The new parameter block will be initialized as follows:

1. The Function Code field is set to the same value as sent in the DST command

2. The Self-Test Results Value field is set to Fh

3. The drive will store the log p age to non-volatile memory

After a self-test is complete or has been aborted, the drive updates the Self-Test Results Value field in its SelfTest Results Log page in non-volatile memory. The host may use Log Sense to read the results from up to the last 20 self-tests performed by the drive. The self-test results value is a 4-bit field that reports the results of the test. If the field is set to zero, the drive passed with no errors detected by the DST. If the field is not set to zero, the test failed for the reason reported in the field.

Cheetah 15K.5 FC Product Manual, Rev. D

The drive will report the failure cond ition and LBA (if applicable) in the Self-test Results Log parameter. The Sense key, ASC, ASCQ, and FRU are used to report the failure condition.

5.2.6.2.5 Abort

There are several ways to abort a diagnostic. You can use a SCSI Bus Reset or a Bus Device Reset message to abort the diagnostic.

You can abort a DST executing in background mode by using the abort code in the DST Function Code field. This will cause a 01 (self-test aborted by the application client) code to appear in the self-test results values log. All other abort mechanisms will be reported as a 02 (self-te st routine was interrupted by a reset condition).

5.2.7 Product warranty

Beginning on the date of shipment to the customer and continuing for the period specified in your purchase contract, Seagate warrants that each product (including components and subassemblies) that fails to function properly under no rmal use due to defect in m ater i als or wo rkma nship o r due to no nconfo rma nce to the applicable specifications will be repaired or replace d, at Seag ate’s option and at no charge to the customer, if returned by customer at customer’s expense to Seagate’s designated facility in accordance with Seagate’s warranty procedure. Seagate will pay for transporting the repair or replacement item to the customer. For more detailed warranty information, refer to the standard terms and conditions of purcha se for Seagate products on your purchase documentation.

The remaining warranty for a particular drive can be determined by calling Seagate Customer Service at 1-800-468-3472. You can also determine remaining warranty using the Seagate web site (www.seagate.com). The drive serial number is required to determine remaining warranty information.

Shipping

When transporting or shipping a drive, use only a Seagate-approved container. Keep your original box. Seagate approved containers are easily identified by the S eagat e App roved Packag e label. Sh ippi ng a drive in a non-approved container voids the drive warranty.

Seagate repair centers may refuse receipt of components improperly packaged or obviously damaged in transit. Contact your authorized Seagate distributor to purchase additional boxes. S eagate recommends shipping by an air-ride carrier experienced in handling computer equipment.

Product repair and return information

Seagate customer service centers are the only facilities authorized to service Seagate drives. Seagate does not sanction any third-party repair facilities. Any unauthorized repair or tampering with the factory seal voids the warranty.

Cheetah 15K.5 FC Product Manual, Rev. D

6.0 Physical/electrical specifications

This section provides information relating to the physical and electrical characteristics of the drive.

6.1 AC power requirements

None.

6.2 DC power requirements

The voltage and current requirements for a single drive are shown below. Values indicated apply at the drive connector. Notes are shown following table 4.

Table 2: DC power requirements for ST3300655FC model

1 Gbit 2 Gbit 4 Gbit

Notes (Amps) (Amps) (Amps) (Amps) (Amps) (Amps)

Voltage +5V +12V [2] +5V +12V [2] +5V +12V [2] Regulation [5] ±5% ±5% [2] ±5% ±5% [2] ±5% ±5% [2] Avg idle current DCX [1] [7] 0.76 0.76 0.83 0.81 0.86 0.75 Maximum starting current

(peak DC) DC 3σ [3] 0.80 1.94 0.84 1.94 0.89 1.94

(peak AC) AC 3σ [3] 1.22 3.41 1.30 3.48 1.34 3.44 Delayed motor start (max) DC 3σ [1] [4] 0.45 0.03 0.49 0.03 0.53 0.03 Peak operating current: Typical DCX [1] [6] 0.69 1.13 0.72 1.12 0.78 1.16 Maximum DC 3σ [1] 0.69 1.17 0.73 1.17 0.79 1.21 Maximum (peak) DC 3σ 1.48 3.08 1.56 3.04 1.60 3.04

Cheetah 15K.5 FC Product Manual, Rev. D

T ab le 3: DC power requirements for ST3146855FC model

1 Gbit 2 Gbit 4 Gbit

Notes (Amps) (Amps) (Amps) (Amps) (Amps) (Amps)

Voltage +5V +12V [2] +5V +12V [2] +5V +12V [2] Regulation [5] ±5% ±5% [2] ±5% ±5% [2] ±5% ±5% [2] Avg idle current DCX [1] [7] 0.77 0.54 0.79 0.53 0.84 0.53 Maximum starting current

(peak DC) DC 3σ [3] 0.78 2.08 0.80 2.08 0.86 2.08

(peak AC) AC 3σ [3] 1.18 3.70 1.17 3.70 1.27 3.65 Delayed motor start (max) DC 3σ [1] [4] 0.44 0.03 0.47 0.03 0.52 0.03 Peak operating current: Typical DCX [1] [6] 0.62 0.89 0.76 0.88 0.52 0.87 Maximum DC 3σ [1] 0.75 0.93 0.77 0.94 0.80 0.93 Maximum (peak) DC 3σ 1.54 2.68 1.54 2.70 1.60 2.62

T ab le 4: DC power requirements for ST373455FC model

1 Gbit 2 Gbit 4 Gbit

Notes (Amps) (Amps) (Amps) (Amps) (Amps) (Amps)

Voltage +5V +12V [2] +5V +12V [2] +5V +12V [2] Regulation [5] ±5% ±5% [2] ±5% ±5% [2] ±5% ±5% [2] Avg idle current DCX [1] [7] 0.76 0.41 0.83 0.42 0.84 0.41 Maximum starting current

(peak DC) DC 3σ [3] 0.77 2.02 0.80 2.02 0.84 2.02

(peak AC) AC 3σ [3] 1.10 3.51 1.17 3.57 1.29 3.48 Delayed motor start (max) DC 3σ [1] [4] 0.45 0.03 0.49 0.03 0.53 0.03 Peak operating current: Typical DCX [1] [6] 0.69 0.73 0.74 0.74 0.78 0.76 Maximum DC 3σ [1] 0.71 0.79 0.77 0.79 0.81 0.80 Maximum (peak) DC 3σ 1.42 2.46 1.54 2.48 1.56 2.50

[1] Measured with average reading DC ammeter. Instantaneous +12V current peaks wi ll exceed these val-

ues. Power supply at nominal voltage. N (number of drives tested) = 6, 35 Degrees C ambient.

[2] For +12 V, a –10% tolerance is allowed during initial spindle start but must return to ±5% before reaching

15000 RPM. The ±5% must be maintained after the drive signifies that its power-up sequence has been

completed and that the drive is able to accept selection by the host initiator. [3] See +12V current profile in Figure 1. [4] This condition occurs when the Motor Start option is enabled and the drive has not yet received a Start

Motor command. [5] See paragraph 6.2.1, "Conducted noise immunity." Specified voltage tolerance includes ripple, noise, and

transient response. [6] Operating condition is defined as random 8 block reads at 309 s I/Os per second for ST3300655F C and

Cheetah 15K.5 FC Product Manual, Rev. D

314 I/Os per second for ST3146855FC and ST373455FC models. Current and power specified at nominal voltages. Decreasi ng +5 volt supply by 5% incr eases 5 Volt current by 3.5%. Decreasing +12 volt supply by 5% increases 12 volt current by 2.5% (1.5% for ST3146855FC and ST373455FC models).

[7] During idle, the drive heads are relocated every 60 seconds to a random location within the band from

three-quarters to maximum track.

General DC power requirement notes.

1. Minimum current l oading for each supply voltage is not less than 1.2% of the maximum operating current shown.

2. The +5V and +12V supplies should employ separate ground returns.

3. Where power is provided to multiple drives from a common supply, careful consideration for individual drive power requirements should be noted. Where multiple units are powered on simultaneously, the peak starting current must be available to each device.

4. Parameters, other than spindle start, are measured after a 10-minute warm up.

5. No terminator power.

6.2.1 Conducted noise immunity

Noise is specified as a periodic and random distribution of frequencies covering a band from DC to 10 MHz. Maximum allowed noise values given below are peak-to-peak measurements and apply at the drive power connector.

+5 V = 250 mV pp from 0 to 100 kHz to 20 MHz. +12 V = 800 mV pp from 100 Hz to 8 KHz.

450 mV pp from 8 KHz to 20 KHz. 250 mV pp from 20 KHz to 5 MHz.

6.2.2 Power sequencing

The drive does not require power sequencing. The drive protects against inadvertent writing during power-up and down.

6.2.3 Current profiles

The +12V and +5V current profiles for the ST3300655FC, ST3146855FC, and ST373455FC models are shown below in the following figures.

Cheetah 15K.5 FC Product Manual, Rev. D

Note: All times and currents are typical. See T ables 2, 3, and 4 for maximum current requirements.

Figure 1. Typical ST3300655FC drive, 4 Gbit, +12V current profile

Figure 2. Typical ST3300655FC drive, 4 Gbit, +5V current profile

Cheetah 15K.5 FC Product Manual, Rev. D

Figure 3. Typical ST3146855FC drive, 4 Gbit, +12V current profile

Figure 4. Typical ST3146855FC drive, 4 Gbit, +5V current profile

Cheetah 15K.5 FC Product Manual, Rev. D

Figure 5. Typical ST373455FC drive, 4 Gbit, +12V current profile

Figure 6. Typical ST373455FC drive. 4 Gbit, +5V current profile

Cheetah 15K.5 FC Product Manual, Rev. D

6.3 Power dissipation

ST3300655FC

Typical power dissipation under idle conditions in 4 Gbit operation is 13.3 watts (45.4 BTUs per hour). To obtain operating power for typical random read operations, refer to the following I/O rate curve (see Figure

7). Locate the typical I/O rate for a drive in your system on the horizontal axis and read the corresponding +5

volt current, +12 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by

3.4123.

ST3300655FC CU RRENT/ P OWER v s T HR O UGH P UT ( FC - 4GB)

1.4 0 0

1.2 0 0

1.0 0 0

Random 8 Block Reads

20.00 18 .0 0

16 .0 0 14 .0 0

5Volt A 12 V o l t A Watts

Power (watts)

0.800

0.600

Amperes

0.400

0.200

0.000

0.0 50.0 100.0 150.0 200.0 250.0 300.0 350.0 400.0

12 .0 0 10 .0 0

8.00

6.00

4.00

2.00

0.00

I/Os per Sec ond

Figure 7. ST3300655FC DC current and power vs. input/output operations per second at 4 Gbit

Cheetah 15K.5 FC Product Manual, Rev. D

ST3146855FC

Typical power dissipation under idle conditions in 4 Gbit operation is 10.56 watts (36.0 BTUs per hour). To obtain operating power for typical random read operations, refer to the following I/O rate curve (see Figure

7). Locate the typical I/O rate for a drive in your system on the horizontal axis and read the corresponding +5 volt current, +12 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by

3.4123.

ST3146855FC CURRE NT/POWER vs THROUGHPUT (FC - 4GB)

R an d om 8 Blo ck Reads

16 .0 0

14 .0 0

12 .0 0

10 .0 0

8.00

6.00

4.00

5Volt A 12 Vo l t A Watts

Power (watts)

Amperes

1.4 0 0

1.2 0 0

1.0 0 0

0.800

0.600

0.400

0.200

0.000

0.0 50.0 100.0 150.0 200.0 250.0 300.0 350.0 400.0

2.00

0.00

I/ Os per Sec ond

Figure 8. ST3146855FC DC current and power vs. input/output operations per second at 4 Gbit

Cheetah 15K.5 FC Product Manual, Rev. D

ST373455FC

Typical power dissipation under idle conditions in 4 Gbit operation is 9.12 watts (31.1 BTUs per hour). To obtain operating power for typical random read operations, refer to the following I/O rate curve (see Figure

7). Locate the typical I/O rate for a drive in your system on the horizontal axis and read the corresponding +5

volt current, +12 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by

3.4123.

ST373455FC CURRE NT/POWER vs THROUGHPUT (FC - 4GB)

1.4 0 0

1.2 0 0

R an d om 8 Blo ck Reads

14 .0 0

12 .0 0

5Volt A 12 Vo l t A Watts

1.0 0 0

0.800

0.600

Amperes

0.400

0.200

0.000

0.0 50.0 100.0 150.0 200.0 250.0 300.0 350.0 400.0

I/ Os per Sec ond

10 .0 0

8.00

6.00

4.00

2.00

0.00

Power (watts)

Figure 9. ST373455FC DC current and power vs. input/output operations per second at 4 Gbit

6.4 Environmental limits

Temperature and humidity values experienced by the drive must be such that condensation does not occur on any drive part. Altitude and atmospheric pressure specifications are referenced to a standard day at 58.7°F (14.8°C). Maximum wet bulb temperature is 82°F (28°C).

6.4.1 Temperature

a. Operating

The maximum allowable continuous or sustained HDA case temperature for the rated Annualized Failure Rate (AFR) is 122°F (50°C) The maximum allowable HDA case temperature is 60°C. Occasional excursions of HDA case temperatures above 122°F (50°C) or below 41°F (5°C) may occur without impact to the specified AFR. Continual or sustained operation at HDA case temperatures outside these limits may degrade AFR.

Provided the HDA case temperatures limits are met, the drive meets all specifications over a 41°F to 131°F (5°C to 55°C) drive ambient temperature range with a maximum temperature gradient of 36°F (20°C) per hour . Air flow may be needed in the drive enclosu re to keep within this range (see Se ction 8.3). Operation at HDA case temperatur es out side thi s ra nge m ay adve rsely af fe ct the d rives ab ility t o mee t speci ficatio ns. To confirm that the required cooling for the electronics and HDA case is provided, place the drive in its final mechanical configuration, perform random write/read operations and measure the HDA case temperature after it has stabilized.

Cheetah 15K.5 FC Product Manual, Rev. D

b. Non-operating

–40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assum es th at th e dr iv e is p ackaged in the shipping container designe d by Se agate for use with drive.

DA Temp.

heck Point

Figure 10. Locations of the HDA temperature check point

1.0"

.5"

6.4.2 Relative humidity

The values below assume that no condensation on the drive occurs. a. Operating

5% to 95% non-condensing relative humidity with a maximum gradient of 20% per hour.

b. Non-operating

5% to 95% non-condensing relative humidity.

6.4.3 Effective altitude (sea level)

a. Operating

–1,000 to +10,000 feet (–305 to +3,048 meters)

b. Non-operating

–1,000 to +40,000 feet (–305 to +12,210 meters)

6.4.4 Shock and vibration

Shock and vibration limits specified in this document are measured directly on the drive chassis. If the drive is installed in an enclosure to which the stated shock and/or vibration criteria is applied, resonances may occur internally to t he e nclosure resulting in drive movement in excess of t he st ated limits. If this situation is app ar ent, it may be necessary to modify the enclosure to minimize drive movement.

The limits of shock and vibration defined within this document are specified with the drive mounted by any of the four methods shown in Figure 11, and in accordance with the restrictions of Section 8.4. Orientation of the side nearest the LED may be up or down.

6.4.4.1 Shock

a. Operating—normal

The drive, as in sta lled for normal operation, shall operate error free while subje cted to intermittent shock not exceeding 15 Gs at a maximum duration of 11 msec (half sinewave). The drive, as installed for normal operation, shall operate error free while subjected to intermittent shock not exceeding 60 Gs at a maximum duration of 2 msec (half sinewave). Shock may be applied in the X, Y, or Z axis.

Cheetah 15K.5 FC Product Manual, Rev. D

b. Operating—abnormal

Equipment, as installed for normal operation, does not incur physical damage while subjected to intermittent shock not exceeding 40 Gs at a maximum duration of 11 msec (half sinewave). Shock occurring at abnormal levels may promote degraded operational performance during the abnormal shock period. Specified operational performance will continue when normal operating shock levels resume. Shock may be applied in the X, Y, or Z axis. Shock is not to be repeated more than two times per second.

c. Non-operating

The limits of non-operating shock shall apply to all conditions of handling and transportation. This includes both isolated drives and integrated drives.

The drive subjected to nonrepetitive shock not exceeding 75 Gs at a maximum duration of 11 msec (half sinewave) shall not exhibit device damage or performance degradation. Shock may be applied in the X, Y, or Z axis.

The drive subjected to nonrepetitive shock not exceeding 250 Gs at a maximum duration of 2 msec (half sinewave) does not exhibit device damage or performance degradation. Shock may be applied in the X, Y, or Z axis.

The drive subjected to nonrepetitve shock not exceeding 120 Gs at a maximum duration of 0.5 msec (half sinewave) does not exhibit device damage or performance degradation. Shock may be applied in the X, Y, or Z axis.

d. Packaged

Disc drives shipped as loose load (not palletized) general freight will be packaged to withstand drops from heights as defined in the table below. For additional details refer to Seagate specifications 30190-001 (under 100 lbs/45 kg) or 30191-001 (over 100 lbs/45 Kg).

Package size Packaged/product weight Drop height

<600 cu in (<9,800 cu cm) Any 60 in (1524 mm) 600-1800 cu in (9,800-19,700 cu cm) 0-20 lb (0 to 9.1 kg) 48 in (1219 mm) >1800 cu in (>19,700 cu cm) 0-20 lb (0 to 9.1 kg) 42 in (1067 mm) >600 cu in (>9,800 cu cm) 20-40 lb (9.1 to 18.1 kg) 36 in (914 mm)

Drives packaged in single or multipacks with a gross weight of 20 pounds (8.95 kg) or less by Seagate for general freight shipment shall withstand a drop test from 48 inches (1,070 mm) against a concrete floor or equivalent.

Cheetah 15K.5 FC Product Manual, Rev. D

Figure 11. Rec ommended mo unting

Cheetah 15K.5 FC Product Manual, Rev. D

6.4.4.2 Vibration

a. Operating—normal

The drive as installed for normal operation, shall comply with the complete specified performance while subjected to continuous vibration not exceeding

10-500 Hz @ 0.5 G (zero to peak) Vibration may be applied in the X, Y, or Z axis. Operating normal translational random flat profile

10 - 500 Hz 0.4 g RMS

b. Operating—abnormal

Equipment as installed for normal operation shall not incur physical damage while subjected to periodic vibration not exceeding:

15 minutes of duration at major resonant frequency

10-500 Hz @ 0.75 G (X, Y, or Z axis) Vibration occurring at these levels may degrade operational performance during the abnormal vibration

period. Specified operational performance will continue when normal operating vibration levels are resumed. This assumes system recovery routines are available.

Operating abnormal translational random flat profile

10 - 500 Hz 1.2 g RMS

c. Non-operating

The limits of non-operating vibration shall apply to all conditions of handling and transportation. This includes both isolated drives and integrated drives.

The drive shall not incur physical damage or degraded performance as a result of continuous vibration not exceeding

5-22 Hz @ 0.040 inches (1.02 mm) displacement (zero to peak)

22-500 Hz @ 2.00 G (zero to peak) Vibration may be applied in the X, Y, or Z axis. Non-operating translational random flat profile

10 - 500 Hz 1.2 g RMS

6.4.5 Acoustics

Sound power during idle mode shall be 3.6 bels typical when measured to ISO 7779 specification. Sound power while operating shall be 4.3 bels typical when measured to ISO 7779 specification.

There will not be any discrete tones more than 10 dB above the masking noise on typical drives when measured according to Seagate specification 30553-001. There will not be any tones more than 24 dB above the masking noise on any drive.

6.4.6 Air cleanliness

The drive is designed to operate in a typical office environment with minimal environmental control.

6.4.7 Corrosive environment

Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845. However, this accelerated testing cannot duplicate every potential application environment.

Cheetah 15K.5 FC Product Manual, Rev. D

Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electr onic dr i ve com ponen t reliab ilit y can be af fecte d by th e i nst allation environment. The sil- ver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitr ate c ont ami na nt s. S ulfur is found to be the m ost dam aging . In ad di tion, e lectron i c comp onent s should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an am bient rel at ive hum idity gr eate r th an 9 5%. Mat erial s used in cabin et fa bri cation , such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.

6.4.8 RoHS compliance statement

The European U nion Restr icti on of Hazard ous S ubst ance s (RoHS ) Dire cti ve re strict s the p resen ce of ch emic al substances, including Lead (Pb), in electronic products effective July 2006.

A number of parts and materials in Seagate products are procured from external suppliers. We rely on the representations of our suppliers regarding the presence of RoHS substances in these parts and materials. Our supplier contracts require compliance with our chemical substance restrictions, and our suppliers document their compliance wi th our re quire ment s by providing material content declarations for all par ts an d mater i als for the disc drives documented in this publication. Current supplier declarations include disclosure of the inclusion of any RoHS-regulated substance in such parts or materials.

6.4.9 Electromagn etic susc ept ibili ty

See Section 2.1.1.1.

Cheetah 15K.5 FC Product Manual, Rev. D

6.5 Mechanical specifications

The following nominal dimensions are exclusive of the decorative front panel accessory. However, dimensions of the front panel ar e shown in figure below. Refer to Figure 12 for deta iled mou nti ng conf igura ti on dime nsi ons. See Section 8.4, “Drive mounting.”

Height (max): 1.028 in 26.11 mm Width (max): 4.010 in 101.85 mm Depth (max): 5.787 in 146.99 mm Weight (max): 1.85 pounds 0.839 kilograms

-Z-T//

REF

[1]

-Z-

R REF

-X-N

-X-

-Z-

Notes:

[1]

Mounting holes are 6-32 UNC 2B, three on each side and four on the bottom. Max screw penetration into side of drive is 0.15 in. (3.81 mm). Max screw tightening torque is 6.0 in-lb (3.32 nm) with minimum full thread engagement of

0.12 in. (3.05 mm).

-X-U

[1]

Figure 12. Mounting configuration dimensions

1.028

5.787

4.000

3.750

0.125

1.750

1.122

4.000

0.250

1.638

0.181

.040

1.625

1.618

0.276

.015

Dimension Table

Inches

max max ± .010 ± .010 ± .010 ± .010 ± .020 ± .010 ± .010 ± .010

± .020

± .040 max max

26.10

147.00

101.60

95.25

44.45

28.50

101.60

41.60

41.28

41.10

Millimeters

max max ± .25 ± .25

3.18

± .25 ± .25 ± .50 ± .25

6.35

± .25 ± .25

4.60

1.02 ± .50

± 1.02

7.00 max

0.38 max

0.38

Cheetah 15K.5 FC Product Manual, Rev. D

7.0 Defect and error management

Seagate continues to use innovative technologies to manage defects and errors. These technologies are designed to increase data integrity, perform drive self-maintenance, and validate proper drive operation.

SCSI defect and error manag eme nt involves drive inte rnal def ect/er ror manage ment and FC system er ror considerations (errors in comm unications between the initiator and the drive). In addition, Seagate provides the following technologies used to increase data integrity and drive reliability:

• Background Media Scan (see Section 7.4)

• Media Pre-Scan (see Section 7.5)

• Deferred Auto-Reallocation (see Section 7.6)

• Idle Read After Write (see Section 7.7) The read error rates and specified storage capacities are not dependent on host (initiator) defect management

routines.

7.1 Drive in ternal defects/errors

During the initial drive format operation at the factory, media defects are identified, tagged as being unusable, and their locations recorded on the drive primary defects list (referred to as the “P’ list and also as the ETF defect list). At factory format time, these known defects are also reallocated, that is, reassigned to a new place on the medium and the location listed in the defects reallocation table. The “P” list is not altered after factory formatting. Locations of defects found and reallocated during error recovery procedures after drive shipment are listed in the “G” list (defects growth list). The “P” and “G” lists may be referenced by the initiator using the Read Defect Data command.

Details of the SC SI commands supported by the drive are described in the Fibre Channel Interface Manual. Also, more information on the drive Error Recovery philosophy is presented in the Fibre Channel Interface Manual.

7.2 Drive error recovery procedures

When an error occurs du ri ng dr ive ope ration, the drive, if programmed to do so, performs er ror recove ry pro c edures to attempt to reco ver the dat a. T he err or r ecover y proce dure s used depend on the options previously set in the Error Recovery Parameters mode page. Error recovery and defect management may involve using several SCSI commands described in the Fibre Channel Interface Manual. The drive implements selectable error recovery time limits required in video applications.

The error r ecover y sche me suppo rted by t he d ri ve p rovide s a way to contr ol th e to tal error recovery time for the entire command in addition to controlling the recovery level for a single LBA. The total amount of time spent in error recovery for a command can be limited using the Recovery Time Limit bytes in the Error Recovery mode page. The total amount of time spent in error recovery for a single LBA can be limited using the Read Retry Count or Write Retry Count bytes in the Error Recovery mode page.

Cheetah 15K.5 FC Product Manual, Rev. D

The drive firmware error recovery algorithms consists of 11 levels for read recoveries and five levels for write. Each level may consist of multiple steps, where a step is defined as a recovery function involving a single reread or re-write attempt. The maximum level used by the drive in LBA recovery is determined by the read and write retry counts.

Table 5 equates the read and write retry count with the maximum possible recovery time for read and write recovery of individual LBAs. The times given do not include time taken to perform reallocations. Reallocations are performed when the ARRE bit (for reads) or AWRE bit (for writes) is one, the RC bit is zero, and the recovery time limit for the command has not yet been met. Time needed to perform reallocation is not counted against the recovery time limit.

When the RC bit is one, reallocations are disabled even if the ARRE or AWRE bits are one. The drive will still perform data recovery actions within the limits defined by the Read Retry Count, Write Retry Count, and Recovery Time Limit parameters. However, the drive does not report any unrecovered errors.

Cheetah 15K.5 FC Product Manual, Rev. D

T ab le 5: Read and write retry count maximum recovery times [1]

Read retry count

0 51.87 0 23.94 1 59.85 1 35.91 2 203.49 2 55.86 3 219.45 3 67.83 4 253.11 4 119.79 5 279.35 5 (default) 147.72 6 311.27 7 395.12 8 463.12 9 495.04 10 530.95 11 (default) 1,282.97

Maximum recovery time per LBA (cumulative, msec)

Write retry count

Maximum recovery time per LBA (cumulative, msec)

[1] These values are subject to change.

Setting these retry counts to a value below the default setting could result in an increased unrecovered error rate which may exceed the value given in this product manual. A setting of zero (0) will result in the drive not performing error recovery.

For example, suppose the Read/Write Recovery page has the RC bit set to 0, read retry count set to 4, and the recovery time limit field (Mode Sense page 01, bytes 10 and 11) set to FF FF hex (maximum). A four LBA Read command is allowed to take up to 253.11 msec recovery time for each of the four LBAs in the command. If the recovery time limit is set to 00 C8 hex (200 msec decimal) a four LB A read comm and is allowed to take up to 200 msec for all error recovery within that command. The use of the Recovery Time Limit field allows finer granularity on control of the time spent in error recovery. The recovery time limit only starts counting when the drive is executing error recovery and it restarts on each command. Therefore, each command’s total recovery time is subject to the recovery time limit. Note: A recovery time limit of 0 will use the drive’s default value of FF FF. Minimum recovery time limit is achieved by setting the Recovery Time Limit field to 00 01.

7.3 FC-AL system errors

Information on the reporting of operational errors or faults across the interface is given in the Fibre Channel Interface Manual. The FCP Response returns information to the host about numerous kinds of errors or faults.

The Receive Diagnostic Results reports the results of diagnostic operations performed by the drive. Status returned by the drive to the initiator is described in the Fibre Channel Interface Manual. S t atus reporti ng

plays a role in systems err or manag ement and its use in that respect is describe d in se ctions whe re the va rious commands are discussed.

7.4 Background Media Scan

Background Media Scan (BMS) is a self-initiated media scan. BMS is defined in the T10 document SPC-4 available from the T10 committee. BMS performs sequential reads across the entire pack of the media while the drive is idle. In RAID arrays, BMS allows hot spare drives to be scanned for defects prior to being put into service by the host system. On regular duty drives, if the host system makes use of the BMS Log Page, it can avoid placing data in suspect locations on the media. Unreadable and recovered error sites will be logged or reallocated per ARRE/AWRE settings.

Cheetah 15K.5 FC Product Manual, Rev. D

With BMS, the host system can consume less power and system overhead by only checking BMS status and results rather th an tyi ng up th e bus a nd consu ming p ower i n the pr ocess o f host- initiated medi a scanning activ ity.

Since the backgr ound scan function s ar e o nl y don e d uring i dle p eriod s, B MS cau ses a neg lig ibl e imp a ct to sys tem performance. The first BMS scan for a newly manufactured drive is performed as quickly as possible to verify the media and protect data by setting the “Start time after idle” to 5ms, all subsequent scans begin after 500ms of idle time. Other features that normally use idle time to function will function normally because BMS functions for bursts of 800ms and then suspends activity for 100ms to allow other background functions to operate.

BMS interrupts immedi ately to service host com man ds from the inter face bus whi le pe rfor ming r eads. B MS will complete any BMS-initiated error recovery prior to returning to service host-initiated commands. Overhead associated with a return to host-servicing activity from BMS only impacts the first command that interrupted BMS, this results in a typical delay of about 1 ms.

7.5 Media Pr e- Scan

Media Pre-Scan is a feature that allows the drive to repair media errors that would otherwise have been found by the host system during critical data accesses early in the drive’s life. The default setting for Media Pre-Scan is enabled on standard products. Media Pre-Scan checks each write command to determine if the destination LBAs have been scanned by BMS. If the LBAs have been verified, the drive proceeds with the normal write command. If the LBAs have not been verified by BMS, Pre-Scan will convert the write to a write verify to certify that the data was properly written to the disc.

Note. During Pre-Scan write verify commands, write performance may decrease by 50% until Pre-Scan

completes. Write performance testi ng should be performed after Pre-Scan is complete. This may be checked by reading the BMS status.

To expedite the scan of the full pack and subsequently exit from the Pre-Scan period, BMS will begin scanning immediately when the drive goes to idle during the Pre-Scan period. In the event that the drive is in a high transaction traffic environment and is unable to complete a BMS scan within 24 power on hours BMS will disable Pre-Scan to restore full performance to the system.

7.6 Deferred Auto-Reallocation

Deferred Auto-Reallocation (DAR) simplifies reallocation algorithm s at the system leve l by allowing the drive to reallocate unreadable locations on a subsequent write command. Sites are marked for DAR during read operations performed by the drive. When a write command is received for an LBA marked for DAR, the auto-reallocation process is invoked and attempts to rewrite the data to the original location. If a verification of this rewrite fails, the sector is re-mapped to a spare location.

This is in contrast to the system having to use the Reassign Command to reassign a location that was unreadable and then generate a write command to rewrite the data. DAR is most effective when AWRE and ARRE are enabled—this is the default setting from the Seagate factory. With AWRE and ARRE disabled DAR is unable to reallocate the failing location and will report an error sense code indicating that a write command is being attempted to a previously failing location.

7.7 Idle Read After Write

Idle Read After Write (IRAW) utilizes idle time to verify the integrity of recently written data. During idle periods, no active system requests, the drive reads recently written data from the media and compares it to valid write command data resident in the drives data buffer. Any sectors that fail the comparison result in the invocation of a rewrite and auto-r eallocation process. The process attempts to rewrite the data to the original location. If a verification of this rewrite fails, the sector is re-mapped to a spare location.

Cheetah 15K.5 FC Product Manual, Rev. D

8.0 Installation

Cheetah 15K.5 FC disc drive installation is a plug-and-play process. There are no jumpers, switches, or terminators on the drive. Simply plug the drive into the host’s 40-pin Fibre Channel backpanel connector (FCSCA)—no cables are required. See Section 9.5 for additional information about this connector.

Use the FC-AL interface to select drive ID and all option configurations for devices on the loop. If multiple devices are on the same FC-AL and physical addresses are used, set the device selection ID s (SEL

IDs) on the backp anel so that no two devices have the same selection ID. T his is ca lle d the har d assign ed ar bitrated loop physical ad dress ( AL_PA). There are 125 AL_PAs available (see Table 27). If you set the AL_PA on the backpanel to any value other than 0, the device plugged into the backpanel’s SCA connector inherits this AL_PA. In the event you don’t successfully assign unique hard addresses (and therefore have duplicate selection IDs assigned to two or more devices), the FC-AL generates a message indicating this condition. If you set the AL_PA on the backpanel to a value of 0, the system issues a unique soft-assigned physical address automatically.

Loop initialization is the process used to verify or obtain an address. The loop initialization process is performed when pow er is applied to the drive, whe n a devi ce is a dded or re moved from the F ibre Cha nnel loop , or when a device times out attempting to win arbitration.

• Set all option selections in the connector prior to applying power to the drive. If you change options after applying power to the drive, recycle the drive power to activate the new settings.

• It is not necessary to low-level format this drive. The drive is shipped from the factory low-level formatted in 512-byte logical blocks. You need to refo rma t the drive only if you want to select a different logical block size.

8.1 Drive ID/option selection

All drive options are made through the interface connector (J1). Table 24 provides the pin descriptions for the 40-pin Fibre Channel single connector (J1).

8.2 Drive orientation

The drive may be mounted in any orientation. All drive performance characterizations, however, have been done with the drive in horizontal (discs level) and vertical (drive on its side) orientations, which are the two preferred mounting orientations.

8.3 Cooling

The host enclosure must dissipate heat from the drive. You should confirm that the host enclosure is designed to ensure that the dr ive ope rate s w ithin the tempe ratu re m easur emen t guide lin es descr ibed in S ectio n 6.4.1. In some cases, forced airflow may be required to keep temperatures at or below the temperatures specified in Section 6.4.1.

Cheetah 15K.5 FC Product Manual, Rev. D

If forced air is necessary, possible air-flow patterns are shown in Figure 13. The air-flow patterns are created by fans either forcing or drawing air as shown in the illustrations. Conduction, convection, or other forced airflow patterns are acceptable as long as the temperature measurement guidelines of Section 6.4.1 are met.

Above unit

Note. Air flows in the direction shown (back to front) or in reverse direction (front to back)

Note. Air flows in the direction shown or in reverse direction (side to side)

Figure 13 . Air f low

Under unit

Above unit

Under unit

8.4 Drive mounting

Mount the drive usi ng the b ottom or side mo unting hol es. If you moun t the d rive u s ing the botto m ho les, ensure that you do not physically distort the drive by attempting to mount it on a stiff, non-flat surface.

The allowable mounting surface stiffness is 80 lb/in (14.0 N/mm). The following equation and paragraph define the allowable mounting surface stiffness:

where K is the mounting surface stiffness (units in lb/in or N/mm) and X is the out-of-plane surface distortion (units in inches or millimeters). The out-of-plane distortion (X) is determined by defining a plane with three of the four mounting points fixed and evaluating the out-of-plane deflection of the fourth mounting point when a known force (F) is applied to the fourth point.

Note. Before mounting the drive in any kind of 3.5-inch to 5.25-inch adapter frame, verify with Seagate

Technology that the drive can meet the shock and vibration specifications given herein while mounted in such an adapter frame. Adapter frames that are available may not have a mechanical structure capable of mounting the drive so that it can meet the shock and vibration specifications listed in this manual.

K x X = F < 15lb = 67N

Cheetah 15K.5 FC Product Manual, Rev. D

8.5 Grounding

Signal ground (PCBA) and HDA ground are connected together in the drive and cannot be separated by the user. The equipment in which the drive is mounted is connected directly to the HDA and PCBA with no electrically isolating shock mounts. If it is desired for the system chassis to not be connected to the HDA/PCBA ground, the systems integrator or user must provide a nonconductive (electrically isolating) method of mounting the drive in the host equipment.

Increased radiated emissions may result if you do not provide the maximum surface area ground connection between system ground and drive ground. This is the system designer’s and integrator’s responsibility.

Cheetah 15K.5 FC Product Manual, Rev. D

9.0 Interface requirements

This section partially describes the interface requirements as implemented on Cheetah 15K.5 FC drives. Additional information is provided in the Fibre Channel Interface Manual (part number 100293070).

9.1 FC-AL features

This section lists the Fibre Channel-specific features supported by Cheetah 15K.5 FC drives.

9.1.1 Fibre Channel link service frames

Table 6 lists the link services supported by Cheetah 15K.5 FC drives.

T ab le 6: Link services supported

Type of frame Link service

Basic link service frames Abort Sequence (ABTS) Basic link service reply frames Basic_Accept (BA_ACC)

Basic_Reject (BA_RJT)

Extended link service frames N_Port Login (PLOGI)

Fabric Login (FLOGI) Logout (LOGO) Process Login (PRLI) Process Logout (PRLO) Read Link Status (RLS)

Fabric Address Notification (FAN) Port Discovery (PDISC) Address Discovery (ADISC)

Third-party Process Logout (TRPLO)

Extended link service reply frames Accept (ACC)

Fibre Channel Services Register FC-4 Types (RFT_ID)

Link Service Reject (LS_RJT)

Cheetah 15K.5 FC Product Manual, Rev. D

9.1.2 Fibre Channel task management functions

Table 7 lists the Fibre Channel SCSI Fibre Channel Protocol (FC SCSI FCP) task management functions supported.

T ab le 7: Fibre Channel SCSI FCP task management functions

T ask name Supported

Terminate task No Clear ACA Yes Target reset Yes Clear task set Yes Abort task set Yes

9.1.3 Fibre Channel task management responses

Table 8 lists the FC SCSI FCP response codes returned for task management functions supported.

T ab le 8: FC SCSI FCP response codes

Function na m e Response code

Function complete 00 Function not supported 04 Function reject 05

Cheetah 15K.5 FC Product Manual, Rev. D

9.1.4 Fibre Channel port login

Table 9 identifies the required content of the N_Port Login (PLOGI) payload from an initiator.

T ab le 9: N_Port login (PLOGI) payload

Bytes

0-15 03 00 00 00 09 09 BB BB CF XX FS FS XX XX XX XX Common 16-31 XX XX XX XX PN PN PN PN PN PN PN PN NN NN NN NN 32-35 NN NN NN NN 36-47 XX XX XX XX XX XX XX XX XX XX XX XX Class 1 48-51 XX XX XX XX 52-63 XX XX XX XX XX XX XX XX XX XX XX XX Class 2 64-67 XX XX XX XX 68-79 SO SO IC IC XX XX FS FS XX CS XX XX Class 3 80-83 OS OS XX XX 84-95 XX XX XX XX XX XX XX XX XX XX XX XX Reserved 96-99 XX XX XX XX 100-111 XX XX XX XX XX XX XX XX XX XX XX XX Vendor 112-115 XX XX XX XX Version

X Indicates a four-bit (hex) field is not checked. x Indicates a single bit is not checked. BB BB-Credit. This field is not checked. The FC-AL drive uses BB-Credit of zero (0). CF Common features. This binary field selects the common features requested by the initiator login.

MSB Continuously increasing offset Must = 1

Random relative offset Not checked. Port Login Accept will return a 0—not supported. Valid version level x N_Port/F_Port Must = 0, N_Port Alternate credit model Must = 1 Other bits reserved xxx XX

FS Receive buffer field size. The FS field in the common and Class 3 parameters is checked for the range 128 < FS < 2,112 and a

multiple of four bytes. For multiple frame sequences, all frames but the last frame of the sequence must be this size. Only the receive buffer field size in the Class 3 parameters is used.

PN Port name (initiator’s)—saved with the login parameters. If a change of the port name/AL_PA address association is detected

during a Port DISCovery, and implicit logout occurs and the initiator returns a LS_RJT. NN Node name. The node name is not checked or saved by the drive. SO Service options Class 3 only.

MSB Class valid Must = 1

Intermix x Stacked connection req. xx Sequential delivery x Other bits reserved xxx XX

IC Initiator control

MSB XID reassign xx

Proc Assc 10 or 11 causes the login to be rejected. Other values are accepted.

Other bits XXX CS Concurrent sequences Must be a value greater than 0. OS Open sequences per exchange Must be a value greater than 0.

Cheetah 15K.5 FC Product Manual, Rev. D

9.1.5 Fibre Channel port login accept

Table 10 identifies the N_Port Login access payload values.

T ab le 10: N_Port Login Accept (ACC) payload

Bytes

0-15 02 00 00 00 09 09 00 00 88 00 FS FS 00 FF 00 01 C ommon 16-31 00 00 01 F4 2P 00 CC CC CC UI UI UI 20 00 CC CC 32-35 CC UI UI UI 36-47 00 00 00 00 00 00 00 00 00 00 00 00 Class 1 48-51 00 00 00 00 52-63 00 00 00 00 00 00 00 00 00 00 00 00 Class 2 64-67 00 00 00 00 68-79 80 00 00 00 00 00 FS FS 00 FF 00 00 Class 3 80-83 00 01 00 00 84-95 00 00 00 00 00 00 00 00 00 00 00 00 Reserved 96-99 00 00 00 00 100-111 00 00 00 00 00 00 00 00 00 00 00 00 Vendor 112-115 00 00 00 00 Version

CC Bytes (22, 23 and 24) and (30, 31 and 32) are currently factory set to 00 04 CF respectively (subject to change). FS Receive buffer field size. The drive returns and uses the receive buffer size from the N_Port Login Class 3 receive

buffer.

UI Unique identifier. This 24-bit field is uniquely assigned to the drive. This same UI appears in the Port Name and

Node Name fields.

P Byte port identifier field.

0 P_LOGI received on Node. 1 P_LOGI received on Port A. 2 P_LOGI received on Port B.

9.1.6 Fibre Channel Process Login

Table 11 lists the process login payload data.

T ab le 11: Process Login (PLRI) payload

Bytes

0-15 20 10 00 14 08 00 20 00 XX XX XX XX XX XX XX XX 16-19 00 00 00 22

XX Indicates fields that are not used.

Cheetah 15K.5 FC Product Manual, Rev. D

9.1.7 Fibre Channel Process Login Accept

Table 12 lists Cheetah 15K.5 FC process login accept payload data.

T ab le 12: Process Login Accept (ACC) payload

Bytes

0-15 02 10 00 14 08 00 21 00 00 00 00 00 00 00 00 00 16-31 00 00 00 12

9.1.8 Fibre Channel fabric login

Table 13 lists the fabric login payload from the drive.

Table 13: Fabric Login (FLOGI) payload

Bytes

0-15 04 00 00 00 09 09 00 00 08 00 08 40 00 00 00 00 Common 16-31 00 00 02 F4 2P 00 CC CC CC UI UI UI 02 00 CC CC 32-35 CC UI UI UI 36-47 00 00 00 00 00 00 00 00 00 00 00 00 Class 1 48-51 00 00 00 00 52-63 00 00 00 00 00 00 00 00 00 00 00 00 Class 2 64-67 00 00 00 00 68-79 80 00 00 00 00 00 08 40 00 00 00 00 Class 3 80-83 00 00 00 00 84-95 00 00 00 00 00 00 00 00 00 00 00 00 Reserved 96-99 00 00 00 00 100-111 00 00 00 00 00 00 00 00 00 00 00 00 Vendor 112-115 00 00 00 00 Version

CC Bytes (22, 23 and 24) and (30, 31 and 32) are currently factory set to 00 04 CF respectively (subject to change). UI Unique identifier. This 24-bit field is uniquely assigned to the drive. This same UI appears in the Port Name and

Node Name fields.

P Port identifier field.

1 FLOGI originated on Port A. 2 FLOGI originated on Port B.

Cheetah 15K.5 FC Product Manual, Rev. D

9.1.9 Fibre Channel fabric accept login

Table 14 lists the required content of the Fabric Login Accept (ACC) payload from the fabric.

T ab le 14: Fabric Login Accept (ACC) payload

Bytes

0-15 02 00 00 00 09 09 BB BB CF XX FS FS R_ A_ T0 V_ Common 16-31 E_ D_ T0 V_ PN PN PN PN PN PN PN PN NN NN NN NN 32-35 NN NN NN NN 36-47 XX XX XX XX XX XX XX XX XX XX XX XX Clas s 1 48-51 XX XX XX XX 52-63 XX XX XX XX XX XX XX XX XX XX XX XX Clas s 2 64-67 XX XX XX XX 68-79 SO SO xx xx XX XX FS FS XX xx XX XX Class 3 80-83 OS OS XX XX 84-95 XX XX XX XX XX XX XX XX XX XX XX XX Reserved 96-99 XX XX XX XX 100-111 XX XX XX XX XX XX XX XX XX XX XX XX Vendor 112-115 XX XX XX XX Version

MSB Continuously increasing offset x

Random relative offset x Valid version level x N_Port/F_Port Must = 1, F_Port Alternate credit model Must = 1 Other bits reserved xxx XX

FS Receive buffer field size. The FS field in the common and Class 3 parameters is checked for the range 128 < FS < 2,112 and a

multiple of four bytes. The receive buffer field size in the Class 3 parameters is used. The drive uses the lower FS of Fabric Login Accept or N_Port Login when sending frames to an initiator.

PN Port Name. The fabric port name is saved with the login parameters. If a change of the port name is detected during a FAN, an

implicit logout occurs and a LS_RJT is returned to the fabric. NN Node Name. The drive does not check or save the node name. SO Service Options—Class 3 only.

MSB Class valid Must = 1

Intermix x Stacked connection req. xx Sequential delivery Must = 1 Other bits reserved xxx XX

Cheetah 15K.5 FC Product Manual, Rev. D

9.1.10 Fibre Channel Arbitrated Loop options

Table 15 lists the FC-AL options supported by Cheetah 15K.5 FC drives.

T ab le 15: FC-AL options supported

Option Supported

OPEN Half Duplex Accepted from another device. OPEN Full Duplex Sent to open another device. Accepted from another device. Private Loop Yes Public Loop Yes Old Port State No Loop Position Yes Loop Position Report Yes

9.2 Dual port support

Cheetah 15K.5 FC drives have two independent FC-AL ports. These ports may be connected on independent loops or on the same loop. Port A and Port B may be connected in any order or combination.

• If both ports ar e conn ected on i nde pend ent loo ps and h ard a ddre ssi ng is use d, the driv e in terfa ce add ress i s selected through the interface connector, both ports will seek the same loop address. If no conflict, both ports will have the same loop address.

• If both ports are connected in the same loop and hard addressing is used, at least one port will attempt taking a soft address to prevent an address conflict.

Note. When a Cheetah 15K.5 FC drive is connected in loops with previous Seagate FC drive products:

Barracuda 4LP FC (ST32171FC, ST34371FC, and ST34571FC) Barracuda 9FC (ST19171FC) Cheetah 4LP FC (ST34501FC) Cheetah 9FC (ST19101FC)

the connection of Port A and B for these products must follow the requirements in their product manuals.

Subject to buffer availability, the Cheetah 15K.5 FC drives support:

• Concurrent port transfers—The drive supports receiving transfers on both ports at the same time when the ports are on independent loops.

• Full duplex—The drive supports sending FCP_Data, FCP_RSP, FCP_XFR_RDY and ELS transfers while receiving frames on both ports.

Cheetah 15K.5 FC Product Manual, Rev. D

9.3 SCSI commands supported

Table 16 lists the SCSI commands supported by Cheetah 15K.5 FC drives.

T ab le 16: Supported commands

Command code Supported [4] Command name

00h Y Test unit ready 01h Y Rezero unit 03h Y Request sense

Y Extended sense Y Field pointer bytes

Y Actual retry count bytes 04h Y Format unit [1] 07h Y Reassign blocks 08h Y Read 0Ah Y Write 0Bh Y Seek 12h Y Inquiry

Y Vital product data page (00h)

Y Unit serial number page (80h)

Y Implemented operating def. page (81h)

Y Device Identification page (83h)

Y Firmware numbers page (C0h)

Y Date code page (C1h)

Y Jumper settings page (C2h)

Y Device Behavior page (C3h) 15h Y Mode select (same pages as Mode Sense command shown below) [3] 16h Y Reserve

N 3rd party reserved

N Extent reservation 17h Y Release 18h N Copy 1Ah Y Mode sense

Y Unit attention page (00h)

Y Error recovery page (01h)

Y Disconnect/reconnect control (page 02h)

Y Format page (03h)

Y Rigid disc drive geometry page (04h)

Cheetah 15K.5 FC Product Manual, Rev. D

T ab le 16: Supported commands (continued)

Command code Su pported [4 ] Command name

Y Verify error recovery page (07h) Y Caching parameters page (08h) Y Control mode page (0Ah) Y Fibre Channel Interface Control page (19h) Y Power control page (1Ah) Y Information exceptions control page (1Ch)

Y Background Scan mode subpage (01h) 1Bh Y Start unit/stop unit 1Ch Y Receive diagnostic results

Y Supported diagnostics pages

Y Translate page

Y Enclosure services page 1Dh Y Send diagnostics page

Y Supported diagnostics pages

Y Translate page 25h Y Read capacity 28h Y Read extended

Y Disable page out

Y Force unit access

N Relative address 2Ah Y Write extended

Y Disable page out

Y Force unit access

N Relative address 2Bh Y Seek extended 2Eh Y Write and verify

Y Disable page out

Y Byte check

N Relative address 2Fh Y Verify

Y Disable page out

Y Byte check

N Relative address 30h N Search data high 31h N Search data equal

Cheetah 15K.5 FC Product Manual, Rev. D

T ab le 16: Supported commands (continued)

Command code Su pported [4 ] Command name

32h N Search data low 33h N Set limits 34h N Prefetch 35h Y Synchronize cache 36h N Lock-unlock-cache 37h Y Read defect data 39h N Compare 3Ah N Copy and verify 3Bh Y Write buffer

Y Write combined header and data mode (0) Y Write data mode (2) N Download microcode mode (4) Y Download microcode and save modes (5) N Download microcode with offsets mode (6) Y Download microcode with offsets and save mode (7) Y Firmware download option [2]

3Ch Y Read buffe r

Y Read combined header and data mode (0) Y Read data mode (2)

Y Read descriptor mode (3) 3Eh Y Read long 3Fh Y Write long 40h N Change definition 41h Y Write same

N PBdata

N LBdata 42-4Bh N Not used 4Ch Y Log Select 4Dh Y Log Sense

Y Support Log page (00h)

Y Write Error Counter page (02h)

Y Read Error Counter page (03h)

N Read Reverse Error Counter page (04h)

Y Verify Error Counter page (05h)

Y Non-medium Error Counter page (06h)

Cheetah 15K.5 FC Product Manual, Rev. D

T ab le 16: Supported commands (continued)

Command code Su pported [4 ] Command name

Y Temperature page (0Dh) N Application Client page (0Fh) Y Self Test Results page (10h) Y Background Medium Scan page (15h) Y Cache Statistics Counter page (37h)

Y Factory Log page (3Eh) 4E-4Fh N Not used 50h N XD write 51h N XP write 52h N XD read 53-54h N Not used 55h Y Mode Select (10) [3] 56h Y Reserved (10)

Y 3rd party reserve

N Extent reservation 57h Y Released (10) 58-59h N Not used 5Ah Y Mode Sense (10) [3] 5B-5Dh N Not used 5E A Persistent reserve in 5F A Pers istent reserve out 60-7Fh N Not used 80h N XD write extended 81h N Rebuild 82h N Regenerate 83-8Fh N Not used A0h Y Report LUNS C0-DFh N Not used EO-FFh N Not used

[1] Cheetah 15K.5 FC drives can format to 512, 520, 524 or 528 bytes per logical block. [2] Warning. Power loss during flash programming can result in firmware corruption. This usually makes the

drive inoperable. [3] Reference Mode Sense command 1Ah for mode pages supported. [4] Y = Yes. Command is supported.

N = No. Command is not supported.

A = Support is available on special request.

Cheetah 15K.5 FC Product Manual, Rev. D

9.3.1 Inquiry data

Table 17 lists the Inquiry command data that the drive should return to the initiator per the format given in the Fibre Channel Interface Manual.

T ab le 17: Cheetah 15K.5 FC inquiry data

Bytes Data (hex)

0-15 00 00 xx** 12 8B 00 PP 0A 53 45 41 47 41 54 45 20 Vendor ID 16-31 [53 54 33 33 30 30 36 35 35 46 43]120 20 20 20 20 Product ID 32-47 R# R# R# R# S# S# S# S# S# S# S# S# 00 00 00 00 48-63 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 64-79 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80-95 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 96-111 00 43 6F 70 79 72 69 67 68 74 20 28 63 29 20 32* *Copyright 112-127 30* 30* 36* 20 53 65 61 67 61 74 65 20 41 6C 6C 20 notice 128-143 72 69 67 68 74 73 20 72 65 73 65 72 76 65 64 20

* Copyright year (changes with actual year). ** SCSI Revision support. Refer to the appropiate SPC release documentation for definitions.

PP 50 = Inquiry data for an Inquiry command received on Port A.

70 = Inquiry data for an Inquiry command received on Port B. R# Four ASCII digits representing the last four digits of the product firmware release number. S# Eight ASCII digits representing the eight digits of the product serial number. [ ] Bytes 18 through 26 reflect model of drive. The table above shows the hex values for Model ST3300655FC.

Refer to the values below for the values of bytes 18 through 26 of you particular model:

ST3146855FC 53 54 33 31 34 36 38 35 35 46 43

ST373455FC 53 54 33 37 33 34 35 35 46 43 20

9.3.2 Mode Sense data

The Mode Sense command provides a way for the drive to report its operating parameters to the initiator. The drive maintains four sets of mode parameters:

1. Default values

Default values are hard-coded in the drive firmware stored in flash E-PROM (nonvolatile memory) on the drive’s PCB. These default values can be changed only by downloading a complete set of new firmware into the flash E-PROM. An initiator can request and receive from the drive a list of default values and use those in a Mode Select command to set up new current and saved values, where the values are changeable.

2. Saved values

Saved values are stored on the drive’s media using a Mode Select command. Only parameter values that are allowed to be chang ed c an b e cha nged by th i s me thod. Pa ram eters in th e save d va lues l ist that are not changeable by the Mode Select command get their values from default values storage.

When power is applied to the drive, it takes saved values from the media and stores them as current values in volatile memory. It is not possible to change the current values (or the saved values) with a Mode Select command before the drive achieves operating speed and is “ready.” An attempt to do so results in a “Check Condition” status.

On drives requiring unique saved values, the required unique saved values are stored into the saved values storage location on the media prior to shipping the drive. Some drives may have unique firmware with unique default values also.

Cheetah 15K.5 FC Product Manual, Rev. D

On standard OEM drives, the saved values are taken from the default values list and store d into the saved values storage location on the media prior to shipping.

3. Current values Current values are volatile values being used by the dri ve to contro l i t s oper ation . A Mod e Sel ect comm and

can be used to change the values identified as changeable values. Originally, current values are installed from saved or default values after a power on reset, hard reset, or Bus Device Reset message.

4. Changeable values Changeable values for m a bit mask, stored in no nvolatil e me mor y, that dictates which of the current val ues

and saved values can be changed by a Mode Select command. A one (1) indicates the value can be changed. A zero (0) indicates the value is not changeable. For example, in Table 18, refer to Mode page 81, in the row entitled “CHG.” These are hex numbers representing the changeable values for Mode page

81. Note in colu mns 5 and 6 ( bytes 0 4 an d 05) , th ere is 00h w hich ind icates that in bytes 04 and 05 none of the bits are changeable. Note also that bytes 06, 07, 09, 10, and 11 are not changeable, because those fields are all zeros. In byte 02 , hex val ue FF equates to the binary pattern 11111111. If there is a zero in any bit position in the field, it means that bit is not changeable. Since all of the bits in byte 02 are ones, all of these bits are changeable.

The changeable values list can only be changed by downloading new firmware into the flash E-PROM.

Note. Because there are often several different versions of dr iv e contr ol firm ware i n the tot al p opul at ion of

drives in the field , the Mode Sense values given in the fol lowing ta bl es may not exactl y m atch t hose of some drives.

The following table s list the values of the dat a bytes returned by the drive in response to the Mode Sense command pages for SCSI implementation (see the Fibre Channel Interface Manual ).

Definitions: SAV = Current saved value.

DEF = Default value. Standard OEM drives are shipped configured this way. CHG = Changeable bits; indicates if default value is changeable.

Cheetah 15K.5 FC Product Manual, Rev. D

T ab le 18: Mode Sense data saved, default and changeable values for ST3300655FC drives

MMODE SENSE (10 BYTE) HEADER DATA

00 ae 00 10 00 00 00 08 22 ec b2 5c 00 00 02 00

MODE SENSE PAGES DATA

SAV 81 0a c0 0b ff 00 00 00 05 00 ff ff

DEF 81 0a c0 0b ff 00 00 00 05 00 ff ff

CHG 81 0a ff ff 00 00 00 00 ff 00 ff ff

SAV 82 0e 80 80 00 00 00 00 00 00 01 3a 00 00 00 00

DEF 82 0e 80 80 00 00 00 00 00 00 01 3a 00 00 00 00

CHG 82 0e ff ff 00 00 00 00 00 00 ff ff 00 00 00 00

SAV 83 16 68 58 00 00 00 38 00 00 03 da 02 00 00 01 00 e6 00 aa 40 00 00 00

DEF 83 16 68 58 00 00 00 38 00 00 03 da 02 00 00 01 00 e6 00 aa 40 00 00 00

CHG 83 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

SAV 84 16 01 22 64 08 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3a a7 00 00

DEF 84 16 01 22 64 08 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3a a7 00 00

CHG 84 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

SAV 87 0a 00 0b ff 00 00 00 00 00 ff ff

DEF 87 0a 00 0b ff 00 00 00 00 00 ff ff

CHG 87 0a 0f ff 00 00 00 00 00 00 ff ff

SAV 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00

DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00

CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 20 00 00 00 00 00 00 00

SAV 8a 0a 02 00 00 00 00 00 00 00 0f 0c

DEF 8a 0a 02 00 00 00 00 00 00 00 0f 0c

CHG 8a 0a 03 f0 00 00 00 00 00 00 00 00

SAV 99 06 00 00 00 00 00 00

DEF 99 06 00 00 00 00 00 00

CHG 99 06 00 ff 00 00 00 00

SAV 9a 0a 00 02 00 00 00 05 00 00 00 04

DEF 9a 0a 00 02 00 00 00 05 00 00 00 04

CHG 9a 0a 00 03 ff ff ff ff 00 00 00 00

SAV 9c 0a 10 00 00 00 00 00 00 00 00 01

DEF 9c 0a 10 00 00 00 00 00 00 00 00 01

CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff

SAV 80 06 00 00 0f 00 00 00

DEF 80 06 00 00 0f 00 00 00

CHG 80 06 b7 40 0f 00 00 00

READ CAPACITY DATA

22 ec b2 5b 00 00 02 00

Cheetah 15K.5 FC Product Manual, Rev. D

T ab le 19: Mode Sense data default and changeable values for ST3146855FC drives

MODE SENSE (10 BYTE) HEADER DATA

00 ae 00 10 00 00 00 08 11 17 73 30 00 00 02 00

MODE SENSE PAGES DATA

SAV 81 0a c0 0b ff 00 00 00 05 00 ff ff

DEF 81 0a c0 0b ff 00 00 00 05 00 ff ff

CHG 81 0a ff ff 00 00 00 00 ff 00 ff ff

SAV 82 0e 80 80 00 00 00 00 00 00 01 3a 00 00 00 00

DEF 82 0e 80 80 00 00 00 00 00 00 01 3a 00 00 00 00

CHG 82 0e ff ff 00 00 00 00 00 00 ff ff 00 00 00 00

SAV 83 16 34 2c 00 00 00 1c 00 00 03 da 02 00 00 01 00 e6 00 aa 40 00 00 00

DEF 83 16 34 2c 00 00 00 1c 00 00 03 da 02 00 00 01 00 e6 00 aa 40 00 00 00

CHG 83 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

SAV 84 16 01 22 64 04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3a a7 00 00

DEF 84 16 01 22 64 04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3a a7 00 00

CHG 84 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

SAV 87 0a 00 0b ff 00 00 00 00 00 ff ff

DEF 87 0a 00 0b ff 00 00 00 00 00 ff ff

CHG 87 0a 0f ff 00 00 00 00 00 00 ff ff

SAV 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00

DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00

CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 20 00 00 00 00 00 00 00

SAV 8a 0a 02 00 00 00 00 00 00 00 05 57

DEF 8a 0a 02 00 00 00 00 00 00 00 05 57

CHG 8a 0a 03 f0 00 00 00 00 00 00 00 00

SAV 99 06 00 00 00 00 00 00

DEF 99 06 00 00 00 00 00 00

CHG 99 06 00 ff 00 00 00 00

SAV 9a 0a 00 02 00 00 00 05 00 00 00 04

DEF 9a 0a 00 02 00 00 00 05 00 00 00 04

CHG 9a 0a 00 03 ff ff ff ff 00 00 00 00

SAV 9c 0a 10 00 00 00 00 00 00 00 00 01

DEF 9c 0a 10 00 00 00 00 00 00 00 00 01

CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff

SAV 80 06 00 00 0f 00 00 00

DEF 80 06 00 00 0f 00 00 00

CHG 80 06 b7 40 0f 00 00 00

READ CAPACITY DATA

11 17 73 2f 00 00 02 00

Cheetah 15K.5 FC Product Manual, Rev. D

T ab le 20: Mode Sense data default and changeable values for ST373455FC drives

MODE SENSE (10 BYTE) HEADER DATA

00 ae 00 10 00 00 00 08 08 8b b9 98 00 00 02 00

MODE SENSE PAGES DATA

SAV 81 0a c0 0b ff 00 00 00 05 00 ff ff

DEF 81 0a c0 0b ff 00 00 00 05 00 ff ff

CHG 81 0a ff ff 00 00 00 00 ff 00 ff ff

SAV 82 0e 80 80 00 00 00 00 00 00 01 3a 00 00 00 00

DEF 82 0e 80 80 00 00 00 00 00 00 01 3a 00 00 00 00

CHG 82 0e ff ff 00 00 00 00 00 00 ff ff 00 00 00 00

SAV 83 16 1a 16 00 00 00 0e 00 00 03 da 02 00 00 01 00 e6 00 aa 40 00 00 00

DEF 83 16 1a 16 00 00 00 0e 00 00 03 da 02 00 00 01 00 e6 00 aa 40 00 00 00

CHG 83 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

SAV 84 16 01 22 64 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3a a7 00 00

DEF 84 16 01 22 64 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3a a7 00 00

CHG 84 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

SAV 87 0a 00 0b ff 00 00 00 00 00 ff ff

DEF 87 0a 00 0b ff 00 00 00 00 00 ff ff

CHG 87 0a 0f ff 00 00 00 00 00 00 ff ff

SAV 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00

DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00

CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 20 00 00 00 00 00 00 00

SAV 8a 0a 02 00 00 00 00 00 00 00 02 d1

DEF 8a 0a 02 00 00 00 00 00 00 00 02 d1

CHG 8a 0a 03 f0 00 00 00 00 00 00 00 00

SAV 99 06 00 00 00 00 00 00

DEF 99 06 00 00 00 00 00 00

CHG 99 06 00 ff 00 00 00 00

SAV 9a 0a 00 02 00 00 00 05 00 00 00 04

DEF 9a 0a 00 02 00 00 00 05 00 00 00 04

CHG 9a 0a 00 03 ff ff ff ff 00 00 00 00

SAV 9c 0a 10 00 00 00 00 00 00 00 00 01

DEF 9c 0a 10 00 00 00 00 00 00 00 00 01

CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff

SAV 80 06 00 00 0f 00 00 00

DEF 80 06 00 00 0f 00 00 00

CHG 80 06 b7 40 0f 00 00 00

READ CAPACITY DATA

08 8b b9 97 00 00 02 00

Cheetah 15K.5 FC Product Manual, Rev. D

9.4 Miscellaneous operating features and conditions

Table 21 lists various features and conditions. A “Y” in the support column indicates the feature or condition is supported. An “N” in the support column indicates the feature or condition is not supported.

T ab le 21: Miscellaneous features

Supported Feature or condition

Y FC-AL selective reset (LIP Reset) N Aut omatic contingent allegiance N As ynchronous event notification N Synchronized (locked) spindle operation Y Segmented caching N Zero latency read Y Queue tagging (up to 128 queue tags supported) Y Deferred error handling Y Parameter rounding (controlled by Round bit in Mode Select page 0) Y Reporting actual retry count in Extended Sense bytes 15, 16, and 17 N Adapt ive caching Y SMP = 1 in Mode Select command needed to save RPL and rotational offset bytes

T ab le 22: Miscellaneous status

Supported Status

Y Good Y Check condition Y Condition met/good Y Busy Y Intermediate/good Y Intermediate/condition met/good Y Reservation conflict Y Task set full N ACA active N ACA active, faulted initiator

Cheetah 15K.5 FC Product Manual, Rev. D

9.5 FC-AL physical interface

Port Bypass

Figure 14 shows the location of the J1 Fibre Channel single connection attachment (FC-SCA). Figure 16 provides the dimensions of the FC-SCA connector.

Details of the physical, electrical, and logical characteristics are provided within this section. The operational aspects of Seagate’s Fibre Channel drives are provided in the Fibre Channel Interface Manual..

J1 interface connector

Figure 14. Physical interface

9.5.1 Physical character istic s

This section defines physical interface connector.

9.5.1.1 Physical descriptio n

FIbre Channel drives may be connected in a loop together or with other compatible FC-AL devices. A maximum of 127 devices may have addresses; however, one of the addresses is reserved for a fabric port switch device. This means 126 addresses are available for FC-AL devices. More FC-AL compatible devices may physically reside on the loop, but they will not be functional because they would not be able to obtain valid addresses.

Port bypass circuits (PBCs) allow devices to be inserted into unpopulated locations or removed from the loop with loop operation recovery after a brief interruption. These PBCs are located external to the FC-AL device. Figure 15 shows the relationship between the PBC and FC-AL device.

Circuit

From Previous

Port Bypass

Circuit N–1

Drive N–1

Drive

MUX

Select

SerialInSerial

Drive N

Out

To Next

Drive

Port Bypass

Circuit N+1

Drive N+1

Figure 15. Port bypass circuit physical interconnect

Cheetah 15K.5 FC Product Manual, Rev. D

9.5.2 Connector requirements

The FC-AL SCA d evice conn ector is illus trat ed in F igure 16. C o nt act your pr eferr ed co nnecto r vend ors fo r m ating connector part numbers.

Figure 16. FC-AL SCA device connector dimensions

9.5.3 Electrical description

Fibre Channel drives use the FC-SCA connector for:

• DC power

• FC-AL interface

• Drive select (device identification)

• Option selection

• Enclosure Services interface

This 40-pin connector is designed to plug directly into a backpanel. External cables are not required.

9.5.4 Pin descriptions

This section provides a pin-out of the FC-SCA and a description of the functions provided by the pins.

Cheetah 15K.5 FC Product Manual, Rev. D

Table 23: FC-SCA pin descriptions

Pin Signal nam e Signal type Pin Signal na m e Signal t y pe

1* -EN bypass port A Low Voltage TTL output 21 12 Volts charge 2* 12 Volts 22 Ground 3* 12 Volts 23 Ground 4* 12 Volts 24* +Por t A_ in FC Diff. input pair 5* -Parallel ESI 25* -Port A_in 6* Ground 7* Active LED out Open collector out 27* +P or t B_ in FC Diff. input pair 8* Reserved 28* -Port B_in 9* Start_1 10* Start_2 11* -EN bypass port B Low Voltage TTL output 31* -Port A_out 12* SEL_6 TTL input/output 32 Ground 13* SEL_5 TTL input/output 33* +Port B_out FC Diff. output pair 14* SEL_4 TTL input 34* -Port B_out 15* SEL_3 TTL input/output 35 Ground 16* Fault LED out Open collector out 36 SEL_2 TTL input/output 17* DEV_CTRL_CODE_2 18* DEV_CTRL_CODE_1 19* 5 Volts 39 DEV_CTRL_CODE_0[2TTL input 20* 5 Volts 40 5 Volts charge

[1]

[2] [2]

TTL input 29 Ground TTL input 30* +Port A_out FC Diff. output pair

[2]

TTL input 37 SEL_1 TTL input/output

[2]

TTL input 38 SEL_0 TTL input/output

26 Ground

*Short pins in mating ba ckpanel connector. [1] This pin may be connected to external logic to detect the pr esence of the drive. The drive connects this

pin to the common ground.

[2] Pins 9, 10, 17 , 18, and 39 are opt io n sele ct pins and are tied high by the drive circuitry. The preferred elec-

trical connection at the backplane is either open or grounded (open for the ‘1’ setting, grounded for the ‘0’ setting). Alternativ ely, these pins may be driven by a 3.3V log ic device, pul led u p to 3.3V thro ugh a pu ll-up resistor (recommended size of 10k ohm), or grounded through some other means.

9.5.5 FC-AL transmitters and receivers

A typical FC-AL differential copper transmitter and receiver pair is shown in Figure 17. The receiver is required to provide the AC coupling to eliminate ground shift noise.

Transmitter

100

Differential

Transfer Medium

Figure 17. FC-AL transmitters and receivers

.01

Receiver

100

Cheetah 15K.5 FC Product Manual, Rev. D

9.5.6 Power

Power is supplied through the FC-SCA with support for +5 volts and +12 volts. All of the voltage pins in the drive connector are the same length.

Four 12 volt pins provide +12 volt power to the drive. The current return for the +12 volt power supply is through the common ground pins. The supply current and return current must be distributed as evenly as possible among the pins. The maximum current typically occurs while the drive motor is starting.

Three 5 volt pins pro vide l ogic powe r to the d riv e. Th e curr ent re turn for the +5 vol t p ower sup pl y is th roug h the common ground pins. Distribute supply and return current as evenly as possible among the voltage and ground pins.

The mating connector pins use shorter contacts to achieve power surge reductions and to aid in “hot plugging” the drives. There are longer voltage contacts in the connector to enable the drive filter capacitors to charge. Current to the drive through the long charge pins is limited by the system in which the drive operates. Three of the +12 volt pins ar e shor ter to all ow ca pa citi ve pr e-cha rging throu gh th e longe r + 12 v olt charge pi n . Two of the +5 volt pins are shorter to allow capacitive precharging through the longer +5 volt charge pin.

9.5.7 Fault LED Out

The Fault LED Out signal is driven by the drive when:

• the drive detects failure of both ports

• the drive detects an internal failure

• the drive receives the appropriate fault LED command from the host

The Fault LED Out signal is designed to pull down the cathode of an LED. The anode is attached to the proper +5 volt supply through an appropriate current-limiting resistor. The LED and the current-limiting resistor are external to the drive.

Cheetah 15K.5 FC Product Manual, Rev. D

9.5.8 Active LED Out

The Active LED Out signal is driven by the drive as indicated in Table 25.

T ab le 24: Active LED Out conditions

Normal command activity L ED status

Spun down and no activity Slow blink (20% on and 80% off a 2 sec cycle) Spun down and activity (command executing) On Spun up and no activity On Spun up and activity (command executing) Off Spinning up or down Blinks steadily (50% on and 50% off) Format in progress, each cylinder change Toggles on/off

The Active LED Out signal is designed to pull down the cathode of an LED. The anode is attached to the proper +5 volt supply through an appropriate current limiting resistor. The LED and the current limiting resistor are external to the drive.

9.5.9 Enable port bypass signals

The – Enable Bypass P ort A (– EN BYP P ort A) an d – En able By p ass Port B (– EN BYP Por t B) si gnals con trol the port bypass circuits (PBC) located external to the disc drive. The PBC allows a loop to remain functional in the event of a drive failure or removal. When these signals are active, low, the PBC bypasses the drive on the associated port. When an E nable Bypass signal is active, the corresponding Port Bypass LED signal in connector J1 is driven low by the disc drive. A pull down resistor, 1K, located with the PBC should be used to insure the bypass is enabled if the disc drive is not installed.

The Enable Bypass signal is active under failing conditions within the drive, on detection of the Loop Port Bypass primitive se quen ce, or on r emo val of t he dr ive. In the b yp ass state the drive continues to receive on the inbound fibre. Enable Bypass may be deactivated by detection of a Loop Port Enable primitive sequence if the drive has completed self-test and a hardware failure is not present.

Failure modes detected by the disc drive that will enable bypass include:

• Transmitter/receiver wrap test failure

• Loss of receive clock

• Loss of transmission clock

• Drive interface hardware error

9.5.10 Motor st art controls

The drive’s motor is started according to the Start_1 and Start_2 signals described in Table 26. The state of these signals can be wired into the backplane socket or driven by logic on the backplane.

T ab le 25: Motor start control signals

Case Start_2 Start_1 Motor spin function

1 Low Low Motor spins up at DC power on. 2 High Low Motor spins up only when SCSI Start command is received. 3 Low High Motor spins up after a delay of 12 seconds times the modulo 8 v alue

of the numeric SEL ID of the drive from DC power on.

4 High High The drive will not spin up.

Cheetah 15K.5 FC Product Manual, Rev. D

9.5.11 SEL_6 through SEL_0 ID lines

The SEL_6 through SEL_0 ID lines determine drive address, and, optionally, for an Enclosure Services Interface. When the Parallel ESI line is hig h, the en closure backp anel must provide address info rma tion on the SEL line. Refer to table 27 for a mapping of SEL to FC-AL physical addresses (AL_PA). You can think of the SEL lines as the equivalent of a backpanel logic plug. The drives does not provide pull up resistors on these lines. The backpanel is required to provide high and low inputs to the SEL_ID lines per the specifications in table 29 on page 71.

Note. Table 27 gives AL_PA values for each SEL value. The first entry in the table is SEL_ID 00. The last

entry is SEL_ID 7D. SEL_ID 7E is AL_PA 00 which is not valid for an NL_Port, so is not included in the table. Also, SEL_ID 7Fh does map to a valid AL_PA; however, this value signals the drive that physical addresses are not being assigned using the SEL lines and that a “soft” address will be determined by FC-AL loop initialization.

When the Parallel ESI line is low, the enclosure backpanel logic switches to ESI mode if supported. There are two modes of ESI, seven bits of enclosure status and a bidirectional mode. ESI support and the mode are determined by the drive using a discovery process. Refer to the Fibre Channel Interface Manual for a descrip- tion of ESI operation.

9.5.1 1.1 Parallel Enclosure Serv ices Inte rface (ESI )

The parallel ESI line is an output from the drive. This line provides the enclosure with an indication of the present function of the SEL lines. A high level, the default state, indicates the drive requires address information on the SEL lines. A low level indicates the drive is attempting an ESI transfer. The enclosure may not support ESI on any or all drive locations. It may only suppo rt the address functi on . Support of ESI is discovered by the drive. Refer to the Fibre Channel Interface Manual for a description of ESI operations.

Cheetah 15K.5 FC Product Manual, Rev. D

T ab le 26: Arbitrated loop physical address (AL_PA) values

AL_PA (hex)

EF 00 00 A3 2B 43 4D 56 86 E8 01 01 9F 2C 44 4C 57 87 E4 02 02 9E 2D 45 4B 58 88 E2 03 03 9D 2E 46 4A 59 89 E1 04 04 9B 2F 47 49 5A 90 E0 05 05 98 30 48 47 5B 91 DC 06 06 97 31 49 46 5C 92 DA 07 07 90 32 50 45 5D 93 D9 08 08 8F 33 51 43 5E 94 D6 09 09 88 34 52 3c 5F 95 D5 0A 10 84 35 53 3A 60 96 D4 0B 11 82 36 54 39 61 97 D3 0C 12 81 37 55 36 62 98 D2 0D 13 80 38 56 35 63 99 D1 0E 14 7C 39 57 34 64 100 CE 0F 15 7A 3A 58 33 65 101 CD 10 16 79 3B 59 32 66 102 CC 11 17 76 3C 60 31 67 103 CB 12 18 75 3D 61 2E 68 104 CA 13 19 74 3E 62 2D 69 105 C9 14 20 73 3F 63 2C 6A 106 C7 15 21 72 40 64 2B 6B 107 C6 16 22 71 41 65 2A 6C 108 C5 17 23 6E 42 66 29 6D 109 C3 18 24 6D 43 67 27 6E 110 BC 19 25 6C 44 68 26 6F 111 BA 1A 26 6B 45 69 25 70 112 B9 1B 27 6A 46 70 23 71 113 B6 1C 28 69 47 71 1F 72 114 B5 1D 29 67 48 72 1E 73 115 B4 1E 30 66 49 73 1D 74 116 B3 1F 31 65 4A 74 1B 75 117 B2 20 32 63 4B 75 18 76 118 B1 21 33 5C 4C 76 17 77 119 AE 22 34 5A 4D 77 10 78 120 AD 23 35 59 4E 78 0F 79 121 AC 24 36 56 4F 79 08 7A 122 AB 25 37 55 50 80 04 7B 123 AA 26 38 54 51 81 02 7C 124 A9 27 39 53 52 82 01 7D 125 A7 28 40 52 53 83 A6 29 41 51 54 84 A5 2A 42 4E 55 85

SEL ID (hex)

Setting (dec)

AL_PA (hex)

SEL ID (hex)

Setting (dec)

AL_PA (hex)

SEL ID (hex)

Setting (dec)

Cheetah 15K.5 FC Product Manual, Rev. D

9.5.12 Device control codes

The drive inputs a Device Control Code on the DEV_CTRL_CODE lines at power up to determine the link rate on the Fibre Channel ports. Both ports run at the same rate. If the backpanel does not connect to these lines, the drive has 10K ohm pull up resistors that default the device control code to 7 (1.0625 GHz). Table lists the supported codes.

T ab le 27: Device control code values

2 (pin 17) 1 (pin 18) 0 (pin 39) Definition

0 0 0 0 1 1 1 1

0 0 1 1 0 0 1 1

0 Res erved for power failure warning. 1 Res erved for auto negotiation of link rate. 0 Reserved. 1 Reserved. 0 Reserved. 1 4.250 GHz operation on both ports. 0 2.125 GHz operation on both ports. 1 1.0625 GHz operation on both ports.

9.6 Signal characteristics

This section describes the electrical signal characteristics of the drive’s input and output signals. See Table 24 on page 66 for signal type and signal name information.

9.6.1 TTL input characteristics

Table 29 provides the TTL characteristics.

T ab le 28: TTL characteristics

State Voltage Current

Input high 1.9 < VIH < 5.5V IIH = ±500nA max. Input low -0.5V < VIL < 0.9V IOL = ±500nA max. Output high (-EN Bypass A, B) 2.4 < V Output low (-EN Bypass A, B) VOL < 0.5V IOL < 3mA Output high (-Parallel ESI) 2.4 < V

VOH > 0.9V Output low (-Parallel ESI) 0 < VOL < .45V IOL < 2.4mA Output high (all other outputs) 2.4 < V

VOH > 0.9V Output low (all other outputs) 0 < VOL < .45V IOL < 1.6mA

< 5.25V IOH < -3mA

< 0.9 V

IOH < -2.4m A IOH < -500µA

IOH < -1.6m A IOH < -500µA

Cheetah 15K.5 FC Product Manual, Rev. D

9.6.2 LED driver signals

Fault and Active LED signals are located in the FC-SCA conne ctor (J1) . See Table 30 for the output characteristics of the LED drive signals.

T ab le 29: LED drive signal

State Current drive available Output voltage

LED off, high 0 < IOH < 100µA LED on, low IOL < -30 mA 0 < VOL < 0.8V

9.6.3 FC Differential output

The serial output signal voltage characteristics are provided in Table 31. The outputs are not AC coupled in order to deliver maximum si gnal without rise and fall time degradation . You must AC couple the receiver to isolate potentially different DC characteristics of the outputs and the receiver.

T ab le 30: FC Differential output characteristics

Description Parameter Notes

Serial output voltage swing 600 < V

< 1300 mV Centered at 1.32V

out

Figure 18 provides the data output valid eye diagram relative to the bit cell time.

Bit Time

Vout (mv)

XMIT Eye

Figure 18. Transmit eye diagram

9.6.4 FC Differential input

The serial input signal voltage characteristics are provided in Table 32.

T ab le 31: FC Differential input characteristics

Description Parameter Notes

Serial input voltage swing 200 < Vin < 1.300 mV AC coupled

Cheetah 15K.5 FC Product Manual, Rev. D

Figure 19 provides the data valid eye diagram for typical and minimum requirements to recover data at the

specified interface error rate. The inputs are AC coupled on the drive.

941 ps

Vin (mv)

659 ps 376 ps

Figure 19. Receive eye diagram T ab le 32: Eye diagram data values

Link rate 1 GHz 2 GHz 4 GHz

Bit time 941 ps 470 ps 235 ps XMIT eye 725 ps min. 315 ps min. 1581/113

Typical 659 ps 305 ps 145 ps

RCV eye

Minimum 395 ps 226 ps 113 ps

1. Short Ideal load.

2. End of compliance channel.

Typical Minimu

Cheetah 15K.5 FC Product Manual, Rev. D

10.0 Seagate Technology support services

Online services

Internet

www.seagate.com for information about Seagate products and services. Worldwide support is available 24

hours daily by e-mail for your questions.

Presales Support: www.seagate.com/support/email/email_presales.html or Presales@Seagate.co m Technical Support: www.seagate.com/support/email/email_disc_support.html or DiscSupport@Seagate.com

mySeagate

my.seagate.com is the industry’s first Web portal designed specifically for OEMs and distributors. It provides self-service access to critical applications, personalized content and the tools that allow our partners to manage their Seagate account functions. Submit pricing requests, orders and returns through a single, passwordprotected Web interface—anytime, anywhere in the world.

spp.seagate.com

spp.seagate.com supports Seagate resellers with pr oduct information, program benefits and sales tools. You may register for customiz e d communi cation s that ar e not ava ila ble on the web. The s e communi catio ns cont ai n product launch, EOL, pricing, promotions and other channel-related information. To learn more about the benefits or to register, go to spp.seagate.com, any time, from anywhere in the world.

Seagate Service Centers

Presales Support

Our Presales Support staff can help you determine which Seagate products are best suited for your specific application or computer system, as well as drive availability and compatibility.

Technical Support

If you need help installing your drive, consult your system's documentation or contact the dealer's support services department for assistance specific to your system. Seagate technical support is also available to assist you online at support.seagate.com or through one of our call centers. Have your system configuration information and your drive’s “ST” model number available.

SeaTDD™ (+1-405-324-3655) is a telecommunications device for the deaf (TDD). You can send questions or comments 24 hours daily and exchange messages with a technical support specialist during normal business hours for the call center in your region.

Customer Service Operations

Warranty Service

Seagate offers worldwide customer support for Seagate drives. Seagate distributors, OEMs and other direct customers should contact their Seagate Customer Service Operations (CSO) representative for warrantyrelated issues. Resellers or end users of drive products should contact their place of purchase or one of the

Cheetah 15K.5 FC Product Manual, Rev. D

Seagate CSO warranty centers for assistance. Have your drive’s “ST” model number and serial number available.

Data Recove ry Services

Seagate offers data recovery services for all formats and all brands of storage media. Our Data Recovery Services labs are currently located in North America. To get a free quick quote or speak with a case management representativ e, call 1- 800- 475- 0143 . A dditional information, including an online req uest form and dat a l oss pr evention resources, is available at www.datarecovery.seagate.com.

Authorized Service Centers

In some locations outside the US, you can contact an Authorized Service Center for service.

USA/Canada/Latin America support services

Seagate Service Centers

Presales Support

Call center Toll-free Direct dial FAX

Americas 1-877-271-3285

Technical Support

Call center Toll-free Direct dial FAX

Americas 1-800-SEAGATE

+1-405-324-4730

+1-405-324-4700

+1-405-324-4704

+1-405-324-3339

Customer Service Operations

Warranty Service

Call center Toll-free Direct dial FAX / E-mail

USA, Canada, Mexico and 1-800-468-3472 Latin America

Brazil Jabil Industrial Do Brasil — +55-11-4191-4761 +55-11-4191-5084 LTDA

Data Recove ry Services

Call center Toll-free Direct dial FAX

USA, Canada, 1-800-475-01435 +1-905-474-2162 1-800-475-0158 and Mexico +1-905-474-2459

Hours of operation are 8:00 A.M. to 6:00 P.M., Monday through Friday (Central time).

Hours of operation are 8:00 A.M. to 8:00 P.M., Monday through Friday (Central time).

Hours of operation are 8:00 A.M. to 5:00 P.M., Monday through Friday (Central time).

Authorized Service Center

Hours of operation are 8:00 A.M. to 8:00 P.M., Monday through Friday, and 9:00 A.M. to 5:00 P.M., Saturday (Eastern time).

— +1-956-664-4725

SeagateRMA.br@jabil.com

Cheetah 15K.5 FC Product Manual, Rev. D

European support services

For presales and technical support in Europe, dial the Seagate Service Center toll-free number for your specific location. If your location is not listed here, dial our presales and technical support call center at +1-405324-4714 from 8:00 A.M. to 11:45 A.M. and 1:00 P.M. to 5:00 P.M. (Central Europe time) Monday through Friday. The presales and technical support call center is located in Oklahoma City, USA.

For European warranty service, dial the toll-free number for your specific location. If your location is not listed here, dial our European CSO warranty center at +31-20-316-7222 from 8:30 A.M. to 5:00 P.M. (Central Europe time) Monday through Friday. The CSO warranty center is located in Amsterdam, The Netherlands.

Seagate Service Centers

Toll-free support numbers

Call center Presales and Technical Support Warranty Service

Austria — 00 800-47324289 Belgium 00 800-47324283 (00 800-4SEAGATE) 00 800-47324289 Denmark 00 800-47324283 00 800-47324289 France 00 800-47324283 00 800-47324289 Germany 00 800-47324283 00 800-47324289 Ireland 00 800-47324283 00 800-47324289 Italy 00 800-47324283 00 800-47324289 Netherlands 00 800-47324283 00 800-47324289 Norway 00 800-47324283 00 800-47324289 Poland 00 800-311 12 38 00 800-311 12 38 Spain 00 800-47324283 00 800-47324289 Sweden 00 800-47324283 00 800-47324289 Switzerland 00 800-47324283 00 800-47324289 Turkey 00 800-31 92 91 40 00 800-31 92 91 40 United Kingdom 00 800-47324283 00 800-47324289

FAX services—All Europe (toll call)

Technical Support +1-405-324-3339 Warranty Ser vi ce +31-20-653-3513

Africa/Middle East support services

For presales and technical support in Africa and the Middle East, dial our presales and technical support call center at +1-405-324-4714 from 8:00 A.M. to 11:45 A.M. and 1:00 P.M. to 5:00 P.M. (Central Europe time) Monday through Friday. The presales and technical support call center is located in Oklahoma City, USA.

For warranty service in Africa and the Middle E ast, dial our European CSO warranty center at +31-20-3167222 from 8:30 A.M. to 5:00 P.M. (Central Europe time) Monday through Friday, or send a FAX to +31-20-653-

3513. The CSO warranty center is located in Amsterdam, The Netherlands.

Cheetah 15K.5 FC Product Manual, Rev. D

Asia/Pacific support services

For Asia/Pacific presales and technical support, dial the toll-free number for your specific location. The Asia/ Pacific toll-free numbe rs ar e avail able f rom 6:00 A.M. to 10:45 A.M. and 12:00 P.M. to 6:00 P.M. (Australian Eastern time) Monday through Fr iday, except as noted. If your location is not listed here, direct dial one of our technical support locations.

Warranty service is available from 9:00 A.M. to 6:00 P.M. April through October, and 10:00 A.M. to 7:00 P.M. November through March (Australian Eastern time) Monday through Friday.

Seagate Service Centers

Call center Toll-free Direct dial FAX

Australia 1800-14-7201 — — China (Mandarin) Hong Kong 800-90-0474 — — Hong Kong (Cantonese)

2, 4

India Indonesia 001-803-1-003-2165 — —

3, 4

Japan

3, 4

Korea Malaysia 1-800-80-2335 — — New Zealand 0800-443988 — — Singapore 800-1101-150 — +65-6488-7525 Taiwan (Mandarin) Thailand 001-800-11-0032165 — —

1, 4

800-810-9668 +86-10-6225-5336 —

1, 4

001-800-0830-1730 — — 1-800-180-1104 — —

0034 800 400 554 — — 007 98 8521 7635 — —

00-800-0830-1730 — —

Customer Service Operations

Warranty Service

Call center Toll-free Direct dial FAX

Asia/Pacific — +65-6485-3595 +65-6485-4860 Australia 1800-12-9277 — —

India

Hours of operation are 8:30 A.M. to 5:30 P.M., Monday through Friday (Australian Western time).

Hours of operation are 9:00 A.M. to 6:00 P.M., Monday through Saturday.

Hours of operation are 9:30 A.M. to 6:30 P.M., Monday through Friday.

Authorized Service Center

— +91-44-821-6164 +91-44-827-2461

Cheetah 15K.5 FC Product Manual, Rev. D

Index

Numerics

12 volt

pins 67 3rd party reserve command 57 5 volt pins 67

Abort Sequence (ABTS) 47 abort task set function 48 AC coupling 66 AC power requirements 23 ACA active status 63 ACA active, faulted initiator status 63 Accept (ACC) 47 acoustics 35 active LED Out signal 68 Actual retry count bytes command 54 actuator

assembly design 7 adaptive caching 63 Address Discovery (ADISC) 47 addresses 64 AFR 15 air cleanliness 35 air flow 44

illustrated 44 Alternate credit model 49, 52 altitude 32 ambient 32 Annualized Failure Rates (AFR) 16 ANSI documents

fibre channel 5

SCSI 5 arbitrated loop physical address (AL_PA) 43 arbitration 43 asynchronous event notification 63 audible noise 3 auto negotiation of link rate 71 auto write and read reallocation

programmable 8 automatic contingent allegiance 63 average idle current 23, 24 average rotational latency 11

Background Media Scan 41 backpanel 65 backplane 68 basic link service frames 47 Basic_Accept (BA_ACC) 47 Basic_Reject (BA_RJT) 47

BB 49, 52 BB-Credit 49, 52 BMS 41 buffer

data 8

space 13 busy status 63 bypass circuit 16 Byte check command 55 bytes per track 11

cache operation 13 cache segments 13 Caching parameters page (08h) command 55 caching write data 13 Canadian Department of Communications 3 capacity

unformatted 11 capacity, drive, programmable 9 CC 50, 51 CF 49, 52 Change definition command 56 character sync 16 charge pins 67 check condition status 63 Class 3 parameters 49, 52 class B limit 3 Class valid 49, 52 clear ACA function 48 clear task set function 48 commands supported 54 Common features 49, 52 Company ID 50, 51 Compare command 56 Concurrent sequences 49 condensation 32 condition met/good status 63 connector

illustrated 65

requirements 65 continuous vibration 35 Continuously increasing offset 49, 52 control code values 71 Control mode page (0Ah) command 55 cooling 43 Copy and verify command 56 Copy command 54 CRC 16

error 16 CS 49 Current profiles 25 customer service 21

Cheetah 15K.5 FC Product Manual, Rev. D

DAR 42 data block size

modifing the 9

data heads

read/write 11

data rate

internal 11 data transfer rate 12 data valid eye 73 Date code page command 54 DC power 65

requirements 23 defect and error management 39 defects 39 Deferred Auto-Reallocation 42 deferred error handling 63 description 7 DEV_CTRL_CODE 71 Device Behavior page command 54 device control code values 71 Device Identification page command 54 device selection IDs 43 devices 43 dimensions 37 Disable page out command 55 disc rotation speed 11 Disconnect/reconnect control (page 02h) command

Download microcode and save modes (5) 56 Download microcode mode (4) 56 Download microcode with offsets and save mode (7)

Download microcode with offsets mode (6) 56 drive 35 drive capacity

programmable 9 drive characteristics 11 drive ID 43 drive ID/option select headers 43 drive mounting 37, 44 drive orientation 43 drive select 65 driver signals 72 drivers and receivers 8 dual port support 53

electrical

description of connector 65

signal characteristics 71

specifications 23 electromagnetic compatibility 3 electromagnetic susceptibility 36

EMI requirements 3 enable bypass

port A 68 port B 68 signal 68

state 16 Enclosure Services interface 65 Enclosure services page command 55 environmental

limits 31

requirements 15 environmental contro l 35 error

detection mechanisms, FC 16

management 39

rates 15 error correction code

96-bit Reed-Solomon 8 Error recovery page (01h) command 54 errors 39 extended link service

frames 47

reply frames 47 Extended sense command 54 Extent reservation command 57

fabric 52 Fabric Address Notification (FAN) 47 Fabric Login (FLOGI) 47 FAN 52 fault LED out signal 67 FC differential input 72 FC-AL

document 5

interface 43, 65

options supported 53

physical interface 64

SCA device connector, illustrated 65

selective reset 63 FCC rules and regulations 3 FCP

for SCSI, document 5

response codes 48

task management functions 48 FC-PH document 5 features 8

interface 47 Fibre Channel documents 5 Fibre Channel Interface Control page (19h) 55 Fibre Channel Interface Manual 1, 3 Fibre Channel Services 47 Field pointer bytes command 54 firmware 8

corruption 57

Cheetah 15K.5 FC Product Manual, Rev. D

Firmware download option command 56 Firmware numbers page command 54 flawed sector reallocation 8 FLOGI

received on Port A 51

received on Port B 51 Force unit access command 55 form factor 8 format 43 Format command execution time 12 Format page (03h) command 54 Format unit command 54 front panel 37 FS 49, 50, 52 function

complete, code 00 48

not supported, code 05 48

reject, code 04 48

Good status 63 gradient 32 ground shift noise 66 grounding 45

hard assigned arbitrated loop physical address

(AL_PA) 43

HDA 45 heads

read/write data 11 heat removal 43 host equipment 45 hot plugging the drive 16 humidity 32 humidity limits 31

IC 49 ID and configuration options 8 Idle Read After Write 42 Implemented operating def. page command 54 Information exceptions control page (1Ch) command

Initiator control 49 Inquiry command 54 inquiry data 58 installation 43

guide 5 interface 43

commands supported 54

description 64

error rate 15

errors 16

illustrated 64 physical 64

requirements 47 interleave 8 intermediate/condition met/good status 63 intermediate/good status 63 Intermix 49, 52 internal data rate 11 internal defects/errors 39 internal drive characteristics 11 IRAW 42

J1 connector 43 Jumper settings page command 54 jumpers 43

latency

average rotational 11 , 12 LBdata 56 LED driver signals 72 Link Service Reject (LS_RJT) 47 link services supported 47 Lock-unlock-cache command 56 Log select command 56 Log sense command 56 logic power 67 logical block address 13 logical block reallocation scheme 8 logical block size 8, 12 logical segments 13 Logout (LOGO) 47 loop 64, 68

disruption 16

initialization 43 loop position

FC-AL options 53 loop position report

FC-AL options 53 LS_RJT 49, 52 LSI circuitry 9

maintenance 15 maximum delayed motor start 23, 24 maximum start current 23, 24 mean time between failure (MTBF) 16 media description 8 Media Pre-Scan 42 miscellaneous feature support

Adaptive caching 63

Asynchronous event notification 63

Automatic contingent allegiance 63

Cheetah 15K.5 FC Product Manual, Rev. D

Deferred error handling 63 FC-AL selective reset 63 Parameter rounding 63 Queue tagging 63 Reporting actual retry count 63 Segmented caching 63 SMP = 1 in Mode Select command 63 Synchronized (locked) spindle operation 63 Zero latency read 63

miscellaneous status support

ACA active 63 ACA active, faulted initiator 63 Busy 63 Check condition 63 Condition met/good 63 Good 63 Intermediate/condition met/good 63 Intermediate/good 63 Reservation conflict 63 Task set full 63

miscorrected media data 15 Mode select

(10) command 57 command 54

Mode sense

(10) command 57 command 54 data, table 58, 60

monitoring state 16 motor start

controls 68 option 12

mounting 44

holes 44

orientations 43 mounting configuration 37 mounting configuration dimensions 37 MTBF 16

N_Port Login (PLOGI) 47

payload 49

payload values 50 NN 49, 52 Node Name 52 Node name 49 noise

audible 3 noise immunity 25 non-operating 32, 33, 35

temperature 32 non-operating vibration 35

office environment 35 old port state

FC-AL options 53

OPEN Full Duplex

FC-AL options 53

OPEN half duplex

FC-AL options 53 Open sequences per exchange 49 operating 32, 35 option configurations 43 option selection 65 options 10, 53 orientation 32 OS 49 out-of-plane distortion 44

P_LOGI

received on Port A 50

received on Port B 50 package size 33 package test specification 5 packaged 33 parameter rounding 63 pass-through state 16 PBC 64, 68 PBdata 56 PCBA 45 peak bits per inch 11 peak operating current 23, 24 peak-to-peak measurements 25 performance characteristics

detailed 11

general 12 performance degradation 33 performance highlights 9 physical damage 35 physical interface 64

description 64 physical specifications 23 PI 50, 51 pin descriptions 65 PN 49, 52 port bypass circuit 16, 17, 64, 68 Port DISCovery 49 Port Discovery (PDISC) 47 port identifier field 50, 51 port login 49

accept 50 Port Name 52 Port name (initiator’s) 49 power 67

dissipation 29

Cheetah 15K.5 FC Product Manual, Rev. D

requirements, AC 23 requirements, DC 23

sequencing 25 Power control page (1Ah) command 55 power distribution 3 power failure warning 71 Prefetch command 56 prefetch/multi-segme nted cache control 12 preventive maintenance 15 private loop

FC-AL options 53 Proc Assc 49 Process Accept (ACC) 51 Process Login (PRLI) 47, 50 Process Login Accept (ACC) payload 51 process login payload data 50 Process Logout (PRLO) 47 programmable drive capacity 9 public loop

FC-AL options 53 pull down resistor 68

Register FC-4 Types (RFT_ID) 47 Relative address command 55 relative humidity 32 Release command 54 Released (10) command 57 reliability 9

specifications 15 reliability and service 16 repair and return information 21 reporting actual retry count 63 Request sense command 54 reservation conflict status 63 Reserve command 54 Reserved (10) command 57 resonance 32 return information 21 Rezero unit command 54 Rigid disc drive geometry page

command 54 rotation speed 11 running disparity 16

queue tagging 63

radio interference regulations 3 Random relative offset 49, 52 RCD bit 13 Read buffer command 56 Read capacity command 55 Read combined header and data mode (0) 56 Read command 54 Read data mode (2 ) 56 Read defect data command 56 Read descriptor mode (3) 56 read error rates 15, 39 Read extended command 55 Read Link Status (RLS) 47 Read long command 56 read/write data heads 11 Reassign blocks command 54 Receive buffer field size 49, 52 receive buffer field size 50 Receive diagnostic results command 55 receive eye

diagram 73 receivers 66 recommended mounting 34 Recoverable Errors 15 recovered media data 15 reference

documents 5 Regenerate command 57

safety 3 SCA part numbers 65 SCSI interface

commands supported 54

Search data

equal command 55 high command 55 low command 56

Seek command 54 seek error

defined 16

rate 15 Seek extended command 55 seek performance characteristics 11 seek time

average typical 11

full stroke typical 11

single track typical 11 segmented caching 63 SEL ID 43

lines 69

standard feature 8 Self-Monitoring Analysis and Reporting Technology

9, 17 Send diagnostics page command 55 Sequential delivery 49, 52 Service Options 52 Service options 49 Set limits command 56 shielding 3 shipping 21 shipping container 32

Cheetah 15K.5 FC Product Manual, Rev. D

shock 32, 33

and vibration 32

shock mount 45 signal

characteristics 71

LED driver 72 single-unit shipping pack kit 10 SMART 9, 17 SMP = 1 in Mode Select command 63 SO 49, 52 spindle brake 8 Stacked connection req. 49, 52 standards 3 Start unit/stop unit command 55 start/stop time 12 support services 75 Supported diagnostics pages command 55 surface stiffness

allowable for non-flat surface 44 switches 43 Synchronize cache command 56 synchronized spindle

operation 63 system chassis 45

target reset function 48 task management functions 48

Abort task set 48

Clear ACA 48

Clear task set 48

Target reset 48

terminate task 48 task management response codes 48

Function complete 00 48

Function not supported 05 48

Function reject 04 48 task set full status 63 technical support services 75 temperature 31, 43

limits 31

non-operating 32

regulation 3

See also cooling terminate task function 48 terminators 43 Test unit ready command 54 Third-party Process Logout (TRPLO) 47 tracks per inch 11 Translate page command 55 transmit eye diagram 72 transmitters 66 transporting the drive 21 TTL input characteristics 71

UI 50, 51 unformatted 9 unique identifier 50, 51 Unit attention page (00h) command 54 Unit serial number page command 54 Unrecoverable Errors 15 unrecovered media data 15

Valid version level 49, 52 Verify command 55 Verify error recovery page (07h) command 55 vibration 32, 35 Vital product data page command 54

warranty 21 word sync 16 Write and verify command 55 Write buffer command 56 Write combined header and data mode (0) 56 Write command 54 Write data mode (2) 56 Write extended command 55 Write long command 56 Write same command 56

XD read 57 XD write 57 XD write extended command 57 XID reassign 49 XP write 57

zero latency read 63 zone bit recording (ZBR) 8

Seagate Technology LLC 920 Disc Drive, Scotts Valley, California 95066-4544, USA

Publication Number: 100384772, Rev. D, Printed in USA

Seagate ST3146855FC, ST373455FC, ST3300655FC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1.0 Scope

2.0 Applicable standards and reference documentat ion

2.1 Standards

2.1.1 Electromagnetic compatibility

2.1.1.1 Electromagn etic susc ept ibili ty

2.1.2 Electromagn etic complia nce

2.2 European Union Restri ction of Hazardous Substances (RoHS)

2.3 Reference documents

3.0 General description

3.1 Standard featu re s

3.2 Media desc ription

3.3 Performance

3.4 Reliability

3.5 Formatted ca pacities

3.5.1 Programmable drive capacity

3.6 Factory-installed accessor ies

3.7 Factory-installed options

3.8 User-ins talle d accessori e s

4.0 Performance characteristics

4.1 Internal drive characterist ics

4.2 Seek performance characteristics

4.2.1 Access time

4.2.2 Format command execution time (minutes)

4.2.3 General performance characteristics

4.3 Start/stop time

4.4 Prefetch /m ulti-segm en te d cache cont ro l

4.5 Cache operation

4.5.1 Caching write data

4.5.2 Prefetch oper ation

5.0 Reliability specifications

5.1 Error rates

5.1.1 Recoverable Errors

5.1.2 Unrecoverable Errors

5.1.3 Seek errors

5.1.4 Interface errors

5.2 Reliability and service

5.2.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF)

5.2.2 Preventive mainte nan ce

5.2.3 Hot plugging the drive

5.2.4 S.M.A.R.T.

5.2.5 Thermal monitor

5.2.6 Drive Self Test (DST)

5.2.6.1 DST failure definition

5.2.6.2 Implementation

5.2.6.2.1 State of the drive prior to testing

5.2.6.2.2 Invoking DST

5.2.6.2.3 Short and extended tests

5.2.6.2.4 Log page entries

5.2.6.2.5 Abort

5.2.7 Product warranty

6.0 Physical/electrical specifications

6.1 AC power requirements

6.2 DC power requirements

6.2.1 Conducted noise immunity

6.2.2 Power sequencing

6.2.3 Current profiles

6.3 Power dissipation

6.4 Environmental limits

6.4.1 Temperature

6.4.2 Relative humidity

6.4.3 Effective altitude (sea level)

6.4.4 Shock and vibration

6.4.4.1 Shock

6.4.4.2 Vibration

6.4.5 Acoustics

6.4.6 Air cleanliness

6.4.7 Corrosive environment

6.4.8 RoHS compliance statement

6.4.9 Electromagn etic susc ept ibili ty

6.5 Mechanical specifications

7.0 Defect and error management

7.1 Drive in ternal defects/errors

7.2 Drive error recovery procedures

7.3 FC-AL system errors

7.4 Background Media Scan

7.5 Media Pr e- Scan
