Seagate ST320LT030, ST500LT032 User Manual
Product Manual
Seagate® Laptop Ultrathin HDD SATA
Standard models
ST500LT032
ST320LT030
Self-Encrypting Drive models
ST500LT033
ST320LT031
Gen 9.3
100715053
Rev. C
September 2013
Document Revision History
Revision Date Description of Change
Rev. A 05/07/2013 Initial release.
Rev. B 06/26/2013 FC, 2, 4-5 & 19-21.
Rev. C 09/05/2013 FC, 2 & 4-5.
© 2013 Seagate Technology LLC. All rights reserved.
Publication number: 100715053, Rev. C September 2013
Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC in the United States and/or
other countries. Seagate Laptop Ultrathin HDD and SeaTools are either trademarks or registered trademarks of Seagate Technology
LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which
does not imply product endorsement by NIST, the U.S., or Canadian governments. All other trademarks or registered trademarks are
the property of their respective owners.
No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC.
Call 877-PUB-TEK1(877-782-8351) to request permission.
When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your
computer’s operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed
capacity is used for formatting and other functions, and thus will not be available for data storage. Actual quantities will vary based on
various factors, including file size, file format, features and application software. Actual data rates may vary depending on operating
environment and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S.
Department of Commerce, Bureau of Industry and Security (for more information, visit www.bis.doc.gov), and controlled for import
and use outside of the U.S. Seagate reserves the right to change, without notice, product offerings or specifications.
CONTENTS
SEAGATE TECHNOLOGY SUPPORT SERVICES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.0 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.1 ABOUT THE SERIAL ATA INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.0 DRIVE SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 FORMATTED CAPACITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1.1 LBA mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 PHYSICAL ORGANIZATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 RECORDING AND INTERFACE TECHNOLOGY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.4 PHYSICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.5 SEEK TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.6 START/STOP TIMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.7 POWER SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.7.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.7.2 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.7.3 Voltage tolerance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.7.4 Power management modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.8 ENVIRONMENTAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.8.1 Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.8.2 Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.9 ACOUSTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.9.1 Test for prominent discrete tones (PDTs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.10 ELECTROMAGNETIC IMMUNITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.11 RELIABILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.12 AGENCY CERTIFICATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.12.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.12.2 Electromagnetic Compatibility (EMC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.12.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.13 ENVIRONMENTAL PROTECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.13.1 European Union Restriction of Hazardous Substances (RoHS) Directive. . . . . 13

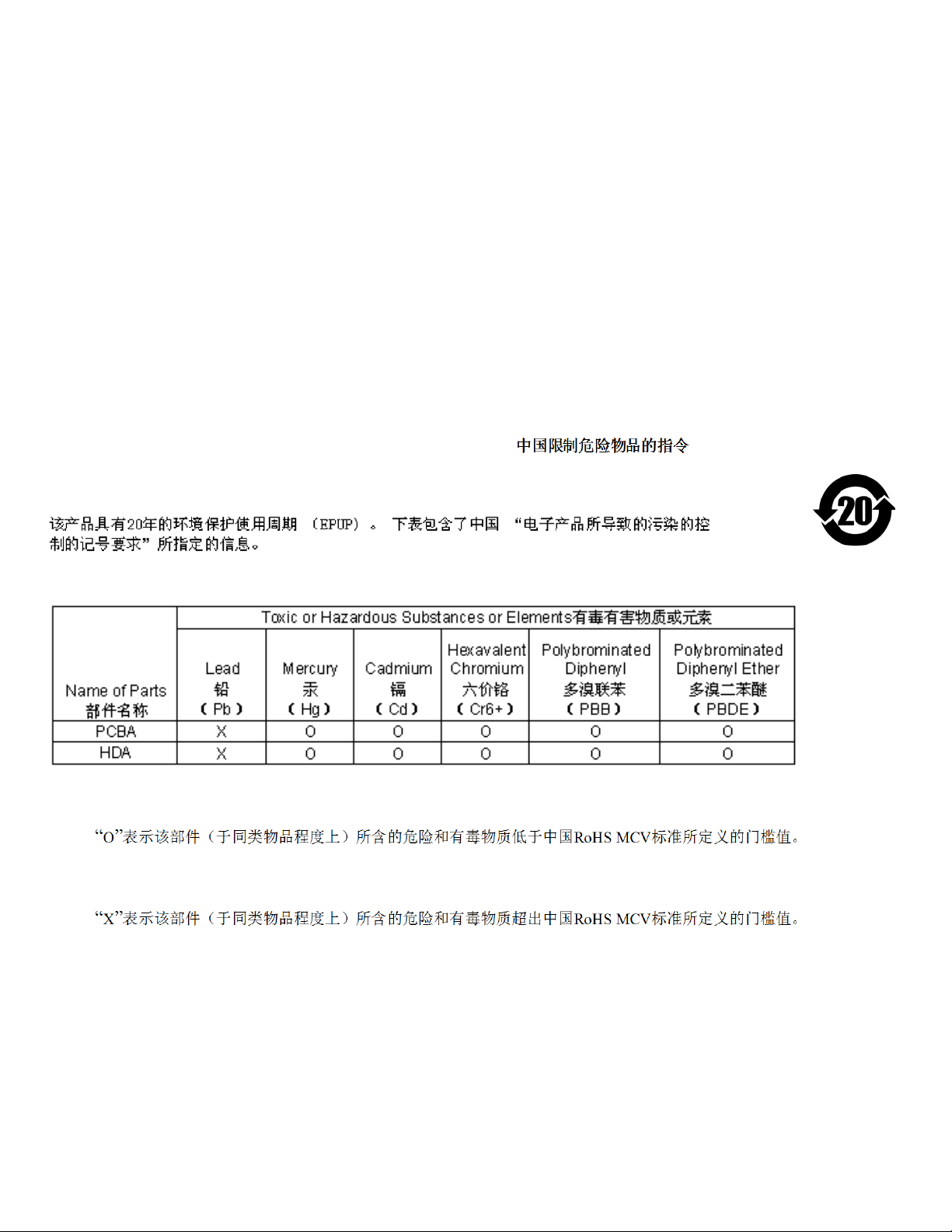

2.13.2 China Restriction of Hazardous Substances (RoHS) Directive . . . . . . . . . . . . 13
2.14 CORROSIVE ENVIRONMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.0 CONFIGURING AND MOUNTING THE DRIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.1 HANDLING AND STATIC-DISCHARGE PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.2 CONFIGURING THE DRIVE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.2.1 Serial ATA Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 DRIVE MOUNTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.0 SERIAL ATA (SATA) INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 HOT-PLUG COMPATIBILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 SERIAL ATA DEVICE PLUG CONNECTOR PIN DEFINITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3 SUPPORTED ATA COMMANDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.3.1 Identify Device command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.3.2 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.3.3 S.M.A.R.T. commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
SEAGATE LAPTOP ULTRATHIN HDD SATA PRODUCT MANUAL, REV. C III
FIGURES

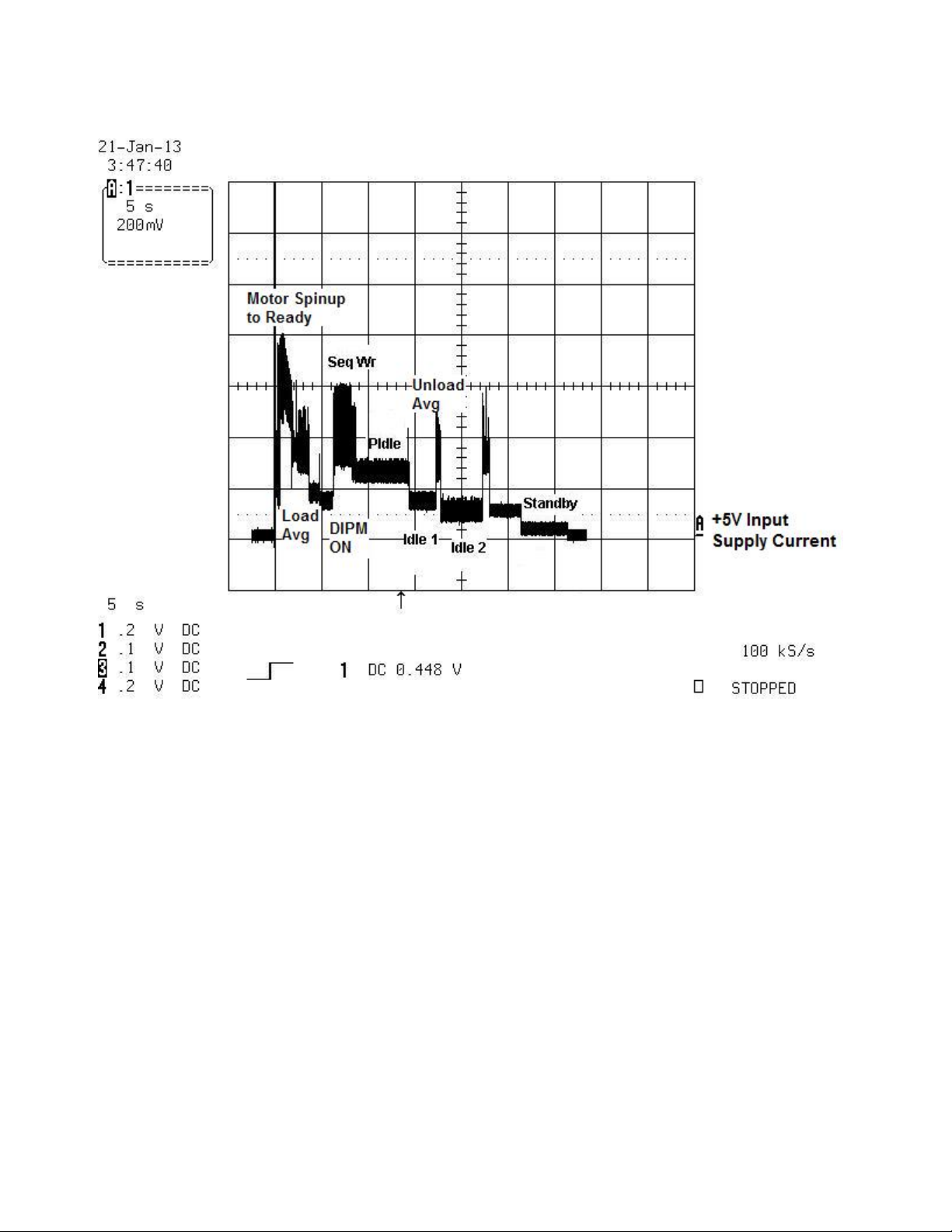

FIGURE 1TYPICAL 5V STARTUP AND OPERATION CURRENT PROFILE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
FIGURE 2ATTACHING SATA CABLING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

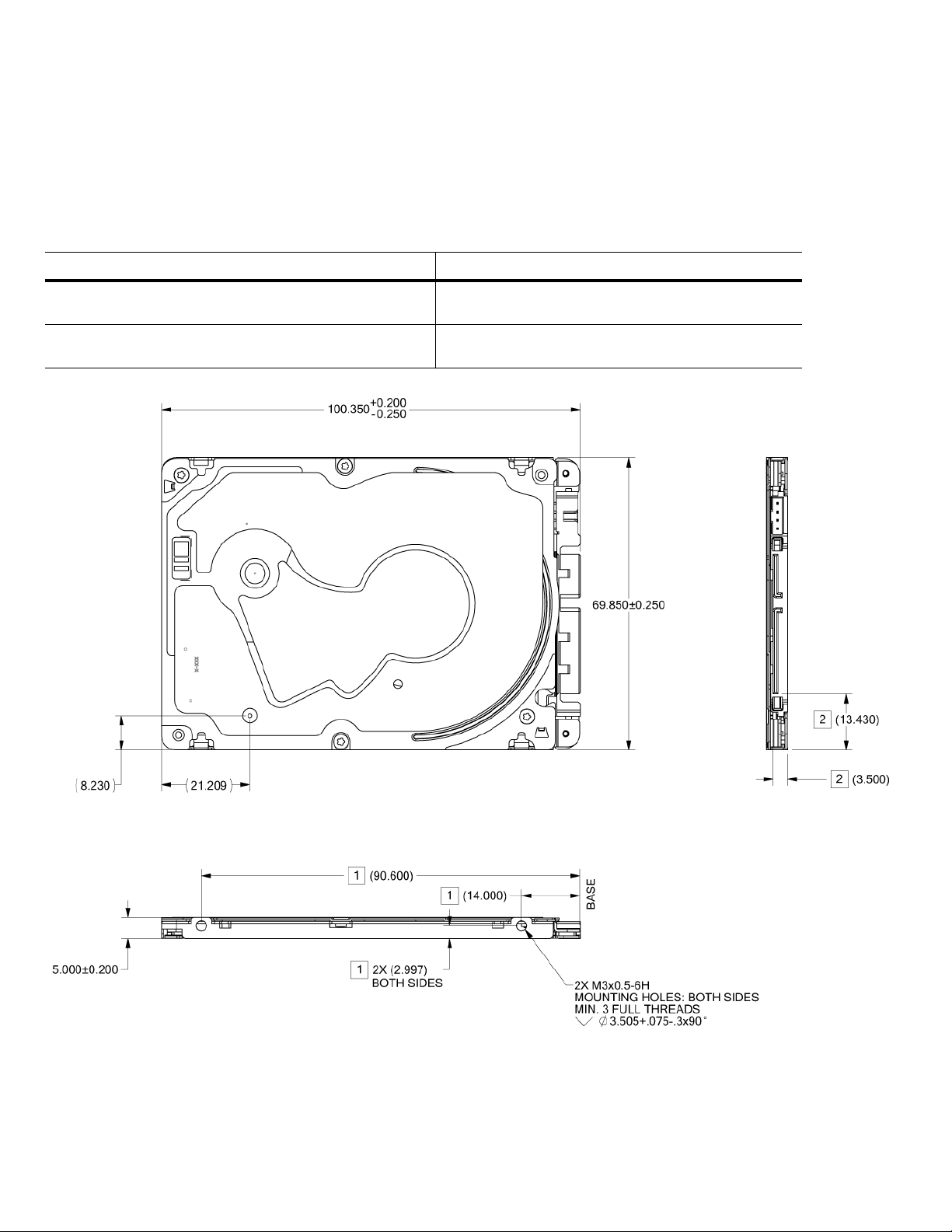

FIGURE 3MOUNTING DIMENSIONS (FOR STANDARD MODELS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
SEAGATE LAPTOP ULTRATHIN HDD SATA PRODUCT MANUAL, REV. C IV
Seagate Technology Support Services
For information regarding online support and services, visit
Available services include:
• Presales & Technical support
• Global Support Services telephone numbers & business hours
• Authorized Service Centers
For information regarding Warranty Support, visit:
For information regarding data recovery services, visit
For Seagate OEM and Distribution partner portal, visit:
For Seagate reseller portal, visit:
http://www.seagate.com/partners/my-spp-dashboard/
http://www.seagate.com/support/warranty-and-replacements/
http://www.seagate.com/about/contact-us/technical-support/
http://www.seagate.com/services-software/data-recovery-services/
http://www.seagate.com/partners/
Seagate Laptop Ultrathin HDD SATA Product Manual, Rev. C 1
1.0 INTRODUCTION
This manual describes the functional, mechanical and interface specifications for the following Seagate® Laptop Ultrathin HDD SATA
model drives:
Standard models Standard SED models
ST500LT032 - 1E9142 ST500LT033 - 1ED142
ST320LT030 - 1E914C ST320LT031 - 1ED14C
Previous generations of Seagate Self-Encrypting Drive models were called Full
NOTE
NOTE
These drives provide the following key features:
5400-RPM spindle speed.
16MB buffer.
Quiet operation. Fluid Dynamic Bearing (FDB) motor.
High instantaneous (burst) data-transfer rates (up to 6Gb/s).
Perpendicular recording technology.
State-of-the-art cache and on-the-fly error-correction algorithms.
Native Command Queuing (NCQ) with command ordering.
Full-track multiple-sector transfer capability without local processor intervention.
1000 Gs nonoperating shock and 400 Gs of operating shock.
SeaTools
The 3D Defense System™, which includes Drive Defense, Data Defense and Diagnostic Defense,
offers the industry’s most comprehensive protection for disk drives.
Support for S.M.A.R.T. drive monitoring and reporting.
Support for Read Multiple and Write Multiple commands.
Worldwide Name (WWN) capability uniquely identifies the drive.
Disk Encryption (FDE) models before a differentiation between drive-based
encryption and other forms of encryption was necessary.
The Self-Encrypting Drive models indicated on the cover of this product manual
have provisions for “Security of Data at Rest” based on the standards defined by
the Trusted Computing Group (see
TM
diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
www.trustedcomputinggroup.org).
Momentus Thin Self-Encrypting Drive models have the following additional features
Automatic data encryption/decryption
Controlled access
Random number generator
Drive locking
16 independent data bands
Cryptographic erase of user data for a drive that will be repurposed or scrapped
Authenticated firmware download.
There is no significant performance difference between Self-Encrypting Drive and standard (non-Self-Encrypting Drive) models.
SEAGATE LAPTOP ULTRATHIN HDD SATA PRODUCT MANUAL, REV. C 2
1.1 ABOUT THE SERIAL ATA INTERFACE
The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. The primary advantages include:
Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other configuration
options.
Thinner and more flexible cabling for improved enclosure airflow and ease of installation.
Scalability to higher performance levels.
In addition, Serial ATA makes the transition from parallel ATA easy by providing legacy software support. Serial ATA was designed to allow
the integrator to install a Serial ATA host adapter and Serial ATA disk drive in the current system and expect all existing applications to work
as normal.
The Serial ATA interface connects each disk drive in a point-to-point configuration with the Serial ATA host adapter. There is no master/
slave relationship with Serial ATA devices like there is with parallel ATA. If two drives are attached on one Serial ATA host adapter, the host
operating system views the two devices as if they were both “masters” on two separate ports. This essentially means both drives behave
as if they are Device 0 (master) devices.
The host adapter may, optionally, emulate a master/slave environment to host software where two
NOTE
The Serial ATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward compatibility with
existing host systems and software. The Command and Control Block registers, PIO and DMA data transfers, resets, and interrupts are all
emulated.
The Serial ATA host adapter contains a set of registers that shadow the contents of the traditional device registers, referred to as the
Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates
parallel ATA, refer to the Serial ATA International Organization: Serial ATA (Revision 3.0). The specification can be downloaded from
www.serialata.org.
devices on separate Serial ATA ports are represented to host software as a Device 0 (master) and Device
1 (slave) accessed at the same set of host bus addresses. A host adapter that emulates a master/slave
environment manages two sets of shadow registers. This is not a typical Serial ATA environment.
SEAGATE LAPTOP ULTRATHIN HDD SATA PRODUCT MANUAL, REV. C 3
DRIVE SPECIFICATIONS
2.0 DRIVE SPECIFICATIONS
Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For convenience, the
phrases the drive and this drive are used throughout this manual to indicate the following drive models:
The specification summaries listed in the following tables are for quick reference. For details on specification measurement or definition,
refer to the appropriate section of this manual.
Drive Specification ST500LT032 and ST500LT033 ST320LT030 and ST320LT031
Formatted capacity
Guaranteed sectors 976,773,168 625,142,448
Heads 2
Disks 1
Bytes per sector 512 (logical) / 4096 (physical)
Recording density 1885 Kb/in
Track density 366 Ktracks/in avg
Areal density 690 Gb/in2 avg
Spindle speed 5400 RPM
(1)
500 GB 320 GB
Sustained data transfer rate OD 100 MB/s max
I/O data-transfer rate 600 MB/s max
PIO modes 0–4
ATA data-transfer modes supported
Multiword DMA modes 0–2
Ultra DMA modes 0–6
Cache buffer 16 MB
Height 5.0 ± 0.20 mm (0.197 ± 0.008 in)
Width 69.85 ± 0.25 mm (2.750 ± 0.010 in)
Length 100.35 +0.20 / -0.25 mm (3.951 +0.008 / -0.010 in)
Weight (typical) <93g (0.205lb)
Average latency 5.6 ms
Startup current (typical) 5V (peak) 1.0 A
Voltage tolerance (including noise) 5V ± 5%
Operating temperature 0° to 60°C
Nonoperating temperature (Ambient) –40° to 70°C
Temperature gradient (max)
Relative humidity
20°C per hour max (operating)
35°C per hour max (nonoperating)
5% to 95% (operating)
5% to 95% (nonoperating)
Relative humidity gradient 30% per hour max
Wet bulb temperature (max)
37.7°C max (operating)
40.0°C max (nonoperating)
Altitude, operating –304.8 m to 3048 m (–1000 ft to 10,000+ ft)
Altitude, nonoperating
(below mean sea level, max)
–304.8 m to 12,192 m (–1000 ft to 40,000+ ft)
Operational Shock 400 Gs at 2 ms max
Non-Operational Shock 1000 Gs at 1 ms max
SEAGATE LAPTOP ULTRATHIN HDD SATA PRODUCT MANUAL, REV. C 4
DRIVE SPECIFICATIONS
Drive Specification ST500LT032 and ST500LT033 ST320LT030 and ST320LT031
Vibration, operating
5–200 Hz: 2.0 Gs
201–500 Hz: 1.0 Gs
Vibration, nonoperating 5–500 Hz: 5.0 Gs
Nonrecoverable read errors 1 per 10
14
bits read
To determine the warranty for a specific drive, use a web browser to access the following
web page::http://www.seagate.com/support/warranty-and-replacements/
Warranty
From this page, click on the “Verify Your Warranty” link. The following are required to be
provided: the drive serial number, model number (or part number) and country of pur-
chase. The system will display the warranty information for the drive.
Load-unload cycles 600,000 at 25°C, 50% rel. humidity
Supports Hotplug operation per the
Serial ATA Revision 2.6 specification
1. One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and
formatting.
Yes
2.1 FORMATTED CAPACITY
MODEL
500GB model
320GB model
FORMATTED CAPACITY
(1)
500 GB 976,773,168
320 GB 625,142,448
GUARANTEED SECTORS BYTES PER SECTOR
512 (logical) / 4096 (physical)
1. One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and
formatting.
2.1.1 LBA mode
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1,
guaranteed sectors as defined above.
Refer to Configuring and Mounting the Drive
support of drives with capacities over 137 GB.
2.2 PHYSICAL ORGANIZATION
Drive model Read/write heads Number of discs
ST500LT032 and ST500LT033
ST320LT030 and ST320LT031
on page 14 (words 60-61 and 100-103) for additional information about 48-bit addressing
2 1
where n is the number of
SEAGATE LAPTOP ULTRATHIN HDD SATA PRODUCT MANUAL, REV. C 5
2.3 RECORDING AND INTERFACE TECHNOLOGY
Interface Serial ATA (SATA)
Recording method Perpendicular
Recording density 1885 Kb/in
Track density 366 ktracks/in avg
Areal density 690 Gb/in
2
avg
Spindle speed 5400 RPM +/- 0.2%
Sustained data transfer rate 100 MB/s max
I/O data-transfer rate 600 MB/s max
2.4 PHYSICAL CHARACTERISTICS
DRIVE SPECIFICATIONS
Height (max)
5.0 ± 0.20 mm (0.197 ± 0.008 in)
Width 69.85 ± 0.25 mm (2.750 ± 0.010 in)
All models
Length 100.35 +0.20 / -0.25 mm (3.951 +0.008 / -0.010 in)
Typical weight <93g (0.205lb)
Cache buffer 16 MB (16,192 KB)
2.5 SEEK TIME
Seek measurements are taken with nominal power at 25°C ambient temperature. All times are measured using drive diagnostics. The
specifications in the table below are defined as follows:
Track-to-track seek time is an average of all possible single-track seeks in both directions.
Average seek time is a true statistical random average of at least 5000 measurements of seeks between random tracks, less overhead.
Table 1 Typical seek times
Typical seek times (ms) Read
Track-to-track 1.5
Average 13.0
Average latency 5.6
These drives are designed to consistently meet the seek times represented in this manual. Physical
NOTE
seeks, regardless of mode (such as track-to-track and average), are expected to meet the noted values.
However, due to the manner in which these drives are formatted, benchmark tests that include
command overhead or measure logical seeks may produce results that vary from these specifications.
2.6 START/STOP TIMES
Table 2 Start/stop times
Typical seek times (ms) Typical
Max @ 25
Power-on to ready (sec) 3.0 3.2
Power-on to ready (sec) (SED models) 3.0 3.5
Standby to ready (sec) 2.5 3.0
SEAGATE LAPTOP ULTRATHIN HDD SATA PRODUCT MANUAL, REV. C 6
°C
Loading...
