Seagate ST380215SCE, ST3160215SCE, ST380215ACE, ST3160215ACE User Manual

Product Manual

DB35.3® Series 80-1 60 GB

SA TA

ST3160215SCE
ST380215SCE

PATA

ST3160215ACE
ST380215ACE

100439554
Rev . F
August 2007

Copyright © 2006-2007 Seagate Technology LLC. All rights reserved. Printed in USA
Publication number: 100439554, Rev. F

August 2007
Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC

in the United States and/or other countries. DB35.3 Series, SeaTools and SeaTDD are either trademarks
or registered trademarks of Sea gate Technology LLC or one of its affiliated comp anie s in the United States
and/or other countries. All other trademarks or registered trademarks are the property of their respective
owners.

One gigabyte, or GB, equals one billion bytes when referring to hard drive capacity. Accessible capacity
may vary depending on oper ating envi ronme nt and for matting. Seagate reserves the right to chan ge, wi th­out notice, product offerings or specifications.

DB35.3 Series SATA/PATA Product Manual, Rev. F

i

Contents

1.0 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.1 About the Serial ATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2.0 Drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1 Specification summary table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1.1 Formatted capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.1.2 Default logical geometry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.1.3 Recording and interface technology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.1.4 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.5 Seek time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.6 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.7 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1.8 Environmental specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1.9 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.2 Electromagnetic immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.3 Reliability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.4 Agency certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.4.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.4.2 Electromagnetic compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.4.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.5 Environmental protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.5.1 European Union Restriction of Hazardous Substances (RoHS) Directive. . . . . 16

2.5.2 China Restriction of Hazardous Substances (RoHS) Directive . . . . . . . . . . . . . 16

2.6 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.0 Handling, mounting and configuring the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.1 Handling and static discharge precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2 Mounting the drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.3 Breather filter hole precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.4 How to configure and attach Serial ATA (SATA) drives . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.4.1 How to configure the drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.4.2 How to connect the SATA cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.5 How to configure and attach the Parrallel ATA (PATA) drives . . . . . . . . . . . . . . . . . . . . . 21

3.5.1 How to set the jumper settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.0 Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.1 Serial ATA (SATA) interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.1.1 Hot-Plug compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.1.2 Serial ATA device plug connector pin definitions. . . . . . . . . . . . . . . . . . . . . . . . 24

4.2 Parallel ATA (PATA) Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.2.1 ATA interface signals and connector pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.3 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4.4 Identify Device command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.5 Set Features command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.6 S.M.A.R.T. commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.0 Seagate Technology support services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

ii

DB35.3 Series SATA/PATA Product Manual, Rev. F

DB35.3 Series SATA/PATA Product Manual, Rev. F

iii

List of Figures

Figure 1. Representative 5V startup and operation current profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 2. Representative 12V startup and operation current profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 3. Mounting dimensions for PATA/SATA drives —top, side and end view. . . . . . . . . . . . . . . . . 18

Figure 4. Breather filter hole location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 5. Serial ATA connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 6. Attaching SATA cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 7. Master/slave jumper settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Figure 8. Ultra ATA cable connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Figure 9. I/O pins and supported ATA signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

iv

DB35.3 Series SATA/PATA Product Manual, Rev. F

DB35.3 Series SATA/PATA Product Manual, Rev. F

1

1.0 Introduction

This manual describes the functional, mechanical and interface specifications for the following Seagate
DB35.3® Series SATA/PATA model drives:

SATA models PATA models

ST3160215SCE ST3160215ACE
ST380215SCE ST380215ACE

The drives provide the following key features:

• 7,200-RPM spindle speed.

• Tunneling Magnetoresistive (TMR) recording heads.

• Low profile deck design for improved air-flow and low-profile system design.

• State-of-the-art cache and on-the-fly error-correction algorithms.

• Full-track multiple-sector transfer capability without local processor intervention.

• Quiet operation.

• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.

• Support for S.M.A.R.T. drive monitoring and reporting.
SATA specific key features:

• High instantaneous (burst) data-transfer rates (up to 300 Mbytes per second).

• Native Command Queueing with command ordering to increase performance in demanding applications.

• Supports latching SATA cables and connectors.

®

PATA specific key features:

• High instantaneous (burst) data transfer rates (up to 100 Mbytes per second) using Ultra DMA mode 5.

• Support for Read Multiple and Write Multiple commands.

• Support for autodetection of master/slave drives that use cable select (CSEL).

2

DB35.3 Series SATA/PATA Product Manual, Rev. F

1.1 About the Serial ATA interface

The Serial ATA interface provides several advantages over the traditional Parallel ATA interface. The primary
advantages include:

• Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jump­ers or other configuration options.

• Thinner and more flexible cabling for improved enclosure airflow and ease of installation.

• Scalability to higher performance levels.

In addition, Serial ATA makes the tra nsi tion fr om Pa ral lel ATA easy b y pro vi ding leg acy sof t war e sup port . S erial
ATA was designed to allow you to install a Serial ATA host adapter and Serial ATA disc drive in your current
system and expect all of your existing applications to work as normal.

The Serial ATA interface connects each disc drive in a point-to-point configuration with the Serial ATA host
adapter. There is no master/slave relationship with Serial ATA devices like there is with Parallel ATA. If two
drives are attached on one Serial ATA host adapter, the host operatin g system views the two devices as if they
were both “masters” on two separate ports. This essentially means both drives behave as if they are Device 0
(master) devices.

Note. The host adapter may, optionally, emulate a master/slave environment to host software where two

devices on separate Serial ATA ports are represented to host software as a Device 0 (master) and
Device 1 (slave) accessed at the same set of host bus addresses. A host adapter that emulates a
master/slave environment manages two sets of shadow registers. This is not a typical Serial ATA
environment.

The Serial ATA host adapter and drive share the function of emulating Parallel ATA device behavior to provide
backward compatibility with existing host systems and software. The Command and Control Block registers,
PIO and DMA data transfers, resets, and interrupts are all emulated.

The Serial ATA host adapter cont ains a set of regi ste rs that sha dow the conte nt s of t he trad itional device r egis­ters, referred to as the Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For addi­tional information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA: High Speed Serialized
AT Attachment” specification. The specification can be downloaded from www.serialata.org.

DB35.3 Series SATA/PATA Product Manual, Rev. F

3

2.0 Drive specifications

Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal
power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate the
following drive models:

SATA models PATA models

ST3160215SCE ST3160215ACE
ST380215SCE ST380215ACE

2.1 Specification summary table

The specifications li sted in th e t abl e belo w a re for qui ck ref eren ce. Fo r det ai ls on spe c ificati on m easur emen t or
definition, see the appropriate section of this manual.

4

DB35.3 Series SATA/PATA Product Manual, Rev. F

Table 1: Drive specificati o ns summary for 160 and 80 Gbyte models

Drive specification ST3160215SCE,

Formatted Gbytes (512 bytes/sector)* 160 80
Guaranteed sectors 312,581,808 156,301,488
Bytes per sector 512
Default sectors per track 63
Default read/write heads 16
Default cylinders 16,383
Recording density, max 824 kbits/in
Track density, max 140 ktracks/in
Areal density, max 116.2 Gbits/in
Spindle speed 7,200 RPM
Internal data transfer rate, max 930 Mbits/sec
Sustained data transfer rate, max 78 Mbytes/sec
I/O data-transfer rate, max 300 Mbytes/sec (SATA models)

ATA data-transfer modes supported PIO modes 0–4

Cach e buffer 2 Mbytes
Height, max 20.2 mm (0.794 inches)
Width, max 101.6 mm (4.000 inches)
Length, max 146.6 mm (5.772 inches)
Weight, typical 380 grams (0.838 lb.) 370 grams (0.816160GB: lb.)
Average latency 4.16 msec
Power-on to ready, max 16 sec
Standby to ready, max 16 sec
Track-to-track seek time, typical <1.0 msec read

Average seek, read, typical <14.0 msec
Average seek, write, typical <15.0 msec
Startup current (typical) 12V (peak) 2.0 amps
Voltage tolerance (including noise) 5V ± 5%

Temperature gradient, max 20°C (operating)

Relative humidity 5% to 90% (operating)

Relative humidity gradient, per hour max 30%
Wet bulb temperature, max 37.7°C (operating)

Altitude, operating –60.96 m to 3,048 m

Altitude, nonoperating, max –60.96 m to 12,192 m below mean sea level

Operational Shock, max 63 Gs at 2 msec
Non-Operational Shock, max 350 Gs at 2 msec
Vibration, operating 5–350 Hz: 0.50 Gs
Vibration, nonoperating 5–350 Hz: 5.0 Gs

ST3160215ACE

2

100 Mbytes/sec (PATA models)

Multiword DMA modes 0–2
Ultra DMA modes 0–5

<1.2 msec write

12V ± 10%

30°C (nonoperating)

5% to 95% (nonoperating)

40.0°C (nonoperating)

(–200 ft. to 10,000+ ft.)

(–200 ft. to 40,000+ ft. below mean sea level)

ST380215SCE,
ST380215ACE

DB35.3 Series SATA/PATA Product Manual, Rev. F

5

Drive specification ST3160215SCE,

Drive acoustics, sound power
Idle** 2.6 bels (typical)

CE seek profile 2.7 bels (typical)

Nonrecoverable read errors 1 per 10
Annualized Failure Rate (AFR)*** 0.68%
Warranty 5 years on distribution units.

Contact start-stop cycles (25°C, 50% rel. humidity) 50,000
Supports Hotplug operation per Serial ATA Revision

2.5 specification

* One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environ ment

and formatting.

** During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and
power to operational levels.

ST3160215ACE

2.8 bels (max)

2.8 bels (max)

14

bits read

To determine the warranty for a specific drive, use a web browser to access
the following web page: www.seagate.com/support/service/
From this page, click on the “Verify Y our Warranty” link. You will be asked to
provide the drive serial number, model number (or part number) and country
of purchase. The system will display the warranty information for your drive.

Yes

ST380215SCE,
ST380215ACE

6

DB35.3 Series SATA/PATA Product Manual, Rev. F

2.1.1 Formatted capacity

Model

ST3160215SCE, ST3160215ACE 160 Gbytes 312,581,808 512
ST380215SCE, ST380215ACE 80 Gbytes 156,301,488 512

*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environ­ment and formatting.

Formatted
capacity*

Guaranteed
sectors

Bytes per sector

2.1.1.1 LBA mode

When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1,
where n is the number of guaranteed sectors as defined above.

See Section 4.4, "Identify Device command" (words 60-61 and 100-103) for additional information about 48-bit
addressing support of drives with capacities over 137 Gbytes.

2.1.2 Default logical geometry

Cylinders Read/write heads Sectors per track

16,383 16 63

2.1.3 Recording and interface technology

160GB 80GB

Interface Serial ATA and Parallel AT A
Recording method Perpendicular
Recording density , KBPI (kbits/inch max) 824
Track density, KTPI (ktracks/inch avg) 140
Areal density (Gbits/inch2 avg) 116.2
Spindle speed (RPM) (± 0.2%) 7,200
Internal data transfer rate (Mbits/sec max) 930
Sustained data transfer rate (Mbytes/sec max) 78
I/O data-transfer rate (Mbytes/sec max) SATA - 300

PATA - 100 (Ultra DMA mode 5)

DB35.3 Series SATA/PATA Product Manual, Rev. F

7

2.1.4 Physical character istic s

Drive specification

Maximum he i g ht

(mm)
(inches)

Maximum wid th

(mm)
(inches)

Maximum length

(mm)
(inches)

Typical weight 380 grams (0.838 lbs) 160 GB models

Cache Size 2 Mbytes

20.2

0.794

101.6

4.000

146.6

5.772

370 grams (0.816 lbs) 80 GB models

2.1.5 Seek time

Seek measurem ent s a re t ake n wi th nom inal po w er a t 25 °C amb ient temperature. All tim es a re m easu red using
drive diagnostics. The specifications in the table below are defined as follows:

• Track-to-track seek time is an average of all possible single-track seeks in both directions.

• Average seek time is a true statistical random average of at least 5,000 measurements of seeks between
random tracks, less overhead.

T yp ical seek times (msec) Read Write

Track-to-track <1.0 <1.2
Average <14.0 <15.0
Average latency 4.16 4.16

Note. These drives are designed to consistently meet the seek times represented in this manual. Physical seeks,

regardless of mode (such as track-to-track and average), are expected to meet or exceed the noted values.
However, due to the manner in whic h these drives are formatt ed, benchmark tests that include command
overhead or measure logical seeks may produce results that vary from these specifications.

2.1.6 Start/stop times

Power-on to Ready (sec) 16 (max)
St andby to Ready (sec) 16 (max)
Ready to spindle stop (sec) 10 (max)

8

DB35.3 Series SATA/PATA Product Manual, Rev. F

2.1.7 Power specifications

The drive receives DC power (+5V or +12V) through a four-pin standard drive power connector.

2.1.7.1 Power consumption

Power requiremen ts for the dr iv es are listed i n the ta ble on p age 8. Typical power measurements are ba sed on
an average of drives tested, under nominal conditions, using +5.0V and +12.0V input voltage at 25°C ambient
temperature.

• Spinup power

Spinup power is measured from the time of power-on to the time that the drive spindle re aches operating speed.

• Seek mode

During seek mod e, the read /write actuator arm move s toward a spe cific positi on on the d isc surface and does
not execute a read or write operation. Servo electronics are active. Seek mode power represents the worst­case power consumption, using only random seeks with read or write latency time. This mode is not typical
and is provided for worst-case information.

• Read/write power and current

Read/write power is measured with the heads on track, based on a 16-sector write followed by a 32-msec
delay, then a 16-sector read followed by a 32-msec delay.

• Operating power and current

Operating power is measured using 40 percent random seeks, 40 percent read/write mode (1 write for each
10 reads) and 20 percent drive idle mode.

• Idle mode powe r

Idle mode power is measured with the drive up to speed, with servo electronics active and with the heads in
a random track location.

• Standby mode

During Standby mode, the drive accepts commands, but the drive is not spinning, and the servo and read/
write electronics are in power-down mode.

Table 2: DC power requirements

Power dissipation using consumer storage profile
(ST3160215ACE values shown)

Spinup — — 2.0 (peak)
Idle* 5.73 0.665 0.202
Operating (CE seeks) 6.00 0.623 0.237
Standby 0.80 0.106 0.023
Sleep 0.80 0.106 0.023

*Duri ng pe riods of driv e idl e, some off lin e a c tivit y ma y occu r ac cord in g t o t he S.M .A. R. T. speci fic ation , w hich may incr ease ac ou sti c an d

power to operational levels.

Average
(watts, 25° C)

Average
5V typ amps

Average
12V typ amps

DB35.3 Series SATA/PATA Product Manual, Rev. F

9

2.1.7.1.1 Representative current profile

Figure 1 Representative 5V startup and operation current profile

Figure 2 Representative 12V startup and operation current profile

2.1.7.2 Conducted noise

Input noise ripple is measured at the host system power supply across an equivalent 80-ohm resistive load on
the +12 volt line or an equivalent 15-ohm resistive load on the +5 volt line.

• Using 12-volt power, the drive is expected to oper ate wi th a maxim um of 120 mV peak-to -pea k square- w ave
injected noise at up to 10 MHz.

• Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave
injected noise at up to 10 MHz.

Note. Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write

current.

2.1.7.3 Voltage tolerance

Voltage tolerance (including noise):

5V ± 5%
12V ± 10%

10

DB35.3 Series SATA/PATA Product Manual, Rev. F

2.1.7.4 Power-manag ement mo des

The drive provides programmable power management to provide greater energy efficiency. In most systems,
you can control power management through the system setup program. The drive features the following
power-management modes:

Power mode Heads Spindle Buffer

Active Tracking Rotating Enabled
Idle Tracking Rotating Enabled
Standby Parked Stopped Enabled
Sleep Parked Stopped Disabled

• Active mode

The drive is in Active mode during the read/write and seek operations.

• Idle mode

The buffer remains enabled, and the drive accepts all commands and returns to Active mode any time disc
access is necessary.

• Standby mode

The drive enters Standby mode when the host sends a Standby Immediat e c omma nd. If the ho st has set the
standby timer, the drive can also enter Standby mode automatically after the drive has been inactive for a
specifiable length of time. The standby tim er delay is established using a Standby or Idle command. In Sta ndby
mode, the drive buffer is enabled, the heads are parked and the spindle is at rest. The drive accepts all
commands and returns to Active mode any time disc access is necessary.

• Sleep mode

The drive enter s S leep m ode after rece iv ing a Slee p com man d fro m th e ho st. In Sl eep mod e, th e dr ive buffer
is disabled, the heads are parked and the spindle is at rest. The drive leaves Sleep mode after it receives a
Hard Reset or So ft Reset from the host. After re ceiving a reset , the drive exi ts Sleep mode and en ters Standby
mode with all current translation parameters intact.

• Idle and Standby timers

Each time the drive performs an Active function (read, write or seek), the standby timer is reinitialized and
begins counting down from its specified dela y times to zero. If the standby tim er reaches zero bef ore any drive
activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive
accepts all commands and returns to Active mode when disc access is necessary.

DB35.3 Series SATA/PATA Product Manual, Rev. F

11

2.1.8 Environmental specifications

2.1.8.1 Case temperature

Actual drive case temperature should not exceed 75°C (167°F). Recommended measurement locations are
shown in Figure 3 on page 18.

Above 1,000 feet (305 meters), the maximum temperature is derated linearly to 44°C (112°F) at 10,000 feet
(3,048 meters).

2.1.8.2 Temperature gradient

Operating 20°C per hour (68°F per hour max), without condensation
Nonoperating 30°C per hour (86°F per hour max)

2.1.8.3 Humidity

2.1.8.3.1 Relative humidity

Operating 5% to 90% noncondensing (30% per hour max)
Nonoperating 5% to 95% noncondensing (30% per hour max)

2.1.8.3.2 Wet bulb temperature

Operating 37.7°C (99.9°F max)
Nonoperating 40.0°C (104.0°F max)

2.1.8.4 Altitude

Operating –60.96 m to 3,048 m (–200 ft. to 10,000+ ft.)
Nonoperating –60.96 m to 12,192 m (–200 ft. to 40,000+ ft.)

2.1.8.5 Shock

All shock specifications assume that the drive is mounted securely with the input shock applied at the drive
mounting screws. Shock may be applied in the X, Y or Z axis.

2.1.8.5.1 Operating shock

These drives comply with the performance levels specified in this document when subjected to a maximum
operating shock of 63 Gs based on half-sine shock pulses of 2 msec. Shocks should not be repeated more
than two times per second.

2.1.8.5.2 Nonoperating shock

The nonoperating shock level that the drive can experience without incurring physical damage or degradation
in performance when subsequently put into operation is 35 0 Gs based o n a nonr epetitive hal f-sine shock pulse
of 2 msec duration.

2.1.8.6 Vibration

All vibration specifications assume that the drive is mounted securely with the input vibration applied at the
drive mounting screws. Vibration may be applied in the X, Y or Z axis.

12

DB35.3 Series SATA/PATA Product Manual, Rev. F

2.1.8.6.1 Operating vibration

The following table lists the maximum vibration levels that the drive may experience while meeting the perfor­mance standards specified in this document.

5–350 Hz 0.50 Gs

2.1.8.6.2 Nonoperating vibration

The following table lists the maximum nonoperating vibration that the drive may experience without incurring
physical damage or degradation in performance when subsequently put into operation.

5–350 Hz 5.0 Gs

2.1.9 Acoustics

Drive acoustics are measured as overall A-weighted acoustic sound power levels (no pure tones). All mea­surements are consistent with ISO document 7779. Sound power measurements are taken under essentially
free-field conditions over a reflecting plane. For all tests, the drive is oriented with the cover facing upward.

Note. For seek mode tests, the drive is placed in seek mode only. The number of seeks p er second is de fined

by the following equation:

(Number of seeks per second = 0.4 / (average latency + average access time)

Table 3: Fluid Dynamic Bearing (FDB) motor acoustics

Models Idle* Seek prof ile

All models

*Duri ng pe riods of driv e idl e, some off lin e a c tivit y ma y occu r ac cord in g t o t he S.M .A. R. T. speci fic ation , w hich may incr ease ac ou sti c an d

power to operational levels.

2.6 bels (typ)

2.8 bels (max)

2.7 bels (typ)

2.8 bels (max)

DB35.3 Series SATA/PATA Product Manual, Rev. F

13

2.2 Electromagnetic immunit y

When properly installed in a representative host system, the drive operates without errors or degradation in
performance when subjected to the radio frequency (RF) environments defined in the following table:

T a bl e 4: Radio frequency enviro nm en t s

Performance

Test Description

Electrostatic discharge Contact, HCP, VCP: ± 4 kV; Air:

± 8 kV

Radiated RF immunity 80 to 1,000 MHz, 3 V/m,

80% AM with 1 kHz sine
900 MHz, 3 V/m, 50% pulse
modulation @ 200 Hz

Electrical fast transient ± 1 kV on AC mains, ± 0.5 kV on

external I/O

Surge immunity ± 1 kV differential, ± 2 kV com-

mon, AC mains

Conducted RF immunity 150 kHz to 80 MHz, 3 Vrms,

80% AM with 1 kHz sine

Voltage dips, interrupts 0% open, 5 seconds

0% short, 5 seconds
40%, 0.10 seconds
70%, 0.01 seconds

level

B EN 61000-4-2: 95

A EN 61000-4-3: 96

B EN 61000-4-4: 95

B EN 61000-4-5: 95

A EN 61000-4-6: 97

C
C
C
B

2.3 Reliability

Nonrecoverable read errors 1 per 1014 bits read, max.
Annualized Failure Rate (AFR) 0.68% (nominal power, 25°C ambient temperature)
Contact start-stop cycles 50,000 cycles

(at nominal voltage and temperature, with 60 cycles per hour and a 50% duty cycle)

Warranty 5 years on distribution units.

To determine the warranty for a specific drive, use a web browser to access the
following web page:

From this page, click on the “Verify Your Warranty” link. You will be asked to provide
the drive serial number, model number (or part number) and country of purchase.
The system will display the warranty information for your drive.

www.seagate.com/support/service/

Reference
standard

ENV 50204: 95

EN 61000-4-11: 94

Preventive maintenance None required.

14

DB35.3 Series SATA/PATA Product Manual, Rev. F

2.4 Agency cert ification

2.4.1 Safety certification

The drives are recognized in accordance with UL 1950 and CSA C22.2 (950) and meet all applicable sections
of IEC950 and EN 60950 as tested by TUV North America.

2.4.2 Electromagnetic compatibility

Hard drives that display the CE mark comply with the E uro pean Un ion (E U) re quirem ent s speci fie d i n the Elec­tromagnetic Compatibility Directive (89/336/EEC). Testing is performed to the levels specified by the product
standards for Information Technology Equipment (ITE). Emission levels are defined by EN 55022, Class B and
the immunity levels are defined by EN 55024.

Seagate uses an inde pend ent laboratory to confirm compl ian ce with the EC directives specified i n t he pr evious
paragraph. Drives are teste d in representa tive end-user systems. Although CE-marked Seagate drives comply
with the directives when used in the test systems, we cannot guarantee that all systems will comply with the
directives. The drive is designed for operation inside a properly designed enclosure, with properly shielded I/O
cable (if necessary) and terminators on all unused I/O ports. Computer manufacturers and system integrators
should confirm EMC compliance and provide CE marking for their products.

Korean RRL

If these drives have the Korea Ministry of Information and Communication (MIC) logo, they comply with para­graph 1 of Article 11 of the Electromagnetic Compatibility control Regulation and meet the Electromagnetic
Compatibility (EMC) Framework requirements of the Radio Research Laboratory (RRL) Ministry of Information
and Communication Republic of Korea.

These drives have been tested and com ply with the Electr omag netic Inter fere nce/E lectro magn etic Susce ptibil ­ity (EMI/EMS) for Class B products. Drives ar e tested in a representative, end-user system by a Korean-recog­nized lab.

• Family name: DB35 Series

• Certificate number: STX-L3510 (B)

Australian C-Tick (N176)

If these models have the C-Tick marking, they comply with the Australia/New Zealand Standard AS/NZS3548
1995 and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Australian Communi­cation Authority (ACA).

2.4.3 FCC verification

These drives are intended to be cont ai ned solely w ithin a person al compute r or similar enclosu re (no t attached
as an external device ). As su ch, ea ch dr ive is co nsidere d to be a suba ssembly even when it is individually mar ­keted to the customer. As a subassembly, no Federal Communications Commission verification or certification
of the device is required.

Seagate Technology LLC has tested this device in enclosures as described above to ensure that the total
assembly (enclosure, disc drive, motherboard, power supply, etc.) does comply with the limits for a Class B
computing device, pursuant to Subpart J, Part 15 of the FCC rules. Operation with noncertified assemblies is
likely to result in interference to radio and television reception.

Radio and television interference. This equipment generates and uses radio frequency energy and if not
installed and used in strict accordance with the manufacturer’s instructions, may cause interference to radio
and television reception.

DB35.3 Series SATA/PATA Product Manual, Rev. F

15

This equipment is designed to provide reasonable protection against such interference in a residential installa­tion. However , there is no guarantee that interfer ence will not occur in a particular inst allation. If this equipm ent
does cause interference to radio or television, which can be determined by turning the equipment on and off,
you are encouraged to try one or more of the following corrective measures:

• Reorient the receiving antenna.

• Move the device to one side or the other of the radio or TV.

• Move the device farther away from the radio or TV.

• Plug the computer into a different outlet so that the receiver and computer are on different branch outlets.

If necessary, you should consult your dealer or an experienced radio/television technician for additional sug­gestions. You may find helpful the following booklet prepared by the Federal Communications Commission:
How to Identify and Resolve Radio-Television Interference Problems. This booklet is available from the Super­intendent of Documents, U.S. Government Printing Office, Washington, DC 20402. Refer to publication num­ber 004-000-00345-4.

16

DB35.3 Series SATA/PATA Product Manual, Rev. F

2.5 Environmental protection

2

Seagate designs its products to meet environmental protection requirements worldwide, including regulations
restricting certain chemica l subst ances .

2.5.1 European Union Restriction of Hazardous Substances (RoHS) Directive

Seagate designs its products to meet environmental protection requirements worldwide, including regulations
restricting certain chemical substances. A new law, the European Union Restriction of Hazardous Substances
(RoHS) Directive, restricts the presence of chemical substances, including Lead, Cadmium, Mercury,
Hexavalent Chromium, PBB and PBDE, in electronic products, effective July 2006. This drive is manufactured
with components and materials that comply with the RoHS Directive.

2.5.2 China Restriction of Hazardous Substances (RoHS) Directive

.5.2

This product has an Environmental Protection Use Period (EPUP) of 20 years. The following
table contains information mandated by China's "Marking Requirements for Control of Pollution
Caused by Electronic Information Products" Standard.

"O" indicates the hazardous and toxic substance content of t he p a rt (at the hom ogeno us m ater ial l evel) is l ower
than the threshold defined by the China RoHS MCV Standard.

O”

"X" indicates the hazardous and toxic substance content of the part (at the homogenous material level) is over
the threshold defined by the China RoHS MCV Standard.

中国限制危险物品的指令

表示该部件（于同类物品程度上）所含的危险和有毒物质低于中国

RoHS MCV

标准所定义的门槛值。

X”

表示该部件（于同类物品程度上）所含的危险和有毒物质超出中国

2.6 Corrosive environme nt

Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to
light industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM
B845. However, this accelerated testing cannot duplicate every potential application environment. Users
should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive
chemicals as electronic drive component reliability can be affected by the installation environment. The silver,
copper , nicke l and gold films used i n Seag ate pr oduct s are especi ally sen s itive to the p resen ce of sulf ide, chlo­ride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components
should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or
exposed to an am bient rel at ive hum idity gr eate r th an 9 5%. Mat erial s used in cabin et fa bri cation , such as vulca­nized rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any
electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.

RoHS MCV

标准所定义的门槛值。

DB35.3 Series SATA/PATA Product Manual, Rev. F

17

3.0 Handling, mounting and configuring the drive

This section contains the specifications and instructions for configuring and mounting the drive.

3.1 Handling and static discharge pr ecautions

After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic dis­charge (ESD) hazards. Observe the following standard handling and static-discharge precautions:

Caution:

• Before handling the drive, put on a grounded wrist strap, or ground yourself frequently by touching the metal
chassis of a computer that is plugged into a grounded outlet. Wear a grounded wrist strap throughout the
entire installation procedure.

• Handle the drive by its edges or frame only.

• The drive is extremely fragile—handle it with care. Do not press down on the drive top cover.

• Always rest the drive on a padded, antistatic surface until you mount it in the computer.

• Do not touch the connector pins or the printed circuit board.

• Do not remove the factory- inst al led labels fr om the driv e or cover the m wi th additio nal labels. R emoval voids
the warranty. Some factory-installed labels contain information needed to service the drive. Other labels are
used to seal out dirt and contamination.

18

DB35.3 Series SATA/PATA Product Manual, Rev. F

3.2 Mounting the drive

You can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the
bottom-mounting hol es. See Fi gur e 3 for drive moun ting di mensio ns. Follow these impor t ant moun ting preca u­tions when mounting the drive:

• Allow a minimum clearance of 0.030 inches (0.76 mm) around the entire perimeter of the drive for cooling.

• Use only 6-32 UNC mounting screws.

• Do not overtighten the mounting screws (maximum torque: 6 inch-lb.).

• Do not use a drive interface cable that is more than 18 inches long.

Recommended
case temperatur
measurement location

Figure 3 Mounting dimensions for PATA/SATA drives —top, side and end view

DB35.3 Series SATA/PATA Product Manual, Rev. F

19

3.3 Breather filter hole precautions

This section contains information regarding the precautions which should be taken regarding the breather filter
hole in Seagate hard disc drives. Proper precautions should be taken to ensure full functionality and prevent
possible damage to the drive.

Breather hole

Do not cover or seal
this hole.

Figure 4 Breather filter hole location

Caution: Do not cover, seal, or insert any object into this hole.

This hole has two purposes:

• To allow condensation inside the hard disc to escape.

• To allow air pressure inside the hard disc to equalize with ambient pressure.

• If this hole is covered, sealed, or penetrated by any object, the drive reliability may be compromised and
could lead to permanent damage. Covering or sealing this hole voids the warranty.

20

DB35.3 Series SATA/PATA Product Manual, Rev. F

3.4 How to configure and attach Serial ATA (SATA) drives

S

3.4.1 How to configure the drive

Each drive on the Serial ATA interface connects point-to-point with the Serial ATA host adapter. There is no
master/slave relationship because each drive is considered a master in a point-to-point relationship. If two
drives are attached on one Serial ATA host adapter, the host operatin g system views the two devices as if they
were both “masters” on two separate ports. Both drives behave as if they are Device 0 (master) devices.

Serial ATA drives are designed for easy installation. It is usually not necessary to set any jumpers on the drive
for proper operation; however, if you connect the drive and receive a “drive not detected” error, your SATA­equipped mother boar d or hos t ada pter may use a chipse t tha t do es no t supp ort SATA spee d au toneg oti ation . If
you have a motherboard or host adapter that does not support autonegotiation:

• Install a jumper as shown in Figure 5 below to limit the data transfer rate to 1.5 Gbits per second (and leave
the drive conne cted to the SATA-e quipped mo therboard or host a dapter tha t doesn’ t support autonegotiat ion)
or

• Install a SATA host adapter that supports autonegotiation, leave the drive jumper block set to “Normal
operation” (see Fi gure 5 below), and connect the drive to that adapter. T his option has the benefit of not l imiting
the drive to a 1.5 Gbits/sec transfer rate.

3.0 Gbits per second operation

Limit data transfer rate to

1.5 Gbits per second

Jumper block

SATA interface connector

Figure 5. Serial ATA connectors

SATA power connector

3.4.2 How to connect the SATA cables

The Serial ATA interface cable consists of four conductors in two differential pairs, plus three ground connec­tions. The cable size may be 30 to 26 AW G with a maximum length of one meter (39.37 inches). See Table 5
for connector pin definitions. Either end of the SATA signal cable can be attached to the drive or host.

For direct backplane connection, the drive connectors are inserted directly into the host receptacle. The drive
and the host receptacle incorporate features that enable the direct connection to be hot pluggable and blind
mateable.

For installations which require cables, you can connect the drive as illustrated in Figure 6.

Signal connector

Power connector

ignal cable

Power cable

Figure 6. At tac hing SATA cabling

Each cable is keyed to ensure correct orientation. DB35.3 Series drives support latching SATA connectors.

DB35.3 Series SATA/PATA Product Manual, Rev. F

21

3.5 How to configure and attach the Parrallel ATA (PATA) drives

Options jumper block

3.5.1 How to set the jumper settings

The options jumper block shown in Figure 7 is used to configure the drive for operation. It is the 8-pin dual
header between the interface connector and the power connector. Use the following settings to configure the
drive as a master or a slave.

3.5.1.1 How to configure the drive as a master or slave Master or single drive. The drive is configured at the factory for a master or single-drive operation with a

jumper set on pins 7 and 8.

Drive as slave. Remove all jumpers.
Drive as master with a non-ATA-compatible slave.

Use this jumper setting only if the drive does not work as a master with no jumpers installed.

*Master or single drive

Drive is slave
Master with non ATA-

compatible slave
*Cable select

1753

684

2

Figure 7 Master/slave jumper settings

3.5.1.2 How to use the cable-select option

Computers that use cable select determine the master and slave drives by selecting or deselecting pin 28,
CSEL, on the interface bus. Master and slave drives are determined by their physical position on the cable. To
enable cable select, set a jumper on pins 5 and 6 as shown in Figure 7. Refer to your computer manual to
determine whether your computer supports this option.

22

DB35.3 Series SATA/PATA Product Manual, Rev. F

3.5.1.3 Ultra A TA/100 cable

An 80-conductor 40-pin cable is required to run Ultra DMA mode 3, mode 4, and mode 5. This cable uses
even-numbered conductors connected to the ground pins to improve signal integrity.

Note.

If you are using a 40-pin, 80-conductor

cable, attach the blue connector to the
motherboard, the black connector to the

master drive, and the gray connector
to the slave.

Master

Pin 1

Computer

Motherboard

Slave

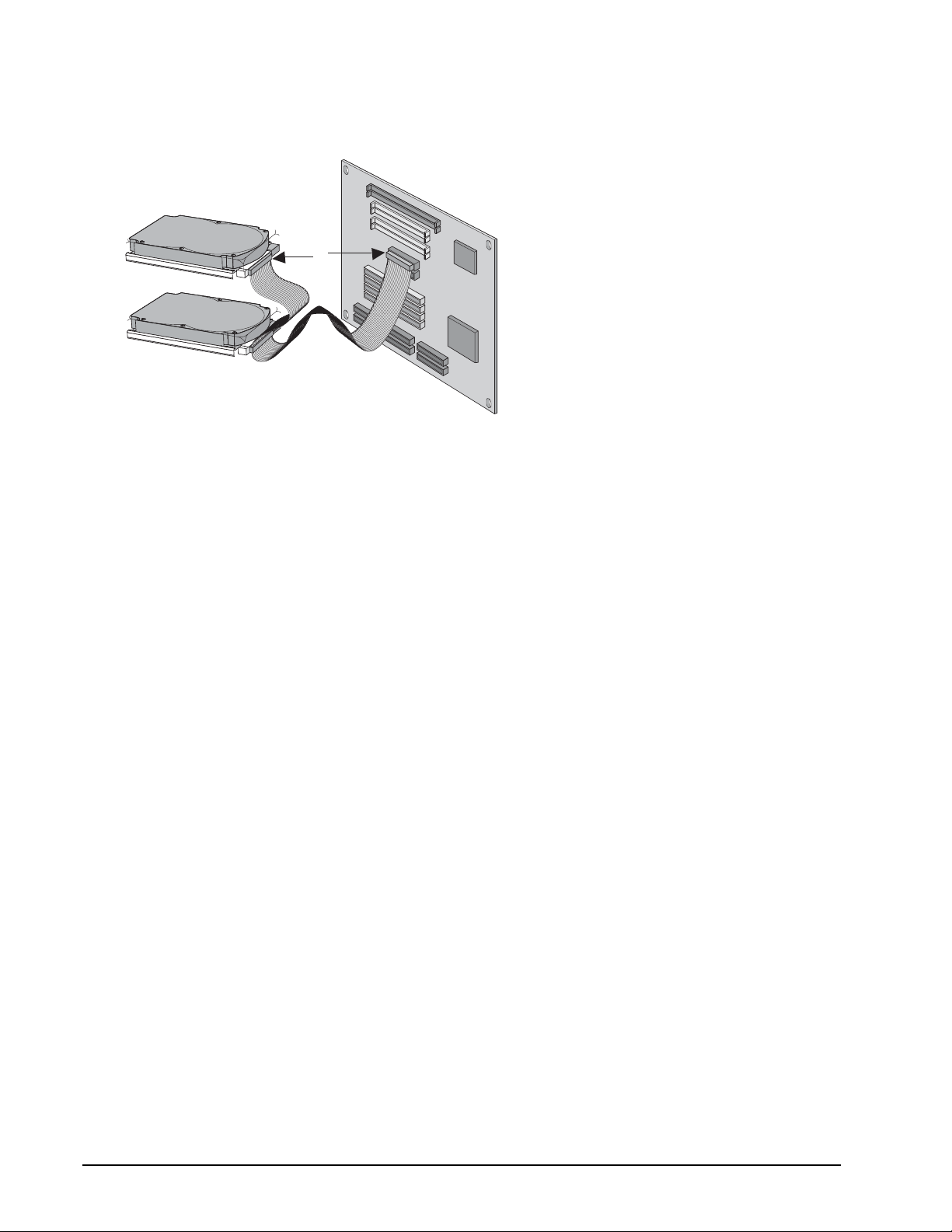

Figure 8 Ultra ATA cable connectors

Note. The drive supports bo th host and drive cabl e det ection. T he host det ect s the 80-co nducto r cable by

sampling pin 34, CBLID–, on the interface bus. The drive detects the 80-conductor cable by sens­ing a capacitor at the host side through the CBLID– signal. The result is reported in a Fast Rise
Detected bit (bit 13 of word 93 in the Identify drive parameter block).

DB35.3 Series SATA/PATA Product Manual, Rev. F

23

4.0 Interface

Interface Refer to

SATA Section 4.1 beginning on page 24
PATA Section 4.2 beginning on page 26

The following sections apply to both SATA and PATA drives.

• Supported commands (see section 4.3 on page 27)

• Identify Device command (see section 4.4 on page 29)

• Set Features command (see section 4.5 on page 32)

• S.M.A.R.T. commands (see section 4.6 on page 33)

24

DB35.3 Series SATA/PATA Product Manual, Rev. F

4.1 Serial ATA (SATA) interfa ce

These drives use the industry-standard Serial ATA interface that supports FIS data transfers. It supports ATA
programmed input/output (PIO) modes 0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–6.

For detailed information about the Serial ATA interface, refer to the “Serial ATA: High Speed Serialized AT
Attachment” specification.

4.1.1 Hot-Plug compatibility

DB35.3 Series drives incorporate connectors which enable you to hot plug these drives in accordance with the
Serial ATA II: Extension to Serial ATA 1.0a specification. This specification can be downloaded from www.seri­alata.org.

4.1.2 Serial ATA device plug connector pin definitions

Table 5 summarizes the signals on the Serial ATA interface and power connectors.

Table 5: Serial ATA connector pin definitions

Segment Pin Function Definition

S1 Ground 2nd mate
S2 A+ Differential signal pair A from Phy
S3 A-

Signal

Power

S4 Ground 2nd mate
S5 B- Differential signal pair B from Phy
S6 B+
S7 Ground 2nd mate

Key and spacing separate signal and power segments

P1 V
P2 V
P3 V

33

33

33

3.3V power

3.3V power

3.3V power, pre-charge, 2nd mate
P4 Ground 1st mate
P5 Ground 2nd mate
P6 Ground 2nd mate
P7 V
P8 V
P9 V

5

5

5

5V power, pre-charge, 2nd mate
5V power

5V power
P10 Ground 2nd mate
P11 Ground or LED signal If grounded, drive does not use deferred spin
P12 Ground 1st mate.
P13 V
P14 V
P15 V

12

12

12

12V power, pre-charge, 2nd mate

12V power

12V power

DB35.3 Series SATA/PATA Product Manual, Rev. F

25

Notes:

1. All pins are in a single row, with a 1.27 mm (0.050”) pitch.

2. The comments on the mating sequence apply to the case of backplane blindmate connector only. In this
case, the mating sequences are:

• the ground pins P4 and P12.

• the pre-charge power pins and the other ground pins.

• the signal pins and the rest of the power pins.

3. There are three power pins for each voltage. One pin from each voltage is used for pre-charge when
installed in a blind-mate backplane configuration.

4. All used voltage pins (Vx) must be terminated.

26

DB35.3 Series SATA/PATA Product Manual, Rev. F

4.2 Parallel ATA (PATA) Interface

r

).

These drives use the industry-standard ATA task file interface that supports 16-bit data transfers. It supports
ATA programmed input/output (PIO) modes 0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–5. The
drive also supports the use of the IORDY signal to provide reliable high-speed data transfers.

You can use a daisy-chain cable to connect two drives to a single AT host bus. For detailed information about
the ATA interface, refer to the draft of AT Attachment with Packet Interface Extension (ATA/ATAPI-7), NCITS
T13 1410D, subsequently referred to as the Draft ATA-7 Standard.

4.2.1 ATA interface signals and connector pins

Figure 9 on page 26 summarizes the signals on the ATA interface connector that the drive supports. For a
detailed description of these signals, refer to the Draft ATA-7 Standard.

Drive pin #

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

24
25

26
27

28
29
30
31
32
33
34

35
36
37
38
39
40

Pins 28, 34 and 39 are used for master-slave communication (details shown below

28
34
39

Signal name

–

Reset
Ground

DD7
DD8
DD6
DD9
DD5

DD10

DD4

DD11

DD3

DD12

DD2

DD13

DD1

DD14

DD0

DD15

Ground

(removed)

DMARQ

Ground
DIOW–

STOP
Ground
DIOR

–

HDMARDY

HSTROBE

Ground
IORDY

DDMARDY–

DSTROBE

CSEL

–

DMACK

Ground
INTRQ

–

IOCS16

DA1

–

PDIAG

CBLID–

DA0
DA2

–

CS0

–

CS1

–

DASP

Ground

Drive 0 (master)Drive 1 (slave)

28
34
39

–

Host pin # and signal description

1

Hardware Reset

2

Ground

3

Host Data Bus Bit 7

4

Host Data Bus Bit 8

5

Host Data Bus Bit 6

6

Host Data Bus Bit 9

7

Host Data Bus Bit 5

8

Host Data Bus Bit 10

9

Host Data Bus Bit 4

10

Host Data Bus Bit 11

11

Host Data Bus Bit 3

12

Host Data Bus Bit 12

13

Host Data Bus Bit 2

14

Host Data Bus Bit 13

15

Host Data Bus Bit 1

16

Host Data Bus Bit 14

17

Host Data Bus Bit 0

18

Device Data (15:0)

19

Ground
(No Pin)

20
21

DMA Request

22

Ground

23

Device I/O Write:
Stop Ultra DMA Burst

24

Ground

25

Device I/O Read:
Host Ultra DMA Ready:
Host Ultra DMA Data Strobe

26

Ground

27

I/O Channel Ready
Device Ultra DMA Ready
Device Ulta DMA Data Strobe

28

Cable Select

29

DMA Acknowledge

30

Ground

31

Device Interrupt

32

Reserved

33

Host Address Bus Bit 1

34

Passed Diagnostics
Cable Assembly Type Identifie

35

Device Address (2:0)

36

Device Address (2:0)

37

Chip Select (1:0)

38

Chip Select (1:0)

39

Drive Active/Slave Present

40

Ground

CSEL

PDIAG

DASP–

Host

–

28
34
39

Figure 9 I/O pins and supported ATA signals

DB35.3 Series SATA/PATA Product Manual, Rev. F

27

4.3 Supported ATA commands

The following table lists ATA-standard commands that the drive supports. For a detailed description of the ATA
commands, refer to the Serial ATA: High Speed Serialized AT Attachment specification for SATA models or the
Draft ATA-7 Standard for the PATA models. See “S.M.A.R.T. commands” on page 33 for details and subcom-
mands used in the S.M.A.R.T. implementation.

Table 6: Supported ATA commands

Command nam e Command code (in hex)

Check Power Mode 98H or E5
Device Configuration Freeze Lock B1H / C1
Device Configuration Identify B1H / C2
Device Configuration Restore B1H / C0
Device Configuration Set B1H / C3
Device Rese t 08
Download Microcode 92
Execute Device Diagnostics 90
Flush Cache E7
Flush Cache Extended EA
Format Track 50
Identify Device EC

H
H
H

H

H

H

H

Idle 97H or E3
Idle Immediate 95H or E1
Initialize Device Parameters 91
Read Buffer E4
Read DMA C8
Read DMA Extended 25
Read DMA Without Retries C9
Read Log Ext 2F
Read Multiple C4
Read Multiple Extended 29
Read Native Max Address F8
Read Native Max Address Extended 27
Read Sectors 20
Read Sectors Extended 24
Read Sectors Without Retries 21
Read Verify Sectors 40
Read Verify Sectors Extended 42
Read Verify Sectors Without Retries 41
Recalibrate 10
Security Disable Password F6

H

H
H

H

H

H

H
H
H
H
H
H
H
H
H
H
H
H

H
H
H
H
H

H

H

28

DB35.3 Series SATA/PATA Product Manual, Rev. F

Command name Command code (in hex)

Security Erase Prepare F3
Security Erase Unit F4
Security Freeze F5
Security Set Password F1
Securit y Un l o ck F2
Seek 70
Set Features EF
Set Max Address F9

H
H
H
H
H
H

H

H

Note: Individual Set Max Address
commands are identified by the value
placed in the Set Max Features regis

-

ter as defined to the right.

Set Max Address Extended 37
Set Multiple Mode C6

H

H

Sleep 99H or E6
S.M.A.R.T. Disable Operations B0H / D9
S.M.A.R.T. Enable/Disable Autosave B0H / D2
S.M.A.R.T. Enable Operations B0H / D8
S.M.A.R.T. Execute Offline B0H / D4
S.M.A.R.T. Read Attribute Thresholds B0H / D1
S.M.A.R.T. Read Data B0H / D0
S.M.A.R.T. Read Log Sector B0H / D5
S.M.A.R.T. Return Status B0H / DA
S.M.A.R.T. Save Attribute Values B0H / D3
S.M.A.R.T. Write Log Sector B0H / D6
Standby 96H or E2
St andby Immediate 94H or E0
Write Buffer E8
Write DMA CA
Write DMA Extended 35
Write DMA FUA Extended CD
Write DMA Without Retries CB
Write Log Extended 3F
Write Multiple C5
Write Multiple Extended 39
Write Multiple FUA Extended (SATA only) CE
Write Sectors 30
Write Sectors Without Retries 31
Write Sectors Extended 34

H

H

H

(SAT A only)

H
H

H

H

H

(SATA only)

H
H
H
H

Address:

Password:

Unlock:

Freeze Lock:

H
H
H
H
H
H
H
H

H
H
H

H
H

Lock:

00
01
02
03
04

H
H
H
H
H

DB35.3 Series SATA/PATA Product Manual, Rev. F

29

4.4 Identify Device command

The Identify Device command (command code ECH) transfers information about the drive to the host following
power up. The data is organized as a single 512-byte block of data, whose contents are shown in the Table 6
on page 27. All reserved bits or words should be set to zero. Parameters listed with an “x” are drive-specific or
vary with the state of the drive. See Section 2.0 on page 3 for default parameter settings.

The following commands contain drive-specific features that may not be included in the Serial ATA specifica­tion for SAT A mode ls or Draft ATA-7 Standard for PATA models.

Word Description Value

0

Configuration information:

• Bit 15: 0 = ATA; 1 = ATAPI

• Bit 7: removable media

0C5A

• Bit 6: removable controller

• Bit 0: reserved
1 Number of logical cylinders 16,383
2 ATA-reserved 0000
3 Number of logical heads 16
4 Retired 0000
5 Retired 0000
6 Number of logical sectors per logical track: 63 003F
7–9 Retired 0000
10–19 Serial number: (20 ASCII characters, 0000H = none) ASCII
20 Retired 0000
21 Retired 0400
22 Obsolete 0000
23–26 Firmware revision (8 ASCII character string, padded with blanks to

x.xx

end of string)

27–46 Drive model number

(40 ASCII characters, padded with blanks to end of string)

ST3xxxxxSCE - SATA models
ST3xxxxxACE - PATA mode ls

H

H

H
H
H
H

H
H
H

47 (Bits 7–0) Maximum sectors per interrupt on Read multiple and

8010

Write multiple (16)
48 Reserved 0000
49 Standard Standby timer, IORDY supported and may be disabled 2F00
50 ATA-reserved 0000
51 PIO data-transfer cycle timing mode 0200
52 Retired 0200
53 Words 54–58, 64–70 and 88 are valid 0007
54 Number of current logical cylinders xxxx
55 Number of current logical heads xxxx
56 Number of current logical sectors per logical track xxxx
57–58 Current capacity in sectors xxxx
59 Number of sectors transferred during a Read Multiple or Write Multi-

xxxx

ple command

H

H
H
H
H
H

H
H
H
H
H
H

30

DB35.3 Series SATA/PATA Product Manual, Rev. F

Word Description Value

60–61 Total number of user-addressable LBA sectors available

0FFFFFFFh*
(see Section 2.1.1 for related information)
*Note: The maximum value allowed in this field is: 0FFFFFFFh

(268,435,455 sectors, 137 Gbytes). Drives with capacities over 137
Gbytes will have 0FFFFFFFh in this field and the actual number of
user-addressable LBAs specified in w ords 100-103. T his is required
for drives that support the 48-bit addressing feature.

62 Retired 0000
63 Multiword DMA active and modes supported

xx07
(see note following this table)

64 Advanced PIO modes supported (modes 3 and 4 supported) 0003
65 Minimum multiword DMA transfer cycle time per word (120 nsec) 0078
66 Recommended multiword DMA transfer cycle time per word (120

0078
nsec)

67 Minimum PIO cycle time without IORDY flow control (240 nsec) 00F0
68 Minimum PIO cycle time with IORDY flow control (120 nsec) 0078
69–74 ATA-reserved 0000
75 Queue depth 0000
76 Serial ATA capabilities xxxx
77 Reserved for future Serial ATA definition xxxx
78 Serial A TA features supported xxxx
79 Serial A TA features enabled xxxx
80 Major version number 007E
81 Minor version number 0000
82 Command sets supported 346B
83 Command sets supported 7D01
84 Command sets support extension 4003
85 Command sets enabled 34xx
86 Command sets enabled 3xxx
87 Command sets enable extension 4003
88 Ultra DMA support and current mode

xx3F
(see note following this table)

H

H

H
H
H

H
H
H
H

(SAT A only)

H

(SAT A only)

H

(SAT A only)

H

(SAT A only)

H

H

H

H
H

H

H

H

H

H

89 Security erase time 0000
90 Enhanced security erase time 0000
92 Master password revision code FFFE
93 Hardware reset value (see description following this table) xxxx
95–99 ATA-reserved 0000
100–103 Total number of user-addressable LBA sectors available (see Sec-

tion 2.1.1 for related information). These words are required for
drives that support the 48-bit addressing feature. Maximum value:
0000FFFFFFFFFFFFh.

104–127 ATA-reserved 0000

H
H

H

H

H

160 GB models = 312,581,808

80 GB models = 156,301,488

H

DB35.3 Series SATA/PATA Product Manual, Rev. F

31

Word Description Value

128 Security status 0001
129–159 Seagate-reserved xxxx
160–254 ATA-reserved 0000
255 Inte gri ty word xxA5

H

H

H
H

Note. Advanced Power Management (APM) and Automatic Acoustic Management (AAM) features are not supported
Note. See the bit descriptions below for words 63, 88, and 93 of the Identify Drive data:

Description (if bit is set to 1)

Bit Word 63

0 Multiword DMA mode 0 is supported.
1 Multiword DMA mode 1 is supported.
2 Multiword DMA mode 2 is supported.
8 Multiword DMA mode 0 is currently active.
9 Multiword DMA mode 1 is currently active.
10 Multiword DMA mode 2 is currently active.

Bit Word 88

0 Ultra DMA mode 0 is supported.
1 Ultra DMA mode 1 is supported.
2 Ultra DMA mode 2 is supported.
3 Ultra DMA mode 3 is supported.
4 Ultra DMA mode 4 is supported.
5 Ultra DMA mode 5 is supported.
8 Ultra DMA mode 0 is currently active.
9 Ultra DMA mode 1 is currently active.
10 Ultra DMA mode 2 is currently active.
11 Ultra DMA mode 3 is currently active.
12 Ultra DMA mode 4 is currently active.
13 Ultra DMA mode 5 is currently active.

Bit

Word 93

(PATA only)

13 1 = 80-conductor cable detected, CBLID above VIH

0 = 40-conductor cable detected, CBLID below VIL

32

DB35.3 Series SATA/PATA Product Manual, Rev. F

4.5 Set Featur e s co m m an d

This command con trols the implement ation of var ious features that the dr iv e sup port s. When the drive receives
this command, it sets BSY, checks the contents of the Features register, clears BSY and generates an inter­rupt. If the value in the register does not represent a feature that the drive supports, the command is aborted.
Power-on default has the read look-ahead and write caching features enabled. The acceptable values for the
Features register are defined as follows:

02
03

10
55
82
90
AA
F1

Enable write cache (default).

H

Set transfer mode (based on value in Sector Count register).

H

Sector Count register values:
00
01
08
09
0A
0B
0C
20
21
22
40
41
42
43
44
45
Enable use of SATA features

H

Disable read look-ahead (read cache) feature

H

Disable write cache

H

Disable use of SATA features

H

Enable read look-ahead (read cache) feature (default).

H

Report full capacity available

H

Set PIO mode to default (PIO mode 2).

H

Set PIO mode to default and disable IORDY (PIO mode 2).

H

PIO mode 0

H

PIO mode 1

H

PIO mode 2

H

PIO mode 3

H

PIO mode 4 (default)

H

Multiword DMA mode 0

H

Multiword DMA mode 1

H

Multiword DMA mode 2

H

Ultra DMA mode 0

H

Ultra DMA mode 1

H

Ultra DMA mode 2

H

Ultra DMA mode 3

H

Ultra DMA mode 4

H

Ultra DMA mode 5

H

(SATA only)

(SATA only)

Note. At power-on, or after a hardware or software reset, the default values of the features are as indi-

cated above.

DB35.3 Series SATA/PATA Product Manual, Rev. F

33

4.6 S.M.A.R.T. commands

S.M.A.R.T. provides near-term failure prediction for disc drives. When S.M.A.R.T. is enabled, the drive moni­tors predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines
that a failure is likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable.
S.M.A.R.T. predictability is limited to the attributes the drive can monitor. For more information on S.M.A.R.T.
commands and implementation, see the Draft ATA-7 Standard.

SeaTools diagnostic software activates a built-in drive self-test (DST S.M.A.R.T. command for D4H) that elimi­nates unnecessary drive returns. The diagnostic software ships with all new drives and is also available at:
http://seatools.seagate.com.

This drive is ship ped w ith S. M.A.R .T. features disab led. You must have a recent BI OS or so ft wa re pa ckage that
supports S.M.A.R.T. to enable this feature. The table below shows the S.M.A.R.T. command codes that the
drive uses.

Code in features
register S.M.A.R.T. command

D0
D2
D3
D4
D5
D6
D8
D9
DA

H
H
H
H
H
H
H
H

H

S.M.A.R.T. Read Data
S.M.A.R.T. Enable/Disable Attribute Autosave
S.M.A.R.T. Save Attribute Values
S.M.A.R.T. Execute Off-line Immediate (runs DST)
S.M.A.R.T. Read Log Sector
S.M.A.R.T. Write Log Sector
S.M.A.R.T. Enable Operations
S.M.A.R.T. Disable Operations
S.M.A.R.T. Return Status

Note. If an appropriate code is not written to the Features Register, the command is aborted and 0x 04

(abort) is written to the Error register.

34

DB35.3 Series SATA/PATA Product Manual, Rev. F

DB35.3 Series SATA/PATA Product Manual, Rev. F

35

5.0 Seagate Technology support services

Internet

For information regarding Seagate products and services, visit www.seagate.com. Worldwide support is
available 24 hours daily by email for your questions.

Presales Support:

[e-mail]

T e chn i cal Supp or t:

[e-mail]

Warranty Support:

http://www.seagate.com/support/service/index.html

mySeagate

my.seagate.com is the industry's first Web portal designed specifically for OEMs and distributors. It provides
self-service access to critical applications, personalized content and the tools that allow our partners to
manage their Seagate account functions. Submit pricing requests, orders and returns through a single,
password-protected Web interface-anytime, anywhere in the world.

spp.seagate.com

spp.seagate.com supports Seagate resellers with product information, program benefits and sales tools. You
may register for customiz e d communi cation s that ar e not ava ila ble on the web. The s e communi catio ns cont ai n
product launch, EOL, pricing, promotions and other channel-related information. To learn more about the
benefits or to register, go to spp.seagate.com, any time, from anywhere in the world.

Seagate Service Centers

Presales Support

Our Presales Support staff can help you determine which Seagate products are best suited for your specific
application or computer system, as well as product availability and compatibility.

Technical Support

Seagate technical support is available to assist you online at support.seagate.com or through one of our call
centers. Have your system configuration information and your “ST” model number available.

SeaTDD™ ([phone]) is a telecommunications device for the deaf (TDD). You can send questions or
comments 24 hours daily and exchange messages with a technical support specialist during normal business
hours for the call center in your region.

36

DB35.3 Series SATA/PATA Product Manual, Rev. F

Customer Service Operations

Warranty Service

Seagate offer s worldwi de custom er supp ort for Seagate pro duct s . Seagate distr i butors, OEM s and other direct
customers should contact their Seagate Customer Service Operations (CSO) representative for warranty­related issues. Resellers or end users of drive products should contact their place of purchase or Seagate
warranty service for assistance. Have your serial number and model or part number available.

Data Recove ry Servic e s

Seagate offers data recovery services for all formats and all brands of storage media. Our data recovery
services labs are currently located throughout the world. . Additional information, including an online request
form and data loss prevention resources, is available at http://services.seagate.com/index.aspx

Authorized Service Centers

Seagate Service Centers are available on a global basis for the return of defective products. Contact your
customer support representative for the location nearest you.

USA/Canada/Latin America support services

For an extensive list of telephone numbers to technical support, presales and warranty service in USA/
Canada/Latin America, including business hours, go to the "Contact Us" page on www.seagate.com.

Global Customer Support

Presales, Technical, and Warranty Support
Call Center Toll-free Direct dial

USA, Canada,
and Mexico 1-800-SEAGATE [phone]

Data Recovery Services
Call Center Toll-free Direct dial FAX

USA, Canada, 1-800-475-01435 [phone]-475-0158
and Mexico [phone]

Europe, the Middle East and Africa Support Services

For an extensive list of telephone numbers to technical support, presales and warranty service in Europe, the
Middle East and Africa, go to the "Contact Us" page on www.seagate.com.

Asia/Pacific Support Services

For an extensive list of telephone numbers to technical support, presales and warranty service in Asia/Pacific,
go to the "Contact Us" page on www.seagate.com.

DB35.3 Series SATA/PATA Product Manual, Rev. F

37

Index

A

acoustics 12
Active mode 10
agency certification (regulatory) 14
altitude 11
ambient conditions 3
areal density 6
ATA-standard commands 27
Australian C-Tick 14
autodetection 1
average seek time 7

B

BPI 6
breather filter hole precautions 19
burst 1

C

cable 22
cable select 1
cables and connectors 20
cable-select option 21
cache 1
case temperature 11
CE mark 14
certification 14
Check Power Mode 27
China RoHS directive 16
commands 27
compliance 14
conducted noise 9
conducted RF immunity 13
configuring PATA drive 21
configuring SATA drive 20
configuring the drive 17
connector pins 26
connectors 22
contact start-stop cycles 13
Corrosive environmen t 16
CSA C22.2 (950) 14
CSEL 21
C-Tick 14
current profile 9
cycles 13

D

data-transfer rates 1
DC power 8
density 6
Device Configuration Freeze Lock 27

Device Configuration Identify 27
Device Configuration Restore 27
Device Configuration Set 27
Device Reset 27
diagnostic software 1, 33
dissipation 8
Download Microcode 27
drive diagnostics 7
drive monitoring 1
drive self-test 1, 33
DST 33

E

electrical fast transient 13
electromagnetic compatibility 14
Electromagnetic Compatibility Directive 14
electromagnetic immunity 13
electrostatic discharge 13
EMC compliance 14
EN 60950 14
enclosures 14
environmental specification s 11
EPRML 6
error-correction algorithms 1
errors 13
EU RoHS directive 16
European Union 14
Execute Device Diagnostics 27

F

failure prediction 33
FCC verification 14
features 1
Features register 32
Flush Cache 27
Flush Cache Extended 27
Format Track 27
formatted capacity 6
frequency 13

G

guaranteed sectors 6

H

handling 17
handling the drive 17
heads 1
height 7
humidity 11

I

I/O data-transfer rate 6
Identify Device 27

38

DB35.3 Series SATA/PATA Product Manual, Rev. F

Identify Device command 29
Idle 27
Idle and Standby timers 10
Idle Immediate 27
Idle mode 10
Idle mode power 8
IEC950 14
Information Technology Equipment 14
Initialize Device Parameters 27
interface 6, 23
interface signals 26
interference 14
internal data-transfer rate OD 6
ISO document 7779 12

J

jumper settings 21

K

Korean RRL 14

L

LBA mode 6
length 7
logical geometry 6

M

maintenance 13
master 21
master/slave 1, 2
Master/slave configuration 21
maximum temperature 11
measurement locations 11
modes 26
monitoring 1
mounting the drive 17, 18

N

noise 9
nominal power 3
nonoperating shock 11
nonoperating vibration 12
nonrecoverable read errors 13

O

operating power and current 8
operating shock 11
operating vibration 12
orientation 18

P

PATA interface 26

physical characteristics 7
pins 26
PIO 26
point-to-point 2, 20
power consumption 8
power management 10
power specifications 8
power-management modes 10
Power-on to Ready 7
precautions 18
preventive maintenance 13
programmable power management 10

R

radiated RF immunity 13
radio and television interference 14
radio frequency 13
random track location 8
Read Buffer 27
Read DMA 27
Read DMA Extended 27
Read DMA without Retries 27
read errors 13
Read Log Ext 27
Read Multiple 1, 27
Read Multiple Extended 27
Read Native Max Address 27
Read Native Max Address Extended 27
Read Sectors 27
Read Sectors Extended 27
Read Sectors Without Retries 27
Read Verify Sectors 27
Read Verify Sectors Extended 27
Read Verify Sectors Without Retries 27
read/write power and current 8
Recalibrate 27
recording and interface technology 6
recording density 6
recording heads 1
recording method 6
register 32
relative humidity 11
reliability 13
resistance 9
resistive load 9
RF 13
RoHS 16

S

S.M.A.R.T. commands 33
S.M.A.R.T. Disable Operations 28
S.M.A.R.T. drive monitoring 1
S.M.A.R.T. Enable Operations 28
S.M.A.R.T. Enable/Disable Autosave 28

DB35.3 Series SATA/PATA Product Manual, Rev. F

39

S.M.A.R.T. Execute Offline 28
S.M.A.R.T. Read Attribute Thresholds 28
S.M.A.R.T. Read Data 28
S.M.A.R.T. Read Log Sector 28
S.M.A.R.T. Return Status 28
S.M.A.R.T. Sav e Attribute Values 28
S.M.A.R.T. Write Log sector 28
safety certification 14
SATA 24
SATA interface 24
screws 18
SeaTools 1, 33
sectors 6
Security Disable Password 27
Security Erase Prepare 28
Security Erase Unit 28
Security Freeze 28
Security Set Password 28
Security Unlock 28
Seek 28
seek mode 8
seek temperature 7
seek time 7
serial ATA ports 2
servo electronics 8
Set Features 28
Set Features command 32
Set Max Address 28
Set Max Address Extended 28
Set Multiple Mode 28
shock 11
signals 26
single-track seeks 7
slave 21
Sleep 8, 28
Sleep mode 10
sound 12
specification summary table 3
specifications 3
spindle speed 6
Spinup 8
spinup power 8
Standby 8, 28
Standby Immediate 28
Standby mode 8, 10
Standby to Ready 7
start/stop times 7
start-stop cycles 13
static-discharge precautions 17
stop times 7
subassembly 14
support services 35
surge immunity 13

T

technical support services 35
temperature 11
temperature gradient 11
timers 10
TMR 1
track density 6
track-to-track seek time 7
TUV North America 14

U

UL 1950 14
Ultra ATA/100 22
Ultra DMA 22

V

vibration 11
voltage 9
voltage dips, interrupts 13
voltage tolerance 9

W

weight 7
wet bulb temperature 11
width 7
Write Buffer 28
Write DMA 28
Write DMA Extended 28
Write DMA FUA Extended 28
Write DMA Without Retries 28
Write Log Extended 28
Write Multiple 1, 28
Write Multiple Extended 28
Write Multiple FUA Extended 28
Write Sectors 28
Write Sectors Extended 28
Write Sectors Without Retries 28

40

DB35.3 Series SATA/PATA Product Manual, Rev. F

Seagate Technology LLC

920 Disc Drive, Scotts Valley, California 95066-4544, USA

Publication Number: 100439554, Rev. F, Printed in U.S.A.
