Product Manual
Pipeline HD Pro Serial ATA
ST31000533CS
100527225
Rev. C
Octoberber 2008
Revision history
Revision Date Sheets affected or comments
Rev A 08/04/08 Initial release.
Rev. B 09/23/08 8.
Rev. C 10/20/08 5, 7, 13, 15 and 31-32.
Copyright © 2008 Seagate Technology LLC. All rights reserved. Printed in U.S.A.
Publication number: 100527225, Rev. C, Octoberber 2008
Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC
in the United States and/or other countries. Pipeline HD, SeaTools and SeaTDD are either trademarks or
registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States
and/or other countries. All other trademarks or registered trademarks are the property of their respective
owners.
When referring to hard drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or
TB, equals one trillion bytes. Your computer's operating system may use a different standard of measure
ment and report a lower capacity. In addition, some of the listed capacity is used for formatting and other
functions, and thus will not be available for data storage. Seagate reserves the right to change, without
notice, product offerings or specifications
-
Contents
1.0 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 About the Serial ATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.0 Drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 Formatted capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1.1 LBA mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Default logical geometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Recording and interface technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.4 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.5 Seek time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.6 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.7 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.7.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.7.2 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.7.3 Voltage tolerance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.7.4 Power-management modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.8 Environmental specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.8.1 Ambient temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.8.2 Temperature gradient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.8.3 Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.8.4 Altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.8.5 Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.8.6 Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.9 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.9.1 Test for Prominent Discrete Tones (PDTs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.10 Electromagnetic immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.11 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.11.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF) . . . 13
2.12 Agency certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.12.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.12.2 Electromagnetic compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.12.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.13 Environmental protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.13.1 European Union Restriction of Hazardous Substances (RoHS) Directive . . . . . 15
2.14 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.0 Configuring and mounting the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.1 Handling and static-discharge precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.2 Configuring the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.3 Serial ATA cables and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.4 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.0 Serial ATA (SATA) interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1 Hot-Plug compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.2 Serial ATA device plug connector pin definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.3 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.3.1 Identify Device command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.3.2 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.3.3 S.M.A.R.T. commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.0 Seagate Technology support services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Pipeline HD Pro Serial ATA Product Manual, Rev. C i
ii Pipeline HD Pro Serial ATA Product Manual, Rev. C
List of Figures
Figure 1. Serial ATA connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 2. Attaching SATA cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

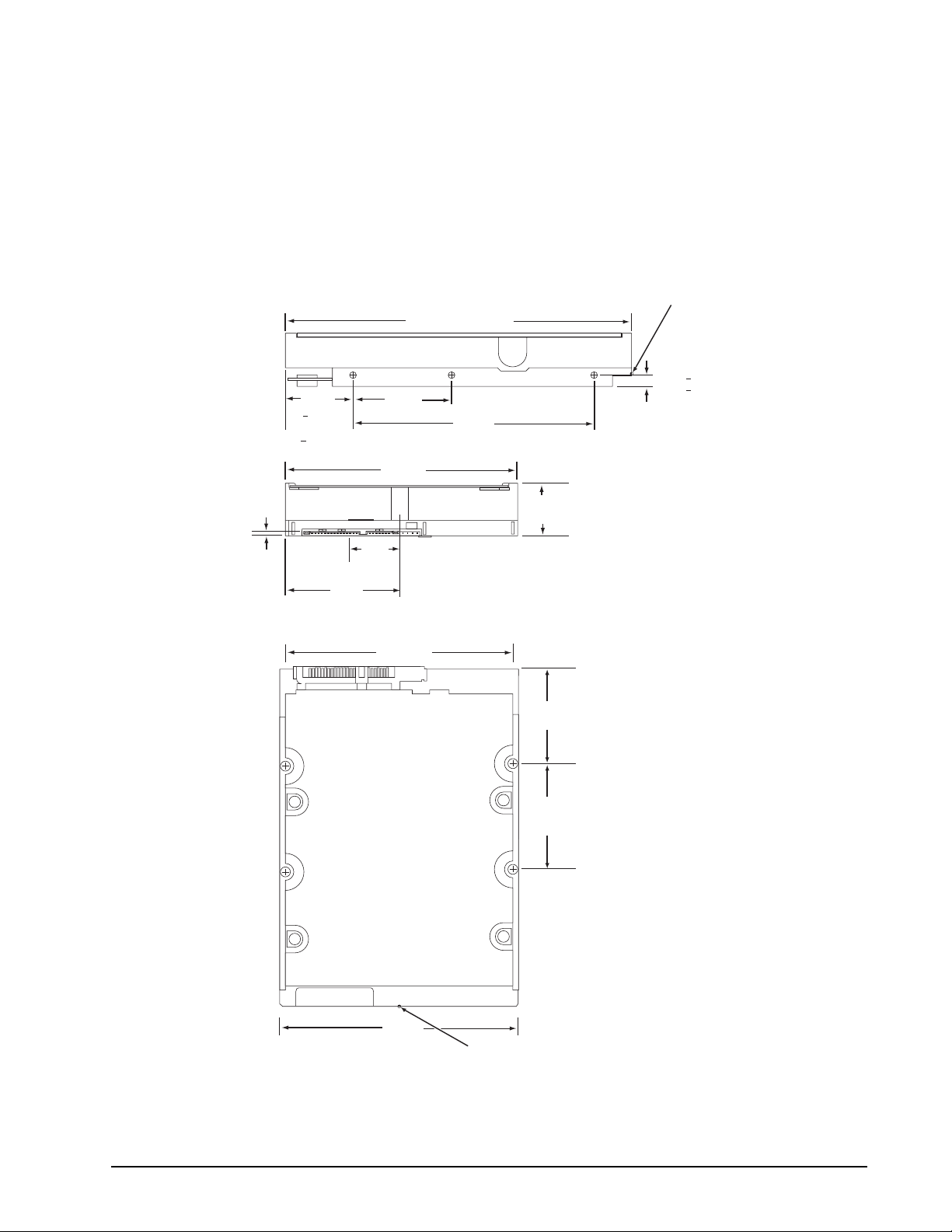

Figure 3. Mounting dimensions (1000 GB models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Pipeline HD Pro Serial ATA Product Manual, Rev. C iii
1.0 Introduction
This manual describes the functional, mechanical and interface specifications for the following Seagate
Pipeline HD
ST31000533CS
These drives provide the following key features:
• 7,200 RPM spindle speed.
• High instantaneous (burst) data-transfer rates (up to 300 Mbytes per second).
• Perpendicular recording, Tunneling Magnetoresistive (TMR) recording heads and EPRML technology, for
increased areal density.
• State-of-the-art cache and on-the-fly error-correction algorithms.
• Native Command Queueing with command ordering to increase performance in demanding applications.
• Full-track multiple-sector transfer capability without local processor intervention.
• Quiet operation.
• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• Support for S.M.A.R.T. drive monitoring and reporting.
• Supports latching SATA cables and connectors.
• Worldwide Name (WWN) capability uniquely identifies the drive.
®
Pro Serial ATA model drives:
Pipeline HD Pro Serial ATA Product Manual, Rev. C 1
1.1 About the Serial ATA interface
The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. The primary
advantages include:
• Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other configuration options.
• Thinner and more flexible cabling for improved enclosure airflow and ease of installation.
• Scalability to higher performance levels.
In addition, Serial ATA makes the transition from parallel ATA easy by providing legacy software support. Serial
ATA was designed to allow you to install a Serial ATA host adapter and Serial ATA disc drive in your current
system and expect all of your existing applications to work as normal.
The Serial ATA interface connects each disc drive in a point-to-point configuration with the Serial ATA host
adapter. There is no master/slave relationship with Serial ATA devices like there is with parallel ATA. If two
drives are attached on one Serial ATA host adapter, the host operating system views the two devices as if they
were both “masters” on two separate ports. This essentially means both drives behave as if they are Device 0
(master) devices.
Note. The host adapter may, optionally, emulate a master/slave environment to host software where two
devices on separate Serial ATA ports are represented to host software as a Device 0 (master) and
Device 1 (slave) accessed at the same set of host bus addresses. A host adapter that emulates a
master/slave environment manages two sets of shadow registers. This is not a typical Serial ATA
environment.
The Serial ATA host adapter and drive share the function of emulating parallel ATA device behavior to provide
backward compatibility with existing host systems and software. The Command and Control Block registers,
PIO and DMA data transfers, resets, and interrupts are all emulated.
The Serial ATA host adapter contains a set of registers that shadow the contents of the traditional device registers, referred to as the Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA International
Organization: Serial ATA Revision 2.6”. The specification can be downloaded from www.sata-io.org.
2 Pipeline HD Pro Serial ATA Product Manual, Rev. C
2.0 Drive specifications
Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal
power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate the
following drive models:
ST31000533CS
Specification summary tables
The specifications listed in the following tables are for quick reference. For details on specification measurement or definition, see the appropriate section of this manual.
Pipeline HD Pro Serial ATA Product Manual, Rev. C 3
Table 1: Drive specifications summary for 1000 Gbyte models
Drive specification ST31000533CS
Formatted capacity (512 bytes/sector)* 1000 Gbytes
Guaranteed sectors 1,953,525,168
Heads 6
Discs 3
Bytes per sector 512
Default sectors per track 63
Default read/write heads 16
Default cylinders 16,383
Recording density 1300 kbits/in max
Track density 182 ktracks/in avg
Areal density 228 Gbits/in2 avg
Spindle speed 7,200 RPM
Internal data transfer rate 1520 Mbits/sec max
Sustained data transfer rate OD 120 Mbytes/sec max
I/O data-transfer rate 300 Mbytes/sec max
ATA data-transfer modes supported PIO modes 0–4
Cache buffer 32 Mbytes
Height (max) 26.1 mm (1.028 inches)
Width (max) 101.6 mm (4.000 inches) +/- 0.010 inches
Length (max) 146.99 mm (5.787 inches)
Weight (typical) 630 grams ( 1.389 lb.)
Average latency 4.16 msec
Power-on to ready 20 sec max
Standby to ready 15 sec max
Track-to-track seek time <1.0 msec typical read;
Average seek, read <14.0 msec typical
Average seek, write <15.0 msec typical
Startup current (typical) 12V (peak) 2.0 amps
Voltage tolerance (including noise) 5V +10% / -7.5%
Ambient temperature (drive case) 0° to 60°C (operating)
Temperature gradient 20°C per hour max (operating)
Relative humidity 5% to 95% (operating)
Relative humidity gradient 30% per hour max
Wet bulb temperature 37.7°C max (operating)
Altitude, operating –60.96 m to 3,048 m
Altitude, nonoperating
(below mean sea level, max)
Operational Shock 70 Gs max at 2 msec
Non-Operational Shock 300 Gs max at 2 msec
Multiword DMA modes 0–2
Ultra DMA modes 0–6
<1.2 msec typical write
12V +10% / -7.5%
–40° to 70°C (nonoperating)
30°C per hour max (nonoperating)
5% to 95% (nonoperating)
40.0°C max (nonoperating)
(–200 ft. to 10,000+ ft.)
–60.96 m to 12,192 m
(–200 ft. to 40,000+ ft.)
4 Pipeline HD Pro Serial ATA Product Manual, Rev. C
Drive specification ST31000533CS
Vibration, operating 2–22 Hz: 0.25 Gs, Limited displacement
Vibration, nonoperating 5–22 Hz: 2.0 Gs
Drive acoustics, sound power
Idle** 2.9 bels (typical)
CE Seek Profile 3.1 bels (typical)
Nonrecoverable read errors 1 per 10
Annualized Failure Rate (AFR) 0.62%
Warranty To determine the warranty for a specific drive, use a web browser to access the following
Contact start-stop cycles 50,000 at 25°C, 50% rel. humidity
Supports Hotplug operation per the
Serial ATA Revision 2.5 specification
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment
and formatting.
**During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and
power to operational levels.
22–350 Hz: 0.50 Gs
350–500 Hz:: 0.25 Gs
22–350 Hz: 5.0 Gs
350–500 Hz:: 2.0 Gs
3.1 bels (max)
3.2 bels (max)
14
bits read
web page:
From this page, click on the “Verify Your Warranty” link. You will be asked to provide the
drive serial number, model number (or part number) and country of purchase. The system
will display the warranty information for your drive
Yes
support.seagate.com/customer/warranty_validation.jsp
Pipeline HD Pro Serial ATA Product Manual, Rev. C 5
2.1 Formatted capacity
Model
ST31000533CS 1000 Gbytes 1,953,525,168 512
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment
and formatting.
Formatted
capacity*
Guaranteed
sectors
Bytes per sector
2.1.1 LBA mode
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1,
where n is the number of guaranteed sectors as defined above.
See Section 4.3.1, "Identify Device command" (words 60-61 and 100-103) for additional information about 48bit addressing support of drives with capacities over 137 Gbytes.
2.2 Default logical geometry
Cylinders Read/write heads Sectors per track
16,383 16 63
LBA mode
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1,
where n is the number of guaranteed sectors as defined above.
2.3 Recording and interface technology
ST31000533CS
Interface Serial ATA (SATA)
Recording method Perpendicular
Recording density (kbits/inch max) 1300
Track density (ktracks/inch avg) 182
Areal density (Gbits/inch2 avg) 228
Spindle speed (RPM) 7,200 ± 0.2%
Internal data transfer rate (Mbits/sec max) 1520
Sustained data transfer rate (Mbytes/sec max) 120
I/O data-transfer rate (Mbytes/sec max) 300
6 Pipeline HD Pro Serial ATA Product Manual, Rev. C
2.4 Physical characteristics
Maximum height
1000 GB models 26.1 mm (1.028 inches)
Maximum width 101.6 mm (4.000 +/- 0.010 inches)
Maximum length 146.99 mm (5.787 inches)
Typical weight
1000 GB models 630 grams (1.389 lbs)
Cache buffer
1000 GB models 32 Mbytes (32,768 kbytes)
2.5 Seek time
Seek measurements are taken with nominal power at 25°C ambient temperature. All times are measured using
drive diagnostics. The specifications in the table below are defined as follows:
• Track-to-track seek time is an average of all possible single-track seeks in both directions.
• Average seek time is a true statistical random average of at least 5,000 measurements of seeks between
random tracks, less overhead.
Typical seek times (msec) Read Write
Track-to-track <1.0 <1.2
Average (1000 GB models) <14.0 <15.0
Average latency: 4.16
*Measured in performance mode.
**Measured in quiet mode.
Note. These drives are designed to consistently meet the seek times represented in this manual. Physical
seeks, regardless of mode (such as track-to-track and average), are expected to meet the noted
values. However, due to the manner in which these drives are formatted, benchmark tests that
include command overhead or measure logical seeks may produce results that vary from these
specifications.
2.6 Start/stop times
1000 GB Models
Power-on to Ready (sec) 20 (max)
Standby to Ready (sec) 15 (max)
Ready to spindle stop (sec) 10 (max)
Pipeline HD Pro Serial ATA Product Manual, Rev. C 7
2.7 Power specifications
The drive receives DC power (+5V or +12V) through a native SATA power connector. See Figure 2 on page 18.
2.7.1 Power consumption
Power requirements for the drives are listed in the table on page 9. Typical power measurements are based on
an average of drives tested, under nominal conditions, using 5.0V and 12.0V input voltage at 25°C ambient
temperature.
• Spinup power
Spinup power is measured from the time of power-on to the time that the drive spindle reaches operating
speed.
• Operating (CE seek profile)
Operating power is measured by simulating a typical PVR operating environment, using a 50% write 50%
read algorithm.
• Idle mode power
Idle mode power is measured with the drive up to speed, with servo electronics active and with the heads in
a random track location.
• Standby mode
During Standby mode, the drive accepts commands, but the drive is not spinning, and the servo and read/
write electronics are in power-down mode.
Table 2: DC power requirements
Power dissipation (3-disc values shown) Avg (watts 25° C) Avg 5V typ amps Avg 12V typ amps
Spinup — — 2.0 (peak)
Idle* 6.938 0.298 0.454
Operating 8.766 0.414 0.598
Standby 0.99 0.150 0.020
Sleep 0.99 0.150 0.020
*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and
power to operational levels.
2.7.2 Conducted noise
Input noise ripple is measured at the host system power supply across an equivalent 80-ohm resistive load on
the +12 volt line or an equivalent 15-ohm resistive load on the +5 volt line.
• Using 12-volt power, the drive is expected to operate with a maximum of 120 mV peak-to-peak square-wave
injected noise at up to 10 MHz.
• Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave
injected noise at up to 10 MHz.
Note. Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write
current.
2.7.3 Voltage tolerance
Voltage tolerance (including noise):
5V +10% / -7.5%
12V +10% / -7.5%
8 Pipeline HD Pro Serial ATA Product Manual, Rev. C
2.7.4 Power-management modes
The drive provides programmable power management to provide greater energy efficiency. In most systems,
you can control power management through the system setup program. The drive features the following
power-management modes:
Power modes Heads Spindle Buffer
Active Tracking Rotating Enabled
Idle Tracking Rotating Enabled
Standby Parked Stopped Enabled
Sleep Parked Stopped Disabled
• Active mode
The drive is in Active mode during the read/write and seek operations.
• Idle mode
The buffer remains enabled, and the drive accepts all commands and returns to Active mode any time disc
access is necessary.
• Standby mode
The drive enters Standby mode when the host sends a Standby Immediate command. If the host has set
the standby timer, the drive can also enter Standby mode automatically after the drive has been inactive for
a specifiable length of time. The standby timer delay is established using a Standby or Idle command. In
Standby mode, the drive buffer is enabled, the heads are parked and the spindle is at rest. The drive
accepts all commands and returns to Active mode any time disc access is necessary.
•Sleep mode
The drive enters Sleep mode after receiving a Sleep command from the host. In Sleep mode, the drive
buffer is disabled, the heads are parked and the spindle is at rest. The drive leaves Sleep mode after it
receives a Hard Reset or Soft Reset from the host. After receiving a reset, the drive exits Sleep mode and
enters Standby mode with all current translation parameters intact.
• Idle and Standby timers
Each time the drive performs an Active function (read, write or seek), the standby timer is reinitialized and
begins counting down from its specified delay times to zero. If the standby timer reaches zero before any
drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the
drive accepts all commands and returns to Active mode when disc access is necessary.
Pipeline HD Pro Serial ATA Product Manual, Rev. C 9
2.8 Environmental specifications
2.8.1 Ambient temperature
Ambient temperature is defined as the temperature of the environment immediately surrounding the drive.
Actual drive case temperature should not exceed 69°C (156°F) within the operating ambient conditions.
Above 1,000 feet (305 meters), the maximum temperature is derated linearly to 112°F (44°C) at 10,000 feet
(3,048 meters).
Operating: 0° to 60°C (32° to 140°F)
Nonoperating: –40° to 70°C (–40° to 158°F)
2.8.2 Temperature gradient
Operating: 20°C per hour (68°F per hour max), without condensation
Nonoperating: 30°C per hour (86°F per hour max)
2.8.3 Humidity
2.8.3.1 Relative humidity
Operating: 5% to 95% noncondensing (30% per hour max)
Nonoperating: 5% to 95% noncondensing (30% per hour max)
2.8.3.2 Wet bulb temperature
Operating: 37.7°C (99.9°F max)
Nonoperating: 40°C (104°F max)
2.8.4 Altitude
Operating: –60.96 m to 3,048 m (–200 ft. to 10,000+ ft.)
Nonoperating: –60.96 m to 12,192 m (–200 ft. to 40,000+ ft.)
2.8.5 Shock
All shock specifications assume that the drive is mounted securely with the input shock applied at the drive
mounting screws. Shock may be applied in the X, Y or Z axis.
2.8.5.1 Operating shock
These drives comply with the performance levels specified in this document when subjected to a maximum
operating shock of 70 Gs based on half-sine shock pulses of 2 msec. Shocks should not be repeated more
than two times per second.
10 Pipeline HD Pro Serial ATA Product Manual, Rev. C
2.8.5.2 Nonoperating shock
1000 GB models
The nonoperating shock level that the drive can experience without incurring physical damage or degradation
in performance when subsequently put into operation is 300 Gs based on a nonrepetitive half-sine shock pulse
of 2 msec duration.
2.8.6 Vibration
All vibration specifications assume that the drive is mounted securely with the input vibration applied at the
drive mounting screws. Vibration may be applied in the X, Y or Z axis.
2.8.6.1 Operating vibration
The maximum vibration levels that the drive may experience while meeting the performance standards specified in this document are specified below.
2–22 Hz 0.25 Gs (Limited displacement)
22–350 Hz 0.50 Gs
350–500 Hz 0.25 Gs
2.8.6.2 Nonoperating vibration
The maximum nonoperating vibration levels that the drive may experience without incurring physical damage
or degradation in performance when subsequently put into operation are specified below.
5–22 Hz 2.0 Gs (limited displacement)
22–350 Hz 5.0 Gs
350–500 Hz 2.0 Gs
Pipeline HD Pro Serial ATA Product Manual, Rev. C 11
2.9 Acoustics
Drive acoustics are measured as overall A-weighted acoustic sound power levels (no pure tones). All measurements are consistent with ISO document 7779. Sound power measurements are taken under essentially
free-field conditions over a reflecting plane. For all tests, the drive is oriented with the cover facing upward.
Note. For seek mode tests, the drive is placed in seek mode only. The number of seeks per second is defined
by the following equation:
(Number of seeks per second = 0.4 / (average latency + average access time)
Table 3: Fluid Dynamic Bearing (FDB) motor acoustics
Idle* CE Seek
1000 GB model
*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and
power to operational levels.
2.9 bels (typ)
3.1 bels (max)
3.1 bels (typ)
3.2 bels (max)
2.9.1 Test for Prominent Discrete Tones (PDTs)
Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this
process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO
389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation
of tone ratios according to Annex D of the ECMA-74 standards.
2.10 Electromagnetic immunity
When properly installed in a representative host system, the drive operates without errors or degradation in
performance when subjected to the radio frequency (RF) environments defined in the following table:
Table 4: Radio frequency environments
Test Description Performance level Reference standard
Electrostatic
discharge
Radiated RF
immunity
Electrical fast
transient
Contact, HCP, VCP: ± 4
80 to 1,000 MHz, 3 V/m,
80% AM with 1 kHz sine
900 MHz, 3 V/m, 50% pulse modulation @ 200 Hz
± 1 kV on AC mains, ± 0.5 kV on external I/O B EN 61000-4-4: 95
kV; Air: ± 8 kV B EN 61000-4-2: 95
A EN 61000-4-3: 96
ENV 50204: 95
Surge immunity ± 1 kV differential, ± 2 kV common, AC mains B EN 61000-4-5: 95
Conducted RF
immunity
Voltage dips,
interrupts
150 kHz to 80 MHz, 3 Vrms, 80% AM with 1 kHz sine A EN 61000-4-6: 97
0% open, 5 seconds
0% short, 5 seconds
40%, 0.10 seconds
70%, 0.01 seconds
C
C
C
B
EN 61000-4-11: 94
12 Pipeline HD Pro Serial ATA Product Manual, Rev. C
2.11 Reliability
2.11.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF)
The product shall achieve an Annualized Failure Rate (AFR) of 0.62% when operated in an environment of
ambient air temperatures of 25
increase the product AFR. AFR is a population statistics that is not relevant to individual units.
AFR specifications are based on the following assumptions for DVR/PVR environments:
• 8760 power-on-hours per year.
• 10,000 average motor start/stop cycles per year.
• Operations at nominal voltages.
• Temperatures outside the specifications in Section 2.8 may reduce the product reliability.
• Normal I/O duty cycle for PVR/DVR devices. Operation at excessive I/O duty cycle may degrade product
reliability.
The consumer electronics environment of power-on-hours, temperature, and I/O duty cycle affect the product
AFR.
Nonrecoverable read errors 1 per 1014 bits read, max
Annualized Failure Rate (AFR) 0.62% (nominal power, 25°C ambient temperature)
Contact start-stop cycles 50,000 cycles
°C. Operation at temperatures outside the specifications in Section 2.8 may
(at nominal voltage and temperature, with 60 cycles per hour and a 50% duty cycle)
Warranty To determine the warranty for a specific drive, use a web browser to access the
following web page:
From this page, click on the “Verify Your Warranty” link. You will be asked to provide
the drive serial number, model number (or part number) and country of purchase.
The system will display the warranty information for your drive
Preventive maintenance None required.
support.seagate.com/customer/warranty_validation.jsp
2.12 Agency certification
2.12.1 Safety certification
The drives are recognized in accordance with UL 1950 and CSA C22.2 (950) and meet all applicable sections
of IEC950 and EN 60950.
2.12.2 Electromagnetic compatibility
Hard drives that display the CE mark comply with the European Union (EU) requirements specified in the Electromagnetic Compatibility Directive (89/336/EEC). Testing is performed to the levels specified by the product
standards for Information Technology Equipment (ITE). Emission levels are defined by EN 55022, Class B and
the immunity levels are defined by EN 55024.
Drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with the
directives when used in the test systems, we cannot guarantee that all systems will comply with the directives.
The drive is designed for operation inside a properly designed enclosure, with properly shielded I/O cable (if
necessary) and terminators on all unused I/O ports. Computer manufacturers and system integrators should
confirm EMC compliance and provide CE marking for their products.
Pipeline HD Pro Serial ATA Product Manual, Rev. C 13
Korean RRL
If these drives have the Korea Ministry of Information and Communication (MIC) logo, they comply with
paragraph 1 of Article 11 of the Electromagnetic Compatibility control Regulation and meet the Electromagnetic
Compatibility (EMC) Framework requirements of the Radio Research Laboratory (RRL) Ministry of Information
and Communication Republic of Korea.
These drives have been tested and comply with the Electromagnetic Interference/Electromagnetic
Susceptibility (EMI/EMS) for Class B products. Drives are tested in a representative, end-user system by a
Korean-recognized lab.
• Family name: Pipeline HD Pro
• Certificate number: 1000 GB- STX-720011 (B)
Australian C-Tick (N176)
If these models have the C-Tick marking, they comply with the Australia/New Zealand Standard AS/NZS3548
1995 and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Australian
Communication Authority (ACA).
2.12.3 FCC verification
These drives are intended to be contained solely within a personal computer or similar enclosure (not attached
as an external device). As such, each drive is considered to be a subassembly even when it is individually
marketed to the customer. As a subassembly, no Federal Communications Commission verification or
certification of the device is required.
Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure,
disc drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device,
pursuant to Subpart J, Part 15 of the FCC rules. Operation with noncertified assemblies is likely to result in
interference to radio and television reception.
Radio and television interference. This equipment generates and uses radio frequency energy and if not
installed and used in strict accordance with the manufacturer’s instructions, may cause interference to radio
and television reception.
This equipment is designed to provide reasonable protection against such interference in a residential
installation. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause interference to radio or television, which can be determined by turning the equipment
on and off, you are encouraged to try one or more of the following corrective measures:
• Reorient the receiving antenna.
• Move the device to one side or the other of the radio or TV.
• Move the device farther away from the radio or TV.
• Plug the computer into a different outlet so that the receiver and computer are on different branch outlets.
If necessary, you should consult your dealer or an experienced radio/television technician for additional
suggestions. You may find helpful the following booklet prepared by the Federal Communications Commission:
How to Identify and Resolve Radio-Television Interference Problems. This booklet is available from the Superintendent of Documents, U.S. Government Printing Office, Washington, DC 20402. Refer to publication number 004-000-00345-4.
14 Pipeline HD Pro Serial ATA Product Manual, Rev. C
2.13 Environmental protection
Ё䰤ࠊ䰽⠽કⱘᣛҸ
䆹ѻક᳝ᑈⱘ⦃๗ֱᡸՓ⫼ᳳ˄(383DŽϟ㸼ࣙњЁĀ⬉ᄤѻક᠔ᇐ㟈ⱘ∵ᶧ
ⱘࠊⱘ䆄ো㽕∖ā᠔ᣛᅮⱘֵᙃ
㸼⼎䆹䚼ӊ˄Ѣৠ㉏⠽કᑺϞ˅᠔ⱘ䰽᳝↦⠽䋼ԢѢЁ
ޚ᠔ᅮНⱘ䮼ᾯؐDŽ
㸼⼎䆹䚼ӊ˄Ѣৠ㉏⠽કᑺϞ˅᠔ⱘ䰽᳝↦⠽䋼䍙ߎЁ
ޚ᠔ᅮНⱘ䮼ᾯؐDŽ
Seagate designs its products to meet environmental protection requirements worldwide, including regulations
restricting certain chemical substances.
2.13.1 European Union Restriction of Hazardous Substances (RoHS) Directive
Seagate designs its products to meet environmental protection requirements worldwide, including regulations
restricting certain chemical substances. A new law, the European Union Restriction of Hazardous Substances
(RoHS) Directive, restricts the presence of chemical substances, including Lead, Cadmium, Mercury,
Hexavalent Chromium, PBB and PBDE, in electronic products, effective July 2006. This drive is manufactured
with components and materials that comply with the RoHS Directive.
2.14.2 China Restriction of Hazardous Substances (RoHS) Directive
2.14.2
This product has an Environmental Protection Use Period (EPUP) of 20 years. The following

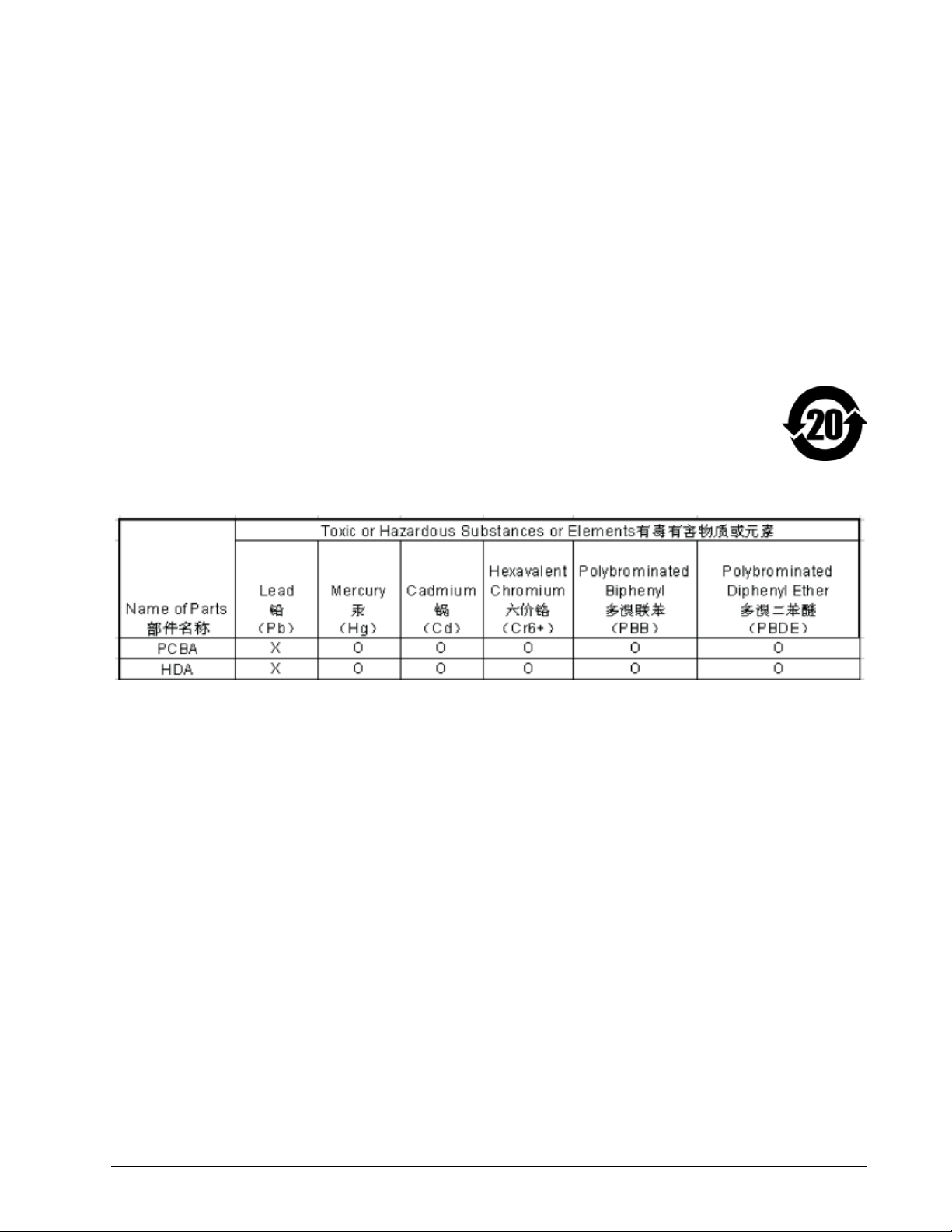

table contains information mandated by China's "Marking Requirements for Control of
Pollution Caused by Electronic Information Products" Standard.
DŽ
"O" indicates the hazardous and toxic substance content of the part (at the homogenous material level) is
lower than the threshold defined by the China RoHS MCV Standard.
O”
“
"X" indicates the hazardous and toxic substance content of the part (at the homogenous material level)
is over the threshold defined by the China RoHS MCV Standard.
“X”
2.14 Corrosive environment
Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to
light industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM
B845. However, this accelerated testing cannot duplicate every potential application environment. Users
should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive
chemicals as electronic drive component reliability can be affected by the installation environment. The silver,
copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components
should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or
exposed to an ambient relative humidity greater than 95%. Materials used in cabinet fabrication, such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any
electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.
RoHS MCV
RoHS MCV
Pipeline HD Pro Serial ATA Product Manual, Rev. C 15
16 Pipeline HD Pro Serial ATA Product Manual, Rev. C
3.0 Configuring and mounting the drive
This section contains the specifications and instructions for configuring and mounting the drive.
3.1 Handling and static-discharge precautions
After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD) hazards. Observe the following standard handling and static-discharge precautions:
Caution:
• Before handling the drive, put on a grounded wrist strap, or ground yourself frequently by touching the metal
chassis of a computer that is plugged into a grounded outlet. Wear a grounded wrist strap throughout the entire
installation procedure.
• Handle the drive by its edges or frame only.
• The drive is extremely fragile—handle it with care. Do not press down on the drive top cover.
• Always rest the drive on a padded, antistatic surface until you mount it in the computer.
• Do not touch the connector pins or the printed circuit board.
• Do not remove the factory-installed labels from the drive or cover them with additional labels. Removal voids
the warranty. Some factory-installed labels contain information needed to service the drive. Other labels are
used to seal out dirt and contamination.
Pipeline HD Pro Serial ATA Product Manual, Rev. C 17
3.2 Configuring the drive
Each drive on the Serial ATA interface connects point-to-point with the Serial ATA host adapter. There is no
master/slave relationship because each drive is considered a master in a point-to-point relationship. If two
drives are attached on one Serial ATA host adapter, the host operating system views the two devices as if they
were both “masters” on two separate ports. Both drives behave as if they are Device 0 (master) devices.
Serial ATA drives are designed for easy installation. It is usually not necessary to set any jumpers on the drive
for proper operation; however, if you connect the drive and receive a “drive not detected” error, your SATAequipped motherboard or host adapter may use a chipset that does not support SATA speed autonegotiation. If
you have a motherboard or host adapter that does not support autonegotiation:
• Install a jumper as shown in Figure 1 below to limit the data transfer rate to 1.5 Gbits per second (and leave
the drive connected to the SATA-equipped motherboard or host adapter that doesn’t support autonegotiation)
or
• Install a SATA host adapter that supports autonegotiation, leave the drive jumper block set to “Normal
operation” (see Figure
the drive to a 1.5 Gbits/sec transfer rate.
3.0 Gbits per second operation
Limit data transfer rate to
1.5 Gbits per second
1 below), and connect the drive to that adapter. This option has the benefit of not limiting
Jumper block
SATA interface connector
Figure 1. Serial ATA connectors
SATA power connector
3.3 Serial ATA cables and connectors
The Serial ATA interface cable consists of four conductors in two differential pairs, plus three ground connections. The cable size may be 30 to 26 AWG with a maximum length of one meter (39.37 inches). See Table 5
for connector pin definitions. Either end of the SATA signal cable can be attached to the drive or host.
For direct backplane connection, the drive connectors are inserted directly into the host receptacle. The drive
and the host receptacle incorporate features that enable the direct connection to be hot pluggable and blind
mateable.
For installations which require cables, you can connect the drive as illustrated in Figure 2.
Signal connector
Power connector
Signal cable
Power cable
Figure 2. Attaching SATA cabling
Each cable is keyed to ensure correct orientation. Pipeline HD Pro Serial ATA drives support latching SATA
connectors.
18 Pipeline HD Pro Serial ATA Product Manual, Rev. C
3.4 Drive mounting
You can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the
bottom-mounting holes. See Figure 3 for drive mounting dimensions. Follow these important mounting precautions when mounting the drive:
• Allow a minimum clearance of 0.030 inches (0.76 mm) around the entire perimeter of the drive for cooling.
• Use only 6-32 UNC mounting screws.
• The screws should be inserted no more than 0.150 inch (3.81 mm) into the bottom or side mounting holes.
• Do not overtighten the mounting screws (maximum torque: 6 inch-lb).
Recommended
case temperature
measurement location
.250 + .015
(6.35 + .381)
(3x both sides)
1.122
+ .020
(28.499
+ .508)
[1]
5.787 (146.9898) max.
1.638
(41.605)
[1]
[1]
4.000
(101.6)
[1]
4.000
(101.60)
.138
(3.505)
.814
2.00
(50.80)
(20.676)
CLof conn. Datum B
CLof drive
[1]
2 x 3.750
(2 x 95.25)
1.028 max
(26.111 max)
2 x 1.625
(2 x 41.28)
2 x 1.750
(2 x 44.45)
[1]
Notes:
Dimensions are shown in inches (mm).
[1] Dimensions per SFF-8301 specification
[1]
[1]
4.000
(101.6)
[1]
Recommended
case temperature
measurement location
Figure 3. Mounting dimensions (1000 GB models)
Pipeline HD Pro Serial ATA Product Manual, Rev. C 19
20 Pipeline HD Pro Serial ATA Product Manual, Rev. C
4.0 Serial ATA (SATA) interface
These drives use the industry-standard Serial ATA interface that supports FIS data transfers. It supports ATA
programmed input/output (PIO) modes 0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–6.
For detailed information about the Serial ATA interface, refer to the “Serial ATA: High Speed Serialized AT
Attachment” specification.
4.1 Hot-Plug compatibility
Pipeline HD Pro Serial ATA drives incorporate connectors which enable you to hot plug these drives in accordance with the Serial ATA Revision 2.5 specification. This specification can be downloaded from www.serialata.org.
Pipeline HD Pro Serial ATA Product Manual, Rev. C 21
4.2 Serial ATA device plug connector pin definitions
Table 5 summarizes the signals on the Serial ATA interface and power connectors..
Table 5: Serial ATA connector pin definitions
Segment Pin Function Definition
S1 Ground 2nd mate
S2 A+ Differential signal pair A from Phy
S3 A-
S4 Ground 2nd mate
S5 B- Differential signal pair B from Phy
S6 B+
Signal
S7 Ground 2nd mate
Key and spacing separate signal and power segments
P1 V
P2 V
P3 V
33
33
33
3.3V power
3.3V power
3.3V power, pre-charge, 2nd mate
P4 Ground 1st mate
P5 Ground 2nd mate
P6 Ground 2nd mate
Power
P7 V
P8 V
P9 V
5
5
5
5V power, pre-charge, 2nd mate
5V power
5V power
P10 Ground 2nd mate
P11 Ground or LED signal If grounded, drive does not use deferred spin
P12 Ground 1st mate.
P13 V
P14 V
P15 V
12
12
12
12V power, pre-charge, 2nd mate
12V power
12V power
Notes:
1. All pins are in a single row, with a 1.27 mm (0.050”) pitch.
2. The comments on the mating sequence apply to the case of backplane blindmate connector only. In this
case, the mating sequences are:
• the ground pins P4 and P12.
• the pre-charge power pins and the other ground pins.
• the signal pins and the rest of the power pins.
3. There are three power pins for each voltage. One pin from each voltage is used for pre-charge when
installed in a blind-mate backplane configuration.
4. All used voltage pins (Vx) must be terminated.
22 Pipeline HD Pro Serial ATA Product Manual, Rev. C
4.3 Supported ATA commands
The following table lists Serial ATA standard commands that the drive supports. For a detailed description of
the ATA commands, refer to the Serial ATA International Organization: Serial ATA Revision 2.6 (http://
www.sata-io.org). See “S.M.A.R.T. commands” on page 30.for details and subcommands used in the
S.M.A.R.T. implementation.
Table 6: Supported ATA commands
Command name Command code (in hex)
Check Power Mode E5
H
Device Configuration Freeze Lock B1H / C1
Device Configuration Identify B1H / C2
Device Configuration Restore B1H / C0
Device Configuration Set B1H / C3
Device Reset 08
Download Microcode 92
Execute Device Diagnostics 90
Flush Cache E7
Flush Cache Extended EA
Format Track 50
Identify Device EC
Idle E3
Idle Immediate E1
Initialize Device Parameters 91
Read Buffer E4
Read DMA C8
Read DMA Extended 25
Read DMA Without Retries C9
Read Log Ext 2F
Read Multiple C4
Read Multiple Extended 29
Read Native Max Address F8
Read Native Max Address Extended 27
Read Sectors 20
Read Sectors Extended 24
Read Sectors Without Retries 21
Read Verify Sectors 40
Read Verify Sectors Extended 42
Read Verify Sectors Without Retries 41
Recalibrate 10
Security Disable Password F6
Security Erase Prepare F3
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
Pipeline HD Pro Serial ATA Product Manual, Rev. C 23
Command name Command code (in hex)
Security Erase Unit F4
Security Freeze F5
Security Set Password F1
Security Unlock F2
Seek 70
Set Features EF
Set Max Address F9
Note: Individual Set Max Address
commands are identified by the value
placed in the Set Max Features register as defined to the right.
H
H
H
H
H
H
H
Address:
Password:
Lock:
Unlock:
Freeze Lock:
Set Max Address Extended 37
Set Multiple Mode C6
Sleep E6
S.M.A.R.T. Disable Operations B0H / D9
S.M.A.R.T. Enable/Disable Autosave B0H / D2
S.M.A.R.T. Enable Operations B0H / D8
S.M.A.R.T. Execute Offline B0H / D4
S.M.A.R.T. Read Attribute Thresholds B0H / D1
S.M.A.R.T. Read Data B0H / D0
S.M.A.R.T. Read Log Sector B0H / D5
S.M.A.R.T. Return Status B0H / DA
S.M.A.R.T. Save Attribute Values B0H / D3
S.M.A.R.T. Write Log Sector B0H / D6
Standby E2
Standby Immediate E0
Write Buffer E8
Write DMA CA
Write DMA Extended 35
Write DMA FUA Extended CD
Write DMA Without Retries CB
Write Log Extended 3F
Write Multiple C5
Write Multiple Extended 39
Write Multiple FUA Extended CE
Write Sectors 30
Write Sectors Without Retries 31
Write Sectors Extended 34
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
00
01
02
03
04
H
H
H
H
H
24 Pipeline HD Pro Serial ATA Product Manual, Rev. C
4.3.1 Identify Device command
The Identify Device command (command code ECH) transfers information about the drive to the host following
power up. The data is organized as a single 512-byte block of data, whose contents are shown in Table 6 on
page 23. All reserved bits or words should be set to zero. Parameters listed with an “x” are drive-specific or
vary with the state of the drive. See Section 2.0 on page 3 for default parameter settings.
The following commands contain drive-specific features that may not be included in the Serial ATA specification.
Word Description Value
Configuration information:
0
1 Number of logical cylinders 16,383
• Bit 15: 0 = ATA; 1 = ATAPI
• Bit 7: removable media
• Bit 6: removable controller
• Bit 0: reserved
0C5A
H
2 ATA-reserved 0000
3 Number of logical heads 16
4 Retired 0000
5 Retired 0000
6 Number of logical sectors per logical track: 63 003F
7–9 Retired 0000
10–19 Serial number: (20 ASCII characters, 0000H = none) ASCII
20 Retired 0000
21 Retired 0400
22 Obsolete 0000
23–26
27–46
47
Firmware revision (8 ASCII character string, padded with blanks to end
of string)
Drive model number: (40 ASCII characters, padded with blanks to end
of string)
(Bits 7–0) Maximum sectors per interrupt on Read multiple and Write
multiple (16)
x.xx
8010
48 Reserved 0000
49 Standard Standby timer, IORDY supported and may be disabled 2F00
50 ATA-reserved 0000
51 PIO data-transfer cycle timing mode 0200
52 Retired 0200
53 Words 54–58, 64–70 and 88 are valid 0007
54 Number of current logical cylinders xxxx
55 Number of current logical heads xxxx
56 Number of current logical sectors per logical track xxxx
57–58 Current capacity in sectors xxxx
59
Number of sectors transferred during a Read Multiple or Write Multiple
command
xxxx
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
Pipeline HD Pro Serial ATA Product Manual, Rev. C 25
Word Description Value
Total number of user-addressable LBA sectors available
(see Section 2.1 for related information)
60–61
*Note: The maximum value allowed in this field is: 0FFFFFFFh
(268,435,455 sectors, 137 Gbytes). Drives with capacities over 137
0FFFFFFFh*
Gbytes will have 0FFFFFFFh in this field and the actual number of
user-addressable LBAs specified in words 100-103. This is required
for drives that support the 48-bit addressing feature.
62 Retired 0000
63
Multiword DMA active and modes supported (see note following this
table)
xx07
64 Advanced PIO modes supported (modes 3 and 4 supported) 0003
65 Minimum multiword DMA transfer cycle time per word (120 nsec) 0078
66
Recommended multiword DMA transfer cycle time per word (120
nsec)
0078
67 Minimum PIO cycle time without IORDY flow control (240 nsec) 00F0
68 Minimum PIO cycle time with IORDY flow control (120 nsec) 0078
69–74 ATA-reserved 0000
75 Queue depth 0000
76 Serial ATA capabilities xxxx
77 Reserved for future Serial ATA definition xxxx
78 Serial ATA features supported xxxx
79 Serial ATA features enabled xxxx
80 Major version number 003E
81 Minor version number 0000
82 Command sets supported 364B
83 Command sets supported 7C03
4003
84 Command sets support extension (see note following this table)
(4003H = 0100000000000011
binary)
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
See Word 108-111 note.
H
85 Command sets enabled 30xx
86 Command sets enabled 0001
87 Command sets enable extension 4000
88 Ultra DMA support and current mode (see note following this table) xx3F
89 Security erase time 0000
90 Enhanced security erase time 0000
92 Master password revision code FFFE
93 Hardware reset value xxxx
95–99 ATA-reserved 0000
H
H
H
H
H
H
H
H
H
Total number of user-addressable LBA sectors available (see Section
100–103
2.1 for related information). These words are required for drives that
support the 48-bit addressing feature. Maximum value:
ST31000533CS =1,953,525,168
0000FFFFFFFFFFFFh.
104–107 ATA-reserved 0000
H
26 Pipeline HD Pro Serial ATA Product Manual, Rev. C
Word Description Value
108–111
NOTE: This field is valid if word 84, bit 8 is set to 1 indicating 64-bit
WWN support.
112–127 ATA-reserved 0000
128 Security status 0001
129–159 Seagate-reserved xxxx
160–254 ATA-reserved 0000
255 Integrity word xxA5
The mandatory value of the world wide name (WWN) for the drive.
Each drive will have a unique
value.
H
H
H
H
H
Note. Advanced Power Management (APM) and Automatic Acoustic Management (AAM) features are not supported
Note. See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data.
Description (if bit is set to 1)
Bit Word 63
0 Multiword DMA mode 0 is supported.
1 Multiword DMA mode 1 is supported.
2 Multiword DMA mode 2 is supported.
8 Multiword DMA mode 0 is currently active.
9 Multiword DMA mode 1 is currently active.
10 Multiword DMA mode 2 is currently active.
Bit Word 84
0 SMART error loggin is supported.
1 SMART self-test is supported.
2 Media serial number is supported.
3 Media Card Pass Through Command feature set is supported.
4 Streaming feature set is supported.
5 GPL feature set is supported.
6 WRITE DMA FUA EXT and WRITE MULTIPLE FUA EXT commands are supported.
7 WRITE DMA QUEUED FUA EXT command is supported.
8 64-bit World Wide Name is supported.
9-10 Obsolete.
11-1 2 Reserved for TLC.
13 IDLE IMMEDIATE command with IUNLOAD faeture is supported.
14 Shall be set to 1.
15 Shall be cleared to 0.
Pipeline HD Pro Serial ATA Product Manual, Rev. C 27
Bit Word 88
0 Ultra DMA mode 0 is supported.
1 Ultra DMA mode 1 is supported.
2 Ultra DMA mode 2 is supported.
3 Ultra DMA mode 3 is supported.
4 Ultra DMA mode 4 is supported.
5 Ultra DMA mode 5 is supported.
6 Ultra DMA mode 6 is supported.
8 Ultra DMA mode 0 is currently active.
9 Ultra DMA mode 1 is currently active.
10 Ultra DMA mode 2 is currently active.
11 Ultra DMA mode 3 is currently active.
12 Ultra DMA mode 4 is currently active.
13 Ultra DMA mode 5 is currently active.
14 Ultra DMA mode 6 is currently active.
28 Pipeline HD Pro Serial ATA Product Manual, Rev. C
4.3.2 Set Features command
This command controls the implementation of various features that the drive supports. When the drive receives
this command, it sets BSY, checks the contents of the Features register, clears BSY and generates an interrupt. If the value in the register does not represent a feature that the drive supports, the command is aborted.
Power-on default has the read look-ahead and write caching features enabled. The acceptable values for the
Features register are defined as follows:
Table 7: Set Features command values
02
03
10
55
82
90
AA
F1
Enable write cache (default).
H
Set transfer mode (based on value in Sector Count register).
H
Sector Count register values:
00
Set PIO mode to default (PIO mode 2).
H
01
Set PIO mode to default and disable IORDY (PIO mode 2).
H
08HPIO mode 0
09HPIO mode 1
0A
PIO mode 2
H
0BHPIO mode 3
0CHPIO mode 4 (default)
20
Multiword DMA mode 0
H
21HMultiword DMA mode 1
22HMultiword DMA mode 2
40
Ultra DMA mode 0
H
41HUltra DMA mode 1
42HUltra DMA mode 2
43
Ultra DMA mode 3
H
44HUltra DMA mode 4
45HUltra DMA mode 5
46
Ultra DMA mode 6
H
Enable use of SATA features
H
Disable read look-ahead (read cache) feature.
H
Disable write cache
H
Disable use of SATA features
H
Enable read look-ahead (read cache) feature (default).
H
Report full capacity available
H
Note. At power-on, or after a hardware or software reset, the default values of the features are as indi-
cated above.
Pipeline HD Pro Serial ATA Product Manual, Rev. C 29
4.3.3 S.M.A.R.T. commands
S.M.A.R.T. provides near-term failure prediction for disc drives. When S.M.A.R.T. is enabled, the drive monitors predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines
that a failure is likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable.
S.M.A.R.T. predictability is limited to the attributes the drive can monitor. For more information on S.M.A.R.T.
commands and implementation, see the Draft ATA-5 Standard.
SeaTools diagnostic software activates a built-in drive self-test (DST S.M.A.R.T. command for D4
) that elimi-
H
nates unnecessary drive returns. The diagnostic software ships with all new drives and is also available at:
http://seatools.sea
gate.com.
This drive is shipped with S.M.A.R.T. features disabled. You must have a recent BIOS or software package that
supports S.M.A.R.T. to enable this feature. The table below shows the S.M.A.R.T. command codes that the
drive uses.
Table 8: S.M.A.R.T. commands
Code in features register S.M.A.R.T. command
D0
D2
D3
D4
D5
D6
D8
D9
DA
H
H
H
H
H
H
H
H
H
S.M.A.R.T. Read Data
S.M.A.R.T. Enable/Disable Attribute Autosave
S.M.A.R.T. Save Attribute Values
S.M.A.R.T. Execute Off-line Immediate (runs DST)
S.M.A.R.T. Read Log Sector
S.M.A.R.T. Write Log Sector
S.M.A.R.T. Enable Operations
S.M.A.R.T. Disable Operations
S.M.A.R.T. Return Status
Note. If an appropriate code is not written to the Features Register, the command is aborted and 0x 04
(abort) is written to the Error register.
30 Pipeline HD Pro Serial ATA Product Manual, Rev. C
5.0 Seagate Technology support services
Online services
Internet
For information regarding Seagate products and services, visit www.sea
Worldwide support is available 24 hours daily by email for your questions.
Presales Support:
Presales@Seagate.com
Technical Support:
DiscSupport@Seagate.com
Warranty Support:
http://www.sea
mySeagate
my.sea
self-service access to critical applications, personalized content and the tools that allow our partners to manage their Seagate account functions. Submit pricing requests, orders and returns through a single, passwordprotected Web interface-anytime, anywhere in the world.
gate.com is the industry's first Web portal designed specifically for OEMs and distributors. It provides
gate.com/www/en-us/support/warranty_&_returns_assistance
gate.com.
spp.seagate.com
spp.sea
may register for customized communications that are not available on the web. These communications contain
product launch, EOL, pricing, promotions and other channel-related information. To learn more about the benefits or to register, go to spp.sea
gate.com supports Seagate resellers with product information, program benefits and sales tools. You
gate.com, any time, from anywhere in the world.
Global Customer Support
Presales Support
Our Presales Support staff can help you determine which Seagate products are best suited for your specific
application or computer system, as well as product availability and compatibility.
Technical Support
Seagate technical support is available to assist you online at support.seagate.com or through one of our call
centers. Have your system configuration information and your "ST" model/product number available.
Pipeline HD Pro Serial ATA Product Manual, Rev. C 31
Customer Service Operations
Warranty Service
Seagate offers worldwide customer support for Seagate products. Seagate distributors, OEMs and other direct
customers should contact their Seagate Customer Service Operations (CSO) representative for warrantyrelated issues. Resellers or end users of drive products should contact their place of purchase or Seagate warranty service for assistance. Have your serial number and model or part number available.
Data Recovery Services
Seagate offers data recovery services for all formats and all brands of storage media. Our data recovery services labs are currently located throughout the world. . Additional information, including an online request form
and data loss prevention resources, is available at http://services.sea
gate.com/index.aspx.
Authorized Service Centers
Seagate Service Centers are available on a global basis for the return of defective products. See
www.sea
gate.com for the service center near you.
USA/Canada/Latin America support services
For an extensive list of telephone numbers to technical support, presales and warranty service in USA/
Canada/Latin America, including business hours, go to the "Contact Us" page on www.sea
gate.com.
Global Customer Support
Presales, Technical, and Warranty Support
Call Center Toll-free Direct dial
USA, Canada,
and Mexico 1-800-SEAGATE +1-405-324-4700
Data Recovery Services
Call Center Toll-free Direct dial FAX
USA, Canada, 1-800-475-0143 +1-905-474-2162 1-800-475-0158
and Mexico +1-905-474-2459
Europe, the Middle East and Africa Support Services
For an extensive list of telephone numbers to technical support, presales and warranty service in Europe, the
Middle East and Africa, go to the "Contact Us" page on www.sea
gate.com.
Asia/Pacific Support Services
For an extensive list of telephone numbers to technical support, presales and warranty service in Asia/Pacific,
go to the "Contact Us" page on www.sea
gate.com.
32 Pipeline HD Pro Serial ATA Product Manual, Rev. C
Index
A
ACA 14
acceleration 11
acoustics 12
Active 9
Active mode 9
AFR 13
Agency certification 13
altitude 10
Ambient temperature 10
ambient temperature 7, 8
Annualized Failure Rate 13
Annualized Failure Rate (AFR) 13
areal density 1, 6
ATA commands 23
Australia/New Zealand Standard AS/NZS3548 1995
14
Australian Communication Authority (ACA) 14
Australian C-Tick 14
Average latency 7
Average seek time 7
B
buffer 7
C
cables and connectors 18
cache 7
capacity 6
case temperature 10
CE mark 13
certification 13
Check Power Mode 23
compatibility 13
Conducted noise 8
Conducted RF immunity 12
Configuring the drive 17
connectors 18
Corrosive environment 15
CSA C22.2 (950) 13
cycles 13
Cylinders 6
D
data-transfer rates 1
DC power 8
Default logical geometry 6
density 6
Device Configuration Freeze Lock 23
Device Configuration Identify 23
Device Configuration Restore 23
Device Configuration Set 23
Device Reset 23
dimensions 19
dissipation 8
Download Microcode 23
duty cycle 13
E
Electrical fast transient 12
Electromagnetic compatibility 13
Electromagnetic Compatibility (EMC) 14
Electromagnetic Compatibility control Regulation 14
Electromagnetic Compatibility Directive (89/336/EEC)
13
Electromagnetic immunity 12
Electrostatic discharge 12
electrostatic discharge (ESD) 17
EN 55022, Class B 13
EN 55024 13
EN 60950 13
enclosures 14
Environmental specifications 10
EPRML 1
error-correction algorithms 1
errors 13
ESD 17
EU 13
EU RoHS directive 15
European Union (EU) requirements 13
Execute Device Diagnostics 23
F
FCC verification 14
features 1
Flush Cache 23
Flush Cache Extended 23
Format Track 23
Formatted capacity 6
G
geometry 6
Gs 11
guaranteed sectors 6
H
Handling precautions 17
heads 6
height 7
humidity 10
I
I/O data-transfer rate 6
Pipeline HD Pro Serial ATA Product Manual, Rev. C 33
I/O duty cycle 13
Identify Device 23
Identify Device command 25
Idle 9, 23
Idle Immediate 23
Idle mode 8, 9
IEC950 13
Information Technology Equipment (ITE) 13
Initialize Device Parameters 23
Input noise ripple 8
input voltage 8
interface 6, 21
interference 14
internal data-transfer rate OD 6
is 7
ISO document 7779 12
ITE 13
K
Korea Ministry of Information and Communication
(MIC)
14
Korean RRL 14
L
latency 7
LBA mode 6
length 7
logical geometry 6
M
maintenance 13
master/slave 2
maximum temperature 10
Mean Time Between Failures 13
MIC 14
mounting 19
mounting screws 10
mounting the drive 17
MTBF 13
N
noise 8
nominal power 7
Nonoperating shock 11
Nonoperating vibration 11
Nonrecoverable read errors 13
O
operating 8
Operating power 8
Operating shock 10
Operating vibration 11
P
Physical characteristics 7
point-to-point 2, 18
Power consumption 8
power dissipation 8
Power modes 9
Power specifications 8
Power-management modes 9
Power-on to Ready 7
power-on-hours 13
precautions 17
printed circuit board 17
programmable power management 9
prominent discrete tone 12
Q
quick reference 3
R
Radiated RF immunity 12
radio and television interference 14
radio frequency (RF) 12
Read Buffer 23
Read DMA 23
Read DMA Extended 23
Read DMA without Retries 23
read errors 13
Read Log Ext 23
Read Multiple 23
Read Multiple Extended 23
Read Native Max Address 23
Read Native Max Address Extended 23
Read Sectors 23
Read Sectors Extended 23
Read Sectors Without Retries 23
Read Verify Sectors 23
Read Verify Sectors Extended 23
Read Verify Sectors Without Retries 23
Read/write heads 6
Recalibrate 23
recording density 6
recording method 6
Recording technology 6
relative humidity 10
Reliability 13
RF 12
RMS read/write current 8
RoHS 15
RRL 14
S
S.M.A.R.T. Disable Operations 24
S.M.A.R.T. Enable Operations 24
34 Pipeline HD Pro Serial ATA Product Manual, Rev. C
S.M.A.R.T. Enable/Disable Autosave 24
S.M.A.R.T. Execute Offline 24
S.M.A.R.T. implementation 23
S.M.A.R.T. Read Attribute Thresholds 24
S.M.A.R.T. Read Data 24
S.M.A.R.T. Read Log Sector 24
S.M.A.R.T. Return Status 24
S.M.A.R.T. Save Attribute Values 24
S.M.A.R.T. Write Log sector 24
Safety certification 13
SATA 21
screws 10
sectors 6
Sectors per track 6
Security Disable Password 23
Security Erase Prepare 23
Security Erase Unit 24
Security Freeze 24
Security Set Password 24
Security Unlock 24
Seek 24
Seek time 7
Serial ATA (SATA) interface 21
serial ATA ports 2
servo electronics 8
Set Features 24
Set Max Address 24
Set Max Address Extended 24
Set Multiple Mode 24
Shock 10
single-track seeks 7
Sleep 8, 9, 24
Sleep mode 9
sound 12
Specification summary table 3
spindle speed 6
Spinup 8
Spinup power 8
Standby 8, 9, 24
Standby Immediate 24
Standby mode 8, 9
standby timer 9
Standby to Ready 7
Start/stop times 7
start-stop cycles 13
static-discharge 17
subassembly 14
support services 31
Surge immunity 12
timers 9
track density 6
Track-to-track 7
Track-to-track seek time 7
tunneling magnetoresistive (TMR) recording heads 1
U
UL 1950 13
V
Vibration 11
voltage 8
Voltage dips, interrupts 12
Voltage tolerance 8
W
Warranty 13
weight 7
wet bulb temperature 10
width 7
Write Buffer 24
Write DMA 24
Write DMA Extended 24
Write DMA FUA Extended 24
Write DMA Without Retries 24
Write Log Extended 24
Write Multiple 24
Write Multiple Extended 24
Write Multiple FUA Extended 24
Write Sectors 24
Write Sectors Extended 24
Write Sectors Without Retries 24
T
technical support services 31
temperature 7, 10
temperature gradient 10
timer 9
Pipeline HD Pro Serial ATA Product Manual, Rev. C 35
36 Pipeline HD Pro Serial ATA Product Manual, Rev. C
Seagate Technology LLC
920 Disc Drive, Scotts Valley, California 95066-4544, USA
Publication Number: 100527225, Rev. C, Printed in U.S.A.
Loading...
