Seagate ST1000VX000, ST2000VX000, ST3000VX000 User Manual
Product Manual
SV35 Series
ST3000VX000
ST2000VX000
ST1000VX000
TM
100687219
Rev. C
June 2012
Document Revision History
Revision Date Description of Change
Rev. A 10/20/2011 Initial release.
Rev. B 02/21/2012 Corrected Table 1 (Altitude, operating) specification and Table 3 specification (Idle2).
Rev. C 06/01/2012 Updated features list; updated footnotes for Table 1 and Table 2.
© 2012 Seagate Technology LLC. All rights reserved.
Publication number: 100687219, Rev. C June 2012
Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC in the United States and/
or other countries. SV35 Series and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one
of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.
No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC.
Call 877-PUB-TEK1 (877-782-8351) to request permission.
One gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer's operating system may
use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and
other functions, and thus will not be available for data storage. Seagate reserves the right to change, without notice, product offerings or
specifications.
Contents
Seagate Technology Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.0 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.1 About the SATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.0 Drive Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.1 Specification summary tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.2 Formatted capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.2.1 LBA mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.3 Default logical geometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.4 Recording and interface technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.5 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.6 Seek time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.7 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.8 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.8.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.8.2 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.8.3 Voltage tolerance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.8.4 Power-management modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.9 Environmental specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.9.1 Ambient temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.9.2 Temperature gradient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.9.3 Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.9.4 Altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.9.5 Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.9.6 Non-operating vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.10 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.10.1 Test for Prominent Discrete Tones (PDTs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.11 Electromagnetic immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.12 AFR and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.13 Agency certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.13.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.13.2 Electromagnetic compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.13.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.14 Environmental protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.14.1 European Union Restriction of Hazardous Substances (RoHS) Directive . . . . . 22

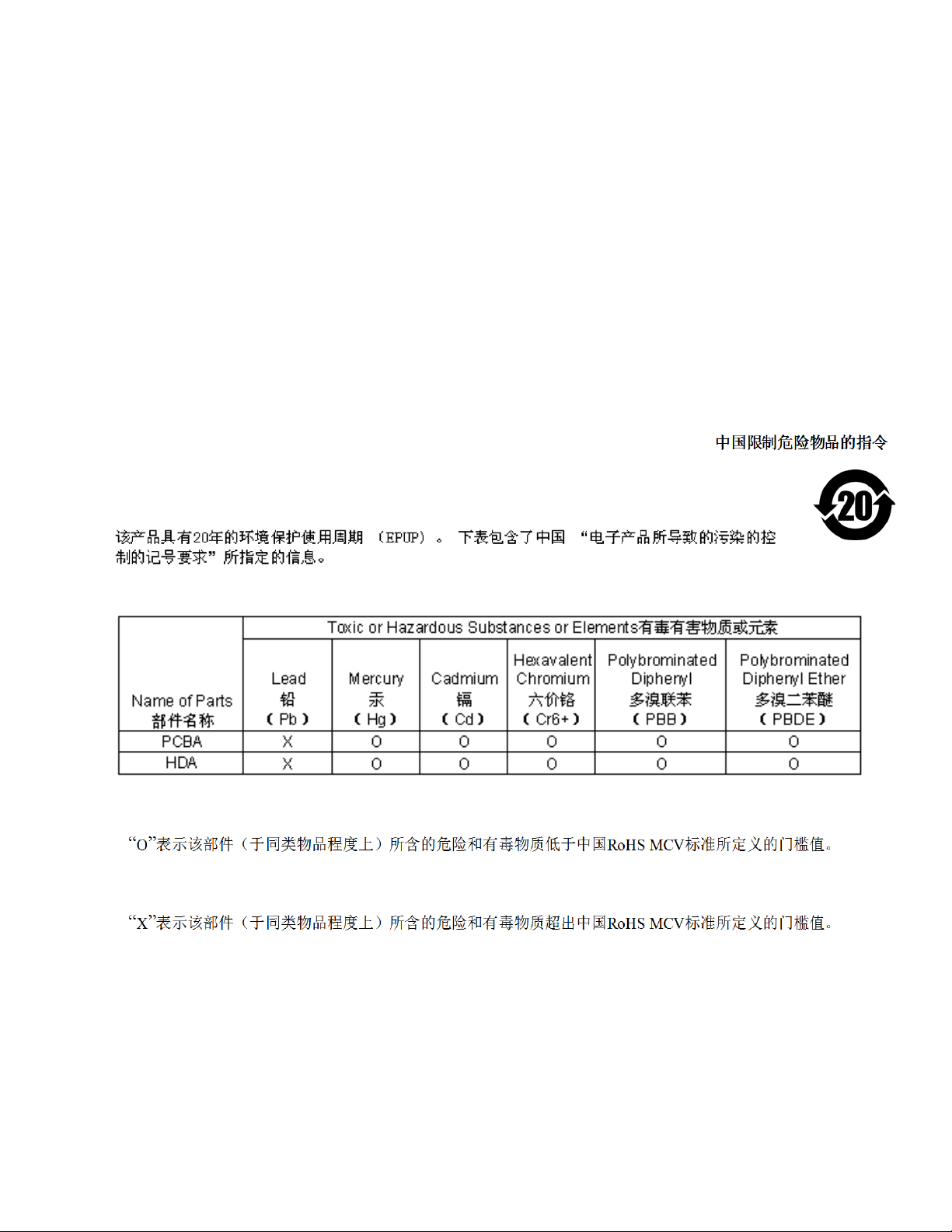

2.14.2 China Restriction of Hazardous Substances (RoHS) Directive . . . . . . . . . . . . 22
2.15 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.0 Configuring and Mounting the Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.1 Handling and static-discharge precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.2 Configuring the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.3 SATA cables and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.4 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.0 SATA Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.1 Hot-Plug compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.2 SATA device plug connector pin definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.3 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.3.1 Identify Device command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.3.2 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4.3.3 S.M.A.R.T. commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
SV35 Series SATA Product Manual, Rev. C
SV35 Series SATA Product Manual, Rev. C
Figures

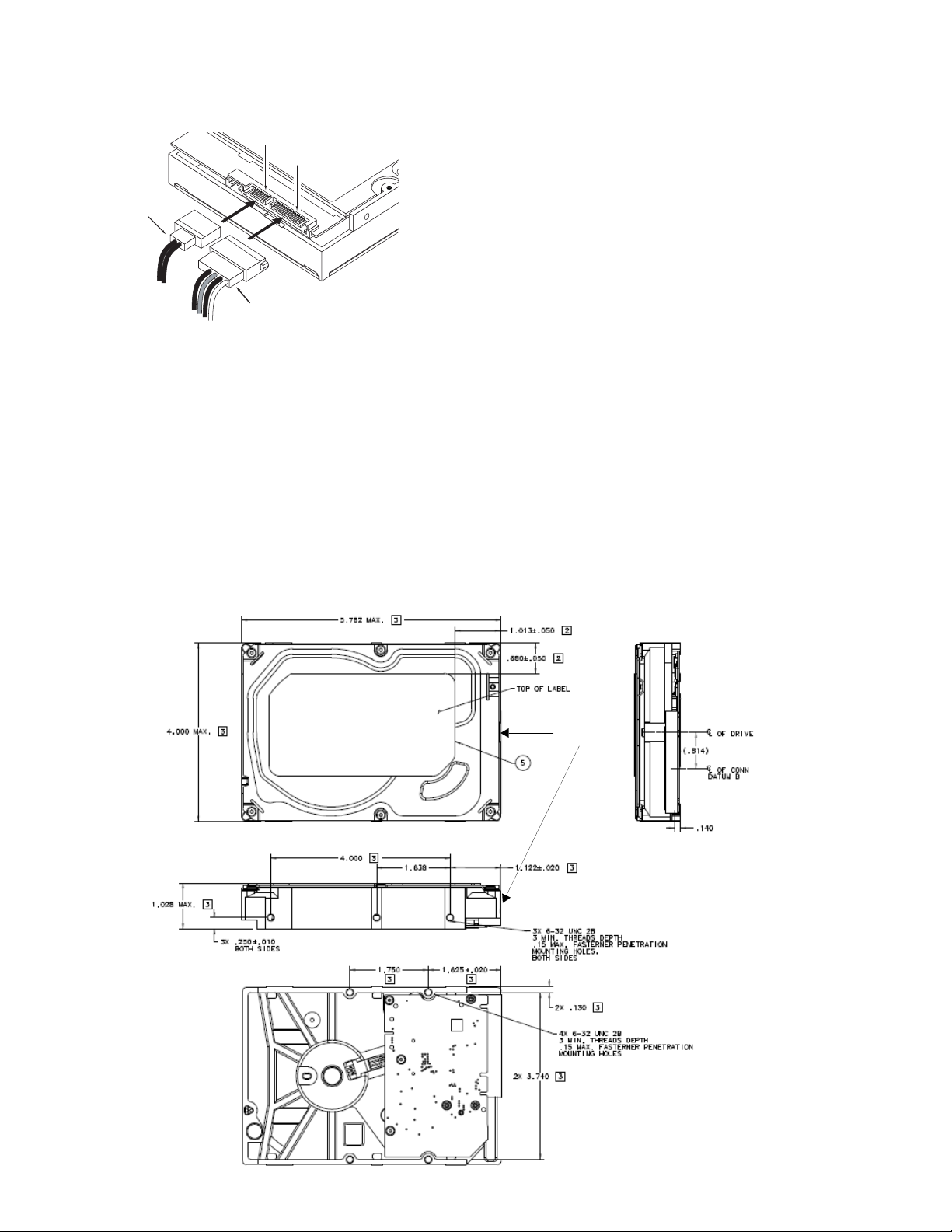

Figure 1 Attaching SATA cabling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 2 Mounting dimensions (3-disk: 3TB and 2TB models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

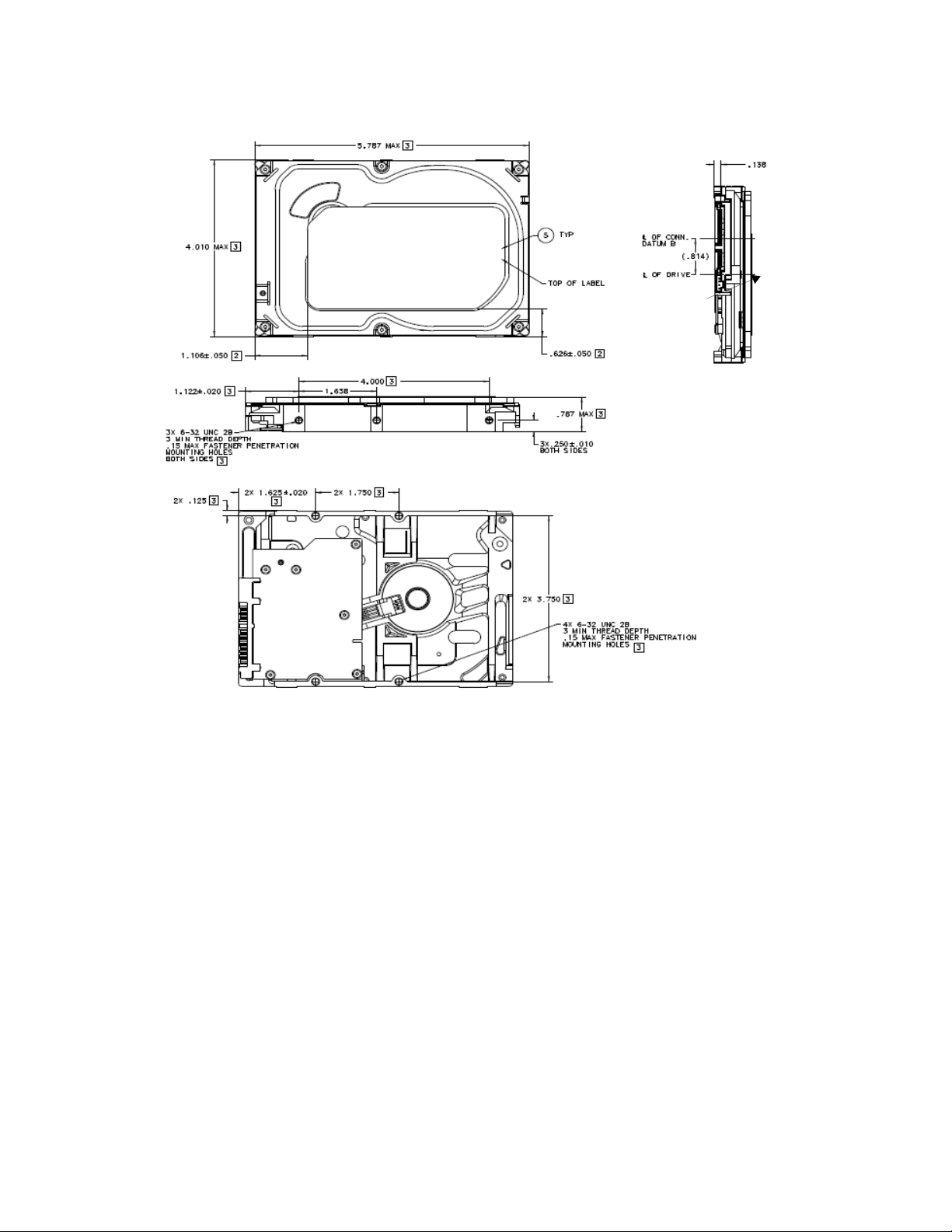

Figure 3 Mounting dimensions (1-Disk: 1TB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
SV35 Series SATA Product Manual, Rev. C
SV35 Series SATA Product Manual, Rev. C
Seagate Technology Support Services
For information regarding online support and services, visit http://www.seagate.com/www/en-us/about/
contact_us/
Available services include:
• Presales & Technical support
• Global Support Services telephone numbers & business hours
• Authorized Service Centers
For information regarding Warranty Support, visit
http://www.seagate.com/www/en-us/support/warranty_&_returns_assistance
For information regarding data recovery services, visit http://www.i365.com
For Seagate OEM and Distribution partner portal, visit https://direct.seagate.com/portal/system
For Seagate reseller portal, visit http://spp.seagate.com
SV35 Series SATA Product Manual, Rev. C 7
8 SV35 Series SATA Product Manual, Rev. C
1.0 Introduction
This manual describes the functional, mechanical and interface specifications for the following Seagate
Barracuda® model drives:
ST3000VX000 ST2000VX000 ST1000VX000
These drives provide the following key features:
• Enterprise-class reliability for 24×7 video surveillance applications
• Thermal monitoring and reporting for 24×7 operations
• Uncompromising reliability supports flexible surveillance design with case temperatures up to 70º C
• Performance-tuned for seamless video applications
• Built-in error recovery for non-stop video streaming
• Best-in-class acoustic performance means virtually silent operation
• 7200 RPM spindle speed
• High instantaneous (burst) data-transfer rates (up to 600MB per second).
• TGMR recording technology provides the drives with increased areal density.
• State-of-the-art cache and on-the-fly error-correction algorithms
• Native Command Queueing with command ordering to increase performance in demanding applications
• Full-track multiple-sector transfer capability without local processor intervention
• Seagate AcuTrac™ servo technology delivers dependable performance,even with hard drive track widths of
only 75 nanometers.
• Seagate OptiCache™ technology boosts overall performance by as much as 45% over the previous
generation.
• Quiet operation
• Compliant with RoHS requirements in China and Europe
• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• Support for S.M.A.R.T. drive monitoring and reporting
• Supports latching SATA cables and connectors
• Worldwide Name (WWN) capability uniquely identifies the drive.
1.1 About the SATA interface
The Serial ATA (SATA) interface provides several advantages over the traditional (parallel) ATA interface. The
primary advantages include:
• Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers
or other configuration options.
• Thinner and more flexible cabling for improved enclosure airflow and ease of installation.
• Scalability to higher performance levels.
In addition, SATA makes the transition from parallel ATA easy by providing legacy software support. SATA was
designed to allow you to install a SATA host adapter and SATA disk drive in your current system and expect all of
your existing applications to work as normal.
SV35 Series SATA Product Manual, Rev. C 9
Introduction www.seagate.com
The SATA interface connects each disk drive in a point-to-point configuration with the SATA host adapter. There is
no master/slave relationship with SATA devices like there is with parallel ATA. If two drives are attached on one
SATA host adapter, the host operating system views the two devices as if they were both “masters” on two
separate ports. This essentially means both drives behave as if they are Device 0 (master) devices.
The host adapter may, optionally, emulate a master/slave environment to host software where two devices on
Note
separate SATA ports are represented to host software as a Device 0 (master) and Device 1 (slave) accessed at
the same set of host bus addresses. A host adapter that emulates a master/slave environment manages two
sets of shadow registers. This is not a typical SATA environment.
The SATA host adapter and drive share the function of emulating parallel ATA device behavior to provide
backward compatibility with existing host systems and software. The Command and Control Block registers, PIO
and DMA data transfers, resets, and interrupts are all emulated.
The SATA host adapter contains a set of registers that shadow the contents of the traditional device registers,
referred to as the Shadow Register Block. All SATA devices behave like Device 0 devices. For additional
information about how SATA emulates parallel ATA, refer to the “Serial ATA International Organization: Serial ATA
Revision 3.0.” The specification can be downloaded from www.sata-io.org.
10 SV35 Series SATA Product Manual, Rev. C
2.0 Drive Specifications
Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power.
For convenience, the phrases the drive and this drive are used throughout this manual to indicate the following
drive models:
ST3000VX000 ST2000VX000 ST1000VX000
2.1 Specification summary tables
The specifications listed in Table 1 are for quick reference. For details on specification measurement or definition,
refer to the appropriate section of this manual.
Table 1 Drive specifications summary for 3TB, 2TB and 1TB models
Drive Specification ST3000VX000 ST2000VX000 ST1000VX000
Formatted capacity
(512 bytes/sector)*
Guaranteed sectors 5,860,533,168 3,907,029,168 1,953,525,168
Heads 6 6 2
Disks 3 3 1
Bytes per sector (4K physical
emulated at 512-byte sectors)
Default sectors per track 63 63 63
Default read/write heads 16 16 16
Default cylinders 16,383 16,383 16,383
Recording density (max) 1807kFCI 1807kFCI 1807kFCI
Track density (avg) 352 ktracks/in 352 ktracks/in 352 ktracks/in
Areal density (avg) 625Gb/in
Spindle speed 7200 RPM 7200 RPM 7200 RPM
Internal data transfer rate
(max)
Average data rate, read/write
(MB/s)
Maximum sustained data rate,
OD read (MB/s)
I/O data-transfer rate (max) 600MB/s 600MB/s 600 MB/s
Cache buffer 64MB 64MB 64MB
Height (max) 26.1mm / 1.028 in 26.1mm / 1.028 in 20.17mm / 0.7825 in
Width (max) 101.6mm /4.0 in (+ 0.010 in) 101.6mm /4.0 in (± 0.010 in) 101.6mm / 4.0 in ( ± 0.010 in)
Length (max) 146.99mm / 5.787 in 146.99mm / 5.787 in 146.99mm / 5.787 in
Weight (typical) 626g /1.38 lb 626g /1.38 lb 400g / 0.88 lb
Average latency 4.16ms 4.16ms 4.16ms
Power-on to ready (max) <17.0s <17.0s <10.0s
Standby to ready (max) <17.0s <17.0s <10.0s
Average seek, read (typical)
Average seek, write (typical)
3000GB
(3TB)
4096 4096 4096
2
2147Mb/s 2147Mb/s 2147 Mb/s
156MB/s 156MB/s 156MB/s
210MB/s 210MB/s 210MB/s
<8.5ms typical
<9.5ms typical
2000GB
(2TB)
625Gb/in
<8.5ms (read)
<9.5ms (write)
2
1000GB
(1TB)
625Gb/in
<8.5ms (read)
<9.5ms (write)
2
SV35 Series SATA Product Manual, Rev. C 11
Drive Specifications www.seagate.com
Table 1 Drive specifications summary for 3TB, 2TB and 1TB models (continued)
Drive Specification ST3000VX000 ST2000VX000 ST1000VX000
Startup current (typical) 12V
(peak)
Voltage tolerance (including
noise)
Ambient temperature 0° to 70°C (operating)
Temperature gradient 20°C per hour max (operating)
Relative humidity 5% to 95% (operating)
Relative humidity gradient
(max)
Wet bulb temperature (max) 37.7°C max (operating)
Altitude, operating –304.8m to 3048m
Altitude, non-operating
(below mean sea level, max)
Operational Shock (max) 80 Gs at 2ms 80 Gs at 2ms 80 Gs at 2ms
Non-Operational Shock (max) 300 Gs at 2ms 300 Gs at 2ms 350 Gs at 2ms
Vibration, operating
Vibration, non-operating 5Hz to 22Hz: 3.0 Gs
Drive acoustics, sound power
Idle** 2.4 bels (typical)
Seek 2.6 bels (typical)
Non-recoverable read errors 1 per 10
Annualized Failure Rate (AFR) <1% <1% <1%
Warranty To determine the warranty for a specific drive, use a web browser to access the following web page:
Load/Unload cycles (25°C,
50% rel. humidity)
Supports Hotplug operation
per the Serial ATA Revision 3.0
specification
2.0A 2.0A 2.0A
5V: ±5%
12V: +10% / -7.5%
–40° to 70°C (non-operating)
30°C per hour max (non
operating)
5% to 95% (non-operating)
5V: ±5%
12V: +10% / -7.5%
0° to 70°C (operating)
–40° to 70°C (non-operating)
20°C per hour max (operating)
30°C per hour max (nonoperating)
5% to 95% (operating)
5% to 95% (non-operating)
5V: ±5%
12V: +10% / -7.5%
0° to 70°C (operating)
–40° to 70°C (non-operating)
20°C per hour (operating)
30°C per hour (non operating)
5% to 95% (operating)
5% to 95% (non-operating)
30% per hour 30% per hour 30% per hour
40.0°C max (non-operating)
(–1000 ft to 10,000+ ft)
–304.8m to 12,192m
(–1000 ft to 40,000+ ft)
2Hz to 22Hz: 0.25 Gs
(Limited displacement)
22Hz to 350Hz: 0.50 Gs
350Hz to 500Hz: 0.25 Gs
22Hz to 350Hz: 3.0 Gs
350Hz to 500Hz: 3.0 Gs
2.6 bels (max)
2.7 bels (max)
14
bits read 1 per 10
37.7°C (operating)
40.0°C (non-operating)
–304.8m to 3048m
(–1000 ft to 10,000+ ft)
–304.8m to 12,192m
(–1000 ft to 40,000+ ft)
2Hz to 22Hz: 0.25 Gs
(Limited displacement)
22Hz to 350Hz: 0.50 Gs
350Hz to 500Hz: 0.25 Gs
5Hz to 22Hz: 3.0 Gs
22Hz to 350Hz: 3.0 Gs
350Hz to 500Hz: 3.0 Gs
2.4 bels (typical)
2.6 bels (max)
2.6 bels (typical)
2.7 bels (max)
14
bits read 1 per 10
37.7°C max (operating)
40.0°C max (non-operating)
–304.8m to 3048m
(–1000 ft to 10,000+ ft)
–304.8m to 12,192m
(–1000 ft to 40,000+ ft)
2Hz to 22Hz: 0.25 Gs
(Limited displacement)
22Hz to 350Hz: 0.50 Gs
350Hz to 500Hz: 0.25 Gs
5Hz to 22Hz: 3.0 Gs
22Hz to 350Hz: 3.0 Gs
350Hz to 500Hz: 3.0 Gs
2.2 bels (typical)
2.3 bels (max)
2.3 bels (typical)
2.4 bels (max)
14
bits read
support.seagate.com/customer/warranty_validation.jsp
From this page, click on the “Verify Your Warranty” link. You will be asked to provide the drive serial
number, model number (or part number) and country of purchase. The system will display the warranty
information for your drive.
300,000 300,000 300,000
Yes Yes Yes
*One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity. Accessible capacity may vary depending
on operating environment and formatting.
**During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels.
*** All specifications above are based on native configurations.
12 SV35 Series SATA Product Manual, Rev. C
www.seagate.com
2.2 Formatted capacity
Drive Specifications
Model
Formatted
capacity*
Guaranteed
sectors
Bytes per sector
ST3000VX000 3000GB 5,860,533,168
ST2000VX000 2000GB 3,907,029,168
4K
ST1000VX000 1000GB 1,953,525,168
*One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity. Accessible capacity may vary depending
on operating environment and formatting.
2.2.1 LBA mode
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where
n is the number of guaranteed sectors as defined above.
See Section 4.3.1, "Identify Device command" (words 60-61 and 100-103) for additional information about 48-bit
addressing support of drives with capacities over 137GB.
2.3 Default logical geometry
• Cylinders: 16,383
• Read/write heads: 16
• Sectors per track: 63
LBA mode
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where
n is the number of guaranteed sectors as defined above.
2.4 Recording and interface technology
Interface SATA
Recording method TGMR
Recording density (kFCI) 1807
Track density (ktracks/inch avg) 352
Areal density (Gb/in2 avg) 625
Spindle speed (RPM) 7200 ± 0.2%
Internal data transfer rate (Mb/s max) 2147
Maximum sustained data transfer rate, OD read (MB/s ) 210
Average data rate, read/write (MB/s) 156
I/O data-transfer rate (MB/s max) 600
SV35 Series SATA Product Manual, Rev. C 13
Loading...
