Page 1

SV35 Series

Product Manual

ST3000VX000

ST2000VX000

ST1000VX000

100687219, Rev. H

May 2016

Page 2

Document Revision History

Revision Date Description of Change

Rev. A 10/20/2011 Initial release.

Rev. B 02/21/2012 Corrected Table 1 (Altitude, operating) specification and Table 3 specification (Idle2).

Rev. C 06/01/2012 Updated features list; updated footnotes for Table 1 and Table 2.

below, 3, 5, 9, 12-19 & 26: (Updated copyright statement, updated support URLs,

Rev. D 05/08/2014

Rev. E 05/29/2014 8: Changed Idle2 to Idle1

Rev. F 05/06/2015

Rev. G 06/11/2015 5: Added bullets: * Supports up to 32 cameras & * Supports <= 8 drive bays

Rev. H) 05/26/2016

updated page numbering & page layouts, updated person from you/your to users/the, added missing hyperlinks to URLs, & added metric values to mechanical drawings)

Applied new page numbering, deleted Index [no longer required] fc & bc: Applied new logo 19-20: Corrected side hole dimension in mechanical drawing 26: Changed Word 95-104 to reflect Streaming command support

7 & 13: Revised to Op & Non-Op temp descriptions 8 & 13: Revised Wet Bulb values & added temperature note 15: Added Section 2.12.1 Storage 16: Updated to Korean RRA & Australian RCM 19-20: Revised fastener penetration depth to 0.120” in text & mechanical drawing

Publication number: 100687219, Rev. Rev. H May 2016

Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. AccuTrac, OptiCache and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.

No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC. Call 877-PUB-TEK1 (877-782-8351) to request permission.

When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Actual quantities will vary based on various factors, including file size, file format, features and application software. Actual data rates may vary depending on operating environment and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more information, visit www.bis.doc. use outside of the U.S. Seagate reserves the right to change, without notice, product offerings or specifications.

gov), and controlled for import and

Page 3

Contents

Seagate® Technology Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.0 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 About the SATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.0 Drive Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 Specification summary tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2 Formatted capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2.1 LBA mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3 Default logical geometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4 Recording and interface technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.6 Seek time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.7 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.8 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.8.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.8.2 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.8.3 Voltage tolerance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.8.4 Power-management modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.9 Environmental specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.9.1 Ambient temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.9.2 Temperature gradient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.9.3 Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.9.4 Altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.9.5 Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.9.6 Non-operating vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.10 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.10.1 Test for Prominent Discrete Tones (PDTs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.11 Electromagnetic immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.12 AFR and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.12.1 Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.13 Agency certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.13.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.13.2 Electromagnetic compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.13.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.14 Environmental protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.14.1 European Union Restriction of Hazardous Substances (RoHS) Directive . . . . . 17

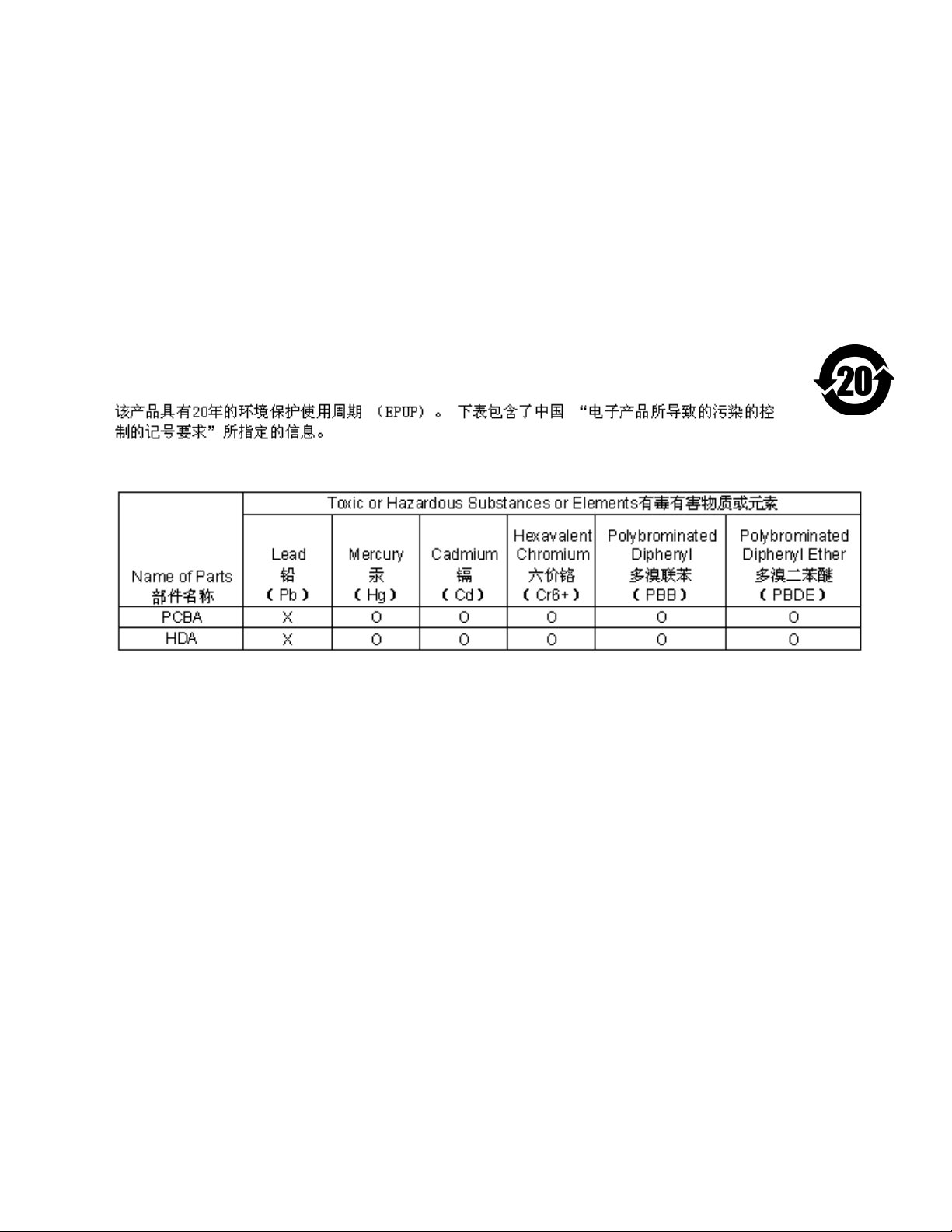

2.14.2 China Restriction of Hazardous Substances (RoHS) Directive . . . . . . . . . . . . 17

2.15 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.0 Configuring and Mounting the Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.1 Handling and static-discharge precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.2 Configuring the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.3 SATA cables and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.4 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.0 SATA Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.1 Hot-Plug compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.2 SATA device plug connector pin definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.3 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.3.1 Identify Device command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.3.2 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

4.3.3 S.M.A.R.T. commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Seagate SV35 Series HDD Product Manual, Rev. H

Page 4

Figures

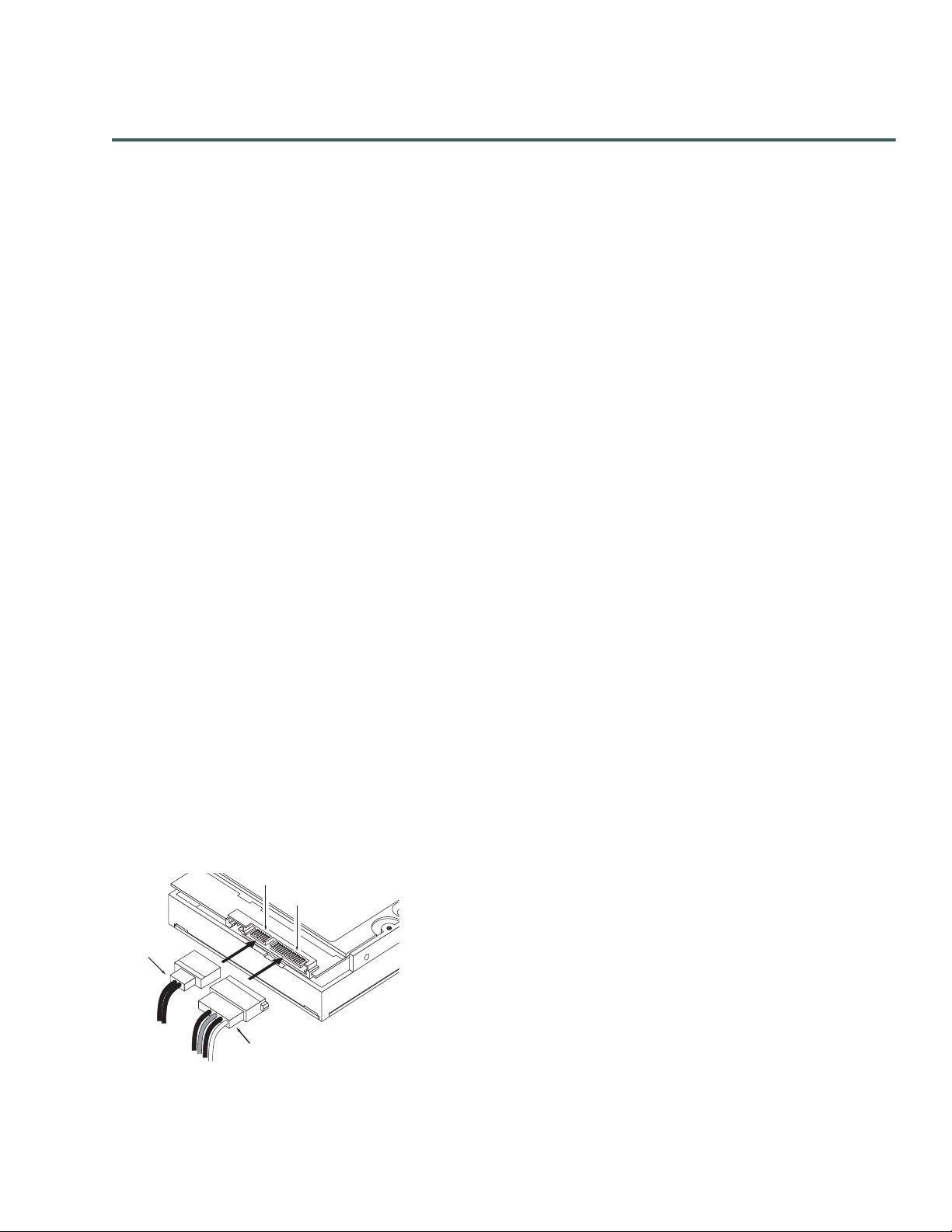

Figure 1 Attaching SATA cabling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

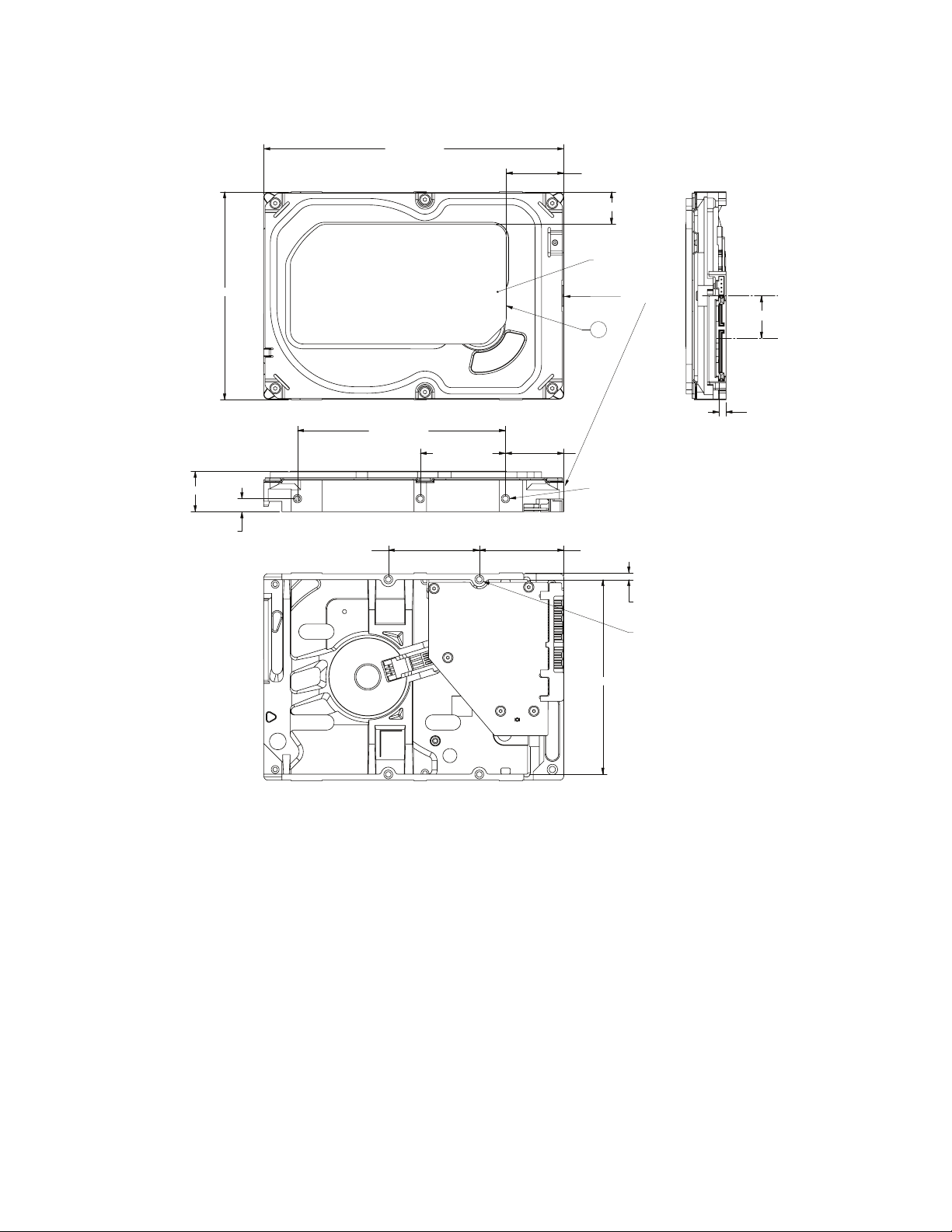

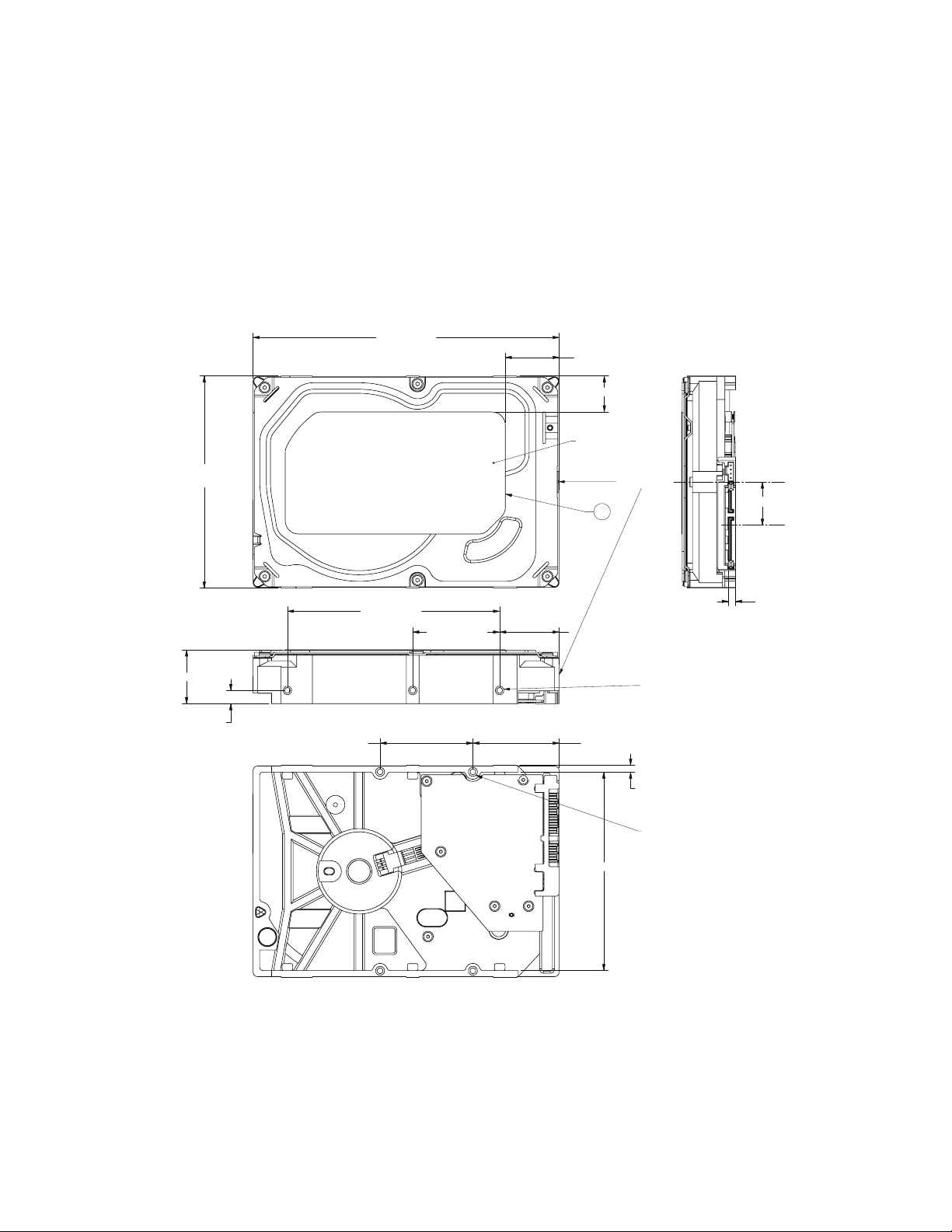

Figure 2 Mounting dimensions (3-disk: 3TB and 2TB models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 3 Mounting dimensions (1-Disk: 1TB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Seagate SV35 Series HDD Product Manual, Rev. H

Page 5

Seagate® Technology Support Services

For information regarding online support and services, visit: http://www.seagate.com/contacts/

For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/

For information regarding data recovery services, visit: http://www.seagate.com/services-software/data-recovery-services/

For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/

Seagate SV35 Series HDD Product Manual, Rev. H 4

Page 6

1.0 Introduction

This manual describes the functional, mechanical and interface specifications for the following: Seagate

ST3000VX000 ST2000VX000 ST1000VX000

These drives provide the following key features:

• 7200 RPM spindle speed

• Best-in-class acoustic performance means virtually silent operation

• Built-in error recovery for non-stop video streaming

• Compliant with RoHS requirements in China and Europe

• Enterprise-class reliability for 24×7 video surveillance applications

• Full-track multiple-sector transfer capability without local processor intervention

• High instantaneous (burst) data-transfer rates (up to 600MB per second).

• Native Command Queuing with command ordering to increase performance in demanding applications

• Performance-tuned for seamless video applications

•Quiet operation

• Seagate AcuTrac™ servo technology delivers dependable performance, even with hard drive track widths of only 75

• Seagate OptiCache™ technology boosts overall performance by as much as 45% over the previous generation.

• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.

• State-of-the-art cache and on-the-fly error-correction algorithms

• Support for S.M.A.R.T. drive monitoring and reporting

• Supports <= 8 drive bays

• Supports latching SATA cables and connectors

• Supports up to 32 cameras

• TGMR recording technology provides the drives with increased areal density.

• Thermal monitoring and reporting for 24×7 operations

• Uncompromising reliability supports flexible surveillance design with case temperatures up to 70ºC

• Worldwide Name (WWN) capability uniquely identifies the drive.

SV35 Series model drives:

nanometers.

Seagate SV35 Series HDD Product Manual, Rev. H 5

Page 7

www.seagate.com

1.1 About the SATA interface

The Serial ATA (SATA) interface provides several advantages over the traditional (parallel) ATA interface. The primary advantages include:

• Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other configuration options.

• Thinner and more flexible cabling for improved enclosure airflow and ease of installation.

• Scalability to higher performance levels.

In addition, SATA makes the transition from parallel ATA easy by providing legacy software support. SATA was designed to allow users to install a SATA host adapter and SATA disk drive in the current system and expect all of the existing applications to work as normal.

The SATA interface connects each disk drive in a point-to-point configuration with the SATA host adapter. There is no master/slave relationship with SATA devices like there is with parallel ATA. If two drives are attached on one SATA host adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. This essentially means both drives behave as if they are Device 0 (master) devices.

The host adapter may, optionally, emulate a master/slave environment to host software where two devices on

Note

The SATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward compatibility with existing host systems and software. The Command and Control Block registers, PIO and DMA data transfers, resets, and interrupts are all emulated.

The SATA host adapter contains a set of registers that shadow the contents of the traditional device registers, referred to as the Shadow Register Block. All SATA devices behave like Device 0 devices. For additional information about how SATA emulates parallel ATA, refer to the “Serial ATA International Organization: Serial ATA Revision 3.2.” The specification can be downloaded from www.sata-io.or

separate SATA ports are represented to host software as a Device 0 (master) and Device 1 (slave) accessed at the same set of host bus addresses. A host adapter that emulates a master/slave environment manages two sets of shadow registers. This is not a typical SATA environment.

Seagate SV35 Series HDD Product Manual, Rev. H 6

Page 8

2.0 Drive Specifications

Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate the following drive models:

ST3000VX000 ST2000VX000 ST1000VX000

2.1 Specification summary tables

The specifications listed in Table 1 are for quick reference. For details on specification measurement or definition, refer to the appropriate section of this manual.

Table 1 Drive specifications summary for 3TB, 2TB and 1TB models

Drive Specification ST3000VX000 ST2000VX000 ST1000VX000

Formatted capacity (512 bytes/sector)* 3000GB / (3TB) 2000GB / (2TB) 1000GB / (1TB)

Guaranteed sectors 5,860,533,168 3,907,029,168 1,953,525,168

Heads 6 2

Disks 3 1

Bytes per sector

Default sectors per track 63

Default read/write heads 16

Default cylinders 16,383

Recording density (max) 1807kFCI

Track density (avg) 352 ktracks/in

Areal density (avg) 625Gb/in

Spindle speed 7200 RPM

Internal data transfer rate (max) 2147Mb/s

Average data rate, read/write (MB/s) 156MB/s

Maximum sustained data rate, OD read (MB/s) 210MB/s

I/O data-transfer rate (max) 600MB/s

Cache buffer 64MB

Height (max) 26.1mm / 1.028 in 20.17mm / 0.7825 in

Width (max) 101.6mm /4.0 in (+

Length (max) 146.99mm / 5.787 in

Weight (typical) 626g /1.38 lb 400g / 0.88 lb

Average latency 4.16ms

Power-on to ready (max) <17.0s <10.0s

Standby to ready (max) <17.0s <10.0s

Average seek, read (typical) Average seek, write (typical)

Startup current (typical) 12V (peak) 2.0A

Voltage tolerance (including noise)

Non-Operating (Ambient °C) –40° to 70°

Operating ambient temperature (min °C) 0°

Operating temperature (Drive case max °C) 70

Temperature gradient

Relative humidity

Relative humidity gradient (max) 30% per hour

(4K physical emulated at 512-byte sectors)

20°C per hour max (operating)

30°C per hour max (non operating)

5% to 95% (non-operating)

4096

0.010 in)

<8.5ms typical <9.5ms typical

5V: ±5%

12V: +10% / -7.5%

†

5% to 95% (operating)

Seagate SV35 Series HDD Product Manual, Rev. H 7

Page 9

www.seagate.com

Table 1 Drive specifications summary for 3TB, 2TB and 1TB models (Continued)

Drive Specification ST3000VX000 ST2000VX000 ST1000VX000

Wet bulb temperature (max)

Altitude, operating

Altitude, non-operating (below mean sea level, max)

Operational Shock (max) 80 Gs at 2ms

Non-Operational Shock (max) 300 Gs at 2ms 350 Gs at 2ms

Vibration, operating

Vibration, non-operating

Drive acoustics, sound power

Idle**

Seek

Non-recoverable read errors 1 per 10

Annualized Failure Rate (AFR) <1%

To determine the warranty for a specific drive, use a web browser to access the following web page: http://www.sea

Warr anty

Load/Unload cycles (25°C, 50% rel. humidity)

Supports Hotplug operation per the Serial ATA Revision 3.2 specification

From this page, click on the “Is my Drive under Warranty” link. The following are required to be provided: the drive serial number, model number (or part number) and country of purchase. The system will display the warranty information for the drive.

2Hz to 22Hz: 0.25 Gs (Limited displacement)

2.4 bels (typical)

2.6 bels (max)

2.6 bels (typical)

2.7 bels (max)

gate.com/support/warranty-and-replacements/.

26°C max (operating)

29°C max (non-operating)

–304.8m to 3048m

(–1000 ft to 10,000+ ft)

–304.8m to 12,192m

(–1000 ft to 40,000+ ft)

22Hz to 350Hz: 0.50 Gs

350Hz to 500Hz: 0.25 Gs

5Hz to 22Hz: 3.0 Gs

22Hz to 350Hz: 3.0 Gs

350Hz to 500Hz: 3.0 Gs

bits read

300,000

Yes

2.2 bels (typical)

2.3 bels (max)

2.3 bels (typical)

2.4 bels (max)

* One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity.

Accessible capacity may vary depending on operating environment and formatting.

** During periods of drive idle, some offline activity may occur according to the S.M.A.R.T.

specification, which may increase acoustic and power to operational levels.

*** All specifications above are based on native configurations.

†

Seagate does not recommend operating at sustained case temperatures above 60C. Operating at higher temperatures will reduce useful life of the product.

2.2Formatted capacity

Model

Formatted capacity*

ST3000VX000 3000GB 5,860,533,168

ST1000VX000 1000GB 1,953,525,168

*One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity. Accessible capacity may vary depending on

operating environment and formatting.

Guaranteed sectors

Bytes per sector

4KST2000VX000 2000GB 3,907,029,168

2.2.1 LBA mode

When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the number of guaranteed sectors as defined above.

See Section 4.3.1, "Identify Device command" (words 60-61 and 100-103) for additional information about 48-bit addressing support of drives with capacities over 137GB.

Seagate SV35 Series HDD Product Manual, Rev. H 8

Page 10

www.seagate.com

2.3 Default logical geometry

• Cylinders: 16,383

• Read/write heads: 16

• Sectors per track: 63

LBA mode

When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the number of guaranteed sectors as defined above.

2.4 Recording and interface technology

Interface SATA

Recording method TGMR

Recording density (kFCI) 1807

Track de nsity (ktracks/inch avg) 352

Areal density (Gb/in

avg) 625

Spindle speed (RPM) 7200 ± 0.2%

Internal data transfer rate (Mb/s max) 2147

Maximum sustained data transfer rate, OD read (MB/s) 210

Average data rate, read/write (MB/s) 156

I/O data-transfer rate (MB/s max) 600

2.5 Physical characteristics

Maximum height

3TB and 2TB 26.1mm / 1.028 in

1TB 20.17mm / 0.7825 in

Maximum width (all models) 101.6mm / 4.0 in (± 0.010 in)

Maximum length (all models) 146.99mm / 5.787 in

Typical weight

3TB and 2TB 626g / 1.38 lb

1TB 400g/0.88 lb

Cache buffer 64MB (64,768kb)

Seagate SV35 Series HDD Product Manual, Rev. H 9

Page 11

www.seagate.com

2.6 Seek time

Seek measurements are taken with nominal power at 25°C ambient temperature. All times are measured using drive diagnostics. The specifications in the table below are defined as follows:

• Track-to-track seek time is an average of all possible single-track seeks in both directions.

• Average seek time is a true statistical random average of at least 5000 measurements of seeks between random tracks,

less overhead.

Typical seek times (ms) Read Write

Track-to -track 1.0 1.2

Average 8.5 9.5

Average latency 4.16

These drives are designed to consistently meet the seek times represented in this manual. Physical seeks, regardless

Note

of mode (such as track-to-track and average), are expected to meet the noted values. However, due to the manner in which these drives are formatted, benchmark tests that include command overhead or measure logical seeks may produce results that vary from these specifications.

2.7 Start/stop times

3-disk models 2-disk models 1-disk models

Power-on to ready (in seconds)

Standby to ready (in seconds)

Ready to spindle stop (in seconds)

15 (typical) 17 (max)

10 (typical) 11 (max)

15 (typical) 17 (max)

10 (typical) 11 (max)

8.5 (typical) 10 (max)

10 (typical) 11 (max)

Time-to-ready may be longer than normal if the drive power is removed without going through normal OS powerdown procedures.

Seagate SV35 Series HDD Product Manual, Rev. H 10

Page 12

www.seagate.com

2.8 Power specifications

The drive receives DC power (+5V or +12V) through a native SATA power connector. Refer to Figure 1 on page 18.

2.8.1 Power consumption

Power requirements for the drives are listed in Table 2 and Table 3. Typical power measurements are based on an average of drives tested, under nominal conditions, using 5.0V and 12.0V input voltage at 25°C ambient temperature.

• Spinup power Spinup power is measured from the time of power-on to the time that the drive spindle reaches operating speed.

• Read/write power and current

Read/write power is measured with the heads on track, based on a 16-sector write followed by a 32-ms delay, then a 16-sector read followed by a 32-ms delay.

• Operating power and current

Operating power is measured by simulating a typical PVR operating environment, using a 50% write, 50% read algorithm.

• Idle mode power

Idle mode power is measured with the drive up to speed, with servo electronics active and with the heads in a random track location.

•Standby mode

During Standby mode, the drive accepts commands, but the drive is not spinning, and the servo and read/write electronics are in power-down mode.

Table 2 DC power requirements (3-disk: 3TB and 2TB)

Power dissipation (3-disk values shown) Avg (watts 25° C) Avg 5V typ amps Avg 12V typ amps

Spinup — — 2.0 (peak)

Idle1* † 5.40 0.190 0.377

Operating 8.00 0.510 0.462

Standby 0.75 0.136 0.005

Sleep 0.75 0.136 0.005

*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. † DIPLM Enabled

Table 3 DC power requirements (1-disk 1TB)

Power dissipation (1-disk values shown) Avg (watts 25° C) Avg 5V typ amps Avg 12V typ amps

Spinup — — 2.0 (peak)

Idle1* † 3.36 0.152 0.216

Operating 5.90 0.500 0.329

Standby 0.63 0.111 0.006

Sleep 0.63 0.111 0.006

*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. †DIPLM Enabled

Seagate SV35 Series HDD Product Manual, Rev. H 11

Page 13

www.seagate.com

2.8.2 Conducted noise

Input noise ripple is measured at the host system power supply across an equivalent 80-ohm resistive load on the +12 volt line or an equivalent 15-ohm resistive load on the +5 volt line.

• Using 12-volt power, the drive is expected to operate with a maximum of 120 mV peak-to-peak square-wave injected noise at up to 10MHz.

• Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave injected noise at up to 10MHz.

Note

Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current.

2.8.3 Voltage tolerance

Voltage tolerance (including noise):

•5V ±5%

•12V +10% / -7.5%

2.8.4 Power-management modes

The drive provides programmable power management to provide greater energy efficiency. In most systems, users can control power management through the system setup program. The drive features the following power-management modes:

Power modes Heads Spindle Buffer

Active Tracking Rotating Enabled

Idle Tracking Rotating Enabled

Standby Parked Stopped Enabled

Sleep Parked Stopped Disabled

•Active mode

The drive is in Active mode during the read/write and seek operations.

• Idle mode

The buffer remains enabled, and the drive accepts all commands and returns to Active mode any time disk access is necessary.

•Standby mode

The drive enters Standby mode when the host sends a Standby Immediate command. If the host has set the standby timer, the drive can also enter Standby mode automatically after the drive has been inactive for a specifiable length of time. The standby timer delay is established using a Standby or Idle command. In Standby mode, the drive buffer is enabled, the heads are parked and the spindle is at rest. The drive accepts all commands and returns to Active mode any time disk access is necessary.

•Sleep mode

The drive enters Sleep mode after receiving a Sleep command from the host. In Sleep mode, the drive buffer is disabled, the heads are parked and the spindle is at rest. The drive leaves Sleep mode after it receives a Hard Reset or Soft Reset from the host. After receiving a reset, the drive exits Sleep mode and enters Standby mode with all current translation parameters intact.

• Idle and Standby timers

Each time the drive performs an Active function (read, write or seek), the standby timer is reinitialized and begins counting down from its specified delay times to zero. If the standby timer reaches zero before any drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive accepts all commands and returns to Active mode when disk access is necessary.

Seagate SV35 Series HDD Product Manual, Rev. H 12

Page 14

www.seagate.com

2.9 Environmental specifications

2.9.1 Ambient temperature

Ambient temperature is defined as the temperature of the environment immediately surrounding the drive. Actual drive case temperature should not exceed 69°C (156°F) within the operating ambient conditions. Refer to

for base plate measurement location.

Section 3.4 on page

Non-Operating (Ambient °C) –40° to 70

Operating ambient temperature (min °C) 0

Operating temperature (Drive case max °C) 70

†

Seagate does not recommend operating at sustained case temperatures above 60C. Operating at higher temperatures will reduce useful life of the product.

†

2.9.2 Temperature gradient

Operating 20°C per hour (68°F per hour max), without condensation

Non-operating 30°C per hour (86°F per hour max)

2.9.3 Humidity

2.9.3.1 Relative humidity

Operating 5% to 95% non-condensing (30% per hour max)

Nonoperating 5% to 95% non-condensing (30% per hour max)

2.9.3.2 Wet bulb temperature

Operating 26°C / 78.8°F (rated)

Non-operating 29°C / 84.2°F (rated)

2.9.4 Altitude

Operating –304.8m to 3048m (–1000 ft. to 10,000+ ft.)

Non-operating –304.8m to 12,192m (–1000 ft. to 40,000+ ft.)

Seagate SV35 Series HDD Product Manual, Rev. H 13

Page 15

www.seagate.com

2.9.5 Shock

All shock specifications assume that the drive is mounted securely with the input shock applied at the drive mounting screws. Shock may be applied in the X, Y or Z axis.

2.9.5.1 Operating shock

These drives comply with the performance levels specified in this document when subjected to a maximum operating shock of 80 Gs based on half-sine shock pulses of 2 ms during read operations. Shocks should not be repeated more than two times per second.

2.9.5.2 Non-operating shock

3TB and 2TB models

The non-operating shock level that the drive can experience without incurring physical damage or degradation in performance when subsequently put into operation is 300 Gs based on a non-repetitive half-sine shock pulse of 2 ms duration.

1TB model

The non-operating shock level that the drive can experience without incurring physical damage or degradation in performance when subsequently put into operation is 350 Gs based on a non-repetitive half-sine shock pulse of 2-ms duration.

2.9.5.3 Operating vibration

The maximum vibration levels that the drive may experience while meeting the performance standards specified in this document are specified below.

2Hz to 22Hz 0.25 Gs (Limited displacement)

22Hz to 350Hz 0.50 Gs

350Hz to 500Hz 0.25 Gs

All vibration specifications assume that the drive is mounted securely with the input vibration applied at the drive mounting screws. Vibration may be applied in the X, Y or Z axis. Throughput may vary if improperly mounted.

2.9.6 Non-operating vibration

The maximum non-operating vibration levels that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operation are specified below.

5Hz to 22Hz 3.0 Gs (Limited displacement)

22Hz to 350Hz 3.0 Gs

350Hz to 500Hz 3.0 Gs

2.10 Acoustics

Drive acoustics are measured as overall A-weighted acoustic sound power levels (no pure tones). All measurements are consistent with ISO document 7779. Sound power measurements are taken under essentially free-field conditions over a reflecting plane. For all tests, the drive is oriented with the cover facing upward.

For seek mode tests, the drive is placed in seek mode only.

Note

Seagate SV35 Series HDD Product Manual, Rev. H 14

The number of seeks per second is defined by the following equation:

(Number of seeks per second = 0.4 / (average latency + average access time

Page 16

www.seagate.com

2.10.1 Test for Prominent Discrete Tones (PDTs)

Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards.

2.11 Electromagnetic immunity

When properly installed in a representative host system, the drive operates without errors or degradation in performance when subjected to the radio frequency (RF) environments defined in

Table 4 Radio frequency environments

Test Description Performance level Reference standard

Electrostatic discharge Contact, HCP, VCP: ± 4 kV; Air: ± 8 kV B EN61000-4-2: 95

Table 4.

Radiated RF immunity 80MHz to 1,000MHz, 3 V/m,

80% AM with 1kHz sine 900MHz, 3 V/m, 50% pulse modulation @ 200Hz

Electrical fast transient ± 1 kV on AC mains, ± 0.5 kV on external I/O B EN61000-4-4: 95

Surge immunity ± 1 kV differential, ± 2 kV common,

AC mains

Conducted RF immunity 150kHz to 80MHz, 3 Vrms, 80% AM with 1kHz sine A EN61000-4-6: 97

Voltage dips, interrupts 0% open, 5 seconds

0% short, 5 seconds 40%, 0.10 seconds 70%, 0.01 seconds

A EN61000-4-3: 96

B EN61000-4-5: 95

C C C B

ENV50204: 95

EN61000-4-11: 94

2.12 AFR and Warranty

The product will achieve an Annualized Failure Rate (AFR) of <1% when operated in an environment of ambient air temperatures of 25°C. Operation at temperatures outside the specifications shown in page 13 may increase the product AFR. AFR is a population statistics that is not relevant to individual units.

AFR specifications are based on the following assumptions for consumer electronics environments:

• 8760 power-on-hours per year

• 10,000 average motor start/stop cycles per year

• Operations at nominal voltages

• Temperatures outside the specifications in

Environmental specifications on page 13 may reduce the product reliability.

• Normal I/O duty cycle for consumer electronics environments. Operation at excessive I/O duty cycle may degrade product reliability.

The consumer electronics environment of power-on-hours, temperature, and I/O duty cycle affect the product AFR.The AFR will be degraded if used in an enterprise application.

To determine the warranty for a specific drive, use a web browser to access the following web page:

http://www.sea

gate.com/support/warranty-and-replacements/.

Environmental specifications on

2.12.1 Storage

Maximum storage periods are 180 days within original unopened Seagate shipping package or 60 days unpackaged within the defined non-operating limits (refer to environmental section in this manual). Storage can be extended to 1 year packaged or unpackaged under optimal environmental conditions (25°C, <40% relative humidity non-condensing, and non-corrosive environment). During any storage period the drive non-operational temperature, humidity, wet bulb, atmospheric conditions, shock, vibration, magnetic and electrical field specifications should be followed.

Seagate SV35 Series HDD Product Manual, Rev. H 15

Page 17

www.seagate.com

2.13 Agency certification

2.13.1 Safety certification

These products are certified to meet the requirements of UL60950-1, CSA60950-1 and EN60950 and so marked as to the certify agency.

2.13.2 Electromagnetic compatibility

Hard drives that display the CE mark comply with the European Union (EU) requirements specified in the Electromagnetic Compatibility Directive (2004/108/EC) as put into place 20 July 2007. Testing is performed to the levels specified by the product standards for Information Technology Equipment (ITE). Emission levels are defined by EN 55022, Class B and the immunity levels are defined by EN 55024.

Drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with the directives when used in the test systems, we cannot guarantee that all systems will comply with the directives. The drive is designed for operation inside a properly designed enclosure, with properly shielded I/O cable (if necessary) and terminators on all unused I/O ports. Computer manufacturers and system integrators should confirm EMC compliance and provide CE marking for their products.

Korean RRA

If these drives have the Korean Communications Commission (KCC) logo, they comply with paragraph 1 of Article 11 of the Electromagnetic Compatibility control Regulation and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Radio Research Agency (RRA) Communications Commission, Republic of Korea.

These drives have been tested and comply with the Electromagnetic Interference/Electromagnetic Susceptibility (EMI/ EMS) for Class B products. Drives are tested in a representative, end-user system by a Korean-recognized lab.

Australian RCM Compliance Mark

Models displayed with the RCM compliance mark, comply with the mandatory standards as per the Australian Communications and Media Authority (ACMA) Electromagnetic Compatibility (EMC) regulatory arrangement.

2.13.3 FCC verification

These drives are intended to be contained solely within a personal computer or similar enclosure (not attached as an external device). As such, each drive is considered to be a subassembly even when it is individually marketed to the customer. As a subassembly, no Federal Communications Commission verification or certification of the device is required.

Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disk drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules. Operation with non-certified assemblies is likely to result in interference to radio and television reception.

Radio and television interference. This equipment generates and uses radio frequency energy and if not installed and used in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception.

This equipment is designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television, which can be determined by turning the equipment on and off, users are encouraged to try one or more of the following corrective measures:

• Reorient the receiving antenna.

• Move the device to one side or the other of the radio or TV.

• Move the device farther away from the radio or TV.

• Plug the computer into a different outlet so that the receiver and computer are on different branch outlets.

If necessary, users should consult the dealer or an experienced radio/television technician for additional suggestions. Users may find helpful the following booklet prepared by the Federal Communications Commission: How to Identify and Resolve Radio-Television Interference Problems. This booklet is available from the Superintendent of Documents, U.S. Government Printing Office, Washington, DC 20402. Refer to publication number 004-000-00345-4.

Seagate SV35 Series HDD Product Manual, Rev. H 16

Page 18

www.seagate.com

中国限制危险物品的指令

“O”

表示该部件（于同类物品程度上）所含的危险和有毒物质低于中国

RoHS MCV

标准所定义的门槛值。

“X”

表示该部件（于同类物品程度上）所含的危险和有毒物质超出中国

RoHS MCV

标准所定义的门槛值。

2.14 Environmental protection

Seagate designs its products to meet environmental protection requirements worldwide, including regulations restricting certain chemical substances.

2.14.1 European Union Restriction of Hazardous Substances (RoHS) Directive

The European Union Restriction of Hazardous Substances (RoHS) Directive, restricts the presence of chemical substances, including Lead, Cadmium, Mercury, Hexavalent Chromium, PBB and PBDE, in electronic products, effective July 2006. This drive is manufactured with components and materials that comply with the RoHS Directive.

2.14.2 China Restriction of Hazardous Substances (RoHS) Directive

This product has an Environmental Protection Use Period (EPUP) of 20 years. The following table contains information mandated by China's "Marking Requirements for Control of Pollution Caused by Electronic Information Products" Standard.

"O" indicates the hazardous and toxic substance content of the part (at the homogeneous material level) is lower than the threshold defined by the China RoHS MCV Standard.

"X" indicates the hazardous and toxic substance content of the part (at the homogeneous material level) is over the threshold defined by the China RoHS MCV Standard.

2.15 Corrosive environment

Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845. However, this accelerated testing cannot duplicate every potential application environment. Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electronic drive component reliability can be affected by the installation environment. The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%. Materials used in cabinet fabrication, such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.

Seagate SV35 Series HDD Product Manual, Rev. H 17

Page 19

www.seagate.com

Power cable

Signal cable

Signal connector

Power connector

3.0 Configuring and Mounting the Drive

This section contains the specifications and instructions for configuring and mounting the drive.

3.1 Handling and static-discharge precautions

After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD) hazards. Observe the following standard handling and static-discharge precautions:

Caution

• Before handling the drive, put on a grounded wrist strap, or ground oneself frequently by touching the metal chassis of a computer that is plugged into a grounded outlet. Wear a grounded wrist strap throughout the entire installation procedure.

• Handle the drive by its edges or frame only.

• The drive is extremely fragile—handle it with care. Do not press down on the drive top cover.

• Always rest the drive on a padded, antistatic surface until users mount it in the computer.

• Do not touch the connector pins or the printed circuit board.

• Do not remove the factory-installed labels from the drive or cover them with additional labels. Removal voids the

warranty. Some factory-installed labels contain information needed to service the drive. Other labels are used to seal out dirt and contamination.

3.2 Configuring the drive

Each drive on the SATA interface connects point-to-point with the SATA host adapter. There is no master/slave relationship because each drive is considered a master in a point-to-point relationship. If two drives are attached on one SATA host adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. Both drives behave as if they are Device 0 (master) devices.

SATA drives are designed for easy installation. It is usually not necessary to set any jumpers on the drive for proper operation; however, if users connect the drive and receive a “drive not detected” error, the SATA-equipped motherboard or host adapter may use a chipset that does not support SATA speed auto-negotiation.

3.3 SATA cables and connectors

The SATA interface cable consists of four conductors in two differential pairs, plus three ground connections. The cable size may be 30 to 26 AWG with a maximum length of one meter (39.37 inches). See end of the SATA signal cable can be attached to the drive or host.

For direct backplane connection, the drive connectors are inserted directly into the host receptacle. The drive and the host receptacle incorporate features that enable the direct connection to be hot pluggable and blind mateable.

For installations which require cables, users can connect the drive as illustrated in

Figure 1 Attaching SATA cabling

Table 5 for connector pin definitions. Either

Figure 1.

Each cable is keyed to ensure correct orientation. SV35 Series HDD drives support latching SATA connectors.

Seagate SV35 Series HDD Product Manual, Rev. H 18

Page 20

3.4 Drive mounting

TOP OF LABEL

5 TYP

3X 6-32 UNC-2B 3 MINIMUM THREAD DEPTH

0.1 MAXIMUM FASTENER PENETRATION BOTH SIDES

4X 6-32 UNC-2B 3 MINIMUM THREAD DEPTH

0.1 MAXIMUM FASTENER PENETRATION

OF DRIVE

OF CONNECTOR

DATUM B

5.787 in max

146.99 mm

4.010 in max

101.85 mm

2x 1.625 ± .020 in

41.28 ± .51 mm

2x 1.750 in

44.45 mm

2x 0.125 in

3.18 mm

4.00 in

101.60 mm

1.638 in

41.61 mm

1.122 ± .020 in  ± .51 mm

0.138 in

3.51 mm

0.814 in

20.68 mm

1.028 in max

26.11 mm

3x 0.250 ± .010 in

6.35 ± .25 mm BOTH SIDES

2x 3.750 in

95.25 mm

1.013 ± .050 in

25.73 ± 1.27 mm

0.680 ± .050 in

17.27 ± 1.27 mm

Temperature Check Point

Users can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottommounting holes. See when mounting the drive:

• Allow a minimum clearance of 0.030 inches (0.76mm) around the entire perimeter of the drive for cooling.

• Use only 6-32 UNC mounting screws.

• The screws should be inserted no more than 0.120 inch (3.05mm) into the bottom or side mounting holes.

• Do not overtighten the mounting screws (maximum torque: 6 inch-lb).

Figure 2 Mounting dimensions (3-disk: 3TB and 2TB models)

Figure 2 and Figure 3 for drive mounting dimensions. Follow these important mounting precautions

Note. Image is for reference only, and may not represent actual drive.

Seagate SV35 Series HDD Product Manual, Rev. H 19

Page 21

www.seagate.com

5 TYP

TOP OF LABEL

OF CONNECTOR

DATUM B

OF DRIVE

3X 6-32 UNC-2B 3 MINIMUM THREAD DEPTH

0.1 MAXIMUM FASTENER PENETRATION BOTH SIDES

4X 6-32 UNC-2B 3 MINIMUM THREAD DEPTH

0.1 MAXIMUM FASTENER PENETRATION

5.787 in. max

146.99 mm

4.010 in. max

101.85 mm

0.787 in. max

19.99 mm

3x .250 ± .010in

6.35 ± .25mm BOTH SIDES

4.00 in

101.60 mm

1.638 in

41.61 mm

1.122 ± .020 in  ± .51 mm

2x 1.625 ± .020 in

41.28 ± .51 mm

2x 1.750 in

44.45 mm

2x 3.750 in

95.25 mm

2x 0.125 in

3.18 mm

1.106 ± .050 in

28.09 ± 1.27 mm

0.626 ± .050 in

15.90 ± 1.27 mm

Temperature Check Point

0.814 in

20.68 mm

0.138 in

3.51 mm

Figure 3 Mounting dimensions (1-Disk: 1TB)

Note. Image is for reference only, and may not represent actual drive.

Seagate SV35 Series HDD Product Manual, Rev. H 20

Page 22

www.seagate.com

4.0 SATA Interface

These drives use the industry-standard Serial ATA (SATA) interface that supports FIS data transfers. It supports ATA programmed input/output (PIO) modes 0 to 4; multiword DMA modes 0 to 2, and Ultra DMA modes 0 to 6.

For detailed information about the SATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification.

4.1 Hot-Plug compatibility

SV35 Series HDD drives incorporate connectors which enable users to hot plug these drives in accordance with the SATA Revision 2.5 specification. This specification can be downloaded from www.serialata.org

4.2 SATA device plug connector pin definitions

Table 5 summarizes the signals on the SATA interface and power connectors.

Table 5 SATA connector pin definitions

Segment Pin Function Definition

Signal S1 Ground 2nd mate

S2 A+ Differential signal pair A from Phy

S3 A-

S4 Ground 2nd mate

S5 B- Differential signal pair B from Phy

S6 B+

S7 Ground 2nd mate

Key and spacing separate signal and power segments

Power P1 V

P2 V

P3 V

P4 Ground 1st mate

P5 Ground 2nd mate

P6 Ground 2nd mate

P7 V

P8 V

P9 V

P10 Ground 2nd mate

P11 Ground or LED signal If grounded, drive does not use deferred spin

P12 Ground 1st mate.

P13 V

P14 V

P15 V

3.3V power

3.3V power, pre-charge, 2nd mate

5V power, pre-charge, 2nd mate

5V power

12V power, pre-charge, 2nd mate

12V power

Notes

1. All pins are in a single row, with a 1.27 mm (0.050”) pitch.

2. The comments on the mating sequence apply to the case of backplane blindmate connector only. In this case, the

mating sequences are:

• the ground pins P4 and P12.

• the pre-charge power pins and the other ground pins.

• the signal pins and the rest of the power pins.

3. There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a

blind-mate backplane configuration.

• All used voltage pins (V

Seagate SV35 Series HDD Product Manual, Rev. H 21

) must be terminated.

Page 23

4.3 Supported ATA commands

The following table lists SATA standard commands that the drive supports. For a detailed description of the ATA commands, refer to the Serial ATA International Organization: Serial ATA Revision 3.2 (http://www.sata-io.or

See “S.M.A.R.T. commands” on page 29 for details and subcommands used in the S.M.A.R.T. implementation.

Command name Command code (in hex)

g).

Check Power Mode E5

Configure Stream 51

Device Configuration Freeze Lock B1H / C1

Device Configuration Identify B1H / C2

Device Configuration Restore B1H / C0

Device Configuration Set B1H / C3

Device Reset 08

Download Microcode 92

Execute Device Diagnostics 90

Flush Cache E7

Flush Cache Extended EA

Format Track 50

Identify Device EC

Idle E3

Idle Immediate E1

Initialize Device Parameters 91

Read Buffer E4

Read DMA C8

Read DMA Extended 25

Read DMA Without Retries C9

Read Log Ext 2F

Read Multiple C4

Read Multiple Extended 29

Read Native Max Address F8

Read Native Max Address Extended 27

Read Sectors 20

Read Sectors Extended 24

Read Sectors Without Retries 21

Read Stream DMA Extended 2A

Read Stream Extended 2B

Read Verify Sectors 40

Read Verify Sectors Extended 42

Seagate SV35 Series HDD Product Manual, Rev. H 22

Page 24

www.seagate.com

Command name Command code (in hex)

Read Verify Sectors Without Retries 41

Recalibrate 10

Security Disable Password F6

Security Erase Prepare F3

Security Erase Unit F4

Security Freeze F5

Security Set Password F1

Security Unlock F2

Seek 70

Set Features EF

Set Max Address F9

Note: Individual Set Max Address commands are identified by the value placed in the Set Max Features register as defined to the right.

Address: Password: Lock: Unlock: Freeze Lock:

Set Max Address Extended 37

Set Multiple Mode C6

Sleep E6

S.M.A.R.T. Disable Operations B0H / D9

S.M.A.R.T. Enable/Disable Autosave B0H / D2

S.M.A.R.T. Enable Operations B0H / D8

S.M.A.R.T. Execute Offline B0H / D4

S.M.A.R.T. Read Attribute Thresholds B0H / D1

S.M.A.R.T. Read Data B0H / D0

S.M.A.R.T. Read Log Sector B0H / D5

S.M.A.R.T. Return Status B0H / DA

S.M.A.R.T. Save Attribute Values B0H / D3

S.M.A.R.T. Write Log Sector B0H / D6

Standby E2

Standby Immediate E0

Write Buffer E8

Write DMA CA

Write DMA Extended 35

Write DMA FUA Extended 3D

Write DMA Without Retries CB

Write Log Extended 3F

Write Multiple C5

Seagate SV35 Series HDD Product Manual, Rev. H 23

Page 25

www.seagate.com

Command name Command code (in hex)

Write Multiple Extended 39

Write Multiple FUA Extended CE

Write Sectors 30

Write Sectors Without Retries 31

Write Sectors Extended 34

Write Stream DMA Extended 3A

Write Stream Extended 3B

Write Uncorrectable 45

4.3.1 Identify Device command

The Identify Device command (command code ECH) transfers information about the drive to the host following power up. The data is organized as a single 512-byte block of data, whose contents are shown in on page 22. All reserved bits or words should be set to zero. Parameters listed with an “x” are drive-specific or vary with the state of the drive.

The following commands contain drive-specific features that may not be included in the SATA specification.

Word Description Value

0 Configuration information:

• Bit 15: 0 = ATA; 1 = ATAPI

• Bit 7: removable media

• Bit 6: removable controller

• Bit 0: reserved

0C5A

1 Number of logical cylinders 16,383

2 ATA-reserved 0000

3 Number of logical heads 16

4 Retired 0000

5 Retired 0000

6 Number of logical sectors per logical track: 63 003F

7–9 Retired 0000

10–19 Serial number: (20 ASCII characters, 0000H = none) ASCII

20 Retired 0000

21 Retired 0400

22 Obsolete 0000

23–26 Firmware revision

x.xx

(8 ASCII character string, padded with blanks to end of string)

27–46 Drive model number:

(40 ASCII characters, padded with blanks to end of string)

47 (Bits 7–0) Maximum sectors per interrupt on Read multiple and Write multiple

8010

(16)

48 Reserved 0000

49 Standard Standby timer, IORDY supported and may be disabled 2F00

Seagate SV35 Series HDD Product Manual, Rev. H 24

Page 26

www.seagate.com

Word Description Value

50 ATA-reserved 0000

51 PIO data-transfer cycle timing mode 0200

52 Retired 0200

53 Words 54–58, 64–70 and 88 are valid 0007

54 Number of current logical cylinders xxxx

55 Number of current logical heads xxxx

56 Number of current logical sectors per logical track xxxx

57–58 Current capacity in sectors xxxx

59 Number of sectors transferred during a Read Multiple

xxxx

or Write Multiple command

60–61 Total number of user-addressable LBA sectors available

0FFFFFFFh* (see Section 2.2 for related information) *Note: The maximum value allowed in this field is: 0FFFFFFFh (268,435,455

sectors, 137GB). Drives with capacities over 137GB will have 0FFFFFFFh in this field and the actual number of user-addressable LBAs specified in words 100-

103. This is required for drives that support the 48-bit addressing feature.

62 Retired 0000

63 Multiword DMA active and modes supported

xx07 (see note following this table)

64 Advanced PIO modes supported (modes 3 and 4 supported) 0003

65 Minimum multiword DMA transfer cycle time per word (120 nsec) 0078

66 Recommended multiword DMA transfer cycle time per word (120 nsec) 0078

67 Minimum PIO cycle time without IORDY flow control (240 nsec) 0078

68 Minimum PIO cycle time with IORDY flow control (120 nsec) 0078

69–74 ATA-reserved 0000

75 Queue depth 001F

76 SATA capabilities xxxx

77 Reserved for future SATA definition xxxx

78 SATA features supported xxxx

79 SATA features enabled xxxx

80 Major version number 01F0

81 Minor version number 0028

82 Command sets supported 364B

83 Command sets supported 7F09

84 Command sets support extension (see note following this table) 4163

85 Command sets enabled 30xx

86 Command sets enabled BE09

87 Command sets enable extension 4163

Seagate SV35 Series HDD Product Manual, Rev. H 25

Page 27

www.seagate.com

Word Description Value

88 Ultra DMA support and current mode (see note following this table) xx7F

89 Security erase time 0039

90 Enhanced security erase time 0039

92 Master password revision code FFFE

93 Hardware reset value xxxx

94 Automatic acoustic management 8080

95 Stream Min. Request Size 0000

96 Streaming Transfer Time - DMA 0000

97 Streaming Access Latency - DMA and PIO 0000

98–99 Streaming Performance Granularity 2710H / 0000

100–103 Total number of user-addressable LBA sectors available

(see Section 2.2 for related information). These words are required for drives that support the 48-bit addressing feature. Maximum value: 0000FFFFFFFFFFFFh.

104 Streaming Transfer Time - PIO 0000

105–107 ATA-reserved 0000

108–111 The mandatory value of the world wide name (WWN) for the drive. NOTE: This

ST3000VX000 = 5,860,533,168

ST2000VX000 = 3,907,029,168

ST1000VX000 = 1,953,525,168

Each drive will have a unique value. field is valid if word 84, bit 8 is set to 1 indicating 64-bit WWN support.

112–127 ATA-reserved 0000

128 Security status 0001

129–159 Seagate-reserved xxxx

160–254 ATA-reserved 0000

255 Integrity word xxA5

Note

See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data.

Description (if bit is set to 1)

Bit Word 63

0 Multiword DMA mode 0 is supported.

1 Multiword DMA mode 1 is supported.

2 Multiword DMA mode 2 is supported.

8 Multiword DMA mode 0 is currently active.

9 Multiword DMA mode 1 is currently active.

10 Multiword DMA mode 2 is currently active.

Bit Word 84

0 SMART error login is supported.

1 SMART self-test is supported.

Seagate SV35 Series HDD Product Manual, Rev. H 26

Page 28

www.seagate.com

2 Media serial number is supported.

3 Media Card Pass Through Command feature set is supported.

4 Streaming feature set is supported.

5 GPL feature set is supported.

6 WRITE DMA FUA EXT and WRITE MULTIPLE FUA EXT commands are supported.

7 WRITE DMA QUEUED FUA EXT command is supported.

8 64-bit World Wide Name is supported.

9-10 Obsolete.

11-12 Reserved for TLC.

13 IDLE IMMEDIATE command with IUNLOAD feature is supported.

14 Shall be set to 1.

15 Shall be cleared to 0.

Bit Word 88

0 Ultra DMA mode 0 is supported.

1 Ultra DMA mode 1 is supported.

2 Ultra DMA mode 2 is supported.

3 Ultra DMA mode 3 is supported.

4 Ultra DMA mode 4 is supported.

5 Ultra DMA mode 5 is supported.

6 Ultra DMA mode 6 is supported.

8 Ultra DMA mode 0 is currently active.

9 Ultra DMA mode 1 is currently active.

10 Ultra DMA mode 2 is currently active.

11 Ultra DMA mode 3 is currently active.

12 Ultra DMA mode 4 is currently active.

13 Ultra DMA mode 5 is currently active.

14 Ultra DMA mode 6 is currently active.

Seagate SV35 Series HDD Product Manual, Rev. H 27

Page 29

www.seagate.com

4.3.2 Set Features command

This command controls the implementation of various features that the drive supports. When the drive receives this command, it sets BSY, checks the contents of the Features register, clears BSY and generates an interrupt. If the value in the register does not represent a feature that the drive supports, the command is aborted. Power-on default has the read lookahead and write caching features enabled. The acceptable values for the Features register are defined as follows:

Enable write cache (default).

Set transfer mode (based on value in Sector Count register). Sector Count register values:

Set PIO mode to default (PIO mode 2).

01HSet PIO mode to default and disable IORDY (PIO mode 2).

08HPIO mode 0

09HPIO mode 1

0AHPIO mode 2

0BHPIO mode 3

0CHPIO mode 4 (default)

20HMultiword DMA mode 0

21HMultiword DMA mode 1

22HMultiword DMA mode 2

40HUltra DMA mode 0

41HUltra DMA mode 1

42HUltra DMA mode 2

43HUltra DMA mode 3

44HUltra DMA mode 4

45HUltra DMA mode 5

46HUltra DMA mode 6

Enable use of SATA features

Disable read look-ahead (read cache) feature.

Disable write cache

Disable use of SATA features

Enable read look-ahead (read cache) feature (default).

Report full capacity available

Note

At power-on, or after a hardware or software reset, the default values of the features are as indicated above.

Seagate SV35 Series HDD Product Manual, Rev. H 28

Page 30

www.seagate.com

4.3.3 S.M.A.R.T. commands

S.M.A.R.T. provides near-term failure prediction for disk drives. When S.M.A.R.T. is enabled, the drive monitors predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines that a failure is likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable. S.M.A.R.T. predictability is limited to the attributes the drive can monitor. For more information on S.M.A.R.T. commands and implementation, see the Draft ATA-5 Standard.

SeaTools diagnostic software activates a built-in drive self-test (DST S.M.A.R.T. command for D4 unnecessary drive returns. The diagnostic software ships with all new drives and is also available at:

http://seatools.sea

gate.com.

This drive is shipped with S.M.A.R.T. features disabled. Users must have a recent BIOS or software package that supports S.M.A.R.T. to enable this feature. The table below shows the S.M.A.R.T. command codes that the drive uses.

Code in features register S.M.A.R.T. command

) that eliminates

Note

S.M.A.R.T. Read Data

S.M.A.R.T. Enable/Disable Attribute Autosave

S.M.A.R.T. Save Attribute Values

S.M.A.R.T. Execute Off-line Immediate (runs DST)

S.M.A.R.T. Read Log Sector

S.M.A.R.T. Write Log Sector

S.M.A.R.T. Enable Operations

S.M.A.R.T. Disable Operations

S.M.A.R.T. Return Status

If an appropriate code is not written to the Features Register, the command is aborted and 0x04 (abort) is written to the Error register.

Seagate SV35 Series HDD Product Manual, Rev. H 29

Page 31

Seagate Technology LLC

AMERICAS Seagate Technology LLC 10200 South De Anza Boulevard, Cupertino, California 95014, United States, 408-658-1000 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00

Publication Number: 100687219, May 2016

Rev. H
