Seagate ST2000NM0055 User Manual

Enterprise Capacity

3.5 HDD

v5 SATA Product Manual

Standard 512N models

ST4000NM0035 ST3000NM0005 ST2000NM0055 ST1000NM0055

100793636, Rev. D

Self-Encryption 512N models

ST4000NM0045 ST3000NM0015 ST2000NM0065 ST1000NM0065

SED-FIPS 140-2 models

ST4000NM0105 ST3000NM0055

November 2016

Document Revision History

Revision Date Pages affected and Description of changes

Rev. A 03/22/2016 Initial release.

Rev. B 03/30/2016

Rev. C 08/11/2016

Rev. D 11/30/2016

6: Revised Sustained data rate to “205 (215 MB/s max)” 13: Revised Manufacturer Default Timer Values - Idle_a = 100 msec

6 & 15: Revised Non-Op Shock to 250 Gs for all capacities 18: Updated to Korean RRA 19: Updated to China RoHS 2

6 & 15: Revised Non-Op shock to 300 Gs @ 2 ms for all capacities 18: Added MSIP Korean text for Class B device warning

Publication number: 100793636, Rev. D November 2016 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. PowerChoice and SeaTools are either

trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments. All other trademarks or registered trademarks are the property of their respective owners.

No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC. Call 877-PUB-TEK1 (877-782-8351) to request permission. When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different

standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Actual quantities will vary based on various factors, including file size, file format, features and application software. Actual data rates may vary depending on operating environment and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more information, visit www.bis.doc.gov), and controlled for import and use outside of the U.S. Seagate reserves the right to change, without notice, product offerings or specifications.

Contents

Seagate® Technology Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 About the Serial ATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.0 Drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.1 Specification summary tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.2 Formatted capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2.1 LBA mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3 Recording and interface technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.4 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.5 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5.2 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.5.3 Voltage tolerance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.5.4 Extended Power Conditions - PowerChoiceTM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.6 Environmental limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.6.1 Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.6.2 Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.6.3 Effective Altitude (sea level) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.6.4 Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.6.5 Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.7 Acoustics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.8 Test for Prominent Discrete Tones (PDTs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.9 Electromagnetic immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.10 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.10.1 Annualized Failure Rate (AFR) and Mean Time Between Failures (MTBF) . . . . . . . . . . . . . 17

2.11 Agency certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.11.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.11.2 Electromagnetic compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.11.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.12 Environmental protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.12.1 European Union Restriction of Hazardous Substances (RoHS) Directive. . . . . . . . . . . . . . 19

2.12.2 China Requirements — China RoHS 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.13 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.14 Reference documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.15 Product warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Seagate Enterprise Capacity 3.5 HDD v5 Serial ATA Product Manual, Rev. D 2

Contents

3.0 Configuring and mounting the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.1 Handling and static-discharge precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.2 Configuring the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.3 Serial ATA cables and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.4 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

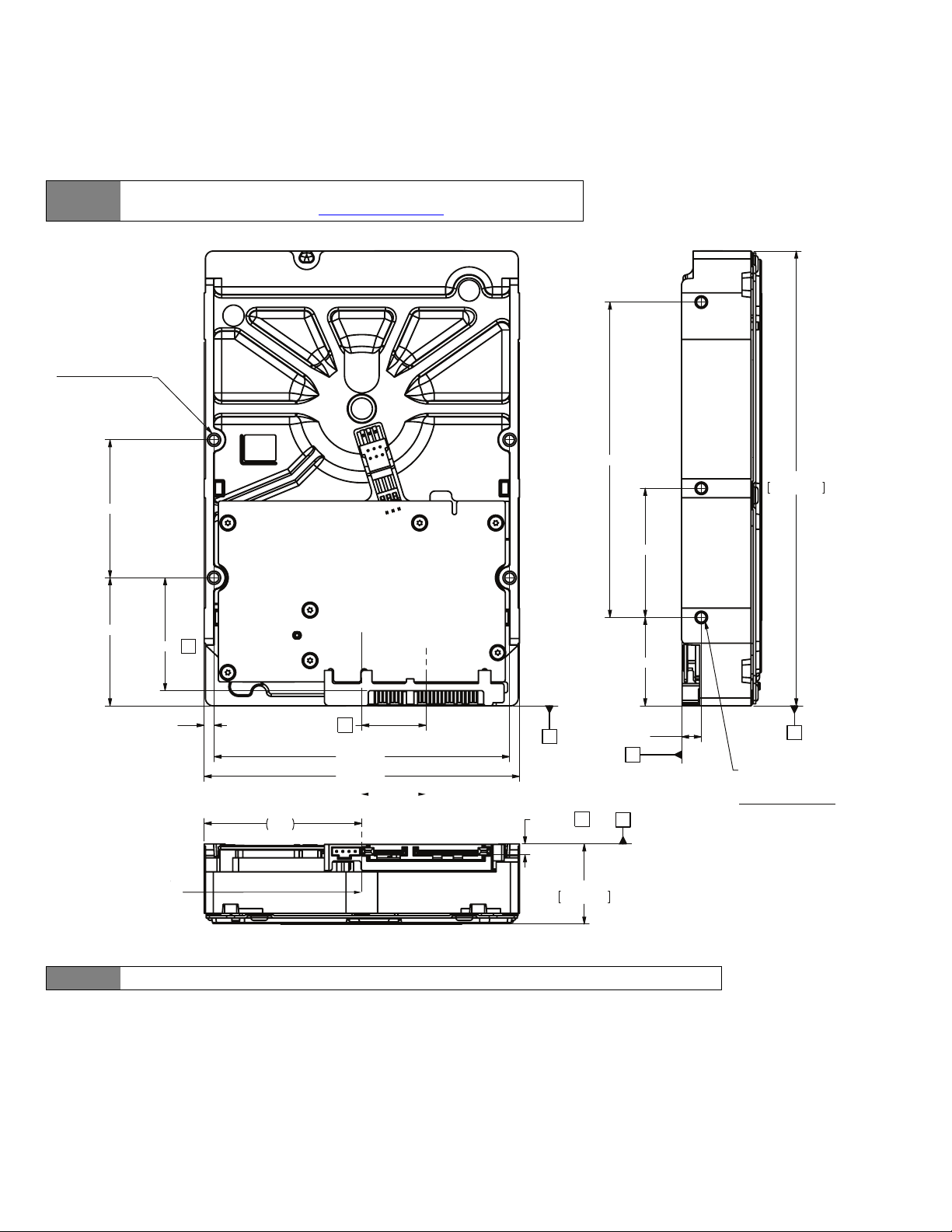

3.4.1 Mechanical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.0 About self-encrypting drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.1 Data encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.2 Controlled access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.2.1 Admin SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.2.2 Locking SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.2.3 Default password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.3 Random number generator (RNG). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.4 Drive locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.5 Data bands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.6 Cryptographic erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.7 Authenticated firmware download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.8 Power requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.9 Supported commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.10 RevertSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.11 ATA Security Erase Unit Command on SED SATA drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.12 Sanitize Device - CRYPTO SCRAMBLE EXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.0 About FIPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

6.0 Serial ATA (SATA) interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.1 Hot-Plug compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.2 Serial ATA device plug connector pin definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.3 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

6.3.1 Identify Device command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6.3.2 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

6.3.3 S.M.A.R.T. commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Seagate Enterprise Capacity 3.5 HDD v5 Serial ATA Product Manual, Rev. D 3

Seagate® Technology Support Services

For information regarding online support and services, visit: http://www.seagate.com/contacts/

For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/

For information regarding data recovery services, visit: http://www.seagate.com/services-software/data-recovery-services/

For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/

Seagate Enterprise Capacity 3.5 HDD v5 Serial ATA Product Manual, Rev. D 4

1.0 Introduction

This manual describes the functional, mechanical and interface specifications for the following: Seagate

Enterprise Capacity 3.5 HDD v5 Serial ATA model drives:.

Standard 512N models Self-Encrypting 512N (SED) models SED FIPS 140-2 512N Drive

ST4000NM0035 ST4000NM0045 ST4000NM0105 ST3000NM0005 ST3000NM0015 ST3000NM0005 ST2000NM0055 ST2000NM0065 ST1000NM0055 ST1000NM0065

These drives provide the following key features:

• 128 MB data buffer.

• 7200 RPM spindle speed.

• Full-track multiple-sector transfer capability without local processor intervention.

• High instantaneous (burst) data-transfer rates (up to 600MB per second).

• Native Command Queuing with command ordering to increase performance in demanding applications.

• Perpendicular recording technology provides the drives with increased areal density.

• PowerChoice™ for selectable power savings

• SeaTools™ diagnostic software performs a drive self-test that eliminates unnecessary drive returns.

• State-of-the-art cache and on-the-fly error-correction algorithms.

• Support for S.M.A.R.T. drive monitoring and reporting.

• Supports latching SATA cables and connectors.

• Tarnish-resistant components to help protect drive from environmental elements, increasing field reliability.

• Top Cover Attached motor for excellent vibration tolerance

• Worldwide Name (WWN) capability uniquely identifies the drive.

Note

Seagate recommends validating the configuration with the selected HBA/ RAID controller manufacturer to ensure use of full capacity is supported.

1.1 About the Serial ATA interface

The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. The primary advantages include:

• Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other configuration options.

• Thinner and more flexible cabling for improved enclosure airflow and ease of installation.

• Scalability to higher performance levels.

In addition, Serial ATA makes the transition from parallel ATA easy by providing legacy software support. Serial ATA was designed to allow users to install a Serial ATA host adapter and Serial ATA disk drive in the current system and expect all of the existing applications to work as normal.

The Serial ATA interface connects each disk drive in a point-to-point configuration with the Serial ATA host adapter. There is no master/slave relationship with Serial ATA devices like there is with parallel ATA. If two drives are attached on one Serial ATA host adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. This essentially means both drives behave as if they are Device 0 (master) devices.

The host adapter may, optionally, emulate a master/slave environment to host software where two

Note

The Serial ATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward compatibility with existing host systems and software. The Command and Control Block registers, PIO and DMA data transfers, resets, and interrupts are all emulated.

devices on separate Serial ATA ports are represented to host software as a Device 0 (master) and Device 1 (slave) accessed at the same set of host bus addresses. A host adapter that emulates a master/ slave environment manages two sets of shadow registers. This is not a typical Serial ATA environment.

The Serial ATA host adapter contains a set of registers that shadow the contents of the traditional device registers, referred to as the Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. The specification can be downloaded from

www.serialata.or

Seagate Enterprise Capacity 3.5 HDD v5 Serial ATA Product Manual, Rev. D 5

2.0 Drive specifications

Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate the following drive models:

Standard 512N models Self-Encrypting 512N (SED) models SED FIPS 140-2 512N Drive

ST4000NM0035 ST4000NM0045 ST4000NM0105 ST3000NM0005 ST3000NM0015 ST3000NM0005 ST2000NM0055 ST2000NM0065 ST1000NM0055 ST1000NM0065

2.1 Specification summary tables

The specifications listed in the following tables are for quick reference. For details on specification measurement or definition, see the appropriate section of this manual.

Table 1 Drive specifications summary

ST4000NM0035

Drive specification

Formatted (512 bytes/sector)* 4TB 3TB 2TB 1TB Guaranteed sectors (see Section 2.2) Heads 7 4 2 Discs 4 2 Bytes per logical sector 512 Recording density, KBPI (Kb/in max) 2018 Track density, KTPI (ktracks/in avg.) 369 Areal density, (Gb/in2 avg) 732 Spindle speed (RPM) 7200 Internal data transfer rate (Mb/s max) 2396 Sustained data transfer rate OD (MiB/s max) 205 (215 MB/s max) I/O data-transfer rate (MB/s max) 600

ATA data-transfer modes supported

Cache buffer 128MB (129,536KB) Weight: (maximum) 704g (1.55 lb) 610g (1.34 lb) Average latency 4.16ms Power-on to ready (sec) (typ/max) 22/30 Standby to ready (sec) (typ/max) 22/30

Startup current (typical) 12V (peak)

Voltage tolerance (including noise)

Non-Operating ambient temperature (°C) –40 to 70 Operating ambient temperature (°C) 5 Operating temperature (Drive case max °C) 60 Temperature gradient

(°C per hour max)

Relative humidity

Relative humidity gradient 30% per hour max

Altitude, operating

Altitude, non-operating (below mean sea level, max)

Operational Shock (max at 2 ms) Read 70 Gs / Write 40 Gs Non-Operational Shock (max at 2 ms) 300 Gs

ST4000NM0045 ST4000NM0105

2.0A (optional configuration through Smart Command Transport)

ST3000NM0005 ST3000NM0015 ST3000NM0005

Multiword DMA modes 0–2

Ultra DMA modes 0–6

30°C (non-operating)

5% to 95% (operating)

5% to 95% (non-operating)

–304.8 m to 3,048 m

(–1000 ft to 10,000+ ft)

–304.8 m to 12,192 m

(–1000 ft to 40,000+ ft)

PIO modes 0–4

2.6A

5V +10/-5%

12V ±10%

20°C (operating)

ST2000NM0055 ST2000NM0065

ST1000NM0055 ST1000NM0065

Seagate Enterprise Capacity 3.5 HDD v5 Serial ATA Product Manual, Rev. D 6

ST4000NM0035

Drive specification

Vibration, operating

Operation Rotational vibration 20–1500Hz: 12.5 rads/s² Vibration, non-operating 10–500 Hz: 4.9 Grms ref Drive acoustics, sound power (bels)

Idle**

Performance seek

Nonrecoverable read errors 1 sector per 10 Annualized Failure Rate (AFR) 0.44% based on 8760 POH

Maximum Rated Workload

Warr anty

Load-unload cycles 600,000 Supports Hotplug operation per

Serial ATA Revision 3.2 specification

ST4000NM0045 ST4000NM0105

Maximum rate of <550TB/year. Workloads exceeding the annualized rate may degrade the drive MTBF and impact product reliability. The Annualized Workload Rate is in units of TB per year, or TB per 8760 power on hours. Workload Rate = TB transferred * (8760 / recorded power on hours).

To d etermine the warranty for a specific drive, use a web browser to access the following web page:

http://www.seagate.com/support/warranty-and-replacements/.

From this page, click on the “Is my Drive under Warranty” link. The following are required to be provided: the drive serial number, model number (or part number) and country of purchase.The system will display the warranty information for the drive.

ST3000NM0005 ST3000NM0015 ST3000NM0005

5–22 Hz: 0.25 Gs, Limited displacement

22–350 Hz: 0.50 Gs 350–500 Hz: 0.25 Gs

2.8 (typical)

3.0 (max)

3.2 (typical)

3.4 (max)

Yes

bits read

ST2000NM0055 ST2000NM0065

ST1000NM0055 ST1000NM0065

*One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.

**During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels.

Seagate Enterprise Capacity 3.5 HDD v5 Serial ATA Product Manual, Rev. D 7

2.2 Formatted capacity

ST models Formatted capacity* Guaranteed sectors Bytes per logical sector

ST4000NM0035 ST4000NM0045 ST4000NM0105

ST3000NM0005 ST3000NM0015 ST3000NM0055

4TB 7,814,037,168

3TB 5,860,533,168

512

ST2000NM0055 ST2000NM0065

ST1000NM0055 ST1000NM0065

*One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.

2TB 3,907,029,168

1TB 1,953,525,168

2.2.1 LBA mode

When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the number of guaranteed sectors as defined above.

See Section 6.3.1, "Identify Device command" (words 60-61 and 100-103) for additional information about 48-bit addressing support of drives with capacities over 137GB.

2.3 Recording and interface technology

Interface S erial ATA (S ATA)

Recording method Perpendicular

Recording density, KBPI (Kb/in max) 2018

Track density, KTPI (ktracks/in avg) 369

Areal density (Gb/in2 avg) 732

Spindle speed (RPM) (± 0.2%) 7200

Internal data transfer rate (Mb/s max) 2396

Sustained data transfer rate (MiB/s max) 215

I/O data-transfer rate (MB/s max) 600 (Ultra DMA mode 5)

2.4 Start/stop times

Power-on to Ready (sec) (typ/max) 22/30

Standby to Ready (sec) (typ/max) 22/30

Ready to spindle stop (sec) (max) 23

Seagate Enterprise Capacity 3.5 HDD v5 Serial ATA Product Manual, Rev. D 8

2.5 Power specifications

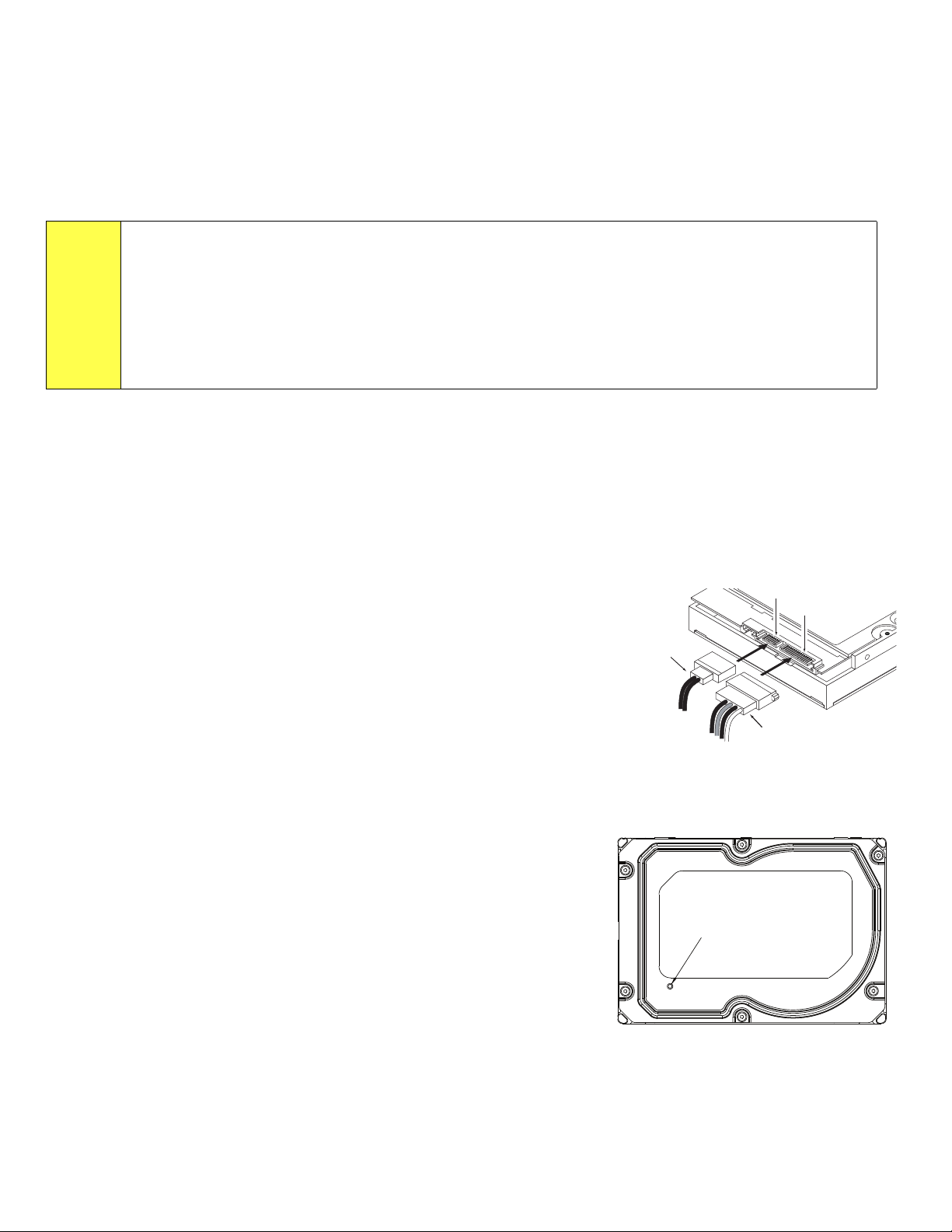

The drive receives DC power (+5V or +12V) through a native SATA power connector. See Figure 4 on page 21.

2.5.1 Power consumption

Power requirements for the drives are listed in Table 2 through Table 3. Typical power measurements are based on an average of drives tested, under nominal conditions, using 5.0V and 12.0V input voltage at 25°C ambient temperature.

Table 2 DC power requirements (3TB and 4TB)

6.0Gb mode

Voltage +5V +12V Watts

Regulation ± 5% Total Avg Idle Current * 0.205 0.369 5.45

Advanced Idle Current *

Idle_A 0.200 0.366 5.39 Idle_B 0.133 0.330 4.63 Idle_C 0.141 0.202 3.13 Standby 0.125 0.001 0.63

Maximum Start Current

DC (peak DC) 0.491 2.095 AC (Peak DC) 0.680 2.680

Delayed Motor Start (DC max) 0.176 0.068 1.70

Operating current (random read): 4K/Q16

Typical DC 0.234 0.724 9.86

Maximum DC 0.238 0.734 10.00

Operating current (random write): 4K/Q16

Typical DC 0.245 0.692 9.52 Maximum DC 0.248 0.701 9.65

Operating current (sequential read): 64K/Q16

Typical DC 0.505 0.402 7.35 Maximum DC 0.512 0.407 7.45

Operating current (sequential write): 64K/Q16

Typical DC 0.443 0.427 7.33 Maximum DC 0.448 0.430 7.40

*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels

Seagate Enterprise Capacity 3.5 HDD v5 Serial ATA Product Manual, Rev. D 9

Table 3 2-1TB Drive DC power requirements

6.0Gb mode

Voltage +5V +12V Watts

Regulation ± 5% Total Avg Idle Current * 0.20 0.271 4.25

Advanced Idle Current *

Idle_A 0.197 0.270 4.22 Idle_B 0.128 0.244 3.57 Idle_C 0.137 0.156 2.56 Standby 0.120 0.011 0.74

Maximum Start Current

DC (peak DC) 0.466 2.046 AC (Peak DC) 0.608 2.72

Delayed Motor Start (DC max) 0.144 0.02 0.96

Operating current (random read): 4K/Q16

Typical DC 0.22 0.628 8.64

Maximum DC 0.228 0.644 8.86

Operating current (random write): 4K/Q16

Typical DC 0.231 0.599 8.34 Maximum DC 0.239 0.623 8.67

Operating current (sequential read): 64K/Q16

Typical DC 0.491 0.291 5.95 Maximum DC 0.497 0.299 6.07

Operating current (sequential write): 64K/Q16

Typical DC 0.431 0.31 5.87 Maximum DC 0.438 0.317 5.99

*During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels.

Seagate Enterprise Capacity 3.5 HDD v5 Serial ATA Product Manual, Rev. D 10

+ 25 hidden pages
