Seagate SAVVIO FC User Manual

Product Manual

Savvio FC

ST973401FC ST936701FC

100293077 Rev . D August 2007

Copyright © 2005-2007 Seagate Technology LLC. All rights reserved. Printed in U.S.A. Publication number: 100293077, Rev. D, AugustMay 2007 Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC

in the United States and/or other countries. Savvio, SeaTools and SeaTDD are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.

One gigabyte, or GB, equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting. Quantitative usage examples for various applications are for illustrative purposes. Actual quantities will vary based on various factors, including file size, file format, features and application software. Seagate reserves the right to change, without notice, product offerings or specifications.

Savvio FC Product Manual, Rev. D

Contents

1.0 Scope. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2.0 Applicable standards and reference documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1 Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1.1 Electromagnetic compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1.2 Electromagnetic compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.2 Reference documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3.0 General description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.1 Standard features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.2 Media description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.3 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.4 Reliability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.5 Formatted capacities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.5.1 Programmable drive capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.6 Factory-installed accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.7 Factory-installed options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.8 User-installed accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4.0 Performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.1 Internal drive characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.2 Seek performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.2.1 Access time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.2.2 Format command execution time for ≥ 512-byte sectors (minutes) . . . . . . . . . 12

4.2.3 General performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.3 Start/stop time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.4 Prefetch/multi-segmented cache control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.5 Cache operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.5.1 Caching write data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.5.2 Prefetch operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.5.3 Optimizing cache performance for desktop and server applications . . . . . . . . . 15

5.0 Reliability specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.1 Error rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.1.1 Recoverable Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.1.2 Unrecoverable Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.1.3 Seek errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.1.4 Interface errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.2 Reliability and service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.2.1 Mean time between failures (MTBF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.2.2 Preventive maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.2.3 Hot plugging the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.2.4 S.M.A.R.T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.2.5 Thermal monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.2.6 Drive Self Test (DST). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.2.7 Product warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6.0 Physical/electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6.1 AC power requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6.2 DC power requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6.2.1 Conducted noise immunity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.2.2 Power sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.2.3 Current profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.3 Power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6.4 Environmental limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Savvio FC Product Manual, Rev. D

6.4.1 Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6.4.2 Relative humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6.4.3 Effective altitude (sea level) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6.4.4 Shock and vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

6.4.5 Air cleanliness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.4.6 Corrosive environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.4.7 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6.4.8 Electromagnetic susceptibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6.5 Mechanical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

7.0 Defect and error management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

7.1 Drive internal defects/errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

7.2 Drive error recovery procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

7.3 FC-AL system errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

8.0 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

8.1 Drive orientation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

8.2 Cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

8.3 Drive mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

8.4 Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

9.0 Interface requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.1 FC-AL features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.1.1 Fibre Channel link service frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.1.2 Fibre Channel task management functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

9.1.3 Fibre Channel task management responses . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

9.1.4 Fibre Channel port login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

9.1.5 Fibre Channel port login accept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

9.1.6 Fibre Channel Process Login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

9.1.7 Fibre Channel Process Login Accept. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

9.1.8 Fibre Channel fabric login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

9.1.9 Fibre Channel fabric accept login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

9.1.10 Fibre Channel Arbitrated Loop options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

9.2 Dual port support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

9.3 SCSI commands supported. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

9.3.1 Inquiry data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

9.3.2 Mode Sense data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

9.4 Miscellaneous operating features and conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

9.5 FC-AL physical interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

9.5.1 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

9.5.2 Connector requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

9.5.3 Electrical description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

9.5.4 Pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

9.5.5 FC-AL transmitters and receivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

9.5.6 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

9.5.7 Fault LED Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

9.5.8 Active LED Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

9.5.9 Enable port bypass signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

9.5.10 Motor start controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

9.5.11 SEL_6 through SEL_0 ID lines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

9.5.12 Device control codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

9.6 Signal characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

9.6.1 TTL input characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

9.6.2 Differential PECL output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

9.6.3 Differential PECL input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

10.0 Seagate Technology support services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Savvio FC Product Manual, Rev. D

iii

List of Figures

Figure 1. Savvio family disc drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

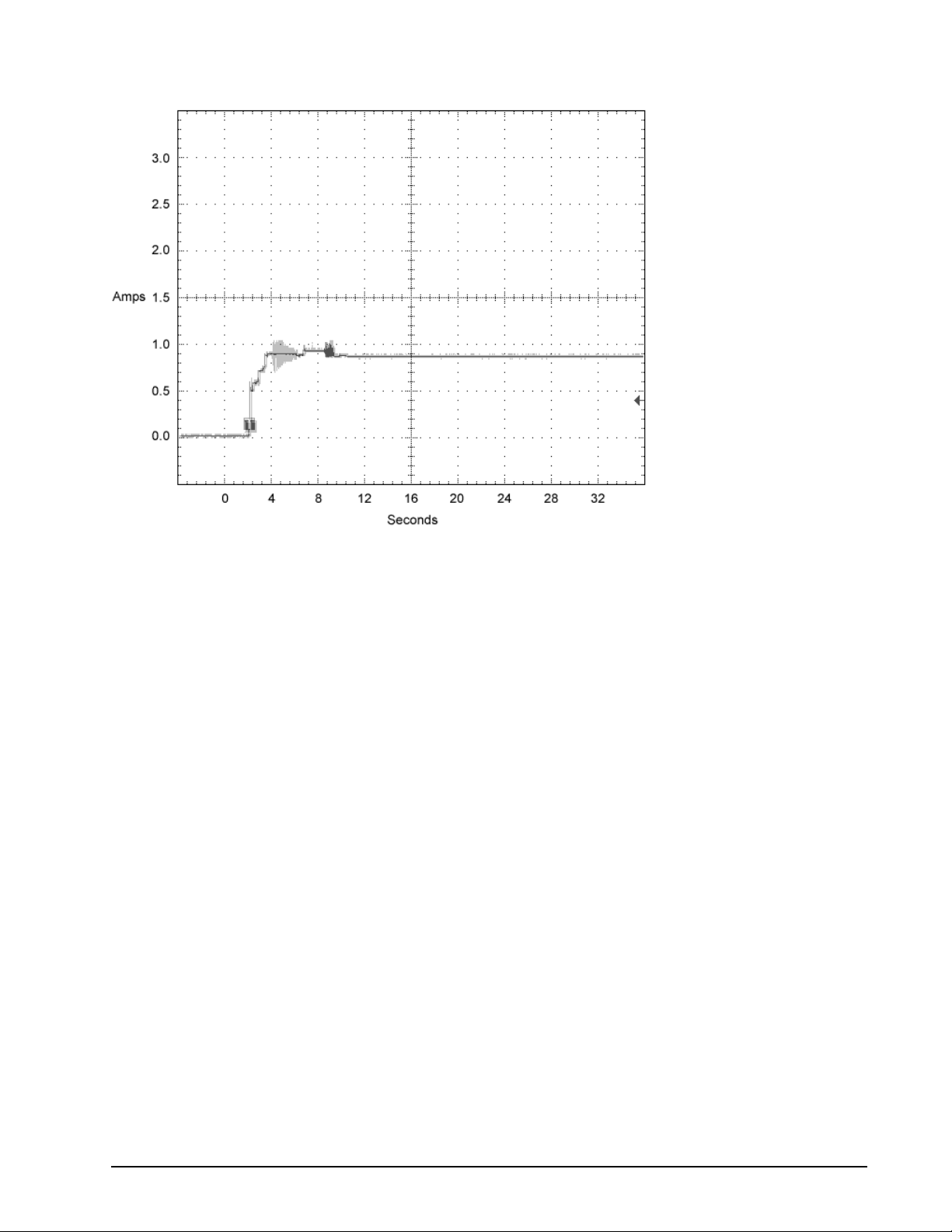

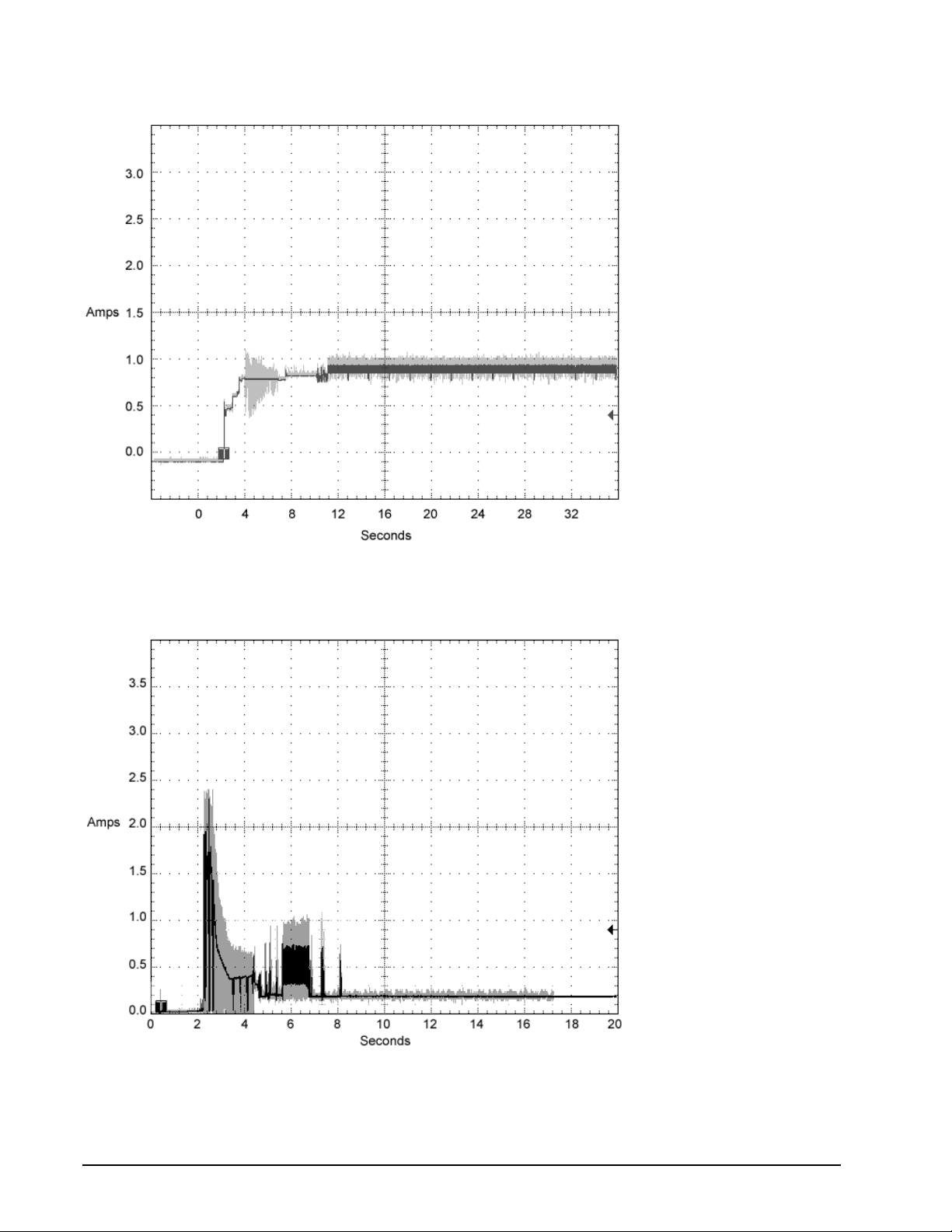

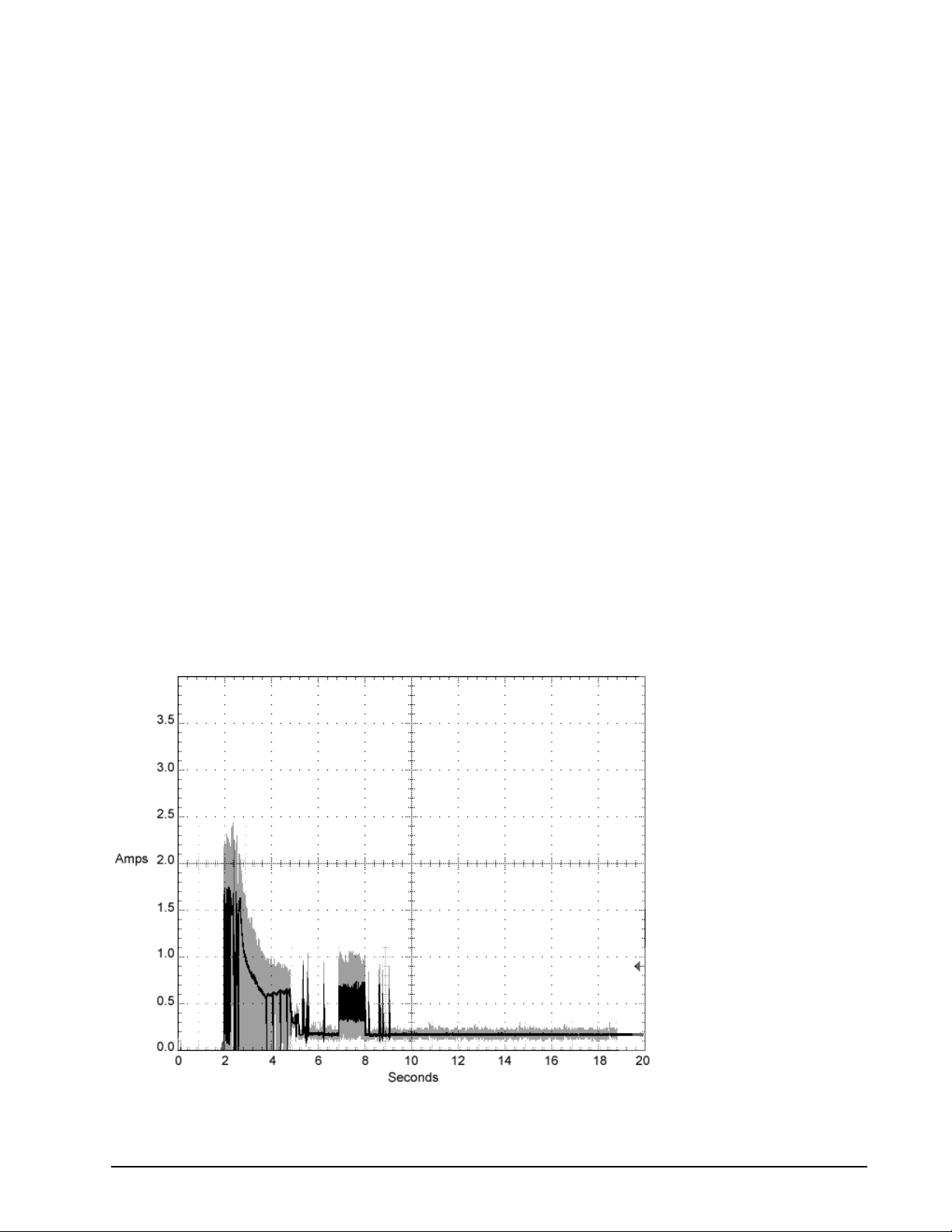

Figure 2. Typical ST973401FC drive +12V current profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 3. Typical ST973401FC drive +5V current profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 4. Typical ST936701FC drive +12V current profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 5. Typical ST936701FC drive +5V current profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

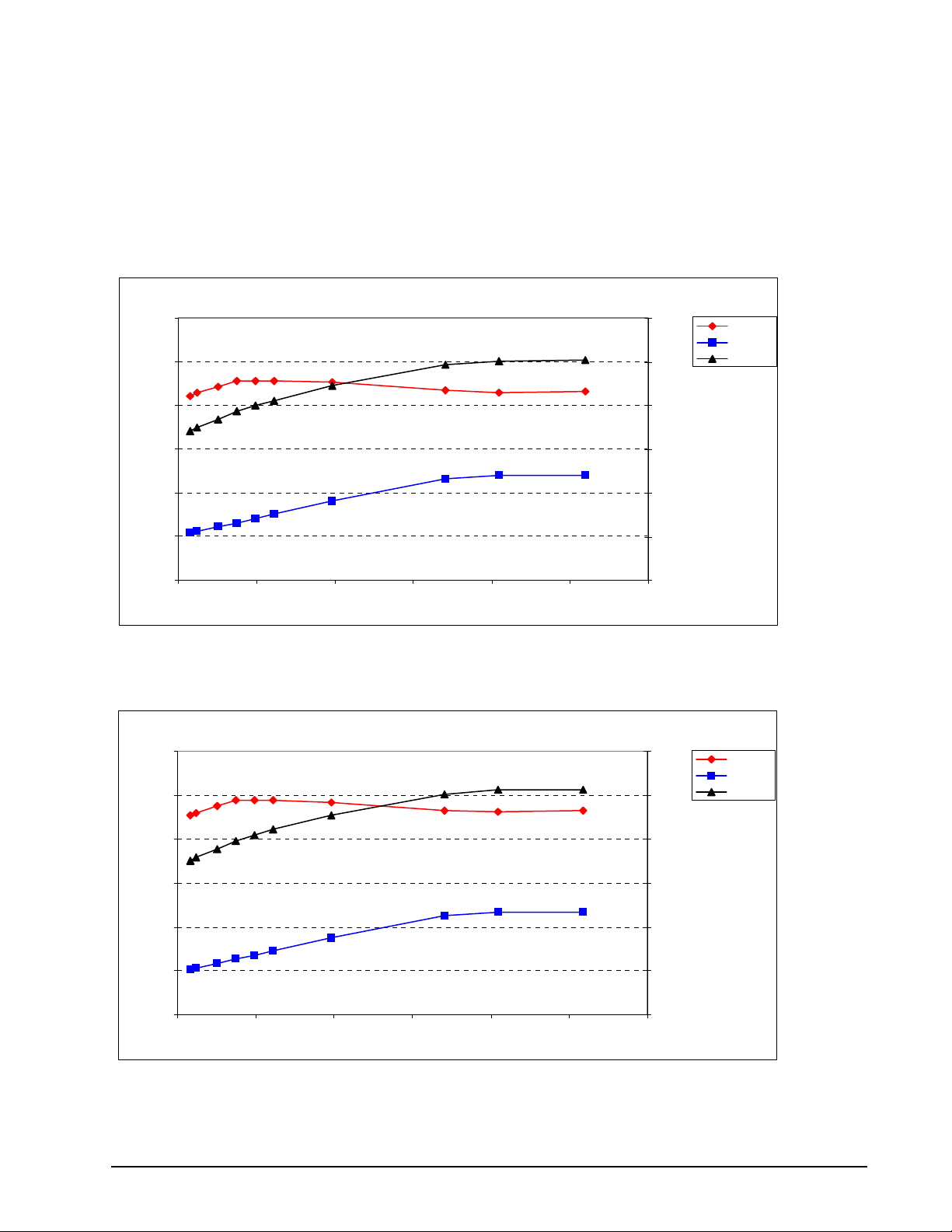

Figure 6. ST973401FC DC current and power vs. input/output operations per second at 1 Gbit . . . . . 30

Figure 7. ST973401FC DC current and power vs. input/output operations per second at 2 Gbit . . . . . 30

Figure 8. ST936701FC DC current and power vs. input/output operations per second at 1 Gbit . . . . . 31

Figure 9. ST936701FC DC current and power vs. input/output operations per second at 2 Gbit . . . . . 31

Figure 10. Locations of the HDA temperature check point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

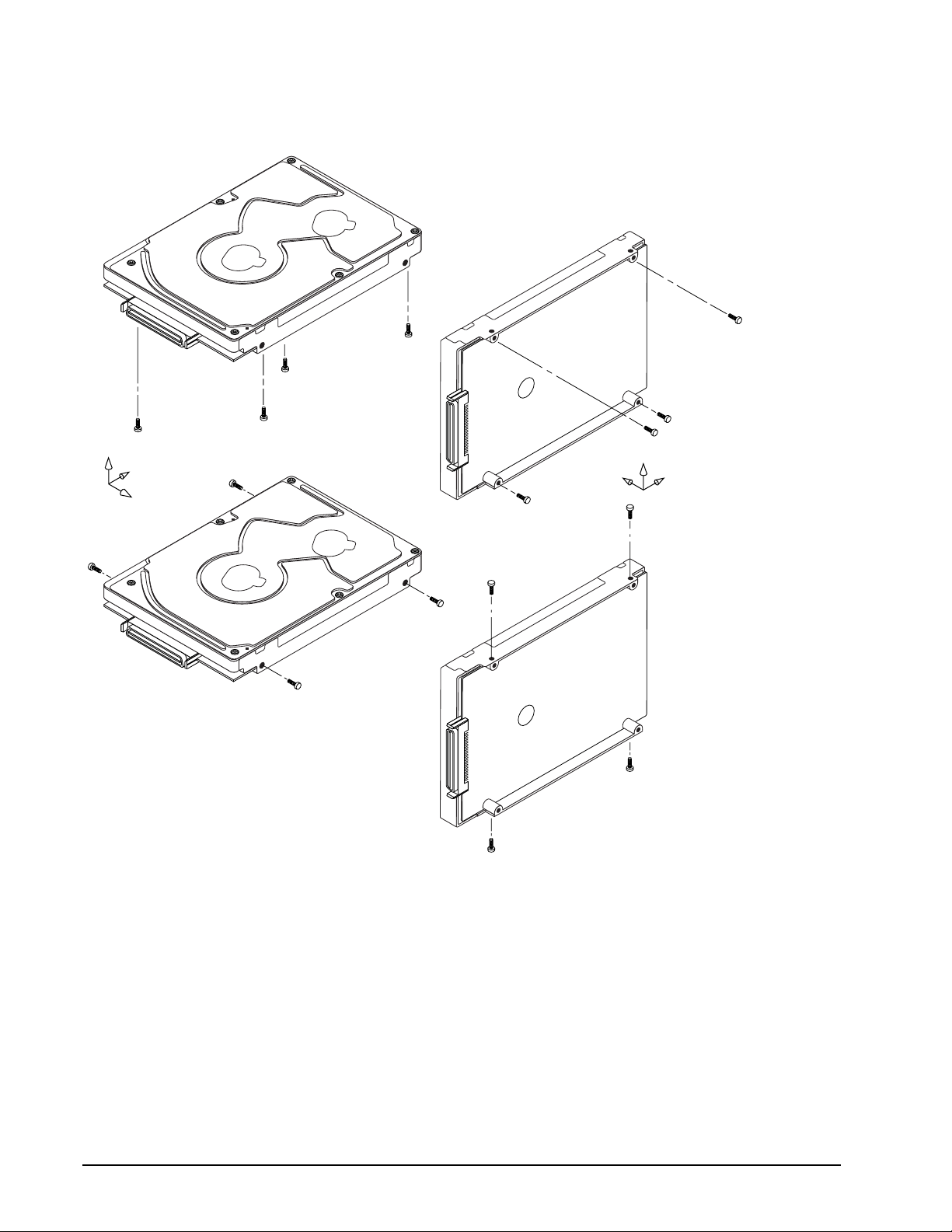

Figure 11. Recommended mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

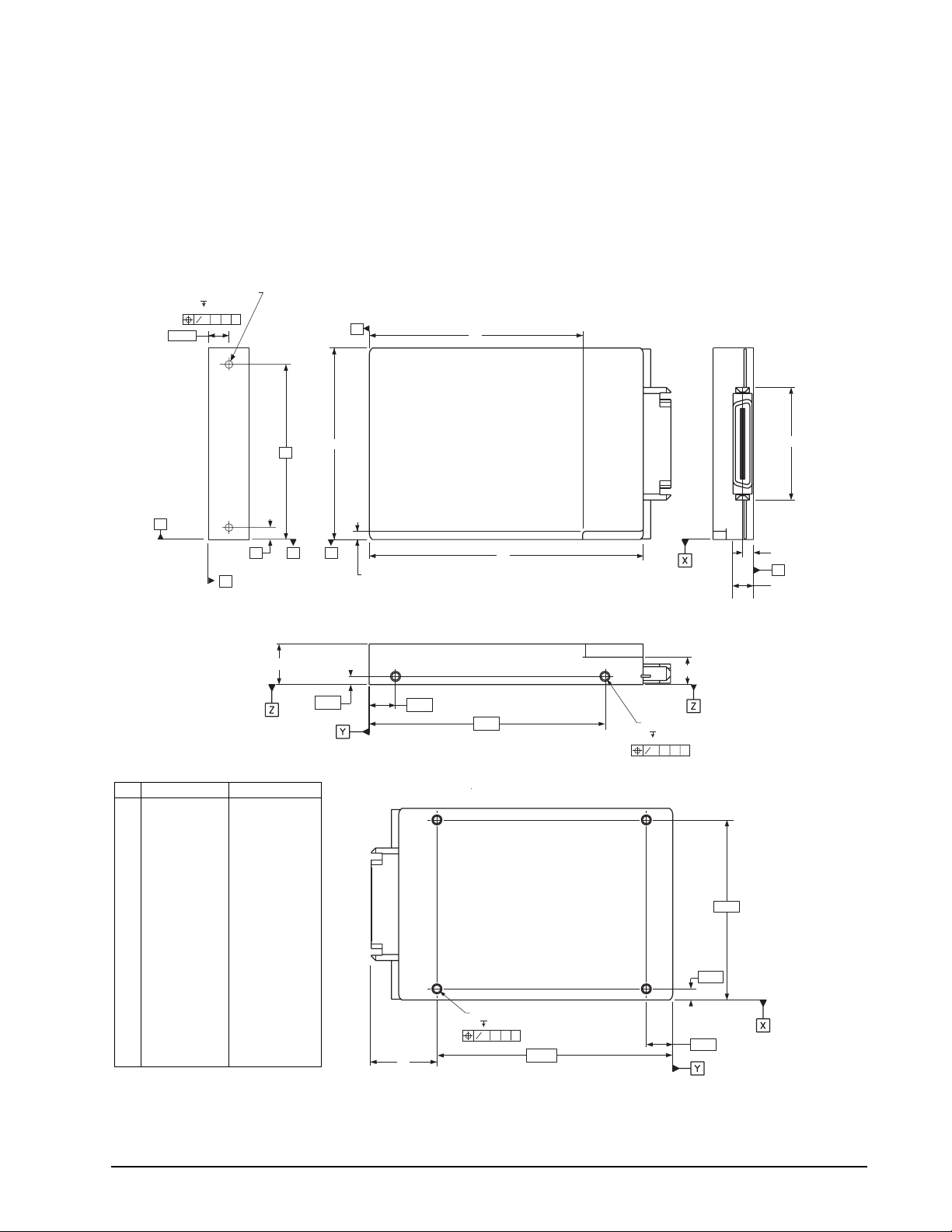

Figure 12. Mounting configuration dimensions (inches) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Figure 13. Air flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Figure 14. Physical interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Figure 15. Port bypass circuit physical interconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

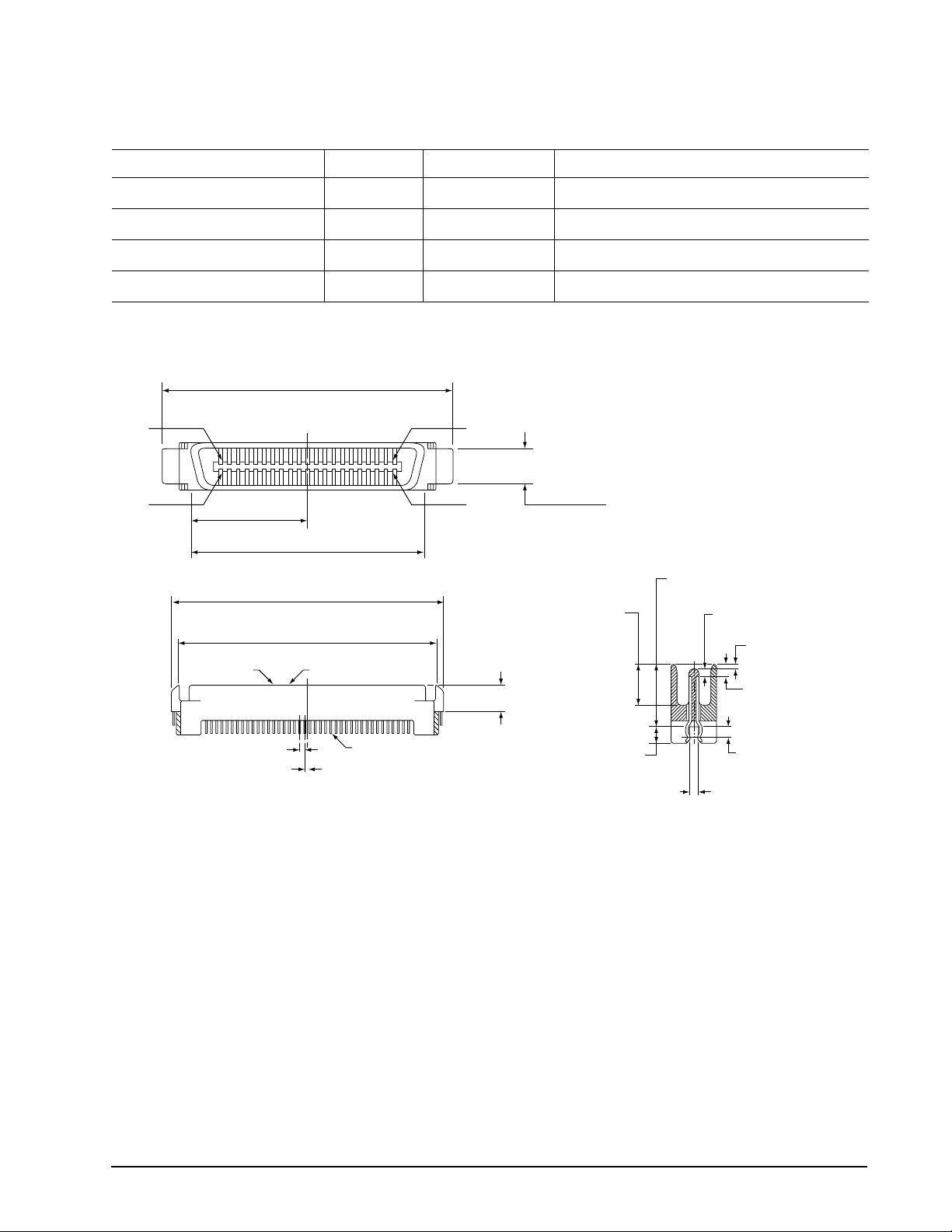

Figure 16. FC-AL SCA device connector dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Figure 17. FC-AL transmitters and receivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Figure 18. Transmit eye diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Figure 19. Receive eye diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Savvio FC Product Manual, Rev. D

1.0 Scope

This manual describes Seagate Technology® LLC, Savvio® FC (Fibre Channel) disc drives. Savvio drives supp ort the Fibre Cha nnel A r bitrate d Lo op and SCS I F ibre Chan nel Pro tocol sp ecific ations to the

extent described in this manual. The Fibre Channel Interface Manual (part number 77767496) describes the general Fibre Channel Arbitrated Loop characteristics of this and other Seagate Fibre Channel drives.

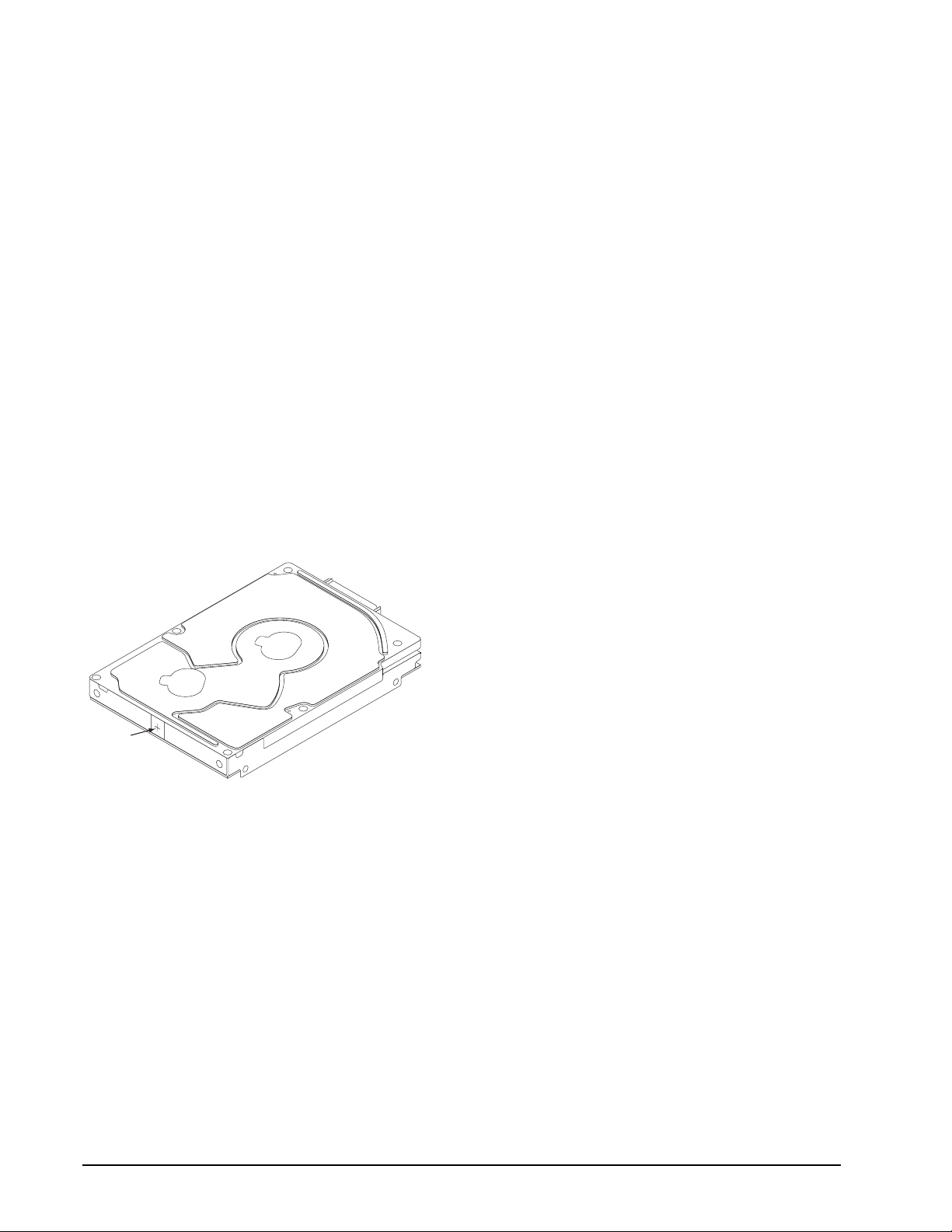

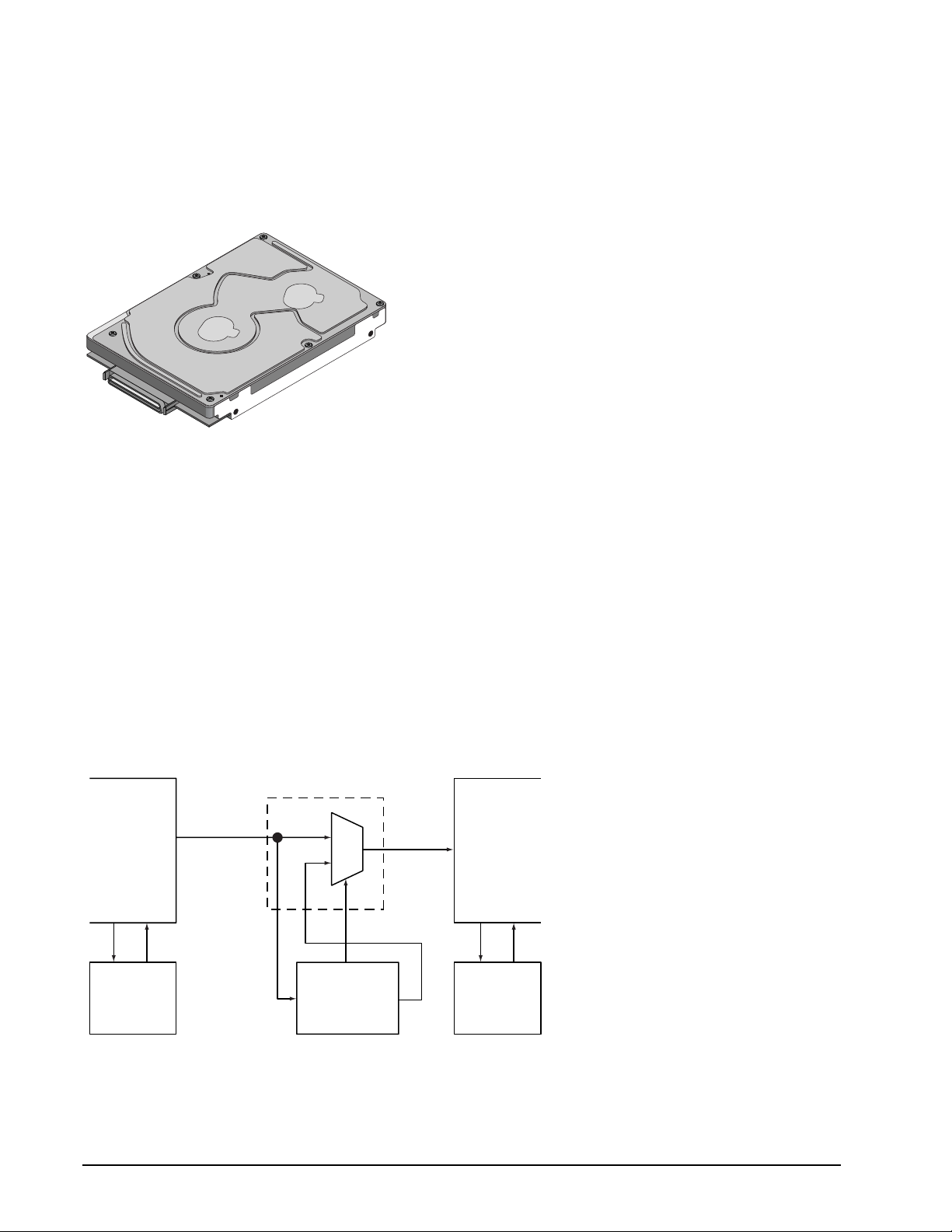

Figure 1. Savvio family disc drive

Savvio FC Product Manual, Rev. D

2.0 Applicable standards and reference documentation

The drive has been d evelope d as a system p eriphe ral to the hig hest st and ards of desig n and constru c tion. The drive depends upon its host equipment to provide adequate power and environment in order to achieve optimum performance and compliance with applicable industry and governmental regulations. Special attention must be given in the areas of safety, power distribution, shielding, au di ble noise con trol , an d tempe ratu re reg ulation. In particular, the drive must be securely mounted in order to guarantee the specified performance characteristics. Mounting by bottom holes must meet the requirements of Section 8.3.

2.1 Standards

The Savvio family complies with Seagate standards as noted in the appropr iate sections of this manual and the Seagate Fibre Channel Interface Manual, part number 77767496.

The Savvio disc drive is a UL recognized component per UL1950, CSA certified to CAN/CSA C22.2 No. 95095, and VDE or TUV certified to EN60950.

2.1.1 Electromagnetic compatibility

The drive, as delivered, is designed for system integration and installation into a suitable enclosure prior to use. As such the drive is supplied as a subassembly and is not subject to Subpart B of Part 15 of the FCC Rules and Regulations nor the Radio Interference Regulations of the Canadian Department of Communications.

The design characteristics of the drive serve to minimize radiation when installed in an enclosure that provides reasonable shield ing. As such, t he dr ive is cap able of me eting th e C lass B l imit s of the FC C Rules a nd R eg ulations of the Canadian Department of Communications when properly packaged. However, it is the user’s responsibility to assure that the drive meets the appropriate EMI requirements in their system. Shielded I/O cables may be required if the enclosure does not provide adequate shielding. If the I/O cables are external to the enclosure, shielded cabl es sh ould be u sed, wi th the shields gr ounde d to the enclosur e and to the host co ntroller.

2.1.1.1 Electromagn etic susc ept ibili ty

As a component assembly, the drive is not required to meet any susceptibility performance requirements. It is the responsibility of those integrating the drive within their systems to perform those tests required and design their system to ensure that equipment operating in the same system as the drive or external to the system does not adversely affect the performance of the drive. See Table 2, DC power requirements.

Savvio FC Product Manual, Rev. D

2.1.2 Electromagn etic complia nce

Seagate uses an independent laboratory to confirm compliance with the directives/standards for CE Marking and C-Tick Marking. T he dr ive was tested in a r epre sent ative system for typica l applications. The select ed system represents the most popular characteristics for test platforms. The system configurations include:

• Typical current use microprocessor

• 3.5-inch floppy disc drive

• Keyboard

• Monitor/display

• Printer

• External modem

• Mouse Although the test system with th is Seag ate mo del comp lies with the dir ectives/st and ards, we cannot gu aran tee

that all systems will comply. The computer manufacturer or system integrator shall confirm EMC compliance and provide the appropriate marking for their product.

Electromagnetic compliance for the European Union

If this model has the CE Marking it complies with the European Union requirements of the Electromagnetic Compatibility Directive 89/336/EEC of 03 May 1989 as amended by Directive 92/31/EEC of 28 April 1992 and Directive 93/68/EEC of 22 July 1993.

Australian C-Tick

If this model has the C-Tick Marking it complies with the Australia/New Zealand Standard AS/NZS3548 1995 and meets the Electromagnetic Compatibility (EMC) Framework requirements of Australia’s Spectrum Management Agency (SMA).

Korean MIC

If this model has the Korean Min ist ry of Infor mat ion and Com munication (MIC) logo, it complie s with par agr aph 1 of Article 11 of the Electromagnetic Compatibility (EMC) Control Regulation and meets the Electromagnetic Compatibility Framework requirements of the Radio Research Laboratory (RRL) Ministry of Information and Communication Republic of Korea.

Taiwanese BSMI

If this model has the Chin ese N ation al Standard (CNS) 13438 marking, i t co mpli es with C hin ese National Sta ndard (CNS) 13438 and meets the Electromagnetic Compatibility (EMC) Framework requirements of the Taiwanese Bureau of Standards, Metrology, and Inspection (BSMI).

Savvio FC Product Manual, Rev. D

2.2 Reference documents

Savvio FC Installation Guide Seagate part number: 100293078 Fibre Channel Interface Manual Seagate part number: 77767496

ANSI Fibre Channel Documents X3.230-1994 FC Physical and Signaling Interface (FC-PH) X3.297.1997 FC-PH-2 Fibre Channel Physical and Signaling Interface-2 X3.303.1998 FC-PH-3 Fibre Channel Physical and Signaling Interface-3 X3.272-1996 FC Arbitrated Loop (FC-AL) X3.269-1996 Fibre Channel Protocol for SCSI (FCP) NCITS TR-19 Private Loop SCSI Direct Attach (PLDA) NCITS TR-20 Fabric Loop Attachment (FC-FLA) SFF-8045 Specification for 40-pin SCA-2 Connector with Parallel Selection SFF-8067 Specification for 40-pin SCA-2 Connector with Bidirectional

Enclosure Services Interface

ANSI Small Computer System Interface (SCSI) Documents X3.131-1994 (SCSI-2) X3.270-1996 (SCSI-3) Architecture Model NCITS 305-199X (SCSI-3) Enclosure Services

Specification for Acoustic Test Requirement and Procedures

Seagate part number: 30553-001

Package Test Specification Seagate P/N 30190-001 (under 100 lb.) Package Test Specification Seagate P/N 30191-001 (over 100 lb.)

In case of conflict between this document and any referenced document, this document takes precedence.

Savvio FC Product Manual, Rev. D

3.0 General description

Savvio drives combine Tunneling Magnetoresistive (TMR) he ads and a Fibre Channel inter face to provide high performance, high capacity data storage for a variety of systems including engineering workstations, network servers, mainf rames , and super comp uter s. Savvio dr i ves also s uppor t 2- Gbit F ib re Ch annel whi ch can tran sfer data at up to 200 Mbytes per second and 400 Mbytes per second in dual-loop configurations.

Savvio drives support the Fibre Channel Arbitrated Loop (FC-AL) and SCSI Fibre Channel Protocol as described in the ANSI specifications, this document, and the Fibre Channel Interface Manual (part number

77767496) which describes the general interface characteristics of this drive. Savvio drives are classified as intelligent peripherals and provide level 2 conformance (highest level) with the ANSI SCSI-1 standard.

Never disassemble the HDA and do not attempt to service items in the sealed enclosure (heads, media, actuator, etc.) as this requires special facilities. The drive does not contain user-replaceable parts. Opening the HDA for any reason voids your warranty.

Savvio drives use a dedicated landing zone at the innermost radius of the media to eliminate the possibility of destroying or de grad i ng d at a b y l and ing in the data zone. Th e h eads autom atical ly go t o the landing zone when power is removed from the drive.

An automatic shipping lock prevents potential damage to the heads and discs that results from movement during shipping and handling. The shipping lock disengages and the head load process begins when power is applied to the drive.

The drives also use a high-performance actuator assembly with a low-inertia, balanced, patented, straight arm design that provides excellent performance with minimal power dissipation.

3.1 Standard featu re s

Savvio drives have the following standard features:

• 2-Gbit Fibre Channel interface. For 2 gigabit operation, the block size must be divisable by 8.

• Integrated dual port FC-AL controller

• Concurrent dual port transfers

• Support for FC arbitrated loop, private and public attachment

• Differential copper FC drivers and receivers

• Downloadable firmware using the FC-AL interface

• Supports SCSI enclosure services via interface connector

• 128-deep task set (queue)

• Supports up to 32 initiators

• Drive selection ID and configuration options are set on the FC-AL backpanel or through interface commands. Jumpers are not used on the drive.

• Supports SCSI Enclosure Services through the interface connector

• Fibre Channel worldwide name uniquely identifies the drive and each port

Savvio FC Product Manual, Rev. D

• User-selectable logical block size (any multiple of four bytes, 512 to 528 bytes per logical block)

• Selectable frame sizes from 256 to 2,112 bytes

• Industry standard 3.5-inch low profile form factor dimensions

• Programmable logical block reallocation scheme

• Flawed logical block reallocation at format time

• Programmable auto write and read reallocation

• Reed-Solomon error correction code

• Sealed head and disc assembly (HDA)

• No preventive maintenance or adjustments required

• Dedicated head landing zone

• Automatic shipping lock

• Embedded Grey Code track address to eliminate seek errors

• Self-diagnostics performed at power on

• 1:1 interleave

• Zone bit recording (ZBR)

• Vertical, horizontal, or top down mounting

• Dynamic spindle brake

• 8,192 Kbyte data buffer (see Section 4.5).

• Embedded servo design

• Reallocation of defects on command (Post Format)

• BackGround Media Scan (BGMS)

• Data Integrity Check

• Power Save

3.2 Media desc ription

The media used on the drive has an aluminum substrate coated with a thin film magnetic material, overcoated with a proprietary protective layer for improved durability and environmental protection.

3.3 Performance

• Programmable multi-segmentable cache buffer

• 200-Mbytes/sec maximum instantaneous data transfers per port

• 10K-RPM spindle; average latency = 3.0 msec

• Command queuing of up to 128 commands

• Background processing of queue

• Supports start and stop commands (spindle stops spinning)

• Adaptive seek velocity; improved seek performance

Savvio FC Product Manual, Rev. D

3.4 Reliability

• Mean Time Betwen Failures (MTBF) of 1,400,000 hours.

• LSI circuitry

• Balanced low mass rotary voice coil actuator

• Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.)

• Dithering

• 5-year warranty

3.5 Formatted ca pacities

St an dard OEM mo del s ar e formatte d to 512 bytes per block. The sector size is sel ect ab le at fo rma t time. Users having the necessary equipment may modify the data block size before issuing a format command and obtain different formatted capacities than those listed.

Note. For 2 gigabit operation, sector sizes must be divisible by 8. To provide a stable target capacity environment and at the same time provide users with flexibility if they

choose, Seagate recommends product planning in one of two modes:

1. Seagate desig ns specify cap acity po i nt s at cert ain sect or si zes tha t Seagate gu ara ntees cur ren t and futu re

products will meet. We recommend customers use this capacity in their project planning, as it ensures a stable operating point with backward and forward compatibility from generation to generation. The current guaranteed operating points for this product are:

ST936701 ST973401

Sector Size

Decimal Hex Decimal Hex

512 71,687,372 445DCCC 143,374,744 88BB998 514 70,512,692 433F034 141,025,384 867E068 520 70,197,546 42F212A 140,395,092 85E4254 522 68,914,176 41B8C00 137,828,352 8371800 524 68,766,592 4194B80 137,577,184 83342E0

2. Seagate drives also may be used at the maximum available capacity at a given sector size, but the excess

capacity above the guaranteed level will vary between other drive families and from generation to generation, depending on how each sector size actually formats out for zone frequencies and splits over servo bursts. This added capacity potential may range from 0.1 to 1.3 percent above the guaranteed capacities listed above. Using the drives in this manner gives the absolute maximum capacity potential, but the user must determine if the extra capacity potential is useful, or whether their assurance of backward and forward compatibility takes precedence.

3.5.1 Programmable drive capacity

Using the Mode Select command, the drive can change its capacity to something less than maximum. See the Mode Select (6) parameter list table in the Fibre Channel Interface Manu al, part number 7767496. Refer to the Parameter list block descriptor number of blocks field. A value of zero in the number of blocks field indicates that the drive shall not change the capacity it is currently formatted to have. A number in the number of blocks field that is less than the maximum number of LBAs changes the total drive capacity to the value in the block descriptor number of blocks field. A value greater than the maximum number of LBAs is rounded down to the maximum capacity.

Savvio FC Product Manual, Rev. D

3.6 Factory -installed acce ssories

OEM standard drives are shipped with the Savvio FC Installation Guide (part number 100293078).

3.7 Factory-installed options

You ma y order the following items which are incorporated at the manufacturing facility during production or packaged before shipping. Some of the options available are (not an exhaustive list of possible options):

• Other capacities can be ordered depending on sparing scheme and sector size requested.

• Single-unit shipping pack. The drive is normally shipped in bulk packaging to provide maximum protection against transit damage. U nit s shipped individually require add itional pro tection as pr ovided by th e singl e unit shipping pack. Users planning single unit distribution should specify this option.

• The Savvio FC Installation Guide, part number 100293078, is usually included with each standard OEM drive shipped, but extra copies may be ordered.

• The Safety and Regulatory Agency Specifications, part number 75789512, is usually included with each standard OEM drive shipped, but extra copies may be ordered.

3.8 User-ins talle d accessorie s

The following accessories are available. All kits may be installed in the field.

• Evaluation kit, part number 73473641. This kit provides an adapter card (“T-card”) to allow cable connections for two FC ports and DC power.

• Single-unit shipping pack.

Savvio FC Product Manual, Rev. D

4.0 Performance characteristics

This section provides de ta iled inform ation concerning performance- rel ate d chara cteristi cs an d featur es of Savvio drives.

4.1 Internal drive characteristics

ST973401FC ST936701FC

Drive capacity 73.4 36.7 Gbytes (formatted, rounded off value) Read/write data heads 4 2 Bytes per track 360,000 360,000 Bytes (average, rounded off values) Bytes per surface 18,387 18,387 Mbytes (unformatted, rounded off value) Tracks per surface (total) 51,052 51,052 Tracks (user accessible) Tracks per inch 105 105 KTPI Peak bits per inch 660 660 KBPI Internal data rate 506-753 506-753 Mbits/sec (variable with zone) Disc rotation speed 10, 009 10,009 revolutions/min (RPM) Avg rotational latency 3.00 3.00 msec

4.2 Seek performance ch aracteristics

See Section 9.5, "FC-AL physical interface" on page 60 and the Fibre Channel Interface Manual (part number

77767496) for additional timing details.

4.2.1 Access time

Including controller overhead (msec)

Read Write Read Write

Average Typical Single track Typical Full stro ke Typical

1. Execution time measured from receipt of the FCP Command to the FCP Response.

2. Assumes no errors and no sector has been relocated.

3. Typical access times are measured under nominal conditions of temperature, voltage, and horizontal orientation as measured on a representative sample of drives.

4. Access time = controller overhead + average seek time and applies to all data transfer commands. Access to data = access time + latency time.

3,4

4.70 5.10 4.50 4.90

0.65 0.95 0.45 0.75

8.70 9.10 8.50 8.90

1, 2

Not including controller overhead (msec)

1,2

Savvio FC Product Manual, Rev. D

4.2.2 Format command execution time for Š 512-byte sectors (minutes)

ST973401FC ST936701FC

Maximum (wi th verify) 52 26 Maximum (without verify) 26 13

4.2.3 General performance characteristics

Minimum sector interleave 1 to 1

Data buffer to/from disc media (one 512-byte logical block)*

Minimum 63 Mbytes/sec Maximum 94 Mbytes/sec

Fibre Channel Interface maximum instantaneous transfer rate 200 Mbytes/sec* per port

(dual port = 400 Mbytes/sec*)

Logical block sizes

Default is 512-byte data blocks Variable 512 to 704 bytes per sector in even number of bytes per sector. If n (number of bytes per sector) is odd, then n-1 will be used.

Read/write consecutive sectors on a track Yes

Flaw reallocation performance impact (for flaws reallocated at f ormat time using the spare sectors per sparing zone reallocation scheme.)

Average rotational latency 3.0 msec

*Assumes no errors and no relocated logical blocks. Rate measured from the start of the first logical block transfer to or from the host.

Negligible

4.3 Start/stop time

If the Motor Start option is disabled, the drive becomes ready within 20 seconds after DC power is applied. If a recoverable error conditio n i s detect ed dur ing the sta rt seq uence, the dr i ve execu tes a re cover y proce dure and the time to become ready may exceed 20 seconds. Stop time is 30 seconds (maximum) from removal of DC power.

If the Motor Start option is enabled, the internal controller accepts the commands listed in the Fibre Channel Interface Manual less than 3 seconds after DC power has been applied. After the Motor Start command has been received, the drive becomes ready for normal operations within 20 second s (excluding the err or reco very procedure). The Motor Start command can also be used to command the drive to stop the spindle.

There is no power control switch on the drive.

Savvio FC Product Manual, Rev. D

4.4 Prefetch /m ulti-segmen te d ca ch e control

The drive provides a prefetch (read look-ahead) and multi-segmented cache control algorithms that in many cases can enhance system performance. Cache refers to the drive buffer storage space when it is used in cache operations. To select this feature, the host sends the Mode Select command with the proper values in the applicable bytes in page 08h. Prefetch and cache operations are independent features from the standpoint that each is enabled and disabled independently using the Mode Select command; however, in actual operation, the prefetch feature overlaps cache operation somewhat as described in sections 4.5.1 and 4.5.2.

All default cache and prefetch mode parameter values (Mode Page 08h) for standard OEM versions of this drive family are given in Table 17.

4.5 Cache operation

Note. Refer to the Fibre Ch anne l Interface Manual for more detail concerning the cache bits.

Of the 8,192 Kbytes physical buffer space in the drive, approximately 7,100 Kbytes can be used as a cache. The buffer can be divi ded into log i cal segm ent s (u sing M ode S elect Pa ge 08 h, byte 13) from which data is read and to which data is written.

The drive keeps track of the logical block addresses of the data stored in each segment of the buffer. If the cache is enabled (see RCD bit in the Fibre Channel Interface Manual ), data requested by the host with a read command is retrieved from the buffer, if possible, before any disc access is initiated. If cache operation is not enabled, the buffer (still segmented with the required number of segments) is still used, but only as circular buffer segments during disc medium read operations (disregarding Prefetch operation for the moment). That is, the drive doe s not ch eck in th e buffer segments fo r the req uested read data, but go es di re ctly to th e medium to retrieve it. The retrieved data merely passes through some buffer segment on the way to the host. On a cache miss, all data transfers to the host are in accordance with buffer-full ratio rules. On a cache hit, the drive ignores the buffer -ful l rat io rul es. See the exp lanati on provide d with the infor mation about Mo de P age 02h (disconnect/reconnect control) in the Fibre Channel Interface Manual.

The following is a simplified description of the prefetch/cache operation: Case A—read command is received and the first logical block is already in the cache:

1. Drive transfers to the initiator the first logical block requested plus all subseq uent cont iguous logi cal blocks

that are already in the cache. This data may be in multiple segments.

2. When a requested logical block is reached that is not in any cache segment, the drive fetches it and any

remaining requested logical block addresses from the disc and puts them in a segment of the cache. The drive transfers the remaining requested logical blocks from the cache to the host in accordance with the Mode Select Disconnect/Reconnect parameters, page 02h.

3. If the prefetch feature is enabled, refer to section 4.5.2 for operation from this point.

Case B—A Read command requests data, and the first logical block is not in any segment of the cache:

1. The drive fetches the requested logical blocks from the disc and transfers them into a segment, and then

from there to the host in accordance with the Mode Select Disconnect/Reconnect parameters, page 02h.

2. If the prefetch feature is enabled, refer to section 4.5.2 for operation from this point.

During a prefetch, the drive crosses a cylinder boundary to fetch data only if the Discontinuity (DISC) bit is set to 1 in bit 4 of byte 2 of the Mode Select parameters page 08h. Default is zero for bit 4.

Each cache segment is actually a self-contained circular buffer whose length is an integer number of logical blocks. The wrap-around capability of the individual segments greatly enhances the cache’s overall performance, allowing a wide range of user-selectable configurations. The drive supports operation of any integer number of segments from 1 to 32. Divide the 7,100 Kbytes in the buffer by the number of segments to get the segment size in bytes; then divi de b y the sector size to get the num ber of sector s per se gmen t, any p ar tial sectors remaining are not used. Default is 3 segments.

Savvio FC Product Manual, Rev. D

Note. The size of each segment is not reported by Mode Sense command page 08h, bytes 14 and 15.

The value 0XFFFF is always reported regardless of the actual size of the segment. Sending a size specification using the Mode Select command (bytes 14 and 15) does not set up a new segment size. If the STRICT bit in Mode page 00h (byte 2, bit 1) is set to one, the drive responds as it does for any attempt to change an unchangeable parameter.

4.5.1 Caching write data

Write caching is a write operation by the drive that makes use of a drive buffer storage area where the data to be written to the medium is stored while the drive performs the Write command.

If read caching is enabled (RCD=0), then data written to the medium is retained in the cache to be made available for future read cache hits. The same buffer space and segmentation is used as set up for read functions. The buffer segmentation scheme is set up or changed independently, having nothing to do with the state of RCD. When a write command is issued, if RCD=0, the cache is first checked to see if any logical blocks that are to be written are already stored in the cache from a previous read or write command. If there are, the respective cache segments are cleared. The new data is cached for subsequent Read commands.

If the number of write dat a logical blo cks excee d the size o f the segm ent b eing wr itten into, wh en th e en d of the segment is reached, the data is written i nto the b eginning of the same cache segment, overwriting the dat a that was written there at the beginning of the operation; however, the drive does not overwrite data that has not yet been written to the medium.

If write caching is enabled (WCE=1), then the drive may return Good status on a write command after the data has been transferred into the cache, but before the data has been written to the medium. If an error occurs while writing the data to the medium, and Good status has already been returned, a deferred error will be generated.

The Synchronize Ca che command may be used to force the drive to write all cached wri te dat a to the med ium. Upon completion of a Synchronize Cache command, all data received from previous write commands will have been written to the medium.

Table 17 shows the mode default settings for the drive.

4.5.2 Prefetch operation

If the Prefetch feature is enabled, data in contiguous logical blocks on the disc immediately beyond that which was requested by a Read command are retrieved and stored in the buffer for immediate transfer from the buffer to the host on subsequent Read commands that request those logical blocks (this is true even if cache operation is disabled). Though the prefetch operation uses the buffer as a cache, finding the requested data in the buffer is a prefetch hit, not a cache operation hit.

To enable Prefetch, use Mode Select page 08h, byte 12, bit 5 (Disable Read Ahead - DRA bit). DRA bit = 0 enables prefetch.

Since data that is prefetched replaces data already in some buffer segments, the host can limit the amount of prefetch data to optimize system performance. The Max Prefetch field (bytes 8 and 9) limits the amount of prefetch. The drive does not use the Prefetch Ceiling field (bytes 10 and 11).

During a prefetch operation, the drive crosses a cylinder boundary to fetch more data only if Mode parameters page 08h, byte 2, bit 4 is set to 1 (Discontinuity--DISC bit).

When prefetch (read look-ahead) is enabled (enabled by DRA = 0), it operates under the control of ARLA (Adaptive Read Look-Ahead). If the host uses software interleave, ARLA enables prefetch of contiguous blocks from the disc when it senses that a prefetch hit will likely occur, even if two consecutive read operations were not for physically contiguous blocks of data (e.g. “software interleave”). ARLA disables prefetch when it

Savvio FC Product Manual, Rev. D

decides that a prefetch hit will not likely occur. If the host is not using software interleave, and if two sequential read operations are not for contiguous blocks of data, ARLA disables prefetch, but as long as sequential read operations request contiguous blocks of data, ARLA keeps prefetch enabled.

4.5.3 Optimizing cache performance for desktop and server applications

Desktop and server applications require different drive caching operations for optimal performance. This means it is difficult to provide a single configuration that meets both of these needs. In a desktop environment, you want to configure the cache to respond quickly to repetitive accesses of multiple small segments of data without taking the time to “look ahead” to the next contiguous segments of data. In a server environment, you want to configure the cache to provide large volumes of sequential data in a non-repetitive manner. In this case, the ability of the cache to “look ahead” to the next contiguous segments of sequential data is a good thing.

The Performance Mode (PM) bit controls the way the drive switches the cache buffer into different modes of segmentation. In “server mode” (PM bit = 0), the drive can dynamically change the number of cache buffer segments as needed to optimize the performance, based on the command stream from the host. In “desktop mode” (PM bit = 1), the number of segments is maintained at the value defined in Mode Page 8, Byte 13, at all times. For additional information about the PM bit, refer to the Unit Attention Parameters page (00h) of the Mode Sense command (1Ah) in the Fibre C hanne l Interface Product Manual, part number 77767496.

Savvio FC Product Manual, Rev. D

5.0 Reliability specifications

The following reliability specifications assume correct host and drive operational interface, including all interface timings, power supply voltages, environmental requirements and drive mounting constraints.

Seek error rate Read Error Rates

Recovered Data Unrecovered Data Miscorrected Data

Interface error rate

MTBF 1,400,000 hours Service Life 5 years Preventive maintenance None required

1. Error rate specified with automatic retries and data correction with ECC enabled and all flaws reallocated.

5.1 Error rates

The error rates stated in this manual assume the following:

• The drive is operated in accordance with this manual using DC power as defined in paragraph 6.2, "DC

power requirements."

• Errors caused by host system failures are excluded from error rate computations.

• Assume random data.

• Default OEM error recovery settings are applied. This includes AWRE, ARRE, full read retries, full write

retries and full retry time.

Less than 10 errors in 108 seeks

Less than 10 errors in 1012 bits transferred (OEM default settings) Less than 1 sector in 1015 bits transferred Less than 1 sector in 1021 bits transferred

Less than 1 error in 1012 bits transferred with minimum receive eye. Less than 1 error in 1014 bits transferred with typical receive eye. See Section 9.6.3, "Differential PECL input." on page 68

5.1.1 Recoverable Errors

Recoverable errors are those detected and corrected by the drive, and do not require user intervention. Recoverable Data errors will use correction, although ECC o n-the-fly is not considered fo r purposes o f recov-

ered error specifications. Recovered Data error rate is determined using read bits transferred for recoverable errors occurring during a

read, and using write bits transferred for recoverable errors occurring during a write.

5.1.2 Unrecoverable Errors

Unrecoverable Data Errors (Sense Key = 03h) are specified at less than 1 sector in error per 1015 bits transferred. Unrecoverable Data Errors resulting from the same cause are treated are 1 error for that block.

Savvio FC Product Manual, Rev. D

5.1.3 Seek errors

A seek error is defined as a failure of the drive to position the heads to the addressed track. After detecting an initial seek error, the drive automatically performs an error recovery process. If the er ror recover y process fails, a seek positioning error (Error code = 15h or 02h) will be reported with a Hardware error (04h) in the Sense Key. Recoverable seek errors are specified at Less than 10 errors in 108 seeks. Unrecoverable seek errors (Sense Key = 04h) are classified as drive failures.

5.1.4 Interface errors

An interface error is defined as a failure of the receiver on a port to recover the data as transmitted by the device port connected to the receiver. The error may be detected as a running disparity error, illegal code, loss of word sync, or CRC error. The total error rate for a loop of devices is the sum of the individual device error rates.

5.2 Reli ab ilit y and servi ce

You can enhance the reliability of Savvio disc drives by ensuring that th e drive receive s adequ ate coo ling. S ection 6.0 provides temperature measurements and other information that may be used to enhance the service life of the drive. Section 8.1 provides recommended air-flow information.

5.2.1 Mean time between failures (MTBF)

The production disc drive achieves an MTBF of 1,400,000 hours when operated in an environment that ensures the case temperatures specified in Section 6.4.1 are not exceeded. Short-term excursions up to the specification limits of the operating environment will not affect MTBF performance. Operating the drive at case temperatures above these values will adversely affect the drive’s ability to meet specifications (see Section 6.4, "Environmental limits").

Estimated power-on operating hours means power-on hours per disc drive times the total number of disc drives in service. Each disc drive must have accumulated at least nine months of operation. Data is calculated on a rolling average base for a minimum period of six months.

MTBF is based on the following assumptions:

• 8,760 power-on hours per year

• 250 average on/off cycles per year

• Operating at nominal voltages

• System provides adequate cooling to ensure the case temperatures specified in Section 6.4.1 are not exceeded.

Drive failure means any stoppage or failure to meet defined specifications caused by drive malfunction. A S.M.A.R.T. predictive failure indicates that the drive is deteriorating to an imminent failure and is considered

a MTBF hit.

5.2.2 Preventive mainte nan ce

No routine scheduled preventive maintenance is required.

5.2.3 Hot plugging the drive

Inserting and removing the drive on the FC-AL will interrupt loop operation. The interruption occurs when the receiver of the next device in the loop must synchronize to a different input signal. FC error detection mechanisms, character sync, running disp a rity, word sync, and CRC are able to detect any error. Recovery is initiated based on the type of error.

Savvio FC Product Manual, Rev. D

The disc drive defaults to the FC-AL Monitoring state, Pass-through state, when it is powered-on by switching the power or hot plugged. The control line to an optional port bypass circuit (external to the drive), defaults to the Enable Bypass state. If the bypass circuit is present, the next device in the loop will continue to receive the output of the previous device to the newly inserted device. If the bypass circuit is not present, loop operation is temporarily disrupted until the next device starts receiving the output from the newly inserted device and regains synchronization to the new input.

The Pass-through state is disabled while the drive perfo rms self test of the FC interface. The control line for an external port bypass circuit remains in the Enable Bypass state while self test is running. If the bypass circuit is present, loop oper ation m ay con tinue. If the byp ass circ uit is not pres ent, loo p ope ration will be h alted while the self test of the FC interface runs.

When the self test completes successfully, the control line to the bypass circuit is disabled and the drive enters the FC-AL Initializing st a te. The receiver on the ne xt device i n the loo p must synch ronize t o outpu t of the newly inserted drive.

If the self-test fails, the control line to the bypass circuit remains in the Enable Bypass state. Note. It is the responsibility of the systems integrator to assure that no temperature, energy, voltage haz-

ard, or ESD potential hazard is presented during the hot connect/disconnect operation. Discharge the static electricity from the drive carrier prior to inserting it into the system.

Caution. The drive motor must come to a complete s t op pri or to ch anging the pl a ne of o pera tion. T his time is

required to insure data integrity.

5.2.4 S.M.A.R.T.

S.M.A.R.T. is an acronym for Self-Monitoring Analysis and Reporting Technology. This technology is intended to recognize conditions that indicate imminent drive failure and is designed to provide sufficient warning of a failure to allow you to back up the data before an actual failure occurs.

Note. The drive’ s f irmwar e moni tor s specific attr ibutes for degr adatio n ove r tim e b ut can ’ t predi ct in sta nt a-

neous drive failures.

Each monitored attribute has been selected to monitor a specific set of failure conditions in the operating performance of the drive and the thresholds are optimized to minimize “false” and “failed” predi ctions.

Controlling S.M.A.R.T.

The operating mode of S.M.A.R. T. is controlled by the DEXCPT and PERF bits on the Informa tional Exceptions Control mode page (1Ch). Use the DEXCPT bit to enable or disable the S.M.A.R.T. feature. Setting the DEXCPT bit disables all S.M.A.R.T. functions. W hen enab led, S .M. A.R.T. collect s on -li ne d at a as the d rive p erfor ms normal read and write operations. When the PERF bit is set, the drive is considered to be in “On-line Mode Only” and will not perform off-line functions.

You can measure off-line attributes and force the drive to save the data by using the Rezero Unit command. Forcing S.M.A.R.T. resets the timer so that the next scheduled interrupt is in two hours.

You can interrogate the drive thro ugh th e host t o dete rmine the time remaining before the next schedul ed me asurement and d at a logg i ng p rocess occur s . To accomplish this, issue a Log Sense comm and to log page 0x3E. This allows you to control when S.M.A.R.T. interruptions occur. Forcing S.M.A.R.T. with the RTZ command resets the timer.

Savvio FC Product Manual, Rev. D

Performance impact

S.M.A.R.T. attribute data is saved to the disc so that the events that caused a predictive failure can be recreated. The drive measures and saves parameters once every two hours subject to an idle period on the FC-AL bus. The process of measuring off-line attribute data and saving data to the disc is uninterruptable. The maximum on-line only processing delay is summarized below:

Maximum processing delay

S.M.A.R.T. delay times

On-line only delay DEXCPT = 0, PERF = 1

60 milliseconds

Fully-enabled delay DEXCP T = 0, PE R F = 0

370 milliseconds

Reporting control

Reporting is controlled by the MRIE bits in the Informational Exceptions Control mode page (1Ch). Subject to the reporting method, the firmware will issue to the host an 01-5D00 sense code. The error code is preserved through bus resets and power cycles.

Determining rate

S.M.A.R.T. monitors the rate at which error s occur and si gna ls a predi ctive fai lure if the rat e of degrad ed err ors increases to an unacceptabl e level. To determine rate, error events are logged and com pa red to the num ber of total operations for a given attribute. The interval defines the number of operations over which to measure the rate. The counter that keeps track of the current number of operations is referred to as the Interval Counter.

S.M.A.R.T. measures error rates. All errors for each monitored attribute are recorded. A counter keeps track of the number of errors for the current interval. This counter is referred to as the Failure Counter.

Error rate is the number of errors per oper ation. The algori thm tha t S .M.A.R .T. uses to re cord rate s of err or i s to set thresholds for the number of errors and their interval. If the number of errors exceeds the threshold before the interval expires, the error rate is considered to be unacceptable. If the number of errors does not exceed the threshold before the interval expires, the error rate is considered to be acceptable. In either case, the interval and failure counters are reset and the process starts over.

Predictive failures

S.M.A.R.T. signals predictive failures when the drive is performing unacceptably for a period of time. The firmware keeps a running count of the number of times the error rate for each attribute is unacceptable. To accomplish this, a counter is incremented each time the error rate is unacceptable and decremented (not to exceed zero) whenever the error rate is acceptable. If the counter continually increments such that it reaches the predictive threshold, a predictive failure is signaled. This counter is referred to as the Failure History Counter. There is a separate Failure History Counter for each attribute.

5.2.5 Thermal monitor

Savvio drives implement a temperature warning system which:

1. Signals the host if the temperature exceeds a value which would threaten the drive.

2. Signals the host if the temperature exceeds a user-specified value.

3. Saves a S.M.A.R.T. data frame on the drive which exceeds the threatening temperature value.

A temperature sensor monitors the drive temperature and issues a warning over the interface when the temperature exceeds a set threshold. The temperature is measured at power-up and then at ten-minute intervals after power-up.

Savvio FC Product Manual, Rev. D

The thermal monitor system generates a warning code of 01-0B01 when the temperature exceeds the specified limit in compliance with the SCSI standard. The drive temperature is reported in the FRU code field of mode sense dat a. You can use this infor matio n to deter mine if the warning is due to the tem per atur e excee ding the drive threatening temperature or the user-specified temperature.

This feature is controlled by the En able W a rni ng (EWasc) bit, and the reporting mechanism is controlled by the Method of Reporting Informational Exceptions field (MRIE) on the Informational Exceptions Control (IEC) mode page (1Ch).

The current algorithm implements two temperature trip points. The first trip point is set at 68°C which is the maximum temperature limit according to the drive specification. The second trip point is user-selectable using the Log Select command. The re feren ce tempe ratur e p aram eter in the tempera ture log page (see Table 1) can be used to set this trip point. The default value for this drive is 68°C, however, you can set it to any value in the range of 0 to 68°C. If you specify a temperature greater than 68°C in this field, the temperature is rounded down to 68°C. A sense code is sent to the host to indicate the rounding of the parameter field.

T ab le 1: Temperature Log Page (0Dh)

Parameter Code Description

0000h 0001h

Primary Temperature Reference Temperature

When the first tem perature trip point is exceeded , S. M.A .R.T. data is collected and a fram e is save d to th e disc.

5.2.6 Drive Self Test (DST)

Drive Self Test (DST) is a technology designed to recognize drive fault conditions that qualify the drive as a failed unit. DST validates the functionality of the drive at a system level.

There are two test coverage options implemented in DST:

1. Extended test

2. Short text The most thorough option is the extended test that performs various tests on the drive and scans every logical

block address (LBA) of the drive. The short test is time-restricted and limited in length—it does not scan the entire media surface, but does some fundamental tests and scans portions of the media.

If DST encounters an error during either of these tests, it reports a fault condition. If the drive fails the test, remove it from service and return it to Seagate for service.

5.2.6.1 DST failure definition

The drive will present a “diagnostic failed” condition through the self-tests results value of the diagnostic log page if a functional failure is encountered during DST. The channel and servo parameters are not modified to test the drive more stringently, and the number of retries are not reduced. All retries and recovery processes are enabled during the test. If data is recoverable, no fa ilure condition will be reported regardless of the number of retries required to recover the data.

The following conditions are considered DST failure conditions:

• Seek error after retries are exhausted

• Track-follow error after retries are exhausted

• Read error after retries are exhausted

• Write error after retries are exhausted Recovered errors will not be reported as diagnostic failures.

Savvio FC Product Manual, Rev. D

5.2.6.2 Implementation

This section provides all of the information necessary to implement the DST function on this drive.

5.2.6.2.1 State of the drive prior to testing

The drive must be in a ready state before issuing the Send Diagnostic command. There are multiple reasons why a drive may not be ready, some of which are valid conditions, and not errors. For example, a drive may be in process of doing a form at, or anothe r D ST. It is the responsib ility o f the ho st applic atio n to det erm ine the “ not ready” cause.

While not technically part of DST, a Not Ready condition also qualifies the drive to be returned to Seagate as a failed drive.

A Drive Not Ready condition is reported by the drive under the following conditions:

• Motor will not spin

• Motor will not lock to speed

• Servo will not lock on track

• Drive cannot read configuration tables from the disc

In these conditions, the drive responds to a Test Unit Ready command with an 02/04/00 or 02/04/03 code.

5.2.6.2.2 Invoking DST

To invoke DST, submit the Send Diagnostic command with the appropriate Function Code (001b for the short test or 010b for the extended test) in bytes 1, bits 5, 6, and 7.

5.2.6.2.3 Short and extended tests

DST has two testing options:

1. short

2. extended

These testing options are described in the following two subsections. Each test consists of three segments: an electrical test segment, a servo test segment, and a read/verify scan

segment.

Short test (Function Code: 001b)

The purpose of the short test is to provide a time-limited test that tests as much of the drive as possible within 120 seconds. The short test does not scan the entire media surface, but does some fundamental tests and scans portions of the media. A complete rea d/ver ify scan is not per formed and onl y factu al failu res will report a fault condition. This option provides a quick confidence test of the drive.

Extended test (Function Code: 010b)

The objective of the extended test option is to empirically test critical drive components. For example, the seek tests and on-track operations test the positioning mechanism. The read operation tests the read head element and the media surface. The write element is tested through read/write/read operations. The integrity of the media is checked through a read/verify scan of the media. Motor functionality is tested by default as a part of these tests.

The anticipated length of the Extended test is reported through the Control Mode page.

Savvio FC Product Manual, Rev. D

5.2.6.2.4 Log page entries

When the drive begins DST, it creates a new entry in the Self-test Results Log page. The new entry is created by inserting a new self-te st parameter block a t the beginning of t he se lf-test results log p a ram eter section of the log page. Existing data will be moved to make room for the new parameter block. The drive reports 20 parameter blocks in the log p ag e. If th ere are more than 20 p ar amet er blocks, the least r ecent p a rame ter block will be deleted. The new parameter block will be initialized as follows:

1. The Function Code field is set to the same value as sent in the DST command

2. The Self-Test Results Value field is set to Fh

3. The drive will store the log page to non-volatile memory After a self-test is complete or has been aborted, the drive updates the Self-Test Results Value field in its Self-

Test Results Log page in non-volatile memory. The host may use Log Sense to read the results from up to the last 20 self-tests performed by the drive. The self-test results value is a 4-bit field that reports the results of the test. If the field is set to zero, the drive passed with no errors detected by the DST. If the field is not set to zero, the test failed for the reason reported in the field.

The drive will report the failure condition and LBA (if applicable) in the Self-test Results Log parameter. The Sense key, ASC, ASCQ, and FRU are used to report the failure condition.

5.2.6.2.5 Abort

There are several ways to abort a diagnostic. You can use a SCSI Bus Reset or a Bus Device Reset message to abort the diagnostic.

You can abort a DST executing in background mode by using the abort code in the DST Function Code field. This will cause a 01 (self-test aborted by the application client) code to appear in the self-test results values log. All other abort mechanisms will be reported as a 02 (self-test routine was interrupted by a reset condition).

5.2.7 Product warranty

Beginning on the date of shipment to the customer and continuing for the period specified in your purchase contract, Seagate warrants that each product (including components and subassemblies) that fails to function properly under no rmal use due to defect in m ater ials or workmanship or due to nonconforma nce to the applicable specifications will be repaired or replace d, at Seag ate’s option and at no charge to the customer , if r etur ned by customer at customer’s expense to Seagate’s designated facility in accordance with Seagate’s warranty procedure. Seagate will pay for transporting the repair or replacement item to the customer. For more detailed warranty information, refer to the standard terms and conditions of purchase for S eaga te prod uct s on your pur chase documentation.

The remaining warranty for a particular drive can be determined by calling Seagate Customer Service at 1-800-468-3472. You can also determine remaining warranty using the Seagate web site (www.seagate.com). The drive serial number is required to determine remaining warranty information.

Shipping

When transporting or shipping a drive, use only a Seagate-approved container. Keep your original box. Seagate approved containers are easily identified by the Seagate Approved Package label. Shippi ng a drive in a non-approved container voids the drive warranty.

Seagate repair centers may refuse receipt of components improperly packaged or obviously damaged in transit. Contact your authorized Seagate distributor to purchase additional boxes. Seagate recommends shipping by an air-ride carrier experienced in handling computer equipment.

Savvio FC Product Manual, Rev. D

Product repair and return information

Seagate customer service centers are the only facilities authorized to service Seagate drives. Seagate does not sanction any third-party repair facilities. Any unauthorized repair or tampering with the factory seal voids the warranty.

Savvio FC Product Manual, Rev. D

6.0 Physical/electrical specifications

This section provides information relating to the physical and electrical characteristics of the drive.

6.1 AC power re quirements

None.

6.2 DC power re quirements

The voltage and current requirements for a single drive are shown below. Values indicated apply at the drive connector.

T ab le 2: DC power requirement s for ST973401FC

ST973401FC (at 1 Gbit) ST973401FC (at 2 Gbit)

Notes

Voltage +5V +12V [2] +5V +12V [2] Regulation [5] ±5% ±5% [2] ±5% ±5% [2] Avg idle current DCX Maximum starting current

(peak DC) DC 3σ [3] 0.94 2.02 1.01 2.00

(peak AC) AC 3σ [3] 1.16 2.80 1.20 2.81 Delayed motor start (max) DC 3σ [1] [4] 0.5 7 0.04 0.5 8 0.04 Peak operating current: Typical DCX Maximum DC 3σ [1] 0.76 0.44 0.82 0.43 Maximum (peak) DC 3s 1.06 1.58 1.14 1.60

[1] [7] 0.79 0.22 0.86 0.22

[1] [6] 0.75 0.43 0.80 0.41

(Amps) (Amps) (Amps) (Amps)

Savvio FC Product Manual, Rev. D

T ab le 3: DC power requirement s for ST936701FC

ST936701FC (at 1 Gbit) ST936701FC (at 2 Gbit)

Notes

Voltage +5V +12V [2] +5V +12V [2] Regulation [5] ±5% ±5% [2] ±5% ±5% [2] Avg idle current DCX [1] [7] 0.80 0.18 0.86 0.18 Maximum starting current

(peak DC) DC 3σ [3] 0.88 1.83 0.94 1.82

(peak AC) AC 3σ [3] 1.00 2.92 1.06 2.84 Delayed motor start (max) DC 3σ [1] [4] 0.57 0.04 0.58 0.03 Peak operating current: Typical DCX [1] [6] 0.86 0.49 0.93 0.48 Maximum DC 3σ [1] 0.88 0.51 0.95 0.50 Maximum (peak) DC 3s 1.18 1.56 1.24 1.56

(Amps) (Amps) (Amps) (Amps)

[1] Measured with average reading DC ammeter. Instantaneous +12V current peaks will exceed these val-

ues. Power supply at nominal voltage. N (number of drives tested) = 6, 35 Degrees C ambient.

[2] For +12 V, a –10% tolerance is allowed during initial spindle start but must return to ±5% before reaching

10,000 RPM. The ±5% must be maintained after the drive signifies that its power-up sequence has been

completed and that the drive is able to accept selection by the host initiator. [3] See +12V current profile in Figure 2. [4] This condition occurs when the Motor Start option is enabled and the drive has not yet received a Start

Motor command. [5] See paragraph 6.2.1, "Conducted noise immunity." Specified voltage tolerance includes ripple, noise, and

transient response. [6] Operating condition is defined as random 8 block reads at:

258 I/Os per second (ST973401FC at 1Gbit operation)

259 I/Os per second (ST973401FC at 2Gbit operation)

258 I/Os per second (ST936701FC at 1Gbit operation)

258 I/Os per second (ST936701FC at 1Gbit operation) [7] During idle, the drive heads are relocated every 60 seconds to a random location within the band from

three-quarters to maximum track.

General DC power requirement notes.

1. Minimum current loading for each supply voltage is not less than 1.2% of the maximum operating current

shown.

2. The +5V and +12V supplies should employ separate ground returns.

3. Where power is provided to multiple drives from a common supply, careful consideration for individual

drive power requirements should be noted. Where multiple units are powered on simultaneously, the peak starting current must be available to each device.

4. Parameters, other than spindle start, are measured after a 10-minute warm up.

5. No terminator power.

Savvio FC Product Manual, Rev. D

6.2.1 Conducted noise immunity

Noise is specified as a periodic and random distribution of frequencies covering a band from DC to 10 MHz. Maximum allowed noise values given below are peak-to-peak measurements and apply at the drive power connector.

+5V +12V

100 hz to 20 Mhz 250mV

100 hz to 8 Khz 800 mVpp

8 Khz to 20 Khz 450 mVpp

20 Khz to 5 Mhz 250 mvpp

6.2.2 Power sequencing

The drive does not require power sequencing. The drive protects against inadvertent writing during power-up and down.

6.2.3 Current profiles

The +12V and +5V current profiles for the ST973401FC and ST936701FC models are shown below in the following figures.

T0 Power is applied to the drive. T1 Controller self-tests are performed. T2 Spindle begins to accelerate under current limiting after performing internal diagnostics. T3 Spindle is up to speed and the Head-Arm restraint is unlocked.

Note: All times and currents are typical. See Table 2 for maximum current requirements.

Figure 2. Typical ST973401FC drive +12V current profile

Savvio FC Product Manual, Rev. D

Figure 3. Typical ST973401FC drive +5V current profile

Figure 4. Typical ST936701FC drive +12V current profile

Savvio FC Product Manual, Rev. D

Figure 5. Typical ST936701FC drive +5V current profile

Savvio FC Product Manual, Rev. D

6.3 Power dissipation

ST973401FC

Typical power dissipation under idle conditions in 1Gb operation is 6.6 watts (22.5 BTUs per hour). Typical power dissipation under idle conditions in 2Gb operation is 6.9 watts (23.7 BTUs per hour) To obtain operating power for typical random read operations, refer to the following I/O rate curve (see Figure

6). Locate the typical I/O rate for a drive in your system on the horizontal axis and read the corresponding +5 volt current, +12 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by

3.4123.

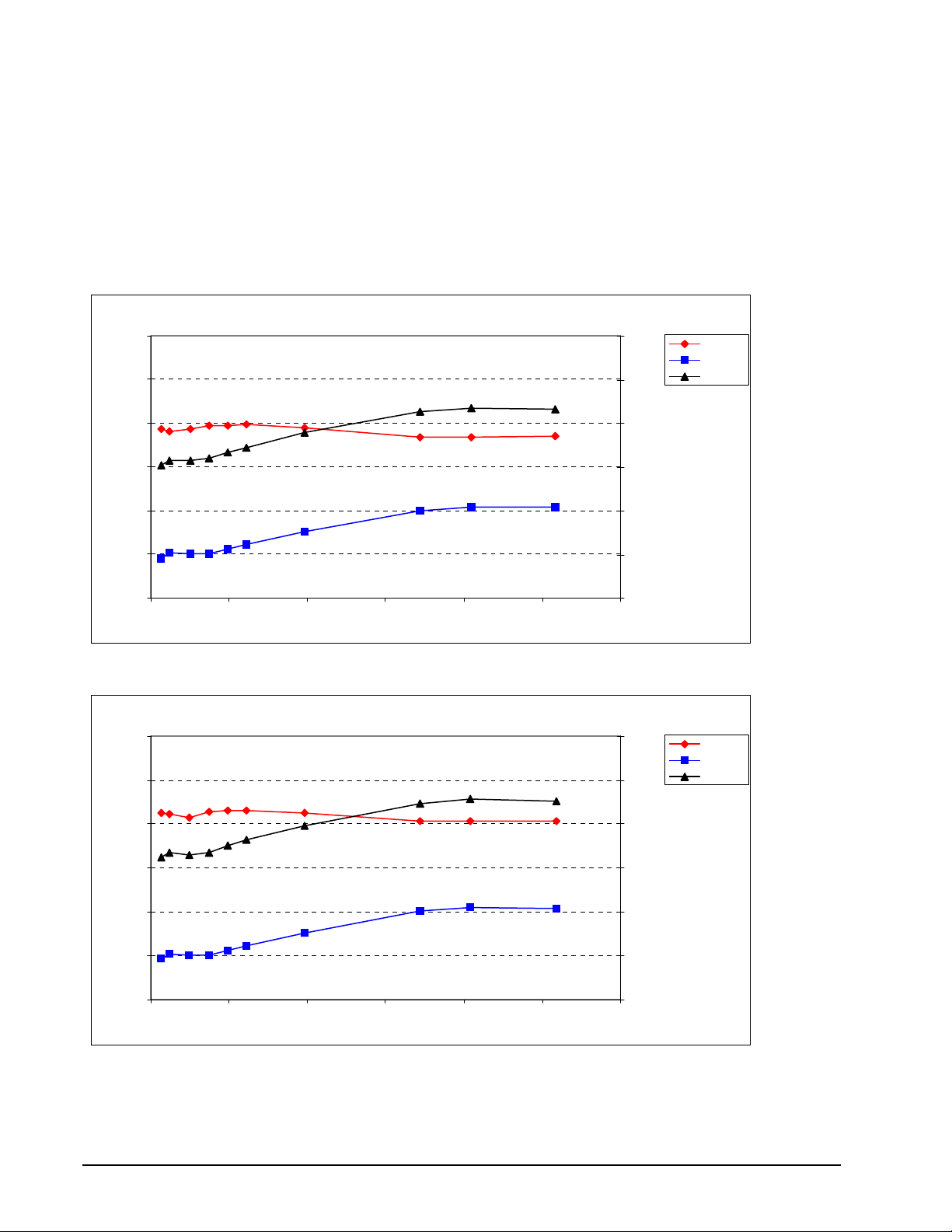

ST 973401FC D C CURRENT/POWER vs TH ROUGHPUT (1GB)

1.2 0 0

1.0 0 0

Random 8 Block Reads

12.0 0

10.0 0

5Volt A 12 V o l t A Watts

0.800

0.600

8.00

6.00

Power (watts)

Amperes

0.400

0.200

0.000

0.0 50.0 100.0 150.0 200.0 250.0 300.0

4.00

2.00

0.00

I/Os per Seco nd

Figure 6. ST973401FC DC current and power vs. input/output operations per second at 1 Gbit

ST 973401FC DC CURRENT/POWER vs THROUGHPUT (2GB)

1.2 0 0

1.0 0 0

0.800

0.600

Random 8 Block Reads

12.0 0

10.0 0

8.00

6.00

Power (watts)

5Volt A 12 V o l t A Watts

Amperes

0.400

0.200

0.000

0.0 50.0 100.0 150.0 200.0 250.0 300.0

Figure 7. ST973401FC DC current and power vs. input/output operations per second at 2 Gbit

4.00

2.00

0.00

I/Os per Seco nd

Savvio FC Product Manual, Rev. D

ST936701FC

Typical power dissipation under idle conditions in 1Gb operation is 6.2 watts (21.2 BTUs per hour). Typical power dissipation under idle conditions in 2Gb operation is 6.5 watts (22.2 BTUs per hour). To obtain operating power for typical random read operations, refer to the following I/O rate curve (see Figure

3.4123.

ST 936701FC DC CURRENT/POWER vs THROUGHPUT (1GB)

1.2 0 0

1.0 0 0

Random 8 Block Reads

12.0 0

10.0 0

5Volt A 12 V o l t A Watts

0.800

0.600

8.00

6.00

Power (watts)

Amperes

0.400

0.200

0.000

0.0 50.0 100.0 150.0 200.0 250.0 300.0

4.00

2.00

0.00

I/Os per Seco nd

Figure 8. ST936701FC DC current and power vs. input/output operations per second at 1 Gbit

ST 936701FC DC CURRENT/POWER vs THROUGHPUT (2GB)

1.2 0 0

1.0 0 0

0.800

Random 8 Block Reads

12.0 0

10.0 0

8.00

Power (watts)

5Volt A 12 V o l t A Watts

0.600

Amperes

0.400

0.200

0.000

0.0 50.0 100.0 150.0 200.0 250.0 300.0

Figure 9. ST936701FC DC current and power vs. input/output operations per second at 2 Gbit

6.00

4.00

2.00

0.00

I/Os per Seco nd

Savvio FC Product Manual, Rev. D

6.4 Environmental limits

Temperature and humidity values experienced by the drive must be such that condensation does not occur on any drive part. Altitude and atmospheric pressure specifications are referenced to a standard day at 58.7°F (14.8°C). Maximum wet bulb temperature is 82°F (28°C).

6.4.1 Temperature

a. Operating

The maximum allowable continuous or sustained HDA case temperature for the rated MTBF is 122°F (50°C). The maximum allowable HDA case temperature is 60°C. Occasional excursions of HDA case temperatures above 122°F (50°C) or below 41°F (5°C) may occur without impact to specified MTBF. Continual or sustained operation at HDA case temperatures outside these limits may degrade MTBF.

Provided the HDA case temperatures limits are met, the drive meets all specifications over a 41°F to 131°F (5°C to 55°C) drive ambient temperature range with a maximum temperature gradient of 36°F (20°C) per hour . Air flow may be needed in the drive enclosu re to keep within this range (see Se ction 8.3). Operation at HDA case temperatur es out side thi s ra nge m ay adve rsely af fe ct the d rives ab ility t o mee t speci ficatio ns. To confirm that the required cooling for the electronics and HDA case is provided, place the drive in its final mechanical configuration, perform random write/read operations and measure the HDA case temperature after it has stabilized.

b. Non-operating

–40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assum es th at th e dr iv e is p ackaged in the shipping cont ain er desi gne d by Seagate for use w ith drive.

HDA Temp. Check Point

Figure 10. Locations of the HDA temperature check point

6.4.2 Relative humidity

The values below assume that no condensation on the drive occurs. a. Operating

5% to 95% non-condensing relative humidity with a maximum gradient of 20% per hour.

b. Non-operating

5% to 95% non-condensing relative humidity.

6.4.3 Effective altitude (sea level)

a. Operating

–1,000 to +10,000 feet (–305 to +3,048 meters)

Savvio FC Product Manual, Rev. D

b. Non-operating

–1,000 to +40,000 feet (–305 to +12,210 meters)

6.4.4 Shock and vibration

Shock and vibration limits specified in this document are measured directly on the drive chassis. If the drive is installed in an enclosure to which the stated shock and/or vibration criteria is applied, resonances may occur internally to t he e nclosure resulting in drive m oveme nt i n excess of t he st at ed l im its. If t hi s situat i on is app ar ent, it may be necessary to modify the enclosure to minimize drive movement.

The limits of shock and vibration defined within this document are specified with the drive mounted by any of the four methods shown in Figure 11, and in accordance with the restrictions of Section 8.3. Orientation of the side nearest the LED may be up or down.

6.4.4.1 Shock

a. Operating—normal

The drive, as in sta lled for normal operation, shall op erat e er ror fr ee wh ile sub je cted to in term i ttent shock not exceeding 15 Gs at a maximum duration of 11 msec (half sinewave). The drive, as installed for normal operation, shall operate error free while subjected to intermittent shock not exceeding 20 Gs at a maximum duration of 2 msec (half sinewave). Shock may be applied in the X, Y, or Z axis.

b. Operating—abnormal

Equipment, as installed for normal operation, does not incur physical damage while subjected to intermittent shock not exceeding 40 Gs at a maximum duration of 11 msec (half sinewave). Shock occurring at abnormal levels may promote degraded operational performance during the abnormal shock period. Specified operational performance will continue when normal operating shock levels resume. Shock may be applied in the X, Y, or Z axis. Shock is not to be repeated more than two times per second.

c. Non-operating

The limits of non-operating shock shall apply to all conditions of handling and transportation. This includes both isolated drives and integrated drives.

The drive subjected to nonrepetitive shock not exceeding 75 Gs at a maximum duration of 11 msec (half sinewave) shall not exhibit device damage or performance degradation. Shock may be applied in the X, Y, or Z axis.

The drive subjected to nonrepetitive shock not exceeding 275 Gs at a maximum duration of 2 msec (half sinewave) does not exhibit device damage or performance degradation. Shock may be applied in the X, Y, or Z axis.

The drive subjected to nonrepetitve shock not exceeding 150 Gs at a maximum duration of 0.5 msec (half sinewave) does not exhibit device damage or performance degradation. Shock may be applied in the X, Y, or Z axis.

d. Packaged

Disc drives shipped as loose load (not palletized) general freight will be packaged to withstand drops from heights as defined in the table below. For additional details refer to Seagate specifications 30190-001 (under 100 lbs/45 kg) or 30191-001 (over 100 lbs/45 Kg).

Package size Packaged/product weight Drop height

<600 cu in (<9,800 cu cm) Any 60 in (1524 mm) 600-1800 cu in (9,800-19,700 cu cm) 0-20 lb (0 to 9.1 kg) 48 in (1219 mm) >1800 cu in (>19,700 cu cm) 0-20 lb (0 to 9.1 kg) 42 in (1067 mm) >600 cu in (>9,800 cu cm) 20-40 lb (9.1 to 18.1 kg) 36 in (914 mm)

Savvio FC Product Manual, Rev. D

Drives packaged in single or multipacks with a gross weight of 20 pounds (8.95 kg) or less by Seagate for general freight shipment shall withstand a drop test from 48 inches (1,070 mm) against a concrete floor or equivalent.

Y X

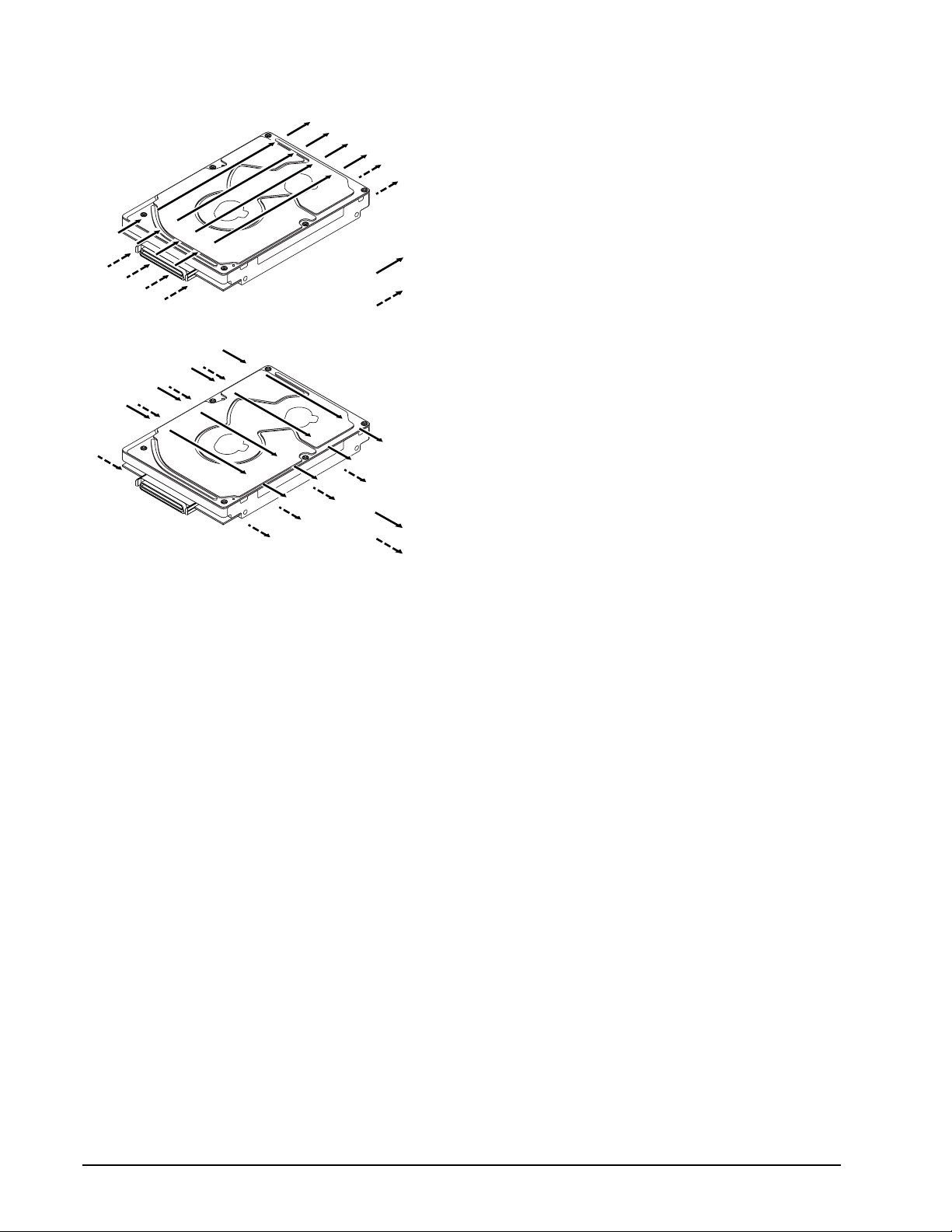

Figure 11. Recomm e nded mounting

Savvio FC Product Manual, Rev. D

6.4.4.2 Vibration

a. Operating—normal

The drive as installed for normal operation, shall comply with the complete specified performance while subjected to continuous vibration not exceeding

5-500 Hz @ 1.0 G (zero to peak) Vibration may be applied in the X, Y, or Z axis. Operating normal translational random flat profile 10 - 500 Hz 0.5 gRMS (grams Root Mean Squared)

b. Operating—abnormal

Equipment as installed for normal operation shall not incur physical damage while subjected to periodic vibration not exceeding:

15 minutes of duration at major resonant frequency

5-500 Hz @ 1.5 G (X, Y, or Z axis) Vibration occurring at these levels may degrade operational performance during the abnormal vibration

period. Specified operational performance will continue when normal operating vibration levels are resumed. This assumes system recovery routines are available.

Operating abnormal translational random flat profile 10 - 500 Hz 1.2 gRMS (grams Root Mean Squared)

c. Non-operating

The limits of non-operating vibration shall apply to all conditions of handling and transportation. This includes both isolated drives and integrated drives.

The drive shall not incur physical damage or degraded performance as a result of continuous vibration not exceeding

5-500 Hz @ 3.00 G (zero to peak) Vibration may be applied in the X, Y, or Z axis. Non-operating translational random flat profile 10 - 500 Hz 1.2 gRMS (grams Root Mean Squared)

6.4.5 Air cleanliness

The drive is designed to operate in a typical office environment with minimal environmental control.

6.4.6 Corrosive environment

Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845. However, this accelerated testing cannot duplicate every potential application environment.

Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electr onic dr i ve comp onen t reliab i lity can be affected by the inst allation environment. The sil- ver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitr ate c ont ami na nt s. S ulfur is found to be the m ost dam aging . In ad diti on, e lectron i c comp onent s should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an am bient rel at ive hum idity gr eate r th an 9 5%. Mat erial s used in cabin et fa bri cation , such as vulcanized rubber, that can outgas corrosive compounds sshould be minimized or eliminated. The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.

Savvio FC Product Manual, Rev. D

6.4.7 Acoustics

Sound power during idle mode shall be 3.5 bels typical when measured to ISO 7779 specification. There will not be any discrete tones more than 10 dB above the masking noise on typical drives when mea-

sured according to Seagate specification 30553-001. There will not be any tones more than 24 dB above the masking noise on any drive.

6.4.8 Electromagn etic susc ept ibili ty

See Section 2.1.1.1.

Savvio FC Product Manual, Rev. D

6.5 Mechanical specifications

The following nominal dimensions are exclusive of the decorative front panel accessory. However, dimensions of the front panel ar e shown in fi gu re belo w. Refer to Figure 12 for detaile d mou nting conf iguration dimensions. See Section 8.3, “Drive mounting.”

Height: 0.583 in 15 mm Width: 2.76 in 70.1 mm Depth: 4.40 in 111.7 mm Weight: 0.485 pounds 0.22 kilograms

2x J

2x M3 x 0.5-6H .100 MIN

K Z X Y

A B C E F G H J K L M N P Q R S T U

V AA AB

Dimension Table

Inches

2.755 +/- 0.005

3.945 +/- 0.005

0.583 +/- 0.008

3.072 +/- 0.005

0.118 +/- 0.005

2.520

0.177

0.295

0.014

0.118

0.379

3.395

0.394 +/- 0.005

3.395

0.379

0.160

2.590

0.945 +/- 0.020

1.618 +/- 0.011

0.276 +/- 0.008

0.157 +/- 0.020

Millimeters

69.98

100.20

14.81

78.03

3.00

64.01

4.50

7.49

0.36

3.00

9.63

86.23

10.01

86.23

9.63

4.06

65.79

24.00

41.00

7.00

3.99

+/- 0.13 +/- 0.13 +/- 0.20 +/- 0.13 +/- 0.13

+/- 0.13

+/- 0.51 +/- 0.28 +/- 0.20 +/- 0.51

2x L

2x M

2x N

4x M3 x 0.5-6H .100 MIN

K Z X Y

2x Q

4x M3 x 0.5-6H .120 MIN

K Z X Y

2x T

2x S

2x R

Figure 12 . Mounting confi guration dimens ions (inches)

Savvio FC Product Manual, Rev. D

7.0 Defect and error management

The drive, as delivered, complies with this product manual. The read error rates and specified storage capacities are not dependent upon use of defect management routines by the host (initiator).

Defect and error management in the SCSI protocol involves the drive internal defect/error management and FC-AL system error considerations (errors in communications between the initiator and the drive). Tools for use in designing a defect/error management plan are briefly outl ined in this section. References to other sections are provided when necessary.

7.1 Drive internal defects/errors

During the initial drive format operation at the factory, media defects are identified, tagged as being unusable, and their locations recorded on the drive primary defects list (referred to as the “P’ list and also as the ETF defect list). At factory format time, these known defects are also reallocated, that is, reassigned to a new place on the medium and the location listed in the defects reallocation table. The “P” list is not altered after factory formatting. Locations of defects found and reallocated during error recovery procedures after drive shipment are listed in the “G” list (defects growth list). The “P” and “G” lists may be referenced by the initiator using the Read Defect Data command.

Details of the SCSI commands supported by the drive are described in the Fibre Channel Interface Manual. Also, more information on the drive Error Recovery philosophy is presented in the Fibre Channel Interface Manual.

7.2 Drive er ror recovery procedures

When an error occurs du ri ng dr ive ope ration, the drive, if program med t o do so, pe rfor ms er ror recove ry pro cedures to attempt to reco ver the dat a. T he err or r ecover y proce dure s used depend on the options pre viously set in the Error Recovery Parameters mode page. Error recovery and defect management may involve using several SCSI commands described in the Fibre Channel Interface Manual. The drive implements selectable error recovery time limits required in video applications.

The error r ecover y sche me suppo rted by t he d ri ve p rovide s a way to contr ol th e to tal error recovery time for the entire command in addition to controlling the recovery level for a single LBA. The total amount of time spent in error recovery for a command can be limited using the Recovery Time Limit bytes in the Error Recovery mode page. The total amount of time spent in error recovery for a single LBA can be limited using the Read Retry Count or Write Retry Count bytes in the Error Recovery mode page.

The drive firmware error recovery algorithms consists of 11 levels for read recoveries and five levels for write. Each level may consist of multiple steps, where a step is defined as a recovery function involving a single reread or re-write attempt. The maximum level used by the drive in LBA recovery is determined by the read and write retry counts.

Savvio FC Product Manual, Rev. D

Table 4 equates the read and write retry count with the maximum possible recovery time for read and write recovery of individual LBAs. The times given do not include time taken to perform reallocations. Reallocations are performed when the ARRE bit (for reads) or AWRE bit (for writes) is one, the RC bit is zero, and the recovery time limit for the command has not yet been met. Time needed to perform reallocation is not counted against the recovery time limit.

When the RC bit is one, reallocations are disabled even if the ARRE or AWRE bits are one. The drive will still perform data recovery actions within the limits defined by the Read Retry Count, Write Retry Count, and Recovery Time Limit parameters. However, the drive does not report any unrecovered errors.

T ab le 4: Read and write retry count maximum recovery times

Maximum recovery time per

Read retry count

0 77.7 0 35.9 1 89.7 1 53.8 2 305 2 83.7 3 353 3 101.7 4 401 4 179.4 5 419 5 (default) 221.3 6 466 7 586 8 676 9 724 10 777 11 (default) 1,591

LBA (cumulative, msec) Write retry count

Maximum recovery time per

LBA (cumulative, msec)

[1] Setting these retry counts to a value below the default setting could result in degradation of the unrecov-

ered error rate. For example, suppose the read/write recovery page has the RC bit = 0, the read retry count set to 4, and the recovery time limit set to 450. A 4-block read command can take up to 401 msec recovery time for each block and a maximum of 450 msec recovery for all four blocks. If either of these limits is reached and a block has not ye t been r ecover ed, th e command will end with Check Cond it ion st atus and an unrecoverable read error will be reported.

7.3 FC-AL system errors

Information on the reporting of operational errors or faults across the interface is given in the Fibre Channel Interface Manual. The FCP Response returns information to the host about numerous kinds of errors or faults.

The Receive Diagnostic Results reports the results of diagnostic operations performed by the drive. Status returned by the drive to the initiator is described in the Fibre Channel Interface Manual. Status reporting

plays a role in systems err or manag ement and its use in that resp ect is d escribed in se ctions whe re t he va rious commands are discussed.

Savvio FC Product Manual, Rev. D

8.0 Installation

Savvio disc drive installation is a plug-and-play process. There are no jumpers, switches, or terminators on the drive. Simply plug the drive into the host’s 40-pin Fibre Channel backpanel connector (FC-SCA)—no cables are required. See Section 9.5 for additional information about this connector.

Use the FC-AL interface to select drive ID and all option configurations for devices on the loop. If multiple devices are on the same FC-AL and physical addresses are used, set the device selection ID s (SEL

IDs) on the backp anel so that no two devices have th e sam e select ion ID. T his is ca lled the har d assi gn ed arbi trated loop physical ad dress ( AL_PA). There are 125 AL_PAs available (see Table 25). If you set the AL_PA on the backpanel to any value other than 0, the device plugged into the backpanel’s SCA connector inherits this AL_PA. In the event you don’t successfully assign unique hard addresses (and therefore have duplicate selection IDs assigned to two or more devices), the FC-AL generates a message indicating this condition. If you set the AL_PA on the backpanel to a value of 0, the system issues a unique soft-assigned physical address automatically.

Loop initialization is the process used to verify or obtain an address. The loop initialization process is performed when pow er is applied to the drive, whe n a device is added or removed from the F ibre Cha nnel loop , or when a device times out attempting to win arbitration.

• Set all option selections in the connector prior to applying power to the drive. If you change options after applying power to the drive, recycle the drive power to activate the new settings.

• It is not necessary to low-level format this drive. The drive is shipped from the factory low-level formatted in 512-byte logical blocks. You need to refo rma t the drive only if you want to se lect a dif fer ent lo gical blo ck size.

8.1 Drive or ientat ion

The drive may be mounted in any orientation. All drive performance characterizations, however, have been done with the drive in horizontal (discs level) and vertical (drive on its side) orientations, which are the two preferred mounting orientations.

8.2 Cooling

The host enclosure must dissipate heat from the drive. You should confirm that the host enclosure is designed to ensure that the dr ive ope rate s w ithin the tempe ratu re m easur emen t guide lin es descr ibed in S ectio n 6.4. 1. In some cases, forced airflow may be required to keep temperatures at or below the temperatures specified in Section 6.4.1.

If forced air is necessary, possible air-flow patterns are shown in Figure 13. The air-flow patterns are created by fans either forcing or drawing air as shown in the illustrations. Conduction, convection, or other forced airflow patterns are acceptable as long as the temperature measurement guidelines of Section 6.4.1 are met.

Savvio FC Product Manual, Rev. D

Above un

ote. Air flows in the direction shown (back to front)

or in reverse direction (front to back)

Note. Air flows in the direction shown or in reverse direction (side to side)

Under uni

Above unit

Under unit

Figure 13 . Air flow

8.3 Drive mounting

Use M3 x .5 metric screws to mount the drive using either side, bottom, or end mounting holes. Select a screw length that results in a minimum thread engagement of 0.12 inches when using the side-mounting holes or a minimum thread engagement of 0.10 inches when using the bottom or end mounting holes. Use a maximum torque of 4.5 +/- .45 in lbs. If the screws are torques above the specified values, threads could be stripped.

Note. Before mounting the dr ive in a ny kind of adapter frame, ver i fy tha t the drive can meet the shock and

vibration specifications while mounted in such an adapter frame.

8.4 Grounding

Signal ground (PCBA) and HDA ground are connected together in the drive and cannot be separated by the user. The equipment in which the drive is mounted is connected directly to the HDA and PCBA with no electrically isolating shock mounts. If it is desired for the system chassis to not be connected to the HDA/PCBA ground, the systems integrator or user must provide a nonconductive (electrically isolating) method of mounting the drive in the host equipment.

Increased radiated emissions may result if you do not provide the maximum surface area ground connection between system ground and drive ground. This is the system designer’s and integrator’s responsibility.

Savvio FC Product Manual, Rev. D

9.0 Interface requirements

This section partially describes the interface requirements as implemented on Savvio drives. Additional information is provided in the Fibre Channel Interface Manual (part number 77767496).

9.1 FC-AL feat ures

This section lists the Fibre Channel-specific features supported by Savvio drives.

9.1.1 Fibre Channel link service frames

Table 5 lists the link services supported by Savvio drives.

T ab le 5: Link services supported

Type of frame Link service

Basic link service frames Abort Sequence (ABTS) Basic link service reply frames Basic_Accept (BA_ACC)

Extended link service frames N_Port Login (PLOGI)

Extended link service reply frames Accept (ACC)

Fibre Channel Services Register FC-4 Types (RFT_ID)

Basic_Reject (BA_RJT)

Fabric Login (FLOGI) Logout (LOGO) Process Login (PRLI) Process Logout (PRLO) Read Link Status (RLS)

Fabric Address Notification (FAN) Port Discovery (PDISC) Address Discovery (ADISC)

Third-party Process Logout (TRPLO)

Link Service Reject (LS_RJT)

Savvio FC Product Manual, Rev. D

9.1.2 Fibre Channel task management functions

Table 6 lists the Fibre Channel SCSI Fibre Channel Protocol (FC SCSI FCP) task management functions supported.

T ab le 6: Fibre Channel SCSI FCP task management functions

T ask name Supported

Terminate task No Clear ACA No Target reset Yes Clear task set Yes Abort task set Yes

9.1.3 Fibre Channel task management responses

Table 7 lists the FC SCSI FCP response codes returned for task management functions supported.

T ab le 7: FC SCSI FCP response codes

Function na m e Res ponse code

Function complete 00 Function not supported 04 Function reject 05

Savvio FC Product Manual, Rev. D

9.1.4 Fibre Channel port login

Table 8 identifies the required content of the N_Port Login (PLOGI) payload from an initiator.

T ab le 8: N_Port login (PLOGI) payload

Bytes

0-15 03 00 00 00 09 09 BB BB CF XX FS FS XX XX XX XX Common 16-31 XX XX XX XX PN PN PN PN PN PN PN PN NN NN NN NN 32-35 NN NN NN NN 36-47 XX XX XX XX XX XX XX XX XX XX XX XX Class 1 48-51 XX XX XX XX 52-63 XX XX XX XX XX XX XX XX XX XX XX XX Class 2 64-67 XX XX XX XX 68-79 SO SO IC IC XX XX FS FS XX CS XX XX Class 3 80-83 OS OS XX XX 84-95 XX XX XX XX XX XX XX XX XX XX XX XX Reserved 96-99 XX XX XX XX 100-111 XX XX XX XX XX XX XX XX XX XX XX XX Vendor 112-115 XX XX XX XX Version

X Indicates a four-bit (hex) field is not checked. x Indicates a single bit is not checked. BB BB-Credit. This field is not checked. The FC-AL drive uses BB-Credit of zero (0). CF Common features. This binary field selects the common features requested by the initiator login.

MSB Continuously increasing offset Must = 1

Random relative offset Not checked. Port Login Accept will return a 0—not supported. Valid version level x N_Port/F_Port Must = 0, N_Port Alternate credit model Must = 1 Other bits reserved xxx XX

FS Receive buffer field size. The FS field in the common and Class 3 parameters is checked for the range 128 < FS < 2,112 and a

multiple of four bytes. For multiple frame sequences, all frames but the last frame of the sequence must be this size. Only the receive buffer field size in the Class 3 parameters is used.

PN Port name (initiator’s)—saved with the login parameters. If a change of the port name/AL_PA address association is detected

during a Port DISCovery, and implicit logout occurs and the initiator returns a LS_RJT. NN Node name. The node name is not checked or saved by the drive. SO Service options Class 3 only.

MSB Class valid Must = 1

Intermix x Stacked connection req. xx Sequential delivery x Other bits reserved xxx XX

IC Initiator control

MSB XID reassign xx

Proc Assc 10 or 11 causes the login to be rejected. Other values are accepted.

Other bits XXX CS Concurrent sequences Must be a value greater than 0. OS Open sequences per exchange Must be a value greater than 0.

Savvio FC Product Manual, Rev. D

9.1.5 Fibre Channel port login accept

Table 9 identifies the N_Port Login acce ss payload values.

T ab le 9: N_Port Login Accept (ACC) payload

Bytes

0-15 02 00 00 00 09 09 00 00 88 00 FS FS 00 FF 00 01 Common 16-31 00 00 01 F4 2P 00 CC CC CC UI UI UI 20 00 CC CC 32-35 CC UI UI UI 36-47 00 00 00 00 00 00 00 00 00 00 00 00 Class 1 48-51 00 00 00 00 52-63 00 00 00 00 00 00 00 00 00 00 00 00 Class 2 64-67 00 00 00 00 68-79 80 00 00 00 00 00 FS FS 00 FF 00 00 Class 3 80-83 00 01 00 00 84-95 00 00 00 00 00 00 00 00 00 00 00 00 Reserved 96-99 00 00 00 00 100-111 00 00 00 00 00 00 00 00 00 00 00 00 Vendor 112-11500000000 Version

CC Bytes (22, 23 and 24) and (30, 31 and 32) are currently factory set to 00 04 CF respectively (subject to change). FS Receive buffer field size. The drive returns and uses the receive buffer size from the N_Port Login Class 3 receive

buffer.

UI Unique identifier. This 24-bit field is uniquely assigned to the drive. This same UI appears in the Port Name and

Node Name fields.

P Byte port identifier field.

0 P_LOGI received on Node. 1 P_LOGI received on Port A. 2 P_LOGI received on Port B.

9.1.6 Fibre Channel Process Login

Table 10 lists the process login payload data.

T ab le 10: Process Login (PLRI) payload

Bytes

0-15 20 10 00 14 08 00 20 00 XX XX XX XX XX XX XX XX 16-19 00 00 00 22

XX Indicates fields that are not used.

Savvio FC Product Manual, Rev. D

9.1.7 Fibre Channel Process Login Accept

Table 11 lists Savvio process login accept payload data.

T ab le 11: Process Login Accept (ACC) payload

Bytes

0-15 02 10 00 14 08 00 21 00 00 00 00 00 00 00 00 00 16-31 00 00 00 12

9.1.8 Fibre Channel fabric login

Table 12 lists the fabric login payload from the drive.

Table 12: Fabric Login (FLOGI) payload

Bytes

0-15 04 00 00 00 09 09 00 00 08 00 08 40 00 00 00 00 Common 16-31 00 00 02 F4 2P 00 CC CC CC UI UI UI 02 00 CC CC 32-35 CC UI UI UI 36-47 00 00 00 00 00 00 00 00 00 00 00 00 Class 1 48-51 00 00 00 00 52-63 00 00 00 00 00 00 00 00 00 00 00 00 Class 2 64-67 00 00 00 00 68-79 80 00 00 00 00 00 08 40 00 00 00 00 Class 3 80-83 00 00 00 00 84-95 00 00 00 00 00 00 00 00 00 00 00 00 Reserved 96-99 00 00 00 00 100-111 00 00 00 00 00 00 00 00 00 00 00 00 Vendor 112-11500000000 Version

CC Bytes (22, 23 and 24) and (30, 31 and 32) are currently factory set to 00 04 CF respectively (subject to change). UI Unique identifier. This 24-bit field is uniquely assigned to the drive. This same UI appears in the Port Name and

Node Name fields.

P Port identifier field.

1 FLOGI originated on Port A. 2 FLOGI originated on Port B.

Savvio FC Product Manual, Rev. D

9.1.9 Fibre Channel fabric accept login

Table 13 lists the required content of the Fabric Login Accept (ACC) payload from the fabric.

T ab le 13: Fabric Login Accept (ACC) payload

Bytes

0-15 02 00 00 00 09 09 BB BB CF XX FS FS R_ A_ T0 V_ Common 16-31 E_ D_ T0 V_ PN PN PN PN PN PN PN PN NN NN NN NN 32-35 NN NN NN NN 36-47 XX XX XX XX XX XX XX XX XX XX XX XX Class 1 48-51 XX XX XX XX 52-63 XX XX XX XX XX XX XX XX XX XX XX XX Class 2 64-67 XX XX XX XX 68-79 SO SO xx xx XX XX FS FS XX xx XX XX Class 3 80-83 OS OS XX XX 84-95 XX XX XX XX XX XX XX XX XX XX XX XX Reserved 96-99 XX XX XX XX 100-111 XX XX XX XX XX XX XX XX XX XX XX XX Vendor 112-115XXXXXXXX Version

MSB Continuously increasing offset x

Random relative offset x Valid version level x N_Port/F_Port Must = 1, F_Port Alternate credit model Must = 1 Other bits reserved xxx XX

FS Receive buffer field size. The FS field in the common and Class 3 parameters is checked for the range 128 < FS < 2,112 and a

multiple of four bytes. The receive buffer field size in the Class 3 parameters is used. The drive uses the lower FS of Fabric Login Accept or N_Port Login when sending frames to an initiator.

PN Port Name. The fabric port name is saved with the login parameters. If a change of the port name is detected during a FAN, an

implicit logout occurs and a LS_RJT is returned to the fabric. NN Node Name. The drive does not check or save the node name. SO Service Options—Class 3 only.

MSB Class valid Must = 1

Intermix x Stacked connection req. xx Sequential delivery Must = 1 Other bits reserved xxx XX

Savvio FC Product Manual, Rev. D

9.1.10 Fibre Channel Arbitrated Loop options

Table 14 lists the FC-AL options supported by Savvio drives.

T ab le 14: FC-AL options supported

Option Supported

OPEN Half Duplex Accepted from another device. OPEN Full Duplex Sent to open another device. Accepted from another device. Private Loop Yes Public Loop Yes Old Port State No Loop Position Yes Loop Position Report Yes

9.2 Dual port support

Savvio drives have two independent FC-AL ports. These ports may be connected on independent loops or on the same loop. Port A and Port B may be connected in any order or combination.

• If both ports ar e conn ected on i nde pend ent loo ps and h ard a ddre ssi ng is use d, the driv e in terfa ce add ress i s selected through the interface connector, both ports will seek the same loop address. If no conflict, both ports will have the same loop address.

• If both ports are connected in the same loop and hard addressing is used, at least one port will attempt taking a soft address to prevent an address conflict.

Subject to buffer availability, the Savvio drives support:

• Concurrent port transfers—The drive supports receiving transfers on both ports at the same time when the ports are on independent loops.

• Full duplex—The drive supports sending FCP_Data, FCP_RSP, FCP_XFR_RDY and ELS transfers while receiving frames on both ports.

Savvio FC Product Manual, Rev. D

9.3 SCSI commands supported

Table 15 lists the SCSI commands supported by Savvio drives.

T ab le 15: Supported commands

Command code Supported [4] C om m a nd name

00h Y Test unit ready 01h Y Rezero unit 03h Y Request sense

Y Extended sense Y Field pointer bytes

Y Actual retry count bytes 04h Y Format unit [1] 07h Y Reassign blocks 08h Y Read 0Ah Y Write 0Bh Y Seek 12h Y Inquiry

Y Vital product data page (00h)

Y Unit serial number page (80h)

Y Implemented operating def. page (81h)

Y Device Identification page (83h)

Y Firmware numbers page (C0h)

Y Date code page (C1h)

Y Jumper settings page (C2h)

Y Device Behavior page (C3h) 15h Y Mode select (same pages as Mode Sense command shown below) [3] 16h Y Reserve

N 3rd party reserved

N Extent reservation 17h Y Release 18h N Copy 1Ah Y Mode sense

Y Unit attention page (00h)

Y Error recovery page (01h)

Savvio FC Product Manual, Rev. D

T ab le 15: Supported commands (continued)

Command code Supported [4] C om m a nd name

Y Disconnect/reconnect control (page 02h) Y Format page (03h) Y Rigid disc drive geometry page (04h) Y Verify error recovery page (07h) Y Caching parameters page (08h) Y Control mode page (0Ah) Y Fibre Channel Interface Control page (19h) Y Power control page (1Ah)

Y Information exceptions control page (1Ch) 1Bh Y Start unit/stop unit 1Ch Y Receive diagnostic results

Y Supported diagnostics pages

Y Translate page

Y Enclosure services page 1Dh Y Send diagnostics page

Y Supported diagnostics pages

Y Translate page 25h Y Read capacity 28h Y Read extended

Y Disable page out

Y Force unit access

N Relative address 2Ah Y Write extended

Y Disable page out

Y Force unit access

N Relative address 2Bh Y Seek extended 2Eh Y Write and verify

Y Disable page out

Y Byte check

N Relative address

Savvio FC Product Manual, Rev. D

T ab le 15: Supported commands (continued)

Command code Supported [4] C om m a nd name

2Fh Y Verify

Y Disable page out Y Byte check

N Relative address 30h N Search data high 31h N Search data equal 32h N Search data low 33h N Set limits 34h N Prefetch 35h Y Synchronize cache 36h N Lock-unlock-cache 37h Y Read defect data 39h N Compare 3Ah N Copy and verify 3Bh Y Write buffer

Y Write combined header and data mode (0)

Y Write data mode (2)

N Download microcode mode (4)

Y Download microcode and save modes (5)

N Download microcode with offsets mode (6)

Y Download microcode with offsets and save mode (7)

Y Firmware download option [2] 3Ch Y Read buffer

Y Read combined header and data mode (0)

Y Read data mode (2)

Y Read descriptor mode (3) 3Eh Y Read long 3Fh Y Write long 40h N Change definition 41h Y Write same

N PBdata

Savvio FC Product Manual, Rev. D

T ab le 15: Supported commands (continued)

Command code Supported [4] C om m a nd name

N LBdata 42-4Bh N Not used 4Ch Y Log Select 4Dh Y Log Sense

Y Support Log page (00h)

Y Write Error Counter page (02h)

Y Read Error Counter page (03h)

N Read Reverse Error Counter page (04h)

Y Verify Error Counter page (05h)

Y Non-medium Error Counter page (06h)

Y Temperature page (0Dh)

N Application Client page (0Fh)

Y Self Test Results page (10h)

Y Cache Statistics Counter page (37h)

Y Factory Log page (3Eh) 4E-4Fh N Not used 50h N XD write 51h N XP write 52h N XD read 53-54h N Not used 55h Y Mode Select (10) [3] 56h Y Reserved (10)

Y 3rd party reserve

N Extent reservation 57h Y Released (10) 58-59h N Not used 5Ah Y Mode Sense (10) [3] 5B-5Dh N Not used 5E A Persistent reserve in 5F A Persistent reserve out 60-7Fh N N ot used

Savvio FC Product Manual, Rev. D

T ab le 15: Supported commands (continued)

Command code Supported [4] C om m a nd name

80h N XD write extended 81h N Rebuild 82h N Regenerate 83-8Fh N N ot used A0h Y Report LUNS C0-DFh N Not used EO-FFh N Not used

[1] Savvio drives can format to any multiple of four bytes per logical block in the range 512 to 528 bytes. [2] Warning. Power loss during flash programming can result in firmware corruption. This usually makes the

drive inoperable. [3] Reference Mode Sense command 1Ah for mode pages supported. [4] Y = Yes. Command is supported.

N = No. Command is not supported.

A = Support is available on special request.

Savvio FC Product Manual, Rev. D

9.3.1 Inquiry data

Table 16 lists the Inquiry command data that the drive should return to the initiator per the format given in the Fibre Channel Interface Manual.

T ab le 16: Savvio family drive s7tandard inquiry data

Bytes Data (hex)

0-15 00 00 03** 12 8B 00 PP 0A 53 45 41 47 41 54 45 20 Vendor ID 16-31 [535439 37333430314643]120 20 20 20 20 20 Product ID 32-47 R# R# R# R# S# S# S# S# S# S# S# S# 00 00 00 00 48-63 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 64-79 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80-95 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 96-111 00 43 6F 70 79 72 69 67 68 74 20 28 63 29 20 32* *Copyright 112-127 30* 30* 34* 20 53 65 61 67 61 74 65 20 41 6C 6C 20 notice 128-143 72 69 67 68 74 73 20 72 65 73 65 72 76 65 64 20

* Copyright year (changes with actual year). ** 02 = SCSI-2 implemented with some SCSI-3 features (default).

03 = SCSI-3 implemented.

PP 50 = Inquiry data for an Inquiry command received on Port A.

70 = Inquiry data for an Inquiry command received on Port B. R# Four ASCII digits representing the last four digits of the product firmware release number. S# Eight ASCII digits representing the eight digits of the product serial number. [ ] Bytes 18 through 26 reflect model of drive. The table above shows the hex values for Model ST973401FC.

Refer to the values below for the values of bytes 18 through 25 of you particular model:

ST936701FC 53 54 39 33 36 37 30 31 46 43

9.3.2 Mode Sense data

The Mode Sense command provides a way for the drive to report its operating parameters to the initiator. The drive maintains four sets of mode parameters:

1. Default values

Default values are hard-coded in the drive firmware stored in flash E-PROM (nonvolatile memory) on the drive’s PCB. These default values can be changed only by downloading a complete set of new firmware into the flash E-PROM. An initiator can request and receive from the drive a list of default values and use those in a Mode Select command to set up new current and saved values, where the values are changeable.

2. Saved values

Saved values are stored on the drive’s media using a Mode Select command. Only parameter values that are allowed to be chang ed c an b e cha nged by th i s me thod. Pa ram eters in th e save d va lues l ist that are not changeable by the Mode Select command get their values from default values storage.

When power is applied to the drive, it takes saved values from the media and stores them as current values in volatile memory. It is not possible to change the current values (or the saved values) with a Mode Select command before the drive achieves operating speed and is “ready.” An attempt to do so results in a “Check Condition” status.

On drives requiring unique saved values, the required unique saved values are stored into the saved values storage location on the media prior to shipping the drive. Some drives may have unique firmware with unique default values also.

Savvio FC Product Manual, Rev. D

On standard OEM drives, the saved values are taken from the default values list and store d into the saved values storage location on the media prior to shipping.

3. Current values Current values are volatile values bei ng used by the driv e to contro l its operation. A Mod e S elect comm and

can be used to change the values identified as changeable values. Originally, current values are installed from saved or default values after a power on reset, hard reset, or Bus Device Reset message.

4. Changeable values Changeable values for m a bit mask, stored in no nvolatil e me mor y, that dictates which of the current values

and saved values can be changed by a Mode Select command. A one (1) indicates the value can be changed. A zero (0) indicates the value is not changeable. For example, in Table 17, refer to Mode page 81, in the row entitled “CHG.” These are hex numbers representing the changeable values for Mode page

81. Note in colu mns 5 and 6 ( bytes 0 4 an d 05) , th ere is 00h w hich ind ic ates th at in bytes 0 4 an d 05 none of the bits are changeable. Note also that bytes 06, 07, 09, 10, and 11 are not changeable, because those fields are all zeros. In byte 02 , hex val u e FF equates to the binary pattern 111 11111. If there is a zero in any bit position in the field, it means that bit is not changeable. Since all of the bits in byte 02 are ones, all of these bits are changeable.

The changeable values list can only be changed by downloading new firmware into the flash E-PROM.

Note. Because there are often several different versions of dr ive contr ol fi rm ware in the total population of

drives in the field , the Mode Sense values given in the followi ng ta bles m ay not exactly m atch t hose of some drives.

The following table s list the values of the dat a bytes returned by the drive in response to the Mode Sense command pages for SCSI implementation (see the Fibre Channel Interface Manual ).

Definitions: DEF = Default value. Standard OEM drives are shipped configured this way. CHG = Changeable bits; indicates if default value is changeable.

Savvio FC Product Manual, Rev. D

T ab le 17: Mode Sense data default and changeable values for ST973401FC drives

ST973401FC Bytes 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23

10 Byte Mode Sense Header 00 ae 00 10 00 00 00 08 08 8b b9 98 00 00 02 00

<------------------------------------------------ Mode sense pages data ------------------------------------------------> DEF 81 0a c0 0b f f 00 00 00 05 00 f f f f CHG 81 0a f f f f 00 00 00 00 f f 00 f f f f

DEF 82 0e 80 80 00 00 00 00 00 00 01 b0 00 00 00 00 CHG 82 0e f f f f 00 00 00 00 00 00 f f f f 00 00 00 00

DEF 83 16 28 ec 00 00 00 14 00 00 02 be 02 00 00 01 00 b4 00 6c 40 00 00 00 CHG 83 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DEF 84 16 00 c7 bc 08 00 00 00 00 00 00 00 00 00 00 00 00 00 00 27 31 00 00 CHG 84 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DEF 87 0a 00 0b f f 00 00 00 00 00 f f f f CHG 87 0a 0f f f 00 00 00 00 00 00 f f f f

DEF 88 12 14 00 f f f f 00 00 f f f f f f f f 00 20 00 00 00 00 00 00 CHG 88 12 b5 00 00 00 f f f f f f f f 00 00 a0 f f 00 00 00 00 00 00

DEF 8a 0a 02 00 00 00 00 00 00 00 06 18 CHG 8a 0a 03 f1 00 00 00 00 00 00 00 00

DEF 99 06 00 00 00 00 00 00 CHG 99 06 00 f f 00 00 00 00

DEF 9a 0a 00 02 00 00 00 05 00 00 00 04 CHG 9a 0a 00 03 f f f f f f f f 00 00 00 00

DEF 9c 0a 10 00 00 00 00 00 00 00 00 01 CHG 9c 0a 9d 0f f f f f f f f f f f f f f f f f

DEF 80 06 00 00 0f 00 00 00 CHG 80 06 b7 40 0f 00 00 00

<--- Read capacity data --->

08 8b b9 97 00 00 02 00

Savvio FC Product Manual, Rev. D

T ab le 18: Mode Sense data default and changeable values for ST936701FC drives

ST936701FC Bytes 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23

10 Byte Mode Sense Header 00 ae 00 10 00 00 00 00 08 04 45 dc cc 00 00 02 00

DEF 82 0e 80 80 00 00 00 00 00 00 01 b0 00 00 00 00 CHG 82 0e f f f f 00 00 00 00 00 00 f f f f 00 00 00 00

DEF 83 16 14 76 00 00 00 0a 00 00 02 be 02 00 00 01 00 87 00 6c 40 00 00 00 CHG 83 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DEF 84 16 00 c7 bc 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 27 31 00 00 CHG 84 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DEF 87 0a 00 0b f f 00 00 00 00 00 f f f f CHG 87 0a 0f f f 00 00 00 00 00 00 f f f f

DEF 88 12 14 00 f f f f 00 00 f f f f f f f f 00 20 00 00 00 00 00 00 CHG 88 12 b5 00 00 00 f f f f f f f f 00 00 a0 f f 00 00 00 00 00 00

DEF 8a 0a 02 00 00 00 00 00 00 00 03 19 CHG 8a 0a 03 f1 08 00 00 00 00 00 00 00

DEF 99 06 00 00 00 00 00 00 CHG 99 06 00 f f 00 00 00 00

DEF 9a 0a 00 02 00 00 00 05 00 00 00 04 CHG 9a 0a 00 03 f f f f f f f f 00 00 00 00

DEF 9c 0a 10 00 00 00 00 00 00 00 00 01 CHG 9c 0a 9d 0f f f f f f f f f f f f f f f f f

DEF 80 06 00 00 0f 00 00 00 CHG 80 06 b7 40 0f 00 00 00

<--- Read capacity data --->

04 45 dc cb 00 00 02 00

Savvio FC Product Manual, Rev. D

9.4 Miscellaneous operating features and conditions

Table 19 lists various features and conditions. A “Y” in the support column indicates the feature or condition is supported. An “N” in the support column indicates the feature or condition is not supported.

T ab le 19: Miscellaneous features

Supported Feature or condition

Y FC-AL selective reset N Automatic contingent allegiance N Asynchronous event notification N Synchronized (locked) spindle operation

Y Segmented caching N Zero latency read

Y Queue tagging (up to 128 queue tags supported)

Y Deferred error handling

Y Parameter rounding (controlled by Round bit in Mode Select page 0)

Y Reporting actual retry count in Extended Sense bytes 15, 16, and 17 N Adaptive caching

Y SMP = 1 in Mode Select command needed to save RPL and rotational offset bytes

T ab le 20: Miscellaneous status

Supported Status

Y Good

Y Check condition

Y Condition met/good

YBusy

Y Intermediate/good

Y Intermediate/condition met/good

Y Reservation conflict

Y Tas k se t full

N ACA active

N ACA active, faulted initiator

Savvio FC Product Manual, Rev. D

9.5 FC-AL physical interface

Port Bypass

Figure 14 shows the location of the J1 Fibre Channel single connection attachment (FC-SCA). Figure 16 provides the dimensions of the FC-SCA connector.

Details of the physical, electrical, and logical characteristics are provided within this section. The operational aspects of Seagate’s Fibre Channel drives are provided in the Fibre Channel Interface Manual..

Figure 14. Physical interface

9.5.1 Physical character istic s

This section defines physical interface connector.

9.5.1.1 Physical descriptio n

FIbre Channel drives may be connected in a loop together or with other compatible FC-AL devices. A maximum of 127 devices may have addresses; however, one of the addresses is reserved for a fabric port switch device. This means 126 addresses are available for FC-AL devices. More FC-AL compatible devices may physically reside on the loop, but they will not be functional because they would not be able to obtain valid addresses.

Port bypass circuits (PBCs) allow devices to be inserted into unpopulated locations or removed from the loop with loop operation recovery after a brief interruption. These PBCs are located external to the FC-AL device. Figure 15 shows the relationship between the PBC and FC-AL device.

Circuit

From Previous

Port Bypass

Circuit N–1

Drive N–1

Drive

MUX

Select

SerialInSerial

Drive N

Out

To Next

Drive

Port Bypass

Circuit N+1

Drive N+1

Figure 15. Port bypass circuit physical interconnect

Savvio FC Product Manual, Rev. D

9.5.2 Connector requirements

(1.30 ± 0.16 mm)

T ab le 21: Recommended mating SCA part numbers

Part description Positions Part number Features

AMP Vertical (SCA sequence) 40 787317-1 Berg 40 71781 Methode 40 512-220-91-101N Molex 40 717431040

With polarization With polarization With polarization With polarization

The FC-AL SCA device connector is illustrated in Figure 16.

1.618 ± .003 in

(41.1 ± 0.08 mm)

in 20

in 40

.64 in

(16.24 mm)

1.28 in

(32.47 mm)

1.618 ± .003 in

(41.10 ± 0.08 mm)

1.492 ± .009 in

(37.90 ± 0.24 mm)

Mating end Housing

.05 in

(1.27 mm)

typ.

.025 in (0.635 mm)

Contact (typ.)

Pin 1

Pin 21

0.264+.007 in –.010 in

(6.71+0.18 mm)

(–0.25 mm)

0.197 ± .003 in

(5.00 ± .08 mm)

0.226 in

(6.50 mm)

0.106 ± .010 in

(2.70 ± 0.25 mm)

2 places

min.

0.394 ± .004 in

(10.0 ± 0.10 mm)

0.039 in

(0.75 mm)

0.051 ± .006 in

min.

0.024 in

(0.60 mm)

0.079 ± .010 in (2.00 ± .25 mm)

0.060 ± .010 in

(1.52 ± 0.25 mm)

min.

(initial point

of contact)

2 place

Figure 16. FC-AL SCA device connector dimensions

9.5.3 Electrical description

Fibre Channel drives use the FC-SCA connector for:

• DC power

• FC-AL interface

• Drive select (device identification)

• Option selection

• Enclosure Services interface This 40-pin connector is designed to plug directly into a backpanel. External cables are not required.

Savvio FC Product Manual, Rev. D

9.5.4 Pin descriptions

This section provides a pin-out of the FC-SCA and a description of the functions provided by the pins.

Table 22: FC-SCA pin descriptions

Pin Signal name Signal type Pin Signal name Signal type

1* -EN bypass port A Low Voltage TTL output 21 12 Volts charge 2* 12 Volts 22 Ground 3* 12 Volts 23 Ground 4* 12 Volts 24* +Port A_ in Diff. PECL input pair 5* -Parallel ESI 25* -Port A_in 6* Ground 7* Active LED out Open collector out 27* +Port B_in Diff. PECL input pair 8* Reserved 28* -Port B_in 9* Start_1 10* Start_2 11* -EN bypass port B Low Voltage TTL output 31* -Port A_out 12* SEL_6 TTL input/output 32 Ground 13* SEL_5 TTL input/output 33* +Port B_out Diff PECL output pair 14* SEL_4 TTL input 34* -Port B_out 15* SEL_3 TTL input/output 35 Ground 16* Fault LED out Open collector out 36 SEL_2 TTL input/output 17* DEV_CTRL_CODE_2 18* DEV_CTRL_CODE_1 19* 5 Volts 39 DEV_CTRL_CODE_0[2TTL input

[1]

[2]

TTL input 29 Ground TTL input 30* +Port A_out Diff PECL output pair

[2]

TTL input 37 SEL_1 TTL input/output

[2]

TTL input 38 SEL_0 TTL input/output

26 Ground

20* 5 Volts 40 5 Volts charge

*Short pins in mating backpanel connector. [1] This pin may be connected to external logic to detect the presence of the drive. The drive connects this

pin to the common ground.

[2] Pins 9, 10, 17, 18, and 39 are opt ion sel e ct pins and are tied high by the drive circuitry. The preferred elec-

trical connection at the backplane is either open or grounded (open for the ‘1’ setting, grounded for the ‘0’ setting). Alternativ ely, these pins may be driven by a 3.3V logic de vice, pull ed u p to 3.3V thro ugh a pu l l-up resistor (recommended size of 10k ohm), or grounded through some other means.

Savvio FC Product Manual, Rev. D

9.5.5 FC-AL transmitters and receivers

A typical FC-AL differential copper transmitter and receiver pair is shown in Figure 17. The receiver is required to provide the AC coupling to eliminate ground shift noise.

Differential

Transmitter

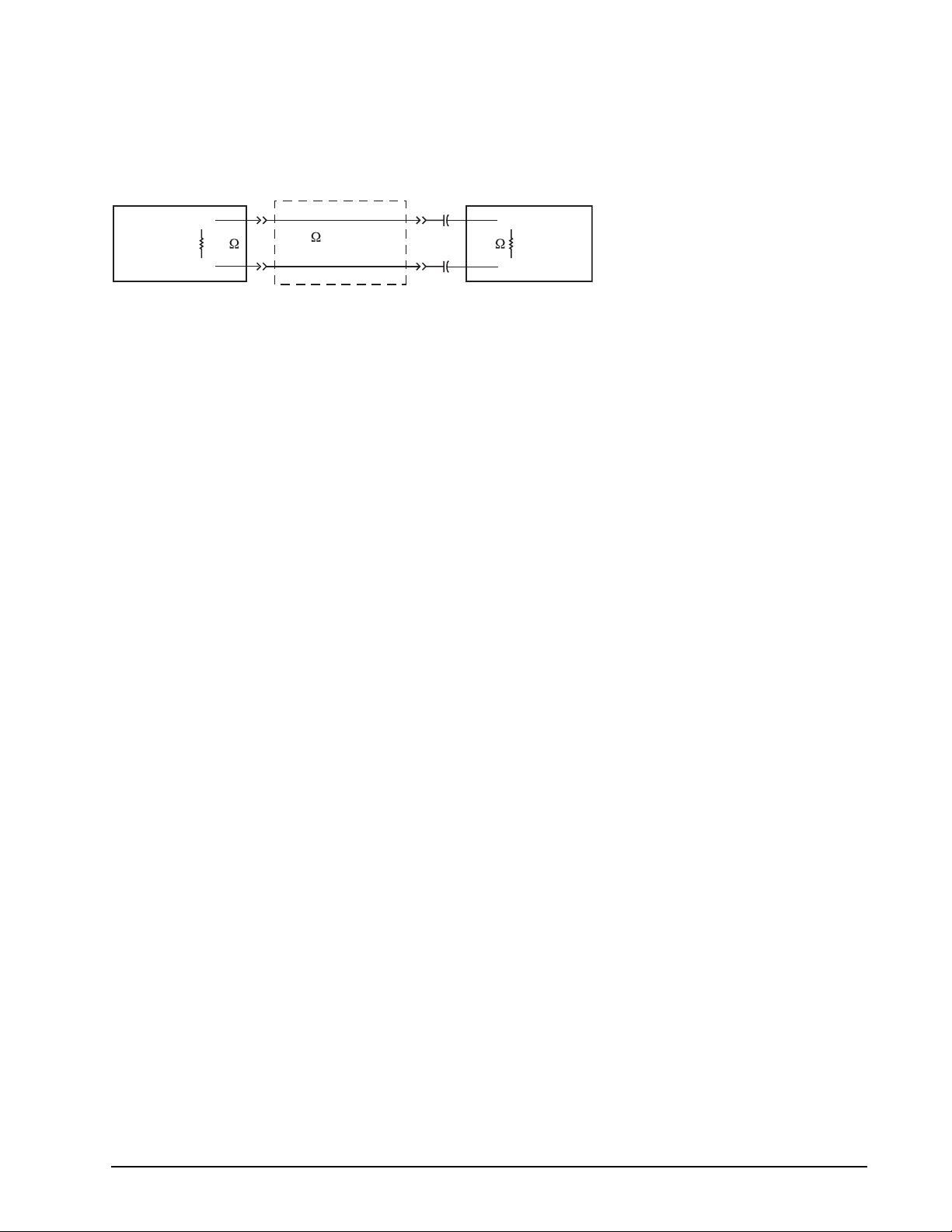

Figure 17. FC-AL transmitters and receivers

100

100 Transfer Medium

.01

100

Receiver

Savvio drives use 100 ohm termination which makes it compatible with backplanes designed for 1, 2, or 4 Gbit Fibre Channel transfer rates. Previous generations of Seagate FC products used 150 ohm impedance for operation in host systems designed to operate in 1 or 2 Gbit transfer rate environments.

9.5.6 Power

Power is supplied through the FC-SCA with support for +5 volts and +12 volts. All of the voltage pins in the drive connector are the same length.

Four 12 volt pins provide +12 volt power to the drive. The current return for the +12 volt power supply is through the common ground pins. The supply current and return current must be distributed as evenly as possible among the pins. The maximum current typically occurs while the drive motor is starting.

Three 5 volt pins pro vide l ogic powe r to the d riv e. Th e curr ent re turn for the +5 vol t p ower sup pl y is th roug h the common ground pins. Distribute supply and return current as evenly as possible among the voltage and ground pins.

The mating connector pins use shorter contacts to achieve power surge reductions and to aid in “hot plugging” the drives. There are longer voltage contacts in the connector to enable the drive filter capacitors to charge. Current to the drive through the long charge pins is limited by the system in which the drive operates. Three of the +12 volt pins ar e shor ter to all ow ca pa citi ve pr e-cha rging throu gh th e longe r + 12 v olt charge pi n . Two of the +5 volt pins are shorter to allow capacitive precharging through the longer +5 volt charge pin.

9.5.7 Fault LED Out

The Fault LED Out signal is driven by the drive when:

• the drive detects failure of both ports

• the drive detects an internal failure

• the drive receives the appropriate fault LED command from the host The Fault LED Out signal is designed to pull down the cathode of an LED. The anode is attached to the proper

+5 volt supply through an appropriate current-limiting resistor. The LED and the current-limiting resistor are external to the drive.

Savvio FC Product Manual, Rev. D

9.5.8 Active LED Out

The Active LED Out signal is driven by the drive as indicated in Table 23.

T ab le 23: Active LED Out conditions

Normal command activity LED status

Spun down and no activity Slow blink (20% on and 80% off a 2 sec cycle) Spun down and activity (command executing) On Spun up and no activity On Spun up and activity (command executing) Off Spinning up or down Blinks steadily (50% on and 50% off) Format in progress, each cylinder change Toggles on/off

The Active LED Out signal is designed to pull down the cathode of an LED. The anode is attached to the proper +5 volt supply through an appropriate current limiting resistor. The LED and the current limiting resistor are external to the drive.

9.5.9 Enable port bypass signals

The – Enable Bypass P ort A (– EN BYP P ort A) an d – En able By p ass Port B (– EN BYP Por t B) si gnals con trol the port bypass circuits (PBC) located external to the disc drive. The PBC allows a loop to remain functional in the event of a drive failure or removal. When these signals are active, low, the PBC bypasses the drive on the associated port. When an Enable Bypass signal is active, the corresponding Port Bypass LED signal in connector J1 is driven low by the disc drive. A pull down resistor, 1K, located with the PBC should be used to insure the bypass is enabled if the disc drive is not installed.

The Enable Bypass signal is active under failing conditions within the drive, on detection of the Loop Port Bypass primitive se quen ce, or on r emo val of t he dr ive. In the b yp ass state the drive con tinues t o re ceiv e on the inbound fibre. Enable Bypass may be deactivated by detection of a Loop Port Enable primitive sequence if the drive has completed self-test and a hardware failure is not present.

Failure modes detected by the disc drive that will enable bypass include:

• Transmitter/receiver wrap test failure

• Loss of receive clock

• Loss of transmission clock

• Drive interface hardware error

9.5.10 Motor start controls

The drive’s motor is started according to the Start_1 and Start_2 signals described in Table 24. The state of these signals can be wired into the backplane socket or driven by logic on the backplane.

T ab le 24: Motor start control signals

Case Start_2 Sta rt_1 Motor spin function

1 Low Low Motor spins up at DC power on. 2 High Low Motor spins up only when SCSI Start command is received. 3 Low High Motor spins up after a delay of 12 seconds times the modulo 8 value of

the numeric SEL ID of the drive from DC power on.

Savvio FC Product Manual, Rev. D

T ab le 24: Motor start control signals

Case Start_2 Sta rt_1 Motor spin function

4 High High The drive will not spin up.

9.5.11 SEL_6 through SEL_0 ID lines

The SEL_6 through SEL_0 ID lines determine drive address, and, optionally, for an Enclosure Services Interface. When the Parallel ESI line is hig h, the en closure backp anel must provide address info rma tion on th e SEL line. Refer to table 25 for a mapping of SEL to FC-AL physical addresses (AL_PA). You can think of the SEL lines as the equivalent of a backpanel logic plug. The drives does not provide pull up resistors on these lines. The backpanel is required to provide high and low inputs to the SEL_ID lines per the specifications in table 27 on page 67.

Note. Table 25 gives AL_PA values for each SEL value. The first entry in the table is SEL_ID 00. The last

entry is SEL_ID 7D. SEL_ID 7E is AL_PA 00 which is not valid for an NL_Port, so is not included in the table. Also, SEL_ID 7Fh does map to a valid AL_PA; however, this value signals the drive that physical addresses are not being assigned using the SEL lines and that a “soft” address will be determined by FC-AL loop initialization.

When the Parallel ESI line is low, the enclosure backpanel logic switches to ESI mode if supported. There are two modes of ESI, seven bits of enclosure status and a bidirectional mode. ESI support and the mode are determined by the drive using a discovery process. Refer to the Fibre Channel Interface Manual for a descrip- tion of ESI operation.

9.5.1 1.1 Parallel Enclosure Serv ices Inte rface (ESI )

The parallel ESI line is an output from the drive. This line provides the enclosure with an indication of the present function of the SEL lines. A high level, the default state, indicates the drive requires address information on the SEL lines. A low level indicates the drive is attempting an ESI transfer. The enclosure may not support ESI on any or all drive locations. It may only suppo rt the address functi on . Support of ESI is discovered by the drive. Refer to the Fibre Channel Interface Manual for a description of ESI operations.

Savvio FC Product Manual, Rev. D

T ab le 25: Arbitrated loop physical address (AL_PA) values

AL_PA (hex)

EF 00 00 A3 2B 43 4D 56 86 E8 01 01 9F 2C 44 4C 57 87 E4 02 02 9E 2D 45 4B 58 88 E2 03 03 9D 2E 46 4A 59 89 E1 04 04 9B 2F 47 49 5A 90 E0 05 05 98 30 48 47 5B 91 DC 06 06 97 31 49 46 5C 92 DA 07 07 90 32 50 45 5D 93 D9 08 08 8F 33 51 43 5E 94 D6 09 09 88 34 52 3c 5F 95 D5 0A 10 84 35 53 3A 60 96 D4 0B 11 82 36 54 39 61 97 D3 0C 12 81 37 55 36 62 98 D2 0D 13 80 38 56 35 63 99

SEL ID (hex)

Setting (dec)

AL_PA (hex)

SEL ID (hex)

Setting (dec)

AL_PA (hex)

SEL ID (hex)

Setting (dec)

D1 0E 14 7C 39 57 34 64 100 CE 0F 15 7A 3A 58 33 65 101 CD 10 16 79 3B 59 32 66 102 CC 11 17 76 3C 60 31 67 103 CB 12 18 75 3D 61 2E 68 104 CA 13 19 74 3E 62 2D 69 105 C9 14 20 73 3F 63 2C 6A 106 C7 15 21 72 40 64 2B 6B 107 C6 16 22 71 41 65 2A 6C 108 C5 17 23 6E 42 66 29 6D 109 C3 18 24 6D 43 67 27 6E 110 BC 19 25 6C 44 68 26 6F 111 BA 1A 26 6B 45 69 25 70 112 B9 1B 27 6A 46 70 23 71 113 B6 1C 28 69 47 71 1F 72 114 B5 1D 29 67 48 72 1E 73 115 B4 1E 30 66 49 73 1D 74 116 B3 1F 31 65 4A 74 1B 75 117 B2 20 32 63 4B 75 18 76 118

Savvio FC Product Manual, Rev. D

9.5.12 Device control codes

The drive inputs a Device Control Code on the DEV_CTRL_CODE lines at power up to determine the link rate on the Fibre Channel ports. Both ports run at the same rate. If the backpanel does not connect to these lines, the drive has 10K ohm pull up resistors that default the device control code to 7 (1.0625 GHz). Table lists the supported codes.

T ab le 26: Device control code values

(pin 17) 1 (pin 18) 0 (pin 39) Definition 0 0 0 0 1 1 1 1

0 0 1 1 0 0 1 1

0 Reserved for power failure warning. 1 Reserved for auto negotiation of link rate. 0 Reserved. 1 Reserved. 0 Reserved. 1 Reserved. 0 2.125 GHz operation on both ports. 1 1.0625 GHz operation on both ports.

9.6 Signal characteristics

This section describes the electrical signal characteristics of the drive’s input and output signals. See Table 22 on page 62 for signal type and signal name information.

9.6.1 TTL input characteristics

Table 27 provides the TTL characteristics.

T ab le 27: TTL characteristics

State Voltag e Current

Input high 1.9 < VIH < 5.5V IIH = ±500nA max. Input low -0.5V < V Output high (-EN Bypass A, B) 2.4 < V Output low (-EN Bypass A, B) V

Output high (-Parallel ESI) 2.4 < V

VOH > 0.9V Output low (-Parallel ESI) 0 < V Output high (all other outputs) 2.4 < V

VOH > 0.9V

< 0.9V IOL = ±500nA max.

< 5.25V IOH < -3mA

< 0.5V IOL < 3mA

< 0.9 V

< .45V IOL < 2.4mA

< 0.9 V

IOH < -2.4mA I

< -500µA

IOH < -1.6mA I

< -500µA

Output low (all other outputs) 0 < V

< .45V IOL < 1.6mA

Savvio FC Product Manual, Rev. D

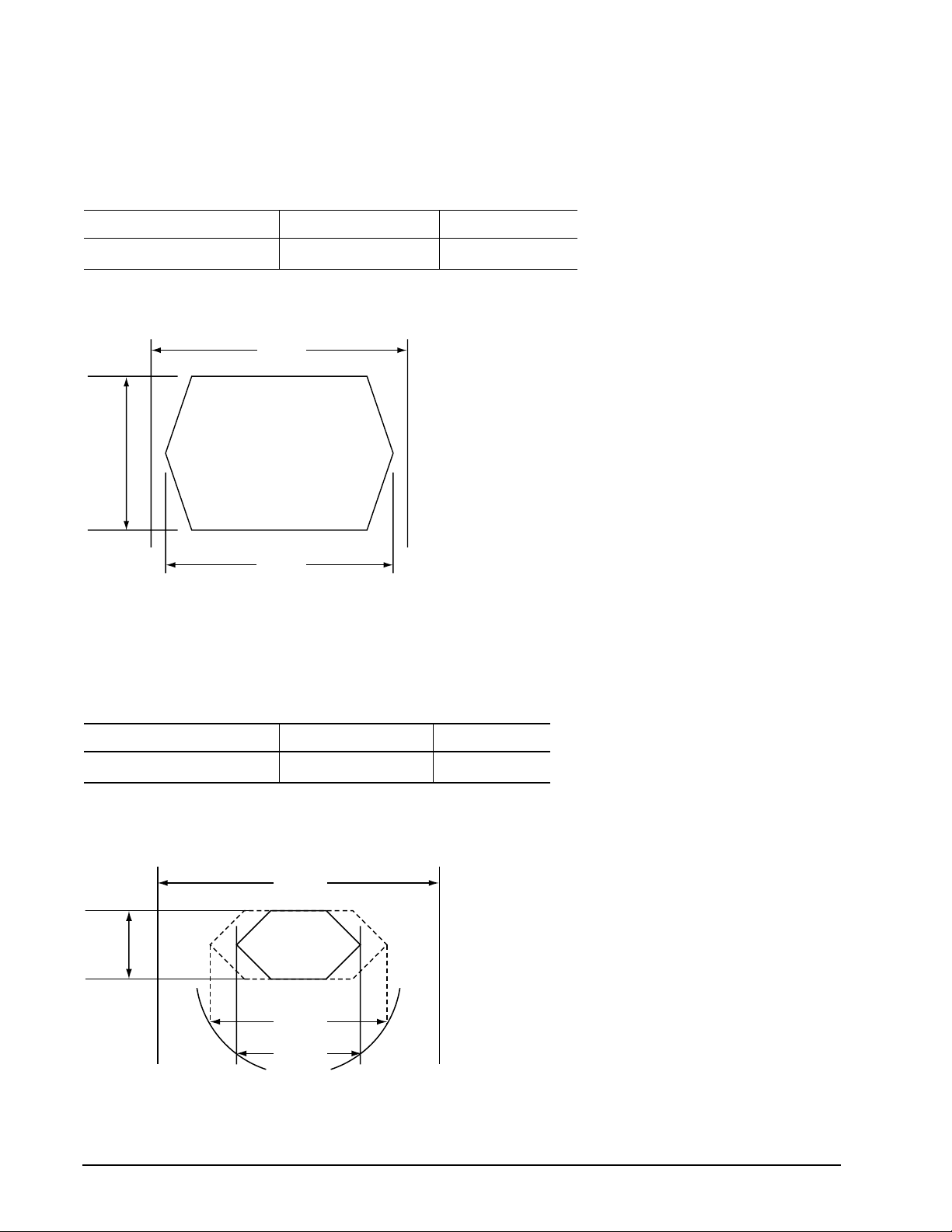

9.6.2 Differential PECL output

The serial PECL outp ut signa l vol t age c hara cteri stics a re p rovided i n Table 28. The outp ut s are not A C cou pl ed in order to deliver maximum signal without rise and fall time degradation. You must AC couple the receiver to isolate potentially different DC characteristics of the outputs and the receiver.

T ab le 28: Differential PECL output characteristics

Description Parameter Notes

Serial output voltage swing 600 < V

< 1300 mV Centered at 1.32V

out

Figure 18 provides the data output valid eye diagram relative to the bit cell time.

941 ps

Vout (mv)

800 ps

Figure 18. Transmit eye diagram

9.6.3 Differential PECL input

The serial PECL input signal voltage characteristics are provided in Table 29.

T ab le 29: Differential PECL input characteristics

Description Parameter Notes

Serial input voltage swing 200 < Vin < 1.300 mV AC coupled

Figure 19 provides the data valid eye diagram for typical and minimum requirements to recover data at the specified interface error rate. The inputs are AC coupled on the drive.

941 ps

Vin (mv)

659 ps 376 ps

Figure 19. Receive eye diagram

Typical Minimu

Savvio FC Product Manual, Rev. D

10.0 Seagate Technology support services

Internet

For information regarding Seagate products and services, visit www.seagate.com. Worldwide support is available 24 hours daily by email for your questions.

Presales Support:

Presales@Seagate.com

T e chn i cal Supp or t:

DiscSupport@Seagate.com

Warranty Support:

http://www.seagate.com/support/service/index.html

mySeagate

my.seagate.com is the industry's first Web portal designed specifically for OEMs and distributors. It provides self-service access to critical applications, personalized content and the tools that allow our partners to manage their Seagate account functions. Submit pricing requests, orders and returns through a single, password-protected Web interface-anytime, anywhere in the world.

spp.seagate.com

spp.seagate.com supports Seagate resellers with product information, program benefits and sales tools. You may register for customiz e d communi cation s that ar e not ava ila ble on the web. The s e communi catio ns cont ai n product launch, EOL, pricing, promotions and other channel-related information. To learn more about the benefits or to register, go to spp.seagate.com, any time, from anywhere in the world.

Seagate Service Centers

Presales Support

Our Presales Support staff can help you determine which Seagate products are best suited for your specific application or computer system, as well as product availability and compatibility.

Technical Support

Seagate technical support is available to assist you online at support.seagate.com or through one of our call centers. Have your system configuration information and your “ST” model number available.

SeaTDD™ (+1-405-324-3655) is a telecommunications device for the deaf (TDD). You can send questions or comments 24 hours daily and exchange messages with a technical support specialist during normal business hours for the call center in your region.

Savvio FC Product Manual, Rev. D

Customer Service Operations

Warranty Service

Seagate offer s worldwi de custom er supp ort for Seagate pro duct s . Seagate distr i butors, OEM s and other direct customers should contact their Seagate Customer Service Operations (CSO) representative for warrantyrelated issues. Resellers or end users of drive products should contact their place of purchase or Seagate warranty service for assistance. Have your serial number and model or part number available.

Data Recove ry Services

Seagate offers data recovery services for all formats and all brands of storage media. Our data recovery services labs are currently located throughout the world. . Additional information, including an online request form and data loss prevention resources, is available at http://services.seagate.com/index.aspx

Authorized Service Centers

Seagate Service Centers are available on a global basis for the return of defective products. Contact your customer support representative for the location nearest you.

USA/Canada/Latin America support services

For an extensive list of telephone numbers to technical support, presales and warranty service in USA/ Canada/Latin America, including business hours, go to the "Contact Us" page on www.seagate.com.

Global Customer Support

Presales, Technical, and Warranty Support Call Center Toll-free Direct dial

USA, Canada, and Mexico 1-800-SEAGATE +1-405-324-4700

Data Recovery Services Call Center Toll-free Direct dial FAX

USA, Canada, 1-800-475-01435 +1-905-474-2162 1-800-475-0158 and Mexico +1-905-474-2459

Europe, the Middle East and Africa Support Services

For an extensive list of telephone numbers to technical support, presales and warranty service in Europe, the Middle East and Africa, go to the "Contact Us" page on www.seagate.com.

Asia/Pacific Support Services

For an extensive list of telephone numbers to technical support, presales and warranty service in Asia/Pacific, go to the "Contact Us" page on www.seagate.com.

Savvio FC Product Manual, Rev. D

Index

Numerics

1 Gbit 63 12 volt

pins 63 2 Gbit 63 3rd party reserve command 53 4 Gbit 63 5 volt pins 63

Abort Sequence (ABTS) 43 abort task set function 44 AC coupling 63 AC power requirements 25 ACA active status 59 ACA active, faulted initiator status 59 Accept (ACC) 43 acoustics 36 active LED Out signal 64 Actual retry count bytes command 50 actuator 9

assembly design 7 adaptive caching 59 Address Discovery (ADISC) 43 addresses 60 air cleanliness 35 air flow

illustrated 42 Alternate credit model 45, 48 altitude 32 ambient 32 ANSI documents

fibre channel 5

SCSI 5 arbitrated loop physical address (AL_PA) 41 arbitration 41 asynchronous event notification 59 audible noise 3 auto negotiation of link rate 67 auto write and read reallocation

programmable 8 automatic contingent allegiance 59 average idle current 25, 26 average rotational latency 11

backpanel 61 backplane 64 basic link service frames 43 Basic_Accept (BA_ACC) 43 Basic_Reject (BA_RJT) 43

BB 45, 48 BB-Credit 45, 48 buffer

data 8

space 13 busy status 59 bypass circuit 19 Byte check command 51, 52 bytes per surface 11 bytes per track 11

cache operation 13 cache segments 13 Caching parameters page (08h) command 51 caching write data 14 Canadian Department of Communications 3 capacity

unformatted 11 CC 46, 47 CF 45, 48 Change definition command 52 character sync 18 charge pins 63 check condition status 59 Class 3 parameters 45, 48 class B limit 3 Class valid 45, 48 clear ACA function 44 clear task set function 44 commands supported 50 Common features 45, 48 Company ID 46, 47 Compare command 52 Concurrent sequences 45 condensation 32 condition met/good status 59 connector

illustrated 61

requirements 61 continuous vibration 35 Continuously increasing offset 45, 48 control code values 67 Control mode page (0Ah) command 51 cooling 41 Copy and verify command 52 Copy command 50 CRC 18

error 18 CS 45 Current profiles 27 customer service 24

Savvio FC Product Manual, Rev. D

data block size

modifing the 9

data buffer to/from disc media 12 data heads

read/write 11

data rate

internal 11 data transfer rate 12 data valid eye 68 Date code page command 50 DC power 61

requirements 25 defect and error management 39 deferred error handling 59 description 7 DEV_CTRL_CODE 67 Device Behavior page command 50 device control code values 67 Device Identification page command 50 device selection IDs 41 devices 41 differential PECL input 68 dimensions 37 Disable page out command 51, 52 disc rotation speed 11 Disconnect/reconnect control (page 02h) command

Download microcode and save modes (5) 52 Download microcode mode (4) 52 Download microcode with offsets and save mode (7)

Download microcode with offsets mode (6) 52 drive 35 drive characteristics 11 drive ID 41 drive mounting 37, 42 drive orientation 41 drive select 61 drivers and receivers 7 dual port support 49

electrical

description of connector 61

signal characteristics 67

specifications 25 electromagnetic compatibility 3 electromagnetic susceptibility 36 EMI requirements 3 enable bypass

port A 64

port B 64

signal 64

state 19 Enclosure Services interface 61 Enclosure services page command 51 environmental

limits 32

requirements 17 environmental contro l 35 error

detection mechanisms, FC 18

management 39

rates 17 error correction code

96-bit Reed-Solomon 8 Error recovery page (01h) command 50 extended link service

frames 43

reply frames 43 Extended sense command 50 Extent reservation command 53

fabric 48 Fabric Address Notification (FAN) 43 Fabric Login (FLOGI) 43 FAN 48 fault LED out signal 63 FC-AL

document 5

interface 41, 61

options supported 49

physical interface 60

SCA device connector, illustrated 61

selective reset 59 FCC rules and regulations 3 FCP

for SCSI, document 5

response codes 44

task management functions 44 FC-PH document 5 features 7

interface 43 Fibre Channel documents 5 Fibre Channel Interface Control page (19h) 51 Fibre Channel Interface Manual 1, 3, 5 Fibre Channel Services 43 Field pointer bytes command 50 firmware 7

corruption 54 Firmware download option command 52 Firmware numbers page command 50 flawed sector reallocation 8 FLOGI

received on Port A 47

received on Port B 47 Force unit access command 51

Savvio FC Product Manual, Rev. D

form factor 8 format 41 Format command execution time 12 Format page (03h) command 51 Format unit command 50 front panel 37 FS 45, 46, 48 function

complete, code 00 44 not supported, code 05 44 reject, code 04 44

Good status 59 gradient 32 ground shift noise 63 grounding 42

hard assigned arbitrated loop physical address

(AL_PA) 41

HDA 42 heads

read/write data 11 host equipment 42 hot plugging the drive 18 humidity 32 humidity limits 32

IC 45 ID and configuration options 7 Implemented operating def. page command 50 Information exceptions control page (1Ch) command

Initiator control 45 Inquiry command 50 inquiry data 55 installation 41

guide 5 interface 41

commands supported 50

description 60

error rate 17

errors 18

illustrated 60

physical 60

requirements 43 interleave 8

minimum 12 intermediate/co ndition met/g ood status 59 intermediate/good status 59 Intermix 45, 48 internal data rate 11

internal defects/errors 39 internal drive characteristics 11

Jumper settings page command 50 jumpers 41

latency

average rotational 11, 12 LBdata 53 Link Service Reject (LS_RJT) 43 link services supported 43 Lock-unlock-cache command 52 Log select command 53 Log sense command 53 logic power 63 logical block address 13 logical block reallocation scheme 8 logical block size 8, 12 logical segments 13 Logout (LOGO) 43 loop 60, 64

disruption 18

initialization 41 loop position

FC-AL options 49 loop position report

FC-AL options 49 LS_RJT 45, 48 LSI circuitry 9

maintenance 17 maximum delayed motor start 25, 26 maximum start current 25, 26 Mean time between failures 18 media description 8 minimum sector interleave 12 miscellaneous feature support

Adaptive caching 59

Asynchronous event notification 59

Automatic contingent allegiance 59

Deferred error handling 59

FC-AL selective reset 59

Parameter rounding 59

Queue tagging 59

Reporting actual retry count 59

Segmented caching 59

SMP = 1 in Mode Select command 59

Synchronized (locked) spindle operation 59

Zero latency read 59 miscellaneous status support

ACA active 59

Savvio FC Product Manual, Rev. D

ACA active, faulted initiator 59 Busy 59 Check condition 59 Condition met/good 59 Good 59 Intermediate/condition met/good 59 Intermediate/good 59 Reservation conflict 59 Task set full 59

miscorrected media data 17 Mode select

(10) command 53 command 50

Mode sense

(10) command 53 command 50 data, table 55, 57

monitoring state 19 motor start

controls 64 option 12

mounting 42

orientations 41 mounting configuration 37 mounting configuration dimensions 37 MTBF 9, 17, 18

N_Port Login (PLOGI) 43

payload 45

payload values 46 NN 45, 48 Node Name 48 Node name 45 noise

audible 3 noise immunity 27 non-operating 32, 33, 35

temperature 32 non-operating vibration 35

office environment 35 ohm 63 old port state

FC-AL options 49 OPEN Full Duplex

FC-AL options 49 OPEN half duplex

FC-AL options 49 Open sequences per exchange 45 operating 32, 33, 35 option configurations 41 option selection 61

options 10, 49 orientation 33 OS 45

P_LOGI

received on Port A 46

received on Port B 46 package size 33 package test specification 5 packaged 33 parameter rounding 59 pass-through state 19 PBC 60, 64 PBdata 52 PCBA 42 peak bits per inch 11 peak operating current 25, 26 peak-to-peak measurements 27 PECL input 68 performance characteristics

detailed 11

general 12 performance degradation 33 performance highlights 8 physical damage 35 physical interface 60

description 60 physical specifications 25 PI 46, 47 pin descriptions 62 PN 45, 48 port bypass circuit 19, 60, 64 Port DISCovery 45 Port Discovery (PDISC) 43 port identifier field 46, 47 port login 45

accept 46 Port Name 48 Port name (initiator’s) 45 power 63

dissipation 30

requirements, AC 25

requirements, DC 25

sequencing 27 Power control page (1Ah) command 51 power distribution 3 power failure warning 67 Prefetch command 52 prefetch/multi-segme nted cache control 13 preventive maintenance 17 private loop

FC-AL options 49 Proc Assc 45 Process Accept (ACC) 47

Savvio FC Product Manual, Rev. D

Process Login (PRLI) 43, 46 Process Login Accept (ACC) payload 47 process login payload data 46 Process Logout (PRLO) 43 public loop

FC-AL options 49

pull down resistor 64

resonance 33

return information 24

Rezero unit command 50

Rigid disc drive geometry page

command 51 rotation speed 11 running disparity 18

queue tagging 59

radio interference regulations 3 Random relative offset 45, 48 RCD bit 13 Read buffer command 52 Read capacity command 51 Read combined header and data mode (0) 52 Read command 50 Read data mode (2) 52 Read defect data command 52 Read descriptor mode (3) 52 read error rates 17 Read extended command 51 Read Link Status (RLS) 43 Read long command 52 read/write data heads 11 Reassign blocks command 50 Receive buffer field size 45, 48 receive buffer field size 46 Receive diagnostic results command 51 receive eye

diagram 68 receivers 63 recommended mounting 34 Recoverable Errors 17 recovered media data 17 reference

documents 5 Regenerate command 54 Register FC-4 Types (RFT_ID) 43 Relative address command 51, 52 relative humidity 32 Release command 50 Released (10) command 53 reliability 9

specifications 17 reliability and service 18 repair and return information 24 reporting actual retry count 59 Request sense command 50 reservation conflict status 59 Reserve command 50 Reserved (10) command 53

safety 3 SCA part numbers 61 SCSI interface

commands supported 50

Search data

equal command 52 high command 52 low command 52

Seek command 50 seek error

defined 18

rate 17 Seek extended command 51 seek performance characteristics 11 seek time

average typical 11

full stroke typical 11

single track typical 11 segmented caching 59 SEL ID 41

lines 65

standard feature 7 Self-Monitoring Analysis and Reporting Technology

9, 19 Send diagnostics page command 51 Sequential delivery 45, 48 Service Options 48 Service options 45 Set limits command 52 shielding 3 shipping 23 shipping container 32 shock 33

and vibration 33

shock mount 42 signal

characteristics 67 single-unit shipping pack kit 10 SMART 9, 19 SMP = 1 in Mode Select command 59 SO 45, 48 spindle brake 8 Stacked connection req. 45, 48 standards 3 Start unit/stop unit command 51 start/stop time 12

Savvio FC Product Manual, Rev. D

support services 69 Supported diagnostics pages command 51 switches 41 Synchronize cache command 52 synchronized spindle

operation 59

system chassis 42

target reset function 44 task management functions 44

Abort task set 44 Clear ACA 44 Clear task set 44 Target reset 44 terminate task 44

task management response codes 44

Function complete 00 44 Function not supported 05 44

Function reject 04 44 task set full status 59 technical support services 69 temperature 32

limits 32

non-operating 32

regulation 3

See also cooling terminate task function 44 termination 63 terminators 41 Test unit ready command 50 Third-party Process Logout (TRPLO) 43 tracks per inch 11 tracks per surface 11 Translate page command 51 transmit eye diagram 68 transmitters 63 transporting the drive 23 TTL input characteristics 67

Vital product data page command 50

warranty 23 word sync 18 Write and verify command 51 Write buffer command 52 Write combined header and data mode (0) 52 Write command 50 Write data mode (2) 52 Write extended command 51 Write long command 52 Write same command 52

XD read 53 XD write 53 XD write extended command 54 XID reassign 45 XP write 53

zero latency read 59 zone bit recording (ZBR) 8

UI 46, 47 unformatted 9 unique identifier 46, 47 Unit attention page (00h) command 50 Unit serial number page command 50 Unrecoverable Errors 17 unrecovered media data 17

Valid version level 45, 48 Verify command 52 Verify error recovery page (07h) command 51 vibration 33, 35

Seagate Technology LLC 920 Disc Drive, Scotts Valley, California 95066-4544, USA

Publication Number: 100293077, Rev. D, Printed in USA

Seagate SAVVIO FC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1.0 Scope

2.0 Applicable standards and reference documentation

2.1 Standards

2.1.1 Electromagnetic compatibility

2.1.1.1 Electromagn etic susc ept ibili ty

2.1.2 Electromagn etic complia nce

2.2 Reference documents

3.0 General description

3.1 Standard featu re s

3.2 Media desc ription

3.3 Performance

3.4 Reliability

3.5 Formatted ca pacities

3.5.1 Programmable drive capacity

3.6 Factory -installed acce ssories

3.7 Factory-installed options

3.8 User-ins talle d accessorie s

4.0 Performance characteristics

4.1 Internal drive characteristics

4.2 Seek performance ch aracteristics

4.2.1 Access time

4.2.3 General performance characteristics

4.3 Start/stop time

4.4 Prefetch /m ulti-segmen te d ca ch e control

4.5 Cache operation

4.5.1 Caching write data

4.5.2 Prefetch operation

4.5.3 Optimizing cache performance for desktop and server applications

5.0 Reliability specifications

5.1 Error rates

5.1.1 Recoverable Errors

5.1.2 Unrecoverable Errors

5.1.3 Seek errors

5.1.4 Interface errors

5.2 Reli ab ilit y and servi ce

5.2.1 Mean time between failures (MTBF)

5.2.2 Preventive mainte nan ce

5.2.3 Hot plugging the drive

5.2.4 S.M.A.R.T.

5.2.5 Thermal monitor

5.2.6 Drive Self Test (DST)

5.2.6.1 DST failure definition

5.2.6.2 Implementation

5.2.6.2.1 State of the drive prior to testing

5.2.6.2.2 Invoking DST

5.2.6.2.3 Short and extended tests

5.2.6.2.4 Log page entries

5.2.6.2.5 Abort

5.2.7 Product warranty

6.0 Physical/electrical specifications

6.1 AC power re quirements

6.2 DC power re quirements

6.2.1 Conducted noise immunity

6.2.2 Power sequencing

6.2.3 Current profiles

6.3 Power dissipation

6.4 Environmental limits

6.4.1 Temperature

6.4.2 Relative humidity

6.4.3 Effective altitude (sea level)

6.4.4 Shock and vibration

6.4.4.1 Shock

6.4.4.2 Vibration

6.4.5 Air cleanliness

6.4.6 Corrosive environment

6.4.7 Acoustics

6.4.8 Electromagn etic susc ept ibili ty

6.5 Mechanical specifications

7.0 Defect and error management

7.1 Drive internal defects/errors

7.2 Drive er ror recovery procedures

7.3 FC-AL system errors

8.0 Installation

8.1 Drive or ientat ion

8.2 Cooling

8.3 Drive mounting
