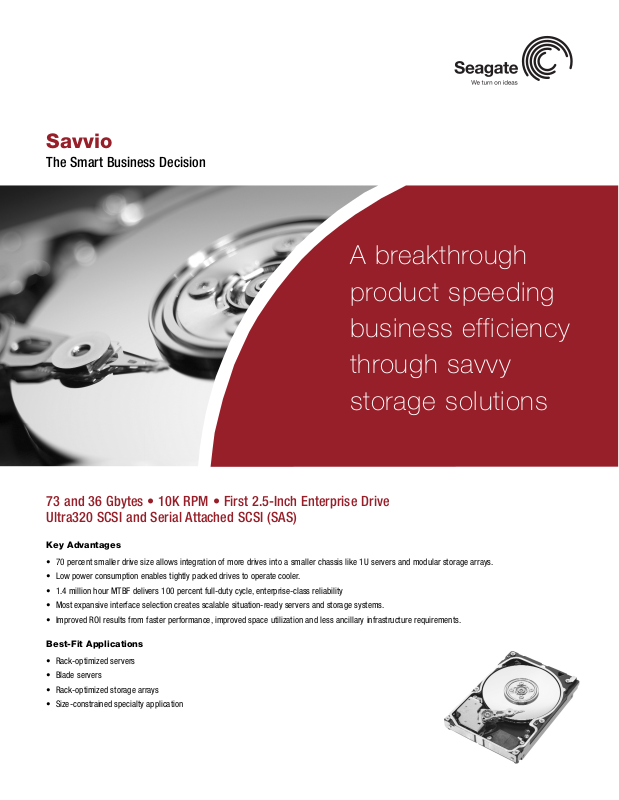

Savvio

The Smart Business Decision

73 and 36 Gbytes • 10K RPM • First 2.5-Inch Enterprise Drive Ultra320 SCSI and Serial Attached SCSI (SAS)

Key Advantages

• 70 percent smaller drive size allows integration of more drives into a smaller chassis like 1U servers and modular storage arrays.

• Low power consumption enables tightly packed drives to operate cooler.

• 1.4 million hour MTBF delivers 100 percent full-duty cycle, enterprise-class reliability

• Most expansive interface selection creates scalable situation-ready servers and storage systems.

• Improved ROI results from faster performance, improved space utilization and less ancillary infrastructure requirements.

Best-Fit Applications

• Rack-optimized servers

• Blade servers

• Rack-optimized storage arrays

• Size-constrained specialty application

A breakthrough product speeding business efficiency through savvy storage solutions

The Seagate®3D Defense System™— No One Does More to Protect Your Drives

DRIVE DEFENSE

• SeaShell

™

packaging provides more than 1,000 Gs shock protection during handling, reducing returns up to 70 percent.

DATA DEFENSE

• Seagate Advanced Multidrive System (SAMS) reduces effects of rotational vibration generated by drives operating simultaneously.

DIAGNOSTIC DEFENSE

• SeaTools

™

(available in Desktop and Enterprise editions)— this disc diagnostic utility prevents the expense and inconvenience of returning healthy drives.

World-Class Technical Support

• Certified, experienced support staff

• Rated “above average to excellent” by 95 percent of our customers

• Support lines with the shortest wait times in the industry

• Individually archived case histories for quick reference

• Web-based Q&A forum and autoreply e-mail

• Seagate Design Service Centers (DSC) help companies transform innovative ideas into viable products.

www.seagate.com 1-800-732-4283 (1-800-SEAGATE)

Savvio

The Smart Business Decision

Copyright © 2006 Seagate Technology LLC.All rights reserved. Printed in USA. Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC. Savvio,SeaShell, SeaTools and 3D Defense System are registered trademarks or trademarks of Seagate Technology LLC. Other product names are registered trademarks or trademarks of their owners. One gigabyte, or Gbyte, equals one billion bytes when referring to hard drive capacity.Accessible capacity may vary depending on operating environment and formatting. Seagate reserves the right to change, without notice, product offerings or specifications. Publication Number: DS1563-4,June 2006

AMERICAS Seagate Technology LLC 920 Disc Drive, Scotts Valley,California 95066, United States, 831-438-6550

ASIA/PACIFIC Seagate Technology International Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877,65-6485-3888

EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SA 130-136, rue de Silly, 92773 Boulogne-Billancourt Cedex, France,33 1-41 86 10 00

Model Number

Capacity

Formatted 512 Kbytes/Sector (Gbytes)

External Transfer Rate (Mbytes/sec)

Ultra320 SCSI 3-Gbit/sec Serial Attached SCSI

Performance

Spindle Speed (RPM) Average Latency (msec) Seek Time

Average Read/Write (msec) Track-to-Track Read/Write (msec)

Transfer Rate

Internal (Mbits/sec) Internal Formatted (Mbytes/sec) Sustained (Mbytes/sec)

Cache, Multisegmented (Mbytes)

Configuration/Organization

Discs Heads Nonrecoverable Read Errors per Bits Read MTBF (hours/AFR)

Power Management

Typical Op (amps) +12V/+5V SCSI

Serial Attached SCSI

Power Idle (watts) SCSI

Serial Attached SCSI

Environmental

Temperature, Operating (°C) Temperature, Nonoperating (°C) Shock, Operating: 2 msec (Gs) Shock, Nonoperating: 2 msec (Gs) Acoustics Idle (bels—sound power) Vibration, Operating: <400 Hz (Gs) Vibration, Nonoperating: <500 Hz (Gs)

Physical

Height (in/mm) Width (in/mm) Depth (in/mm) Weight (lb/kg)

Warranty

Limited Warranty (years)

73 GB

Specifications

ST973401LC/SS

73.4

320 300

10K

3.0

4.1/4.5

0.4/0.7

497 to 752 62 to 94 41 to 63 8

2 4 1 sector per 10

1,400,000/0.63%

0.34/0.81 .48/1.05

5.1

7.43

5 to 55 –40 to 70 60 275

2.6

0.5

1.2

0.583/14.8

2.76/70.1

3.945/100.2

0.5/0.21

36 GB

ST936701LC/SS

36.7
