Seagate LGC120, BlackArmor NAS 110 ST310005MND10G-RK, BlackArmor NAS 110 ST320005MND10G-RK Specifications

The BlackArmor NA S 110 server is a network at tached storage solution desi gned to provide centralised s torage,
data backup and media streaming for up to 10 PCs. Help protect important data with automatic full-system backup,
SafetyDrill+™ bare metal recovery software and powerful hardware-based encryption.

Highlights

• Designed to provide centralised storage and data backup for up to 10 PCs

• Protects network-connected PCs with incremental and full-system, automatic backup*

• Secures les with powerful hardware-based encryption

• Functions as an FTP server, enabling remote le access

• Streams media to DLNA

®

-compliant devices and computers running iTunes® software

• OneTouch® backup button duplicates les from storage devices such as digital cameras and USB drives
connected to the front USB port

• Includes a reliable Seagate® hard drive

• Connect external drives, share a printer or use an uninterrupted power supply with the two USB 2.0 ports

• Event email notication

• 3-year limited warranty

CENTRALISED NETWORK STORAGE

Copyright © 2009 Seagate Technology LLC. All rights reserved. Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. BlackArmor,
SafetyDrill +, and Global Acces s are either tradem arks or registere d trademarks of Sea gate Technology LLC or one of i ts afliated comp anies in the United S tates and/or othe r countries. All ot her trademarks or r egistered
trademarks are the property of their respective owners. When referring to hard drive capacity, one gigabyte, or GB, equals one billion bytes; and one terabyte, or TB, equals one trillion bytes. Your computer operating system may
use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Seagate reserves the right to
change, without notice, product offerings or specications. The export or re-export of hardware or software containing encryption may be regulated by the US Department of Commerce, Bureau of Industry and Security (for more
information go to www.bis.doc.gov) DS1695.1-0909GB

Visit Seagate.com for more information about these and other Seagate retail products.

Perfect for when you need to:

• Store and access les from
a central, secure location

• Access a nd manag e les

remotely

• Stream media to DLNA

®

­compl iant devi ces and
computers running iTunes

®

software

• Perform full-system backups

automatically o n network­connected PCs

• Secure les with hardwa re-

based encryption

• Share a USB printer with

network-connected PC s
and Macs

Interface 10/100/1000 Ethernet, USB 2.0
Capacities 1 TB, 2 TB

Product Dimensions

Horiz x Vert x Depth – 2.40" x 6.90" x 5.80" (61.00 mm x 176.00 mm x 147.00 mm)
Weight: 2.71 lbs (1.22 kg)

Retail Packaging Specs

Box dimensions: Horiz x Vert x Depth – 9.29" x 9.02" x 3.66" (235.97 mm x 229.11 mm x 92.96 mm)
Box weight: 3.64 lbs (1.65 kg)
Master carton dimensions: Horiz x Vert x Depth – 11.50" x 10.08" x 9.41" (292.1 mm x 256.03 mm x 239.01 mm)
Master carton weight: 11.98 lbs (5.43 kg)
Master carton quantity: 3
Master cartons per pallet: 64
Pallet dimensions: H oriz x Vert x Depth – 48.00" x 4 8.43" x 40" (1,219.2 mm x 1, 230.12 mm x 1,016 mm)
Pallet weight: 812.00 lbs (368.32 kg)
Pallet layers: 4

Technical Specifications Connectivity

Network Protocols
Network Authentication
File Sharing Protocols
Volume Management

Disc Management

Backup Management

Event Management
Media Streaming

Download Server
Remote Access

• 1 internal SATA II port

• 2 USB 2.0 host ports
CIFS NFS, HTTP, HTTPS, FTP, Bonjour

®

Microsoft Windows® Server Active Directory
CIFS, NFS, HTTPS, FTP

• Share management

• Volume-level encryption

• Multi-volume management

• SMART status monitor

• Local backup (USB device to NAS, NA S
to USB device)

• Network NAS to NAS backup

Event email notication

• iTunes

®

server

• DLNA

®

-compliant digital media server

Downloader (HTTP and FTP)

Seagate Global Access™ service

• 1 RJ45 Ethernet port (Gigabit)

• Share/folder-level access control list (ACL) support

• Quotas setting

• Drive standby mode

• Client system backup, bare metal restore (full-

system recovery) over network

• OneTouch

®

USB storage device backup

Software Requirements PC on Network

• Pentium

®

III, 500 MHz equivalent processor or higher

• Microsoft Windows

®

XP or Microsoft Vista® OS

• Internet Explorer

®

6.0 browser or later, or Firefo x™ 2.X browser

or later (for management interface and Web access)

• 256-MB RAM

Mac on Network

• Mac OS

®

X 10.4.11 OS or later

• Apple

®

Safari® 3.1 browser or later

System Requirements

• Local area network (LAN)

• Internet connection (for system updates and Web access)

• Wired or wireless router with an available 10/100/1000
Ethernet port

• USB printer or USB disc drive (optional)

Inside the Box

• BlackArmor NAS 110 storage server

• 2M RJ45 cable

• AC power cord

• Quick Start Guide

• CD-ROM with

– BlackArmor

®

Discovery Software for Windows® OS

– BlackArmor Discovery Software for Mac

®

OS

– BlackArmor Backup Software for Window s OS

(5 licenses*)
– Online registration link
– Warranty information card

*Additional licenses available for purchase at www.seagate.com.

Connectivity

• On e Etherne t port f or local
network connection, Web-based

management and remote access

• Two USB 2.0 ports for external

drives, printers and uninterrupted

power supplies (UPS)

• One internal SATA II port

Region Product Capacity Model Number EAN Code Multi-pack UPC

EMEA BlackArmor NAS 110 1 TB ST310005MND10G-RK 7636490017230 10763649018689

EMEA BlackArmor NAS 110 2 TB ST320005MND10G-RK 7636490017247 10763649018696

*Includes data backup software licenses for ve PCs. Additional licenses available for purchase at www.seagate.com.

Full-system Protect ion

Software plays an important role in helping to protect your valuable data and with BlackArmor you can expect nothing less than the best.
To help protect al l the  les on yo ur PC, our softwar e package provide s automatic, increm ental and full-sy stem backup. In the ev ent of

a PC ha rdware fail ure, you ca n use the Sa fetyDrill + bare met al restore feature to re cover your entire syst em, includ ing the ope rating

system, programs an d settings. Furthermore, the i ncluded software also allows you to secure your  les with powerful 256-bit encryp tion.

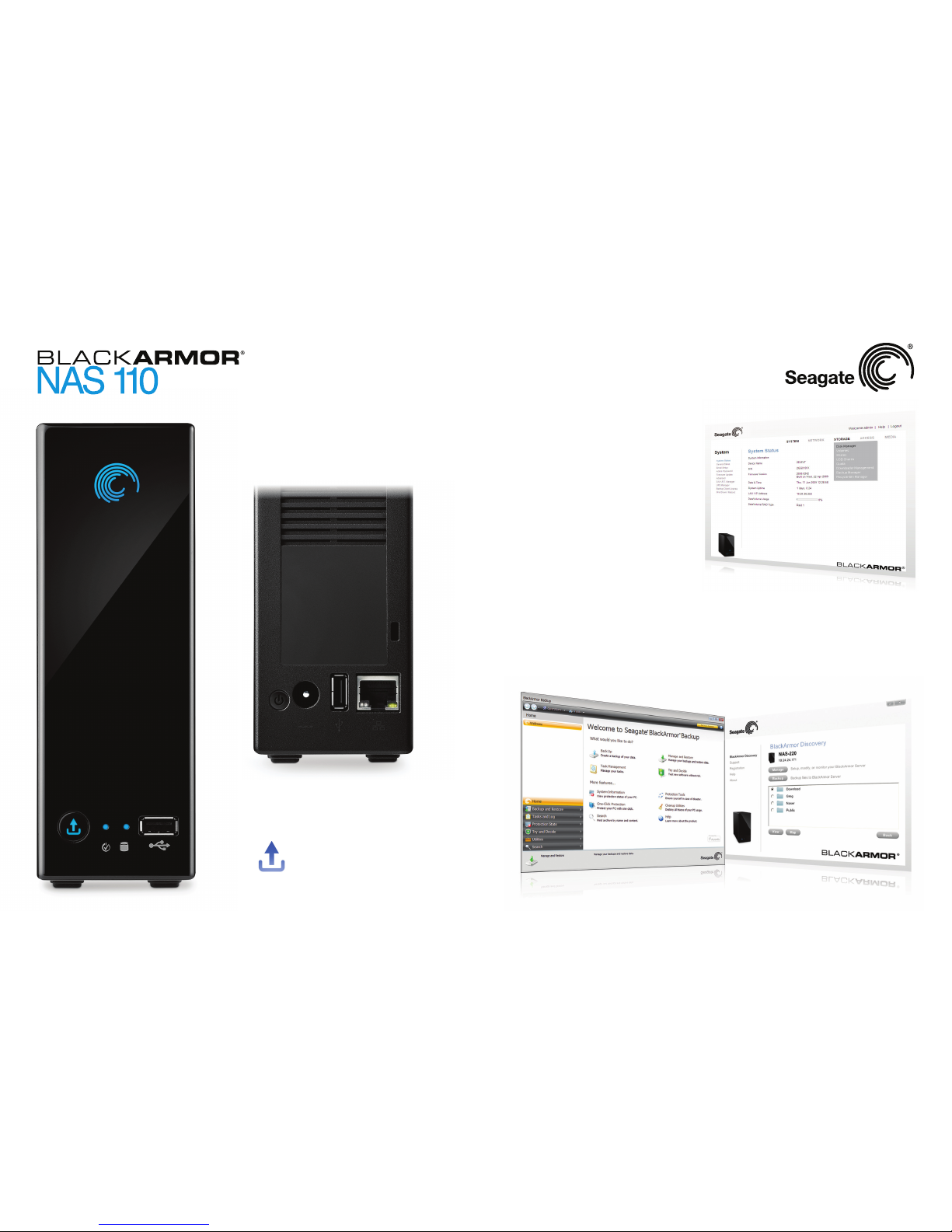

You are in Control

In add ition to th e include d softwar e, the Web- based

manag ement i nterfac e and Bla ckArm or Disco very too l
soft ware are also str aightfo rward to use. The BlackA rmor
Disco very too l softw are allo ws you to b e up and running

quick ly by disp laying al l of the Bla ckArmo r NAS prod ucts
conne cted to you r network. From the D iscovery tool, with

a single click, you c an view or map shared volumes to your

computer, access the Web-based user interface or back up the

PC you are working from. The BlackArmor NAS 110 storage
server can also be managed remotely with DDNS, which can

be con gure d using the Web-based manage ment interface.

The BlackA rmor NAS 110 sto rage server can also funct ion

as an FTP server, allowing remote access t o  les. Usi ng the
Web-based managemen t interface, you can designa te user

access manually or integrate with Microsoft® Active Directory.

Moreover, th e BlackArmo r NAS 110 s torage serv er can

stream media  les to DLNA-compliant devices or computers

running iTunes software, allowing you to c entralise medi a
and display content simultaneously on multiple devices.

Designed to provide
centralised storage
and data backup

Expansion

The one rear-mounted US B 2.0 ports all ow you to conne ct external
USB ha rd drives for additi onal stora ge, share a USB prin ter easil y

with your network -connected computers or conn ect an uninterrupted

power supply (UPS) to safeguard from power failure.

CENTRALISED NETWORK STORAGE

OneTouch Backup

The OneTouch backup button duplicates  les from USB

storag e devices such as dr ives and digital c ameras

connected to the front-mounted USB port.
