DDS-4/DAT 72
DDS-4/DAT 72
Copyright and Trademarks
Copyright © 2003 by Certance LLC. All Rights Reserved.
Part Number 10010539-001
May 2003
Certance and the Certance logo are trademarks of Certance LLC. Seagate is a trademark of Seagate Technology LLC. Other product names are trademarks or registered trademarks of their respective owners.
Certance reserves the right to change, without notice, product offerings or specifications. No part of this publication may be reproduced in any form without written permission from Certance LLC.
Certance provides this manual “as is,” without warranty of any kind, either expressed or implied, including, but
not limited to, the implied warranties of merchantability and fitness for a particular purpose. Certance reserves
the right to change, without notification, the specifications contained in this manual.
Certance assumes no responsibility for the accuracy, completeness, sufficiency, or usefulness of this manual, nor
for any problem that might arise from the use of the information in this manual.
Warnings
All safety and operating instructions should be read before this product is operated, and should be retained for
future reference. This unit has been engineered and manufactured to assure your personal safety. Improper use
can result in potential electrical shock or fire hazards. In order not to defeat the safeguards, observe the following basic rules for installation, use and servicing.
CAUTION: This symbol should alert the user to the presence of “dangerous voltage” inside the
product that might cause harm or electric shock.
Caution! Risk of electric shock! Do not open!
To reduce the risk of electric shock, do not remove the cover (or back). No user-serviceable parts are
inside. Refer servicing to qualified service personnel.
• Heed warnings — All warnings on the product and in the operating instructions should be adhered to.
• Follow instructions — All operating and use instructions should be followed.
• Ventilation — The product should be situated so that its location or position does not interfere with proper
ventilation.
• Heat — The product should be situated away from heat sources such as radiators, heat registers, fur-
naces, or other heat producing appliances.
• Power sources — The product should be connected to a power source only of the type directed in this
document or as marked on the product.
• Power cord protection — The power cord should be routed so that it is not likely to be walked on or
pinched by items placed upon or against it, paying particular attention to the cord at the wall receptacle,
and the point where the cord exits from the product.
• To complete the disconnection of the electricity, please remove the power (electric) cord and the SCSI
cable from their connections in the back of the product. The plugs should be placed near the product for
easy access.
• Object and liquid entry — Care should be taken to insure that objects do not fall and liquids are not
spilled into the product's enclosure through openings.
• Servicing — The user should not attempt to service the product beyond that described in the operating
instructions. All other servicing should be referred to qualified service personnel.
2
Precautions
• Do not use oil, solvents, gasoline, paint thinners, or insecticides on the unit.
• Do not expose the unit to moisture or to temperatures higher than 140 °F (60 °C) or lower than
-40 °F (-40°C).
• Keep the unit away from direct sunlight, strong magnetic fields, excessive dust, humidity, and
electronic/electrical equipment, which generate electrical noise.
• Hold the power cord by the head when removing it from the AC outlet; pulling the cord can damage the
internal wires.
• Use the unit on a firm level surface free from vibration, and do not place anything on top of the unit.
FCC Notice
This equipment generates and uses radio frequency energy and, if not installed and used properly — that is, in
strict accordance with the manufacturer's instructions — may cause interference to radio communications or
radio and television reception. It has been tested and found to comply with the limits for a Class B computing
device in accordance with the specifications in Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television
reception, which can be determined by turning the equipment on and off, you are encouraged to try to correct
the interference by one or more of the following measures:
• Reorient the receiving antenna.
• Relocate the computer with respect to the receiver.
• Move the computer into a different outlet so that the computer and receiver are on different branch cir-
cuits.
If necessary, you should consult the dealer or an experienced radio/television technician for additional suggestions. You may find the booklet, How to Identify and Resolve Radio-TV Interference Problems, prepared by the
Federal Communications Commission, helpful. This booklet (Stock No. 004-000-00345-4) is available from the
U.S. Government Printing Office, Washington, DC 20402.
WARNING: Changes or modifications made to this equipment, which have not been expressly approved by
Certance, may cause radio and television interference problems that could void the user's authority to operate the
equipment.
Further, this equipment complies with the limits for a Class B digital apparatus in accordance with Canadian
Radio Interference Regulations.
Cet appareil numérique de la classe B est conforme au Règlement sur brouillage radioélectrique, C. R. C., ch.
1374.
The external device drive described in this manual requires shielded interface cables to comply with FCC emission limits.
WARNINGS: To prevent fire or electrical shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel.
3
4
Contents
List of Figures ...................................................................... 9
List of Tables...................................................................... 10
Chapter 1 - Introduction ................................................... 11
Features .............................................................................. 12
Capacity and Transfer Rates .................................................... 13
Applications......................................................................... 13
Using This Guide................................................................... 13
Chapter 2 - Quick Start Installation ................................ 14
Tape Drive Components .......................................................... 14
Installing the Internal Tape Drive ............................................... 15
Installing the External Tape Drive............................................... 16
Chapter 3 - Installing internal tape drives...................... 17
Unpacking ........................................................................... 17
What Else You Need.............................................................. 18
Avoiding Electrostatic Damage ................................................. 18
Installation Summary .............................................................. 18
Collecting the Necessary Tools ................................................. 19
Reviewing Drive Default Settings ............................................... 19
SCSI ID ............................................................................. 21
Parity Checking .................................................................... 22
5
Term in ato r P owe r ................................................................... 22
Data Compression ................................................................. 23
Media Recognition System (DDS-4 Drives Only).................................. 23
Power-On Self-Test.................................................................. 24
Host Operating System ............................................................ 24
SCSI Wide/Narrow Configuration (DDS-4 Drives Only) ........................ 25
Vendor ID ........................................................................... 25
Recording Drive Information..................................................... 25
Accessing the Inside of Your Computer....................................... 26
Mounting the Internal Tape Drive............................................... 26
Mounting the Drive into a 3.5-inch Drive Bay .................................... 26
Mounting the Drive into a 5.25-inch Drive Bay................................... 28
Connecting a SCSI Cable........................................................ 29
Connecting to a Wide SCSI Connector........................................... 29
Connecting to a Narrow SCSI Connector ........................................ 29
Checking SCSI Termination...................................................... 30
Connecting a Power Cable...................................................... 30
Completing Your Installation..................................................... 31
Registering Your Tape Drive ..................................................... 32
Chapter 4 - Installing external tape drives .................... 33
Unpacking ........................................................................... 33
What Else You Need.............................................................. 33
Installation Summary .............................................................. 34
Reviewing Drive Default Settings ............................................... 34
SCSI ID ............................................................................. 35
Parity Checking .................................................................... 35
Data Compression ................................................................. 35
Media Recognition System (DDS-4 Drives Only).................................. 36
Power-On Self-Test.................................................................. 36
Host Operating System ............................................................ 36
Recording Drive Information..................................................... 36
Connecting a SCSI Cable........................................................ 37
Connecting to a Wide SCSI Connector........................................... 37
Connecting to a Narrow SCSI Connector ........................................ 37
Checking SCSI Termination...................................................... 38
6
Connecting a Power Cable...................................................... 38
Completing Your Installation..................................................... 39
Registering Your Tape Drive ..................................................... 39
Chapter 5 - Operating Your Tape Drive .......................... 40
Using the Appropriate Media................................................... 40
Handling Cartridges .............................................................. 41
Loading a Cartridge............................................................... 42
Initializing a Blank Cartridge ................................................... 42
Unloading a Cartridge ........................................................... 43
Write-Protecting a DDS Cartridge.............................................. 44
Cleaning the Tape Heads ........................................................ 45
Chapter 6 - Understanding the Drive LEDs ..................... 46
Front Panel LEDs.................................................................... 46
LED Summary ....................................................................... 47
Clean LED............................................................................ 47
Media LED........................................................................... 48
Drive LED............................................................................. 48
Chapter 7 - Troubleshooting ............................................ 49
Missing or Damaged Parts ...................................................... 49
SCSI ID Problems................................................................... 50
SCSI Termination Problems ...................................................... 50
Mounting Hardware Problems .................................................. 50
Drive Does Not Work ............................................................. 50
Power-On Self-Test Fails........................................................... 51
Computer Does Not Boot ........................................................ 51
Computer Does Not Recognize Drive......................................... 51
Backup Program Does Not Recognize Drive ................................ 52
Write Error........................................................................... 52
Hardware Error..................................................................... 52
7
Appendix A - Loading Revised Firmware....................... 53
Firmware Upgrade Methods .................................................... 53
Using Firmware Cartridges ...................................................... 54
Appendix B - Technical Support Information.................. 55
Wor ld- wide Ser vice s .............................................................. 55
World-wide Web ................................................................... 55
E-mail Technical Support ........................................................... 55
Regional Services .................................................................. 56
Phone Technical Support........................................................... 56
Technical Support FAX ............................................................. 56
Support Services in the Americas .............................................. 56
Tele phone Sup po rt ................................................................. 56
Technical Support FAX (US and International) .................................... 56
SeaTDD ............................................................................. 56
Support Services in Europe...................................................... 57
Support Services for Africa and the Middle East........................... 57
Support Services in Asia and the Western Pacific ......................... 58
8
List of Figures
FIGURE 1. Drives Covered in This User’s Guide .................................................. 11

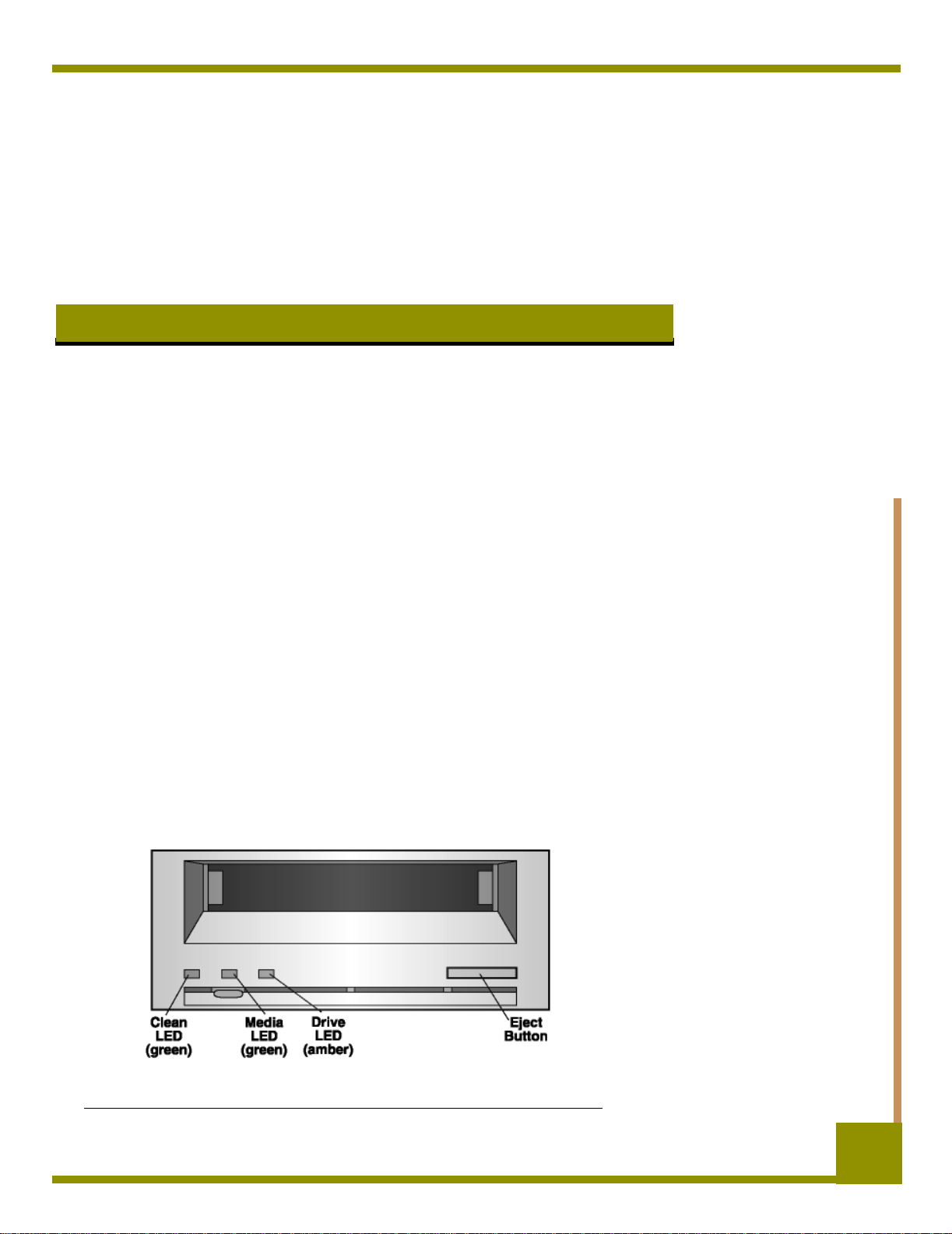

FIGURE 2. Front Panel Components .................................................................... 14
FIGURE 3. Internal Tape Drive Jumper Settings .................................................... 20

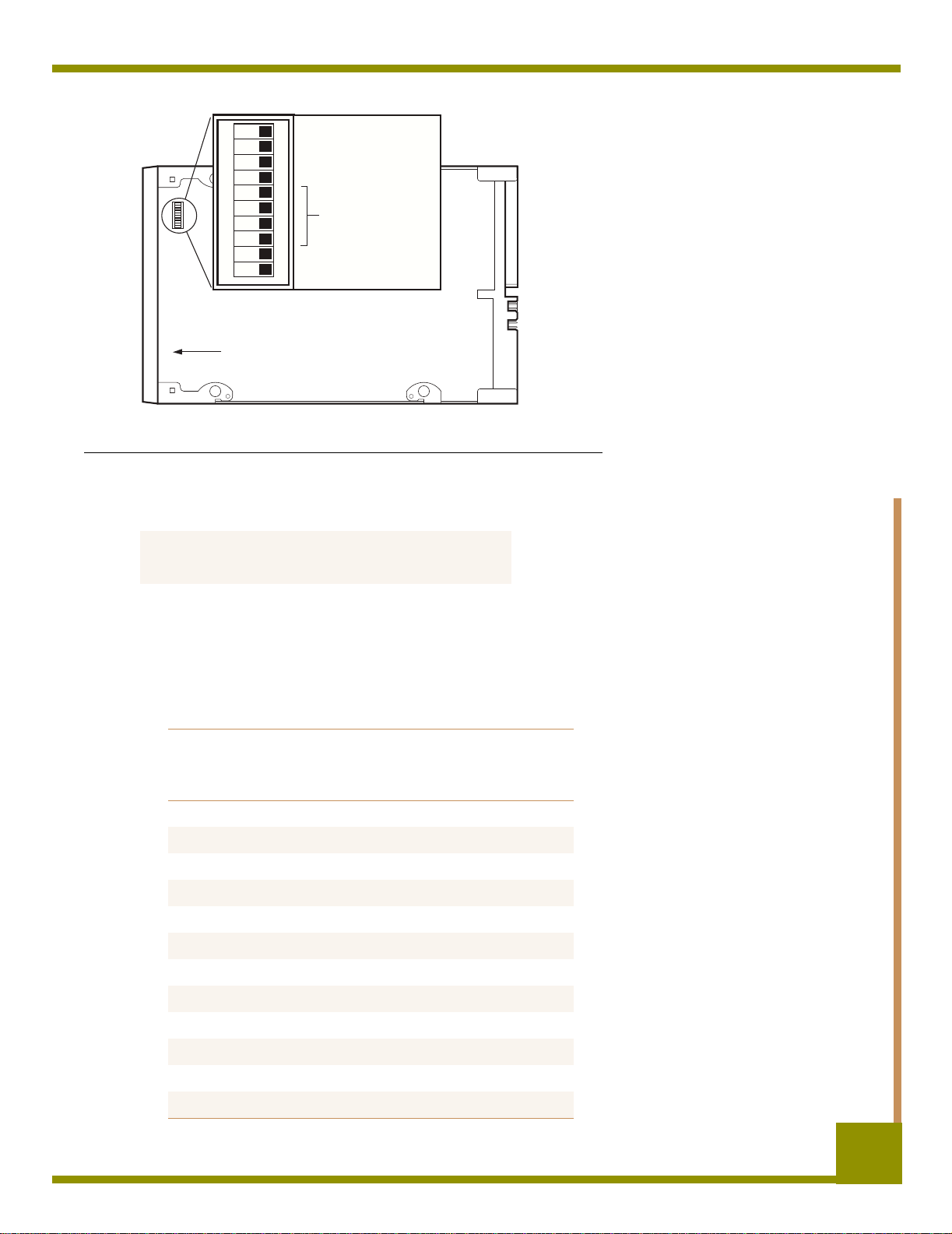

FIGURE 4. Internal Tape Drive Switch Settings .....................................................21
FIGURE 5. Mounting an Internal Tape Drive ........................................................ 27
FIGURE 6. Mounting Holes for the Internal Tape Drive in a 3.5-inch Installation ......27

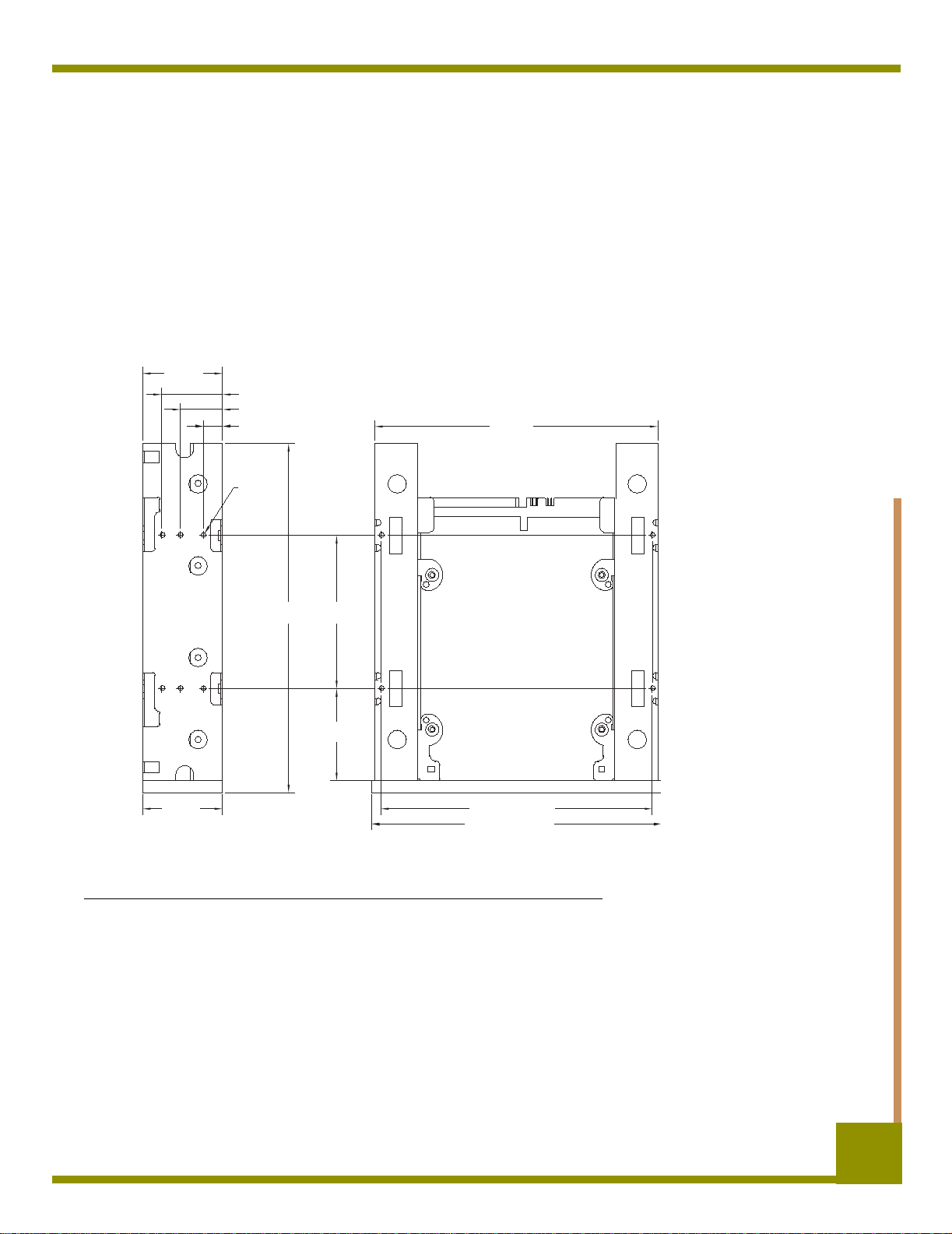

FIGURE 7. Mounting Holes for the Internal Tape Drive in a 5.25-inch Installation ....28
FIGURE 8. SCSI Interface Connector on the Internal Tape Drive .............................29
FIGURE 9. Two SCSI Termination Examples for the Internal Tape Drives ................. 30
FIGURE 10. Power Connector on the Internal Tape Drive ...................................... 31
FIGURE 11. Back Panel of the External Tape Drive .............................................. 35
FIGURE 12. Two SCSI Termination Examples for the External Tape Drives .............. 38
FIGURE 16. Loading a Cartridge ....................................................................... 42
FIGURE 17. Eject Button on Front Panel of Drive ..................................................43
FIGURE 18. Write-protecting a DDS Cartridge ....................................................44
FIGURE 19. Front Panel LEDs on Internal Drive (external drive is similar) .................46
9
List of Tables
TABLE 1. DDS-4 and DAT 72 Capacity and Transfer Rates .................................... 13
TABLE 2. Internal Tape Drive Default Settings ....................................................... 20
TABLE 3. SCSI IDs and Corresponding Jumper Settings ......................................... 21
TABLE 4. Host Operating Systems and Corresponding Switch Settings .................... 24
TABLE 5. External Tape Drive Default Settings ......................................................34
TABLE 7. Cartridge Guidelines and Pitfalls...........................................................41
TABLE 6. Matching Drives with the Media They Support........................................41
TABLE 8. LED Quick Summary............................................................................ 47
TABLE 9. Clean LED..........................................................................................47
TABLE 10. Media LED.......................................................................................48
TABLE 11. Drive LED.........................................................................................48
TABLE 12. European Toll-Free Numbers...............................................................57
TABLE 13. Asia and Western Pacific Numbers.....................................................58
10
1
Introduction
Congratulations!
You have purchased the finest, most reliable digital data storage (DDS) drive available. As the industry leader, Certance has once again revolutionized storage with the Seagate
Model DAT 72 drives. The DAT 72 and DDS-4 DDS drives represent Certance’s commitment to engineering reliable and durable tape drive products that implement leading-edge technology.
Designed for computer environments that require high-performance, high-capacity data storage, the
DDS-4 and DAT 72 drives are based on a 3.5-inch mechanism and available as external and internal tape drives (see Figure 1 on page 11). The drives combine established Digital Audio Tape (DAT)
technology, high-density recording, and hardware data-compression capabilities with Certance’s
proven computer-grade design to provide unmatched reliability and performance characteristics
among DDS products.
Internal Drive External Drive
©
Model DDS-4 and
FIGURE 1. Drives Covered in This User’s Guide
11
Introduction Features
Features
The following list summarizes the key features of the DDS-4 and DAT 72 drives.
• Compatibility
• DDS-4: Supports DDS-2, DDS-3, and DDS-4 recording formats.
• DAT 72: Supports DDS-3, DDS-4, and DDS 5
• LVD / Ultra Wide SCSI connection
• Three convenient form-factors:
• 3.5-inch internal form-factor for installation in a 3.5-inch half-height space
• 3.5-inch half-height drive factory-installed with 5.25-inch mounting rails and bezel for
installation in a 5.25-inch half-height space
• External subsystem with built-in, auto-sensing, worldwide power supply
• Support for various native data-storage capacities (see Table 1 on page 13)
• High-speed transfer rates for fast backups (see Table 1 on page 13)
th
Generation recording formats.
• Advanced onboard DDS-DC hardware using Lempel-Ziv (DCLZ) data-compression, doubling
the drive’s uncompressed capacity (e.g., a 20 GB uncompressed drive can be 40 GB with
compression). See Table 1 on page 13.
• High-performance SCSI burst transfer rates
• Three levels of error-correction code (ECC) and four-head design for read-after-write (RAW)
error detection and correction (uncorrectable error rate of less than 1 in 10
• “Flying” preamplifier for greater signal-to-noise ratio
• Flash memory to store setup parameters and enable field firmware upgrades
• Automatic power-on self-test
• State-of-the-art sealed drive mechanism and tape handling components for improved immunity
to airborne contaminants and extended media life
15
bits)
12
Introduction Capacity and Transfer Rates
Capacity and Transfer Rates
TABLE 1. DDS-4 and DAT 72 Capacity and Transfer Rates
Characteristic DDS-2* DDS-3 DDS-4 DDS 5th Generation**
Tape Length (meters) 120 125 150 170
Native Capacity (Gbytes) 4 12 20 36
Compressed Capacity (Gbytes) 8 24 40 72
Native Transfer Rate (Mbytes/sec) 1.375 2.75 2.75 3.5
* Applies to DDS-4 drives only
** Applies to DAT 72 drives only
Applications
The DAT 72 and DDS-4 drives are ideal for workstation, server, and network/enterprise applications. These applications include, but are not limited to:
• Backup of high-capacity fixed discs
• Data interchange between systems
• Network servers
• Online data collection
• Near-line secondary storage for all types of text, graphics, or multimedia information
• Archival storage
Using This Guide
This User’s Guide describes how to install, configure, and care for the DDS-4 and DAT 72 external
and internal tape drives. Please read the appropriate chapters and appendixes carefully, and keep
this Guide handy for future reference.
• Chapter 2 provide quick-start instructions for getting the drives up and running in the shortest
possible time.
• Chapter 3 describes how to install internal DDS-4 and DAT 72 drives.
• Chapter 4 describes how to install the external tape drives.
• Chapter 5 describes how to operate the drives.
• Chapter 6 describes the front-panel LEDs on the drives.
• Chapter 7 provides troubleshooting procedures you can follow in the unlikely event you
encounter a problem with your drive.
• Appendix A describes how to upgrade firmware for your tape drive.
• Appendix B provides technical-support information.
13
2
Quick Start Installation
This chapter provides quick-start instructions for getting the internal or external tape drives up and
running in the shortest possible time.
Topics in this chapter are:
• “Tape Drive Components” on page 14
• “Installing the Internal Tape Drive” on page 15
• “Installing the External Tape Drive” on page 16
NOTE: If you prefer more detailed instructions, see Chapter 3 for internal drive
installation instructions or Chapter 4 for external drive installation instructions.
Tape Drive Components
The following describes the major components of the tape drives.
FIGURE 2. Front Panel Components
For more information on LEDs and their meaning, see “Front Panel LEDs” on page 46.
14
Quick Start Installation Installing the Internal Tape Drive
Installing the Internal Tape Drive
Use the following procedure to install the internal tape drive. Print this page and check each step as
you complete it. If you need more information about a step, turn to the section referenced in the step.
Unpack the contents of your drive package, and check for missing or damaged items.
❑
❑
❑
❑
❑
1.
See “Unpacking” on page 17.
Identify any other items you need to perform this installation.
2.
See “What Else You Need” on page 18.
Collect the tools you will need to perform the installation.
3.
See “Collecting the Necessary Tools” on page 19
Observe Electrostatic precautions when handling the internal tape drive.
4.
See “Avoiding Electrostatic Damage” on page 18.
Review the drive’s default settings and change them if necessary:
5.
• SCSI ID: 6
• Parity Checking: Enabled
• Terminator Power: Disabled
• Data Compression: Enabled
• Media Recognition (DDS-4 drives only): Enabled
• Power-On Self-Test: Enabled
• Host Operating System: Windows 98/Me/XP/NT/2000/2003 Server
• SCSI Interface Compatibility (DDS-4 drives only): Wide SCSI
• Vendor ID: SEAGATE DAT
See“Reviewing Drive Default Settings” on page 19.
❑
❑
❑
❑
❑
❑
❑
Turn off your computer, remove its covers and power cable, and select a mounting bay for
6.
the drive. Depending on your drive, select a 3.5-inch or 5.25-inch bay.
See “Accessing the Inside of Your Computer” on page 26.
Mount the drive into the bay and secure using the supplied screws.
7.
See “Mounting the Internal Tape Drive” on page 26.
Connect a SCSI interface cable to the drive.
8.
See “Connecting a SCSI Cable” on page 29.
Be sure the internal tape drive is not the last device on the SCSI bus (the drive does not
9.
provide SCSI termination).
See “Checking SCSI Termination” on page 30.
Connect a power cable to the drive.
10.
See “Connecting a Power Cable” on page 30.
Replace the computer covers and power cable, turn on the computer, and verify that the
11.
internal tape drive is operating properly.
See “Completing Your Installation” on page 31.
Register your tape drive.
12.
See “Registering Your Tape Drive” on page 32.
15
Quick Start Installation Installing the External Tape Drive
Installing the External Tape Drive
Use the following procedure to install the external tape drive. Print this page and check each step as
you complete it. If you need more information about a step, turn to the section referenced in the step.
Unpack the contents of your drive package, and check for missing or damaged items.
❑
❑
❑
❑
❑
1.
See “Unpacking” on page 33.
Identify any other items you need to perform this installation.
2.
See “What Else You Need” on page 33.
Review the drive’s default settings and change them if necessary:
3.
• SCSI ID: 6
• Parity Checking: Enabled
• Terminator Power: Supplied to the SCSI bus
• Data Compression: Enabled
• Media Recognition (DDS-4 drives only): Enabled
• Power-On Self-Test: Enabled
• Host Operating System: Windows 98/Me/XP/NT/2000/2003 Server
• SCSI Interface Compatibility (DDS-4 drives only): Wide SCSI
• Vendor ID: SEAGATE DAT
See“Reviewing Drive Default Settings” on page 34.
Connect a SCSI interface cable to the drive.
4.
See “Connecting a SCSI Cable” on page 37.
Check the SCSI termination.
5.
See “Checking SCSI Termination” on page 38.
❑
❑
❑
Connect a power cable to the drive.
6.
See “Connecting a Power Cable” on page 38.
Turn on the computer, turn on the external tape drive, and verify that the external tape
7.
drive is operating properly.
See “Completing Your Installation” on page 39.
Register your tape drive.
8.
See “Registering Your Tape Drive” on page 39.
16
3
Installing internal tape drives
This chapter describes how to install internal DDS-4 and DAT 72 drives.
Topics in this chapter are:
• “Unpacking” on page 17
• “What Else You Need” on page 18
• “Avoiding Electrostatic Damage” on page 18
• “Installation Summary” on page 18
• “Registering Your Tape Drive” on page 32
NOTE: If you have an external drive, refer to Chapter 4 for installation instructions.
Unpacking
Before you unpack the contents of your drive package, inspect the shipping containers for damage.
If you spot damage to the container, notify your carrier immediately.
When you unpack the package, compare the items received with those on the packing list. If any
item is missing or damaged, please contact your place of purchase immediately.
NOTE: internal tape drives come in two mounting configurations, one for 3.5-inch halfheight bays and one for 5.25-inch half-height bays. These two drives are identical, except
that the drive designed for 5.25-inch installations has mounting brackets on each side of the
drive and a different front bezel.
17
Installing internal tape drives What Else You Need
What Else You Need
In addition to the contents included with your internal tape drive, you need the following items to
install your internal tape drive.
• A SCSI host bus adapter that is properly installed and configured in a host computer
• A 3.5-inch or 5.25-inch half-height bay
• A SCSI ribbon cable
• Backup application software that supports the internal tape drive. For a list of the latest
backup software applications tested with the internal DDS-4 and DAT 72 tape drives, please
visit our Web site at http://support.certance.com.
Avoiding Electrostatic Damage
Your internal tape drive has very sensitive components that are prone to damage from electrostatic
discharge (ESD). Use extreme care when handling the drive, as it can be damaged by ESD.
Before handling the drive, read these ESD instructions to prevent damage to the drive.
• Wear an ESD-preventive grounding wrist strap or observe similar ESD precautions when work-
ing with the drive. Be sure the wrist strap makes good skin contact. Do not remove the wrist
strap until you finish working with the drive.
• Avoid contact between the drive, other equipment, and clothing. The wrist strap only protects
the equipment from ESD voltages on the body; ESD voltages on clothing can still cause
damage.
• When the drive is not being used, keep it in its antistatic bag.
• Before you remove the drive from the antistatic bag, touch a metal or grounded surface to dis-
charge any static electricity buildup from your body.
• Hold the drive by its edges only. Avoid touching any exposed parts on the printed circuit
board.
• Always place the drive on top of or inside the antistatic bag to reduce the chance of ESD dam-
age.
Installation Summary
The following steps summarize the installation procedure for your internal tape drive.
1. Gather the Necessary Tools
See “Collecting the Necessary Tools” on page 19.
2. Review the Drive’s Default Settings
See “Reviewing Drive Default Settings” on page 19.
3. Record Your Drive’s Information
See “Recording Drive Information” on page 25.
18
Installing internal tape drives Collecting the Necessary Tools
4. Access the Inside of the Computer
See “Accessing the Inside of Your Computer” on page 26.
5. Mount the Drive into the Computer Mounting Bay
See “Mounting the Internal Tape Drive” on page 26.
6. Attach a SCSI Interface Cable
See “Connecting a SCSI Cable” on page 29.
7. Attach a Power Cable
See “Connecting a Power Cable” on page 30.
8. Complete and Verify Your Installation
See “Completing Your Installation” on page 31.
Collecting the Necessary Tools
Before proceeding with the installation, gather the tools you will need to install the internal tape
drive into the computer mounting bay. The following list identifies some of the tools you will need.
You may need additional items, depending on your installation requirements.
• Phillips screwdriver
• Flatblade screwdriver, if your computer uses flathead screws
• Torx screwdriver, if your computer uses torx screws
• Computer documentation, which you can refer to during the installation
Reviewing Drive Default Settings
Your internal tape drive comes with various default settings. These settings are configured using
jumpers and switches.
• The jumpers are located on the back of the drive, between the SCSI interface and power con-
nectors (see Figure 3 on page 20)
• The switches are located on the underside of the drive. If you change a switch setting, you
must turn the drive off and then on to have the new setting take effect (see Figure 4 on
page 21).
You may need to change these settings to suit your requirements. Review the default settings in
Table 2 on page 20 to determine whether they suit your requirements or need to be changed.
• If you do not need to change these default settings, skip to “Accessing the Inside of Your Com-
puter” on page 26.
• To change one or more settings, refer to the appropriate page in Table 2 on page 20.
19
Installing internal tape drives Reviewing Drive Default Settings
TABLE 2. Internal Tape Drive Default Settings
Parameter Default Setting Jumper Pins/Switches See...
SCSI ID 6 Jumper pins 1–2, 3–4, 5–6, 7–8 page 21
Parity checking Enabled Jumper pins 9–10 page 22
Terminator power Disabled Jumper pins 11–12 page 22
Data compression Enabled Switches 1 and 2 page 23
Media Recognition System checking
(DDS-4 drives only)
Power-On Self-Test diagnostic Enabled Switch 4 page 24
Host operating system Microsoft Windows
SCSI interface compatibility
(DDS-4 drives only)
Vendor ID SEAGATE DAT Switch 10 page 25
Enabled Switch 3 page 23
Switches 5 through 8 page 24
98/Me/XP/NT/
2000/2003 Server
Wide SCSI (LVD
Switch 9 page 25
and single ended)
Default jumper settings shown
(SCSI ID 6, parity checking enabled,
and termination power disabled)
Pins: Function:
1-2 SCSI ID bit 0
3-4 SCSI ID bit 1
5-6 SCSI ID bit 2
7-8 SCSI ID bit 3
9-10 Parity checking
11-12 Termination Power
SCSI ID=0
SCSI ID=1
SCSI ID=2
SCSI ID=3
SCSI ID=4
SCSI ID=5
SCSI ID=6
SCSI ID=7
SCSI ID=8
SCSI ID=9
SCSI ID=10
SCSI ID=11
SCSI ID=12
SCSI ID=13
SCSI ID=14
SCSI ID=15
Parity enable
Term. power
FIGURE 3. Internal Tape Drive Jumper Settings
20
Installing internal tape drives Reviewing Drive Default Settings
1
2
3
4
5
6
7
8
9
10
Default settings shown
Front of drive
O
Data compression (DC)
N
SCSI DC control
Media recognition
Self Test
Operating-system
configuration
switches
Wide/Narrow SCSI
Inquiry String support
FIGURE 4. Internal Tape Drive Switch Settings
SCSI ID
Jumper Pins: 1–2, 3–4, 5–6, 7–8
Default Setting: SCSI ID 6
Each SCSI device on the bus must have its own unique ID. Your internal tape drive is shipped with a
default SCSI ID of 6. If another SCSI device in the SCSI chain is already using this ID, use jumper
pins 1–2, 3–4, 5–6, and 7–8 to change the drive’s SCSI ID. Table 3 lists the SCSI IDs and their corresponding jumper settings.
TABLE 3. SCSI IDs and Corresponding Jumper Settings
Jumpers
SCSI ID
0 Open Open Open Open
1 Shunted Open Open Open
2 Open Shunted Open Open
3 Shunted Shunted Open Open
4 Open Open Shunted Open
5 Shunted Open Shunted Open
6 (default) Open Shunted Shunted Open
7 Shunted Shunted Shunted Open
8 Open Open Open Shunted
9 Shunted Open Open Shunted
10 Open Shunted Open Shunted
11 Shunted Shunted Open Shunted
1–2 3–4 5–6 7–8
21
Installing internal tape drives Reviewing Drive Default Settings
TABLE 3. SCSI IDs and Corresponding Jumper Settings (Continued)
Jumpers
SCSI ID
12 Open Open Shunted Shunted
13 Shunted Open Shunted Shunted
14 Open Shunted Shunted Shunted
15 Shunted Shunted Shunted Shunted
NOTES: You can also change SCSI IDs by connecting a SCSI address-selection switch to
pins 1 through 8.
If you change the drive’s default SCSI ID, avoid using SCSI IDs 0 and 1 (which typically are
assigned to a boot drive) and SCSI ID 7 (which typically is assigned to SCSI controllers or
host bus adapters).
Parity Checking
Jumper Pins 9–10: Pins 9-10 shunted: Enable parity checking (default)
By default, parity checking is enabled on the internal tape drive. To disable parity checking, remove
the jumper from pins 9 and 10.
1–23–45–67–8
Pins 9-10 open: Disable parity checking
NOTE: If you disable parity checking, the drive still generates a parity bit.
Terminator Power
Jumper Pins 11–12: Pins 11-12 shunted: Enable terminator power
By default, terminator power is disabled on the internal tape drive. To enable terminator power,
place a jumper across pins 11 and 12.
NOTE: If you enable terminator power, be careful not to short the TERMPWR signal to
ground (for example, by attaching the SCSI cable upside down). If a short occurs,
terminator power to the bus is interrupted. After the short is removed, a fuse in the drive is
automatically reset, restoring terminator power.
Pins 11-12 open: Disable terminator power (default)
22
Installing internal tape drives Reviewing Drive Default Settings
Data Compression
Settings: Switch 1 ON = Enable hardware data compression (default)
Switch 1 OFF = Disable hardware data compression
Switch 2 OFF = Recognize SCSI data compression commands (default)
Switch 2 ON = Ignore SCSI data compression commands
The internal tape drive provides two switches for controlling data compression.
Switch 1 determines whether hardware data compression is enabled or disabled. By default, switch
1 is set to ON, enabling hardware data compression. To disable hardware data compression, set
switch 1 to the OFF position.
Switch 2 controls whether SCSI commands are recognized for enabling or disabling hardware data
compression. By default, switch 2 is set to ON, allowing SCSI commands to be used to enable or
disable hardware data compression. To prevent SCSI commands from enabling or disabling hardware data compression, set switch 2 to the OFF position.
When data compression is enabled, the drive compresses all data written to tape and decompresses
all compressed data read from tape. The degree of compression varies due to the type of data being
processed.
• Data with a high degree of redundancy, such as structured database files or graphics files,
are compressed most efficiently, often at a ratio of 2:1 or more.
• Data with little redundancy, such as executable programs, are compressed the least.
Media Recognition System (DDS-4 Drives Only)
Settings: Switch 3 ON = Enable MRS (default)
Switch 3 OFF = Disable MRS
Using non-DDS media may appear to give satisfactory results, but the inferior specifications of such
media can cause data-integrity problems. To avoid these problems, the internal tape drive provides
a media-recognition system (MRS) feature that determines whether tape cartridges conform to the
DDS tape standard.
By default, switch 3 is set to ON, enabling MRS. With this setting, the drive:
• Reads from and writes to MRS media.
• Reads from but does not write to non-MRS media.
To disable MRS, set switch 3 to the OFF position. With this setting, the drive reads from and writes to
MRS and non-MRS media.
NOTE: Switch 3 is reserved on internal DAT 72 drives.
23
Installing internal tape drives Reviewing Drive Default Settings
Power-On Self-Test
Settings: Switch 4 ON = Drive performs Power-On Self-Test (default)
Switch 4 OFF = Drive does not perform Power-On Self-Test
Switch 4 enables or disables the Power-On Self-Test diagnostics that the drive performs when powered on. By default, the drive responds to SCSI commands only after it successfully completes the
Power-On Self-Test (about 5 seconds). To prevent the drive from performing the Power-On Self-Test
when powered-up, set switch 4 to the OFF position.
Host Operating System
Switches: 5, 6, 7, 8
Default Setting: Microsoft Windows 98/Me/XP/NT/
2000/2003 Server
Switches 5 through 8 configure the internal tape drive for a host operating system. By default, these
switches are all ON. This setting configures the drive for a Microsoft Windows 98/Me/XP/NT/
2000/2003 Server operating system.
To use the internal tape drive with a different operating system:
• Set switches 5 through 8 to select the appropriate settings.
• Refer to the operating system drive configuration supplement for information on scripts and
other settings for various non-Windows operating systems. This supplement is available on
your Tape Resource CD and at http://support.certance.com.
Table 4 shows the supported operating systems and their corresponding switch settings.
TABLE 4. Host Operating Systems and Corresponding Switch Settings
Switches
Host Operating System
Windows NT 4.0 with native backup applet using Seagate’s
STDAT4.SYS driver (default).
Windows NT 4.0 with native backup applet using Microsoft’s
4mmDAT.SYS driver.
Novell 4.11 with native backup applet using the TAPEDAI
driver or NWTAPE.CDM driver dated before 11/3/99.
Novell 4.11 with native backup applet using the NWTAPE
driver dated after 11/3/99.
Novell 5.x with native backup applet using the
NWTAPE.CDM driver dated before 11/3/99.
Novell 5.x with native backup applet using the
NWTAPE.CDM driver dated after 11/3/99.
DEC UNIX OFF ON ON ON —
Sun UNIX ON OFF ON ON —
SW5 SW6 SW7 SW8 SW10
ON ON ON ON ON
ON ON ON ON OFF
OFF ON ON OFF OFF
ON ON ON ON OFF
OFF ON ON OFF OFF
ON ON ON ON OFF
SGI ON ON ON ON —
24
Installing internal tape drives Recording Drive Information
TABLE 4. Host Operating Systems and Corresponding Switch Settings
Switches
Host Operating System
HP-UX ON ON OFF ON —
IBM AIX ON OFF ON OFF —
Linux ON ON ON ON —
SCO (ODT and Open Server) installation using the MAKDEV
utility.
SCO UnixWare 7.x ON ON ON ON —
SW5 SW6 SW7 SW8 SW10
OFF ON ON OFF —
SCSI Wide/Narrow Configuration (DDS-4 Drives Only)
Settings: Switch 9 ON = SCSI Wide Operating Mode (default)
Switch 9 OFF = SCSI Narrow Operating Mode
Switch 9 enables SCSI Wide or Narrow operation. By default, switch 9 is set to ON, enabling SCSI
Wide (16-bit) operation. To enable SCSI Narrow (8-bit) operation, set switch 9 to the OFF position.
This allows the DDS-4 drive to terminate the upper byte of the SCSI bus.
NOTE: Narrow SCSI is not recommended.
Switch 9 is reserved on internal DAT 72 drives.
Vendor ID
Settings: Switch 10 ON = Vendor ID is “SEAGATE DAT” (default)
Switch 10 OFF = Vendor ID is “ARCHIVE Python”
Switch 10 determines the vendor ID that the internal tape drive returns when it receives a SCSI
“Inquiry” command. By default, the drive returns the vendor ID SEAGATE DAT.
Setting switch 10 to the OFF position configures the drive to return the vendor ID ARCHIVE
Python. Independent software vendors can use this vendor ID to provide software compatibility
with previous Seagate DDS tape drives.
Recording Drive Information
After you review and, if necessary, change the drive’s default settings, record the drive information.
That way, you can reference this information in the future, without having to gain access to the drive
inside your computer.
25
Installing internal tape drives Accessing the Inside of Your Computer
Accessing the Inside of Your Computer
To gain access to the inside of your computer:
1. Shut down the computer as you would normally. Then turn off the computer and all peripherals
connected to it.
2. Remove the computer’s power cord from the computer’s AC connector.
3. Remove the computer cover to gain access to the inside of the computer. The documentation
that came with your computer should explain this procedure.
NOTE: If you have to disconnect cables to gain access to the mounting bay, note which
cables were removed. You can then refer to this information when you reconnect the cables
at the end of this procedure.
4. Select an available 3.5-inch or 5.25-inch mounting bay, depending on the internal tape drive you want
to install.
NOTE: The internal tape drive can be mounted horizontally or vertically (on its side).
5. If the mounting bay has a “filler panel,” remove it according to the instructions in your computer’s
documentation. Place the screws aside, You will need them to secure the drive in the bay.
6. If the computer does not have a SCSI host adapter, you will need to purchase and install a SCSI host
adapter.
Mounting the Internal Tape Drive
An internal tape drive without mounting brackets can be installed into a 3.5-inch drive bay. An internal tape drive with mounting brackets can be installed into a 5.25-inch drive bay.
• To mount the internal tape drive into a 3.5-inch bay, see “Mounting the Internal Tape Drive”
starting on page 26.
• To mount the internal tape drive into a 5.25-inch bay, see “Mounting the Drive into a 5.25-
inch Drive Bay” starting on page 28.
Mounting the Drive into a 3.5-inch Drive Bay
The following procedure describes how to mount the drive in a 3.5-inch drive bay. This procedure
assumes your drive is not equipped with side-mounting brackets.
1. Orient the drive so the front of the drive faces the front of the computer.
2. Insert the drive into the computer’s drive bay.
3. Align the drive’s front panel with the front panel of the computer.
26
Installing internal tape drives Mounting the Internal Tape Drive
4. Secure the drive in the mounting bay using two M3.0 metric screws on each side of the drive
(see Figure 5 on page 27). As Figure 6 on page 27 shows, the 3.5-inch drive has four screw
holes on the bottom and five on each side.
WARNING: Do not use screws longer than 4 mm; otherwise, you may damage the drive.
5. Proceed to “Connecting a SCSI Cable” on page 29.
FIGURE 5. Mounting an Internal Tape Drive
41.3 mm
(1.63 in)
41.2 mm
(1.62 in)
Side View
Note: Tolerance for all dimensions is 0.25mm (0.01 in)
13.0 mm (0.51 in)
2 places
5.0 mm (0.196 in)
2 places
M3.0 x 4 deep min.
(10 places)
90.0 mm
(3.54 in)
2 places
60.0 mm
(2.36 in)
2 places
21.0 mm (0.83 in)
2 places
6.0 mm
(0.24 in)
3.8 mm (0.15 in)
101.6 mm
(4.00 in)
94.0 mm
(3.70 in)
M3.0 x 4 deep min.
(4 places)
101.6 mm
(4.00 in)
Bottom View
70.0 mm
(2.75 in)
31.0 mm
(1.22 in)
146.0 mm
(5.75 in)
FIGURE 6. Mounting Holes for the Internal Tape Drive in a 3.5-inch Installation
27
Installing internal tape drives Mounting the Internal Tape Drive
Mounting the Drive into a 5.25-inch Drive Bay
The following procedure describes how to mount the drive in a 5.25-inch drive bay. This procedure
assumes your drive has mounting brackets on the sides.
1. Orient the drive so the front of the drive faces the front of the computer.
2. Insert the drive into the computer’s drive bay.
3. Align the drive’s front panel with the front panel of the computer.
4. Secure the drive in the mounting bay using four screws on the bottom and six screws on the
top of the drive (see Figure 7 on page 28).
5. Proceed to “Connecting a SCSI Cable” on page 29.
41.3 mm
(1.63 in)
31.5 mm (1.24 in)
21.8 mm (0.86 in)
9.9 mm (0.39 in)
16-M3
146 mm
(5.75 in)
79.4 mm
(3.13 in)
47.6 mm
(1.87 in)
139.7 mm (5.50 in)
149.1 mm (5.87 in)
Bottom View
41.2 mm
(1.62 in)
Side View
174.6 mm
(6.87 in)
Note: Tolerance for all dimensions is 0.25mm (0.01 in)
FIGURE 7. Mounting Holes for the Internal Tape Drive in a 5.25-inch Installation
28
Installing internal tape drives Connecting a SCSI Cable
Connecting a SCSI Cable
The internal tape drives can be used with two SCSI interfaces:
• Wide SCSI — either Low Voltage Differential (LVD) or Single-ended (16-bit Wide mode),
• Narrow SCSI — either Low Voltage Differential (LVD) or Single-ended (8-bit Wide mode).
The tape drive automatically detects whether the SCSI bus is LVD or single ended. Be sure the SCSI
bus is terminated properly.
NOTE: We strongly recommend that you attach the tape drive to SCSI controllers that
support the SCSI Ultra2 LVD interface only. Attaching the tape drive to a non-LVD SCSI
controller or an 8-bit Narrow SCSI controller will degrade the performance of your tape
drive and backup operations. Performance will also be degraded if you attach non-LVD
SCSI devices on the same bus cable as your LVD connection. Do not connect the tape drive
to a disk RAID controller (disk RAID controllers are not supported). If you install an adapter,
we recommend you purchase a SCSI LVD controller kit that includes the SCSI cable and
terminator.
Connecting to a Wide SCSI Connector
If your computer has a 68-pin wide SCSI connector:
1. Attach the interface cable from the SCSI host adapter to the 68-pin SCSI interface connector
on the back of the internal tape drive (see Figure 8 on page 29).
FIGURE 8. SCSI Interface Connector on the Internal Tape Drive
Connecting to a Narrow SCSI Connector
The internal tape drives have an Ultra Wide SCSI interface. Obtaining a 50-to-68 pin adapter lets
you connect the 68 pins on the internal tape drive to the 50 pins on the computer’s narrow SCSI bus.
1. Connect the adapter to your computer’s 50-pin SCSI connector.
2. Connect the SCSI cable with the adapter to the internal tape drive’s 68-pin SCSI connector.
NOTE: Be sure the upper 8 data bytes of the 68-pin cable are properly terminated.
29
Installing internal tape drives Checking SCSI Termination
Checking SCSI Termination
The internal tape drives do not provide SCSI termination. For this reason, they should not be the last
device on a SCSI chain. Figure 9 on page 30 shows two examples of terminating the internal tape
drives.
If the drive is the only SCSI device on the bus:
1. Attach it to the next-to-last connector on the SCSI chain.
2. Attach a multi-mode terminator to the last connector in the chain. This terminator typically is a
small, rectangular plastic block that is marked SCSI Terminator and attaches to the cable.
SCSI device
termination
(
enabled
SCSI Terminator
)
Tape drive
(no
termination
SCSI device
termination
(
disabled
SCSI Controller
(termination enabled)
)
)
FIGURE 9. Two SCSI Termination Examples for the Internal Tape Drives
Connecting a Power Cable
To connect a power cable to the internal tape drive:
1. Connect a spare 4-pin power cable from the computer’s internal power supply to the power
connector on the back of the internal tape drive. Figure 10 on page 31 shows the location of
the power connector on the internal tape drive.
Tape drive
(no
termination
SCSI Controller
(termination enabled)
)
The recommended 4-pin power connector for the internal drives is an AMP 1-48024-0 housing, with
AMP 60617-1 pins or equivalent.
30
Installing internal tape drives Completing Your Installation
FIGURE 10. Power Connector on the Internal Tape Drive
Completing Your Installation
To complete and test your internal tape drive installation:
1. Use the screws you removed earlier to secure the drive in place.
2. Replace the computer cover.
3. Reconnect the power cord to the computer’s power connector.
4. Turn on the computer. If the internal tape drive is configured to perform its Power-On Self-Test
(see “Power-On Self-Test” on page 24), it performs the test for about five seconds. When the
drive passes the test, all three front-panel LEDs should be OFF.
5. Install your backup software program. The documentation that came with your software
should describe this procedure.
6. Gently insert a tape cartridge into the internal tape drive’s slot (see “Loading a Cartridge” on
page 42). Slide the cartridge into the slot until the drive accepts the cartridge and loads it. A
brief delay occurs while the drive identifies the cartridge type and state, and moves the tape
to the data area. Then the green Media LED goes ON.
7. Use your backup software application to perform a sample backup-and-verify operation. The
amber Drive LED goes ON as data is written to and/or read from the tape.
8. At the end of the operation, press the Eject button on the front of the internal tape drive to eject
the cartridge from the drive (see “Unloading a Cartridge” on page 43).
If you encountered any problems during this procedure, see Chapter 7 for troubleshooting
procedures.
31
Installing internal tape drives Registering Your Tape Drive
Registering Your Tape Drive
After you install the internal tape drive, be sure to register it. Registering your drive ensures that you
will receive the latest information about your drive, as well as other product, service, and support
information. For your convenience, you can register your drive either through our Web site or by
fax.
• If you have an Internet connection, please visit www.certance.com and select “Product
Registration” from the “Products” menu.
• If you do not have an Internet connection, complete the Registration Card included with your
package and either mail or fax it to the address or fax number on the Card.
32
4
Installing external tape drives
This chapter describes how to install external DDS-4 and DAT 72 drives.
Topics in this chapter are:
• “Unpacking” on page 33
• “What Else You Need” on page 33
• “Installation Summary” on page 34
• “Registering Your Tape Drive” on page 39
NOTE: If you have an internal drive, refer to Chapter 3 for installation instructions.
Unpacking
Before you unpack the contents of your drive package, inspect the shipping containers for damage.
If you spot damage to the container, notify your carrier immediately.
When you unpack the package, compare the items received with those on the packing list. If any
item is missing or damaged, please contact your place of purchase immediately.
What Else You Need
In addition to the contents included with your external tape drive, you need the following items to
install your external tape drive.
• A SCSI host bus adapter that is properly installed and configured in a host computer
• A 50-to-68 pin adapter, if your computer has a narrow SCSI interface connector.
33
Installing external tape drives Installation Summary
• Backup application software that supports the external tape drive. For a list of the latest
backup software applications tested with the external DDS-4 and DAT 72 tape drives, please
visit our Web site at http://support.certance.com.
Installation Summary
The following steps summarize the installation procedure for your external tape drive.
1. Review the Drive’s Default Settings
See “Reviewing Drive Default Settings” on page 34.
2. Record Your Drive’s Information
See “Recording Drive Information” on page 36.
3. Attach a SCSI Interface Cable
See “Connecting a SCSI Cable” on page 37.
4. Terminate the SCSI Bus, if Necessary
See “Checking SCSI Termination” on page 38.
5. Attach a Power Cable
See “Connecting a Power Cable” on page 38.
6. Complete and Verify Your Installation
See “Completing Your Installation” on page 39.
Reviewing Drive Default Settings
Your external tape drive comes with various default settings. You may need to change these settings
to suit your requirements. Review the default settings in Table 5 on page 34 to determine whether
they suit your requirements or need to be changed.
Note: These settings can be changed by accessing the switches located on the bottom of the
drive. Turn the drive over and gently pull the tab on the access door to release it. Once the
door is open, the switches will be accessible. Please refer to pages 20 - 21 for details about
the switch settings.
• If you do not need to change these default settings, skip to “Connecting a SCSI Cable” on
page 37.
• To read about a setting, go to the page referenced in Table 5 on page 34.
TABLE 5. External Tape Drive Default Settings
Parameter Default Setting See...
SCSI ID 6 page 35
Parity checking Enabled page 35
Terminator power Supplied to the SCSI bus —
Data compression Enabled page 35
34
Installing external tape drives Reviewing Drive Default Settings
TABLE 5. External Tape Drive Default Settings (Continued)
Parameter Default Setting See...
Media Recognition System checking (DDS-4 drives only) Enabled page 36
Power-On Self-Test diagnostic Enabled page 36
Host operating system Microsoft Windows 98/Me/
XP/NT/2000/2003 Server
page 36
SCSI ID
Each SCSI device on the bus must have its own unique ID. Your external tape drive is shipped with a
default SCSI ID of 6. If another SCSI device in the SCSI chain is already using this ID, use the SCSI
ID Selector switch on the back of the drive to change the drive’s SCSI ID (see Figure 11 on
page 35).
NOTES: If you change the drive’s default SCSI ID, avoid using SCSI IDs 0 and 1 (which
typically are assigned to a boot drive) and SCSI ID 7 (which typically is assigned to SCSI
controllers or host bus adapters).
If you change the default SCSI ID, turn the drive power off and back on.
FIGURE 11. Back Panel of the External Tape Drive
Parity Checking
By default, parity checking is enabled on the external tape drive. If you disable parity checking, the
drive still generates a parity bit.
Data Compression
By default, data compression is enabled. With this setting, the external tape drive compresses all
data written to tape and decompresses all compressed data read from tape. The degree of compression varies due to the type of data being processed.
• Data with a high degree of redundancy, such as structured database files or graphics files,
are compressed most efficiently, often at a ratio of 2:1 or more.
35
Installing external tape drives Recording Drive Information
• Data with little redundancy, such as executable programs, are compressed the least.
Media Recognition System (DDS-4 Drives Only)
Using non-DDS media may appear to give satisfactory results, but the inferior specifications of such
media can cause data-integrity problems. To avoid these problems, the external tape drive provides
a media-recognition system (MRS) feature that determines whether tape cartridges conform to the
DDS tape standard.
By default, MRS is enabled. With this setting, the drive:
• Reads from and writes to MRS media.
• Reads from but does not write to non-MRS media.
If you disable MRS, the drive reads from and writes to MRS and non-MRS media.
NOTE: MRS is not available with external DAT 72 drives.
Power-On Self-Test
By default, the external tape drive responds to SCSI commands only after it successfully completes
the Power-On Self-Test (about 5 seconds). If you do not want the drive to perform this diagnostic
when it powers-up, disable the Power-On Self-Test.
Host Operating System
By default, the external tape drive is configured for a Microsoft Windows 98/Me/XP/NT/2000/
2003 Server operating system.
Recording Drive Information
After you review and, if necessary, change the drive’s default settings, record the information.
36
Installing external tape drives Connecting a SCSI Cable
Connecting a SCSI Cable
The external tape drives provide two 68-pin, shielded connectors on the back panel (see Figure 11
on page 35). You can use either connector to attach the drive to the host computer or to another
SCSI device.
The internal tape drives can be used with two SCSI interfaces:
• Wide SCSI — either Low Voltage Differential (LVD) or Single-ended (16-bit Wide mode).
• Narrow SCSI — either Low Voltage Differential (LVD) or Single-ended (8-bit Wide mode).
The tape drive automatically detects whether the SCSI bus is LVD or single ended. Be sure the SCSI
bus is terminated properly.
NOTE: We strongly recommend that you attach the tape drive to SCSI controllers that
support the SCSI Ultra2 LVD interface only. Attaching the tape drive to a non-LVD SCSI
controller or an 8-bit Narrow SCSO controller will degrade the performance of your tape
drive and backup operations. Performance will also be degraded if you attach non-LVD
SCSI devices on the same bus cable as your LVD connection. Do not connect the tape drive
to a disk RAID controller (disk RAID controllers are not supported). If you install an adapter,
we recommend you purchase a SCSI LVD controller kit that includes the SCSI cable and
terminator.
Connecting to a Wide SCSI Connector
If your computer has a 68-pin wide SCSI connector:
1. Turn off your computer.
2. Connect the SCSI cable from the SCSI host adapter or from another unterminated SCSI device
to either of the two 68-pin SCSI connectors on the back of the external tape drive (see
Figure 11 on page 35).
3. If desired, use the other SCSI connector on the back panel of the external tape drive to attach
another SCSI device.If the external tape drive is the last or only device in the SCSI chain, terminate the SCSI chain (see “Checking SCSI Termination” on page 38).
Connecting to a Narrow SCSI Connector
The external tape drives have an Ultra Wide SCSI interface. Obtaining a 50-to-68 pin adapter lets
you connect the 68 pins on the external tape drive to the 50 pins on the computer’s narrow SCSI
bus.
1. Turn off your computer.
2. Connect the adapter to your computer’s 50-pin SCSI connector.
3. Connect the SCSI cable with the adapter to either of the two 68-pin SCSI connectors on the
back of the external tape drive (see Figure 11 on page 35).
4. If desired, use the other SCSI connector on the back panel of the external tape drive to attach
another SCSI device.If the external tape drive is the last or only device in the SCSI chain, terminate the SCSI chain (see “Checking SCSI Termination” on page 38).
37
Installing external tape drives Checking SCSI Termination
NOTE: Be sure the upper 8 data bytes of the 68-pin cable are properly terminated.
Checking SCSI Termination
If the external tape drive is the last or only device in the SCSI chain, install a terminating plug on the
unused SCSI connector on the drive’s back panel. This terminator typically is a small, rectangular
plastic block that is marked SCSI Terminator. Figure 12 on page 38 shows two examples of using
SCSI termination.
External
SCSI device
SCSI Terminators
External
Tape Drive
External
SCSI device
SCSI Controller
(termination enabled)
Example 1: SCSI termination
in a system that has only
external SCSI devices.
Example 2: SCSI termination
in a system that has both
internal and external SCSI
devices.
External
Tape Drive
SCSI Controller
(termination disabled)
Internal
SCSI device
termination
(
enabled
)
FIGURE 12. Two SCSI Termination Examples for the External Tape Drives
Connecting a Power Cable
To connect a power cable to the external tape drive:
1. Connect a power cable to the AC power connector on the back of the external tape drive (see
Figure 11 on page 35).
2. Connect the other end of the power cable to a working AC outlet.
NOTE: Choose an AC outlet that is not controlled by a wall switch, which can turn off
power to the AC outlet and to the external tape drive.
38
Installing external tape drives Completing Your Installation
Completing Your Installation
To complete and test your external tape drive installation:
1. Reconnect the power cord to the computer’s power connector.
2. Use the On/Off Switch on the back of the external tape drive to turn on the drive (see
Figure 11 on page 35). The external tape drive performs its Power-On Self-Test for about five
seconds. When the drive passes the test, all three front-panel LEDs should be OFF.
3. Turn on the computer.
4. Install your backup software program. The documentation that came with your software
should describe this procedure.
5. Gently insert a tape cartridge into the external tape drive’s slot (see “Loading a Cartridge” on
page 42). Slide the cartridge into the slot until the drive accepts the cartridge and loads it. A
brief delay occurs while the drive identifies the cartridge type and state, and moves the tape
to the data area. Then the green Media LED goes ON.
6. Use your backup software application to perform a sample backup-and-verify operation. The
amber Drive LED goes ON as data is written to and/or read from the tape.
7. At the end of the operation, press the Eject button on the front of the external tape drive to
eject the cartridge from the drive (see “Unloading a Cartridge” on page 43).
If you encountered any problems during this procedure, see Chapter 7 for troubleshooting
procedures.
Registering Your Tape Drive
After you install the external tape drive, be sure to register it. Registering your drive ensures that you
will receive the latest information about your drive, as well as other product, service, and support
information. For your convenience, you can register your drive either through our Web site or by
fax.
• If you have an Internet connection, please visit www.certance.com and select “Product
Registration” from the “Products” menu.
• If you do not have an Internet connection, complete the Registration Card included with your
package and either mail or fax it to the address or fax number on the Card.
39
5
Operating Your Tape Drive
This chapter describes how to operate your tape drive.
Topics in this chapter are:
• “Using the Appropriate Media” on page 40
• “Handling Cartridges” on page 41
• “Loading a Cartridge” on page 42
• “Unloading a Cartridge” on page 43
• “Write-Protecting a DDS Cartridge” on page 44
• “Cleaning the Tape Heads” on page 45
Using the Appropriate Media
The Seagate DDS-4 and DAT 72 drives use data-grade DDS cartridges, which comply with ANSI
specifications listed in the “3.81 mm Helical-Scan Digital Computer Tape Cartridge for Information
Interchange,” ANSI X3B5/89-156 standard.
For optimum performance and maximum storage capacity, use MRS tape cartridges that correspond
to the format supported by your drive (see Table 6 on page 41). MRS cartridges have a series of
alternate opaque and clear stripes at the beginning of the tape. These stripes classify the media as
data-grade.
40
Operating Your Tape Drive Handling Cartridges
TABLE 6. Matching Drives with the Media They Support
Media Tape Length DDS-4 Drives DAT 72 Drives
DDS-2 120 meters
!
DDS-3 125 meters
DDS-4 150 meters
DDS 5th Generation
170 meters
Handling Cartridges
To protect your data cartridges and the information on them, observe the guidelines and avoid the
pitfalls in Table 7 on page 41.
TABLE 7. Cartridge Guidelines and Pitfalls
Guidelines to Follow... Pitfalls to Avoid
Use DDS cartridges at temperatures from 5° C (40°
F) to 40° C (113° F). Cartridges can be stored at
temperatures down to -40° C (-40° F).
Handle cartridges gently. Do not treat cartridges roughly or drop them.
Keep cartridges in plastic cases when they are not
in use.
! !
! !
!
Do not expose cartridges to direct sunlight, moisture, excessively dry or humid places, extreme
changes in temperature or humidity, or X-rays.
Do not try to clean the tape guides or tape path
inside the cartridge.
Apply just one label to the designated area on the
cartridge. Affixing more labels can jam the drive.
If your data is important, consider reading data off
of tapes and rewriting to new and perhaps more
modern tapes every few years.
If cartridges are exposed to temperatures or humidities outside the specified operating environment,
expose them to the operating environment for a
time equal to the period that the cartridges were
exposed to the out-of-specification environment (up
to a maximum of 24 hours).
Never touch the exposed tape media with your fingers.
Never leave cartridges close to magnetic fields,
such as near a monitor or telephone handset.
Do not read from or write to cartridges when a temperature change of 10° C per hour is occurring.
41
Operating Your Tape Drive Loading a Cartridge
Loading a Cartridge
Seagate DDS drives have a front-loading cartridge bay for easy operation. To load a cartridge:
1. Hold the cartridge so the label is facing up and the exposed media is facing the drive.
2. Gently insert the cartridge into the drive (see Figure 13 on page 42). The drive-bay door
opens automatically when a cartridge is inserted.
After you insert the cartridge, there is a brief delay while the drive identifies the cartridge type
and state, and moves the tape to the data area. Then the Media LED turns ON.
FIGURE 13. Loading a Cartridge
Initializing a Blank Cartridge
When you insert a blank cartridge into the drive for the first time, the drive takes from 10 to 12 seconds to determine that the tape is blank. The drive automatically initializes the tape as soon as it
receives a SCSI “Write” command from the host computer. Initializing a blank tape takes about 30
seconds.
42
Operating Your Tape Drive Unloading a Cartridge
Unloading a Cartridge
To unload a cartridge:
1. Be sure the Drive LED is OFF.
CAUTION: To ensure integrity of your backups and restores, do not press the Eject button
when the Drive LED is ON.
2. Press the Eject button on the front panel of the drive to unload the cartridge (see Figure 14 on
page 43). The drive automatically flushes the drive buffer to tape, rewinds the cartridge,
updates the system log, and ejects the cartridge. This may take up to three minutes. Do not
power-down the tape drive or host computer during this time.
NOTE: The backup software may issue a command to the drive that prevents the Eject
button from ejecting the tape. If the tape does not eject, try ejecting it using your backup
software commands.
FIGURE 14. Eject Button on Front Panel of Drive
43
Operating Your Tape Drive Write-Protecting a DDS Cartridge
Write-Protecting a DDS Cartridge
Write-protecting a DDS cartridge protects the data on the cartridge from being changed, overwritten, or deleted. To write-protect a cartridge, slide the write-protect tab on the back of the cartridge to
the open position (see Figure 15 on page 44). To write-enable the cartridge, slide the write-protect
tab so the hole is closed (see Figure 15 on page 44).
CAUTION: Write-protecting a cartridge does not protect the data on the cartridge from
bulk-erasure or degaussing. Do not bulk erase DDS cartridges; otherwise, you will lose all of
your data on the cartridge and your data will not be recoverable.
Write enabled
FIGURE 15. Write-protecting a DDS Cartridge
Write protected
44
Operating Your Tape Drive Cleaning the Tape Heads
Cleaning the Tape Heads
If excessive dust or debris collects at the tape heads, your drive may not be able to read from or
write to tape. To avoid this situation, clean the drive’s tape heads:
• After every 50 hours of operation.
• If the Clean LED goes ON or flashes.
• If the Media LED flashes when the drive is operating.
To clean tape heads, use a Seagate-qualified DDS cleaning cartridge. Certance offers a cleaning
cartridge, Model STDMCL, that can be ordered from http://shop.certance.com.
NOTE: Do not use an audio DAT cleaning cartridge, as the drive cannot recognize it. Also,
avoid liquids, swabs, and other methods other than those recommended in this section.
To clean the tape heads:
1. Insert a Seagate-qualified DDS cleaning cartridge into the drive. The drive loads and runs the
cleaning cartridge for about 30 seconds.
NOTE: If the cleaning cartridge runs for less than 30 seconds and the Clean LED is flashing,
the cartridge has expired. Replace the cleaning cartridge with a new one and repeat step
1.
2. When the cleaning cartridge finishes cleaning the heads, the drive ejects the cartridge auto-
matically.
3. Remove the cleaning cartridge from the drive and store the cartridge in a safe place.
Most cleaning cartridges are good for roughly 30 cleaning cycles. When the cleaning cartridge is
used up, the Clean LED will flash rapidly and the cleaning cartridge should be replaced.
Observe the following guidelines when cleaning tape heads:
• Each time the cleaning cartridge is loaded, a new, unused portion of cleaning tape is
advanced over the entire tape path. The drive does not rewind a cleaning cartridge. After
about 30 cleaning cycles, the entire tape is used up and should be replaced. The Clean LED
flashes when the cleaning cartridge needs to be replaced.
• The DDS-4 and DAT 72 drives have a TapeAlert feature that notifies your backup software
application when the tape heads need to be cleaned or when a cleaning cartridge needs
replacement.
45
6
Understanding the Drive LEDs
This chapter describes the LEDs on the front panel of the DDS-4 and DAT 72 drives. These LEDs provide information about both normal and error conditions.
Topics in this chapter are:
• “Front Panel LEDs” on page 46
• “LED Summary” on page 47
• “Clean LED” on page 47
• “Media LED” on page 48
• “Drive LED” on page 48
Front Panel LEDs
Figure 16 on page 46 shows an example of the LEDs on the drive front panel of the DDS-4 and DAT
72 drives. The external tape drive has the same front-panel LEDs, plus a green Power-On LED.
FIGURE 16. Front Panel LEDs on Internal Drive (external drive is similar)
46
Understanding the Drive LEDs LED Summary
LED Summary
Table 8 on page 47 summarizes the actions of the front-panel LEDs.
TABLE 8. LED Quick Summary
LED Color Action Description
Clean Green ON (Lit) Cleaning is required.
Slow Flashing Internal error rate threshold has been exceeded and
cleaning is required.
Flashing Cleaning cartridge in the drive has exceeded its useful
life. Replace the old cleaning cartridge with a new one.
Media Green ON (Lit) An inserted cartridge is operating properly.
Flashing Drive could not write the tape correctly (write error).
Use a DDS cleaning cartridge to clean the drive.
Drive Amber ON (Lit) Drive is reading or writing the tape normally.
Rapid Flashing A hardware fault has occurred.
Clean LED
The Clean LED indicates whether a drive needs to be cleaned.
TABLE 9. Clean LED
LED Status Description
ON continuously Drive requires cleaning. Use only an approved DDS cleaning cartridge.
Flashing slowly (approximately
ON 2 seconds, OFF 1 second)
Flashing rapidly A cleaning cartridge that has exceeded its useful life has been inserted
Tape cartridge in use has exceeded a predefined soft-error threshold.
This signal is a warning only and does not indicate that data has been
compromised. Remove the tape and clean the drive using an approved
DDS cleaning cartridge. If the Clean LED still flashes after cleaning and
reinserting the original data cartridge, use a new cartridge for future
backups.
into the drive. Replace the cleaning cartridge with a new approved
DDS cleaning cartridge.
47
Understanding the Drive LEDs Media LED
Media LED
The Media LED indicates whether a DDS cartridge is operating normally.
TABLE 10. Media LED
LED Status Description
ON continuously A DDS cartridge has been inserted and the drive is operating normally.
Flashing rapidly Drive could not write the tape correctly (maximum rewrite count
exceeded) and the write operation failed. Clean the drive heads using
an approved DDS cleaning cartridge. If you reinsert the original data
cartridge and the LED continues flashing, insert a new data cartridge
and retry the operation.
NOTE: As routine maintenance, clean the drive heads after every 50 hours of
operation.
Drive LED
The amber Drive LED lets you know when data is being read from or written to tape. It also informs
you when a hardware fault occurs.
TABLE 11. Drive LED
LED Status Description
ON continuously The drive is reading or writing the tape (SCSI or tape movement is
Flashing rapidly A hardware fault occurred. If the fault occurs immediately after power-
NOTE: If your backup software issues a SCSI “Prevent Media Removal” command,
the Drive LED remains ON and the Eject button is disabled, so that the tape cannot
be ejected accidentally. To eject the tape, use your backup software’s Eject
command.
present).
ing on the drive, the Power-On Self-Test switch (switch 4) is enabled and
a Power-On Self-Test has failed. If the front panel LEDs are flashing
together, contact the Technical Support department.
If the Drive LED is flashing rapidly during drive operation, press the
Eject button to remove the tape. If the tape does not eject within 2 minutes, press and hold the Eject button for more than 5 seconds. The tape
should eject within 40 seconds. Contact Technical Support for more
information.
48
7
Troubleshooting
This chapter provides suggestions for troubleshooting your drives in the unlikely event you encounter
a problem with them.
Topics in this chapter are:
• “Missing or Damaged Parts” on page 49
• “SCSI ID Problems” on page 50
• “SCSI Termination Problems” on page 50
• “Mounting Hardware Problems” on page 50
• “Drive Does Not Work” on page 50
• “Power-On Self-Test Fails” on page 51
• “Computer Does Not Boot” on page 51
• “Computer Does Not Recognize Drive” on page 51
• “Backup Program Does Not Recognize Drive” on page 52
• “Write Error” on page 52
• “Hardware Error” on page 52
Missing or Damaged Parts
If any of the contents included with your DDS-4 or DAT 72 drive are missing or damaged, contact
your place of purchase immediately.
49
Troubleshooting SCSI ID Problems
SCSI ID Problems
Each SCSI device on the same SCSI bus must have a unique SCSI ID. The default SCSI ID for internal
and external DDS-4 and DAT 72 drives is 6. You should leave this default SCSI ID unchanged unless
another device on the SCSI bus is already using this ID.
If the default SCSI ID is already in use, you can change the default SCSI ID on the drive using either
jumpers on the back of the internal tape drives or the SCSI ID Selector switch on the back of the
external SCSI drives. After you set the SCSI ID, record your setting. For more information about SCSI
IDs, see “SCSI ID” on page 21 if you have an internal tape drive or “SCSI ID” on page 35 if you
have an external tape drive.
SCSI Termination Problems
If an external DDS-4 or DAT 72 drive is the last device or the only device in a SCSI chain, you must
install a terminating plug on the unused SCSI connector. For more information, see “Checking SCSI
Termination” on page 38.
The internal DDS-4 and DAT 72 drives do not provide SCSI termination. Therefore, do not install
these drives as the last devices in the SCSI chain. If the drive is the only SCSI device, attach the drive
to the connector which is next to last on the SCSI chain and attach a multi-mode terminator to the last
connector in the chain. For more information, see “Checking SCSI Termination” on page 30.
Mounting Hardware Problems
The internal DDS-4 and DAT 72 drives are designed to install in most servers using the hardware
accompanying the drives, without requiring additional items. However, if your server requires additional items to install the internal DDS-4 or DAT 72 drives, or if any original server components are
damaged or lost, contact your server manufacturer or vendor.
Drive Does Not Work
If the green Power-On LED on the external tape drive does not go ON, or if the internal tape drive
does not work:
1. Check the power connection to the drive.
2. If the connection is secure, replace the power cable with one that is known to work.
3. If the drive still does not work, contact the Technical Support department.
50
Troubleshooting Power-On Self-Test Fails
Power-On Self-Test Fails
If the drive fails its Power-On Self-Test:
1. Check for a cartridge in the drive. If you find one, eject it.
2. Power-down the drive and power it up again.
3. If the drive still fails its Power-On Self-Test, contact the Technical Support department.
Computer Does Not Boot
If the computer does not boot after you install the drive:
1. You may have forgotten to reattach the computer’s power cable, which you removed when
you installed the drive. Be sure all cables are connected properly to the computer.
2. Be sure the computer’s power cable is connected to a power outlet that is known to work. Plug
into the outlet another appliance, such as a lamp, that you know to work. If the appliance
does not work, the problem is with the outlet.
3. The power outlet connected to the computer is controlled by a wall switch that is removing
power from the outlet. Either switch outlets or set the wall switch so that power is applied to the
outlet.
4. The computer has two SCSI host adapters installed whose resources are conflicting with each
other. Remove the conflicting device or consult the documentation that came with the device
for suggestions about resolving the problem.
Computer Does Not Recognize Drive
If your computer does not recognize the drive:
1. Verify that the SCSI and power cables to the drive are installed properly.
2. The drive may be using a SCSI ID assigned to another SCSI device on the SCSI bus. If so,
reassign a unique SCSI ID to the drive or to the conflicting device.
3. Check that the SCSI bus is terminated properly. Note that the internal DDS-4 and DAT 72
drives do not provide SCSI termination and, therefore, should not be the last devices on a
SCSI chain.
51
Troubleshooting Backup Program Does Not Recognize Drive
Backup Program Does Not Recognize Drive
If your backup application program does not recognize the drive:
1. Use the Windows Device Manager to determine whether the operating system has recognized
the drive. If the tape drive is recognized properly, it appears under the Tape Drive category.
If the tape drive was recognized, but native drivers are not installed, it appears under Other
Devices. The backup software supplies the necessary drivers for the tape drive and native
drivers are not required.
• If the Device Manager shows the drive, check the documentation that came with your backup
program to determine whether the program needs a particular driver to be installed.
• If the Device Manager does not list the drive, the drive may not be installed or configured
properly. Check your drive installation and configuration.
Write Error
If the Media LED is flashing, a write error has occurred.
1. Use a Seagate-qualified DDS cleaning cartridge to clean the tape heads (see “Cleaning the
Tape Heads” on page 45).
2. Try to run a short backup and verify.
3. If the Media LED continues to flash, contact the Technical Support department.
Hardware Error
If the Drive LED is flashing rapidly, a hardware error has occurred. If the fault occurs immediately
after powering on the drive, the Power-On Self Test switch (switch 4) is enabled and a Power-On
Self-Test has failed. If the front panel LEDs are flashing together, contact the Technical Support
department.
If the Drive LED is flashing rapidly during drive operation:
1. Press the Eject button to remove the tape.
2. If the tape does not eject within 2 minutes, press and hold the Eject button for more than 5 sec-
onds. The tape should eject within 40 seconds.
3. Contact Technical Support for more information.
52
A
Loading Revised Firmware
Your DDS-4 or DAT 72 tape drive includes permanently installed, electrically upgradeable flash
memory. This memory allows qualified OEMs to revise DAT 72 and DDS-4 SCSI firmware quickly
and easily. It also prolongs the life of the tape drive by allowing the drive to inherit leading technologies as soon as those technologies become available.
This appendix describes how to load firmware onto your tape drive. Topics in this appendix are:
• “Firmware Upgrade Methods” on page 53
• “Using Firmware Cartridges” on page 54
Firmware Upgrade Methods
You can upgrade your tape drive’s firmware two ways:
• Using the diagnostic software provided on your Tape Resource CD or available at
http://support.certance.com. This software uploads a firmware file via SCSI from your host
computer to the tape drive.
• Using Seagate OEM firmware cartridges
53
Loading Revised Firmware Using Firmware Cartridges
Using Firmware Cartridges
The following procedure describes how to upgrade the tape drive firmware using a firmware
upgrade tape cartridge. Firmware upgrade cartridges are available only to qualified Seagate OEM
customers. Contact your sales representative for information.
NOTE: The firmware can also be upgraded from a host computer via the SCSI connection
using software available at http://support.certance.com.
1. Power on the host system with the DDS-4 or DAT 72 drive installed.
2. Close all applications that might try to communicate with the drive during the firmware
upgrade procedure.
3. Insert the firmware upgrade cartridge. The drive automatically recognizes the firmware
upgrade cartridge and begins downloading the firmware from the cartridge into DRAM.
When the firmware has been downloaded into DRAM, the drive ejects the firmware upgrade
cartridge and the drive LEDs blink in a progressive pattern. When the blinking pattern stops,
the firmware upgrade operation is complete.
WARNINGS: Once the firmware upgrade cartridge is inserted into the drive,
no power interruption can occur while the firmware is loading. Do not
power off the drive. If a power interruption occurs, the firmware may not
be loaded correctly and the drive may not operate properly.
Do not power down the host system or disconnect power to the drive until
the drive LEDs stop flashing. Otherwise, the drive may be rendered
inoperative.
4. It may be necessary to reboot the system to ensure that your backup software application con-
tinues to recognize the tape drive.
54
B
Technical Support Information
Seagate provides a number of ways for you to obtain technical support. This appendix describes
these methods.
Topics in this appendix are:
• “World-wide Services” on page 55
• “Regional Services” on page 56
• “Support Services in the Americas” on page 56
• “Support Services in Europe” on page 57
• “Support Services for Africa and the Middle East” on page 57
• “Support Services in Asia and the Western Pacific” on page 58
World-wide Services
World-wide Web
A wide variety of technical support services are available on the World Wide Web site, located at
http://support.certance.com
E-mail Technical Support
You can e-mail questions or comments to: tapesupport@certance.com.
55
Technical Support Information Regional Services
Regional Services
We provide technical support through several regional centers worldwide. These services may
include the following.
Phone Technical Support
For one-on-one help, you can talk to a technical-support specialist during local business hours.
Before calling, note your system configuration and drive model number. If you recorded this information as suggested, have it handy.
Technical Support FAX
You can FAX questions or comments to technical support specialists. Responses are sent during local
business hours.
Support Services in the Americas
Telephone Support
By dialing telephone support, you will be directed to a product-specific phone or fax number.
• US customers: 1-800-SEAGATE
• International customers: +1-405-936-1400
Technical Support FAX (US and International)
Seagate’s 24-hour technical-support FAX number for US and international customers is:
1-405-936-1683
SeaTDD
Seagate provides telephone support for the deaf. US and international customers can dial
1-405-936-1687.
56
Technical Support Information Support Services in Europe
Support Services in Europe
For European customer support and SeaFAX, dial the toll-free number for your specific country from
Table 12 on page 57. The Seagate Technical Support FAX number for all European countries is:
31-20-653-3513.
TABLE 12. European Toll-Free Numbers
Country Phone/SeaFAX Country Phone/SeaFAX
Austria 0 800-20 12 90 Norway 0 800-732 4283
Belgium 0 800-74 876 Poland 00 800-311 12 38
Denmark 80 88 12 66 Spain 900-98 31 24
France 0 800-90 90 52 Sweden 900-98 31 24
Germany 0 800-182 6831 Switzerland 0 800-83 8411
Ireland 1 800-55 21 22 Turkey 00 800-31 92 91 40
Italy 800-790695 United Kingdom 00 800-31 92 91 40
Netherlands 0 800-732 4283
If your country is not listed in Table 12 on page 57, dial our European call center in Amsterdam at
31-20-316-7222 between 8:30 A.M. to 5:00 P.M. (European central time) Monday through Friday
or send a FAX to 31-20-653-3513.
Support Services for Africa and the Middle East
For presales, technical support, warranty repair, and FAX services in Africa and the Middle East,
dial our European call center in Amsterdam at 31-20-316-7222 between 8:30 A.M. to 5:00 P.M.
(European central time) Monday through Friday, or send a FAX to 31-20-653-3513.
57
Technical Support Information Support Services in Asia and the Western Pacific
Support Services in Asia and the Western Pacific
Various technical support services are available from different regional centers, as shown in
Table 13 on page 58. SeaFAX is available in Australia at 61-2-9756-5170.
TABLE 13. Asia and Western Pacific Numbers
Technical Support Phone FAX
Australia 61-2-9725-3366 61-2-9725-4052
Hong Kong 852-2368 9918 852-2368 7173
Japan — 81-3-5462-2979
Singapore 65-488-7584 65-488-7528
Taiwan 886-2-2514-2237 886-2-2715-2923
If your country is not listed in Table 13 on page 58, dial our Asia/Pacific headquarters in Singapore
at 65-488-7584 during business hours (9:00 A.M. to 5:00 P.M. Singapore time).
58
Index
A
Accessing inside of your computer
internal drives 26
Africa technical support services 57
Applications 13
Appropriate cartridges 40
Avoiding electrostatic damage 18
B
Backup program does not recognize drive 52
C
Cables
Power (external drives) 38
Power (internal drives) 30
SCSI (internal drives) 29
Capacity 13
Cartridges 41
appropriate 40
firmware 54
guidelines 41
initializing 42
loading 42
unloading 43
write-protecting 44
Clean LED 45
Cleaning tape heads 45
Components on front panel 14
Computer does not
, 47
boot 51
recognize drive 51
D
Damage from static electricity 18
Damaged parts 49
DAT 72
applications 13
capacity and transfer rates 13
features 12
LEDs 46
Data compression
external drives 35
internal drives 23
DDS cartridge, write-protecting 44
DDS-4
applications 13
capacity and transfer rates 13
features 12
LEDs 46
Default settings
external drives 34
internal drives 19
Drive does not work 50
Drive LED 48
, 52
E
Eject button 43, 52
Electrostatic damage 18
59
E-mail technical support 55
European technical support 57
External drives
connecting a power cable 38
connecting a SCSI cable 37
data compression 35
default settings 34
host operating system 36
installation summary 34
installing 33
Media Recognition System 36
parity checking 35
Power-On Self-Test 36
quick start 16
SCSI ID 35
SCSI termination 38
unpacking 33
F
Features 12
Firmware cartridges 54
Firmware upgrade 53
Front panel
LEDs 46
Front panel components 14
H
handling 41
Hardware error 52
Host operating system
external drives 36
internal drives 24
I
Initializing a blank cartridge 42
Installation summary
external drives 34
internal drives 18
Installing
external drives 33
internal drives 17
Internal drives
accessing inside of your computer 26
connecting a power cable 30
connecting a SCSI cable 29
connecting to a narrow SCSI connector 29
connecting to a wide SCSI connector 29
data compression 23
default settings 19
host operating system 24
installation summary 18
installing 17
jumper settings 20
Media Recognition System 23
mounting 26
parity checking 22
Power-On Self-Test 24
quick start 15
SCSI ID 21
SCSI termination 30
SCSI Wide/Narrow configuration 25
switch settings 21
terminator power 22
tools 19
unpacking 17
vendor ID 25
J
Jumper settings for internal drives 20
L
LEDs 46
Clean 45
Drive 48
Media 45
Power-on 46
summary 47
Loading a cartridge 42
, 47
, 52
, 48
, 50
M
Media LED 45, 48
Media Recognition System
external drives 36
internal drives 23
Middle East technical support services 57
Missing parts 49
Mounting
hardware problems 50
internal drives 26
60
O
Operation
cartridge guidelines 41
cleaning tape heads 45
handling cartridges 41
initializing a blank cartridge 42
loading a cartridge 42
unloading a cartridge 43
using appropriate media 40
write-protecting a DDS cartridge 44
P
Parity checking
external drives 35
internal drives 22
Parts, missing or damaged 49
Power cable connection
external drives 38
internal drives 30
Power-On LED 46
Power-On Self-Test
external drives 36
fails 51
internal drives 24
, 50
Q
Quick start
external drives 16
internal drives 15
R
Regional services technical support 56
Registering tape drive 32
, 39
S
SCSI cable connection
external drives 37
internal drives 29
narrow SCSI 29
wide SCSI 29
SCSI ID
external drives 35
internal drives 21
problems 50
SCSI termination
external drives 38
internal drives 30
problems 50
SCSI Wide/Narrow configuration
internal drives 25
Switch settings for internal drives 21
T
Tape c a r tri d g es
appropriate 40
handling 41
initializing 42
loading 42
unloading 43
write-protecting 44
Tape d r i ve
applications 13
capacity 13
components 14
features 12
registering 32
transfer rates 13
Tape d r i ves
covered in this User’s Guide 11
registering 39
Tape heads, cleaning 45
TapeAlert feature 45
Technical support
e-mail 55
regional services 56
world-wide services 55
World - w ide We b 5 5
Technical support services
Africa and Middle East 57
Americas 56
Europe 57
Terminating SCSI for external drives 38
Terminating SCSI for internal drives 30
Termination problems 50
Terminator power
internal drives 22
Tool s
internal drives 19
Transfer rates 13
Troubleshooting
backup program does not recognize drive 52
computer does not boot 51
computer does not recognize drive 51
Drive does not work 50
61
hardware error 52
missing or damaged parts 49
mounting hardware problems 50
Power-On Self-Test fails 51
SCSI ID problems 50
SCSI termination problems 50
write error 52
U
Unloading a cartridge 43
Unpacking
external drives 33
internal drives 17
Upgrading firmware 53
V
Vendor ID
internal drives 25
W
Write error 52
Write-protecting a cartridge 44
62
