Product Manual

Constellation® ES.2 SAS

Standard Model

ST33000650SS

Self-Encrypting Drive Model

ST33000651SS

SED FIPS 140-2 Model Review Pending

ST33000652SS

100628615 Rev. E August 2011

Revision history

Revision Date Sheets affected or comments

Rev. A 11/29/10 Initial release Rev. B 02/23/11 6-8, 10, 22, 27, 32 42 & 46-48. Rev. C 03/23/11 8-9, 13-14, 35-36 & 40. Rev. D 04/28/11 fc, 2, 23 & 47. Rev. E 08/11/11 2, 11, 34-35, 48 & back cover .

Publication number: 100628615, Rev. E August 2011 Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology

LLC in the United States and/or other countries. Constellation ES.2 and SeaTools are either trade marks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments. All other trademarks or registered trademarks are the property of their respective owners.

No part of this publication may be reproduced in any form without written permission of Seaga te Technology LLC. Call 877-PUB-TEK1 (877-782-8351) to request permission.

One gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer's operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Seagate reserves the right to change, without notice, product offerings or specifications.

Contents

1.0 Seagate Technology support services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2.0 Scope. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

3.0 Applicable standards and reference documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3.1 Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3.1.1 Electromagnetic compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3.1.2 Electromagnetic compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3.1.3 European Union Restriction of Hazardous Substances (RoHS) . . . . . . . . . . . . . 5

3.1.4 China Restriction of Hazardous Substances (RoHS) Directive . . . . . . . . . . . . . 5

3.2 Reference documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4.0 General description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4.1 Standard features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.2 Media description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.3 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.4 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4.5 Formatted capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4.6 Programmable drive capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4.7 Factory-installed options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5.0 Performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5.1 Internal drive characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5.2 Seek performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5.2.1 Access time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5.2.2 Format command execution time for 512-byte sectors (minutes) . . . . . . . . . . . 11

5.2.3 General performance characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

5.3 Start/stop time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

5.4 Prefetch/multi-segmented cache control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5.5 Cache operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5.5.1 Caching write data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5.5.2 Prefetch operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6.0 Reliability specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

6.1 Error rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

6.1.1 Recoverable Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

6.1.2 Unrecoverable Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

6.1.3 Seek errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

6.1.4 Interface errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

6.2 Reliability and service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

6.2.1 Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF) . . . . 15

6.2.2 Preventive maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

6.2.3 Hot plugging the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

6.2.4 S.M.A.R.T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

6.2.5 Thermal monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6.2.6 Drive Self Test (DST). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

6.2.7 Product warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

7.0 Physical/electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

7.1 PowerChoiceTM power management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

7.1.1 PowerChoice reporting methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

7.2 AC power requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

7.3 DC power requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

7.3.1 Conducted noise immunity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7.3.2 Power sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7.3.3 Current profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Constellation ES.2 SAS Product Manual, Rev. E i

7.4 Power dissipation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

7.5 Environmental limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

7.5.1 Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

7.5.2 Relative humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

7.5.3 Effective altitude (sea level) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7.5.4 Shock and vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7.5.5 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.5.6 Air cleanliness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.5.7 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.5.8 Electromagnetic susceptibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

7.6 Mechanical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

8.0 About FIPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

9.0 About self-encrypting drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

9.1 Data encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

9.2 Controlled access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

9.2.1 Admin SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

9.2.2 Locking SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

9.2.3 Default password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

9.3 Random number generator (RNG). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

9.4 Drive locking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

9.5 Data bands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

9.6 Cryptographic erase. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

9.7 Authenticated firmware download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

9.8 Power requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

9.9 Supported commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

9.10 RevertSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

10.0 Defect and error management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

10.1 Drive internal defects/errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

10.2 Drive error recovery procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

10.3 SAS system errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

10.4 Background Media Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

10.5 Media Pre-Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

10.6 Deferred Auto-Reallocation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

10.7 Idle Read After Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

10.8 Protection Information (PI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

10.8.1 Levels of PI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

10.8.2 Setting and determining the current Type Level. . . . . . . . . . . . . . . . . . . . . . . . . 42

10.8.3 Identifying a Protection Information drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

11.0 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

11.1 Drive orientation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

11.2 Cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

11.3 Drive mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

11.4 Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

12.0 Interface requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

12.1 SAS features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

12.1.1 task management functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

12.1.2 task management responses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

12.2 Dual port support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

12.3 SCSI commands supported. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

12.3.1 Inquiry data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

12.3.2 Mode Sense data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

12.4 Miscellaneous operating features and conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

ii Constellation ES.2 SAS Product Manual, Rev. E

12.4.1 SAS physical interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

12.4.2 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

12.4.3 Connector requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

12.4.4 Electrical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

12.4.5 Pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

12.4.6 SAS transmitters and receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

12.4.7 Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

12.5 Signal characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

12.5.1 Ready LED Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

12.5.2 Differential signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

12.6 SAS-2 Specification Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

12.7 Additional information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Constellation ES.2 SAS Product Manual, Rev. E iii

iv Constellation ES.2 SAS Product Manual, Rev. E

List of Figures

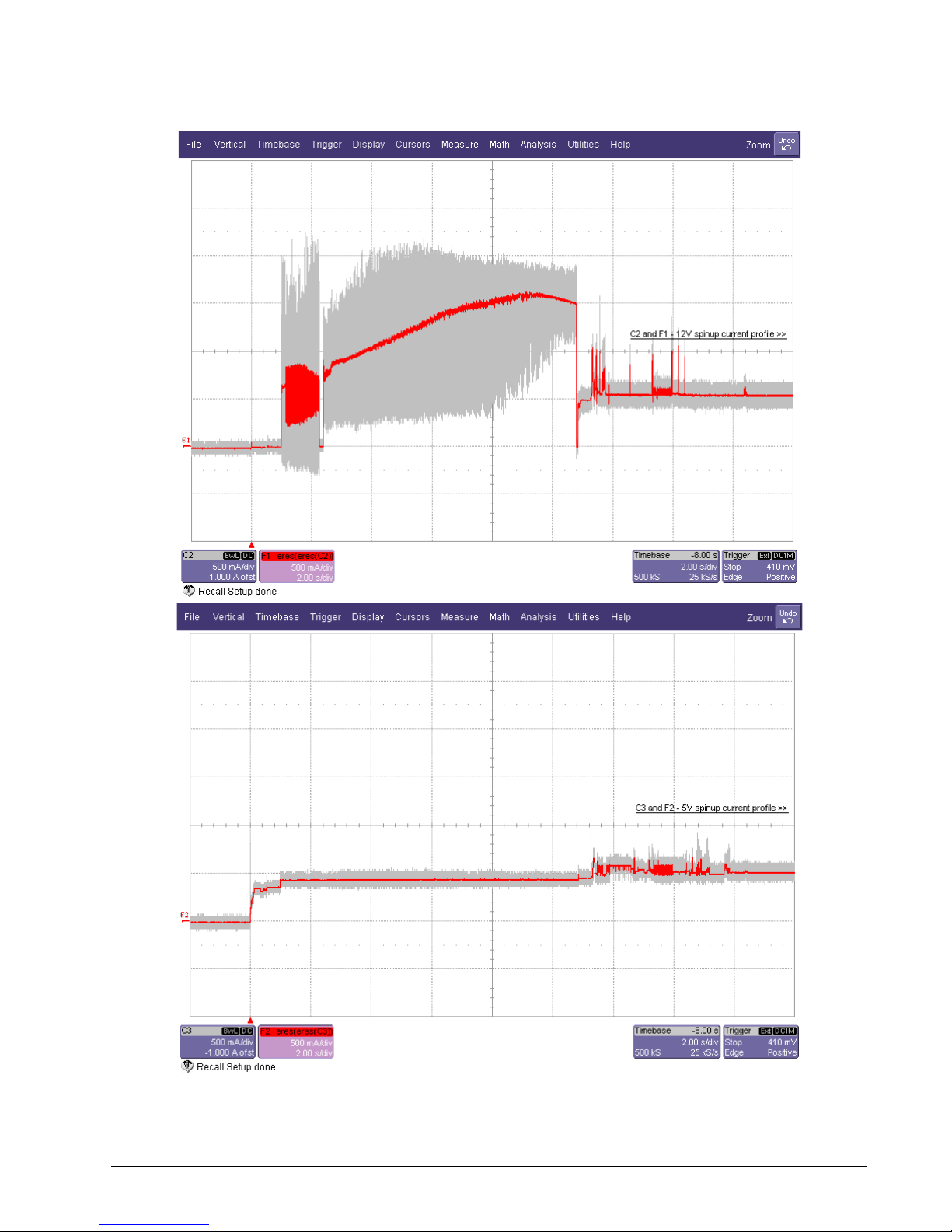

Figure 1. 3TB model current profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 2. 3TB models (3Gb) DC current and power vs. input/output operations per second. . . . . . . . . . . . . . . . . . . . .26

Figure 3. 3TB models (6Gb) DC current and power vs. input/output operations per second. . . . . . . . . . . . . . . . . . . . .27

Figure 4. Locatio n of the HDA temperature check point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Figure 5. Recommended moun ting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Figure 6. Mounting configuration dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Figure 7. Example of FIPS tamper evidence labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Figure 8. Physical interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Figure 9. Air flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Figure 10. Physical interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Figure 11. SAS device plug dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Figure 12. SAS device plug dimensions (detail) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Figure 13. SAS transmitters and receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Constellation ES.2 SAS Product Manual, Rev. E v

vi Constellation ES.2 SAS Product Manual, Rev. E

1.0 Seagate Technology support services

SEAGATE ONLINE SUPPORT and SERVICES

For information regarding products and services, visit http://www.seagate.com/www/en-us/about/contact_us/

Available services include:

Presales & Technical support Global Support Services telephone numbers & business hours Authorized Service Centers

For information regarding Warranty Support, visit

http://www.sea

For information regarding Data Recovery Services, visit http://www.i365.com For Seagate OEM & Distribution partner portal, visit https://direct.seagate.com/portal/system For Seagate reseller portal, visit http://spp.seagate.com

gate.com/www/en-us/support/warranty_&_returns_assistance

Constellation ES.2 SAS Product Manual, Rev. E 1

2.0 Scope

This manual describes Seagate Technology® LLC, Constellation® ES.2 SAS (Serial Attached SCSI) disk drives.

Constellation ES.2 drives support the SAS Protocol specifications to the extent described in this manual. The SAS Interface Manual (part number 100293071) describes the general SAS characteristics of this and other Seagate SAS drives. The Self-Encrypt ing Drive Reference Manual, part number 100515636, describes the interface, general operation, and security features available on Self-Encrypting Drive models.

Product data communicated in this manual is specific only to the model numbers listed in this ma nual. The dat a listed in this manual may not be predictive of future generation specifications or requirements. If you are designing a system which will use one of the models listed or future generation products and need further assistance, please contact your Field Applications Engineer (FAE) or our global support services group as shown in Section 1.0.

Unless otherwise stated, the information in this manual applies to standard and Self-Encrypting Drive models.

Model Number Self-Encrypting Drive (SED) FIPS 140-2 Level 2 (Review Pending)

ST33000650SS No No ST33000651SS Yes No ST33000652SS Yes Yes

Note. Previous generations of Seagate Self-Encrypting Drive models were called Full Disk Encryption

(FDE) models before a differentiation between drive-based encryption and other forms of encryp tion was necessary.

Note. The Self-Encrypting Drive models indicated on the cover of this product manual have provisions for

“Security of Data at Rest” based on the standards defined by the Trusted Computing G roup (see www.trustedcomputinggroup.org).

For more information on FIPS 140-2 Level 2 certification see Section 8.0 on page 34. For product certification status visit - http://csrc.nist.gov/

groups/STM/cmvp/documents/140-1/1401vend.htm.

2 Constellation ES.2 SAS Product Manual, Rev. E

3.0 Applicable standards and reference documentation

The drives documented in this manual have been developed as system peripherals to the highest standards of design and construction. The drives depends on host equipment to provide adequate power and environment for optimum performance and compliance with applicable industry and governmental regulations. Special attention must be given in the areas of safety, power distribution, shielding, audible noise control, and temperature regulation. In particular, the drive must be securely mounted to guarantee the specified performance characteristics. Mounting by bottom holes must meet the requirements of Section 11.3.

3.1 Standards

The Constellation ES.2 family complies with Seagate standards as noted in the appropriate sections of this manual and the Seagate SAS Interface Manual, part number 100293071.

The drives are recognized in accordance with UL 60950-1 as tested by UL, CSA 60950-1 as tested by CSA, and EN60950-1 as tested by TUV.

The security features of Self-Encrypting Drive models are based on the “TCG Storage Architecture Core Specification” and the “TCG Storage Workgroup Security Subsystem Class: Enterprise_A” specificatio n with additional vendor-unique features as noted in this product manual.

3.1.1 Electromagnetic compatibility

The drive, as delivered, is designed for system integration and installation into a suitable enclosure prior to use. The drive is supplied as a subasse mbly and is not s ubject to Subpart B o f Part 15 of the F CC Rules and Regulations nor the Radio Interference Reg ula tio ns of the Canadian Department of Communications.

The design characteristics of the drive serve to minimize radiation when installed in an enclosure that provides reasonable shielding. The drive is capable of meeting the Class B limits of the FCC Rules and Regulations of the Canadian Department of Communications when properly packaged; however, it is the user’s responsibility to assure that the drive meets the appropriate EMI requirements in their system. Shielded I/O cables may be required if the enclosure does not provide adequate shielding. If the I/O cables are external to the enclosure, shielded cables should be used, with the shields grounded to the enclosure and to the host controller.

3.1.1.1 Electromagnetic susceptibility

As a component assembly, the drive is not required to meet any susceptibility performance requirements. It is the responsibility of those integrating the drive within their systems to perform those tests required and design their system to ensure that equipment operating in the same system as the drive or external to the system does not adversely affect the performance of the drive. See Table 2, DC power requirements.

Constellation ES.2 SAS Product Manual, Rev. E 3

3.1.2 Electromagnetic compliance

Seagate uses an independent laboratory to confirm compliance with the directives/standards for CE Marking and C-Tick Marking. The drive was tested in a representative system for typical applications. The selected system represents the most popular characteristics for test platforms. The system configurations include:

• Typical current use microprocessor

• Keyboard

• Monitor/display

• Printer

•Mouse Although the test system with this Seagate model complies with the directives/standards, we cannot guarantee

that all systems will comply. The computer manufacturer or system integrator shall confirm EMC compliance and provide the appropriate marking for their product.

Electromagnetic compliance for the European Union

If this model has the CE Marking it complies with the European Union requirements of the Electromagnetic Compatibility Directive 2004/108/EC as put into place on 20 July 2007.

Australian C-Tick

If this model has the C-Tick Marking it complies with the Australia/New Zealand Standard AS/NZ CISPR22 and meets the Electromagnetic Compatibility (EMC) Framework requirements of Australia’s Spectrum Management Agency (SMA).

Korean KCC

If these drives have the Korean Communications Commission (KCC) logo, they comply with paragraph 1 of Article 11 of the Electromagnetic Compatibility control Regulation and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Radio Research Laboratory (RRL) Communications Commission, Republic of Korea.

These drives have been tested and comply with the Electromagnetic Interference/Electromagnetic Susceptibility (EMI/EMS) for Class B products. Drives are tested in a representative, end-user system by a Korean-recognized lab.

• Family name: Constellation ES SAS

• Certificate number: STX-ST33000650SS

• Manufacturing date: July 2, 2010 (Date of Certification)

• Manufacturer/nationality: USA, Singapore and China

Taiwanese BSMI

If this model has two Chinese words meaning “EMC certification” followed by an eight digit identification number, as a Marking, it complies with Chinese National Standard (CNS) 13438 and meets the Electromagnetic Compatibility (EMC) Framework requirements of the Taiwanese Bureau of Standards, Metrology, and Inspection (BSMI).

4 Constellation ES.2 SAS Product Manual, Rev. E

3.1.3 European Union Restriction of Hazardous Substances (RoHS)

中国限制危

险

物品的指令

“O”

RoHS MCV

“X”

RoHS MCV

The European Union Restriction of Hazardous Substances chemical substances, including Lead, Cadmium, Mercury, Hexavalent Chromium, PBB and PBDE, in electronic products, ef fective July 2006. Th is drive is manufactu red with component s and mater ials that comply with the RoHS Directive.

A number of parts and materials in Seagat e products are procured from external suppliers. We rely o n the representations of our suppliers regarding the presence of RoHS sub stances in these parts and materials. Our supplier contracts require compliance with our ch emical substance restrictions, and our suppliers document their compliance with our requirements by providing material conten t declarations for all p arts and materials for the disk drives documented in this publication. Current supplier declarations include disclosure of the inclusion of any RoHS-regulated substance in such parts or materials.

Seagate also has internal systems in place to ensur e on going compliance with the RoHS Directive and all laws and regulations which restrict chemical content in electronic products. These systems include standard operating procedures that ensu re that restricted substances are not utilized in our manufacturing operations, laboratory analytical validation testing, and an internal auditing process to ensure that all standard operating procedures are complied with.

3.1.4 China Restriction of Hazardous Substances (RoHS) Directive

This product has an Environmental Protection Use Period (EPUP) of 20 years. The following table contains information mandated by China's "Marking Requirements for Control of Pollution Caused by Electronic Information Products" Standard.

(RoHS) Directive, restricts the presence of

"O" indicates the hazardous and toxic substa nce content of the p art (at the homogenou s material level) is lower than the threshold defined by the China RoHS MCV Standard.

表示该部件（于同类物品程度上）所含的危险和有毒物质低于中国

"X" indicates the hazardous and toxic substance content of the part (at the homogenous material level) is over the threshold defined by the China RoHS MCV Standard.

表示该部件（于同类物品程度上）所含的危险和有毒物质超出中国

Constellation ES.2 SAS Product Manual, Rev. E 5

标准所定义的门槛值。

3.2 Reference documents

SAS Interface Manual

SCSI Commands Reference Manual

Self-Encrypting Drives Reference Manual

ANSI SAS Documents

ANSI Small Computer System Interface (SCSI) Documents

Trusted Computing Group (TCG) Documents (apply to Self-Encrypting Drive models only)

Specification for Acoustic Test Requirement and Procedures

Seagate part number: 100293071

Seagate part number: 100293068

Seagate part number: 100515636

SFF-8323 3.5” Drive Form Factor with Serial Connector SFF-8460 HSS Backplane Design Guidelines SFF-8470 Multi Lane Copper Connector SFF-8482 SAS Plug Connector ANSI INCITS.xxx Serial Attached SCSI (SAS-2) Standard (T10/1562-D) ISO/IEC 14776-xxx SCSI Architecture Model-3 (SAM-4) Standard (T10/1561-D) ISO/IEC 14776-xxx SCSI Primary Commands-3 (SPC-4) Standard (T10/1416-D) ISO/IEC 14776-xxx SCSI Block Commands-2 (SBC-3) Standard (T10/1417-D)

X3.270-1996 (SCSI-3) Architecture Model

TCG Storage Architecture Core Specification, Rev . 1.0 TCG Storage Security Subsystem Class Enterprise Specification, Rev. 1.0

Seagate part number: 30553-001

In case of conflict between this document and any referenced document, this document takes precedence.

6 Constellation ES.2 SAS Product Manual, Rev. E

4.0 General description

Constellation ES.2 drives provide high performance, high capacity data storage for a variety of systems including engineering workstations, network servers, mainframes, and supercomputers. The Serial Attached SCSI interface is designed to meet next-generation computing demands for performance, scalability, flexibility and high-density storage requirements.

Constellation ES.2 drives are random access storage devices designed to support the Serial Attached SCSI Protocol as described in the ANSI specifications, this document, and the SAS Interface Manual (part number

100293071) which describes the general interface characteristics of this drive. Constellation ES.2 drives are classified as intelligent peripherals and provide level 2 conformance (highest level) with the ANSI SCSI-1 standard. The SAS connectors, cables and electrical interface are compatible with Serial ATA (SATA), giving future users the choice of populating their systems with either SAS or SATA hard disk drives. This allows you to continue to leverage your existing investment in SCSI while gaining a 6Gb/s serial data transfer rate.

The Self-Encrypting Drive models indicated on the cover of this product manual have provisions for “Security of Data at Rest” based on the standards defined by the Trusted Computing Group (see www.trustedcomputinggroup.org).

The head and disk assembly (HDA) is sealed at the factory. Air recirculates within the HDA through a nonreplaceable filter to maintain a contamination-free HDA environment.

Note. Never disassemble the HDA and do not attempt to service items in the sealed enclosure (heads,

media, actuator, etc.) as this requires special facilities. The drive does not contain user-replaceable parts. Opening the HDA for any reason voids your warranty.

Constellation ES.2 drives use a dedicated load/unload zone at the outermost radius of the media to eliminate the possibility of destroying or degrading data by landing in the data zone. The heads automatically go to the ramp load/unload when power is removed from the drive.

An automatic shipping lock prevents potential damage to the heads and discs that results from movement during shipping and handling. The shipping lock disengages and the head load process begins when power is applied to the drive.

Constellation ES.2 drives decode track 0 location data from the servo data embedded on each surface to eliminate mechanical transducer adjustments and related reliability concerns.

The drives also use a high-performance actuator assembly with a low-inertia, balanced, patented, straight arm design that provides excellent performance with minimal power dissipation.

Note. Seagate recommends validatin g your conf igu r ation with the selected HBA/RAID controller

manufacturer to ensure full 3TB capacity capabilities.

Constellation ES.2 SAS Product Manual, Rev. E 7

4.1 Standard features

Constellation ES.2 drives have the following standard features:

• Perpendicular recording technology

• 1.5 / 3.0 / 6.0 Gb Serial Attached SCSI (SAS) interface

• Integrated dual port SAS controller supporting the SCSI protocol

• Support for SAS expanders and fanout adapters

• Firmware downloadable using the SAS interface

• 128 - deep task set (queue)

• Supports up to 32 initiators

• Jumperless configuration.

• User-selectable logical block size (512, 520 or 528 bytes per logical block).

• Industry standard 3.5-inch dimensions

• Programmable logical block reallocation scheme

• Flawed logical block reallocation at format time

• Programmable auto write and read reallocation

• Reallocation of defects on command (Post Format)

• ECC maximum burst correction length of 400 bits

• No preventive maintenance or adjustments required

• Embedded servo design

• Dedicated head load/unload zone

• Self diagnostics performed when power is applied to the drive

• Vertical, horizontal, or top down mounting

• 64 MB data buffer (see Section 5.5).

• Drive Self Test (DST)

• Background Media Scan (BMS)

• Idle Read After Write (IRAW)

•Power Save Constellation® ES.2 SAS Self-Encrypting Drive models have the following additional features:

• Automatic data encryption/decryption

• Controlled access

• Random number generator

• Drive locking

• 16 independent data bands

• Cryptographic erase of user data for a drive that will be repurposed or scrapped

• Authenticated firmware download

4.2 Media description

The media used on the drive has a aluminum substrate coated with a thin film magnetic material, overcoated with a proprietary protective layer for improved durability and environmental protection.

4.3 Performance

• Programmable multi-segmentable cache buffer

• 600MB/s maximum instantaneous data transfers.

• 7200 RPM spindle. Average latency = 4.16ms

• Background processing of queue

• Supports start and stop commands (spindle stops spinning)

• Adaptive seek velocity; improved seek performance Note. There is no significant performance difference between Self-Encrypting Drive and standard (non-

Self-Encrypting Drive) models.

8 Constellation ES.2 SAS Product Manual, Rev. E

4.4 Reliability

• Annualized Failure Rate (AFR) of 0.73%

• Mean time between failures (MTBF ) of 1,20 0 ,0 00 hours

• Balanced low mass rotary voice coil actuator

• Incorporates industry-standard Self-Monitoring Analysis

and Reporting Technology (S.M.A.R.T.)

• 5-year warranty

4.5 Formatted capacities

Standard OEM models are formatted to 512 bytes per block. The block size is selectable at format time and must be a multiple of 4 bytes. Users having the necessary equipment may modify the data block size before issuing a format command and obtain different formatted capacities than those listed.

To provide a stable target capacity environment and at the same time provide users with flexibility if they choose, Seagate recommends product planning in one of two modes:

1. Seagate designs specify capacity poin ts at certain blo

products will meet. We recommend customers use this capacity in their project planning, as it ensures a stable operating point with backward and forward compatibility from generation to generation. The current guaranteed operating points for this product are:

Capacity (Blocks)

ST33000650SS ST33000651SS ST33000652SS

ck sizes that Seagate guarantees current and future

Sector Size

Decimal Hex

512 5,860,533,168 15D50A3B0h 520 5,736,538,480 155ECA170 528 5,578,747,784 14C84EF88

4.6 Programmable drive capacity

Using the Mode Select command, the drive can change its capacity to something less than maximum. See the Mode Select (6) parameter list table in the SAS Interface Manual, part number 100293071. A value of zero in the Number of Blocks field indicates that the drive will not change the capacity it is currently formatted to have. A number other than zero and less than the maximum number of LBAs in the Number of Blocks field changes the total drive capacity to the value in the Number of Blocks field. A value greater than the maximum numbe r of LBAs is rounded down to the maximum capacity.

4.7 Factory-installed options

You may order the following items which are incorporated at the manufacturing facility during production or packaged before shipping. Some of the options available are (not an exhaustive list of possible options):

• Other capacities can be ordered depending on sparing scheme and sector size requested.

• Single-unit shipping pack. The drive is normally shippe

against transit damage. Units shipped individually require additional protection as pro vided by the single unit shipping pack. Users planning single unit distribution should specify this option.

•The S

afety and Regulatory Agency Specifications, part number 75789512, is usually included with each

standard OEM drive shipped, but extra copies may be ordered.

d in bulk packaging to provide maximum protection

Constellation ES.2 SAS Product Manual, Rev. E 9

5.0 Performance characteristics

This section provides detailed information concerning performance-related characteristics and features of Constellation ES.2 drives.

5.1 Internal drive characteristics

ST33000650SS ST33000651SS ST33000652SS

Drive capacity 3 TB (formatted, rounded off value) Read/write data heads 10 Bytes per track 1,419,776 Bytes (average, rounded off values) Bytes per surface 300,000 MB (un Tracks per surface (total) 284,399 Tracks (user acc essible) Tracks per inch 270,000 TPI (average) Peak bits per inch 1,638,000 BPI Areal density 444 Gb/in Internal data rate 68.7 - 155 MB/s (variable with zone) disk rotation speed 7200 rpm Avg rotational latency 4.16 ms

5.2 Seek performance characteristics

See Section 12.4.1, "SAS physical interface" on page 56 and the SAS Interface Manual (part number

100293071) for additional timing details.

formatted, rounded off value)

5.2.1 Access time

Not including controller overhead2 (ms)

Including controller overhead

1, 2

(ms)

Read Write Read Write

Average Typical Single track Typical Full stroke Typical

8.3 9.3 8.5 9.5

3,4

0.5 0.5 0.7 0.7

3,4

15.5 16.2 15.7 16.4

1. Execution time measured from receipt of the Command to the Response.

2. Assumes no errors and no sector has been relocated.

3. Typical access times are measured under nominal conditions of temperature, voltage, and horizontal orientation as measured on a representative sample of drives.

4. Access time = controller overhead + average seek time and applies to all data transfer commands. Access to data = access time + latency time.

10 Constellation ES.2 SAS Product Manual, Rev. E

5.2.2 Format command execution time for 512-byte sectors (minutes) 3TB models

Maximum (with verify) Maximum (without verify)

827 402

Execution time measured from receipt of the last byte of the Command Descriptor Block (CDB) to the request for a Status Byte Transfer to the Initiator (excluding connect/disconnect).

When changing sector sizes, the format times shown above may need to be increased by 30 minutes.

Note.

There is approximately a 1.5 increase in time to format a SED drive versus a non-SED drive of the same capacity.

5.2.3 General performance characteristics

Minimum sector interleave 1 to 1 Data buffer to/from disk media (one 512-byte logical block)* 113 to 239 MB/s Sustained transfer rate 68.7 to 155 MB/s SAS Interface maximum instant

Logical block sizes

512 (default), 520 or 528. Read/write consecutive sectors on a track Yes Flaw reallocation performance impact (for flaws reallocated at format time using the

are sectors per sparing zone reallocation scheme.)

sp Average rotational latency 4.16ms

*Assumes no errors and no relocated logical blocks. Rate measured from the start of the first logical block transfer to or from the host.

aneous transfer rate 600MB/s* per port

(dual port = 1200MB/s*)

Negligible

5.3 Start/stop time

The drive accepts the commands listed in the SAS Interface Manual less than 3 seconds after DC power has been applied.

If the drive receives a NOTIFY (ENABLE SPINUP) primitive through either port and has not received a START STOP UNIT command with the START bit equal to 0, the drive becomes ready for normal operations within 30 seconds (excluding the error recovery procedure).

If the drive receives a START STOP UNIT command with the START bit equal to 0 before receiving a NOTIFY (ENABLE SPINUP) primitive, the drive waits for a START ST OP UNIT command with the START bit equal to 1. After receiving a START STOP UNIT command with the START bit equal to 1, the drive waits for a NOTIFY (ENABLE SPINUP) primitive. After receiving a NOTIFY (ENABLE SPINUP) primitive through either port, the drive becomes ready for normal operations within 30 seconds (excluding the error recovery procedure).

If the drive receives a START STOP UNIT command with the START bit and IMMED bit equal to 1 and does not receive a NOTIFY (ENABLE SPINUP) primitive within 5 seconds, the drive fails the START STOP UNIT command.

Constellation ES.2 SAS Product Manual, Rev. E 11

The START STOP UNIT command may be used to command the drive to stop the spindle. Stop time is 20 seconds (maximum) from removal of DC power. SCSI stop time is 20 seconds. There is no power control switch on the drive.

5.4 Prefetch/multi-segmented cache control

The drive provides a prefetch (read look-ahead) and multi-segmented cache control algorithms that in many cases can enhance system performance. Cache refers to the drive buffer storage space when it is used in cache operations. To select this feature, the host sends the Mode Select command with the proper values in the applicable bytes in page 08h. Prefetch and cache operations are independent features from the standpoint that each is enabled and disabled independently using the Mode Select command; however, in actual operation, the prefetch feature overlaps cache operation somewhat as described in sections 5.5.1 and 5.5.2.

All default cache and prefetch mode parameter values (Mode Page 08h) for standard OEM versions of this drive family are given in Table 8.

5.5 Cache operation

Note. Refer to the SAS Interface Manual for more detail concerning the cache bits. Of the 64MB physical buffer space in the drive, approximately 30,000 kbytes can be used as a cache. The

buffer is divided into logical segments from which data is read and to which data is written. The drive keeps track of the logical block addresses of the data stored in each segment of the buffer. If the

cache is enabled (see RCD bit in the SAS Interface Manual ), data requested by the host with a read com mand is retrieved from the buffer , if po ssible, before any disk acce ss is initiated. If cache operation is not enabled, the buffer is still used, but only as circular buffer segments during disk medium read operations (disregarding Prefetch operation for the moment). That is, the drive does not check in the buffer segments for the requested read data, but goes directly to the medium to retrieve it. The retrieved data merely passes through some buffer segment on the way to the host. All data transfers to the host are in accordance with buffer-full ratio rules. See the explanation provided with the information about Mode Page 02h (disconnect/reconnect control) in the SAS Interface Manual.

The following is a simplified description of the prefetch/cache operation: Case A—read command is received and all of the requested logical blocks are already in the cache:

1. Drive transfers the requested logical blocks to the initiator. Case B—A Read command requests data, and at least one requested logical block is not in any segment of

the cache:

1. The drive fetches the requested logical blo cks from the disk and transf ers them into a segment , and then from there to the host in accordance with the Mode Select Disconnect/Reconnect parameters, page 02h.

2. If the prefetch feature is enabled, refe r to sec tio n 5.5.2 for operation from this point.

Each cache segment is actually a self-contained circular buffer whose length is an integer number of logical blocks. The drive dynamically creates and removes segments based on the workload. The wrap-around capability of the individual segments greatly enhances the cache’s overall performance.

Note. The size of each segment is no t reported by Mode Sense command page 08 h, bytes 14 and 15.

The value 0XFFFF is always reported regardless of the actual size of the segment. Sending a size specification using the Mode Select command (bytes 14 and 15) does not set up a new segment size. If the STRICT bit in Mode page 00h (byte 2, bit 1) is set to one, the drive responds as it does for any attempt to change an unchangeable parameter.

12 Constellation ES.2 SAS Product Manual, Rev. E

5.5.1 Caching write data

Write caching is a write operation by the drive that make s use of a drive b uffer storage area wher e the da ta to be written to the medium is stored while the drive performs the Write command.

If read caching is enabled (RCD=0), then data written to the medium is retained in the cache to be made available for future read cache hits. The same buffer space and segmentation is used as set up for read functions. The buffer segmentation scheme is set up or changed independently, having nothing to do with the state of RCD. When a write command is issued, if RCD=0, the cache is first checked to see if any logical blocks that are to be written are already stored in the cache from a previous read or write command. If there are, the respective cache segments are cleared. The new data is cached for subsequent Read commands.

If the number of write data logical blocks exceed the size of the segme nt being written into, when the end of the segment is reached, the data is written into the beginning of the same cache segment, overwriting the da ta that was written there at the beginning of the operation; however, the drive does not overwrite data that has not yet been written to the medium.

If write caching is enabled (WCE=1), then the drive may return Good status on a write command after the data has been transferred into the cache, but before the data has been written to the medium. If an error occurs while writing the data to the medium, and Good status has already been returned, a deferred error will be generated.

The Synchronize Cache command may be used to force the drive to write all cached write dat a to the med ium. Upon completion of a Synchronize Cache command, all data received from previous write commands will have been written to the medium. Table 8 shows the mode default settings for the drive.

5.5.2 Prefetch operation

If the Prefetch feature is enabled, data in contiguous logical blocks on the disk immediately beyond that which was requested by a Read command are retrieved and stored in the buffer for immediate transfer from the buffer to the host on subsequent Read commands that request those logical blocks (this is true even if cache operation is disabled). Though the pr ef etch operation uses the buffer as a cache, finding the requested data in the buffer is a prefetch hit, not a cache operation hit.

To enable Prefetch, use Mode Select page 08h, byte 12, bit 5 (Disable Read Ahead - DRA bit). DRA bit = 0 enables prefetch.

The drive does not use the Max Prefetch field (bytes 8 and 9) or the Prefetch Ceiling field (bytes 10 and 11). When prefetch (read look-ahead) is enabled (enabled by DRA = 0), the drive enables prefetch of contiguous

blocks from the disk when it senses that a prefetch hit will likely occur. The drive disables prefetch when it decides that a prefetch hit is not likely to occur.

Constellation ES.2 SAS Product Manual, Rev. E 13

6.0 Reliability specifications

The following reliability specifications assume correct host and drive operational interface, including all interface timings, power supply voltages, environmental requirements and drive mounting constraints.

Seek error rate: Less than 10 errors in 10 Read Error Rates

Recovered Data Less than 10 errors in 1012 bits transferred (OEM default settings) Unrecovered Data Less than 1 sector in 10

Miscorrected Data Less than 1 sector in 10 Interface error rate: Less than 1 error in 10 Mean Time Between Failure (MTBF): 1,200,000 hours Annualized Failure Rate (AFR): 0.73% Preventive maintenance: None required

1. Error rate specified with automatic retries and data correction with ECC enabled and all flaws reallocated.

6.1 Error rates

The error rates stated in this manual assume the following:

• The drive is operated in accordance with this manual using DC power as defined in paragraph 7.3, "DC power requirements."

• Errors caused by host system failures are excluded from error rate computations.

• Assume random data.

• Default OEM error recovery settings are applied. This includes AWRE, ARRE, full read retries, full write retries and full retry time.

seeks

bits transferred

6.1.1 Recov era b le Errors

Recoverable errors are those detected and correcte d by the drive, and do not require user intervention. Recoverable Data errors will use correction, although ECC on-the-fly is not considered for purposes of

recovered error specifications . Recovered Data error rate is determined using read bits transferred for recoverab le errors occurring during a

read, and using write bits transferred for recoverable err ors occurring during a write.

6.1.2 Unrecoverable Errors

An unrecoverable data error is def ined as a failure of the d rive to recover data from the media. These errors occur due to head/media or write problems. Unrecoverable data errors are only detected during read operations, but not caused by the read. If an unrecovera ble dat a error is d etected, a MEDIUM ERROR (03h) in the Sense Key will be reported. Multiple unrecoverable data errors resulting from the same cause are treated as 1 error.

14 Constellation ES.2 SAS Product Manual, Rev. E

6.1.3 Seek errors

A seek error is defined as a failure of the drive to position the heads to the addressed track. After detecting an initial seek error, the drive automatically performs an error recovery process. If the error recovery process fails, a seek positioning error (Error code = 15h or 02h) will be reported with a Hardware error (04h) in the Sense Key. Recoverable seek errors are specified at Less than 10 errors in 10

seeks. Unrecoverable seek errors

(Sense Key = 04h) are classified as drive failures.

6.1.4 Interface errors

An interface error is defined as a failure of the receiver on a port to recover the data as transmitted by the device port connected to the receiver. The error may be detected as a running disparity error, illegal code, loss of word sync, or CRC error.

6.2 Reliability and service

You can enhance the reliability of Constellation ES.2 disk drives by ensuring that the drive receives adequate cooling. Section 7.0 provides temperature measurements and other information that may be used to enhance the service life of the drive. Section 11.2 provides recommended air-flow information.

6.2.1 Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF)

The production disk drive shall achieve an AFR of 0.73% (MTBF of 1,200,000 hours) when operated in an environment that ensures the HDA case temperatures do not exceed the values specified in Section 7.5. Operation at case temperatures outside the specifications in Section 7.5 may increase the product AFR (decrease the MTBF). The AFR (MTBF) is a population statistic not relevant to individual units.

The AFR (MTBF) specification is based on the following assumptions for Enterprise Storage System environments:

• 8760 power-on hours per year.

• 250 average on/off cycles per year.

• Operations at nominal voltages.

• Systems will provide adequate cooling to ensure the case temperatures specified in Section 7.5 are not exceeded. Temperatures outside the specifications in Section 7.5 will increase the product AFR and decrease the MTBF.

6.2.2 Preventive maintenance

No routine scheduled preventive maintenance is required.

6.2.3 Hot plugging the drive

When a disk is powered on by switching the power or hot plugged, the drive runs a self test before attempting to communicate on its’ interfaces. When the self test completes successfully, the drive initiates a Link Reset starting with OOB. An attached device should respond to the link reset. If the link reset attempt fails, or any time the drive looses sync, the drive initiated link reset. The drive will initiate link reset once per second but alternates between port A and B. Therefore each port will attempt a link reset once per 2 seconds assuming both ports are out of sync.

If the self-test fails, the drive does not respond to link reset on the failing port. Note. It is the responsibility of the systems integrator to assure that no temperature, energy, voltage haz-

ard, or ESD potential hazard is presented during the hot connect/disconnect operation. Discharge the static electricity from the drive carrier prior to inserting it into the system.

Constellation ES.2 SAS Product Manual, Rev. E 15

Caution. The drive motor must come to a complete stop prior to changing the plane of operation. This time is

required to insure data integrity.

6.2.4 S.M.A.R.T.

S.M.A.R.T. is an acronym for Self-Monitoring Analysis and Reporting Technology. This technology is intended to recognize conditions that indicate imminent drive failure and is designed to provide sufficient warning of a failure to allow you to back up the data before an actual failure occurs.

Note. The drive’s firmware monitors specific attributes for degradation over time but can’t predict inst anta-

neous drive failures.

Each monitored attribute has been selected to monitor a specific set of failure conditions in the operating performance of the drive and the thresholds are optimized to minimize “false” and “failed” predictions.

Controlling S.M.A.R.T.

The operating mode of S.M.A.R.T. is controlled by the DEXCPT and PERF bits on the Informational Exceptions Control mode page (1Ch). Use the DEXCPT bit to enable or disable the S.M.A.R.T. feature. Setting the DEXCPT bit disables all S.M.A.R.T. functions. When enabled, S.M.A.R.T. collects on-line data as the drive performs normal read and write operations. When the PERF bit is set, the drive is considered to be in “On-line Mode Only” and will not perform off-line functions.

You can measure off-line attributes and force the drive to save the data by using the Rezero Unit command. Forcing S.M.A.R.T. resets the timer so that the next scheduled interrupt is in one hour.

You can interrogate the drive through the host to determine the time remaining before the next scheduled measurement and data logging process occurs. To accomplish this, issue a Log Sense command to log page 0x3E. This allows you to control when S.M.A.R.T. interruptions occur. Forcing S.M.A.R.T. with the RTZ command resets the timer.

Performance impact

S.M.A.R.T. attribute data is saved to the disk so that the events that caused a predictive failure can be recreated. The drive measures and saves parameters once every one hour subject to an idle period on the drive interfaces. The process of measuring off-line attribute data and saving data to the disk is interruptable. The maximum on-line only processing delay is summarized below:

Maximum processing delay

On-line only delay DEXCPT = 0, PERF = 1

S.M.A.R.T. delay times 210 ms 75 ms

Fully-enabled delay DEXCPT = 0, PERF = 0

Reporting control

Reporting is controlled by the MRIE bits in the Informational Exceptions Control mode page (1Ch). An example, if the MRIE is set to one, the firmware will issue to the host an 01-5D00 sense code. The FRU field contains the type of predictive failure that occurred. The err or code is preserved through bus resets and power cycles.

Determining rate

S.M.A.R.T. monitors the rate at which errors occur and signals a predictive failure if the rate of degraded errors increases to an unacceptable level. To determine rate, error events are logge d a nd com p a re d to the num ber of total operations for a given attribute. The interval defines the number of operations o ver whic h to m easur e the rate. The counter that keeps track of the current number of operations is referred to as the Interval Counter.

16 Constellation ES.2 SAS Product Manual, Rev. E

S.M.A.R.T. measures error rates. All errors for each monitored attribute are recorded. A counter keeps track of the number of errors for the current interval. This counter is referred to as the Failure Counter.

Error rate is the number of errors per operation. The algor ithm that S.M .A.R.T. uses to record rates of error is to set thresholds for the number of errors and their interval. If the number of errors exceeds the threshold before the interval expires, the error rate is considered to be unacceptable. If the number of errors does not exceed the threshold before the interval expires, the error rate is considered to be acceptable. In either case, the interval and failure counters are reset and the process starts over.

Predictive failures

S.M.A.R.T. signals predictive failures when the drive is performing unacceptably for a period of time. The firmware keeps a running count of the number of times the error rate for each attribute is un acceptable. To accomplish this, a counter is incremented each time the error rate is unacceptable and decremented (not to exceed zero) whenever the error rate is acceptable. If the counter continually incremen ts such that it reac hes the predictive threshold, a predictive failure is signaled. This counter is referred to as the Failure History Counter. There is a separate Failure History Counter for each attribute.

6.2.5 Thermal monitor

Constellation ES.2 drives implement a temperature warning system which:

1. Signals the host if the temperature exceeds a value which would threaten the drive.

2. Signals the host if the temperature exceeds a user-specified value.

3. Saves a S.M.A.R.T. data frame on the drive which exceeds the threatening temperature value.

A temperature sensor monitors the drive temperature and issues a warning over the interface when the temperature exceeds a set threshold. The temperature is measured at power-up and then at ten-minute intervals after power-up.

The thermal monitor system generates a warning code of 01-0B01 when the temperature exceeds the specified limit in compliance with the SCSI standard. The drive temperature is r eported in th e FRU code field of mode sense data. You can use this information to determine if the warning is due to the temperature exceeding the drive threatening temperature or the user-specified temperature.

This feature is controlled by the Enable Warning (EWasc) bit, and the re porting mecha nism is controlle d by the Method of Reporting Informational Exceptions field (MRIE) on the Informational Exceptions Control (IEC) mode page (1Ch).

The current algorithm implements two temperature trip points. The first trip point is set at 65°C which is the maximum temperature limit according to the drive specification. The second trip point is user-selectable using the Log Select command. The reference temperature parameter in the temperature log page (see Table 1) can be used to set this trip point. The default value for this drive is 65°C, however, you can set it to any value in the range of 0 to 65°C. If you specify a temperature greater than 65°C in this field, the temperature is rounded down to 65°C. A sense code is sent to the host to indicate the rounding of the parameter field.

Table 1: Temperature Log Page (0Dh)

Parameter Code Description

0000h 0001h

Primary Temperature Reference Temperature

Constellation ES.2 SAS Product Manual, Rev. E 17

6.2.6 Drive Sel f Test (DST)

Drive Self Test (DST) is a technology designed to recognize drive fault conditions that qualify the drive as a failed unit. DST validates the functionality of the drive at a system level.

There are two test coverage options implemented in DST:

1. Extended test

2. Short test The most thorough option is the extended test that performs various tests on the drive and scans ev er y lo gic al

block address (LBA) of the drive. The short test is time-restricted and limited in length—it does not scan the entire media surface, but does some fundamental tests and scans portions of the media.

If DST encounters an error during either of these tests, it reports a fault condition. If the drive fails the test, remove it from service and return it to Seagate for service.

6.2.6.1 DST failure definition

The drive will present a “diagnostic failed” condition through the self-tests results value of the diagnostic log page if a functional failure is encountered during DST. The channel and servo parameters are not modified to test the drive more stringently, and the number of retries are not reduced. All retries and recovery processes are enabled during the test. If data is recoverable, no failure condition will be reported regardless of the number of retries required to recover the data.

The following conditions are considered DST failure conditions:

• Seek error after retries are exhausted

• Track-follow error after retries are exhausted

• Read error after retries are exhausted

• Write error after retries are exhausted Recovered errors will not be reported as diagnostic failures.

6.2.6.2 Implementation

This section provides all of the information necessary to implement the DST function on this drive.

6.2.6.2.1 State of the drive prior to testing

The drive must be in a ready state before issuing the Send Diagnostic command. There are multiple reasons why a drive may not be ready, some of which are valid conditions, and not errors. For example, a drive may be in process of doing a format, or another DST. It is the responsibility of the host application to determine the “not ready” cause.

While not technically part of DST, a Not Ready condition also qualifies the drive to be returned to Seagate as a failed drive.

A Drive Not Ready condition is reported by the drive under the following conditions:

• Motor will not spin

• Motor will not lock to speed

• Servo will not lock on track

• Drive cannot read configuration tables from the disk In these conditions, the drive responds to a Test Unit Ready command with an 02/04/00 or 02/04/03 code.

6.2.6.2.2 Invoking DST

To invoke DST, submit the Send Diagnostic command with the appropriate Function Code (001b for the short test or 010b for the extended test) in bytes 1, bits 5, 6, and 7.

18 Constellation ES.2 SAS Product Manual, Rev. E

6.2.6.2.3 Short and extended tests

DST has two testing options:

1. short

2. extended

These testing options are described in the following two subsections. Each test consists of three segments: an electrical test segment, a servo test segment, and a read/verify scan

segment.

Short test (Function Code: 001b)

The purpose of the short test is to provide a time-limited test that tests as much of the drive as possible within 120 seconds. The short test does not scan the entire media surface, but does some fundamental tests and scans portions of the media. A complete read/verify scan is not performed and only factual failures will report a fault condition. This option provides a quick confidence test of the drive.

Extended test (Function Code: 010b)

The objective of the extended test option is to empirically test critical drive componen ts. For example, the seek tests and on-track operations test the positioning mechanism. The read operation tests the read head element and the media surface. The write element is tested through read/write/read operations. The integrity of the media is checked through a read/verify scan of the media. Motor functionality is tested by default as a part of these tests.

The anticipated length of the Extended test is reported through the Control Mode page.

6.2.6.2.4 Log page entries

When the drive begins DST, it creates a new entry in the Self-test Results Log page. The new entry is created by inserting a new self-test parameter block at the b eginning of the se lf-test result s log par ameter section of the log page. Existing data will be moved to make room for the new parameter block. The drive reports 20 parameter blocks in the log page. If there are more than 20 parameter blocks, the least recent parameter block will be deleted. The new parameter block will be initialized as follows:

1. The Function Code field is set to the same value as sent in the DST command

2. The Self-Test Results Value field is set to Fh

3. The drive will store the log page to non-volatile memory

After a self-test is complete or has been aborted, the drive updates the Self-Test Results Value field in its SelfTest Results Log page in non-volatile memory. The host may use Log Sense to read the results from up to the last 20 self-tests performed by the drive. Th e se lf- te st r esults value is a 4-bit field that reports the results of the test. If the field is set to zero, the drive passed with no errors detected by the DST. If the field is not set to zero, the test failed for the reason reported in the field.

The drive will report the failure condition and LBA (if applicable) in the Self-test Results Log parameter. The Sense key, ASC, ASCQ, and FRU are used to report the failure condition.

6.2.6.2.5 Abort

There are several ways to abort a diagnostic. You can use a SCSI Bus Reset or a Bus Device Reset message to abort the diagnostic.

You can abort a DST executing in background mode by using the abort code in the DST Function Code field. This will cause a 01 (self-test aborted by the application client) code to appear in the self-test results values log. All other abort mechanisms will be reported as a 02 (self-test routine was interrupted by a reset condition).

Constellation ES.2 SAS Product Manual, Rev. E 19

6.2.7 Product warranty

See Section 1.0 for warranty contact information.

Shipping

When transporting or shipping a drive, use only a Seagate-approved container. Keep your original box. Seagate approved containers are easily identified by the Seagate Approved Package label. Shipping a drive in a non-approved container voids the drive warranty.

Seagate repair centers may refuse receipt of components improperly packaged or obviously damaged in transit. Contact your authorized Seagate distributor to purchase additional boxes. Seagate recommends shipping by an air-ride carrier experienced in handling computer equipment.

Storage

The maximum recommended storage period for the drive in a non-operational environment is 90 days. Drives should be stored in the original unopened Seagate shipping packaging whenever possible. Once the drive is removed from the Seagate original packaging the recommended maximum period between drive operation cycles is 30 days. During any storage period the drive non-operational temperature, humidity, wet bulb, atmospheric conditions, shock, vibration, magnetic and electrical field specifications should be followed.

Product repair and return information

Seagate customer service centers are the only facilities authorized to service Seagate drives. Seagate does not sanction any third-party repair facilities. Any unauthorized repair or tampering with the factory seal voids the warranty.

20 Constellation ES.2 SAS Product Manual, Rev. E

7.0 Physical/electrical specifications

This section provides information relating to the physical and electrical characteristics of the dr ive.

7.1 PowerChoiceTM power management

Drives using the load/unload architecture provide programmable power management to tailor systems for performance and greater energy efficiency.

The table below lists the supporte d PowerChoice mod es. The further you go down in the t abl e, the more power savings you get. For example, Idle_B mode results in greater power savings than Idle_A mode. Standby_Z mode results in the greatest power savings.

PowerChoice modes

Mode Description

Idle_A Reduced electronics

Idle_B Heads unloaded. Disks spinning at full RPM

Idle_C Heads unloaded. Disks spinning at reduced RPM

Standby_Y Heads unloaded. Disks spinning at reduced RPM.

Recovery requires the NOTIFY (Enable Spinup) command.

Standby_Z Heads unloaded. Motor stopped (disks not spinning)

Recovery requires the NOTIFY (Enable Spinup) command.

PowerChoice

can be invoked using one of these two methods:

• Power Condition mode page method—Enable and in itialize th e idle co ndition tim ers an d/o r the standby con dition timers. The timer values are based on the values set in the Power Condition mode page.

• START STOP UNIT command method—Use the START ST

OP UNIT command (OPERATION CODE 1Bh).

This allows the host to directly transition the drive to any supported PowerChoice mode.

If both the Power Condition mode page and START ST

OP UNIT command methods are used, the START STOP UNIT command request takes precedence over the Power Conditio n mode p age power control and may disable the idle condition and standby condition timers. The REQUEST SENSE command reports the current PowerChoice state if active and also the method by which the drive entered the PowerChoice state.

When the drive receives a command, all power condition timers are suspended if they were enabled via the Power Condition mode page. Once all outstanding commands are processed, the power condition timers are reinitialized to the values defined in the Power Condition mode page.

Constellation ES.2 SAS Product Manual, Rev. E 21

7.1.1 PowerChoice reporting methods

PowerChoiceTM provides these reporting methods for tracking purposes:

Request Sense command reports

• Current power condition

• Method of entry Note. Processing the Request Sense command does not impact the drive’s powe r save state.

Mode Sense command reports (mode page 0x1A)

• Idle conditions enabled / disabled

• Idle condition timer values (100ms increm e nts) (def au lt, save d, cu rr en t, ch an g ea ble)

Power Condition Vital Product Data (VPD) Page (VPD page 0x8A)

• Supported power conditions

• Typical recovery time from power conditions (1ms increments)

Start/Stop Cycle Counter Log Page reports (lo g page 0x0E)

• Specified an d accumulated Start/Stops and Load/Unload cycles

Power Condition Transitions Log Page reports (log page 0x1A, subpage 0x00)

• Accumulated transitions to Active, Idle_A, Idle_B, Idle_C, Standby_Y, Standby_Z

7.2 AC power requirements

None.

7.3 DC power requirements

The voltage and current requirements for a single drive are shown below. Values indicated apply at the drive connector.

The standard drive models and the SED drive models have identical hardware, however the security and encryption portion of the drive controller ASIC is enabled and functional in the SED models. This represents a small additional drain on the 5V supply of about 30mA and a commensurate increase of about 150mW in power consumption. There is no additional drain on the 12V supply.

22 Constellation ES.2 SAS Product Manual, Rev. E

Table 2: 3000GB drive (Standard & SED model) DC power requirements

3.0Gb mode 6.0Gb mode

Notes

Voltage +5V +12V [4] +5V +12V [4] Regulation [5] ± 5% [2] ± 5% [2]

Avg idle current DCX Advanced idle current

Idle_A 0.28 0.50 0.28 0.50 Idle_B 0.26 0.41 0.26 0.41 Idle_C/ Standby_Y 0.26 0.24 0.26 0.24 Standby_Z 0.25 0.01 0.25 0.01

Maximum starting current

(peak DC) DC 3σ [5] 0.60 1.71 0.60 1.70

(peak AC) AC 3σ [5] 0.82 2.29 0.88 2.23 Delayed motor start (max) DC 3σ [1] [6] 0.39 0.01 0.39 0.01 Peak operating current (random read): Typical DCX [1] [6] 0.48 0.74 0.49 0.74

Maximum DC 3σ [1] 0.49 0.75 0.50 0.76

[1] [7] 0.28 0.50 0.28 0.50

(Amps) (Amps) (Amps) (Amps)

Maximum (peak) DC 3σ 1.14 1.88 1.16 1.86 Peak operating current (random write)

Typical DCX 0.58 0.60 0.59 0.61

Maximum DC 3σ 0.60 0.62 0.60 0.62

Maximum (peak) DC 3σ 1.20 1.86 1.18 1.88 Peak operating current (sequential read)

Typical DCX 0.79 0.48 0.79 0.49

Maximum DC 3σ 0.83 0.49 0.84 0.50

Maximum (peak) DC 3σ 1.16 0.88 1.12 0.90 Peak operating current (sequential write)

Typical DCX 0.94 0.48 0.94 0.48

Maximum DC 3σ 0.98 0.49 0.98 0.50

Maximum (peak) DC 3σ 1.20 0.88 1.20 0.88

[1] Measured with average reading DC ammeter. [2] Instantaneous +12V current peaks will exceed these values. [3] Power supply at nominal voltage. N (number of drives tested) = 6, 35 Degrees C ambient. [4] For +12 V, a –10% tolerance is allowed during initial spindle start but must return to ± 5% before reaching

7200 RPM. The ± 5% must be maintained after the drive signifies that its power-up sequence has been completed and that the drive is able to accept selection by the host initiator.

Constellation ES.2 SAS Product Manual, Rev. E 23

[5] See +12V current profile in Figure 1. [6] This condition occurs after OOB and Speed Negotiation completes but before the drive has received the

Notify Spinup primitive.

[7] See paragraph 7.3.1, "Conducted noise immunity." Specified voltage tolerance includes ripple, noise, and

transient response.

[8] Operating condition is defined as random 8 block reads. [9] During idle, the drive heads are relocated every 60 seconds to a random location within the band from

three-quarters to maximum track.

General DC power requirement notes.

1. Minimum current loading for each supply vo ltage is not less than 1.7% of the maximum operating current shown.

2. The +5V and +12V supplies should employ separate ground returns.

3. Where power is provided to multiple drives from a common supply, careful consideration for individual drive power requirements should be noted. Where multiple units are powered on simultaneously, the peak starting current must be available to each device.

4. Parameters, other than spindle start, are measured after a 10-minute warm up.

5. No terminator power.

7.3.1 Conducted noise immunity

Noise is specified as a periodic and random distribution of frequencies covering a band from DC to 10 MHz. Maximum allowed noise values given below are peak-to-peak measurements and apply at the drive power connector.

+5v = 250 mV pp from 100 Hz to 20 MHz. +12v = 800 mV pp from 100 Hz to 8 KHz.

450 mV pp from 8 KHz to 20 KHz. 250 mV pp from 20 KHz to 5 MHz.

7.3.2 Power sequencing

The drive does not require power sequencing. The drive protects against inadvertent writing during power-up and down.

24 Constellation ES.2 SAS Product Manual, Rev. E

7.3.3 Current profiles

The +12V (top) and +5V (bottom) current profiles for the Constellation ES drives are shown below.

Figure 1. 3TB model current profiles Note: All times and currents are typical. See Table 2 for maximum current requirements.

Constellation ES.2 SAS Product Manual, Rev. E 25

7.4 Power dissipation

3TB models in 3Gb operation

Please refer to Table 2 for power dissipation numbers. To obtain operating power for typical random read operations, refer to the following I/O rate curve (see Figure

2). Locate the typical I/O rate for a drive in y our system on the horizontal axis and read the corresponding +5

volt current, +12 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by

3.4123.

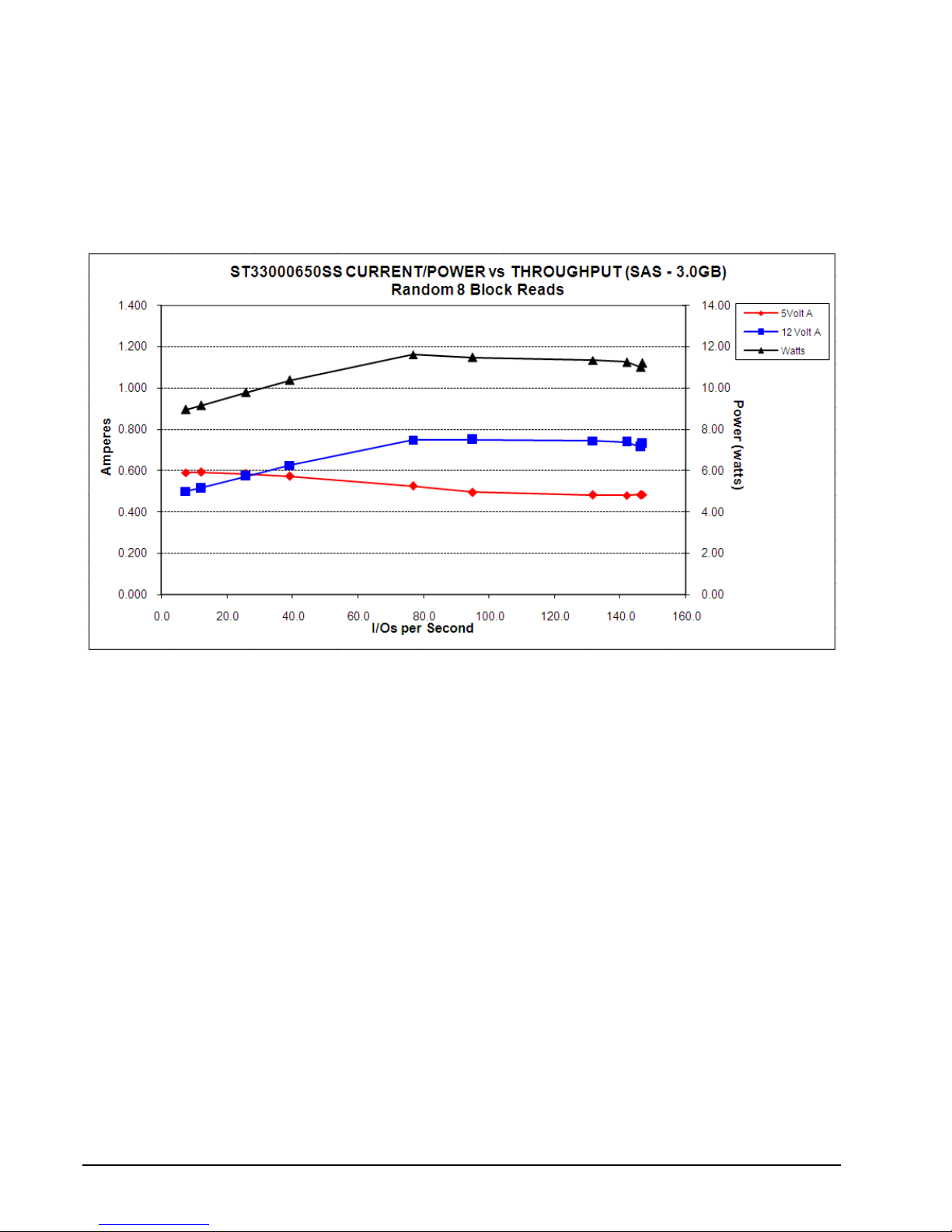

Figure 2. 3TB models (3Gb) DC current and power vs. input/output operatio ns per second

Note. For power details about SED vs. non-SED drive, please refer to section 7.8.

26 Constellation ES.2 SAS Product Manual, Rev. E

3TB models in 6Gb operation

Please refer to Table 2 for power dissipation numbers. To obtain operating power for typical random read operations, refer to the following I/O rate curve (see Figure

3.). Locate the typical I/O rate for a drive in your system on the horizontal axis and read the corresponding +5 volt current, +12 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by

3.4123.

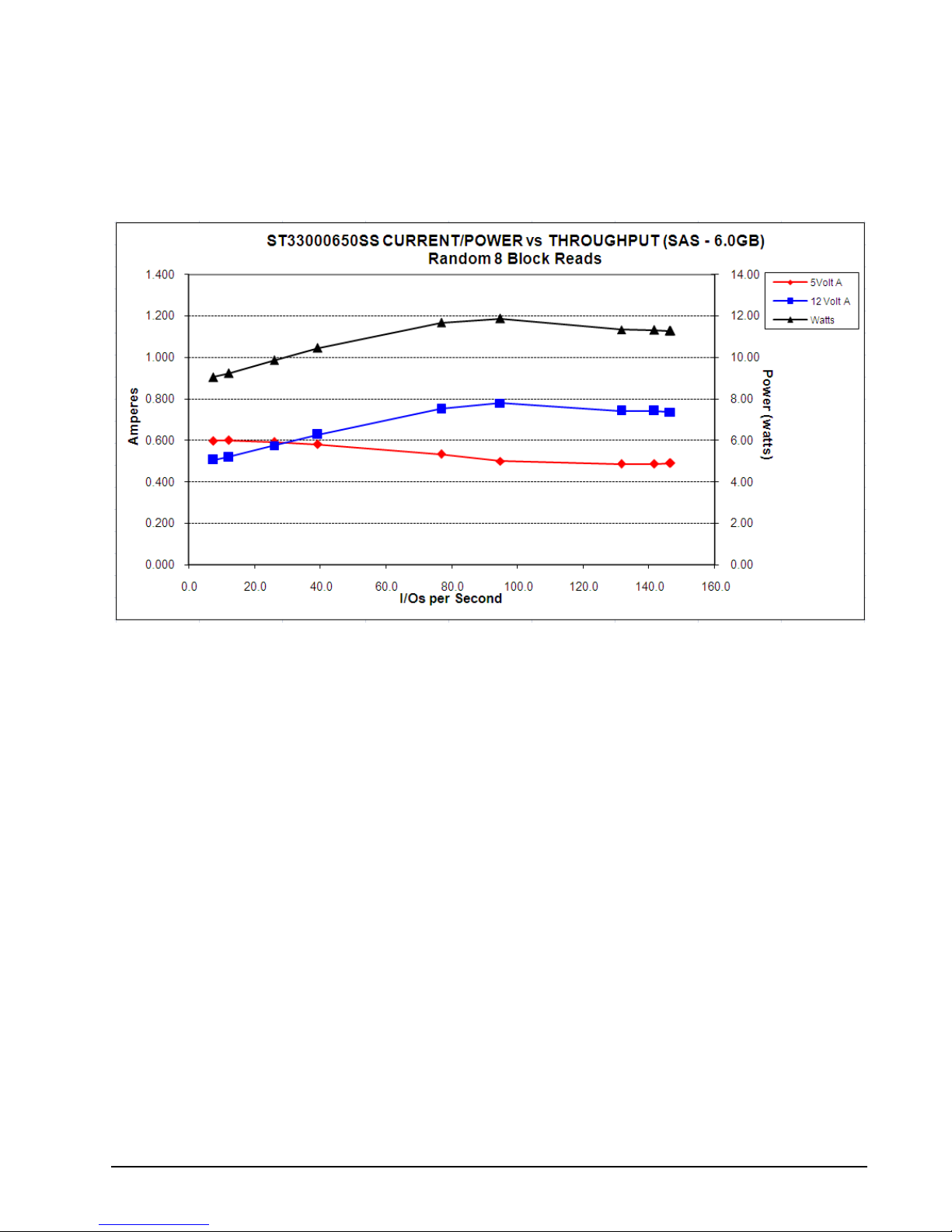

Figure 3. 3TB models (6Gb) DC current and power vs. input/output operations per second

For power details about SED vs. non-SED drive, please refer to section 7.8.

Constellation ES.2 SAS Product Manual, Rev. E 27

7.5 Environmental limits

HDA Temp.

Check Point

Temperature and humidity values experienced by the drive must be such that condensation does not occur on any drive part. Altitude and atmospheric pressure specifications are referenced to a standard day at 58.7°F (14.8°C). Maximum wet bulb temperature is 82°F (28°C).

7.5.1 Temperature

a. Operating

The drive meets the operating specifications over a 41°F to 140°F (5°C to 60°C) drive case temperature r

ange with a maximum temperature gradient of 36°F (20°C) per hour.

The maximum allowable drive case temperature is 60°C. See Figure 4 for HDA case temperature measurement location.

The MTBF specification for the drive assume case temperature. The rated MTBF is based upon a sustained case temperature of 104°F (40°C). Occasional excursions in operatin g temperature between the rated M TBF temperature and the maximum drive operating case temperature may occur without impact to the rated MTBF temperature. However, continual or sustained operation at case temperatures beyond the rated MTBF temperature will degrade the drive MTBF and reduce product reliability.

Air flow may be required to achieve consistent nominal case temperature values (see Section 11.2). To confirm that the required cooling is provided for the mechanical configuration, and perform random write/read operations. After the temperatures stabilize, measure the case temperature of the drive.

b. Non-operating

–40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This spe

cification assumes that the drive is packaged in th e shipping cont ainer designed b y Seagate for use with

drive.

s the operating environment is designed to maintain nominal

electronics and HDA, place the drive in its final

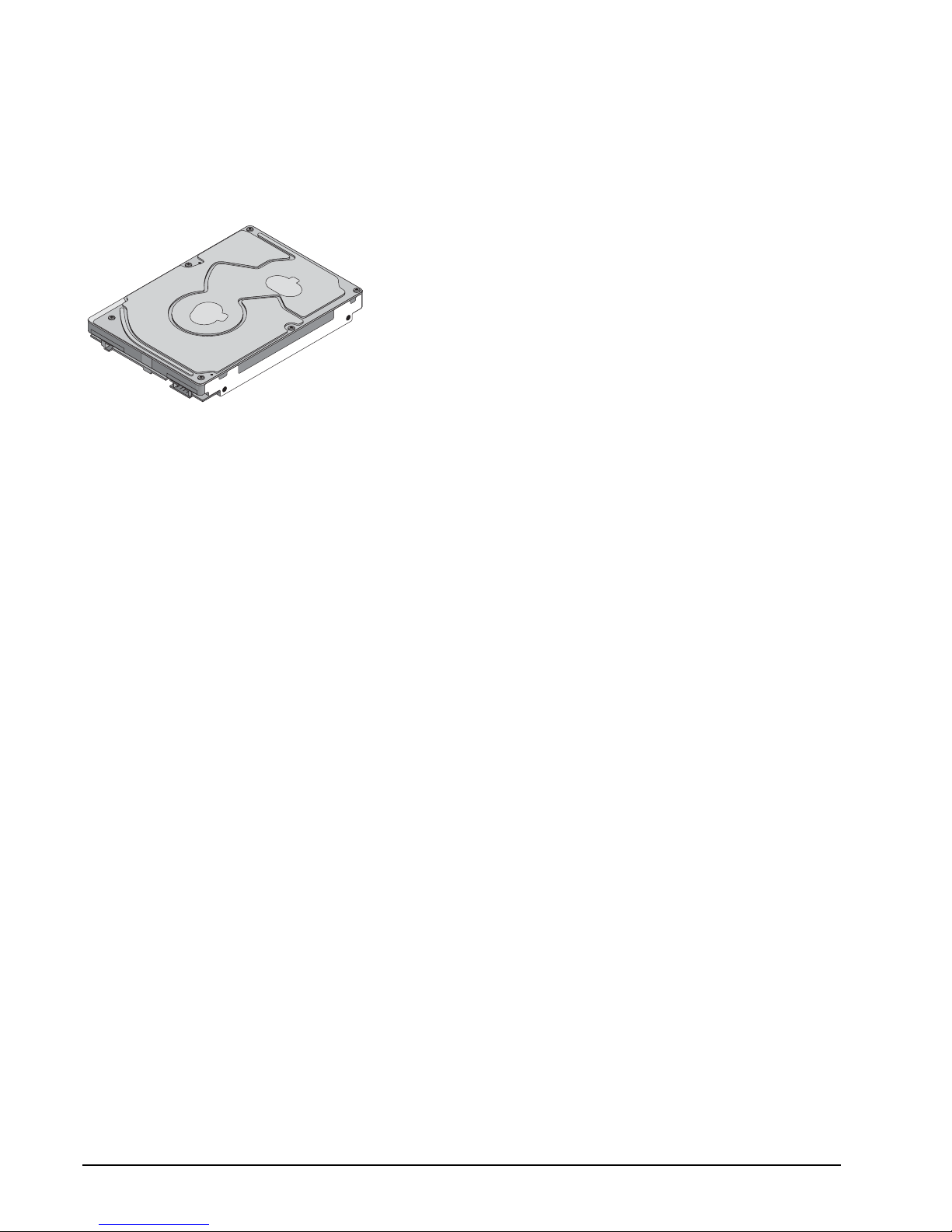

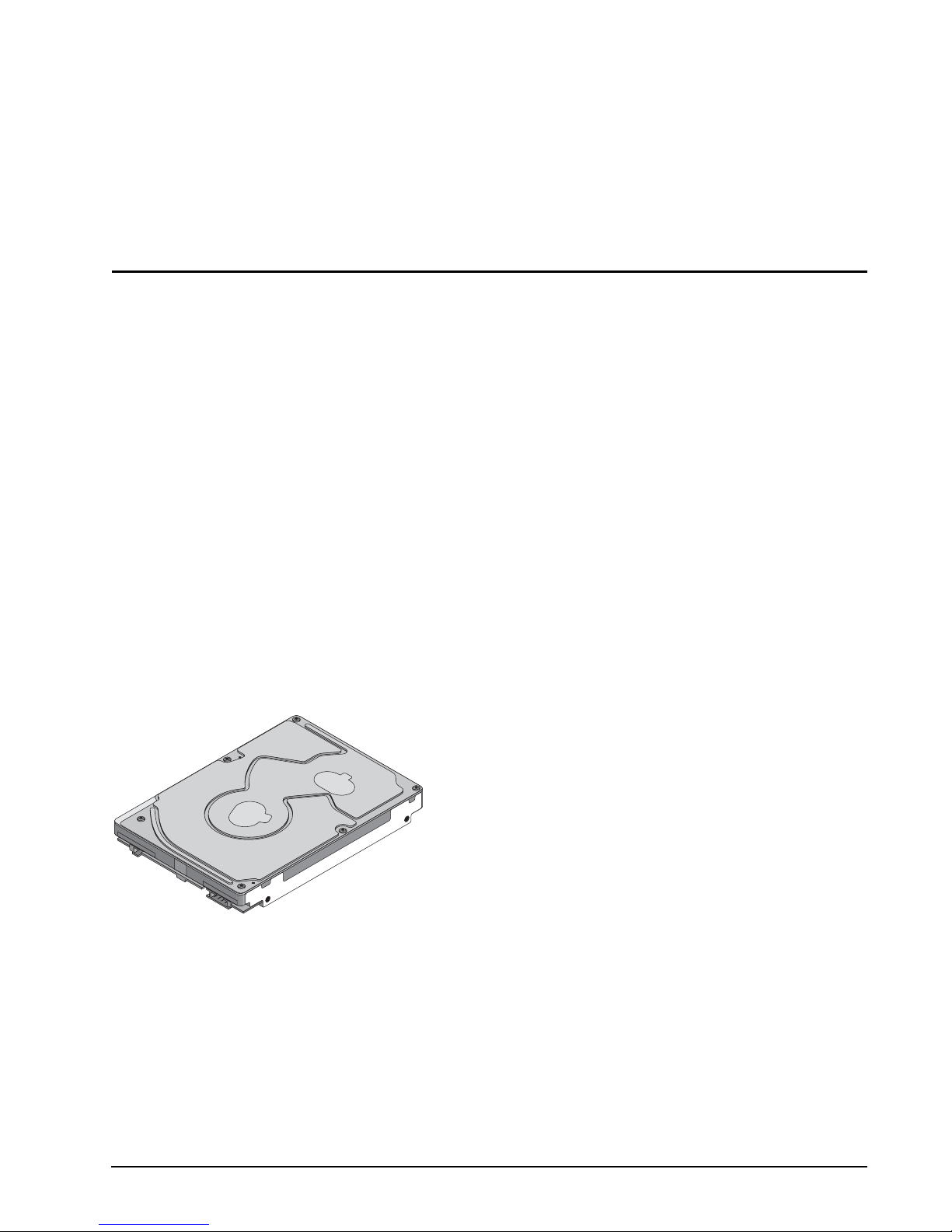

Figure 4. Location of the HDA temperature check point

Note. Image is for reference only, may not represent actual drive.

7.5.2 Relative humidity

The values below assume that no condensation on the drive occurs. a. Operating

5% to 95% non-condensing relative humidity with a maximum gradient of 20% per hour.

b. Non-operating

5% to 95% non-condensing relative humidity.

28 Constellation ES.2 SAS Product Manual, Rev. E

7.5.3 Effective altitude (sea level)

a. Operating

–1000 to +10,000 feet (–304.8 to +3,048 meters)

b. Non-operating

–1000 to +40,000 feet (–304.8 to +12,192 meters)

7.5.4 Shock and vibration

Shock and vibration limits specified in this document are measured directly on the drive chassis. If the drive is installed in an enclosure to which the stated shock and/or vibration criteria is applied, resona nces may occur internally to the enclosure resulting in drive movement in excess of the stated limits. If this situation is apparent, it may be necessary to modify the enclosure to minimize drive movement.

The limits of shock and vibration defined within this document are specified with the drive mounted by any of the four methods shown in Figure 5, and in accordance with the restrictions of Section 11.3.

7.5.4.1 Shock

a. Operating—normal

The drive, as installed for normal operation, shall oper ate error free while subjected to intermittent shoc k not exceeding 70 Gs (read) and 40 Gs (write) at a maximum duration of 2ms (half sinewave). Shock m ay be applied in the X, Y, or Z axis. Shock is not to be repeated more than once every 2 seconds.

b. Operating—abnormal

Equipment, as installed for normal operation, does not incur physical damage while subjected to intermittent shock not exceeding 40 Gs at a maximum duration of 11ms (half sinewave). Shock occurring at abnormal levels may promote degraded operational performance during the abnormal shock period. Specified operational performance will continue when normal operating shock levels resume. Shock may be applied in the X, Y, or Z axis. Shock is not to be repeated more than once every 2 seconds.

c. Non-operating

The limits of non-operating shock shall apply to all conditions of handling and transportation. This includes both isolated drives and integrated drives.

The drive subjected to nonrepetitive shock not exceeding 80 Gs at a maximum duration of 11ms (half sinewave) shall not exhibit device damage or performance degradation. Shock may be applied in the X, Y, or Z axis.

The drive subjected to nonrepetitive shock not exceeding 300 Gs at a maximum duration of 2ms (half sinewave) does not exhibit device damage or performance degradation. Shock may be applied in the X, Y, or Z axis.

The drive subjected to nonrepetitive shock not exceeding 200 Gs at a maximum duration of 0.5ms (half sinewave) does not exhibit device damage or performance degradation. Shock may be applied in the X, Y, or Z axis.

Constellation ES.2 SAS Product Manual, Rev. E 29

d. Packaged

disk drives shipped as loose load

(not palletized) general freight will be packaged to withstand drops from heights as defined in the table below. For additional details refer to Seagate specifications 30190-001 (under 100 lbs/45 kg) or 30191-001 (over 100 lbs/45 Kg).

Package size Packaged/product weight Drop height

<600 cu in (<9,800 cu cm) Any 60 in (1524 mm) 600-1800 cu in (9,800-19,700 cu cm) 0-20 lb (0 to 9.1 kg) 48 in (1219 mm) >1800 cu in (>19,700 cu cm) 0-20 lb (0 to 9.1 kg) 42 in (1067 mm) >600 cu in (>9,800 cu cm) 20-40 lb (9.1 to 18.1 kg) 36 in (914 mm)

Drives packaged in single or

multipacks with a gross weight of 20 pounds (8.95 kg) or less by Seagate for general freight shipment shall withstand a drop test from 48 in (1070 mm) against a concrete floor or equivalent.

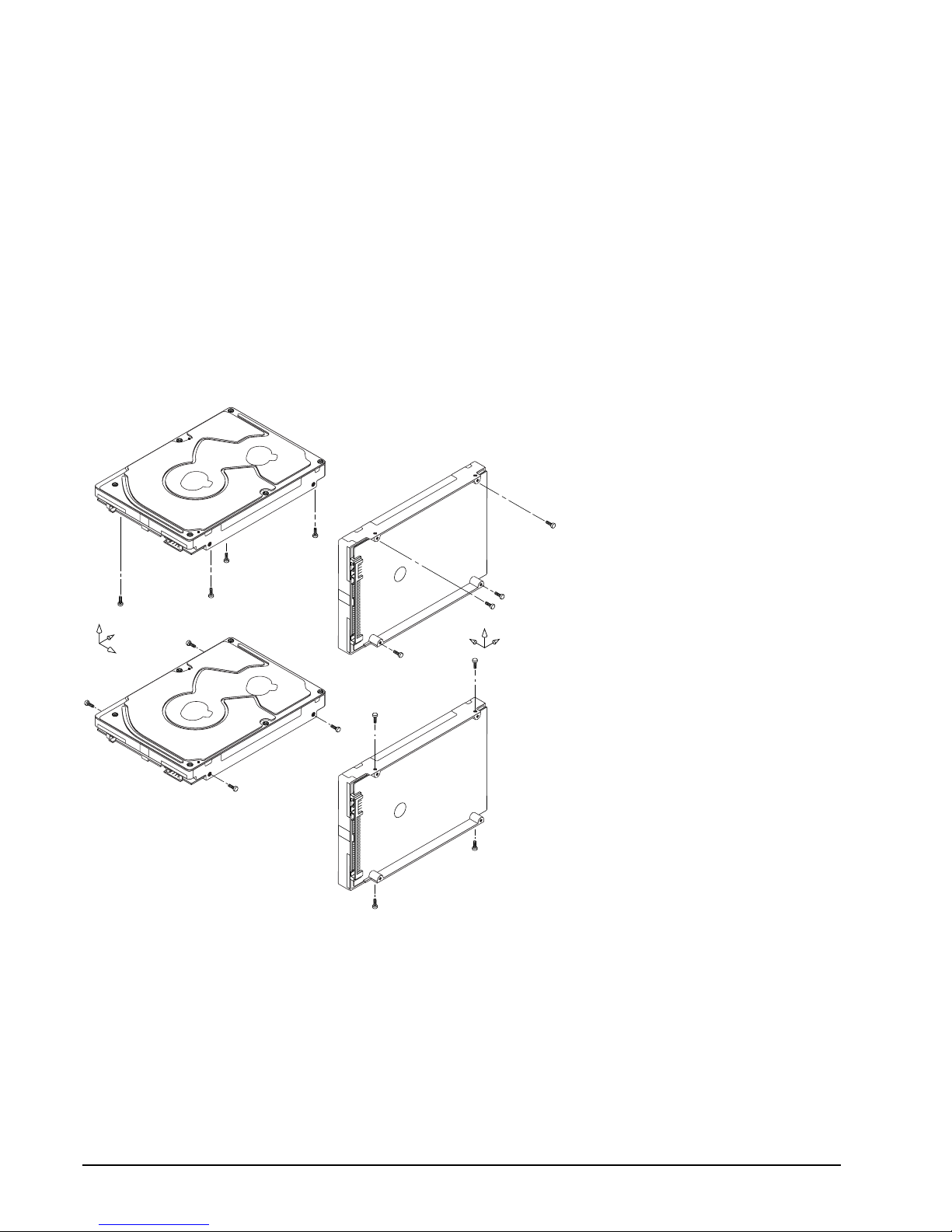

Figure 5. Recommended mounting

Note. Image is for reference only, may not represent actual drive.

30 Constellation ES.2 SAS Product Manual, Rev. E

7.5.4.2 Vibration

a. Operating—normal

The drive as installed for normal operation, shall comply with the complete specified performance while subjected to continuous vibration not exceeding

5 - 22 Hz 0.25 Gs, limited displacement 22 - 350 Hz 0.5 Gs 350 - 500 Hz 0.25 Gs

Vibration may be applied in the X, Y, or Z axis.

b. Operating—abnormal

Equipment as installed for normal operation shall not incur physical damage while subjected to periodic vibration not exceeding:

15 minutes of duration at major resonant frequency

Vibration occurring at these levels may degrade operational performance during the abnormal vibration period. Specified operational performance will continue when normal operating vibration levels are resumed. This assumes system recovery routines are available.

Operating abnormal translational random flat profile

5-500 Hz @ 0.75 G (X, Y, or Z axis)

c. Non-operating

The limits of non-operating vibration shall apply to all conditions of handling and transportation. This includes both isolated drives and integrated drives.

The drive shall not incur physical damage or degraded performance as a result of continuous vibration not exceeding

5 - 22 Hz 2 Gs (0 to peak, linear, swept sine, 0.5 octave/min) 22 - 350 Hz 5 Gs (0 to peak, linear, swept sine, 0.5 octave/min) 350 - 500 Hz 2 Gs (0 to peak, linear, swept sine, 0.5 octave/min)

Vibration may be applied in the X, Y, or Z axis.

7.5.5 Acoustics

Sound power during idle mode shall be 2.8 bels typical when measured to ISO 7779 specification. Sound power while operating shall be 3.0 bels typical when measured to ISO 7779 specification.

There will not be any discrete tones more than 10 dB above the masking noise on typical drives when measured according to Seagate specification 30553-001. There will not be any tones more th an 24 dB above the masking noise on any drive.

7.5.6 Air cle a nl in es s

The drive is designed to operate in a typical office environment with minimal environmental control.

7.5.7 Co r ro s iv e en v iro nment

Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845. However, this accelerated testing cannot duplicate every potential application environment.

Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electronic drive component reliability can be affected by the installation environment. The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate c ontaminants. Sulfur is found to be the m ost damaging. In addition, electronic

Constellation ES.2 SAS Product Manual, Rev. E 31

components should never be exposed to condensing water on the surface of the printed circuit bo ard assembly (PCBA) or exposed to an ambient relative humidity greater than 95%. Materials used in cabinet fabrication, such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.

7.5.8 Electromagnetic susceptibility

See Section 3.1.1.1.

32 Constellation ES.2 SAS Product Manual, Rev. E

7.6 Mechanical specifications

Breather Hole

Refer to Figure 6 for detailed mounting configuration dimensions. See Section 11.3, “Drive mounting.”

Weight: 1.543 lb 700 g

Note. These dimensions conform to the Small Form Factor Standard documented in SFF-8301 and

SFF-8323, found at

www.sffcommittee.org.

Figure 6. Mounting configuration dimensions

Constellation ES.2 SAS Product Manual, Rev. E 33

8.0 About FIPS

The Federal Information Processing Standard (FIPS) Publication 140-2 is a U.S. Government Computer Security Standard used to accredit cryptographic modules. It is titled 'Security Requirements for Cryptographic Modules (FIPS PUB 140-2)' and is issued by the National Institute of Standards and Technology (NIST).

Purpose

This standard specifies the security requirements that will be satisfied by a cryptographic module utilized within a security system protecting sensitive but unclassified information. The standard provides four increasing, qualitative levels of security: Level 1, Level 2, Level 3 a nd L evel 4. T hese levels ar e inte nded to cover the wid e range of potential applications and environments in which cryptographic modules may be employed.

Validation Program

Products that claim conformance to this standard are validated by the Cryptographic Module Validation Program (CMVP) which is a joint effort between National Institute of Standards and Technology (NIST) and the Communications Security Establishment (CSE) of the Government of Canada. Products validated as conforming to FIPS 140-2 are accepted by the Federal agencies of both countries for the protection of sensitive information (United States) or Designated Information (Canada).

In the CMVP, vendors of cryptographic modules use independent, accredited testing laborites to have their modules tested. National Voluntary Laboratory Accreditation Program (NVLAP) accredited laboratories perform cryptographic module compliance/conformance testing.

Seagate Enterprise SED

The SEDs referenced in this Product Manual are currently being validated by CMVP for FIPS 140- 2 Level 2.

Security Level 2

Security Level 2 enhances the physical security mechanisms of a Security Level 1 cryptographic module by adding the requirement for tamper-evidence, which includes the use of tamper-evident coatings or seals on removable covers of the module. Tamper-evident coatings or seals are placed on a cryptographic module so that the coating or seal must be broken to attain physical access to the critical security parameters (CSP) within the module. Tamper-evident seals are placed on covers to protect against unauthorized physical access. In addition Security Level 2 requires, at a minimum, role-based authentica tion in which a cryptographic module authenticates the authorization of an operator to assume a specific role and perform a corresponding set of services.

34 Constellation ES.2 SAS Product Manual, Rev. E

Figure 7. Example of FIPS tamper evidence labels.

Note. Image is for reference only, may not represent actual drive.

Constellation ES.2 SAS Product Manual, Rev. E 35

9.0 About self-encrypting drives

Self-encrypting drives (SEDs) offer encryption and security services for the protection of stored data, commonly known as “protection of data at rest.” These drives are compliant with the Trusted Computing Group (TCG) Enterprise Storage Specifications as detailed in Section 3.2.

The Trusted Computing Group (TCG) is an organization sponsored and operated by companies in the computer, storage and digital communications industry. Seagate’s SED models comply with the standards published by the TCG.

To use the security features in the drive, the host must be capable of constructing and issuing the followin g two SCSI commands:

• Security Protocol Out

• Security Protocol In These commands are used to convey the TCG protocol to and from the drive in their command payloads.

9.1 Data encryption

Encrypting drives use one inline encryption engine for each port, emp loying AES-128 dat a encryption in Cipher Block Chaining (CBC) mode to encrypt all data prior to being written on the media and to decrypt all data as it is read from the media. The encryption engines are always in operation, cannot be disabled, and do not d etract in any way from the performance of the drive.

The 32-byte Data Encryption Key (DEK) is a random number which is genera ted by the dr ive, never leaves the drive, and is inaccessible to the host system. The DEK is itself encrypted when it is stored on the media and when it is in volatile temporary storage (DRAM) external to the encryption engine. A unique data encryption key is used for each of the drive's possible16 data bands (see Section 9.5).

9.2 Controlled access

The drive has two security partitions (SPs) called the "Admin SP" and the "Locking SP." These act as gatekeepers to the drive security services. Security-related commands will not be accepted unless they also supply the correct credentials to prove the requester is authorized to perform the command.

9.2.1 Admin SP

The Admin SP allows the drive's owner to enable or disable firmware download operations (see Section 9.4). Access to the Admin SP is available using the SID (Secure ID) password or the MSID (Makers Secure ID) password.

9.2.2 Loc k in g SP

The Locking SP controls read/write access to the media and the cryptographic erase feature. Access to the Locking SP is available using the BandMasterX or EraseMaster passwords. Since the drive owner can define up to 16 data bands on the drive, each data band has its own password called BandMasterX where X is the number of the data band (0 through 15).

36 Constellation ES.2 SAS Product Manual, Rev. E

9.2.3 Default password

When the drive is shipped from the factory, all passwords are set to the value of MSID. This 32-byte random value is printed on the drive label and it can be read by the host electronically over the I/O. After receipt of the drive, it is the responsibility of the owner to use the default MSID password as the authority to change all other passwords to unique owner-specified values.

9.3 Random number generator (RNG)

The drive has a 32-byte hardware RNG that it is uses to derive encryption keys or, if requested to do so, to provide random numbers to the host for system use, including using these numbers as Authentication Keys (passwords) for the drive’s Admin and Locking SPs.

9.4 Drive locking

In addition to changing the passwords, as described in Section 9.2.3, the owner should also set the data access controls for the individual bands.

The variable "LockOnReset" should be set to "PowerCycle" to ensure that the data bands will be locked if power is lost. This scenario occurs if the drive is removed from its cabinet. The drive will not honor any data read or write requests until the bands have been unlocked. This prevents the user data from being accessed without the appropriate credentials when the drive has been removed from its cabinet and installed in another system.

When the drive is shipped from the factory, the firmware download port is unlocked.

9.5 Data bands

When shipped from the factory, the drive is configured with a single data band called Band 0 (als o known as the Global Data Band) which comprises LBA 0 through LBA max. The host may allocate Band1 by specifying a start LBA and an LBA range. The r eal est a te for this band is t aken from the Global Band. An add itional 14 Dat a Bands may be defined in a similar way (Band2 through Band15) but before these bands can be allocated LBA space, they must first be individually enabled using the EraseMaster password.

Data bands cannot overlap but they can be sequential with one ba nd e ndi ng at LBA (x) and the ne xt b eginnin g at LBA (x+1).

Each data band has its own drive-generate d encryption key and it s own user-supplied p assword. The host may change the Encryption Key (see Section 9.6) or the password when required. The bands should be aligned to 4K LBA boundaries.

9.6 Cryptographic erase

A significant feature of SEDs is the ability to perform a cryptographic erase. This involves the host telling the drive to change the data encryption key for a p ar ticu lar ban d. On ce chang ed , the data is no longer recoverable since it was written with one key and will be read using a different key. Since the drive overwrites the old key with the new one, and keeps no history of key changes, the user data can never be recovered. This is tantamount to an instantaneous data erase and is very useful if the drive is to be scrapped or redispositioned.

Constellation ES.2 SAS Product Manual, Rev. E 37

9.7 Authenticated firmware download

In addition to providing a locking mechanism to prevent unwanted firmware download attempts, the drive also only accepts download files which have been cryptographically signed by the appropriate Seagate Design Center.

Three conditions must be met before the drive will allow the download operation:

1. The download must be an SED file. A standard (base) drive (non-SED) file will be rejected.

2. The download file must be signed and authenticated.

3. As with a non-SED drive, the download file must pass the acceptance criteria for the drive. For example it must be applicable to the correct drive model, and have compatible revision and customer status.

9.8 Power requirements

9.9 Supported commands

The SED models support the following two commands in addition to the commands supported by the standard (non-SED) models as listed in Table 6:

• Security Protocol Out (B5h)

• Security Protocol In (A2h)

9.10 RevertSP

The SED models will support RevertSP feature where it erases all data in all bands on the device and returns the contents of all SPs (Security Providers) on the device to their Original Factory State.

38 Constellation ES.2 SAS Product Manual, Rev. E

10.0 Defect and error management

Seagate continues to use innovative technologies to manage defects and errors. These technologies are designed to increase data integrity, perform drive self-maintenance, and validate proper drive operation.

SCSI defect and error managemen t involves drive internal defect/error management and SAS system error considerations (errors in communications between the initiator and the drive). In addition, Seagate provides the following technologies used to increase data integrity and drive reliability:

• Background Media Scan (see Section 10.4)

• Media Pre-Scan (see Section 10.5)

• Deferred Auto-Reallocation (see Section 10.6)

• Idle Read After Write (see Section 10.7) The read error rates and specified storage capacities are not dependent on host (initiator) defect management

routines.

10.1 Drive internal defects/errors

During the initial drive format operation at the factory, media defects are identified, tagged as being unusable, and their locations recorded on the drive primary defects list (referred to as the “P’ list and also as the ETF defect list). At factory format time, these known defects are also reallocated, that is, reassigned to a new place on the medium and the location liste d in the defects reallocation table. The “P” list is not altered after factory formatting. Locations of defects found and reallocated during error recovery procedures after drive shipment are listed in the “G” list (defects growth list). The “P” and “G” lists may be referenced by the initiator using the Read Defect Data command.

Details of the SCSI commands supported by the drive are described in the SAS Interface Manual. Also, more information on the drive Error Recovery philosophy is presented in the SAS Interface Manual.

10.2 Drive error recovery procedures

When an error occurs during drive operation, the drive, if programmed to do so, performs error recovery procedures to attempt to recover the data. The error recovery procedures used depend on the options previously set in the Error Recovery Parameters mode page. Error recovery and defect management may involve using several SCSI commands described in the SAS Interface Manual. The drive implements selectable error recovery time limits required in video applications.

The error recovery scheme supported by the drive provides a way to control the to tal error r ecovery time for the entire command in addition to controlling the recovery level for a single LBA. The total amount of time spent in error recovery for a command can be limited using the Recovery Time Limit bytes in the Error Recovery mode page. The total amount of time spent in error recovery for a single LBA can be limited using the Read Retry Count or Write Retry Count bytes in the Error Recovery mode page.

The drive firmware error recovery algorithms consist of 12 levels for read recoveries and five levels for write. Each level may consist of multiple steps, where a step is defined as a recovery function involving a single reread or re-write attempt. The maximum level used by the drive in LBA recovery is determined by the read and write retry counts.

Constellation ES.2 SAS Product Manual, Rev. E 39

Table 3 equates the read and write retry count with the maximum possible recovery time for read and write recovery of individual LBAs. The times given do not include time taken to perform reallocations. Reallocations are performed when the ARRE bit (for reads) or AWRE bit (for writes) is one, the RC bit is zero, and the recovery time limit for the command has not yet been met. Time needed to perform reallocation is not counted against the recovery time limit.

When the RC bit is one, reallocations are disabled even if the ARRE or AWRE bits are one. The drive will still perform data recovery actions within the limits defined by the Read Retry Count, Write Retry Count, and Recovery Time Limit parameters. However, the drive does not report any unrecovered errors.

Table 3: Read and write retry count maximum recovery times

Maximum recovery time per

Read retry count*

1 124.32 1 35.91 5 621.62 2 55.86 10 1243.23 3 67.83 15 1864.85 4 119.79 20 (default) 2486.47 5 (default) 147.72

LBA (cumulative, msec) Write retry count

0 23.94

Maximum recovery time per LBA (cumulative, msec)

* For read retry count, every tick ~ 5% of total error recovery. Valid range setting is 1-20. e.g. 1 ~ 5% 5 ~ 25% 20 ~ 100% Setting these retry counts to a value below the default setting could result in degradation of the unrecovered

error rate. For example, suppose the read/write recovery page has the RC bit = 0 and if the read retry count is set to 5, this means ~ 25% of error recovery will be executed which consumes 621.62 ms (please refer to the table above). If the limit is reached and a LBA has not yet been recovered (i.e. requires retries be yond 621 .62 ms), the command will end with Check Condition status report and unrecoverable read error will be reported.

10.3 SAS system errors

Information on the reporting of operational errors or faults across the interface is given in the SAS Interface Manual. The SSP Response returns information to the host about numerous kinds of errors or faults. The

Receive Diagnostic Results reports the results of diagnostic operations performed by the drive. Status returned by the drive to the initiator is described in the SAS Interface Manual. Status reporting plays a

role in systems error management and its use in that respect is described in sections where the various commands are discussed.

10.4 Background Media Scan

Background Media Scan (BMS) is a self-initiated media scan. BMS is defined in the T10 document SPC-4 available from the T10 committee. BMS performs sequential reads across the entire pack of the media while the drive is idle. In RAID arrays, BMS allows hot spare drives to be scanned for defects prior to being put into service by the host system. On regular duty drives, if the host system makes use of the BMS Log Page, it can avoid placing data in suspect locations on the media. Unreadable and recovered error sites will be logged or reallocated per ARRE/AWRE settings.

40 Constellation ES.2 SAS Product Manual, Rev. E

With BMS, the host system can consume less power and system overhead by only checking BMS status and results rather than tying up the bus and consuming power in the process of host-initiated media scanning activity.

Since the background scan functions are only done during idle periods, BMS causes a negligible impact to system performance. The first BMS scan for a newly manufactured drive is performed as quickly as possible to verify the media and protect data by setting the “Start time after idle” to 5ms, all subsequent scans begin after 500ms of idle time. Other features that normally use idle time to function will function normally because BMS functions for bursts of 800ms and then suspends activity for 100ms to allow other background functions to operate.

BMS interrupts immediately to service host commands from the interface bus while performing reads. BMS will complete any BMS-initiated error recovery prior to returning to service host-initiated commands. Overhead associated with a return to host-servicing activity from BMS only impacts the first command that interrupted BMS, this results in a typical delay of about 1 ms.

10.5 Media Pre-Scan

Media Pre-Scan is a feature that allows the drive to repair media errors that would otherwise have been found by the host system during critical data accesses early in the drive’s life. The default setting for Media Pre-Scan is enabled on standard products. Media Pre-Scan checks each write command to determine if the destination LBAs have been scanned by BMS. If the LBAs have been verified, the drive proceeds with the normal write command. If the LBAs have not been verified by BMS, Pre-Scan will convert the write to a write verify to certify that the data was properly written to the disk.

Note. During Pre-Scan write verify commands, write performance may decrease by 50% until Pre-Scan

completes. Write performance testing shou ld be performed after Pre-Scan is complete. Th is may be checked by reading the BMS status.

To expedite the scan of the full pack and subsequently exit from the Pre-Scan period, BMS will begin scanning immediately when the drive goes to idle during the Pre-Scan period. In the event that the drive is in a high transaction traffic environment and is unable to complete a BMS scan within 24 power on hours BMS will disable Pre-Scan to restore full performance to the system.

10.6 Deferred Auto-Reallocation

Deferred Auto-Reallocation (DAR) simplifies reallocation algorithms at the system level by allowing the drive to reallocate unreadable locations on a subsequent write command. Sites are marked for DAR during read operations performed by the drive. When a write command is received for an LBA marked for DAR, the autoreallocation process is invoked an d attempts to rewrite th e data to the original location. If a verification of this rewrite fails, the sector is re-mapped to a spare location.

This is in contrast to the system having to use the Reassign Command to reassign a location that was unreadable and then generate a write command to rewrite the data. DAR is most effective when AWRE and ARRE are enabled—this is the default setting from the Seagate factory. With AWRE and ARRE disabled DAR is unable to reallocate the failing location and will report an error sense code indicating that a write command is being attempted to a previously failing location.

10.7 Idle Read After Write

Idle Read After Write (IRAW) utilizes idle time to verify the integrity of recently written data. During idle periods, no active system requests, the drive reads recently written data from the media and compares it to valid write command data resident in the drives data buffer. Any sectors that fail the compa rison r esult in th e i nvocation of a rewrite and auto-reallocation process. Th e process attempts to rewrite the data to the original location . If a verification of this rewrite fails, the sector is re-mapped to a spare location.

Constellation ES.2 SAS Product Manual, Rev. E 41

10.8 Protection Information (PI)

Protection Information is intended as a standardized approach to system level LRC traditionally provided by systems using 520 byte formatted LBAs. Drives formatted with PI information pr ovide the same , common LBA count (i.e. same capacity point) as non-PI formatted drives. Sequential performance of a PI drive will be reduced by approximately 1.56% due to the extra overhead of PI being transferred from the media that is not calculated as part of the data transferred to the host. To determine the full transfer rate of a PI drive, transfers should be calculated by adding the 8 extra bytes of PI to the transferred LBA length, i.e. 512 + 8 = 520. PI formatted drives are physically formatted to 520 byte sectors that store 512 bytes of customer data with 8 bytes of Protection Information appended to it. The advantage of PI is that the Protection Information bits can be managed at the HBA and HBA driver level. Allowing a system that typically does not support 520 LBA formats to integrate this level of protection.

Protection Information is valid with any supported LBA size. 512 LBA size is used here as common example.

10.8.1 Levels of PI

There are 4 types of Protection Information. Type 0 - Describes a drive that is not formatted with PI information bytes. This allows for legacy support in non-

PI systems. Type 1 - Provides support of PI protection using 10 and 16 byte commands. The RDPROTECT a nd WR TPRO-

TECT bits allow for checking control through the CDB. Eight bytes of Protection Information are transmitted at LBA boundaries across the interface if RDPROTECT and WRTPROTECT bits are nonzero values. Type 1 does not allow the use of 32 byte commands.

Type 2 - Provides checking control and additional expected fields within the 32 byte CDBs. Eight bytes of Protection Information are transmitted at LBA boundaries across the interface if RDPROTECT and W RTPROTECT bits are nonzero values. Type 2 does allow the use of 10 and 16 byte commands with zero values in the RDPROTECT and WRTPROTECT fields. The drive will generate 8 bytes (e.g.0xFFFF) 8 bytes of Protection Information to be stored on the media, but the 8 bytes will not be transferred to the host during a read command.

Type 3 - Seagate products do not support Type 3.

10.8.2 Setting and determining the current Type Level

A drive is initialized to a type of PI by using the format command on a PI capable dr ive . Once a drive is formatted to a PI Type, it may be queried by a Read Capacity (16) command to report the PI type which it is currently formatted to. PI T ypes cannot coexist on a sing le drive. A drive can only be formatted to a single PI Type. It can be changed at anytime to a new Type but requires a low level format which destroys all existing data on the drive. No other vehicle for changing the PI type is provided by the T10 SBC3 specification.

Type 1 PI format CDB command: 04 90 00 00 00 00, Write Buffer: 00 A0 00 00 Type 2 PI format CDB command: 04 D0 00 00 00 00, Write Buffer: 00 A0 00 00

10.8.3 Identifying a Protection Information drive

The St andard Inquiry provides a b it to ind icate if PI is suppor t by th e drive. V ital Product Descriptor (VPD) page 0x86 provides bits to indicate the PI Types supported and which PI fields the drive supports checking.

Note. For further details with respect to PI, please refer to SCSI Block Commands - 3 (SBC-3) Dr af t Stan-

dard documentation.

42 Constellation ES.2 SAS Product Manual, Rev. E

11.0 Installation

Constellation ES.2 disk drive installation is a plug-and-play process. There are no jumpers, switches, or terminators on the drive.

SAS drives are designed to be used in a host system that provides a SAS-compatible backplane with bays designed to accommodate the drive. In such systems, the host system typically provides a carrier or tray into which you need to mount the drive. Mount the drive to th e carrier o r tray provided by the host system using four M3 x 0.5 metric screws. When tightening the screws, use a maximum torque of 4.5 in-lb +/- 0.45 in-lb. Do not over-tighten or force the screws. You can mount the drive in any orientation.

Note. SAS drives are designed to be attached to the host system without I/O or power cables. If you

intend the use the drive in a non-backplane host system, connecting the drive using high-quality cables is acceptable as long as the I/O cable length does not exceed 4 meters (13.1 feet).

Slide the carrier or tray into the appropriate bay in your host system using the instructions provided by the host system. This connects the drive directly to your system’s SAS connector. The SAS connector is normally located on a SAS backpanel. See Section 12.4.1 for additional information about these connectors.

Power is supplied through the SAS connector. The drive is shipped from the factory low-level formatted in 512-byte logical blocks. You need to reformat the

drive only if you want to select a different logical block size.

Figure 8. Physical interface

Note. Image is for reference only, may not represent actual drive.

11.1 Drive orientation

The drive may be mounted in any orientation. All drive performance characterizations, however, have been done with the drive in horizontal (discs level) and vertical (drive on its side) orientations, which are the two preferred mounting orientations.

Constellation ES.2 SAS Product Manual, Rev. E 43

11.2 Cooling

Above unit

Under unit

Note. Air flows in the direction shown (back to front)

or in reverse direction (front to back)

Above unit

Under unit

Note. Air flows in the direction shown or in reverse direction (side to side)

Cabinet cooling must be designed by the customer so that the ambient temperature immediately surro unding the drive will not exceed temperature conditions specified in Section 7.5.1, "Temperature."

The rack, cabinet, or drawer environment for the drive must provide heat removal from the electronics and head and disk assembly (HDA). You should confirm that adequate heat removal is provided using the temperature measurement guidelines described in Section 7.5.1.

Forced air flow may be r equired to keep temper atures a t or be low the temper atures s pecified in Section 7.5.1 in which case the drive should be oriented, or air flow directed, so that the least amount of air flow resistance is created while providing air flow to the electronics and HDA. Also, the shortest possible path between the air inlet and exit should be chosen to minimize the travel length of air heated by the drive and other heat sources within the rack, cabinet, or drawer environment.

If forced air is determined to be necessary, possible air-flow patterns are shown in Figure 9. The air-flow patterns are created by one or more fans, either forcing or drawing air as shown in the illustrations. Conduction, convection, or other forced air-flow patterns are acceptable as long as the temperature measurement guidelines of Section 7.5.1 are met.

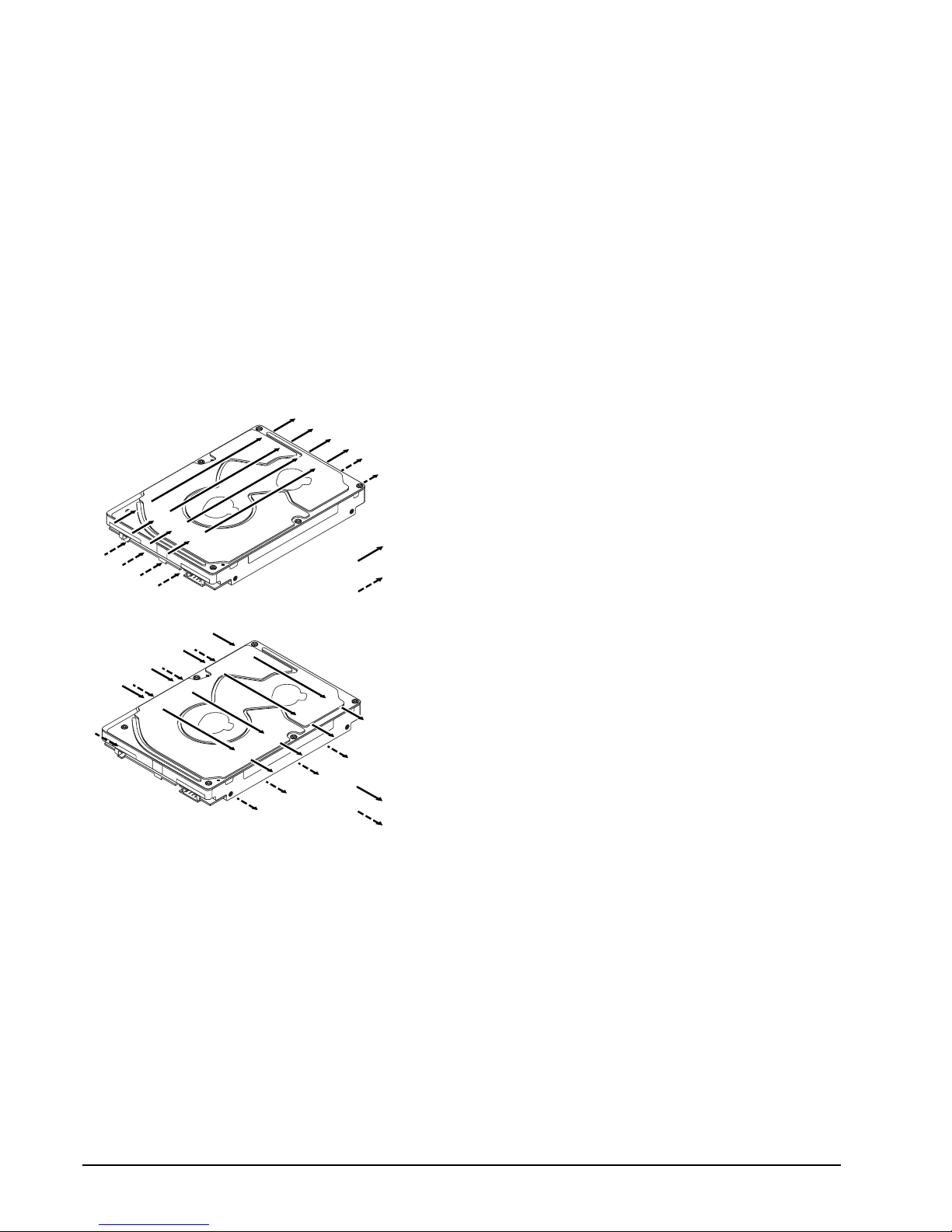

Figure 9. Air flow

Note. Image is for reference only, may not represent actual drive.

44 Constellation ES.2 SAS Product Manual, Rev. E

11.3 Drive mounting

Breather Hole Do Not Cover

K x X = F < 15lb = 67N

Mount the drive using the bottom or side mounting hole s. If you mount the drive using the b ottom holes, ensure that you do not physically distort the drive by attempting to mount it on a stiff, non-flat surface.

The allowable mounting surface stiffness is 80 lb/in (14.0 N/mm) . The followin g equ ation and paragraph define the allowable mounting surface stiffness:

where K is the mounting surface stiffness (units in lb/in or N/mm) and X is the out-of-plane surface distortion (units in inches or millimeters). The out-of-plane distortion (X) is determined by defining a plane with three of the four mounting points fixed and evaluating the out-of-plane deflection of the fourth mounting point when a known force (F) is applied to the fourth point.

Note. Do no

Breather hole location - top cover

t cover breather hole on top cover.

11.4 Grounding

Signal ground (PCBA) and HDA ground are connected together in the drive and cannot be separated by the user. The equipment in which the drive is mounted is connected directly to the HDA and PCBA with no electrically isolating shock mounts. If it is desired for the system chassis to not be connected to the HDA/PCBA ground, the systems integrator or user must provide a nonconductive (electrically isolating) method of mounting the drive in the host equipment.

Increased radiated emissions may result if you do not provide the maximum surface area ground connection between system ground and drive ground. This is the system designer’s and integrator’s responsibility.

Constellation ES.2 SAS Product Manual, Rev. E 45

12.0 Interface requirements

This section partially describes the interface requirements as implemented on Constellation ES.2 drives. Additional information is provided in the SAS Inter face Manual (part number 100293071).

12.1 SAS features

This section lists the SAS-specific features supported by Constellation ES.2 drives.

12.1.1 task management functions

Table 4 lists the SAS task management functions supported.

Table 4: SAS task management functions supported

Task name Supported

Abort Task Yes Clear ACA Yes Clear task set Yes Abort task set Yes Logical Unit Reset Yes Query Task Yes

12.1.2 task management responses

Table 5 lists the SAS response codes returned for task management functions supported.

Table 5: Task management response codes

Function name Response code

Function complete 00 Invalid frame 02 Function not supported 04 Function failed 05 Function succeeded 08 Invalid logical unit 09

46 Constellation ES.2 SAS Product Manual, Rev. E

12.2 Dual port support

Constellation ES.2 SAS drives have two independent ports. These ports may be connected in the same or different SCSI domains. Each drive port has a unique SAS address.

The two ports have the capability of independent port clocking (e.g. both ports can run at 6Gb/s or the first port can run at 6Gb/s while the second port runs at 3Gb/s. The supported link rates are 1.5, 3.0, or 6.0 Gb/s.

Subject to buffer availability, the Constellation ES.2 drives support:

• Concurrent port transfers—The drive supports receiving COMMAND, TASK management transfers on both

ports at the same time.

• Full duplex—The drive supports sending XFER_RDY, DATA and RESPONSE transfers while receiving

frames on both ports.

Constellation ES.2 SAS Product Manual, Rev. E 47

12.3 SCSI commands supported

Table 6 lists the SCSI commands supported by Constellation ES.2 drives.

Table 6: Supported commands

Command name Command code Supported

Change Definition 40h N Compare 39h N Copy 18h N Copy and Verify 3Ah N Format Unit [1] 04h Y DCRT bit supported Y DPRY bit supported N DSP bit supported Y IMMED bit supported Y IP bit supported Y SI (Security Initialize) bit supported N STPF bit supported Y VS (vendor specific) N Inquiry 12h Y Date Code page (C1h) Y Device Behavior page (C3h) Y Firmware Numbers page (C0h) Y Implemented Operating Def page (81h) Y Jumper Settings page (C2h) Y Supported Vital Product Data page (00h) Y Unit Serial Number page (80h) Y Lock-unlock cache 36h N Log Select 4Ch Y PCR bit Y DU bit N DS bit Y TSD bit Y ETC bit N TMC bit N LP bit N Protocol-specific Log Page for SAS (18h) Y Log Sense 4Dh Y Application Client Log page (0Fh) N Buffer Over-run/Under-run page (01h) N Cache Statistics page (37h) Y Factory Log page (3Eh) Y

48 Constellation ES.2 SAS Product Manual, Rev. E

Table 6: Supported commands

Command name Command code Supported

Information Exceptions Log page (2Fh) N Last n Deferred Errors or Asynchronous Events page (0Bh) N Last n Error Events page (07h) N Non-medium Error page (06h) Y Pages Supported list (00h) Y Read Error Counter page (03h) Y Read Reverse Error Counter page (04h) N Self-test Results page (10h) Y Start-stop Cycle Counter page (0Eh) Y Temperature page (0Dh) Y Verify Error Counter page (05h) Y Write error counter page (02h) Y Mode Select (same pages as Mode Sense 1Ah) 15h Y [2] Mode Select (10) (same pages as Mode Sense 1Ah) 55h Y Mode Sense 1Ah Y [2] Caching Parameters page (08h) Y Control Mode page (0Ah) Y Disconnect/Reconnect (02h) Y Error Recovery page (01h) Y Format page (03h) Y Information Exceptions Control page (1Ch) Y Notch and Partition Page (0Ch) N Protocol-Specific Port page (19h) Y Power Condition page (1Ah) Y Rigid disk Drive Geometry page (04h) Y Unit Attention page (00h) Y Verify Error Recovery page (07h) Y Xor Control page (10h) N Mode Sense (10) (same pages as Mode Sense 1Ah) 5Ah Y Persistent Reserve In 5Eh Y Persistent Reserve Out 5Fh Y Prefetch 34h N Read (6) 08h Y Read (10) 28h Y DPO bit supported Y FUA bit supported Y Read (12) A8h N Read (16) 88h Y Read (32) 7Fh/0009h N

Constellation ES.2 SAS Product Manual, Rev. E 49

Table 6: Supported commands

Command name Command code Supported

Read Buffer (modes 0, 2, 3, Ah and Bh supported) 3Ch Y (non-SED drives only) Read Capacity (10) 25h Y Read Capacity (16) 9Eh/10h Y Read Defect Data (10) 37h Y Read Defect Data (12) B7h Y Read Long 3Eh Y (non-SED drives only) Read Long (16) 9Eh/11h Y Reassign Blocks 07h Y Receive Diagnostic Results 1Ch Y Supported Diagnostics pages (00h) Y Translate page (40h) Y Release 17h Y Release (10) 57h Y Report LUNs A0h Y Request Sense 03h Y Actual Retry Count bytes Y Extended Sense Y Field Pointer bytes Y Reserve 16h Y 3rd Party Reserve Y Extent Reservation N Reserve (10) 56h Y 3rd Party Reserve Y Extent Reservation N Rezero Unit 01h Y Search Data Equal 31h N Search Data High 30h N Search Data Low 32h N Security Protocol In A2h Y (SED models only) Security Protocol Out B5h Y (SED models only) Seek (6) 0Bh Y Seek (10) 2Bh Y Send Diagnostics 1Dh Y Supported Diagnostics pages (00h) Y Translate page (40h) Y Set Limits 33h N Star t Unit/Stop Unit (spindle ceases rotating) 1Bh Y Synchronize Cache 35h Y Synchronize Cache (16) 91h Y

50 Constellation ES.2 SAS Product Manual, Rev. E

Table 6: Supported commands

Command name Command code Supported

Test Unit Ready 00h Y Verify (1 0) 2 Fh Y BYTCHK bit Y Verify (1 2) AFh N Verify (1 6) AFh Y Verify (32) 7Fh/000Ah N Write (6) 0Ah Y Write (10) 2Ah Y DPO bit Y FUA bit Y Write (12) AAh N Write (16) 8Ah Y Write (32) 7Fh/000Bh N Write and Verify (10) 2Eh Y DPO bit Y Write and Verify (12) AEh N Write and Verify (16) 8Eh Y Write and Verify (32) 7Fh/000Ch N Write Buffer (modes 0, 2, supported) 3Bh Y (non-SED drives only) Write Buffer 3Bh Firmware Download option (modes 5, 7, Ah and Bh) [3] Y (non-SED drives only) Firmware Download option (modes 4, 5, 7) Y (SED drives only) Write Long (10) 3Fh Y Write Long (16) 9Fh/11h Y Write Same (10) 41h Y PBdata N LBdata N Write Same (16) 93h Y Write Same (32) 7Fh/000Dh N XDRead 52h N XDWrite 50h N XPWrite 51h N

[1] Constellation ES.2 drives can format to 512, 520 or 528 bytes per logical block. [2] Warning. Power loss during flash programming can result in firmware corruption. This usually makes the

drive inoperable. [3] Reference Mode Sense command 1Ah for mode pages supported. [4] Y = Yes. Command is supported.

N = No. Command is not supported.

A = Support is available on special request.

Constellation ES.2 SAS Product Manual, Rev. E 51

12.3.1 Inquiry data

Table 7 lists the Inquiry command data that the drive should return to the initiator per the format given in the SAS Interface Manual.

Table 7: Constellation ES.2 inquiry data

Bytes Data (hex)

0-15 00 00 xx** 12 8B 00 30 02 53 45 41 47 41 54 45 20 Vendor ID 16-31 [53 54 33 33 30 30 30 36 35 30 53 53} 20 20 20 20 32-47 R# R# R# R# S# S# S# S# S# S# S# S# 00 00 00 00 48-63 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 64-79 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80-95 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 96-111 00 43 6F 70 79 72 69 67 68 74 20 28 63 29 20 32* *Copyright 112-127 30* 30* 39* 20 53 65 61 67 61 74 65 20 41 6C 6C 20 128-143 72 69 67 68 74 73 20 72 65 73 65 72 76 65 64 20

* Copyright year (changes with actual year). ** SCSI Revision support. See the appropriate SPC release documentation for definitions. PP 10 = Inquiry data for an Inquiry command received on Port A.

30 = Inquiry data for an Inquiry command received on Port B. R# Four ASCII digits representing the last four digits of the product firmware releas e number. S# Eight ASCII digits representing the eight [ ] Bytes 16 through 26 reflect model of drive. The table above shows the hex values for Model ST33000650SS.

Refer to the values below for the values of bytes 16 throug

ST33000651SS 53 54 33 33 30 30 30 36 35 31 53 53

ST33000652SS 53 54 33 33 30 30 30 36 35 32 53 53

Product ID

notice

digits of the product serial number.

h 26 of your particular model:

12.3.2 Mode Sense data

The Mode Sense command provides a way for the drive to repo

rt its operating parameters to the initiator. The

drive maintains four sets of mode parameters:

1. Default values

Default values are hard-coded in the drive firmware stor

ed in flash E-PROM (nonvolatile memory) on the drive’s PCB. These default values can be changed only by downloading a complete set of new firmware into the flash E-PROM. An initiator can request and receive from the drive a list of default values and use those in a Mode Select command to set up new current and saved values, where the values are changeable.

2. Saved values Saved values are stored on the drive’s media using a Mode Select command. Only parameter values that

re allowed to be changed can be changed by this method. Parameters in the saved values list that a re not

a changeable by the Mode Select command get their values from default values storage.

When power is applied to the drive, it takes saved values fro ues in volatile memory. It is

not possible to change the current values (or the saved values) with a Mode

m the media and stores them as current val-

Select command before the drive achieves operating speed and is “r ead y.” An attempt to do so results in a “Check Condition” status.

52 Constellation ES.2 SAS Product Manual, Rev. E

On drives requiring unique saved values, the required unique saved values are stored into the saved values storage location on the media prior to shipping the drive. Some drives may have unique firmware with unique default values also.

On standard OEM drives, the saved values are taken from the default values list and stored into the saved values storage location on the media prior to shipping.

3. Current values

Current values are volatile values being used by the drive to control its operation. A Mode Select command can be used to change the values identified as changeable values. Originally, current values are installed from saved or default values after a power on reset, hard reset, or Bus Device Reset message.

4. Changeable values

Changeable values form a bit mask, stored in nonvolatile memory, that dictates which of the current values and saved values can be changed by a Mode Select command. A one (1) indicates the value can be changed. A zero (0) indicates the value is not changeable. For example, in Table

8, refer to Mode page 81, in the row entitled “CHG.” These are hex numbers representing the changeable values for Mode page 81. Note in columns 5 and 6 (bytes 04 and 05), there is 00h which indicates that in bytes 04 and 05 none of the bits are changeable. Note also that bytes 06, 07, 09, 10, and 11 are not changeable, because those fields a re al l z ero s. In byt e 0 2, hex va lue FF equ at es to t he bi nar y p at ter n 11111111 . If th er e is a z er o in an y bi t position in the field, it means that bit is not changeable. Since all of the bits in byte 02 are on es, all of these bits are changeable.

The changeable values list can only be changed by downloading new firmware into the flash E-PROM.

Note. Because there are often several differe nt versions of drive contro l firmware in the tot al populatio n of

drives in the field, the Mode Sense values given in the following tables may not exactly match those of some drives.

The following tables list the values of the data bytes returned by the drive in response to the Mo de Sense command pages for SCSI implementation (see the SAS Interface Manual ).

DEF = Default value. Standard OEM drives are shipped configured this way. CHG = Changeable bits; indicates if default value is changeable.

Constellation ES.2 SAS Product Manual, Rev. E 53

Table 8: Mode Sense data changeable and default values for 3TB drives

MODE DATA HEADER: 01 9a 00 10 01 00 00 10

BLOCK DESCRIPTOR: 00 00 00 01 5d 50 a3 b0 00 00 00 00 00 00 02 00

MODE PAGES:

DEF 81 0a c0 14 ff 00 00 00 05 00 ff ff CHG 81 0a ff ff 00 00 00 00 ff 00 ff ff

DEF 82 0e 00 00 00 00 00 00 00 00 01 3a 00 00 00 00 CHG 82 0e 00 00 00 00 00 00 00 00 ff ff 00 00 00 00

DEF 83 16 00 01 00 00 00 00 00 02 00 03 02 00 00 01 00 00 00 00 40 00 00 00 CHG 83 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DEF 84 16 00 00 04 0a 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1c 20 00 00 CHG 84 16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DEF 87 0a 00 14 ff 00 00 00 00 00 ff ff CHG 87 0a 0f ff 00 00 00 00 00 00 ff ff

DEF 88 12 14 00 ff ff 00 00 ff ff ff ff 80 20 00 00 00 00 00 00 CHG 88 12 a5 00 00 00 ff ff ff ff 00 00 20 00 00 00 00 00 00 00

DEF 8a 0a 06 00 00 80 00 00 00 00 6b d0 CHG 8a 0a 07 f6 00 00 00 00 00 00 00 00

DEF 18 06 06 00 00 00 00 00 CHG 18 06 00 00 00 00 00 00

DEF 99 0e 46 00 07 d0 00 00 00 00 00 00 00 00 00 00 CHG 99 0e 50 00 ff ff ff ff ff ff 00 00 00 00 00 00

DEF 9a 26 00 06 00 00 00 0a 00 00 8c a0 00 00 17 70 00 00 46 50 00 00 46 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 CHG 9a 26 01 0f ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

DEF 9c 0a 10 00 00 00 00 00 00 00 00 01 CHG 9c 0a 9d 0f ff ff ff ff ff ff ff ff

DEF dc 01 00 0c 01 01 00 48 00 18 01 f4 00 00 00 00 CHG dc 01 00 0c 00 01 ff ff ff ff ff ff ff ff 00 00

DEF 80 06 00 80 0f 00 00 00 CHG 80 06 b7 c0 0f 00 00 00

54 Constellation ES.2 SAS Product Manual, Rev. E

12.4 Miscellaneous operating features and conditions

Table 9 lists various features and conditions. A “Y” in the support column indicates the feature or condition is supported. An “N” in the support column indicates the feature or condition is not supported.

Table 9: Miscellaneous features

Supported Feature or condition

N Automatic contingent allegiance N Asynchronous event notification N Synchronized (locked) spindle operation Y Segmented caching N Zero latency read Y Queue tagging (up to 64 queue tags supported) Y Deferred error handling Y Parameter rounding (controlled by Round bit in Mode Select page 0) Y Reporting actual retry count in Extended Sense bytes 15, 16, and 17 N Adaptive caching Y SMP = 1 in Mode Select command needed to save RPL and rotational offset bytes

Table 10: Miscellaneous status

Supported Status

YGood Y Check condition Y Condition met/good YBusy Y Intermediate/good Y Intermediate/condition met/good Y Reservation conflict Y Task set full NACA active N ACA active, faulted initiator

Constellation ES.2 SAS Product Manual, Rev. E 55

12.4.1 SAS physical interface

Figure 10 shows the location of the SAS device connector J1. Figures 11 and 12 provide the dimensions of the SAS connector.

Details of the physical, electrical, and logical characteristics are provided within this section. The operational aspects of Seagate’s SAS drives are provided in the SAS Interface Manual.

Figure 10. Physical interface

56 Constellation ES.2 SAS Product Manual, Rev. E

C OF DATUM B

5.08

1.27 (6X)

1.27 (14X)

15.875

0.35MIN

15.875

33.43 0.05

4.90 0.08

0.84 0.05 (22X)

0.15 B

P15

SEE Detail1

0.30 0.05 (4X)

4.00 0.08

0.15 D

0.30 0.05 (2X)

41.13 0.15

0.20

42.73 REF.

C OF DATUM D

1.10

R0.30 0.08 (4X)

2.00 (3X)

5.08

0.45 0.03 (7X)

0.10 M E

4.65

0.80 (6X)

7.625.92

0.52 0.08 x 45

Figure 11. SAS device plug dimensions

Constellation ES.2 SAS Product Manual, Rev. E 57

6.10

Detail A

0.30 0.05 x 45 (5X)

0.40 0.05 X 45 (3X)

CORING ALLOWED IN THIS AREA.

2.25 0.05

4.85 0.05

0.10

S14

4.40 0.15

SEE Detail 2

3.90 0.15

SECTION A - A

SECTION C - C

0.35 0.05

R0.30 0.08

1.95 0.08

0.08 0.05

1.23 0.05

0.08 0.05

Detail 2

CONTACT SURFACE FLUSH TO DATUM A 0.03

1.90 0.08

SECTION B - B

2.40 0.08

0.10 A

Figure 12. SAS device plug dimensions (detail)

58 Constellation ES.2 SAS Product Manual, Rev. E

12.4.2 Physical characteristics

This section defines physical inter

face connector.

12.4.3 Connector requirements

Contact your preferred connector manufacturer for matin

g part information. Part numbers for SAS connectors will be provided in a future revision of this publication when production parts are available from major connector manufacturers.

The SAS device connector is illustrated in Figures 11 and 12.

12.4.4 Electrical description

SAS drives use the device connector for:

• DC power

• SAS interface

• Activity LED This connector is designed to either plug dir

ectly into a backpanel or accept cables.

12.4.5 Pin descriptions

This section provides a pin-out of t

he SAS device and a description of the functions provid e d by the pin s.

Table 11: SAS pin descriptions

Pin Signal name Signal type Pin Signal name Signal type

S1 Port A Ground P1* NC (reserved 3.3Volts) S2* +Port A_in Diff. input pair P2* NC (reserved 3.3Vol ts) S3* -Port A_in P3 NC (reserved 3.3Volts) S4 Port A Ground P4 Ground S5* -Port A_out Diff output pair P5 Ground S6* +Port A_out P6 Ground S7 Port A Ground P7 5 Volts charge S8 Port B Ground P8* 5 Volts S9* +Port B_in Diff. input pair P9* 5 Volts S10* -Port B_in P10 Ground S11 Port A Ground P11* Ready LED Open collector out S12* -Port B_out Diff output pair P12 Ground S13* +Port B_out P13 12 Volts charge S14 Port B Ground P14* 12 Volts

P15* 12 Volts

* - Short pin to support hot plugging NC - No connection in the drive.

Constellation ES.2 SAS Product Manual, Rev. E 59

12.4.6 SAS transmitters and receivers

Receiver

Differential

Transfer Medium

.01

100100

Transmitter

A typical SAS differential copper transmitter and receiver pair is shown in Figure 13. The receiver is AC coupling to eliminate ground shift noise.

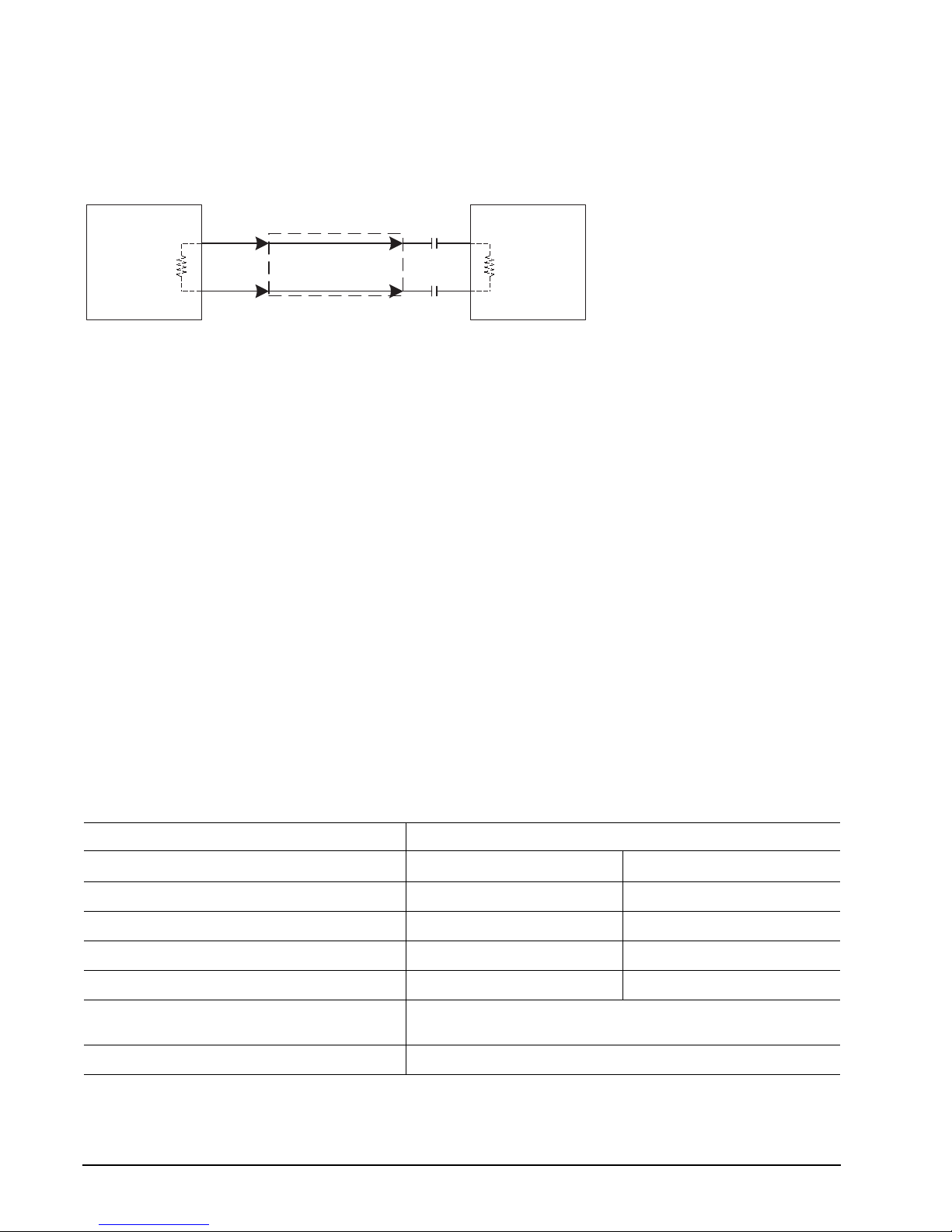

Figure 13. SAS transmitters and receivers

12.4.7 Power

The drive receives power (+5 volts and +12 volts) through the SAS device connector. Three +12 volt pins provide power to the drive, 2 short and 1 long. The current return for the +12 volt power

supply is through the common ground pins. The supply current and return current must be distributed as evenly as possible among the pins.

Three +5 volt pins provide power to the drive, 2 short and 1 long. The current return for the +5 volt power supply is through the common ground pins. The supply current and return current must be distributed as evenly as possible among the pins.

Current to the drive through the long power pins may be limited by the system to reduce inrush current to the drive during hot plugging.

12.5 Signal characteristics

This section describes the electrical signal characteristics of the drive’s input and output signals. See Table 11 for signal type and signal name information.

12.5.1 Ready LED Out

The Ready LED Out signal is driven by the drive as indicated in Table 12.

Table 12: Ready LED Out conditions

Normal command activity LED status

Ready LED Meaning bit mode page 19h

Spun down and no activity Off Off Spun down and activity (command executing) On On Spun up and no activity On Off Spun up and activity (command executing) Off On Spinning up or down Blinks steadily

(50% on and 50% off, 0.5 seconds on and off for 0.5 seconds)

Format in progress, each cylinder change Toggles on/off

60 Constellation ES.2 SAS Product Manual, Rev. E

The Ready LED Out signal is designed to pull down the cathode of an LED. The anode is attached to the proper +3.3 volt supply through an appropriate current limiting resistor. The LED and the current limiting resistor are external to the drive. See Table 13 for the output characteristics of the LED drive signals.

Table 13: LED drive signal

State Test condition Output voltage

LED off, high 0 V LED on, low I

≤ VOH ≤ 3.6 V -100 µA < I

= 15 mA 0 ≤ VOL ≤ 0.225 V

< 100 µA

12.5.2 Differential signals

The drive SAS differential signals comply with the intra-enclosure (internal connector) requirements of the SAS standard.

Table 14 defines the general interface characteristics.

Table 14: General interface characteristics

Characteristic Units 1.5Gb/s 3.0Gb/s 6.0Gb/s

Bit rate (nominal) Mbaud 1,500 3,000 6,000 Unit interval (UI)(nominal) ps 666.6 333.3 166.6 Impedance (nominal, differential ) ohm 100 100 100 Transmitter transients, maximum V ± 1.2 ± 1.2 ± 1.2 Receiver transients, maximum V ± 1.2 ± 1.2 ± 1.2

12.6 SAS-2 Specification Compliance

Seagate SAS-2 drives are entirely compatible with the latest SAS-2 Specification (T10/1760-D) Revision 16. The most important characteristic of the SAS-2 drive at 6Gb/s is that the receiver is capable of adapting the

equalizer to optimize the receive margins. The SAS-2 drive has two types of equalizers:

1. A Decision Feedback Equalizer (DFE) which utilizes the standard SAS-2 training pattern transmitted dur-

ing the SNW-3 training gap. The DFE circuit can derive an optimal equalization characteristic to compensate for many of the receive losses in the system.

2. A Feed Forward Equalizer (FFE) optimize d to prov ide balanced receive margins over a range of channels

bounded by the best and worst case channels as defined by the relevant ANSI standard.

12.7 Additional information

Please contact your Seagate representative for SAS electrical details, if required. For more information about the Phy, Link, Transport, and Applications layers of the SAS interface, refer to the

Seagate SAS Interface Manual, part number 100293071. For more information about the SCSI commands used by Seagate SAS drives, refer to the Seagate SCSI

Commands Reference Manual, part number 100293068.

Constellation ES.2 SAS Product Manual, Rev. E 61

62 Constellation ES.2 SAS Product Manual, Rev. E

Index

Numerics

12 volt

pins 60 5 volt pins 60 6 Gbps 61

abort task set function 46 AC coupling 60 AC power requirements 22 ACA active status 55 ACA active, faulted initiator status 55 acoustics 31 active LED Out signal 60 actuator 9

assembly design 7 adaptive caching 55 Admin SP 36 AES-128 data encryption 36 air cleanliness 31 air flow 44

illustrated 44 air inlet 44 altitude 29 ambient 28 ambient temperature 44 ANSI documents

SCSI 6

Serial Attached SCSI 6 asynchronous event notification 55 audible noise 3 Australian C-Tick 4 auto write and read reallocation

programmable 8 automatic contingent allegiance 55 average idle current 23 average rotational latency 10

Background Media Scan 40 backpanel 59 Band 0 37 BandMasterX 36 BMS 40 BSMI 4 buffer

data 8

space 12 busy status 55 bytes per surface 10 bytes per track 10

cache operation 12 cache segments 12 caching write data 13 Canadian Department of Communications 3 capacity

unformatted 10 CBC 36 CE Marking 4 check condition status 55 China RoHS directive 5 Cipher Block Chaining 36 class B limit 3 clear ACA function 46 clear task set function 46 commands supported 48 condensation 28 condition met/good status 55 connector

illustrated 59

requirements 59 continuous vibration 31 cooling 44 CRC

error 15 Cryptographic erase 37 C-Tick 4 Current profiles 25 customer service 20

DAR 41 Data Bands 37 data bands 36 data block size

modifing the 9 data buffer to/from disk media 11 Data encryption 36 Data Encryption Key 36 data heads

read/write 10 data rate

internal 10 data transfer rate 11 DC power 59

requirements 22 Decision Feedback Equalizer 61 decrypt 36 default MSID password 37 defect and error management 39 defects 39 Deferred Auto-Reallocation 41 deferred error handling 55 DEK 36

Constellation ES.2 SAS Product Manual, Rev. E 63

description 7 DFE 61 dimensions 33 disk rotation speed 10 drive 31 drive characteristics 10 Drive Locking 37 drive mounting 33, 45 drive select 59 dual port support 47

electrical

description of connector 59 signal characteristics 60

specifications 21 electromagnetic compatibility 3 Electromagnetic Compatibility (EMC) 4 Electromagnetic Compatibility control Regulation 4 Electromagnetic compliance for the European Union

electromagnetic susceptibility 32 EMI requirements 3 encryption engine 36 encryption key 37 environment 44 environmental

limits 28

requirements 14 environmental control 31 EraseMaster 36 error

management 39

rates 14 errors 39 European Union 4

FCC rules and regulations 3 features 8

interface 46 Federal Information Processing Standard 34 feed forward equalizer 61 FFE 61 FIPS 34 firmware 8

corruption 51 firmware download port 37 flawed sector reallocation 8 Format command execution time 11 function

complete, code 00 46

not supported, code 05 46

reject, code 04 46

Global Data Band 37 Good status 55 gradient 28 ground shift noise 60 grounding 45

HDA 44, 45 head and disk assembly (HDA) 7 head and disk assembly. See HDA heads

read/write data 10 heat removal 44 heat source 44 host equipment 45 hot plugging the drive 15 humidity 28 humidity limits 28

Identifying a PI drive 42 Idle Read After Write 41 Idle1 21 Idle2 21 Idle3 21 inquiry data 52 installation 43

guide 6 interface

commands supported 48

error rate 14

errors 15

illustrated 56

physical 56

requirements 46 interleave

minimum 11 intermediate/condition met/good status 55 intermediate/good status 55 internal data rate 10 internal defects/errors 39 internal drive characteristics 10 IRAW 41

jumpers 43

KCC 4 Korean Communications Commission 4 Korean KCC 4

64 Constellation ES.2 SAS Product Manual, Rev. E

latency

average rotational 10, 11 Locking SP 36 LockOnReset 37 logical block address 12 logical block reallocation scheme 8 logical block size 8, 11 logical segments 12

maintenance 14 Makers Secure ID 36 maximum delayed motor start 23 maximum start current 23 mean time between failure. See MTBF media description 8 Media Pre-Scan 41 minimum sector interleave 11 miscellaneous feature support

Adaptive caching 55

Asynchronous event notification 55

Automatic contingent allegiance 55

Deferred error handling 55

Parameter rounding 55

Queue tagging 55

Reporting actual retry count 55

Segmented caching 55

SMP = 1 in Mode Select command 55

Synchronized (locked) spindle operation 55

Zero latency read 55 miscellaneous status support

ACA active 55

ACA active, faulted initiator 55

Busy 55

Check condition 55

Condition met/good 55

Good 55

Intermediate/condition met/good 55

Intermediate/good 55

Reservation conflict 55

Task set full 55 miscorrected media data 14 Mode sense

data, table 52, 54 mounting 45

holes 45

orientations 43 mounting configuration 33 mounting configuration dimensions 33 MSID 36, 37 MTBF 14, 15

noise

audible 3 noise immunity 24 non-operating 28, 29, 31

temperature 28 non-operating vibration 31

office environment 31 operating 28, 29, 31 option selection 59 options 9 out-of-plane distortion 45

package size 30 packaged 30 parameter rounding 55 password 36, 37 passwords 36 PCBA 45 peak bits per inch 10 peak operating current 23 peak-to-peak measurements 24 performance characteristics

detailed 10

general 11 performance degradation 29 performance highlights 8 physical damage 31 physical interface 56 physical specifications 21 PI level - Type 0 42 PI level - Type I 42 PI level - Type II 42 PI level - Type III 42 PI Levels 42 pin descriptions 59 power 60

dissipation 26

requirements, AC 22

requirements, DC 22

sequencing 24 Power Condition mode page 21 power distribution 3 power management 21 PowerChoice 21 PowerChoice reports 22 PowerCycle 37 prefetch/multi-segmented cache control 12 preventive maintenance 14 protection information 42 protection of data at rest 36

Constellation ES.2 SAS Product Manual, Rev. E 65

queue tagging 55

radio interference regulations 3 Random number generator 37 RCD bit 12 read error rates 14, 39 read/write data heads 10 receivers 60 recommended mounting 30 Recoverable Errors 14 recovered media data 14 reference

documents 6 relative humidity 28 reliability 9

specifications 14 reliability and service 15 repair and return information 20 reporting actual retry count 55 reservation conflict status 55 resonance 29 return information 20 RNG 37 RoHS 5 rotation speed 10

safety 3 SAS

interface 59

physical interface 56

task management functions 46 SAS documents 6 SAS Interface Manual 3, 6 SAS-2 specification compliance 61 SCSI interface

commands supported 48 Secure ID 36 security partitions 36 Security Protocol In 36 Security Protocol Out 36 seek error

defined 15

rate 14 seek performance characteristics 10 seek time

average typical 10

full stroke typical 10

single track typical 10 segmented caching 55 self-encrypting drives 36 Self-Monitoring Analysis and Reporting Technology

9, 16

Serial Attached SCSI (SAS) Interface Manual 2 shielding 3 shipping 20 shipping container 28 shock 29

and vibration 29 shock mount 45 SID 36 signal

characteristics 60 single-unit shipping pack kit 9 SMART 9, 16 SMP = 1 in Mode Select command 55 SNW-3 training gap 61 standards 3 Standby1 21 Standby2 21 START STOP UNIT command 21 start/stop time 11 support services 1 surface stiffness

allowable for non-flat surface 45 switches 43 synchronized spindle

operation 55 system chassis 45

Taiwanese BSMI 4 task management functions 46

Abort task set 46

Clear ACA 46

Clear task set 46

terminate task 46 task management response codes 46

Function complete 00 46

Function not supported 05 46

Function reject 04 46 task set full status 55 TCG 36 technical support services 1 temperature 28, 44

limits 28

non-operating 28

regulation 3

See also cooling terminate task function 46 terminators 43 tracks per inch 10 tracks per surface 10 transmitters 60 transporting the drive 20 Trusted Computing Group 36 Type 1 PI format 42

66 Constellation ES.2 SAS Product Manual, Rev. E

Type 2 PI format 42

unformatted 9 Unrecoverable Errors 14 unrecovered media data 14

vibration 29, 31

warranty 20

zero latency read 55

Constellation ES.2 SAS Product Manual, Rev. E 67

68 Constellation ES.2 SAS Product Manual, Rev. E

Seagate Technology LLC

AMERICAS Seagate Technology LLC 10200 South De Anza Boulevard, Cupertino, California 95014, United States, 408-658-1000 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00

Publication Number: 100628615, Rev. E August 2011

Seagate Constellation ES.2 SAS ST33000650SS,Constellation ES.2 SAS ST33000651SS,Constellation ES.2 SAS ST33000652SS Product Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
