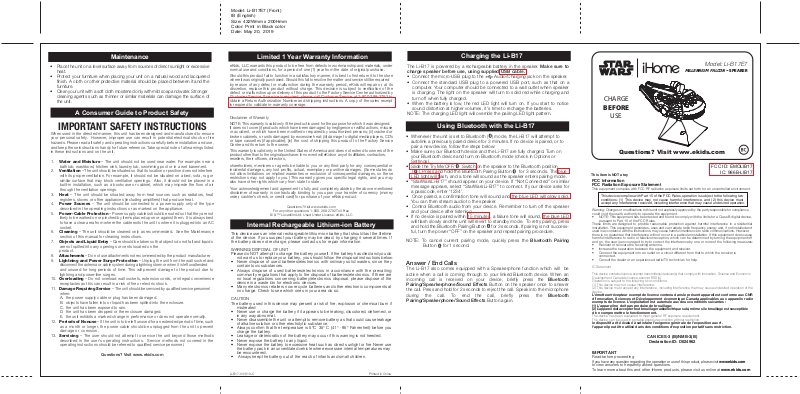

SDI Technologies LIB17 User Manual

Model: Li-B17E7 (Front)
IB (English)
Size: 432Wmm x 200Hmm
Color: Print in Black color
Date: May 20, 2019

Maintenance

• Place the unit on a level surface away from sources of direct sunlight or excessive
heat.

• Protect your furniture when placing your unit on a natural wood and lacquered
finish. A cloth or other protective material should be placed between it and the
furniture.

• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger
cleaning agents such as thinner or similar materials can damage the surface of
the unit.

A Consumer Guide to Product Safety

IMPORTANT SAFETY INSTRUCTIONS

When used in the directed manner, this unit has been designed and manufactured to ensure
your personal safety. However, improper use can result in potential electrical shock or fire
hazards. Please read all safety and operating instructions carefully before installation and use,
and keep these instructions handy for future reference. Take special note of all warnings listed
in these instructions and on the unit.

1. Water and Moisture – The unit should not be used near water. For example: near a
bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.

2. Ventilation – The unit should be situated so that its location or position does not interfere
with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or
similar surface that may block ventilation openings. Also, it should not be placed in a
built-in installation, such as a bookcase or cabinet, which may impede the flow of air
through the ventilation openings.

3. Heat – The unit should be situated away from heat sources such as radiators, heat
registers, stoves or other appliances (including amplifiers) that produce heat.

4. Power Sources – The unit should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance.

5. Power-Cable Protection – Power supply cables should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them. It is always best
to have a clear area from where the cable exits the unit to where it is plugged into an AC
socket.

6. Cleaning – The unit should be cleaned only as recommended. See the Maintenance
section of this manual for cleaning instructions.

7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids
are not spilled into any openings or vents located on the

product.

8. Attachments – Do not use attachments not recommended by the product manufacturer.

9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and
disconnect the antenna or cable system during a lightning storm or when it is left unattended
and unused for long periods of time. This will prevent damage to the product due to
lightning and power-line surges.

10. Overloading – Do not overload wall sockets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.

11. Damage Requiring Service – The unit should be serviced by qualified service personnel
when:

A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.

12. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such
as a month or longer, the power cable should be unplugged from the unit to prevent
damage or corrosion.

13. Servicing – The user should not attempt to service the unit beyond those methods
described in the user’s operating instructions. Service methods not covered in the
operating instructions should be referred to qualified service personnel.

Questions? Visit www.ekids.com

Limited 1 Year Warranty Information

eKids, LLC warrants this product to be free from defects in workmanship and materials, under
normal use and conditions, for a period of one (1) year from the date of original purchase.

Should this product fail to function in a satisfactory manner, it is best to first return it to the store
where it was originally purchased. Should this fail to resolve the matter and service still be required
by reason of any defect or malfunction during the warranty period, eKids will repair or, at its
discretion, replace this product without charge. This decision is subject to verification of the
defect or malfunction upon delivery of this product to the Factory Service Center authorized by
Customer Service. If service is required, please call Customer Service at 1-800-288-2792 to
obtain a Return Authorization Number and shipping instructions. A copy of the sales receipt
is required to validate in-warranty coverage.

Disclaimer of Warranty

NOTE: This warranty is valid only if the product is used for the purpose for which it was designed.
It does not cover (i) products which have been damaged by negligence or willful actions, misuse
or accident, or which have been modified or repaired by unauthorized persons; (ii) cracked or
broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD’s
or tape cassettes (if applicable); (iv) the cost of shipping this product to the Factory Service
Center and its return to the owner.

This warranty is valid only in the United States of America and does not extend to owners of the
product other than to the original purchaser. In no event will eKids or any of its affiliates, contractors,
resellers, their officers, directors,

shareholders, members or agents be liable to you or any third party for any consequential or
incidental damages, any lost profits, actual, exemplary or punitive damages. (Some states do
not allow limitations on implied warranties or exclusion of consequential damages, so these
restrictions may not apply to you.) This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.

Your acknowledgement and agreement to fully and completely abide by the above mentioned
disclaimer of warranty is contractually binding to you upon your transfer of currency (money
order, cashier's check, or credit card) for purchase of your eKids product.

Questions? Visit www.ekids.com

For any other questions: 1-800-288-2792 Toll Free

© & ™ Lucasfilm Ltd. Used Under License. eKids, LLC

Internal Rechargeable Lithium-ion Battery

This device uses an internal rechargeable lithium-ion battery that should last the lifetime
of the device. If you suspect your battery may be dead, try charging it several times. If
the battery does not recharge, please contact us for repair information.

WARNING/DISPOSAL OF UNIT
Please do NOT attempt to change the battery yourself. If the battery has died and you do

not want us to replace your battery, you should follow the disposal instructions below:

• Never dispose of used batteries/electronics with ordinary solid wastes, since they
contain toxic substances.

• Always dispose of used batteries/electronics in accordance with the prevailing
community regulations that apply to the disposal of batteries/electronics. If there are
no local regulations concerning battery/electronics disposal, please dispose of the
device in a waste bin for electronic devices.

• Many electronics retailers now recycle batteries and other electronic components at
no charge. Check to see which ones in your area do so.

CAUTION
The battery used in this device may present a risk of fire, explosion or chemical burn if

mistreated

• Never use or charge the battery if it appears to be leaking, discolored, deformed, or
in any way abnormal.

• Never disassemble the unit or attempt to remove battery as that could cause leakage
of alkaline solution or other electrolytic substance.

• Always confirm that the temperature is 5°C 35° C (41° - 95° Fahrenheit) before you
charge the battery.

• Leakage or deterioration of the battery may occur if this warning is not heeded.

• Never expose the battery to any liquid.

• Never expose the battery to excessive heat such as direct sunlight or fire.Never use
the battery pack in an unventilated vehicle where excessive internal temperatures may
be encountered.

• Always keep the battery out of the reach of infants and small children.

Li-B17-031319-C Printed in China

Charging the Li-B17

The Li-B17 is powered by a rechargeable battery in the speaker. Make sure to
charge speaker before use, using supplied USB cable.

• Connect the micro-USB plug to the Audio/Charging jack on the speaker.

• Connect the standard USB plug to a powered USB port, such as that on a
computer. Your computer should be connected to a wall outlet when speaker
is charging. The light on the speaker will turn to solid red while charging and
turn off when fully charged.

• When the battery is low, the red LED light will turn on. If you start to notice
sound distortion at higher volumes, it's time to recharge the batteries.

NOTE: The charging LED light will override the pairing LED light pattern.

Using Bluetooth with the Li-B17

• Whenever the unit is set to Bluetooth ( ) mode, the Li-B17 will attempt to
autolink a previously paired device for 3 minutes. If no device is paired, or to
pair a new device, follow the steps below:

• Make sure your Bluetooth device and the Li-B17 are fully charged. Turn on
your Bluetooth device and turn on Bluetooth mode (check in Options or
Settings).

• Slide the Try Me/OFF/ Switch on the speaker to the Bluetooth position

( ). Press and hold the Bluetooth Pairing Button for 3 seconds. The blue

LED light will flash, and a tone will sound as the speaker enters pairing mode.

• “StarWarsLi-B17” should appear on your device. If “Not Connected” or similar
message appears, select “StarWarsLi-B17” to connect. If your device asks for
a passcode, enter ‘1234’.

• Once paired, a confirmation tone will sound and the blue LED will glow solid.
You can then stream audio to the speaker.

• Control Bluetooth audio from your device. Remember to turn off the speaker
and your device after listening.

• If no device is paired within 15 minutes, a failure tone will sound, the blue LED
will flash slowly and the unit will revert to standby mode. To retry pairing, press
and hold the Bluetooth Pairing Button for 3 seconds. If pairing is not success­ful, turn the power “OFF” on the speaker and repeat pairing procedure.

NOTE: To cancel current pairing mode, quickly press the Bluetooth Pairing

Button for 1 second.

Answer / End Calls

The Li-B17 also comes equipped with a Speakerphone function which will be
active when a call is coming through to your linked Bluetooth device. When an
incoming call is received on your device, briefly press the Bluetooth
Pairing/Spearkerphone/Sound Effects Button on the speaker once to answer
the call. Press and hold
during the call. To end the call, briefly press the Bluetooth
Pairing/Speakerphone/Sound Effects Button again.

for 2 seconds to reject the call.

Speak into the microphone

Model: Li-B17E7

™

MILLENNIUM FALCON

SPEAKER

CHARGE

BEFORE

USE

Questions? Visit www.ekids.com

FCC ID: EMOLIB17

This item is NOT a toy

FCC Information
FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

This device complies with Part 15 of the FCC Rules, operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.

• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

• Consult the dealer or an experienced radio/TV technician for help.

IC Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the
device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR
d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) L’appareil ne doit pas produire de brouillage;
(2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.

The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.

le dispositif a été évalué à satisfaire l'exigence générale de l'exposition aux rf.
l'appareil peut être utilisé dans des conditions d'exposition portatif sans restriction.

CAN ICES-3 (B)/NMB-3(B)

Declaration ID: D024962

IMPORTANT

Read before proceeding
If you have any question regarding the operation or use of this product, please visit www.ekids.com

to view answers to frequently asked questions.
To learn more about this and other iHome products, please visit us online at www.ekids.com

IC: 986B-LIB17

Top View

Standard
USB plug

Micro USB plug

Charging Jack

Press and hold to pair

Bluetooth Mode

LED Indicator:

Blue = Bluetooth pairing

Red = Charging/Low Battery

to play

Try me/OFF/
Switch

TRY ME

Note: These plastic parts are used
to secure the speaker in the
package. Please discard the parts

Bluetooth Pairing/

upon removing the speaker from
the package.

USB charging cable

Speakerphone/

Sound Effects

Button

Charging the Li-B17 CHARGE BEFORE USE

Microphone

LED

Computer
connected to
working outlet

Computer USB port

USB AC adaptor
(not included)

OR

Try me/OFF/ Switch

This unit comes shipped in Try me mode for in-store demonstration purposes. When you are ready to play, slide the Try me/OFF/ switch on the
back of the unit to the ON position. When you are finished, be sure to slide the switch to the OFF position to save battery life.

USB AC adaptor
connected to working outlet
