Model: iSPR4 QSG (English) Size: 65mm x 155mm Date : Mar 1 , 2016 Pages: 1

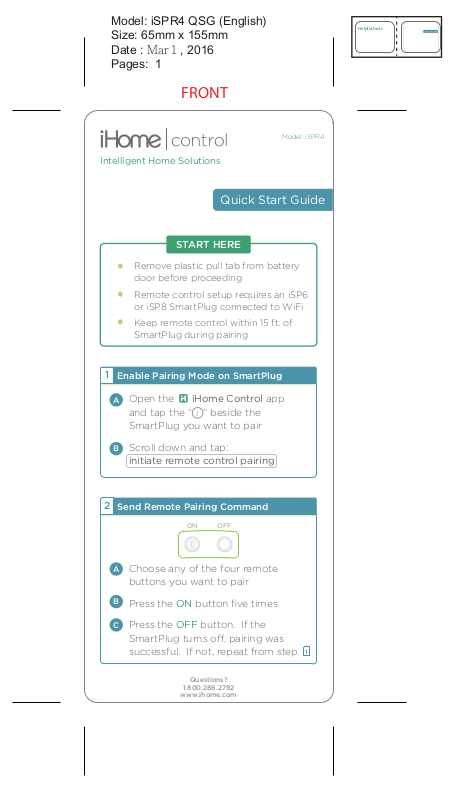

FRONT

Intelligent Home Solutions

Quick Start Guide

START HERE

Remove plastic pull tab from battery door before proceeding

Remote control setup requires an iSP6 or iSP8 SmartPlug connected to WiFi

Keep remote control within 15 ft. of SmartPlug during pairing

Enable Pairing Mode on SmartPlug

Open the iHome Control app

and tap the “ ” beside the SmartPlug you want to pair

Scroll down and tap:

initiate remote control pairing

Model: iSPR4

Helpful Facts

Quick Start Guide

Send Pairing Commands

Send Remote Pairing Command

ON OFF

Choose any of the four remote

buttons you want to pair

Press the ON button ﬁve times

Press the OFF button. If the SmartPlug turns o, pairing was successful. If not, repeat from step

Questions?

1.800.288.2792

www.ihome.com

BACK

Helpful Facts

Multiple SmartPlugs can be programmed to use the same remote control button. This allows a group of plugs to be triggered at the same time with a single press (all plugs must be within range of remote control).

The SmartPlug will retain remote control pairing information even through power outages and software resets. Please use the iHome Control app to delete remote control pairing info.

The LED at the top of the remote will blink green when a button is pressed. If the SmartPlug does not respond, please move within range. If problem persists, please replace the battery and retry.

Each SmartPlug can be paired to a maximum of 4 individual buttons.

For warranty information: visit https://www.ihomeaudio.com/support/

Notices

FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

To assure continued FCC compliance:

1. Any changes or modiﬁcations not expressly approved approved by the grantee of this device could void the user's authority to operate the equipment.

2. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STAT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by

interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation estautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectrique subi, mêmesi le brouillage est susceptible d'en compromettre le fonctionnement.

EMENT

Questions? Visit www.ihome.com

or call 1-800-288-2792 Toll Free

iSPR_2016_QSG_v5
